JVC KD-DV5306, KD-DV5305, KD-DV4306, KD-DV4305 Instructions Manual

Download

DVD/CD RECEIVER

For canceling the display demonstration, see page 5.

For installation and connections, refer to the separate manual.

KD-DV5306/KD-DV5305/ KD-DV4306/KD-DV4305

KD-DV5306/KD-DV5305

KD-DV4306/KD-DV4305

INSTRUCTIONS

GET0439-005A

[A]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

How to forcibly eject a disc

[European Union only]

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

How to reset your unit

• Your preset adjustments will also be erased.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

How to use functions mode

If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

[Within 5 seconds...]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit in locations where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety

devices such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

• If you need to operate the unit while

driving, be sure to look ahead carefully.

• The driver must not watch the monitor

while driving.

If the parking brake is not engaged,

“DRIVER MUST NOT WATCH THE MONITOR WHILE DRIVING.” appears on the monitor, and no playback picture will be shown. – This warning appears only when the

parking brake wire is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

CONTENTS

INTRODUCTIONS

Playable disc type .................................... 4

Preparation ............................................ 5

OPERATIONS

Basic operations

• Control panel ..................................... 6

• Remote controller (RM-RK241) ............ 7

Listening to the radio ............................... 10

Disc operations ........................................ 11

EXTERNAL DEVICES

Listening to the CD changer ...................... 19

Listening to the iPod / D. player ................. 20

Listening to the other external

components ......................................... 21

Caution on volume setting

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

SETTINGS

Selecting a preset sound mode .................. 22

General settings — PSM .......................... 23

Disc setup menu ....................................... 25

Assigning titles ........................................ 27

REFERENCES

Maintenance ........................................... 28

More about this unit ................................ 29

Troubleshooting ...................................... 34

Specifications .......................................... 36

The panel illustrations used in this manual are of KD-DV5306/KD-DV5305.

Playable disc type

Disc type Recording format, file type, etc Playable

DVD

DVD Recordable/Rewritable

/-RW, +R/+RW *3)

(DVD-R *

DVD-RAM

Dual Disc

CD/VCD

CD Recordable/Rewritable (CD-R/-RW)

• Compliant to ISO 9660 level 1,

level 2, Romeo, Joliet

*1 If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR!” appears on the monitor. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). *3 It is possible to play back finalized +R/+RW (Video format only) discs. However, the use of +R double layer disc on

this unit is not recommended.

*4 To reproduce DTS sound, use the DIGITAL OUT terminal (see also pages 26 and 31).

DVD-Video (Region Code numbers include “4”) *

DVD-Audio

DVD-ROM

DVD-Video

DivX Video

MPEG-1/MPEG-2 Video

MP3/WMA/WAV

JPEG/MPEG4

DVD-VR, +VR

All

DVD side

Non-DVD side

Audio CD (CD-DA)/DTS-CD *

VCD (Video CD)

CD-Text

CD-ROM

CD-I (CD-I Ready)

CD-DA

DivX Video, VCD (Video CD)

MPEG-1/MPEG-2 Video

MP3/WMA/WAV

JPEG/MPEG4

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Preparation

Cancel the display demonstration and set the clock

• See also page 24.

When the power is turned off: Check the current clock time When the power is turned on: Change the display information

~ Turn on the power. Ÿ Enter the PSM settings. ! ] ⁄ Cancel the display demonstrations

Select “DEMO,” then “DEMO OFF.”

Set the clock

Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the minute.

@ Finish the procedure.

Detaching the control panel

Attaching the control panel

5INTRODUCTIONS

Basic operations — Control panel

• FM/AM: Select preset station.

• DISC: Select title/folder.

• IPOD/D.PLAYER: Enter the main menu/

Pause or stop playback/Confirm selection.

Change the display information.

Select the sound mode.

Volume control [Turn]

Eject disc.

• Adjust the sound mode.

• Enter the PSM settings [Hold].

• FM/AM: Search for station.

• DISC: Select chapter/track.

• IPOD/D.PLAYER: Select track.

• Turn on the power.

• Turn off the power [Hold].

• Attenuate the sound (if the power is on).

Display window

Loading slot

Connect an external component *

• FM/AM: Select preset station.

• DISC: Select chapter/title/folder/

track/disc (for CD changer).

Detach the panel.

Enter functions mode.

Press M MODE, then one of the following buttons

• FM/AM: Select the bands.

• DISC: Start playback.

Select the source. FM/AM D.PLAYER *2 (or EXT IN) = LINE IN *1 = AUX IN *1 = (back to the beginning)

*1 Only for KD-DV5306/KD-DV5305. *2 You cannot select these sources if they are not ready or not connected.

= DISC *

= CD-CH *2/IPOD *2/

(within 5 seconds)...

MO : Turn on/off monaural reception. SSM : Automatic station presetting [Hold]. RPT : Select repeat play. RND : Select random play.

5/∞ : Skip 10 chapters/tracks.

Display window

Track information indicators

Playback mode/item indicators (Random/Repeat)

Loudness indicator

Playback source indicators

Source display/Preset No./Track No./ Folder No./Disc No./Chapter No.

Track indicator

Tuner reception indicators

Main display

(Time, menu, playback information)

Basic operations — Remote controller (RM-RK241)

Installing the lithium coin battery (CR2025)

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Equalizer indicator

Sound mode indicators

Remote sensor

Continued on the next page

7OPERATIONS

Warning: To prevent accidents and damage

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time; otherwise, it may explode.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

EXTRA MONITOR

1 Monitor control buttons

• Used for a JVC monitor—KV-MR9010, KV-MH6510, KV-M706, or KV-M705.

DVD/RECEIVER

2 • Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

3 Selects the source. 4 Selects the FM/AM bands. 5 Not applicable for this unit. 6 Not applicable for this unit. 7 Adjusts the volume level.

• 2nd VOL: Not applicable for this unit.

8 *

• DVD-Video/DivX: Shows disc menu.

• VCD: Starts PBC playback.

9 *

Enters disc setup menu.

p SHIFT button q 7 (stop), 3 (play), 8 (pause)

• 3 (play) also function as ZOOM button when pressed with SHIFT button (see page 15).

• Not applicable for CD changer/iPod/D. player operations.

w For advanced disc operations:

5 / ∞ :

•

DVD-Video: Selects the titles. DivX/MPEG Video/MP3/WMA/WAV: Selects

the folders if included.

•

4 / ¢ :

– Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed

and held.

1 / ¡ : Reverse search/forward

•

search. *

For FM/AM tuner operations:

• 5 / ∞ : Changes the preset stations.

• 4 / ¢ :

– Searches for stations automatically if

pressed briefly.

– Searches for stations manually if pressed

and held.

For Apple iPod/JVC D. player operations:

• ∞ : Pauses/stops or resumes playback. 5 : Enters the main menu. (Now 5/∞/4 / ¢ work as the

menu selecting buttons.) *

• 4 / ¢ (in menu selecting mode): – Selects an item if pressed briefly. (Then,

∞ to confirm the selection.)

press

– Skips 10 items at a time if pressed and held.

• 4 / ¢ : – Reverse skip/forward skip if pressed briefly. – Reverse search/forward search if pressed

and held.

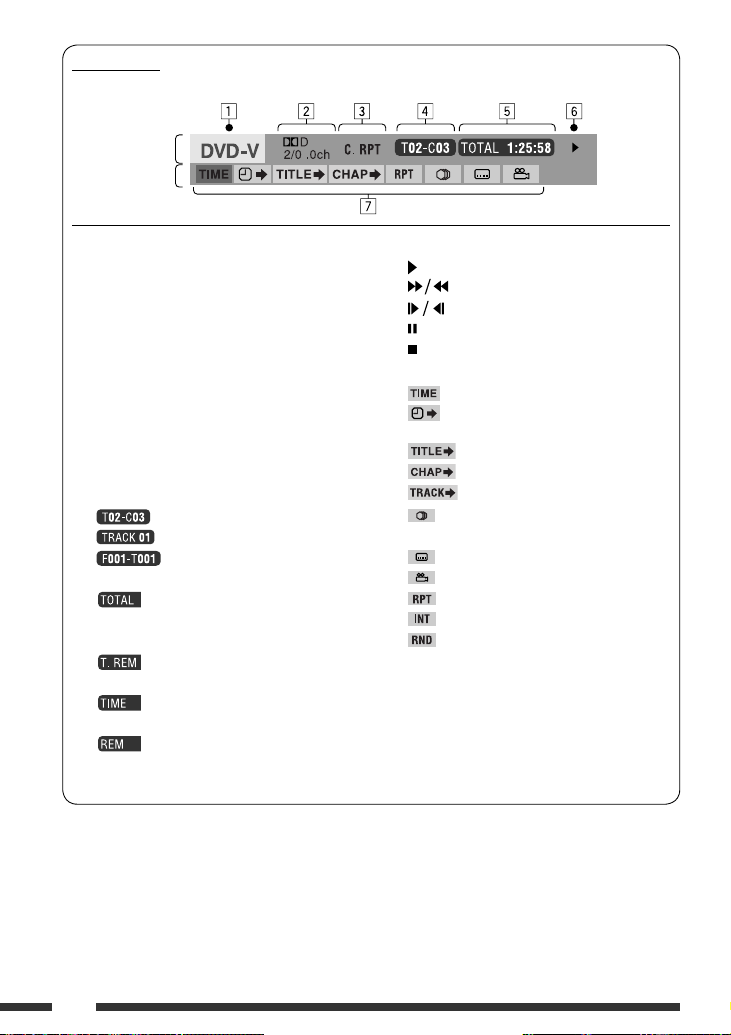

e Shows the on-screen bar.

• Also functions as DIRECT button when pressed with SHIFT button. *

r *

• DVD-Video/DivX: Shows disc menu.

• VCD: Starts PBC playback.

t *

• Makes selection/settings.

• @ / # : DivX: Searches for index during play.

• DISC +/–: Changes discs when the source is “CD-CH.”

y *

RETURN button

u • DVD-Video: Selects audio language ( ),

subtitles ( )*1, angle ( )*5.

• DivX: Selects audio language (

subtitles ( ).

• VCD: Selects audio channel ( ).

How to select a number

An input screen appears...

How to select a preset station

Functions as number buttons when pressed with

SHIFT button.

– FM/AM: Selects preset stations. – DISC: Selects chapter/title/folder/track after

entering search mode by pressing SHIFT and DIRECT.

Not applicable for CD changer operations.

* *3 5 : Returns to the previous menu. ∞ : Confirms the selection. *4 You can directly select title/chapter/folder/track using

the number buttons (see pages 13 – 15).

*5 Functions as SURROUND button when pressed with

SHIFT button (not applicable for this unit).

9OPERATIONS

Listening to the radio

Change the display information

~ Select “FM/AM.”

* If no name is assigned to a station, “NO NAME”

appears. To assign a name to a station, see page 27.

Select preset station.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Ÿ Select the bands.

! Search for a station to listen—Auto Search.

Manual Search: Hold either one of the buttons until “M” flashes on the display, then press it repeatedly.

When an FM stereo broadcast is

hard to receive

Local FM stations with the strongest signals are

searched and stored automatically in the FM band.

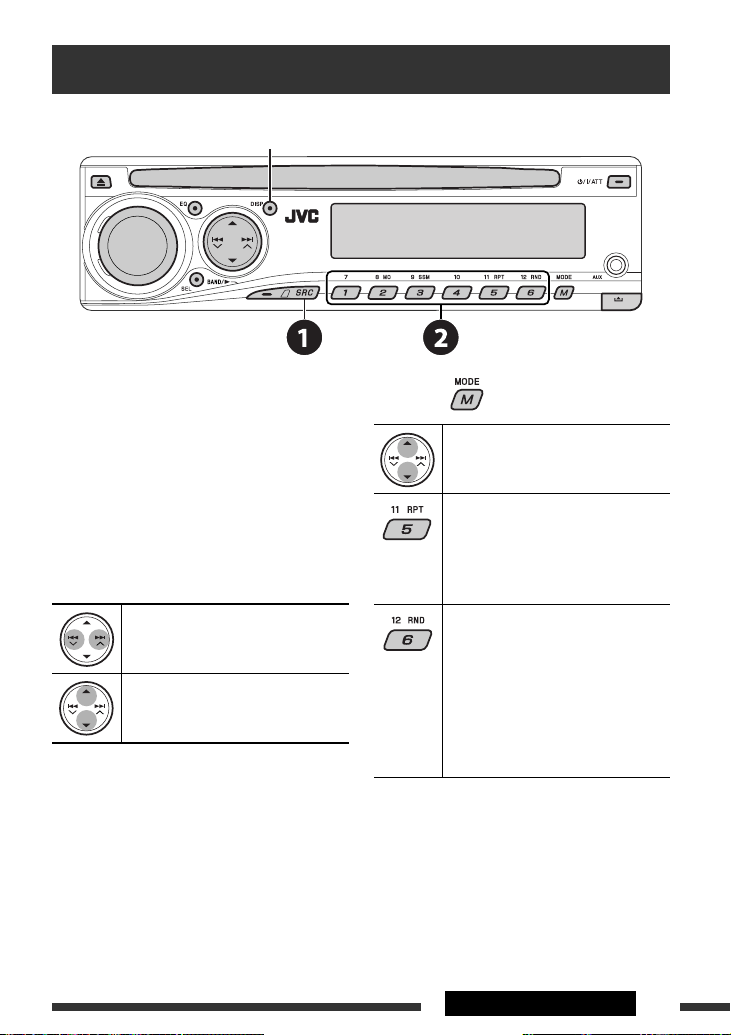

Manual presetting

Reception improves, but stereo effect will be lost.

• MO indicator lights up.

FM station automatic presetting — SSM (Strong-station Sequential

Ex.: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

Memory)

You can preset six stations for each band.

Disc operations

Before performing any operations...

Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other discs by referring to the monitor screen. (See pages 15 – 18.) The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its internal program). If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or eject the disc.

” appears on the monitor when pressing a button, the unit cannot accept the operation you have tried to

If “ do.

• In some cases, without showing “ ,” operations will not be accepted.

Insert the disc.

Playback starts automatically.

Start playback if necessary.

Change the display information

Prohibiting disc ejection

To cancel the prohibition, repeat the same procedure.

If the file does not have Tag information or

“TAG DISP” is set to “TAG OFF” (see page

24), folder name and file name appear. TAG indicator will not light up.

“NO NAME” appears for an audio CD.

11OPERATIONS

Operations using the control panel

Pressing (or holding) the following buttons allows you to...

Disc type

Press: Select chapter Hold: Reverse/fast-forward

chapter *

Press: Select track Hold: Reverse/fast-forward track *

Search speed changes to on the monitor.

* *2 Search speed changes on the monitor. *3 Press to select number 1 to 6; hold to select number 7 to 12.

After pressing , press the following buttons to...

Select title During stop: Locate title

Select folder Locate particular folder directly

—

Select folder Locate particular folder directly

—

Disc type

Skip 10 chapters (during play or pause)

Skip 10 tracks (within the same folder)

Skip 10 tracks (PBC not in use)

Skip 10 tracks (within the same folder)

Skip 10 tracks TRK RPT: Repeat current track DISC RND: Randomly play all

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

CHP RPT: Repeat current

chapter

TIT RPT: Repeat current title

TRK RPT: Repeat current track FLDR RPT: Repeat current folder

TRK RPT: Repeat current track

(PBC not in use)

TRK RPT: Repeat current track FLDR RPT: Repeat current folder

(Number buttons) *

During play/pause: Locate chapter

Locate particular track directly (PBC not in use)

Locate particular track directly

—

DISC RND: Randomly play all

tracks (PBC not in use)

FLDR RND: Randomly play all

tracks of current folder, then tracks of next folders

DISC RND: Randomly play all

tracks

Operations using the remote controller—RM-RK241

: Stop play : Pause (Frame by frame playback if pressed during

pause.)

: Start play

: Reverse/forward chapter search *1

• Slow motion *2 during pause. No sound can be heard. : Press: Select chapter (during play or pause)

Hold: Reverse/fast-forward chapter search *

: Select title

: Select audio language : Select subtitle language : Select view angle

To search for chapter/title directly

1 Select chapter/title search.

1, 2, 3, 4, 5

: See page 14.

2 Enter the desired number.

: Stop play

: Pause (Frame by frame playback if

pressed during pause.)

: Start play

: Reverse/forward track search * : Press: Select track

Hold: Reverse/fast-forward track

search *

: Select folder

: • Return/advance the scenes by

about 5 minutes (Index search).

• Select chapter. : DivX: Select subtitles language : DivX: Select audio language

Using menu driven features...

1 /

2 Select an item you want to

start play.

To search for track (within the same folder)/ folder directly

1 Select track/folder search.

2 Enter the desired number.

Continued on the next page

13OPERATIONS

: Stop play : Pause (Frame by frame playback if

pressed during pause.)

: Start play

: Reverse/forward track search *1

• Forward slow motion *2 during pause. No sound can be heard. (Reverse slow motion does not work.)

: Press: Select track

Hold: Reverse/fast-forward track

search *

: Select audio channel

(ST: stereo, L: left, R: Right)

Canceling the PBC playback...

2 +

3 Enter the desired number.

• To resume PBC, press / .

: Stop play

: Pause

: Start play

: Reverse/forward track search * : Press: Select tracks

To search for track (within the same folder)/folder directly

1 Select track/folder search.

Hold: Reverse/fast-forward track

search *

: Select folder

: Stop play : Pause : Start play

: Reverse/forward track search * : Press: Select tracks

Hold: Reverse/fast-forward track

search *

2 Enter the desired number.

To search for track directly

1 Select track search.

2 Enter the desired number.

*1 Search speed changes to on the monitor if pressed repeatedly. *2 Slow motion speed changes to on the monitor if pressed

repeatedly.

*3 Search speed changes to on the monitor. *4 Search speed changes on the monitor if pressed repeatedly. *5 Search speed changes on the monitor.

Enlarging the view—Zoom in (DVD/DivX/MPEG Video/VCD)

During moving picture playback...

1 While holding , press repeatedly.

2 Move the enlarged portion.

• To cancel zoom, select “ZOOM OFF.”

Operations using the on-screen bar (DVD/DivX/MPEG Video/VCD)

These operations are possible on the monitor using the remote controller.

~ Show the on-screen bar (see page 16).

(twice)

Ÿ Select an item.

! Make a selection.

If pop-up menu appears...

• To cancel pop-up menu, press .

• For entering time/numbers, see the following.

⁄ Remove the on-screen bar.

Entering time/numbers

Press to change the number, then press to move to the next entry.

• Each time you press , the number increases/decreases by one value.

• After entering the numbers, press .

• It is not required to enter the zero and tailing zeros (the last two digits in the example below).

Ex.: Time search DVD: _:_ _:_ _ (Ex.: 1:02:00) Press once, then twice to go to the third entry, twice, then press ENTER.

15OPERATIONS

On-screen bar

Ex.: DVD-Video

Information

Operation

1 Disc type 2 • DVD-Video/DTS-CD: Audio signal format type

and channel

• VCD: PBC

3 Playback mode *

DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DivX/MPEG Video: T. RPT: Track repeat F. RPT: Folder repeat VCD *2: T. RPT: Track repeat D. RND: Disc random T. INT: Track intro *

4 Playback information

Current title/chapter Current track Current folder/track

5 Time indication

Elapsed playing time of the disc

(For DVD-Video, elapsed playing

time of the current title.) DVD-Video: Remaining title time VCD: Remaining disc time Elapsed playing time of the current

chapter/track Remaining time of the current

chapter/track

6 Playback status

Play Forward/reverse search Forward/reverse slow-motion Pause Stop

7 Operation icons

Change time indication (see 5) Time Search (Enter the elapsed playing

time of the current title or of the disc.) Title Search (by its number) Chapter Search (by its number) Track Search (by its number) Change the audio language or audio

channel Change the subtitle language Change the view angle Repeat play * Intro play * Random play *

*1 For repeat play/random play, see also page 12. *2 While PBC is not in use. *3 Plays the beginning 15 seconds of...

TRACK INTRO : All tracks of the current disc. FOLDER INTRO : First tracks of all folders of the

current disc.

Operations using the control screen (DivX/MPEG Video/MP3/WMA/WAV/CD)

These operations are possible on the monitor using the remote controller.

~ Show the control screen.

DivX/MPEG Video: Press during play. MP3/WMA/WAV/CD: Automatically appear during play.

Ÿ Select “Folder” column or “Track” column (except for CD).

! Select a folder or track.

⁄ Start playback.

DivX/MPEG Video: Press . MP3/WMA/WAV/CD: Playback starts automatically.

Control screen

Ex.: MP3/WMA/WAV disc

1 Current folder number/total folder number 2 Folder list with the current folder selected 3 Selected playback mode 4 Elapsed playing time of the current track 5 Operation mode icon ( 3, 7, 8, ¡, 1 ) 6 Current track number/total number of tracks in the

current folder (total number of tracks on the disc)

7 Track information 8 Track list with the current track selected

To select a playback mode

1 While control screen is displayed...

Playback mode selection screen appears on the

folder list section of the control screen.

2 Select a playback mode.

3 Select an item.

REPEAT/INTRO:

RANDOM:

4 Confirm the selection.

*1 Not selectable for DivX/MPEG Video *2 Not selectable for CD

Continued on the next page

17OPERATIONS

Mode Playback functions

F. RPT (folder repeat): Repeat current folder

T. RPT (track repeat): Repeat current track

F. INT (folder intro): Plays the beginning 15 seconds of first tracks of all folders of the current disc

T. INT (track intro): Plays the beginning 15 seconds of all tracks of the current disc

D. RND (disc random): Randomly play all tracks

F. RND (folder random): Randomly play all tracks of current folder, then tracks of next folders

Operations using the list screen (DivX/MPEG Video/MP3/WMA/WAV)

These operations are possible on the monitor using the remote controller. Before playing, you can display the folder list/track list to confirm the contents and start playing a track.

~ Display the folder list while stop.

Ÿ Select an item from the folder list.

• Track list of the selected folder appears.

• To go back to the folder list, press .

! Select a track to start playing.

List screen

Ex.: Folder list

18 OPERATIONS

• MP3/WMA/WAV: Control screen appears (see page 17).

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

Listening to the CD changer

Change the display information

(see page 11)

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can only play conventional CDs (including CD Text) and MP3 discs.

~ Select “CD-CH.” Ÿ Select a disc to start playing.

Press: For selecting disc number 1 – 6. Hold: For selecting disc number 7 – 12.

Press: Select track Hold: Reverse/fast-forward track

MP3: Select folders

After pressing , press the following buttons to...

Skip 10 tracks (MP3: within the same folder)

TRK RPT: Repeat current track FLDR RPT: MP3: Repeat all tracks of

current folder

DISC RPT: Repeat all tracks of the

current disc

FLDR RND: MP3: Randomly play all

tracks of the current folder, then tracks of the next folder

DISC RND: Randomly play all tracks of

current disc

MAG RND: Randomly play all tracks of

the inserted discs

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

19EXTERNAL DEVICES

Listening to the iPod / D. player

Change the display information

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• Interface adapter for iPod—KS-PD100 for controlling an iPod.

• D. player interface adapter—KS-PD500 for controlling a D. player.

Preparations

Make sure “CHANGER” is selected for the external input setting, see page 24.

~ Select “IPOD” or “D. PLAYER.” Ÿ Select a song to start playing.

Selecting a track from the menu

1 Enter the main menu.

• This mode will be canceled if no

operations are done for about 5 seconds.

2 Select the desired menu.

For iPod: PLAYLIST Ô ARTISTS Ô ALBUMS Ô SONGS

Ô GENRES Ô COMPOSER Ô (back to the

beginning)

For D. player: PLAYLIST

Ô ARTIST Ô ALBUM Ô GENRE

Ô TRACK Ô (back to the beginning)

3 Confirm the selection.

• To move back to the previous menu, press 5.

• If a track is selected, playback starts automatically.

• Holding

4 /¢ can skip 10 items at

a time.

Pause/stop playback

• To resume playback, press the button again.

Press: Select tracks Hold: Reverse/fast-forward track

After pressing , press the following buttons to...

ONE RPT: Functions the same as “Repeat One” or “Repeat Mode ALL RPT: Functions the same as “Repeat All” or “Repeat Mode = All.”

ALBM RND*: Functions the same as “Shuffle Albums” of the iPod. SONG RND/RND ON: Functions the same as “Shuffle Songs” or “Random Play

• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”

* iPod: Functions only if you select “ALL” in “ALBUMS” of the main “MENU.”

Listening to the other external components

Change the display information

Portable MD player, etc

Stereo mini plug

= One.”

= On.”

You can connect an external component to:

• CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter— KS-U58 (not supplied). Make sure “EXT IN” is selected for the external input setting, see page 24.

• LINE IN plugs on the rear (for KD-DV5306/KD-DV5305).

• AUX input terminal on the control panel (for KD-DV5306/KD-DV5305).

~ Select “EXT IN,” “LINE IN,” or “AUX IN.” Ÿ Turn on the connected component and start playing the source. ! Adjust the volume. ⁄ Adjust the sound as you want (see pages 22 and 23).

21EXTERNAL DEVICES

Selecting a preset sound mode

Preset values

Indication (For)

USER (Flat sound) 00 00 OFF

ROCK (Rock or disco music) +03 +01 ON

CLASSIC (Classical music) +01 –02 OFF

POPS (Light music) +04 +01 OFF

HIP HOP (Funk or rap music) +02 00 ON

JAZZ (Jazz music) +02 +03 OFF

BAS (bass) TRE (treble) LOUD (loudness)

Adjusting the sound

2 Adjust the level.

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table on page 24.

1 Enter the PSM settings.

BAS *1 (bass) Adjust the bass.

TRE *

(treble)

Adjust the treble.

(fader)

FAD *

Adjust the front and rear speaker balance.

BAL (balance) Adjust the left and right speaker balance.

(loudness)

LOUD * Boost low and high frequencies to produce a well-balanced sound at low volume level.

VOL.A *

(volume adjust) Adjust and store auto-adjustment volume level for each source, comparing to the FM volume level.

VOL (volume) Adjust the volume.

*1 When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

*2 If you are using a two-speaker system, set the fader

level to “00.”

*3 You cannot make an adjustment for FM. “FIX”

appears.

*4 Depending on the amplifier gain control setting. (See

page 24 for details.)

–06 to +06

R06 to F06

L06 to R06

LOUD ON or LOUD OFF

–05 to +05; initial: 00

00 to 30

(or 50) *

2 Select a PSM item.

3 Select or adjust the selected PSM item.

4 Repeat steps 2 and 3 to adjust other

PSM items if necessary.

5 Finish the procedure.

Continued on the next page

23SETTINGS

Indication Item

Setting, [reference page]

( : Initial)

DEMO

Display demonstration

CLK DISP *

Clock display

• DEMO ON

• DEMO OFF

• ON

• OFF

: Display demonstration will be activated automatically if no operation

is done for about 20 seconds, [5].

: Cancels.

: Clock time is shown on the display at all times when the power is

turned off.

: Cancels; pressing DISP will show the clock time for about 5 seconds

when the power is turned off, [5].

CLOCK H

1 – 12 : Initial: 1 (1:00), [5].

Hour adjustment

CLOCK M

00 – 59 : Initial: 00 (1:00), [5].

Minute adjustment

DIMMER

Dimmer

SCROLL *

Scroll

EXT IN *

External input

TAG DISP

Tag display

VIDEO *

Video format

AMP GAIN

Amplifier gain control

IF BAND

Intermediate frequency band

• ON

• OFF

• ONCE

• AUTO

• OFF

• CHANGER

• EXT IN

• TAG ON

• TAG OFF

• PAL

• NTSC

• LOW PWR

• HIGH PWR

• AUTO

• WIDE

: Dims the display illumination. : Cancels.

: Scrolls the track information once. : Repeats scrolling (at 5-second intervals). : Cancels. (Holding DISP can scroll the display regardless of the setting.)

: To use a JVC CD changer, [19], or an Apple iPod/a JVC D. player, [20]. : To use any other external component than the above, [21].

: Shows the tag while playing MP3/WMA/WAV tracks. : Cancels.

: Select this if your monitor is of the PAL color system. : Select this if your monitor is of the NTSC color system.

: VOL 00 – VOL 30 (Select if the maximum power of each speaker is less

than 50 W to prevent damaging the speaker.)

: VOL 00 – VOL 50

: Increases the tuner selectivity to reduce interference noises between

adjacent stations. (Stereo effect may be lost.)

: Subject to interference noises from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select “OFF” to

save the car’s battery.

*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *3 Displayed only when one of the following sources is selected—FM, AM, DISC, and also LINE IN or AUX IN for

KD-DV5306/KD-DV5305.

*4 The newly selected video format takes effect only after you turn on the power again or change the source.

Disc setup menu

These operations are possible on the monitor using the remote controller.

~ Enter the disc setup menu

Ÿ Select a menu.

! Select an item you want to set

⁄ Select an option.

To return to normal screen

while stop.

up.

• To cancel pop-up menu, press .

Menu Item Setting

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE Select the initial subtitle language or remove the subtitle (OFF). Refer also to

LANGUAGE

ON SCREEN LANGUAGE

Select the initial disc menu language. Refer also to “Language codes” on page 33.

Select the initial audio language. Refer also to “Language codes” on page 33.

“Language codes” on page 33.

Select the language for the on screen display.

Continued on the next page

25SETTINGS

Menu Item Setting

MONITOR TYPE Select the monitor type to watch a wide screen picture on your monitor.

OSD POSITION Select the on-screen bar position on the monitor.


FILE TYPE Select the file type to play.

DIGITAL AUDIO OUTPUT

DOWN MIX When playing back a multi-channel disc, this setting affects the signals

AUDIO

D. RANGE COMPRESSION

DivX REGISTRATION

OTHER

• 1 : Higher position

• 2 : Lower position (Guidance below the disc setup menu will disappear.)

• AUDIO : Play MP3/WMA/WAV files.

• VIDEO : Play DivX/MPEG Video files.

Select the signal format to be emitted through the DIGITAL OUT (Optical) terminal.

• OFF : Cancels.

• PCM ONLY : Select for an amplifier or a decoder incompatible with Dolby Digital, DTS, MPEG Audio, or when connecting to a recording device.

• DOLBY DIGITAL/PCM : Select for an amplifier or a decoder compatible with Dolby Digital.

• STREAM/PCM : Select for an amplifier or a decoder compatible with Dolby Digital, DTS, and MPEG Audio.

reproduced through the LINE OUT jacks (and through the DIGITAL OUT terminal when “PCM ONLY” is selected for “DIGITAL AUDIO OUTPUT”).

• SURROUND COMPATIBLE : Select to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround.

• STEREO : Normally select this.

You can enjoy a powerful sound at low or middle volume levels while playing a Dolby Digital software.

• AUTO : Select to apply the effect to multi-channel encoded software (excluding 1-channel and 2-channel software).

• ON : Select to always use this function.

This unit has its own Registration Code. Once you have played back a disc in which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

Assigning titles

You can assign titles to 30 station frequencies (FM and AM) and up to 8 characters for each title.

~ Select FM/AM. Ÿ Show the title entry screen. ! Assign a title.

1 Select a character. 2 Move to the next (or previous) character

position.

3 Repeat steps 1 and 2 until you finish

entering the title.

⁄ Finish the procedure.

To erase the entire title

In step Ÿ on the left...

Available characters

27SETTINGS

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Warped disc

Sticker

Sticker residue

Stick-on label

Unusual shape

More about this unit

General

Turning on the power

• By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback starts.

Turning off the power

• If you turn off the power while listening to a disc, disc play will start automatically, next time you turn on the power.

FM/AM

Storing stations in memory

• During SSM search...

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in No. 1 will

be automatically tuned in.

• When storing stations, the previously preset stations are erased and stations are stored newly.

Disc

General

• In this manual, words “track” and “file” are interchangeably used when referring to DivX/MPEG Video/MP3/WMA/WAV files and their file names.

• This unit can also play back 8 cm discs.

• This unit can only play back audio CD (CD-DA) files if different type of files are recorded in the same disc.

Inserting a disc

• When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press eject the disc.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. Playback starts automatically.

0 to

• After ejecting a disc, “NO DISC” appears and you cannot operate some of the buttons. Insert another disc or press SRC to select another playback source.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total 25 characters for file/ folder names.

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit may be unable to play back some discs or files due to their characteristics or recording conditions.

• Rewritable discs may require a longer readout time.

Playing MP3/WMA/WAV files

• The maximum number of characters for folder and file names is 25 characters; 128 characters for MP3/ WMA/WAV tag information.

• This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).

• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or

2.4) for the MP3/WMA/WAV files.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time indication.

• This unit cannot play back the following files:

– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio.

Continued on the next page

29REFERENCES

– WMA files copy-protected with DRM. – Files which have the data such as ATRAC3, etc. – AAC files and OGG files.

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, <.avi> (regardless of the letter case—upper/lower).

• This unit supports DivX 6.x, 5.x, 4.x, and 3.11.

• This unit supports DivX Media Format files, <.divx> or <.avi>.

• This unit can display a unique registration code— DivX Video-on-Demand (VOD—a kind of Digital Rights Management). For activation and more details, visit <www.divx.com/vod>.

• Audio stream should conform to MP3 or Dolby Digital.

• This unit does not support GMC (Global Motion Compression).

• The file encoded in the interlaced scanning mode may not be played back correctly.

• Index Search:

iPod or D. player

• When you turn on this unit, the iPod or D. player is charged through this unit.

• While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.

• The text information may not be displayed correctly.

• If the text information includes more than 8 characters, it scrolls on the display. This unit can display up to 40 characters.

Notice:

When operating an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/

car/support/ks-pd100/index.html>

For D. player users: <http://www.jvc.co.jp/

english/car/support/ks-pd500/index.html>

Title assignment

• If you try to assign titles to more than 30 station frequencies, “NAMEFULL” appears. Delete unwanted titles before assignment.

• This unit cannot play back the following files: – Files encoded in Codec (Compressor-decompressor)

other than DivX Codec.

• If you want to know more about DivX, visit <http://www.divx.com>.

Playing MPEG Video files

• This unit can play back MPEG Video files with the extension code <.mpg> or <.mpeg>.

• Audio stream should conform to MPEG1 Audio Layer 2.

• This unit cannot playback the following files:

– WMV (Windows Media Video) files – RM (Real Media) format files

Changing the source

• If you change the source, playback also stops (without ejecting the disc).

Next time you select “DISC” for the playback source,

disc play starts from where it has been stopped previously.

General settings—PSM

• If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”

Disc setup menu

• When the language you have selected is not recorded on a disc, the original language is automatically used as the initial language. In addition, for some discs, the initial languages settings will not work as you set due to their internal disc programming.

• When you select “16:9” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if “4:3 PAN SCAN” is selected, the screen size may become “4:3 LETTER BOX” for some discs.

About sounds reproduced through the rear terminals

• Through the analog terminals (Speaker out/LINE OUT): 2-channel signal is emitted. When playing a multi-channel encoded disc, multi-channel signals are downmixed. DTS sound cannot be reproduced. (AUDIO—DOWN MIX: see page 26.)

• Through DIGITAL OUT (optical):

Digital signals (Linear PCM, Dolby Digital, DTS, MPEG Audio) are emitted through this terminal. (For more

details, see table below.)

To reproduce multi-channel sounds such as Dolby Digital, DTS, and MPEG Audio, connect an amplifier or a

decoder compatible with these multi-channel sources to this terminal, and set “DIGITAL AUDIO OUTPUT” correctly. (See page 26.)

Output signals through the DIGITAL OUT terminal

Output signals are different depending on the “DIGITAL AUDIO OUTPUT” setting on the setup menu (see page

26).

Output Signal

Playback Disc

DVD-Video 48 kHz, 16/20/24 bits

Linear PCM

96 kHz, Linear PCM 48 kHz, 16 bits stereo Linear PCM

Dolby Digital

DTS DTS bitstream

MPEG Audio MPEG bitstream 48 kHz, 16 bits stereo Linear PCM

Audio CD, Video CD 44.1 kHz, 16 bits stereo Linear PCM /

Audio CD with DTS DTS bitstream

DivX Dolby Digital

MPEG Audio 32/44.1/48 kHz, 16 bits Linear PCM

MPEG 44.1/48 kHz, 16 bits Linear PCM

MP3/WMA 32/44.1/48 kHz, 16 bits Linear PCM

WAV 44.1 kHz, 16 bits stereo Linear PCM

* Digital signals may be emitted at 20 or 24 bits (at their original bit rate) through the DIGITAL OUT terminal if the

discs are not copy-protected.

STREAM/PCM DOLBY DIGITAL/

PCM

48 kHz, 16 bits stereo Linear PCM *

Dolby Digital bitstream

48 kHz, 16 bits stereo Linear PCM

Dolby Digital bitstream

PCM ONLY OFF

48 kHz, 16 bits

stereo Linear PCM

OFF

48 kHz, 16 bits

stereo Linear PCM

Continued on the next page

31REFERENCES

On-screen guide icons

During playback, the following guide icons may appear for a while on the monitor.

: Playback : Pause

: DVD-Video/VCD: Forward slow motion : DVD-Video: Reverse slow motion : Forward search

DVD: The following icons appear at the beginning of a scene containing:

: Multi-subtitle languages

: Multi-audio languages : Multi-angle views

: Reverse search

Concept diagram of the external device connection

• For connection, see Installation/Connection manual (separate volume).

AUX input terminal on the control panel (only for KD-DV5306/KD-DV5305)

MD player, etc., [21]

Control panel

Unit

CD changer jack

LINE IN plugs on the rear (only for KD-DV5306/KD-DV5305)

(see page 24 of the ”EXT IN” setting)

MD player, etc.

MD player, etc., [21]

JVC CD changer, [19]

Apple iPod, [20]

JVC D. player, [20]

: Adapter (separately purchased)

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, inc. and are used under license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

Language codes

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KL Greenlandic OC Occitan ST Sesotho

AB Abkhazian FI Finnish KM Cambodian OM (Afan) Oromo SU Sundanese

AF Afrikaans FJ Fiji KN Kannada OR Oriya SW Swahili

AM Ameharic FO Faroese KO Korean (KOR) PA Panjabi TA Tamil

AR Arabic FY Frisian KS Kashmiri PL Polish TE Telugu

AS Assamese GA Irish KU Kurdish PS Pashto, Pushto TG Tajik

AY Aymara GD Scots Gaelic KY Kirghiz PT Portuguese TH Thai

AZ Azerbaijani GL Galician LA Latin QU Quechua TI Tigrinya

BA Bashkir GN Guarani LN Lingala RM Rhaeto-

Romance

BE Byelorussian GU Gujarati LO Laothian RN Kirundi TL Tagalog

BG Bulgarian HA Hausa LT Lithuanian RO Rumanian TN Setswana

BH Bihari HI Hindi LV Latvian, Lettish RW Kinyarwanda TO Tonga

BI Bislama HR Croatian MG Malagasy SA Sanskrit TR Turkish

BN Bengali, Bangla HU Hungarian MI Maori SD Sindhi TS Tsonga

BO Tibetan HY Armenian MK Macedonian SG Sangho TT Tatar

BR Breton IA Interlingua ML Malayalam SH Serbo-Croatian TW Twi

CA Catalan IE Interlingue MN Mongolian SI Singhalese UK Ukrainian

CO Corsican IK Inupiak MO Moldavian SK Slovak UR Urdu

CS Czech IN Indonesian MR Marathi SL Slovenian UZ Uzbek

CY Welsh IS Icelandic MS Malay (MAY) SM Samoan VI Vietnamese

DZ Bhutani IW Hebrew MT Maltese SN Shona VO Volapuk

EL Greek JI Yiddish MY Burmese SO Somali WO Wolof

EO Esperanto JW Javanese NA Nauru SQ Albanian XH Xhosa

ET Estonian KA Georgian NE Nepali SR Serbian YO Yoruba

EU Basque KK Kazakh NO Norwegian SS Siswati ZU Zulu

TK Turkmen

33REFERENCES

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptom Remedy/Cause

• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

General

• The unit does not work at all. Reset the unit (see page 2).

• SSM automatic presetting does not work. Store stations manually.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Disc cannot be played back. Insert the disc correctly.

• Disc can be neither played back nor ejected. • Unlock the disc (see page 11).

• Eject the disc forcibly (see page 2).

• Recordable/Rewritable discs cannot be played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Disc cannot be recognized. Eject the disc forcibly (see page 2).

• Sound and pictures are sometimes interrupted or distorted.

Discs in general

• No playback picture (DVD-Video/DivX/MPEG/ VCD) appears on the monitor.

• No picture appears on the monitor at all. • Connect the video cord correctly.

• The monitor shows black and white wavy pictures (DVD-Video/DivX/MPEG/VCD).

• The left and right edges of the picture are missing on the monitor.

• Disc cannot be played back. • Change the disc.

• Noise is generated. Skip to another track or change the disc.

• Insert a finalized disc.

• Finalize the discs with the component which you have used for recording.

• Stop playback while driving on rough roads.

• Change the disc.

• Check the cords and connections.

Parking brake wire is not connected properly. (See Installation/Connection Manual.)

• Select a correct input on the monitor.

Select an appropriate video format (PAL/NTSC) for your monitor (see page 24).

Select “4:3 LETTER BOX” (see page 26).

• Record the tracks using a compliant application in the appropriate discs (see page 4).

• Add the extension code <.divx>, <.div>, <.avi>, <.mpg>, <.mpeg>, <.mp3>, <.wma>, or <.wav> to the file names.

DivX/MPEG Video/MP3/WMA/WAV

Symptom Remedy/Cause

• Longer readout time is required. Readout time varies due to the complexity of the folder/ file configuration. Do not use too many hierarchies and folders.

• Tracks cannot play back as you have intended

them to play.

• No sound can be heard when picture is

displayed while playing a DivX/MPEG Video file.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

DivX/MPEG Video/MP3/WMA/WAV

• “PLEASE” and “EJECT” appear alternately on

the display.

• Correct characters are not displayed (e.g.

album name).

• “NO DISC” appears on the display. Insert a disc into the magazine.

• “NO MAG” appears on the display. Insert the magazine.

• “RESET 8” appears on the display. Connect this unit and the CD changer correctly and press

CD changer

• “RESET 1” – “RESET 7” appears on the display. Press the reset button of the CD changer.

• The CD changer does not work at all. Reset the unit (see page 2).

• The iPod or D. player does not turn on or does

not work.

• The sound is distorted. Deactivate the equalizer either on this unit or the

• “NO IPOD” or “NO DP” appears on the display. • Check the connecting cable and its connection.

• Playback stops. The headphones are disconnected during playback.

iPod/D. player

• No sound can be heard when connecting an

iPod nano.

• No sound can be heard.

• “ERROR 01” appears on the display when

connecting a D. player.

Playback order is determined when files are recorded.

• Record the audio track using MP3 or Dolby Digital as the

audio stream of DivX files.

• Record the audio track using MPEG1 Audio Layer 2 as

the audio stream for MPEG Video files.

how the tracks are recorded.

Insert a disc that contains tracks of appropriate formats.

This unit can only display letters (upper case), numbers, and a limited number of symbols.

the reset button of the CD changer.

• Check the connecting cable and its connection.

• Charge the battery.

• Update the firmware version.

iPod/D. player.

• Charge the battery.

Restart the playback operation (see page 20).

• Disconnect the headphones from the iPod nano.

• Update the firmware version of the iPod nano.

Disconnect the adapter from the D. player. Then, connect it again.

Continued on the next page

35REFERENCES

Symptom Remedy/Cause

• “NO FILES” or “NO TRACK” appears on the display.

• “RESET 1” – “RESET 7” appears on the display. Disconnect the adapter from both this unit and iPod/

• “RESET 8” appears on the display. Check the connection between the adapter and this unit.

iPod/D. player

• The iPod’s or D. player’s controls do not work after disconnecting from this unit.

No tracks are stored. Import tracks to the iPod or D. player.

D. player. Then, connect it again.

Reset the iPod or D. player.

Specifications

Maximum Power Output:

Continuous Power Output (RMS):

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range: Bass: ±12 dB at 100 Hz

Signal to Noise Ratio: 70 dB

Audio Output Level: Digital (DIGITAL OUT: Optical): Signal wave length: 660 nm

AUDIO AMPLIFIER SECTION

Color system: PAL/NTSC

Video Output (composite): 1 Vp-p/75 Ω

Other Terminal: KD-DV5306/KD-DV5305: CD changer, LINE IN, AUX (auxiliary) input jack

Front/Rear: 50 W per channel

Front/Rear: 19 W per channel into 4 Ω, 40 Hz to

20 000 Hz at no more than 0.8% total harmonic distortion

Treble: ±12 dB at 10 kHz

Output level: –21 dBm to –15 dBm

Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

KD-DV4306/KD-DV4305: CD changer

Frequency Range: FM: 87.5 MHz to 108.0 MHz

AM: 531 kHz to 1 602 kHz

FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity

TUNER SECTION

AM Tuner: Sensitivity/Selectivity: 20 μV/35 dB

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of Channels: 2 channels (stereo)

Frequency Response: DVD, fs=48 kHz/96 kHz: 16 Hz to 22 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

DivX/MPEG Video:

DVD/CD PLAYER SECTION

MP3: Bit Rate: 32 kbps – 320 kbps

WMA: Bit Rate: 32 kbps – 320 kbps

WAV: Quantization Bit Rate: 16 bit

(400 kHz):

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

CD, fs=44.1 kHz: 16 Hz to 20 000 Hz

Video: Max. Resolution: 720 × 480 pixels (30 fps)

Audio: Bit Rate: DivX: 32 kbps – 320 kbps

Sampling Frequency: DivX: MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

Sampling Frequency: MPEG Video: 32 kHz, 44.1 kHz, 48 kHz

Sampling Frequency: MPEG-1: 32 kHz, 44.1 kHz, 48 kHz

Sampling Frequency: 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz

Sampling Frequency: 44.1 kHz

65 dB

720 × 576 pixels (25 fps)

MPEG Video: 32 kbps – 384 kbps

MPEG-2: 16 kHz, 22.05 kHz, 24 kHz

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 158 mm

GENERAL

Mass (approx.):

Design and specifications are subject to change without notice.

Panel Size (approx.): 187 mm × 58 mm × 13 mm

1.6 kg (excluding accessories)

37REFERENCES

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

1206DTSMDTJEIN

JVC KD-DV5306, KD-DV5305, KD-DV4306, KD-DV4305 Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
