KD-DB97BT

CD RECEIVER

INSTRUCTION MANUAL

RÉCEPTEUR CD

MANUEL D’INSTRUCTIONS

CD-RECEIVER

BEDIENUNGSANLEITUNG

ENGLISH

FRANÇAIS

DEUTSCH

B5A-0817-00 [E]

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Information sur l’élimination des anciens équipements électriques et électroniques et piles électriques (applicable dans les pays qui ont adopté des systèmes de collecte sélective)

Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne peuvent pas être éliminés comme ordures ménagères. Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés sur des sites capables de traiter ces produits et leurs déchets. Contactez vos autorités locales pour connaître le site de recyclage le plus proche. Un recyclage adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des leurs effets nocifs sur notre santé et sur l’environnement. Remarque: Le symbole “Pb“ ci-dessous sur des piles électrique indique que cette pile contient

du plomb.

Entsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien (anzuwenden in Ländern mit einem separaten Sammelsystem für solche Geräte)

Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf, sondern an einer Annahmestelle für das Recycling von elektrischen und elektronischen Geräten und batterien abgegeben werden muss. Durch Ihren Beitrag zur korrekten Entsorgung dieses Produktes schützen Sie die Umwelt und die Gesundheit Ihrer Mitmenschen. Unsachgemässe oder falsche Entsorgung gefährden Umwelt und Gesundheit. Weitere Informationen über das Recycling dieses Produktes erhalten Sie von Ihrer Gemeinde oder den kommunalen Entsorgungsbetrieben. Achtung: Das Zeichen „Pb“ unter dem Symbol fur Batterien zeigt an, dass diese Batterie Blei

enthalt.

For Israel

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Marquage des produits utilisant un laser

L’étiquette est attachée au châssis/boîtier de l’appareil et indique que l’appareil utilise des rayons laser de classe 1. Cela signifie que l’appareil utilise des rayons laser d’une classe faible. Il n’y a pas de danger de radiation accidentelle hors de l’appareil.

Kennzeichnung von Geräten mit Laser-Abtastern

Das Etikett ist am Chassis/Gehäuse angebracht und besagt, dass sich die Komponente Laserstrahlen bedient, die als Laserstrahlen der Klasse 1 klassifiziert wurden. Dies weist darauf hin, dass sich das Gerät Laserstrahlen bedient, die einer schwächeren Klasse angehören. Das bedeutet, dass durch den sehr schwachen Laserstrahl keine Gefahr durch gefährliche Strahlungen außerhalb des Geräts besteht.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Android is trademark of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

libFLAC

provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

CONTENTS BEFORE USE

BEFORE USE 2 BASICS 3 GETTING STARTED 4

Cancel the demonstration 2 Set the clock 3 Set the basic settings

DIGITAL RADIO 5 ANALOG RADIO 7 CD / USB / iPod / ANDROID 9 BLUETOOTH® 11 AUX 16 AUDIO SETTINGS 17 DISPLAY SETTINGS 21 REFERENCES 22

Maintenance More information

TROUBLESHOOTING 24 SPECIFICATIONS 26 INSTALLATION /

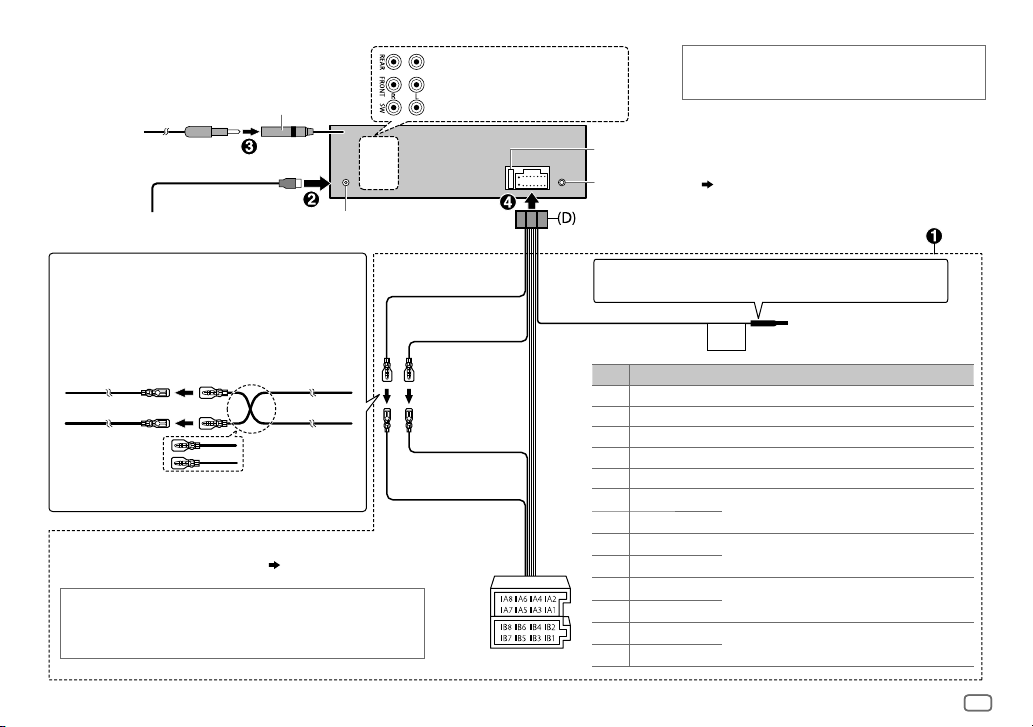

CONNECTION 27

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual

• Operations are explained mainly using buttons on the faceplate.

• English indications are used for the purpose of explanation. You can select the display language from the menu. (

•

[XX]

• (

)

indicates the selected items.

) indicates references are available on the stated page.

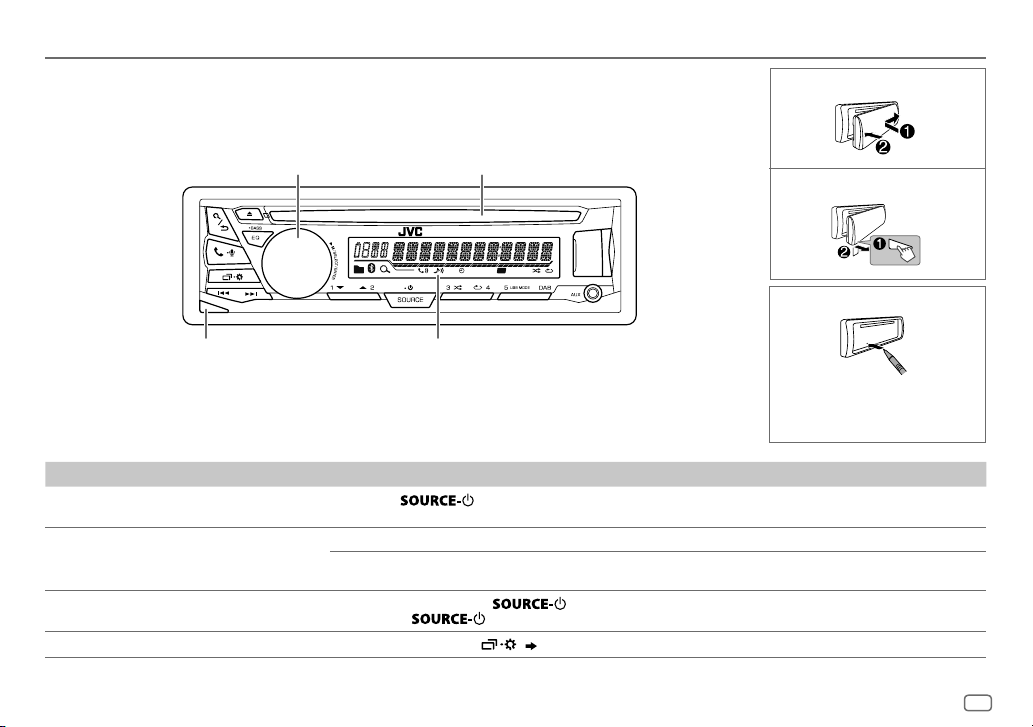

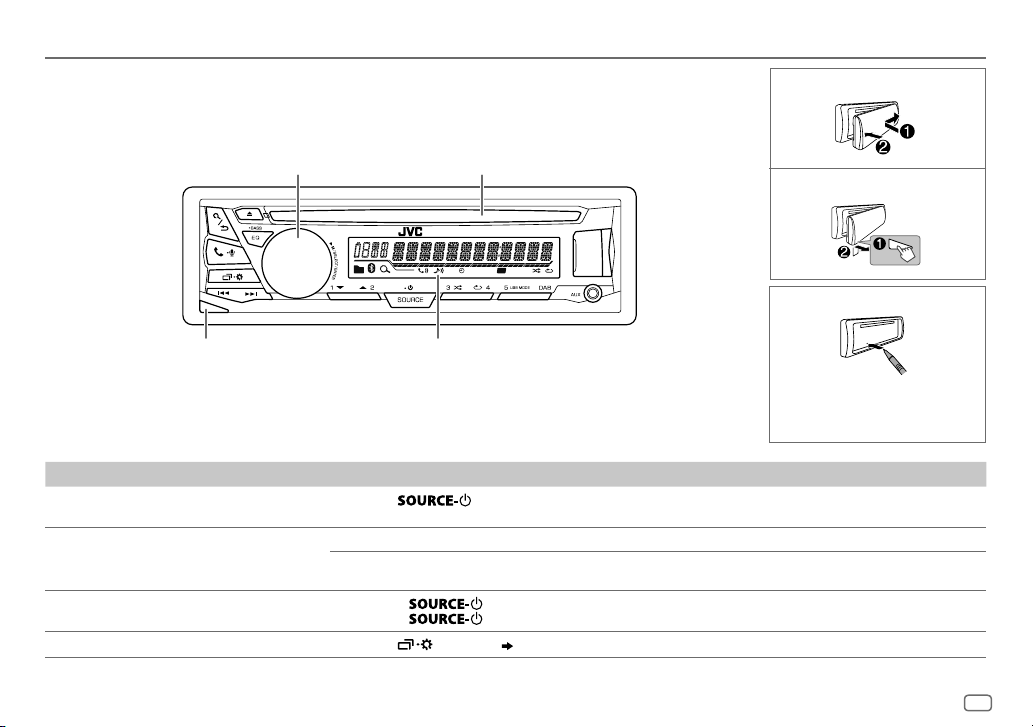

BASICS

Faceplate

Attach

Volume knob Loading slot

Detach button Display window

To On the faceplate

Turn on the power

Press

• Press and hold to turn off the power.

Adjust the volume Turn the volume knob.

Press the volume knob to mute the sound or pause playback.

• Press again to cancel.

Select a source

Change the display information

• Press

Press

repeatedly. , then turn the volume knob within 2 seconds.

repeatedly.

T I

DIGITAL ST

( 23)

Detach

How to reset

Press the switch twice within 5 seconds after detaching the faceplate.

ENGLISH

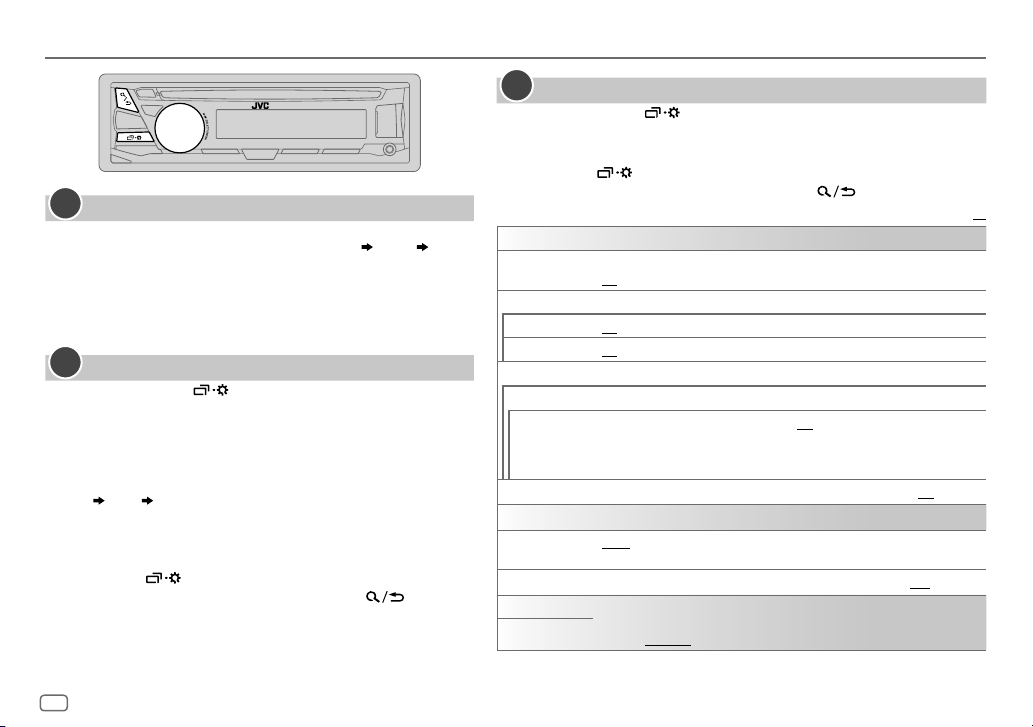

GETTING STARTED

Cancel the demonstration

When you turn on the power for the first time (or [ to [

YES

]), the display shows: “CANCEL DEMO” “PRESS” “VOLUME

KNOB”

1 Press the volume knob.

[

YES

] is selected for the initial setup.

2 Press the volume knob again.

“DEMO OFF” appears.

Set the clock

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select [

knob.

CLOCK CLOCK SET

4 Turn the volume knob to make the settings, then press the

knob.

Day

5 Turn the volume knob to select [ 6 Turn the volume knob to select [

Hour Minute

24H/ 12H 12 HOUR

press the knob.

7 Press to exit.

To return to the previous setting item, press .

FACTORY RST

], then press the knob.

], then press the

], then press the knob.

] or [

24 HOUR

] is set

], then

Set the basic settings

Press and hold .

1 2 Turn the volume knob to select an item (see the following table), then

press the knob.

3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

To return to the previous setting item, press .

Default:

SETTINGS BEEP

SRC SELECT

AUX

(Not applicable when 3-way crossover is selected.)

:Activates the keypress tone.;

:Enables AM in source selection.;

:Enables AUX in source selection.;

OFF

:Deactivates.

OFF

:Disables.

F/W UPDATE

SYSTEM/ DAB 1/ DAB 2

F/W UP xxxx/ F/W UP xxxxx/

F/W UP Vxxx FACTORY RST YES

CLOCK

CLOCK SYNC

CLOCK DISP ON

ENGLISH ESPANOL

* Not displayed when the corresponding source is selected.

YES

:Starts upgrading the firmware.; NO:Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.

:Resets the settings to default (except the stored station).; NO:Cancels.

AUTO

:The clock time is automatically set using the Clock Time (CT) data in FM

Radio Data System signal or DAB signal.;

:The clock time is shown on the display even when the unit is turned off.;

OFF

:Cancels.

Select the display language for menu and music information if applicable.

ENGLISH

By default,

is selected.

OFF

:Cancels.

DIGITAL RADIO

About DAB (Digital Audio Broadcasting)

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information.

Preparation:

1 Connect a DAB antenna to the DAB antenna jack. 2 Press DAB to select DAB directly. 3 Press and hold DAB to start the Service List update.

“DAB SORTING” appears and update starts. Updates take up to 3 minutes. No interruption (such as traffic

information) is possible during updates.

• To cancel the Service List update: Press and hold DAB again.

( 29)

Search for an ensemble

Press DAB to select DAB directly.

1 2 Press to search for an ensemble automatically. (or) Press and hold until “M” flashes, then press repeatedly to

search for an ensemble manually.

3 Press to select a service (either primary or secondary) to

listen to.

Settings in memory

You can store up to 18 services.

Store a service

While listening to a service....

Press and hold one of the number buttons (1to5).

(or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the

knob.

The preset number flashes and “MEMORY” appears.

Select a stored service

Press one of the number buttons (1to5).

(or) 1 Press . 2 Turn the volume knob to select a preset number, then press the

knob to confirm.

Select a service

Press DAB to enter Service Search mode.

1 2 Turn the volume knob to select a service, then press the knob.

To cancel the Service Search mode, press or DAB.

ENGLISH

DIGITAL RADIO

Select a service by name

Press DAB to enter Service Search mode.

1 2 Press to select the character to be searched for. 3 Turn the volume knob to select a service, then press the knob.

Other settings

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select an item

then press the knob.

TUNER

], then press the knob.

(

see the following table),

4 Repeat step 3 until the desired item is selected/activated or follow

the instructions stated on the selected item.

5 Press to exit.

To return to the previous setting item, press

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.

1 ONCE/ DAILY/ WEEKLY/ OFF

on.

2 FM/ AM/ DAB 3 01

station.

Set the activation day * and time.

“

” lights up when complete.

Radio Timer will not activate for the following cases.

• The unit is turned off.

• [

OFF

selected.

* Selectable only when [

:Select the source.

to 18 (for FM)/ 01 to 06 (for AM)/ 01 to 18 (for DAB):Select the preset

] is selected for [AM] in [

( 4)

:Select how often the timer will be turned

SRC SELECT]

ONCE

] or [

after Radio Timer for AM is

WEEKLY

] is selected in step 1.

Default:

AF SET ON

TI SET ON

PTY SEARCH

DAB ANNCMNT

DAB UPDATE AUTO

: While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available).;

OFF

:Cancels.

:Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).;

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code:

SCIENCE, VARIED, POP M LIGHT M CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ COUNTRY, NATION M

TRAVEL SPORTS, FINANCE

the knob. “

” appears in front of the activated announcement type.

Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

• Multiple announcement can be activated simultaneously.

• To deactivate, press the volume knob again (“

on.;

OFF

:Cancels.

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE

(music),

WARNINGS, NEWS, WEATHER, EVENT, SPECIAL, RAD INFO

:Automatically update the DAB Service List when the power is turned

OFF

:Updates the DAB Service List by pressing and holding

(music),

ROCK M

(music),

EASY M

CLASSICS, OTHER M

(music),

: Turn the volume knob to make a selection, then press

(music),

OLDIES, FOLK M

WEATHER, FINANCE

(music),

” goes off).

(music),

DOCUMENT

DAB

DIGITAL RADIO

ANALOG RADIO

PTY-STBY

DAB L-BAND ON:

DAB ANT PWR ON:

RELATED SRV ON

The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type:

DRAMA, CULTURE, SCIENCE, VARIED, POPM ROCKM CLASSICS, OTHERM CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL LEISURE, JAZZ, COUNTRY, NATIONM FOLKM OFF

reception.

supply power. Selects when using passive antenna without booster.

service which is different audio program from the current audio program.;

NEWS, AFFAIRS, INFO, SPORT, EDUCATE

(music),

EASYM

(music),

WEATHER, FINANCE

(music),

; OFF:

DOCUMENT

Cancels.

OFF

:Disable.

:Cancels.

Receives L-BAND ensemble during digital audio

Supplies power to the DAB antenna. ;

:Enable Soft-Link function to switch to an alternative

LIGHTM

(music),

OFF:

(music),

OLDIES

Does not

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

Press repeatedly to select FM or AM.

1 2 Press to search for a station automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for a

station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 5).

(or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and “MEMORY” appears.

Select a stored station

Press one of the number buttons (1to5).

(or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to

confirm.

ENGLISH

ANALOG RADIO

Other settings

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select an item

then press the knob.

4 Repeat step 3 until the desired item is selected/activated or follow

the instructions stated on the selected item.

5 Press to exit.

To return to the previous setting item, press .

RADIO TIMER

SSM SSM 01 – 06

LOCAL SEEK ON

IF BAND AUTO

MONO ON

NEWS-STBY*ON

( 6)

/ 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select

:Searches only FM stations with good reception.;

• Settings made are applicable only to the selected source/station. Once you

change the source/station, you need to make the settings again.

adjacent FM stations. (Stereo effect may be lost.); interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

:Improves the FM reception, but the stereo effect will be lost.;

OFF

:The unit will temporarily switch to News Programme if available.;

OFF

SSM 07 – 12

:Increases the tuner selectivity to reduce interference noises from

:Cancels.

SSM 13 – 18

TUNER

], then press the knob.

(

see the following table),

SSM 13 – 18

: Automatically presets up to

to store the following 12 stations.

WIDE

OFF

:Cancels.

:Subjects to

Default:

REGIONAL

: Switches to another station only in the specific region using the “AF”

control.;

OFF

:Cancels.

AF SET

: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.;

TI SET

: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ;

• [

TI SET

only.

PTY SEARCH*Select a PTY code (see below).

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE VARIED, POP M CLASSICS, OTHER M PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M

(music),

* Only for FM source.

If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

(music),

DOCUMENT

OFF

:Cancels.

] in AM band is for enabling traffic interruption to DAB source

ROCK M

(music),

WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION

EASY M

OFF

: Cancels.

(music),

LIGHT M

OLDIES, FOLK M

(music),

CD / USB / iPod / ANDROID

Start playback

The source changes automatically and playback starts.

Eject disc Label side

USB input terminal

USB

USB 2.0 cable (commercially available)

iPod/iPhone

(Accessory of the iPod/iPhone)*

ANDROID

Micro USB 2.0 cable (commercially available)

To On the faceplate

Reverse / Fast-forward Select a track/file Press Select a folder

Repeat play

Random play

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the

Press and hold .

Press . Press repeatedly.

TRACK RPT/ ALL RPT TRACK RPT/ FOLDER RPT/ ALL RPT ONE RPT/ ALL RPT/ RPT OFF

Press repeatedly.

ALL RND/ RND OFF FOLDER RND/ ALL RND/ RND OFF SONG RND/ ALL RND/ RND OFF

: Audio CD

: MP3/WMA/AAC/WAV/FLAC file

: iPod or ANDROID

: Audio CD

: MP3/WMA/AAC/WAV/FLAC file

: iPod or ANDROID

application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. (

)

For ANDROID: Applicable only when [

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.

For iPod/ ANDROID: Applicable only when [

AUTO MODE

HEAD MODE

] is selected. (

]/ [

AUTO MODE

)

] is selected. (

)

ENGLISH

CD / USB / iPod / ANDROID

Select control mode

While in USB-IPOD source, press repeatedly.

HEAD MODE IPHONE MODE

While in ANDROID source, press repeatedly.

AUTO MODE

AUDIO MODE

: Control iPod from this unit.

: Control iPod using the iPod itself.

play/pause or file skip from this unit.

: Control Android device from this unit via JVC MUSIC PLAY

application installed in the Android device.

: Control Android device using the Android device itself via

other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

However,

you can still

Select music drive

Press repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device.

Select a file from a folder/list

Press .

1 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

– Not applicable for iPod.

Alphabet search

You can search for a file according to the first character.

Press or turn the volume knob quickly to select the desired character (A to Z/ 0to9/ OTHERS).

– Select “OTHERS” if the first character is other than Ato Z, 0 to 9.

• To return to the previous setting item, press .

• To cancel, press and hold

• For iPod, applicable only when [

• For ANDROID, applicable only when [

(applicable only for iPod):

HEAD MODE

AUTO MODE

] is selected.

BLUETOOTH®

BLUETOOTH — Connection

Supported Bluetooth profiles

– Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

– Sub Band Codec (SBC) – Advanced Audio Coding (AAC)

Connect the microphone

Rear panel

Microphone (supplied)

Microphone input jack

Adjust the microphone angle

Secure using cord clamps (not supplied) if necessary.

Pair and connect a Bluetooth device for the first time

Press to turn on the unit.

2 Search and select “JVC UNIT” on the Bluetooth device.

“BTPAIRING” flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number

(PIN) code immediately after searching.

3 Perform (A) or (B) depending on what scrolls on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) “[Device Name]” “XXXXXX” “VOL–YES” “BACK–NO” “XXXXXX” is a 6-digit passkey randomly generated during each pairing.

(B) “[Device Name]” “VOL–YES” “BACK–NO”

• If only “PAIRING” appears, operate the Bluetooth device to confirm pairing. “PAIRING COMPLETED” appears when pairing is completed and “ Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).

• Up to 10 devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the

• Refer to the instruction manual of the Bluetooth device for more information.

Ensure that the passkey which appears on the unit and Bluetooth device is the same. Press the volume knob to confirm the passkey. Operate the Bluetooth device to confirm the passkey.

Press the volume knob to start pairing.

• If “PAIRING” “PIN 0000” scrolls on the display, enter the PIN code “0000” into the Bluetooth device. You can change to a desired PIN code before pairing. (

Lights up to show the battery strength and signal strength.

* Functionality depends on the type of the phone used.

you reset the unit. To delete the paired device,

any time.

device to the unit manually.

15, [

DELETE PAIR

)

” will light up when the

ENGLISH

BLUETOOTH®

Auto Pairing

When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if: – Bluetooth function of the connected devcie is

turned on.

– [

AUTO CNNT

– JVC MUSIC PLAY application is installed on

the Android device ( selected (

] is set to [ON]. ( 15)

9) and [

10).

AUTO MODE

] is

BLUETOOTH — Mobile phone

Receive a call

When there is an incoming call:

• The buttons will blink in the color you have selected in [

• The unit answers the call automatically if [ During a call:

• The buttons stop blinking and illuminate in the color you have selected in [

• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

To On the faceplate

First incoming call...

Answer a call

Reject a call

End a call

While talking on the first incoming call...

Answer another incoming call and hold the current call

Reject another incoming call

AUTO ANSWER

RING COLOR

] is set to a selected time. ( 13)

Press

Press and hold

Press

Press and hold

]. ( 13)

or the volume knob.

RING COLOR

]. ( 13)

BLUETOOTH®

To On the faceplate

While having two active calls...

End current call and activate held call

Swap between the current call and held call

Adjust the phone volume

[00]

[35]

(Default:

Switch between hands-free and private talk modes

[15]

Press and hold

Press

Turn the volume knob during a call.

)

• This adjustment will not affect the volume of the other sources.

Press

• Operations may vary according to the connected Bluetooth device.

or the volume knob.

during a call.

Improve the voice quality

While talking on the phone....

1 Press and hold . 2 Turn the volume knob to select an item

the knob.

(

see the following table), then press

3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

To return to the previous setting item, press .

MIC LEVEL

NOISE RDCT –5

ECHO CANCEL –5

–10

—

+10(–4

increased.

—+5(0):Adjust the noise reduction level until the least noise is being heard

during a phone conversation.

—+5(0):Adjust the echo cancellation delay time until the least echo is being

heard during a phone conversation.

):The sensitivity of the microphone increases as the number

Default:

Make the settings for receiving a call

Press to enter Bluetooth mode.

1 2 Turn the volume knob to select an item (see the following

table), then press the knob.

3 Repeat step 2 until the desired item is selected or

activated.

To return to the previous setting item, press

SETTINGS

AUTO ANSWER

RING COLOR COLOR01

01 SEC —30 SEC

automatically in the selected time (in seconds).;

OFF

:Cancels.

notification light color for the buttons when there is an incoming call and during a call.;

:The unit answers incoming call

—

COLOR49(COLOR 08

): Selects the

OFF

:Cancels.

Default:

ENGLISH

BLUETOOTH®

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then

press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the

instructions stated on the selected item.

To return to the previous setting item, press

RECENT CALL

PHONEBOOK

DIAL NUMBER1 Turn the volume knob to select a number (0 to 9) or character ( , #, +).

VOICE

(Applicable only if the phone supports PBAP)

Press the volume knob to select a name or a phone number.

• “<” indicates call received, “>“ indicates call made, “M” indicates call missed.

• “NO HISTORY” appears if there is no recorded call history or call number.

Press the volume knob to call.

(Applicable only if the phone supports PBAP)

Press to select the desired letter (A to Z, 0to9, and OTHERS).

• “OTHERS” appears if the first character is other than Ato Z, 0 to 9.

Turn the volume knob to select a name, then press the knob.

Turn the volume knob to select a phone number, then press the knob to call.

• The phonebook of the connected phone is automatically transferred to the unit when pairing.

• This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.)

Press to move the entry position.

Repeat steps

Press the volume knob to call.

Speak the name of the contact you want to call or the voice command to control the phone functions.

and 2 until you finish entering the phone number.

( 

Make a call using voice recognition

)

Make a call using voice recognition

Press and hold to activate the connected phone.

1 2 Speak the name of the contact you want to call or the voice

command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 5).

1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [

[

DIAL NUMBER

], then press the knob.

RECENT CALL

], [

PHONEBOOK

], or

3 Turn the volume knob to select a contact or enter a phone

number.

If a contact is selected, press the volume knob to show the

phone number.

4 Press and hold one of the number buttons (1 to 5).

“MEMORY P(selected preset number)” appears when the

contact is stored.

To erase a contact from the preset memory, select [ step

2 and store a blank number.

DIAL NUMBER

] in

Make a call from memory

Press to enter Bluetooth mode.

1 2 Press one of the number buttons (1 to 5). 3 Press the volume knob to call.

“NO PRESET” appears if there is no contacts stored.

BLUETOOTH®

Bluetooth mode settings

Press and hold .

2 Turn the volume knob to select [ 3 Turn the volume knob to select an item

the knob.

4 Repeat step 3 until the desired item is selected/activated or follow the

instructions stated on the selected item.

5 Press to exit.

BLUETOOTH

], then press the knob.

(

see the following table), then press

To return to the previous setting item, press .

Default:

PHONE

AUDIO

APPLICATION

DELETE PAIR

SET PINCODE (0000)

AUTO CNNCT ON

AUTO PAIR ON

INITIALIZE YES

INFORMATION

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.

JVC Smart Music Control is designed to view JVC car receiver status and perform simple control

Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

“

*1Shows the connected phone name using the JVC Smart Music Control

” appears in front of the device name when connected.

“

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [

YES

] or [NO], then press the knob.

Changes the PIN code (up to 6 digits).

Turn the volume knob to select a number.

Press to move the entry position.

Repeat steps

Press the volume knob to confirm.

and 2 until you finish entering the PIN code.

:The unit automatically reconnect when the last connected Bluetooth device is

OFF

within range.;

:Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ;

:Initializes all the Bluetooth settings (including stored pairing, phonebook, and

:Cancels.

etc.).;

MYBTNAME MYADDRESS

: Displays the unit name (JVCUNIT).; : Shows address of this unit.

*2 app.

OFF

operations on Android smart phones. For JVC Smart Music Control operations, visit JVC website: <http://www.jvc.net/cs/car/>.

:Cancels.

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold .

“BLUETOOTH”

USING PHONE”

“CHECK MODE” appears. “SEARCH NOW

“PIN IS 0000” scrolls on the display.

2 Search and select “JVC UNIT” on the Bluetooth device

within 3minutes.

3 Perform (A), (B) or (C) depending on what appears on the

display.

(A) “PAIRING”

“XXXXXX” (6-digit passkey): Ensure that

the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.

(B) “PAIRING”

“PIN IS 0000”: Enter “0000” on the

Bluetooth device.

pairing.

After pairing is successful, “PAIRING OK”

“[Device Name]” appears and Bluetooth compatibility check starts. If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to allow phonebook access to continue. “TESTING” flashes on the display.

The connectivity result flashes on the display.

“PAIRING OK” and/or “H.FREE OK”*1 and/or “A.STREAM OK”*2 and/or “PBAP OK”*

Compatible with Hands-Free Profile (HFP)

Compatible with Advanced Audio Distribution Profile (A2DP)

Compatible with Phonebook Access profile (PBAP)

: Compatible

After 30 seconds, “PAIRING DELETED” appears to indicate that pairing has been deleted, and the unit exits check mode.

• To cancel, press and hold

to turn off the power,

then turn on the power again.

ENGLISH

BLUETOOTH®

BLUETOOTH — Audio

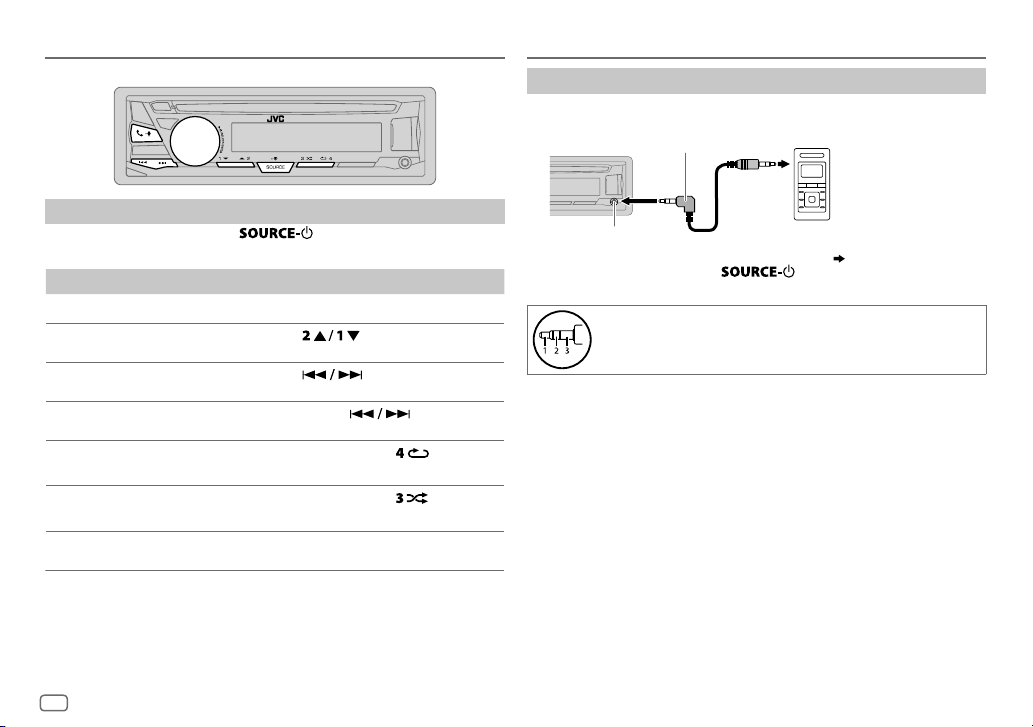

Audio player via Bluetooth

Press repeatedly to select BTAUDIO.

1 2 Operate the Bluetooth audio player to start playback.

To On the faceplate

Playback / pause Press the volume knob.

Select group or folder Press Reverse / Forward skip Press Reverse / Fast-forward Press and hold Repeat play Press

TRACK RPT, ALL RPT, RPT OFF

Random play

Select a file from a folder/list

Operations and display indications may differ according to their availability on the connected device.

Press

GROUP RND, ALL RND, RND OFF

Refer to “Select a file from a folder/list” on page 10.

repeatedly.

AUX

Use a portable audio player

Connect a portable audio player (commercially available).

3.5mm stereo mini plug with “L” shaped connector (commercially available)

Auxiliary input jack

2 Select [

] for [

AUX

] in [

SRC SELECT

3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

Portable audio player

]. ( 4)

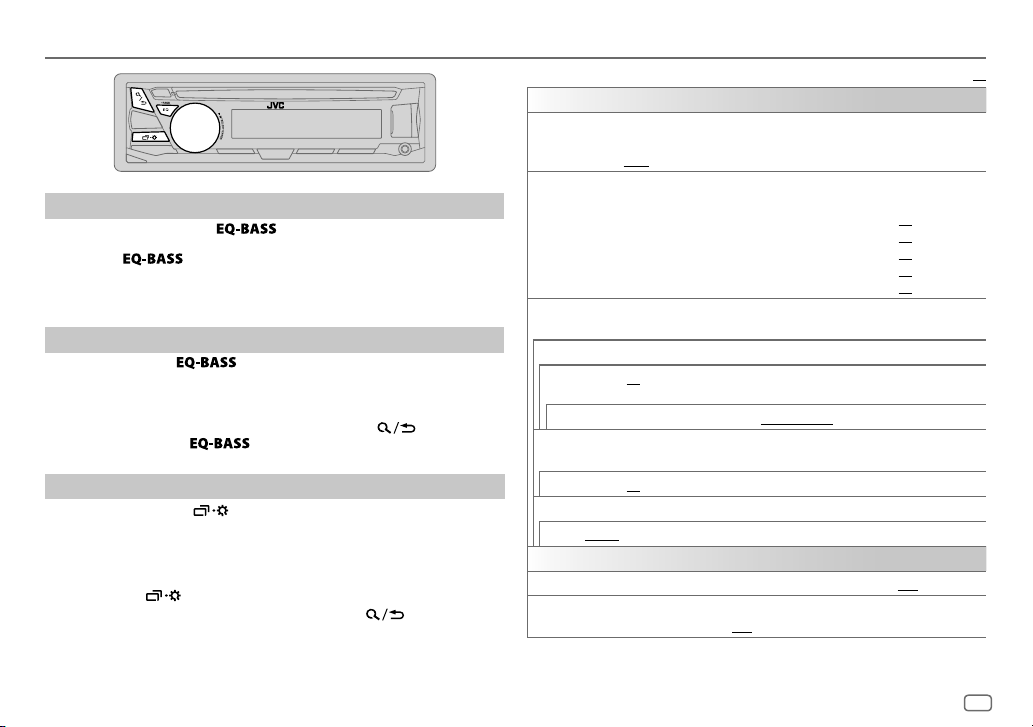

AUDIO SETTINGS

Select a preset equalizer

Press repeatedly.

(or)

Press

Preset equalizer FLAT(default)/

Store your own sound settings

Press and hold to enter EASY EQ setting.

1 2 Turn the volume knob to adjust the level, then press the knob. Refer to [

• To return to the previous setting item, press .

• To exit, press

Other settings

Press and hold .

1 2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

, then turn the volume knob within 5seconds.

HARD ROCK/

EASY EQ

POP/

HIP HOP/

R&B/

JAZZ/

CLASSICAL/

] for setting and the result is stored to [

USER

EQ SETTING

EQ PRESET

EASY EQ

PRO EQ

62.5HZ

LVL –09

(Before making an adjustment, select the source you want to adjust.)

BASS EXT ON

100HZ

6.3KHZ /

LVL –09

Q FACTOR

Q 1.35/ Q 1.50/ Q 2.00

AUDIO

BASS BOOST

LOUD 01

Select a preset equalizer suitable to the music genre. (Select [ the settings made in [

FLAT/

HARD ROCK/

Adjust your own sound settings. The settings are stored to [

• The settings made may affect the current settings of [

SUB.W SP

1*3

SUB.W BASS



LVL

MID



LVL

TRE



LVL

Adjust your own sound settings. The settings are stored to [

• The settings made may affect the current settings of [

to

+09 (00):

Adjusts the level to memorize for each source.

:Turns on the extended bass.;

/ 160HZ /

250HZ /

10KHZ /

16kHZ

to

+09 (00):

(Refer above)

:Adjust the quality factor.

+01

to

+05

/02:Boosts low or high frequencies to produce a well-balanced sound

at low volume.;

EASY EQ

] or [

POP/

HIP HOP/

1*2

to

400HZ /

: Selects your preferred bass boost level.;

OFF

–50 –09 –09 –09

630HZ /

:Cancels.

+06

to

+10

to

+09

to

+09

to

+09

BASS EXT OFF

1KHZ /

PRO EQ

R&B/

(Default:

00)

1.6KHZ /

].)

JAZZ/

:Cancels.

CLASSICAL/

PRO EQ

03 00 00 00

EASY EQ

2.5KHZ /

OFF

Default:

USER

4KHZ /

:Cancels.

] to use

USER

ENGLISH

AUDIO SETTINGS

SUB.W LEVEL

SUB.W ON FADER

BALANCE VOLADJUST –15

AMPGAIN LOWPOWER

SPK/PREOUT

SPK SIZE

X ' OVER

X ' OVER TYPE Caution

X ' OVER 2-WAY

X ' OVER 3-WAY

SPK-OUT

PRE-OUT –50

/

OFF

(Not applicable when 3-way crossover is selected.)

R15 L15

to

to (compared to the FM volume level). Before adjustment, select the source you want to adjust.

maximum power of each speaker is less than 50W to prevent damaging the speakers.);

(Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. (

Depending on the crossover type you have selected (see [ below), 2-way crossover or 3-way crossover setting items will be shown.



19, Crossover settings)

( By default, 2-way crossover type is selected.

(Displayed only when [

YES

:Selects two way crossover type.; NO:Cancels.

(Displayed only when [

YES

:Selects three way crossover type.; NO:Cancels.

(Not applicable when 3-way crossover is selected.)

to

+06(+03

):Adjusts the output level of the

subwoofer connected via speaker lead. (

to

+10(00

subwoofer connected to the lineout terminals (SW) through an external amplifier. (

):Adjusts the output level of the

29)

: Turns on or off the subwoofer output.

F15(00

):Adjusts the front and rear speaker output balance.

R15(00

):Adjusts the left and right speaker output balance.

+06(00

):Preset the initial volume level of each source

:Limits the maximum volume level to 25. (Select if the

HIGH POWER

: Adjust the volume before changing the

:The maximum volume level is 35.



19, Speaker output settings

X ' OVER TYPE

avoid the sudden increase or decrease of the output level.

X ' OVER 3-WAY

X ' OVER 2-WAY

] is selected)

29)

X ' OVER TYPE

SND EFFECT

ENHANCE

(Not applicable for FM/AM source and DAB source.)

SML/ MED/ LRG

RESPONSE LV1/ LV2/ LV3

SOUND LIFT LV1/ LV2/ LV3

speakers.;

VOL LINK EQ ON

:Boosts the frequency to reduce the noise heard from outside the car

or running noise of the tyres.;

Displayed only when [

For 2-way crossover: Displayed only when [

19)

(

This adjustment will not affect the subwoofer output.

(Not applicable for FM/AM source, DAB source and AUX source.)

:Improve the sound quality of compressed music.;

SUB.W

)

]

: Virtually enhances the sound space.;

: Virtually makes the sound more realistic.;

: Virtually adjust the sound position heard from the

OFF

:Cancels.

OFF

:Cancels.

] is set to [ON].

SPK/PREOUT

] is set to [

SUB.W/SUB.W

OFF

:Cancels.

OFF

:Cancels.

AUDIO SETTINGS

Speaker output settings

(Only for

X ' OVER 2-WAY

Select the output setting for the speakers [ speaker connection method.

)

SPK/PRE OUT

], base on the

Connection via lineout terminals

For connections through an external amplifier. ( 29)

Setting on

[

SPK/PRE OUT

REAR/REAR

(default)

SUB.W/SUB.W

]

Front speakers output

Audio signal through lineout terminal

FRONT REAR SW

Rear speakers output Subwoofer output

L (left): Subwoofer output R (right): (Mute)

Subwoofer output

Connection via speaker leads

For connections without using an external amplifier. However, with this setting you can also enjoy the subwoofer output. (

Setting on

[

SPK/PRE OUT

REAR/REAR

SUB.W/SUB.W

If [

SUB.W/SUB.W

– [

HIGH 120HZ

– [

R02

] is selected in [

]

Rear speakers output Rear speakers output

Subwoofer output (Mute)

] is selected:

] is selected in [

FADER

Audio signal through rear speaker lead

L (left) R (right)

SUB.WLPF

] and selectable range is [

] and [

THROUGH

29)

] is not available.

R15

]to [00].

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

Caution

Select a crossover type according to how the speakers are connected. (

29)

If you select a wrong type:

• The speakers may damage.

• The output sound level may be extremely high or low.

SPK SIZE

(speaker size)

Selects according to the connected speaker size for optimum

performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.

•

If [

NONE

] is selected for [

[

SPK SIZE

], the [

X ‘ OVER

(crossover)

[

FRQ

]/ [

HPF FRQ

Adjusts the crossover frequency for the selected speakers (high pass

filter or low pass filter).

•

If [

[

SLOPE

Adjusts the crossover slope.

•

Selectable only if a setting other than [ crossover frequency.

[PHASE]:

Selects the phase of the speaker output to be in line with the other

speaker output.

[

GAIN LEFT

Adjusts the output volume of the selected speaker.

]/ [

THROUGH

] is selected, all signals are sent to the selected speakers.

]/ [

HPF SLOPE

]/ [

GAIN RIGHT

TWEETER

] of [

FRONT

], [

REAR

X ‘ OVER

] setting of the selected speaker is not available.

LPF FRQ

]/ [

LPF SLOPE]:

]/ [

GAIN]:

] and [

THROUGH

] is selected for the

SUBWOOFER

] for

ENGLISH

AUDIO SETTINGS

2-way crossover setting items

SPK SIZE

FRONT SIZE

8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"

REAR

SUBWOOFER

TWEETER 8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"/ 5×7"/

6×8"

16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE

SML/ MID/ LRG/ NONE

6×9"/ 7×10"/ NONE

X ' OVER

TWEETER FRQ

1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/

8KHZ GAIN LEFT GAIN RIGHT

FRONT HPF FRQ

SLOPE GAIN

REAR HPF

FRQ 30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/

SLOPE GAIN

SUB.W LPF

FRQ 30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/

SLOPE PHASE

–08DB

30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/

100HZ

THROUGH

–06DB/ –12DB/ –18DB/ –24DB

–08DB

100HZ

THROUGH

–06DB/ –12DB/ –18DB/ –24DB

–08DB

100HZ

THROUGH

–06DB/ –12DB/ –18DB/ –24DB

REVERSE GAIN –08DB

5×7"/ 6×8"/ 6×9"/ 7×10"

(not connected)

(not connected)

10KHZ/12.5KHZ

00DB

120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ

00DB

120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ

00DB

120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ

(180°)/

NORMAL

(0°)

00DB

3-way crossover setting items

SPK SIZE

TWEETER MID RANGE

SML/ MID/ LRG 8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"/ 5×7"/ 6×8"/

6×9"

WOOFER

16CM/ 20CM/ 25CM/ 30CM/ 38CM OVER/ NONE

(not connected)

X ' OVER

TWEETER HPF FRQ

1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ

10KHZ/ 12.5KHZ SLOPE PHASE GAIN –08DB

MID RANGE HPF FRQ

HPF SLOPE LPF FRQ

–06DB/ –12DB

REVERSE

(180°)/

NORMAL

(0°)

00DB

30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/

120HZ

150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH –06DB/ –12DB 1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ

10KHZ/ 12.5KHZ/ THROUGH

LPF SLOPE

PHASE GAIN –08DB

WOOFER

LPF FRQ 30HZ/ 40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/

SLOPE PHASE GAIN –08DB

Displayed only when [

–06DB/ –12DB REVERSE

120HZ –06DB/ –12DB REVERSE

SPK/PREOUT SUB.W

] is set to [ON]. ( 18)

(180°)/

NORMAL

(0°)

00DB

150HZ/ 180HZ/ 220HZ/ 250HZ/ THROUGH

(180°)/

NORMAL

(0°)

00DB

] is set to [

REAR/REAR

]. ( 19)

DISPLAY SETTINGS

1 Press and hold . 2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

Default:

DISPLAY

DIMMER

Dim the display and buttons illumination.

OFF

:Dimmer is turned off.

:Dimmer is turned on. Brightness changes to [

( [BRIGHTNESS]) DIMMER TIME

Turn the volume knob to adjust the [ON] time, then press the knob.

Turn the volume knob to adjust the [

(Default: [ [

AUTO

headlights. *

:Set the dimmer on and off time.

]: 18:00 or 6:00 PM

OFF

:Dimmer turns on and off automatically when you turn off or on the car

]: 6:00 or 6:00 AM)

NIGHT

] setting.

OFF

] time, then press the knob.

BRIGHTNESS

SCROLL

COLOR

PRESET

DAY COLOR

NIGHT COLOR

MENU COLOR

[

NIGHT COLOR

headlight.

The illumination control wire connection is required.

Some characters or symbols will not be shown correctly (or will be blanked).

Set the button and display brightness for day and night separately.

1 DAY / NIGHT 2

Select a zone.

Set the brightness level (00 to 31).

(Default:

ONCE

5-second intervals.;

Select a color for the buttons illumination.

•

COLOR 01

•

USER

is shown.

•

COLOR FLOW01

speeds.

Make your own day and night colors for the buttons illumination.

1 RED 2 00

Repeat steps

• Your setting is stored to

music file from a folder/list.;

] or [

DAY COLOR

:Select day or night.

( Illustration on left column)

BUTTON ZONE: DAY:25 DISP ZONE: DAY:31

:Scrolls the display information once.;

to 31:Select the level.

:Changes the button illumination in menu mode or when selecting a

OFF

:Cancels.

COLOR 49 [COLOR 08

: The color you have created for [

COLOR FLOW03

/

GREEN

/

BLUE

:Select a primary color.

and 2 for all primary colors.

[USER]

OFF

] is changed by turning on or off your car’s

;

NIGHT:09

;

NIGHT:12

)

AUTO

:Repeats scrolling at

]

DAY COLOR

: Color changes at different

[PRESET]

:Cancels.

( 29)

] or [

NIGHT COLOR

]

ENGLISH

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc.

More information

Visit also the following website <http://www.jvc.net/cs/car/> for:

– Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information

General

• This unit can only play the following CDs:

•

DualDisc playback:

Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

• Detailed information and notes about the playable audio files are stated in an online manual on the following website <http://www.jvc.net/cs/car/>.

The Non-DVD side of a “DualDisc” does not comply with the “Compact

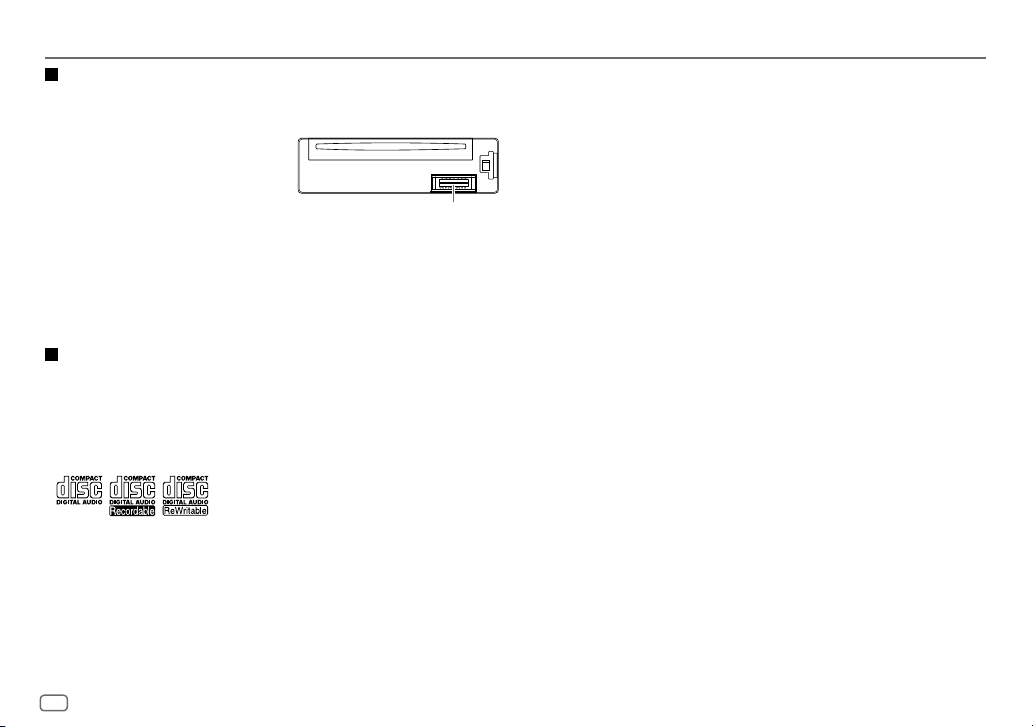

Connector (on the reverse side of the faceplate)

Playable files

• Playable audio file: MP3 (.mp3)/ WMA (.wma)/ AAC (.aac)

• Playable disc media: CD-R/CD-RW/CD-ROM

• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit.

Unplayable discs

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

• Recordable/ReWritable discs that have not been finalized.

• 8cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play the following files stored on a USB mass storage class device: MP3/ WMA/ AAC/ WAV/ FLAC

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A.

REFERENCES

About iPod/iPhone

Made for

- iPod touch (2nd, 3rd, 4th, and 5th generation)

- iPod classic

- iPod nano (3rd, 4th, 5th, 6th, and 7th generation)

- iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

• It is not possible to browse video files on the “Videos” menu in

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS4.1 and above) may not fully support Android Open Accessory (AOA)2.0.

• If the Android device supports both mass storage class device and AOA2.0, this unit always playback via AOA2.0 as priority.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

• This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings.

[HEAD MODE]

Change the display information

Each time you press , the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, “NO SIGNAL”, or other information (eg. station name) appears.

DAB

USB-IPOD ANDROID

AUX

BT AUDIO

* The color of the button illumination changes and synchronises with the sound level.

Service name Title/Artist Dynamic Label Segment (DLS) Ensemble name synchronisation

Frequency Day/Clock Level meter Level meter with color synchronisation

(For FM Radio Data System stations only)

Station name (PS) Frequency Program type (PTY) Day/Clock (back to the beginning)

USB (For CD-DA)

Playing time Day/Clock Disc name Track title Level meter Level meter with color synchronisation

(For MP3/WMA/AAC/WAV/FLAC files)

Playing time Day/Clock Album title/Artist Track title Folder/file name (back to the beginning)

Playing time Day/Clock Album title/Artist Track title Level meter (back to the beginning)

AUX Day/Clock Level meter Level meter with color synchronisation

Playing time Day/Clock Album title/Artist Track title Level meter (back to the beginning)

Day/Clock Level meter Level meter with color

* (back to the beginning)

Level meter Level meter with color synchronisation

Level meter with color synchronisation

* (back to the beginning)

Level meter with color synchronisation

Radiotext+

* (backtothebeginning)

ENGLISH

TROUBLESHOOTING

Symptom Remedy

Sound cannot be heard. • Adjust the volume to the optimum level.

“MISWIRING CHECK WIRING THEN PWR ON” appears.

General

“PROTECTING SEND SERVICE” appears.

Source cannot be selected. Check the [

DAB reception is poor. Make sure [ON] is selected for [

“CHK ANTENNA” Check the DAB antenna. If a passive antenna (without

Digital Radio

“RELATED SRV FOUND” • Press the volume knob to activate Soft-Link. (

• Radio reception is poor.

• Static noise while

Radio

Analog

listening to the radio.

Disc cannot be ejected.

“IN DISC” appears. Make sure nothing is blocking the loading slot when

“PLEASE” and “EJECT” appear alternately.

CD / USB / iPod

Playback order is not as intended.

• Check the cords and connections.

Turn the power off, then check to be sure the

terminals of the speaker wires are insulated properly. Turn the power on again.

Send the unit to the nearest service center.

SRC SELECT

(

7)

a booster) is used, set [ (

7)

• Press

Connect the antenna firmly.

Press and hold

not to drop the disc when it is ejected.

you eject the disc.

Press

, then insert the disc correctly.

The playback order is determined by the file name

(USB) or the order in which files were recorded (disc).

] setting.

DAB ANT PWR

to cancel.

to forcibly eject the disc. Be careful

( 4)

] to [

OFF

Symptom

Elapsed playing time is not correct.

“NOT SUPPORT” appears and track skips.

“READING” keeps flashing. • Do not use too many hierarchical levels and folders.

“CANNOT PLAY” flashes and/or connected device

7)

cannot be detected.

The iPod/iPhone does not

CD / USB / iPod

turn on or does not work.

“LOADING” appears when you enter search mode by pressing

Correct characters are not displayed.

• Sound cannot be heard during playback.

• Sound output only from the Android device.

ANDROID

Remedy

This depends on the recording process earlier.

Check whether the track is a playable format.

• Reload the disc or reattach the USB device.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats.

( 22)

• Reattach the device.

• Check the connection between this unit and iPod/iPhone.

• Detach and reset the iPod/iPhone using hard reset.

This unit is still preparing the iPod/iPhone music list. It

may take some time to load, try again later.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected (

), some characters may not be displayed correctly.

• Reconnect the Android device.

AUDIO MODE

• If in [ application on the Android device and start playback.

AUDIO MODE

• If in [ application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (

], launch any media player

], relaunch the current media player

( 22)

)

TROUBLESHOOTING

Symptom

Cannot playback at

AUTO MODE

[

“NO DEVICE” or “READING” keeps flashing.

ANDROID

Playback is intermittent or sound skips.

“CANNOT PLAY” • Make sure Android device contains playable audio files.

No Bluetooth device is detected.

Pairing cannot be made. • Make sure you have entered the same PIN code to both

Echo or noise occurs. • Adjust the microphone unit’s position.

Bluetooth®

Phone sound quality is poor.

Remedy

• Make sure JVC MUSIC PLAY APP is installed on the Android device. ( 9)

• Reconnect the Android device and select the appropriate control mode. (

• If this does not solve the problem, the connected Android device does not support [

• Switch off the developer options on the Android device.

• Reconnect the Android device.

• If this does not solve the problem, the connected Android device does not support [

Turn off the power saving mode on the Android device.

• Reconnect the Android device.

• Restart the Android device.

• Search from the Bluetooth device again.

• Reset the unit.

the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again.

• Check the

• Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception.

)

( 3)

[ECHO CANCEL]

AUTO MODE

setting.

]. (

( 11)

( 13)

)

( 11)

Symptom Remedy

Sound is being interrupted or skipped during playback of a Bluetooth audio player.

The connected Bluetooth audio player cannot be controlled.

“PAIRING FULL” The number of registered devices has reached its limit.

Bluetooth®

“PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the

“NOT SUPPORT” The connected phone does not support Voice Recognition

“ERROR” Try the operation again. If “ERROR” appears again, check if

“H/W ERROR” Reset the unit and try the operation again. If “H/W ERROR”

If you still have troubles, reset the unit. ( 3)

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again.

Retry after deleting an unnecessary device.

PAIR)

message does not disappear, turn off and turn on the unit, then connect the device again.

feature.

the device supports the function you have tried.

appears again, consult your nearest service center.

( 15, DELETE

ENGLISH

+ 61 hidden pages
