KD-DB67

CD RECEIVER

INSTRUCTION MANUAL

RÉCEPTEUR CD

MANUEL D’INSTRUCTIONS

CD-RECEIVER

BEDIENUNGSANLEITUNG

ENGLISH

FRANÇAIS

DEUTSCH

B5A-0812-00 [E]

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Information sur l’élimination des anciens équipements électriques et électroniques et piles électriques (applicable dans les pays qui ont adopté des systèmes de collecte sélective)

Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne peuvent pas être éliminés comme ordures ménagères. Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés sur des sites capables de traiter ces produits et leurs déchets. Contactez vos autorités locales pour connaître le site de recyclage le plus proche. Un recyclage adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des leurs effets nocifs sur notre santé et sur l’environnement. Remarque: Le symbole “Pb“ ci-dessous sur des piles électrique indique que cette pile contient

du plomb.

Entsorgung von gebrauchten elektrischen und elektronischen Geräten und Batterien (anzuwenden in Ländern mit einem separaten Sammelsystem für solche Geräte)

Das Symbol (durchgestrichene Mülltonne) auf dem Produkt oder seiner Verpackung weist darauf hin, dass dieses Produkt nicht als normaler Haushaltsabfall behandelt werden darf, sondern an einer Annahmestelle für das Recycling von elektrischen und elektronischen Geräten und batterien abgegeben werden muss. Durch Ihren Beitrag zur korrekten Entsorgung dieses Produktes schützen Sie die Umwelt und die Gesundheit Ihrer Mitmenschen. Unsachgemässe oder falsche Entsorgung gefährden Umwelt und Gesundheit. Weitere Informationen über das Recycling dieses Produktes erhalten Sie von Ihrer Gemeinde oder den kommunalen Entsorgungsbetrieben. Achtung: Das Zeichen „Pb“ unter dem Symbol fur Batterien zeigt an, dass diese Batterie Blei

enthalt.

Declaration of Conformity with regard to the EMC Directive Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Déclaration de conformité se rapportant à la directive EMC Déclaration de conformité se rapportant à la directive RoHS 2011/65/EU Fabricant:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

Représentants dans l’UE:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Konformitätserklärung in Bezug auf die EMC-Vorschrift Konformitätserklärung in Bezug auf die RoHS-Vorschrift 2011/65/EU Hersteller:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU-Vertreter:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

For Israel

CONTENTS BEFORE USE

BEFORE USE 2

BASICS 3

GETTING STARTED 4

Cancel the demonstration 2 Set the clock 3 Set the basic settings

CD / USB / iPod / ANDROID 5

DIGITAL RADIO 7

ANALOG RADIO 9

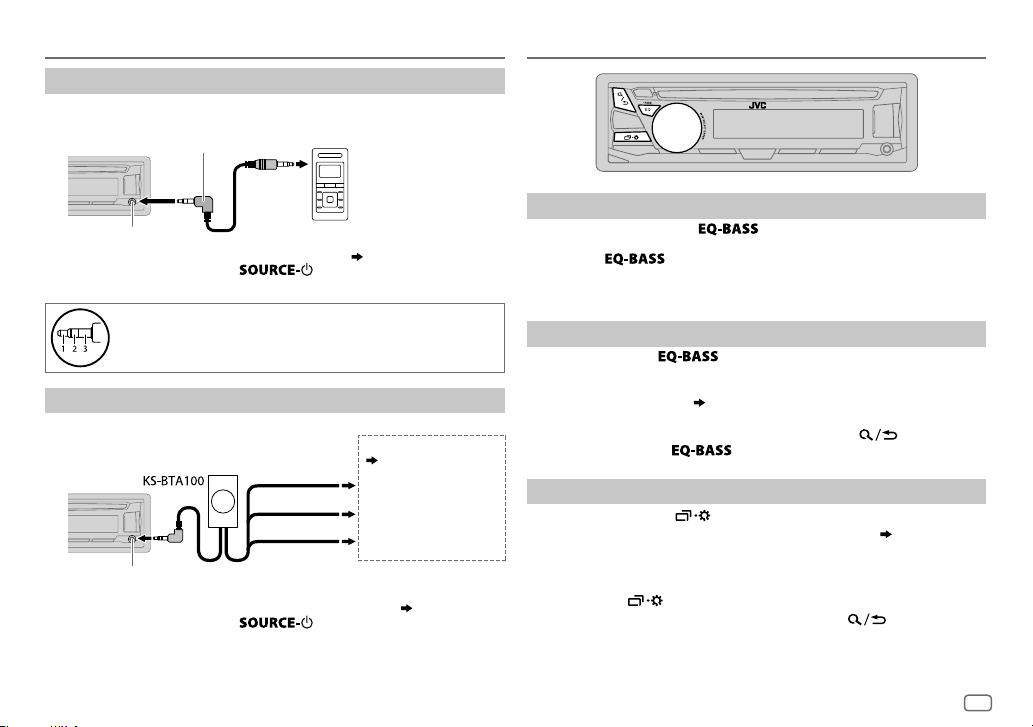

AUX 11

AUDIO SETTINGS 11

DISPLAY SETTINGS 13

REFERENCES 14

Maintenance More information

TROUBLESHOOTING 16

SPECIFICATIONS 18

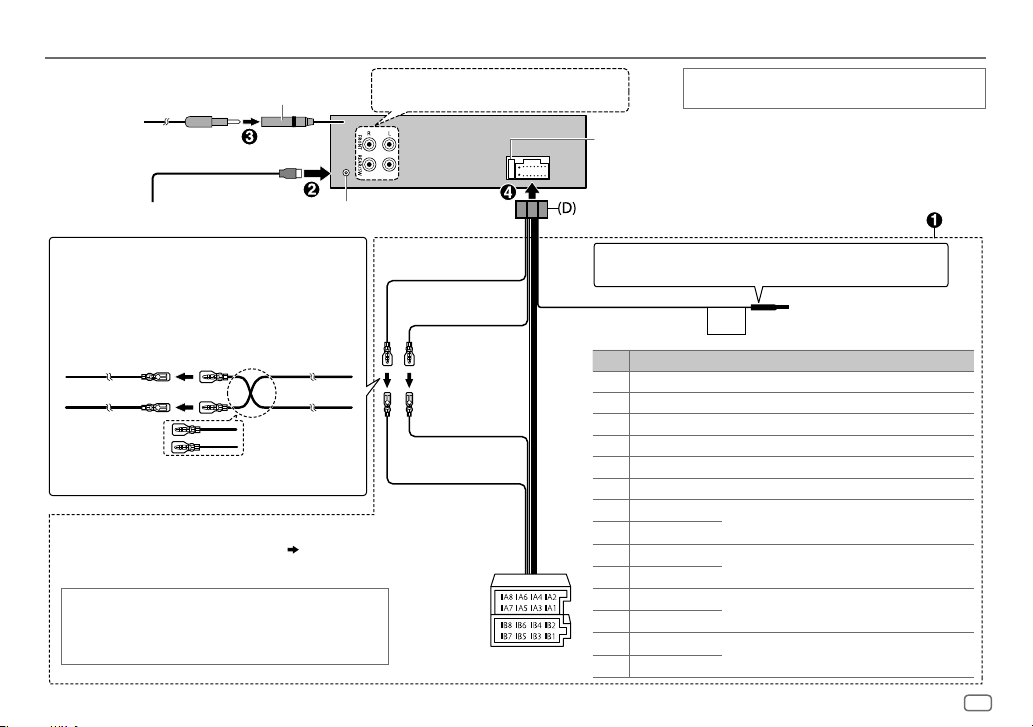

INSTALLATION / CONNECTION 19

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual

• Operations are explained mainly using buttons on the faceplate.

• English indications are used for the purpose of explanation. You can select the display language from the menu. (

•

[XX]

• (

)

indicates the selected items.

) indicates references are available on the stated page.

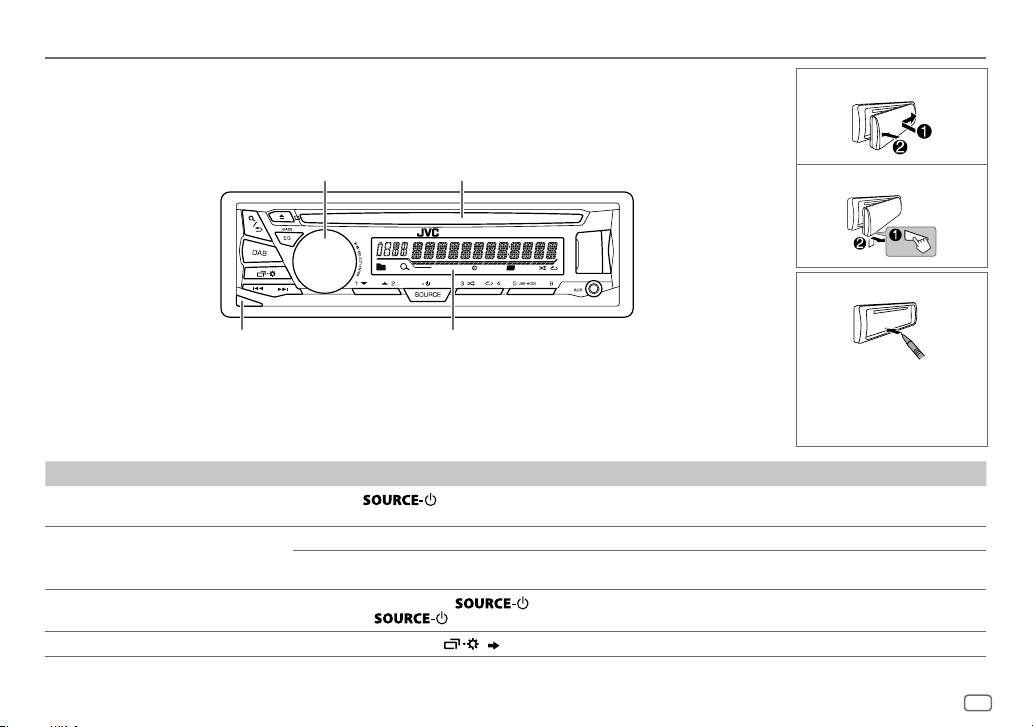

BASICS

Faceplate

Attach

Volume knob Loading slot

Detach button Display window

To On the faceplate

Turn on the power

Press

• Press and hold to turn off the power.

Adjust the volume Turn the volume knob.

Press the volume knob to mute the sound or pause playback.

• Press again to cancel.

Select a source

Change the display information

• Press

Press

repeatedly. , then turn the volume knob within 2 seconds.

repeatedly.

( 16)

T I

DIGITAL ST

Detach

How to reset

Your preset adjustments will be erased except stored radio stations.

ENGLISH

GETTING STARTED

Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: “CANCEL DEMO”

1 Press the volume knob.

[

YES

] is selected for the initial setup.

2 Press the volume knob again.

“DEMO OFF” appears.

Set the clock

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select [ 4 Turn the volume knob to make the settings, then press the

knob.

Day

Hour Minute

5 Turn the volume knob to select [ 6 Turn the volume knob to select [

the knob.

7 Press to exit.

To return to the previous setting item, press .

“PRESS” “VOLUME KNOB”

CLOCK

], then press the knob.

CLOCK SET

], then press the knob.

24H/ 12H

], then press the knob.

12 HOUR

] or [

24 HOUR

], then press

Set the basic settings

Press and hold .

1 2 Turn the volume knob to select an item (see the following table), then

press the knob.

3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

To return to the previous setting item, press .

Default:

SETTINGS

BEEP

SRC SELECT

AUX

:Activates the keypress tone.;

:Enables AM in source selection.;

BT ADAPTER

to the AUX jack. (

:Selects when the KS-BTA100 Bluetooth adapter is connected

); ON:Enables AUX in source selection.;

OFF

:Deactivates.

OFF

:Disables.

OFF

:Disables.

F/W UPDATE

SYSTEM/ DAB 1/ DAB 2

F/W UP xxxx/ F/W UP xxxxx/ F/W UP Vxxx

CLOCK

CLOCK SYNC

CLOCK DISP ON

ENGLISH

ESPANOL

* Not displayed when the corresponding source is selected.

YES

:Starts upgrading the firmware.; NO:Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.

AUTO

:The clock time is automatically set using the Clock Time (CT) data in

DAB signal.;

OFF

Select the display language for menu and music information if applicable. By default,

OFF

:Cancels.

:The clock time is shown on the display even when the unit is turned off.;

:Cancels.

ENGLISH

is selected.

CD / USB / iPod / ANDROID

Start playback

The source changes automatically and playback starts.

Eject disc Label side

USB input terminal

USB

USB 2.0 cable (commercially available)

iPod/iPhone

(Accessory of the iPod/iPhone)*

ANDROID

Micro USB 2.0 cable (commercially available)

To On the faceplate

Reverse / Fast-forward

Select a track/file Press

Select a folder

Repeat play

Random play

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the

Press and hold .

Press .

Press repeatedly.

TRACK RPT/ ALL RPT TRACK RPT/ FOLDER RPT/ ALL RPT ONE RPT/ ALL RPT/ RPT OFF

Press repeatedly.

ALL RND/ RND OFF FOLDER RND/ ALL RND/ RND OFF SONG RND/ ALL RND/ RND OFF

: Audio CD

: MP3/WMA/AAC/WAV/FLAC file

: iPod or ANDROID

: Audio CD

: MP3/WMA/AAC/WAV/FLAC file

: iPod or ANDROID

application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. (

)

For ANDROID: Applicable only when [

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.

For iPod/ ANDROID: Applicable only when [

AUTO MODE

HEAD MODE

] is selected. ( 6)

]/ [

AUTO MODE

] is selected. ( 6)

ENGLISH

CD / USB / iPod / ANDROID

Select control mode

While in USB-IPOD source, press repeatedly.

HEAD MODE IPHONE MODE

While in ANDROID source, press repeatedly.

AUTO MODE

AUDIO MODE

: Control iPod from this unit.

: Control iPod using the iPod itself.

pause or file skip from this unit.

: Control Android device from this unit via JVC MUSIC PLAY

application installed in the Android device.

: Control Android device using the Android device itself via

other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

However,

you can still play/

Select music drive

Press repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device.

Change the playback speed of the Audiobook

While listening to the iPod and [

HEAD MODE

] is selected....

1 Press and hold . 2 Turn the volume knob to select [ 3 Press the volume knob to select [

IPOD

], then press the knob.

AUDIOBOOKS

4 Turn the volume knob to select an item, then press the knob.

0.5× SPEED

Audiobooks sound file in your iPod/iPhone.

(Default: Depends on your iPod/iPhone setting.)

1× SPEED

2× SPEED

: Select the desired playback speed of the

5 Press to exit.

To return to the previous setting item, press .

Select a file from a folder/list

Press .

1 2 Turn the volume knob to select a folder/list, then press the

knob.

3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

– Not applicable for iPod.

Alphabet search

You can search for a file according to the first character.

Press or turn the volume knob quickly to select the desired character (A to Z/ 0to9/ OTHERS).

– Select “OTHERS” if the first character is other than Ato Z, 0 to 9.

• To return to the previous setting item, press .

• To cancel, press and hold

• For iPod, applicable only when [

• For ANDROID, applicable only when [

(applicable only for iPod):

HEAD MODE

AUTO MODE

] is selected.

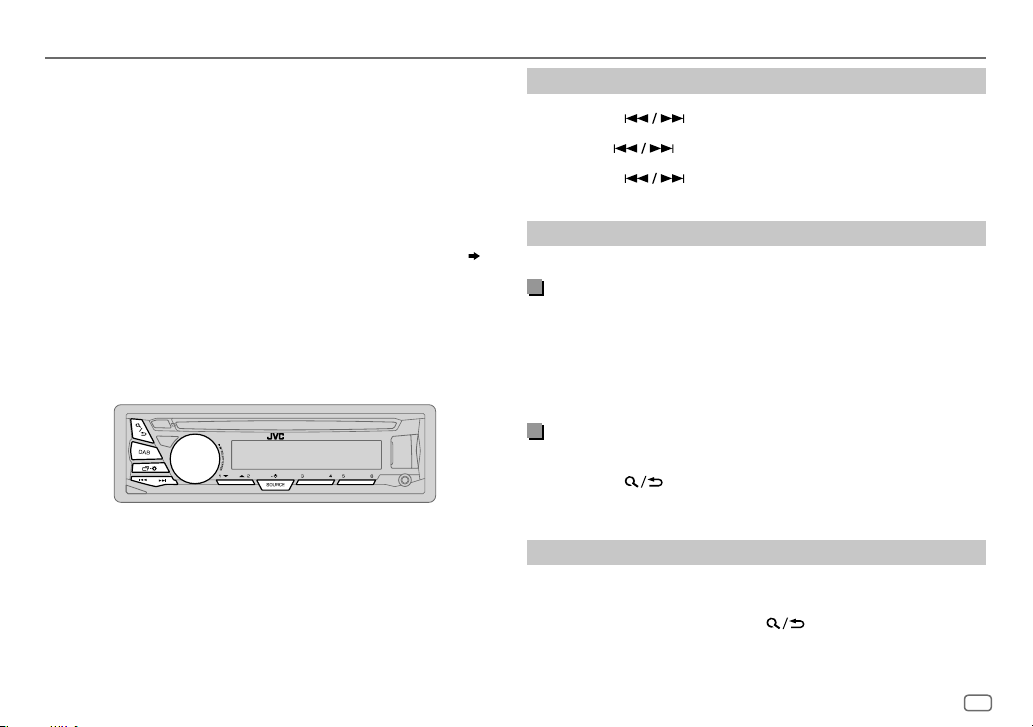

DIGITAL RADIO

About DAB (Digital Audio Broadcasting)

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information.

Preparation:

1 Connect a DAB antenna to the DAB antenna jack. 2 Press DAB to select DAB directly. 3 Press and hold DAB to start the Service List update.

“DAB SORTING” appears and update starts. Updates take up to 3 minutes. No interruption (such as traffic

information) is possible during updates.

• To cancel the Service List update: Press and hold DAB again.

( 21)

Search for an ensemble

Press DAB to select DAB directly.

1 2 Press to search for an ensemble automatically. (or) Press and hold until “M” flashes, then press repeatedly to

search for an ensemble manually.

3 Press to select a service (either primary or secondary) to

listen to.

Settings in memory

You can store up to 18 services.

Store a service

While listening to a service....

Press and hold one of the number buttons (1to6).

(or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the

knob.

The preset number flashes and “MEMORY” appears.

Select a stored service

Press one of the number buttons (1to6).

(or) 1 Press . 2 Turn the volume knob to select a preset number, then press the

knob to confirm.

Select a service

Press DAB to enter Service Search mode.

1 2 Turn the volume knob to select a service, then press the knob.

To cancel the Service Search mode, press or DAB.

ENGLISH

DIGITAL RADIO

Select a service by name

Press DAB to enter Service Search mode.

1 2 Press to select the character to be searched for. 3 Turn the volume knob to select a service, then press the knob.

Other settings

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select an item

then press the knob.

TUNER

], then press the knob.

(

see the following table),

4 Repeat step 3 until the desired item is selected/activated or follow

the instructions stated on the selected item.

5 Press to exit.

To return to the previous setting item, press

RADIO TIMER

Turns on the radio at a specific time regardless of the current source.

1 ONCE/ DAILY/ WEEKLY/ OFF

on.

2 FM/ AM/ DAB 3 01

station.

Set the activation day * and time.

“

” lights up when complete.

Radio Timer will not activate for the following cases.

• The unit is turned off.

• [

OFF

selected.

* Selectable only when [

:Select the source.

to 18 (for FM)/ 01 to 06 (for AM)/ 01 to 18 (for DAB):Select the preset

] is selected for [AM] in [

( 4)

:Select how often the timer will be turned

SRC SELECT]

ONCE

] or [

after Radio Timer for AM is

WEEKLY

] is selected in step 1.

Default:

AF SET ON

TI SET ON

PTY SEARCH

DAB ANNCMNT

DAB UPDATE AUTO

While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available).;

OFF

:Cancels.

:Allows the unit to temporarily switch to Traffic Information if available

(“TI” lights up).;

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code:

SCIENCE, VARIED, POP M LIGHT M CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ COUNTRY, NATION M

TRAVEL SPORTS, FINANCE

the knob. “

” appears in front of the activated announcement type.

Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

• Multiple announcement can be activated simultaneously.

• To deactivate, press the volume knob again (“

on.;

OFF

:Cancels.

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE

(music),

WARNINGS, NEWS, WEATHER, EVENT, SPECIAL, RAD INFO

:Automatically update the DAB Service List when the power is turned

OFF

:Updates the DAB Service List by pressing and holding

(music),

ROCK M

(music),

EASY M

CLASSICS, OTHER M

(music),

: Turn the volume knob to make a selection, then press

(music),

OLDIES, FOLK M

WEATHER, FINANCE

(music),

” goes off).

(music),

DOCUMENT

DAB

DIGITAL RADIO

ANALOG RADIO

PTY-STBY

DAB L-BAND ON:

DAB ANT PWR ON:

RELATED SRV ON

The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type:

DRAMA, CULTURE, SCIENCE, VARIED, POPM ROCKM CLASSICS, OTHERM CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL LEISURE, JAZZ, COUNTRY, NATIONM FOLKM OFF

reception.

supply power. Selects when using passive antenna without booster.

service which is different audio program from the current audio program.;

NEWS, AFFAIRS, INFO, SPORT, EDUCATE

(music),

EASYM

(music),

WEATHER, FINANCE

(music),

; OFF:

DOCUMENT

Cancels.

OFF

:Disable.

:Cancels.

Receives L-BAND ensemble during digital audio

Supplies power to the DAB antenna. ;

:Enable Soft-Link function to switch to an alternative

LIGHTM

(music),

OFF:

(music),

OLDIES

Does not

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

Press repeatedly to select FM or AM.

1 2 Press to search for a station automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for a

station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM.

Store a station

While listening to a station....

Press and hold one of the number buttons (1 to 6).

(or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and “MEMORY” appears.

Select a stored station

Press one of the number buttons (1to6).

(or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to

confirm.

ENGLISH

ANALOG RADIO

Other settings

Press and hold .

1 2 Turn the volume knob to select [ 3 Turn the volume knob to select an item

then press the knob.

4 Repeat step 3 until the desired item is selected/activated or follow

the instructions stated on the selected item.

5 Press to exit.

To return to the previous setting item, press .

RADIO TIMER

SSM SSM 01 – 06

LOCAL SEEK ON

IF BAND AUTO

MONO ON

NEWS-STBY

( 8)

to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select stations.

:Searches only FM stations with good reception.;

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

:Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.); interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

:Improves the FM reception, but the stereo effect will be lost.;

OFF

:Cancels.

:The unit will temporarily switch to News Programme if available.;

OFF

:Cancels.

SSM 07 – 12

TUNER

], then press the knob.

(

see the following table),

SSM 13 – 18

: Automatically presets up

to store the following 12

OFF

WIDE

Default:

:Cancels.

:Subjects to

REGIONAL

: Switches to another station only in the specific region using the “AF”

control.;

OFF

:Cancels.

AF SET

: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.;

TI SET

PTY SEARCH*Select a PTY code (see below).

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE VARIED, POP M CLASSICS, OTHER M PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M

(music),

* Only for FM source.

: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ;

• [

TI SET

only.

If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

(music),

DOCUMENT

OFF

:Cancels.

] in AM band is for enabling traffic interruption to DAB source

ROCK M

(music),

WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION

EASY M

OFF

: Cancels.

(music),

LIGHT M

OLDIES, FOLK M

(music),

AUX

Use a portable audio player

Connect a portable audio player (commercially available).

3.5mm stereo mini plug with “L” shaped connector (commercially available)

Auxiliary input jack

2 Select [

] for [

AUX

] in [

SRC SELECT

3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback.

Portable audio player

]. ( 4)

AUDIO SETTINGS

Select a preset equalizer

Press repeatedly.

(or)

Press

Preset equalizer: FLAT VOCAL BOOST, BASS BOOST, CLASSICAL, DANCE

, then turn the volume knob within 5seconds.

(default),

HARD ROCK, HIP HOP, JAZZ, POP, R&B, TALK, USER

Use a 3-core plug head stereo mini plug for optimum audio output.

Use a Bluetooth® device

Connect the Bluetooth adapter, KS-BTA100 (separately purchased).

Wiring harness of the unit (

)

Blue/white: Remote

Black: Ground

Brown: Tel muting

Blue/white

Black

Brown

Auxiliary input jack

2 Register (pair) the Bluetooth device with KS-BTA100. 3 Select [

BT ADAPTER

] for [

AUX

] in [

SRC SELECT

]. ( 4)

4 Press repeatedly to select BT AUDIO. 5 Start using the Bluetooth device.

For details, refer to the instruction manual of KS-BTA100.

Store your own sound settings

Press and hold to enter EASY EQ setting.

1 2 Turn the volume knob to select an item, then press the knob. Refer to [

• To return to the previous setting item, press .

• To exit, press

EASY EQ

] ( 12) for setting and the result is stored to [

USER

Other settings

Press and hold .

1 2 Turn the volume knob to select an item ( 

), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

ENGLISH

AUDIO SETTINGS

EQ SETTING

EQ PRESET

Select a preset equalizer suitable to the music genre. (Select [ settings made in [

FLAT

(default)/ HARD ROCK/

VOCAL BOOST/

EASY EQ

PRO EQ

Adjust your own sound settings. The settings are stored to [

SUB.W SP

1*3

SUB.W BASS



LVL

MID



LVL

TRE



LVL

1 BASS

Adjust the sound elements of the selected sound tone.

BASS

Frequency: 60/ 80/ Level: Q:

MIDDLE

Level: Q:

TREBLE

Level: Q:

AUDIO

BASS BOOST

LOUD 01

+01

to

+05(+01

/02:Boosts low or high frequencies to produce a well-balanced sound at

low volume.;

EASY EQ

].)

HIP HOP/

1*2

MIDDLE

: 00to

BASS BOOST/

CLASSICAL/

+06

(Default:

–08

to

+08

TREBLE

to

+06

to

+06

to

+06

00)

:Select a sound tone.

–06 –06 –06

100/ 200 HZ

–06

+06

Q1.0/ Q1.25/ Q1.5/ Q2.0

Frequency:

0.5/ 1.0/ 1.5/ 2.5 KHZ –06

+06

Q0.75/ Q1.0/ Q1.25

Frequency:

10.0/ 12.5/ 15.0/ 17.5 KHZ –06

+06

Q FIX

): Selects your preferred bass boost level.;

OFF

:Cancels.

Default:

USER

] to use the

JAZZ/

POP/

R&B/

TALK/

USER/

DANCE

USER

03 00 00 00

(

Default:

80 HZ 00 Q1.0

(Default:

OFF

:Cancels.

1.0 KHZ 00 Q1.25

10.0 KHZ 00 Q FIX

SUB.W LEVEL

SPK-OUT

PRE-OUT

SUB.W SUB.WLPF

THROUGH MID85HZ

55Hz/ 85Hz/ 120Hz are sent to the subwoofer.

SUB.W PHASE

REVERSE

output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [ [

SUB.WLPF

FADER R06

BALANCE VOL ADJUST –15

)

L06

(compared to the FM volume level). Before adjustment, select the source you want to adjust. (“VOLADJFIX” appears if FM is selected.)

)

AMP GAIN LOWPOWER

maximum power of each speaker is less than 50W to prevent damaging

)

D.T.EXP

(Digital Track Expander)

Displayed only when [

This adjustment will not affect the subwoofer output.

the speakers.);

components and restoring the rise-time of the waveform that are lost in audio data compression.;

SUB.W SPK/PREOUT SPK/PREOUT

to

+06(+03

):Adjusts the output level of the

subwoofer connected via speaker lead. (

–08

to

+08(00

):Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/ SW) through an external amplifier. (

/

OFF

: Turns on or off the subwoofer output.

:All signals are sent to the subwoofer. ; /

HIGH 120HZ

(180°)/

:Audio signals with frequencies lower than

NORMAL

(0°):Selects the phase of the subwoofer

THROUGH

21)

LOW55HZ

] is selected for

].)

to

F06(00

):Adjusts the front and rear speaker output balance.

to

R06(00

):Adjusts the left and right speaker output balance.

to

+06(00

):Preset the initial volume level of each source

:Limits the maximum volume level to 25. (Select if the

HIGH POWER

:The maximum volume level is 35.

:Creates realistic sound by compensating the high-frequency

OFF

:Cancels.

] is set to [ON].

] is set to [ ] is set to [

SUB.W/SUB.W REAR/SUB.W

]. ( 13)

] or [

SUB.W/SUB.W

21)

/

]. ( 13)

AUDIO SETTINGS

TELMUTING

SPK/PREOUT

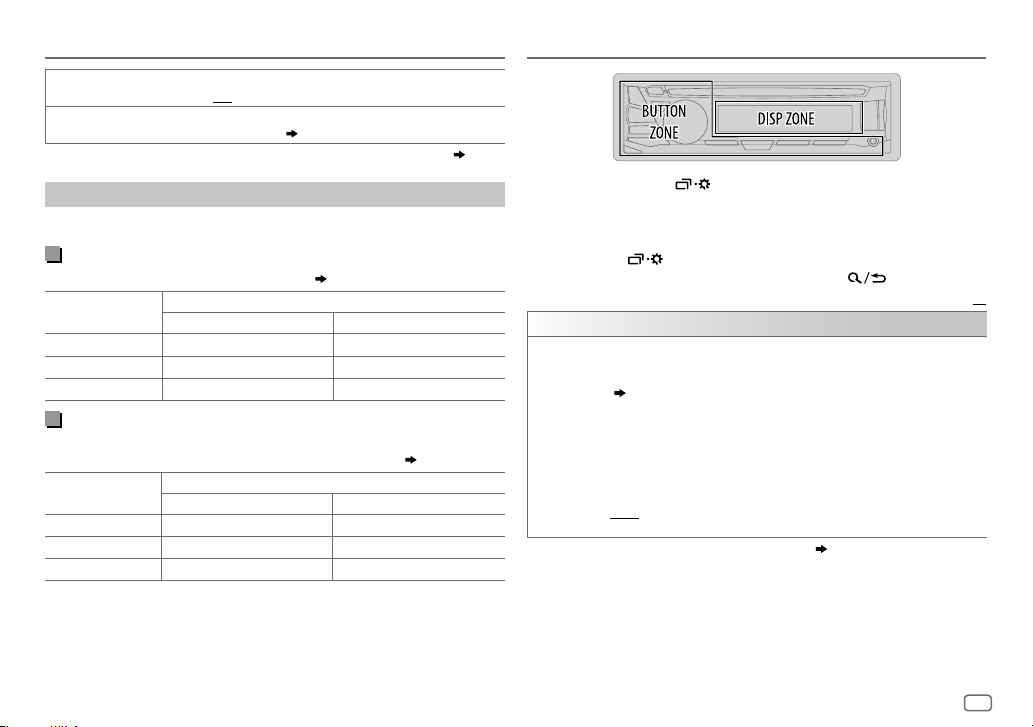

Speaker output settings

Select the output setting for the speakers [ speaker connection method.

For connections through an external amplifier. ( 

Setting on

[

REAR/REAR REAR/SUB.W SUB.W/SUB.W

For connections without using an external amplifier. However, with this setting you can also enjoy the subwoofer output.

Setting on

[

REAR/REAR REAR/SUB.W SUB.W/SUB.W

If [ – [ – [

:Mutes the sounds while using the cellular phone (not connected

Does not work if [BT

through KS-BTA100).;

Depending on the speaker connection method, select the appropriate setting to get the desired output. (

ADAPTER

OFF

] is selected for [

Connection via lineout terminals

SPK/PRE OUT]

Front speakers output Rear speakers output

Front speakers output Subwoofer output

Audio signal through lineout terminal

FRONT REAR/SW

Connection via speaker leads

SPK/PRE OUT]

SUB.W/SUB.W HIGH 120HZ R01

] is selected in [

Rear speakers output Rear speakers output

Subwoofer output (Mute)

] is selected:

] is selected in [

FADER

Audio signal through rear speaker lead

L (left) R (right)

SUB.WLPF

] and selectable range is [

:Cancels.

AUX

] and [

] in [

SPK/PRE OUT],

THROUGH



Speaker output settings

SRCSELECT

)

]. ( 4)

base on the

( 21)

] is not available.

R06

]to [00]

)

DISPLAY SETTINGS

1 Press and hold . 2 Turn the volume knob to select an item (see the following table),

then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow

the instructions stated on the selected item.

4 Press to exit.

To return to the previous setting item, press .

Default:

DISPLAY DIMMER

The illumination control wire connection is required.

Dim the display and buttons illumination.

OFF

:Dimmer is turned off.

:Dimmer is turned on. Brightness changes to [

( 14

, [

BRIGHTNESS])

DIMMER TIME

Turn the volume knob to adjust the [ON] time, then press the knob.

Turn the volume knob to adjust the [

(Default: [ [

AUTO

headlights. *

:Set the dimmer on and off time.

]: 18:00 or 6:00 PM

OFF

]: 6:00 or 6:00 AM)

:Dimmer turns on and off automatically when you turn off or on the car

NIGHT

] setting.

OFF

] time, then press the knob.

( 21)

ENGLISH

DISPLAY SETTINGS

BRIGHTNESS

SCROLL

Some characters or symbols will not be shown correctly (or will be blanked).

Set the button and display brightness for day and night separately.

1 DAY / NIGHT 2

Select a zone. ( 13)

Set the brightness level (00 to 31).

(Default:

ONCE

5-second intervals.;

:Select day or night.

BUTTON ZONE: DAY:25 DISP ZONE: DAY:31

:Scrolls the display information once.;

OFF

:Cancels.

;

NIGHT:12

;

NIGHT:09

AUTO

)

:Repeats scrolling at

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc.

More information

Visit also the following website <http://www.jvc.net/cs/car/> for:

– Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information

About discs and audio files

• This unit can only play the following CDs:

• This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.

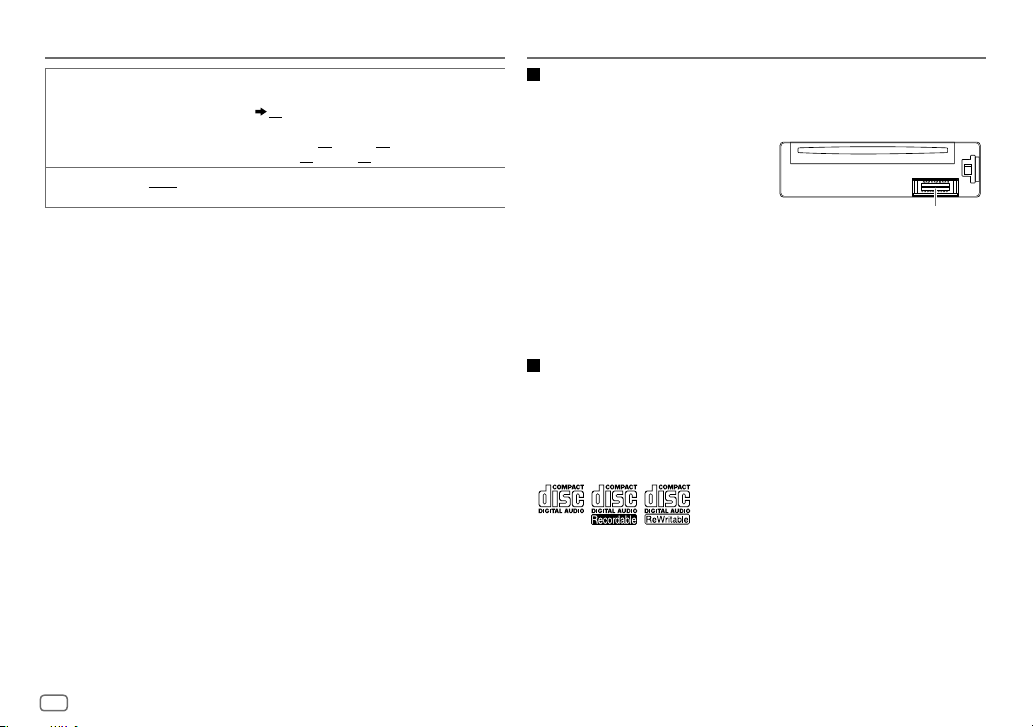

Connector (on the reverse side of the faceplate)

REFERENCES

•

Unplayable discs:

- Discs that are not round.

- Discs with coloring on the recording surface or discs that are dirty.

- Recordable/ReWritable discs that have not been finalized.

- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

•

DualDisc playback:

Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

•

Playable files:

- File extensions: MP3(.mp3), WMA(.wma), AAC (.m4a)

- Bit rate: MP3: 8kbps — 320kbps WMA: 32kbps — 192kbps AAC: 8 kbps — 320 kbps

- Sampling frequency: MP3: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz

WMA: 8kHz — 48kHz AAC: 8 kHz — 48 kHz

- Variable bit rate (VBR) files.

•

Maximum number of characters for file/folder name:

It depends on the disc format used (includes 4 extension characters—<.mp3>, <.wma> or

<.m4a>).

- ISO 9660 Level 1 and 2: 32 characters

- Romeo: 32 characters

- Joliet: 32 characters

- Windows long file name: 32 characters

About USB devices

• This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

The Non-DVD side of a “DualDisc” does not comply with the “Compact

• The maximum number of characters for:

- Folder names: 64 characters

- File names: 64 characters

- MP3 Tag: 64 characters

- WMA Tag: 64 characters

- AAC Tag: 64 characters

- WAV Tag: 64 characters

- FLAC Tag: 64 characters

• This unit can recognize a total of 15 000 files, 500 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1A.

About iPod/iPhone

Made for

- iPod touch (2nd, 3rd, 4th, and 5th generation)

- iPod classic

- iPod nano (3rd, 4th, 5th, 6th, and 7th generation)

- iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

• It is not possible to browse video files on the “Videos” menu in

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS4.1 and above) may not fully support Android Open Accessory (AOA)2.0.

• If the Android device supports both mass storage class device and AOA2.0, this unit always playback via AOA2.0 as priority.

[HEAD MODE]

ENGLISH

REFERENCES TROUBLESHOOTING

Change the display information

Each time you press , the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, “NO SIGNAL”, or other information (eg. station name) appears.

DAB

USB (For CD-DA)

USB-IPOD

ANDROID

AUX

BT AUDIO

Service name Title/Artist Dynamic Label Segment (DLS) Ensemble name

Day/Clock (back to the beginning)

Frequency Day/Clock

(For FM Radio Data System stations only)

Station name (PS) Frequency Program type (PTY) Day/Clock

Playing time Day/Clock Disc name Track title (backtothebeginning)

(For MP3/WMA/AAC/WAV/FLAC files)

Playing time Day/Clock Album title/Artist Track title Folder/filename

Playing time Day/Clock Album title/Artist Track title (backtothebeginning)

AUX Day/Clock

BT AUDIO Day/Clock

(back to the beginning)

Radiotext+

Symptom Remedy

Sound cannot be heard. • Adjust the volume to the optimum level.

“MISWIRING CHECK WIRING THEN PWR ON” appears.

General

“PROTECTING SEND SERVICE” appears.

Source cannot be selected. Check the [

DAB reception is poor. Make sure [ON] is selected for [

“CHK ANTENNA” Check the DAB antenna. If a passive antenna (without

Digital Radio

“RELATED SRV FOUND” • Press the volume knob to activate Soft-Link. (

• Radio reception is poor.

• Static noise while

Radio

Analog

listening to the radio.

• Check the cords and connections.

Turn the power off, then check to be sure the

terminals of the speaker wires are insulated properly. Turn the power on again.

Send the unit to the nearest service center.

(

9)

a booster) is used, set [ (

9)

• Press

Connect the antenna firmly.

SRC SELECT

to cancel.

] setting.

( 4)

DAB ANT PWR

] to [

OFF

9)

TROUBLESHOOTING

Symptom Remedy

Disc cannot be ejected.

“IN DISC” appears. Make sure nothing is blocking the loading slot when you

“PLEASE” and “EJECT” appear alternately.

Playback order is not as intended.

Elapsed playing time is not correct.

“NOT SUPPORT” appears and track skips.

“READING” keeps flashing. • Do not use too many hierarchical levels and folders.

CD / USB / iPod

“CANNOT PLAY” flashes and/or connected device cannot be detected.

The iPod/iPhone does not turn on or does not work.

Correct characters are not displayed.

Press and hold

to drop the disc when it is ejected.

eject the disc.

Press

The playback order is determined by the file name (USB)

or the order in which files were recorded (disc).

This depends on the recording process earlier.

Check whether the track is a playable format.

• Reload the disc or reattach the USB device.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats.

14, 15)

(

• Reattach the device.

• Check the connection between this unit and iPod/iPhone.

• Detach and reset the iPod/iPhone using hard reset.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected (

to forcibly eject the disc. Be careful not

, then insert the disc correctly.

), some characters may not be displayed correctly.

( 14, 15)

Symptom

• Sound cannot be heard during playback.

• Sound output only from the Android device.

Cannot playback at [

MODE

ANDROID

“NO DEVICE” or “READING” keeps flashing.

Playback is intermittent or sound skips.

“CANNOT PLAY” • Make sure Android device contains playable audio files.

If you still have troubles, reset the unit. ( 3)

Remedy

• Reconnect the Android device.

AUDIO MODE

• If in [ application on the Android device and start playback.

AUDIO MODE

• If in [ application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (

• Make sure JVC MUSIC PLAY APP is installed on the

AUTO

Android device. ( 5)

• Reconnect the Android device and select the appropriate control mode. (

• If this does not solve the problem, the connected Android device does not support [

• Switch off the developer options on the Android device.

• Reconnect the Android device.

• If this does not solve the problem, the connected Android device does not support [

Turn off the power saving mode on the Android device.

• Reconnect the Android device.

• Restart the Android device.

], launch any media player

], relaunch the current media player

)

AUTO MODE

]. (

)

ENGLISH

SPECIFICATIONS

DAB Frequency Range L Band 1452.960MHz — 1490.624MHz

Band III 174.928MHz — 239.200MHz

Sensitivity –100dBm

Signal-to-Noise Ratio 80dB

Antenna Connector Type SMB

Digital radio

Antenna Output Voltage 14.4V (11V – 16V)

Antenna Maximum Current <100mA

Frequency Range 87.5MHz — 108.0MHz (50kHz step)

Usable Sensitivity (S/N=26dB) 0.71μV/75Ω

Quieting Sensitivity (DINS/N=46dB)

Frequency Response (±3dB) 30Hz — 15kHz

Signal-to-Noise Ratio (MONO) 64dB

Stereo Separation (1kHz) 40dB

Analog radio

Frequency Range 531kHz — 1611kHz (9kHz step)

Usable Sensitivity (S/N=20dB) 28.2μV

Frequency Range 153kHz — 279kHz (9kHz step)

Usable Sensitivity (S/N=20dB) 50μV

2.0μV/75Ω

Laser Diode GaAIAs

Digital Filter (D/A) 8 times over sampling

Spindle Speed 500 rpm — 200 rpm (CLV)

Wow & Flutter Below measurable limit

Frequency Response (±1dB) 20 Hz — 20 kHz

Total Harmonic Distortion (1 kHz) 0.01 %

Signal-to-Noise Ratio (1 kHz) 105 dB

CD player

Dynamic Range 90 dB

Channel Separation 85 dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC “.m4a” files

USB Standard USB1.1, USB2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/16/32

Maximum Supply Current DC5V

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

USB

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC “.m4a” files

WAV Decode Linear-PCM

FLAC Decode FLAC files

1A

+ 44 hidden pages
