JVC DT-3D24G1 User Manual
MULTI FORMAT 3D LCD MONITOR
CAUTION:
To reduce the risk of electric shock. Do
not remove cover (or back). No user
serviceable parts inside. Refer servicing
to qualified service personnel.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
DT-3D24G1
INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is located on the rear of
the cabinet. Retain this information for future reference.
Model No. : DT-3D24G1
Serial No. :
LCT2655-001A-H
2
Safety Precautions
WARNING:
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.
IMPORTANT SAFEGUARDS
Electrical energy can perform many useful functions. This unit has
been engineered and manufactured to assure your personal safety.
But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRIC
SHOCK OR FIRE. In order not to defeat the safeguards incorporated
into this product, observe the following basic rules for its installation,
use, and service. Please read these “IMPORTANT SAFEGUARDS”
carefully before use.
All the safety and operating instructions should be read before the •
product is operated.
The safety and operating instructions should be retained for future •
reference.
All warnings on the product and in the operating instructions should •
be adhered to.
All operating instructions should be followed.•
POWER CONNECTION
The power supply voltage rating of this product is AC 120 V
(For U.S.A. and Canada) and AC 220 – 240 V (For European
countries, Asian countries, and United Kingdom).
The power cord attached conforms to the following power supply
voltage and countries. Use only the power cord designated to
ensure safety and EMC regulations of each country.
Not all types of power cords are supplied to this product.•
For U.S.A. and
Canada: AC 120 V
For European and
Asian countries:
AC 220 – 240 V
For United Kingdom:
AC 220 – 240 V
Under the following conditions,
1. Turn off the power.
2. Unplug this product from the wall outlet.
3. Refer service to qualified service personnel.
a) When the product emits smoke or unusual smell.
b) When the product exhibits a distinct change in performance
—for example, no picture or no sound.
c) If liquid has been spilled, or objects have fallen on the product.
d) If the product has been exposed to rain or water.
e) If the product has been dropped or damaged in any way.
f) When the power supply cord or plug is damaged.
Do not install this product in the following places:•
in a damp or dusty room –
where the product is exposed to soot or steam, such as –
near the cooking counter or a humidifier
near heat sources –
where condensation easily occurs, such as near the window –
in a location exposed to direct sunlight or strong light –
Do not place this product on an unstable cart, stand, or table. •
The product may fall, causing serious injury to a child or adult,
and serious damage to the product.
The product should be mounted according to the
manufacturer’s instructions, and should use a mount
recommended by the manufacturer.
Do not use this product near water.•
Be sure to install the product in the place where proper •
temperature and humidity are kept (→ “Operation environment”
on page 32).
This product becomes hot during its use. Take enough care
when handling the product.
Do not attempt to service this product yourself, as opening or
This plug will fit only into a grounded power outlet. If you are
unable to insert the plug into the outlet, contact your electrician to
install the proper outlet. Do not defeat the safety purpose of the
grounded plug.
This product should be operated only with the type of power •
source indicated on the label. If you are not sure of the type of
power supply of your home, consult your product dealer or local
electric power company.
Warning:
Do not use the same power cord for AC 120 V as for AC 220 – •
240 V. Doing so may cause malfunction, electric shock or fire.
Note for United Kingdom power cord only
The plug of United Kingdom power cord has a built-in fuse. When
replacing the fuse, be sure to use only a correctly rated approved type,
re-fit the fuse cover. (Consult your dealer or qualified personnel.)
How to replace the fuse
Open the fuse compartment with the
blade screwdriver, and replace the
fuse.
Warning: This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Before connecting other products such as VCR’s and personal •
computers, you should turn off the power of this product for
protection against electric shock.
Do not use attachments not recommended by the manufacturer •
as they may be hazardous.
When replacement parts are required,• be sure the service
technician has used replacement parts specified by the
manufacturer or equivalents. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
Upon completion of any service or repairs to this product,•
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
Fuse
removing covers may expose you to dangerous voltages and
other hazards. Refer all service to qualified service personnel.
Do not use the product for a long time if the sound is distorted.
Use only the power source specified on the unit.
AC power: 120 V/220 – 240 V, 50 Hz/60 Hz•
DC power: 24 V•
The AC power supply is controlled by turning on/off the •
POWER switch on the rear panel. If the product is installed in a
place where you cannot easily turn on/off the POWER switch,
control the AC power supply by plugging/unplugging the power
cord into/from the AC outlet. In this case, install the product as
close to the AC outlet as possible, and leave enough space for
plugging/unplugging the power cord. If the product is installed
in a place where you cannot easily plug/unplug the power cord,
equip an easily accessible device to the wiring of the building
for turning on/off the power.
When the product is left unattended and unused for a long •
period of time, unplug it from the wall outlet and disconnect the
cable system.
Do not overload wall outlets, extension cords, or convenience •
receptacles on other equipment as this can result in a risk of
fire or electric shock.
Use only the accessory cord designed for this product to •
prevent shock.
The Mains Plug is used as the disconnect device, the disconnect
device shall remain readily operable.
To completely disconnect this apparatus from the AC mains,
disconnect the power supply cord plug from the AC receptacle.
Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from •
overheating. These openings must not be blocked or covered.
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-circuit the parts, •
which could result in a fire or electric shock.
Never spill liquid of any kind on the product.•
Never place anything on the product. (Placing liquids, naked flames, cloths, paper, etc. on the product may cause a fire.)•
Do not apply any strong shock to the LCD panel. (Do not hit any object against it or push it with a sharp-pointed tool.)•
Do not put heavy objects on the product.•
Do not step on or hang on the product.•
To prevent an accidental fall
Fix the monitor to a wall by using strings.
Fixing the monitor
Attach the hook (not provided) to the VESA mounting holes on the
rear panel (use the two holes on the upper side) using M4 x 10
mm screws (not provided). Bind the hooks on the rear panel of the
monitor to a wall or a pillar using durable string.
Hook and screw (M4 x 10 mm)
U.S.A. only
FCC NOTICE
CAUTION: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
VESA mounting holes
(not provided)
Hook (not provided)
IMPORTANT RECYCLING INFORMATION
This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your
community due to environmental considerations. For disposal or recycling information, please contact your local
authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
WARNING: THIS APPARATUS MUST BE CONNECTED TO A MAINS SOCKET OUTLET WITH A PROTECTIVE
EARTHING CONNECTION.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
16) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
17) When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries
must be followed strictly.
3
4
Safety Precautions (cont.)
European Union only
Dear Customer,
This apparatus is in conformance with the valid European directives and
standards regarding electromagnetic compatibility and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technical Services Europe GmbH
Postfach 10 05 04
61145 Friedberg
Germany
Information for Users on Disposal of Old Equipment
[European Union]
This symbol indicates that the electrical and
electronic equipment should not be disposed
as general household waste at its end-of-life.
Instead, the product should be handed over to
the applicable collection point for the recycling
of electrical and electronic equipment for proper
treatment, recovery and recycling in accordance
with your national legislation.
Attention:
This symbol is
only valid in the
European Union.
handling of this product. For more information about collection point
and recycling of this product, please contact your local municipal
office, your household waste disposal service or the shop where you
purchased the product.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
(Business users)
If you wish to dispose of this product, please visit our web page http://
www.jvc.eu/ to obtain information about the take-back of the product.
[Other Countries outside the European Union]
If you wish to dispose of this product, please do so in accordance
with applicable national legislation or other rules in your country for
the treatment of old electrical and electronic equipment.
By disposing of this product correctly, you will
help to conserve natural resources and will
help prevent potential negative effects on the
environment and human health which could
otherwise be caused by inappropriate waste
EMC Supplement
This equipment is in conformity with the provisions and protection
requirements of the corresponding European Directives. This
equipment is designed for professional video appliances and can be
used in the following environments:
Controlled EMC environment (for example purpose built •
broadcasting or recording studio), and rural outdoors environment
(far away from railways, transmitters, overhead power lines, etc.)
In order to keep the best performance and ensure electromagnetic
compatibility, we recommend to use cables not exceeding the
following length:
Cable Length
Power cord
(attached cable (H05VV-F 3 x 0.75 mm
Video signal cable (coaxial cable) 2.0 m
Audio signal cable (shielded cable) 1.5 m
DVI cable (shielded cable) with core filter 2.0 m
RS-232C cable (shielded cable)
(A straight cable with a D-sub 9-pin connector)
RS-485 cable (twist pair cable)
(A straight LAN cable)
REMOTE cable (twist pair cable)
(A straight LAN cable)
The inrush current of this apparatus is 15.44 ampere.
CAUTION
In case where the strong electromagnetic waves or magnetism are
near the audio cable or the signal cable, the sound or the picture will
contain noise. In such cases, please keep the cable away from the
sources of the disturbance.
2
))
2.0 m
2.0 m
2.0 m
2.0 m
Operating Precautions
The LCD panel and backlight have life expectancy. Due to the basic characteristics of the LCD panel, an afterimage or uneven display may occur. It is
recommended that you change images occasionally, activate the power saving function, or often turn off the power to reduce the load on the LCD panel. Charges
will apply for repairs resulting from deterioration due to the passage of time.
Caution for use of the product for many hours
In the case that you use the monitor for many hours, we recommend that you set “NO SYNC ACTION” in “SYNC FUNCTION” to “P.SAVE” in MAIN MENU. This
will reduce power consumption and relieve strain on the monitor. (
Caution for use of the product in the high temperature
Do not use the product in places of high temperature; otherwise, parts of this product or the LCD panel may be damaged. This product is equipped with a
temperature sensor to give warning if the temperature becomes too high. If the temperature exceeds the range of normal use, “TEMP. OVER” is displayed, and
the power is turned off automatically if the temperature becomes any higher. In this case, move the product to a place of low temperature to let it cool down.
Maintenance
Screen
To avoid irreparable change in appearance of the screen such as uneven
color, discoloration, scratches, be careful about the following:
●
Do not paste or stick anything using any glues or adhesive tapes.
●
Do not write anything on the screen.
●
Do not strike the screen with a hard object.
●
Avoid condensation on the screen.
●
Do not wipe the screen with any liquid such as water. In addition, wiping
the screen with water-diluted neutral detergent or solvent such as alcohol,
thinner, or benzine may affect the anti-reflection treatment of the screen.
●
Do not wipe the screen forcefully.
Wipe stains off the screen with a soft cloth.
Ventilation openings
Use a vacuum cleaner to get rid of the dust around the intakes (all the
openings). If a vacuum cleaner is not available, use a cloth and wipe it off.
Leaving the dust around the intakes may prevent proper temperature control
and cause damage to the product.
→
page 22)
Cabinet
To avoid the deterioration or damages of the cabinet such as its paint’s
peeling away, be careful about the following:
●
Do not wipe the cabinet using solvent such as alcohol, thinner, or benzine.
●
Do not expose the cabinet to any volatile substance such as insecticides.
●
Do not allow any rubber or plastic in contact for a long time.
●
Do not wipe the cabinet forcefully.
Wipe stains off the cabinet with a soft cloth. If the cabinet gets heavily stained,
wipe it with a soft cloth soaked in water-diluted neutral detergent and wrung
well, then wipe with a soft dry cloth.
Glasses
Wipe the glasses with a dry, soft cloth.
Note: Be sure to read “When viewing in 3D” on page 12 for proper viewing beforehand.
Flicker-free 3D images by circular polarizing
Compatible with side-by-side and line-by-line formats to provide flicker-free 3D images
3D mixer converting L/R dual signals to a 3D mixed format
Mixes and converts images taken with a stereo camera rig
to 3D images
Various functions useful on the spot
CAMERA ASSIST MENU: 7 menus useful in various shooting scenes

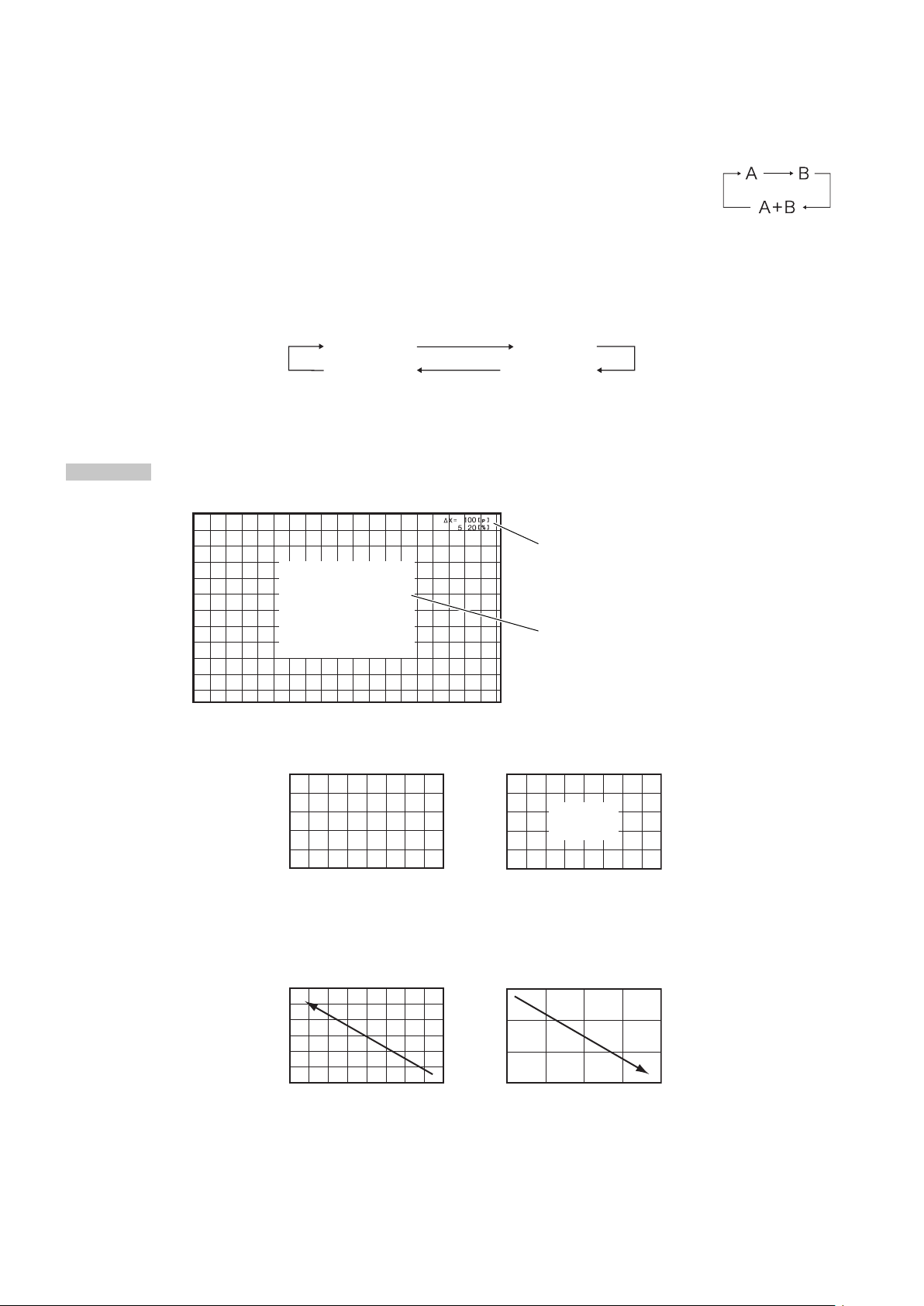

3D cursor: “Cursor mode” for displaying the visual difference between left and right eyes in
pixels/percentage; “Grid mode” for checking the visual difference by grid lines
Table of Contents
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operating Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Daily Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Viewing 3D images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Basic 3D principle 12
Compatible 3D format 12
When viewing in 3D 12
To view 3D images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To view existing 3D images 13
To view images taken by two cameras 13
Setting the CAMERA ASSIST MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Other 3D functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SCOPE button/lamp 16
3D CURSOR button/lamp 16
Setting the menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MAIN MENU 19
SET-UP MENU 23
External control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Self-check program 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Available signals 33
Dimensions 34
5
6
Installation
● Do not rest your arm on the monitor or lean against the monitor.
● Do not touch the LCD panel when installing the monitor.
● Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury.
● How to set up 1
You can tilt the monitor as follows.
When the monitor is not tilted
(0°), the guidelines align as
illustrated below.
Guidelines
Monitor
Approx. 6°
0°
Approx. 6°
● Be careful not to pinch your fingers in the gap between the
monitor and the stand.
● When the stand plate is attached to the lower position of the stand
body, you cannot tilt the monitor downward.
Stand
● How to set up 2
When the stand plate is attached to the higher position of the stand
body, you can place the monitor as illustrated below.
1 Remove the screws on the sides of the stand (see the following
illustration), and lift up the stand by approximately 148 degrees.
Approx.
Screw (silver)
148°
2 Attach the removed screws and place the monitor as illustrated
below.
● To detach the stand
Lay the monitor on a cloth with the LCD panel facing down to
prevent the LCD panel from being damaged.
Attachment screws
Screw holes for stand
attachment
Stand body
● To install the stand
When attaching the stand to the monitor, insert the guides of
the stand plate into the guide holes on the monitor to place the
stand in the correct position. Then fix the stand firmly with the
attachment screws.
Guide holes
Guides
Screw holes for stand
attachment
Stand plate
Stand body
Monitor
● To adjust the stand height
To change the stand height, detach the stand from the monitor.
Then, change the position of the stand plate according to the
stand height you want by choosing the screw holes to use.
●
To place the monitor as shown in “How to set up 1” again, remove
the screws on the sides of the stand, align the guidelines, and then
reattach the screws.
Cautions
● When lifting up the stand...
- Lay the monitor on a cloth with the LCD panel facing down to
prevent the LCD panel from being damaged.
Be careful not to pinch your fingers in the moving parts.
-
● Make sure of lifting the stand up until it stops (Approx. 148°);
otherwise the monitor may fall over.
● Place the monitor on a mat to avoid scratching the table surface.
● Do not lift up the stand when the stand plate is attached to the
lower position of the stand body.
Screw holes
for higher position
<Lower position><Higher position>
Screw holes
for lower position
Stand
plate
Connections
Rear panel
4
Security slot
Attach a security
wire to this slot.
8
Note for connections
• Before making any connections, turn off all the equipment.
• Use a cord whose plugs correctly match the terminals on this monitor
• Plugs should be firmly inserted; poor connections could cause noise.
• When unplugging a cord, be sure to grasp its plug and pull it out.
• DO NOT connect the power cord until all connections are complete.
• Refer also to the user manual of each piece of equipment.
1 DC IN 24V terminal
Terminal for DC 24V power supply (Voltage range: DC 23.3V − DC 25.5V).
When using the DC 24V power supply (Voltage range: DC 23.3V − DC
25.5V), check the pin number, signal, and polarity of the DC IN 24V
terminal. A wrong connection may cause fire or injuries.
●
When both AC power and DC 24V
power are connected, the AC power
has priority. When the AC power is
switched off, the power automatically
switches to the DC 24V power.
●
Use the DC power equipped with LPS (Limited Power Sources).
● Use the DC 24V power that supplies 4.8 A.
2 AC POWER switch
Turns AC power on or off.
● You need to press button (→ a on page 9) to use
the monitor after turning on the AC POWER switch.
3 AC IN terminal
AC power input connector. Connect the provided AC power
cord to an AC outlet.
●
Attach the provided power cord holder to prevent
→
accidental disconnection of the AC power cord. (
Caution: Do not connect the power cord until all other
connections are completed.
below)
4 REMOTE terminal
Terminal for controlling the monitor by an external control
(→ “External Control” on page 26).
5 DVI-D (HDCP) terminals
Input terminal for the DVI-D signal compatible with HDCP.
● When the picture is not displayed correctly, change the
setting of “DVI INPUT SEL.” (→ page 25)
and the equipment.
6 AUDIO (IN) terminals (pin jack)
Input terminals for the analog audio signals.
●
Use this terminal for the analog audio connection of the SDI.
When a superimposed signal (EMBEDDED AUDIO signal on
an SDI signal) is input, analog audio signals cannot be input.
7
AUDIO MONITOR OUT (OUT 1(L), OUT 2(R)) terminals (pin jack)
Output terminals for the analog audio signal.
●
The terminals emit the audio signals through the AUDIO (IN)
terminal or EMBEDDED AUDIO signals through the E. AUDIO
3G SDI/HD SDI/SD SDI (IN 1/L or IN 2/R) input terminal.
●
The signal is output from this terminal only when the monitor is on or
→
in “P.SAVE” (power save) mode (
● The EMBEDDED AUDIO signal...
“NO SYNC ACTION” on page 22).
is decoded into an analog signal, then emitted. –
is emitted only when “SDI 1/L” or “SDI 2/R” is selected, and
–
when EMBEDDED AUDIO signals come in to the E. AUDIO 3G
SDI/HD SDI/SD SDI (IN 1/L or IN 2/R) terminal.
8
E. AUDIO 3G SDI/HD SDI/SD SDI (IN 1/L, IN 2/R) terminals (BNC)
Input terminals for the 3G SDI/HD SDI/SD SDI signals.
●
The terminals accept also EMBEDDED AUDIO signals including
up to 12 audio channels with a sampling frequency of 48 kHz.
● Use SDI IN 1/L and SDI IN 2/R terminal when selecting
DUAL LINK SDI for the input.
●
In the stereo camera rig shooting, the L image is input into the SDI IN
1/L terminal, and the R image into the SDI IN 2/R terminal. In the case
of 3G SDI LEVEL B, the image is input into the SDI IN 1/L terminal.
For 3G SDI LEVEL B Dual Stream, input into the SDI IN 1/L
terminal. For 3G SDI LEVEL B DUAL LINK mapping, input into
the SDI IN 1/L and SDI IN 2/R terminals.
9
E.AUDIO 3G SDI/HD SDI/SD SDI (ACTIVE OUT) terminal (BNC)
Output terminal for the 3G SDI/HD SDI/SD SDI signals.
●
The SDI IN 1/L and SDI IN 2/R input signals are reclocked and output.
● The signals are emitted from this terminal only when
the monitor is on or in “P.SAVE” (power save) mode.
Attaching the power cord holder
The provided power cord holder prevents accidental disconnection of the AC power cord from the AC IN terminal. The holder consists of two parts: the cord case and the case cover.
cord case
1
● Do not use any screws other than those supplied.
● Push the case cover into the cord case and check that the power plug is connected firmly.
AC IN terminal
2
case cover
3
To take off the case cover
7
8
Daily Operations
Front panel
Tally lamp
This lamp is controlled by the tally function of the MAKE/TRIGGER terminal.
• You can select the color of the tally lamp from “GREEN” or “RED.”
(→ “TALLY SELECT” in “FUNCTION SETTING” on page 23 and “External Control” on page 26)
• “NO EFFECT” is displayed when you press a button which is not available for the current input or signal format (the lamp lights even
when the function does not actually work).
• You cannot use the buttons for the items controlled by the MAKE system (“REMOTE ON” appears, and the lamp does not light up).
1 Speakers (stereo)
The speakers emit the same audio signal emitted from the
AUDIO MONITOR OUT terminals.
(→
7 “AUDIO MONITOR OUT(OUT (L), OUT (R)) terminals” on
page 7)
2 VOLUME adjustment knob
Adjusts the volume.
3 Picture adjustment knob
CHROMA: Adjusts the picture color density.
BRIGHT: Adjusts the picture brightness.
CONTRAST: Adjusts the picture contrast.
● CHROMA cannot be adjusted for certain signal
formats.
4 POSITION knob/PUSH SEL. button
POSITION knob: Adjusts the positions of the display line
and R image.
Used for the following functions
• 3D cursor (→ page 16)
• SPLIT (→ page 15)
• LR SEQ. (→ page 15)
• R SHIFT (→ page 15)
• ANAGLYPH (→ page 15)
• INDIVIDUAL (→ page 15)
PUSH SEL. button: Switches the display line.
Used for the following functions
• 3D cursor (→ page 16)
• SPLIT (→ page 15)
● To reset the displayed line and R image to default,
press and hold the PUSH SEL. button for 3 seconds
or longer.
5 MUTING button
Turns off the sound when no menu screen is displayed (Muting).
● To cancel the function, press the button again or turn
r T.C. (time code) button/lamp
the VOLUME adjustment knob.
●
Muting function is also canceled when “BALANCE” of “AUDIO
→
SETTING” in the MAIN MENU is changed (
6 / / / buttons
When a menu screen is displayed
Selects or adjusts menu items (→ “Menu Operations” on page 18).
When no menu screen is displayed
Selects the audio channels of EMBEDDED AUDIO signals
(→ “Audio Channel Selection” on page 10).
● Pressing button while holding button displays the
SET-UP MENU
(→ “Menu Operations” on page 18).
page 21).
t SELECT button
y 3D button/lamp
7 MENU button
Activates/deactivates the display of the MAIN MENU
(→ “Menu Operations” on page 18).
u CAMERA ASSIST button/lamp
8 COLOR OFF button/lamp
Displays only the luminance signal.
● This function does not work for RGB input signals.
i MIX button/lamp
9 1:1 button/lamp
Displays the picture in the original resolution of the input signal.
● The aspect ratio of the picture may change depending
on the input signal.
o INPUT SELECT buttons/lamps
p MARKER button/lamp
Displays/Hides the area marker/safety marker.
●
Configure the setting in “MARKER” of the MAIN MENU (
● Available when both the 3D and MIX modes are “OFF.”
● Not activate when picture is displayed in the 1:1 mode.
●
The area marker can only be displayed in 16:9 display mode.
→
page 20).
q 3D CURSOR button/lamp
Displays/Hides the cursor for measuring the visual difference
during 3D display
● Each time you press this button, the display mode
(→ page 16).
changes in the following order.
No display Cursor mode
Grid mode
; Power lamp
w SCREENS CHECK button/lamp
Displays only the selected element (R, G, or B) of the video signal.
● This function does not work for RGB input signals.
●
Each time you press this button, the picture changes in the following order.
RGB (Normal screen) Red screen
Blue screen Green screen
e SCOPE button/lamp
Displays/hides the indication of the wave form monitor and
vector scope (→ “SCOPE SETTING” on page 22).
● Each time you press this button, the window changes in
the following order.
• When the MIX mode is “OFF” or invalid
No display
Vectorscope
Wave form monitor
• When the MIX mode is “ON” (→ page 16)
No display
Parallel wave form monitor
Parallel vector scope
Difference wave form monitor
Difference vector scope
a button
Activates/deactivates the display of the time data (time code)
contained in the SDI signal (→ “On the Information Display”
on page 10).
● Select the time code type in “INFORMATION” of SET-UP
MENU (→ page 24).
Selects/Changes items.
Used for the following item/function.
• 3D format (→ page 19)
• 3D cursor (→ page 16)
• INDIVIDUAL (→ page 15)
Activates/Deactivates the 3D mode.
● Corrects images for 3D viewing with circular polarizing
glasses.
Displays/Hides the CAMERA ASSIST MENU (→ page 14).
● Only works for images available in MIX mode.
Activates/Deactivates the MIX mode.
● Mixes L and R images and converts to side-by-side
images (→ page 13).
Selects an input.
SDI 1/L: Input from the E. AUDIO 3G SDI/HD SDI/
SD SDI (IN 1/L) terminal
SDI 2/R: Input from the E. AUDIO 3G SDI/HD SDI/
SD SDI (IN 2/R) terminal
DUAL LINK: Input from the E. AUDIO 3G SDI /HD SDI/
SD SDI (IN 1/L, IN 2/R) terminals
DVI: Input from the DVI-D (HDCP) terminal
● The lamp for the selected input lights.
● The SDI 1/L and SDI 2/R lamps light up in MIX mode.
(Only the SDI 1/L lights up in 3G SDI LEVEL B Dual
Stream input.)
Off: The power is turned off
Green: The monitor is on
Orange: The monitor is turned off (standby), or the
DC power voltage is reduced while working
and the monitor is shut down
Orange blinking: P.SAVE (Power saving) mode (“NO SYNC
ACTION“ in “SYNC FUNCTION“) (→ page 22)
● You cannot turn on the monitor if the DC power is
shut down while the power lamp lights up in orange.
Disconnect the DC connector, set up the DC power
within the operating range, and then connect the
connector again.
Turns on and off (on standby) the monitor.
● The AC power switch is equipped on the rear panel of
the monitor (→ 2 on page 7).
9
10
Daily Operations (cont.)
Audio Channel Selection
Select audio channels emitted from the speakers (L/R) and the AUDIO MONITOR OUT(OUT1(L)/OUT2(R)) terminals, when EMBEDDED AUDIO
signals come in to the SDI terminal and SDI input is selected.
● You have to choose a group of selectable audio channels before the channel selection (→ “E.AUDIO GROUP” in “AUDIO SETTING” on page 21).
● The setting is memorized for each input (SDI 1/L and SDI 2/R).
● Works as SDI 1/L in MIX mode and DUAL LINK SDI input.
1 Press or button when a menu is not displayed.
The screen for audio channel selection is displayed.
● The screen for audio channel selection automatically disappears in about 30 seconds after the previous operation.
Audio channel selection screen
Selected item
2 Press buttons to select the left (L ch) or right (R ch).
3 Press
● Each time you press the button, the audio channel changes according to the settings of “E.AUDIO GROUP.” (→ page 21)
4 Press MENU button.
● The screen for audio channel selection disappears.
buttons to select an audio channel.
On the Information Display
The monitor displays the information below.
● Configure the show/hide setting of each item in the menu. Use the T.C. button (→ r on page 9) to configure 5 and 6.
● Select the position of the information display (→ “POSITION” in “INFORMATION” on page 24).
● When any information of 1 2 3 or 4 above is displayed while signals come in from equipment other than a computer, the picture is
displayed without overlapping the information display area. However, the information display will overlap with the picture when...
– Displaying the picture with higher resolution than the resolution of the panel in 1:1 mode.
– “SD4:3 LARGE” in the “FUNCTION SETTING” of SET-UP MENU is set to “ON.” (→ page 23)
1 Audio level meter
● You can check the conditions of the EMBEDDED AUDIO signals when “LEVEL METER ch” is set to “LINE” or “DIVIDE.”
● Not displayed when “LEVEL METER ch” is set to “OFF.” (→ “AUDIO SETTING” on page 21)
2 Signal format
● Displayed when “STATUS DISPLAY” is set to “ON.” (→ “INFORMATION” on page 24)
● For the contents displayed, see “Available signals” on page 33 and “On the signal format” on page 11.
3 Source name assigned in “CHARACTER SET.”
● Displayed when “SOURCE ID” is set to “ON” or “AUTO.”
● Displayed in large letters when “STATUS DISPLAY” is set to “OFF” or “AUTO.” (→ “INFORMATION” on page 24)
4 CRC error indication
● Displayed when “CRC ERROR” is set to “ON.” (→ “INFORMATION” on page 24)
● A red square is displayed when an error occurs.
5 Time code
● When the input signal includes no time code, “TC – –:– –:– –:– –” is displayed (→ r on page 9).
6
Time code (When the 3D button is “OFF” in MIX mode or the CAMERA ASSIST MENU is displayed)
TC1: For SDI IN 1/L input signals
TC2: For SDI IN 2/R input signals
DIF: Difference of TC2 from TC1
● When the CAMERA ASSIST MENU is “R SHIFT”, the time code of SDI IN 1/L input signals is displayed in the 5 position.
● It is not displayed when the CAMERA ASSIST MENU is “ANAGLYPH.”
On the Status Display
If you press the INPUT SELECT button (→ o on page 9) currently lit, the status of the input signal and setting of MUTING are displayed for about
3 seconds.
● Make the setting to display/hide the status in “STATUS DISPLAY” of the “INFORMATION.” (→ page 24)
● When “STATUS DISPLAY” is set to “AUTO” or “ON,” the status below is also displayed in the following cases:
– When you change the input
– When the signal condition of the current input changes
– When you turn on the monitor
● When “STATUS DISPLAY” is set to “ON,” the signal format will remain displayed 3 seconds after the status is displayed.
1 Signal format
● For the contents displayed, see “Available signals” on page 33 and “On the signal format” below.
On the signal format
The following messages appear depending on the type of input signals and their conditions.
When a DVI-D signal protected with HDCP is input
“*” (at the end of the indication) ➔
When no video signal comes in
“NO SYNC” ➔
When a noncompliant video signal comes in
“Out of range” ➔
When a signal that does not meet the MIX operating conditions is input in MIX mode
“Unsupported” ➔
2 Signal format of DVI input
→ On page 25 “DVI INPUT SEL.”
Status indication of DUAL LINK/3G SDI signal information
● “DUAL LINK” appears when the MAIN MENU “SDI DUAL LINK” (→ page 19) is set to “ON” in SDI input, and the 3G SDI signal
information appears when the MAIN MENU “SDI DUAL LINK” is set to “OFF.” However in MIX mode, the 3G SDI signal
information appears even when the MAIN MENU “SDI DUAL LINK” is set to “ON.”
Status indication of 3G SDI signal information
Following signal information can be displayed when a 3G SDI signal comes in.
3G A-1: Level A mapping structure 1
3G A-2: Level A mapping structure 2
3G A-3: Level A mapping structure 3
3G A-4: Level A mapping structure 4
3G B-DS1: Level B data stream 1
3G B-DS2: Level B data stream 2
3G B-DUAL: Level B DUAL LINK
3G B-DS1/2: Level B Dual stream mapping (in MIX mode)
3D format conversion method
● The 3D format conversion method appears when the 3D mode is activated while the MIX mode is “OFF.”
(→ page 19 “SDI FORMAT”/“DVI FORMAT” in the MAIN MENU “3D SETTING.”)
● Displayed left-justified when not in 3G SDI input or DVI input.
3 Detailed information on 3G SDI/HD SDI DUAL LINK input
● Displays the sampling structure/color space/pixel resolution of the signal format.
● Displayed when the 3G SDI or HD SDI DUAL LINK signal is input.
4 Setting of “MUTING”
● Displayed only when muting is activated (→ 5 on page 9).
5 Setting of FRAME SYNC.
● Only displayed when “FRAME SYNC.” in the MAIN MENU “3D SETTING” is set to “ON.” (→ on page 19)
11
