Color Television Users Guide
For Models:
AV-20F476
AV-27F476
AV-32F476
Illustration of AV-32F476 and RM-C1258G
Important Note:
In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this
guide. Keep this user's guide in a convenient place for future reference. Keep the carton and original packaging for future use.
Model Number:
Serial Number: |
LCT1785-001A-A |
1204JGI-II-IM |
Important Safety Precautions
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV SET TO RAIN OR MOISTURE.
CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT.
1.Operate only from the power source specified on the unit.
2.Avoid damaging the AC plug and power cord.
3.Avoid Improper installation and never position the unit where good ventilation is unattainable.
4.Do not allow objects or liquid into the cabinet openings.
5.In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.
Changes or modifications not approved by JVC could void the warranty.
•When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.
•To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
IMPORTANT RECYCLING INFORMATION
This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org
2
• As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY
STAR®” guidelines for energy efficiency.
Important Safeguards
CAUTION:
Please read and retain for your safety.
Electrical energy can perform many useful functions. This TV set has been engineered and manufactured to assure your personal safety. But improper use can result in potential electrical shock or fire hazards. In order not to defeat the safeguards incorporated in this TV set, observe the following basic rules for its
installation, use and servicing. Also follow all warnings and instructions marked on your TV set.
INSTALLATION
1 Your TV set is equipped with a polarized AC line plug (one blade of the |
(POLARIZED-TYPE) |
plug is wider than the other). This safety feature allows the plug to fit |
|
into the power outlet only one way. Should you be unable to insert the |
|
plug fully into the outlet, try reversing the plug. Should it still fail to fit, |
|
contact your electrician. |
|
2Operate the TV set only from a power source as indicated on the TV set or refer to the operating instructions for this information. If you are not sure of the type of power supply to your home, consult your TV set dealer or local power company. For battery operation, refer to the operating instructions.
3Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.
4Do not allow anything to rest on or roll over the power cord, and do not place the TV set where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.
5Do not use this TV set near water – for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near swimming pool, etc.
6If an outside antenna is connected to the TV set, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection requirements for the grounding electrode.
3
7An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it
can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
|
ANTENNA |
|
|
LEAD IN |
|
|
WIRE |
|
|
GROUND |
|
|
CLAMP |
|
|
ANTENNA |
|
|
DISCHARGE UNIT |
|
|
(NEC SECTION 810-20) |
|
ELECTRICAL |
|
|
SERVICE |
GROUNDING CONDUCTORS |
|
EQUIPMENT |
||
(NEC SECTION 810-21) |
||
|
||
|
GROUND CLAMPS |
|
|
POWER SERVICE GROUNDING |
|
|
ELECTRODE SYSTEM |
|
NEC - NATIONAL ELECTRIC CODE |
(NEC ARTICLE 250, PART H) |
|
|
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
8TV sets are provided with ventilation openings in the cabinet to allow heat generated during operation to be released.
Therefore:
—Never block the bottom ventilation slots of a portable TV set by placing it on a bed, sofa, rug, etc.
—Never place a TV set in a “built-in” enclosure unless proper ventilation is provided.
—Never cover the openings with a cloth or other material.
—Never place the TV set near or over a radiator or heat register.
9To avoid personal injury:
—Do not place a TV set on a sloping shelf unless properly secured.
—Use only a cart or stand recommended by the TV set manufacturer.
—Do not try to roll a cart with small casters across thresholds or deep pile carpets.
—Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer.
Use
10Caution children about dropping or pushing objects into the TV set through cabinet openings. Some internal parts carry hazardous voltages and contact can result in a fire or electrical shock.
11Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an aerosol cleaner.
12Never add accessories to a TV set that has not been designed for this purpose. Such additions may result in a hazard.
4
PORTABLE CART WARNING (Symbol provided by RETAC)
13For added protection of the TV set during a lightning storm or when the TV set is to be left unattended for an extended period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to product due to lightning storms or power line surges.
14A TV set and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV set and cart combination to overturn.
Service
15Unplug this TV set from the wall outlet and refer servicing to qualified service personnel under the following conditions:
A.When the power cord or plug is damaged or frayed.
B.If liquid has been spilled into the TV set.
C.If the TV set has been exposed to rain or water.
D.If the TV set does not operate normally by following the operating instructions. Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV set to normal operation.
E.If the TV set has been dropped or damaged in any way.
F.When the TV set exhibits a distinct change in performance — this indicates a need for service.
16Do not attempt to service this TV set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
17When replacement parts are required, have the service technician verify in writing that the replacement parts he uses have the same safety characteristics as the original parts. Use of manufacturer’s specified replacement parts can prevent fire, shock, or other hazards.
18Upon completion of any service or repairs to this TV set, please ask the service technician to perform the safety check described in the manufacturer’s service literature.
19When a TV set reaches the end of its useful life, improper disposal could result in a picture tube implosion. Ask a qualified service technician to dispose of the TV set.
20Note to CATV system installer.
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
5
Table of Contents
Quick Setup . . . . . . . . . . . 7
Unpacking your TV . . . . . . . . . . . . 7 TV Models . . . . . . . . . . . . . . . . 8 TV Remote Control . . . . . . . . . . . 9
Getting Started . . . . . . . . . . . . . 10
The Remote Control . . . . . . . . . . 10 Connecting Your Devices . . . . . . . 11 Interactive Plug In Menu . . . . . . . . 15
Remote Programming . . . . . 18
Setting CATV, VCR and DVD Codes . . . 18
CATV or Satellite Codes . . . . . . . . 18 VCR Codes . . . . . . . . . . . . . . 19 DVD Codes . . . . . . . . . . . . . . 20 Search Codes . . . . . . . . . . . . . 21
Onscreen Menus . . . . . . . . 22
Using the Guide . . . . . . . . . . . . . 22 Onscreen Menu System . . . . . . . . . 23
Initial Setup . . . . . . . . . . 24
Auto Tuner Setup . . . . . . . . . . . . 24 Channel Summary . . . . . . . . . . . . 24 V-Chip . . . . . . . . . . . . . . . . . . 25 Set Lock Code . . . . . . . . . . . . . 31 Language . . . . . . . . . . . . . . . . 32
Closed Caption . . . . . . . . . . . . . 32
Front Panel Lock . . . . . . . . . . . . 33
Auto Shut Off . . . . . . . . . . . . . . 33
XDS ID . . . . . . . . . . . . . . . . . 33
Video Input Label . . . . . . . . . . 34
Picture Adjust . . . . . . . . . 35
Picture Settings . . . . . . . . . . . . . 35
Adjust Picture Settings . . . . . . . . . 35
Color Temperature . . . . . . . . . . . . 36 Noise Muting . . . . . . . . . . . . . . 36
VSM . . . . . . . . . . . . . . . . . 36
Sound Adjust . . . . . . . . . 37
Sound Settings . . . . . . . . . . . . . 37 Adjust Sound Settings . . . . . . . . . 37 MTS (Multi-channel Sound) . . . . . . . 37 Smart Sound . . . . . . . . . . . . 37
Clock Timers . . . . . . . . . . 38
Set Clock . |
. . . . . . . . . . . . . . . 38 |
On/Off Timer |
. . . . . . . . . . . . . . . 39 |
World Clock |
. . . . . . . . . . . . . . 40 |
Button Functions . . . . . . . 41
Power . . . . . . . . . . . . . . . . . . 41
Number Buttons . . . . . . . . . . . . . 41 100+ Button . . . . . . . . . . . . . . . 41
Channel +/– . . . . . . . . . . . . . . . 41 Volume +/– . . . . . . . . . . . . . . . 41
Muting . . . . . . . . . . . . . . . . . . 41 Menu . . . . . . . . . . . . . . . . . . 41
Exit . . . . . . . . . . . . . . . . . . . 41
Return + . . . . . . . . . . . . . . . . . 42 Input . . . . . . . . . . . . . . . . . . . 42 Display . . . . . . . . . . . . . . . . . 43 Sleep Timer . . . . . . . . . . . . . . . 43 Sound . . . . . . . . . . . . . . . . . . 44 C.C. . . . . . . . . . . . . . . . . . . . 44 Video Status . . . . . . . . . . . . . . . 45 TheaterPro D6500K . . . . . . . . . . . 45 Aspect . . . . . . . . . . . . . . . . 45
TV/CATV Slide Switch . . . . . . . . . . 46
VCR/DVD Slide Switch . . . . . . . . . 46 VCR Buttons . . . . . . . . . . . . . . . 46 DVD Buttons . . . . . . . . . . . . . . . 46
Appendices . . . . . . . . . . 47
Troubleshooting . . . . . . . . . . . . . 47 Specifications . . . . . . . . . . . . . . 48
Warranty . . . . . . . . . . . . . . . . . 50
Authorized Service Centers . . . . . . . 51
6
Quick Setup |
Unpacking Your TV |
|
|
Thank you for your purchase of a JVC Color Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:
1 Television |
1 Remote Control |
||||
|
TV CATV VCR DVD |
POWER |
|||
|
INPUT |
|
|
|
|
|
DISPLAY |
1 |
|
2 |
3 |
|
|
|
|||
|
SLEEP TIMER |
4 |
|
5 |
6 |
|
|
|
|||
|
SOUND |
7 |
|
8 |
9 |
|
|
|
|||
|
VIDEO STATUS |
100+ |
0 |
RETURN+ |
|
|
THEATER PRO ASPECT |
|
|
||
|
MUTING |
|
|
|
C.C. |
|
|
CH + |
|
|
|
|
VOL |
|
|
|
VOL |
|
– |
|
|
|
+ |
|
|
CH – |
|
|
|
|
MENU |
|
|
|
EXIT |
|
VCR CHANNEL |
VCR/DVD |
|
||
|
PREV NEXT |
POWER TV/VCR |
|||
|
REW |
PLAY |
|
FF |
|
|
REC |
STOP |
|
PAUSE |
|
|
OPEN/CLOSE |
|
|
STILL/PAUSE |
|
RM-C1258G
TV
Two AA
Batteries
Alkaline AA |
Alkaline AA |
Note: Your television and/or remote control may differ from the examples illustrated here.
Once you have unpacked your television, the next step is to connect it to your antenna/ cable or satellite system and to connect the audio/video devices you want to use with your television. To make these connections you will use plugs like the ones illustrated below.
Coaxial Cables
Used to connect an external antenna or cable TV system to your
TV.
S-Video Cable
Used to make video connections with S-Video VCRs, Camcorders and DVD players.
Component Cables
Composite Cables
Audio Cables
Used to connect audio/ video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc.
We recommend that before you start using your new television, you read your entire User’s Guide so you can learn about your new television’s many great features. If you’re anxious to start using your television right away, a quick setup guide follows on the next few pages.
7
Quick Setup |
TV Models |
|
|
NOTE: Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television.
Rear Panel Diagrams
MODELS:
AV-32F476
AV-27F476
AUDIO |
VIDEO |
S VIDEO |
R L MONO |
|
OVER |
INPUT 1
|
|
INPUT 2 |
|
|
COMPONENT |
|
|
VIDEO |
R |
L |
Video/Y |
|
AUDIO OUT |
PB |
|
|
|
|
|
PR |
75Ω (VHF / UHF)
MODEL: AV-20F476
INPUT 1 |
|
|
INPUT 2 |
|
S-VIDEO |
|
|
COMPONENT |
|
|
|
VIDEO |
|
|
|
|
|
|
|
OVER |
|
|
|
|
VIDEO |
|
|
VIDEO/Y |
75Ω |
|
|
(VHF/UHF) |
||
|
|
|
|
|
AUDIO OUT |
AUDIO |
|
|
|
|
|
|
||
L/MONO |
L/MONO PB |
|
||
L |
|
|
|
|
R |
|
R |
PR |
|
|
|
|
||
R |
|
|
|
|
Front Panel Diagrams
INPUT 3 |
MENU |
CHANNEL |
VOLUME |
VIDEO L MONO |
AUDIO R |
OPERATE |
|
|
|
MODELS: AV-32F476, AV-27F476
INPUT 3 |
MENU |
|
CHANNEL |
|
|
|
|
VOLUME |
OPERATE
VIDEO L MONO AUDIO R
MODEL: AV-20F476
8
Quick Setup |

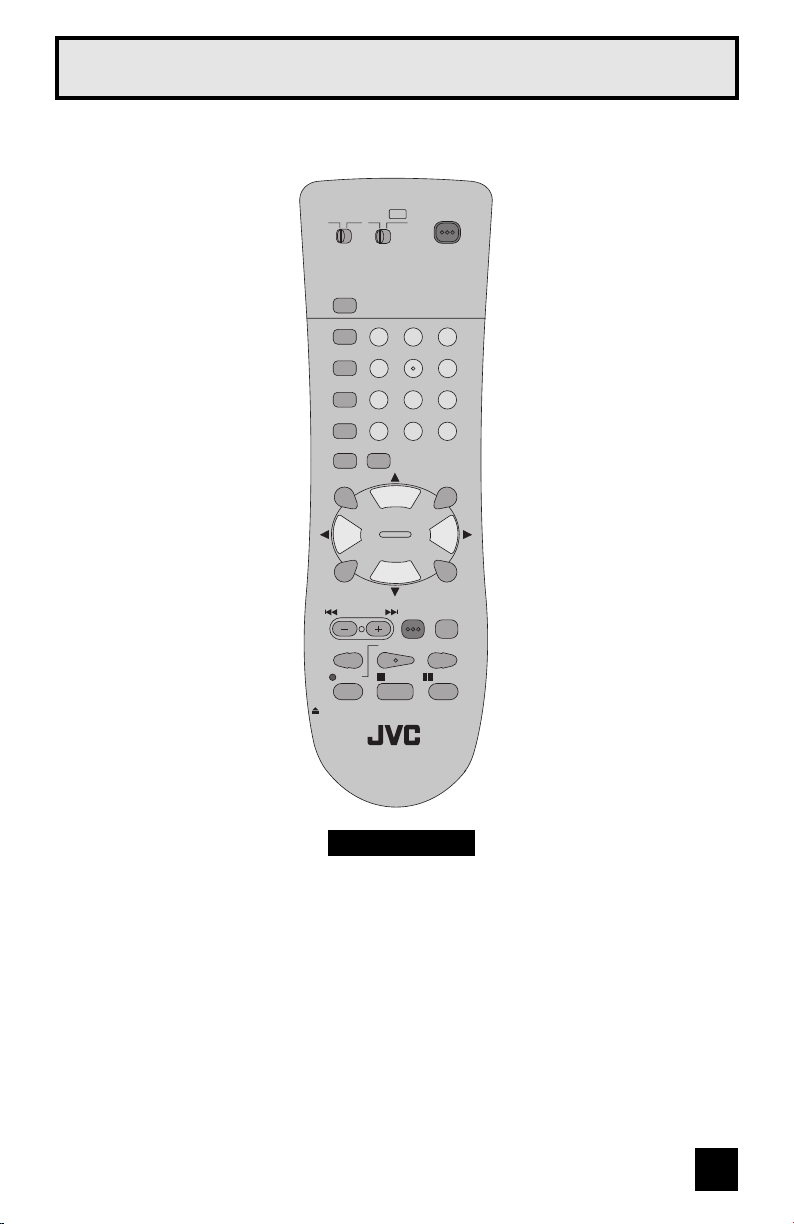

TV Remote Control |
|
|
TV CATV VCR DVD |
POWER |
||
INPUT |
|
|
|
DISPLAY |
1 |
2 |
3 |
|
|||
SLEEP TIMER |
4 |
5 |
6 |
|
|||
SOUND |
7 |
8 |
9 |
|
|||
VIDEO STATUS 100+ |
0 |
RETURN+ |
|
THEATER PRO ASPECT |
|
|
|
MUTING |
|
|
C.C. |
|
CH + |
|
|
VOL |
|
|
VOL |
–+
CH –
MENU |
EXIT |
VCR CHANNEL |
VCR/DVD |
PREV NEXT |
POWER TV/VCR |
REW PLAY FF
REC |
STOP |
PAUSE |
OPEN/CLOSE STILL/PAUSE
RM-C1258G
TV
RM-C1258G
MODELS:
AV-20F476
AV-27F476
AV-32F476
• For information on remote control buttons, see pages 41 - 46.
9
Quick Setup |
Getting Started |
|
|
Getting Started
These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away.
If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual.
Step 1 – The Remote Control
Before you can operate your remote control, you first need to install the batteries (included).
Lift and pull the latch on the back of the remote control to open. Insert two batteries
(included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first.
Snap the cover back into place.
When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes for your VCR, DVD, and/or cable box/satellite receiver may have to be reset. See pages 18 - 20.
Key Feature Buttons
The four key feature buttons at the center of the remote can be used for basic operation of the television.
The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH–. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC’s onscreen menu system. To use the onscreen menus, press the MENU button.
MUTING |
C.C. |
|
CH + |
VOL |
VOL |
–+
CH –
MENU |
EXIT |
Basic Operation
Turn the television on and off by pressing the POWER button at the top right corner of the remote. If this is the first time you are turning on the TV, the interactive plug-in menu appears.
•Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box.
•Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to
DVD to control a DVD player. Please see pages 18 to 21 for instructions on programming your remote control to operate a cable box, VCR or DVD player.
POWER
TV CATV V
VCR DVD
10
Quick Setup |
Connections |
|
|
Step 2 – Connecting Your Devices

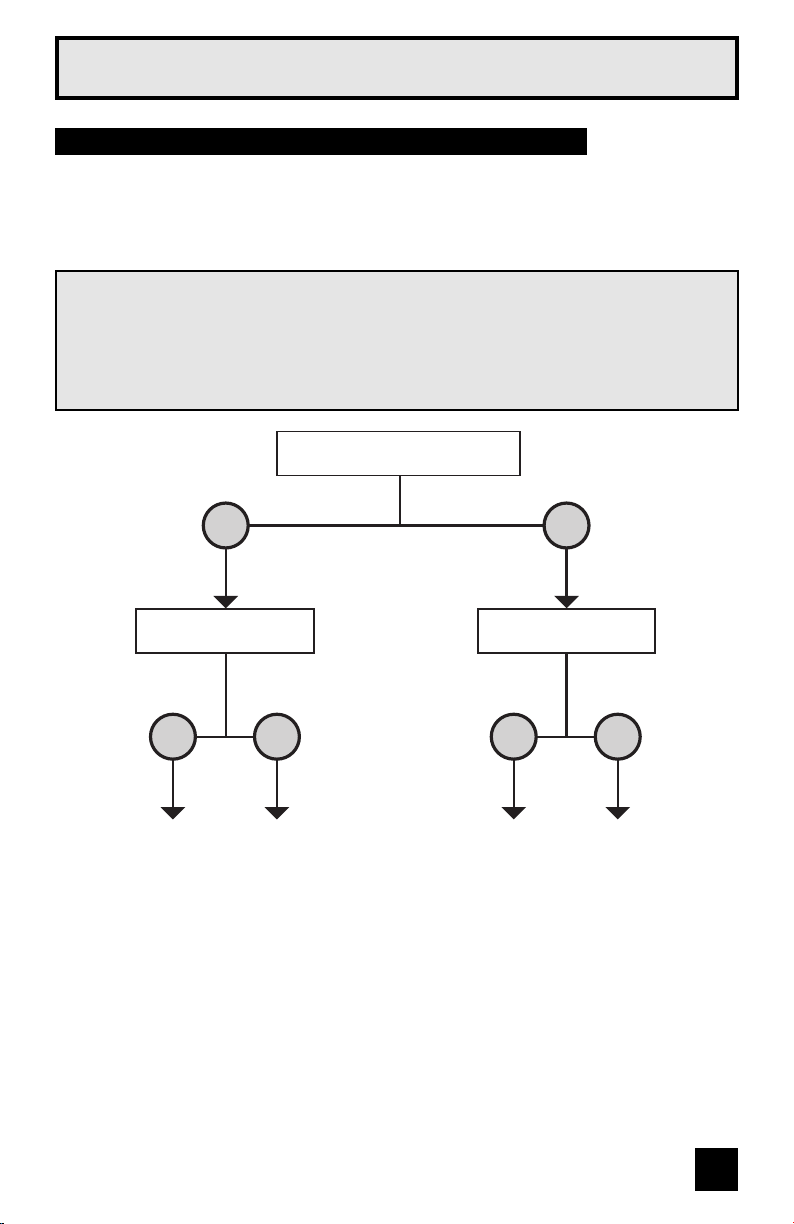

Please follow the flow chart below to determine which connection setup is right for you. Then, refer to the appropriate diagrams to connect your television to other devices that you may have. After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV.
A VCR is not necessary for operation of the television. If you follow these diagrams and the television does not work properly, contact your local cable operator.
•To connect a DVD player, see Diagram #3. A DVD player is optional.
•If you have a satellite television system, please refer to the satellite TV manual.
|
Do you use a Cable TV Box? |
|
|
|
Yes |
|
No |
Do you have a VCR? |
Do you have a VCR? |
||
Yes |
No |
Yes |
No |
Diagram #2 Diagram #1 |
Diagram #3 Diagram #1 |
11
Quick Setup |
Connections |
|
|
Diagram #1
Illustration of AV-32F476
TV Rear Panel
AUDIO |
VIDEO S VIDEO |
Cable or Antenna |
R L MONO |
OVER |
Output |
|
INPUT 1 |
|
INPUT 2 |
|
|
COMPONENT |
Coaxial Cable |
|
VIDEO |
|
|
|
75Ω |
|
|
(VHF / UHF) |
R |
L |
Video/Y |
|
|
OR |
|
AUDIO OUT |
PB |
|
|
|
|
|
PR |
OUT IN
Cable Box
Note:
•If you do not have a cable box, connect the cable wire from the wall outlet into the back of the TV.
Diagram #2
Illustration of AV-32F476
TV Rear Panel
AUDIO |
VIDEO |
S VIDEO |
R L MONO |
|
OVER |
INPUT 1
|
|
INPUT 2 |
|
|
COMPONENT |
|
|
VIDEO |
R |
L |
Video/Y |
|
AUDIO OUT |
PB |
|
|
|
|
|
PR |
75Ω (VHF / UHF)
Cable or Antenna Output
OR |
Coaxial Cable |
|
VCR |
||
|
OUT
IN
OUT R L V
IN
OUT IN
Cable Box
Notes:
•If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the TV’s LEFT AUDIO INPUT.
•Use the S-Video connection if possible for superior picture quality.
•Your VCR must be turned on to view premium cable channels.
12
Quick Setup |
Connections |
|
|
Notes:
•Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information.
•Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables.
•If you use INPUT 2 (Component-In), for a DVD connection, you must select
"V2-COMPONENT" by pressing the INPUT button, for proper display of the DVD signal.
•Progressive DVD players (players with an output scan of 31.5 KHz) will not work properly with this television. Set your DVD player’s output to “interlaced”, or non-progressive mode.
Diagram #3
Illustration of AV-32F476
|
DVD Player (OPTIONAL) |
|
Green |
Y |
AUDIO OUT |
Blue |
PB |
L R |
Red |
PR |
|
OUT
|
|
|
Cable or Antenna |
VCR |
|
Output |
|
R |
L |
V |
IN |
|
|
IN |
|
|
|
OUT |
Coaxial Cable |
|
|
|
OUT |
|
|
OR |
|
AUDIO |
VIDEO S VIDEO |
|
|
R |
L MONO |
OVER |
|
INPUT 1
|
|
INPUT 2 |
|
|
COMPONENT |
|
|
VIDEO |
|
|
75Ω |
|
|
(VHF / UHF) |
R |
L |
Video/Y |
|
AUDIO OUT |
PB |
|
|
|
|
|
PR |
Headphone Connection
You can connect a pair of headphones to the television using the headphone jack located under the front panel door. To access, push on the door to open it.
1) Plug a headphone jack into the headphone jack on the television’s front panel.
Note:
• AV-20F476 ONLY
13
Quick Setup |
Connections |
|
|
Connecting to a Camcorder
You may connect a camcorder, game console or other equipment to your television by using the front input jacks (Input 3) located under the front panel door. To access, pull on the door to open it. You can also connect these using the television’s rear input jacks, using the same instructions.
Illustration of AV-32F476
INPUT 3 |
MENU |
CHANNEL |
VOLUME |
|
|
OPERATE |
|
VIDEO L MONO |
AUDIO R |
|
|
Camcorder
1)Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on the front of the TV.
2)Connect a white composite cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on the front of the TV.
3)Connect a red composite cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on the front of the TV.
Note:
•If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the LEFT AUDIO IN.
Connecting to an External Amplifier
Illustration of AV-32F476
Speaker |
Speaker |
Amplifier
R
L
AUDIO OUT
TV Rear Panel
1)Connect a white composite cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier.
2)Connect a red composite cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier.
Notes:
•Refer to your amplifier’s manual for more information.
•You can use AUDIO OUTPUT for your home theater system.
14
Quick Setup |
Plug-In Menu |
|
|
Step 3 – The Interactive Plug In Menu
When you turn your television on for the first time the interactive plug-in menu will appear. The plug-in menu helps you to get your TV ready to use by letting you set your preferences for:
•The language in which you want the onscreen menus to appear.
•Setting the TV’s clock to the correct time so your timer functions will work properly. You can choose “AUTO” or “MANUAL” for setting the clock.
•The auto tuner setup of which channels you wish to receive.
We recommend you complete the interactive plug-in items before you start using your television.
Language
After the “JVC INTERACTIVE PLUG IN MENU” has been displayed, the TV automatically switches to the LANGUAGE settings. You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español).
I N T E R A C T I V E P L U G I N M E N U >
L A N G U A G E / L A N G U E / I D I O M A
E N G L I S H
N E X T
S E L E C T B Y
O P E R A T E B Y E X I T B Y E X I T
è To choose a language:
(English, Français or Español)
†To NEXT (To set clock)
(To be continued...)
15
Quick Setup |
Plug-In Menu |
|
|
Auto Clock Set
Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal:
I N T E R A C T I V E P L U G I N M E N U > S E T C L O C K
M O D E |
A U T O |
T I M E |
– – : – – – – |
T I M E Z O N E |
P A C I F I C |
D . S . T . |
O F F |
|
N E X T |
S E L E C T B Y |
|
O P E R A T E B Y |
E X I T B Y E X I T |
Notes:
è To choose AUTO
†To TIME ZONE
è To select your time zone:
(Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii)
†To move to D.S.T. (Daylight Savings Time) √® To turn D.S.T. ON or OFF
†To NEXT (To Auto Tuner Setup)
•D.S.T. can be used only for US and Canada when it is set to ON in the SET CLOCK menu.
•Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October.
•You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.
Manual Clock Set
To set your clock manually (without using the XDS signal), choose MANUAL. If you choose AUTO, see auto clock set above.
I N T E R A C T I V E P L U G I N M E N U > S E T C L O C K
M O D E |
M A N U A L |
T I M E |
– – : – – – – |
T I M E Z O N E |
P A C I F I C |
D . S . T . |
O F F |
S T A R T |
C L O C K |
S E L E C T B Y |
|
O P E R A T E B Y |
E X I T B Y E X I T |
è To choose MANUAL
†To TIME
è To set the hour
†To minute
è To set the minute
†To START CLOCK
Note:
•You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.
(To be continued...)
16
Quick Setup |
Plug-In Menu |
|
|
Auto Tuner Setup
In auto tuner setup, the TV automatically scans through all available channels, memorizing the active ones and skipping over blank ones or channels with weak signals. This means when you scan (using the CHANNEL +/– buttons) you will receive only clear, active channels.
I N T E R A C T I V E P L U G I N M E N U > A U T O T U N E R S E T U P
T U N E R M O D E C A B L E
S T A R T
S E L E C T B Y
O P E R A T E B Y E X I T B Y E X I T
è To choose CABLE or AIR (or SKIP when you skip Auto Tuner Setup)
†To START
NOW
PROGRAMMING !
48
Programming will take approximately 1 to 2 minutes.
When the setup is finished, THANK YOU!! SETUP IS NOW COMPLETE is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the
JVC onscreen menu system to customize your television viewing experience.
Notes:
•Noise muting will not work during Auto Tuner Setup.
•Skip appears only for interactive plug-in menu.
•The interactive plug-in menu setting does not appear if your TV has been turned on before. In this case, use the initial setup menu to perform these settings. See pages 32, 38 and 24.
Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal.
STOP The Quick Setup is complete
17
Remote Programming
Setting the CATV, VCR and DVD Codes
You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer.
Cable Box or Satellite Codes
The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation.
1)Find the cable box or satellite brand from the list of codes shown below.
2)Slide the 2-way selector switch to “CATV”.
3)Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4)Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver.
•If your cable or satellite box does not respond to the first code, try the others listed. If it does not respond to any code, try the search codes function, on page 21.
Cable Box |
CODES |
Cable Box |
CODES |
Digital |
CODES |
|
|
|
|
|
|
|
|
ABC |
024 |
Puser |
032 |
Satellite |
|
|
Systems |
|
|||||
|
|
|
|
|
||
Archer |
032, 025 |
RCA |
061, 070 |
Echostar |
100, 113, 114, |
|
|
|
|
|
|||
Cableview |
051, 032 |
Realistic |
032 |
|||
|
115 |
|||||
|
|
|
|
|
||
Citizen |
022, 051 |
Regal |
058, 064, 040, |
|
|
|
Express VU |
100, 113 |
|||||
|
|
|
041, 042, 045, |
|||
Curtis |
058, 059 |
|
|
|
||
|
068 |
G.E. |
106 |
|||
|
|
|
||||
Diamond |
024, 032, 025 |
|
||||
Regency |
034 |
|
|
|||
|
|
G.I. |
108 |
|||
Eagle |
029 |
|||||
|
|
|||||
Rembrandt |
037, 032, 051, |
|
|
|||
|
|
Gradiente |
112 |
|||
Eastern |
034 |
|
038 |
|||
|
|
|
|
|
||
GC Brand |
032, 051 |
|
|
Hitachi |
104, 111 |
|
Samsung |
051 |
|||||
Gemini |
022, 043 |
|
|
|
|
|
Scientific Atlanta |
057, 058, 059 |
HNS (Hughes) |
104 |
|||
|
|
|||||
General Instrument |
065, 024, 025, |
|||||
|
|
|
|
|||
SLMark |
051, 047 |
Panasonic |
105 |
|||
|
026, 027, 020, |
|||||
|
021, 022, 057, |
Sprucer |
051, 056 |
Philips |
102, 103 |
|
|
023 |
|
|
|
|
|
|
Stargate |
032, 051 |
|
|
||
|
Primestar |
108 |
||||
Hamlin |
040, 041, 042, |
|
|
|||
Telecaption |
067 |
Proscan |
106, 109, 110 |
|||
|
045, 058, 064 |
|||||
Hitachi |
049, 024 |
Teleview |
047, 051 |
RCA |
106, 109, 110 |
|
Jerrold |
065, 024, 025, |
|
|
|
|
|
Texscan |
044 |
Sony |
107 |
|||
|
026, 027, 020, |
|||||
|
|
|
|
|
||
|
021, 022, 057, |
Tocom |
035, 036, 066 |
Star Choice |
104, 108 |
|
|
|
|
|
|
||
|
023 |
Toshiba |
050 |
Toshiba |
101 |
|
|
|
|||||
Macom |
049, 050, 051, |
|
|
|
|
|
Unika |
032, 025 |
Uniden |
102, 103 |
|||
|
054 |
|||||
|
|
|
|
|
||
|
Universal |
022, 032 |
|
|
||
|
|
|
|
|||
Magnavox |
033 |
|
|
|||
|
|
|
|
|||
Videoway |
052 |
|
|
|||
|
|
|
|
|||
Memorex |
030 |
|
|
|||
|
|
|
|
|||
|
|
Viewstar |
029, 030 |
|
|
|
Movietime |
032, 051 |
|
|
|||
|
|
|
|
|
|
|
Oak |
039, 037, 048 |
Zenith |
063, 046 |
|
|
|
|
|
|
|
|
|
|
Panasonic |
055, 056, 060, |
Zenith/Drake |
046 |
|
|
|
|
071, 073 |
Satellite |
|
|
|
|
Paragon |
063 |
|
|
|
|
|
|
|
|
|
|
|
|
Philips |
028, 029, 030, |
|
|
|
|
|
|
052, 053, 031, |
|
|
|
|
|
|
069 |
|
|
|
|
|
|
|
|
|
|
|
|
Pioneer |
047, 062 |
|
|
|
|
|
|
|
|
|
|
|
|
Pulsar |
051, 032 |
|
|
|
|
|
|
|
|
|
|
|
18
Remote Programming
VCR Codes
The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation.
1)Find the VCR brand from the list of codes shown below.
2)Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”.
3)Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4)Release the DISPLAY button, and confirm the operation of the VCR.
•If your VCR does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 21.
•After you program your remote, some VCR buttons may not work properly. If so, use the
VCR’s remote.
•To record, hold down the REC button on the remote and press PLAY.
VCRs |
CODES |
VCRs |
|
CODES |
VCRs |
CODES |
|
Admiral |
035 |
Marantz |
|
003, 004, 005 |
Samsung |
037, 060, 062, |
|
|
|
|
|
|
|
033, 089 |
|
Aiwa |
027, 032, 095 |
Marta |
|
064 |
|
||
|
|
|
|
|
Samtron |
089 |
|
Akai |
029, 072, 073, |
Memorex |
|
024, 067 |
|||
|
|
|
|||||
|
074 |
|
|
|
Sansui |
003, 026, 020, |
|
|
MGA |
|
038, 040, 047, |
||||
Audio Dynamic |
003, 005 |
|
|
048, 041, 042 |
|
052 |
|
|
|
|
|
|
Sanyo |
063, 067, 091, |
|
Bell & Howell |
063, 071 |
Minolta |
|
058, 045, 093 |
|||
|
|
071 |
|||||
|
|
|
|
|
|
||
Broksonic |
020, 026, 094 |
Mitsubishi |
|
038, 040, 047, |
|
||
|
Scott |
059, 060, 062, |
|||||
Canon |
023, 025 |
|
|
048, 041, 042, |
|||
|
|
|
067, 038, 040, |
||||
|
|
078, 090 |
|
||||
CCE |
043 |
|
|
|
047, 048, 026, |
||
Multitech |
|
047, 027, 062 |
|
||||
Citizen |
064 |
|
|
020 |
|||
|
|
|
|
||||
NEC |
|
003, 004, 005, |
|
||||
|
|
|
Sears |
063, 064, 065, |
|||
Craig |
063, 029, 064 |
||||||
|
|
000 |
|||||
Curtis Mathes |
045, 024, 027, |
|
|
|
066, 058, 000, |
||
Olympic |
|
024, 023 |
|
001 |
|||
|
093 |
|
|
||||
|
Optimus |
|
028, 021, 035, |
Shintom |
075 |
||
Daewoo |
043, 059, 024, |
|
|||||
|
|
064 |
Sharp |
035, 036, 080, |
|||
|
092 |
|
|
||||
|
Orion |
|
026, 020 |
|
088 |
||
DBX |
003, 004, 005 |
|
|
||||
|
|
Panasonic |
|
023, 024, 021, |
Signature 2000 |
027, 035 |
|
Dimensia |
045, 093 |
||||||
|
|
022 |
Singer |
075 |
|||
|
|
|
|
||||
Emerson |
043, 026, 077, |
|
|||||
Penney |
|
024, 058, 045, |
|||||
|
Sony |
028, 029, 030, |
|||||
|
061, 025, 042, |
|
|||||
|
|
|
063, 003, 004, |
||||
|
020, 076 |
|
|
|
053, 054, 055 |
||
|
|
|
005, 093 |
|
|||
Fisher |
063, 066, 067, |
|
|
SV 2000 |
027 |
||
Pentax |
|
058, 005, 045, |
|||||
|
065, 071, 091 |
|
Sylvania |
031, 023, 024, |
|||
|
|
|
093 |
||||
Funai |
027, 026, 020, |
|
|
|
|
027 |
|
Philco |
|
031, 024, 027, |
|
||||
|
000 |
|
Symphonic |
027, 081 |
|||
|
|
|
023, 026, 020, |
||||
G.E. |
033, 045, 024 |
|
|
043 |
Tashiro |
064 |
|
Go Video |
037, 051, 049, |
Philips |
|
031, 023, 024, |
Tatung |
003, 004, 005 |
|
|
050, 089 |
|
|
086 |
Teac |
003, 004, 027, |
|
|
|
Pioneer |
|
023 |
|
005 |
|
Goldstar |
064 |
|
|
||||
|
|
Proscan |
|
045, 058, 023, |
Technics |
021, 022, 023, |
|
Gradiente |
083, 084, 081, |
|
|||||
|
|
024, 031, 046, |
|
024 |
|||
|
000, 001 |
|
|
|
|||
|
|
|
|
059, 060, 033, |
Teknika |
024, 027, 070 |
|
Hitachi |
023, 045, 058, |
|
|||||
|
|
087, 093 |
|||||
|
|
Toshiba |
059, 046, 079 |
||||
|
|
|
|
||||
|
027, 081, 093 |
Quasar |
|
021, 022, 023, |
|||
|
|
|
|
||||
|
|
|
Vector Research |
005 |
|||
Instant Replay |
024, 023 |
|
|
024 |
|||
|
|
|
|
||||
|
|
Wards |
035, 036, 067, |
||||
|
|
Radio Shack |
|
033, 024, 063, |
|||
Jensen |
003 |
|
|||||
|
|
044, 064 |
|||||
|
|
036, 067, 040, |
|
||||
|
|
|
|
|
|||
JVC |
000, 001, 002, |
|
|
|
|
||
|
|
027 |
Yamaha |
063, 003, 004, |
|||
|
003, 004, 005 |
|
|
||||
|
RCA |
|
033, 045, 058, |
|
005 |
||
|
|
|
|
||||
Kenwood |
003, 004, 064, |
|
|
023, 024, 031, |
Zenith |
044, 082, 064, |
|
|
005 |
|
|
046, 059, 060, |
|
094 |
|
LXI |
027, 064, 058, |
|
|
083, 084, 085, |
|
|
|
|
|
087, 093 |
|
|
|||
|
065, 066, 063, |
|
|
|
|
||
|
067 |
Realistic |
|
024, 063, 036, |
|
|
|
Magnavox |
031, 023, 024, |
|
|
067, 040, 027 |
|
|
|
|
086 |
|
|
|
|
|
|
|
|
|
|
|
|
|
19
Remote Programming
DVD Codes
The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation.
1)Find the DVD player brand from the list of codes shown below.
2)Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”.
3)Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4)Release the DISPLAY button, and confirm the operation of the DVD player.
•If your DVD player does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 21.
•After you program your remote, some DVD buttons may not work properly. If so, use the DVD player’s remote.
DVD Player |
CODES |
DVD Player |
CODES |
|
|
|
|
Aiwa |
043 |
RCA |
021, 026 |
|
|
|
|
Apex |
040 |
Sampo |
034 |
|
|
|
|
Denon |
020, 037 |
Samsung |
030 |
|
|
|
|
Hitachi |
030, 031 |
Sharp |
028 |
|
|
|
|
JVC |
000 |
Silvania |
038 |
|
|
|
|
Kenwood |
035 |
Sony |
024, 045, 046, |
Konka |
039 |
|
047 |
|
|
|
|
Mitsubishi |
025 |
Technics |
020 |
|
|
|
|
Onkyo |
041 |
Toshiba |
023 |
Oritron |
044 |
Vialta |
050 |
|
|
|
|
Panasonic |
020 |
Wave |
042 |
Philips |
023, 036 |
Yamaha |
020 |
|
|
|
|
Pioneer |
022 |
Zenith |
027, 032 |
|
|
|
|
Raite |
033 |
|
|
|
|
|
|
20
Remote Programming
Search Codes
Cable/Satellite Search Codes Function
1)Slide the first 2-Way Mode Selector switch to CATV.
2)Press and hold down the POWER button, then press the RETURN+ button for more than three seconds.
3)Release the RETURN+ button, then release the POWER button.
4)Press the POWER button on the remote, and see if the cable or satellite box responds.
5)If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 4. If you repeat Step 4 a total of 52 times without a response, use the remote control that came with your equipment.
6)Press RETURN+ to exit.
VCR/DVD Search Codes Function
1)Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or
“DVD”.
2)Press and hold down the VCR or DVD POWER button, then press the RETURN+ button for more than three seconds.
3)Release the RETURN+ button, then release the VCR or DVD POWER button.
4)Press the VCR or DVD POWER button, and see if the VCR or DVD responds.
5)If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 4. If you repeat Step 4 a total of 80 times for the VCR (30 times for the DVD player), and there is no response, use the remote control that came with your equipment.
6)Press RETURN+ to exit.
21
Onscreen Menus
Using the Guide
Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are:
π† Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH– buttons let you:
•Move vertically in a main menu screen
•Move through a submenu screen
•Move to the next letter, number, or other choice in a submenu
•Back up to correct an error
•Scan through TV channels (when not in a menu screen)
è Left and right arrows mean press the VOLUME+ or VOLUMEРbuttons to move left or right to:
•Select a highlighted menu item
•Select an item in a submenu
•Select numbers in certain menu options
•Turn the volume up or down (when not in a menu screen)
The “press button” icon means you should press the button named on your remote control. (Button names appear in SMALL CAPITAL LETTERS.)
The “helping hand” icon points to the highlighted or selected item in a menu.
To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in yellow is the one currently selected. If you press the MENU button again, the
onscreen display will skip to the next menu screen. If you use the Menu button on the TV’s front panel instead of the remote, an additional menu screen showing input and video status mode will appear. The “interactive plug-in menu” will appear the first time the TV is plugged in.
I N I T I A L
S E T U P 2 / 2
P R E V I O U S
A U T O T U N E R S E T U P
C H A N N E L S U M M A R Y
V – C H I P
S E T L O C K C O D E
N E X T P A G E
S E L E C T B Y
O P E R A T E B Y
E X I T B Y E X I T
Notes:
•Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays.
•If you do not press any buttons for a few seconds, the onscreen menu will automatically shut off.
22
Onscreen Menus
The Onscreen Menu System
Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the Onscreen
Menus are shown below. Detailed explanations on using each menu follow later in this guide. For information about the interactive plug-in Menu, see pages 15 - 17.
Press the MENU button
I N I T I A L |
I N I T I A L |
S E T U P 2 / 2 |
S E T U P 1 / 2 |
P R E V I O U S |
|
|
|
|
P R E V I O U S |
|
|
||
|
|
|
|
L A N G U A G E |
E N G . |
F R A N . E S P. |
|||
A U T O T U N E R S E T U P |
|
|
|
|
|||||
C H A N N E L S U M M A R Y |
|
|
|
|
C L O S E D C A P T I O N |
|
|||
|
|
|
|
|
|
|
|
||
V – C H I P |
|
|
|
|
F R O N T P A N E L L O C K |
O F F |
|||
|
|
|
|||||||
|
|
|
|
|
|
|
|
||
S E T L O C K C O D E |
|
|
|
|
A U T O S H U T O F F |
|
O F F |
||
|
|
|
|
|
|
X D S I D |
|
O N |
|
N E X T |
P A G E |
|
|
|
|
V I D E O I N P U T L A B E L |
|
||
|
|
|
|
N E X T |
P A G E |
|
|
||
|
|
|
|
|
|
|
|
||
S E L E C T |
B Y |
|
|
|
|
S E L E C T |
B Y |
|
|
|
|
|
|
|
|
|
|
||
O P E R A T E B Y |
E X I T B Y E X I T |
|
|
|
O P E R A T E B Y |
|
E X I T B Y E X I T |
||
INITIAL SETUP 02
|
|
P I C T U R E |
|
|
|
|
|
|
|
|
A D J U S T 1 / 2 |
|
S T A N D A R D |
||||
|
|
|
||||||
|
P R E V I O U S |
|
||||||
|
T I N T |
|
|
|
|
|
|
|
|
C O L O R |
|
|
|
|
|
|
|
|
P I C T U R E |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
B R I G H T |
|
|
|
|
|
|
|
|
D E T A I L |
|
|
|
|
|
|
|
|
C O L O R T E M P E R A T U R E |
|
|
L O W |
||||
|
N E X T P A G E |
|
|
|
|
|
|
|
|
S E L E C T B Y |
R E S E T B Y 0 |
||||||
|
O P E R A T E B Y |
E X I T B Y E X I T |
||||||
INITIAL SETUP 01
C L O C K /
T I M E R S
P R E V I O U S
S E T C L O C K
O N / O F F T I M E R
W O R L D C L O C K
N E X T P A G E
S E L E C T B Y
O P E R A T E B Y
E X I T B Y E X I T
PICTURE ADJUST 01 |
CLOCK/TIMERS |
P I C T U R E |
|
S O U N D |
|
|
A D J U S T 2 / 2 |
|
A D J U S T |
|
|
P R E V I O U S |
S T A N D A R D |
P R E V I O U S |
|
|
N O I S E M U T I N G |
O N |
B A S S |
|
|
V S M |
O N |
T R E B L E |
|
|
|
|
B A L A N C E |
|
|
|
|
M T S |
S T E R E O S A P M O N O |
|
|
|
S M A R T S O U N D |
O F F |
|
N E X T P A G E |
|
N E X T P A G E |
|
|
S E L E C T B Y |
R E S E T B Y 0 |
S E L E C T B Y |
|
R E S E T B Y 0 |
O P E R A T E B Y |
E X I T B Y E X I T |
O P E R A T E B Y |
|
E X I T B Y E X I T |
PICTURE ADJUST 02 |
SOUND ADJUST |
|||
VSM: AV-32F476, AV-27F476 ONLY
23
Initial Setup
Auto Tuner Setup
The auto tuner setup function is described on page 17 as the interactive plug-in menu. If you need to run the auto tuner setup again, follow the steps below.
|
Press the MENU button |
|
|
|
I N I T I A L S E T U P > |
|
|
|
|
|
|
π† |
To AUTO TUNER SETUP |
A U T O T U N E R S E T U P |
|
|
|
||
è |
To operate |
T U N E R M O D E |
C A B L E |
è |
To choose CABLE or AIR |
|
|
†To move to START
è |
To start Auto Tuner Setup |
|
S T A R T |
S E L E C T B Y |
|
||
|
|
O P E R A T E B Y |
E X I T B Y E X I T |
Programming will take approximately 1 to 2 minutes. The
auto tuner is finished when the message PROGRAMMING OVER! appears onscreen.
Channel Summary
Channel summary allows you to customize the line-up of channels received by your TV. You can add or delete channels from the line-up or prevent any unauthorized viewers from watching any or all 181 channels.
Press the MENU button π† To CHANNEL SUMMARY √® To operate
The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. You can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number.
π† To the SCAN column
è To include or delete from scan
π† To the ID column
è To add channel label è To insert letter
†To next letter
†To move to FINISH when label is complete
è To memorize the label
Press the EXIT button when finished
I N I T I A L S E T U P >
C H A N N E L S U M M A R Y
CH NO. SCAN ID |
I |
CH NO SCAN ID |
1 |
I |
6 |
2 |
I |
7 |
3 |
I |
8 |
4 |
I |
9 |
5 |
I |
1 0 |
S E L E C T B Y |
|
|
O P E R A T E B Y |
|
E X I T B Y E X I T |
|
|
|
I N I T I A L S E T U P >
C H A N N E L S U M M A R Y > I D
C H A N N E L 0 2 |
|
|
|
|
|
|
|
|
|
|
F I N I S H |
||||||||
S E L E C T B Y |
R E S E T B Y 0 |
||||||||
O P E R A T E B Y |
E X I T B Y E X I T |
||||||||
You can block access to a channel by activating the channel lock. Press the MENU button
π† To CHANNEL SUMMARY √® To operate
π† To the Lock Column (
)
Press the ZERO button to lock or unlock that channel Press the EXIT button when finished
24
Initial Setup
Channel Guard Message
When a viewer attempts to watch a guarded channel, the following message appears:
To watch a channel that you have locked, enter the
Lock Code using the 10 key pad.
If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen.
The channel cannot be accessed until the correct code is entered.
Notes:
THIS CHANNEL IS LOCKED BY CHANNEL GUARD.
PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT.
NO. - - - -
•Once a channel has been unlocked, it will remain unlocked until the television is turned off.
•See also “Set Lock Code”, page 31.
V-Chip
Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-
Chip has no effect on video signals from a DVD discs, VCR tapes or Camcorder connection.
Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 26 for information on how to block unrated programs.
Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada.
You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings
You can use US V-Chip settings (for programming broadcast from the United States), Canadian
V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories.
To access the rating categories:
Press the MENU button
π† To V-CHIP
è To operate (Lock icon
will appear)
Press ZERO to access the V-Chip menu
è To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate)
I N I T I A L S E T U P >
V – C H I P
V – C H I P |
O F F |
S E T U S |
T V R A T I N G S |
S E T M O V I E R A T I N G S
S E T C A N A D I A N R A T I N G S E N G
S E T C A N A D I A N R A T I N G S F R E
U N R A T E D
V I E W
F I N I S H S E L E C T B Y
O P E R A T E B Y
E X I T B Y E X I T
π† To move to SET US TV RATINGS,
SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item)
25
Initial Setup
Unrated Programs
Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the
“Unrated Programming” category.
Examples of Unrated programs: |
|
|
|
• |
Emergency Bulletins |
• |
Locally Originated Programming |
• |
News |
• |
Political Programs |
• |
Public Service Announcements |
• |
Religious Programs |
• |
Sports |
• |
Weather |
• |
Some Commercials |
|
|
Note:
•TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK.
Directions to Block Unrated Programs
You can block programs that are not rated.
Press the MENU button
π† To V-CHIP
è To operate (The lock icon
appears) Press ZERO to access V-Chip setup options
π† To UNRATED
è To VIEW or BLOCK
Press EXIT when done
I N I T I A L S E T U P >
V – C H I P
V – C H I P |
O F F |
S E T U S |
T V R A T I N G S |
S E T M O V I E R A T I N G S
S E T C A N A D I A N R A T I N G S E N G
S E T C A N A D I A N R A T I N G S F R E
U N R A T E D
V I E W
F I N I S H S E L E C T B Y
O P E R A T E B Y
E X I T B Y E X I T
26
Initial Setup
US V-Chip Ratings
U.S. PARENTAL RATING SYSTEMS
Programs with the following ratings are appropriate for children.
TV Y is Appropriate for All Children
Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6.
TV Y7 is for Older Children
Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality.
Programs with the following ratings are designed for the entire audience.
TV G stands for General Audience
Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations.
TV PG Parental Guidance Suggested
May contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children.
TV 14 Parents Strongly Cautioned
Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14.
TV MA Mature Audiences Only
These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D.
Viewing Guidelines
In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are:
•V/FV is for VIOLENCE/FANTASY VIOLENCE
•S stands for SEXUAL CONTENT
•L stands for strong LANGUAGE
•D stands for suggestive DIALOG
27
Initial Setup
Setting US V-Chip Ratings
|
Press the MENU button |
||
π† |
To V-CHIP |
||
è |
To operate (lock icon |
|
appears) |
|
|||
|
Press ZERO to access the V-Chip menu |
||
è |
To turn V-Chip ON or OFF |
||
π† |
To move to SET US TV RATINGS |
||
è |
To operate |
||
Directions to set US V-Chip Ratings
I N I T I A L S E T U P >
V – C H I P
V – C H I P |
O F F |
S E T U S T V R A T I N G S |
|
S E T M O V I E R A T I N G S |
|
S E T C A N A D I A N R A T I N G S E N G |
|
S E T C A N A D I A N R A T I N G S F R E |
|
U N R A T E D |
V I E W |
F I N I S H |
|
S E L E C T B Y |
|
O P E R A T E B Y |
E X I T B Y E X I T |
Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press theπor † to move the cursor to the correct location. Press √ or ® to turn the locking feature on or off. An item is locked if the
icon appears instead of a “—”.
For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked.
π† To the TV 14 Column √® To turn on the lock π† To FINISH
è To save settings and exit
Press the EXIT button when finished
Note:
•If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing √ or ® again. You may then select individual categories to block.
28
Initial Setup
Movies Ratings
NR – Not Rated
This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released.
NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material.
G – General Audience
In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age.
PG – Parental Guidance
Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense.
PG-13 – Parents Strongly Cautioned
Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG.
R – Restricted
These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17.
NC-17 – No One Under 17
These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter.
X – No One under 18
Inappropriate material for anyone under 18.
Directions to set Movie (MPAA) Ratings
Press the MENU button
π† |
To V-CHIP |
||
è |
To operate (Lock icon |
|
appears) |
|
|||
|
Press ZERO to access V-Chip setup options |
||
π† |
To SET MOVIE RATINGS |
||
è |
To enter movies menu |
||
For example:
To block viewing of X and NC-17 rated from shows:
π† |
To the X Column |
è |
To turn on the lock |
π† |
To the NC-17 Column |
|
|
è |
To turn on the lock |
π† |
To FINISH |
è |
To save settings and exit |
|
Press the EXIT button when finished |
I N I T I A L S E T U P > V – C H I P >
S E T M O V I E R A T I N G S
|
X |
|
N |
|
R |
|
P |
|
PG |
|
G |
|
NR |
|
||
|
|
C-17 |
|
|
G-13 |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F I N I S H |
|||||||||
S E L E C T |
B Y |
|
|
|
|
|
|
|
|
|||||||
O P E R A T E B Y |
|
|
|
E X I T B Y E X I T |
||||||||||||
29
Initial Setup
Canadian V-Chip Ratings
E – Exempt
Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
C – Programming Intended for Children
Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature.
C8+ – Programming Intended for Children 8 and Over
Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content.
G – General Audience
Programming will contain little violence and will be sensitive to themes which could affect younger children.
PG – Parental Guidance
Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13.
14+ – 14 Years and Older
Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence.
18+ – Adult
Material intended for mature audiences only.
Directions to set Canadian V-Chip Ratings
Press the MENU button
π† |
To V-CHIP |
||
è |
To operate (lock icon |
|
appears) |
|
|||
|
Press ZERO to access V-Chip setup options |
||
π† |
To SET CANADIAN RATINGS ENG (for English) |
||
è |
To enter ratings menu |
||
For example:
To block viewing of programming rated 14+ and 18+:
π† To the 18+ Column √® To turn on the lock
π† To the 14+ Column √® To turn on the lock
π† To FINISH
è To save settings and exit
Press the EXIT button when finished
Note:
I N I T I A L S E T U P > V – C H I P >
S E T M O V I E R A T I N G S
14+ |
18+ |
PG |
G |
C8 |
C |
|
|
F I N I S H |
|
|
|
S E L E C T |
B Y |
|
|
|
|
O P E R A T E B Y |
|
|
E X I T B Y E X I T |
||
•For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 30 in the French side of this user’s guide.
30
Loading...
