Jensen WMS190 User Manual

WMS190

WMS190 40W x 4

MARINE AUDIO SYSTEM

Installation and Operation Manual

Manual de la Instalación y Operación / Guide d'installation et d'opération

CONTENTS

Safety Information .............................................................................................. 1

Installation........................................................................................................... 2

Wiring................................................................................................................... 3

Basic Operation .................................................................................................. 4

Tuner Operation.................................................................................................. 6

Sirius Radio Operation....................................................................................... 7

Care and Maintenance............................................. ............................... ... ......... 8

Troubleshooting.................................................................................................. 8

Specifications ..................................................................................................... 9

CONTENIDO

Información de Seguridad................... ............................... ... ........................... 11

Instalación................................................................................. ........................ 12

Cableado............................................... ............................... ... ........................... 13

Operación Básica ............................................................ ... .............................. 14

Operación del Sintonizador............................................... .............................. 16

Operación de Radio Sirius ............................................................................... 17

Cuidado y Mantenimiento................................................................................ 18

Solución de Problemas............................................................................. ....... 18

Especificaciones...................................................... ... .................................... .. 19

TABLE DES MATIÈRES

Informations sur la securite............................................................................. 21

Installation.............................. ............................... ... ............................... ... ....... 22

Cablage.............................. ............................................................. ................... 23

Operation de base.................................................... ... ............................... .. ..... 24

Operation tuner................................................................................................. 26

Operation radio Sirius...................................................................................... 27

Soin et entretien................................................................................................ 28

Dépannage ................................................................................... .. ................... 28

Specifications ............................................ ... ............................... .. ................... 29

WMS190

SAFETY INFORMATION

When Boating

Keep the volume level Iow enough to be aware of your surroundings.

Protect from Water

Do not submerge the product directly in water, as this can cause electrical shorts, fire or other damage.

Protect from High Temperatures

Exposure to direct sunlight for an extended period of time can produce very high temperatures inside your vessel. Give the interior a chance to cool down before starting playback.

Do not mount radio within close proximity of engine compartment.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC negative ground battery system.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT SUBMERGE THIS EQUIPMENT DIRECTLY IN WATER.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

INSTALLATION

Before You Begin

Before you begin, always disconnect the battery negative terminal.

Important Notes

• Before final installation, test the wiring connections to make sure the unit is connected properly and the system works.

• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

• Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vessel.

• Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop.

• Avoid installing the unit where it will be subject to high temperatures from direct sunlight, hot air, or where it would be subject to excessive dust, or dirt.

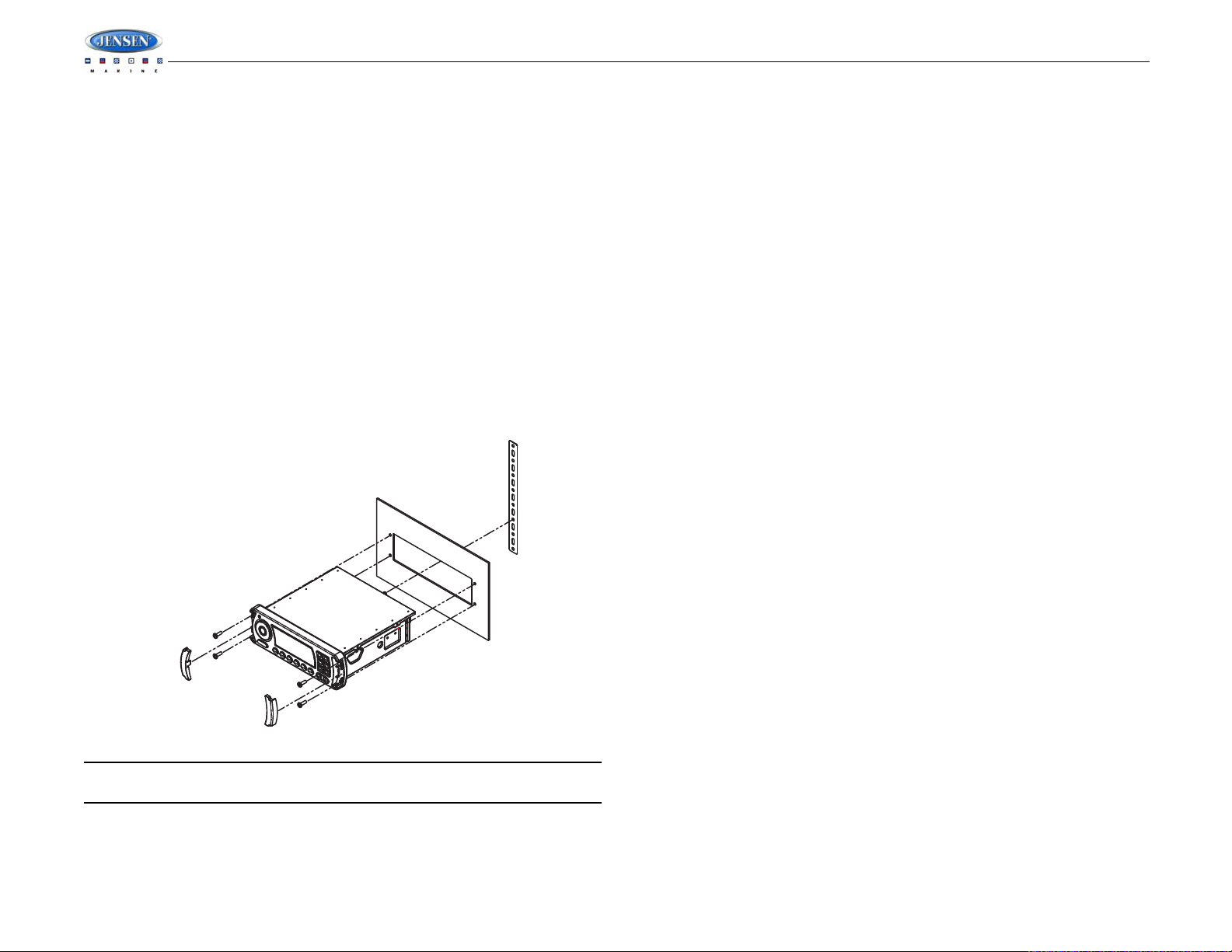

DIN Front Mount

1. Check the dashboard opening size by sliding the radio into it. If the opening is not large enough, carefully cut or file as necessary until the radio slides into the opening. Check that there will be sufficient space behind the dashboard for the radio chassis.

WMS190

4. After completing the wiring connections, turn the unit on to confirm operation (vessel accessory switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the accessory switch off and proceed with final mounting of the chassis.

5. Carefully slide the radio into the opening, making sure it is right-side-up.

6. Secure the radio to the dashboard using the screws provided.

7. Replace the covers on either side of the radio.

8. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut and spring washer provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and plain washer provided. Bend the strap, as necessary, to position it.

9. Test radio operation by referring to the operating instructions for the unit.

Removing the Unit

To remove the radio after installation, remove the covers and unscrew the installation screws, and then pull the radio out.

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

CAUTION: The rear of the radio must be supported with the strap to prevent damage to the radio and supporting structures.

2. Place the radio in front of the dashboard opening so the wiring can be brought through the opening.

3. Follow the wiring diagram carefully and make certain all connections are secure to ensure proper operation.

WMS190

ACCESSORY/IGNITION (+)

LEFT REAR SPEAKER (+)

RIGHT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

LEFT FRONT SPEAKER (+)

REAR RIGHT LINE LEVEL OUT

REAR LINE AUDIO NEGATIVE

LEFT FRONT SPEAKER (-)

NO CONNECTION

REAR LEFT LINE LEVEL OUT

RIGHT FRONT SPEAKER (-) RIGHT FRONT SPEAKER (+)

WIRE INSERTION VIEW

NO CONNECTION

NO CONNECTION POWERANTENNA/AMPTURN ON

DESCRIPTION

RED

GRAY/BLACK

WHITE/BLACK

BLACK/SHIELD

GREEN/BLACK

VIOLET/BLACK

WIRE COLOR

BLACK

BLUE

EMPTY

RED

EMPTY

WHITE

VIOLET

GREEN

GRAY

EMPTY

WHITE

17 18

PIN NO.

VIEW A-A

GROUND

NO CONNECTIONEMPTY

12 Pin Amp Header

WIRING

WMS190 40W x 4

6 789 10

BASIC OPERATION

Power On/Off

Press any button on the front panel to turn the unit on. Press the POWER button (1) to turn the unit off. The POWER button is illuminated whenever the IGN lead (red wire) is powered, regardless of whether the unit is on or off.

Volume Control

To increase the volume, press the VOL + button (2a). To decrease the volume, press the VOL

- button (2b).

Mute

Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again to restore the audio output to the previous level.

Mode

Press the MODE button (4) on the control panel to select a different mode of operation, as indicated on the display panel. Available modes include Tuner, SIRIUS and AUX In (optional Auxiliary Input).

NOTE: SIRIUS mode will be skipped if the module is not installed.

Reset

The reset button (18) should be activated for the following reasons:

• initial installation of the unit when all wiring is completed

• function buttons do not operate

• error symbol on the display

Use a ball point pin or thin metal object to press the RESET button (18). This may be necessary should the unit display an error code.

You can recover factory default settings using the RESUME function located on the system menu. With “YES” flashing, press the MODE button (4) to activate.

WMS190

Audio Menu

Press the AUDIO button (3) on the control panel to access the audio menu. You can navigate through the audio menu items by pressing the AUDIO button repeatedly. Once the desired menu item appears on the display, adjust that option by pressing the VOL +/- buttons (2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity. The following menu items can be adjusted.

Bass Level

Use the VOL buttons to adjust the Bass level range from “-6” to “+6”.

Treble Level

Use the VOL buttons to adjust the Treble level range from “-6” to “+6”.

Balance

Use the VOL buttons to adjust the Balance between the left and right speakers from “L12” (full left) to “R12” (full right).

Fader

Use the VOL buttons to adjust the Fader between the rear and front speakers from “R12” (full rear) to “F12” (full front).

System Menu

1. Press and hold the AUDIO button (3) for more than 3 seconds to enter the system menu. “MENU” will appear on the display, followed by the first menu item, “CONTRAST.”

2. Press the TUNE/TRK >>| or |<< button (21, 20) or press the AUDIO button repeatedly to navigate the system menu and select the desired item.

3. Press the VOL +/- buttons (2) to adjust the selected menu item.

4. Press the AS/PS button to return to the previous operation immediately or wait for 5 seconds to return automatically.

The following items can be adjusted:

• CONTRAST (0 – 10): Set LCD contrast.

• LOW BATT (ON/OFF): Monitor voltage on ACC line.

• DISTANT/LOCAL: Select LOCAL for tuner to access local stations whose signals are much stronger. Select DISTANT to receive all broadcasts in your area.

• AREA (USA/LATIN/EUROPE): Set frequency spacing for various regions.

• VOL PGM (0 – 46): Select an automatic turn-on volume.

• BEEP TONE (ON/OFF): Turn the audible beep ON/OFF (heard when functions/buttons are selected). NOTE: Beep tone off will not affect LOW BATT audible tone.

• RESUME: Return the EEPROM to factory default set up values and reset the Sirius Tuner Settings. "Yes" will blink on the LCD to confirm. Press MODE to select.

LOW BATTERY Operation

If LOW BATT is set to “ON”, a alarm will sound (8 beeps every 30 sec) when the voltage drops to 10.8V (+/- 0.03V). A visual warning (LOBA) will appear flashing (8 flashes every 30 sec) in the lower left corner of the LCD display.

NOTE: “OFF” is the default setting for LOW BATT. If the audio is muted or the volume is set to 0, the audible beep will not be heard.

WMS190

Equalizer

Press the EQ button (11) to turn on the equalization function and select between five predefined bass and treble curves: OFF > POP > JAZZ > CLASSIC > BEAT > ROCK.

iX-Bass

Press and hold the EQ/IX-BASS button (11) toggle loudness on/off. When listening to music at low volumes, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing.

Auxiliary Input

To access an auxiliary device:

1. Connect the portable audio player to the AUX IN line in on the back of the unit.

2. Press the MODE button (4) to select Aux In mode.

3. Press MODE again to cancel Aux In mode and go to the next mode.

Liquid Crystal Display (LCD)

The current frequency and activated functions are shown on the LCD panel (19).

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

Scroll

When the information is too long to be displayed on the LCD, press and hold the INFO/ SCROLL button (12) to view the entire title. The information will scroll twice and then return to

abbreviated text.

TUNER OPERATION

WMS190 40W x 4

6 7

Select a Band

Press the BAND button (16) to change between three FM bands and two AM (MW) bands.

Manual Tuning

Press the TUNE/TRK >>| or |<< buttons (20, 21) to seek stations up/down step by step.

Auto Seek Tuning

Press and hold the TUNE/TRK >>| or |<< buttons (20, 21) to automatically seek the next or previous strong station.

Preset Stations

Six numbered preset buttons store and recall stations for each band.

Store a Station

Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two seconds. The preset number will appear in the display.

Recall a Station

Select a band (if needed). Press a preset button (5-10) to select the corresponding stored station.

Automatically Store / Preset Scan (AS/PS)

Automatically Store

Select a band (if needed). Press and hold the AS/PS (15) button for more than three seconds to automatically select six strong stations and store them in the current band. The new stations replace any stations already stored in that band.

WMS190

Preset Scan

Select a band (if needed). Press AS/PS (15) to scan stations stored in the current band. The unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.

NOTE: During Auto Store (AS), the tuner will default to “Local” mode while scanning the band initially. After scanning the entire band once, the unit will switch to “Distant” mode for all subsequent Auto Store tuning.

WMS190

WMS190 40W x 4

6 7

Signal Strength Strength Display

No Signal

Weak

Good

Excellent

SIRIUS RADIO OPERATION

NOTE: Access to Sirius® satellite radio requires installation of a separate Sirius tuner and antenna. Listeners can subscribe to Sirius radio on the internet by visiting www.sirius.com, or by calling (888) 539-SIRIUS. Customers should have their Sirius ID ready (Sirius ID is located on the Sirius tuner, sold separately). Customers can listen to music samples by tuning to channel 184.

Switching to SIRIUS Mode

Press the MODE button (4) to change the mode to Sirius radio mode.

Accessing your SIRIUS ID

1. In Sirius mode, press and hold the BAND/SEARCH button (16) to select DIRECT mode.

2. Press the MODE button (4) to activate Direct mode.

3. Press the MODE button for each digit to enter “000”.

4. Press MODE again to confirm. This will display the Sirius ID number for your tuner.

5. The Sirius ID number will scroll twice and then freeze with the first 11 digits on the display. Press the INFO/SCROLL button (12) to display the remaining digit.

Selecting a Band

In Sirius mode, press the BAND button (16) to access the Sirius user-preset channel groups in the following order: S1, S2, S3.

Category Tuning

1. Press the CAT - /+ buttons (13/14) to change the category. Each category title and song

2. While in the category mode, press the CAT - /+ buttons again to view category names.

3. Press the MODE button (4) or the TUNE/TRK |<< / >>| buttons (20/21) to choose desired

4. Press the TUNE/TRK buttons to select a channel within the chosen category.

title will be displayed in increments.

(The lowest channel number within the chosen category will always be the default first channel tuned.)

channels in that category.

5. Press MODE to confirm channel selection.

Channel Up/Down Tuning

Press the TUNE/TRK |<< / >>| buttons (20/21) to search for a channel. Press and hold the TUNE/TRK buttons to fast search.

Storing Preset Channels

The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your favorite channels.

Programming Channels

1. Select the channel you want to store in memory.

2. Press and hold a preset button (5-10) until the corresponding preset button number appears.

3. Repeat steps 1 and 2 to program additional channels.

Quick Tuning

Press one of the six preset buttons (5-10) to select a preset channel directly.

Channel Direct Access Searching

1. Press and hold the BAND/SEARCH button (16) to access Direct Tune mode. “DIRECT-T” appears on the display for a few seconds.

2. Press the MODE button (4) to confirm.

3. Press the TUNE/TRK |<< / >>| buttons (20/21) to move between the three digits.

4. Use the VOL +/- buttons (2) to select a number for each position.

5. Press the MODE button to confirm each digit.

6. Press the MODE button again to tune to the selected file.

Alternate Display Information

Press INFO/SCROLL button (12) to change the display information in the following order: ARTIST NAME > SONG TITLE > CATEGORY > CHANNEL NAME.

Satellite Signal Strength

The display will indicate satellite reception strength as shown below.

WMS190

CARE AND MAINTENANCE

• Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits.

• Keep the product away from dust and dirt, which can cause premature wear of parts.

• Handle the product gently and carefully. Dropping it can damage circuit boards and cases, and can cause the product to work improperly.

• Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the product.

• Use and store the product only in normal temperature environments. High temperature can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.

Ignition

The most common source of noise in reception is the ignition system. This is a result of the radio being placed close to the ignition system (engine). This type of noise can be easily detected because it will vary in intensity of pitch with the speed of the engine.

Usually, the ignition noise can be suppressed considerably by using a radio suppression type high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ this wire and resistor but it may be necessary to check them for correct operation.) Another method of suppression is the use of additional noise suppressors. These can be obtained from most electronic supply shops.

Interference

Radio reception in a moving environment is very different from reception in a stationary environment (home). It is very important to understand the difference.

AM reception will deteriorate when passing under a bridge or when passing under high voltage lines. Although AM is subject to environmental noise, it has the ability to received at great distance. This is because broadcasting signals follow the curvature of the earth and are reflected back by the upper atmosphere.

TROUBLESHOOTING

Symptom Cause Solution

No power The vessel’s power is not onIf the power supply is properly

The fuse is blown Replace the fuse.

No sound Volume too low or Mute is

Unit unresponsive The built-in microcomputer

Cannot tune to radio station, auto-seek does not work

on Fader is set incorrectly Press AUDIO button to access

Wiring is not properly connected

is not operating properly The antenna cable is not

connected. The signals are too weak. Select a station manually.

connected to the vessel’s accessory terminal, switch the ignition key to “ACC”.

Adjust volume to audible level.

menu and adjust FADER setting. Check wiring connections.

Set RESUME in menu.

Insert the antenna cable firmly.

+ 22 hidden pages
