Jensen JDH910BT User Manual

JDH910BT

1

Features

Features of the Jensen JHD910BT mobile audio system include:

• Waterproof

• uV and Corrosion Resistant

• Electronic US/Euro AM/FM Tuner

• 30 Programmable Presets (12 AM, 18 FM)

• Non-Volatile Memory for User Settings and Preset Memories

• 7-Channel NOAA Weather Band

• Weather Alert

• Bluetooth Ready

• Auxiliary Audio Input

• 2-Channel Amplified Audio Output

• Backlit Controls with Selectable Illumination Color

• Daylight Readable Display

• Clock with 30-day Backup Power

•Work Timer

• Audible Beep ConfirmationTone

JHD910BT

2

Package Contents

• JHD910BT Radio

• Radio Mounting Bracket

• Three (3) 10-16 x 3/4” Stainless Steel PPH Screws

• Three (3) 10-32 x 5/8” Stainless Steel PPH Screws

• There (3) 10-32 Stainless Steel Hex Nuts

• Three (3) #10 Stainless Steel Washers

• Four (4) M4 x .7 x 8MM Stainless Steel Hex Screws with Captivated Washers

• Wiring Harness

• Auxiliary Input Patch Cord

• Owner’s Manual

M4 Machine

Screws (4)

Self-Tapping

Screws (3)

Machine Screws

with Nuts (3)

JHD910BT Radio

Wiring

Harness

Radio

Mounting Bracket

Auxiliary Input

Patch Cord

Owner’s Manual

Washers

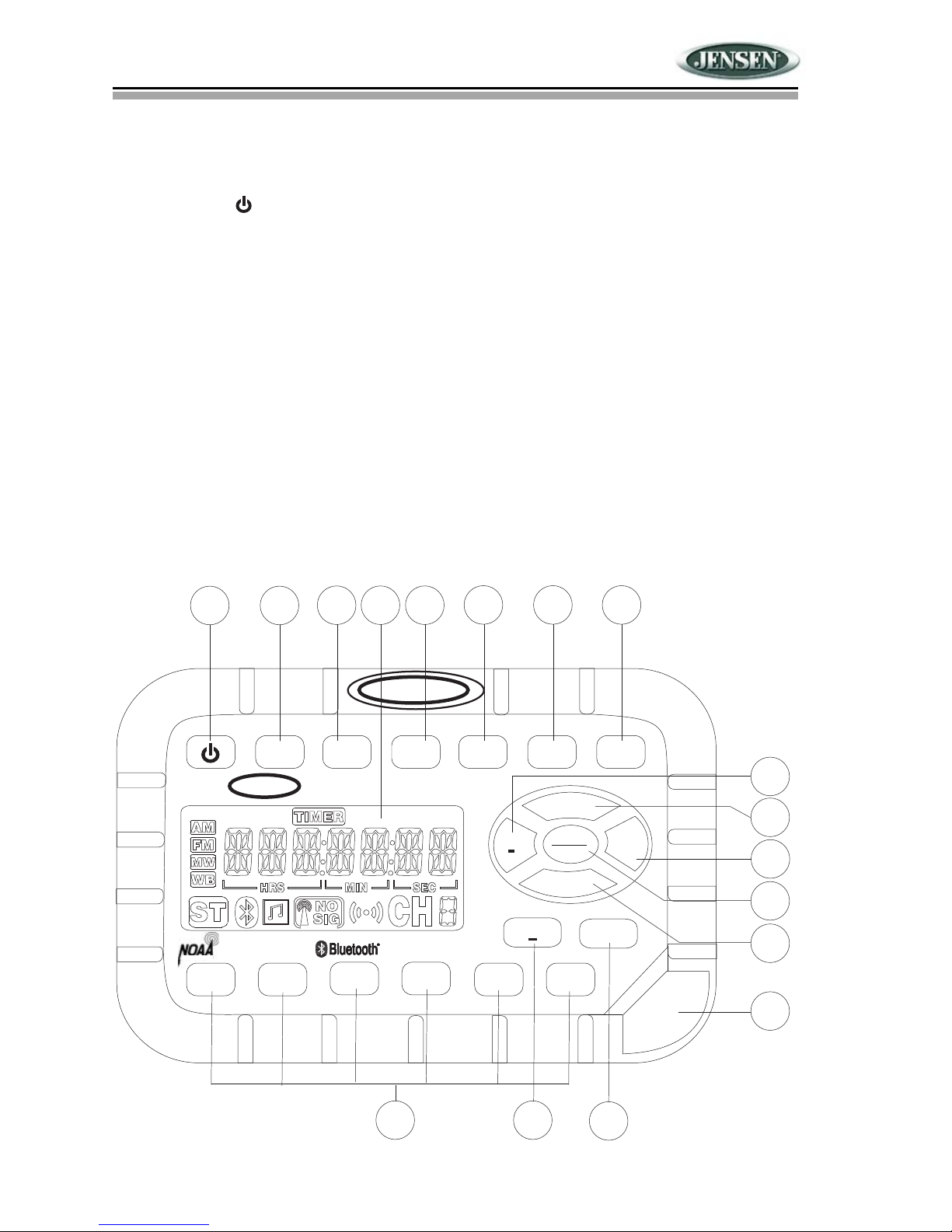

JENSEN

HEAVY DUTY

JENSEN

MUTE

DISP

AM/FM

AUX

WB

TIMER

AM/FM/WB

JHD910BT

AUDIO
MENU

VOL+

VOL-

TUN TUN

+

1

23456

SEEK

SEEK

+

A

U

X

I

N

JDH910BT

3

INSTALLATION

Mounting the Bracket

Two options are provided for mounting the bracket (self-tapping screws or machine screws with
nuts) to ensure a mounting option ideal for your mounting location. Avoid obstructing airflow to
the rear cooling fins on the radio.

NOTE: Mounting holes should be drilled to 7/32”. Before drilling the mounting holes, make
sure the area behind the panel where the holes are desired is clear of wires and fuel,
vacuum and or brake lines.

Attaching the Radio

Once the bracket is securely mounted, use the four inclu ded M4 machine screws to fasten the
bracket to the back of the radio. Alternately, the radio can be mounted directly to the instrument
panel if access to the rear of the instrument panel is available.

CAUTION! Do not over tighten the 4 mounting screws. Hand tighten only.

Machine Screws

with Nuts

Self-Tapping

Screws

(Hole size 7/32")

(Hole size 7/32")

Mounting machine screw

Bracket metal

Vehicle mounting surface

Washer

Nut

Mounting Stack

Regular

Mounting

Overhead

Mounting

JHD910BT

4

WIRING

The wiring diagram depicts all the wiring connections required for proper operation of the unit.

9-Pin Connector (Male)

3A FUSE

NOTE: Do not connect the red wire

to a constant power connection. It

should be connected to a vehicle
connection with switched power,

such as IGN or ACC.

Bluetooth Antenna Wire

Black

Yellow

Clear

PIN NO. WIRE COLOR DESCRIPTION

White Female
RCA Left
Aux In

Red Female
RCA Right
Aux In

Female Motorola Type
Antenna Connector

Empty

White/Black

Empty

White

Gray/Black

Gray

Red

Empty

Black

No Connection

Left Speaker (-)

No Connection

Left Speaker (+)

Right Speaker (-)

Right Speaker (+)

+12V ACC

No Connection

Ground

VIEW A-A

WIRE INSERTION VIEW
