JBSYSTEMS LIGHT ME 2 User Manual

WWW.BEGLEC.COM

Operation Manual

Mode d'emploi

Gebruiksaanwijzing

Bedienungsanleitung

Manual de instrucciones

Manual do utilizador

FR NL DU ES

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

Version: 1.2

The Power Source for DJ’s

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR - DÉCLASSER L’APPAREIL

Débarrassez-vous de l’appareil et des piles usagées de manière écologique Conformément aux dispositions légales de votre pays.

NL - VERWIJDEREN VAN HET APPARAAT

Verwijder het toestel en de gebruikte batterijen op een milieuvriendelijke manier conform de in uw land geldende voorschriften.

DU - ENTSORGUNG DES GERÄTS

Entsorgen Sie das Gerät und die Batterien auf umweltfreundliche Art und Weise gemäß den Vorschriften Ihres Landes.

ES - DESHACERSE DEL APARATO

Reciclar el aparato y pilas usadas de forma ecologica conforme a las disposiciones legales de su pais.

PT - COMO DESFAZER-SE DA UNIDADE

Tente reciclar a unidade e as pilhas usadas respeitando o ambiente e em conformidade com as normas vigentes no seu país.

ENGLISH OPERATION MANUAL

SAFETY INSTRUCTIONS:

Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully.

FEATURES

This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• 11 inputs on 5 channels (5line, 2phones, 4micros)

• 4 stereo channels with selectable inputs

• 1 separate balanced DJ micro with talkover

• Crossfader on channels 3 & 4

• 3 band equalizer on master output

• Digital echo with delay, repeat & effect controls

• Analog VU-meters with blue lighting

• Pre-fade listening

BEFORE USE

• Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first.

• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.

• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

• To protect the environment, please try to recycle the packing material as much as possible.

Check the contents:

Check that the carton contains the following items:

• ME2 Mixer unit

• Operating instructions

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

• To avoid condensation to be formed inside, allow the unit to adapt to the

surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.

• This unit is for indoor use only.

• Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids,

such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.

• No naked flame sources, such as lighted candles, should be placed on the appliance.

• Don’t cover any ventilation openings as this may result in overheating.

• Prevent use in dusty environments and clean the unit regularly.

• Keep the unit away from children.

• Inexperienced persons should not operate this device.

• Maximum save ambient temperature is 45°C. Don’t use this unit at higher ambient

temperatures.

• Minimum distances around the apparatus for sufficient ventilation is 2cm.

• Always unplug the unit when it is not used for a longer time or before you start

servicing.

• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

• Check that the available voltage is not higher than the one stated on the rear panel of the unit.

• The socket inlet shall remain operable for disconnection from the mains.

• The power cord should always be in perfect condition: switch the unit immediately

off when the power cord is squashed or damaged.

• Never let the power-cord come into contact with other cables!

• When the power switch is in OFF position, this unit is not completely disconnected

from the mains!

• In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside.

CAUTION

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No userserviceable parts inside. Refer servicing to qualified service personnel only.

JB SYSTEMS 1/36 ME2 MIXER

JB SYSTEMS 2/36 ME2 MIXER

ENGLISH OPERATION MANUAL

•

repair a fuse or bypass the fuse holder.

Never

with a fuse of the same type and electrical specifications!

• In the event of serious operating problems, stop using the appliance and contact your dealer immediately.

• Please use the original packing when the device is to be transported.

• Due to safety reasons it is prohibited to make unauthorized modifications to the

unit.

INSTALLATION GUIDELINES:

• Install the unit in a well-ventilated location where it will not be exposed to high temperatures or humidity.

• Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc. will affect its performance and may even damage the unit.

• When installed in a booth or flight case, please make sure to have good ventilation to improve heat evacuation of the unit.

• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance.

CLEANING THE APPLIANCE:

Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit.

replace a damaged fuse

Always

CONNECTIONS

Except for microphones and headphone, all connections are cinch. Use good quality cinch-cinch cables to prevent bad audio quality. (example: JB Systems code: 2-0370) For more information on connections, please refer to the next chapter. Be sure to turn off the mixer before you make changes to the different connections. In this manual we talk about “line inputs”. This is a global name for inputs with a level between 750mV and 2V. This includes tuners, videos, CD-players, etc.

ENGLISH OPERATION MANUAL

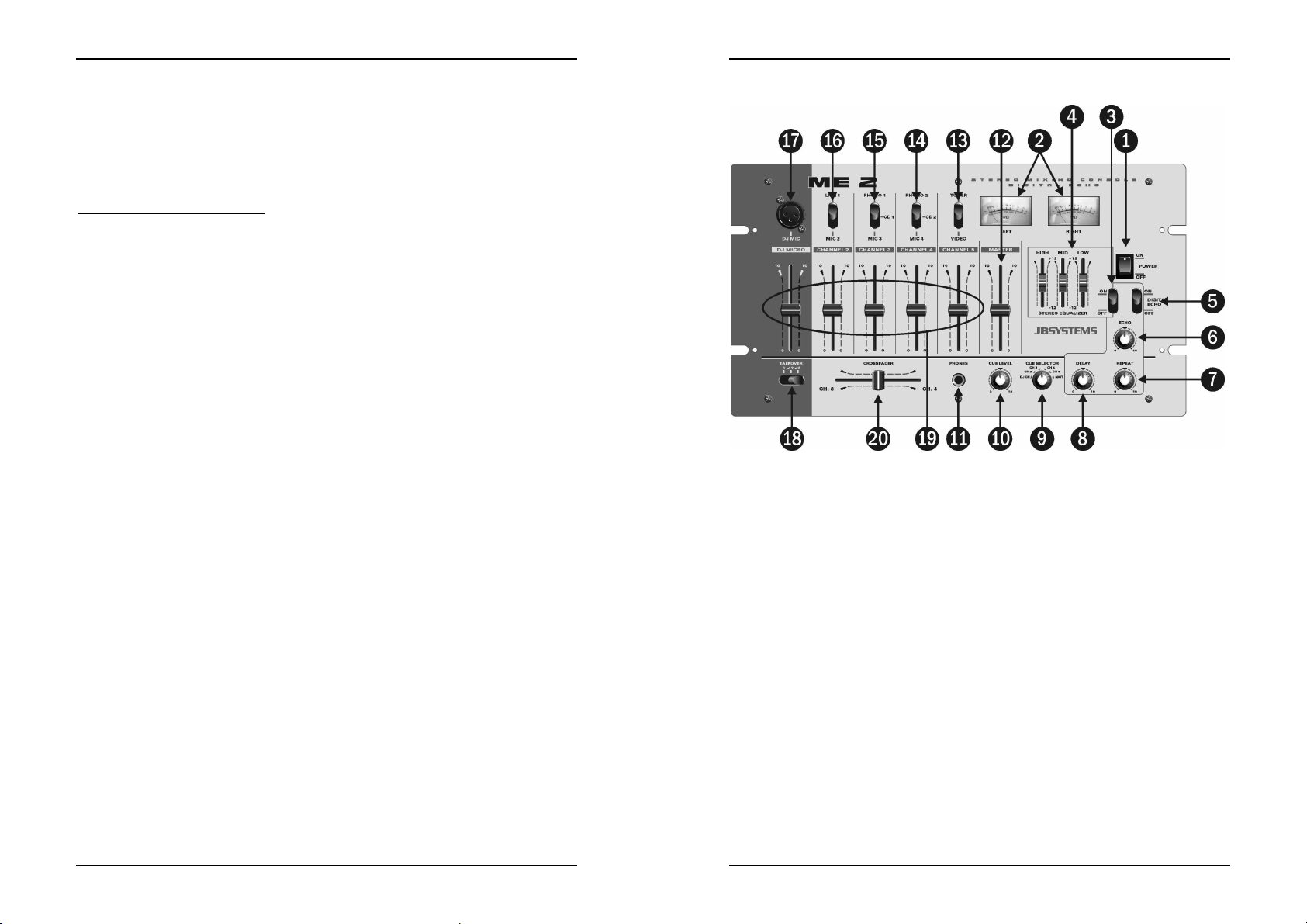

FRONT PANEL

1. Power (Power ON/OFF switch): Used to turn on the power of the mixer.

2. VU-meters: Used to monitor the level of the different audio signals. With the

3. Equalizer on/off switch: Used to switch the 3band equalizer on and off. The

4. Equalizer controls: When the equalizer is switched on, you can use these 3

5. Echo on/off switch: Used to switch the internal echo effect on and off. The echo

6. Echo level control: Used to control the level of the echo signal that will be mixed

7. Echo repeat control: Used to control the feedback or number of echoes you

8. Echo Delay time: With this control you can set the length of the delay time.

9. Cue selector: Used to select the source you want to monitor. You can listen to

10. Cue level: Used to control the output level of the headphone output.

channel faders you can change the input level of each connected audio source. Make sure the levels do not exceed 0dB (or 100%). The audio risks to be distorted when the signal level comes in the red zone of the VU-meter. You can also use the VU-meter to compare the signal level of the input channels with that of the master output.

equalizer works on the mixed output signal.

faders to change the audio to your personal taste.

effect works on the mixed output signal.

with the original. Use it to make the perfect balance between the original and the effect signal.

want to create. Together with the delay time (8) you will be able to create the echo you desire.

Together with the repeat time (7) you will be able to create the echo you desire.

any input channel while its channel fader is closed.

JB SYSTEMS 3/36 ME2 MIXER

JB SYSTEMS 4/36 ME2 MIXER

ENGLISH OPERATION MANUAL

11. Headphone jack: You can connect any modern stereo headphone to this 6.3mm

jack. Together with the cue selector (9) and the cue level (10) you can use it to listen to the selected input channel.

12. Master volume: Controls the level of the master output. You can adapt this level

to your personal taste.

13. Input selector channel5: You can choose between the 2 line inputs connected

on the rear of the mixer. Both sources can be connected at the same time, just select which one you want to select on channel 5.

14. Input selector channel4: You can choose between a phono, micro and line

input, connected on the rear of the mixer. When you connect a micro phone to the “micro4” input, switch the selector to “mic4”. The phono and line source can’t be connected at the same time! When you connect a turntable, put the selector to “phono2”. When you connect a source with line level output (like a CD-player), switch the selector to “CD2”. Attention: The sound becomes very distorted when you connect a CD-player and set the switch to “phono2”, be careful!

15. Input selector channel3: You can choose between a phono, micro and line

input, connected on the rear of the mixer. When you connect a micro phone to the “micro3” input, switch the selector to “mic3”. The phono and line source can’t be connected at the same time! When you connect a turntable, put the selector to “phono1”. When you connect a source with line level output (like a CD-player), switch the selector to “CD1”. Attention: The sound becomes very distorted when you connect a CD-player and set the switch to “phono1”, be careful!

16. Input selector channel2: You can choose between a micro or line input,

connected on the rear of the mixer. When you connect a micro phone to the “micro2” input, switch the selector to “mic2”. When you connect a source with line level output (like a CD-player) to the “line1” input, switch the selector to “line1”.

17. Input connector DJ Micro: The DJ micro can only be connected to the XLR

input on the front plate. This input is balanced but accepts any kind of microphone equipped with an XLR connector. If your micro only has a jack connector, you can use a special adapter such as the JB Systems “5-3381”.

18. Talkover switch: Use this switch to mute the music channels (2 to 5) while you

are talking through the DJ microphone. You can choose to mute the music by 12dB or 18dB.

19. Channel faders: Used to set the level of each channel separately.

20. Crossfader: With this fader you can mix over between channels 3 and 4. The

crossfader only works when you move the faders (19) of both channels to the desired level!

REAR PANEL

ENGLISH OPERATION MANUAL

Attention: For each input you must set the corresponding input selector on the front panel in the correct position!

21. Input Micro2: Used to connect a micro with 6.3mm jack connector.

22. Input Line1: Used to connect any line level sound source.

23. Input Phono1/CD1: Used to connect a turntable or any line level sound source.

24. Input Phono2/CD2: Used to connect a turntable or any line level sound source.

25. Input Micro3: Used to connect a micro with 6.3mm jack connector.

26. Input Micro4: Used to connect a micro with 6.3mm jack connector.

27. Input Tuner on CH5: Used to connect any line level sound source.

28. Input Video on CH5: Used to connect any line level sound source.

29. Record output: Used to connect any recording equipment to the mixer. This

30. Master output: Used to connect an amplifier. The output level can be set by the

31. Mains fuse: main fuse to protect the mixer. Replace it only with the same type

32. Mains cable: connect this cable to a 230V/50Hz mains outlet. Before use, inspect

33. Earth connector: When a connected turntable produces humming noises, even

SPECIFICATIONS

Power Supply: AC 230 V, 50Hz Fuse: 20mm glass fuse 250V 500mA slow Frequency response: 20-20.000Hz (+/-2dB) THD + noise: <0.1% @ 1kHz, 0dB S/N Ratio (IHF-A): >50dB @ 1kHz. Micro inputs: 1.5mV @ 10kΩ Line/CD inputs: 150mV @ 22kΩ Phono inputs: 3mV @ 47kΩ Record output: 775mV @ 600Ω Micro input: 775mV @ 600Ω Talkover: -12dB, -18dB Tone controls: +/-12dB @ 10kHz / 1kHz / 100Hz Headphone: >8Ω 250mV Echo effect: digital – max. 200mS Dimensions: 270(W) x 180(H) x 45(D) mm Weight: 2Kg

output is not influenced by the master volume (12)

master volume (12)

and value: 20mm glass fuse 250V 500mA slow blow.

the cable to be sure it’s not damaged!

when it’s not in use, you can try to connect its grounding wire to this connector. This helps in many cases, unfortunately not always…

JB SYSTEMS 5/36 ME2 MIXER

JB SYSTEMS 6/36 ME2 MIXER

FRANCAIS MODE D'EMPLOI

INSTRUCTIONS DE SECURITE:

Nous vous remercions d’avoir acheté ce produit JB Systems. Veuillez lire ce mode d’emploi très attentivement afin de pouvoir exploiter toutes les possibilités de cet appareil.

CARACTERISTIQUES

Cet appareil ne produit pas d’interférences radio. Il répond aux exigences nationales et européennes. La conformité a été établie et les déclarations et documents correspondants ont été déposés par le fabricant.

• 11 entrées sur 5 canaux (5line, 2phones, 4micros)

• 4 canaux stéréo avec sélection d'entrée

• 1 micro DJ balancé séparé avec talkover

• Crossfader sur canaux 3 & 4

• Equalizer 3 bandes sur la sortie master

• Echo digital avec retard, répétition & contrôle d'effet

• Vu-mètres analogiques avec lumière bleue

• Ecoute Pré-fade

AVANT L’UTILISATION

Quelques instructions importantes:

• Avant d’utiliser cet appareil, assurez-vous de l’absence de dommage lié au transport. En cas d’endommagement, n’utilisez pas l’appareil et contactez le vendeur.

• Important: Cet appareil a quitté notre usine en parfaite condition et bien emballé. Il est primordial que l’utilisateur suive les instructions de sécurité et avertissements inclus dans ce manuel. La garantie ne s’applique pas en cas de dommage lié à une utilisation incorrecte. Le vendeur ne prend pas la responsabilité des défauts ou de tout problème résultant du fait de n’avoir pas tenu compte des mises en garde de ce manuel.

• Conservez ce manuel dans un endroit sûr pour toute consultation future. Si vous vendez l’appareil, assurez-vous d’y joindre ce manuel également.

• Afin de protéger l’environnement, merci de recycler les emballages autant que possible.

Vérifiez le contenu:

Vérifiez si la boite contient les articles suivants :

• Unité de mixage ME2

• Mode d'emploi

JB SYSTEMS 7/36 ME2 MIXER

manuel, fourni avec l'appareil.

• Afin d’éviter tout risque d’incendie ou de choc électrique, ne pas exposer cet

• Pour éviter la formation de condensation à l’intérieur de l’appareil, patientez

• Cette unité est destinée à une utilisation à l’intérieur uniquement.

• Ne pas insérer d’objet métallique ou verser un liquide dans l’appareil. Aucun objet

• Aucune source de flamme nue, telle que les bougies allumées, ne devrait être

• Ne pas couvrir les ouvertures de ventilation, un risque de surchauffe en résulterait.

• Ne pas utiliser dans un environnement poussiéreux et nettoyez l’unité

• Ne pas laisser l’unité à portée des enfants.

• Les personnes non expérimentées ne doivent pas utiliser cet appareil.

• La température ambiante maximum d’utilisation de l’appareil est de 45°C. Ne pas

• La distance minimum autour de l'appareil pour une ventilation suffisante est 2cm.

• Débranchez toujours l’appareil si vous ne l’utilisez pas de manière prolongée ou

• Les installations électriques ne peuvent être faites que par du personnel qualifié et

• Assurez-vous que le voltage de la source d’alimentation de la zone dans laquelle

• La prise sera toujours accessible pour que le cordon secteur puisse être enlevé à

• Le cordon d’alimentation doit toujours être en condition parfaite. Mettez

JB SYSTEMS 8/36 ME2 MIXER

CAUTION

de l’appareil que vous pouvez remplacer vous-même. Confiez l’entretien uniquement aux techniciens qualifiés. La flèche dans un triangle met l'utilisateur en garde de la présence de haut voltage sans isolation dans l'appareil qui peut causer un risque d'électrocution. Un point d'exclamation dans un triangle prévient de la présence d'instructions de fonctionnement et de maintenance se trouvant dans le

Ce symbole signifie : uniquement pour usage à l'intérieur

Ce symbole signifie : Lire le mode d’emploi.

appareil à la pluie ou l’humidité.

quelques minutes pour laisser l’appareil s’adapter à la température ambiante lorsqu’il arrive dans une pièce chauffée après le transport. La condensation empêche l’unité de fonctionner en performance optimale et peut même causer des dommages.

rempli de liquides, tels que des vases, ne sera placé sur cet appareil. Risque de choc électrique ou de dysfonctionnement. Si un corps étranger est introduit dans l’unité, déconnectez immédiatement de la source d’alimentation.

placée sur l'appareil.

régulièrement.

l’utiliser au-delà de cette température.

avant d’entreprendre des réparations.

conformément aux régulations de sécurité électrique et mécanique en vigueur dans votre pays.

vous vous trouvez ne dépasse pas celui indiqué à l’arrière de l’appareil.

chaque moment.

immédiatement l’unité hors tension si le cordon est écrasé ou endommagé.

ATTENTION: afin de réduire le risque d’électrocution, n’enlevez jamais le couvercle de l’appareil. Il n’y a aucune pièce à l’intérieur

+ 14 hidden pages

JBSYSTEMS LIGHT ME 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ENGLISH OPERATION MANUAL

FRANCAIS MODE D'EMPLOI
