1. WELCOME
Thank you for using the Jabra Evolve 80. We hope
you will enjoy it!
JABRA EVOLVE 80 FEATURES
Active Noise Cancellation (ANC)
Rechargeable battery powering the ANC for up
to 24 hours
Automatic charging through the Jabra EVOLVE
LINK controller
Listen in function
Busylight on headset and the Jabra EVOLVE LINK
controller
Discreet microphone boom-arm that integrates
into the headband when not on calls
Automatic mute when microphone boom-arm is
docked in the headband
Connects to multiple devices (smartphone or
tablet) with 3.5mm jack (plug & play)
Superior music and voice capabilities
Hi-fi Sound
ENGLISH
JABRA EVOLVE 80
5
2. JABRA EVOLVE 80 OVERVIEW
Busylight
indicator
USB/
charging
port
Battery
indicator
Active Noise
Cancellation
(ANC) switch
Microphone
Busylight
indicator
Listen-in
button
ENGLISH
JABRA EVOLVE 80
6
CONTROLLER (JABRA EVOLVE LINK)
Mute
Volume down
Answer/end call
ENGLISH
Busylight button
Volume up
Busylight indicator
JABRA EVOLVE 80
7
2.1 INCLUDED ACCESSORIES
ENGLISH
Carry pouch
Cable
management clip
2.2 OPTIONAL ACCESSORIES
Flight adapter
JABRA EVOLVE 80
8
3. HOW TO WEAR
3.1 LEFT AND RIGHT
Left and right is marked inside each earcup.
ENGLISH
R
JABRA EVOLVE 80
L
9
3.2 MICROPHONE POSITION

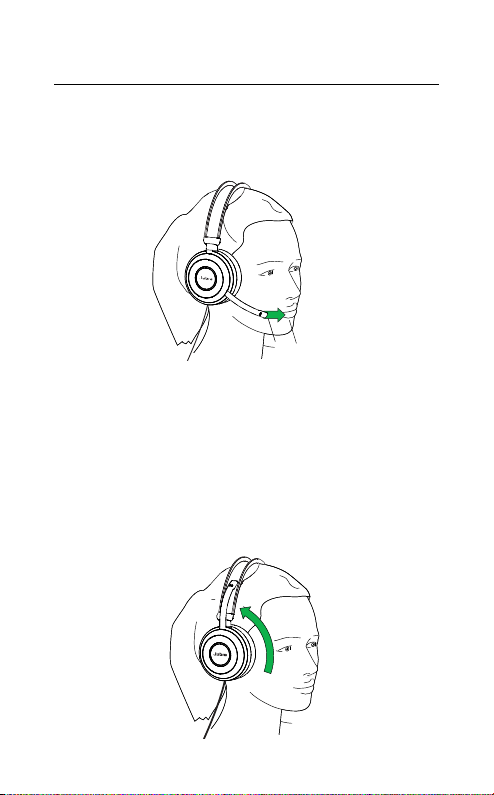

It is recommended to position the microphone
close to your mouth (2 cm). The microphone is
bendable for personal preference.
3/4"
2 cm
When listening to music or outdoors, the
microphone can be stored in the headband
groove.
The microphone will be muted when the
microphone is rotated up, and un-muted when
rotated down.
ENGLISH
JABRA EVOLVE 80
10
3.3 FOLDFLAT STORAGE

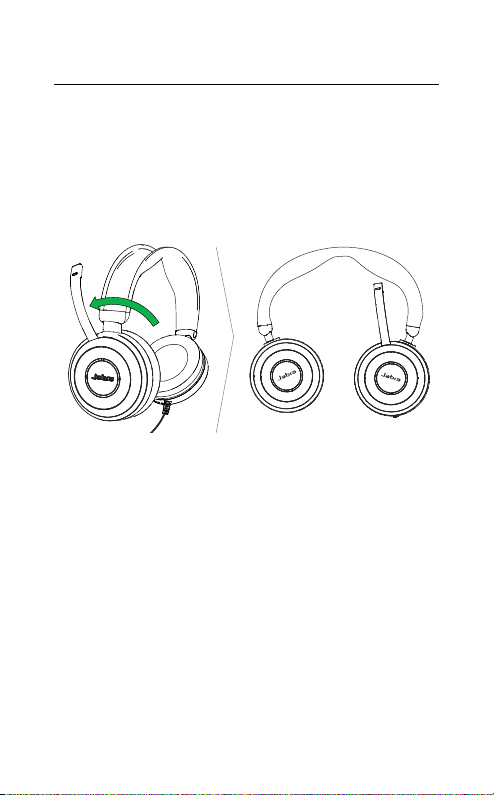

The earcups can be folded-flat for easy storage.
The microphone must be removed from the
headband groove and swiveled backwards before
folding the earcups flat.
ENGLISH
JABRA EVOLVE 80
11
4. HOW TO CHARGE THE BATTERY
The in-built rechargeable battery powers the
Active Noise Cancellation (ANC) and Listen-in
functions. The headset can still be used for calls
and music without the battery.
It takes approx. 3 hours to fully charge the battery.
4.1 CHARGE USING THE CONTROLLER

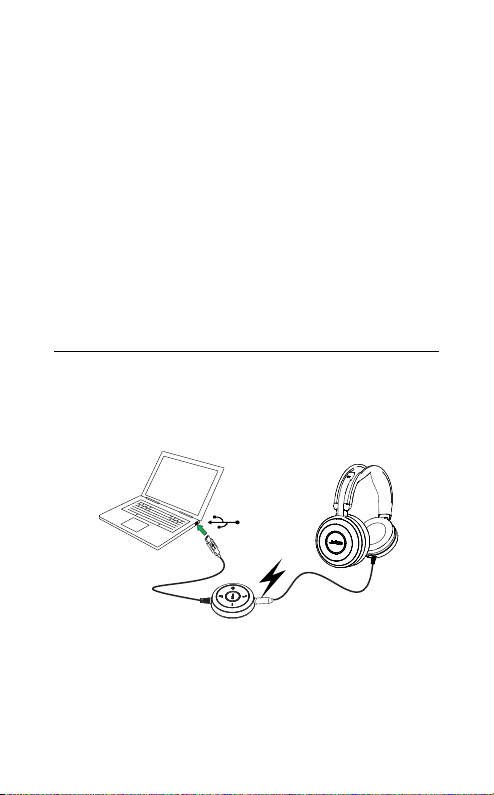

Normal use of the headset when connected to the
controller will charge the battery.
ENGLISH
JABRA EVOLVE 80
12
4.2 CHARGE USING USB CABLE

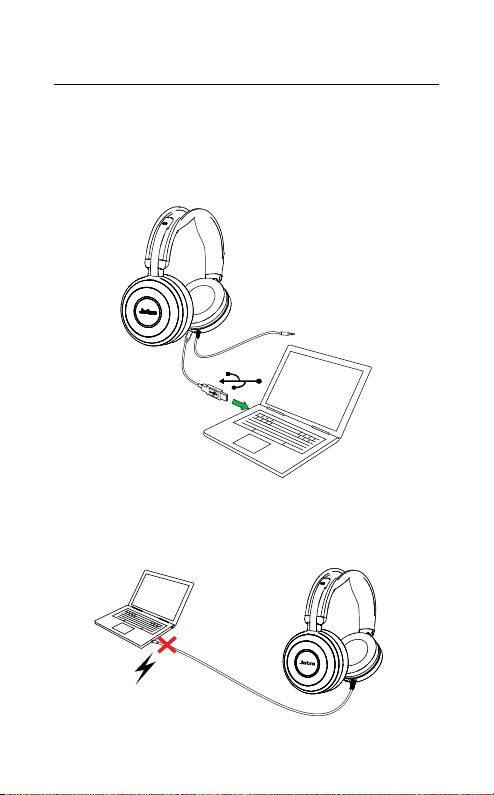

The headset battery will charge when connected
to a USB cable. It is highly recommended to use a
Jabra USB cable.
The headset will NOT charge when directly
connected to the PC without a USB cable.
ENGLISH
JABRA EVOLVE 80
13
5. HOW TO CONNECT
5.1 CONNECT TO PC WITH CONTROLLER
Fully plug the headset into the controller, and
connect the controller to a USB port on the PC.
The headset jack MUST be fully inserted into the
controller for the headset to work.
NOTE: When the headset is disconnected from the controller, any
active call will be put on hold. To resume the call, reconnect the
headset to the controller and manually resume the call on the PC
(softphone).
ENGLISH
JABRA EVOLVE 80
14
5.2 CONNECT TO MOBILE DEVICE
WITHOUT CONTROLLER

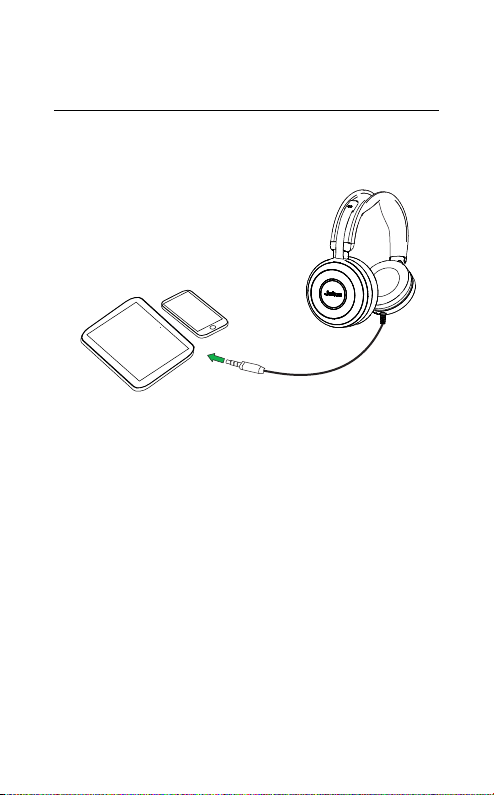

Plug the headset directly into your mobile device.
The headset battery will not charge when plugged
directly into a mobile device.
NOTE: When plugged directly into a mobile device, the overall
call quality (for you and the listener) will be lower than when
connected to a PC/tablet using the controller (Jabra Evolve Link).
ENGLISH
JABRA EVOLVE 80
15
6. HOW TO USE
Mute
Volume down
Answer/end call
Busylight button
ENGLISH
Volume up
Busylight indicator
Busylight
indicator
Busylight
indicator
JABRA EVOLVE 80
Listen-in
button
Active
Noise Cancellation
(ANC) switch
16
6.1 CALLS

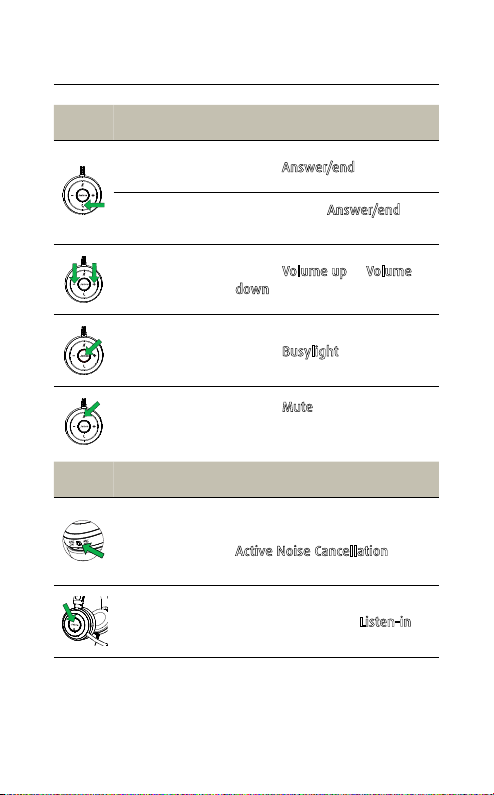

FUNCTION ACTION
Answer/end
call
Reject call
Adjust volume
Busylight
on/off
Mute/unmute
microphone
FUNCTION ACTION
Active Noise
Cancellation
(ANC) on/off
Listen-in
on/off
Tap the
Double-tap the
button
Tap the
down button
Tap the
Tap the
the microphone up (mute) or
down (un-mute)
Active Noise Cancellation reduces
outside disturbance. Slide the
Active Noise Cancellation switch
to ANC ON/ANC OFF
Listen-in lets outside sound into
the headset. Tap the
button (ANC must be on)
Answer/end button
Answer/end
Volume up or Volume
Busylight button
Mute button, or swivel
Listen-in
ENGLISH
JABRA EVOLVE 80
17
6.2 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
at the same time.

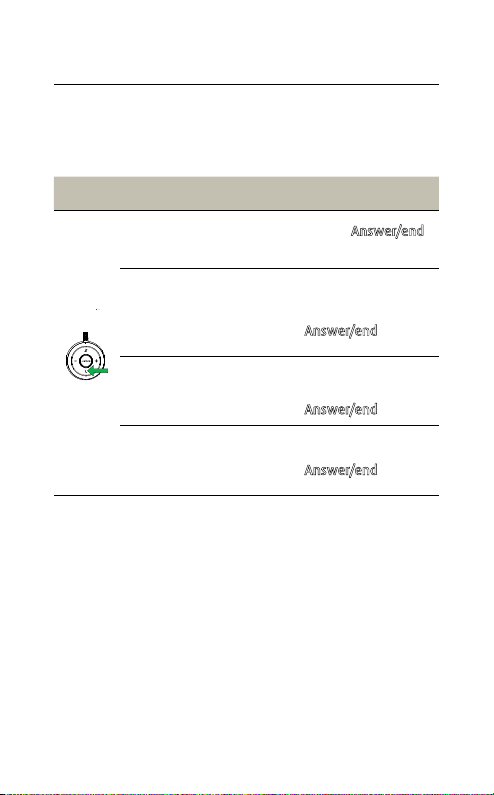

FUNCTION ACTION
End current call and
answer incoming call
Switch between held call
and active call
Put current call on hold
and answer incoming call
Reject incoming call,
when on a call
Tap the Answer/end
button
Press and hold
(2 secs) the
Answer/end button
Press and hold
(2 secs) the
Answer/end button
Double-tap the
Answer/end button
ENGLISH
JABRA EVOLVE 80
18
6.3 BUSYLIGHT
The busylight indicators on the headset and
controller let others know when you are busy, or
on a call.
Tap the Busylight button on the controller to
manually turn on/off the busylight indicator.
ENGLISH
JABRA EVOLVE 80
19
6.4 ACTIVE NOISE CANCELLATION ANC
ON
OFF
The headset uses Active Noise Cancellation (ANC)
to reduce outside disturbance to a minimum,
allowing you to fully focus on your work or call.
Additionally, sound quality is also boosted when
ANC is switched on. ANC is powered by the in-built
rechargeable battery. The battery will power ANC
for up to 24 hours, when not connected to the
controller.
Slide the Active Noise Cancellation switch to ANC
ON/ANC OFF.
ENGLISH
JABRA EVOLVE 80
20
6.5 LISTENIN
Listen-in is a feature that enables you to hear your
surroundings without having to remove the
headset. Your music and calls will be muted (not
paused), however your microphone will remain
on. Listen-in is powered by the in-built rechargeable
battery.
Tap the Listen-in button on the right earcup to activate/deactivate Listen-in.
The Active Noise Cancellation switch must be set
to ANC ON to use Listen-in.
ENGLISH
JABRA EVOLVE 80
21
6.6 TRANSFER CALL FROM PC TO MOBILE
DEVICE
It is possible to transfer an active call from your PC
to mobile device and continue using the headset.
1. Transfer the call from PC to mobile device using
your supported softphone.
2. Unplug the headset from the controller.
3. Plug the headset directly into your mobile
device, and manually resume the call.
ENGLISH
JABRA EVOLVE 80
22
7. SUPPORT
7.1 FAQ
View the FAQs on Jabra.com/evolve80
7.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off
and safely protected.
Avoid storage at extreme temperatures (above
25°C/77°F or below -20°C/4°F). This can shorten
battery life and may adversely affect the
headset.
ENGLISH
JABRA EVOLVE 80
23
8. TECHNICAL SPECIFICATIONS
JABRA EVOLVE 80 HEADSET SPECIFICATION
Headset weight: 324 g
Controller weight: 57 g
Headset dimensions: 190 mm x 190 mm
Controller dimensions: 55 mm x 55 mm
Microphones: Noise cancelling microphone
Speaker:
Speaker maximum input
power:
Speaker frequency range: 20 hz - 20 kHz
Cable length:
Noise reduction:
ANC time: Up to 24 hours
Operating temperature: -10°C to 55°C (14°F to 131°F)
Storage temperature: -20°C to 25°C (-4°F to 77°F)
40mm Dynamic PureSound
speakers (Hi-fi)
30 mW
Controller to PC: 90 mm
Headset to 3.5mm jack: 1.2 m
Up to 98% cancellation
using Hybrid Active Noise
Cancellation
