User’s Manual

P/N 068975-001

502O

™

Data Collection PC

Intermec Technologies Corporation 6001 36th Avenue West P.O. Box 4280 Everett, WA 98203-9280

U.S. service and technical support: 1.800.755.5505 U.S. media supplies ordering information: 1.800.227.9947

Canadian service and technical support: 1.800.688.7043 Canadian media supplies ordering information: 1.800.268.6936

Outside U.S. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.  1999 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, Data Collection PC, JANUS, and TRAKKER Antares are either trademarks or registered trademarks of Intermec.

Throughout this manual, trademarked names may be used. Rather than put a trademark ( or ) symbol in every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

Contents

Before You Begin xv

Warranty Information xv Safety Summary xv Warnings, Cautions, and Notes xvi About This Manual xvii Other Intermec Manuals xix

Getting Started

What Is the 5020 Data Collection PC? 1-3

Accessories 1-4 Models and Options 1-5

Equipment You Need to Get Started 1-5 Getting the 5020 Up and Running 1-5

Unpacking the 5020 1-6 Charging the Main Battery Pack 1-7 Installing the Main Battery Pack 1-8 Charging the Bridge Battery 1-10 Turning On the 5020 1-11 Setting the Time and Date 1-12 Verifying That the 5020 Is Operating Correctly 1-13

Learning About the Installed Software 1-15 What Is On the CD-ROMs? 1-16 Where Do You Go From Here? 1-17

Learning How to Use the 5020

Learning About the 5020 Features 2-3 How to Use the 5020 Screen 2-4 Understanding the Notification Tray Icons 2-5 Understanding the 5020’s Audio Signals 2-7

iii

5020 Data Collection PC User’s Manual codecode3399

Using the Keypad 2-8

English Keypads 2-9 International Keypads 2-9 Finding the Special Keys 2-11 How to Type the Characters Printed on the Keypad 2-12 Capitalizing All Characters 2-12 How to Use the Cursor Keys 2-13 Modifier Keys 2-13

Using Modifier Keys 2-13 Locking or Unlocking a Modifier Key 2-14

Overriding a Modifier Key 2-14 Multi-Use Keys 2-15 Using the Shift and Caps Lock Keys 2-15 Adjusting Settings Using the Backlight Key 2-15

Keypad Navigation Shortcuts 2-17 Locating the IrDA Port 2-18 Learning About the 5020’s Batteries 2-18

Main Battery Pack 2-18

Removing and Installing the Main Battery Pack 2-19

Charging the Main Battery Pack 2-23 Understanding the Bridge Battery 2-23

Charging the Bridge Battery 2-24 Checking the Power Remaining in the Batteries 2-25 Recognizing a Low or Discharged Main Battery Pack 2-25 Recognizing a Low or Discharged Bridge Battery 2-26 Managing Your Battery Power 2-26 Using an External Power Supply 2-27

Using PC Cards 2-27 Accessing and Using the Compact Flash Card 2-30 Connecting a Tethered Scanning Device 2-33 Scanning a Bar Code Label 2-34

Scanning Options 2-36

Configuring the 5020

Contents

How to Configure the 5020 3-3 Using the Configuration Application on the 5020 3-4

Using the Configure Menu 3-7 Navigating in the Configuration Application 3-8

Using the Refresh Button 3-12 Using the Defaults Button 3-12

Using a Web Browser and the Unit Management Application 3-13 Configuring the 5020 by Using SNMP 3-17 Configuring the 5020 by Scanning Bar Code Labels 3-19 Configuring the 5020 to Operate in a Network 3-21

Configuring for an RF or Ethernet Network 3-21

Configuring the Network Parameters 3-22 Configuring the Radio Parameters 3-25 Configuring UDP Plus Protocol for a DCS 300 Network 3-28

Configuring for Serial or IrDA Communications 3-31

Connecting to Another Device 3-32 Configuring the Baud Rate 3-34

Customizing the 5020 Using the Control Panel

Understanding the Control Panel 4-3

Set Communications Properties 4-4 Setting the Time and Date 4-7 Create Dialing Properties 4-9 View or Modify the Desktop Display 4-10 Adjusting the Backlight Shutoff 4-11 Adjusting the Keypad Properties 4-12 Enter Owner Information 4-12 Setting a Password 4-14 Viewing Battery Status and Changing Power Suspend Time 4-15 Enter Regional Settings 4-16 Removing Application Programs 4-17 Viewing System Information 4-18 Adjusting Memory Allocation 4-18 Changing the Volume and Enabling Sounds 4-19

5020 Data Collection PC User’s Manual codecode3399

Managing Your 5020

How to Manage Information on Your 5020 5-3 Using a Web Browser and the Unit Management Application 5-3 Using File Manager 5-6

Creating and Removing Directories 5-7 Uploading a File to a Directory 5-10 Copying a File 5-11 Moving a File to Another Directory 5-13 Renaming a File 5-14 Deleting a File 5-16 Changing File Attributes 5-18 Using File Manager to Run an Executable on the 5020 5-19

Using Process Manager 5-21

Displaying Processes Running on the 5020 5-22 Displaying Threads Running on the 5020 5-25 Displaying Modules Running on the 5020 5-25

Using the Application Manager 5-26

Installing an Application 5-27 Uninstalling an Application 5-29

Using the Event Viewer 5-30

Viewing Events 5-30 Setting the Event Filter 5-30 Clearing Events 5-31

Managing Your Passwords 5-32 Using Windows CE Services 5-33

Installing CE Services 5-34 Unsupported Functions 5-34 Using CE Services with a Serial I/O Card 5-34 Using CE Services with an D5020 Dock or L5020 Adapter 5-40 Disconnecting From CE Services 5-41 Problems Establishing a Connection 5-42

Developing and Installing Applications

Contents

Hardware and Software You Need to Develop Applications 6-3 Using the SDK to Develop Applications 6-4

Reader Command Function 6-5 Message Functions 6-5 System Information Functions 6-6 Communications Functions 6-6 File Transfer Functions 6-6 Virtual Wedge Functions 6-6 UDP Plus Functions 6-6 Automatic Data Collection Functions 6-7 Desktop Configuration Functions 6-7 QuickWin Functions 6-7

Developing Applications Without the Intermec SDK 6-8 Creating an Application Package 6-8

Creating a CAB File 6-8 Creating a SETUP.DLL to Customize Setup 6-9

Installing and Uninstalling Applications 6-10

Installing Your Application 6-10 Automatic Application Installation 6-11 Uninstalling Your Application 6-12 Understanding the Information File Format 6-13

Setting Up the Visual Studio Tools for Remote Ethernet Access 6-15

Problems Establishing a Connection 6-19

Installing and Removing Commercial Off-the-Shelf Software 6-19

Reader Command Reference

Using Reader Commands 7-3 Using Accumulate Mode 7-3

Enter Accumulate Mode 7-5 Clear 7-5 Enter 7-5 Exit Accumulate Mode 7-6

vii

5020 Data Collection PC User’s Manual codecode3399

Operating Reader Commands 7-6

Backlight On and Off 7-6 Change Configuration 7-7 Multiple-Read Labels 7-7 Set Time and Date 7-8

Configuration Command Reference

Using Configuration Commands 8-3 Configuration Commands Listed by Category 8-4 Entering Variable Data in a Configuration Command 8-6 5020 IP Address 8-7 Access Point MAC Address 8-8 Access Point Name 8-8 Acknowledgement Delay Lower Limit 8-9 Acknowledgement Delay Upper Limit 8-9 Automatic Shutoff 8-10 Beep Duration 8-12 Beep Frequency 8-14 Beep (Speaker) Volume 8-15 Codabar 8-17 Code 11 8-19 Code 16K 8-20 Code 2 of 5 8-21 Code 39 8-23

viii

Code 49 8-27 Code 93 8-29 Code 128 8-30 Configuration Manager Enable 8-31 Configuration SubAgent Enable 8-32 Controller Connect Check Receive Timer 8-33 Controller Connect Check Send Timer 8-34 Controller IP Address 8-35 Decode Priority 8-36 Decode Security 8-38

Default Router 8-39 DHCP (Obtain IP Address Via DHCP) 8-40 DHCP Status 8-41 Display Backlight Level 8-42 Display Backlight Timeout 8-42 Interleaved 2 of 5 8-44 IrDA Baud Rate 8-46 Keypad Caps Lock 8-47 Keypad Clicker 8-48 Maximum Retries 8-49 MSI 8-50 Network Loopback 8-52 Network Port 8-53 Plessey 8-54 Postamble 8-55

Contents

Preamble 8-56 Primary DNS Server 8-58 Primary WINS Server 8-59 Radio MAC Address 8-60 Radio ROM Version 8-60 RF Domain 8-61 RF Inactivity Timeout 8-62 RF Roaming Allowed 8-63 RF Security Identification (ID) 8-64 RF Transmit Mode 8-65 Scanner Mode 8-66 Scanner Redundancy 8-67 Scanner Selection 8-68 Scanner Timeout 8-70 Scanner Trigger 8-72 Secondary DNS Server 8-73 Secondary WINS Server 8-74 SNMP Identification Contact 8-75 SNMP Identification Location 8-75

5020 Data Collection PC User’s Manual codecode3399

SNMP Identification Name 8-76 SNMP Security Encryption Key 8-77 SNMP Security IP Address 8-78 SNMP Security Read Encryption 8-79 SNMP Security Read Only Community String 8-80 SNMP Security Read/Write Community String 8-81 SNMP Security Subnet Mask 8-82 SNMP Security Write Encryption 8-83 SNMP Trap Authentication 8-84 SNMP Trap Community Name 8-85 SNMP Trap IP Address 8-85 SNMP Trap Port 8-86 SNMP Trap Threshold 8-86 Subnet Mask 8-87 TCP/IP Extensions Delayed Acknowledgement Timer 8-88

TCP/IP Extensions Initial Roundtrip Time 8-89 TCP/IP Extensions Receive Window Size 8-90 TFTP Resend Limit 8-91 TFTP Timeout 8-91 UDP Plus Enable 8-92 UPC/EAN 8-93 Virtual Wedge 8-96 Virtual Wedge Code Page 8-97 Virtual Wedge Grid 8-98

Troubleshooting

How to Use This Chapter 9-3 Troubleshooting 9-3

Problems While Operating the 5020 9-4 Problems While Configuring the 5020 9-7 Problems While Using the Remote Unit Management Application 9-9 Bar Code Labels Will Not Scan 9-11 Problems Upgrading the Operating System Image 9-13 Application Manager Error Messages 9-13

Maintaining the Batteries in the 5020 9-14

Recognizing a Low or Discharged Main Battery Pack 9-14 Recognizing a Low or Discharged Bridge Battery 9-15 Guidelines for Managing Batteries 9-15

Booting the 5020 9-17

Warm Booting the 5020 9-17 Cold Booting the 5020 9-18

Verifying RF or Ethernet Communications 9-19 Upgrading the 5020 Operating System Image 9-19 Restoring a Corrupted Operating System Image 9-21

5020 Specifications

Contents

Physical and Environmental Specifications A-3 5020 Default Configuration A-8 Bar Code Configuration Commands by Syntax A-12

Full ASCII Charts

Full ASCII Table B-3 Full ASCII Bar Code Chart B-6

Control Characters B-6 Symbols and Punctuation Marks B-7 Numbers B-8 Uppercase Letters B-9 Lowercase Letters B-10

Extending Remote Unit Management

Getting Started C-3

Required Tools C-3 Understanding the 5020 Registry C-4

Extending the Remote Unit Management Application C-5 Importing a Registry File C-10

5020 Data Collection PC User’s Manual codecode3399

Registry Property Values C-10

Break C-10 DisplayName C-11 Ordinal C-11 Password C-11 Value C-12

Extending the Configuration Application

Getting Started D-3

Required Tools D-3 Understanding the 5020 Registry D-4

Extending the Configuration Application D-5 Importing a Registry File D-9 Registry Property Values D-10

Adapter D-10 Bound D-10 ChoiceFmt D-11 CmdOID D-11 CmdString D-12 Constraint D-12 DefVal D-13 DisplayName D-13 Expert D-14 Hidden D-14 MaxChars D-14 OID D-15 Ordinal D-15 PageDependency D-16 PropEditor D-16 Range D-16 ReadOnly D-17 Security D-17 ShortDesc D-17 TextFmt D-18 Type D-18

xii

Required and Optional Registry Property Values D-19

Contents

Index

xiii

blank

Before You Begin

This section introduces you to standard warranty provisions, safety precautions, warnings and cautions, document formatting conventions, and sources of additional product information. A documentation roadmap is also provided to guide you in finding the appropriate information.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your local Intermec support services organization. In the U.S. call 1.800.755.5505, and in Canada call 1.800.688.7043. Otherwise, refer to the Worldwide Sales & Service list that ships with this manual for the address and telephone number of your Intermec sales organization.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this book before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

code code 3399Before You Begin

Do not repair or adjust alone Do not repair or adjust energized equipment alone under any circumstances. Someone capable of providing first aid must always be present for your safety.

First aid Always obtain first aid or medical attention immediately after an injury. Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and stops breathing. Any delay could result in death. To work on or near high voltage, you should be familiar with approved industrial first aid methods.

Energized equipment Never work on energized equipment unless authorized by a responsible authority. Energized electrical equipment is dangerous. Electrical shock from energized equipment can cause death. If you must perform authorized emergency work on energized equipment, be sure that you comply strictly with approved safety regulations.

5020 Data Collection PC User’s Manual codecode3399

Warnings, Cautions, and Notes

The warnings, cautions, dangers, and notes in this manual use the following format.

Warning

A warning alerts you of an operating procedure, practice, condition, or statement that must be strictly observed to avoid death or serious injury to the persons working on the equipment.

Avertissement

Un avertissement vous avertit d’une procédure de fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit être strictement respecté pour éviter l’occurrence de mort ou de blessures graves aux personnes manupulant l’équipement.

Caution

A caution alerts you to an operating procedure, practice, condition, or statement that must be strictly observed to prevent equipment damage or destruction, or corruption or loss of data.

Conseil

Une précaution vous avertit d’une procédure de fonctionnement, d’une méthode, d’un état ou d’un rapport qui doit être strictement respecté pour empêcher l’endommagement ou la destruction de l’équipement, ou l’altération ou la perte de données.

Danger

A danger warns you of possible eye damage caused by use of a Class IIIa laser product. Use of this symbol is mandated by CFR21 1040.

Danger

Un signe de danger vous avertit d’un risque d’endommagement de l’œil causé par l’utilisation d’un produit au laser de classe IIIa. CFR21 1040 oblige l’utilisation de ce symbole.

Note: Notes are statements that either provide extra information about a topic or contain special instructions for handling a particular condition or set of circumstances.

xvi

code code 3399Before You Begin

About This Manual

This manual contains all of the information necessary to install, operate, configure, and



maintain the 5020 Data Collection PC This manual was written for analysts and programmers who operate, program, and

connect the 5020 to a network or system. A basic understanding of Windows programming, and data communications is necessary.

Terminology

You should be aware of how these terms are being used in this manual:

Term Description

5020 PC 5020 device 5020

Unit management The term “unit management” indicates the remote Unit

Computer Host

Click The term “click” indicates pushing the left mouse button to

DCS 300 and Model 200 Controller

These terms indicate any 5020 Data Collection PC. More specific terms, such as “RF 5020,” indicate a specific type of 5020 Data Collection PC.

Management application. The terms “computer” and “host” indicate a personal computer

or other computer that communicates with the 5020.

select or open an item in a Windows application.

The 5020 Data Collection PC will communicate with either the DCS 300 or the Model 200 Controller. The DCS 300 is a new data collection server that replaces the Model 200 Controller. The term DCS 300 is used throughout the manual. Unless otherwise noted, you can use either the DCS 300 or the Model 200 Controller.

Format Conventions for Input From a Keyboard or Keypad

This table describes the formatting conventions for input from computer keyboards and 5020 keypads:

Convention Description

Special text Shows the command as you should enter it into the 5020 PC. See

“Format Conventions for Commands” later in this chapter.

Italic text Indicates that you must replace the parameter with a value. See

“Format Conventions for Commands” later in this chapter.

Ctrl Bold text represents a key on your keypad. For example, Tab

represents the Tab key and M represents the letter M key.

Ctrl-Z

When two keys are joined with a dash, press them simultaneously. For example, if you see the command Ctrl-C, press the two keys at the same time.

xvii

5020 Data Collection PC User’s Manual codecode3399

Format Conventions for Input From a Keyboard or Keypad (continued)

Convention Description

"  

Shows the key you must press on the 5020 PC. For example, “press

” directs you to press the right Enter key on the 5020 keypad.

Shows a series of 5020 keys you must press and release in the order shown. For example, “Press "   to access the Configure menu.”

Format Conventions for Bar Codes

You can scan the bar codes listed in this manual to enter data or perform a command. The bar code labels in this manual are printed in the Code 39 symbology. Each bar code includes the name and human-readable interpretation. For example:

Part Number

*1234*

5020U090.eps

Name Bar code (Code 39)

Human-readable interpretation

The asterisks (*) at the beginning and end of the human-readable interpretation are the start and stop codes for a Code 39 bar code label. If you are creating bar code labels with a bar code utility, it may automatically supply the asterisks as the start and stop code, so that you only need to type the actual text of the command.

Format Conventions for Commands

This manual includes sample commands that are shown exactly as you should type them on your 5020 PC. The manual also describes the syntax for many commands, defining each parameter in the command. This example illustrates the format conventions used for commands:

• Scan a bar code label with this syntax:

+/$+

command

where:

xviii

+/ is the syntax for the Enter Accumulate Mode command. $+ is the syntax for the Change Configuration command. command is the syntax for the command you want to change.

code code 3399Before You Begin

This table defines the conventions used in the example:

Convention Description

Special font Commands appear in this font. You enter the command exactly as it

is shown.

text Italics indicate a variable, which you must replace with a real value,

Italic

such as a number, filename, or keyword.

where This word introduces a list of the command’s parameters and

explains the values you can specify for them.

Other Intermec Manuals

You may need additional information when working with the 5020 data collection PC in a data collection system. Please visit our Web site at www.intermec.com for a list of available manuals or to access many of our current manuals in PDF format. To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor.

xix

white

nuggetf

code39

Getting Started

nuggetf

code39

nuggetf

code39

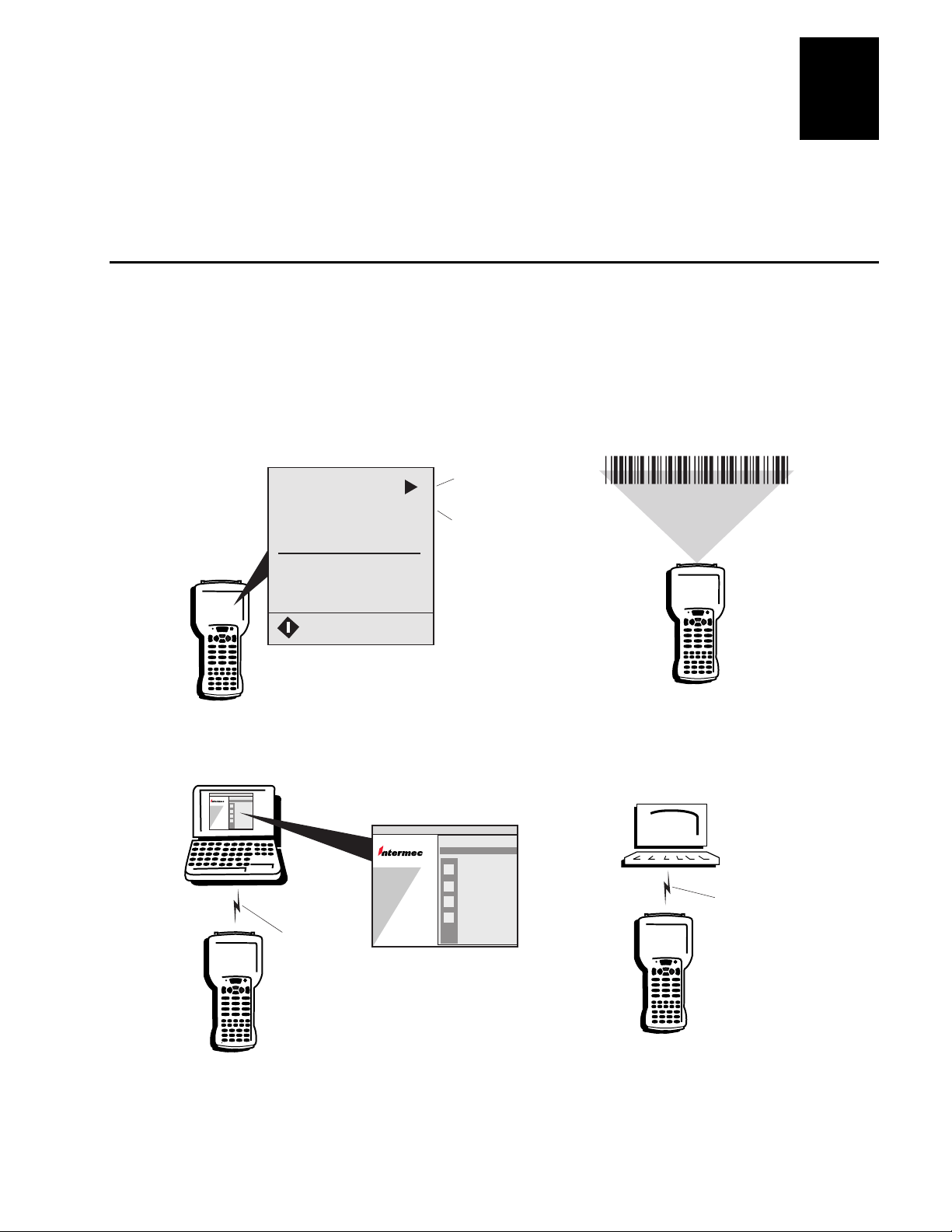

This chapter introduces the Intermec 5020 Data Collection PC and explains how to get your new 5020 up and running.

What Is the 5020 Data Collection PC?

The 5020 Data Collection PC incorporates Intermec’s high-performance wireless LAN technology, bar code scanning, and power management features into a hand-held computer. The 5020 is engineered to take full advantage of the Microsoft CE operating system.

The 5020 supports standard programming tools, such as Visual Basic and Visual C++. From their desktops, support staff can use a Web browser to access the 5020 unit management software and to remotely configure 5020 PCs.

Getting Started



Windows



PC Card slot

Integrated scanner or tethered scanner port

The 5020 is ergonomically designed for one-handed operation to make data collection easy and includes these features:

• 320 by 240 pixel gray scale display, angled for easy viewing.

• Integrated scanner or tethered scanner port.

• Keypad with 43 keys to support data collection. The 5020 ships with a keypad to

match the language you ordered.

• PC Card slot for radio, serial communications, modem, Ethernet, or memory. The

radio frequency (RF) version of the 5020 ships with the radio installed.

5020

Rechargeable batteries

LEDs

Display

5020U078.eps

Keypad

IrDA port

Handstrap

• Compact flash card slot for additional storage.

• Rechargeable lithium-ion main battery pack (sold separately) for power.

• Adjustable antenna for RF communications.

• IrDA (Infrared Data Association) port for serial or IrDA data communications.

1-3

5020 Data Collection PC User’s Manual

Accessories

You can use these accessories (sold and ordered separately) with the 5020: TZ2400 Battery Charger The battery charger lets you charge up to four main battery

packs at one time. The charger senses when a main battery pack is fully charged and does not overcharge it, ensuring long and consistent battery life.

D5020 IrDA and Serial Communications Docks You can use the communications dock to transfer data to and from another device using IrDA or RS-232 serial communications. You can also use the dock to charge the 5020 batteries.

L5020 Serial Communications Adapter Converts IrDA data to a wired RS-232 data stream. When the serial communications adapter is connected, it allows the 5020 to communicate with a host computer or other device using an RS-232 serial port. You can also connect a power supply (Part No. 065236) to the serial communications adapter to charge the 5020 batteries.

nuggetf

code39

Holster The holster is a convenient way for you to carry the 5020 on your belt when you are not using it. The holster attaches to your belt and holds the 5020 at your side.

Handle The detachable handle provides trigger-activated scanning.

Cables You may need to purchase cables for serial data communications between

the 5020 and peripheral devices. For more information, see “Physical and Environmental Specifications” in Appendix A.

Note: You also need a main battery pack. See your Intermec sales representative for the battery packs that are currently available.

1-4

nuggetf

code39

Getting Started

Models and Options

The 5020 family of Data Collection PCs includes these models:

5020

Batch The basic 5020 PC has a Type II PC card slot and supports the use of Type I and Type II 16-bit memory and input/output (I/O) cards.

5020

RF The RF version of the 5020 has a frequency hopping spread spectrum radio. See your Intermec sales representative for information about the availability of other radio options.

These options are available for the 5020:

• Integrated scanner (standard or long-range) or tethered scanner port

• Keypads to support western European languages

This manual tells you how to use the features and options available on all models of the

5020.

Equipment You Need to Get Started

To use the 5020, you need this equipment:

• Main battery pack (Part No. 068537)

• TZ2400 battery charger, L5020 serial adapter and power supply (Part No. 065236),

or D5020 communications dock

Note: Intermec recommends that you keep at least two main battery packs on hand so that you can use one battery pack while the other is recharging. You should keep a main battery pack in the 5020 at all times to prevent the risk of data loss.

Getting the 5020 Up and Running

Now that you have the required equipment, follow these steps to start using your new 5020:

1. Unpack the 5020 and documentation.

2. Charge the main battery pack (sold separately).

3. Install a charged main battery pack. Wait for the 5020 to initialize after you install the charged main battery pack.

1-5

5020 Data Collection PC User’s Manual

4. Charge the bridge battery. The bridge battery maintains the contents of RAM while the main battery pack is being replaced. For more information about the bridge battery, see “Understanding the Bridge Battery” in Chapter 2.

5. Turn on the 5020.

6. Set the time and date.

7. Verify that the 5020 is operating correctly.

These steps are described in detail in the next sections. Note: If your 5020 uses RF communications, you will also need to configure network

settings. For information on configuring your network settings, see Chapter 3, “Configuring the 5020.”

Unpacking the 5020

When you remove the 5020 from its box, save the box and shipping material in case you need to ship or store the 5020. Check the contents of the box against the invoice for completeness and contact your local Intermec service representative if there is a problem.

nuggetf

code39

5020 Data Collection PC

5020

Information packet

Getting Started Guide

5020

5020 Data

Collection PC

Local Area Systems Division

The following items ship with the 5020:

• Getting Started Guide

• Handstrap

• PC card extraction tabs (sheet of 4 tabs)

5020U.027

1-6

• Laser warning label set

nuggetf

• Authorized Service Location sheet

• Safety supplement

code39

Getting Started

Charging the Main Battery Pack

The main power source for the 5020 is a 1500 mAh lithium-ion battery pack (Part No.

068537). Before you can use the 5020, you must fully charge the main battery pack. The 5020 will not operate without a main battery pack even when it is connected to an AC power source.

Warning

The lithium-ion battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.

Avertissement

Le bloc-batterie au lithium utilisé dans cet appareil peut présenter un risque d’incendie ou de brûlure chimique en cas de mauvais traitement. Ne désassemblez pas, ne chauffez pas à une température supérieure à 100 °C (212 °F) et n’incinérez pas ce bloc-batterie.

To charge the main battery pack

• Place the main battery pack in an empty slot in the battery charger. The main

battery pack is fully charged in about 3 hours. For help, see the documentation that came with your battery charger.

You can also use the D5020 communications dock or the L5020 serial communications adapter to trickle-charge the battery pack.. For help, see the D5020 Communications

Dock Getting Started Guide Adapter Quick Reference Guide

DISPOSE OF USED MAIN BATTERY PACKS PROMPTLY. KEEP AWAY FROM CHILDREN. Contact your local Intermec sales representative for replacement main battery packs.

Warning

Replace the main battery pack with Part No. 068537 only. The use of any other battery pack may present a risk of fire or explosion.

Avertissement

Remplacez le bloc-batterie principal par la pièce réf. n° 068537 seulement. L’utilisation de tout autre bloc-batterie présente un risque d’incendie ou d’explosion.

(Part No. 068976) or the

(Part No. 068978).

L5020 Serial Communications

1-7

5020 Data Collection PC User’s Manual

Installing the Main Battery Pack

Install the fully charged main battery pack into the 5020.

To install the main battery pack

1. The 5020 ships with the handstrap installed. Push the top clip of the handstrap down and forward to unhook it from the dowel pin; then position the strap away from the battery compartment.

nuggetf

Dowel pin

code39

5020U066.eps

2. Open the battery door by pushing up on the battery door latch and sliding it toward the top end of the 5020. Lift up the top edge of the battery door to remove it.

To p

Battery door

Contacts

5020U017.eps

1-8

nuggetf

If you need to reattach the handstrap, attach the back clip of the handstrap to the aft bracket on the 5020. The back clip must be attached as shown, or the handstrap will come off.

Back clip

Aft bracket

5020U067.eps

3. Place the main battery pack into the battery compartment with the contacts pointed toward the bottom of the 5020.

code39

Getting Started

4. Push the main battery pack down until it locks into the connectors on the bottom of the battery compartment.

5020U018.eps

5. Insert the top edge of the battery door into the top of the battery compartment. Push the door down to close it over the battery compartment.

6. Push the battery door latch down and slide it toward the bottom end of the 5020 to lock the door in place.

The 5020 initializes after you install a charged main battery pack. The green LED on the top of the 5020 flashes until initialization is complete.

1-9

5020 Data Collection PC User’s Manual

7. Hook the top clip of the handstrap over the dowel pin on the top of the 5020 and set it in place.

Note: The handstrap works best if it crosses the entire back of the hand and not just the fingers. You can hook the top end of the strap on either the left or right side of the 5020 so you can use either hand.

nuggetf

Dowel pin

5020U066.eps

code39

Charging the Bridge Battery

The 5020 comes with a rechargeable bridge battery that maintains the contents of RAM while the main battery pack is being replaced. For more information about the bridge battery, see “Understanding the Bridge Battery” in Chapter 2.

Caution

The 5020 is shipped with a discharged bridge battery. Do not rely on the bridge battery to maintain the contents of RAM until it has been fully charged.

Conseil

Le 5020 est livré avec une batterie en pont déchargée. Ne vous fiez pas à cette batterie pour conserver le contenu de la mémoire vive avant que la batterie soit entièrement chargée.

To charge the bridge battery

1. Install a fully charged main battery pack. For help, see “Installing the Main Battery Pack” earlier in this chapter.

2. The bridge battery recharges from the main battery pack or from an AC power source. It takes 72 hours at room temperature to charge a discharged bridge battery. The bridge battery is partially charged and operational after 36 hours.

1-10

nuggetf

Note: You should always keep a charged main battery pack installed in the 5020 to maximize the life of the bridge battery.

code39

Getting Started

Turning On the 5020

The 5020’s Suspend/Resume key is the yellow ' key in the lower right corner of the keypad.

Suspend/Resume key

5020U072.eps

To turn on the 5020

• Press '. When you press ' to turn off the 5020, the PC does not actually shut off but goes

into a Suspend mode. This mode is referred to as “off” in the rest of this manual. In Suspend mode, the 5020 continues to power all memory and turns off the power to most of the hardware. When you press ' to turn on the 5020, the 5020 resumes exactly where it was when you turned it off.

If you change the main battery pack while it is turned off, the 5020 resumes the next time you turn it on. The bridge battery saves the contents of memory while you change the main battery pack.

The 5020 automatically turns off after 5 minutes if there is no activity. Press ' to turn it back on or change the Automatic Shutoff setting. For help with Automatic Shutoff, see Chapter 8, “Configuration Command Reference.”

1-11

5020 Data Collection PC User’s Manual

Setting the Time and Date

You need to set the time and date on the 5020.

To set the time and date

1. Press ' to turn on the 5020.

2. Press   to open the Start menu.

3. Press to select Settings and press &.

nuggetf

code39

4. Press 9 to select the Date/Time icon and press &.

1-12

nuggetf

5. Press or ! to select the correct time zone.

6. Press 3 (Tab) to move to the calendar. Use the cursor keys to select the correct month and day. You can also use  ! to page down and select the correct month.

code39

Getting Started

7. Press 3 to move to the Time field. Use the cursor keys to select the correct hour, minute, and second (HH:MM:SS) and AM/PM indicator. You can also enter hour, minutes, and seconds from the keypad by highlighting the number you want to change and typing a new number.

If you don’t want to display the time, press 3 to move to the Hide Clock options and press 4 to select the Hide Clock check box.

8. Press & (Enter) to record your changes.

9. Press  "  to select File from the Settings menu. Press ! to select C and press &.

lose

Verifying That the 5020 Is Operating Correctly

Once you have installed a charged main battery pack and set the time and date, your 5020 is ready for operation. You can verify that the 5020 is operating correctly by scanning a bar code label.

To scan a bar code label

1. Press ' to turn on the 5020.

1-13

5020 Data Collection PC User’s Manual

2. Press   to open the Start menu.

3. Press ! to select Programs, press 9 to select DCPC Demo, and press &. The DCPC Demo screen appears.

nuggetf

code39

1-14

4. Scan the following bar code by pushing the Scan button on the keypad or pulling the trigger on the handle if the optional handle is installed. Direct the beam so that it falls across all bars in the bar code label.

Test Bar Code

*12345*

After the terminal successfully reads the label, you hear a high beep. When the bar code label is scanned successfully, the LED is lit in a green color. The LED turns off in less than 1 second unless you start scanning another label.

5. To check that the 5020 decoded the bar code correctly, make sure 12345 appears in the Part Number field.

6. Press 3 to move to the Exit button and then press & to exit DCPC Demo.

nuggetf

code39

Learning About the Installed Software

The 5020 ships with the following software components installed. Windows CE 2.11 Windows CE is a compact, efficient, multiplatform operating

system designed for devices with limited resources. ADC Data Server The ADC Data Server is the software interface to the 5020 bar code

reader engine. It allows multiple applications to retrieve ADC data from the 5020 reader engine.

Configuration The Configuration application enables you to view and change the configuration of the 5020. The remote unit management also provides a File Manager, Process Manager, Application Manager, and Event Viewer.

SNMP (Simple Network Management Protocol) SNMP is an application-layer protocol designed to facilitate the exchange of management information between network devices. Use SNMP to control and configure the 5020 anywhere on an SNMP enabled network.

Radio Drivers The radio drivers control the radio operation.

Getting Started

Language Components The language components consist of U.S. language components and international language fonts. International language fonts support western European languages including Danish, Dutch, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, and Swedish.

Programming Environment Support The 5020 contains software components that support the use of COM/Active X, Visual Basic, C Runtime Libraries, Active Template Library, and Microsoft Foundation Classes.

Intermec Software Development Kit (SDK) Library Functions The library functions are software components that support the use of Intermec SDK. These components are required when applications use SDK functions.

HTTP Server The server software enables you to connect the 5020 with the Internet. The HTTP Server supports server side scripting.

Desktop The desktop provides the user interface to the 5020. Key features of the desktop include a Start button, Notification Tray (instead of a Task bar) that displays 5020 status icons, and control panel applets. You can use the control panel applets to customize your 5020 settings.

README.TXT This file is included on the 5020 in Unicode text (.TXT) format. This document provides complementary or late-breaking information not contained in this manual.

1-15

5020 Data Collection PC User’s Manual

nuggetf

What Is On the CD-ROMs?

The following software is provided on the two CD-ROMs that ship with this manual.

• Software Developer’s Kit (SDK) and Support Files (Part No. 069511)

• CE Services (Part No. 470-004-126)

Intermec Software Development Kit (SDK) Library A set of unique C++ language functions for programming the Intermec 5020 Data Collection PC.

SDK Visual Studio IDE Plug-In A utility that provides 5020 development targets for the Visual C++ Integrated Development Environment (IDE). The SDK Visual Studio IDE Plug-In must be installed if you want to use the 5020 value added SDK features.

Java Plug-In Java module that expands the functionality of your PC. Required when using a Web browser and the 5020 Unit Management application on your desktop PC. For more information on the Java plug-in and Unit Management, see Chapter 3, “Configuring the 5020.”

CE Services Used to establish a serial connection between a 5020 and a desktop PC.

code39

Sample Applications Sample data collection applications that you can install and run on your 5020.

Utilities Contains OSDOWNLOADSERVER.EXE, a program that allows you to restore a corrupted 5020 operating system image using a D5020 communications dock or L5020 serial adapter.

MIB Definitions Subdirectory The 5020 is an SNMP enabled device and supports proprietary Management Information Bases (MIBs). Six MIB files are provided on the SDK and Support Files CD-ROM. For more information on configuring the 5020 using SNMP, see Chapter 3, “Configuring the 5020.”

Adobe Acrobat The Acrobat Reader allows you to view, navigate, and print documents in the Adobe Portable Document Format (PDF).

1-16

nuggetf

Where Do You Go From Here?

Now that your new 5020 is up and running, you can use this manual to learn how to perform these tasks:

Task or Feature See This Chapter

code39

Getting Started

To learn how to use the keypad, desktop, batteries, internal flash, and PC Cards.

To learn how to configure your 5020 using SNMP, bar codes, and unit manager software.

To learn how to configure your 5020 using the control panel a pplets.

To learn how to use the CE Services and Remote Unit Management applications.

To learn about developing and installing applications on your 5020.

To find the commands that you can use while operating the 5020.

To find an explanation of all the configuration commands supported on the device.

For help solving problems while using your 5020.

Chapter 2, “Learning How to Use the 5020”

Chapter 3, “Configuring the 5020”

Chapter 4, “Customizing the 5020 Using the Control Panel”

Chapter 5, “Managing Your 5020”

Chapter 6, “Developing and Installing Applications”

Chapter 7, “Reader Command Reference”

Chapter 8, “Configuration Command Reference ”

Chapter 9, “Troubleshooting”

For a list of physical and environmental specifications.

For a table of ASCII characters and their binary, hexadecimal, and Code 39 equivalents.

Explains how to extend and customize the remote Unit Management application. It includes 5020 registry definitions and examples.

Explains how to extend and customize the local and remote Configuration applications. It includes 5020 registry definitions and examples.

Appendix A, “5020 Specifications”

Appendix B, “Full ASCII Charts”

Appendix C, “Extending Remote Unit Management”

Appendix D, “Exte nding the Configuration Application”

1-17

nuggetf

code39

j;ljlkj;

Learning How to Use the 5020

dfadf

This chapter describes and explains how to use the 5020 keypad, screen, audio signals, batteries, and laser scanner. It also explains how to use PC and compact flash cards and how to connect a tethered scanning device to a 5020.

Learning About the 5020 Features

This chapter explains the features of the 5020 Data Collection PC:

dfdadfdaLearning How to Use the 5020

PC card slot

Integrated scanner or tethered scanner port

Keypad There are four keypad overlay options:

• Simplified US/English

• Full US/English

• Euro1 overlay for the Romance languages

• Euro2 overlay for the Germanic languages

The standard 43-key elastomeric keypad has alphanumeric functions, full numeric keys, and 10 dedicated function keys.

5020

Rechargeable batteries

LEDs

Display

5020U078.eps

Keypad

IrDA port

Handstrap

Note: The Simplified and Full keypad overlays have the same functionality but a simplified character set is shown on the keypad overlay. The Full keypad overlay ships with this manual.

Monochrome display The 5020 screen is a backlit 320 by 240 pixel gray scale display, angled for easy viewing.

Notification Tray The Notification Tray is in the bottom portion of the 5020 screen. Icons appearing in the Notification Tray indicate the status of special keys, battery power status, RF, and network communication status.

PC and compact flash cards You can use Type I and Type II Memory and I/O PC cards in your 5020. You can also use Type I compact flash cards for additional storage for your 5020.

2-3

5020 Data Collection PC User’s Manualdfdfdfdf

Audio signals The 5020 has internal speakers to sound audio signals as you scan bar

code labels and enter data. Rechargeable batteries The 5020 uses a rechargeable lithium-ion main battery pack

and a rechargeable manganese dioxide lithium coin cell bridge battery to maintain power while you change the main battery.

LEDs The green light emitting diode (LED) is the good read LED and indicates that a bar code label has been scanned successfully. The red LED is under application control using the Intermec SDK (Software Development Kit) IBarCodeReaderControl function. For example, an application could use the red LED to indicate that the scanned data is valid. Refer to the SDK online help for a detailed description of the IBarCodeReaderControl function.

How to Use the 5020 Scr ee n

You can use the 5020 screen to view data, run applications, monitor the 5020’s status, and for many other functions. The screen is 320 by 240 pixels.

2-4

5020U091.eps

Notification tray

You can use these features of the screen:

• Adjust the display’s backlight, contrast, and audio signal volume from the keypad.

• Use the 5020’s icons to monitor the status of special keys, battery power, RF, and

network communications.

Note: If you are using the 5020 in a cold environment, the liquid crystal display (LCD) may respond and display information more slowly than in a warm environment.

dfdadfdaLearning How to Use the 5020

Understanding the Notification Tray Icons

You can use the 5020’s icons to monitor the status of special keys, battery power, RF, and network communications. As you use the 5020, the icons are turned on and off in the bottom line of the screen to indicate the current status. This portion of the 5020 screen is referred to as the Notification Tray. Status icons appear in the System Icons area of the Notification Tray.

Start

Start button

Icon Description

Ctl This icon appears when you press $. The key is enabled until you press

another key. When you press a second key, the key combination is entered into the 5020 and the icon disappears.

Alt This icon appears when you press ". The key is enabled until you press another key. When you press a second key, the key combination is entered into the 5020 and the icon disappears.

Shift This icon appears when you press 6. The key is enabled until you press another key. When you press a second key, the key combination is entered into the 5020 and the icon disappears.

System Icons

Application Icons

12:50 PM

Time

5020U050.eps

Caps Lock This icon appears when you press 6 until the tone sounds to enable the Caps Lock feature and type all alphabetic characters as uppercase letters. Press 6 until the tone sounds to disable Caps Lock, and the icon disappears.

Left Modifier This icon appears when you press .

• When pressed and released, the icon appears. After you press the next key,

the icon disappears.

• When pressed and held for more than 1 second, the icon appears, and the

5020 beeps and is locked in Left Modifier mode. Following key presses display their left modifier characters. When the 5020 is locked in Left Modifier mode, pressing and holding the left modifier key for more than 1 second takes the 5020 out of Left Modifier mode and the icon disappears.

2-5

5020 Data Collection PC User’s Manualdfdfdfdf

Understanding the Notification Tray Icons (continued)

Icon Description

Center Modifier This icon appears when you press .

• When pressed and released, the icon appears. After you press the next key,

the icon disappears.

• When pressed and held for more than 1 second, the icon turns on, and the

5020 beeps and is locked in Center Modifier mode. Following key presses display their center modifier characters. When the 5020 is locked in Center Modifier mode, pressing and holding the center modifier key for more than 1 second takes the 5020 out of Center Modifier mode and the icon disappears.

Right Modifier This icon appears when you press .

• When pressed and released, the icon appears. After you press the next key,

the icon disappears.

• When pressed and held for more than 1 second, the icon turns on, and the

5020 beeps and is locked in Right Modifier mode. Following key presses display their right modifier characters. When the 5020 is locked in Right Modifier mode, pressing and holding the right modifier key for more than 1 second takes the 5020 out of Right Modifier mode and the icon disappears.

Full Charge The main battery pack is at or near full charge. Battery is charged 75% to 100% of capacity.

Half Charge The main battery pack is in the middle of the battery charge range.

Low Charge The main battery pack is at a critically low level and needs to be charged.

Unknown Main Battery Status Indicates the main battery pack is charging or the status is not known.

Radio connect If the Radio Connect icon is not displayed, the 5020 is not connected to an access point. You may be out of range of an access point or the 5020 may not be configured correctly. If the Connect icon blinks, the 5020 is trying to connect to an access point. You may be out of range of an access point, you may be about to go out of range of an access point, or the access point may have recently been turned off.

2-6

Icon Description

Data buffered in The 5020 is in contact with a UDP Plus gateway and data is

stored in the receiving buffer. If there is a connection problem, the icon flashes.

Data buffered out The 5020 is in contact with a UDP Plus gateway and data is stored in the transmitting buffer. If there is a connection problem, the icon flashes.

Data buffered in and out The 5020 is in contact with a UDP Plus gateway and data is stored in the receiving and transmitting buffer. If there is a connection problem, the icon flashes.

No data The 5020 is in contact with a UDP Plus gateway and no data currently resides in the data buffer. If there is a connection problem, the icon flashes.

Intrynsic HTTP Server This icon appears in the Application Icons area of the Notification Tray and indicates that the Intrynsic HTTP Server Loader is running.

dfdadfdaLearning How to Use the 5020

Understanding the 5020’s Audio Signals

The 5020 has internal speakers to sound audio signals or beep sequences as you use the 5020. For example, you hear a low beep tone each time you enter or scan a valid command.

You can change the beep volume to meet the needs of your working environment. For example, use a quiet beep in a library or a loud beep in a manufacturing plant. There are two ways to change the beep volume:

• Use the Backlight key (press  2) on the keypad. For help, see “Adjusting

Settings Using the Backlig ht K ey ” later in thi s ch apter.

• Use the Beep Volume command. For help, see “Beep (Speaker) Volume” in

Chapter 8.

The next table explains the purpose of each beep sequence you may hear.

Beep Sequence Description

Low beep You entered a valid command or the data you entered was

stored.

High beep You entered valid data, the 5020 decoded a label, or the 5020

decoded the last row of a two-dimensional symbology.

Three low beeps You entered or scanned an invalid command or data.

2-7

5020 Data Collection PC User’s Manualdfdfdfdf

5020 Audio Signals (continued)

Beep Sequence Description

Low beep (every 15 seconds)

High beep, high beep, high beep, low beep

Using the Keypad

The 5020 PC has four keypad overlay options:

• English alphanumeric keypad with minimum character set

• English alphanumeric keypad with full character set

• Euro1 overlay (Romance languages)

• Euro2 overlay (Germanic languages)

The alphanumeric keypad with the minimum character set is the standard keypad for the

5020. The minimum character set keypad has punctuation marks removed from the

keypad overlay to simplify keypad navigation and operation. The full character set keypad includes the punctuation marks on the keypad overlay.

The Romance language keypad (Euro1) has keys to support British English, French, Italian, Portuguese, and Spanish. The Germanic language keypad (Euro2) has keys to support British English, Danish, Dutch, German, Finnish, Norwegian, and Swedish. You use special keys and key sequences to access the characters in each language.

The main battery pack is low. You need to replace or recharge the battery pack. For help, see “Learning About the 5020’s Batteries,” later in this chapter.

Reboot has finished.

2-8

dfdadfdaLearning How to Use the 5020

English Keypads

Minimum Full

5020U007.eps

International Keypads

The Euro1 and Euro2 keypads provide special keys to support Western European languages. The Euro1 keypad supports special characters for British English, French, Italian, Portuguese, and Spanish. The Euro2 keypad provides special characters for British English, Danish, Dutch, Finnish, German, Norwegian, and Swedish.

The Euro keypads allow you to access accented characters ( À Á Â Ã Ä Å). Accented characters are provided with floating accents as on many standard European keyboards. With floating accents, first you press the accent and then you press the letter to which the accent is to be associated. The resulting character is the accented character.

Note: No accent characters appear until you press the second key.

2-9

5020 Data Collection PC User’s Manualdfdfdfdf

Space

Tab

Ins

Ctl

Delete

F11LM

F12

Euro 2

5020U032.eps

F3 F4

F6 F7

F8 F9

F10

N\ /O

Space

Tab

Ins

Ctl

Delete %

F11L

F12

[]<>

Euro 1

F3 F4

F6 F7

F8 F9

F10

To type characters with an accent mark

1. Press . The Center Modifier icon appears in the Notification Tray.

2. Press the function key that the accent mark appears above.

To type Press

Euro1 and Euro2 Keypads

` (grave) ´ (acute) ˆ (circumflex) ¨ (dieresis) ° (ring above) ~ (tilde)

( ) * + , /

2-10

dfdadfdaLearning How to Use the 5020

Finding the Special Keys

Before you use the 5020’s keypad, make sure you can find all of the different types of keys on the keypad. You need to use these special keys on all four keypad options. The special keys that you use to type characters or perform functions are explained in the next sections.

Backlight key

Ta b key

Scan button

(contrast and volume control)

Recessed reset switch

Cursor key

Enter keys

Space key

Delete key

Shift/caps lock

Modifier keys

Control key

Alt key

Suspend/Resume key

Escape key

5020U006.eps

2-11

5020 Data Collection PC User’s Manualdfdfdfdf

How to Type the Characters Printed on the Keypad

The 5020 keypad is easy to use. Characters, symbols, and functions are printed in four places on or above the keys. The keys are also color-coded to make it easier to remember key combinations.

Position on the Keypad Color To Type the Character

Printed on the key Press the key. Left side above the key Orange Press the orange  key, then the key. Centered above the key Lime Press the lime Right side above the key Green Press the green



key, then the key.



key, then the key.

Capitalizing All Characters

To type all alphabetic characters as uppercase letters, you can press 6 before every letter you type, or you can enable the Caps Lock feature.

To enable Caps Lock

• Press 6 until the tone sounds or press  6. The Caps Lock icon ( in the Notification Tray. Caps Lock remains enabled until you disable it.

To type a lowercase letter with Caps Lock enabled

• Press 6  and an alphabetic character key. For example, press 6  type a lowercase letter f.

To disable Caps Lock

• Press 6 until the tone sounds or press  6. The Caps Lock icon disappears from the Notification Tray.

) appears



2-12

Note: You can also use the Keypad Caps Lock configuration command to enable or disable Caps Lock on the 5020. For help, see “Keypad Caps Lock” in Chapter 8.

dfdadfdaLearning How to Use the 5020

How to Use the Cursor Keys

You can press keys to move the cursor around an application screen. The 5020’s cursor keys work the same as cursor keys on a regular keyboard. You use the cursor keys to move the cursor up, down, right, or left on the screen.

Using the Cursor Keys

Cursor key

5020U070.eps

To Use This Cursor Key Press Description

Arrow up

Arrow down

Arrow right

Arrow left

Moves the cursor up one row or line.

Moves the cursor down one row or line.

Moves the cursor one character to the right.

Moves the cursor one character to the left.

Modifier Keys

The standard Windows modifier keys are 6, ", and $. Three additional modifier keys (, , ) have been added to the 5020 keypad. These unique modifier keys are located on the bottom row of the keypad and are used to type the corresponding color-coded characters and functions appearing on the keypad.

Using Modifier Keys

The 5020 keypad does not have a physical key for every character and function available. You use the left modifier (), center modifier (), and right modifier () keys to access characters or perform functions that do not have a physical key on the keypad.

2-13

5020 Data Collection PC User’s Manualdfdfdfdf

When you press  ,  , or  , the modifier key is enabled until you press another key. The icon appears on the 5020 Notification Tray to remind you that the key is enabled. When you press another key, the key combination is entered into the 5020 and the icon disappears.

To make it easier to perform multi-key sequences with one hand, the six modifier keys are “sticky.” To use the “sticky” feature, simply press and release the key. The key is in effect until you next tap a key to which it could apply. There are two rules used to determine when a sticky key is no longer in effect:

• A 5020 modifier key (, , ) is released after the next key is pressed and released, another modifier key is pressed, or the same modifier key is pressed again.

• A standard Windows modifier key (6, ", $) is released after the next non-modifier key is pressed and released, or you tap the same modifier key again. The " and $ keys do not lock.

Locking or Unlocking a Modifier Key

The , , , and 6 key modifiers can also be locked. Press a key modifier for about a second to lock the key. A tone sounds, which indicates that the key is a candidate for locking. The lock occurs if no other keys are pressed during the time that the modifier key is held down. When a modifier key is locked, it affects all subsequent keystrokes until it is unlocked. To unlock a modifier key, press the modifier key until a tone sounds and then release the key or you can hold down one of the other modifiers until it locks, releasing the lock on the previously selected modifier.

Note: Only one 5020 modifier key may be locked at a time.

Overriding a Modifier Key

You can temporarily override a locked modifier key by tapping the key. The unlocked state is “sticky” until you press and release another key, or you tap the modifier key

again. For example, if the shift key is locked (

) and you press the 6 key and then

press an alpha key, a lower case letter appears, rather than the upper case letter that would have appeared with the

key enabled. Tapping a modifier can undo its lock for one character. After the temporary overriding is complete, the original, locked modifier is restored.

Note: 6, ", and $ are independent of one another. All three keys can be in effect at the same time.

2-14

dfdadfdaLearning How to Use the 5020

Multi-Use Keys

Multi-use keys are common on a standard keypad. On a regular keypad you press the shift key together with the 1 key to get the ‘!’ character. On the 5020 keypad, you use the modifiers keys (, , ) to type characters appearing above the base characters on the keypad. The characters are color coded to indicate w hich modifier key you need to press. If you don’t select a modifier key, a pressed key results in the base character being transmitted.

Using the Shift and Caps Lock Keys

On the 5020 keypad, the shift (6) key can behave as both a standard shift key and as a Caps Lock key. That is why there are two Notification Tray icons for this key and only one for the other modifier keys.

Since these are two keys folded into one, both key modifiers, 6 and , could be in effect at the same time. In this case, alphabetic keys will appear as lower case (the shift cancels the caps lock), while other keys will appear as the upper level of a standard keypad.

Adjusting Settings Using the Backlight Key

The Backlight key is one of the special features built into the 5020’s keypad. You can use the Backlight key to:

• Turn the backlight on and off on the 5020’s screen.

• Adjust the display contrast.

• Change the beep volume of the 5020’s audio signals.

For a detailed description of the backlight, contrast, and beep volume commands, see Chapter 8, “Configuration Command Reference.”

Note: The Backlight key temporarily changes the backlight, contrast, or beep volume. These changes are saved until a cold boot is performed. When you perform a cold boot, 5020 configuration parameters are reset to the factory default values. For more information, see “Booting the 5020” in Chapter 9.

2-15

5020 Data Collection PC User’s Manualdfdfdfdf

Using the Backlight Key to Adjust the Screen

To turn the backlight on and off

Backlight key

5020U071.eps

• Press

environments.

Note: You use the battery power at a faster rate with the backlight turned on.

To change the display contrast

• Press 

darker.

There are 64 contrast levels. If the contrast is at the darkest level and you press  the contrast changes to the lightest contrast level.

Note: You can hold down the contrast key for repeated contrast changes.

To change the volume of the audio signals

• To change the volume of the 5020’s audio signals, press 

press 

There are six volume levels including an off setting. If the volume is at the loudest level and you press 

changes to the quietest level.

. Turn the backlight on to more easily see the 5020’s screen in dimly-lit

. Each time you press  2, it makes the display contrast one level

. Each time you

, it makes the volume one level louder.

, the volume is turned off. If you press  2 again, the volume

2-16

Keypad Navigation Shortcuts

You can use the following keypad shortcuts to navigate in the Windows CE environment.

Keypad Shortcuts

Shortcut Function Performed

dfdadfdaLearning How to Use the 5020

" "

" %

7, 9, 6 (7, 9, $ (7, 9,

  3

$ 3 6 $ 3 # 4

or "

, or

, or !) , or !)

Activate an application menu. You ca n then use your cursor keys to navigate within the application.

Open the Task Manager so that you can switch between running programs. Make sure no Windows modifier keys are selected.

Use the cursor keys ( ! 7 9 ) to switch between tasks and press & to bring Windows focus to the chosen task. You can choose to Run, Switch To, or End a task using Task Manager.

Select a file, folder, or function. Select adjacent files. Select multiple files that are not adjacent. Use the 4 key to

select the next file you want to include. Opens the Start menu. Navigate in a dialog box. Change tabs in a dialog box.

Move backward between tabs in a dialog box. Activate or open the selected item. Select or deselect check boxes.

Access and use application menus. For example, press

  to access the File menu.

$ %

Puts focus on the Start button. When focus is on the start button,

7 9

you can use the cursor keys ( Tips or press & to go to the appropriate Control Panel applet. For example, if you select the battery icon and press & you open the Power applet.

If focus is already on the Start button or Notification T ray, the

$ %

shortcut puts focus on the desktop.

) to hover over icons for Tool

2-17

5020 Data Collection PC User’s Manualdfdfdfdf

Locating the IrDA Port

Communications ports, also called COM ports, are locations from which data can be passed into and out of the 5020. You use serial communications through an IrDA port to communicate with other IrDA compliant devices.

You can also use the IrDA port to communicate with RS-232 devices, such as modems, PCs, and printers, using a D5020 serial communications dock or L5020 serial communications adapter.

5020U024.eps

IrDA port

Learning About the 5020’s Batteries

There are two rechargeable batteries in the 5020 PC: Main Battery Pack This lithium-ion battery provides the main power source to operate

the 5020. Bridge Battery This manganese-dioxide lithium bridge battery backs up all memory

and the real-time clock while you change the main battery pack.

Main Battery Pack

The main power source for the 5020 is a lithium-ion battery pack. Follow these tips to get the best battery performance and life possible:

• You should always keep a charged main battery pack installed in the 5020 to

maximize the bridge battery’s life.

• When you remove the main battery pack, insert another charged main battery pack

in the 5020.

• Keep a spare charged main battery pack available so you can continue to operate the

5020 without interruption.

• If you use the 5020 for extended periods of time in a sub-freezing environment, you

may need to change the main battery pack more often.

2-18

dfdadfdaLearning How to Use the 5020

• If you have been using the 5020 in a cold temperature environment and need to

replace or charge the main battery pack, let the main battery pack warm up for a half hour before you charge it.

• Store the battery chargers and spare main battery packs in a warm (office)

environment to ensure the most efficient operation.

Replace the main battery pack with Intermec Part No. 068537 only. The use of any other battery pack may present a risk of fire or explosion. Contact your local Intermec sales representative for replacement battery packs. DISPOSE OF USED BATTERY PACKS PROMPTLY. KEEP AWAY FROM CHILDREN.

Warning

The lithium-ion battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100

Avertissement

C (212°°F) or incinerate.

°°

Removing and Installing the Main Battery Pack

The main battery pack is the main power source for the 5020 and it charges the bridge battery when required. If the main battery pack charge goes low, you need to replace it or charge the main battery pack as soon as possible.

There are two ways to find out if the main battery pack is low:

• Check the battery state icon.

• Check power levels using the Power applet. Press $ % to put focus on the

Notification Tray and press 3 or 9 to the battery icon and press &. This launches the Power applet and displays the current battery status.

Caution

Removing the battery pack while the 5020 is on may cause loss of data.

Conseil

Ne détachez pas le jeu de piles pendant que le lecteur est actif car cela pourrait entraîner la perte de données.

2-19

5020 Data Collection PC User’s Manualdfdfdfdf

To remove the main battery pack

1. Press ' to turn off the 5020.

2. Push the top clip of the handstrap down and forward to unhook it from the dowel

pin on the top of the 5020 and then lift it out.

Dowel pin

3. Open the battery door by pushing up on the battery door latch and sliding it toward

the top end of the 5020. Lift up the edge of the battery door to remove it.

5020U066.eps

Contacts

To p

Battery door latch

5020U017.eps

2-20

dfdadfdaLearning How to Use the 5020

4. Push the main battery pack up until it unlocks from the connectors on the bottom of the battery compartment.

5020U018.eps

5. Tilt the 5020 to one side and let the main battery pack drop out of the compartment into your hand. Continue with the next instructions to install a charged main battery pack.

5020U.042

2-21

5020 Data Collection PC User’s Manualdfdfdfdf

To install the main battery pack

1. Place the main battery pack into the upper (larger) half of the battery compartment.

2. Push the main battery pack down until it locks into the connectors on the bottom of the battery compartment.

5020U003.eps

3. Insert the top edge of the battery door into the top of the battery compartment. Push the door down to close it over the battery compartment.

4. Push the battery door latch down and slide it toward the bottom end of the 5020 to lock the door in place.

5. Reattach the back clip of the handstrap to the aft bracket 5020 if it was removed. The back clip must be attached as shown, or the handstrap will come off.

Back clip

Aft bracket

5020U067.eps

2-22

dfdadfdaLearning How to Use the 5020

6. Place the top clip over the pin on the top of the 5020 and set it in place.

Dowel pin

5020U066.eps

Charging the Main Battery Pack

You can recharge the main battery pack using any of these 5020 accessories:

• TZ2400 Battery Charger

• D5020 Communications Dock connected to an external power supply

• L5020 Serial Adapter connected to an external power supply

Note: The battery charger operates between 0°C and 40°C (32°F and 104°F). If you are using the 5020 in an environment that is outside this temperature range, the main battery pack will not charge.

The fastest way to charge the main battery pack is to use the battery charger. The charger uses a charging method that maximizes battery life. For help about charging battery packs, see the battery charger quick reference guide.

Tip: Keep a spare charged main battery pack on hand to operate the 5020 without interruption.

Understanding the Bridge Battery

The bridge battery is a 90 mAh manganese-dioxide lithium battery that is designed to back up all memory and the real-time clock while you remove a discharged main battery pack and insert a charged main battery pack. When you turn the 5020 back on, the 5020 resumes exactly where it was when you turned it off.

2-23

5020 Data Collection PC User’s Manualdfdfdfdf

Note: The bridge battery should only be used to maintain the 5020 configuration while you are changing the main battery pack. It is not intended to retain data for extended periods of time.

The main battery pack or external AC power charges the bridge battery. You should keep a charged main battery pack installed in the 5020 to maximize the bridge battery’s life. If you turn off the 5020 and do not use it, a fully charged main battery pack maintains data, the real time clock, and system context for a maximum of 1 month.

If you plan to store the 5020 for a long period of time, insert a fully charged main battery pack to maximize battery life. Store the 5020 in a warm (office) area to make sure the bridge battery continues to charge.

Note: The bridge battery is NOT user serviceable. You must return the 5020 to Intermec to replace the bridge battery. With correct usage, the bridge battery will last the estimated service life of the 5020 without having to be replaced. The bridge battery should only be used to maintain the 5020 configuration while you are changing the main battery pack. It is not intended to retain data for extended periods of time.

Charging the Bridge Battery

The main battery pack charges the bridge battery with the 5020 turned on or off. The 5020 continuously monitors the bridge battery voltage level and charges the bridge battery to maximum voltage whenever the voltage level gets low. If the main battery pack is low or discharged and you are not connected to AC power, it will not be able to charge the bridge battery. You can check the status of the bridge battery using the Power applet. For more information on the Power applet, see “Viewing Battery Status and Changing Power Suspend Time” in Chapter 4.

Note: The bridge battery charger operates between 0°C and 40°C (32°F and 104°F). If you are using the 5020 in an environment that is outside this temperature range, the bridge battery will not charge. Move the 5020 to a warmer environment to charge the bridge battery.

To fully charge a discharged bridge battery

1. Install a fully charged main battery pack. For help, see “Removing and Installing the Main Battery Pack” earlier in this chapter.

2. The main battery pack charges the bridge battery. It will be fully charged in approximately 72 hours. After you finish charging the bridge battery, the main battery pack still has most of its power remaining.

2-24

dfdadfdaLearning How to Use the 5020

Caution

There is a risk of data loss if the main battery pack is removed and the bridge battery is not fully charged. Do not rely on the bridge battery to maintain the contents of RAM until the bridge battery is fully charged.

Conseil

Vous risquez de perdre des données si le bloc-batterie principal est enlevé, alors que la batterie en pont n’est pas entièrement chargée. En effet, la batterie en pont ne peut pas conserver le contenu de la mémoire vive (RAM), tant qu'elle n'est pas entièrement chargée.

Checking the Power Remaining in the Batteries

Check power levels using the Power applet. Press $ % to put focus on the Notification Tray and press 3 or 9 to move to the battery icon in the Notification Tray and press &. This process launches the Power applet and displays current battery status.

Recognizing a Low or Discharged Main Battery Pack

The following low battery warnings indicate the 5020 has a low or discharged main battery pack.

Low Main Battery Warning What You Need to Do

The 5020 beeps every 15 seconds, the Power applet starts, and the Main Battery Very Low dialog box is displayed.

5020U013.eps

1. Press % to shut down the Power

applet.

2. Exit any running applications.

3. Press ' to suspend the 5020.

4. Replace the main battery pack with a

spare charged battery pack, charge the main battery pack, or attach an external power supply.

2-25

5020 Data Collection PC User’s Manualdfdfdfdf

Recognizing a Low or Discharged Bridge Battery

The following low battery warning indicates the 5020 has a low or discharged bridge battery.

Low Bridge Battery Warning What You Need to Do

The Bridge Battery Very Low dialog box displays once every 15 minutes when the bridge battery charge falls below 25% of capacity.

5020U012.eps

Press & to close the dialog box. Apply AC power to charge the bridge

battery. The bridge battery will be fully charged in approximately 72 hours. Do not remove the main battery pack until the Power applet indicates the bridge battery has at least a 50% charge or data loss may occur.

You can remove the 5020 from AC power after the main battery pack is charged.

Managing Your Battery Power

To maximize the life of the 5020’s bridge battery and main battery pack, use these power management features.

Situation Ways to Save Battery Power

2-26

You are not using the 5020 for 5 minutes or lo nger.

You are operating the 5020 and the main battery pack charge becomes low.

You turn on the 5020 and the bridge battery charge indicates low power.

Press ' to turn off the 5020 and put it in Suspend mode. Suspend mode maximizes the life of the main battery pack’s power. Make sure the main battery pack is charged (not in a low battery state).

Or, use the Automatic Shutoff feature. Automatic shutoff turns off the 5020 (Suspend mode) when there is no activity on the 5020 for the length of time you set.

Press ' to put the 5020 in Suspend mode. Remove the main battery pack and insert another charged battery pack. For help, see “Main Battery Pack” earlier in this chapter.

Press ' to put the 5020 in Suspend mode. Keep a charged main battery pack installed in the 5020. The battery pack fully charges the bridge battery in approximately 72 hours.

dfdadfdaLearning How to Use the 5020

Situation Ways to Save Battery Power

You want to suspend the 5020 for an extended period of time.

Tip: Keep a spare charged main battery pack on hand to operate the 5020 without interruption. Always keep a charged or partially charged main battery pack in the 5020.

Press ' to put the 5020 in Suspend mode. The 5020 should be stored at room temperature, with a fully charged main battery installed.

Using an External Power Supply

You can operate the 5020 using an external power supply with the following accessories :

• TZ2400 Battery Charger

• D5020 Communications Dock connected to an external

power supply

• L5020 Serial Adapter connected to an external power

supply

You can use the external power supply to operate the 5020 and to charge the 5020’s batteries at the same time. For help, see the accessory quick reference guides.

5020U004.eps

Using PC Cards

A PC Card slot is provided on the batch 5020. You can use 3.3V and 5V Type I and Type II Memory and I/O cards that comply with the PC Standard, February 1995, for 16-bit cards.

You can use the following types of PC Cards in your 5020:

• Type I SRAM Memory (storage card)

• Type II ATA Flash Memory (storage card)

• Type II Modem

• Type II Ethernet

You cannot use Type III cards in the 5020. See your Intermec sales representative for a complete list of supported PC Cards.

Note: A sheet of PC card extraction tabs ships with each 5020. Make sure you attach an extraction tab to the PC card before inserting the PC card in your 5020.

2-27

5020 Data Collection PC User’s Manualdfdfdfdf

The PC card slot is located on the top of the 5020 just above the laser scanner window or tethered scanner port. You can use a Type I or Type II PC card in the slot.

Note: The Windows CE file system is sensitive to the order of storage card recognition when you change storage cards. When you are inserting or removing a storage PC card, follow the steps described in this section to avoid changing the designation of storage cards in the file system.

To insert a PC card

1. Press ' to turn on the 5020.

2. Make sure an extraction tab is applied to the PC card.

3. Open the slot door on the top of the 5020. The slot door drops down to reveal the PC card slot.

Slot door

5020U041.eps

4. Insert the card in the slot connector end first with the single-walled notch on the left edge of the card.

Card latch

Extraction tab

Single notch

5020U044.eps

2-28

dfdadfdaLearning How to Use the 5020

5. Push the card into the slot until it fits firmly in the connector and the card latch closes.

Note: Do not force a PC card into the drive slot. If the card stops and the card latch won’t close, remove the PC card and make sure you have the card oriented correctly. Then try to insert the card again .

6. Close the slot door by pressing firmly on the door until it snaps into place. When closed correctly, the slot door is flush with the hard plastic body of the 5020.

7. If you are inserting a new storage card, you will be prompted to format the card. The storage card in the PC card slot will be designated as “Storage Card” by the

Windows CE file system if a compact flash card is not installed. If a compact flash card is installed, the storage card in the PC card slot will be designated as “Storage Card2.”

8. If you are inserting a radio or Ethernet PC card, you will need to warm boot the 5020 for the card to be recognized. For help, see “Booting the 5020” in Chapter 9.

To remove a PC card

1. Open the slot door on the top of the 5020.

2. Press the card latch while firmly pulling on the extraction tab.

Card latch

Extraction tab

Single notch

5020U092.eps

3. Pull the PC card out of the drive slot.

2-29

5020 Data Collection PC User’s Manualdfdfdfdf

4. Close the slot door by pressing firmly on the door until it snaps into place. When closed correctly, the slot door is flush with the hard plastic body of the 5020.

Note: If you have storage cards installed in both the PC card slot and the compact flash card slot, remove the storage card before you warm or cold boot the 5020. Reinstall the storage card after the 5020 reboots. For help, see “Booting the 5020” in Chapter 9.

Accessing and Using the Compact Flash Card

You can use Type I compact flash cards (3.3 mm thick) to provide additional storage for your 5020. The compact flash slot is accessible throug h an access door loc at ed benea th the main battery pack.

You cannot use Type II cards in the 5020. Note: The Windows CE file system is sensitive to the order of storage card recognition

when you change storage cards. When you are inserting or removing a compact flash card, follow the steps described in this section to avoid changing the designation of storage cards in the file system.

To insert a compact flash card

1. Remove storage cards in either the PC card slot or the compact flash slot. For help, see “To remove a PC card” or “To remove a compact flash card” in this chapter.

2. Press ' to turn on the 5020 with the cards removed and wait for the hourglass to disappear.

3. Press ' to turn off the 5020.

4. Remove the handstrap and main battery pack. For help see “Removing and Installing the Main Battery Pack” earlier in this chapter.

2-30

dfdadfdaLearning How to Use the 5020

5. Insert a small straight-slot screwdriver in the door slot and pry up to open the compact flash card door.

Compact flash card door

Door slot

5020U036.eps

6. Lift and remove the compact flash card door from the battery compartment.

7. Insert the compact flash card under the release mechanism and slide forward until the card snaps into place. Make sure the compact flash card is oriented as shown below.

Compact flash card ejector

Flash card

Flash card back edge

8. Replace the compact flash card door.

5020U037.eps

2-31

5020 Data Collection PC User’s Manualdfdfdfdf

9. Reinstall the main battery pack and replace the battery door and handstrap. If you are inserting a new compact flash card, you will be prompted to format the card when you press ' to resume the device. The compact flash card will be designated “Storage Card” in the Windows CE file system.

10. If there was a storage card in the PC card slot, reinsert it now. It will be designated “Storage Card2.”

To remove a compact flash card

1. Press ' to turn off the 5020.

2. If there is a storage card installed in the PC card slot, remove it now. For help, see “To remove a PC card” earlier in this chapter.

3. Remove the handstrap and main battery pack. For help see “Removing and Installing the Main Battery Pack” earlier in this chapter.

4. Use a small straight-slot screwdriver to pry up the compact flash card door and remove it from the battery compartment.

5. Pull back on the card latch.

6. Insert a small straight-slot screwdriver into the compact flash card ejector and push the release latch to remove the card from the internal connector.

Compact flash

Flash card

Card latch

card ejector

5020U038.eps

7. After the card is released, push the compact flash card ejector back into place and remove the compact flash card.

8. Reinstall the compact flash card door and main battery pack and replace the battery door and handstrap.

2-32

9. Press ' to turn on the 5020 with no cards installed. If you removed a storage PC card, reinsert it now. It will be designated as “Storage Card” in the Windows CE file system.

dfdadfdaLearning How to Use the 5020

Connecting a Tethered Scanning Device

Tethered scanners are supported on 5020s ordered with a 10-pin tethered scanner port in place of the integrated scanner. You can use the following types of devices with the

5020.

• 1515, 1545, and 1550 laser scanners.

• RS-232 Scanners and other RS-232 devices through a 9-pin adapter cable

• 126X, 127X, and 128X series wands

To attach a tethered scanning device

1. Locate and open the scanner port door.

Scanner port door

5020U022.eps

2-33

5020 Data Collection PC User’s Manualdfdfdfdf

2. Insert the 10-pin connector until the connector locks into place.

10-pin connector

5020U023.eps

Scanning a Bar Code Label

The integrated laser scanner emits a beam of laser light that is visible on a bar code label as you scan it. The 5020 decodes the bar code label and enters the data or command you scanned.

Note: You can also use a variety of tethered scanning devices with the 5020. For more information on using tethered scanners, see “ Connecting a Tethered Scanning Device” earlier in this chapter.

Refer to the 5020 Safety Supplement (Part No. 069395) for additional laser safety information.

Warning

Do not look directly into the window area or at a reflection of the laser beam while the laser is scanning. Long-term exposure to the laser beam can damage your vision.

Avertissement

Ne regardez pas directement la réflexion d’un rayon laser ou dans la fenêtre du laser lorsque celui-ci est en opération. Si vous regardez trop longtemps un rayon laser, cela peut endommager votre vue.

2-34

dfdadfdaLearning How to Use the 5020

To scan a bar code label

1. Press ' to turn on the 5020.

2. Hold the 5020 at a slight angle a few inches from the bar code label. The laser scan window must be pointing toward the label.

3. Push the Scan button on the keypad or pull the trigger on the handle if the optional trigger handle is installed. Direct the beam so that it falls across all bars in the bar code label. After the 5020 successfully reads the label, you hear a high beep. The scanner stays on or turns off depending on the scanning options you have configured.

When the bar code label is scanned successfully, the LED displays a green color. The LED turns off in less than 1 second unless you start scanning another label.

4. Release the Scan button or trigger.

Scan button

5020

5020U029.eps

To successfully read a bar code label, the laser beam in the scan module must see all the bars in a label and a “quiet zone” at each end of the label. A quiet zone is a clean, non-printed space.

*NANCY*

Quiet zone before and

after bar code

5020U048.eps

2-35

5020 Data Collection PC User’s Manualdfdfdfdf

With the standard range scan module, you will have the best success if you hold the 5020 so that the horizontal reading angle is near zero and the vertical reading angle is near 20 degrees. To get the best scan angle, hold the 5020 so that the scan module is pointing toward the bar code label. Tilt the 5020 up or down slightly (20 degrees). You can also watch the laser beam. The laser beam becomes the brightest at the best scan angle.

Optimum scan angles vary with the type and print quality of the bar code label, the distance of the scanner from the label, and the lighting in the area.

Note: You should not scan the bar code label “straight on.” In a 2-degree conical “dead zone” directly above the label, the laser beam may reflect back into the scanner window and prevent the 5020 from reading the label. At certain angles and straight on, you may not see the laser beam.

Scanning Options

You can set several configuration command parameters to configure the laser scanner to meet your needs. There are several ways to set the scanner commands on the 5020. For help, see Chapter 3, “Configuring the 5020.” For help using the scanner configuration commands, see Chapter 8, “Configuration Command Reference.”

The parameters available are: Decode Security Defines the security level to use when decoding bar codes. When

you select a lower decode security level, the 5020 can decode bar codes with poorer print quality.

Mode Defines how the scanner operates when you press the Scan button or activate a tethered laser scanner. In One-Shot mode, the laser turns on and stays on until you release the button or scanner trigger, or a label is decoded. In Automatic mode, you can continuously scan bar code labels without having to release the button or scanner trigger between labels.

Redundancy Defines the number of scans (voting) the scanner takes of the same label. When set, voting requires the 5020 to decode the same bar code label multiple times during a single scanner event, and compare the decoded information for a match before signaling a good read.

Selection Identifies the type of tethered scanner you have connected. The 5020 can optimize the scanning performance by using the scanner you define in this command. If you have a long-range scan module, Scanner Selection allows you to configure the spotting beam.

Timeout Mode Defines the maximum length of time the scanner stays on each time you press the Scan button or activate a tethered laser scanner.

2-36

dfdadfdaLearning How to Use the 5020

Trigger Mode Allows you to set the triggering to level or edge triggering. With level triggering, you activate the scanner and the laser turns on and stays on until you release the Scan button or the trigger on a cabled scanner. In edge triggering, you activate the scanner and the laser turns on and stays on until you activate the scanner a second time, or the scanner timeout turns it off.

Preamble Sets the preamble that precedes any data you scan with the 5020. Common preambles include a data location number or an operator number.

Postamble Sets the postamble that is appended to any data you scan with the 5020. Common postambles include cursor controls such as tabs or carriage return line feeds.

2-37

fdadfad

Configuring the 5020

white

This chapter explains how to configure the 5020 using several different methods. You will also learn how to configure your 5020 to operate in a network.

How to Configure the 5020

You can configure many operating characteristics of the 5020 Data Collection PC, such as the bar code symbologies it decodes or the network settings. These characteristics are controlled by configuration parameters. The values that you set for the configuration parameters determine how the computer operates.

There are four ways to configure the 5020:

jjjj

Configuring the 5020

helveticacondensed

Use Utilities on the 5020

Programs Settings... Run...

Goto User Mode...

Suspend...

Use Configuration application.

Or, use Control Panel.

Scan Bar Codes

Start

Use Web Browser Use SNMP Commands

Intermec 5020 Configuration Management

TCP/IP Network (Ethernet or RF)

Use browser and Unit Management application.

Intermec 5020 Configuration Management

SNMP Management Station

TCP/IP Network (Ethernet or RF)

5020U077.eps

3-3

5020 Data Collection PC User’s Manual

Helveticcond blk

Use Utilities on the 5020 You can use the Intermec Configuration application or the Windows CE Control Panel applets on the 5020 to configure all parameters. For help with the Configuration application, see the next section. For help with the Control Panel, see Chapter 4, “Customizing the 5020 Using the Control Panel.”

Use Web Browser After the 5020 is communicating with a PC, you can use your Web browser and the remote Unit Management application to configure all parameters and manage your 5020. For help, see “Using a Web Browser and the Unit Management Application” later in this chapter.

Use SNMP Commands After the 5020 is communicating in your network, you can use an SNMP management station to send SNMP commands to the 5020. For help, see “Configuring the 5020 by Using SNMP” later in this chapter.

Scan Bar Codes You can scan bar code labels to configure the 5020. However, you can only configure a subset of the 5020 parameters by scanning bar code labels. For help and a list of parameters, see “Configuring the 5020 by Scanning Bar Code Labels” later in this chapter.

jjj

Using the Configuration Application on th e 5020

The Configuration application lets you configure the 5020 and view system information. You can access the Configuration application while running any application. You can also extend and customize the Configuration application. For help, see Appendix D, “Extending the Configuration Application.”

To access the Configuration application

1. Press  and then press  to open the Start menu.

2. Press to highlight Programs and then press # or &. (You can press either Enter key, # or &, on the 5020.)

3. Press 9 and ! to highlight Configuration and then press &.

3-4

Configuring the 5020

jjjj

The Configuration main screen appears, displaying four menu options:

File Choose the File menu to close a menu or screen, apply changes, refresh the screen to the previous settings, restore factory defaults, and exit the Configuration application. In addition to the File menu options, each configuration screen has buttons that you can use to apply changes, refresh the screen, and restore factory defaults.

helveticacondensed

Edit The Edit menu options undo, cut, copy, and paste are reserved for future use. Configure Choose the Configure menu to configure Data Collection, Unit,

Network, and SNMP parameters. Troubleshoot Choose this option to check the battery status and view terminal

version information. You can check the battery status for the main battery pack and the bridge battery. The terminal version includes the model number, serial number, software version, PCB part number, RFID part number, and the last day serviced.

4. To select a menu, press " plus the application menu shortcut. For example, to select the Configure menu, press "  .

5. Use ! and to select a menu option and then press &. For help using the Configure menu, see the next section.

6. To exit the Configuration application, press "  . Press ! to highlight Exit and then press &.

3-5

5020 Data Collection PC User’s Manual

Helveticcond blk

Configuration Parameters at a Glance

jjj

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

Timeout

Scanner

Decode Options

Virtual Wedge

Symbologies

Mode Trigger mode Redundancy Selection

Decode security level Decode priority

Virtual Wedge Preamble Postamble Grid Code page

Code 39 Interleaved 2 of 5 Code 2 of 5 Codabar Code 93 Code 11 Code 49 MSI Code 16K UPC/EAN Plessey Code 128

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

Protocols

Radio

Ethernet

Advanced

UDP Plus TFTP

IP address Name servers TCP/IP extensions Radio DHCP status

IP address Name servers DHCP status

Config manager enable Config subagent enable UDP Plus enable

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

Date/Time

Display

Keypad

Powe r Management

Serial Port

Speaker

Date and Time

Backlight timeout Backlight level

Key clicks Caps lock on

Automatic shutoff

IrDA baud rate

Volume Low beep frequency High beep frequency Low beep duration High beep duration

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

Read only community string

Security

Traps

Identification

Read/write community string Read encryption Write encryption Encryption key

Authentication Threshold

Contact Name Location

5020U.035

3-6

jjjj

Configuring the 5020

helveticacondensed

Using the Configure Menu

Use the Configure menu to change the configuration settings of your 5020.

To configure the 5020

1. If the Configuration application is not open, press  . Choose Programs and then Configuration.

2. Press "   to access the Configure menu. The Configure menu contains these options:

Data Collection

symbologies, scanner parameters, decode options, and virtual wedge.

Unit

Choose the Unit menu to configure the display, keypad, speaker, serial port,

and power management.

Network

protocols and your radio.

SNMP

traps, and identification.

3. Use ! and to select Data Collection, Unit, Network, or SNMP and then press &. The configuration screen appears. For example, the Network screen is shown here.

Choose the SNMP menu to configure SNMP parameters such as security,

Choose the Data Collection menu to configure bar code

Choose the Network menu to configure your network settings such as

3-7

5020 Data Collection PC User’s Manual

Helveticcond blk

4. Use the 3 (Tab) key and the cursor keys to navigate in the configuration screen. Make the changes you need for each parameter. For help, see the next section.

5. To save your changes in each configuration screen, press 3 to select the Apply button and then press &.

6. To exit the Configuration application, press "  . Press ! to highlight Exit and then press &.

7. If you changed any network settings, press ' twice to make the changes effective. If you changed the UDP Plus enable parameter, warm boot the 5020. For help booting the 5020, see Chapter 9, “Troubleshooting.”

Navigating in the Configuration Application

Use the instructions in this section to learn how to navigate around the screens, change parameters, and apply changes. Use this next illustration to get familiar with the different areas and buttons on each configuration screen.

jjj

Configuration tabs

Focus

Parameter list

Parameter options

Start

Current menu

Buttons

12:50 PM

5020U096.eps

The focus in this illustration is the box around the Date/Time configuration tab and it indicates that the tab is the active section of the screen. When you move to the parameter list and parameter options area, the focus changes to highlight the parameter or option. When you move the focus to a button, the button box has a darker outline.

Here is a quick summary of the keys you use to navigate in the Configuration application. Detailed instructions are also listed next.

Press To Do This

Move the focus from the configuration tab to the parameter list to the parameter options to the Buttons.

3-8

6 3

Moves the focus in reverse order. For example, you can move from the parameter options back to the parameter list to change another parameter.

Press To Do This

and

Select the next configuration tab. If the focus is on a configuratio n tab, you can also press

Move up and down within the list of parameters, toggle through the options in a drop-down list, or move the focus through the options in an option button list.

Configuring the 5020

jjjj

or 9 to select the next configuration tab.

helveticacondensed

9 7

To select another configuration tab

• Press $ 3. Or, if the focus is on the configuration tab, press 7 or 9.

For example, press $ 3 to move the focus from Date/Time to Display and show the Display parameters.

Note: In the Network menu, you always see the Protocols and Advanced configuration tabs. If you have a radio or Ethernet PC card installed in the 5020, you will also see a configuration tab for Radio or Ethernet. For help, see Chapter 9, “Troubleshooting.”

To select a parameter

1. Press 3 until the first parameter in the parameter list area is highlighted.

2. Press or ! to select a parameter. For example, press 3 to move the focus from the Display tab to the first parameter,

Backlight Timeout.

Expand a parameter list for a parameter that is marked with a plus sign . Close or collapse a parameter list for a parameter that is marked with a negative



sign

3-9

5020 Data Collection PC User’s Manual

Helveticcond blk

jjj

To expand a parameter list



1. Press 3 to move the focus to the parameter list area.

2. Press or ! to select a parameter that is marked with a plus sign



3. Press 9 to expand and display the list of parameters. For example, if the focus is on the parameter Obtain IP Address via DHCP, press 9 to expand the parameter list.

To close or collapse a parameter list



1. Press or ! to select a parameter that is marked with a negative sign .

2. Press 7 to close the list of parameters. For example, if the focus is on the parameter Obtain IP Address via DHCP, press 7 to close the parameter list.

To change a parameter

1. Press 3 to move the focus to the parameter list area.

2. Press or ! to select a parameter. If necessary, press 9 to expand a parameter list.

3-10

3. Press 3 to move the focus to the parameter options area.

Configuring the 5020

jjjj

4. Change the parameter. There are four types of entry fields:

• Drop-down list

Press or ! to toggle through the options until the option you want is highlighted.

• Entry field or box

Type or scan a value. If you are entering an IP address, use the or 9 cursor keys to move the cursor between segments of the IP address field. To edit the data in an entry field, use the cursor keys, 4, or 5.

helveticacondensed

• Check box

Press 4 to check or uncheck the option.

• Option button list

Press or ! to move the focus to the option you want to select.

3-11

5020 Data Collection PC User’s Manual

Helveticcond blk

5. Repeat Steps 2 through 4 to change another parameter in the same configuration tab.

6. Press 3 to move the focus to the Apply button and then press &. A message box appears to confirm the changes.

7. Press & to exit the message box.

Using the Refresh Button

You can refresh or reset any parameters until you press the Apply button to save the changes. A refresh discards all unapplied edits and resets the values to the previous saved value. A refresh also refetches and synchronizes the values for read-only parameters like DHCP status and access point name. After you apply changes, you cannot refresh the parameters to the previous settings. However, read-only parameters are always updated when you refresh.

To refresh changes

1. Press 3 to move the focus to the Refresh button or choose Refresh from the File menu.

2. Press & to refresh the parameters in the current screen. A message box appears to confirm the refresh. For example, if the Scanner configuration screen is displayed and you choose refresh, the 5020 only refreshes the Scanner parameters.

jjj

3. Press & to choose Yes or press 9 to select No and then press &.

4. Press 3 to move the focus to the Apply button and then press &. A message box appears to confirm the changes.

5. Press & to exit the message box.

Using the Defaults Button

You can set the parameters back to the factory default values. For a list of the default values, see Appendix A, “5020 Specifications.”

To set the factory defaults

1. Press 3 to move the focus to the Defaults button or choose Restore Factory Defaults from the File menu.

2. Press & to default the parameters in the curren t scre en. A messag e box appears to confirm your choice. For example, if the Scanner configuration screen is displayed and you choose to restore the defaults, the 5020 only sets the Scanner parameters to the factory defaults.

3. Press & to choose Yes or press 9 to select No and then press &.

4. Press 3 to move the focus to the Apply button and then press &. A message box appears to confirm the changes.

3-12

5. Press & to exit the message box.

jjjj

Configuring the 5020

helveticacondensed

Using a Web Browser and the Unit Management Application

Use a Web browser and the Unit Management application on your desktop PC to remotely configure individual 5020 PCs. To access Unit Management on your desktop PC, you need to connect the 5020 to an Ethernet or RF network. You can configure all your 5020s on the network from your PC, but you can only configure one at a time. If you have a desktop PC with Windows NT, you can use Unit Management to configure a 5020 through a serial connection.

To use the Configuration menu in the remote Unit Management application, you need the Java 1.2 plug-in. You can either automatically download the plug-in during the next procedure or install the plug-in from the Software Developer’s Kit (SDK) and Support Files CD-ROM (Part No. 069511).

You can also extend and customize the remote Unit Management application. For help, see Appendix C, “Extending Remote Unit Management.”

Note: The remote Unit Management application works best with Internet Explorer 4.0 or higher on Windows 95/98/NT. Netscape Navigator 4.0 or higher is also supported on Windows 95/98/NT. The remote Unit Management application will work on other platforms such as Unix or Macintosh using Netscape Navigator 4.0 or higher. However, the installation process and performance of the Java plug-in for Configuration varies by platform. You may experience some limitations due to browser implementation issues. For help with the Java plug-in on other platforms, see the Sun Microsystems Web page at www.java.sun.com/products/plugin.

To connect to the 5020 from your desktop PC

1. Configure the 5020 to communicate using Ethernet or RF communications. If you are not using a DHCP server, you must configure the IP address and other network parameters on the 5020. For an RF 5020, you must configure the domain and security ID. If you have a Windows NT PC and you want to use a serial connection, you may need to configure the serial port baud rate on the 5020.

For help, see “Configuring for an RF or Ethernet Network” or “Configuring for Serial or IrDA Communications” later in this chapter.

2. Press ' to turn on the 5020. The 5020 must remain on while you access it through the remote Unit Management application.

3. Use the D5020 dock or the L5020 adapter to connect the 5020 to AC power. Or, scan this bar code label to turn off the Automatic Shutoff feature:

Disable Automatic Shutoff

*$+EZ0*

3-13

5020 Data Collection PC User’s Manual

Helveticcond blk

Note: The 5020 must be turned on and must remain on while you manage it through the remote Unit Management application. If you have an RF 5020, it must be in range of an access point.

4. On your desktop PC, turn off the Active Desktop if you have it enabled. To turn it off, right-click on the desktop and choose Active Desktop.

For a serial connection on a Windows NT PC, you need to look up the IP address for your PC’s serial port. In the Programs/Administrative Tools menu, use Remote Access Administration. From the Server menu, choose Communication Ports and then select Serial/COM port. Choose the Port Status button. The IP address is in the Remote Workstation section.

5. On your desktop PC, launch version 4.0 or higher of Internet Explorer or Netscape Commander.

6. If you access the Internet by using a proxy server, add the IP address to the proxy server exceptions list for every 5020 you want to manage. Use the Internet options in your browser to change the proxy server settings.

7. In the browser Address field, type the 5020 IP address or the serial port IP address that you want to configure and then press Enter:

jjj

xxx.xxx.xxx.xxx

where xxx.xxx.xxx.xxx is the IP address of the 5020. The Unit Management login screen appears on your desktop PC.

3-14

Configuring the 5020

jjjj

8. If security is enabled on the 5020, type the password and then click Submit. If security is not enabled, click Submit. The Unit Management opening screen appears.

helveticacondensed

9. Click Configuration. If the Java 1.2 plug-in is not installed on your PC, it automatically downloads now

from the Sun Microsystems Web site. If you choose to download the plug-in, follow the instructions to download and install it. You can also cancel the download and install the plug-in from the SDK CD-ROM. Once the plug-in is installed on your PC, continue with the next step.

The Intermec 5020 Configuration Management screen appears displaying two menu options:

3-15

5020 Data Collection PC User’s Manual

Helveticcond blk

Configure Choose one of the options to configure data collection, unit, network, and SNMP parameters. You can configure the same parameters using the remote Configuration Management screen as you do using the Configuration application on the 5020. For a list of parameters available in each menu, see the “Configuration Parameters at a Glance” illustration earlier in this chapter.

Troubleshoot Choose this option to check the battery status and view terminal version information. You can check the battery status for the main battery pack and the bridge battery. The terminal version includes the model number, serial number, software version, PCB part number, RFID part number, and the last day serviced.

Note: Do not resize or refresh the Intermec 5020 Configuration Management windows until the web page is completely loaded. If you do resize the window, wait for the web page to refresh and finish loading before you resize or refresh again.

10. Click Data Collection, Unit, Network, SNMP, or Troubleshoot. For example, click Unit.

jjj

11. Click the configuration tab. For example, click Display.



12. Click the parameter you want to change. You may need to click

to expand a

parameter list. The parameter options appear in the lower part of the screen.

13. Change the parameter by clicking an option or check box, selecting from a dropdown list, or typing the new value in the entry field.

14. To save your changes in each configuration screen, click the Apply button.

15. Click Unit and then click Power Management. If necessary, reset the Automatic Shutoff to preserve battery power on the 5020. For help, see “Automatic Shutoff” in Chapter 8.

16. To exit the Configuration Management screen, click another option from the Unit Management menu or exit your Web browser.

17. If you changed any network settings, press ' twice on the 5020 to have the changes take effect. If you changed the UDP Plus enable parameter, warm boot the

5020. For help booting the 5020, see Chapter 9, “Troubleshooting.”

You can also use the Refresh and Defaults buttons in the Configuration Management screens. For help, see “Using the Refresh Button” and “Using the Defaults Button” earlier in this chapter.

3-16

jjjj

Configuring the 5020 by Using SNMP

The 5020 is an SNMP-enabled device. You can use an SNMP management station to control and configure the 5020 anywhere on an SNMP enabled network.

The 5020 supports proprietary Management Information Bases (MIBs). You will find the MIB files for the 5020 in these two places:

• on the Software Developer’s Kit (SDK) and Support Files CD-ROM (Part No.

069511) that shipped with this manual

• on www.intermec.com There are six MIB files:

MIB File Description

intermec.mib Defines the root of the Intermec MIB tree. itcadc.mib Defines objects for Automated Data Collection. For example, bar code

symbologies.

itcfile.mib Defines objects for manipulating and viewing files. For example, TFTP

Timeout.

Configuring the 5020

helveticacondensed

itcnetwork.mib Defines objects for Network parameters. For example, 5020 IP address. itcsnmp.mib Defines objects for Intermec SNMP parameters and security methods.

For example, SNMP security IP address.

itcterminal.mib Defines objects for terminal parameters. For example, keypad clicker.

In addition to the MIB files, Intermec provides SNMP support for MIB II through seven read-only MIB II (RFC1213-MIB) OIDs. You can only query these seven OIDs through an SNMP management station. The OIDs are not available in the Configuration application nor the remote Unit Management application.

The seven read-only MIB II OIDs are listed and defined in the next table.

MIB II Item OID Group or Table Description

ifNumber 1.3.6.1.2.1.2.1.0 Interfaces group Indicates the number of adapters

present in the system. For the 5020, if one adapter is present in the system, then ifNumber = 1 and ifIndex = 1.

ifIndex 1.3.6.1.2.1.2.2.1.1.ifIndex Interfaces table

(ifTable)

ifDescr 1.3.6.1.2.1.2.2.1.2.ifIndex Interfaces table

(ifTable)

A unique value for each interface. The value ranges between 1 and the value of ifNumber.

A textual string c ontaining information about the interface.

3-17

5020 Data Collection PC User’s Manual

jjj

Helveticcond blk

Read-Only MIB II OIDs (continued)

MIB II Item OID Group or Table Description

ifType 1.3.6.1.2.1.2.2.1.3.ifIndex Interfaces table

(ifTable)

ipAdEntAddr 1.3.6.1.2.1.4.20.1.1.IpAddress IP address table

(ipAddrTable)

ipAdEntIfIndex 1.3.6.1.2.1.4.20.1.2.IpAddress IP address table

(ipAddrTable)

ipAdEntNetMask 1.3.6.1.2.1.4.20.1.3.IpAddress IP address table

(ipAddrTable)

The community string allows an SNMP manager to manage the 5020 with a specified privilege level. The default read only community string is “public.” The default read/write community string is “private.”

To configure the 5020 using SNMP

An integer containing infor mation about the type of the interface. It is equal to 1 for Other.

The IP address to which this entry’s addressing information pert ains (same as 5020 IP address).

Where IpAddress is the user’s entered valid non-zero IP address of the 5020, for example, 10.20.10.152.

The index value that uniquely identifies the interface to which this entry is applicable (same as ifIndex).

The subnet mask associated with the IP address of this entry (same as Subnet Mask).

1. Use the Configuration application or the Unit Management application to configure your 5020s for RF or Ethernet communications.

2. Determine the OID (Object Identifier) for the parameter that you want to change. The Intermec base OID is:

1.3.6.1.4.1.1963

3. Use your SNMP management station to get and set variables that are defined in the Intermec MIBs.

You can set the traps, identification, or security configuration parameters for SNMP. For help, see Chapter 8, “Configuration Command Reference.”

3-18

Configuring the 5020

jjjj

helveticacondensed

Configuring the 5020 by Scanning Bar Code Labels

You can configure the 5020 by scanning bar code labels listed in this manual or by creating your own Code 39 or Code 93 bar code labels. For a list of configuration bar codes, see Chapter 8, “Configuration Command Reference.”

Here are the commands that you can configure using bar code labels:

• Automatic Shutoff • Display Backlight Timeout

• Beep Duration • Interleaved 2 of 5

• Beep Frequency • Keypad Caps Lock

• Beep (Speaker) Volume • Keypad Clicker

• Codabar • MSI

• Code 11 • Plessey

• Code 16K • Postamble

• Code 2 of 5 • Preamble

• Code 39 • Scanner Mode

• Code 49 • Scanner Redundancy

• Code 93 • Scanner Selection

• Code 128 • Scanner Timeout

• Decode Priority • Scanner Trigger

• Decode Security • UPC/EAN

You need to configure all other commands using the Configuration application, the Unit Management application, or SNMP.

For example, you can use the Beep (Speaker) Volume configuration command to adjust the volume of the computer’s audio signals. You can scan this bar code label to set the speaker volume to a very quiet audio level:

Set Beep Volume to Very Quiet

*$+BV1*

When you scan bar code configuration commands, the 5020 sounds an audio signal unless the beep volume is turned off. There are two beep sequences:

• Low beep, low beep, high beep, high beep means you scanned a valid configuration

command.

• Three low beeps means you scanned an invalid configuration command.

3-19

5020 Data Collection PC User’s Manual

Helveticcond blk

You can create bar code labels that contain more than one configuration command. For example, you can create one bar code label to configure the computer for:

• One-Shot Scanner mode (SB0)

• Scanner Redundancy set to high (SR2)

One-Shot Scanner Mode, Set Scanner Redundancy to High

*$+SB0SR2*

When you create bar code labels to set one or more configuration commands, follow these rules:

• The bar code label must be printed using Code 39 or Code 93 symbology.

• The bar code label must include the start and stop character. Most bar code printing

utilities automatically include the start and stop character.

• The bar code label must start with $+ (Change Configuration command).

• Each configuration command must include the command syntax and the value for

the command. For example, BV is the command syntax for Beep Volume and the value 4 sets the speaker volume to loud.

jjj

• Each configuration command in a concatenated bar code label must begin with the same character. For example, SB and SR can be set in a single bar code label.

• If you set one configuration command to a string of ASCII characters and another configuration command follows, you must enclose the value in quotes. If you do not include the quotation marks, the computer will interpret everything after the first command as data and will not find the second configuration command.

For example, to set the preamble to BV, use $+ADBV (no quotes are needed). To set the preamble to BV and turn off the beep volume, use $+AD"BV"BV0, or change the order and use $+BV0ADBV. To clear the preamble and postamble from a single label, use $+AD""AE.

• To include quotation marks when you set a value, the entire value must be enclosed in quotation marks. Type two sets of quotation marks ("") to include one quotation mark as the value for a command. For example, to set the preamble to ABC"D, use $+AD"ABC""D".

3-20

Configuring the 5020

jjjj

helveticacondensed

Configuring the 5020 to Operate in a Network

The 5020 Data Collection PC is a versatile hand-held device that you can easily add to your network. You can use the 5020 as an end device in your wired or 2.4 GHz RF network.

There are several ways to connect the 5020 to your network:

• On an RF 5020, use the radio to communicate with other RF devices in your

network.

• On a batch 5020, use an Ethernet PC card (purchased separately) to communicate

with other devices in your network.

• Use the IrDA port or a serial PC card (purchased separately) to transfer data

between the 5020 and a host computer.

To configure your 5020 for an RF or Ethernet network, start with the instructions in the next section. To configure and use your IrDA port, see “Configuring for Serial or IrDA Communications” lat er in thi s chapte r.

Configuring for an RF or Ethernet Network

The 5020 communicates over an RF or Ethernet network using either of these network protocol options:

• TCP/IP

• UDP Plus

The 5020 ships with TCP/IP protocol enabled. In a TCP/IP network, the 5020 communicates directly through the access points or through the Ethernet network to the host or server.

UDP Plus is an Intermec protocol built on top of the User Datagram Protocol (UDP). It maximizes the performance of wireless (RF) networks and provides robust data communications. In a UDP Plus network, the 5020 communicates through the DCS 300 to the host or server. If you have a DCS 300 network, you must enable UDP Plus on the 5020 PC.

3-21

5020 Data Collection PC User’s Manual

Helveticcond blk

5020 in RF and Ethernet Networks

jjj

TCP/IP

5020 5020

Access point

5020 5020

Host

Ethernet

5020U095.eps

UDP Plus

5020 5020

Access point

DCS 300

5020 5020

3-22

The next sections explain how to configure the network parameters (RF or Ethernet), radio parameters, and UDP Plus network parameters.

Configuring the Network Parameters

The network parameters you need to set depend on your network environment. If you are using a DHCP (Dynamic Host Control Protocol) server, the 5020 broadcasts a message to the server and the DHCP server assigns these network parameters:

• IP address

• Subnet mask

• Default router

• Primary and secondary DNS servers

• Primary and secondary WINS servers

DHCP is automatically enabled on the 5020. If you are not using a DHCP server, you need to disable DHCP and set the parameters listed above. You only need to set the DNS and WINS servers if they are required for your network communications.

Configuring the 5020

jjjj

If you are on a network that uses a WINS server or you want to use universal naming conventions (UNC) such as \\computer_name\share_name\filename, you need to set the device name. Follow the next instructions to configure the network parameters and then set the device name. For help with the device name, see “Set Communications Properties” in Chapter 4.

To configure the network parameters on the 5020

1. If you have a batch 5020, install an Ethernet PC card. For help, see “Using PC Cards” in Chapter 2.

2. Use the Configuration application to configure the 5020. To open the Configuration application, press  . Choose Programs and then Configuration.

If you are using a DHCP server, you may not need to configure any additional parameters. Follow the next instructions to view the network parameters and check the DHCP status.

3. Press "   to access the Configure menu.

4. Press ! to select Network and then press &. The Network configuration screen appears.

helveticacondensed

5. For an RF 5020, press 9 to select the Radio tab. For a batch 5020 with an Ethernet PC card, press twice to select the Ethernet tab. Use the illustrations on the next page to find the Radio or Ethernet parameters. For a definition of each parameter, see Chapter 8, “Configuration Command Reference.”

6. Choose IP address to set DHCP, IP address, subnet mask, and default router. If you are not using a DHCP server, you must uncheck or disable the Obtain IP Address via DHCP parameter and then set the IP address and other network parameters.

If you are using a DHCP server, choose DHCP Status to check the IP and server assignments for the 5020. Select the Refresh button to see the current assignments. If you have an RF 5020, you may not see any data until you set the radio parameters in the next section.

Use the 3 (Tab) key and the cursor keys to navigate in the configuration screen. Make the changes you need for each parameter. For help, see “Navigating in the Configuration Application” earlier in this chapter.

3-23

5020 Data Collection PC User’s Manual

Helveticcond blk

Radio and Ethernet Parameters

jjj

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

IP address

Radio

Name servers

TCP/IP extensions

Radio

DHCP status

5020U074.eps

Obtain IP address via DHCP

IP address Subnet mask Default router

Primary DNS Secondary DNS Primary WINS Secondary WINS

Receive window size Initial round trip time Delayed ACK timer

Access Pt name Access Pt MAC address Radio ROM version Radio MAC address Roaming allowed Security ID Transmit mode Domain Inactivity timeout

IP address Subnet mask Default router DNS servers WINS servers

File Edit Configure Troubleshoot

Data Collection Unit Network SNMP

IP address

Ethernet

Name servers

DHCP status

5020U075.eps

Obtain IP address via DHCP

IP address Subnet mask Default router

Primary DNS Secondary DNS Primary WINS Secondary WINS

IP address Subnet mask Default router DNS servers WINS servers

3-24

7. To save your changes, press 3 to select the Apply button and then press &.

8. Choose Name Servers to set the Primary and Secondary DNS and WINS servers. Make the changes you need for each parameter.

9. To save your changes, press 3 to select the Apply button and then press &.

10. Use the next table to continue configuring your 5020.

Type of 5020 Protocol What to do next

RF 5020 TCP/IP Skip the next steps and continue with the next

section, “Configuring the Radio Parameters.”

UDP Plus Skip the next steps and continue with the next

section, “Configuring the Radio Parameters.” Then, use “Configuring UDP Plus Protocol for a DCS 300 Network” later in this chapter.

Ethernet PC Card TCP/IP Continue with Step 11.

UDP Plus Skip the next steps and continue with

“Configuring UDP Plus Protocol for a DCS 300 Network” later in this chapter.

Intermec Data Collection PC, 502O User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Before You Begin

What Is On the CD-ROMs?

How to Use the 5020 Scr ee n

Understanding the Notification Tray Icons

Using the Keypad

Keypad Navigation Shortcuts

Locating the IrDA Port

Connecting a Tethered Scanning Device

Scanning a Bar Code Label

How to Configure the 5020

Using a Web Browser and the Unit Management Application
