Intellinet Network Solutions 530347, 530378 User Manual

GIGABIT ETHERNET DESKTOP SWITCH
USER MANUAL
MODELS 530347 & 530378
Shown: Model 530347, 8- Port
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Gigabit Ethernet Desktop Switch, Model 530347 (8-port) or 530378 (5-port).
Perfect for the home or small ofce, this device’s Gigabit Ethernet ports provide the high performance your network needs for handling the quick
transfer speeds that support disk mirroring, data backup, graphics image
le transfers and other bandwidth-intensive applications. Auto features make it easy to use, too. No conguration is required,
making installation Plug and Play and hassle free. Auto-MDI/MDI-X on
all ports eliminates the need for crossover cables, and each port senses the link speed of any connected network device automatically, adjusting
to 10, 100 or 1000 Mbps for compatibility and maximum performance.
Simple setup means you’ll also soon be enjoying the benets of these
additional features:
• Full ow control support provides optimum performance
• Auto-learning of network conguration
• High performance, half and full duplex, with zero packet loss
• Rugged metal housing for maximum durability
• Supports jumbo frames up to 9.6 kBytes
• Supports up to 8,192 MAC address entries
• 144 kBytes buffer memory
• Lifetime Warranty
FCC Warning
This device has been tested and found to comply with limits for a Class B digital device, pursuant to Parts 2 and 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates and radiates radio frequency energy and, if not installed and used in accordance with the user’s manual, may cause interference, in which case the user will be required to correct such
interference at his own expense.
CE Warning
This is a Class B product. In a domestic environment, this product may cause radio inter ference, in which case the user may be required to take adequate measures.
3
FRONT PANEL
LEDs
100/1000Mbps
Link/ACT
LED Status Operation
Power On Unit is receiving power. Off Unit is not receiving power. LINK/ACT On Corresponding port is connected. Off Corresponding port is not connected. Flashing Corresponding port is transmitting/receiving data. 100/1000 On Port is transmitting/receiving data at high speed. Mbps Off Port is transmitting/receiving data at low speed.
REAR & SIDE PANELS
Power
Power to the Gigabit Ethernet Desktop Switch is supplied by connecting
the included external DC power adapter to the DC input jack on the rear
panel.
4

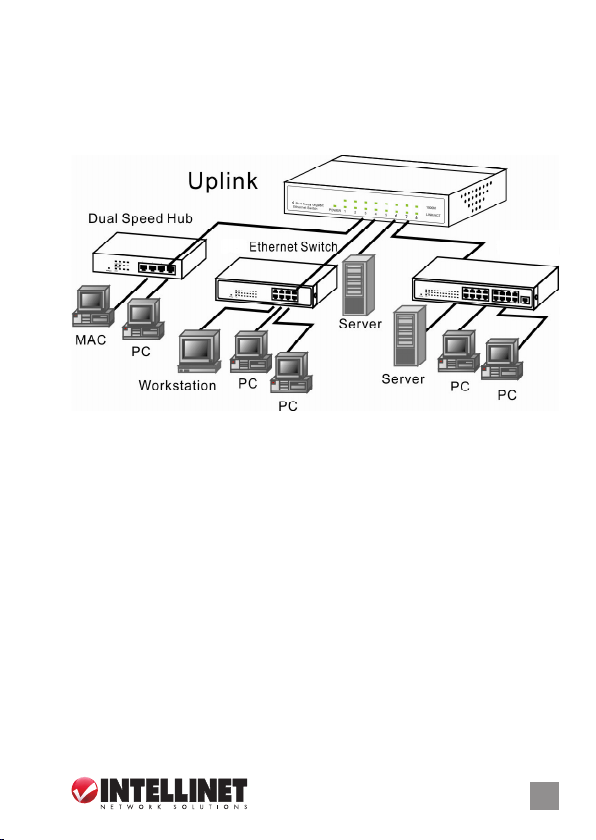

Switch/Hub/PC and Other Network Connections
The Gigabit Ethernet Desktop Switch provides automatic crossover detection for all ports, so it’s ready for connection to other switches, hubs, PCs, servers and such without the need for crossover cable.
Ethernet
Switch
5
SPECIFICATIONS
Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control & Backpressure)
General
• ANSI/IEEE 802.3 NWay auto-negotiation
• Non-blocking, store and forward switching architecture
• Backpressure ow control for half duplex mode on 10/100 Mbps ports
• Connectors: 10/100/1000 Mbps RJ-45 ports (Model 530347: 8; Model 530378: 5)
• Switch architecture: store and forward switch technology
• Network cables:
- 10Base-T: Cat3, 4, 5 UTP/STP
- 100Base-TX: Cat5 UTP/STP
- 1000Base-T: Cat5e UTP/STP
• Certications: FCC Class B, CE Mark, RoHS
Performance
• Filter/forward rate
- 10BaseT: 14,880 pps (packets per sec.)
- 100Base-TX: 148,800 pps (packets/sec.)
- 1000Base-T: 1,480,000 pps (packets/sec.)
• MAC address table: 8,192 entries
• Buffer size:
- Model 530347: 144 kBytes
- Model 530378: 112 kBytes
• Jumbo frame support: 9.6 kB
LEDs
• Power
• LINK/ACT for each 10/100/1000 Mbps port
• 1000 Mbps Link
Power
• DC input: 7.5 V, 0.8 A
• Power consumption:
- Model 530347: 12 Watts (maximum)
- Model 530378: 10 Watts (maximum)
Environmental
• Metal housing, desktop size
• Dimensions:
- Model 530347: 130 x 97 x 25 (WxLxH) mm (5.1 x 3.0 x 1.0 in.)
- Model 530378: 30 x 77 x 25 (WxLxH) mm (5.1 x 3.8 x 1.0 in.)
• Weight:
- Model 530347: 0.35 kg (0.8 lbs.)
- Model 530378: 0.28 kg (0.6 lbs.)
• Operating temp.: 0 – 55°C (32 – 131°F)
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temp.: -20 – 90°C (-4 – 194°F)
Package Contents
• Gigabit Ethernet Desktop Switch
• External power adapter
• User manual
6
INTELLINET NETWORK SOLUTIONS™ offers a complete line
of active and passive networking products.
Ask your local computer dealer for more information or visit
www.intellinet-network.com.
All produ cts m entioned are trademarks or registered trademarks of the ir res pective owners.
