Wireless G USB Adapter user manual

Model 530361

INT-530361-UM-0408-01

Thank you for purchasing the INTELLINET NETWORK SOLUTIONSWireless G USB Adapter, Model 530361.

Compatible with 802.11b and 802.11g wireless access points and routers, this adapter lets you upgrade your wireless network without the need to replace existing equipment. Transfer or receive digital images, videos and MP3 files with link speeds of up to 54 Mbps using proven and reliable

Wireless G technology. With the easy-to-follow instructions in this manual, you’ll soon be able to enjoy the benefits of these additional features:

Connects your notebook or PC to a wireless network

Includes USB stand and extension cable

Turbo Mode technology for enhanced wireless throughput

Supports WEP (64/128 bit), WPA and WPA2 data encryption

Supports Software AP function (turns your wireless client into a wireless access point)

Supports WMM (Wi-Fi Multimedia) for increased multimedia data throughput

Windows 98SE/2000/Me/XP/Vista compatible

Lifetime Warranty

FCC Certifications

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, and should be installed and operated with a minimum distance of 2.5 cm (1 in.) between the radiator and your body.

SAR (specific absorption rate) compliance has been established in laptop computer configurations with a USB port on the side near the center, as tested in the application for certification, and can be used in laptops with substantially similar physical dimensions, construction and electrical and RF characteristics. Use in other devices, such as PDAs or lap pads, is not authorized. This transmitter is restricted for use with the specific antenna(s) tested in the application for certification. The antenna(s) used for this transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999, on radio equipment and telecommunication terminal equipment (R&TTE) and the mutual recognition of their conformity. The R&TTE directive repeals and replaces Directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.

EU Countries Intended for Use

The ETSI version of this device is intended for home/office use in Austria,

Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden and the U.K., and is also authorized for use in EFTA member states Iceland, Liechtenstein,

Norway and Switzerland. (EU countries not intended for use: none.)

table of contents



section

page

Installation...........................................................................................

6

Configuration .....................................................................................

7

Network........................................................................................

9

Profile.................................................................................................

10

Profile Configuration..............................................................

12

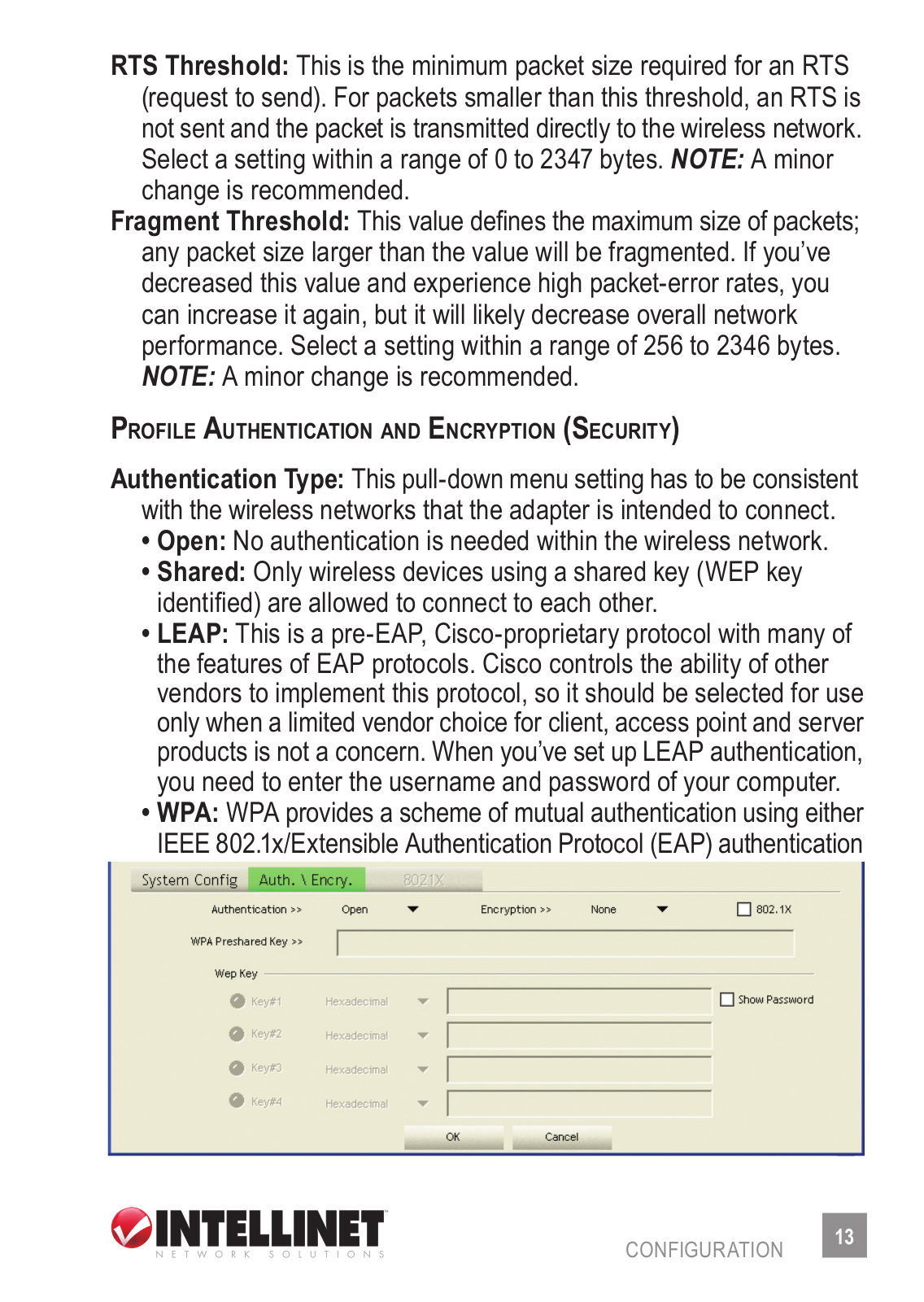

Profile Authentication & Encryption (Security)......................

13

802.1x Setting/Certification....................................................

16

802.1x Setting/CA Server......................................................

17

Statistics.....................................................................................

18

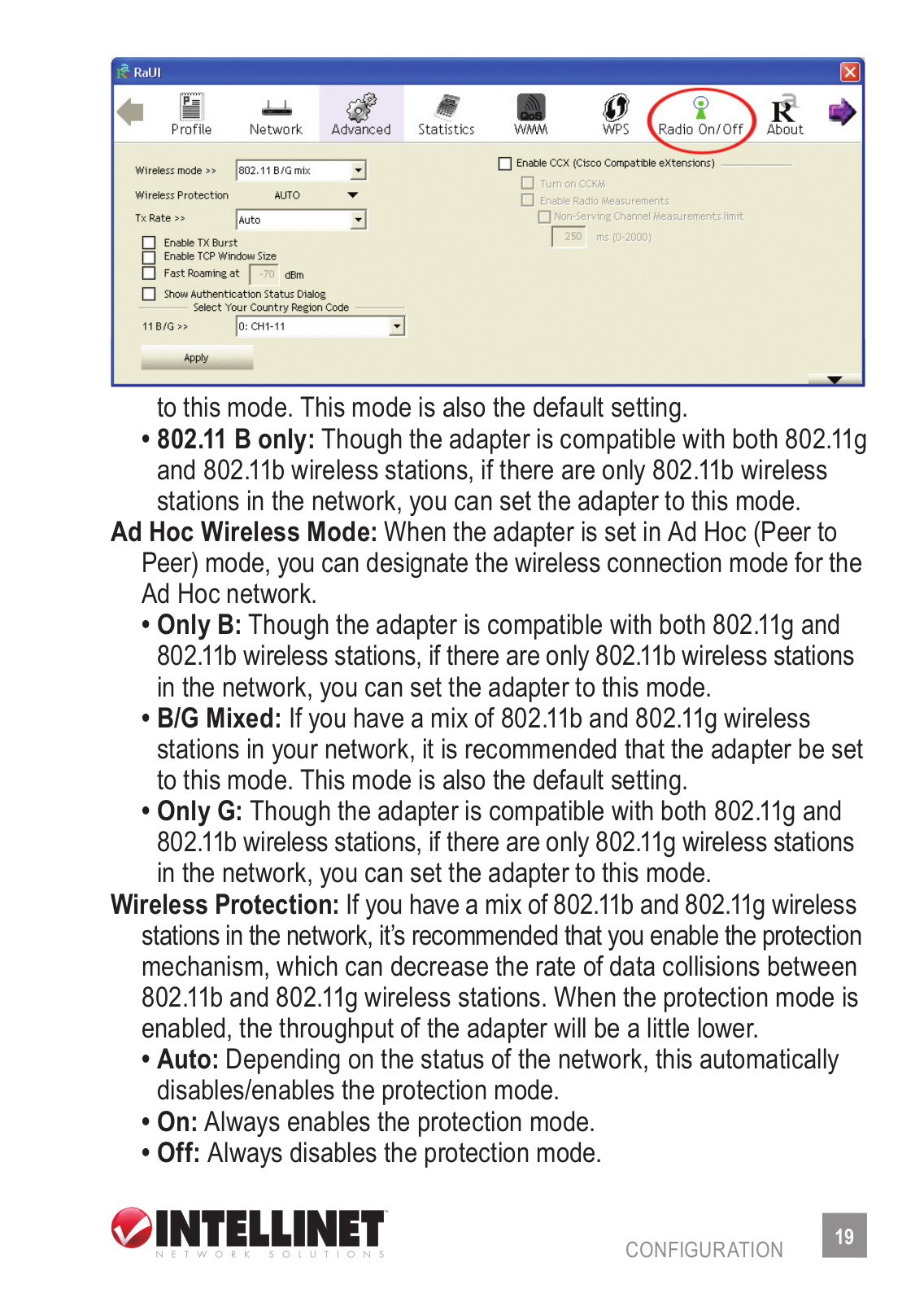

Advanced....................................................................................

18

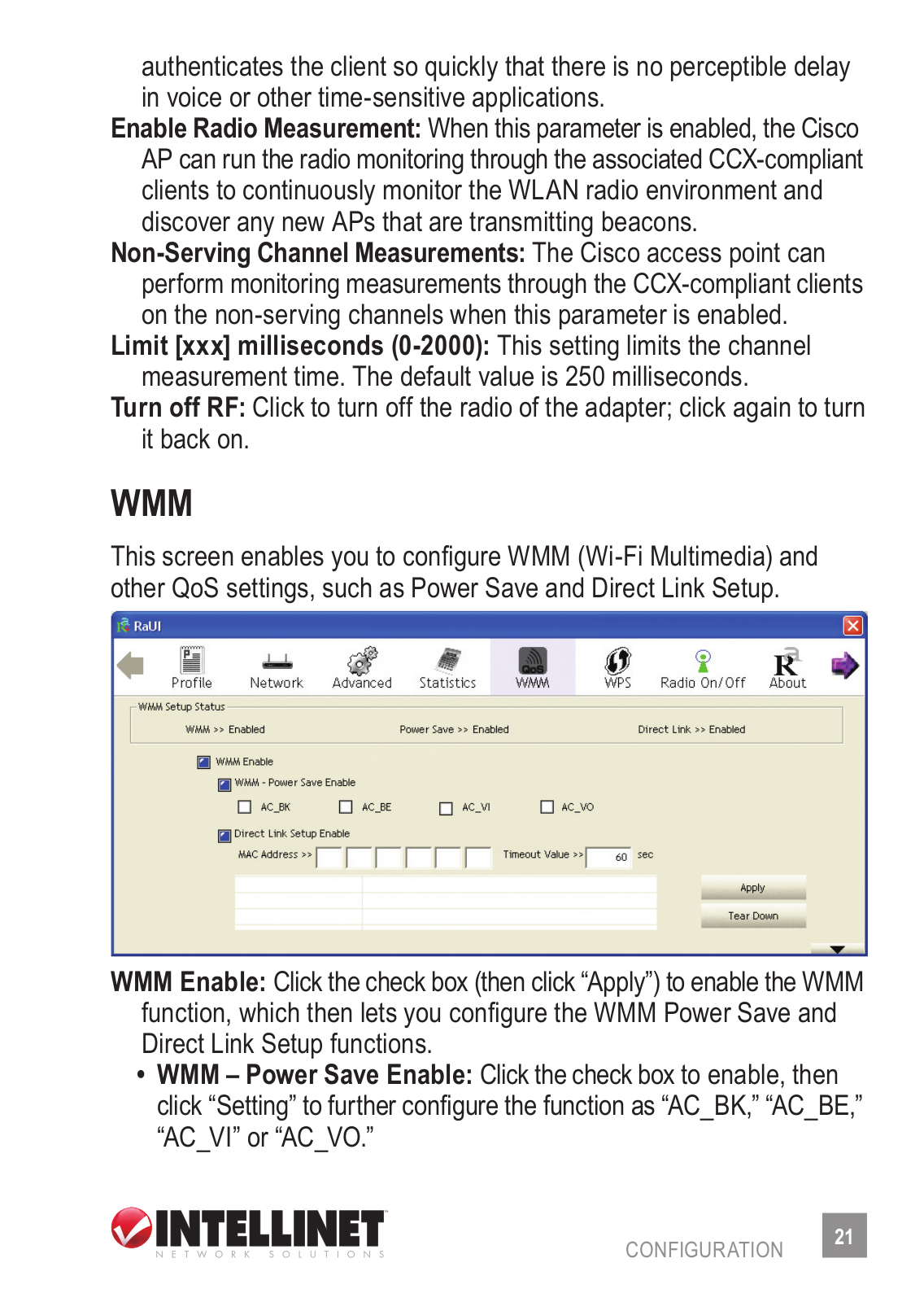

WMM..........................................................................................

21

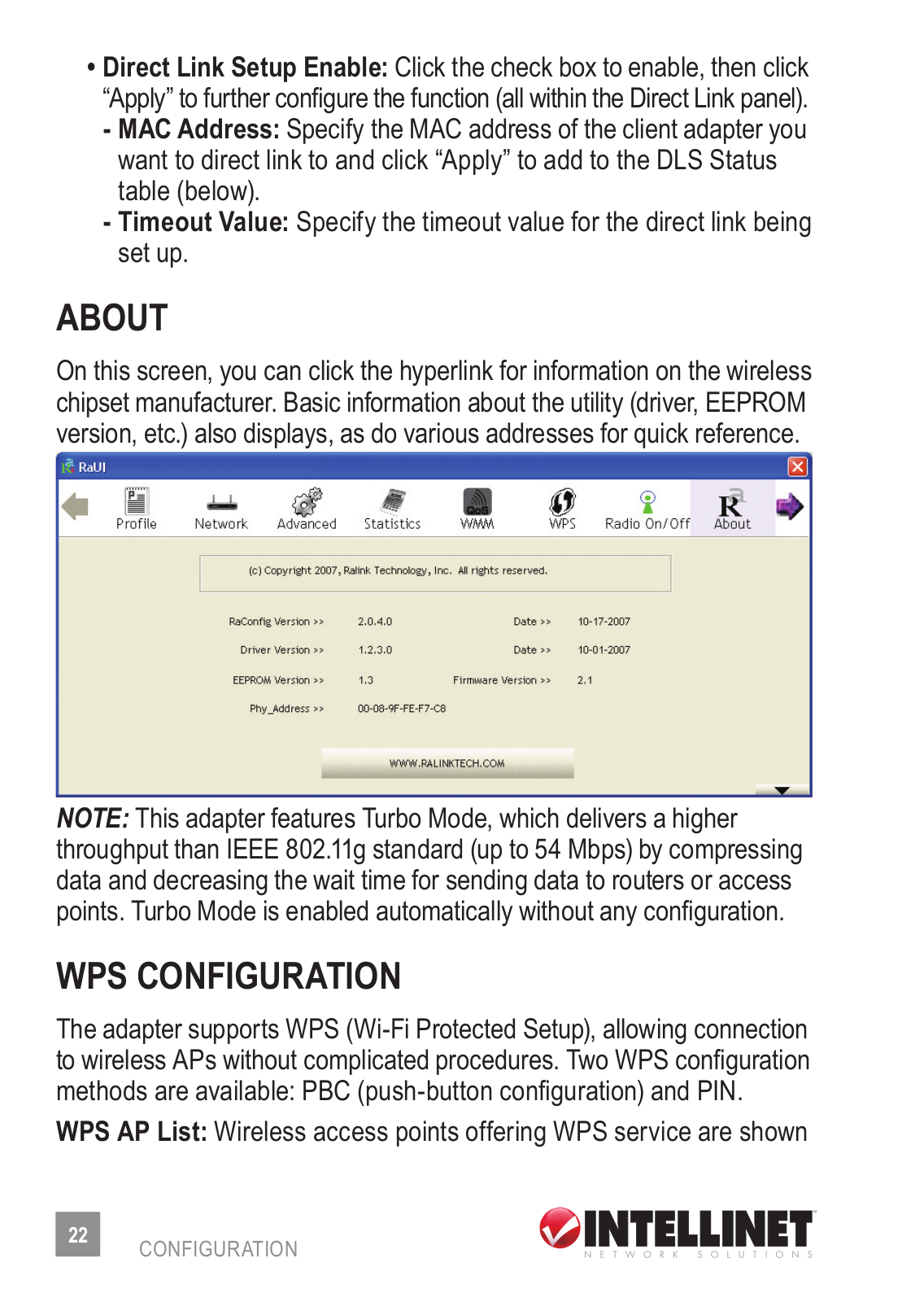

About..........................................................................................

22

WPS Configuration.....................................................................

22

SoftAP......................................................................................................

24

Configuration..............................................................................

24

Security Setting..........................................................................

26

Access Control...........................................................................

28

MAC Table..................................................................................

29

Event Log....................................................................................

29

Statistics.....................................................................................

30

About..........................................................................................

30

Specifications...................................................................................

31

NOTE: Some screen-shot images have been modified to fit the format of this user manual.

CONTENTS

installation

Prior to connecting the Wireless G USB Adapter:

Uninstall any previously loaded versions of the driver and utility.

Install the software program from the CD. NOTE: The following Windows

XP procedure is similar for Windows 98SE/Me/2000/2003/Vista.

1.Insert the setup CD in the CD-ROM drive and run the setup program.

2.Read the license agreement that displays; click “Yes” to proceed.

3.In Windows XP, a “Microsoft (Windows) Zero Configuration Tool” option displays. It’s recommended that the alternative “Ralink Configuration

Tool” option be selected, as it features more functions. Click “Next.”

4.To run the adapter at a higher speed, select “Optimize for performance” to enable the Tx Burst mode. Otherwise, “Optimize for WiFi” sets the adapter to run with a standard wireless network. Click “Next.”

INSTALLATION

5.Once the software installation begins, a Setup Status screen is followed by a prompt to connect the Wireless G USB Adapter to your computer. The system automatically detects the adapter. NOTE: In Windows

Vista, a Found New

Hardware screen appears (above) when the adapter is connected. You can ignore the message, as it disappears once installation is complete.

6.When the Finish screen appears, click “Finish.”

configuration

The configuration utility — which displays automatically once the adapter is connected — is a powerful application that helps you configure the adapter and monitor link status and statistics during the communication process. This adapter will auto-connect to the wireless device that has the better signal strength and no wireless security setting.

CONFIGURATION

The configuration utility appears as an icon in the Windows system tray while the adapter is running. You can

open it by double-clicking on the icon.

In Windows XP, there is a “Windows Zero Configuration Tool” option for setting up wireless clients. If you prefer to use the configuration utility, there are two ways to switch to it instead of using the Windows tool.

Option 1

1.Right-click the utility icon in the system tray and select “Use

RaConfig as Configuration utility.”

Option 2

1.Right-click the icon on the left side

of the system tray and select “View Available Wireless Networks.”

2.Click “Change advanced settings.”

CONFIGURATION

3.Uncheck “Use Windows to configure my wireless network settings” to enable the utility for the adapter. NOTE: If

“Wireless Zero Configuration Tool” is enabled, you can only configure the advanced settings or check the link status and statistics from the configuration utility of the adapter.

NETWORK

When you open the configuration utility, the system scans all the channels to find access points/stations within the accessible range of the adapter and automatically connect to the wireless device with the highest signal strength. On the Network screen, all the networks nearby are listed.

You can change the connection to another network or add one of the networks to your own profile list.

CONFIGURATION

AvailableNetworks: This list shows all available wireless networks within the range of the adapter. It also displays network information: SSID,

BSSID, Signal Strength, Channel, Encryption, Authentication and Network Type. To connect to a network on the list, double-click the item and the adapter will connect automatically to it.

Rescan: Click “Rescan” to collect the new information of all the wireless networks nearby.

Connect: Click “Connect” to connect to the selected network.

Add to Profile: Click to add the selected network to the Profile list.

profile

The Profile screen is for managing networks you connect to frequently. You can add, delete, edit and activate a profile on this screen.

Profile List: The Profile List displays all the profiles and their related settings, including Profile Name, SSID, Channel, Authentication,

Encryption and Network Type.

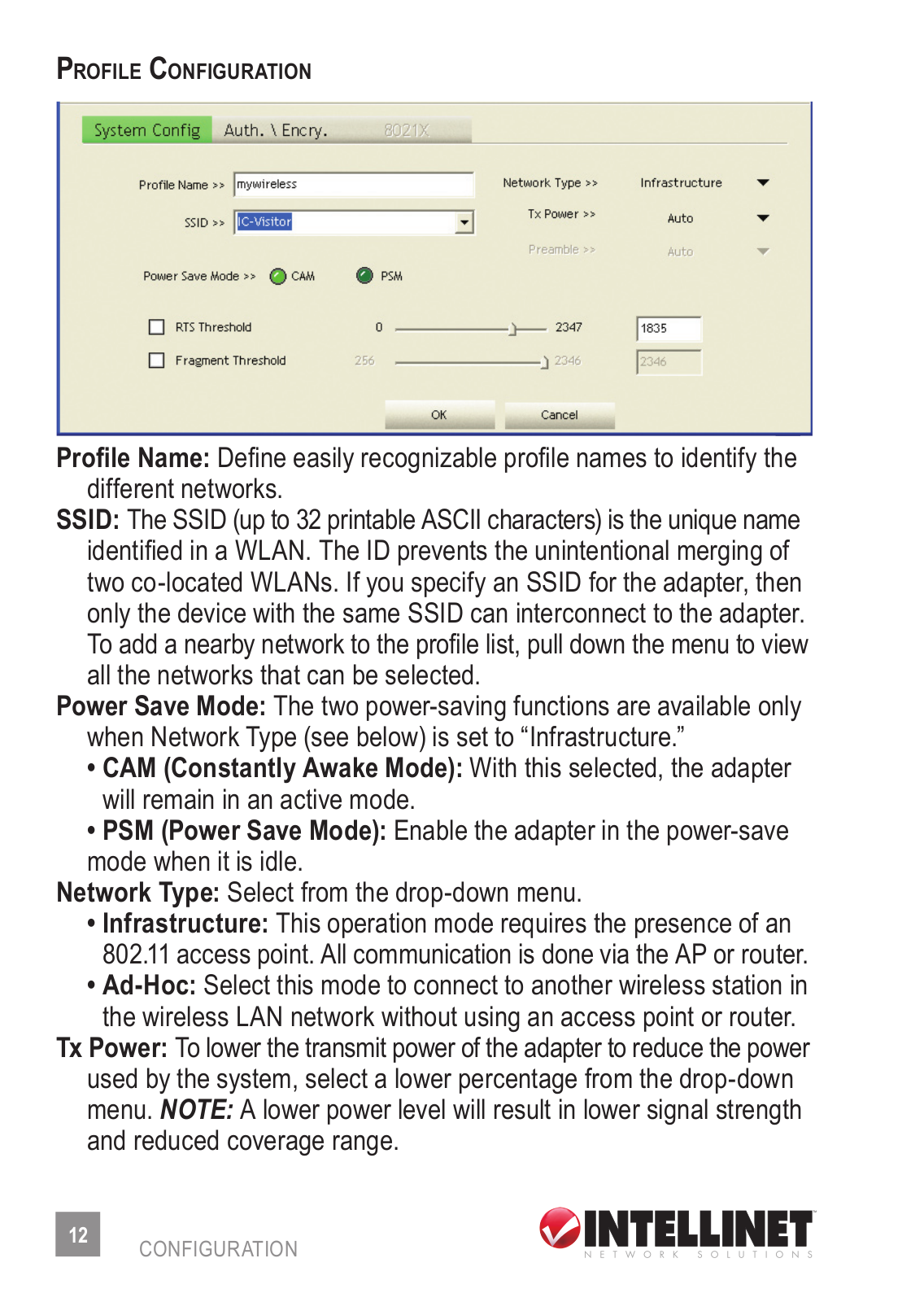

Add, Edit, Delete: Click the corresponding button to add, edit or delete the selected profile(s). Clicking “Add” displays the Add Profile screen, which presents 1) Configuration and 2) Authentication and Encryption (Security).

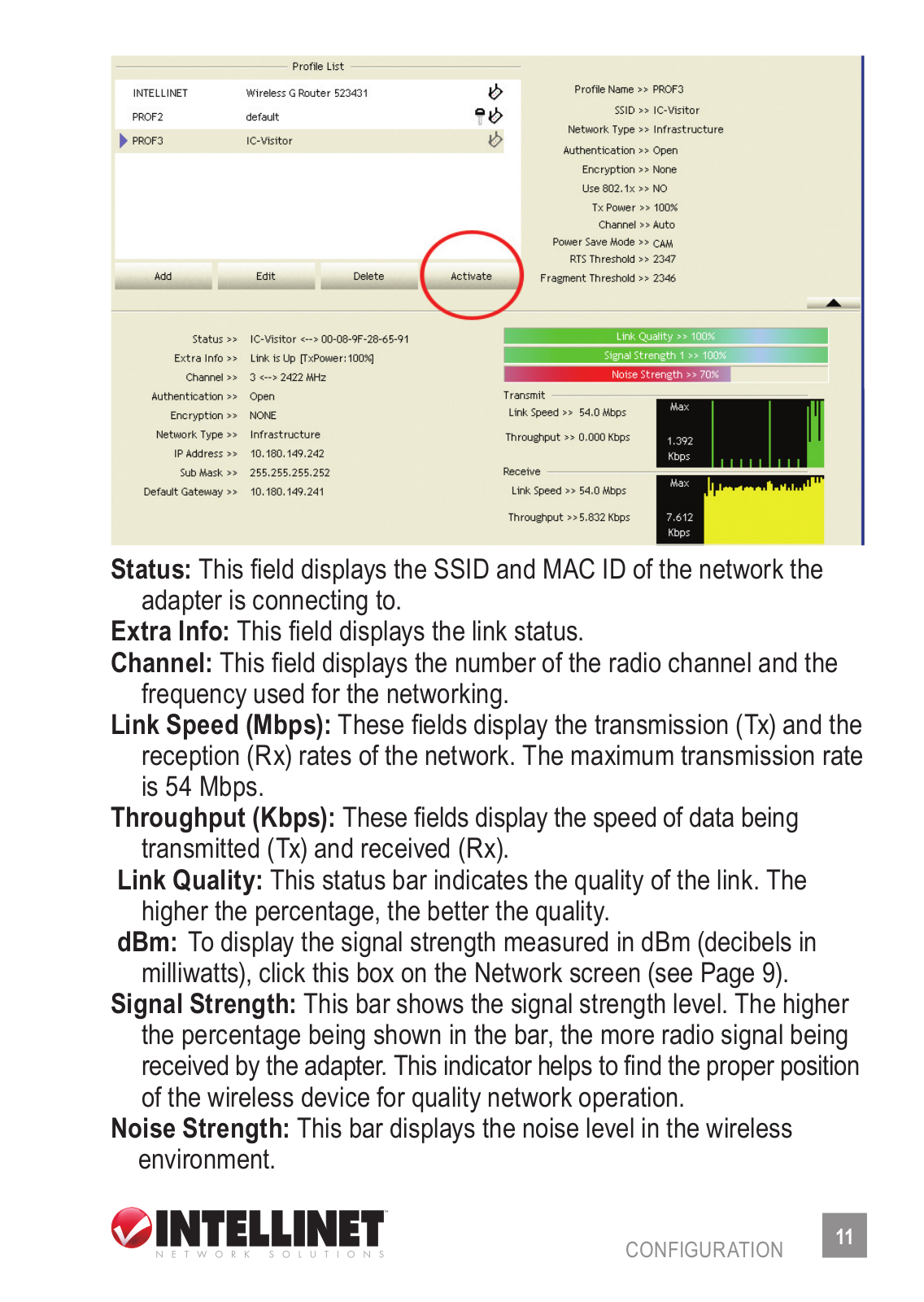

Activate: To display status information about your current wireless connection, select the profile and click “Activate.” When a profile is activated, the adapter will be initially connected to it.

10 CONFIGURATION
