WIRELESS 300N ADSL2+

MODEM ROUTER USER MANUAL

MODELS

524780 (ANNEX A),

524797 (ANNEX B)

INT-524780/524797-UM-1109-03

Federal Communications Commission

Interference Statement

FCC Part 68

This equipment complies with Part 68 of the FCC Rules. On the bottom of this device is a label that contains the FCC registration number and ringer equivalence number (REN) for this equipment. You must provide this information to the telephone company upon request. The REN is useful to determine the quantity of devices you may connect to the telephone line and still have all of those devices ring when your number is called.

In most, but not all areas, the sum of the REN of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area.

If the modem causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isn’t practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper operation of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this modem, contact your dealer for repair/warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

Installation

This device is equipped with a USOC RJ11C connector.

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1.Reorient or relocate the receiving antenna.

2.Increase the separation between the equipment and receiver.

3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4.Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided instructions, and a minimum of 20 cm spacing must be provided between computer-mounted antenna and a person’s body (excluding extremities of hands, wrists and feet) during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference; and 2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding these limits, human proximity to the antenna shall not be less than 20 cm (8 inches)

during normal operation. The antenna(s) used for this transmitter must not be colocated or operating in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999, on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines must therefore be followed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway and Switzerland.

EU Countries Not Intended for Use

None.

Contents

1

INTRODUCTION .....................................................................

1

2 HARDWARE ..........................................................................

3

3

SETUP WIZARD .....................................................................

6



3.1

Getting Started ...........................................................................................

6



3.2

Automatically Set the ISP ...........................................................................

9



3.3

Manually Set the ISP ................................................................................

12

4

IP ADDRESS SETTING ..........................................................

17





Windows Vista..........................................................................................

17





Windows XP .............................................................................................

18





Windows 2000..........................................................................................

19

5 WEB MANAGEMENT CONFIGURATION ..................................

21



5.1 Quick Setup ..............................................................................................

23



5.2 General Setup ..........................................................................................

25



5.2.1 System ...............................................................................................

25





5.2.1.1 Time Zone ...................................................................................

25





5.2.1.2

Password Settings ......................................................................

26





5.2.1.3 Remote Management..................................................................

27





5.2.1.4 SNMP ..........................................................................................

29



5.2.2 WAN...................................................................................................

30





5.2.2.1

Channel Config ...........................................................................

30





5.2.2.2

ATM Setting ................................................................................

34





5.2.2.3

ADSL Setting...............................................................................

36





5.2.2.4 DNS.............................................................................................

37





5.2.2.5 DDNS ..........................................................................................

38





5.2.2.6

RIP ..............................................................................................

39



5.2.3 LAN ....................................................................................................

41





5.2.3.1 DHCP Mode ................................................................................

43





5.2.3.2 DHCP Relay ................................................................................

43





5.2.3.3 DHCP Server ..............................................................................

44





5.2.3.4 ARP Table ...................................................................................

46





5.2.3.5

Bridging .......................................................................................

46



5.2.4 Wireless .............................................................................................

47





5.2.4.1

Basic Settings .............................................................................

47



5.2.4.2

Advanced Settings ......................................................................

49



5.2.4.3

Security .......................................................................................

53



5.2.4.4

Access Control ............................................................................

55



5.2.4.5 WPS ............................................................................................

56



5.2.5 QoS....................................................................................................

58



5.2.6

NAT (Network Address Translations) ................................................

60



5.2.6.1 Port Forwarding............................................................................

61



5.2.6.2

Port Mapping ...............................................................................

62



5.2.6.3 UPNP ..........................................................................................

64



5.2.6.4 IGMP Proxy .................................................................................

65



5.2.7

Firewall...............................................................................................

66



5.2.7.1

IP/Port Filtering ...........................................................................

66



5.2.7.2

MAC Filtering ..............................................................................

68



5.2.7.3

URL Blocking ..............................................................................

70



5.2.7.4

Domain Blocking .........................................................................

71



5.2.7.5

Routing Configuration .................................................................

72



5.2.7.6

ACL Configuration .......................................................................

74



5.2.7.7 DMZ.............................................................................................

75



5.3 Status .......................................................................................................



76



5.3.1

Interface .............................................................................................

77



5.3.2 ADSL .................................................................................................

78



5.4 Tools.........................................................................................................



79



5.4.1

Configuration Tools............................................................................

79



5.4.2 Firmware Upgrade .............................................................................

80



5.4.3

Ping....................................................................................................

80



5.4.4 ATM Loopback...................................................................................

81



5.4.5

Diagnostic Test ..................................................................................

82



5.4.6

Reboot ...............................................................................................

82

6

TROUBLESHOOTING ............................................................

83

7

GLOSSARY ..........................................................................

87

8

SPECIFICATIONS .................................................................

92

1 Introduction

Thank you for purchasing this INTELLINET NETWORK SOLUTIONSTM Wireless 300N ADSL2+ Modem Router, Model 524780 (Annex A) or Model 524797 (Annex B).

This is an all-in-one modem, router, Wireless N access point, firewall and Fast Ethernet four-port switch that allows you to access the Internet and download music, play interactive games online or surf the Web at double the speed (depending on operating environment and distance between networked devices) previously available through ADSL2.

Features of this router include:

2T2R MIMO technology for enhanced throughput and coverage

Supports ADSL standards G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitterless ADSL2) and G.992.5 (ADSL2+) for Annex A

Supports 24 Mbps ADSL2+ downstream data rate

Supports Wi-Fi Protected Setup (WPS)

Supports WEP and WPA/WPA2 (TKIP and AES) data encryption

Integrated 10/100 Mbps LAN switch with Auto MDI/MDI-X support

DHCP server assigns IP addresses for all LAN users

DHCP server supports static lease management

Supports virtual server, port forwarding and DMZ

Supports DDNS (dynamic DNS)

Supports UPnP (Universal Plug and Play)

Integrated SPI firewall

QoS (Quality of Service) bandwidth management

VPN Passthrough (PPTP, IPSec, L2TP)

Supports SNMP management

Easy installation through Web-based user interface

Complies with 2.4 GHz Draft IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards

System status

Security log

Firmware upgradeable

Three-Year Warranty

1

Minimum Requirements

A PC with pre-installed Ethernet adapter (required) and a Web browser (Internet Explorer 4.0 or higher)

RJ45 Ethernet crossover cable (included in the package)

RJ11 (ADSL-ready) phone line

Package Contents

ADSL 2+ Router (Annex A or B)

Power adapter

Ethernet Cat5 RJ45 cable, 1.0 m (3 ft.)

RJ11 telephone cable, 1.8 m (5.9 ft.)

Quick installation guide

Setup CD with user manual

2

2 Hardware

Rear Panel

Antenna A



Antenna B







Item Name

Description

Antenna A/B

These antennas are 3dBi dipole antennas.

Radio

Position the switch to activate or deactivate the wireless

ON/OFF

functions.

Reset / WPS

Reset the router to factory default settings (clear all settings)



or start the WPS function. Press this button and hold for 10



seconds to restore all settings to factory defaults; press this



button for less than 5 seconds to start the WPS function.

1 - 4

The router’s 4 LAN ports are where you connect your LAN’s



PCs, printer servers, hubs and switches, etc.

ADSL

Connect the supplied RJ11 telephone line to this port and



your ADSL/telephone network.

Power

Plug the included power adapter into the power jack.

3

Front Panel

On the router’s front panel, there are LEDs that inform you of the router’s current status, as explained below.

LED

Status

Description

POWER (Green)

On

WLAN (Yellow)

On



Off



Blinking

ADSL (Green)

On



Blinking

LAN LNK/ACT (Port 1-4)

On



Off



Blinking

Router is switched on and correctly powered.

Wireless LAN WPS is on.

Wireless LAN is disabled.

Wireless traffic is transmitting or receiving.

Connected to an ADSL DSLAN successfully.

ADSL line is not connected to Internet.

The LAN cable is connected to the router. No network connection.

Network traffic transferring or receiving through the LAN port.

4

Installation

1.Connect the router to your ADSL cable through the supplied RJ11 cable.

2.Connect the router to your PC, hub or switch by attaching the Ethernet cable to the LAN port of the router.

3.Connect the power adapter to the power jack on the rear panel of the router.

4.The ADSL LED will be on if the router is connected to the ADSL cable and receives the ADSL signals successfully. If the LED is blinking, contact your ISP (Internet service provider) to check the problem.

NOTE: Use only the power adapter included with the router, and not any other power adapter.

5

3 Setup Wizard

This router provides a Setup Wizard tool to configure the ADSL settings. This wizard collects some ISPs’ ADSL settings so that you can easily configure the router’s ADSL settings by only selecting the ISP vendor from the wizard.

If you cannot find your ISP from the list in the wizard, manually set the ISP information through the wizard.

3.1 Getting Started

Before starting, check the following items:

1.Make sure that you have connected the ADSL cable to the router correctly.

When the ADSL cable is worked normally, the ADSL LED will be on.

2.Un-install any dial-up programs installed previously for the USB modem or other dial-up devices.

3.It is recommended that you initially configure the router through the Ethernet cable before you set the wireless functions.

This wizard can be run in Windows 98SE/Me/2000/XP/Vista. The following procedures are operated in Windows XP. (Procedures are similar for Windows 98SE/Me/2000/Vista.)

1.Insert the enclosed setup CD into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from the “Autorun” folder on the CD.

2.The following screen will be displayed. Click “Setup Wizard.”

6

3.The wizard will run and try to search for the router. If the router is found, the wizard will guide you to Step 5.

7

4.If the router cannot be found, enter the IP address and the password of the router to search again. Click “Next” to continue.

5.The wizard will automatically select the country you are in by checking the language of the operating system in your computer and then advance to the Select ISP screen. Select the ISP. If you cannot find the ISP, click “Other” to reselect the country or manually configure the ISP information.

8

3.2 Automatically Set the ISP

If you can find the ISP from the wizard, follow the procedures below to let the wizard set the ISP settings automatically.

1. Select the ISP of your ADSL service.

2. Enter the username and password that your ISP has provided to you, if needed. Click “Next.”

9

3. Click “Save” to save the settings and reboot the router.

4.After saving and rebooting the router, the ISP settings are completed. The wizard will then help to set your computer to obtain an IP address from the router automatically.

NOTE 1: To use the router to access the Internet, the IP address of each PC needs to be set in the same network segment as the router. The wizard will help to set the proper IP address for your computer.

NOTE 2: By default, the router’s DHCP server is enabled. If it is disabled before running the wizard, the wizard will enable the DHCP server automatically.

10

5.The wizard will try to connect to the ISP you have selected. If the connection fails, run the wizard to select the ISP again.

6.If you successfully connect to the ISP, you will see the screen below. To configure additional settings, click “Advanced Settings” to go the Web management of the router, or click “Finish” to close the wizard.

11

5.3 Manually Set the ISP

If you cannot find the ISP from the wizard, follow the steps below to set the ISP settings manually.

Before configuring the ISP manually, check with your ISP (Internet service provider) as to what kind of service is provided, such as PPPoE, PPPoA or RFC1483/2684. Gather the information as illustrated in the following table and keep it for reference.

PPPoE

VPI/VCI, VC-based/LLC-based multiplexing, Username,



Password (and Service Name).

PPPoA

VPI/VCI, VC-based/LLC-based multiplexing, Username,



Password.

RFC1483 Bridged

VPI/VCI, VC-based/LLC-based multiplexing to use Bridged



Mode.

RFC1483 Routed

VPI/VCI, VC-based/LLC-based multiplexing, IP Address,



Subnet Mask, Gateway Address, and Domain Name



System (DNS) IP Address (It is a fixed IP Address).

1. Select “Other.”



12

2.Check with your ISP as to the connection type of the ADSL line. Select the

Connection Type and click “Next.”

3. Input the VPI, VCI and encapsulation data supplied by your ISP. If the Connection Type is “Static IP Address,” you need to input the IP address information supplied by your ISP. For details about each setting, refer to

Section 5.2.

13

4.Enter the username and password that your ISP has provided to you, if needed. Click “Next.”

5. Click “Save” to save the settings and reboot the router.

6.After saving and rebooting the router, the ISP settings are completed. The wizard will then help to set your computer to obtain an IP address from the

14

router automatically.

NOTE 1: To use the router to access the Internet, the IP address of each PC needs to be set in the same network segment as the router. The wizard will help to set the proper IP address for your computer.

NOTE 2: By default, the router’s DHCP server is enabled. If it is disabled before running the wizard, the wizard will enable the DHCP server automatically.

7.The wizard will try to connect to the ISP you have selected. If the connection fails, run the wizard to select the ISP again.

15

8.If you successfully connect to the ISP, you will see the screen below. To configure additional settings, click “Advanced Settings” to go to the Web management of the router, or click “Finish” to close the wizard.

16

4 IP Address Setting

To use the router to access the Internet, the PCs in the network must have am Ethernet adapter installed and be connected to the router either directly or through a hub or switch. The TCP/IP protocol of each PC needs to be installed, and the IP address of each PC has to be set in the same subnet as the router.

The router’s default IP address is 192.168.2.1 and the subnet mask is 255.255.255.0. PCs can be configured to obtain an IP address automatically through the DHCP server of the router, or with a fixed IP address in order to be in the same subnet as the router. By default, the DHCP server of the router is enabled and will dispatch an IP address to the PC in the range of 192.168.2.100 to 192.168.2.200. It is strongly recommended that you obtain the IP address automatically.

This section shows you how to configure your PC so that it can obtain an IP address automatically for Windows 95/98/Me, 2000 or NT operating systems. For other operating systems (Macintosh, Sun, etc.), follow the manual of the operating systems. The following are step-by-step procedures for configuring your PC to obtain an IP address automatically for Windows Vista, Windows XP and Windows 2000.

Windows Vista

1.Click “Start” and select “Settings,” then select “Control Panel.” Double-click “Network and Sharing Center”; the Network and Sharing Center window will appear.

2.Click “Manage network connections”; right-click on the Local Area Connection icon and select “Properties.” The Local Area Connection window will appear.

3.Check your list of Network Components. You should see “Internet Protocol Version 4 (TCP/IPv4)” on your list. Select it and click “Properties.”

4.In the Internet Protocol Version 4 (TCP/IPv4) Properties window, select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” as shown on the following screen.

17

5. Click “OK” to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

NOTE: Make sure that the router’s DHCP server is the only DHCP server available on your LAN.

Windows XP

1.Click “Start” and select “Control Panel”; then double-click “Network Connections.” The Network Connections window will appear.

2.Right-click on the Local Area Connection icon and select “Properties.” The Local Area Connection window will appear.

3.Check your list of Network Components. You should see “Internet Protocol [TCP/IP]” on your list. Select it and click “Properties.”

4.In the Internet Protocol (TCP/IP) Properties window, select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” as shown on the following screen.

18

5.Click “OK” to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

NOTE: Make sure that the router’s DHCP server is the only DHCP server available on your LAN.

Windows 2000

1.Click “Start” and select “Settings,” then click “Control Panel.” The Control Panel window will appear.

2.Double-click the Network and Dial-up Connections icon. In the Network and

Dial-up Connection window, double-click the Local Area Connection icon. The Local Area Connection window will appear.

3.In the Local Area Connection window, click “Properties.”

4.Check your list of Network Components. You should see “Internet Protocol

[TCP/IP]” on your list. Select it and click “Properties.”

19

5.In the Internet Protocol (TCP/IP) Properties window, select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” as shown on the following screen.

6.Click “OK” to confirm the setting. Your PC will now obtain an IP address automatically from your router’s DHCP server.

NOTE: Make sure that the router’s DHCP server is the only DHCP server available on your LAN.

20

5 Web Management Configuration

Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP server will automatically give your LAN clients an IP address. By default, the router’s DHCP server is enabled so you can obtain an IP address automatically.

Once your PC has obtained an IP address from your router, enter the default IP address 192.168.2.1 (router’s IP address) into your PC’s Web browser and press <Enter> on your keyboard.

The login screen below will appear. Fill in the “User Name” and “Password” text fields, then click “OK” to log in. By default, the username is “admin” and the password is “1234.” For security reasons, it is recommended that you change the password as soon as possible.

The HOME screen screen below will appear. The Home Screen is divided into four sections: Quick Setup, General Setup, Status, Tools.

21

Quick Setup (Section 5.1)

The Quick Setup Wizard provides only the necessary configurations to connect your router to your Internet service provider (ISP).

General Setup (Section 5.2)

The router supports advanced functions like virtual server, access control, hacker attack detection and DMZ. It’s highly recommended that you keep the default settings.

Status (Section 5.3)

The status section provides the following information about your router: hardware/firmware version, serial number and its current operating status.

Tools (Section 5.4)

Tools include configuration tools, firmware upgrading and reset configuration tools that allow you to back up, restore or restore to factory default settings.

22

5.1 Quick Setup

The Quick Setup section is designed to get you using the router as quickly as possible. Before configuring the router, check with your ISP (Internet service provider) as to what kind of the service is provided, such as PPPoE, PPPoA or RFC1483/2684. Gather the information as illustrated in the table below and keep it for reference.

PPPoE

VPI/VCI, VC-based/LLC-based multiplexing, Username,



Password (and Service Name).

PPPoA

VPI/VCI, VC-based/LLC-based multiplexing, Username,



Password.

RFC1483 Bridged

VPI/VCI, VC-based/LLC-based multiplexing to use Bridged



Mode.

RFC1483 Routed

VPI/VCI, VC-based/LLC-based multiplexing, IP Address,



Subnet Mask, Gateway Address, and Domain Name



System (DNS) IP Address (It is a fixed IP Address).

1. Click “Quick Setup” and the following screen will be displayed.

23

2. Select the country you’re in and your ISP (Internet service provider).

3.Enter the username and password your ISP has provided to you, if needed. Click “Finish” to save the settings.

4. Click “Commit and Reboot” to reboot the router.

24

5.2 General Setup

Start your Web browser and log on to the Web management interface of the router, then either click “General Setup” on the left menu or click the “General Setup” link at the upper-right corner of the Web management interface.

5.2.1 System

This screen includes the basic configuration tools for the router’s remote management access function.

5.2.1.1 Time Zone

Time Zone allows your router to set its time, especially useful when recording System Log entries.

Parameter

Description

Current Time

The current time of the specified time zone. You can set



the current time yourself or configure it via SNTP server.

Time Zone Select

Select the time zone of the country you are in. The router



will set its time based on your selection.

Enable SNTP client

Check the box to enable the router to update time from

update

the SNTP server.

SNTP server

The IP address or the host name of the SNTP server.



You can select from the list or set it manually.

25

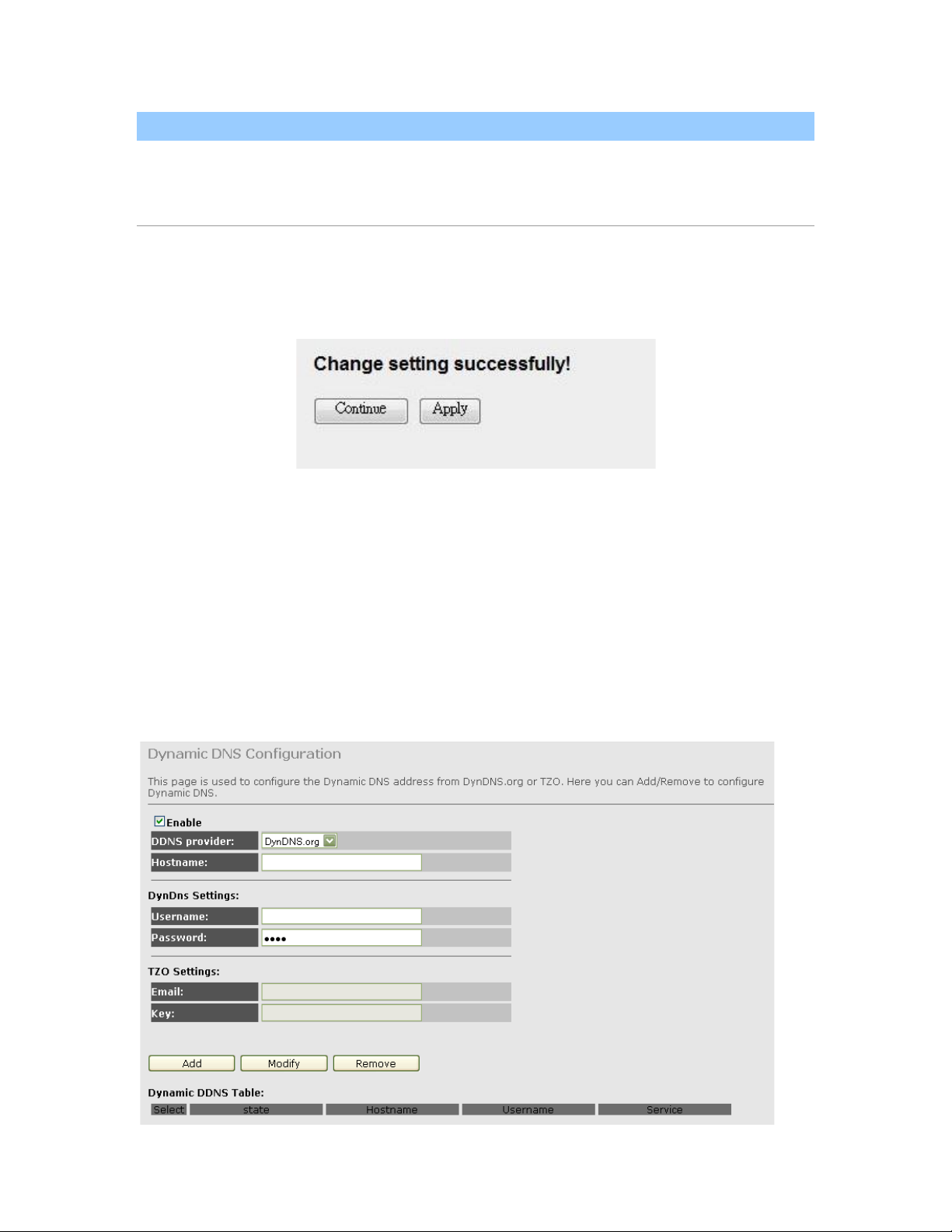

When you finish, click “Apply Changes.” You’ll see the following message displayed on Web browser.

Click “Continue” to save the settings made and go back to the Web management interface; click “Apply” to save the settings and restart the router so the settings will take effect after it reboots.

5.2.1.2 Password Settings

This screen allows you to set the password to access the Web server of the router. Select the “admin” (as administrator) or “user” (as user) account and configure the password.

When you finish, click “Apply Changes.”

If the passwords you entered in the “New Password” and “Confirmed Password” fields are not the same, you’ll see the following message:

Re-enter the new password again when you see above message.

26

+ 72 hidden pages
