Intel MS-6112 User Manual

CHAPTER 1 INTRODUCTION

Chapter 1

INTRODUCTION

The MS-6112 is a high-performance personal computer mainboard based on the Pentium® II processor.

The mainboard uses the highly integrated Intel® 82440LX AGPset which optimize the system bandwidth and concurrency with the implementation of Quad Port Acceleration (QP A). QPA provides 4-port concurrent arbitration of the processor bus, graphics, PCI bus and SDRAM.

The Intel® 82371AB chipset integrates all system control functions such as ACPI (Advanced Configuration and Power Interface). The ACPI provides more Energy Saving Features for the OSPM(OS Direct Power Management) function. The Intel® 82371AB chipset also improves the IDE transfer rate by supporting Ultra DMA/33 IDE that transfers data at the rate of 33MB/s.

The mainboard also supports the LM78 System Hardware Monitor Controller as optional function. The LM78 function includes: CPU /power supply/chassis fan revolution detect, CPU/system voltage monitor, system temperature monitor, and chassis intrusion detect(optional).

1-1

CHAPTER 1 INTRODUCTION

1.1 Mainboard Features

CPU

l Slot 1 for Pentium l Supports 200MHz, 233MHz, 266MHz, 300MHz, and 333MHz. l Core/Bus ratios are x2, x2.5, x3, x3.5, x4, x4.5, x5, x5.5, x6 and higher.

Switching V oltage Regulator

l On-board switching mode DC-DC Step Down Regulator. l Conforms to Intel l Over-Voltage and Over-Current protection.

Chip Set

l Intel

82440LX PCI Chipset.

Clock Generator

l 66.6MHz clocks are supported.

Main Memory

l Supports six memory banks using three 168-pin unbuffered DIMM

sockets.

l Supports a maximum memory size of 512MB with SDRAM, or 1GB with

EDO.

l Supports ECC(Error Check Correct) and EC(Multiple-Bit Error Correction)

function.

l Supports 3.3v Extended Data Output (EDO) and SDRAM DIMM.

II processor

VRM ver 8.1 specifications.

Slots

l One AGP(Accelerated Graphics Port) slot.

- AGP specification compliant

- AGP 66/133MHz 3.3v device support

l Three 32-bit Master PCI Bus slots and four 16-bit ISA bus slots wherein

one shared slot that can be used as ISA or PCI.

l Supports 3.3v/5v PCI bus Interface.

1-2

CHAPTER 1 INTRODUCTION

On-Board IDE

l An IDE controller on the Intel

82371AB PCI Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.

l Can connect up to four IDE devices.

On-Board Peripherals

l On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports

- 1 IrDA connector for SIR.

BIOS

l The mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

l The mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

On-Board System Hardware Monitor(LM78)

l CPU/Power Supply/Chassis Fan Revolution Detect l CPU Fan Control (the fan will automatically stop when the system enters

suspend mode)

l System Voltage Detect l Chassis Intrusion Detect(reserved) l Display Actual Current V oltage

RTC

l Non-Volatile R TC.

Keyboard Connector

l PS/2® keyboard interface and PS/2® mouse interface.

1-3

CHAPTER 1 INTRODUCTION

Dimension

l A TX Form Factor: 30cm(L) x 23cm(W) x 4 layers PCB. l Double deck I/O connectors, compatible with Intel

Venus Mainboard.

Mounting

l 9 mounting holes.

1-4

CHAPTER 1 INTRODUCTION

1.2 Mainboard Layout

Top: mouse Bottom: keyboard

USB Top: Port 1 Bottom:

Port 2

Top: LPT

Bottom:

COM A

COM B

JFAN

KBC

LM75

(optional)

PSFAN1

Power Supply

CFAN1

ATX

LM78

(optional)

SLOT 1

FDC

BATT

JBAT1

IDE2

JSW1

SW1

IDE1

JSW2 JGL1

JFP1

DIMM 3

DIMM 2

J10

Chassis Intrusion

Sensor

(optional)

DIMM 1

Clock

Generator

IR1

FW82443LX

AGP

PCI SLOT 1

PCI SLOT 2

PCI SLOT 3

FW82371AB

ISA SLOT

BIOS

JLG1

ISA SLOT

JMODE1

SFAN1

MS-6112

1-5

CHAPTER 2 HARDWARE INSTALLATION

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with Intel® Pentium® II processor . The mainboard uses a CPU Slot called Slot 1 for easy CPU installation and a DIP switch (SW1) to set the proper speed for the CPU. The CPU should always have a Heat Sink and a cooling fan attached to prevent overheating.

2-1

CHAPTER 2 HARDWARE INSTALLATION

2.1-1 CPU Installation Procedures

There are two kinds of Pentium® II processor that is currently used: the OEM Pentium® II processor and the Boxed Pentium® II processor . OEM Pentium® II processor has no Heat Sink, Fan and Heat Sink Support, while the Boxed Pentium® II processor is provided with Heat Sink w/ fan and Heat Sink Support.

A. OEM Pentium® II processor Installation Procedures

Processor Lock

Pentium Processor

Heat Sink Support Top Bar

Heat Sink W/Fan

Notch Hole

Retention Mechanism

Heat Sink Support Base

Heat Sink Support Pin

Required Things:

Pentium® II processor - Processor . *Retention Mechanism(RM) - Plastic Guide that holds the S.E.C. Catridge

in the Slot 1 connector.

*Retention Mechanism Attach Mount(RMAM) - Bolt/Bridge assemblies

inserted up through the bottom of the motherboard. RM secures to RMAM ( 2 RMAM required per RM ).

*Heat Sink Support Base (HSSBASE) - Plastic support bar mounted to

the mainboard under the ATX heatsink. (One leg is always bigger than the other one)

2-2

CHAPTER 2 HARDWARE INSTALLATION

*Heat Sink Support Pin (HSSPIN) - Plastic pins inserted through the

HSSBASE to secure it to the mainboard (2 required per Assembly).

*Heat Sink Support T op Bar (HSSTOP) - Plastic bar that clips onto the

HSSBASE through the fins on the ATX heatsink.

**Heat Sink w/ fan - Heat Sink that can be attached to the Pentium® II

processor with metal clip.

Note: * Provided by MSI mainboard.

** Provided by Special request.

HSSBASE

HSSPIN

RMAM

HSSTOP

2-3

CHAPTER 2 HARDWARE INSTALLATION

Step 1: Insert the Retention Mechanism Attach Mount at the bottom of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the Retention Mechanism for proper direction. Then, attach the Retention Mechanism to the Retention Mechanism Attach Mount. Use a Screwdriver to secure the Retention Mechanism.

Retention

Notch Key

Mechanism

Key

SLOT1

êê

Retention

Mechanism

Attach Mount

2-4

CHAPTER 2 HARDWARE INSTALLATION

Step 3: Install the Heat Sink Support Base.

Look for the Two holes across Slot 1, and match it with the Two legs of the Heat Sink Support Base for the proper direction. Take note that one hole/leg is bigger than the other. The Four top pins of the Heat Sink Support Base should also be oriented towards Slot 1.

pins

Leg

Heat Sink Support Base

Heat Sink Support Pin

Push the Heat Sink Support Base onto the mainboard, until you hear a click sound. Check for a perfect fit.

Step 4: Install the Heat Sink Support Pin.

Push the Heat Sink Support Pins onto the two holes of the Heat Sink Support Base. Check for a perfect fit. These pins are used to secure the Heat Sink Support Base.

2-5

CHAPTER 2 HARDWARE INSTALLATION

Step 5: Install the Heat Sink with Fan to the Processor.

Push down the metal clips, so that they are in line with the back of the Heat Sink. Be careful, so as not detach the metal clips from the Heat Sink.

Heat Sink w/ Fan

The arrow

should be

Heat Sink Base Holder

Metal Clips

pointing down.

In case the metal clips are detached from the Heat Sink, re-attach them. Look for the arrow on the metal clip. This arrow should be pointing down and aligned with the Heat Sink Support Base Holder.

Attach the Heat Sink to the processor.

Clip Holder

Secure holes

Clip Holder

S.E.C. Cartridge - Th erma l Isometric View

Pentium® II processor (Back)

Heat Sink w/ Fan(Back)

Metal Clips Ear

Secure Posts

Metal Clips Ear

- Look at the back of the Heat Sink and take note of the 2 secure posts. Insert these 2 Secure posts to the 2 secure holes on the back of the processor.

- Align the ears of the metal clips with the clip holders on the back of the processor. Use a screw driver to push the metal clips onto the clip holders. Check for a perfect fit.

2-6

CHAPTER 2 HARDWARE INSTALLATION

Step 6: Install the Processor.

Unlock the Processor by pushing in the Processor Locks.

Insert the Processor like inserting a PCI or an ISA card.

Step 7: Lock the Processor Locks.

Secure the CPU by pulling the Processor Locks out.

2-7

CHAPTER 2 HARDWARE INSTALLATION

Step 8: Install the Heat Sink Support T op Bar .

Push the Heat Sink Support Top Bar to the Heat Sink Support Base, Until you hear a “click” sound. Check for a perfect fit.

Heatsink Support Top Bar

The installation is now complete.

2-8

CHAPTER 2 HARDWARE INSTALLATION

B. Boxed Pentium® II processor Installation Procedures

The Boxed Pentium® II processor has a built- in Fan and Heat Sink. It also has a Heat Sink Support. So if you’re going to use the Boxed processor, all you need is the Retention Mechanism.

Step 1: Insert the Retention Mechanism Attach Mount at the bottom of the mainboard.

Step 2: Install the Retention Mechanism.

Retention

Mechanism

Notch Key

Key

SLOT1

êê

Retention

Mechanism

Attach Mount

2-9

CHAPTER 2 HARDWARE INSTALLATION

Step 3: Install the Heat Sink Support Base.

Look for the 2 holes across Slot 1, and match it with the 2 Heat Sink Support Base. Take note that one hole/base is bigger than the other.

Retention Mechanism

Notch Hole

PC-3742

Heat Sink Support Base

Push the Heat Sink Support Base onto the mainboard, until you hear a click sound. Check for a perfect fit.

2-10

CHAPTER 2 HARDWARE INSTALLATION

Step 4: Install the Heat Sink Support.

Attach the 2 Heat Sink Supports to the sides of the Processor. These Heat Sink Supports will fit in any direction, so be sure that the Heat Sink Support Locks are oriented outwards for the proper direction.

Boxed

Intel

Pentium Processor

Heat Sink Support

Heat Sink Support Lock

PC-3743

2-11

CHAPTER 2 HARDWARE INSTALLATION

PC-3744

Step 5: Unlock the Processor Locks and Heat Sink Support Locks.

Push in the Processor Locks. Open the Heat Sink Support Locks.

Processor Lock

Heatsink Support Lock

Step 6: Insert the Processor like inserting a PCI or an ISA card.

2-12

CHAPTER 2 HARDWARE INSTALLATION

PC-3745

Step 7: Lock the Processor Locks and Heat Sink Support Locks

Secure the CPU by pushing out the Processor Locks. Close the Heat Sink Support Locks.

The installation is now complete.

2-13

CHAPTER 2 HARDWARE INSTALLATION

2.1-2 CPU Speed Setting: SW1

To adjust the speed of the CPU, you must know the spec. of your CPU (always ask the vendor for CPU spec.). Then look at Table 2.1 (200 ~ 333MHz Intel® Pentium® II processor) for setting.

1 2 3 4

SW1

Speed Setting

DIP

OFF

CPU Type

200MHz

233MHz

266MHz

300MHz

333MHz

OFF

SW1

DIP

1 2 3 4

Table 2.1 200 ~ 333MHz Intel® Pentium® II processor

2-14

CHAPTER 2 HARDWARE INSTALLATION

2.1-3 CPU Clock Generator Setting: J10/J9

These jumper is used to set the CPU Clock.

J10 J9

CPU Clock J10 J9

66 MHz

68 MHz

75 MHz

Note: 68/75 MHz CPU clock are both

reserved function.

2-15

CHAPTER 2 HARDWARE INSTALLATION

2.1-4 CPU Fan Power Connectors: JFAN/CFAN1/SFAN1/

PSFAN1

These connectors support system cooling fan with +12V. It supports three pin head connector. When connecting the wire to the connector, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND. If your mainboard has LM78 chipset on-board, you must use a specially designed fan with speed sensor to take advantage of LM78’s CPU fan control.

GND

+12V

SENSOR

CF AN1

GND

+12V

GND

+12V

SENSOR

PSFAN1

JFAN

GND

+12V

SENSOR

PSFAN1 : Power Supply Fan

SF AN1

CFAN1 : CPU Fan SFAN1 : System(Chassis) Fan

For fans with fan speed sensor, every rotation of the fan will send out 2 pulses. LM78 will count and report the fan rotation speed.

Note: 1. CFAN1/SFAN1/PSFAN1 are the CPU, Power and Chassis

Cooling Fan Speed Connector (reserved for LM78 System Hardware Monitor Option.)

2. Always consult vendor for proper CPU cooling fan.

2-16

CHAPTER 2 HARDWARE INSTALLATION

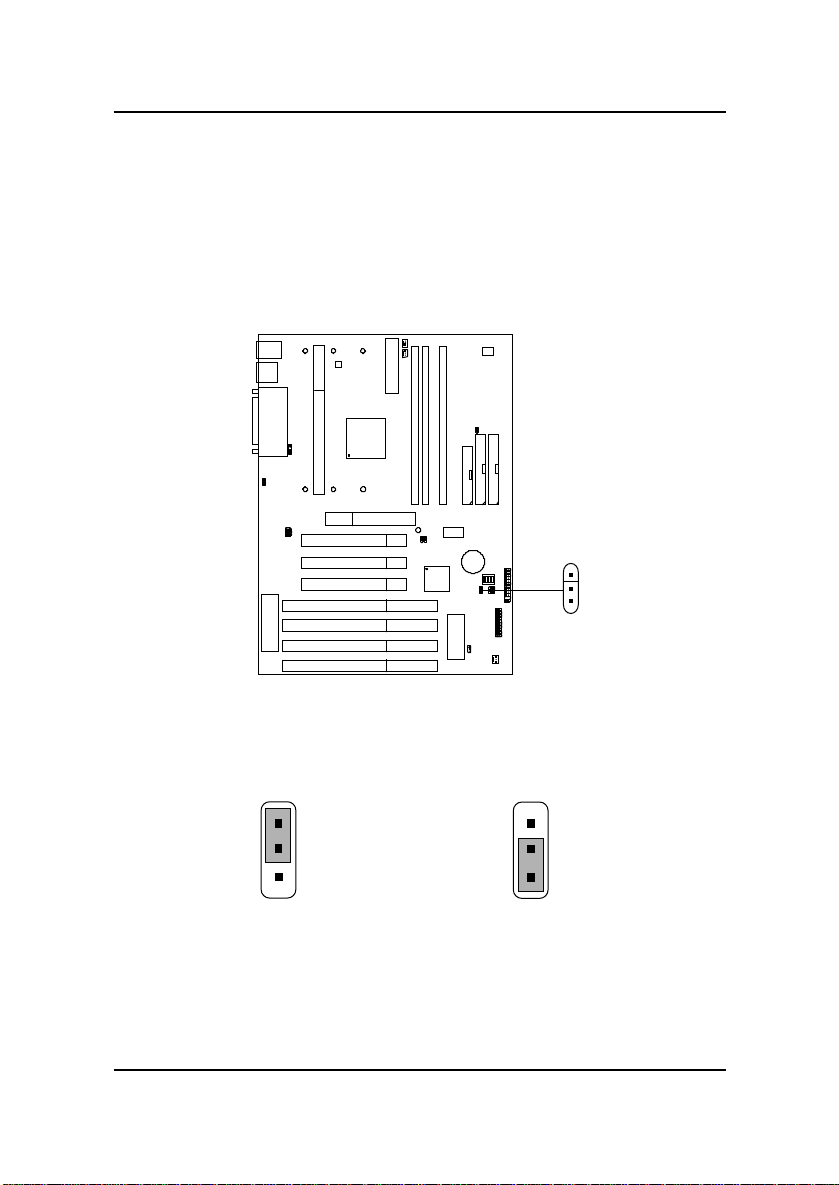

2.2 Flash ROM Programming Voltage: JMODE1

This jumper is for setting the V oltage of the Flash ROM BIOS.

JMODE1

Voltage Setting

JMODE1

+12V PWD

VCC

+12V

(default)

Note: Short 1-2 pin, if you’re using Intel® or flash memory and you want to

flash the ROM data.

2-17

JMODE1

+12V PWD

VCC

+5V

CHAPTER 2 HARDWARE INSTALLATION

2.3 External Battery Connector: JBAT1

A battery must be used to retain the mainboard configuration in CMOS RAM. If you use the on-board battery, you must short 1-2 pins of JBAT1 to keep the CMOS data.

JBAT1

Keep Data

Clear Data

Note: You can clear CMOS by shorting 2-3 pin, while the system is off.

Then, return to 1-2 pin position. A void clearing the CMOS while the system is on; it will damage the mainboard.

2-18

CHAPTER 2 HARDWARE INSTALLATION

2.4 Memory Installation

2.4-1 Memory Bank Configuration

The mainboard supports a maximum of 1 GB of memory for EDO and 512MB for SDRAM: It provides three 168-pin unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports 8 MB to 256 Mbytes DIMM memory module. The memory module can be either SDRAM or EDO (Extended Data Output) Mode DRAM. A DIMM consists of two Banks and may have a maximum of 256 MB of memory .

DIMM1(Bank0 + Bank1)

DIMM2(Bank2 + Bank3)

DIMM3(Bank4 + Bank5)

Note: FP(Fast Page) & BEDO(Burst EDO) are not supported.

2-19

CHAPTER 2 HARDWARE INSTALLATION

2.4-2 Memory Installation Procedures

A. How to install a DIMM Module

Single Sided DIMM

Double Sided DIMM

1. The DIMM slot has a two Notch Key “VOLT and DRAM”, so the DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in.

VOLTDRAM

3. Close the plastic clip at the side of the DIMM slot.

Note: You can only use a 3.3 volt DIMM module (EDO or SDRAM).

2-20

CHAPTER 2 HARDWARE INSTALLATION

2.4-1 Memory Population Rules

1. Supports EDO and SDRAM.

2. Supports unbuffered DIMM.

3. To operate properly , at least one 168-pin DIMM module must be installed.

4. This mainboard supports T able Free memory, so memory can be installed on DIMM1, DIMM2, or DIMM 3 in any order.

5. Supports 3.3 volt DIMM.

6. The DRAM addressing and the size supported by the mainboard is shown next page.

2-21

CHAPTER 2 HARDWARE INSTALLATION

T able 2.4-1 EDO DRAM Memory Addressing

DRAM Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size

Row

Column

4M 1Mx4 SYMM 10 10 4MBx8 8MBx16

16M 1Mx16 SYMM 10 10 4MBx2 8MBx4

1Mx16 ASYM 1 2 8 4MBx2 8MBx4

2Mx 8 ASYM 11 10 8MBx4 16MBx8 2Mx 8 ASYM 12 9 8MBx4 16MBx8 4Mx4 SYMM 11 11 16MBx8 32MBx16 4Mx 4 ASYM 12 10 16MBx8 32MBx16

64M 2Mx32 ASYM 1 1 10 8MBx1 16MBx2

2Mx32 ASYM 1 2 9 8MBx1 16MBx2 2Mx32 ASYM 1 3 8 8MBx1 16MBx2 4Mx16 SYMM 1 1 11 16MBx2 32MBx4 4Mx16 ASYM 1 2 10 16MBx2 32MBx4

8Mx 8 ASYM 12 1 1 32MBx4 64MBx8

16Mx4 SYMM 12 12 64MBx8128MBx16

MB/SIMM

Single

Side(S)

no.

pcs.

Double Side(D)

no.

pcs.

T able 2.4-2 SDRAM Memory Addressing

DRAM

Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size Row

Column

16M 1Mx16 ASYM 1 1 8 8MBx4 16MBx8

2Mx 8 ASYM 11 9 16MBx8 32MBx16 4Mx 4 ASYM 11 10 32MB 64MB

64M 2Mx32 ASYM 1 1 9 32MBx2 64MBx4

2Mx32 ASYM 1 2 8 16MBx2 32MBx4 4Mx16 ASYM 1 1 10 32MB 64MB 4Mx16 ASYM 1 3 8 32MB 64MB

8Mx 8 ASYM 13 9 64MB 128MB

16Mx4 ASYM 1 3 10 128MB 256MB

64M 2Mx32 ASYM 1 1 8

4Mx16 ASYM 1 2 8

8Mx 8 ASYM 12 9

16Mx4 ASYM 1 2 10

MB/DIMM

Single

Side(S)

no.

pcs.

Double Side(D)

no. pcs.

2-22

CHAPTER 2 HARDWARE INSTALLATION

2.5 Case Connector: JFP1

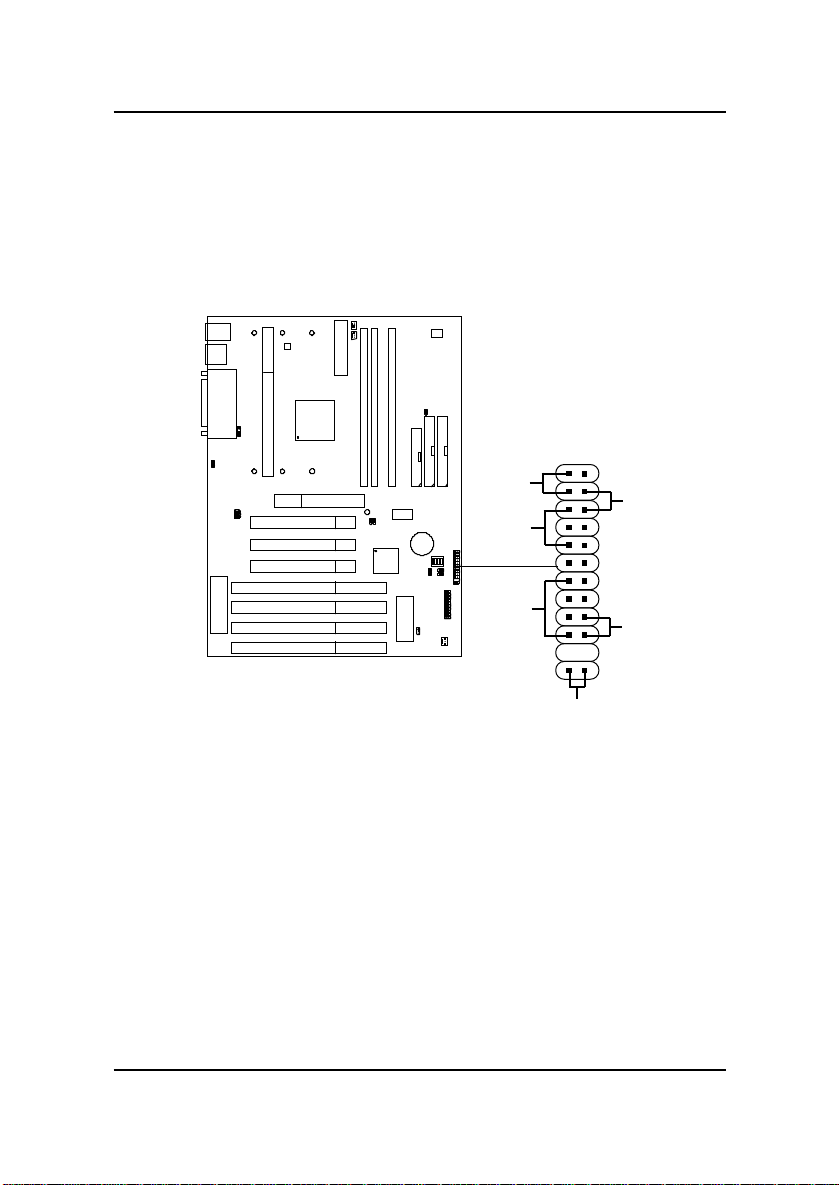

The Turbo LED, Reset Switch, Key Lock, Power LED, Speaker and HDD LED are all connected to the JFP1 connector block.

Keylock

Power LED

Speaker

HDD LED

JFP1

T urbo LED

Reset Switch

2-23

CHAPTER 2 HARDWARE INSTALLATION

2.5-1 Turbo LED

The Turbo LED is always ON. Y ou can connect the T urbo LED from the system case to this pin.

2.5-2 Reset Switch

Reset switch is used to reboot the system rather than turning the power ON/ OFF . A void rebooting while the HDD LED is lit. You can connect the Reset switch from the system case to this pin.

2.5-3 Keylock

Keylock allows you to disable the keyboard for security purposes. You can connect the keylock to this pin.

2.5-4 Power LED

The Power LED is always lit while the system power is on. You can connect the Power LED from the system case to this pin.

2.5-5 Speaker

Speaker from the system case is connected to this pin.

2.5-6 HDD LED

HDD LED shows the activity of a hard disk drive. Avoid turning the power off while the HDD led is lit. Y ou can connect the HDD LED from the system case to this pin.

2-24

CHAPTER 2 HARDWARE INSTALLATION

2.6 Floppy Disk Connector: FDC

The mainboard also provides a standard floppy disk connector FDC that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector support the provided floppy drive ribbon cables.

FDC

2-25

CHAPTER 2 HARDWARE INSTALLATION

2.7 Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE Controller that provides PIO mode 0~4, Bus Master , and Ultra DMA/33 function. It has two HDD connectors IDE1 (primary) and IDE2 (secondary). Y ou can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices to IDE1 and IDE2. These connectors support the provided IDE hard disk cable.

Secondary IDE Connector

Primary IDE Connector

IDE1(Primary IDE Connector)

The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.

IDE2(Secondary IDE Connector)

IDE2 can also connect a Master and a Slave drive.

2-26

CHAPTER 2 HARDWARE INSTALLATION

2.8 Power Supply

2.8-1 ATX 20-pin Power Connector: JPWR1

This connector supports the power button on-board. Using the ATX power supply, functions such as Modem Ring Wake-Up and Soft Power Off are supported by this mainboard.

ATX

Power Connector

PIN DEFINITION

PIN SIGNAL

1 3.3V 2 3.3V 3 GND 45V 5 GND 65V 7 GND 8 PW_OK 9 5V_SB 10 12V

PIN SIGNAL

11 3.3V 12 -12V 13 GND 14 PS_ON 15 GND 16 GND 17 GND 18 -5V 19 5V 20 5V

2-27

CHAPTER 2 HARDWARE INSTALLATION

2.8-2 Remote Power On/Off Switches: JSW1/JSW2

Connect to a 2-pin push button switch. Every time the switch is shorted by pushing it once, the power supply will change its status from OFF to ON.

During ON stage, push once and the system goes to sleep mode: pushing it more than 4 seconds will change its status from ON to OFF . If you want to

change the setup, you could go to the BIOS Power Management Setup. This is used for ATX type power supply.

JSW1

JSW2

Note: The two switches are provided by the mainboard for your

convenience, so you can use any of them. The two switches have the same feature.

2-28

CHAPTER 2 HARDWARE INSTALLATION

2.9 IrDA Infrared Module Connector: IR1

The mainboard provides two 5-pin infrared (IR) connectors for IR modules. These connectors are for optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. FIR and Consumer IR are reserved functions.

VCC

IRRX GND

IRTX

IR1

2-29

CHAPTER 2 HARDWARE INSTALLATION

2.10 Serial Port Connectors: COM A & COM B

The mainboard has two 9-pin male DIN connectors for serial ports COM A and COM B. These two ports are 16550A high speed communication ports that send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable directly into these connectors.

1 2 3 4 5

6 7 8 9

COM A

PIN DEFINITION

COM B

PIN SIGNAL

1 DCD(Data Carry Detect) 2 SIN(Serial In or Receive Data) 3 SOUT(Serial Out or Transmit Data) 4 DTR(Data Terminal Ready) 5 GND 6 DSR(Data Set Ready) 7 RTS(Request T o Send) 8 CTS(Clear To Send) 9 RI(Ring Indicate)

2-30

CHAPTER 2 HARDWARE INSTALLATION

2.11 Parallel Port Connector: LPT

The mainboard provides a 25 pin female centronic connector for LPT . A parallel port is a standard printer port that also supports Enhanced Parallel Port(EPP) and Extended capabilities Parallel Port(ECP). See connector and pin definition below:

LPT

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

PIN DEFINITION

PIN SIGNAL PIN SIGNAL

1 STROBE 14 AUTO FEED# 2 DA TA0 15 ERR# 3 DA TA1 16 INIT# 4 DA T A2 17 SLIN# 5 DA TA3 18 GND 6 DA TA4 19 GND 7 DA TA5 20 GND 8 DA TA6 21 GND 9 DA TA7 22 GND 10 ACK# 23 GN D 11 BUSY 24 GND 12 PE 25 GND 13 SELECT

2-31

CHAPTER 2 HARDWARE INSTALLATION

2.12 Mouse Connector: JKBMS1

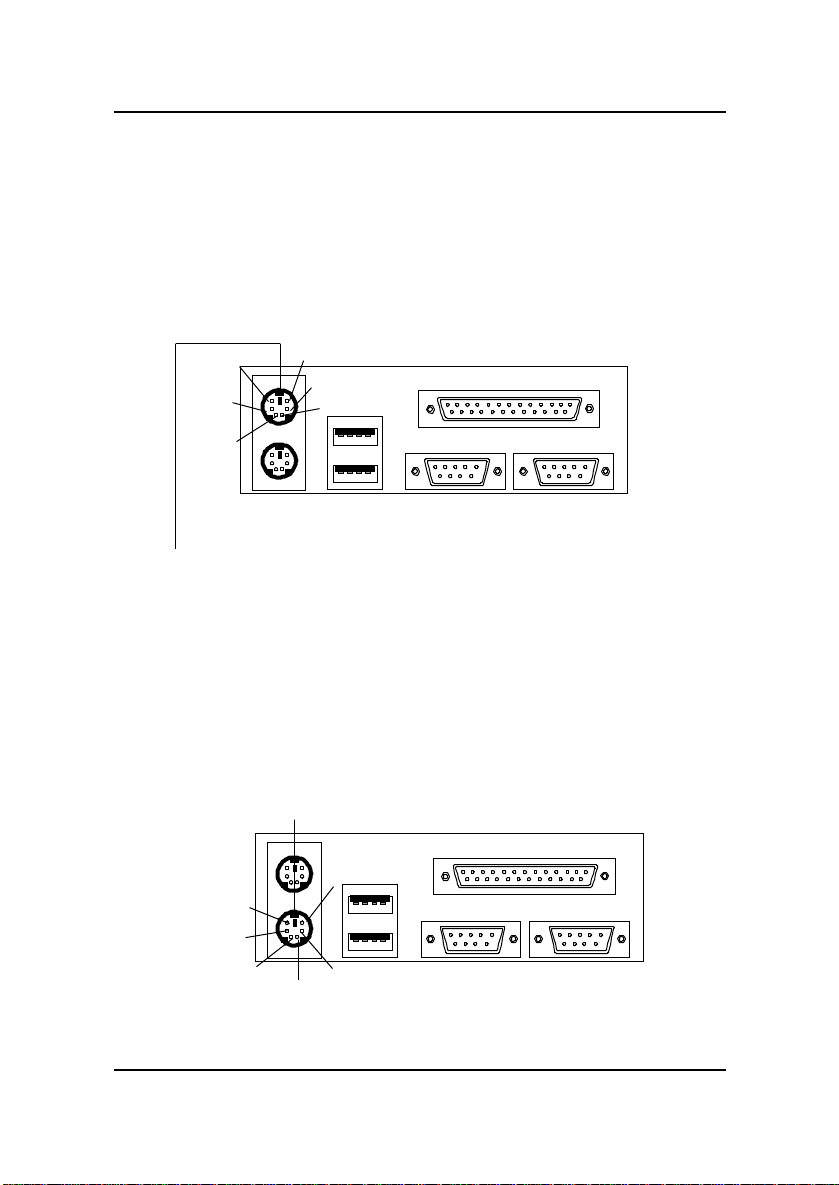

The mainboard provides a standard PS/2® mouse mini DIN connector for attaching a PS/2®mouse. You can plug a PS/2® mouse directly into this connector. The connector location and pin definition are shown below:

Pin5

Pin6

Pin4 VCC

Pin2

PS/2® Mouse (6-pin Female)

Mouse Clock

Pin3 GND

Mouse DATA

Pin1

2.13 Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector for attaching a keyboard. You can plug a keyboard cable directly to this connector.

PS/2® Keyboard (6-pin Female)

Pin5

KBD Clock

Pin6

Pin4 VCC

Pin2

KBD DATA

Pin1

Pin3 GND

2-32

CHAPTER 2 HARDWARE INSTALLATION

2.14 USB Connector: USB

The mainboard provides a UHCI(Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices like: keyboard, mouse

and other USB devices. You can plug the USB device directly to this connector.

USB Port 1

1 2 3 4

USB Port 2

PIN SIGNAL

1VCC 2 -Data0 3 GND 4 +Data0

2-33

CHAPTER 2 HARDWARE INSTALLATION

2.15 Power Saving LED Connector: JGL1

JGL1 can be connected with LED. This will lit while the system is in suspend mode.

JGL1

2-34

CHAPTER 2 HARDWARE INSTALLATION

2.16 Special Jumpers: J3/J4

These jumper is used only by special customer. Always leave it on default setting.

(default)

2-35

CHAPTER 3

AMI® BIOS USERS GUIDE

Chapter 3

AMI® BIOS USER GUIDE

The system configuration information and chipset register information is stored in the CMOS RAM. This information is retained by a battery when the power is off. Enter the BIOS setup (if needed) to modify this information.

The following pages will describe how to enter BIOS setup, and all about options.

3-1

CHAPTER 3

AMI® BIOS USERS GUIDE

3.1 Enter BIOS Setup

Enter the AMI® setup Program’s Main Menu as follows:

1. Turn on or reboot the system. The following screen appears with a series of diagnostic check.

Hit <DEL> if you want to run setup

2. When the “Hit <DEL>” message appears, press <DEL> key to enter the BIOS setup screen.

3. After pressing <DEL> key, the BIOS setup screen will appear.

Note: If you don’t want to modify CMOS original setting, then don’t press any

key during the system boot.

3-2

CHAPTER 3

Reserved

Standard CMOS Setup

Advanced CMOS Setup Advanced Chipset Setup Power Management Setup

PCI/Plug and Play Setup

Peripheral Setup Hardware Monitor Setup Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Change Language Setting

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

Standard CMOS setup for changing time, hard disk type, etc.

AMI® BIOS USERS GUIDE

4. Use the <Up> and <Down> key to move the highlight scroll up or down.

5. Use the <ENTER> key to select the option.

6. To exit, press <ESC>. T o save and exit, press <F10>.

7. Section 3.2 to 3.7 will explain the option in more details.

3-3

CHAPTER 3

AMI® BIOS USERS GUIDE

3.2 Standard CMOS Setup

1. Press <ENTER> on “Standard CMOS Setup” of the main menu

screen .

AMIBIOS SETUP - STANDARD CMOS SETUP

Date (mm/dd/yyyy): Mon Jul 28, 1997 Time (hh/mm/ss): 17:09:25

Floppy Drive A: 1.44 MB 3 1/2 Floppy Drive B: Not Installed

Pri Master :Auto ON ON AUTO ON Pri Slave :Auto ON ON AUTO ON Sec Master :Auto ON ON AUTO ON Sec Slave :Auto ON ON AUTO ON

Boot Sector Virus Protection Disabled

Month : Jan-Dec Day : 01-31 Year : 1901-2099

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

LBA Blk PIO 32Bit

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

2. Use <Up> and <Down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the Standard CMOS Setup, press <ESC> to go back to the main menu.

3-4

CHAPTER 3

AMI® BIOS USERS GUIDE

3.3 Advanced CMOS Setup

1. Press <ENTER> on “Advanced CMOS Setup” of the main menu

AMIBIOS SETUP - ADVANCED CMOS SETUP

Quick Boot Enabled Ist Boot Device Floppy 2nd Boot Device IDE 0 3rd Boot Device CD-ROM Try Other Boot Devices Y es Initial Display Mode BIOS Display Mode At ADD-ON ROM Init Force BIOS Floppy Access Control Read-Write Hard Disk Access Control Read-Write BootUp Num-Lock On Floppy Drive Swap Disabled Floppy Drive Seek Disabled PS/2 Mouse Support Enabled Primary Display Abset Password Check Setup Parity Check Disabled Boot to OS/2 64M No System BIOS Cacheable Enabled C000, 16k Shadow Cached C400, 16k Shadow Cached C800, 16k Shadow Disabled CC00, 16k Shadow Disabled D000, 16k Shadow Disabled D400, 16k Shadow Disabled D800, 16k Shadow Disabled DC00, 16k Shadow Disabled

Reserved

Available Options: Enabled Disabled

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

2. Use <Up> and <Down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the Advanced CMOS Setup, press <ESC> to go back to the main menu.

3-5

CHAPTER 3

AMI® BIOS USERS GUIDE

Description of the item on screen follows:

Quick Boot

Set this option to Enabled to permit AMI® BIOS to boot within 5 seconds. This option replaces the old ABOVE 1 MB Memory Test option. The Optimal default setting is Enabled. The Fail-Safe default setting is Disabled.

1st Boot Device/2nd Boot Device/3rd Boot Device

This option sets the sequence of boot drives.

The settings are:

IDE0 The system will boot from the first HDD.

IDE1 The system will boot from the Second HDD.

IDE2 The system will boot from the Third HDD.

IDE3 The system will boot from the Fourth HDD.

F(optical) The system will boot from LS-120(120M Floppy).

SCSI The system will boot from the SCSI.

Netwo rk The system will boot from the Network drive.

CD-ROM The system will boot from the CD-ROM.

Disable Disable this sequence.

Try other Boot Devices

This option sets the device boot, if all the Four Boot Devices failed.

Floppy Access Control

This option sets the Floppy to Read-only or Read-Write.

HDD Access Control

This option sets the HDD to Read-only or Read-Write. During Read-only, if you try to write on the HDD, the system will halt.

3-6

CHAPTER 3

AMI® BIOS USERS GUIDE

Boot up Num Lock

When this option is set to Off, AMI® BIOS turns off the Num Lock key when the system is powered on. The end user can then use the arrow keys on both the numeric keypad and the keyboard. The settings are On or Off. The optimal default and Fail-Safe default settings are On.

Floppy Drive Swap

Set this option to Enabled to specify that floppy drives A: and B: are swapped. The setting are Enabled and Disabled. The Optimal and FailSafe default settings are Disabled.

Floppy Drive Seek

When this option is set to Enabled, AMI® BIOS performs a Seek command on floppy drive A: before booting the system. The settings are Enabled and Disabled. The Optimal and Fail-Safe default settings are Disabled.

PS/2® Mouse Support

When this option is set to Enabled, AMI® BIOS supports a PS/2®type mouse. The settings are Enabled and Disabled. The Optimal and FailSafe default settings are Enabled.

Primary Display

This option configures the primary display subsytem in the computer . The settings are Mono(monochrome), 40CGA, 80CGA or VGA/ EGA. The optimal and Fail-Safe default settings are VGA/EGA.

Password Check

This option specifies the type of AMI® BIOS password protection that is implemented. The Optimal and Fail-Safe default settings are Setup.

3-7

CHAPTER 3

AMI® BIOS USERS GUIDE

Parity Check

Set this option to Enabled to use the Parity Check function. The DIMM module need to have parity bit for this function to work.

Boot to OS/2®

Set this option to Enabled to permit the BIOS to run properly , if OS/2® is to be used with > 64MB of DRAM. The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled.

Internal Cache/External Cache

This option selects the type of caching algorithm used by AMI® BIOS and the CPU for L1 cache memory(internal/external to the CPU). The settings are Writeback - a writeback algorithm is used, Write-through - a write-through algorithm is used or Disabled - AMI® BIOS does not specify the type of caching algorithm. The algorithm is set by the CPU. The Optimal and Fail-Safe default settings are Writeback.

System BIOS Cacheable

AMI® BIOS always copies the system BIOS from ROM to RAM for faster execution. Set this option to Enabled to permit the contents of the F0000h RAM memory segment to be written to and read from cache memory . The settings are Enabled or Disabled. The Optimal default setting is Enabled. The Fail-Safe default setting is Disabled.

C000, 16K Shadow/C400, 16k Shadow

These options specify how the contents of the video ROM are handled. The settings are:

Disabled - the V ideo ROM is not copied to RAM.

Cached -the contents of the video ROM from C0000h -

C7FFFh are not only copied from ROM to RAM; it can also be written to or read from cache memory.

Shadow - the Contents of the video ROM from C0000h -

C7FFFh are copied(shadowed) from ROM to RAM for faster execution.

The Optimal and Fail-Safe default setting is Cached.

3-8

CHAPTER 3

AMI® BIOS USERS GUIDE

C800, 16k Shadow/CC00, 16k Shadow/D000, 16K Shadow/ D400, 16k Shadow/D800, 16k Shadow/DC00, 16K Shadow

These options specify how the contents of the adaptor ROM named in the option title are handled. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards. The settings are;

Disabled - The specified ROM is not copied to RAM.

Cache - The contents of the ROM area are not only copied

from ROM to RAM for faster execution, it can also be written to or read from cache memory .

Shadow - The contents of the ROM area are copied from ROM

to RAM for faster execution.

The Optimal and Fail-Safe default settings are Disabled.

3-9

CHAPTER 3

AMI® BIOS USERS GUIDE

3.4 Advanced Chipset Setup

1. Press <ENTER> on “Advanced Chipset Setup” of the main menu screen.

AMIBIOS SETUP - ADVANCED CHIPSET SETUP

Auto Configure EDO DRAM Timing Enabled EDO DRAM Speed (ns) 60 EDO Read Burst Timing x222 EDO Write Burst Timing x222 EDO RAS Precharge Timing 3 clocks EDO RAS to CAS Delay 3 clocks MA wait State Slow ***** SDRAM Timing ***** SDRAM RAS to CAS Delay 2 Clks SDRAM CAS Latency 3 Clks SDRAM RAS Precharge Time 2 Clks DRAM Integrity Mode Non ECC VGA Frame Buffer USWC Disabled PCI Frame Buffer USWC Disabled Fixed Memory Hole Disabled CPU To PCI IDE Posting Enabled USWC Write I/O Post Disabled AGP Aperture Size 64 MB USB Passive Release Enabled PIIX4 Passive Release Enabled PIIX4 Delayed Transaction Enabled USB Function Enabled USB Keyboard Legacy Support Disabled

Reserved

Available Options: Enabled Disabled

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

2. Use <Up> and <Down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the Advanced Chipset Setup, press <ESC> to go back to the main menu.

3-10

CHAPTER 3

AMI® BIOS USERS GUIDE

Description of the item on screen follows:

Auto Configure EDO DRAM Timing

Choose Enabled(default) will automatically configure the DRAM timing depending on the “DRAM Speed” selection. Choose disable to customize setup.

EDO DRAM Speed (ns)

This option specifies the RAS access time (in nanoseconds) for the DRAM used in the computer. The settings are 50,60 or 70. The Optimal default setting is 60 and the Fail-Safe default setting is 70.

EDO DRAM Read Burst Timing

Choose DRAM read burst timing for the customize setup. B stand for BEDO DRAM, E stand for EDO DRAM and F stand for FAST P AGE DRAM.

EDO DRAM Write Burst Timing

Choose DRAM write burst timing for the customize setup.

EDO RAS Precharge Timing

This option defines the RAS# precharge requirements for the EDO memory type in 66MHz clocks.

EDO RAS to CAS Delay

This operation decide the delay in assertion of CAS#(SCAS#) from assertion of RAS#(SRAS#) in 66MHz.

MA Wait State

This option selects Fast or Slow MA bus timing. The Slow timing is equal to Fast+1, in term of clock number for EDO DRAM.

SDRAM RAS to CAS Delay

This operation decide the delay in assertion of CAS#(SCAS#) from assertion of RAS#(SRAS#) in 66MHz.

3-11

CHAPTER 3

AMI® BIOS USERS GUIDE

SDRAM CAS Latency

This option determines the CAS latency time parameter of SDRAM. The settings are 2 clks or 3 clks.

SDRAM RAS Precharge Time

This option defines the RAS# precharge requirements for the SDRAM memory type in 66MHz clocks.

DRAM Integrity Mode

During ECC, this will enable the DRAM ECC mechanism that allows detection of single-bit and multiple-bit errors and recovery of single-bit errors. During EC, the ECC logic will calculate 8-bit pattern written along with 64-bit data into the main memory . During Read operation, 8-bit ECC code is read along with 64-bit data and error checking is performed. No correction of data will take place in this operation mode. During Disabled, this will disable the ECC mechanism.

Note: If you choose ECC or EC modes, you must use a DIMM with ECC

byte.

VGA Frame Buffer USWC

The Pentium® II processor supports the Uncacheable Speculatable Write-Combining (USWC) memory type. The processor provides a writecombining with buffering strategy for write operation. This is useful for frame buffering. W riting to USWC memory can be buffered and combined in the processors write-combining buffer (WCB). The WCBs are viewed as a special purpose outgoing write buffers, rather than a cache. The WCBs are written into memory to allocate a different address, or after executing a serializing, locked, or I/O instructions.

During Enabled, this will enable the processor memory location A000 and B000 segment as USWC memory type.

3-12

CHAPTER 3

AMI® BIOS USERS GUIDE

PCI Frame Buffer USWC

During Enabled, this will enable the processor memory location C000 and DFFF segment as USWC memory type.

DRAM Refresh Queue

Choose Enabled, the system will provide 4-deep refresh queue. All refresh request are queued, with the 4th refresh request being the priority request. All refresh requests are priority when the refresh queue is Disabled.

Fixed Memory Hole

This option allows the end user to specify the location of a memory hole. The cycle matching the selected memory hole will be passed to the ISA bus. If Enabled, the selected hole is not remapped.

CPU To PCI IDE Posting

Set this option to Enabled to enable posted messages from the CPU to the PCI bus or IDE controller . The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Enabled.

USWC Write I/O Post

Set this option to Enabled to use USWC(Uncacheable, Speculatable, Write-Combined) memory . The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Disabled.

3-13

CHAPTER 3

AMI® BIOS USERS GUIDE

AGP Aperture Size

This option determines the effective size of the graphics aperture used in the particular PAC configuration. The AGP aperture is memorymapped, while graphics data structure can reside in a graphics aperture. The aperture range should be programmed as not cacheable in the processor cache, accesses with the aperture range are forwarded to the main memory, then PAC will translate the original issued address via a translation table that is maintained on the main memory . The option allows the selection of an aperture size of 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, and 256MB.

USB Passive Release

During Enabled, this will allow the PIIX4® to use passive release(look at PIIX4® Passive Release) while transferring control information or data for USB transaction. During Disabled, PIIX4® will perform PCI accesses for USB without using passive release.

PIIX4® Passive Release

The PIIX4® ISA bridge support GA T (Guaranteed Access T ime) mode, which will now violate the spirit of the PCI specification. The systems provides a programmable passive release mechanism to meet the required master latencies. During Enabled, ISA masters may see long delays in accessing PCI memory, including the main DRAM array. The ISA GA T mode is also not supported during enable. ISA masters must honor IOCHRDY.

PIIX4® Delayed Transaction

During Enabled, the PIIX4® delay transaction mechanism is enabled when the PIIX4® is the target of a PCI transaction. A read cycle from Host to PCI is immediately retrived due to any pending PCI to DRAM cycle. During Disabled, a read cycle from Host to PCI is waited until timeout due to any pending PCI to DRAM cycle.

3-14

CHAPTER 3

AMI® BIOS USERS GUIDE

USB Function

Set this option to Enabled or Disabled the on-chip USB controller . The Optional and Fail-Safe default settings are Disabled.

USB Keyboard Legacy Support

Set this option to Enabled or Disabled USB keyboard/mouse. The Optional and Fail-Safe default settings are Disabled.

3-15

CHAPTER 3

AMI® BIOS USERS GUIDE

3.5 Power Management Setup

1. Press <ENTER> on “Power Management Setup” of the main menu screen.

AMIBIOS SETUP - POWER MANAGEMENT SETUP

Power Management / APM Disabled Green PC Monitor Power State Stand By Video Power Down Mode Suspend Hard Disk Power Down Mode Stand By Standby Time Out 1 Suspend Time Out 1 Throttle Slow Clock Ratio 50-62.5% Modem Use IO Port N/A Modem Use IRQ N/A Display Activity Ignore Device 6(Serial Port 1) Monitor Device 7(Serial Port 2) Monitor Device 8(Parallel Port) Ignore Device 5(Floppy Disk) Monitor Device 0(Primary master IDE) Monitor Device 1(Primary slave IDE) Ignore Device 2(Secondary master IDE) Monitor Device 3(Secondary slave IDE) Ignore System Thermal Ignore Thermal Slow Clock Ratio 50-62.5% CPU Critical Temperature 40 Power Button Function Suspend

Ring Resume From Soft-Off Disabled RTC Alarm Resume From Soft-Off Disabled

Reserved

c/104of

Available Options: Enabled Disabled

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

RTC Alarm Date 15 RTC Alarm Hour 12 RTC Alarm Minute 50 RTC Alarm Second 30

2. Use <Up> and <Down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the Power Management Setup, press <ESC> to go back to the main menu.

3-16

CHAPTER 3

AMI® BIOS USERS GUIDE

Description of the item on screen follows:

Power Management/APM

Set this option to Enabled to enable the Intel® 82440LX ISA power management features and APM(Advanced Power Management). The settings are Enabled, Inst-On(instant-on) or Disabled. The Optimal and FailSafe default settings are Disabled.

Green PC Monitor Power State

This option specifies the power state that the green PC-compliant video monitor enters when AMI® BIOS places it in a power savings state after the specified period of display inactivity has expired. The settings are Off, Standby , Suspend or Disabled. The Optimal and Fail-Safe default settings are Standby.

Video Power Down Mode

This option specifies the power conserving state that the VESA VGA video subsystem enters after the specified period of display inactivity has expired. The settings are Disabled, Standby or Suspend. The Optimal and Fail-Safe default settings are Standby.

Hard Disk Power Down Mode

This option specifies the power conserving state that the hard disk drive enters after the specified period of hard drive inactivity has expired. The settings are Disabled, Standby or Suspend. The Optimal and Fail-Safe default settings are Disabled.

3-17

CHAPTER 3

AMI® BIOS USERS GUIDE

Standby Time Out

This option specifies the length of a period of system inactivity while in Full power on state. When this length of time expires, the computer enters Standby power state. The settings are Disabled, 1 min, 2 min, 3 min, 4 min, 5 min, 6 min, 7 min, 8 min, 9 min, 10 min, 11 min, 12 min, 13 min, 14 min or 15 min. The Optimal and Fail-Safe default settings are Disabled.

Suspend Time Out

This option specifies the length of a period of system inactivity while in Standby state. When this length of time expires, the computer enters Suspend power state. The settings are Disabled, 1 min, 2 min, 3 min, 4 min, 5 min, 6 min, 7 min, 8 min, 9 min, 10 min, 11 min, 12 min, 13 min, 14 min or 15 min. The Optimal and Fail-Safe default settings are Disabled.

Throttle Slow Clock Ratio

This option specifies the speed at which the system clock runs in power saving states. The settings are expressed as a ratio between the normal CPU clock speed and the CPU clock speed when the computer is in the power-conserving state.

Modem Use IO Port

This indicates which IO port will be used by the Modem(if there is a Modem).

Modem Use IRQ

This indicates which IRQ no. will be used by the Modem(if there is a Modem).

3-18

CHAPTER 3

AMI® BIOS USERS GUIDE

Display Activity/Device 6/Device 7/Device 8/Device 5/Device 0/Device 1/Device 1/Device 2/Device 3/System Thermal

When set to Monitor, these options enable event monitoring on the specified hardware interrupt request line. If set to Monitor and the computer is in a power saving state, AMI® BIOS watches for activity on the specified IRQ line. The computer enters the full on power state if any activity occurs.

AMI® BIOS reloads the Standby and Suspend timeout timers if activity occurs on the specified IRQ line.

Power Button Function

During Suspend, if you push the switch one time, the system goes into suspend mode and if you push it more than 4 seconds, the system will be turned off. During On/Off, the system will turn off once you push the switch.

Ring Resume from Soft-Off

During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’ s an incoming call from the modem.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system. Then, power off the system. This function will work the next time you power on.

RTC Alarm Resume From Soft-Of f

This function is for setting the Date, Hour, Minute, and Second for your computer to boot up. During Disabled, you cannot use this function. During Enabled, Choose the Date, Hour, Minute, and Second:

RTC Alarm Date Choose which day the system will boot up. RTC Alarm Hour Choose which hour the system will boot up. RTC Alarm Minute Choose which minute the system will boot up. RTC Alarm Second Choose which second the system will boot up.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system. Then, power off the system. This function will work the next time you power on.

3-19

CHAPTER 3

AMI® BIOS USERS GUIDE

3.6 PCI/Plug and Play Setup

1. Press <ENTER> on “PCI/Plug and Play Setup” of the main menu screen.

AMIBIOS SETUP - PCI/PLUG AND PLAY SETUP

Plug and Play Aware O/S No PCI Latency Timer (PCI Clocks) 64 PCI VGA Palette Snoop Disabled Allocate IRQ to PCI VGA Ye s PCI IDE Busmaster Disabled OffBoard PCI IDE Card Auto OffBoard PCI IDE Primary IRQ Disabled OffBoard PCI IDE Secondary IRQ Disabled PCI Slot4 IRQ Priority Auto DMA Channel 0 PnP DMA Channel 1 PnP DMA Channel 3 PnP DMA Channel 5 PnP DMA Channel 6 PnP DMA Channel 7 PnP IRQ3 PCI/PnP IRQ4 PCI/PnP IRQ5 PCI/PnP IRQ7 PCI/PnP IRQ8 PCI/PnP IRQ9 PCI/PnP IRQ10 PCI/PnP IRQ11 PCI/PnP IRQ12 PCI/PnP

Reserved

Available Options: Enabled Disabled

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

IRQ14 PCI/PnP IRQ15 PCI/PnP Reserved Memory Size Disabled Reserved Memory Address C8000

2. Use <Up> and <Down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the PCI/Plug and Play Setup, press <ESC> to go back to the main menu.

3-20

CHAPTER 3

AMI® BIOS USERS GUIDE

Description of the item on screen follows:

Plug and Play Aw are O/S

Set this option to Yes if the operating system in this computer is aware of and follows the Plug and Play specification. Currently, only Windows® 95 is PnP-aware. The settings are Yes or No. The Optimal and Fail-Safe default settings No.

PCI Latency Timer (PCI Clocks)

This option specifies the latency timings (in PCI clocks) for all PCI devices on the PCI bus. The settings are 32, 64, 96, 128, 160, 192, 224 or 248. The Optimal and Fail-Safe default settings are 64.

PCI VGA Palette Snoop

When this option is set to Enabled, multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit (0 is disabled). For example, if there are two VGA devices in the computer (one PCI and ISA) and the Bit settings are:

Disabled - Data read and written by the CPU is only directed to the

PCI VGA device’ s palette registers.

Enabled - Data read and written by the CPU is directed to

both the PCI VGA device’s palette registers and the ISA VGA device palette registers, permitting the palette registers of both devices to be identical.

This option must be set to Enabled if an ISA adapter card requires VGA palette snooping. The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Disabled.

Allocate IRQ to PCI VGA

Choose the IRQ to be assigned to the PCI VGA display adapter card.

The Optimal and Fail-Safe default setting is No.

3-21

CHAPTER 3

AMI® BIOS USERS GUIDE

PCI IDE BusMaster

Set this option to Enabled to specify that the IDE controller on the PCI local bus includes a bus mastering capability. The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Disabled.

Offboard PCI IDE Card

This option specifies if an offboard PCI IDE controller adapter card is installed in the computer. You must specify the PCI expansion slot on the mainboard where the offboard PCI IDE controller is installed. If an offboard PCI IDE controller is used, the onboard IDE controller is automatically disabled. The settings are Auto(AMI® BIOS automatically determines where the offboard PCI IDE controller adaper card is installed), Slot1, Slot2, Slot3 or Slot4. The Optimal and Fail-Safe settings are Auto.

If an offboard PCI IDE controller adapter card is installed in the computer, you must also set the Offboard PCI IDE Primary IRQ and Offboard PCI IDE Secondary IRQ options.

Offboard PCI IDE Primary IRQ/ Offboard PCI IDE Secondary IRQ

These options specify the PCI interrupt used by the Primary (or Secondary) IDE channel on the offboard PCI IDE controller. The settings are Disabled, Hardwired, INT A, INTB, INTC or INTD. The Optimal and Fail-Safe default settings are Disabled.

3-22

CHAPTER 3

AMI® BIOS USERS GUIDE

DMA Channel 0/1/3/5/6/7

These options specify the bus that the specified DMA channel is used. These options allow you to reserve DMAs for legacy ISA adapter cards.

These options determine if AMI® BIOS should remove a DMA from the available DMAs passed to devices that are configurable by the system BIOS. The available DMA pool is determined by reading the ESCD NVRAM. If more DMAs must be removed from the pool, the end user can use these options to reserve the DMA by assigning an ISA/EISA setting to it.

IRQ3/IRQ4/IRQ5/RQ7/IRQ9/IRQ10/IRQ11/IRQ14/IRQ15

These options specify the bus that the specified IRQ line is used on. These options allow you to reserve IRQs for legacy ISA adapter cards.

These options determine if AMI® BIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS. The available IRQ pool is determined by reading the ESCD NVRAM. If more IRQs must be removed from the pool, the end user can use these options to reserve the IRQ by assigning an ISA/EISA setting to it. Onboard I/O is configured by AMI® BIOS. All IRQs used by onboard I/O are configured as PCI/PnP. If all IRQs are set to ISA/EISA and IRQ14 and 15 are allocated to the onboard PCI IDE, IRQ9 will still be available for PCI and PnP devices, because at least one IRQ must be available for PCI and PnP devices. The settings are ISA/EISA or PCI/PnP . The Optimal and Fail-Safe default settings are IRQ3 through 7 are ISA/EISA. The Optimal and Fail-Safe default settings PCI/PnP.

Reserved Memory Size/Reserved Memory Address

Some ISA cards have ROM at 0C000h~0D000h segments, but in a non-standard format. So Plug & Play BIOS can’t detect it. The end user needs to set it up manually. Setting these options under this condition, will inform the BIOS which location and how many location is occupied.

3-23

CHAPTER 3

AMI® BIOS USERS GUIDE

3.7 Peripheral Setup

1. Press <ENTER> on “Peripheral Setup” of the main menu screen.

AMIBIOS SETUP - PERIPHERAL SETUP

Reserved

OnBoard FDC Enabled OnBoard Serial PortA 3F8h/COM1 OnBoard Serial PortB 2F8h/COM2 IR Port Support Disabled IR Base Address Select 2F 8 IR IRQ Select 10 IR DMA Select Disabled OnBoard Parallel Port 378 Parallel Port Mode ECP EPP Version N/A Parallel Port IRQ 7 Parallel Port DMA Channel 3 Onboard IDE Both

Available Options: Enabled Disabled

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

2. Use <up> and <down> to choose the item and <PgUp> and <PgDn> keys to modify the highlighted item.

3. After you have finished with the Peripheral Setup, press <ESC> to go back to the main menu.

3-24

CHAPTER 3

AMI® BIOS USERS GUIDE

Description of the item on screen follows:

Onboard FDC

Choose Auto, for the BIOS to automatically detect the device

If the ISA add-on card has Onboard FDC to be set at

FDC exist

Disabled

none FDC exist

Enabled

Choose Enabled, Enabling onboard FDC. Choose Disabled, Disabling onboard FDC. The Optimal and Fail-Safe default settings are Auto.

Onboard Serial Port A/Onboard Serial Port B

Choose 3F8, for the BIOS to automatically detect the device.

If the ISA add-on card has Onboard Serial port to be set at

COM4

COM1

(I/O:3F8H)

üüüüDISABLED X DISABLED X üüX X COM3 4 COM4 3 XXüü COM1 4 COM2 3 ü XXüCOM2 3 COM3 4 X üüX COM1 4 COM4 3 üüüX COM4 3 DISABLED X üüXüCOM3 4 DISABLED X ü X üü COM2 3 DISABLED X

X üüüCOM1 4 DISABLED X X X X X COM1 4 COM2 3 ü X X X COM2 3 COM3 4 X ü X X COM1 4 COM3 4 XXüX COM1 4 COM2 3 XXXüCOM1 4 COM2 3

(I/O:3E8H)

(I/O:2E8H)

PORT1 PORT2

COM3

COM2

IRQ

ASSIGNED

IRQ

ASSIGNED

Note: If the onboard serial port interrupt and ISA add-on card interrupt are in

conflict, the serial port will not work properly. Please disable one of the devices.

3-25

CHAPTER 3

AMI® BIOS USERS GUIDE

IR Port Support

Choose Auto, the BIOS will automatically assigned onboard port

for IR.

IR Base Address Select

This option will assigned which base address will be used by IR

IR IRQ Select

This option is for selecting the IRQ for the IR.

IR DMA Select

This option is for selecting the DMA for the IR.

Onboard Parallel Port

Choose Auto, the BIOS automatically assigned onboard parallel

port to the available parallel port or disabled.

If the ISA add-on card has Onboard parallel port to be set as

LPT1

I/O:378H

üüüDisabled X üüX LPT3 5 ü X ü LPT2 5

X üü LPT1 7

ü X X LPT2 5

X ü X LPT1 7 XXü LPT1 7

X X X LPT1 7

LPT2

I/O:278H

LPT3

I/O:3BCH

PORT

ASSIGNED

IRQ

ASSIGNED

Note: If the onboard parallel port interrupt and ISA add-on card interrupt are

in conflict, the parallel port will not work properly. Please disable one of the devices.

3-26

CHAPTER 3

AMI® BIOS USERS GUIDE

EPP Version

This option is for setting which EPP version will be used. The

settings are 1.7 and 1.9.

Parallel Port Mode

This option allows user to choose the operating mode of the

onbaord parallel port. The settings are Normal, SPP/EPP or ECP mode.

Parallel Port IRQ

If the onboard parallel mode is not on auto mode, the user can select the interrupt line for onboard parallel port. We suggest that the user select the interrupt for the onboard parallel port as shown below:

Onboard parallel port set at Parallel Port IRQ

LPT1(378H) LPT2(278H) LPT3(3BCH)

Parallel Port DMA Channel

This option allows user to choose DMA channel 1 to 3 for the onboard parallel port on ECP mode.

Onboard IDE

Set this option to enable or disable on board IDE controller.

7 5 5

3-27

CHAPTER 3

AMI® BIOS USERS GUIDE

3.8 Hardware Monitor Setup

The Hardware Monitor Setup is used to monitor the Current CPU temperature, CPU Fan speed, Chassis Fan Speed, Power fan speed, Vcore, and etc.

AMIBIOS SETUP - HARDWARE MONITOR SETUP

-=System Hardware Monitor= Current CPU Temperature 30 Current CPU Fan Speed 5273RPM Current Chassis Fan Speed 0 RPM Current Power Fan Speed 0 RPM Vcore 2.2V Vtt 1.5V Vio 3.3V +5,000V +5V +12,000V +12V

-12,000V -12V

-5,000V -5V

Reserved

c/1000f

Available Options: Enabled Disabled

3-28

ESC:Exit :Sel PgUp/PgDn:Modify F2/F3:Color

Intel MS-6112 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
