LV-671

Mini-ITX Motherboard

User’s Manual

Edition: 1.41

2005/03/24

LV-671 User’s Manual

2

LV-671 User’s Manual

3

LV-671 User’s Manual

Copyright

Copyright© 2003 - 2004. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products.

This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at http://www.commell.com.tw.

4

LV-671 User’s Manual

Packing List

Please check the package before you use this product

Hardware:

LV-671 Mini-ITX motherboard x 1

Cable Kit:

40-pin ATA100 IDE Cable x 1

26-pin Slim Type Floppy Cable x 1

4-pin to 4-pin Power Cable x 1

CPU Cooler x 1

Other Accessories

Driver CD x 1

User’s Manual x 1

5

LV-671 User’s Manual

Index



Index



Chapter

1 <Introduction> .....................................................................................

9

1.1

<Product Overview>..........................................................................

9

1.2

<Product Specification> .........................................................................

10

1.3

<Component Placement> ......................................................................

13

1.4

<Block Diagram>....................................................................................

14

Chapter

2 <Hardware Setup>.............................................................................

15

2.1

<Connector Location>............................................................................

15

2.2

<Jumper Reference> .............................................................................

16

2.3

<Connector Reference>.........................................................................

17



2.3.1 <Internal Connector>..................................................................

17



2.3.2 <External I/O connector> ...........................................................

17

2.4

<System Setup>.....................................................................................

18



2.4.1 <CPU Installation>......................................................................

18



2.4.2 <Memory Installation> ................................................................

19



2.4.3 <CPU Cooler Installation>..........................................................

20

2.5

<CMOS Setup>......................................................................................

21

2.6

<IDE Interface> ......................................................................................

22

2.7

Compact Flash Interface ........................................................................

23

2.8

<Display Interface> ................................................................................

24



2.8.1 <Analog display interface> .........................................................

24



2.8.2 <Digital display interface> ..........................................................

24

2.9

<Audio Interface>...................................................................................

28

2.10 <Ethernet Interface> ............................................................................

30

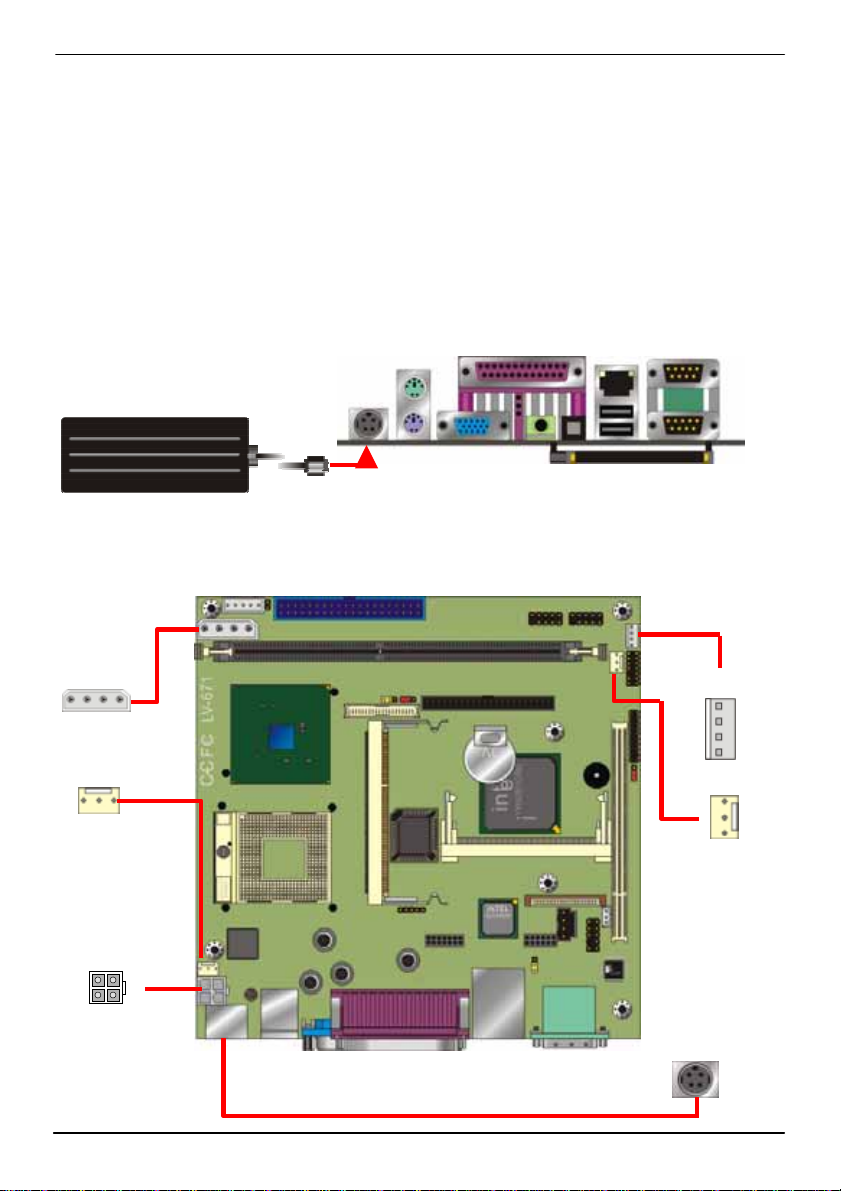

2.11 <Power and Fan connector> ................................................................

31

2.12 <GPIO Interface> .................................................................................

33

2.13 <Expansive Interface> .........................................................................

34

2.14 <Switch and Indicator>.........................................................................

35

6

LV-671 User’s Manual

Index

Chapter 3 <System Setup> ................................................................................

37

3.1 <Watchdog Timer Setting>.....................................................................

37

3.2 <Audio Setting>......................................................................................

38

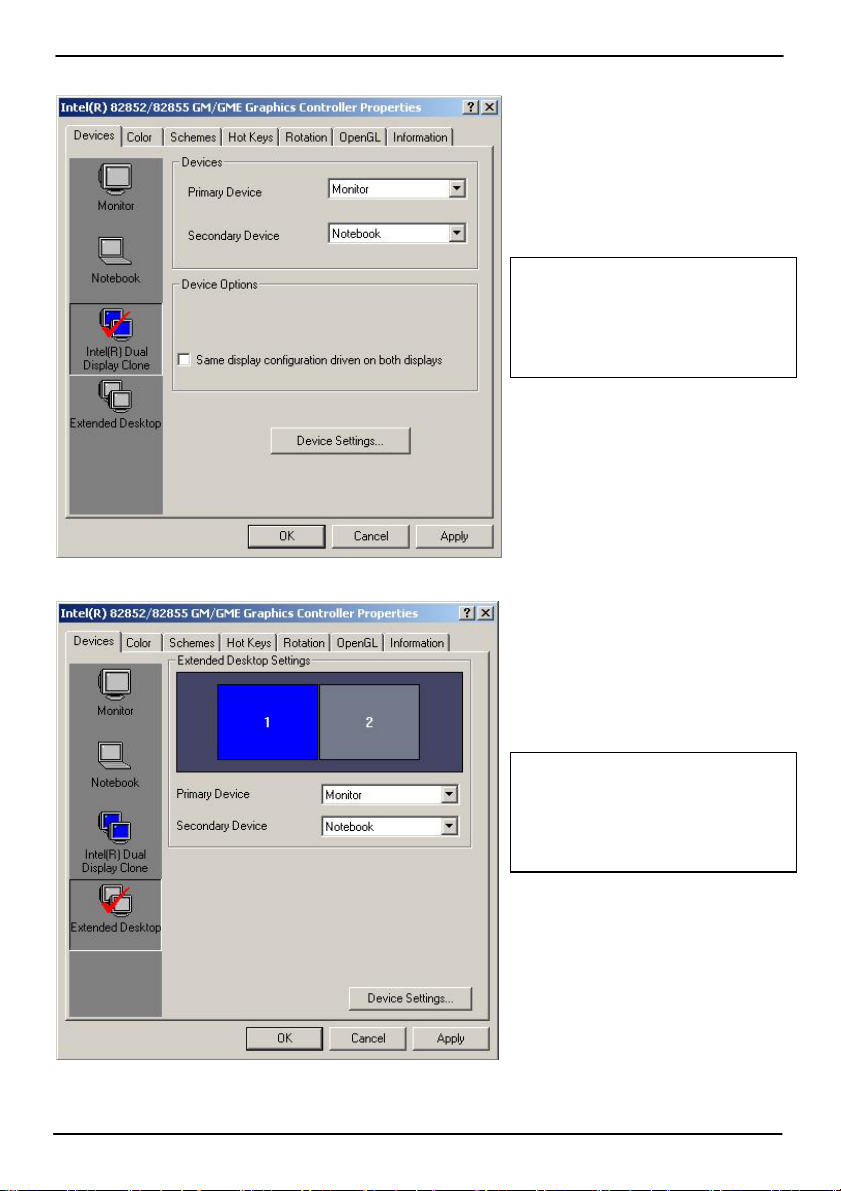

3.3 <Display Device Setup>.........................................................................

39

Chapter 4 <BIOS Setup> ....................................................................................

43

Appendix A <I/O Port Pin Assignment>............................................................

45

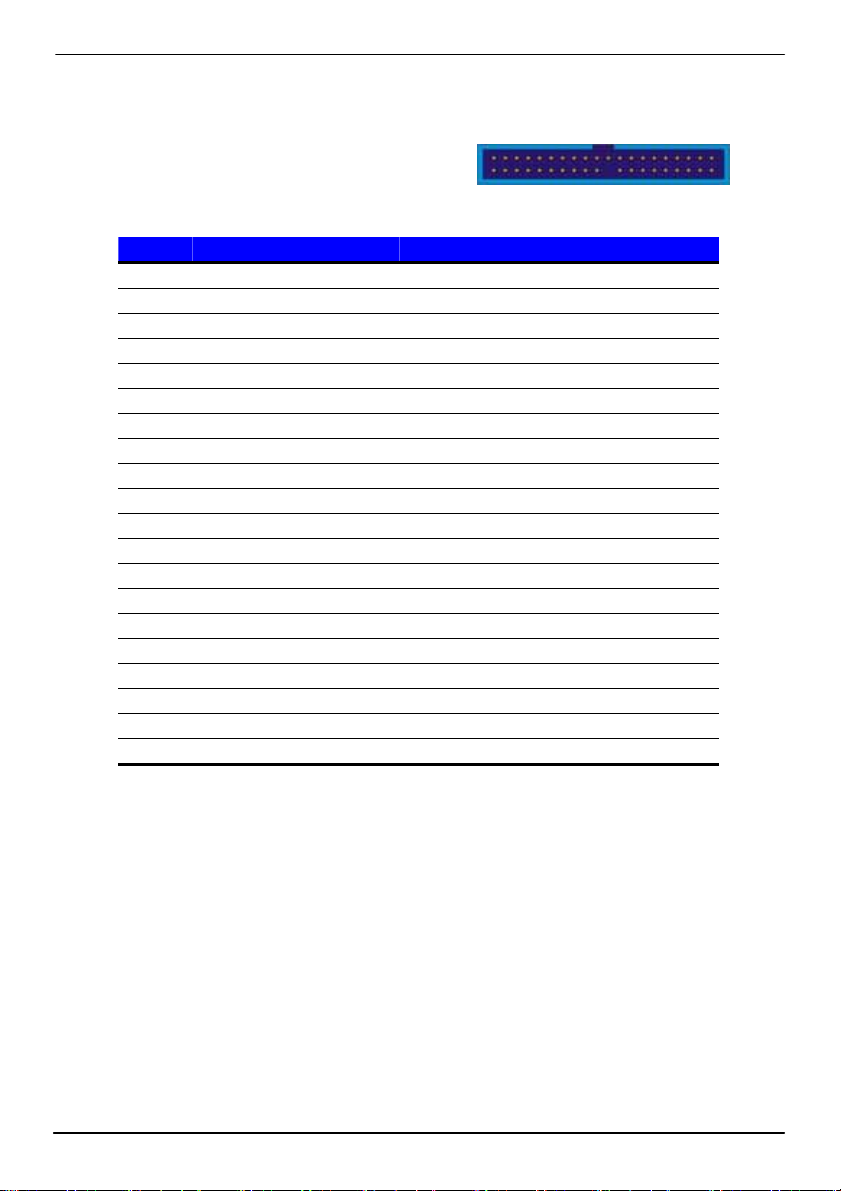

A.1

<IDE Port> .............................................................................................

45

A.2

<Floppy Port> ........................................................................................

47

A.3

< USB Interface > ..................................................................................

47

A.4

<IrDA Port> ............................................................................................

48

A.5

< VGA Port >..........................................................................................

48

A.6

< LAN Port > ..........................................................................................

48

A.7

< Serial Port >........................................................................................

49

Appendix B <Flash BIOS>..................................................................................

51

B.1

<Flash Tool> ..........................................................................................

51

B.2

<Flash BIOS Procedure>.......................................................................

51

Appendix C <System Resource> ......................................................................

53

C.1 <I/O Address Map>................................................................................

53

C.2 <Memory Address Map> .......................................................................

55

C.3 <System IRQ and DMA Resource>.......................................................

56

Contact Information............................................................................................

58

7

LV-671 User’s Manual

(This Page is Left for Blank)

8

LV-671 User’s Manual

Introduction

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-671 is an all-in-one industrial compact Pentium-M level motherboard based on Mini-ITX form factor at 170 x 170 mm of dimension. Based on Intel 855GME and ICH4 chipset, LV-671 offers the compact, embedded, value and high performance solution with Intel Pentium-M CPU, 400MHz of FSB, 1GBytes DDR200/266/333 SDRAM with ECC, Intel 855GME GMCH built-in Intel Extreme Graphics 2, Intel PRO/1000+ LAN, Hi-Speed USB 2.0, 5.1 channel and S/P DIF 3D audio, 18/24-bit dual channel LVDS, GPIO and embedded flash disk interfaces.

Low Power Consumption Solution

Based on Intel 855GME chipset and Intel Pentium M/Celeron M processor, the board requires lower power consumption than Pentium 4 –M processors. The Intel Pentium M integrates 512KB/1MB/2MB of L2 cache, so it provides better performance than before.

Dual Display Architecture

Intel 855GME supports two DAC for display interface; users can apply two display devices for dual display clone or extended desktop display. With this feature, system integrator can use this board for Kiosk, ATM, or industrial control machines.

5.1 Channel AC97 Audio

LV-671 integrates a REALTEK 5.1 channel AC97 codec; users can enjoy the live surround sound through 5.1 channel speakers. LV-671 also has an S/PDIF jack for digital sound outputting.

Hi-Speed USB 2.0 Interface

Intel ICH4 built-in Hi-Speed USB 2.0 controller let LV-671 offer up to 480Mbps of transferring rate.

Card Bus and Embedded Flash Disk

The LV-671 support PCMCIA Type I/II enable you can simply use the wireless LAN module or other extended devices, the Compact Flash interface and IDE1 with DOM support can let you port any embedded system onboard.

Mini-PCI and Mini-AGP interface

With Mini-PCI interface, users can add a wireless LAN module or video capture

module for powerful communication solutions. With Mini-AGP interface, users can apply

the AGP graphic card or additional video output module such as HDTV or DVI.

Product Overview

9

LV-671 User’s Manual

1.2 <Product Specification>

General Specification

Form Factor

Mini-ITX motherboard at 170 x 170 mm (L x W)

CPU

Package: 478 pin PGA/ 479 pin BGA



L2 Cache: 512KB/1MB/2MB



FSB: 400MHz



( The Intel® Celeron® M Processor 4xx series have been



designed to work with the Mobile Intel® 945 Express Chipset



Family only .)

Memory

1GBytes DDR200/266/333 SDRAM on one 184-pin DIMM socket



ECC memory is supported

Chipset

Intel 82855GME GMCH and 82801DB ICH4

BIOS

Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function

Power saving mode includes doze, standby and suspend modes.



ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer

System reset programmable watchdog timer with 1 ~ 255



sec./min. of timeout value

Real Time Clock

Intel ICH4 built-in RTC with lithium battery

Enhanced IDE

PCI enhanced IDE interface supports dual channels and up to 4



ATAPI devices at UltraATA/100



One 40-pin and one 44-pin IDE port



DiskOnModule (DOM) embedded flash disk up to 1GBytes





Multi-I/O Port







Chipset

Serial Port

USB Port

Parallel Port

Floppy Port

IrDA Port

K/B & Mouse

GPIO

Card Bus

Intel 82801DB ICH4 (USB) and Winbond W83627HF-AW LPC Super I/O controller

Two external RS-232 serial port with 16C550 compatible UART and 16 bytes FIFO

Six Hi-Speed USB 2.0 ports with 480 Mbps of transfer rate Two external and four internal USB ports

One external bi-direction parallel port with SPP/ECP/EPP mode One slim-type FDD port supports up to two FDD

One IrDA compliant Infrared interface supports SIR External PS/2 keyboard and mouse ports on rear I/O panel

One 20-pin Digital I/O connector with 15-bit programmable I/O interface

PCMCIA

One PCMCIA Type I/II slot

VGA Display Interface

Chipset

Intel 855GME GMCH built-in Intel Extreme Graphics 2



With 266 MHz VGA core and 256-bit 3D engine

10

LV-671 User’s Manual

Introduction













Frame Buffer

Intel DVMT (Dynamic Video Memory Technology) 2.0 up to







64Mbytes shared with system*





Display Type

CRT and LCD monitors for analog display











24-bit single/dual channel LCD panel for digital display

Connector

External DB15 female connector on rear I/O panel











Internal 40-pin LVDS connector





*Under Windows 98/ME/2000/XP/Server2003 or Linux kernel 2.4 later















Ethernet Interface







Chipset



Intel PRO/1000+ LAN interface with Intel 82540EM





Type

10Base-T / 100Base-TX/1000Base-T,











auto-switching Fast Ethernet











Full duplex, IEEE802.3U compliant





Connector



External RJ45 connector with LED on rear I/O panel





Audio Interface







Chipset



Intel ICH4 with REALTEK ALC655 AC97 3D audio codec

Interface

5.1 channel 3D audio with front (R/L), rear (R/L), center and bass







Optical Fiber digital audio encoding signal output





Connector

Optional external three phone jack for 5.1 channel audio onboard







External Amplified Speaker output jack on rear panel











External SPDIF connector on rear panel











Internal 10-pin header for line-in/-out, MIC-out, 4-pin header for







CD-in





Solid State Disk Interface





Flash Type



Compact Flash Type-I for Compact Flash Card or IBM Micro Drive

Capacity



Up to 1GB flash memory





Expansion Interface







Slim PCI Slot



One slim type PCI slot supports up to 2 bus master PCI







32-bit, 33MHz





Mini-PCI

One Mini-PCI type B socket with 32-bit, 33MHz for LV-671MP







series





Mini-AGP



One Mini-AGP socket with 4x AGP bus for LV-671MA series

Product Specification

11

Power Requirement
Input Voltage Range
Input Current
Dimension
Temperature
Ordering Code
LV-671-MA
LV-671-MP
LV-671-MAPM11
LV-671-MPPM11
LV-671-MACM6
LV-671-MPCM6

LV-671 User’s Manual

Power and Environment

One external 19V/12V (auto switching) DC Adapter connector on rear panel

4-pin onboard 12V P4 4-pin power connector (Two power resources selectable for each) 11V ~ 13V for 12V power supply

16V ~ 20V for 19V power supply

12V/60W (with one 5.25” CDROM and 3.5” HDD) 19V/60W (with one 5.25” CDROM and 3.5” HDD) 170 (L) x 170 (H) mm, Mini-ITX form factor Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

Mini-ITX Socket 479 Pentium-M processor Motherboard with Intel Extreme VGA, LAN, 5.1-CH/SPDIF Audio, Hi-Speed USB 2.0, mini-AGP socket and LVDS interface. Mini-ITX Socket 479 Pentium-M processor Motherboard with Intel Extreme VGA, LAN, 5.1-CH/SPDIF Audio, Hi-Speed USB 2.0, mini-PCI socket and LVDS interface.

Same as LV-671-MA and with onboard Intel Pentium M 1.1GHz processor for ULV/LV version.

Same as LV-671-MP and with onboard Intel Pentium M 1.1GHz processor for ULV/LV version.

Same as LV-671-MA and with onboard Intel Celeron M 600MHz processor for ULV/LV version.

Same as LV-671-MP and with onboard Intel Celeron M 600MHz processor for ULV/LV version.

For further product information please visit the website at http://www.commell.com.tw

12

Product Specification

LV-671 User’s Manual

Introduction

1.3 <Component Placement>

1 x 184-pin DDR266/333 DIMM up to 1GB

Intel ICH4 (Southbridge)

Intel 855GME (Northbridge)

Socket479

For 478-pin PGA

Pentium M/Celeron M

Onboard DC to DC inverter

Intel 82540EM

Gigabit LAN

REALTEK

ALC655 5.1CH

Audio Codec

Onboard

479-pin BGA

Pentium M/Celeron M

For embedded

CPU version

Component Placement

13

LV-671 User’s Manual

1.4 <Block Diagram>

Intel Pentium M processor with FC-PGA2/FC-BGA2



































400MHz FSB





































































































































CRT











































































DDR266/333



1 x 184-pin





































































LVDS













DIMM













LCD





































































Up to 1GB

















AGP 4x





























































































































Mini-AGP



855GME





























DVO B/C





PCI Bus













































































































ATAPI Devices

UltraATA100

















































































































































































USB2.0











33MHz

















USB Devices

































































480Mb/s



















Gigabit Ethernet











































Audio























ICH4

















Controller

























































AC97 Codec























Slim PCI























































































LPC







































































































































Mini-PCI





















































































































































































































PCMCIA

































Compact Flash













































































































































































































IrDA







































































































































































































PS/2



























































































































































































COM Port

























































































































































































Parallel



















































Port











































































































































Floppy





















































































































































14

Block Diagram

LV-671 User’s Manual

Hardware Setup

Chapter 2 <Hardware Setup>

This chapter contains the information for installation of hardware. The install procedure includes jumper settings, CPU and memory installation, fan, I/O and panel connections.

2.1 <Connector Location>

CN_BPWR CN_INV DIMM

IDE1 CN_LVDS IDE2 CN_USB1 CN_USB2

CN_SPWR JFRNT

SYSFAN

CN_DIO

MINI_AGP

MINIPCI

PCI

CPU

CN_IR FDD

CPUFAN

CN_WOL

CN_AUDIO CDIN

CN 12V











CN_2ND_IO



CN_LAN2

























DC_IN

PS/2

Printer

LAN

COM2/1

























































































































VGA SPEAKER SP/DIF Dual_USB PCMCIA

Connector Location

15

LV-671 User’s Manual









Hardware Setup

2.2 <Jumper Reference>





























Jumper

Function













JRTC

COMS Operate / Clear Setting





JLAN

LAN1 Enable/Disable





JVLCD

LCD Panel Voltage Setting





JCFSEL

Compact Flash Address Setting





JDOM

IDE1 5V Voltage Enable/Disable





JDOM

JCFSEL JVLCD

































































JRTC

JLAN

16

Jumper Reference

LV-671 User’s Manual



Hardware Setup

2.3 <Connector Reference>





2.3.1 <Internal Connector>

















Connector

Function

Remark





CPU

MicroPGA479 CPU Socket

Standard





DIMM

184-pin DIMM Socket

Standard





IDE1

40-pin Primary IDE Port

Standard





IDE2

44-pin Secondary IDE Port

Standard





FDD

26-pin slim type FDD Port

Standard





CN_USB1

10-pin 3rd / 4th Hi-Speed USB 2.0 Port

Standard





CN_USB2

10-pin 5th / 6th Hi-Speed USB 2.0 Port

Standard





CN_IR

5-pin SIR IrDA Port

Standard





CN_12V

4-pin AT Power Connector

Standard





CN_BPWR

4-pin 5V&12V output connector

Standard





CN_SPWR

4-pin 5V&12V output connector

Standard





JFRNT

14-pin Switch and Indicator Connector

Standard





CPUFAN

3-pin +12V CPU Fan Connector

Standard





SYSFAN

3-pin +12V System Fan Connector

Standard





CN_AUDIO

10-pin Audio Port

Standard





CDIN

4-pin CD-in Interface

Standard





CN_WOL

3-pin Wake-On-LAN Interface

Standard





CN_LVDS

40-pin LVDS connector

Standard





CN_INV

5-pin LCD Inverter Power Connector

Standard





CN_DIO

20-pin programmable I/O connector

Standard





CN_LAN2

Additional Ethernet Controller Interface

Standard





CN_2ND_IO

Additional I/O module interface

Standard





CF

Compact Flash Card Interface

Standard





PCMCIA

PCMCIA Card bus interface

Standard



2.3.2 <External I/O connector>















Connector

Function

Remark





DC_IN

4-pin 12V/19V auto-switching input

Standard





PS2

PS/2 type keyboard and mouse port

Standard





Printer

DB26 parallel port

Standard





VGA

DB15 VGA port

Standard





SPEAKER

Amplified speaker out

Standard





SPDIF

Digital audio output

Standard





LAN

RJ45 LAN port

Standard





DUAL_USB

USB connectors

Standard





COM1/2

RS232 DB9 serial port

Standard





PCMCIA

Car bus slot

Standard



Connector Reference

17

LV-671 User’s Manual

Hardware Setup

2.4 <System Setup>

2.4.1 <CPU Installation>

The board supports Intel Pentium M/ Celeron M processor with 400MHz of front side bus, 512KB/1MB/2MB of L2 cache, there are two package type of the processor, 478-pin PGA for socket479 onboard version; 479-pin BGA for embedded processor version. Please check installation steps below for onboard socket479 version.

Socket479 for Intel Pentium M/Celeron M With 478-pin PGA

Unlock way

1. Use the flat-type screw drive to unlock the CPU socket

Embedded Intel Pentium M/Celeron M

With 479-pin LV/ULV

Check point

2. Follow the pin direction to install the processor on the socket

3. Lock the socket

18

CPU Installation

LV-671 User’s Manual

Hardware Setup

2.4.2 <Memory Installation>

The board supports one 184-pin DDR266/333 (PC2100/PC2700) SDRAM up to 1GB of

capacity, and supports ECC (Error Correcting Code), unbufferred memory modules.

DIMM







104-pin

80-pin

Please check the pin number to match the socket side well before installing memory module.

Memory Installation

19

LV-671 User’s Manual

Hardware Setup

2.4.3 <CPU Cooler Installation>

The board accessories come with one CPU cooler, the cooler’s specification is listed below,

please check the installation steps before you start.

Notice: Installing the cooler improperly may cause the system unstable, if you face system rebooting or other issue, please check this point.

Cooler Specification:

Rated Voltage

Consumption

Sound Level

Rated Speed

Air Flow

12V

Max 0.12Amp

Max 27dB

5000rpm

Max 4.73CFM

The Cooler can compete with up to 2.0GHz of Intel Pentium M processor, if user needs to

use more upper frequency, please replace other coolers.

Cooler Installation Guide:

1. Remove the sticker on the base

2. Put the base through the fixing holes

3. Put the cooler through the four pills on the base

4. Press the plate and move

4. Connect the fan connector on CPUFAN

forward



20

CPU Cooler Installation

LV-671 User’s Manual

Hardware Setup

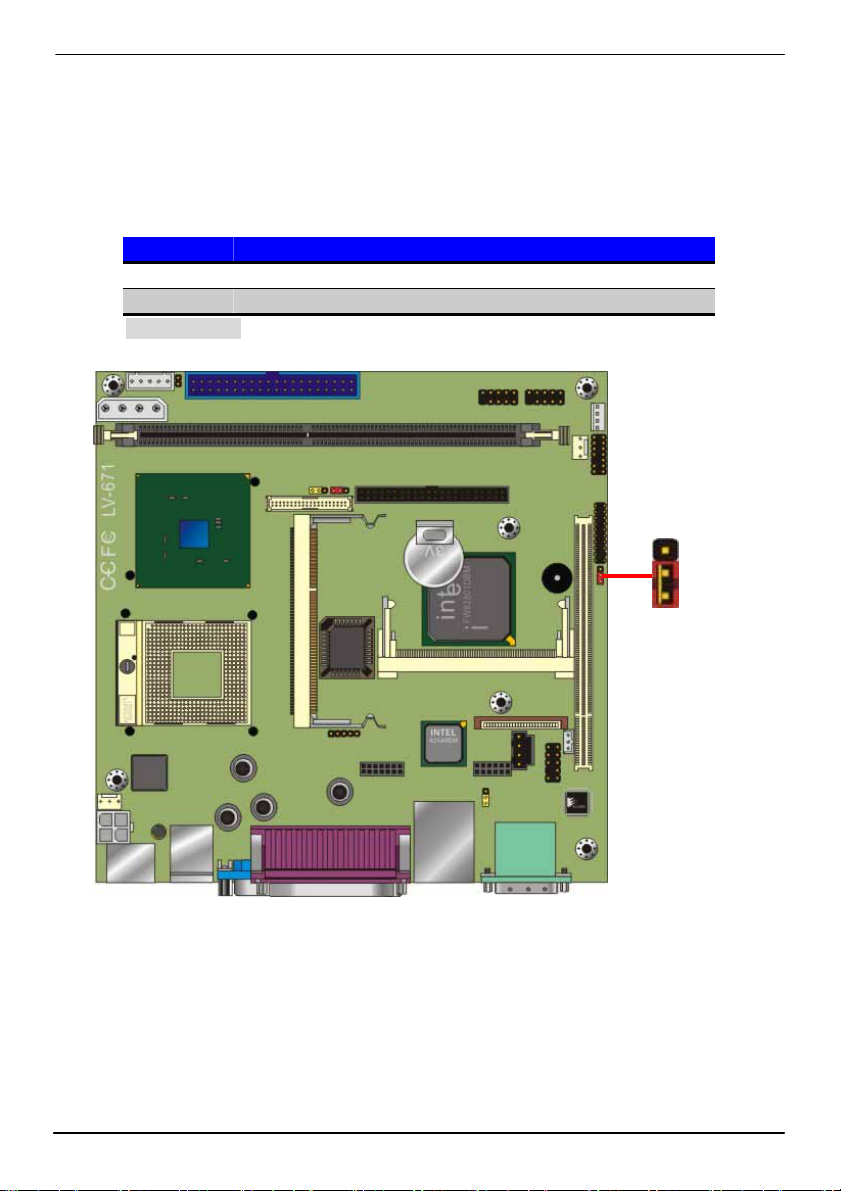

2.5 <CMOS Setup>

The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

Jumper: JRTC

Type: Onboard 3-pin Header

JRTC

1-2 Clear CMOS

2-3 Default setting

1

3

JRTC

CMOS Setup

21

LV-671 User’s Manual

Hardware Setup

2.6 <IDE Interface>

The board supports two IDE interface up to 4 ATAPI devices, base on Intel ICH4, the IDE interface supports ATA66/100 ATAPI drives. The IDE1 supports +5V on pin-20 for DOM (Disk on Module), the jumper JDOM can let you select enable/disable this support.

Jumper: JDOM









Type: onboard 3-pin header





JDOM















ON



IDE1 pin-20 5V power supply enable





OFF





























Default setting

















39



1



JDOM

IDE1 (40-pin pitch=2.54)

























40



2







































43

1

IDE2 (44-pin pitch=2.00)

2

44

22

IDE Interface

LV-671 User’s Manual

Hardware Setup

2.7 Compact Flash Interface

The board supports Compact Flash Type I socket for storage flash disk only, the jumper

JCFSEL can let you to setup the flash card operate on secondary master or slave mode.

Jumper: JCFSEL





Type: onboard 3-pin header





JCFSEL













1-2











2-3







Slave



















Default setting





Tested Compact Flash Disk











Manufacture

Capacity











LEXAR

16MB











DigitFab

32MB











RiDATA

256MB



HAGIWARA SYS-COM

512MB











Sandisk

2GB

CF

Compact Flash Interface

23

LV-671 User’s Manual

Hardware Setup

2.8 <Display Interface>

2.8.1 <Analog display interface>

The board is integrated with Intel 855GM GMCH chipset built-in Intel Extreme Graphics 2 with 266 MHz VGA core, 256-bit 3D engine and Intel Dynamic Video Memory up to 64MBytes shared with system memory. The CRT / analog VGA interface includes one external DB15 female connector on bracket on board.

VGA

2.8.2 <Digital display interface>

The board’s digital video interface provides LVDS flat panel support. The built-in 18/24-bit

dual channel LVDS interface offers the economical solution for LVDS-based LCD display.

JVLCD

3 1

5 1

CN_INV

1 CN_LVDS

40

24

Display Interface

LV-671 User’s Manual





Hardware Setup

Connector: CN_INV

Connector: JVLCD

Type: 5-pin LVDS Power Header

Type: 3-pin Power select Header





Pin



Description



Pin

Description







1



+12V



1

VCC







2



GND



2

LCDVCC







3



GND



3

VCC3







4



GND















5



ENABKL













Connector: CN_LVDS











Type: onboard 40-pin connector for LVDS connector









Connector model: HIROSE DF13-40DP-1.25V













Pin

Signal

Pin



Signal





2

LCDVCC

1



LCDVCC



4

GND

3



GND



6

ATX0-

5



BTX0-



8

ATX0+

7



BTX0+



10

GND

9



GND



12

ATX1-

11



BTX1-



14

ATX1+

13



BTX1+



16

GND

15



GND



18

ATX2-

17



BTX2-



20

ATX2+

19



BTX2+



22

GND

21



GND



24

ATXCK-

23



BTX3-



26

ATXCK+

25



BTX3+



28

GND

27



GND



30

ATX3-

29



BTXCK-



32

ATX3+

31



BTXCK+



34

GND

33



GND



36

PANELCLK

35



N/C



38

PANELDATA

37



N/C



40

N/C

39



N/C



To setup the LCD, you need the components below:

1.A panel (support up to 24-bit dual channel) with LVDS interfaces.

2.An inverter for panel’s backlight power.

3.A LCD cable and an inverter cable.

For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable; please find a local cable manufacture to make cables.

Display Interface

25

LV-671 User’s Manual

Hardware Setup

LCD installing guide:

1.Prepare a panel, inverter and LV-671.

2.Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.

3.Prepare a LVDS type LCD cable

Panel side

Board side





For sample illustrator only

4.Connect all the devices well.

Inverter

LVDS Cable

26

Display Interface

LV-671 User’s Manual

Hardware Setup

After setup the devices well, you need to select the LCD panel type in the BIOS.

The panel type mapping is list below:

BIOS panel type selection form

For 18-bit color

For 24-bit color

NO.

Output format

NO.

Output format









1

640 x 480

8

1024 x 768









2

800 x 600

9

1280 x 1024 Dual Channel









3

1024 x 768

10

1400 x 1050 Dual Channel









4

1280 x 1024

11

1600 x 1200 Dual Channel









5

1400 x 1050 Dual Channel @ 108Mhz

13

1024 x 768 Dual Channel









6

1400 x 1050 Dual Channel @ 122Mhz

14











7

1600 x 1200 Dual Channel

15

1280 x 768Dual Channel









12

1024 x 768 Dual Channel













Display Interface

27

LV-671 User’s Manual

Hardware Setup

2.9 <Audio Interface>

The board integrates Intel ICH4 with REALTEK ALC655 codec for AC97 Rev 2.3; it comes

with the features below:

Microsoft WHQL/WLP 2.0 audio compliance

Software selectable for 2-channel/5.1-channel sound

16-bit Stereo full-duplex CODEC with 48KHz sampling rate

Two software selectable MIC inputs

Supports 20-bit 48KHz S/PDIF output, complying with AC'97 Rev 2.3 specifications

EAX™ 1.0 & 2.0, Direct Sound 3D™, A3D™ compatible

1

CDIN

4

CN_AUDIO 1

10

SPEAKER







SP/DIF













28

Audio Interface

LV-671 User’s Manual



Hardware Setup

Connector: CN_AUDIO







Type: 10-pin (2 x 5) 2.54-pitch header









Pin

Description

Pin

Description





1

Line – Right

2

Ground





3

Line – Left

4

MIC





5

MIC

6

Ground





7

N/C

8

Line Out – Left





9

Line Out – Right

10

Ground



Connector: CDIN

Type: 4-pin header

Pin Description

1CD – Left

2Ground

3Ground

4CD – Right

Optional Audio Cable

Line-in/Rear MIC-IN/Center Line-out/Front

Audio Interface

29

LV-671 User’s Manual

Hardware Setup

2.10 <Ethernet Interface>

The board integrates with Intel 82540EM Gigabit controller at the type of 10Base-T/100Base-TX/1000Base-T auto-switching Ethernet with full duplex and IEEE 802.3U compliant. The LAN function comes with a RJ45 jack on the rear I/O panel. The

CN_WOL is for the Wake-Up-On-LAN function link with PCI LAN Card.

Connector: CN_WOL





Type: onboard 3-pin (1 x 3) wafer connector





Pin

1

2

3



Description

WOL-Ctrl

Ground

+5V Standby

Jumper: JLAN







Type: onboard 3-pin header







JRTC













1-2











2-3





Disable Onboard LAN controller



















Default setting

















RJ45



CN_WOL 1

3

1

3 JLAN

30

Ethernet Interface

LV-671 User’s Manual

Hardware Setup

2.11 <Power and Fan connector>

The board comes with a 4-pin Mini-DIN power connector for DC 12V/19V auto-switching input, it also has one 4-pin P4 additional use power connector for internal power supply, you can choose one pf them to meet your application.

The board has two power connectors for 5V/12V output to powering your ATAPI drives directly, and it has two fan connectors for CPU and system cooling.

How to power the board

Type 1: Use DC 12V/19V adapter with 4-pin MINI-DIN connector for DC_IN

DC 12V/19V Adapter

Type 2: Use standard internal P4 power supply for CN_12V

We strongly recommend users to use type 1 for powering the board.

CN_BPWR











































CN_SPWR





























1

4











1











































4

CPUFAN







SYSFAN

































3

3

1































1













CN_12V

3 1

4 2



DC_IN









3



1



4



2

















Power and Fan Connector

31

LV-671 User’s Manual



Hardware Setup

Connector: CN_12V







Type: 4-pin standard Pentium 4 +12V power connector



Pin

Description

Pin

Description





1

+12V

2

+12V



3

Ground

4

Ground



Connector: DC_IN







Type: 4-pin DC power connector









Pin

Description

Pin

Description





1

+12V

2

Ground



3

+12V

4

Ground



Connector: CPUFAN, SYSFAN























Type: 3-pin fan wafer connector



























Pin

Description

Pin

Description

Pin



Description







1



Ground



2

+12V





3

Fan Control





Connector: CN_BPWR

























Type: 4-pin P-type connector for +5V/+12V output







































Pin

Description

Pin

Description

Pin

Description

Pin

Description



1



+5V

2

Ground



3



Ground

4

+12V



Note: Maximum output voltage: 12V/5A & 5V/3A













Connector: CN_SPWR

























Type: 4-pin connector for +5V/+12V output











































Pin

Description

Pin

Description

Pin

Description

Pin

Description



1



+12V

2

Ground



3



Ground

4

+5V



















Floppy





ATAPI Drives



























































































































































Relative Accessory

32

Power and Fan Connector

LV-671 User’s Manual

Hardware Setup

2.12 <GPIO Interface>

The board offers 16-bit digital I/O to customize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS.

Connector: CN_DIO





Type: 20-pin (10 x 2) header







Pin

Description

Pin

Description



1

GP10

2

GP20



3

GP11

4

GP21



5

GP12

6

GP22



7

GP13

8

GP23



9

Ground

10

Ground



11

GP14

12

GP24



13

GP15

14

GP25



15

GP16

16

GP26



17

GP17

18

N/C



19

12VDU

20

5VDU

1

20 CN_DIO

GPIO Interface

33

LV-671 User’s Manual

Hardware Setup

2.13 <Expansive Interface>

The board comes with one slim type PCI slot and one optional Mini-AGP or Mini-PCI interface. The slim PCI slot supports up to 2 PCI devices through an optional riser card. For Mini-PCI interface, you can obtain a wireless LAN card for potable system. For Mini-AGP interface, you can obtain an extended graphic card to improve the onboard graphics performance.

Mini-AGP

Optional PCI Riser Card

Slim-PCI

Mini-PCI

Optional Mini-PCI Wireless LAN Card

Optional MA-ATI Mini-AGP Card

34

Expansive Interface

LV-671 User’s Manual Hardware Setup

2.14 <Switch and Indicator>

Connector: JFRNT

Type: onboard 14-pin (2 x 7) 2.54-pitch header



Function





Signal



PIN





Signal





Function



IDE LED





Vcc (+)



1

2





(+) Vcc





Power































Active



3

4





N/C























LED





























Reset





Reset



5

6





GND























































GND



7

8





Vcc































































N/C



9

10





N/C





Speaker





























Power





PWRBT



11

12





N/C

























Button































5VSB



13

14





SPKIN



































JFRNT 1

14

Switch and Indicator

35

LV-671 User’s Manual

(This Page is Left for Blank)

36

LV-671 User’s Manual

System Setup

Chapter 3 <System Setup>

3.1 <Watchdog Timer Setting>

The watchdog timer makes the system auto-reset while it stops to work for a period. The

integrated watchdog timer can be setup as system reset mode by program.

Timeout Value Range

-1 to 255

-Second or Minute

Program Sample

Watchdog timer setup as system reset with 5 second of timeout

2E, 87



2E, 87



2E, 07



2F, 08

Logical Device 8

2E, 30

Activate

2F, 01



2E, F5

Set as Second*

2F, 00



2E, F6

Set as 5

2F, 05



* Minute: bit 3 = 0; Second: bit 3 = 1

You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.

Watchdog Timer Setting

37

LV-671 User’s Manual

System Setup

3.2 <Audio Setting>

The board integrates Intel® ICH4 with REALTEK® ALC655 codec. It can support 2-channel or 5.1 channel sound under system configuration. Please follow the steps below to setup your sound system.

1.Install REALTEK AC97 Audio driver.

2.Lunch the control panel and Sound Effect Manager.

3.Select Speaker Configuration

4. Select the sound mode to meet your speaker system.

38

Audio Setup

LV-671 User’s Manual

System Setup

3.3 <Display Device Setup>

This chapter shows you how to setup the display device under Windows OS.

Before you using your display device:

1. Check your software

Before you can use the display device properly, please install the VGA driver. 2. Check your hardware

Please setup the display device properly before you boot up the system.

For configure your Display device, please follow the instructions below:

1. Please lunch Display Properties.

You would see two Graphics Controllers. If you connect two display devices, you would be able to setup each device for color bit and resolution.

This item can let you configure which device would be the primary if you connect two display devices.

This item can let you extend your Windows Desktop to second display device.

If you click the identify button, the screen will pop up the number sequence of your device.

Display Device Setup

39

LV-671 User’s Manual

System Setup

For advanced display settings, please click Advanced… button and choose Intel(R) Extreme Graphics.

Please click Graphics Properties button to enter the advanced setup.

40

Display Device Setup

LV-671 User’s Manual

System Setup

While you entering the Graphics Properties, you will see the options below:

This option can let you configure the CRT monitors for Colors, Screen Area (Resolution) and Refresh Rate.

This option can let you configure the LCD panel for Colors, Screen Area (Resolution) and Full Screen option.

Display Device Setup

41

LV-671 User’s Manual

System Setup

This option can let you configure the Dual Display for clone mode (same display on two devices)

This option can let you configure the Dual Display for Extended Desktop mode

42

Display Device Setup

LV-671 User’s Manual

BIOS Setup

Chapter 4 <BIOS Setup>

The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.

The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off. If the battery runs out of the power, then the settings of BIOS will come back to the default setting.

The BIOS section of the manual is subject to change without notice and is provided here for reference purpose only. The settings and configurations of the BIOS are current at the time of print, and therefore they may not be exactly the same as that displayed on your screen.

To activate CMOS Setup program, press DEL key immediately after you turn on the system. The following message “Press DEL to enter SETUP” should appear in the lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be displayed as Figure 5-1. You can use arrow keys to select your function, press Enter key to accept the selection and enter the sub-menu.

Figure 5-1 CMOS Setup Utility Main Screen

For more BIOS information please visit Phoenix-Award:

http://www.phoenix.com/en/customer+services/bios/awardbios/default1.htm

BIOS Setup

43

LV-671 User’s Manual

(This Page is Left for Blank)

44

LV-671 User’s Manual I/O Port Pin Assignment

Appendix A <I/O Port Pin Assignment>

A.1 <IDE Port>



39

1















Connector: IDE1





40

2



Type: 40-pin (20 x 2) box header

























Pin

Description

Pin





Description







1

Reset

2





Ground







3

D7

4





D8







5

D6

6





D9







7

D5

8





D10







9

D4

10





D11







11

D3

12





D12







13

D2

14





D13







15

D1

16





D14







17

D0

18





D15







19

Ground

20





VCC (JDOM)







21

REQ

22





Ground







23

IOW-/STOP

24





Ground







25

IOR-/HDMARDY

26





Ground







27

IORDY/DDMARDY

28





IDESEL







29

DACK-

30





Ground







31

IRQ

32





N/C







33

A1

34





CBLID







35

A0

36





A2







37

CS1 (MASTER CS)

38





CS3 (SLAVE CS)







39

LED ACT-

40





Ground





IDE Port

45

LV-671 User’s Manual



I/O Port Pin Assignment

Connector: IDE2

2

44

Type: 44-pin (22 x 2) box header







1

43

Pin

Description

Pin

Description

1

Reset

2

Ground

3

D7

4

D8

5

D6

6

D9

7

D5

8

D10

9

D4

10

D11

11

D3

12

D12

13

D2

14

D13

15

D1

16

D14

17

D0

18

D15

19

Ground

20

N/C

21

REQ

22

Ground

23

IOW-/STOP

24

Ground

25

IOR-/HDMARDY

26

Ground

27

IORDY/DDMARDY

28

IDESEL

29

DACK-

30

Ground

31

IRQ

32

N/C

33

A1

34

CBLID

35

A0

36

A2

37

CS1

38

CS3

39

IDEACT-

40

Ground

41

VCC

42

VCC

43

Ground

44

Ground

46

IDE Port

LV-671 User’s Manual



I/O Port Pin Assignment

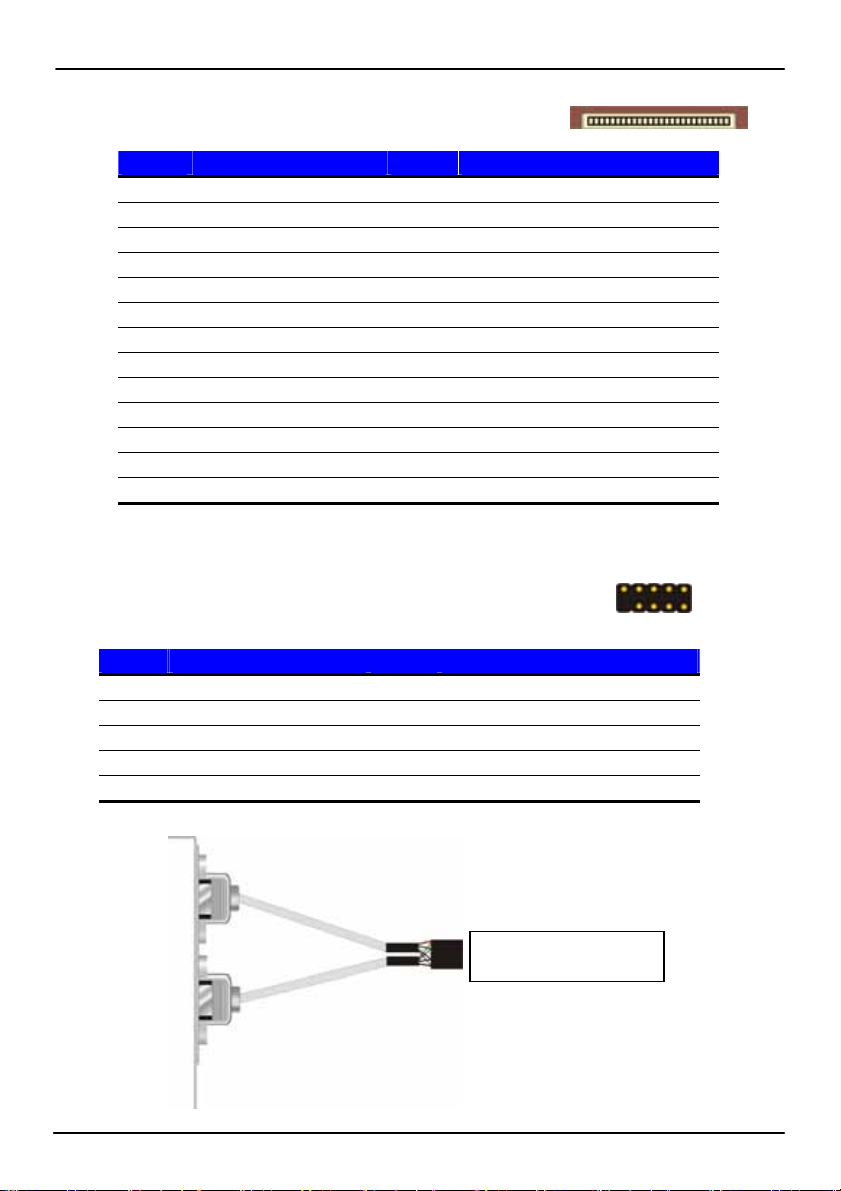

A.2 <Floppy Port>











Connector: FDD











Type: 26-pin connector















Pin

Description

Pin

Description









1

VCC

2

INDEX









3

VCC

4

DRV0









5

VCC

6

DSKCHG









7

DRV1

8

N/C









9

MTR1

10

MTR0









11

RPM

12

DIR









13

N/C

14

STEP









15

Ground

16

WRITE DATA









17

Ground

18

WRITE GATE









19

N/C

20

TRACK 0









21

N/C

22

WRPTR









23

Ground

24

RDATA-









25

Ground

26

SEL







A.3 < USB Interface >



9

1





Connector: CN_USB1, CN_USB2

















Type: 10-pin (5 x 2) header for dual USB Ports

10

2









































Pin

Description

Pin

Description









1

VCC

2

VCC









3

Data0-

4

Data1-









5

Data0+

6

Data1+









7

Ground

8

Ground









9

N/C

10

N/C







PS. You can obtain an optional USB cable on bracket for to 2 USB ports.

Optional USB Cable

Floppy Port

47

LV-671 User’s Manual





I/O Port Pin Assignment

A.4 <IrDA Port>











Connector: CN_IR





5



1

Type: 5-pin header for SIR Ports











Pin

Description











1

VCC











2

N/C











3

IRRX











4

Ground











5

IRTX











A.5 < VGA Port >







6

11





1











2



12









3



13





















4



14

Connector: VGA





5



15







10

Type: 15-pin D-sub female connector on bracket











Pin

Description

Pin

Description

Pin





1

RED

6

Ground

11

N/C



2

GREEN

7

Ground

12

5VCDA

3

BLUE

8

Ground

13

HSYNC

4

N/C

9

LVGA5V

14

VSYNC

5

Ground

10

Ground

15

5VCLK

A.6 < LAN Port >

Connector: RJ45

Type: RJ45 connector with LED on bracket

Pin

1

2

3

4

5

6

7

8



















Description

MI0+

MI0-

MI1+

MI2+

MI2-

MI1-

MI3+

MI3-



















48

IrDA Port

LV-671 User’s Manual I/O Port Pin Assignment

A.7 < Serial Port >









5

1

Connector: COM1







Type: 9-pin D-sub male connector on bracket

9

6















Pin

Description

Pin

Description





1

MDCD1-

6

MDSR1-





2

MSIN1-

7

MRTS1-





3

MSO1-

8

MCTS1-





4

MDTR1-

9

MRI1-



5

Ground















5

1

Connector: COM2







Type: 9-pin D-sub male connector on bracket

9

6















Pin

Description

Pin

Description





1

MDCD2-

6

MDSR2-





2

MSIN2-

7

MRTS2-





3

MSO2-

8

MCTS2-





4

MDTR2-

9

MRI2-





5

Ground







Output Voltage: +/- 9V.

Serial Port

49

LV-671 User’s Manual

(This Page is Left for Blank)

50

LV-671 User’s Manual

Flash BIOS

Appendix B <Flash BIOS>

B.1 <Flash Tool>

The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below:

http://www.phoenix.com/en/home/

http://www.commell.com.tw/Support/Support_SBC.htm

File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS.

B.2 <Flash BIOS Procedure>

1.Please make a bootable floppy disk.

2.Get the last .bin files you want to update and copy it into the disk.

3.Copy awardflash.exe to the disk.

4.Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)

5.Restart the system.

Any question about the BIOS re-flash please contact your distributors or visit the web-site at below:

http://wwwTU .commell.com.tw/support/support.htmUT

Flash BIOS

51

LV-671 User’s Manual

(This Page is Left for Blank)

52

LV-671 User’s Manual

System Resource

Appendix C <System Resource>

C.1 <I/O Address Map>



Address Range

Device





x0000

- x000F

Direct Memory Access Controller



x0010 - x001F

Motherboard Resource



x0020

- x0021

Programmable Interrupt Controller



x0022 - x003F

Motherboard Resource



x0040 - x0043

System Clock



x0044 - x005F

Motherboard Resource



x0060 - x0060

Standard 101/102-Key or Microsoft Natural Keyboard



x0061 - x0061

System Speaker



x0062

- x0063

Motherboard Resource



x0064 - x0064

Standard 101/102-Key or Microsoft Natural Keyboard



x0065 - x006F

Motherboard Resource



x0070 - x0073

System CMOS/ Real Time Clock



x0074 - x007F

Motherboard Resource



x0080 - x0090

Direct Memory Access Controller



x0091

- x0093

Motherboard Resource



x0094

- x009F

Direct Memory Access Controller



x00A0 - x00A1

Programmable Interrupt Controller



x00A2 - x00BF

Motherboard Resource



x00C0 - x00DF

Direct Memory Access Controller



x00E0 - x00EF

Motherboard Resource



x00F0 - x00FF

Numeric Data Processor



x0170

- x0177

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB



x0170 - x0177

Secondary IDE controller (dual fifo)



x01F0 - x01F7

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB



x01F0 - x01F7

Primary IDE controller (dual fifo)



x0294

- x0297

Motherboard Resource



x02F8 - x02FF

Communication Port (COM2)



x0376

- x0376

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB



x0376 - x0376

Secondary IDE controller (dual fifo)



x0378 - x037F

Printer Port (LPT1)



x03B0 - x03BB

Intel(R) 82852/82855 GM/GME Graphics Controller



x03C0 - x03DF

Intel(R) 82852/82855 GM/GME Graphics Controller



x03F0 - x03F5

Standard Floppy Controller



x03F6 - x03F6

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB



x03F6 - x03F6

Primary IDE controller (dual fifo)



x03F7 - x03F7

Standard Floppy Controller











I/O Address Map

53

LV-671 User’s Manual

System Resource





























x03F8 - x03FF

Communication Port (COM1)







x0400 - x04BF

Motherboard Resource







x04D0 - x04D1

Motherboard Resource







x0500 - x051F

Intel(R) 82801DB/DBM SMBus Controller - 24C3







x0778 - x077B

Printer Port (LPT1)







x0A78 - x0A7B

Motherboard Resource







x0B78 - x0B7B

Motherboard Resource







x0BBC - x0BBF

Motherboard Resource







x0CF8 - x0CFF

PCI Bus







x0E78 - x0E7B

Motherboard Resource







x0F78 - x0F7B

Motherboard Resource







x0FBC - x0FBF

Motherboard Resource







xA000 - xBFFF

Intel(R) 82801DB PCI Bridge - 244E







xB000 - xB03F

Intel(R) PRO/1000 MT Network Connection







xC000 - xC01F

Intel(R) 82801DB/DBM USB Universal Host Controller







xC400 - xC41F

Intel(R) 82801DB/DBM USB Universal Host Controller







xC800 - xC81F

Intel(R) 82801DB/DBM USB Universal Host Controller







xCC00 - xCC07

Intel(R) 82852/82855 GM/GME Graphics Controller







xD400 - xD4FF

Realtek AC'97 Audio







xD800 - xD83F

Realtek AC'97 Audio







xF000 - xF007

Primary IDE controller (dual fifo)







xF000 - xF00F

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB







xF008 - xF00F

Secondary IDE controller (dual fifo)















54

I/O Address Map

LV-671 User’s Manual

System Resource

C.2 <Memory Address Map>

















Range

Device









x00000000 - x0009FFFF

System board extension for ACPI BIOS







x000A0000 - x000AFFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







x000B0000 - x000BFFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







x000C0000 - x000CC7FF

Intel(R) 82852/82855 GM/GME Graphics Controller







x000CC800 - x000CFFFF

System board extension for ACPI BIOS







x000E0000 - x000EFFFF

System board extension for ACPI BIOS







x000F0000 - x000F7FFF

System board extension for ACPI BIOS







x000F8000 - x000FBFFF

System board extension for ACPI BIOS







x000FC000 - x000FFFFF

System board extension for ACPI BIOS







x00100000 - x1DFEFFFF

System board extension for ACPI BIOS







x1DFF0000 - x1DFFFFFF

System board extension for ACPI BIOS







xD0000000 - xD7FFFFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







xD8000000 - xDFFFFFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







xE0000000 - xE0000FFF

Ricoh RL5C475 CardBus Controller







xE0000000 - xE1FFFFFF

Intel(R) 82801DB PCI Bridge - 244E







xE1000000 - xE101FFFF

Intel(R) PRO/1000 MT Network Connection







xE1020000 - xE102FFFF

Intel(R) PRO/1000 MT Network Connection







xE2000000 - xE207FFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







xE2080000 - xE20FFFFF

Intel(R) 82852/82855 GM/GME Graphics Controller







xE2100000 - xE21003FF

Intel USB 2.0 Enhanced Host Controller







xE2101000 - xE21011FF

Realtek AC'97 Audio







xE2102000 - xE21020FF

Realtek AC'97 Audio







xFEC00000 - xFECFFFFF

System board extension for ACPI BIOS







xFEE00000 - xFEEFFFFF

System board extension for ACPI BIOS







xFFB00000 - xFFB7FFFF

System board extension for ACPI BIOS







xFFB80000 - xFFBFFFFF

Intel(r) 82802 Firmware Hub Device







xFFF00000 - xFFFFFFFF

System board extension for ACPI BIOS















Memory Address Map

55

LV-671 User’s Manual

System Resource

C.3 <System IRQ and DMA Resource>















C3.1 IRQ











IRQ Number

Device



0System Clock

1Standard 101/102-Key or Microsoft Natural Keyboard

2Programmable Interrupt Controller

3Communication Port (COM2)

4Communication Port (COM1)

5Realtek AC'97 Audio

5

Intel(R) 82801DB/DBM SMBus Controller - 24C3

5ACPI IRQ Holder for PCI IRQ Steering

6Standard Floppy Controller

7Printer Port (LPT1)

8System CMOS/ Real Time Clock

9Ricoh RL5C475 CardBus Controller

9

ACPI IRQ Holder for PCI IRQ Steering

9SCI IRQ used by ACPI bus

10Intel(R) 82801DB/DBM USB Universal Host Controller - 24C7

10

Intel(R) 82801DB/DBM USB Universal Host Controller - 24C2

10

Intel(R) 82852/82855 GM/GME Graphics Controller

10

ACPI IRQ Holder for PCI IRQ Steering

10ACPI IRQ Holder for PCI IRQ Steering

11Intel(R) PRO/1000 MT Network Connection

11

Intel USB 2.0 Enhanced Host Controller

11

Intel(R) 82801DB/DBM USB Universal Host Controller - 24C4

11

ACPI IRQ Holder for PCI IRQ Steering

11ACPI IRQ Holder for PCI IRQ Steering

12PS/2 Compatible Mouse Port

13Numeric Data Processor

14Primary IDE controller (dual fifo)

14Intel(R) 82801DB Ultra ATA Storage Controller - 24CB

15Secondary IDE controller (dual fifo)

15

Intel(R) 82801DB Ultra ATA Storage Controller - 24CB

56

System IRQ and DMA Resource

LV-671 User’s Manual

System Resource

C3.2 DMA

Channel Device

0(free)

1(free)

2Standard Floppy Disk Controller

3(free)

4Direct Memory Access Controller

5(free)

6(free)

7(free)

System IRQ and DMA Resource

57

LV-671 User’s Manual

Contact Information

Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business

Taiwan Commate Computer Inc.

Address



8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih





Taipei Hsien, Taiwan

TEL

+886-2-26963909





FAX

+886-2-26963911





Website



http://wwwUT .commell.com.twTU













E-Mail



info@commellUT

.com.twTU (General Information)















tech@commellUT

.com.twTU (Technical Support)















Commell is our trademark of industrial PC division

58
