Intel® Desktop Board
D865GBF/D865GLC
Product Guide
Order Number: C24485-002
Revision History
Revision |
Revision History |
Date |
-001 |
First release of the Intel® Desktop Board D865GBF/D865GLC Product Guide. |
March 2003 |
-002 |
Second release of the Intel® Desktop Board D865GBF/D865GLC Product Guide. |
May 2003 |
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation
5200 N.E. Elam Young Parkway Hillsboro, OR 97124 1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.
Disclaimer
Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.
Desktop Board D865GBF/D865GLC may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from Intel Corporation by going to the World Wide Web site at: http://www.intel.com/ or by calling 1-800-548-4725.
Intel, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2003, Intel Corporation. All rights reserved.
This Product Guide gives information about board layout, component installation, BIOS Setup menus, and regulatory requirements for Intel® Desktop Board D865GBF/D865GLC.
The Product Guide is intended for technically qualified personnel. It is not intended for general audiences.
The chapters in this Product Guide are arranged as follows:
•1 Desktop Board Features: a summary of product features.
•2 Installing and Replacing Desktop Board Components: instruction on how to install the desktop board and other hardware components.
•3 Updating the BIOS: instructions on how to update the BIOS.
•4 Using the BIOS Setup Program: contents of the BIOS Setup menus and submenus
•5 Technical Reference: information about connectors and desktop board resources.
•A Error Messages and Indicators: information about BIOS error messages and beep codes.
•B Regulatory Compliance: safety and EMC regulations, product certification.
The following conventions are used in this manual:
WARNING
Warnings indicate conditions that, if not observed, can cause personal injury.
CAUTION
Cautions warn the user about how to prevent damage to hardware or loss of data.
NOTE
Notes call attention to important information.
iii
Intel Desktop Boards D865GBF/D865GLC Product Guide
The table below gives descriptions to some common terms used in the product guide.
Term
GB
GHz
KB
MB
Mbit
MHz
Description
Gigabyte (1,073,741,824 bytes)
Gigahertz (one billion hertz)
Kilobyte (1024 bytes)
Megabyte (1,048,576 bytes)
Megabit (1,048,576 bits)
Megahertz (one million hertz)
•Intel Desktop Board
•I/O shield
•One ATA66/100 IDE cable
•One ATA33 IDE cable
•One SATA cable
•One diskette drive cable
•Quick Reference Guide
•Configuration and battery caution statement label
•Intel® Express Installer CD-ROM
iv
1 Desktop Board Features |
|
Manufacturing Options ........................................................................................................ |
13 |
Supported Operating Systems............................................................................................. |
13 |
Desktop Board Components................................................................................................ |
14 |
Processor ............................................................................................................................ |
16 |
Main Memory ...................................................................................................................... |
17 |
Intel® 865G Chipset............................................................................................................. |
18 |
Graphics Subsystem ........................................................................................................... |
18 |
Audio Subsystem ................................................................................................................ |
18 |
Flexible 6-Channel Audio with Jack Sensing .............................................................. |
18 |
Input/Output (I/O) Controller ................................................................................................ |
19 |
LAN Subsystem (Optional) .................................................................................................. |
19 |
LAN Subsystem Software ........................................................................................... |
19 |
RJ-45 LAN Connector LEDs ....................................................................................... |
20 |
Hi-Speed USB 2.0 Support.................................................................................................. |
20 |
Enhanced IDE Interface ...................................................................................................... |
21 |
Accelerated Graphics Port (AGP) ........................................................................................ |
21 |
BIOS ................................................................................................................................... |
21 |
PCI Auto Configuration ............................................................................................... |
21 |
IDE Auto Configuration ............................................................................................... |
21 |
Security Passwords .................................................................................................... |
22 |
Chassis Intrusion................................................................................................................. |
22 |
Power Management Features ............................................................................................. |
22 |
ACPI........................................................................................................................... |
22 |
Power Connectors ...................................................................................................... |
22 |
Fan Connectors .......................................................................................................... |
23 |
Fan Speed Control (Intel® Precision Cooling Technology) .......................................... |
23 |
Suspend to RAM (Instantly Available PC Technology)................................................ |
23 |
Resume on Ring......................................................................................................... |
24 |
Wake from USB.......................................................................................................... |
24 |
Wake from PS/2 Keyboard/Mouse.............................................................................. |
25 |
PME# Wakeup Support .............................................................................................. |
25 |
Speaker............................................................................................................................... |
25 |
Battery................................................................................................................................. |
25 |
Real-Time Clock.................................................................................................................. |
25 |
2 Installing and Replacing Desktop Board Components |
|
Before You Begin ................................................................................................................ |
27 |
Installation Precautions ....................................................................................................... |
28 |
Installation Instructions ........................................................................................................ |
28 |
Ensure Electromagnetic Compatibility (EMC) Compliance.......................................... |
28 |
Chassis and Component Certifications ....................................................................... |
29 |
Prevent Power Supply Overload................................................................................. |
29 |
v
Intel Desktop Boards D865GBF/D865GLC Product Guide
Place Battery Marking................................................................................................. |
29 |
Use Only for Intended Applications............................................................................. |
29 |
Installing the I/O Shield........................................................................................................ |
30 |
Installing and Removing the Desktop Board ........................................................................ |
31 |
Installing and Removing a Processor .................................................................................. |
32 |

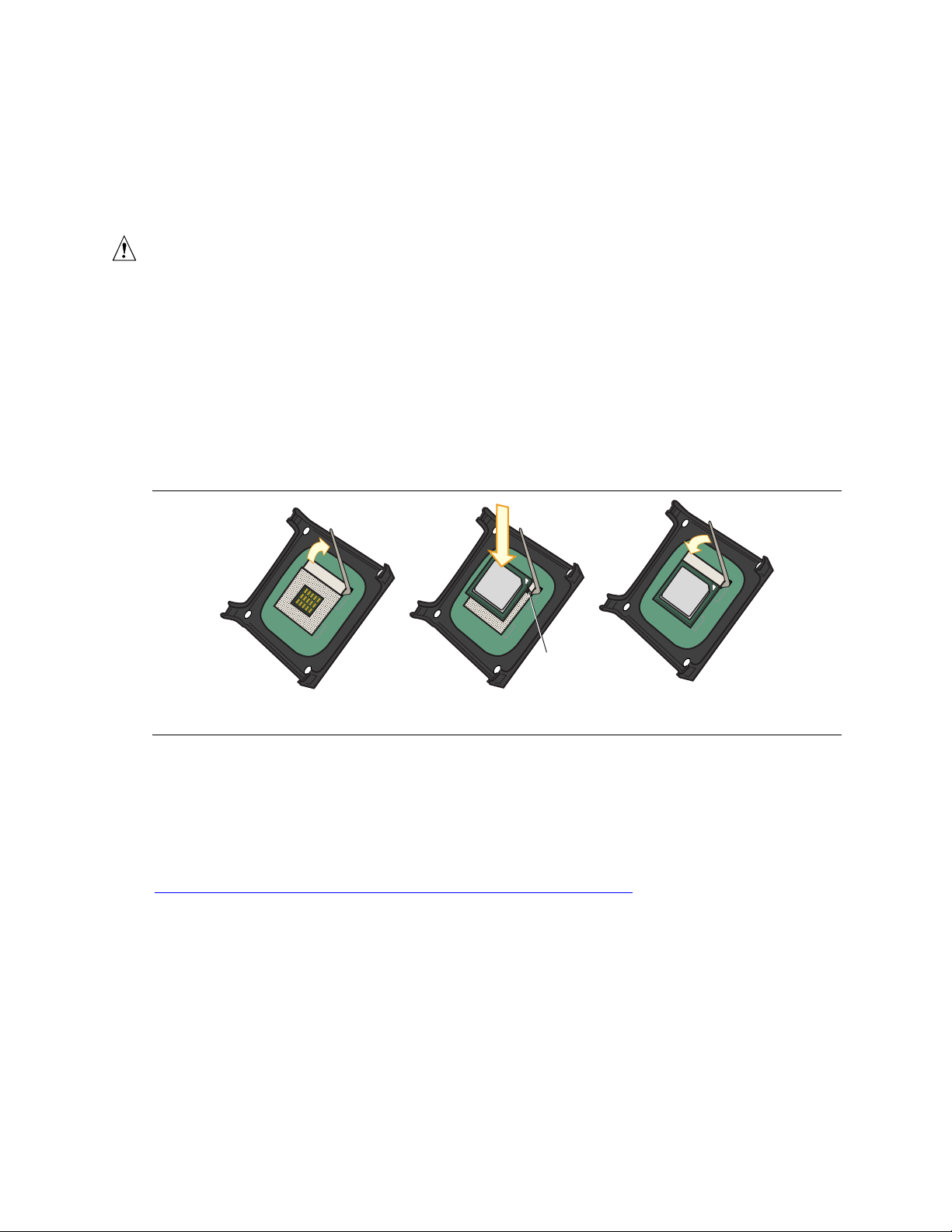

Installing a Processor ................................................................................................. |
32 |
Installing the Processor Fan Heat Sink ....................................................................... |
32 |
Connecting the Processor Fan Heat Sink Cable ......................................................... |
33 |
Removing the Processor ............................................................................................ |
33 |
Installing and Removing Memory ........................................................................................ |
34 |
Installing DIMMs ......................................................................................................... |
35 |
Removing DIMMs ....................................................................................................... |
36 |
Installing and Removing an AGP Card ................................................................................ |
37 |
Installing an AGP Card ............................................................................................... |
37 |
Removing the AGP Card ............................................................................................ |
37 |
Connecting the IDE Cable ................................................................................................... |
38 |
Connecting the Serial ATA Cable ........................................................................................ |
39 |
Connecting Internal Headers ............................................................................................... |
40 |
Installing a Front Panel Audio Solution ....................................................................... |
41 |
Setting up the Flexible 6-Channel Audio with Jack Sensing........................................ |
42 |
Multi-Channel Analog Audio ....................................................................................... |
42 |
Multi-Channel Digital Audio......................................................................................... |
42 |
Connecting USB 2.0 Headers..................................................................................... |
43 |
Connecting the Front Panel Header............................................................................ |
43 |
Connecting Hardware Control and Power Cables................................................................ |
44 |
Connecting the Chassis Intrusion Cable ..................................................................... |
45 |
Connecting Fans ........................................................................................................ |
45 |
Connecting Power Cables .......................................................................................... |
45 |
Setting the BIOS Configuration Jumper Block ..................................................................... |
46 |
Clearing Passwords ............................................................................................................ |
47 |
Replacing the Battery .......................................................................................................... |
48 |
3 Updating the BIOS |
|
Updating the BIOS with the Intel® Express BIOS Update Utility........................................... |
53 |
Updating the BIOS with the Iflash Memory Update Utility .................................................... |
54 |
Obtaining the BIOS Update File.................................................................................. |
54 |
Updating the BIOS...................................................................................................... |
54 |
Recovering the BIOS .................................................................................................. |
55 |
4 Using the BIOS Setup Program |
|
Maintenance Menu.............................................................................................................. |
58 |
Main Menu .......................................................................................................................... |
59 |
Advanced Menu .................................................................................................................. |
60 |
PCI Configuration Submenu ....................................................................................... |
61 |
Boot Configuration Submenu...................................................................................... |
62 |
Peripheral Configuration Submenu ............................................................................. |
63 |
ATA/IDE Configuration Submenu ............................................................................... |
65 |
PATA and SATA Submenus ....................................................................................... |
66 |
Diskette Configuration Submenu ................................................................................ |
68 |
Event Log Configuration Submenu ............................................................................. |
69 |
vi
Contents
|
|
Video Configuration Submenu .................................................................................... |
70 |
|
|
USB Configuration Submenu...................................................................................... |
71 |
|
|
Chipset Configuration Submenu ................................................................................. |
72 |
|
|
Fan Control Submenu................................................................................................. |
74 |
|
|
Hardware Monitoring Submenu .................................................................................. |
75 |
|
Security Menu ..................................................................................................................... |
76 |
|
|
Power Menu ........................................................................................................................ |
77 |
|
|
|
ACPI Submenu........................................................................................................... |
78 |
|
Boot Menu........................................................................................................................... |
79 |
|
|
|
Boot Device Priority Submenu .................................................................................... |
80 |
|
|
Hard Disk Drives Submenu......................................................................................... |
81 |
|
|
Removable Devices Submenu.................................................................................... |
82 |
|
|
ATAPI CD-ROM Drives .............................................................................................. |
83 |
|
Exit Menu ............................................................................................................................ |
84 |
|
5 |
Technical Reference |
|
|
|
Board Connectors ............................................................................................................... |
85 |
|
|
|
Back Panel Connectors .............................................................................................. |
86 |
|
|
Audio Connectors ....................................................................................................... |
87 |
|
|
Add-In Card and Peripheral Interface Connectors ...................................................... |
88 |
|
Desktop Board Resources................................................................................................... |
89 |
|
|
|
Memory Map .............................................................................................................. |
89 |
|
|
DMA Channels ........................................................................................................... |
89 |
|
|
Interrupts .................................................................................................................... |
90 |
A |
Error Messages and Indicators |
|
|
|
BIOS Beep Codes ............................................................................................................... |
91 |
|
|
BIOS Error Messages.......................................................................................................... |
92 |
|
B |
Regulatory Compliance |
|
|
|
Safety Regulations .............................................................................................................. |
95 |
|
|
EMC Regulations ................................................................................................................ |
95 |
|
|
Product Certification Markings............................................................................................. |
96 |
|
Figures |
|
||
|
1. Desktop Board D865GBF Components ........................................................................ |
14 |
|
|
2. Location of Standby Power Indicator............................................................................. |
24 |
|
|
3. |
Installing the I/O Shield ................................................................................................. |
30 |
|
4. Location of Desktop Board Mounting Screw Holes........................................................ |
31 |
|
|
5. |
Installing a Processor.................................................................................................... |
32 |
|
6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector ........ |
33 |
|
|
7. Installing a Memory Module .......................................................................................... |
34 |
|
|
8. Dual Configuration Example with Two DIMMs .............................................................. |
35 |
|
|
9. Dual Configuration Example with Four DIMMs.............................................................. |
35 |
|
|
10. Removing the AGP Card............................................................................................... |
37 |
|
|
11. Connecting the IDE Cable............................................................................................. |
38 |
|
|
12. Connecting the Serial ATA Cable.................................................................................. |
39 |
|
|
13. Internal Headers ........................................................................................................... |
40 |
|
|
14. Back Panel Audio Connectors for 6-Channel Audio with Jack Sensing ......................... |
42 |
|
|
15. Location of Hardware Control Headers and Power Connectors .................................... |
44 |
vii
Intel Desktop Boards D865GBF/D865GLC Product Guide
16. |
Location of the BIOS Configuration Jumper Block......................................................... |
46 |
17. |
Removing the Battery ................................................................................................... |
51 |
18. |
Back Panel Connectors................................................................................................. |
86 |
19. |
Audio Connectors ......................................................................................................... |
87 |
20. |
PCI Bus Add-in Card and Peripheral Interface Connectors ........................................... |
88 |
Tables |
|
|
1. |
Desktop Board Differences ........................................................................................... |
11 |
2. |
Feature Summary ......................................................................................................... |
11 |
3. |
Manufacturing Options.................................................................................................. |
13 |
4. |
Desktop Board Components ......................................................................................... |
15 |
5. |
Supported Processors .................................................................................................. |
16 |
6. |
RJ-45 10/100 Ethernet LAN Connector LEDs ............................................................... |
20 |
7. |
RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs .......................................... |
20 |
8. |
Front Panel Audio Header Signal Names (J9A2) .......................................................... |
41 |
9. |
USB 2.0 Headers (J9F1 and J9H1)............................................................................... |
43 |
10. |
Front Panel Header (J9J1)............................................................................................ |
43 |
11. |
Jumper Settings for the BIOS Setup Program Modes (J9J4) ........................................ |
46 |
12. |
BIOS Setup Program Menu Bar .................................................................................... |
57 |
13. |
BIOS Setup Program Function Keys............................................................................. |
58 |
14. |
Maintenance Menu ....................................................................................................... |
58 |
15. |
Main Menu .................................................................................................................... |
59 |
16. |
Advanced Menu............................................................................................................ |
60 |
17. |
PCI Configuration Submenu ......................................................................................... |
61 |
18. |
Boot Configuration Submenu ........................................................................................ |
62 |
19. |
Peripheral Configuration Submenu ............................................................................... |
63 |
20. |
ATA/IDE Configuration Submenu.................................................................................. |
65 |
21. |
SATA and PATA Submenus ......................................................................................... |
66 |
22. |
Diskette Configuration Submenu................................................................................... |
68 |
23. |
Event Log Configuration Submenu ............................................................................... |
69 |
24. |
Video Configuration Submenu ...................................................................................... |
70 |
25. |
USB Configuration Submenu ........................................................................................ |
71 |
26. |
Chipset Configuration Submenu ................................................................................... |
72 |
27. |
Hardware Management................................................................................................. |
74 |
28. |
Hardware Monitoring Submenu..................................................................................... |
75 |
29. |
Security Menu............................................................................................................... |
76 |
30. |
Power Menu.................................................................................................................. |
77 |
31. |
ACPI Submenu ............................................................................................................. |
78 |
32. |
Boot Menu .................................................................................................................... |
79 |
33. |
Boot Device Priority Submenu ...................................................................................... |
80 |
34. |
Hard Disk Drives Submenu........................................................................................... |
81 |
35. |
Removable Devices Submenu ...................................................................................... |
82 |
36. |
ATAPI CD-ROM Drives Submenu................................................................................. |
83 |
37. |
Exit Menu...................................................................................................................... |
84 |
38. |
System Memory Map .................................................................................................... |
89 |
39. |
DMA Channels.............................................................................................................. |
89 |
40. |
Interrupts ...................................................................................................................... |
90 |
viii
Contents
41. |
Beep Codes .................................................................................................................. |
91 |
42. |
BIOS Error Messages ................................................................................................... |
92 |
43. |
Safety Regulations........................................................................................................ |
95 |
44. |
EMC Regulations .......................................................................................................... |
95 |
ix
Intel Desktop Boards D865GBF/D865GLC Product Guide
x
This chapter summarizes the main features of Intel® Desktop Board D865GBF/D865GLC. Table 1 shows the differences between Desktop Boards D865GBF and D865GLC.
Table 1. Desktop Board Differences
Feature |
Desktop Board D865GBF |
Desktop Board D865GLC |
Form factor |
ATX at 9.6-inches by 12.0-inches |
microATX at 9.6-inches by 9.6-inches |
|
|
|
PCI bus add-in card |
Six |
Three |
connectors |
|
|
|
|
|
Table 2 describes the major features of Desktop Board D865GBF/D865GLC.
Table 2. Feature Summary
Processor
Main Memory
Chipset
Graphics
Audio
Support for:
•Intel® Pentium® 4 processor (1.60a, 1.80a, 2a, 2.20 GHz or higher) with 800/533/400 MHz front side bus (FSB) frequency in the mPGA478-pin package
•Intel® Celeron processor (2 GHz or higher) with 400 MHz FSB frequency in the mPGA478-pin package
•Four 184-pin, 2.5 V SDRAM Dual Inline Memory Module (DIMM) sockets
•Dual channel 400/333/266 MHz DDR SDRAM interface
•Designed to support up to 4 GB of system memory
NOTE: System resources (such as PCI and AGP) require physical memory address locations that reduce available memory addresses above 3 GB. This may result in less than 4 GB of memory being available to the operating system and applications. For more information about the latest list of tested memory, refer to the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop/
Intel® 865G chipset consisting of:
•Intel® 82865G Graphics and Memory Controller Hub (GMCH) with Accelerated Hub Architecture (AHA) bus
•Intel® 82801EB I/O Controller Hub (ICH5) with support for up to six Hi-Speed Universal Serial Bus 2.0 (USB 2.0) ports
•4 Mbit Firmware Hub (FWH)
•Intel 865G chipset
•Integrated Intel® Extreme Graphics 2
•1.5 V and 0.8 V only AGP connector
•Single AGP port via the connector or integrated graphics
•AGP 3.0 including 1x/4x/8x AGP data transfers and 1x/4x/8x Fast Writes
•Intel 865G chipset (AC ’97)
•Flexible 6-Channel Audio with Jack Sensing
•Analog Devices Inc. codec
continued
11
Intel Desktop Boards D865GBF/D865GLC Product Guide
Table 2. Feature Summary (continued)
Peripheral Interfaces
Expansion Capabilities
BIOS
Power Management
Hardware Management
•Up to eight USB 2.0 ports
—Four ports routed to the back panel
—Four ports routed to the internal USB header
•Two IDE interfaces with Ultra DMA-33 and ATA-66/100 support
•Two Serial ATA (SATA) connectors
•One diskette drive interface
•One parallel port
•One serial port
•One VGA port
•PS/2* keyboard and mouse ports
•Up to six PCI bus add-in card connectors (SMBus routed to PCI bus 2)
•One AGP connector
•Intel/AMI BIOS
•4 Mbit symmetrical flash memory
•Support for SMBIOS
•Support for Advanced Configuration and Power Interface (ACPI)
•Suspend to RAM (STR)
•Wake on USB, PCI, RS-232, PS/2, LAN, and front panel
•Hardware monitor with:
•Three fan sensing inputs used to monitor fan activity
•Temperature sensing
•Intel® Precision Cooling Technology fan speed control that automatically adjusts chassis fan speeds based on system temperature
•Voltage sensing to detect out of range values
Related Links:
For more information about Intel Desktop Board D865GBF/D865GLC, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to:
http://support.intel.com/support/motherboards/desktop/
12
Desktop Board Features
Table 3 below describes the manufacturing options for Desktop Board D865GBF/D865GLC.
Table 3. Manufacturing Options
Option
LAN
Gigabit LAN
Description
Intel® 82562EX 10/100 Mbit/sec Platform LAN Connect (PLC) device and RJ-45 connector
Intel® 82540EI 10/100/1000 Mbit/sec Gigabit Ethernet controller and RJ-45 connector
The desktop board supports the following operating systems:
•Microsoft Windows* 98 SE
•Microsoft Windows Me
•Microsoft Windows 2000
•Microsoft Windows XP
13
Intel Desktop Boards D865GBF/D865GLC Product Guide
Figure 1 shows the approximate location of the major components on Desktop Board D865GBF.
|
|
|
|
|
|
|
Line |
|
|
|
|
|
|
|
In |
|
|
USB 2.0 |
|
|
|
USB 2.0 |
|
|
|
Devices |
|
|
|
Devices |
|
A |
B |
C |
D E |
|
|
|
|
|
|
|
|
|
|
|
F |
AA |
|
|
|
|
|
|
G |
|
|
|
|
|
|
|
|
Z |
|
|
|
|
|
|
|
Y |
|
|
|
|
|
|
H |
|
|
|
|
|
|
|
|
X |
|
|
|
|
|
|
I |
|
|
|
|
|
|
J |
|
|
|
|
|
|
|
|
|
W |
|
|
|
|
|
|
K |
V |
|
|
|
|
|
|
|
|
T |
R |
P |
O |
N |
M |
L |
U |
S |
|
Q |
|
|
|
|
|
|
|
|
|
|
|
OM15224 |
Figure 1. Desktop Board D865GBF Components
NOTE
Desktop board D865GLC has three PCI bus add-in card connectors.
14
Desktop Board Features
Table 4.
Label
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
Desktop Board Components
Description
CD-ROM connector (ATAPI-style)
Front panel audio header
Auxiliary line-in connector (ATAPI-style)
AGP connector
Rear chassis fan header (fan speed control)
12 V processor core voltage connector
Processor socket
Intel 82865G (GMCH)
Processor fan header
Channel A DIMM socket
Channel B DIMM socket
Main power connector
Diskette drive connector
Primary IDE connector
Secondary IDE connector
Front chassis fan connector (fan speed control)
Chassis intrusion header
Serial ATA connectors
Speaker
BIOS configuration jumper
Alternate power/sleep LED header
Front panel header
USB 2.0 header
Intel 82801EB (ICH5)
USB 2.0 header
Battery
PCI bus add-in card connectors
Related Links:
Go to the following links for the latest information about:
•Intel Desktop Board D865GBF/D865GLC, http://www.intel.com/design/motherbd
•processors, http://support.intel.com/support/motherboards/desktop
•audio software and utilities, http://www.intel.com/design/motherbd
•LAN software and drivers, http://www.intel.com/design/motherbd
15
Intel Desktop Boards D865GBF/D865GLC Product Guide
CAUTION
Failure to use an ATX12V power supply, or not connecting the 12 V processor core voltage power supply connector to Desktop Board D865GBF/D865GLC may result in damage to the desktop board and/or power supply.
Desktop Board D865GBF/D865GLC supports a single Intel Pentium 4 processor or Intel Celeron processor. Processors are not included with the desktop board and must be purchased separately.
The processor connects to the Intel desktop board through the mPGA478-pin socket. The Intel processors may be removed and replaced to accommodate supported higher speed processors. Desktop Board D865GBF/D865GLC supports the processors listed in Table 5.
Table 5. |
Supported Processors |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Designation |
|
FSB Frequency |
|
L2 Cache |
Type |
|
(GHz) |
|
(MHz) |
|
(KB) |
|
|
|
|
|
|
|
Intel® Pentium® 4 processor |
3, 2.80C, 2.60C, and 2.40C |
800 |
512 |
|||
featuring |
|
|
|
|
|
|
|
3.06 |
533 |
512 |
|||
Hyper-Threading Technology |
||||||
|
|
|
|
|
|
|
Intel Pentium 4 processor |
2.8, 2.66, 2.53, 2.4B, and |
533 |
512 |
|||
|
|
2.26 |
|
|
|
|
|
|
|
|
|
|
|
|
|
2.6, 2.5, 2.40, 2.20, 2A, |
400 |
512 |
||
|
|
1.80A, and 1.60A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Intel® Celeron® processor |
2.2, 2.1, and 2.0 |
400 |
128 |
Desktop Board D865GBF/D865GLC requires an ATX12V compliant power supply to function according to desktop board specifications. The board has two ATX12V compliant power supply connectors that are needed to provide extra power to the Intel 865G chipset and Intel processor.
Related Links:
Go to the following link or sections in this manual for more information about:
•the latest information on supported Intel processors for Desktop Board D865GBF/D865GLC http://support.intel.com/support/motherboards/desktop/
•instructions on installing or upgrading the processor, page 32 in Chapter 2
16
Desktop Board Features
NOTE
To be fully compliant with all applicable Intel® SDRAM memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation.
The desktop board supports system memory as defined below:
•Dual channel and up to four 184-pin Double Data Rate (DDR) SDRAM Dual Inline Memory Module (DIMMs) connectors with gold-plated contacts.
•Supported memory configurations are:
|
|
Front Side Bus |
Memory Speed |
Memory Speed |
Processor |
Frequency |
Outcome |
|
|
|
|
DDR400 |
Pentium 4 processor |
800 MHz |
400 MHz |
|
|
|
|
DDR333 |
Pentium 4 processor |
800 MHz |
320 MHz |
|
|
|
|
|
Pentium 4 processor |
533 MHz |
333 MHz |
|
|
|
|
|
Pentium 4 processor or |
400 MHz |
266 MHz |
|
Celeron processor |
|
|
|
|
|
|
DDR266 |
Pentium 4 processor |
533 MHz or 400 MHz |
266 MHz |
|
|
|
|
|
Celeron processor |
400 MHz |
266 MHz |
|
|
|
|
•Support for:
Unbuffered, non-registered DIMMs
Serial Presence Detect (SPD) memory only
Support for Suspend to RAM (STR), S3 ACPI state
Non-ECC DDR (ECC memory will run in non-ECC mode)
2.5 V memory
NOTE
System resources (such as PCI and AGP) require physical memory address locations that reduce available memory addresses above 3 GB. This may result in less than 4 GB of memory being available to the operating system and applications.
Related Links:
Go to the following links or section in this manual for more information about:
•the latest list of tested memory, http://support.intel.com/support/motherboards/desktop/
•SDRAM specifications, http://www.intel.com/technology/memory/pcsdram/spec/
•installing memory, page 34 in Chapter 2
17
Intel Desktop Boards D865GBF/D865GLC Product Guide
The Intel 865G chipset consists of the following devices:
•Intel 82865G Graphics and Memory Controller Hub (GMCH) with AHA bus
•Intel 82801EB I/O Controller Hub (ICH5) with AHA bus
•Firmware Hub (FWH)
Related Link:
For more information about Intel 865G chipset, go to:
http://developer.intel.com/design/nav/pcserver.htm
The graphics subsystem features the following:
•Intel 865G chipset
•Intel Extreme Graphics 2
•AGP 8x
The audio subsystem features the following:
•Intel 865G chipset (AC ’97)
•Flexible 6-Channel Audio with Jack Sensing
•Analog Devices Inc. AD1985 audio codec
The Flex 6 audio subsystem includes the following:
•Intel 82801EB I/O Controller Hub (ICH5)
•Analog Devices AD1985 audio codec
•Microphone input that supports a single dynamic, condenser, or electret microphone
The subsystem has the following connectors:
•ATAPI-style CD-ROM connector
•Front panel audio connector, including pins for:
Line out
Mic in
•Back panel audio connectors that are configurable through the audio devices drivers.
Line in or Rear left/right out
Line out or Front left/right out
Mic in or Center LFE out
18
Desktop Board Features
Related Links:
Go to the following link or sections in this manual for more information about:
•audio drivers and utilities, http://support.intel.com/support/motherboards/desktop/
•installing the front panel audio solution, page 41 in Chapter 2
•setting up the Flexible 6-Channel Audio with Jack Sensing, page 42 in Chapter 2
The super I/O controller features the following:
•Low pin count (LPC) interface
•One serial port
•One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP) support
•Serial IRQ interface compatible with serialized IRQ support for PCI systems
•PS/2-style mouse and keyboard interfaces
•Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive
•Intelligent power management, including a programmable wake up event interface
•PCI power management support
The optional LAN provides a Fast PCI LAN subsystem. The LAN subsystem provides the following functions:
•Basic 10/100 Ethernet LAN (Intel 82562EX) or 10/100/1000 Gigabit Ethernet LAN (Intel 82540EI)
•Support for RJ-45 connector with status indicator LEDs
•Programmable transit threshold
•Configurable EEPROM that contains the MAC address
For LAN software and drivers, refer to the D865GLC or D865GBF link on Intel’s World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
19
Intel Desktop Boards D865GBF/D865GLC Product Guide
Two LEDs are built into the RJ-45 LAN connector. Table 6 describes the LED states when the board is powered up and the 10/100 Ethernet LAN subsystem is operating.
Table 6. |
RJ-45 10/100 Ethernet LAN Connector LEDs |
||
|
|
|
|
LED Color |
|
LED State |
Indicates |
Green |
|
Off |
10 Mbit/sec data rate is selected. |
|
|
|
|
|
|
On |
100 Mbit/sec data rate is selected. |
|
|
|
|
Yellow |
|
Off |
LAN link is not established. |
|
|
|
|
|
|
On (steady state) |
LAN link is established. |
|
|
On (brighter and pulsing) |
The computer is communicating with another computer on the |
|
|
|
LAN. |
|
|
|
|
Table 7 describes the LED states when the board is powered up and the 10/100/1000 Gigabit Ethernet LAN subsystem is operating.
Table 7. RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs
LED Color |
LED State |
Indicates |
|
|
|
Bi-color LED |
Off |
10 Mbit/sec data rate is selected. |
|
|
|
|
Green |
100 Mbit/sec data rate is selected. |
|
|
|
|
Yellow |
1 Gbit/sec data rate is selected. |
Green |
Off |
LAN link is not established. |
|
|
|
|
On (steady state) |
LAN link is established. |
|
|
|
|
On (brighter and |
The computer is communicating with another computer on the |
|
pulsing) |
LAN. |
|
|
|
NOTE
Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a full-speed USB device.
The desktop board supports up to eight USB 2.0 ports via ICH5; four ports routed to the back panel and four routed to the internal USB 2.0 headers. USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.
USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.
NOTE
USB devices are limited to USB 1.1 transfer rates prior to operating system and driver initialization.
20
Desktop Board Features
The ICH5’s IDE interface handles the exchange of information between the processor and peripheral devices like hard disks, CD-ROM drives, and Iomega Zip* drives inside the computer. The interface supports:
•Up to four IDE devices (such as hard drives)
•ATAPI-style devices (such as CD-ROM drives)
•Older PIO Mode devices
•Ultra DMA-33 and ATA-66/100 protocols
•Laser Servo (LS-120) drives
NOTE
Desktop Board D865GBF/D865GLC is only compatible with 0.8 V and 1.5 V AGP cards.
The AGP connector is keyed for 0.8 V and 1.5 V AGP cards only; the connector is not mechanically compatible with legacy 3.3 V AGP cards. Do not attempt to install a legacy 3.3 V AGP card.
AGP is a high-performance interface for graphics-intensive applications, such as 3D graphics. AGP is independent of the PCI bus and is intended for exclusive use with graphical display devices.
The AGP 3.0 connector supports 8x, 4x, and 1x AGP cards.
Related Links:
For information about installing the AGP card, see page 37 in Chapter 2.
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the Firmware Hub.
The BIOS can be updated by following the instructions in Chapter 3 on page 53.
If you install a PCI add-in card in your computer, the PCI auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI add-in card.
If you install an IDE device (such as a hard drive) in your computer, the IDE auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing an IDE device. You can override the autoconfiguration options by specifying manual configuration in the BIOS Setup program.
To use ATA-66/100 features, the following items are required:
•An ATA-66/100 peripheral device
•An ATA-66/100 compatible cable
•ATA-66/100 operating system device drivers
21
Intel Desktop Boards D865GBF/D865GLC Product Guide
The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the Setup and for booting the computer, with the following restrictions:
•The supervisor password gives unrestricted access to view and change all Setup options. If only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives the user restricted access to Setup.
•If both the supervisor and user passwords are set, you must enter either the supervisor password or the user password to access Setup. Setup options are then available for viewing and changing depending on whether the supervisor or user password was entered.
•Setting a user password restricts who can boot the computer. The password prompt is displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, you can enter either password to boot the computer.
The board supports a chassis security feature that detects if the chassis cover has been removed. The security feature uses a mechanical switch on the chassis that can be connected to the chassis intrusion header on the desktop board. See Figure 15 on page 44 for the location of the chassis intrusion header.
Power management is implemented at several levels, including:
•Advanced Configuration and Power Interface (ACPI)
•Hardware support:
Fan connectors
Fan Speed Control
Suspend to RAM (Instantly Available PC technology)
Resume on Ring
Wake from USB
Wake from PS/2 keyboard/mouse
PME# wakeup support
ACPI gives the operating system direct control over the power management and Plug & Play functions of a computer. The use of ACPI with the desktop board requires an operating system that provides full ACPI support.
Power Connectors
The desktop board has two power connectors. See Figure 15 on page 44 for the location of the power connectors.
22
Desktop Board Features
The desktop board has two chassis fan connectors (Intel Precision Cooling Technology) and one processor fan connector. See Figure 15 on page 44 for the location of the fan connectors.
Intel Precision Cooling Technology automatically adjusts the chassis fan speeds depending on the system’s temperature. This feature reduces system fan noise by lowering the speed of the chassis fans connected to the front and rear chassis fan connectors. The processor fan connector is not controlled.
The fan speed control feature can be disabled in the BIOS, resulting in the chassis fans always operating at full speed. This feature should be disabled if a self-controlled fan is attached to a chassis fan connector.
Overall system noise reduction will vary based on system configuration and environment.
CAUTION
For Instantly Available PC technology, the 5 V standby line for the power supply must be capable of delivering adequate +5 V standby current. Failure to provide adequate standby current when using this feature can damage the power supply and/or effect ACPI S3 sleep state functionality.
Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. When signaled by a wake-up device or event, the system quickly returns to its last known awake state.
The desktop board’s standby power indicator, shown in Figure 2, is lit when there is standby power to the system. This includes the memory modules and PCI bus connectors, even when the computer appears to be off.
If the system has a dual-colored power LED on the front panel, the sleep state is indicated by the LED turning amber.
23
Intel Desktop Boards D865GBF/D865GLC Product Guide
CR7J1 |
OM15225 |
Figure 2. Location of Standby Power Indicator
CAUTION
Power supplies used with this desktop board must be able to provide enough standby current to support the standard Instantly Available (ACPI S3 sleep state) configuration. If the standby current necessary to support multiple wake events from the PCI and/or USB buses exceeds power supply capacity, the desktop board may lose register settings stored in memory.
Related Link:
For more information about standby current requirements for these desktop boards, refer to the TPS by selecting the Technical Documentation link at:
http://developer.intel.com/design/motherbd/
The operation of Resume on Ring can be summarized as follows:
•Resumes operation from either ACPI S1 or ACPI S3 state
•Requires only one call to access the computer
•Detects incoming call similarly for external and internal modems
•Requires modem interrupt be unmasked for correct operation
USB bus activity wakes the computer from an ACPI S1 or S3 state.
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
24
Desktop Board Features
PS/2 keyboard/mouse activity wakes the computer from an ACPI S1 or S3 state.
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, or S5 state.
A speaker is mounted on the desktop board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST).
The battery on the desktop board keeps the values in CMOS RAM and the clock current when the computer is turned off. See page 48 in Chapter 2 for instructions on how to replace the battery.
The desktop board has a time-of-day clock and 100-year calendar. The battery on the desktop board keeps the clock current when the computer is turned off.
25
Intel Desktop Boards D865GBF/D865GLC Product Guide
26
This chapter tells you how to:
•Install the I/O shield
•Install and remove the desktop board
•Install and remove a processor and memory
•Install and remove an AGP card
•Connect the IDE and Serial ATA cables
•Connect internal headers
•Connecting 6-Channel Flex Audio with Jack Sensing
•Connect hardware control and power cables
•Set the BIOS configuration jumper
•Clear passwords
•Replace the battery
WARNINGS
The procedures in this chapter assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications links, networks, or modems before performing any of the procedures described in this chapter. Failure to disconnect power, telecommunications links, networks, or modems before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.
Follow these guidelines before you begin:
•Always follow the steps in each procedure in the correct order.
•Set up a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
•Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
27
Intel Desktop Boards D865GBF/D865GLC Product Guide
When you install and test the Intel desktop board, observe all warnings and cautions in the installation instructions.
To avoid injury, be careful of:
•Sharp pins on connectors
•Sharp pins on printed circuit assemblies
•Rough edges and sharp corners on the chassis
•Hot components (like processors, voltage regulators, and heat sinks)
•Damage to wires that could cause a short circuit
Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.
CAUTION
Follow these guidelines to meet safety and regulatory requirements when installing this board assembly.
Read and adhere to all of these instructions and the instructions supplied with the chassis and associated modules. If the instructions for the chassis are inconsistent with these instructions or the instructions for associated modules, contact the supplier’s technical support to find out how you can ensure that your computer meets safety and regulatory requirements. If you do not follow these instructions and the instructions provided by chassis and module suppliers, you increase safety risk and the possibility of noncompliance with regional laws and regulations.
Before computer integration, make sure that the power supply and other modules or peripherals, as applicable, have passed Class B EMC testing and are marked accordingly.
In the installation instructions for the host chassis, power supply, and other modules pay close attention to the following:
•Product certifications or lack of certifications
•External I/O cable shielding and filtering
•Mounting, grounding, and bonding requirements
•Keying connectors when mating the wrong connectors could be hazardous
If the power supply and other modules or peripherals, as applicable, are not Class B EMC compliant before integration, then EMC testing is required on a representative sample of the newly completed computer.
28
Installing and Replacing Desktop Board Components
Ensure that the chassis and certain components; such as the power supply, peripheral drives, wiring, and cables; are components certified for the country or market where used. Agency certification marks on the product are proof of certification. Typical product certifications include:
•In Europe
The CE marking signifies compliance with all applicable European requirements. If the chassis and other components are not properly CE marked, a supplier’s Declaration of Conformity statement to the European EMC directive and Low Voltage directive (as applicable), should be obtained. Additionally, other directives, such as the Radio and Telecommunications Terminal Equipment (R&TTE) directive may also apply depending on product features.
•In the United States
A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL, CSA, or ETL signifies compliance with safety requirements. Wiring and cables must also be UL listed or recognized and suitable for the intended use. The FCC Class B logo for home or office use signifies compliance with electromagnetic interference (EMI) requirements.
•In Canada
A nationally recognized certification mark such as CSA or cUL signifies compliance with safety requirements. The Industry Canada statement at the front of this product guide demonstrates compliance with Canadian EMC regulations. Industry Canada recognizes and accepts FCC certification as denoting compliance with national electromagnetic interference (emissions) requirements.
Do not overload the power supply output. To avoid overloading the power supply, make sure that the calculated total current loads of all the modules within the computer is less than the output current rating of each of the power supplies output circuits.
There is insufficient space on this desktop board to provide instructions for replacing and disposing of the Lithium ion coin cell battery. For system safety certification, the following statement or equivalent statement is required to be permanently and legibly marked on the chassis near the battery.
CAUTION
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.
All Intel desktop boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other applications or environments, such as medical, industrial, alarm systems, test equipment, etc. may require further evaluation.
Related Links:
For information about regulatory compliance, go to Appendix B on page 95.
29
Intel Desktop Boards D865GBF/D865GLC Product Guide
The desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the chassis as shown in Figure 3. Press the shield into place so that it fits tightly and securely. If the shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.
OM15226
Figure 3. Installing the I/O Shield
30
