630TCF/630TCN

USER'S MANUAL

M/B For Pentium III Tualatin Processor

NO. G03-630TCFR3A

Release date: January 2002

Trademark:

* Pentium is registered trademark and MMX is a trademark of Intel Corporation,

the other names and brands are the property of their respective owners

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

USER’S NOTICE................................................................................ 1

MANUAL REVISION INFORMATION.............................................. 2

THERMAL SOLUTIONS.................................................................... 2

CHAPTER 1 INTRODUCTION OF 630TCF/630TCN MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD............................................... 3

1-2 SPECIFICATION.................................................................... 4

1-3 PERFORMANCE LIST ............................................................ 5

1-4 LAYOUT DIAGRAM & JUMPER SETTING................................ 6

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS ....................................... 8

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING ................... 8

2-3 INSTALL CPU........................................................................ 10

2-3-1 ABOUT PENTIUM & CELERON™ 370-PIN CPU .................. 10

2-3-2 SETTING CPU BUS CLOCK & MEMORY CLOCK JUMPER ... 11

2-3-3 INSTALL CPU.................................................................. 12

2-3-4 OVERCLOCK RUNNING................................................... 13

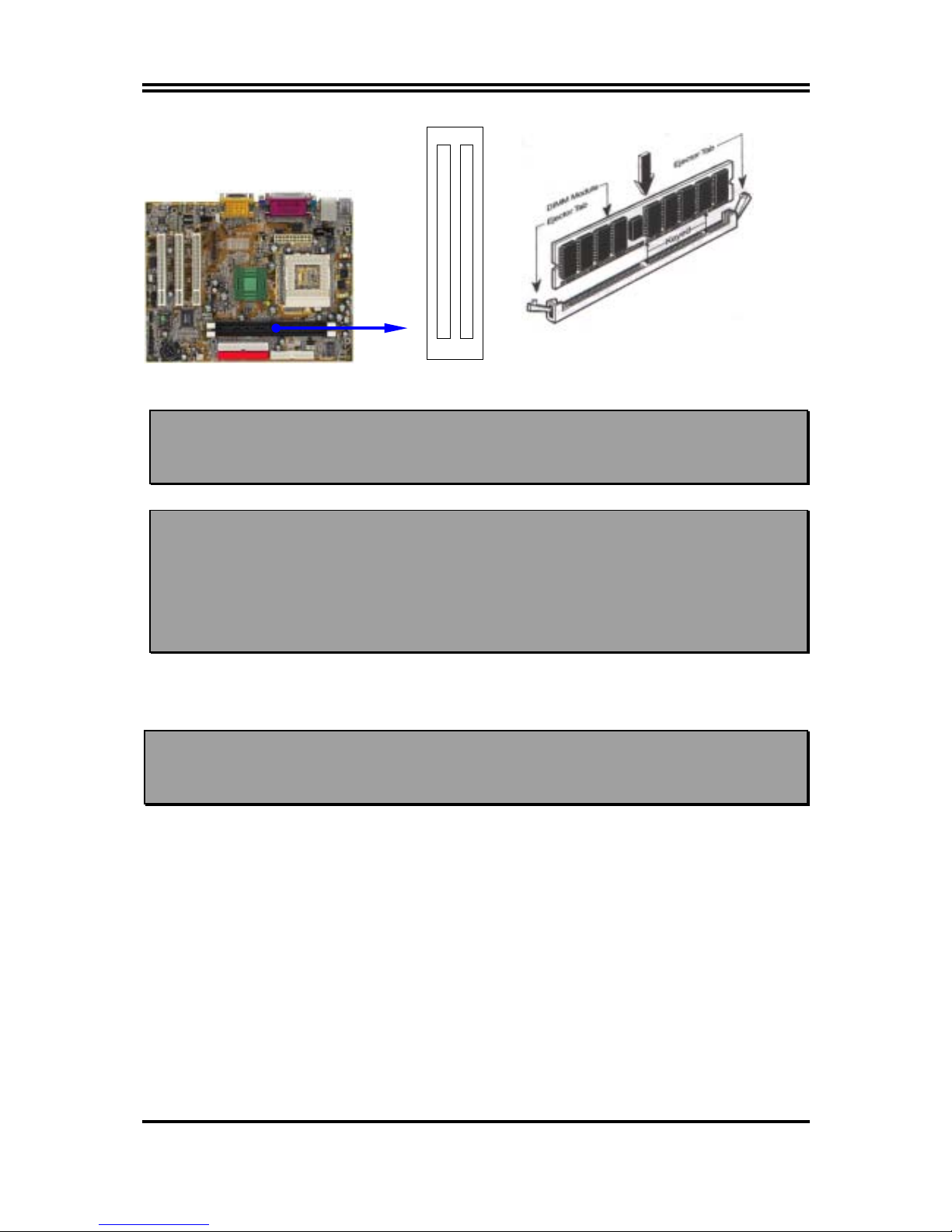

2-4 INSTALL MEMORY ............................................................... 14

2-5 EXPANSION CARD................................................................. 15

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION........ 15

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD ........................... 15

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD . 16

2-6 CONNECTORS, HEADERS...................................................... 16

2-6-1 CONNECTORS................................................................. 16

2-6-2 HEADERS ....................................................................... 19

2-7 STARTING UP YOUR COMPUTER........................................... 22

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP ................................................................. 23

3-2 GETTING HELP..................................................................... 24

3-3 THE MAIN MENU .................................................................. 24

3-4 STANDARD CMOS FEATURES ................................................ 25

3-5 ADVANCED BIOS FEATURES.................................................. 27

3-6 ADVANCED CHIPSET FEATURES ........................................... 29

3-6-1 ADVANCED DRAM CONTROL .......................................... 30

3-7 INTEGRATED PERIPHERALS ................................................. 31

3-7-1 ONCHIP IDE FUNCTION................................................... 32

3-7-2 ONCHIP DEVICE FUNCTION ............................................ 33

3-7-3 WINBOND SUPERIO DEVICE ............................................ 34

TABLE OF CONTENT

3-8 POWER MANAGEMENT SETUP .............................................. 35

3-8-1 PM WAKE UP EVENTS..................................................... 36

3-9 PNP/PCI CONFIGURATION SETUP.......................................... 37

3-9-1 IRQ RESOURCES............................................................. 38

3-10 PC HEALTH STATUS............................................................. 39

3-11 FREQUENCY/VOLTAGE CONTROL ....................................... 39

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS............................. 40

3-13 SET SUPERVISOR/USER PASSWORD...................................... 41

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

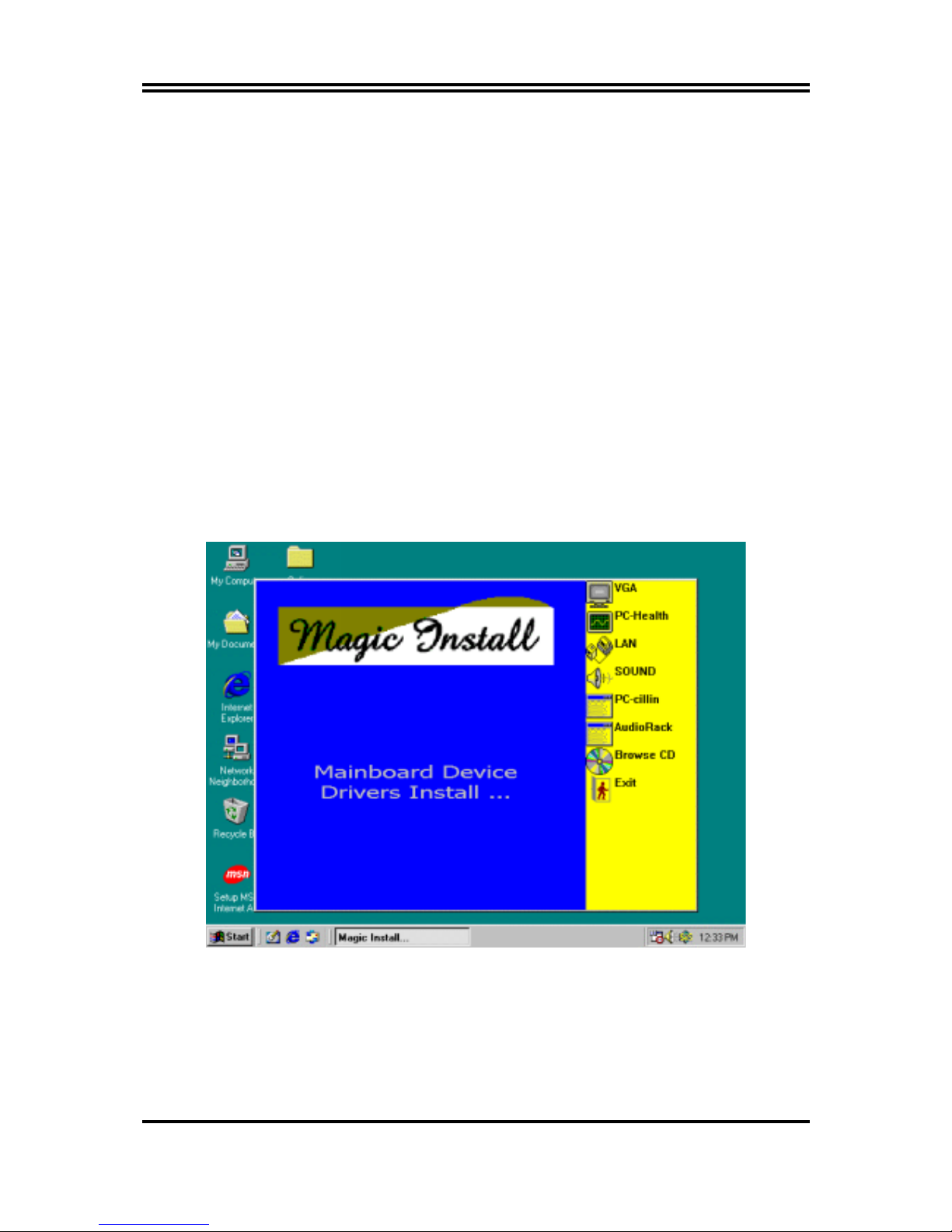

MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000 ........ 42

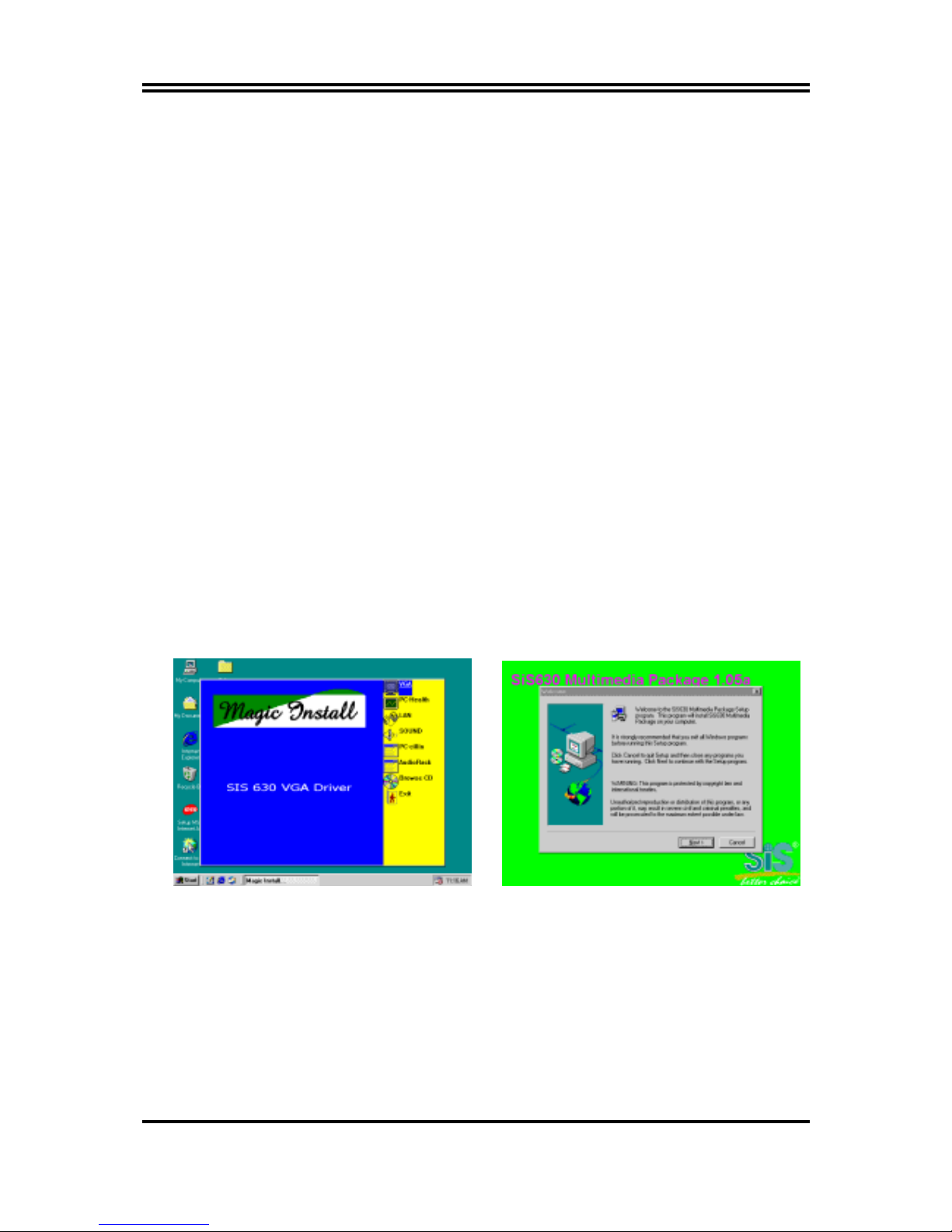

4-1 VGA

INSTALL SIS 630 VGA DRIVER

................................. 43

4-2 PC-HEALTH

WINBOND HARDWARE DOCTOR MONITORING SOFTWARE

........................................................ 45

4-2-1 HOW TO UTILIZE PC-HEALTH......................................... 46

4-3 LAN (Only for 630TCF)

INSTALL SIS 900 PCI FAST ETHERNET DRIVER

4-4 SOUND

INSTALL SIS 7018 AC'97 AUDIO DRIVER AND

APPLICATION SOFTWARE...................................................

4-5 PC-CILLIN

INSTALL PC-CILLIN98 ANTI-VIRUS SOFTWARE AND

APPLICATION PROGRAM.....................................................49

4-6 HOW TO DISABLE ON-BOARD SOUND.................................... 50

4-7 HOW TO UPDATE BIOS.......................................................... 50

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE

MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE 630TCF MOTHERBOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

3.0 Third Edition January 2002

Item Checklist



630TCF/630TCN motherboard



Cable for IDE/Floppy



CD for motherboard utilities

□

Cable for USB Port 3/4 (Option)



630TCF/630TCN User’s Manual

Intel Processor Family

Thermal Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heatsink. For optimum heat transfer, Intel recommends the use of thermal grease and mounting clips to attach the heatsink to the processor. When selecting a thermal solution for your system, please refer to the website below for collection of heatsinks evaluated and recommended by Intel for use with Intel processors.

Vendor list for heatsink and fan of

Pentium® !!! processor

, please visit：

http://developer.intel.com/design/Pentiumiii/components/index.htm Vendor list for heatsink and fan of

Intel®Celeron™ processor

, please visit：

http://developer.intel.com/design/celeron/components/index.htm

Chapter 1

Introduction of 630TCF/630TCN Motherboard

1-1 Feature of motherboard

The 630TCF/630TCN motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 design supports Pentium



III/Celeron

Tualatin FC-PGA processors, and the memory size expandable to 1GB.

This motherboard use the newest SiS 630T chipset provides a high performance/low cost solution for socket 370 series CPUs based system, by integrating a high performance North Bridge, advanced hardware 2D/3D GUI engine and Super-South Bridge. Moreover, by integrating the Ultra AGP technology and advanced 128-bit graphic display interface, SiS 630 delivers AGP 4X performance and up to 2GB/s memory bandwidth, and provides powerful hardware decoding DVD accelerator to improve the DVD playback performance. On-board VGA memory can selected from 2Mb to 64Mb.

motherboard provides 10/10Mb Fast Ethernet interface for Office requirement and offers AC’97 compliant interface that comprises digital audio engine with 3Dhardware accelerator, on-chip sample rate converter. This motherboard also provides dual USB host controller with four USB Ports that deliver better connectivity and 2x12Mb bandwidth. The built-in Fast PCI IDE controller supports Ultra DMA 33/66/100 function up to 100MB/s for data transfer rate. In addition, 630TCF/ 630TCN provides hardware monitor function that will monitoring and protect your computer.

This motherboard provides high performance & meets future specification demand. It is really wise choice for your computer.

1-2 Specification

Spec Description

Design

∗

Micro ATX form factor 4 layers PCB size: 24.5x19.0cm

Chipset

∗

SiS 630T Chipset

Clock Generator

∗

Support 66/100/133MHz system Bus Clock (CPU Bus Clock) Support 100/133 MHz system memory clock Support 33MHz PCI Bus clock

CPU Socket

∗

Support Pentium



III 500∼1.2GHz processor

∗

Support Celeron 533~1.0GHz processor

∗

Support 66, 100 and 133MHz CPU Bus clock

∗

Reserves support for future Intel Pentium



III processors

Memory Socket

∗

168-pin DIMM socket x2

∗

PC-100/PC-133 SDRAM

∗

Expandable to 1GB

∗

Support 3.3V SDRAM DIMM

Expansion Slot

∗

32-bit PCI slot x3, 2.2 Specification Compliant

∗

AMR slot x1

Integrate VGA

∗

3D graphic acceleration

∗

VGA Memory Selectable by BIOS from 2MB to 64MB

Integrate IDE

∗

2 channel of Bus Master IDE port supporting ULTRA DMA

33/66/100 MB/s ATA100 mode devices

Integrate LAN

(Only for 630TCF)

∗

Fast Ethernet Controller 10/100 Mbps

Audio

∗

AC’97 Digital Audio controller integrated

∗

AC’97 Audio CODEC on board

∗

Audio driver and utility included

BIOS

∗

Award 2MB Flash ROM

Multi I/O

∗

PS/2 keyboard and PS/2 mouse connectors

∗

Floppy disk drive connector x1

∗

Parallel port x1

∗

Serial port x2

∗

USB connector x2

∗

USB headers x2 (connecting cable option)

∗

Audio connector (Line-in, Line-out & Game Port)

1-3 Performance List

The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)

CPU: Intel PIII



866MHz FC-PGA package

DRAM: 128M SDRAM x2 (Hyundai GM 72V66841ET75) VGA Expansion Card: On Board VGA (Driver V1.05) Hard Disk Driver: Quantum Fireball KX20A11 BIOS: Award Optimal default OS: Win 98SE

Performance Test Report

Share 8M Share 16M Share 32M

3D Mark 99

1908 1918 1912

3D Mark 2000

900 918 916

3D Winbench 99 V1.2

513 525 446

3D Winbench 2000

15.7 20.7 23

Final Reality

5.23 5.25 5.20

Winstone 99 V1.3

29.5 29.5 29.6

Winstone 2000

32.3 33 31.8

Winbench 99 :

CPU Mark 99

67.1 68.1 68.5

FPU Winmark 99

4390 4390 4380

Business Disk Winmark99

4740 4550 4680

Hi-end Disk Winmark99

17100 16800 16300

Business Graphic Winmark

217 216 217

Hi-end Graphic Winmark

762 767 767

SYS Mark 2000 : SISMark 2000 Rating ( Internet Content Creation / Office Productivity )

Suites

156 157 157

Official

154 155 156

SISOFT Sandra 2000 :

CPU MIPS

2262 2262 2262

FPU MFLOPS

1120 1120 1120

CPU / Memory MB/S

234 236 235

FPU / Memory MB/S

255 257 256

QUAKE3 :

DEMO1 FPS

22.0 22.1 22.2

DEMO2 FPS

21.3 21.6 21.6

1-4 Layout Diagram & Jumper Setting

PC99 Back Panel

COM1 VGA

LINE-OUT

LINE-IN

MIC

USB

PS/2 MOUSE

PS/2 Keyboard

PRINT GAME/MIDI PORT LAN

PS/2 Mouse/KB Port

USB/LAN Port

Winbond 83697HF

Floppy Connector

SiS 630T Chip

Front Panel Connector

IR Connector

ATA 100 IDE Connector

Wake On LAN

(JP6) Clear CMOS

ATX Power

Connector

AMR Slot

USB2 Port

SYSTEM FAN

CPU FAN

CD Audio

PCI Slot

2MBit Flash ROM BIOS

(JP2)

CPU F.S.B. Clock

CPU Socket

PC133 DIMMX2

K/B Power On

Jumper (JP9)

COM2 Port

(JP10, JP11)

CPU F.S.B. Clock

Jumpers

Jumper Name Description Page

JP2 JP10, JP11

CPU & SDRAM Frequency Setting 2x4-pin Block

2x2-pin Block

p.8

JP9 Keyboard Power ON Function Setting 3-pin Block p.9 JP6 CMOS RAM Clear 3-pin Block p.9

Connectors

Connector Name Description Page

ATX ATX Power Connector 20-pin Block p.16 KB/MOUSE PS/2 Mouse & PS/2 Keyboard

Connector

6-pin Female p.17

USB USB Port Connector 2x4-pin Connector p.17 LAN

(for 630TCF)

LAN Port Connector RJ45 Connector p.17

PRINT Parallel Port Connector 25-pin Female p.17 VGA VGA Port Connector 15-pin Female p.17 GAME Audio/Game Connector 3 phone jack + 15-pin Connector p.17 COM1 Serial Port COM1 Connector 9-pin Connector p.17 FDD Floppy Driver Connector 34-pin Block p.17 IDE1 Primary IDE Connector 40-pin Block p.18 IDE2 Secondary IDE Connector 40-pin Block p.18

Headers

Header Name Description Page

COM2 COM2 Headers 10-pin Block p.19 USB2 USB Port Headers 10-pin Block p.19 HDLED IDE activity LED 2-pin Block p.19 TBLED Turbo LED switch 2-pin Block p.19 RST Reset switch lead 2-pin Block p.19 KEYLOCK Keyboard lock switch 2-pin Block p.19 SPKR Speaker connector 4-pin Block p.20

PWR LED

Power LED 2-pin Block p.20 PWR Power switch 2-pin Block p.20 WOL Wake On-LAN Headers 3-pin Block p.20 CPUFAN SYSFAN

FAN Speed Headers

3-pin Block p.20

IR, CIR IR infrared module Headers 10-pin Block p.21 CDIN1, CDIN2 CD Audio-In Headers 4-pin Block p.21 AUX-IN AUX-IN Audio Input Header 4-pin Block p.21

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 370 CPU Socket 370-pin FC-PGA CPU Socket p.12 DIMM1, DIMM2 DIMM Module Socket 168-pin DIMM SDRAM Module

Expansion Socket

p.14

PCI1, PCI2, PCI3 PCI Slot 32-bit PCI Local Bus Expansion slots p.15 AMR AMR Slot Modem Riser Card slot

Chapter 2

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard setting

2. Install CPU

3. Install Memory

4. Install Expansion cards

5. Connect Ribbon cables, Panel wires, and power supply

6. Setup BIOS

7. Install software driver & utility

2-2 Checking Motherboard’s Jumper Setting

1. CPU & SDRAM Clock Setting : JP2, JP10, JP11

The motherboard’s CPU & SDRAM memory clock adjusted through jumper JP2, JP10, JP11. Table as below:

JP2 JP10 JP11

CPU/SDRAM (MHz)

1-2 3-4 5-6 7-8

AUTO

OFF OFF OFF OFF ON ON

66/66

OFF OFF OFF ON OFF OFF

66/100

OFF OFF OFF OFF OFF OFF

100/100

ON OFF OFF OFF OFF OFF

100/133

ON OFF ON OFF OFF OFF

133/100

ON ON OFF OFF OFF OFF

133/133

ON ON ON OFF OFF OFF

CPU/SDRAM Frequency

66/66

JP2

JP11

1 2

JP10

JP2

AUTO

JP11

1 2

JP10

66/100

JP2

JP11

1 2

JP10

JP2

100/100

JP11

1 2

JP10

JP11

1 2

JP10 JP11

1 2

JP10

JP2

100/133

JP2

133/100

JP2

133/133

JP11

1 2

JP10

2. Keyboard Power On Function Setting (3-pin): JP9

This allows you to disable the keyboard power on function. Set the jumper to enabled or disabled if you wish to use your keyboard (by pressing < >) to power on your computer. This feature requires an ATX power supply that can supply at least 300mA on the +5VSB lead. The default is set to disable.

Keyboard Powr On Function

2-3 closed Enabled

JP9

1 3

JP9

1 3

1-2 closed Disabled

3. CMOS RAM Clear (3-pin): JP6

A battery must be used to retain the motherboard configuration in CMOS RAM short 2-3 pins of JP6 to store the CMOS data.

Note: You can clear CMOS by shorting 1-2 pin, while the system is off. Then

return to 2-3 pin position. Avoid clearing the CMOS while the system is on, it will damage the motherboard always unplug the power cord from the wall socket.

CMOS RAM Clear Setting

2-3 closed Normal

(default)

JP6

1-2 closed Clear CMOS

2-3 Install CPU

2-3-1 About Pentium III & Celeron™ 370-pin CPU

This motherboard supports both Pentium III & Celeron 370 pins CPU.

Glossary:

Chipset (or core logic)

- two or more integrated circuits which control the interfaces

between the system processor, RAM, I/O devises, and adapter cards.

Processor slot/socket

- the slot or socket used to mount the system processor on the

motherboard.

Slot

(AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM.

AGP

- Accelerated Graphics Port - a high speed interface for video cards; runs at 1X

(66MHz), 2X (133MHz), or 4X (266MHz).

PCI

- Peripheral Component Interconnect - a high speed interface for video cards, sound

cards, network interface cards, and modems; runs at 33MHz.

ISA

- Industry Standard Architecture - a relatively low speed interface primarily used for

sound cards and modems; runs at approx. 8MHz.

Serial Port

- a low speed interface typically used for mouse and external modems.

Parallel Port

- a low speed interface typically used for printers.

PS/2

- a low speed interface used for mouse and keyboards.

USB

- Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,

scanners, scanners, and some digital cameras.

Sound

(interface) - the interface between the sound card or integrated sound connectors and

speakers, mic, game controllers, and MIDI sound devices.

LAN

(interface) - Local Area Network - the interface to your local area network.

BIOS (B

asic Input/Output System) - the program logic used to boot up a computer and

establish the relationship between the various components.

Driver

- software, which defines the characteristics of a device for use by another device or

other software.

Processor

- the "central processing unit" (CPU); the principal integrated circuit used for

doing the "computing" in "personal computer"

Front Side Bus Frequency -

The working frequency of the motherboard, which is

generated by the clock generator for CPU, DRAM and PCI BUS.

CPU Internal Frequency -

The frequency of CPU, which is also the actual working

frequency of CPU.

Bus Frequency Ratio -

The ratio of the working frequency, multiply Front Side Bus

Frequency with Bus Frequency Ratio will form the CPU Internal Frequency.

CPU L2 Cache

The flash memory inside the CPU, normally Pentium III CPU has 256K or above, while Celeron CPU will have 128K.

Recognize of CPU

The way to recognize the specification of CPU from the packing Pentium III 370 pins FC-PGA

On the surface of the CPU as shown on the right picture, under the word of “PENTIUM III” the code is:

RB 80526 P2 866 256 RB :

FC–PGA packing

P2 :

P2–133MHz front side bus frequency PY–100MHz front side bus frequency

866 :

CPU internal frequency, where here is

866MHz

256 :

the size of L2 cache, where here is 256K

Celeron FC–PGA

On the surface of the CPU as shown on the right picture, under the word of “Celeron” the code is:

566/128/66/1.5V 566 :

CPU internal frequency, where here is 566MHz

128 :

the size of L2 cache, where here is 128K

66 :

front side bus frequency, where here is 66MHz

1.5V :

the voltage for the CPU

2-3-2 Setting CPU Bus Clock & Memory Clock Jumper

Setting the front side bus frequency and SDRAM frequency

The motherboard uses jumper JP2 for the front side bus frequency and SDRAM frequency setting as shown from the table below:

CPU/SDRAM (MHz) 1-2 3-4 5-6 7-8

66/66

OFF OFF OFF ON

66/100

OFF OFF OFF OFF

100/100

ON OFF OFF OFF

100/133

ON OFF ON OFF

133/100

ON ON OFF OFF

133/133

ON ON ON OFF

Example: Using a Pentium III 866 CPU with front side bus frequency of 133MHz

and PC-133 SDRAM module, the setting of JP2 are 1-2 closed, 3-4 closed, 5-6 closed for CPU BUS CLOCK to be 133MHz and SDRAM CLOCK to be 133MHz.

For experience user looking for over clocking, please refer to sec 2-3-4

2-3-3 Install CPU

This motherboard provides a ZIF socket 370. The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.

WARNING!

Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the level sideways away from the socket then upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.

CPU ZIF Socket 370

Colden Arrow

Socket 370

Intel



Pentium III

When you put the CPU into the ZIF socket. No force require to insert of the CPU, then press the level to Locate position slightly without any extra force.

2-3-4 Over clock Running

WARNING!

This section is for experienced motherboard installer only. Over clocking can result in system instability or even shortening life of the processor.

After setting the Jumper JP2 you can choose over clock running by BIOS CMOS SETUP UTILITY. When you entered CMOS SETUP UTILITY, choose “Frequency/ Voltage control” you will see the screen as below then.

1. You can choose the situation you want to try.

CPU/SDRAM (MHz) 1-2 3-4 5-6 7-8

66/66

OFF OFF OFF ON

66/100 OFF OFF OFF OFF 100/100 ON OFF OFF OFF 100/133 ON OFF ON OFF

133/100

ON ON OFF OFF

133/133

ON ON ON OFF

Frequency/Voltage Control

Item Help

Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Disabled CPU Host/DRAM Clock Default CPU Clock Ratio Jumpless x 3.0

Menu Level >

↑↓→←

:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

NOTE! The BIOS allows you select Bus Frequency from 66MHz to 133MHz,

the wrong setting will cause system can not starting, when it happen you have to clear CMOS and adjust correct setting for your CPU. Again we don’t suggest user running over clock.

2-4 Install Memory

This motherboard provides two 168-pin DUAL INLINE MEMORY MODULES (DIMM) sites for memory expansion available from minimum memory size of 16MB to maximum memory size of 1GB SDRAM.

Valid Memory Configurations

Bank 168-Pin DIMM Total Memory

Bank 0, 1

(DIMM1)

SDRAM 32, 64, 128, 256, 512MB X 1

16MB∼512MB

Bank 2, 3

(DIMM2)

SDRAM 32, 64, 128, 256, 512MB X 1

16MB∼512MB

Total System Memory (Max. 1GB)

16MB∼1GB

Generally, installing SDRAM modules to your motherboard is very easy, you can refer to figure 2-4 to see what a 168-Pin PC100 & PC133 SDRAM module looks like.

CPU Host/DRAM Clock Default [ ]

66/66MHz ..... [ ]

66/100MHz ..... [ ]

75/75MHz ..... [ ]

83/83MHz ..... [ ]

95/95MHz ..... [ ]

96/96MHz ..... [ ]

97/97MHz ..... [ ]

100/100MHz ..... [ ]

100/133MHz ..... [ ]

112/112MHz ..... [ ]

133/100MHz ..... [ ]

133/133MHz ..... [ ]

↑↓:Move ENTER:Accept ESC:Abort

DIMM2 (BANK2+BANK3)

DIMM1 (BANK0+BANK1)

NOTE!

When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides.

WARNING!

For the SDRAM CLOCK is set at 133MHz, use only PC133compliant DIMMs. When this motherboard operate at 133Mhz, most system will not even boot if non-compliant modules are used because of the strict timing issues, if your DIMM are not PC133compliant, set the SDRAM clock to 100MHz to ensure system stability.

2-5 Expansion Cards

WARNING!

Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers.

2. Remove your computer’s cover and the bracket plate on the slot you intend to use.

3. Align the card’s connectors and press firmly.

4. Secure the card on the slot with the screen you remove above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary.

7. Install the necessary software driver for your expansion card.

Figure 2-4

2-5-2 Assigning IRQs For Expansion Card

Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use.

Standard Interrupt Assignments

IRQ Priority Standard function

0 1 System Timer 1 2 Keyboard Controller 2 N/A Programmable Interrupt 3 * 11 Communications Port (COM2) 4 * 12 Communications Port (COM1) 5 * 13 Sound Card (sometimes LPT2) 6 14 Floppy Disk Controller 7 * 15 Printer Port (LPT1) 8 3 System CMOS/Real Time Clock

9 * 4 ACPI Mode when enabled 10 * 5 IRQ Holder for PCI Steering 11 * 6 IRQ Holder for PCI Steering 12 * 7 PS/2 Compatible Mouse Port 13 8 Numeric Data Processor 14 * 9 Primary IDE Channel 15 * 10 Secondary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

2-5-3 Interrupt Request Table For This Motherboard

Interrupt request are shared as shown the table below:

INT A INT B INT C INT D

PCI slot 1



Shared



PCI slot 2



Shared



PCI slot 3



Shared

Onboard VGA



AC97/MC97



Shared



Onboard USB



Shared

Onboard USB 2



Shared

LAN

(for 630TCF Only)



Shared



IMPORTANT!

If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ” or that the cards don’t need IRQ assignments. Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable.

2-6 Connectors, Headers

2-6-1 Connectors

(1) Power Connector: ATX (20-pin block)

ATX Power Supply connector. This is a new defined 20-pins connector that

usually comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.

PIN ROW2 ROW1

1 3.3V 3.3V 2 -12V 3.3V 3 GND GND 4 Soft Power On 5V 5 GND GND 6 GND 5V 7 GND GND 8 -5V Power OK 9 +5V +5V (for Soft Logic) 10 +5V +12V

Pin 1

(2) PS/2 Mouse & PS/2 Keyboard Connector: KB/MOUSE

The connectors for PS/2 keyboard and PS/2 Mouse.

(3) USB Port connector: USB

The connectors are 4-pins connector that connect USB devices to the system

board.

(4) LAN Port connector: LAN (Only for 630TCF)

This connector is standard RJ45 connector for Network connector.

(5) Parallel Port Connector (25-pin female): PRINT

Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

(6) VGA Connector (15-pin female): VGA (7) Audio and Game Connector : GAME

This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device.

Line-out : Audio output to speaker Line-in : Audio input to sound chip MIC : Microphone Connector Game/MIDI : For joystick or MIDI Device

(8) Serial Port COM1: COM1

COM1 is the 9-pin D-Subminiature mail connector. The On-board serial port can b e d isabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” se c t i o n f o r m o r e detail information.

(9) Floppy drive Connector (34-pin block): FDD

This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.

Pin 1

Flo

ppy

Drive Connector

(10) Primary IDE Connector (40-pin block): IDE1

This connector supports the provided IDE hard disk ribbon cable. After connecting

the single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings.

COM1 VGA

PS/2

MOUSE

PS/2

Keyboard

USB

LINE-OUT

LINE-IN

MIC

PRINT GAME/MIDI PORT LAN

Pin 1

Primary IDE Connector

(11) Secondary IDE Connector (40-pin block): IDE2

This connector connects to the next set of Master and Slave hard disks. Follow the

same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector.

Secondary IDE Connector

Pin 1

•

Two hard disks can be connected to each connector. The first HDD is referred to as the “Master” and the second HDD is referred to as the “Slave”.

•

For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop.

2-6-2 Headers

(1) COM2 Headers (10-pin block): COM2

This board has another serial port COM2, it come with cable providing serial

port COM2.

COM2

Pin 1

Note: Orient the read marking on the

COM2 ribbon cable to pin 1

(2) USB Port Headers (10-pin block): USB2

These headers are used for connecting the additional USB port plug. By

attaching an option USB cable, your can be provided with two additional USB

plugs affixed to the back panel.

USB2

Pin 1

(3) IDE Activity LED: HDLED

This connector connects to the hard disk activity indicator light on the case.

(4) Turbo LED switch: TBLED

Since the motherboard’s turbo function is always on. The turbo LED will

remain constantly on while the system power is on. You may wish to connect

the Power LED from the system case to this lead. See the figure below.

(5) Reset switch lead: RST

This 2-pin connector connects to the case-mounted reset switch for rebooting

your computer without having to turn off your power switch. This is a

preferred method of rebooting in order to prolong the lift of the system’s

power supply. See the figure below.

(6)

Keyboard lock switch: KEYLOCK

This 2-pin connector connects to the case-mounted key switch for locking the

keyboard for security purposes.

(7)

Speaker connector: SPKR

This 4-pin connector connects to the case-mounted speaker. See the figure below.

(8) Power LED

: PWR LED

The Power LED is light on while the system power is on. Connect the Power

LED from the system case to this pin.

(9) Power switch

: PWR

This 2-pin connector connects to the case-mounted power switch to power

ON/OFF the system.

System Case Connections

GND

Turbo LED

GND

Reset SW

VCC GND

Turbo SW/

Speaker

VCC

GND

Keyboard Lock

Power LED

GND

VCC

SMI

IDELED

PWR

(10) Wake On-LAN Headers

(3-pin): WOL

This connector connects to a LAN card with a WAKE ON-LAN output. This

connector power up the system when a wake up signal is received through the

LAN card.

NOTE: This feature requires that Wake On LAN or Ring In Wake up is enabled.

Wake-On-LAN Headers

WOL

(11) FAN Speed Headers (3-pin): CPUFAN, SYSFAN

These connectors support cooling fans of 350mA (4.2 Watts) or less, depending

on the fan manufacturer, the wire and plug may be different. The red wire

should be positive,

while the black should be ground. Connect the fan’s plug to the

board taking into consideration the polarity of connector.

CPUFAN

(12) IR infrared module Headers (10-pin): IR, CIR

This connector supports the optional wireless transmitting and receiving infrared

module. You must configure the setting through the BIOS setup to use the IR

function.

Infrared Module Headers

N.C

IRRX

GND

IRTX

VCC

1 6

5 10

CIR

CIRRX

IOVSB

IR: (Pin1∼Pin5) for Standard IR CIR: (Pin6∼Pin10) for Consumer IR

(13) CD Audio-In Headers (4-pin): CDIN1, CDIN2

CDIN1 and CDIN2 are the connectors for CD-Audio Input signal. Please

connect it to CD-ROM CD-Audio output connector.

CD Audio-In Headers

CDIN2

CDIN1

(14) AUX-In Headers (4-pin): AUX-IN

AUX In Headers

AUX IN

2-7 Starting Up Your Computer

1. After all connection are made, close your computer case cover.

2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.

3. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual.

4. Turn on your peripheral as following order:

a. Your monitor. b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power

supply and press the ATX power switch on the front side of the case.

5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test are running, the BIOS will alarm beeps or additional message will appear on the screen.

If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

Beep Meaning

One short beep when displaying logo

No error during POST

Long beeps in an endless loop No DRAM install or detected One long beep followed by three

short beeps

Video card not found or video card memory bad

High frequency beeps when system is working

CPU overheated System running at a lower frequency

During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP.

Power off your computer:

You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows 9X, click

“Start”

button, click

“Shut down”

and then click

“Shut down the computer?”

The power supply should turn off after windows

shut down.

Chapter 3

Introducing BIOS

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the comp ut e r , the BIOS program gain control. The BIOS first operates an a ut o - d i a gnostic test called POST (power on self test) for all the necessary hardware, it detects the

entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

•

Press <Esc> to quit the BIOS Setup.

•

Press

↑↓←→

(up, down, left, right) to choose, in the main menu, the option

you want to confirm or to modify.

•

Press <F10> when you have completed the setup of BIOS parameters to save these parameters and to exit the BIOS Setup menu.

•

Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters for the active option.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to

Press <F1> to continue, <Ctrl-Alt-Esc> or <Del> to enter Setup

3-2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

3-3 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configurations PC Health Status

Frequency/Voltage Control Load optimized Defaults Load Standard Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

Esc : Quit

↑↓→ ←

: Select Item

F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

Figure 3-1

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal performances system operations.

Load Standard Defaults

Use this menu to load the BIOS default values for the minimal/stable performance system operation.

Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

3-4 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Standard CMOS Features

Date (mm:dd:yy) Wed, Jul, 26 2000 Time (hh:mm:ss) 17 : 35 : 22

Item Help

> IDE Primary Master Press Enter None > IDE Primary Slave Press Enter None > IDE Secondary Master Press Enter None > IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.25 in. Drive B None

Video EGA/VGA Halt On All,But Keyboard

Base Memory 640K Extended Memory 56320K Total Memory 57344K

Menu Level >

Change the day, month, year and century

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Date

The date format is <day><month><date><year>.

Day

Day of the week, from Sun to Sat, determined by BIOS. Read-only.

Month

The month from Jan. through Dec.

Date

The date from 1 to 31 can be keyed by numeric function keys.

Year

The year depends on the year of the BIOS.

Time

The time format is <hour><minute><second>.

Primary Master/Primary Slave Secondary Master/Secondary Slave

Press PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually. If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is SCSI, the selection shall be “None”. If the controller of HDD interface is CD-ROM, the selection shall be “None”

Access Mode

The settings are Auto Normal, Large, and LBA.

Cylinder

number of cylinders

Head

number of heads

Precomp

write precomp

Landing Zone

landing zone

Sector

number of sectors

3-5 Advanced BIOS Features

Advanced BIOS Features

Item Help

Virus Warning Disabled CPU Internal Cache Enabled External Cache Enabled CPU L2 Cache ECC Checking Disabled Processor Number Feature Enabled Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device LS120 Fourth Boot Device Disabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status Off Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM > 64MB Non-OS2

Menu Level >

Allows you to choose The VIRUS warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Disabled

(default) No warning message to appear when anything attempts to access the

boot sector or hard disk partition table.

Enabled

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.

CPU Internal Cache

The default value is Enabled.

Enabled

(default) Enable cache

Disabled

Disable cache

Note: The internal cache is built in the processor.

External Cache

Choose Enabled or Disabled. This option enables the Level 2 cache memory.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).

Processor Number Feature

This option is for Pentium III processor. During Enabled, this will check the CPU Serial number. Disabled this option if you don’t want the system to know the Serial number.

Quick Power On Self-Test

This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled. BIOS will shorten or skip some check items during POST.

Enabled

(default) Enable quick POST

Disabled

Normal POST

First/Second/Third/Fourth Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-3, SCSI, CDROM, LAN and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and B. Default is Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Boot Up NumLock Status

The default value is On.

(default)

Keypad is numeric keys.

Off

Keypad is arrow keys.

Gate A20 Option

Normal

The A20 signal is controlled by keyboard controller or chipset hardware.

Fast

(default) The A20 signal is controlled by port 92 or chipset specific method.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000.

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System

The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup

(default) The system will boot, but access to Setup will be denied if the correct

password is not entered prompt.

OS Select For DRAM > 64MB

Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2.

Report No FDD For Win 95

Whether report no FDD for Win 95 or not. The settings are: Yes, No.

3-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.

Advanced Chipset Features

Item Help

Advanced DRAM Control 1 Press Enter System BIOS Cacheable Enabled Video RAM Cacheable Enabled Memory Hole at 15M-16M Disabled AGP Aperture Size 64MB Graphic Window WR Combin Enabled Concurrent function(MEM) Enabled Concurrent function(PCI) Enabled CPU Pipeline Control Enabled PCI Delay Transaction Disabled Memory Parity Check Disabled

Menu Level >

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Advanced DRAM Control 1

Please refer to section 3-6-1

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video BIOS, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Memory Hole at 15M-16M

You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. The settings are: Enabled and Disabled.

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The settings are: Enabled and Disabled.

Memory Parity Check

This function provides parity check of memory. The choice is either Disabled or Enabled.

3-6-1 Advanced DRAM Control

Advanced DRAM Control 1

Item Help

Auto Configuration Auto SDRAM RAS Active Time 5T SDRAM RAS Precharg Time 3T RAS to CAS Delay 4T Dram Background Command Delay 1T LD-Off Dram RD/WR Cycles Delay 1T Write Recovery Time 2T VCM ACCT – ACT/REF Delay 9T Early CKE Delay 1T Cntrl Normal Early CKE Delay Adjust 7ns Mem Command Output Time Delay 1T SDRAM/VCM CAS Latency 3T

Menu Level >>

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-7 Integrated Peripherals

Integrated Peripherals

Item Help

> OnChip IDE Function Press Enter > OnChip Device Function Press Enter > Winbond SuperIO Device Press Enter Init Display First PCI Slot System Share Memory Size 8 MB

Menu Level >

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

OnChip IDE Function

Please refer to section 3-7-1

OnChip Device Function

Please refer to section 3-7-2

Winbond SuperIO Device

Please refer to section 3-7-3

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP VGA first. The settings are: PCI Slot, AGP Slot.

3-7-1 OnChip IDE Function

OnChip IDE Function

Item Help

Internal PCI/IDE Both Primary Master PIO Auto Primary Slave PIO Auto Secondary Master PIO Auto Secondary Slave PIO Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE Burst Mode Enabled IDE HDD Block Mode Enabled IDE Prefetch Mode Enabled

Menu Level >>

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Internal PCI/IDE

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Both to activate each channel separately. The settings are: Both, IDE0, IDE1.

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33 and Ultra DMA/66, select Auto to enable BIOS support. The settings are: Auto, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.

3-7-2 OnChip Device Function

OnChip Device Function

Item Help

AC97 Sound Device Enabled Game Port Address 201 Midi Port Address 330 Midi Port IRQ 10 AMR Modem DEVICE Enabled ETHERNET Function Enabled ETHERNET Address ID Input Press Enter Current Mac address is 003018-000001 USB Controller Enabled USB Keyboard Support Disabled

Menu Level >>

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

AC97 Sound Device

This item allows you to decide to enable/disable the chipset family to support AC97 Audio. The settings are: Enabled, Disabled.

Game Port Address/Midi Port Address

This will determine which Address the Game Port/Midi Port will use.

AMR Modem DEVICE

This item allows you to decide to enable/disable the chipset family to support AC97 Modem. The settings are: Auto, Disabled.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripherals. The settings are: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The settings are: Enabled, Disabled.

ETHERNET Address ID Input

(Only for 630TCF)

This item allows you to setting the Mac address from 030018 to 000001.

←

(Only for 630TCF)

3-7-3 Winbond SuperIO Device

Winbond SuperIO Device

Item Help

Onboard FDD Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART 2 Mode Normal RxD,TxD Active Hi,Hi IR Transmission Delay Enabled IR Duplex Mode Half Use IR Pins IR-Rx2Tx2 Onboard Parallel Port 378/IRQ7 Parallel Port Mode SPP EPP Mode Select EPP1.7 ECP Mode Use DMA 3

Menu Level >>

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and the second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART 2 Mode

This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that Provides Standard, ECP, and EPP features. It has the following option:

Disabled (3BCH/IRQ7)/ Line Printer port 0 (278H/IRQ5)/ Line Printer port 2 (378H/IRQ7) Line Printer port 1

Parallel Port Mode

SPP : Standard Parallel Port EPP : Enhanced Parallel Port ECP : Extended Capability Port

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP

1.9 spec. can be chosen.

3-8 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.

Power Management Setup

Item Help

ACPI Function Enabled Video Off Option Susp, Stby -> off Video Off Method V/H SYNC+Blank Switch Function Break/Wake MODEM Use IRQ 3 Hot key Function As Disabled HDD Off After Disabled Power Button Function Instant-Off > PM Wake Up Events Press Enter

Menu Level >

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

ACPI Function

This item allows you to Enabled/Disabled the Advanced Configuration and Power Management (ACPI). The settings are Enabled and Disabled.

Video Off Option

This determines the manner in which the monitor is blanked. The choice are Suspend → off, All Modes → Off, and Always On.

Video Off Method

This determines the manner in which the monitor is blanked.

DPMS (default) Initial display power management signaling. Blank Screen This option only writes blanks to the video buffer. V/H SYNC+Blank This selection will cause the system to turn off the vertical and

horizontal synchronization ports and write blanks to the video buffer.

Modem Use IRQ

This determines the IRQ in which the MODEM can use. The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Power Button Function

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

PM Wake-Up Events

Please refer to section 3-8-1

3-8-1 PM Wake up Events

PM Wake Up Events

Item Help

IRQ [3-7,9-15],NMI Enabled IRQ 8 Break Suspend Disabled Ring Power Up Control Disabled MACPME Power Up Control Disabled PCIPME Power Up Control Disabled KB Power ON Password Enter Power Up by Alarm Disabled x Month Alarm NA x Day of Month Alarm 0 x Time (hh:mm:ss) Alarm 0 : 0 : 0

Menu Level >>

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Ring Power Up Control

During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’s an incoming call from the modem.

MACPME Power Up Control

During Disabled, the system will ignore any incoming call from the EtherNet controller. During Enabled, the system will boot up if there’s an incoming call from the EtherNet controller.

PCIPME Power Up Control

This will enable the system to wake up by PCI device Power Management function. The settings are: Enabled and Disabled.

KB Power ON Password

This item can setting Power On Password, if you Enabled keyboard Power On function then you can Power On system by key-in the password which you setting.

Power Up by Alarm

This function is for setting date and time for your computer to boot up. During Disabled, you cannot use this function. During Enabled, choose the Date and Time Alarm:

Date(of month) Alarm

You can choose which month the system will boot up. Set to 0, to boot every day.

Time(hh:mm:ss) Alarm

You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to

the operating system, before this function will work.

3-9 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed

the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PnP/PCI Configurations

Item Help

Reset Configuration Data Disabled

Resources Controlled By Manual > IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled

Menu Level >

Default is Disabled. Select Enabled to Reset Extended System Configuration Data (ESCD) when you exit Setup if you have Installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows95/98. If you set this field to “manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “>”).

The settings are: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. Please refer to section 3-9-1

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

3-9-1 IRQ Resources

IRQ Resources

Item Help

IRQ-3 assigned to PCI Device IRQ-4 assigned to PCI Device IRQ-5 assigned to PCI Device IRQ-7 assigned to PCI Device IRQ-9 assigned to PCI Device IRQ-10 assigned to PCI Device IRQ-11 assigned to PCI Device IRQ-12 assigned to PCI Device IRQ-14 assigned to PCI Device IRQ-15 assigned to PCI Device

Menu Level >

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-10 PC Health Status

This section shows the Status of you CPU, Fan, Warning for overall system status. This is only available if there is Hardware Monitor onboard.

PC Health Status

Item Help

CPU Warning Temperature Disabled Shutdown Temperature Disabled Show PC Health in Post Enabled Current System Temp. 28°C/82°F Current CPU Temperature 29°C/84°F Current CPUFAN Speed 4687 RPM Current SYSFAN Speed 0 RPM Vcore 1.69V Vcc3.3 3.31V + 5V 5.00V +12V + 12.02V

-12V - 12.16V 5VSB(V) 5.45V

Menu Level >

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Show PC Health in Post

During Enabled, it displays information list below. The choice is either Enabled or Disabled

Current CPU Temperature/Current System Temp/Current CPUFAN, SYSFAN Speed/ Vcore/ Vcc/3.3V/+5V/+12V/-12V/5VSB(V)

This will show the CPU/FAN/System voltage chart and FAN Speed.

3-11 Frequency/Voltage Control

This section is for setting CPU Frequency Control.

Frequency/Voltage Control

Item Help

Cyrix III Clock Ratio Default Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Disabled CPU Host/DRAM Clock Default CPU Clock Ratio Jumpless x 3.0

Menu Level >

CyrixIII CPU Ratio Adjust

↑↓→←

Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Cyrix III Clock Ratio

This item allows you to set Cyrix III Clock Ratio. The settings are Default, X3.5, X3, X4, X4.5, X5, X5.5, X6.

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detect DIMM/PCI Clock. The settings are: Enabled, Disabled.

CPU Host/DRAM Clock

This item allows you to set the CPU Host/DRAM Clock The choice are: Default, 66/66Mhz, 66/100Mhz, 75/75MHz, 83/83MHz, 95/95MHz,

96/96MHz, 97/97MHz, 100/100MHz, 100/133MHz, 112/112MHz, 133/100MHz, 133/133MHz

3-12 Load Standard/Optimized Defaults

Load Standard Defaults

When you press <Enter> on this item, you get confirmation dialog box with a message similar to:

Load Standard Defaults (Y/N)? N

Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N

Pressing <Y> loads the default values that are factory settings for optimal performance system operations.

3-13 Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The differences are:

Supervisor password:

Can enter and change the options of the setup menus.

User password:

Can only enter but do not have the right to change the options of

the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Chapter 4

DRIVER & FREE PROGRAM INSTALLATION

Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL.

MAGIC INSTALL supports WINDOWS 95/98/98SE/NT4.0/2000

Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive).

From MAGIC INSTALL MENU you may make 8 selections:

1. VGA Install SiS 630 On-chip VGA driver

2. PC-HEALTH Install Winbond Hardware Doctor Monitoring Software

3. LAN Install PCI Fast Ethernet driver

(Only for 630TCF)

4. SOUND Install On-chip AC’97 Audio driver

5. PC-CILLIN Install PC-CILLIN98 Anti-virus program

6. AUDIORACK Install Sound Application software

7. BROWSE CD To browse the contents of the CD

8. EXIT To exit from Magic Install menu

4-1 VGA Install SiS 630 VGA Driver

The path of the file: fo r WINDOWS 9X is X:\SIS630\VGA\WIN9X\SETUP.EXE (i ncl ud ing WI N9 5/9 8/

98SE/98ME) for WIN95NT4.0 is X:\SIS630\VGA\WINNT40 for WINDOWS 2000 is X:\SIS630\VGA\WIN2000\SETUP.EXE for LINUX is X:\SIS630\LINUX

A. For WINDOWS 95/98/98SE/98ME/2000

1. Click VGA when Magic Install MENU

appears

2. Click Next when SiS630 Multimedia Package appears

3. Multimedia Package support three types of Setup: Typical, Compact, Custom

Please choice Typical and Click Next to continue step

4. System will add program icons to the Program Folder listed. Click Next to continue, and after “Start Copying Files” window appears click Next

5. System starting install VGA driver

6. Install Microsoft Direct X

7. After Setup complete please select restart my computer now and click Finish to complete setup

4-2 PC-HEALTH Winbond Hardware Doctor Monitoring

Software

The path of the file is X:\SIS630\HEALTH-W\SETUP.EXE (Only support WINDOWS 95/98/98SE/98ME)

In Windows 95/98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup.

1. Click PC-Health when Magic Install Menu appears

2. Click OK when Winbond Hardware Doctor Setup Window appears

3. Click the Button to start installation 4. Select Program Group name or enter a new group name, click continue to setup and click OK after setup complete

4-2-1 How To Utilize PC-HEALTH

1. Click Program → Winbond Hardware

Doctor → Hardware Doctor the Winbond Hardware Doctor will appears

You can remove the Utility in Control Panel → Add/Remove Program icon

2. After executing Winbond Hardware Doctor it supports system voltage, Fan speed and CPU/SYSTEM Temperature. Because this is a On-time Monitoring program therefore the value will change after it detected, if the value is over default setting the system will have warning picture and beeps

4-3 LAN (Only for 630TCF) Install SiS 900 PCI Fast Ethernet

Driver

The path of the file: for WINDOWS 9X/2000 is X:\SIS630\LANDRV\SETUP.EXE (I n c l u d i n g WINDOWS 95/98/98SE/98ME/2000) for WINDOWS NT4.0 is X:\SIS630\LANDRV\NT40

WINDOWS 95/98/98SE/98ME/2000 Setup

1. Click LAN when Magic Install Menu appears 2. Click NEXT when SiS PCI Lan Driver Setup appears

3. Choice restart my computer now to finish

setting up Lan Card, click Finish to complete setup

4. After restart computer you can check in control Panel\System Device Manager\ Network adapters to make sure Lan card Driver setup completely Click NEXT when SiS PCI Lan Driver Setup appears

4-4 SOUND Install SiS 7018 AC’97 Audio Driver and

Application Software

The path of the file is X:\SIS630\SOUND\SETUP.EXE (Support WINDOWS 95/98/98SE/98ME/NT4.0/2000)

1. Click SOUND when Magic Install Menu window appears

2. Click Next when SiS PCI Audio Driver Setup window appears

3. Click Next to install the driver in Program Files Folder

4. Select restart my computer now and click Finish to complete setup

5. After restart computer the system will auto detect SiS 7018 Audio Driver and install it to system

6. Click Audio Rack when Magic Install Menu appears

7. Run Programs →Audio Rack will show next screen

4-5 PC-CILLIN Install PC-CILLIN98 Anti-virus Software and

Application program

1. Click PC-CILLIN when MAGIC INSTALL MENU Appears

2. Click NEXT when PC-CILIN 98 OEM SETUP APPEARS. Then click YES when the announcement of copyright appears. Software is starting to detect HD for virus

3. Click NEXT or choose BROWSE to change the path For the file to be stored

4. Start to install the software, choose YES or NO when asked if you want PC-CILLIN To be added in ACTIVE CHANNEL or in Your internet browser

5. If you want to make a rescue disc, insert a

1.44 MB disc

6. Choose if you want to re-start and click Finish

7. After install PC-CILLIN98 complete we recommend select update item to download newest virus code and setting Auto refresh virus code

4-6 How To Disable On Board Sound Function

Ple ase key in “DEL” key after pow er on to enter BIOS SETUP screen and choose Integrate Peripherals → On-Chip Device Function → AC97 Audio item to disabled all on board Sound function by Page Down key.

4-7 HOW TO UPDATE BIOS

STEP 1.

Prepare a boot disc. (you may make one by click START click RUN type

SYS A: click OK)

STEP 2.

Copy utility program to your boot disc. You may copy from DRIVER

CD X:\FLASH\AWDFLASH.EXE or download from our web site.

STEP 3.

Copy latest BIOS for 630TCF/630TCN from our web site to your boot

disc.

STEP 4.

Insert your boot disc into A:, start the computer, type “Awdflash A:\630TCFxxx.BIN/SN/PY/CC/R” 630TCFxxx.BIN is the file name of latest BIOS it can be

630TCFA03.BIN or 630TCFB02.BIN SN means don’t save existing BIOS data

PY means renew existing BIOS data CC means clear existing CMOS data R means restart computer

STEP 5.

Push ENTER and the BIOS will be updated, computer will be restarted automatically

Intel 630 - Pentium 4 630 3.0GHz 800MHz 2MB Socket 775 CPU, 630TCFR3A, 630TCF, 630TCN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
