Intel® Core
2 Duo processor with
®
the Mobile Intel
Chipset
Development Kit User’s Manual
May 2007
TM
945GME Express
Order Number: 317443-001US
Legal Lines and Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS
OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING
TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended for
use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics
of any features or instructions marked "reserved" or "undefined." Intel reserves these for future definition and shall have no responsibility whatsoever
for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without notice. Do not finalize a design
with this information.
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548-
4725, or by visiting Intel's Web Site at http://www.intel.com.
This document contains information on products in the design phase of development.
Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different
processor families. See http://www.intel.com/products/processor_number for details.
Code Names are only for use by Intel to identify products, platforms, programs, services, etc. ("products") in development by Intel that have not been
made commercially available to the public, i.e., announced, launched or shipped. They are never to be used as "commercial" names for products. Also,
they are not intended to function as trademarks.
BunnyPeople, Celeron, Celeron Inside, Centrino, Centrino logo, Core Inside, FlashFile, i960, InstantIP, Intel, Intel logo, Intel386, Intel486, Intel740,
IntelDX2, IntelDX4, IntelSX2, Intel Core, Intel Inside, Intel Inside logo, Intel. Leap ahead., Intel. Leap ahead. logo, Intel NetBurst, Intel NetMerg e, I nte l
NetStructure, Intel SingleDriver, Intel SpeedStep, Intel StrataFlash, Intel Viiv, Intel vPro, Intel XScale, Itanium, Itanium Inside, MCS, MMX, Oplus,
OverDrive, PDCharm, Pentium, Pentium Inside, skoool, Sound Mark, The Journey Inside, VTune, Xeon, and Xeon Inside are trademarks of Intel
Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2007, Intel Corporation. All rights reserved.
This device is protected by U.S. patent numbers 5,315,448 and 6,516,132, and other intellectual property rights. The use of Macrovision's copy
protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless
otherwise authorized in writing by Macrovision. Devices incorporating Macrovision's copy protection technology can only be sold or distributed to
companies appearing on Macrovision's list of "Authorized Buyers" at: www.macrovision.com. Reverse engineering or disassembly is prohibited.
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Manual May 2007
2 Order Number: 317443-001US
Contents—Intel
®
945GME Express Chipset
Contents
1.0 About This Manual.....................................................................................................7
1.1 Content Overview................................................................................................7
1.2 Text Conventions ................................................................................................7
1.3 Glossary of Terms and Acronyms........................................................................... 9
1.4 Support Options............................... .. .............................. .. ............................. ..14
1.4.1 Electronic Support Systems ............................... ................................ .. .... 14
1.4.2 Additional Technical Support....................................................................14
1.5 Product Literature .............................................................................................14
1.6 Related Documents ...........................................................................................15
2.0 Getting Started........................................................................................................16
2.1 Overview .........................................................................................................16
2.1.1 Intel
2.2 Included Hardware and Documentation................................................................ 18
2.3 Software Key Features.......................................................................................18
2.3.1 AMI* BIOS ............................................................................................18
2.4 Before You Begin...............................................................................................19
2.5 Setting Up the Evaluation Board..........................................................................20
2.6 Configuring the BIOS.........................................................................................21
3.0 Theory of Operation.................................................................................................22
3.1 Block Diagram ..................................................................................................22
3.2 Mechanical Form Factor......................................................................................23
3.3 Thermal Management........................................................................................23
3.4 System Features and Operation .......................................................................... 23
3.4.1 Intel(R) 945GME GMCH...........................................................................23
3.4.2 ICH7-M.................................................................................................24
3.4.3 System I/O and Connector Summary........................................................ 27
3.4.4 POST Code Debugger..............................................................................29
®
945GME Express Chipset Development Kit Features........................... 16
3.4.1.1 System Memory .......................................................................24
3.4.1.2 DMI ........................................................................................24
3.4.1.3 Advanced Graphics and Display Interface.....................................24
3.4.2.1 PCI Express* Slots....................................................................24
3.4.2.2 PCI Slots .................................................................................25
3.4.2.3 On-Board LAN .......................................................................... 25
3.4.2.4 AC’97 and High Definition Audio..................................................25
3.4.2.5 ATA / Storage ..........................................................................25
3.4.2.6 USB Connectors........................................................................26
3.4.2.7 LPC Super I/O (SIO)/LPC Slot.....................................................26
3.4.2.8 Serial, IrDA............................................... .. .............................26
3.4.2.9 BIOS Firmware Hub (FWH).........................................................26
3.4.2.10 System Management Controller (SMC)/Keyboard Controller............26
3.4.2.11 Clocks..................................................................................... 27
3.4.2.12 Real Time Clock.............................. .. .............................. ..........27
3.4.2.13 Thermal Monitoring...................................................................27
3.4.3.1 PCI Express* Support................................................................28
3.4.3.2 SATA Support...........................................................................28
3.4.3.3 IDE Support.............................................................................28
3.4.3.4 USB Ports................................................................................28
3.4.3.5 VGA Connector.........................................................................28
3.4.3.6 Keyboard/Mouse.......................................................................29
3.4.3.7 32 bit/33 MHz PCI Connectors....................................................29
3.4.3.8 Ethernet Gigabit LAN Interface connector..................................... 29
3.4.3.9 LVDS Flat Panel Display Interface................................................29
May 2007 Manual
Order Number: 317443-001US 3
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Contents
3.5 Clock Generation ............................................. ............................. .. .. .................29
3.6 Power Management States....................... .............................. .............................30
3.6.1 Transition to S3................................. ... ............................. .. .. .................31
3.6.2 Transition to S4................................. ... ............................. .. .. .................31
3.6.3 Transition to S5................................. ... ............................. .. .. .................31
3.6.4 Transition to Full-On .......................... ................................ .....................31
3.7 Power Measurement Support..................................................................... .. ........31
4.0 Hardware Reference ................................................................................................35
4.1 Primary Features...............................................................................................35
4.2 Back Panel Connectors .......................................................................................38
4.3 Configuration Settings........................................ ............................. .. .. ... ............39
4.4 Power On and Reset Buttons...............................................................................42
4.5 LEDs................................................................................................................43
4.6 Other Headers, Slots, and Sockets.......................................................................43
4.6.1 H8 Programming Headers........................................................................43
4.6.2 Expansion Slots and Sockets....................................................................44
4.6.2.1 478 Pin Grid Array (Micro-FCPGA) Socket ........................... .. .. .. .. ..44
4.6.2.2 PCI Express* (x16)....................................................................45
4.6.2.3 Media Expansion Card (MEC) Slot................................................47
4.6.2.4 PCI Express* (x1) .....................................................................49
4.6.2.5 IDE Connector ..........................................................................51
4.6.2.6 SATA Pinout ................................. .. ..........................................51
4.6.2.7 Fan Connectors.........................................................................52
A Heat Sink Installation Instructions ..........................................................................53
Figures
1Intel® 945GME Express Chipset Development Kit Block Diagram....................... ..............22
2Intel® 945GME Express Chipset Component Locations.................. .................................35
3 Back Panel Connector Locations..................................................................................38
4 Configuration Jumper and Switch Locations..................................................................39
5Intel
®
945GME Express Chipset Development Kit Power On and Reset Buttons .................42
6 Heatsink and Backplate.............................................................................................53
7 Backplate Pins..........................................................................................................54

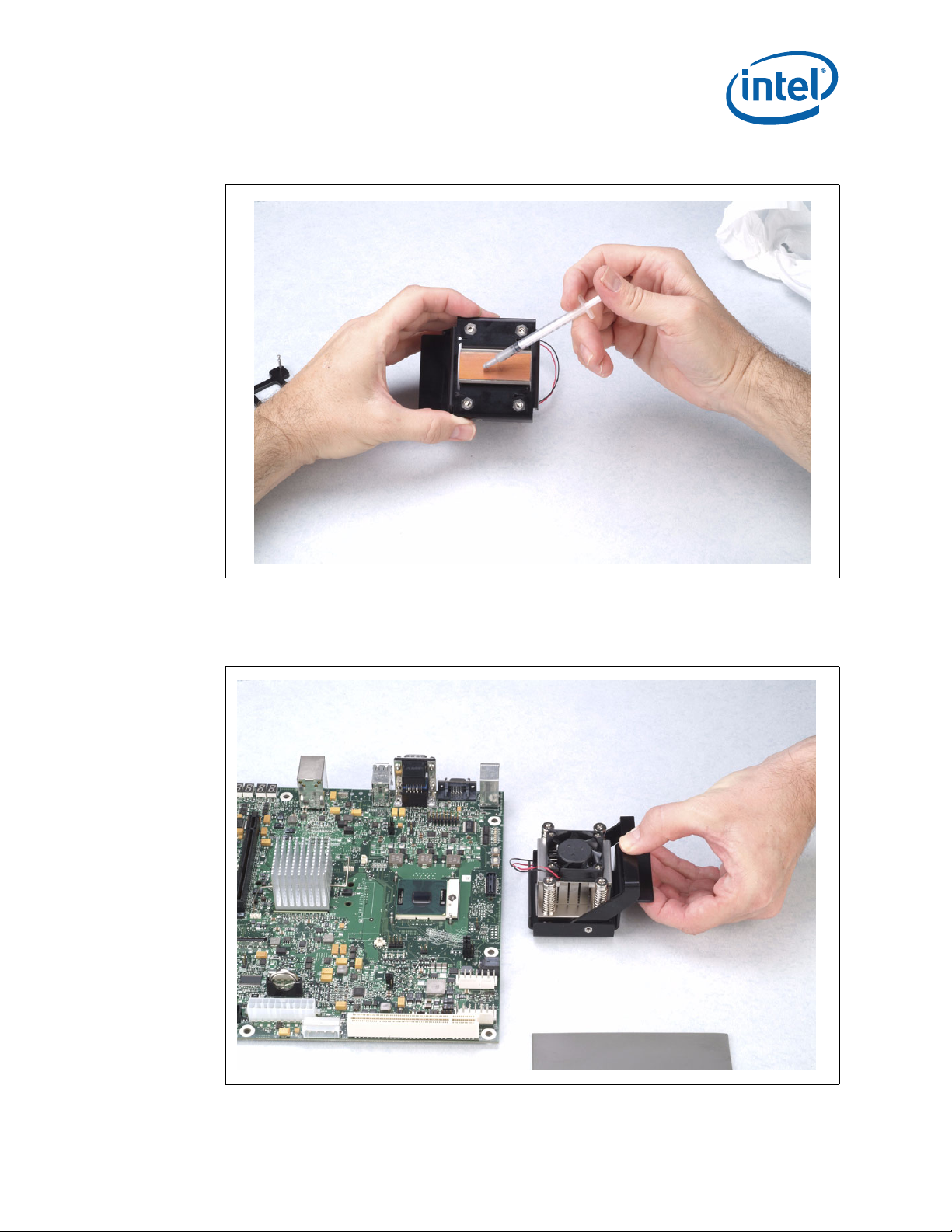

8 Applying the Thermal Grease ........................ .............................................................55
9 Squeezing Activation Arm..........................................................................................55
10 Installing the Heatsink ..............................................................................................56
11 Plugging in the Fan...................................................................................................57
12 Completed Assembly.................................................................................................57
Tables
1 Acronyms................................................................................................................11
2 Intel Literature Centers.............................................................................................14
3 Related Documents...................................................................................................15
4 Primary System Clocks..................................................................... .. .......................29
5Intel
6Intel
7Intel
8 Supported Configuration Jumper/Switch Settings..........................................................40
9Intel
10 H8 Programming Jumpers................... .. ............................. .. .. .............................. .. .. ..44
11 Expansion Slots and Sockets......................................................................................44
12 PCI Express* (x16) Pinout (J6C1)...............................................................................45
®
945GME Express Chipset Development Kit Power Management States....................30
®
945GME Express Chipset Development Kit Voltage Rails............... .. ......................32
®
945GME Express Chipset Component Location Legend .. .......................................36
®
945GME Express Chipset LED Function Legend.......................... .. .. .. .. .. .. ..............43
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
4 Order Number: 317443-001US
Contents—Intel
®
945GME Express Chipset
13 MEC Slot (J6C1)........................... ... .. ............................. .............................. .. ..........47
14 PCI Express* (x1) Pinout (J7C1, J8C1)........................................................................49
15 IDE Connector (J7J1)................................................................................................51
16 SATA Port 0 Data Connector Pinout (J7H1)..................................................................51
17 SATA Port 0 Power Connector Pinout (J6H3) ................................................................52
18 SATA Port 2 Mobile Drive Connector Pinout (J8J2) ........................................................52
19 Fan Connectors (J3F1 and J3C1)................................................................................52
May 2007 Manual
Order Number: 317443-001US 5
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Revision History
Date Revision Description
May 2007 001 Initial release
Intel® 945GME Express Chipset—Revision History
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
6 Order Number: 317443-001US
About This Manual—Intel
®
945GME Express Chipset
1.0 About This Manual
This user’s manual describes the use of the Intel® CoreTM 2 Duo processor with the
Mobile Intel
®
945GME Express Chipset. This manual has been written for OEMs, system
evaluators, and embedded system developers. This document defines all jumpers,
headers, LED functions, and their locations on the board, along with subsystem
features and POST codes. This manual assumes basic familiarity in the fundamental
concepts involved with installing and configuring hardware for a personal computer
system.
For the latest information about the Intel
visit:
http://developer.intel.com/design/intarch/devkits/index.htm
For design documents related to this platform please contact http://
developer.intel.com/design/intarch/core2duo/tech_docs.htm.
Note: The Intel
Intel
Core
®
945GME Express Chipset supports both Intel® CoreTM Duo processors and
®
CoreTM 2 Duo processors. For the Intel® 945GME Express Chipset with Intel®
TM
Duo Processors Development Kit User's Manual, visit http://download.intel.com
1.1 Content Overview
Chapter 1.0, “About This Manual” — This chapter contains a description of conventions
used in this manual. The last few sections explain how to obtain literature and contact
customer support.
Chapter 2.0, “Getting Started”— Provides complete instructions on how to configure
the evaluation board and processor assembly by setting jumpers, connecting
peripherals, providing power, and configuring the BIOS.
®
945GME Express Chipset Development Kit,
Chapter 3.0, “Theory of Operation” — This chapter provides information on the system
design.
Chapter 4.0, “Hardware Reference”— This chapter provides a description of jumper
settings and functions, board debug capabilities, and pinout information for connectors.
Appendix A, “Heat Sink Installation Instructions” gives detailed installation instructions
for the Intel
®
CoreTM 2 Duo processor heat sink.
1.2 Text Conventions
The following notations may be used throughout this manual.
# The pound symbol (#) appended to a signal name indicates that
the signal is active low. (e.g., PRSNT1#)
Variables Variables are shown in italics. Variables must be replaced with
May 2007 Manual
Order Number: 317443-001US 7
correct values.
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—About This Manual
Instructions Instruction mnemonics are shown in uppercase. When you are
programming, instructions are not case-sensitive. Y ou ma y use
either uppercase or lowercase.
Numbers Hexadecimal numbers are represented by a string of
hexadecimal digits followed by the character H. A zero prefix is
added to numbers that begin with A through F. (For example, FF
is shown as 0FFH.) Decimal and binary numbers are
represented by their customary notations. (That is, 255 is a
decimal number and 1111 1111 is a binary number. In some
cases, the letter B is added for clarity.)
Units of Measure The following abbreviations are used to represent units of
measure:
A amps, amperes
GByte gigabytes
KByte kilobytes
KΩ kilo-ohms
mA milliamps, milliamperes
MByte megabytes
MHz megahertz
ms milliseconds
mW milliwatts
ns nanoseconds
pF picofarads
W watts
V volts
µA microamps, microamperes
µF microfarads
µs microseconds
µW microwatts
Signal Names Signal names are shown in uppercase. When several signals
share a common name, an individual signal is represented by
the signal name followed by a number, while the group is
represented by the signal name followed by a variable (n). For
example, the lower chip-select signals are named CS 0#, CS1#,
CS2#, and so on; they are collectively called CSn#. A pound
symbol (#) appended to a signal name identifies an active-low
signal. Port pins are represented by the port abbreviation, a
period, and the pin number (e.g., P1.0).
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
8 Order Number: 317443-001US
About This Manual—Intel
®
945GME Express Chipset
1.3 Glossary of Terms and Acronyms
This section defines conventions and terminology used throughout this document.
Aggressor A network that transmits a coupled signal to another network.
Anti-etch Any plane-split, void or cutout in a VCC or GND plane.
Assisted Gunning Transceiver Logic+
The front-side bus uses a bus technology called AGTL+, or
Assisted Gunning Transceiver Logic. AGTL+ buffers are opendrain, and require pull-up resistors to provide the high logic level
and termination. AGTL+ output buffers differ from GTL+ buffers
with the addition of an active pMOS pull-up transistor to assist
the pull-up resistors during the first clock of a low-to-high
voltage transition.
Asynchronous GTL+ The processor does not utilize CMOS voltage levels on any
signals that connect to the processor. As a result, legacy input
signals such as A20M#, IGNNE#, INIT#, LINT0/INTR, LINT1/
NMI, PWRGOOD, SMI#, SLP#, and STPCLK# utilize GTL+ input
buffers. Legacy output signals (FERR# and IERR#) and nonAGTL+ signals (THERMTRIP# and PROCHOT#) also utilize GTL+
output buffers. All of these signals follow the same DC
requirements as AGTL+ signals, however the outputs are not
actively driven high (during a logical 0 to 1 transition) by the
processor (the major difference between GTL+ and AGTL+).
These signals do not have setup or hold time specifications in
relation to BCLK[1:0], and are therefore referred to as
“Asynchronous GTL+ Signals”. However , all of the Asynchrono us
GTL+ signals are required to be asserted for at least two BCLKs
in order for the processor to recognize them.
Bus Agent A component or group of components that, when combined,
represent a single load on the AGTL+ bus.
Crosstalk The reception on a victim network of a signal imposed by
Flight Time Flight time is a term in the timing equation that includes the
aggressor network(s) through inductive and capacitive coupling
between the networks.
• Backward Crosstalk - Coupling that creates a signal in a
victim network that travels in the opposite direction as the
aggressor’s signal.
• Forward Crosstalk - Coupling that creates a signal in a
victim network that travels in the same direction as the
aggressor’s signal.
• Even Mode Crosstalk - Coupling from a signal or multiple
aggressors when all the aggressors switch in the same
direction that the victim is switching.
• Odd Mode Crosstalk - Coupling from a signal or multiple
aggressors when all the aggressors switch in the opposite
direction that the victim is switching.
signal propagation delay , any effects the system has on the T CO
of the driver, plus any adjustments to the signal at the receiver
May 2007 Manual
Order Number: 317443-001US 9
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—About This Manual
needed to ensure the setup time of the receiver . More precisely,
flight time is defined as:
• The time difference between a signal at the input pin of a
receiving agent crossing the switching voltage (adjusted to
meet the receiver manufacturer’s conditions required for
AC timing specifications; i.e., ringback, etc.) and the output
pin of the driving agent crossing the switching voltage
when the driver is driving a test load used to specify the
driver’s AC timings.
• Maximum and Minimum Flight Time - Flight time variations
are caused by many different parameters. The more
obvious causes include variation of the board dielectric
constant, changes in load condition, crosstalk, power noise,
variation in termination resistance, and differences in I/O
buffer performance as a function of temperature, voltage,
and manufacturing process. Some less obvious causes
include effects of Simultaneous Switching Output (SSO)
and packaging effects.
• Maximum flight time is the largest acceptable flight time a
network will experience under all conditions.
• Minimum flight time is the smallest acceptable flight time a
network will experience under all conditions.
Infrared Data Assoc. The Infrared Data Association (IrDA) has outlined a specification
for serial communication between two devices via a bidirectional infrared data port. The 945GME platform has such a
port and it is located on the rear of the platform between the two
USB connectors.
IMVP6 The Intel Mobile Voltage Positioning specification for the Intel
®
Core™ 2 Duo Processor. It is a DC-DC converter module that
supplies the required voltage and current to a single processor.
Inter-Symbol Interference
Inter-symbol interference is the effect of a previous signal (or
transition) on the interconnect delay. For example, when a
signal is transmitted down a line and the reflections due to the
transition have not completely dissipated, the following data
transition launched onto the bus is affected. ISI is dependent
upon frequency, time delay of the line, and the reflection
coefficient at the driver and receiver . ISI may impact both timing
and signal integrity.
Media Expansion Card
The Media Expansion Card (MEC) provides digital display options
through the SDVO interface. The MEC card also incorporates
video-in.
Network The network is the trace of a Printed Circuit Board (PCB) that
completes an electrical connection between two or more
components.
Overshoot The maximum voltage observed for a signal at the device pad,
measured with respect to VCC.
Pad The electrical contact point of a semiconductor die to the
package substrate. A pad is only observable in simulations.
Pin The contact point of a component package to the traces on a
substrate, such as the motherboard. Signal quality and timings
may be measured at the pin.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
10 Order Number: 317443-001US
About This Manual—Intel
Power-Good “Power-Good, ” “PWRGOOD , ” or “CPUPWRGOOD” (an active high
Ringback The voltage to which a signal changes after reaching its
System Bus The System Bus is the microprocessor bus of the processor.
Setup Window The time between the beginning of Setup to Clock (TSU_MIN)
Simultaneous Switching Output
Stub The branch from the bus trunk terminating at the pad of an
Trunk The main connection, excluding interconnect branches, from
System Management Bus
Undershoot The minimum voltage extending below VSS observed for a
V
(CPU core) VCC (CPU core) is the core power for the processor. The system
CC
Victim A network that receives a coupled crosstalk signal from another
®
945GME Express Chipset
signal) indicates that all of the system power supplies and clocks
are stable. PWRGOOD should go active a predetermined time
after system voltages are stable and should go inactive as soon
as any of these voltages fail their specifications.
maximum absolute value. Ringback may be caused by
reflections, driver oscillations, or other transmission line
phenomena.
and the arrival of a valid clock edge. This window may be
different for each type of bus agent in the system.
Simultaneous Switching Output (SSO) effects are differences in
electrical timing parameters and degradation in signal quality
caused by multiple signal outputs simultaneously switching
voltage levels in the opposite direction from a single signal or in
the same direction. These are called odd mode and even mode
switching, respectively . This simultaneous switching of multiple
outputs creates higher current swings that may cause additional
propagation delay (“push-out”) or a decrease in propagation
delay (“pull-in”). These SSO effects may impact the setup and/
or hold times and are not always taken into account by
simulations. System timing budgets should include margin for
SSO effects.
agent.
one end
A two-wire interface through which various system components
may communicate.
signal at the device pad.
bus is terminated to V
network is called the victim network.
(CPU core).
CC
Table 1 defines the acronyms used throughout this document.
Table 1. Acronyms (Sheet 1 of 3)
Acronym Definition
AC Audio Codec
ACPI Advanced Configuration and Power Interface
AGTL Assisted Gunning Transceiver Logic
AMC Audio/Modem Codec.
ASF Alert Standard Format
AMI American Megatrends Inc. (BIOS developer)
May 2007 Manual
Order Number: 317443-001US 11
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Table 1. Acronyms (Sheet 2 of 3)
Acronym Definition
ATA Advanced Technology Attachment (disk drive interface)
ATX Advance Technology Extended (motherboard form factor)
BGA Ball Grid Array
BIOS Built-In Self Test
CK-SSCD Spread Spectrum Differential Clock
CMC Common Mode Choke
CMOS Configuration Memory Operating System
CPU Central Processing Unit (processor)
DDR Double Data Rate
DMI Direct Memory Interface
ECC Error Correcting Code
EEPROM Electrically Erasable Programmable Read-Only Memory
EHCI Enhanced Host Controller Interface
EMA Extended Media Access
EMI Electro Magnetic Interference
ESD Electrostatic Discharge
EV Engineering Validation
EVMC Electrical Validation Margining Card
FIFO First In First Out - describes a type of buffer
FS Full-speed. Refers to USB
FSB Front Side Bus
FWH Firmware Hub
GMCH Graphics Memory Controller Hub
HS High-speed. Refers to USB
ICH I/O Controller Hub
IDE In tegrated Drive Electronics
IMVP Intel Mobile Voltage Positioning
IP/IPv6 Internet Protocol/Internet Protocol version 6
IrDA Infrared Data Association
ISI Inter-Symbol Interference
KBC Keyboard Controller
LAI Logic Analyzer Interface
LAN Local Area Network
LED Light Emitting Diode
LOM LAN on Motherboard
LPC Low Pin Count
LS Low-speed. Refers to USB
LVDS Low Voltage Differential Signalling
MC Modem Codec
MEC Media Expansion Card
Intel® 945GME Express Chipset—About This Manual
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
12 Order Number: 317443-001US
About This Manual—Intel
®
945GME Express Chipset
Table 1. Acronyms (Sheet 3 of 3)
Acronym Definition
MHz Mega-Hertz
OEM Original Equipment Manufacturer
PCIe PCI Express*
PCM Pulse Code Modulation
POST Power On Self Test
PLC Platform LAN Connect
RAID Redundant Array of Inexpensive Disks
RTC Real Time Clock
SATA Serial ATA
SIO Super Input/Output
SMBus System Management Bus
SODIMM Small Outline Dual In-line Memory Module
SPD Serial Presence Detect
SPI Serial Peripheral Interface
SSO Simultaneous Switching Output
STR Suspend To RAM
TCO Total Cost of Ownership
TCP Transmission Control Protocol
TDM Time Division Multiplexed
TDR Time Domain Reflectometry
µBGA Micro Ball Grid Array
UDP User Datagram Protocol
UHCI Universal Host Controller Interface
USB Universal Serial Bus
VGA Video Graphics Adapter
VID Voltage Identification
VREG Voltage Regulator
XDP eXtended Debug Port
May 2007 Manual
Order Number: 317443-001US 13
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
1.4 Support Options
1.4.1 Electronic Support Systems
Intel’s web site (http://www.intel.com/) provides up-to-date technical information and
product support. This information is available 24 hours per day, 7 days per week,
providing technical information whenever you need it.
Product documentation is provided online in a variety of web-friendly formats at:
http://www3.hibbertgroup.com/intel/main
1.4.2 Additional Technical Support
If you require additional technical support, please contact your Intel Representative or
local distributor.
1.5 Product Literature
You can order product literature from the following Intel literature centers:
Table 2. Intel Literature Centers
Intel® 945GME Express Chipset—About This Manual
Location Telephone Number
U.S. and Canada 1-800-548-4725
U.S. (from overseas) 708-296-9333
Europe (U.K.) 44(0)1793-431155
Germany 44(0)1793-421333
France 44(0)1793-421777
Japan (fax only) 81(0)120-47-88-32
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
14 Order Number: 317443-001US
About This Manual—Intel
®
945GME Express Chipset
1.6 Related Documents
The table below provides a summary of publicly available documents related to this
development kit. For additional documentation, please contact your Intel
Representative.
Table 3. Related Documents
Document Title Location
Mobile Intel® 945 Express Chipset Family Datasheet
Intel® I/O Controller Hub 7 (ICH7) Family Datasheet
Mobile Intel® 945 Express Chipset Family Specification
Update
Intel® Centrino® Duo Processor Technology Design
Guide
Note:
1. Contact your Intel representative for access to this document.
http://www.intel.com/design/mobile/datashts/
309219.htm
http://www.intel.com/design/chipsets/datashts/
307013.htm
http://www.intel.com/design/mobile/specupdt/
309220.htm
Order Number 654938
1
May 2007 Manual
Order Number: 317443-001US 15
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
2.0 Getting Started
This chapter identifies the evaluation kit’s key components, features and specifications.
It also details basic board setup and operation.
2.1 Overview
Intel® 945GME Express Chipset—Getting Started
The evaluation board consists of a baseboard populated with the Intel® CoreTM 2 Duo
processor and the Intel
and peripheral connectors.
Note: The evaluation board is shipped as an open system allowing for maximum flexibility in
changing hardware configuration and peripherals. Since the board is not in a protective
chassis, take extra precaution when handling and operating the system.
®
945GME Express Chipset, other system board components,
2.1.1 Intel® 945GME Express Chipset Development Kit Features
Features of the development kit board are summarized below:
Processor
•Intel® CoreTM 2 Duo processor with 4 MByte L2 Cache on 65nm process in the
478 pin Flip Chip Pin Grid Array (Micro-FCPGA) package
Mobile Intel® 945GME Express Graphics Memory Controller Hub (945GME
Express GMCH)
• 1466 pin Micro-FCBGA Package
• Supports a 533/667 MHz front side bus
• Supports dual-Channel DDR2 at 400/533/667 MHz
• Two SODIMM slots (one per channel) support DDR2 SODIMMS (unbuffered, nonECC) modules
• Supports 128 MBytes to 4 GBytes using 256 Mbit, 512 Mbit, or 1 Gbit technology
• x16 PCI Express* Graphics or Serial Digital Video Out (SDVO) port
• 18 bpp LVDS, VGA & TV-D connector support
I/O Controller Hub 7 (ICH7-M)
• 652 pin plastic BGA package
• DMI (x4) interface with GMCH
• Two SATA and one IDE (40 pin) Hard Drive interface
• Two PCI 2.3 compliant desktop slots
• 82802AC8 Firmware Hub (FWH)
• 82573E Gigabit Ethernet Controller
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
16 Order Number: 317443-001US
Getting Started—Intel
®
945GME Express Chipset
• Two x1 PCI Express* slots.
Note: There are actually three x1 PCI Express* slots but slot 2 was used for validation
purposes. Only slots 0 and 1 are supported.
Clocking
• CK-410M and CK-SSCD
• Battery-backed real time clock
Connector Interface Summary
• One x16 PCI Express* Video Interface, doubles as an MEC connector to provide
access to dual SDVO ports if PCI Express* is unused
•Two SATA ports
• One Ultra ATA (33/66/100) IDE connector supporting up to two IDE devices
• Eight Universal Serial Bus (USB) 2.0 ports (Five ports provided on rear-panel, three
provided via headers (J6H2, J7E2)
• Two PCI 2.3 compliant 33 MHz interface connectors
• PS/2-style keyboard and PS/2 mouse (6-pin mini-DIN) connectors
• TV Out D-connector at back panel interface
• LVDS connector on top of circuit board near GMCH (J5F1)
• One VGA connector provides access to integrated graphics
• One LAN connector providing 10/100/1000 Mbps connectivity from the Intel
82573E Gigabit Ethernet Controller
• One 9-pin serial port connector.
•One IrDA port (U4A1)
• Two PCI Express* slots (x1)
• Two SODIMM connectors on rear side of circuit board
Debug Features
• Extended Debug Port (XDP) connector
• On-board Port 80h display
Miscellaneous Features
• Configurable for A TX 1.1 Power Supply in desktop mode or AC Mobile Brick/Battery
Pack for Mobile Mode
• ATX Form Factor eight layer PCB
• AMI* system BIOS
• Two built-in fan power connectors: Chassis Fan and CPU Fan
• Power/Reset buttons
• CMOS clear jumper
• BIOS recovery jumper
• Boot Block protection jumper
• Support for Serial, IrDA, serial mouse, and keyboard
May 2007 Manual
Order Number: 317443-001US 17
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Getting Started
2.2 Included Hardware and Documentation
The following hardware and documentation is included in the development kit:
®
•One Intel
•One Intel
945GME Express Chipset Development Kit board
®
CoreTM 2 Duo processor with 4 MB L2 Cache on 65nm process in the
478 pin Flip-Chip Pin Grid Array (Micro-FCPGA) package (Installed)
•One Intel® CoreTM Duo processor with 2 MByte L2 Cache on 65 nm process in the
478 pin Flip Chip Pin Grid Array (Micro-FCPGA) package (included in kit box for
evaluation– not populated on board)
• One Firmware Hub (FWH) (Installed)
• One GMCH (945GME) heat sink (Installed)
• One Type 2032, socketed 3 V lithium coin cell battery (Installed)
• One DDR2 SODIMM (200 Pin)
• One CPU thermal solution and CPU back plate (included in kit box – not populated
on board)
• One hard drive
•One cable kit
2.3 Software Key Features
The driver CD included in the kit contains all of the software drivers necessary for basic
system functionality under the following operating systems: Windows* 2000/XP/XP
Embedded, and Linux*.
Note: While every care was taken to ensure the latest versions of drivers were provided on
the enclosed CD at time of publication, newer revisions may be available. Updated
drivers for Intel components can be found at: http://developer.intel.com/design/
intarch/software/index.htm
For all third-party components, please contact the appropriate vendor for updated
drivers.
Note: Software in the kit is provided free by the vendor and is only licensed for evaluation
purposes. Refer to the documentation in your evaluation kit for further details on any
terms and conditions that may be applicable to the granted licenses. Customers using
the tools that work with Microsoft* products must license those products. Any targets
created by those tools should also have appropriate licenses. Software included in the
kit is subject to change.
Refer to http://developer.intel.com/design/intarch/devkits for details on additional
software from other third-party vendors.
2.3.1 AMI* BIOS
This development kit ships pre-installed with AMI* BIOS pre-boot firmware from AMI*.
AMI* BIOS provides an industry-standard BIOS platform to run most standard
operating systems, including Windows* 2000/XP/XP Embedded, Linux*, and others.
The AMI* BIOS Application Kit (available through AMI*) includes complete source code,
a reference manual, and a Windows-based expert system, BIOStart*, to enable easy
and rapid configuration of customized firmware for your Intel
®
945GME Express
Chipset.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
18 Order Number: 317443-001US
Getting Started—Intel
®
945GME Express Chipset
The following features of AMI* BIOS are enabled in the Intel® 945GME Express
Chipset:
• DDR2 SDRAM detection, configuration, and initialization
®
•Intel
945GME Express Chipset configuration
• POST codes displayed to port 80h
• PCI/PCI Express* device enumeration and configuration
• Integrated video configuration and initialization
• Super I/O configuration
• CPU microcode update
• Active Management Technology
• RAID 0/1 Support
2.4 Before You Begin
Additional hardware may be necessary to successfully set up and operate the
evaluation board.
VGA Monitor: Any standard VGA or multi-resolution monitor may be used. The setup
instructions in this chapter assume the use of a standard VGA monitor, TV, or flat panel
monitor.
Keyboard: The evaluation board can support either a PS/2 or USB style keyboard.
Mouse: The evaluation board can support either a PS/2 or USB style mouse.
Hard Drives and Optical Disc Drives: Up to two SATA drives and two IDE devices
(master and slave) may be connected to the evaluation board. An optical disc drive
may be used to load the OS. All these storage devices may be attached to the board
simultaneously.
Video Adapter: Integrated video is provided on the back panel of the evaluation
board. Alternately, a standard PCI Express* video adapter or an MEC video adapter
may be used for additional display flexibility. Please contact the respective vendors for
drivers and necessary software for adapters not provided with this development kit.
Check the BIOS for the proper video settings. See Section 2.6, “Configuring the BIO S”
on page 21 for more information.
Note: The enclosed driver CD includes drivers necessary for LAN, Integrated graphics, and
system INF utilities.
Network Adapter: A Gigabit network interface is provided on the evaluation board.
The network interface will not be operational until after all the necessary drivers have
been installed. A standard PCI/PCI Express* adapter may be used in conjunction with,
or in place of, the onboard network adapter. Please contact the respective vendors for
drivers and necessary software for adapters not provided with this development kit.
You must supply appropriate network cables to utilize the LAN connector or any other
installed network cards.
Power Supply: The Intel
from two different power sources: an ATX power supply, or ‘Mobile Brick’. The Intel
®
945GME Express Chipset has the option to be powered
®
945GME Express Chipset contains all of the voltage regulators necessary to power
the system.
May 2007 Manual
Order Number: 317443-001US 19
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Getting Started
There are two main supported power supply configurations, Desktop and Mobile. The
Desktop solution consists of only using the ATX power supply. The Mobile solution
consists of only using the AC Brick.
Note: Desktop peripherals, including add-in cards, will not work in mobile power mode. If
desktop peripherals are used, the platform must be powered using desktop power
mode. The AC Brick power supply configuration does not provide the 12 V supply
required by most desktop peripherals.
Note: Select a power supply that complies with the "ATX12V" 1.1 specification. For more
information, refer to
http://www.formfactors.org.
Note: If the power button on the ATX power supply is used to shut down the system, wait at
least five seconds before turning the system on again to avoid damaging the system.
Other Devices and Adapters: The evaluation board functions much like a standard
desktop computer motherboard. Most PC-compatible peripherals can be attached and
configured to work with the evaluation board.
2.5 Setting Up the Evaluation Board
Once the necessary hardware (described in Section 2.4) has been gathered, follow the
steps below to set up the Intel
Note: To locate items discussed in the procedure below, please refer to Section 4.0.
1. Create a safe work environment.
Ensure a static-free work environment before removing any components from their
anti-static packaging. The evaluation board is susceptible to electrostatic discharge
(ESD) damage, and such damage may cause product failure or unpredictable
operation. A flame retardant work surface must also be used.
Caution: Because of this susceptibility, it is recommended that an ESD wrist strap be
used when handling the board.
2. Inspect the contents of your kit.
Check for damage that may have occurred during shipment. Contact your sales
representative if any items are missing or damaged.
Caution: Since the board is not in a pro tective chassis, use caution when connecting
cables to this product.
®
945GME Express Chipset evaluation board.
Caution: Standby voltage is constantly applied to the board. Therefore, do not insert or
remove any hardware unless the system is unplugged.
Note: The evaluation board is a standard ATX form factor. An ATX chassis may be used if a
protected environment is desired. If a chassis is not used, standoffs must be used to
elevate the board off the working surface to protect the memory and to protect from
any accidental contact to metal objects.
3. Check the jumper default position setting. Refer to Figure 4 for jumper location.
Jumper J6H1 is used to clear the CMOS memory. Make sure this jumper is set for
normal operation.
4. Be sure to populate the following hardware on your evaluation board:
—One Intel
®
CoreTM 2 Duo processor
— One processor thermal solution
— One DDR2 SODIMM (200-pin)
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
20 Order Number: 317443-001US
Getting Started—Intel
®
945GME Express Chipset
Note: Ensure that the processor has been locked into the socket by turning the socket screw
fully clockwise.
Note: For proper installation of the CPU thermal solution, please refer to Appendix A, “Heat
Sink Installation Instructions”
5. Connect a SATA or IDE hard disk drive.
6. Connect any additional storage devices to the evaluation board.
7. Connect the keyboard and mouse.
Connect a PS/2-style or USB mouse and keyboard (see Figure 3 on page 38 for
connector locations).
Note: J1A1 (on the baseboard) is a stacked PS/2 connector. The bottom connector is for the
keyboard and the top is for the mouse.
8. Connect an Ethernet cable (optional).
9. Connect the monitor through the VGA connector.
10.Connect the power supply.
Connect an appropriate power supply to the evaluation board. Make sure the power
supply is not plugged into an electrical outlet (turned off). After connecting the
power supply board connectors, plug the power supply cord into an electrical
outlet.
11.Power up the board.
Power and Reset are implemented on the evaluation board through buttons located
on SW1C1and SW1C2, respectively. See Figure 5 on page 42 for switch locations.
Turn on the power to the monitor and evaluation board. Ensure that the fansink on
the processor is operating.
Note: Note that the power button may have to be pressed twice to turn the power on.
12.Install operating system and necessary drivers
Depending on the operating system chosen, all necessary drivers for components
included in this development kit can be found on the enclosed CD. Please see
Section 2.3 for information on obtaining updated drivers.
2.6 Configuring the BIOS
AMI* BIOS is pre-loaded on the evaluation board. The default BIOS settings may need
to be modified to enable/disable various features of the evaluation board. The setup
program can be used to modify BIOS settings and can be accessed during the P ower On
Self Test (POST). Setup options are configured through a menu-driven user interface.
For AMI BIOS POST codes, visit:
http://www.ami.com
For BIOS Updates please contact your Intel Sales Representative.
May 2007 Manual
Order Number: 317443-001US 21
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Theory of Operation
3.0 Theory of Operation
3.1 Block Diagram
Figure 1. Intel® 945GME Express Chipset Development Kit Block Diagram
LVDS/
ALS/BLI
CRT
TVO
PCIE GFX
7 USB Conn
1 Docking Conn
40 Pin Conn
Cable Connect
Direct Connect
Serial, IrDA /
CIR
Thermal
Sensor
LVDS
VGA
TVOUT
PCI Express / SDVO
USB 2.0
IDE
SATA Port 2
SATA Port 0
SIO
Intel® Co reTM 2 Duo
processor
FSB
533/667 MHz
Mobile Inte l®
945GME Express
Chipset
(GMC H)
x4 DMI
Intel® 82801GHM
(ICH 7-M)
LPC
XDP
IMVP 6
VR
Dual Channel DDR2
400/533/667 MHz
945GME
VREG
PCI 2.3
PCIe
CK-410M
Clocking
CK-SSCD
Clocking
SO-DIMM
5V PCI Slot 3
PCIE Slot 0
PCIE Slot 1
LAN
(82573E)
DDR VR
SO-DIMM
5V PCI Slot 4
2 - PS/2
Scan M a trix
AON
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
22 Order Number: 317443-001US
SMC/KBC
FWH
Port 80h
Decoder
LPC
Slot
Theory of Operation—Intel
®
945GME Express Chipset
3.2 Mechanical Form Factor
The evaluation board conforms to the ATX form factor. For extra protection in a
development environment, you may want to install the evaluation board in an ATX
chassis. Internal and rear panel system I/O connectors are described in Section 3.4.3.
An overview of connector and slot locations is provided in Section 4.0.
3.3 Thermal Management
The objective of thermal management is to ensure that the temperature of each
component is maintained within specified functional limits. The functional temperature
limit is the range within which the electrical circuits can be expected to meet their
specified performance requirements. Operation outside the functional limit can degrade
system performance and cause reliability problems.
The development kit is shipped with a fansink thermal solution for installation on the
processor. This thermal solution has been tested in an open-air environment at room
temperature and is sufficient for evaluation purposes. The designer must ensure that
adequate thermal management is provided for any customer-derived designs.
3.4 System Features and Operation
The following sections provide a detailed view of system features and operation. Refer
to Figure 2 and Table 7 for the location of the major components of the platform.
The Intel® 945GME Express Chipset features the 82945GM Graphics Memory Controller
Hub and the Intel
®
I/O Controller Hub (ICH7-M).
3.4.1 Intel(R) 945GME GMCH
The Intel® 945GME Express Chipset GMCH provides the processor interface optimized
for Intel
graphics. It provides flexibility and scalability in graphics and memory subsystem
performance. The following list describes the reference board’s implementation of the
Intel
A list of features follows:
®
CoreTM 2 Duo processors, system memory interface, DMI and internal
®
945GME Express Chipset GMCH features.
• 1466 Micro-FCBGA package
• 533/667 MHz Front Side Bus
• 36-bit host bus addressing
• System memory controller (DDR2 implemented)
— Supports Dual Channel and Single Channel operation
— Two 200-pin SODIMM slots
— DDR2 400/533/667
• Direct Media Interface (DMI)
• Integrated graphics based on Intel’s Graphics Media Accelerator 950
— Directly supports on-board VGA, S-Video and LVDS interfaces.
— Supports resolutions up to 2048 x 1536 @ 75 Hz.
• SDVO interface via PCI Express* x16 connector provides maximum display
flexibility
— Can drive up to two display outputs
May 2007 Manual
Order Number: 317443-001US 23
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
3.4.1.1 System Memory
The evaluation board supports DDR2 400/533/667 main memory. Two 200-pin
SODIMM connectors (one per channel) on the board support unbuffered, non-ECC,
single and double-sided DDR2 400/533/667 MHz SODIMMs. These SODIMMs provide
the ability to use up to 1 Gbit technology for a maximum of 4 GBytes system memory.
Intel® 945GME Express Chipset—Theory of Operation
Note: Memory that utilizes 128 MBit technology is not supported on the Intel
®
945GME
Express Chipset.
Note: The SODIMM connectors are on the back side of the board.
Caution: Standby voltage is applied to the SODIMM sockets when the system is in the S3 state.
Therefore, do not insert or remove SODIMMs unless the system is unplugged.
3.4.1.2 DMI
The Intel® 945GME Express Chipset GMCH’s Direct Media Interface (DMI) provides
high-speed bi-directional chip-to-chip interconnect for communication with the ICH7-M.
3.4.1.3 Advanced Graphics and Display Interface
The reference board has five options for displaying video, VGA, L VDS , TVOUT, SDVO, or
PCI Express* Graphics. SDVO (MEC) and PCI Express* Graphics are multiplexed on the
same pins within the Intel® 945GME Express Chipset. The Intel® 945GME Express
Chipset contains one SDVO/PCI Express* Graphics Slot (J6C1) for a PCI Express*
compatible graphics card or an SDVO compatible graphics card, one LVDS connector
(J5F1), one TVOUT connector (J2A1), and one 15-pin VGA connector (J2A2B).
3.4.2 ICH7-M
The ICH7-M is a highly integrated multifunctional I/O controller hub that provides the
interface to the system peripherals and integrates many of the functions needed in
today’s PC platforms. The following sections describe the reference board
implementation of the ICH7-M features, which are listed below:
• Two PCI Express* (x1) connectors
•Two PCI connectors
•LPC interface
• System management
•ACPI* 2.0 compliant
•Real Time Clock
•652 mBGA package
•Two SATA drive connectors
• One IDE connector
• Eight Universal Serial Bus (USB) 2.0 ports (five ports provided on rear-panel, three
provided via headers (J6H2, J7E2)
3.4.2.1 PCI Express* Slots
The reference board has two x1 PCI Express* slots for add-in cards. The PCI Express*
interface is compliant to the PCI Express* Rev. 1.0a Specification.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
24 Order Number: 317443-001US
Theory of Operation—Intel
®
945GME Express Chipset
3.4.2.2 PCI Slots
The reference board has two PCI slots for add-in cards. The PCI bus is compliant to the
PCI Rev. 2.3 Spe cification at 33 MHz.
3.4.2.3 On-Board LAN
The 82573E provides the LAN connectivity for this platform. It provides Gigabit
ethernet as well as Intel® Active Management Technology functions. It is connected to
the ICH7-M through a PCIe interface and to an RJ45 connector at J5A1A with built in
magnetic decoupling. Access to this interface is provided on the rear I/O panel (See
Figure 3 on page 38).
Features of the 82573E are as follows:
• x1 PCIe Interface
• 2 Gbps peak bandwidth per direction
• Wide, pipelined internal data path architecture
• 32 KB configurable Receive (Rx) and Transmit (Tx) FIFO
• IEEE 802.3x compliant flow control support with software controllable pause times
and threshold values
• Programmable host memory Rx buffers (256 B- 16 KB)
• Descriptor ring management hardware for Tx and Rx
• Tx/Rx IP, TCP, and UDP checksum offloading
• Tx TCP Segmentation
• IPv6 offloading
• Intel® Active Management Technology
• Wake on LAN (WoL) support
Note: The 82573E is only powered in S3-S0 and will not support AMT or WoL support from S4
or S5.
• SPI or EEPROM support
• Optional on-die voltage regulator
Information on Intel® Active Management Technology can be found at:
http://www.intel.com/technology/manage/iamt/
3.4.2.4 AC’97 and High Definition Audio
AC’97 and Intel® High Definition Audio are not supported on the board.
3.4.2.5 ATA / Storage
The Intel® 945GME Express Chipset provides one parallel ATA IDE connector and two
serial AT A connectors. The parallel ATA IDE Connector is a standard 40-pin connector at
J7J1 for a desktop IDE drive. A power connector is supplied on the platform to power a
parallel A TA hard disk drive at J4J2. One of the two serial ATA connectors on the Intel
945GME Express Chipset is a direct connect connector; located at J8J2. The other serial
ATA connector is broken up into two connectors. One connector is for the serial data
signals, and the other is to power the serial ATA hard disk drive. These connectors are
located at J7H1 and J6H3. A green LED at location CR7J1 indicates activity on the ATA
channel.
May 2007 Manual
Order Number: 317443-001US 25
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
®
The Intel® 945GME Express Chipset also supports ‘ATA swap’ capability for both the
parallel IDE channel and the serial ATA channels. A device can be powered down by
software and the port can then be disabled, allowing removal and insertion of a new
device. The parallel IDE device should be powered from the power connector, J4J2, on
the Intel
®
945GME Express Chipset to utilize the hot swap feature. This feature
requires customer-developed software support.
Desktop hard drives must be powered using the external ATX power supply, not the
onboard power supply.
The Intel
®
945GME Express Chipset includes Intel® Matrix Storage Technology,
providing greater performance and reliability through features such as Native
Command Queuing (NCQ) and RAID 0/1. For more information about Intel® Matrix
Storage Technology, refer to Intel’s website at:
http://www.intel.com/design/chipsets/matrixstorage_sb.htm
3.4.2.6 USB Connectors
The ICH7-M provides a total of eight USB 2.0 ports. Three ports are routed to a triplestack USB connector at J3A1. Two ports are routed to a combination RJ-45/dual USB
connector at J5A1B. Three ports are routed to USB front panel headers at J6H2 and
J7E2.
Intel® 945GME Express Chipset—Theory of Operation
3.4.2.7 LPC Super I/O (SIO)/LPC Slot
An SMSC LPC47N207 serves as the SIO on the Intel® 945GME Express Chipset
platform. Shunting the jumper at J7E3 to the 2-3 positions can disable the SIO by
holding it in reset. This allows other SIO solutions to be tested in the LPC slot at J8F1.
A sideband header is provided at J9G2 for this purpose. This sideband header also has
signals for LPC power management. Information on this header is on sheet 35 of the
®
Intel
945GME Express Chipset schematics and is detailed in the “LPC Slot and
Sideband Header Specification” (refer to Table 3, “Related Documents” on page 15).
3.4.2.8 Serial, IrDA
The SMSC SIO incorporates a serial port, and IrDA (Infrared), as well as general
purpose IOs (GPIO). The serial port connector is provided at J2A2A, and the IrDA
transceiver is located at U4A1. The IrDA transceiver on Intel
®
945GME Express Chipset
supports both SIR (slow IR) and CIR (Consumer IR). The option to select between the
two is supported through software and GPIO pin on the SIO.
3.4.2.9 BIOS Firmware Hub (FWH)
The 8 Mbit Flash device used on the Intel® 945GME Express Chipset to store system
and video BIOS as well as an Intel Random Number Generator (RNG) is a socketed
E82802AC8 a 32-pin PLCC package. The reference designator location of the FWH
device is U8G1. The BIOS can be upgraded using an MS-DOS* based utility and is
addressable on the LPC bus off of the ICH7-M.
3.4.2.10 System Management Controller (SMC)/Keyboard Controller
The Hitachi* H8S/2104V serves as both SMC and KBC for the platform. The SMC/KBC
controller supports two PS/2 ports, battery monitoring and charging, EMA support,
wake/runtime SCI events, and power sequencing control. The two PS/2 ports on the
®
Intel
945GME Express Chipset are for legacy keyboard and mouse. The keyboard
plugs into the bottom jack and the mouse plugs into the top jack at J1A1. Scan matrix
keyboards can be supported via an optional connector at J9E1.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
26 Order Number: 317443-001US
Theory of Operation—Intel
®
945GME Express Chipset
3.4.2.11 Clocks
The Intel® 945GME Express Chipset board uses a CK-410M and CK-SSCD compatible
solution. The CK-SSCD solution offers improved EMI performance by spreading the
radiated clock emissions over a wider spectrum than a single frequency. This is
accomplished while controlling the clock frequency deviation such that system
performance is not compromised. The FSB frequency is determined from decoding the
processor BSEL[2:0] pin settings.
3.4.2.12 Real Time Clock
An on-board battery at BT5H1 maintains power to the real time clock (RTC) when in a
mechanical off state. A CR2032 battery is installed on the Intel
Chipset development kit.
3.4.2.13 Thermal Monitoring
The processor has a thermal diode for temperature monitoring. The SMC thermal
monitoring device will throttle the processor if it becomes hot. If the temperature of the
processor rises too high, the SMC will alternately blink the CAPS lock and NUM lock
LEDs on the board, and the board will shut down.
3.4.3 System I/O and Connector Summary
The evaluation board provides extensive I/O capability in the form of internal
connectors and headers as detailed by the following list. For detailed information on
these connectors and headers, please refer to “Hardware Reference” on page 35.
• One (x16) PCI Express* connector
• Two (x1) PCI Express* connectors
• Two PCI connectors
• One IDE connector (supports two drives)
• Two SATA connectors
• Two USB ports via front panel header (J8J1)
• One LVDS video connector
®
945GME Express
May 2007 Manual
Order Number: 317443-001US 27
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
In addition to the internal I/O connections listed above, the evaluation board also
contains the following I/O on the rear panel (as illustrated in Figure 3 on page 38).
• Five USB ports on back panel.
• VGA connector
• PS/2-style keyboard and mouse ports
•LAN connector
• One 9-pin serial connector
•One IrDA port
• One TV D-connector
3.4.3.1 PCI Express* Support
The evaluation board provides access to one x16 PCI Express* connector. Any industry
standard x16 PCI Express* video adapter may be used with this interface. The
evaluation board also provides access to two x1 PCI Express* connectors. Any industry
standard x1 PCI Express* adapter may be used with these interfaces.
3.4.3.2 SATA Support
The evaluation board provides support for up to two SATA disk drives. The SATA
controllers are software compatible with IDE interfaces, while providing lower pin
counts and higher performance.
Intel® 945GME Express Chipset—Theory of Operation
These are two SATA connectors on the evaluation board. The SATA Cable connect
provides both signalling and power white the SA TA Direct connect only provides signals
(the user typically uses an ATX power supply for the drive power).
3.4.3.3 IDE Support
The evaluation board has a 40-pin connector for the ICH7-M’ s integrated IDE controller.
This connector supports up to two Ultra ATA/100 hard drives; one master and one
slave.
Note: Desktop hard drives must be powered by an external ATX power supply.
3.4.3.4 USB Ports
The evaluation board provides five USB (2.0) ports on the rear panel and three
additional ports through headers (J6H2 and J7E2).
There are four UHCI Host Controllers and an EHCI Host Controller. Each UHCI Host
Controller includes a root hub with two separate USB ports each, for a total of eight
legacy USB ports.
The EHCI Host Controller includes a root hub that supports up to eight USB 2.0 ports.
The connection to either the UHCI or EHCI controllers is dynamic and dependant on the
particular USB device. As such, all ports support High Speed, Full Speed, and Low
Speed (HS/FS/LS).
3.4.3.5 VGA Connector
A standard 15 pin D-Sub connector on the rear panel provides access to the analog
output of the Intel
maximum resolution of 2048 x 1536 @ 75Hz. This can be connected to any capable
analog CRT or flat panel display with analog input.
®
945GME Express Chipset. The integrated graphics supports a
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
28 Order Number: 317443-001US
Theory of Operation—Intel
®
945GME Express Chipset
When used in conjunction with the other display options, the displays can operate in
Dual Independent mode. This allows unique content to appear on each display at
unique refresh rates and timings.
3.4.3.6 Keyboard/Mouse
The keyboard and mouse connectors are PS/2 style, six-pin stacked miniature D-Sub
connectors. The top connector is for the mouse and the bottom connector is for the
keyboard.
3.4.3.7 32 bit/33 MHz PCI Connectors
Two industry standard 32 bit/33 MHz PCI connectors are provided on the evaluation
board. These slots support 5 V devices.
3.4.3.8 Ethernet Gigabit LAN Interface connector
The evaluation board provides one industry standard Gigabit RJ45 LAN Interface
Connector (Integrated with the dual USB connector).
3.4.3.9 LVDS Flat Panel Display Interface
The evaluation board provides one forty-four pin LVDS video interface connector. The
provided LVDS connects to most 18 bits per pixel (bpp) flat panel display assemblies.
24 bpp LVDS is not supported.
3.4.4 POST Code Debugger
A port 80-83 display at CR6A1, CR6A2, CR6A3, and CR6A4 show the POST codes and
can be used for debug information during POST. The evaluation board uses an AMI*
BIOS.
For AMI* BIOS POST codes, please visit: http://www.ami.com
3.5 Clock Generation
The Intel® 945GME Express Chipset board uses a CK-410M and CK-SSCD compatible
solution. The FSB frequency is determined from decoding the processor BSEL[2:0] pin
settings.
The clock generator provides Processor, GMCH, ICH7-M, PCI, PCI Express*, SATA, and
USB reference clocks. Clocking for DDR2 is provided by the GMCH.
Table 4. Primary System Clocks
Clock Name Speed
CPU
DDR2
PCI Express* and DMI 100 MHz
SATA 100 MHz
PCI 33 MHz
USB 48 MHz
133 MHz @ 533 FSB Speed
166 MHz @ 667 FSB Speed
100 MHz @ 400 Memory Speed
133 MHz @ 533 Memory Speed
166 MHz @ 667 Memory Speed
May 2007 Manual
Order Number: 317443-001US 29
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Theory of Operation
3.6 Power Management States
The evaluation board supports the following ACPI System states: S0 (Full On), S3
(Suspend to RAM), S4 (Suspend to disk), and S5 (Soft-off), ACPI CPU states: C0 (Full
On), C1 (Auto Halt), C2 (Stop Grant), C3 (Deep Sleep), and C4 (Deeper Sleep), and
ACPI Global Power States: G0 (Working), G1 (Sleeping), G2 (Soft Off), and G3
(Mechanical Off). Transition requirements are detailed below.
Table 5 lists the power management states that have been identified for the Intel
945GME Express Chipset Platform.
Table 5. Intel® 945GME Express Chipset Development Kit Power Management States
State Description
G0/S0/C0 Full On
G0/S0/C2 STPCLK# signal active
G0/S0/C3 Deep Sleep: DPSLP# signal active
G0/S0/C4 Deeper Sleep: DPRSLP# si gnal active
G1/S3 Suspend to RAM
G1/S4 Suspend to Disk
G2/S5 Soft Off
G3 Mechanical Off
®
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
30 Order Number: 317443-001US
Theory of Operation—Intel
®
945GME Express Chipset
3.6.1 Transition to S3
If enabled, the transition to S3 from the full-on state can be accomplished in the
following ways:
• The OS performs the transition through software.
• Press the front panel power button for less than four seconds (assuming the OS
power management support has been enabled).
Note: The power button is accessed by adding a switch to the pins 5 and 6 on the front panel
header J8J1.
3.6.2 Transition to S4
“Wake on S4” (Suspend to disk) is controlled by the operating system.
3.6.3 Transition to S5
The transition to S5 is accomplished by the following means:
• Press the front panel power button for less than four seconds (if enabled through
the OS).
• Press the front panel power button for more than four seconds to activate power
button override.
3.6.4 Transition to Full-On
The transition to the Full-On state can be from S3 or S5. The transition from S3 is a low
latency transition that is triggered by one of the following wake events:
• Power management timer expiration
• Real Time Clock (RTC) triggered alarm
• Power button activation
• USB device interrupt
• ICH7M pin PME# assertion
•AC power loss
For AC power loss, the system operation is defined by register settings in the Intel
ICH7-M. Upon the return of power, a BIOS option, set prior to the power loss, allows
the system to either go immediately to the S5 state, or reboot to the Full-On state, no
matter what the state was before the power loss. External logic for this functionality is
not necessary. If the BIOS remains in the S5 state after AC power loss, only the power
button or the RTC alarm can bring the system ou t of the S5 state. The status of enabled
wake events will be lost.
3.7 Power Measurement Support
Power measurement resistors are provided on the platform to measure the power of
most subsystems. All power measurement resistors have a tolerance of 1%. The value
of these power measurement resistors are 2 mΩ by default. Power on a particular
subsystem is calculated using the following formula:
2
V
=
P
R
May 2007 Manual
Order Number: 317443-001US 31
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Theory of Operation
R is the value of the sense resistor (typically 0.002 Ω)
V is the voltage measured across the sense resistor.
It is recommended that the user use an oscilloscope or high precision digital multimeter tool such as the Agilent* 34401A digital multi-meter . Such a meter has 6½ digits
of accuracy and can provide a much greater accuracy in power measurement than a
common 3½ digit multimeter.
Table 6 summarizes the voltage rails and power measurement sense resistors located
on the Intel
otherwise noted. Please note that many voltage rails do not have sense resistors.
Table 6. Intel
0.9V +V0.9 R4N4 S0,S3
1.05V Switched +V1.05S R4V4 S0
1.2V +V1.2_LAN R8A2 S0,S3
1.5V Always +V1.5A_AZ_IO S0,S3,S4,S5
1.5V Switched +V1.5S R5F4 S0
1.8V +V1.8 R5N2 S0,S3
2.5V +V2.5_LAN R7M2 S0,S3
2.5V Switched +V2.5S S0
3.3V +V3.3 S0,S3
3.3V Always +V3.3A S0,S3,S4,S5
3.3V Switched +V3.3S S0
®
945GME Express Chipset platform. All sense resistors are 0.002 Ω unless
®
945GME Express Chipset Development Kit Voltage Rails (Sheet 1 of 3)
Voltage Groups Voltage Rail Sense Resistor
+V1.5A_PWRGD S0,S3,S4,S5
+V1.5S_3GPLL R6D8 S0
+V1.5S_AUX R6D6 S0
+V1.5S_DPLLA S0
+V1.5S_DPLLB S0
+V1.5S_HPLL S0
+V1.5S_MPLL S0
+V1.5S_PCIE R5E2 S0
+V1.5S_PCIE_ICH S0
+V1.5S_QTVDAC and
+V1.5S_TVDAC
+VLAN_2.5-3.3 S0,S3
+V2.5S_CRTDAC S0
+V2.5S_PWRGD S0
+V3.3A/1.5A_AZ_IO S0,S3,S4,S5
+V3.3A_MBL S0,S3,S4,S5
+V3.3A_RTC S0,S3,S4,S5
+V3.3_PCISLT3 R9B3 S0
+V3.3S/1.5S_AZ_IO R8F8 S0
+V3.3S_DB800_VDDA S0
R5F3 S0
Powered during
System States
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
32 Order Number: 317443-001US
Theory of Operation—Intel
®
945GME Express Chipset
Table 6. Intel® 945GME Express Chipset Development Kit Voltage Rails (Sheet 2 of 3)
Voltage Groups Voltage Rail Sense Resistor
+V3.3S_PEG R6C2 S0
+V3.3S_PWRGD S0
+V3.3S_SATA_P0 S0
+V3.3S_SATA_P2 S0
+V3.3S_TVDAC S0
+V3.3S_TVDAC_LDO R4F2 S0
+V3.3S_TVDACA S0
+V3.3S_TVDACB S0
+V3.3S_TVDACC S0
+VCCA_TVDAC S0
5V +V5 S0,S3
5V Always +V5A S0,S3,S4,S5
+V5A_MBL R3V4 S0,S3,S4,S5
5V Switched +V5S S0
+V5_PCISLT3 R8B5 S0
+V5S_F_DAC S0
+V5S_IMVP6 R1B2 S0
+V5S_L_DAC S0
+V5S_PATA S0
+V5S_PWRGD S0
+V5S_SATA_P0 S0
+V5S_SATA_P2 S0
+V5SB_ATXA S0
V5S_FAN S0
-12V Always -V12A S0,S3,S4,S5
-12V Switched -V12S S0
+12V SWITCHED +V12S S0
+V12S_PATA S0
+V12S_PEG R6N6 S0
+V12S_SATA_P0 S0
+V12S_SATA_P2 S0
AC Power Brick +V_BC_OUT S0,S3,S4,S5
+VAC_IN S0,S3,S4,S5
+VAC_IN_L S0,S3,S4,S5
+VCHGR_OUT S0,S3,S4,S5
Battery Voltage +VBAT S0,S3,S4,S5
+VBAT_S4 S0,S3,S4,S5
+VDC_PHASE R1B3 S0,S3,S4,S5
Battery Voltage Always +VBATA S0,S3,S4,S5
Powered during
System States
May 2007 Manual
Order Number: 317443-001US 33
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Theory of Operation
Table 6. Intel® 945GME Express Chipset Development Kit Voltage Rails (Sheet 3 of 3)
Voltage Groups Voltage Rail Sense Resistor
Battery Voltage Switched +VBATS S0
+VBS S0
Processor Core +VCC_CORE S0
Powered during
System States
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
34 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
4.0 Hardware Reference
This section provides reference information on the hardware, including locations of
evaluation board components, connector pinout information and jumper settings.
Figure 2 provides an overview of basic board layout.
4.1 Primary Features
Figure 2 shows the major components of the Intel® 945GME Express Chipset board and
Table 7 gives a brief description of each component.
Figure 2. Intel
®
945GME Express Chipset Component Locations
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25 26
27
28 30
29
51
52
535456 55
31
32
50
33
35 36 3837
34
49
48
47
46
45
44
43
42
41
40
39
B5471-01
May 2007 Manual
Order Number: 317443-001US 35
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
Table 7. Intel® 945GME Express Chipset Component Location Legend (Sheet 1 of 2)
No. Default Setting
Reference
Designator
1 Reserved J9A2
2 PCI Express* Slot 0 J8C1
3 PCI Express* Slot 1 J7C1
4 Reserved S9C1
5 DB800 Clock Buffer U7D1
6 Reserved J8D1
7 CK-SSCD U7D3
8 Port 80 Controller U7D10
9 PCI Slot 4 J9B1
10 PCI Slot 3 J8B1
11 Reserved J8E1
12 Reserved J7E2
13 SMSC SIO U7E4
14 Reserved J8E2
15 Reserved J9E2
16 Keyboard Scan Matrix J9E1
17 LPC Sideband Header J9G2
18 LPC Slot J8F1
19 Reserved J9G1
20 Intel
®
ICH7-M Digital Home U7G1
21 Firmware Hub (FWH) U8G1
22 KBC U9H1
23 LID Switch SW9J2
24 Virtual Battery Switch SW9J1
25 SATA Direct Connect J8J2
26 Front Panel Header J8J1
27 SATA Cable Connect J7H1
28 IDE (Parallel ATA) J7J1
29 SATA Power Connector J6H3
30 Reserved J6J1
31 Front Panel USB J6H2
32 LVDS Connector J5F1
33 CK410M U6H1
34 ATX Power Supply J4J1
35 Battery BT5H1
36 Parallel ATA Power J4J2
37 4-in-1 VREG Controller U3H1
38 Reserved J3J3
39 Reserved J1J1
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
36 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
Table 7. Intel® 945GME Express Chipset Component Location Legend (Sheet 2 of 2)
No. Default Setting
40 Reserved J1H1
41 AC Brick Power Connector J1G3
42 System Power State LEDs
43 Reserved J3F2
44 LAI Fan Header J3F1
45 Intel Processor U2E1
46 XDP Connector J1E1
47 CPU Fan Header J3C1
48 VID LEDs
49 Reserved J2B1
50 945GME GMCH U5E1
51 Port 82-83 Display CR6A3,4
52 PCI Express* Graphics Slot J6C1
53 Port 80-81 Display CR6A1,2
54 Reserved J7A1
55 82573E Gb LAN U8A2
56 Reserved J9A1
Reference
Designator
CR2G1,
CR3G1-3
CR1B1-6,
CR1C1
May 2007 Manual
Order Number: 317443-001US 37
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
4.2 Back Panel Connectors
This section describes the Intel® 945GME Express Chipset panel connectors on the
®
945GME Express Chipset platform.
Intel
Intel® 945GME Express Chipset—Hardware Reference
Note: Many of the connectors provide operating voltage (for example, +5 V DC and +12 V
DC) to devices inside the computer chassis, such as fans and internal peripherals. Most
of these connectors are not over-current protected. Do not use these connectors for
powering devices external to the computer chassis. A fault in the load presented by the
external devices could cause damage to the computer, the interconnecting cable, and
the external devices themselves.
Figure 3 shows the back panel connectors to the Intel
®
945GME Express Chipset
platform.
Figure 3. Back Panel Connector Locations
!"# $
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
38 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
4.3 Configuration Settings
Note: Do not move jumpers with the power on. Always turn off the power and unplug the
power cord from the computer before changing jumper settings. Failure to do so may
cause damage to the board.
Figure 4 shows the location of the configuration jumpers and switches.
Table 8 summarizes the jumpers and switches and gives their default and optional
settings.
The unsupported jumpers must remain in their default position or the operation of the
platform is unpredictable. The Intel
®
945GME Express Chipset board is shipped with
the jumpers and switches shunted in the default locations.
Figure 4. Configuration Jumper and Switch Locations
J9J1
J9J6
SW9J2
J6C2
J6D1
J7E1
J7E2
J6E1
J7E3
J8G1
J9G3
J8G2
J9H1
J9J2
J9J4
J9J5
J9J7
J9J3
J7A2
J8A1J7B1
SW9J1
J7A3 J2B2J3B1
J7A4
J7J3 J6G1 J5H2
J8H1
J6H1
J3J2
J3H1
J3J1
J2J8
J2J9
J2J10
J2J11
J2J12
J1F2
J1F4
J1G1
J1G2
J2G1
J2J2
J2J3
J2J7
J2J5
J2J6
J2J1
J2J4
B5473-01
May 2007 Manual
Order Number: 317443-001US 39
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
Table 8. Supported Configuration Jumper/Switch Settings (Sheet 1 of 2)
Ref Des Function Default Setting Optional Setting
J1F2
J1F4 BSEL2 1-2 CPU Driven FSB Frequency
J1G1 BSEL1 1-2 CPU Driven FSB Frequency
J1G2 BSEL0 1-2 CPU Driven FSB Frequency
J2B2 IMVP-6 Test Out - Normal Operation Not supported
J2G1 CPU Clock Test Out - Normal Operation Not supported
J2J1 EV Support Out - Normal Operation Not supported
J2J10
J2J11 EV Support Out - Normal Operation Not supported
J2J12 EV Support Out - Normal Operation Not supported
J2J2 EV Support Out - Normal Operation Not supported
J2J3 EV Support Out - Normal Operation Not supported
J2J4 EV Support Out - Normal Operation Not supported
J2J5 EV Support Out - Normal Operation Not supported
J2J6 EV Support Out - Normal Operation Not supported
J2J7 EV Support Out - Normal Operation Not supported
J2J8 EV Support Out - Normal Operation Not supported
J2J9 EV Support Out - Normal Operation Not supported
J3B1
J3H1 Shutdown Out - Normal Operation In - Force the board to shut down
J3J1 EV Support Out - Normal Operation Not supported
J3J2 EV Support Out - Normal Operation Not supported
J5H2 SATA HotSwap In - Normal Operation Out - Disable SATA Hotswap
J6C2 EVMC Schmoo Header Out - Normal Operation Not supported
J6D1 EVMC Schmoo Header Out - Normal Operation Not supported
J6E1 LVDS Panel Power Jumper 2-3 and 5-6 - Normal Operation Not supported
J6G1 EVMC Schmoo Header Out - Normal Operation Not supported
J6H1 CMOS Clear Out - Normal Operation In - Clear the CMOS
J7A2 82573E PHY Test Out - Normal Operation Not supported
J7A3 KBC Program 1-2 Normal Operation 2-3 Connect RxD to KBC for programming
J7A4 KBC Program 1-2 Normal Operation 2-3 Connect TxD to KBC for programming
J7B1 82573E Clock View Out - Normal Operation Not supported
J7E1 Port80 Select Out - Normal Operation Not supported
J7E2 Enable SPI Boot BIOS Out - Normal Operation Not supported
J7E3 SuperIO Reset 1-2 Normal Operation 2-3 to hold the SIO in reset
Enginnering Validation
(EV) Support
CRB/System Validation
(SV) Detect
Thermal Diode
Connection
Out - Normal Operation Not supported
2-3 Force FSB Frequency - See schematic for valid
2-3 Force FSB Frequency - See schematic for valid
2-3 Force FSB Frequency - See schematic for valid
2-3 - Normal Operation Not supported
1-2 Connect CPU THERMDA to
3-4 Connect CPU THERMDC to
Sensor
Sensor
Out - Disconnect CPU from Thermal Sensor
Out - Disconnect CPU from Thermal Sensor
combinations
combinations
combinations
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
40 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
Table 8. Supported Configuration Jumper/Switch Settings (Sheet 2 of 2)
Ref Des Function Default Setting Optional Setting
J7J3 PATA Hotswap In - Normal Operation Out - Disable PATA Hotswap
J8A1
J8G1 KBC Reset 1-2 Normal Operation 2-3 to hold the KBC in reset
J8G2 SV Set Up Out - Normal Operation Not supported
J8H1 BIOS Recovery Out - Normal Operation In - Recover the BIOS
J9G3 Boot Block Program In - Normal Operation Not supported
J9H1
J9J1 KBC Disable Out - Normal Operation In - KBC Disabled
J9J2 Mode Type (MD) 0 In - Normal Operation Not supported
J9J3 SATA Device Status In - Normal Operation Not supported
J9J4 MD2 Out - Normal Operation Not supported
J9J5 LID Jumper Out - Normal Operation In - LID Jumper closed
J9J6 MD1 In - Normal Operation Not supported
J9J7 Virtual Battery Jumper Out - Normal Operation Not supported
SW9J1 Virtual Battery Switch 1-2 Normal Operation Not supported
SW9J2 Lid Switch 1-2 Normal Operation 2-3 LID Switch closed
LAN Non-volatile
Memory Protect
Non-Maskable Interrupt
Jumper (1 Hz Clock)
Out - Normal Operation Not supported
Out - Normal Operation In - Enable KBC programming
May 2007 Manual
Order Number: 317443-001US 41
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
4.4 Power On and Reset Buttons
The Intel® 945GME Express Chipset board has two push buttons, POWER and RESET.
The POWER button releases power to the entire board, causing the board to boot. The
RESET button will force all systems to warm reset. The two buttons are located near
the CPU close to the edge of the board. The POWER button is located at SW1C2 and the
RESET button is located at SW1C1.
Note: If the board is powered from an external ATX power supply (not a power brick), the
Power button must be pressed twice to turn on the system.
Figure 5. Intel
®
945GME Express Chipset Development Kit Power On and Reset Buttons
Power
Reset
B5474-01
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
42 Order Number: 317443-001US
Hardware Reference—Intel
4.5 LEDs
The following LEDs provide status for various functions on the Intel® 945GME Express
Chipset board.
®
945GME Express Chipset
Table 9. Intel
®
945GME Express Chipset LED Function Legend
Function LED
Keyboard Number Lock CR9G1
Keyboard Scroll Lock CR9G2
Keyboard Caps Lock CR9G3
System State S0 CR3G1
System State S3 CR3G2
System State S4 CR3G3
System State S5 CR2G1
ATA Activity CR7J1
VID 0 CR1B1
VID 1 CR1B2
VID 2 CR1B3
VID 3 CR1B4
VID 4 CR1B5
VID 5 CR1B6
VID 6 CR1C1
4.6 Other Headers, Slots, and Sockets
4.6.1 H8 Programming Headers
The microcontroller for system management/keyboard/mouse control can be upgraded
in two ways. The user can either use a special MS-DOS* utility or use an external
computer connected to the system via the serial port on the board.
Caution: Make sure the motherboard is not powered on and the power supply is disconnected
before moving any of the jumpers.
T o progr am the microcontroller via the utility, the user must ensure that jumper J9H1 is
populated. Once the programming is complete, jumper J9H1 should be unpopulated.
If the user chooses to use an external computer connected to the system via the serial
port, there are five jumpers that have to be set correctly first. Please refer to Table 10
for a summary of these jumpers and see Figure 4 for the location of each jumper.
Here is the sequence of events necessary to program the H8.
1. With the board powered off, move the five jumpers listed in Table 10 to the
programming stuffing option.
2. Power the S5 voltage rails by attaching an AC brick or an ATX power supply to the
system.
May 2007 Manual
Order Number: 317443-001US 43
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
3. Program the H8 via the serial port.
4. Disconnect the power supply from the system.
5. With the board powered off, move the five jumpers listed in Table 10 back to the
default stuffing option.
Table 10. H8 Programming Jumpers
Intel® 945GME Express Chipset—Hardware Reference
Jumper
1Hz Clock J9H1
H8 Programming J9J2 and J9J6
Tx Select J7A4 1-2 Normal Operation
Rx Select J7A3 1-2 normal operation (SIO)
Reference
Designator
Default Stuffing Option
Out - normal operation clock enabled
IN - normal operation and
enable external H8
programming
4.6.2 Expansion Slots and Sockets
Following is a list of the slots and sockets available for attaching additional devices.
Refer to Figure 2 for locations.
Table 11. Expansion Slots and Sockets
Reference
Designator
U2E1 478 Pin Grid Array (Micro-FCPGA) Processor Socket
J5N1 DDR2 - Channel A - SODIMM slot
J5P1 DDR2 - Channel B - SODIMM slot
J5F1 LVDS Graphics Interface
J6C1 PCI Express* (x16) Table 12
J6C1 Media Expansion Card Slot Table 13
J7C1 PCI Express* (x1) Slot 1 Table 14
J8C1 PCI Express* (x1) Slot 0 Table 14
J8B1 PCI 2.3 Slot 3
J9B1 PCI 2.3 Slot 4
J7J1 IDE Interface Connector Table 15
J8J2 Mobile SATA Hard Drive Interface Connector Table 18
J7H1 Desk Top SATA Hard Drive Interface Connector Table 16
J6H3 SATA Desk Top Power Connector Table 17
U8G1 Intel Firmware Hub Socket
BT5H1 Battery
Slot/Socket Description Detail
Programming Stuffing
IN - clock disabled - enable H8
programming
Leave in for programming
2-3 connect TxD to H8 for
programming
2-3 connect RxD to H8 for
programming
Option
4.6.2.1 478 Pin Grid Array (Micro-FCPGA) Socket
The pin locking mechanism on the CPU socket is released by rotating the screw on the
socket 180 degrees counter-clockwise. CPU pins are keyed so as to only allow insertion
in one orientation. DO NOT FORCE CPU into socket. Once the CPU is properly seated
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
44 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
into the socket, turn the screw 180 degrees clock-wise to secure the CPU in the socket.
Note that the slot on the screw aligns with the lock and unlock legend on the case of
the CPU socket.
Caution: Please refer to the CPU installation instruction in Appendix A prior to inserting the CPU
as the CPU and socket can be easily damaged.
4.6.2.2 PCI Express* (x16)
The platform has one x16 lane PCI Express* Graphics slot and supports either x1 or
x16 modes. The slot is wired “lane reversed” which connects the Intel
Express Chipset lanes 0 through 15 to lanes 15 through 0 on the slot. The Intel
945GME Express Chipset will internally un-reverse this wiring since its CFG9 power-on
strap is tied low.
Table 12. PCI Express* (x16) Pinout (J6C1) (Sheet 1 of 3)
Pin Description Pin Description
A1 PRSNT1# B1 +12 V
A2 +12 V B2 +12 V
A3 +12 V B3 +12 V
A4 GND B4 GND
A5 (JTAG) TCK B5 SMCLK
A6 (JTAG) TDI B6 SMDAT
A7 (JTAG) TDO B7 GND
A8 (JTAG) TMS B8 +3.3 V
A9 +3.3 V B9 (JTAG) TRST#
A10 +3.3 V B10 +3.3 VAUX
A11 PERST# B11 WAKE#
A12 GND B12 RSVD
A13REFCLK+ B13GND
A14REFCLK- B14LANE 0 (T+)
A15GND B15LANE 0 (T-)
A16 LANE 0 (R+) B16 GND
A17 LANE 0 (R-) B17 PRSNT2*
A18GND B18GND
A19 RSVD B19 LANE 1 (T+)
A20GND B20LANE 1 (T-)
A21 LANE 1 (R+) B21 GND
A22 LANE 1 (R-) B22 GND
A23GND B23LANE 2 (T+)
A24GND B24LANE 2 (T-)
A25 LANE 2 (R+) B25 GND
A26 LANE 2 (R-) B26 GND
A27GND B27LANE 3 (T+)
A28GND B28LANE 3 (T-)
A29 LANE 3 (R+) B29 GND
®
945GME
®
May 2007 Manual
Order Number: 317443-001US 45
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
Table 12. PCI Express* (x16) Pinout (J6C1) (Sheet 2 of 3)
Pin Description Pin Description
A30 LANE 3 (R-) B30 RSVD
A31GND B31PRSNT2#
A32 RSVD B32 GND
A33 RSVD B33 LANE 4 (T+)
A34GND B34LANE 4 (T-)
A35LANE 4 (R+)B35GND
A36 LANE 4 (R-) B36 GND
A37GND B37LANE 5 (T+)
A38GND B38LANE 5 (T-)
A39LANE 5 (R+)B39GND
A40 LANE 5 (R-) B40 GND
A41GND B41LANE 6 (T+)
A42GND B42LANE 6 (T-)
A43LANE 6 (R+)B43GND
A44 LANE 6 (R-) B44 GND
A45GND B45LANE 7 (T+)
A46GND B46LANE 7 (T-)
A47LANE 7 (R+)B47GND
A48 LANE 7 (R-) B48 PRSNT#2
A49GND B49GND
A50 RSVD B50 LANE 8 (T+)
A51GND B51LANE 8 (T-)
A52LANE 8 (R+)B52GND
A53 LANE 8 (R-) B53 GND
A54GND B54LANE 9 (T+)
A55GND B55LANE 9 (T-)
A56LANE 9 (R+)B56GND
A57 LANE 9 (R-) B57 GND
A58GND B58LANE 10 (T+)
A59GND B59LANE 10 (T-)
A60LANE 10 (R+)B60GND
A61LANE 10 (R-)B61GND
A62GND B62LANE 11 (T+)
A63GND B63LANE 11 (T-)
A64LANE 11 (R+)B64GND
A65LANE 11 (R-)B65GND
A66GND B66LANE 12 (T+)
A67GND B67LANE 12 (T-)
A68LANE 12 (R+)B68GND
A69LANE 12 (R-)B69GND
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
46 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
Table 12. PCI Express* (x16) Pinout (J6C1) (Sheet 3 of 3)
Pin Description Pin Description
A70GND B70LANE 13 (T+)
A71GND B71LANE 13 (T-)
A72 LANE 13 (R+) B72 GND
A73 LANE 13 (R-) B73 GND
A74GND B74LANE 14 (T+)
A75GND B75LANE 14 (T-)
A76 LANE 14 (R+) B76 GND
A77 LANE 14 (R-) B77 GND
A78GND B78LANE 15 (T+)
A79GND B79LANE 15 (T-)
A80 LANE 15 (R+) B80 GND
A81 LANE 15 (R-) B81 PRST2#
A82 GND B82 RSVD
4.6.2.3 Media Expansion Card (MEC) Slot
When not being used for PCI Express*, the x16 slots can be used for Serial Digital
Video Out (SDVO). SDVO cards provide for a third party vendor secondary graphics
add-on such as a digital panel interface.
The SDVO interface will also support a Media Expansion Card (MEC), which provide TV
Capture over the PCI Express* x1 port in addition to the standard SDVO card video out
capabilities.
Table 13. MEC Slot (J6C1) (Sheet 1 of 3)
Pin
Number
1 N/C 12 V
2 12 V 12 V
3 12 V Reserved
4GND GND
5N/C N/C
6N/C N/C
7N/C GND
8 N/C 3.3 V
93.3 V N/C
10 3.3 V +3.3VA
11 RESET WAKE#
12 GND Reserved
13 REFCLK+ GND
14 REFCLK- Lane 0 (T+)
15 GND Lane 0 (T-)
16 Lane 0 (R+) GND
AB
Key
May 2007 Manual
Order Number: 317443-001US 47
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Table 13. MEC Slot (J6C1) (Sheet 2 of 3)
Intel® 945GME Express Chipset—Hardware Reference
Pin
Number
17 Lane 0 (R-) SDVO_CtrlClk
18 GND GND
19 Reserved N/C
20 GND N/C
21 N/C GND
22 N/C GND
23 GND N/C
24 GND N/C
25 N/C GND
26 N/C GND
27 GND N/C
28 GND N/C
29 N/C GND
30 N/C Reserved
31 GND SDVOB_CtrlData
32 Reserved GND
33 Reserved N/C
34 GND N/C
35 N/C GND
36 N/C GND
37 GND N/C
38 GND N/C
39 N/C GND
40 N/C GND
41 GND N/C
42 GND N/C
43 N/C GND
44 N/C GND
45 GND N/C
46 GND N/C
47 N/C GND
48 N/C MEC_Enable
49 GND GND
50 Reserved SDVOC_CLK+
51 GND SDVOC_CLK52 N/C GND
53 N/C GND
AB
End of x1 Connector
End of x4 Connector
End of x8 Connector
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
48 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
Table 13. MEC Slot (J6C1) (Sheet 3 of 3)
Pin
Number
54 GND SDVOC_Blue+
55 GND SDVOC_Blue56 N/C GND
57 N/C GND
58 GND SDVOC_Green+
59 GND SDVOC_Green60 SDVOC_Int+ GND
61 SDVOC_Int- GND
62 GND SDVOC_Red+
63 GND SDVOC_Red64 N/C GND
65 N/C GND
66 GND SDVOB_Clk+
67 GND SDVOB_Clk68 N/C GND
69 N/C GND
70 GND SDVOB_Blue+
71 GND SDVOB_Blue72 SDVO_Stall+ GND
73 SDVO_Stall- GND
74 GND SDVOB_Green+
75 GND SDVOB_Green76 SDVOB_Int+ GND
77 SDVOB_Int- GND
78 GND SDVOB_Red+
79 GND SDVOB_Red80 SDVO_TVClkIn+ GND
81 SDVO_TVClkIn- N/C
82 GND Reserved
AB
4.6.2.4 PCI Express* (x1)
The two PCI Express* x1 connectors allow the use of any industry standard PCI
Express* device. The pin configuration of the connectors is given below.
Table 14. PCI Express* (x1) Pinout (J7C1, J8C1) (Sheet 1 of 2)
Pin Description Pin Description
A1 PRSNT1# B1 +12 V
A2 +12 V B2 +12 V
A3 +12 V B3 RSVD
A4 GND B4 GND
May 2007 Manual
Order Number: 317443-001US 49
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
Table 14. PCI Express* (x1) Pinout (J7C1, J8C1) (Sheet 2 of 2)
A5 (JTAG) TCK B5 SMCLK
A6 (JTAG) TDI B6 SMDAT
A7 (JTAG) TDO B7 GND
A8 (JTAG) TMS B8 +3.3 V
A9 +3.3 V B9 (JTAG) TRST#
A10 +3.3 V B10 +3.3 VAUX
A11 PERST# B11 WAKE#
A12GND B12RSVD
A13REFCLK+ B13GND
A14REFCLK- B14LANE 0 (T+)
A15GND B15LANE 0 (T-)
A16LANE 0 (R+)B16GND
A17 LANE 0 (R-) B17 PRSNT2*
A18GND B18GND
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
50 Order Number: 317443-001US
Hardware Reference—Intel
®
945GME Express Chipset
4.6.2.5 IDE Connector
The IDE interface can support up to two devices, a master and a slave. Ensure that the
jumpers on the drives are properly selected for the given configuration. Mobile drives
with an IDE interface will require an adapter to connect to this port. This adapter is
included in the Development Kit.
Table 15. IDE Connector (J7J1)
Pin Signal Pin Signal
1 Reset IDE 2 Ground
3 Host Data 7 4 Host Data 8
5 Host Data 6 6 Host Data 9
7 Host Data 5 8 Host Data 10
9 Host Data 4 10 Host Data 11
11 Host Data 3 12 Host Data 12
13 Host Data 2 14 Host Data 13
15 Host Data 1 16 Host Data 14
17 Host Data 0 18 Host Data 15
19 Ground 20 Key
21 DRQ3 22 Ground
23 I/O Write 24 Ground
25 I/O Read 26 Ground
27 I/O Ch Ready 28 CSEL
29 DACK 3 30 Ground
31 IRQ 14 32 NC
33 Address 1 34 DATA Detect
35 Address 0 36 Address 2
37 C hip Select 0 38 Chip Select 1
39 Activity 40 Ground
4.6.2.6 SATA Pinout
Table 16. SATA Port 0 Data Connector Pinout (J7 H1)
Pin Signal
1GND
2TXP
3TXN
4GND
5RXN
6RXP
7GND
May 2007 Manual
Order Number: 317443-001US 51
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel® 945GME Express Chipset—Hardware Reference
Table 17. SATA Port 0 Power Connector Pinout (J6H3)
Pin Signal
1, 2 +3.3 V
3, 4 +5 V
5 +12 V
6, 7, 8, 9, 10 GND
Table 18. SATA Port 2 Mobile Drive Connector Pinout (J8J2)
Pin Signal
2TX
3TX#
5RX#
6RX
8, 9, 10 +3.3 V
14, 15, 16 +5 V
20, 21, 22 +12 V
1, 4, 7, 11 GND
12, 13, 17, 19 GND
4.6.2.7 Fan Connectors
Table 19. Fan Connectors (J3F1 and J3C1)
Pin Signal
1+5V
2GND
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
52 Order Number: 317443-001US
Heat Sink Installation Instructions—Intel
®
945GME Express Chipset
Appendix A Heat Sink Installation Instructions
It is necessary for the Intel® CoreTM 2 Duo processor to have a thermal solution
attached to it in order to keep it within its operating temperature.
A heat sink is included in the kit. To install the heat sink:
1. Remove the heatsink from its package and separate the fan heatsink portion from
the heatsink backplate.
Figure 6. Heatsink and Backplate
2. Examine the base of the heatsink, where contact with the processor die is made.
This surface should be clean of all materials and greases. Wipe the bottom surface
clean with isopropyl alcohol.
3. Place the backplate on the underside of the board so that the pins protrude through
the holes in the system board around the processor.
May 2007 Manual
Order Number: 317443-001US 53
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Figure 7. Backplate Pins
Intel® 945GME Express Chipset—Heat Sink Installation Instructions
4. Clean the die of the processor with isopropyl alcohol before the heatsink is attached
to the processor. This ensures that the surface of the die is clean.
5. Remove the tube of thermal grease from the package and use it to coat the bottom
of the heatsink thermal plate with the thermal grease.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
54 Order Number: 317443-001US
Heat Sink Installation Instructions—Intel
®
945GME Express Chipset
Figure 8. Applying the Thermal Grease
6. Pick up the heatsink and squeeze the activation arm until it comes in contact with
the base plate that is attached to the heatsink base. This will cause the springs on
the heatsink attachment mechanism to compress.
Figure 9. Squeezing Activation Arm
May 2007 Manual
Order Number: 317443-001US 55
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
7. While keeping the activation arm compressed, place the heatsink over the pins of
the heatsink backplate. Lower the heatsink until the lugs have inserted into the
base of the heatsink. Slide the heatsink ov er the lugs on the backplate pins so that
the base is directly over the processor die and the pins on the backplate have
traveled the entire length of the channel in the heatsink base. Slowly let go of the
activation arm until the base of the heatsink makes contact with the processor die.
The heatsink base should be flat on top of the processor die.
Figure 10. Installing the Heatsink
Intel® 945GME Express Chipset—Heat Sink Installation Instructions
8. Plug the fan connector for the heatsink onto the CPU fan header (J3C1) on the
motherboard.
®
CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Intel
Manual May 2007
56 Order Number: 317443-001US
Heat Sink Installation Instructions—Intel
Figure 11. Plugging in the Fan
®
945GME Express Chipset
Figure 12. Completed Assembly
May 2007 Manual
Order Number: 317443-001US 57
Intel® CoreTM 2 Duo processor with the Mobile Intel® 945GME Express Chipset
Loading...
