Insignia NS-PNK8A01 Quick Setup Manual

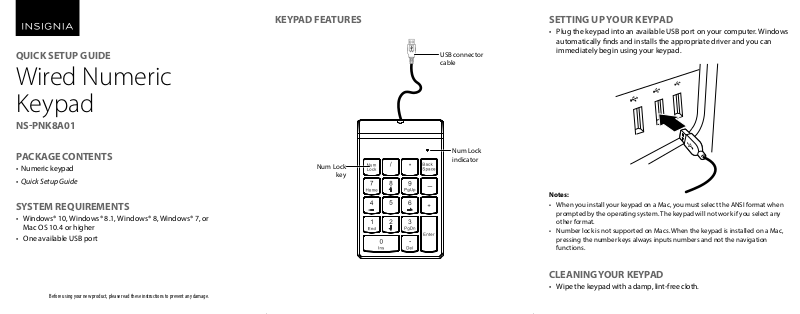

QUICK SETUP GUIDE
Wired Numeric
Keypad
NS-PNK8A01
KEYPAD FEATURES SETTING UP YOUR KEYPAD
• Plug the keypad into an available USB port on your computer. Windows
automatically nds and installs the appropriate driver and you can
USB connector
cable
immediately begin using your keypad.
PACKAGE CONTENTS
• Numeric keypad
• Quick Setup Guide
SYSTEM REQUIREMENTS
• Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, or
Mac OS 10.4 or higher
• One available USB port
Before using your new product, please read these instructions to prevent any damage.
Num Lock
indicator
Num Lock
key
Notes:
• When you install your keypad on a Mac, you must select the ANSI format when
prompted by the operating system. The keypad will not work if you select any
other format.
• Number lock is not supported on Macs. When the keypad is installed on a Mac,
pressing the number keys always inputs numbers and not the navigation
functions.
CLEANING YOUR KEYPAD
• Wipe the keypad with a damp, lint-free cloth.
TROUBLESHOOTING
My keypad is not working.
• Make sure that your computer meets the system requirements.
• Make sure that your USB cable is securely attached to the USB port on
your computer.
• Try connecting your keypad to a dierent USB port on your computer.
• Make sure that the number lock is on (the Num Lock Indicator should
be lit), or pressing the keys activates the navigation functions of the
keyboard instead of numbers (except on a Mac).
My keypad work after the driver is installed or removed.
• Reboot the computer.
SPECIFICATIONS
Dimension (L×W×H): 5.75 × 1.06 × 5.43 in. (14.6 × 2.7 × 13.8 cm)
Weight*: 3.4 oz (96 g)
Cable length*: 39.4 in. (1 M)
*Values for weight and cable length are approximate.
LEGAL NOTICES
FCC Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA
For customer service, call 1-877-467-4289 (U.S. and Canada) or
01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 16-1060
