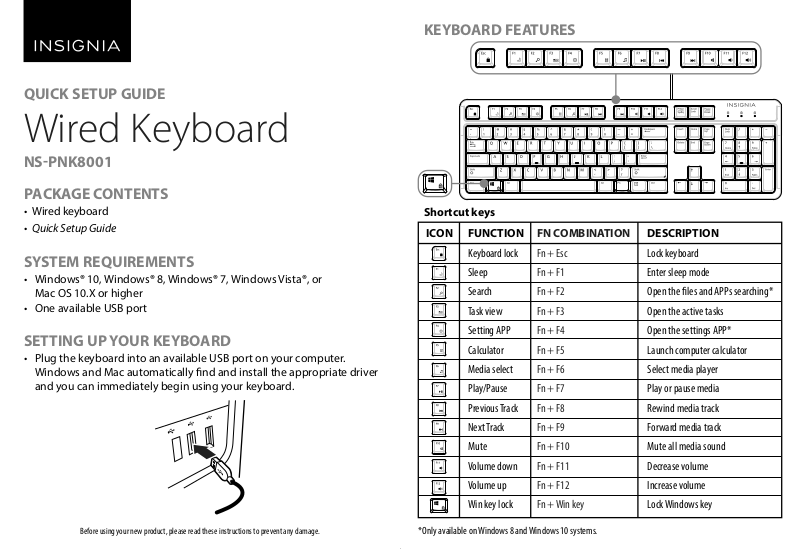

Insignia NS-PNK8001 Quick Setup Guide
QUICK SETUP GUIDE
Wired Keyboard
NS-PNK8001
PACKAGE CONTENTS
• Wired keyboard
• Quick Setup Guide
SYSTEM REQUIREMENTS
• Windows® 10, Windows® 8, Windows® 7, Windows Vista®, or
Mac OS 10.X or higher
• One available USB port
SETTING UP YOUR KEYBOARD
• Plug the keyboard into an available USB port on your computer.
Windows and Mac automatically nd and install the appropriate driver
and you can immediately begin using your keyboard.
KEYBOARD FEATURES
Shortcut keys
ICON FUNCTION
Keyboard lock
Sleep
Search
Task view
Setting APP
Calculator
Media select
Play/Pause
Previous Track
Next Track
Mute
Volume down
Volume up
Win key lock
FN COMBINATION
Fn + Esc
Fn + F1
Fn + F2
Fn + F3
Fn + F4
Fn + F5
Fn + F6
Fn + F7
Fn + F8
Fn + F9
Fn + F10
Fn + F11
Fn + F12
Fn + Win key
DESCRIPTION
Lock keyboard
Enter sleep mode
Open the les and APPs searching*
Open the active tasks
Open the settings APP*
Launch computer calculator
Select media player
Play or pause media
Rewind media track
Forward media track
Mute all media sound
Decrease volume
Increase volume
Lock Windows key
Before using your new product, please read these instructions to prevent any damage.
*Only available on Windows 8 and Windows 10 systems.
LED indicator
Num
Lock
Caps
Lock
Scroll
Lock
CLEANING YOUR KEYBOARD
• Wipe the keyboard with a damp, lint-free cloth.
TROUBLESHOOTING
My keyboard is not working.
• Make sure that your computer meets the system requirements.
• Make sure that your USB cable is securely attached to the USB port on
your computer.
• Try connecting your keyboard to a dierent USB port on your
computer.
SPECIFICATIONS
Dimension (L×W×H): 18.0 × 5.61 × 1.1 in. (45.72 × 14.26 × 2.79 cm)
Weight: 18.7 oz. (.53 kg)
Cable length: 18 in. (45.72 cm)
• No driver or APP required
• Embedded Fn combination function using the Esc, Win key, and F1 to
F12 keys
• Complies with USB 1.1, 2.0, and 3.0 specications
• FCC, WHQL, and RoHS approval
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IC Statement
CAN ICES-3 (B)/NMB-3 (B)
ONE-YEAR LIMITED WARRANTY
For complete warranty, visit www.insigniaproducts.com.
CONTACT INSIGNIA
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 16-1052
