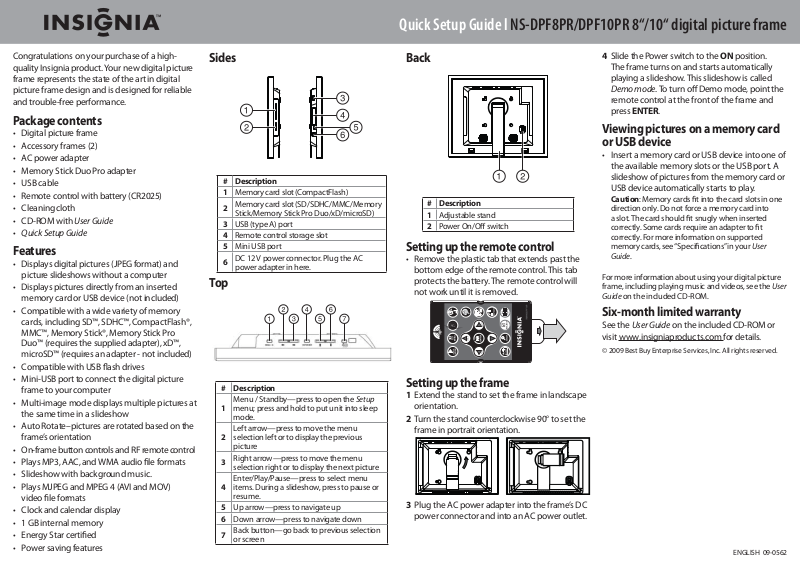

Quick Setup Guide l NS-DPF8PR/DPF10PR 8“/10“ digital picture frame

Congratulations on your purchase of a highquality Insignia product. Your new digital picture frame represents the state of the art in digital picture frame design and is designed for reliable and trouble-free performance.

Package contents

• Digital picture frame

• Accessory frames (2)

• AC power adapter

• Memory Stick Duo Pro adapter

• USB cable

• Remote control with battery (CR2025)

• Cleaning cloth

• CD-ROM with User Guide

• Quick Setup Guide

Features

• Displays digital pictures (JPEG format) and picture slideshows without a computer

• Displays pictures directly from an inserted memory card or USB device (not included)

• Compatible with a wide variety of memory cards, including SD™, SDHC™, CompactFlash®, MMC™, Memory Stick®, Memory Stick Pro Duo™ (requires the supplied adapter), xD™, microSD™ (requires an adapter - not included)

• Compatible with USB ﬂ ash drives

• Mini-USB port to connect the digital picture frame to your computer

• Multi-image mode displays multiple pictures at the same time in a slideshow

• Auto Rotate–pictures are rotated based on the frame’s orientation

• On-frame button controls and RF remote control

• Plays MP3, AAC, and WMA audio ﬁ le formats

• Slideshow with background music.

• Plays MJPEG and MPEG 4 (AVI and MOV) video ﬁ le formats

• Clock and calendar display

• 1 GB internal memory

• Energy Star certiﬁ ed

• Power saving features

Sides

# Description 1 Memory card slot (CompactFlash)

Memory card slot (SD/SDHC/MMC/Memory

Stick/Memory Stick Pro Duo/xD/microSD)

3 USB (type A) port 4 Remote control storage slot 5 Mini USB port

DC 12 V power connector. Plug the AC

power adapter in here.

To p

# Description

Menu / Standby—press to open the Setup

menu; press and hold to put unit into sleep mode.

Left arrow—press to move the menu

selection left or to display the previous picture

Right arrow—press to move the menu

selection right or to display the next picture Enter/Play/Pause—press to select menu

items. During a slideshow, press to pause or resume.

5 Up arrow—press to navigate up 6 Down arrow—press to navigate down

Back button—go back to previous selection

or screen

Back

# Description 1 Adjustable stand 2 Power On/Oﬀ switch

Setting up the remote control

• Remove the plastic tab that extends past the bottom edge of the remote control. This tab protects the battery. The remote control will not work until it is removed.

Setting up the frame

1 Extend the stand to set the frame in landscape

orientation.

2 Turn the stand counterclockwise 90° to set the

frame in portrait orientation.

3 Plug the AC power adapter into the frame’s DC

power connector and into an AC power outlet.

4 Slide the Power switch to the ON position.

The frame turns on and starts automatically playing a slideshow. This slideshow is called Demo mode. To turn oﬀ Demo mode, point the remote control at the front of the frame and press ENTER.

Viewing pictures on a memory card or USB device

• Insert a memory card or USB device into one of the available memory slots or the USB port. A slideshow of pictures from the memory card or USB device automatically starts to play.

Caution: Memory cards ﬁ t into the card slots in one

direction only. Do not force a memory card into a slot. The card should ﬁ t snugly when inserted correctly. Some cards require an adapter to ﬁ t correctly. For more information on supported memory cards, see “Speciﬁ cations” in your User Guide.

For more information about using your digital picture frame, including playing music and videos, see the User Guide on the included CD-ROM.

Six-month limited warranty

See the User Guide on the included CD-ROM or visit www.insigniaproducts.com for details.

ENGLISH 09-0562
