Insignia NS-13CTV User Manual

13” Combo TV | Ensemble TV de 13 po | Combo TV de 13"

NS-13CTV

Insignia NS-13CTV

TV/DVD Combo

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Safety information . . . . . . . . . . . . . . . . . . . . . . . . .1

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Setting up your television . . . . . . . . . . . . . . . . . . . .5

Using your disc player . . . . . . . . . . . . . . . . . . . . . .8

Maintaining your television. . . . . . . . . . . . . . . . . .12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .12

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Français. . . . . . . . . . . . . . . . . . . . . . . . 15

Español . . . . . . . . . . . . . . . . . . . . . . . . 29

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-13CTV represents the state of the art in television design and is designed for reliable and trouble-free performance.

This guide explains how to correctly install, operate, and get the best performance from your television. Read this user guide carefully before installing your television, then keep it near your television for quick reference.

Verify that the box contains:

• Color television

• Remote control

• AA batteries

•User Guide If any item is missing or damaged, contact

Insignia at (877) 467-4289. Keep the box and packing materials so that you can store or transport your television.

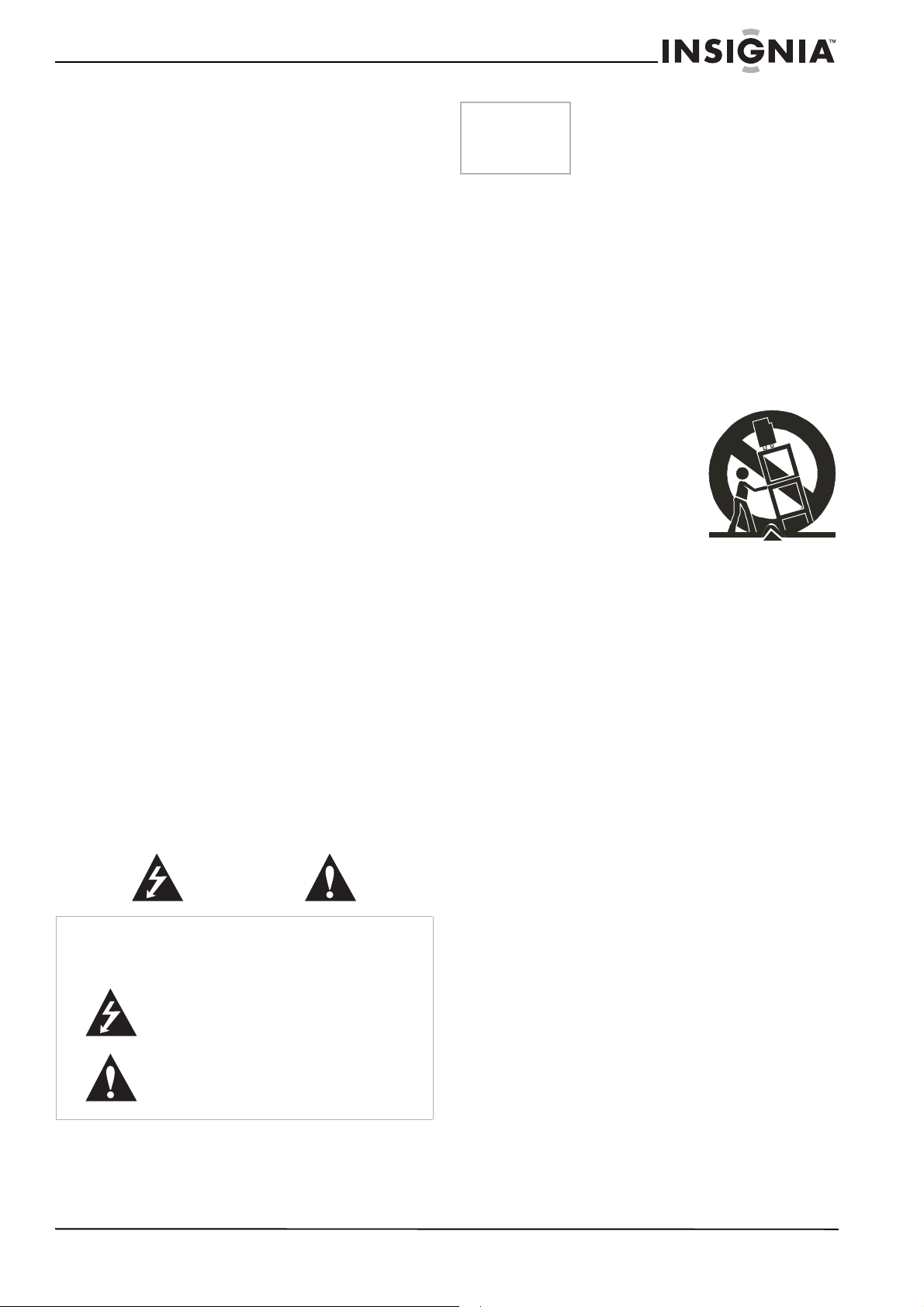

Safety information

Electric shock warning

CAUTION Risk of Electric Shock Do Not Open

Warning

To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.

This lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within your television’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying your television.

Important safeguards

• Read all of these instructions.

• Save these instructions for later use.

• Unplug your television from the power outlet before cleaning. Use a dry cloth for cleaning. Do not use liquid cleaners or aerosol cleaners.

• To avoid hazards, use only attachments recommended by your television’s manufacturer.

• Do not use your television near water, such as near a bathtub, sink, or swimming pool.

• Do not place your television on an unstable cart, stand, or table. Your television may fall, causing serious injury to a child or adult, and serious damage to your television.

• Slots and openings in the sides, back, and bottom are provided for ventilation, to ensure reliable operation of your television, and to protect it from overheating.

These openings must not be blocked or covered. The openings should never be blocked by placing your television on a bed, sofa, rug, or other soft surface. Your television should never be placed near or over a radiator or heat register.

Your television should not be placed in a built-in installation, such as a bookcase, unless proper ventilation is provided.

• Your television should be operated only from the type of power source indicated on the marking label. If you are not sure of the power supplied to your home, ask your television dealer or local power company.

• Your television is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug fits into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

• Do not allow anything to rest on the power cord, and do not locate your television where the cord may be stepped on.

• Follow all warnings and instructions marked on your television.

Caution

To prevent electric shock, do not use this polarized plug with an extension cord, receptacle, or other outlet unless the blades can be fully inserted to prevent blade exposure.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

• If an outside antenna or cable system is connected to your television, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Reference Grounding component

1 Electric service equipment 2 Power service grounding electrode

3 Ground clamp 4 Grounding conductors (NEC

5 Antenna discharge unit (NEC

6 Ground clamp 7 Antenna lead-in wire

• Use No. 10AWG (5.3 mm

No. 8AWG (8.4 mm No. 17AWG (1.0 mm

system (NEC Art 250, Part H)

Section 810-21)

Section 810-20)

) aluminum,

) copper-clad steel

) copper,

or bronze wire, or larger, as a ground wire.

• Secure antenna lead-in and ground wires

to the house with stand-off insulators spaced from 4-6 feet (1.22-1.83 m) apart.

• Mount the antenna discharge unit as

close as possible to where lead-in enters house.

• Use jumper wire no smaller than

No. 6AWG (13.3 mm

) copper, or the equivalent, when a separate antenna-grounding electrode is used. See ANSI/NFPA70.

• An outside antenna system should not be located in the vicinity of overhead power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• For added protection for your television during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect it from the antenna or cable system. This prevents damage to your television due to lightning and power line surges.

• Do not overload power outlets and extension cords because overloading can cause a fire or electric shock.

• Never push objects of any kind into your television through slots in the case because they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your television.

• Do not attempt to service your television yourself because opening or removing covers may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service technicians.

• Unplug your television from the power outlet and refer servicing to qualified service technicians under the following conditions:

• When the power cord or plug is damaged

or frayed.

• If liquid has been spilled into your

television.

• If your television has been exposed to rain

or water.

• If your television does not operate

normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore normal operation.

• If your television has been dropped or the

case has been damaged.

• When your television exhibits a distinct

change in performance.

• When replacement parts are required, make sure that the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

• Upon completion of any service or repairs to your television, ask the service technician to perform routine safety checks to determine that your television is safe to operate.

Note to cable television system installer

This reminder is provided to call the cable television system installer’s attention to Section 820 40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

Features

Your television is equipped with a DVD player, close caption decoder, and parental blocking technology.

Front panel

2 3

567

Component

1 Headphone jack 2 Audio right jack 3 Audio left jack 4 Video jack 5 Power indicator 6 Remote control signal receiver 7 TV/DVD button 8 MENU button 9 Volume down (V-) button 10 Volume up (V+) button 11 Channel down (CH-) button 12 Channel up (CH+) button 13 OPEN/CLOSE button 14 PLAY button 15 STOP button 16 Power button

8910

1213141516

Rear panel

1 Coaxial output jack 2 DVD Video Y input jack 3 Video output jack 4 Video input jack 5 DVD Video Cb input jack 6 Audio left channel input jack 7 Audio left channel output jack 8 Audio right channel input jack 9 Audio right channel output jack 10 Antenna/CATV input jack 11 DVD Video Cr input jack

COAXIAL OUTPUT

Component input

OUT

Component

VIDEO

TV Antenna

AUDIO

8 9

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

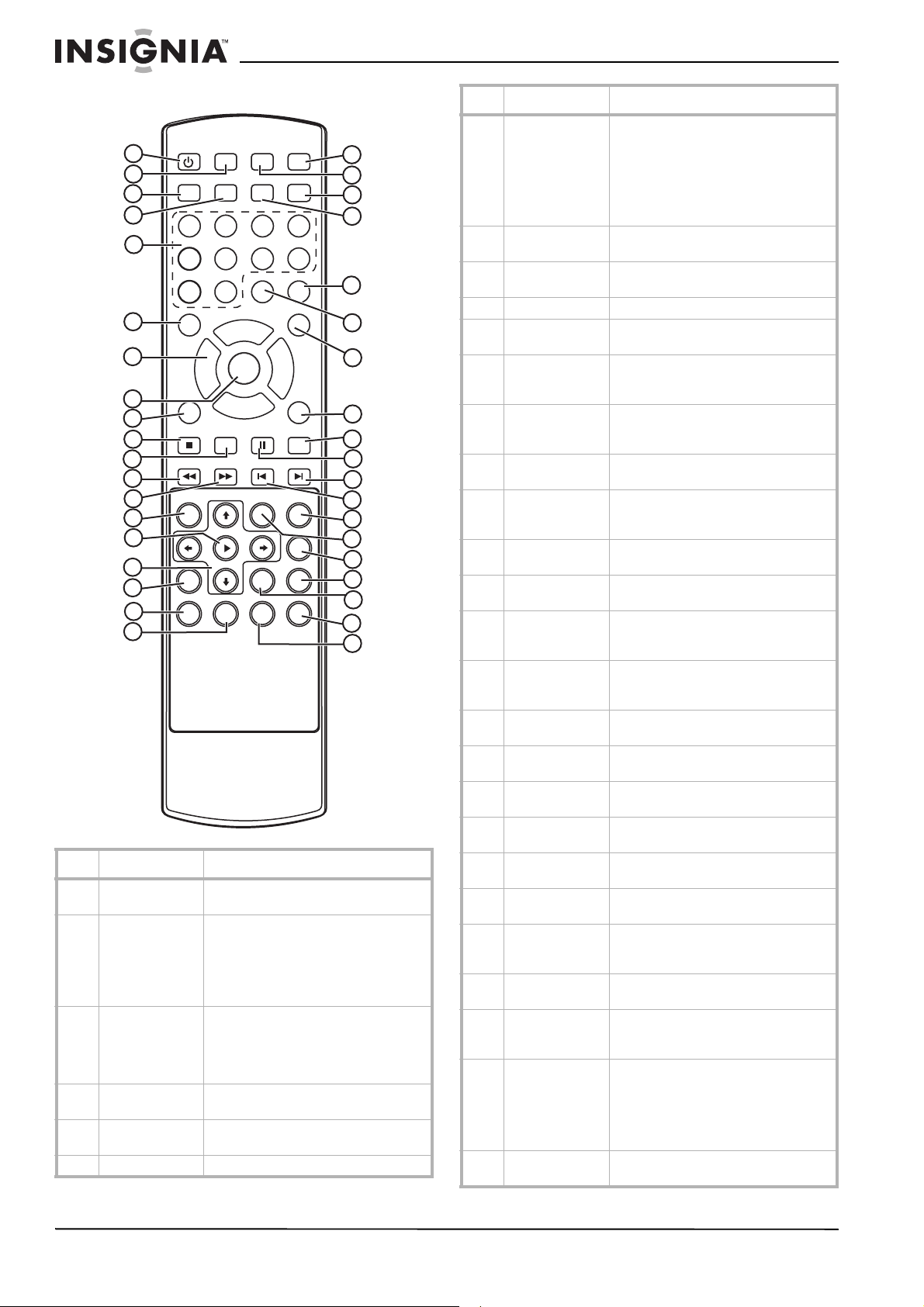

Remote control

2 3

8 9

10 11 12 13 14 15

18 19

Button Description

1 POWER Press to turn the power on or off. 2 SLEEP Press to turn off your television in a specified

3 SCAN Press to automatically scan the available

4 RECALL Press to return to the previously watched

5Numeric

Pad 6 PICT Press to adjust the quality of the picture. 7Channel /

Volume

selection

8 MENU Press to open your television setup menu.

POWER SLEEP TIME OPEN/CLOSE

SCAN RECALL DISPLAY MUTE

20 21 22

1234

5678

CCD EXIT

9 0

PICT INPUT

VOL

STOP SETUP PAUSE/STEP SUBTITLE

FWD

REV

10+

PLAY/ENTER

ANGLE

PROGRAMAUDIO

number of minutes. To cancel the sleep timer, continue pressing the button until you exit.

television channels. Press again to stop scanning.

television channel. Press to go to the channel you want to watch.

Press the CH + or CH - to go up and down channels.

Press the VOL + or VOL - button to increase or decrease the volume.

You can also use these buttons to navigate and change values in the menu.

CH -

REPEAT

TITLE/PBC

ZOOM

VOL +

DVD/TV

A-B

SLOW

D.CALL

29 30

31 32 33

37 38

Button Description

9 D. MENU Press to open the DVD main menu. 10 STOP Press to stop playing a DVD. 11 SETUP Press to open the DVD player setup menu. 12 REV Press to fast reverse through the DVD. Press

13 FWD Press to fast forward through the DVD. Press

14 10+ Press to enter a two digit DVD chapter

15 PLAY/

ENTER

16 Cursor

Move

17 ANGLE Press to select a different camera angle, if one

18 AUDIO Press to change the audio settings, such as

19 PROGRAM Press to enter the program number you want

20 OPEN/

CLOSE 21 TIME Press to open the Time menu. 22 MUTE Press to turn off your television’s sound. 23 DISPLAY Press to view the current channel number. 24 EXIT Press to turn off the channel display or exit a

25 CCD Press to turn the closed captioning on or off. 26 INPUT Press to select the video source. Selections

27 DVD/TV Press to change from viewing a DVD to

28 SUBTITLE Press to turn on the DVD subtitle and select

29 PAUSE/

STEP

30 NEXT Press to skip the current chapter and play the

31 PREV Press to restart playing the current chapter.

32 A-B Press to select a start point for playing the

33 REPEAT Press to select repeat chapter, repeat title, or

34 SLOW Press to slow down playing the DVD. Press

35 SEARCH Press this button once to go to a specific time

36 TITLE/PBC Press to access the DVD title menu. 37 D. CALL Press to view the title time elapsed, title time

38 ZOOM Press to enlarge a part of the DVD image, if

repeatedly to change the speed.

number. Press to start playing the DVD or select a

menu item. Press to navigate in a DVD menu.

is available on the DVD.

Mono Left, Mono Right, Mix-Mono, and Stereo.

to start playing from. Press to open or close the DVD tray.

menu.

include: Video 1, Video 2, YCbCR, and TV.

watching television.

the subtitle language. Press to pause playing a DVD. Press

repeatedly to advance the DVD frame-by-frame. Press PLAY to resume playing the DVD.

next chapter.

Press again to skip the current chapter and play the previous chapter.

DVD. Press again to select the end point for playing the DVD. Press a third time to erase the start and end points.

repeat all.

repeatedly to change the speed.

on the DVD. Press this button twice to go to a specific time within a track on the DVD. Press this button three times to select the track. Use the numeric pad to enter the values.

remaining, chapter time elapsed, chapter time remaining, and display off.

the feature is available on the DVD.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

Setting up your television

Connecting the antenna

To receive the clearest picture possible, use a cable television system or an outdoor antenna.

Connecting devices to your television

You can connect a VCR or stereo system to your television.

COAXIAL OUTPUT

Component input

OUT

VIDEO

AUDIO

VHF UHF

TV Antenna

Component

1 AC cord. 2 Antenna/CATV input (75-ohm)

standard coaxial cable. 3 Mixer (not included) 4VHF antenna 5 UHF antenna

Notes

Use a 75 ohm coaxial antenna to avoid interference. To avoid interference from electrical signals, do not wrap or tie

the antenna cable to the power cord.

Component

1 Additional television 2 DVD or VCD player 3Video output 4 Audio output 5Amplifier 6 Coaxial cable 7 To coaxial type digital audio input 8 VHF/UHF antenna

www.insignia-products.com

VHF

UHF

Insignia NS-13CTV TV/DVD Combo

Using your television

COAXIAL OUTPUT

Component input

OUT

VIDEO

TV Antenna

AUDIO

Component

1 Receiver, DVD, or VCD player 2 To video input 3 To audio input 4 To audio output 5 DVD player with output terminal 6 VHF/UHF antenna

Installing batteries in the remote control

To install batteries in the remote control: 1 Remove the battery cover.

2 Insert two AA batteries. Make sure to match

the + and – battery ends to the + and – marks inside the battery compartment.

Turning your television on and off

Press POWER on the remote control or television to turn your television on or off.

Note

If you cannot receive a television signal and your television is turned on, press the DVD/TV button to make sure your television is in TV mode.

Controlling your television

Use the buttons on the remote control to change your television’s channel or volume.

Using your television’s setup menu

To use your television’s setup menu: 1 Press MENU on remote control or television.

2 Press VOL + or VOL – to select the menu. 3 Press CH + or CH – to go up and down

through the menu.

4 Press VOL + or VOL – to adjust the setting. 5 Press EXIT.

Video setup menu

Use this menu to adjust the picture quality.

Value Description

Picture Increase the picture level to adjust white

Brightness Increase the value to add more light to dark

Color Adjusts the overall color of the picture. Sharpness Increase the value to show cleaner and

Hue Increase the value to give a green tint to skin

Color Temp Select a neutral, warm, or cool color

Audio setup menu

Use this menu to adjust the sound quality.

areas of the picture. Decrease the picture level to adjust black

areas of the picture

areas of the picture. Decrease the value to add more dark to light

areas of the picture.

clearer images. Decrease the value to show softer and

smoother images.

color. Decrease the value to give a red tint to skin

color.

temperature.

3 Replace the battery cover.

Notes

If the remote control will not be used for a long period of time, remove the batteries to prevent leakage.

Remove the batteries if they are worn out, Do not dispose of the batteries into fire. Dispose of used

batteries in the manner specified by local regulations. Do not drop, dampen, or disassemble the remote control.

Value Description

Volume Increase or decrease the volume.

Timer setup menu

Use this menu to use your television’s time features.

Value Description

Clock Use to set the current time. Time-On Use this feature turn your television on at the

set time.

Ch. Select Select the channel you want your television

to turn on to when using the Time-On feature.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

Value Description

Time-Off Use this feature to turn your television off at

the set time.

Sleep time Use this feature to turn your television off

after a set number of minutes.

Remind Time Use this feature to have a reminder pop-up

on your television screen.

Ch. Switch Use this feature to store your favorite

channel.

Function setup menu

Use this menu to specify the basic settings for your television.

Value Description

Language Select the language for your television’s

setup menu. You can select from English, French, or Spanish.

Background Select between Background ON or

Background OFF. If you select Background ON, a moving NO SIGNAL message is displayed if your television is not receiving an input signal.

Black Stretch Use to automatically increase the contrast

range.

VNR Use to turn Video Noise Reduction on or off.

VNR provides a cleaner picture.

Fade Use to allow the picture tube to turn on

gradually, which prolongs the life of the tube.

AVL Use Automatic Volume Limit to reduce the

large volume changes that may occur when commercials come on.

C. Caption Press to select the closed captioning

options. Options include:

• Off—Closed captioning is turned off.

• CC1—Closed captioning is turned on.

• CC2 to CC4—View other video related information that is broadcast.

• T1—View the program guide or other information. This option blocks a large portion of the viewing area.

• T2 to T4—View other information that is broadcast. This option blocks a large portion of the viewing area.

Select CC1 for full translation of the primary language in your area. Select CC2 for a secondary language translation in your area.

Demo Mode Use to display your television’s main

features.

Channel setup menu

Use this menu to specify the channel settings for your television.

Value Description

Fine Press Vol + or Vol - to fine tune a channel.

Auto Program

Do not use this feature unless you have poor reception on a channel.

Press Vol + to automatically search for active channels in your area and add those channels to the stored memory. This feature automatically deletes channels on which there is no broadcast or a weak signal.

Note: Auto Program scans the channels based on the Antenna you have selected. If you are using cable television, make sure to select Cable for your Antenna before using Auto Program

Calendar setup menu

To use the Calendar setup menu:

• Press CH + or CH - to select the year, month, or date.

• Press VOL + or VOL - to change the calendar setup.

• Press EXIT to exit the calendar mode.

V-CHIP setup menu

Use this menu to adjust the broadcast parental settings for your television.

To adjust the broadcast parental settings: 1 From the V-CHIP menu, press MENU on the

remote control.

Value Description

Channel System

Antenna Select if you are using an antenna or cable

Skip Select ON to delete this channel from the

Current Ch. Select the channel to skip or fine tune. This is

Select the correct channel system for your television. You can select Auto, NTSC, and NTSC443. Select from NTSC and NTSC443 only if Auto doesn’t work.

television system.

stored memory. Select OFF to add this channel to the stored memory.

the currently playing channel.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

2 Enter the password. The initial password is

0000. The Parental Lock screen opens. You can do the following:

Value Description

Parental Lock Select if parental locks are turned on or off. TV Rating Select to modify your television’s rating

MPAA Rating Select to modify the movie rating settings.

Lock Menu Use to select AV lock and Program lock

Change Password

settings. Press CH + or CH - to go up and down the

menu, then press VOL + to Block or Unblock the rating.

U.S. TV ratings include:

• NR—Not rated.

• TV-Y—Appropriate for all ages of children.

• TV-Y7—May be inappropriate for children under the age of 7.

• TV-G—General audience. Appropriate for all ages of children.

• TV-PG—Parental guidance. May include limited violence, suggestive sexual dialog and situations, and language.

• TV-14—Parents strongly cautioned. May contain sexual content, strong language, and intense violence.

• TV-MA—Mature audiences only.

U.S. TV themes include:

• FV—May contain fantasy and cartoon violence.

• V—May contain violence.

• S—May contain sex.

• L—May contain offensive language.

• D—May contain dialog with sexual content.

Press CH + or CH - to go up and down the menu, then press VOL + to Block or Unblock the rating.

U.S. movie ratings include:

• NR—Not rated yet.

• G—General audience. Appropriate for all ages of children.

• PG—Parental guidance. May include limited violence, suggestive sexual dialog and situations, and language.

• PG-13—Parents strongly cautioned. May not be appropriate for children under the age of 13.

• R—Restricted. Parents must accompany children under 17 years of age.

• NC-17—No one 17 and under admitted.

• X—Adults only.

settings.

• AV lock—When this lock is set, you cannot use the AV inputs.

• Program lock—When this lock is set, you cannot access the current channel.

The default password is preset to 0000. You can change the password to any four digit number.

Canadian English Rating Chart

E—Exempt - This is a news, sports, documentary, talk show, music video, or other exempt program.

C—Intended for children under age eight. There is no offensive language, nudity, or sexual content.

C8+—Acceptable for children eight years and over. There is no profanity, nudity or sexual content.

G—Suitable for all audiences. PG—Parental Guidance Suggested - some material may not

be suitable for children. 14+—Some content may not be suitable for viewers under the

age of 14. Parents are strongly cautioned not to have their children view 14+ rated programs by pre-teens and early teens.

18—Adults Only.

Using your disc player

Before using the disc player, press DVD/TV on your television or remote control to make sure your television is in DVD mode.

Playing a disc

To play a disc: 1 Press OPEN/CLOSE to open the disc tray.

2 Place a disc in the disc tray.

Caution

There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction.

Do not place a damaged or otherwise unplayable disc in the DVD player.

3 Press OPEN/CLOSE to close the disc tray.

The disc starts playing automatically.

Note

Some discs do not start playing automatically. Press PLAY/ENTER to start playback.

Some discs may start playback with a menu. Use the cursor buttons on the remote control to select the menu options and press PLAY/ENTER to start playback. You can also use the numeric pad to select a menu option directly. Many DVDs will not allow you to press buttons during start-up.

Pausing a disc

To pause playback: 1 Press PAUS E/ ST EP to pause playback. The

sound is muted while the disc is paused.

2 Press PLAY/ENTER to resume normal

playback.

Stopping a disc

To stop playback: 1 Press STOP to stop playback. Your television

screen shows the start logo. The player can remember where some discs, such as DVDs and audio CDs, stopped and it can restart playback at that point.

2 Press PLAY/ENTER to resume playback at

the point the disc was stopped.

-ORPress STOP again to completely stop

playback.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

Skipping chapters

During playback, you can skip back or skip ahead a chapter.

To skip backward:

• Press PREV to restart the current chapter.

-ORPress PREV multiple times to skip backward

one chapter per button press.

To skip forward:

• Press NEXT to skip to the beginning of the next chapter.

Fast forwarding and fast reversing

To fast forward playback: 1 Press FWD to fast forward through the disc.

Each time you press FWD, the speed changes.

2 Press PLAY/ENTER when you want to

resume normal playback.

To fast reverse playback: 1 Press REV to fast forward through the disc.

Each time you press REV, the speed changes.

2 Press PLAY/ENTER when you want to

resume normal playback.

Single-stepping playback

To single-step playback: 1 Press PAUSE/STEP. The playback is paused.

2 Press PAUS E/ ST EP repeatedly to step

through the playback.

3 Press PLAY/ENTER to resume normal

playback.

Playing a DVD in slow motion

Repeating a disc

To repeat all or part of a disc: 1 Press REPEAT to repeat a chapter.

2 Press REPEAT again to repeat a title. 3 Press REPEAT again to repeat the entire

DVD.

To repeat a part of a disc you specify: 1 Press A-B to select the start point.

2 Press A-B to select the end point.

Note

To cancel the repeat, press A-B again.

Starting play at a specific location

To start play at a specific program: 1 Press PROGRAM.

2 Use the numeric pad to enter the starting

chapter number.

3 Move the cursor to select START.

To start play at a specific time: 1 Press SEARCH. The screen displays Disc

Go To --:--.

2 Use the numeric pad to enter the start time.

To start play at a specific track time: 1 Press SEARCH twice. The screen displays

Track Go To --:--.

2 Use the numeric pad to enter the track time.

To play a DVD in slow motion: 1 Press SLOW. Each time you press SLOW,

the speed changes.

2 Press PLAY/ENTER to resume normal

playback.

Note

This feature does not work when playing audio or MP3 CDs.

Viewing DVD subtitles

You can select from up to 32 subtitle languages to view while watching a DVD. The number of languages available varies depending on what has been pre-recorded on the DVD.

To view DVD subtitles: 1 Press SUBTITLE.

The screen displays SUBTITLE 01/XX XXXXX.

• 01 is the number of this subtitle language.

• XX is the total number of available languages on the DVD.

• XXXXX indicates the language.

2 Press SUBTITLE again to view the next

available language.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

To start play at a specific track: 1 Press SEARCH three times. The screen

displays Track --/03.

2 Use the numeric pad to enter the track

number.

Using other disc features

Using your remote control you can use these other advanced features:

Feature Description

Angle Press ANGLE to view the scene from a

Audio Press AUDIO to change the audio mode.

Disc Call Press D.CALL to view information about

Disc Menu Press D.MENU to access the DVD root

Title Menu Press TITLE/PBC to display the title menu.

different camera angle. This feature is available only on pre-recorded DVDs with multiple camera angles.

You can select from:

• Mono Left

• Mono Right

•Mix-Mono

•Stereo

the DVD that is currently playing. You can view:

•Title Elapsed

• Title Remaining

• Chapter Elapsed

• Chapter Remaining

• Display off

menu. This feature is available only on pre-recorded DVDs with a multi-layer menu.

Use the numeric pad to select an item.

Playing JPEG discs

The JPEG (.jpg) format is a method of storing images in a small amount of memory space and is ideal for archiving pictures.

A JPEG disc contains JPEG format pictures that can be displayed on your television screen. You can save files from a scanner or digital camera in the JPEG format, record these on a CD-R disc and present them to an audience through this player.

Caution

To avoid damage to the picture tube while watching static video pictures, turn on the screen saver on the General Setup Page.

Navigating the disc

When you insert a disc containing standard JPEG picture files into the player, a navigation menu is automatically displayed.

Playing an MP3 disc

When playing an MP3 disc, a navigation menu is automatically displayed.

To play an MP3 disc: 1 Press the UP or DOWN cursor buttons to

choose the folder.

2 Press PLAY/ENTER to enter the folder. 3 Press the UP and DOWN cursor buttons to

select the file.

4 Press PLAY/ENTER to play the file. 5 Press the following buttons to control the

music:

Press To

PREVIOUS or NEXT Skip tracks forward and

backward.

The left cursor button Go to the previous screen or

menu.

Notes about playing an MPEG-4 disc

• The MPEG-4 discs available on the market have many different formats, such as XVID, AVI, DIVX, and RM. Some discs with the MPEG4 logo are not encoded using MPEG technology. It is normal that some of these discs can't be played well in this player because of the incorrect encoding standard.

• The MPEG-4 discs available on the market now have many different types of subtitles. It is normal that some of the subtitles cannot be read using this player.

• WMA format is supported as a single audio file or associated with a DivX5 or Xvid video file.

• GMC is supported with DivX5 files, but not with Xvid files.

Using the DVD system setup menu

To use the DVD system setup menu: 1 Press SETUP on remote control or television.

2 Press or to select a submenu. 3 Press to go to the submenu. 4 Press or to select the setting. 5 Press PLAY/ENTER to confirm the setting. 6 Press SETUP repeatedly to exit the setup

menu.

To play a JPEG disc: 1 Press the UP or DOWN cursor buttons to

select a file.

2 Press PLAY/ENTER. The slide show starts. 3 Press the following buttons to control the

slide show:

Press To

PREVIOUS or NEXT Move between pictures.

PAUSE Stop on the current picture. PLAY/ENTER Resume normal play.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

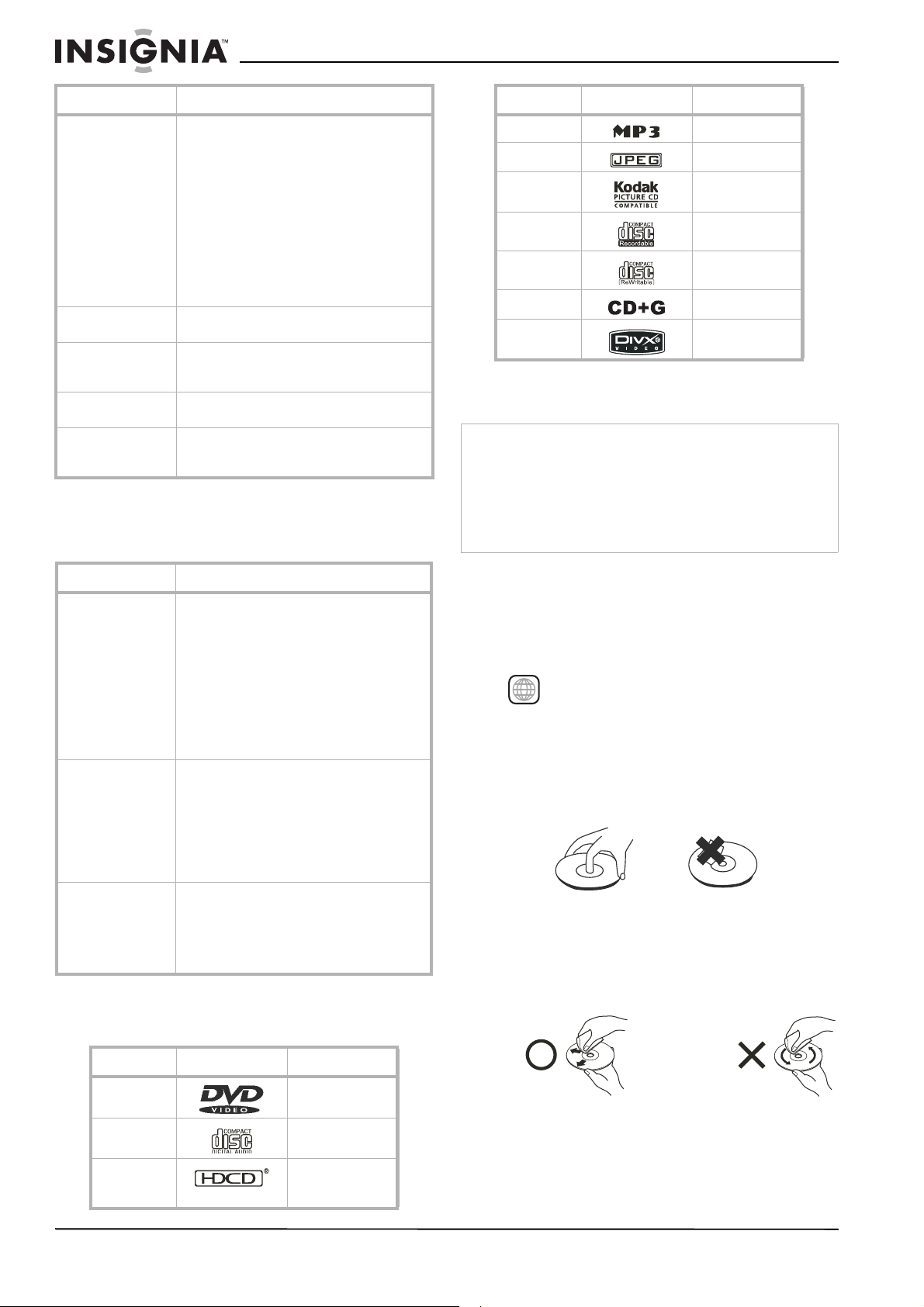

General Setup menu Preference menu

This menu is available only when there is no disc

Value Description

TV Display This function applies only when the DVD

output is connected to an external television. You can select from the following:

• 4:3/PS (Pan and Scan)—Select if you

have a normal aspect ratio (4:3) television. In PS mode, widescreen material fills the screen but at the expense of chopping off the extreme left and right edges of the original picture. For this feature to work, the disc must support Pan and Scan.

• 4:3/LB (Letter Box)—Select if you

have a normal aspect ratio (4:3) television. Widescreen material is shown in pure unaltered form, allowing the entire picture area of the original film to be viewed without any side cropping. Black bars appear above and below the picture.

• 16:9—Select if you have a

widescreen (16:9) television. Black bars may still appear above and below the picture even if using a widescreen television. This is because some film directors prefer to use ultra widescreen aspect ratios such as

2.35:1. This is normally indicated on the DVD packaging.

Angle Mark This function lets you select a particular

camera angle when playing a DVD which offers multiple camera angle. You can set this item to ON or OFF.

OSD LANG This function lets you select the on-screen

display language.

SPDIF Output This function sets the audio outputs. This

DVD player includes three types of audio output:

• SPDIF OFF—An analog surround

sound format is output through the back-panel connections for 2-channel audio out or 5.1-channel audio out.

• SPDIF/RAW or SPDIF/PCM—This

surround sound format is output to a Dolby Digital/DTS decoder through the coaxial connector on the back panel.

Caption This function allows you to display or hide

the DVD caption.

Screen Saver This function turns on an animated picture

anytime the DVD player is idle for more than three minutes.

HDCD This function lets you select the type of

HDCD playback, 44.1K or 88.2K.

Last Memory This function allows you to continue play

from the last point you were watching before you press STOP.

in the player. These settings are applied to all discs that are played.

Value Description

Parental This function works in conjunction with the

Password This function lets you change the password

Default This function resets all settings (except

Playable discs

The following 8 cm and 12 cm discs can be played in this DVD player:

Disc Label Contents

DVD Video Audio and video

Audio CD Audio

HDCD Audio

MP3 Audio

JPEG Video (picture)

Kodak CD

CD-R Audio or video

CD-RW Audio or video

CD+G Audio (picture)

DIVX Audio + video

The DVD player supports DVD, VCD, CD-R, CD-RW, SVCD, DVCD, HDCD, JPEG, CD+G, DIVX, Kodak CD, and WMA.

various censorship classes assigned to DVDs. These classes help to control the types of DVDs that children watch. There are up to eight classes for DVDs.

To change this setting, you must enter your password. This initial password is 1234.

When Parental is set to OFF, any disc may be played.

by entering four digits. You must confirm the four digits before the new password is accepted.

If you forget your password, or a password is accidentally set, enter 1369 as the password.

password and parental lock status) for the DVD player back to the manufacturer’s original settings. Press ENTER to perform the reset.

(moving picture)

[

Video (picture)

(moving picture)

Note

You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they have one

with one of the above labels. The performance of CD-R or CD-RW discs depends on the

way the disc was recorded. In a few cases, their performance may not be consistent or they may not play.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

This DVD player is designed an manufactured according to the Region Management Information that is recorded on the DVD. If the region number described on the DVD does not correspond to the Region number on this DVD player, this DVD player will not play the disc.

The region number of this DVD player is .

Protecting discs

Handling discs

• Do not touch the disc’s playback side.

• Do not attach paper or tape to the disc.

Cleaning discs

• Fingerprints and dust on the disc can cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvent such as thinner benzine, commercially available cleaners, or antistatic spray for vinyl. These products may damage the disc.

Storing discs

• Do not store discs in a place subject to direct sunlight or near a heat source.

• Do not store discs in a place subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their cases may cause warping.

Maintaining your television

To prevent fire or shock hazard, disconnect your television from AC power when cleaning. The finish on your television may be cleaned with a dust cloth and cared for as you do your other furniture. Use caution when cleaning and wiping plastic parts. Mild soap and a soft, damp cloth may be used.

Troubleshooting

The most common types of television interference are as follows:

Problem Solution

Snowy picture • VHF/UHF: This is

Double image or ghosts • VHF/UHF: This is

Radio wave interference • VHF/UHF: This is

High temperature electrothermal interference

No picture or sound. • Make sure that your

Poor or no picture • Make sure that the

usually caused by a weak signal. Adjust the antenna or install an antenna amplifier.

usually caused by reflections from a tall building. Adjust the direction of the antenna or raise it.

usually caused by nearby radio transmitters or shortwave receiving equipment.

•VHF/UHF: This is usually caused by high temperature electrothermal equipment in a nearby business.

television is turned on.

• Make sure that your television is plugged in.

color, brightness, and sharpness controls are correctly adjusted.

• Check for local interference.

• Make sure that the antenna or CATV connector is connected correctly.

• The station or cable provider may be experiencing problems. Try a different channel.

www.insignia-products.com

Insignia NS-13CTV TV/DVD Combo

Problem Solution

Poor or no sound • Make sure that the

Remote control does not work • Make sure that you

No television signal • Make sure that the

Picture lacks color or picture is too dark

All channels lose color intermittently or there is snow

Poor reception or loss of color with certain channels.

Picture wobbles or drifts • The station or cable

volume control is not turned down.

• Make sure that the mute is not turned on.

• Check for local interference.

• Make sure that the antenna or CATV connector is connected correctly.

• The station or cable provider may be experiencing problems. Try a different channel.

are aiming the remote control at the remote control receiver.

• Make sure that you are within 16 feet of your television.

• Make sure that batteries are installed correctly.

• Make sure that no bright lights are striking the receiver window in your television or remote control.

• Make sure that no obstacles are between your television and remote control.

antenna is tightly connected.

• Make sure that the color, brightness, and sharpness controls are correctly adjusted.

• Make sure that the antenna is connected.

• Make sure that the antenna is not broken.

• Make sure that channels are correctly tuned. You may need to fine tune these channels.

provider may be experiencing problems. Try a different channel.

• The cable channel may be scrambled. Contact you cable provider for a cable box.

• Check for local interference.

Problem Solution

No cable reception • Check all cable

connections.

•Set TV/CATV to CATV.

• Contact your cable provider regarding possible service interruption.

No reception above channel 13 • Set TV/CATV to

CATV.

Television shuts off • Set the Sleep Timer

to 0.

• Clear the Off Timer.

Closed captioning is not working • Make sure that the

antenna or CATV connector is connected correctly.

• The station or cable provider may be experiencing problems. Try a different channel.

• Press the CCD button.

Parental control is not working • Parental control does

not work with news or sporting events.

• Make sure that the ratings are set correctly.

Specifications

Design and specifications are subject to change without notice. Dimensions quoted in this guide are approximate.

Color system NTSC Sound system M Picture tube 13 inch (33 cm) color picture tube Sound output 2x2 W (10% THD) Power requirements AC 120 V 60 Hz Power consumption 70 W Dimensions 14.0 x 14.4 x 14.2 inches

(35.5 x 36.7 x 36.2 cm)

Accessories Remote control

User’s guide AA batteries

www.insignia-products.com

+ 33 hidden pages
