INGENICO L3000NCL User Manual

Page 1

Lane/3000 Desk/1500

User Guide

www.ingenico.com

28-32, boulevard de Grenelle, 75015 Paris - Fra nce / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingeni co - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre

Page 2

Lane/3000

Ingenico

Contents

6 9

Introduction

Unpacking

Recommendations

3_1

3_2

(tampering attempt detection)

Safety

Security of your terminal

3_3 Main Characteristics

3_3_1

Standard version

3_3_2

Dual Head version with 40° pinshield & Touch

3_3_3

Power characteristics

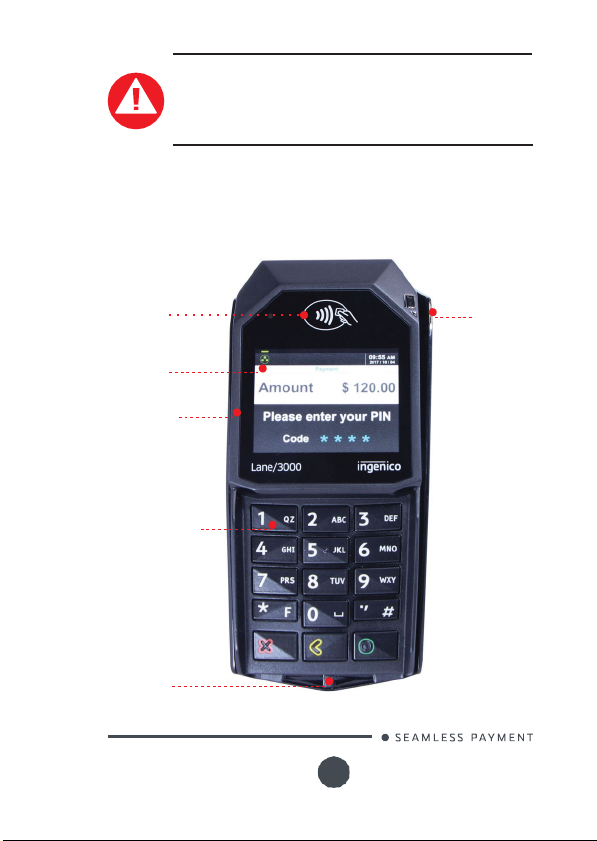

3_4

Functional description

3_5

Installation & Connections

3_5_1

Positionning the terminal

3_5_2 Inserting SAM (Secure access module)

and Micro SD

3_5_3

Connecting the terminal to the host

3_5_4

Setting the Lane/3000 or Desk/1500

on the standpole adaptor

3_6

Wireless Connectivity

3_6_1

Wi-Fi

3_6_2

Bluetooth

900033034 R11 000 06/0619

Page 3

Lane/3000

Ingenico

Daily use

4_1 Card reading

4_1_1 Swiping a card

4_1_2 Inserting a smart card

4_1_3 Reading a contactless card

4_2 Signature capture (Option) 4_3 Audio (Option)

5_Maintenance

5_1 Cleaning

5_1_1

Cleaning of the terminal

5_1_2 Entretien

5_1_3 Wartung von Endgeräten

5_2

Transport and storage

5_3

Troubleshooting

du terminal

6_Cables

7_Norms & Marking

7_1 Federal Communications

Commission (FCC) Statement

7_2

Warning to users in Japan

7_3 Industry Canada (IC) Statement

7_4 Environment (WEEE, Batteries and

Packaging)

7_5

Marking

900033034 R11 000 06/0619

Page 4

Lane/3000

Ingenico

Introduction

Thank you for choosing an Ingenico payment terminal.

We recommend you to read carefully this user guide: it gives you the necessary information about safety precautions, unpacking, installation and maintenance of your terminal.

WARRANTY /

To benefit from the guarantee-related product, and to respect the security, we ask you to use only the power supply delivered in box with the product, entrusting maintenance operations only to an authorized person. Failure to comply with these instructions will void the manufacturer’s responsibility.

SECURITY

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

Unless otherwise indicated, all information in this guide applies to modular terminals (Lane/3000 & Desk/1500) and nonmodular terminals (Lane/3000 N & Desk/1500 N)

References to Lane/3000 and Desk/1500 implicitly refer to Lane/3000 N and Desk/1500 N

900033034 R11 000 06/0619

Page 5

Lane/3000

Ingenico

2_Unpacking

According to the model, the following items are included in the packaging box (including optional accessories):

The terminal

The box may also include the following items depending on your working configuration:

An installation guide

Cable (specific to connectivity requireme nts)

Power supply unit and power cord

A stylus

Modules

Screws to fix the main cable and the module

CAUTION

The power supply unit provided with your equipment is specially designed for it. Do not use any other power supply.

ADVICE

Keep the packaging. terminal

shipped.

must be re-used whenever the

This is the standard version.

Other versions are also available without touchscreen, with Dual Head Magnetic stripe reader and or a 40° Pinshield.

900033034 R11 000 06/0619

Page 6

Lane/3000

Ingenico

3_Recommendations

3_1

Safety

Power on/Power down - Emergenc y stop

To power on or power down the terminal, connect or disconnect the power supply from the electric outlet.

Power supply unit

CAUTION

Only use the power supply AC/DC provided with terminal or the power provided by a cash register limited power source (LPS). The power sources (AC/DC adapter and USB power source) must comply with Standards IEC60950-1:2013 Edition 2.2 and EN60950-1:2006 + A11/2009 + A1/2010 +A12/2011 + A2:2013 or IEC 62368-1 Moreover, they should be Safety Extra-Low Voltage circuits and Power Limited Sources according to clauses 2.2 and

2.5 of these standards They must be classified ES1 and PS2 according to standard IEC62368-1

CAUTION Lithium battery cell

The terminal accessible to the user. Only a qualified technician authorized to open the unit and change this component. Risk type. Dispose of used battery according to the instructions.

of explosion if the battery is replaced by an incorrect

fitted with a

lithium

battery cell which is

not

Electrical power supply network

The electrical outlet must meet the following criteri a:

• Must be installed near the equipment and easily accessible;

•

Must meet standards and regulations in the country of use.

900033034 R11 000 06/0619

Page 7

Lane/3000

Ingenico

Explosion areas

Some regulations restrict the use of radio equipment in chemical plants, fuel depots and any site where blasting may occur. You are urged to comply with these regulations. The terminal shall be protected by a specially fitted and certified cover enabling use in proximity to a fuel pump.

Connection of headset

on audio jack

CAUTION

An excessive acoustic pressure of headset can involve deafness!

3_2

Security of your terminal

(tampering attempt detection)

Your device Upon receipt of your terminal you should check for signs of tampering of the equipment. It performed regularly after receipt. You should check, for example: that the keypad that have been connected to any ports on your terminal or associated equipment, the chip card reader or any other part of your terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and other suspicious behaviour of individuals that have access to your terminal. Your terminal detects any “tampered state”. In will repeatedly flash the message” Alert Irruption!” and further use of the terminal will not be possible. If you observe the “Alert Irruption!” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. The terminal must never be put in or left at a location where it could be stolen or replaced by another device.

fulfils

current applicable PCI PTS security requirements.

strongly advised that these checks are

is firmly

in place; that there

no evidence of unusual wires

this

state the terminal

Warranty label (On the bottom side of the terminal)

900033034 R11 000 06/0619

Page 8

Lane/3000

Ingenico

Weight

(Poids, Gewicht)

Size (dimensions, Maße)

Display

WARNING

the warranty label is torn or removed, the warranty

be void.

CAUTION

Positioning of the Lane/3000 or Desk/1500 on check stand must be in such a way to make cardholder PIN (Personal Identification Number) spying infeasible. Installing device on an adjustable stand must be in such a way that consumers can swivel the terminal sideways and/ or tilt it forwards/backwards to a position that makes visual observation of the PIN-entry process difficult. Positioning of in-store security cameras such that the PINentry keypad is not visible. NEVER ask the customer to divulge their PIN Code. Customers should be advised to ensure that they are not being overlooked when entering their PIN Code.

CAUTION

This equipment may not be modified, altered or changed in any way without signed written permission from Ingenico

3_3

3_3_1

Main Characteristics

Standard version

254g (8.95 oz)

180.2 (L) x 83.2 (W) x 43 (H) mm

2.8” backlit LCD, QVGA (800 x 4 80 pixels)

will

900033034 R11 000 06/0619

Page 9

Lane/3000

Ingenico

Weight

(Poids, Gewicht)

Size (dimensions, Maße)

Display

Touchscreen

3_3_2

Dual Head version with 40° pinshield

& Touch

276g (9.73 oz)

180.2 (L) x 85.1 (W) x 48.5 (H) mm

2.8” backlit LCD, QVGA (800 x 4 80 pixels)

Capacitive

Operating conditi ons

Ambient temperature

Max relative humidity

Max altitude

Storage conditions

Storage temperature

Max relative humidity

Power supply units

3_3_3

from 0°C to +40°C (External power supply) from 0°C to +45°C (Other)

85% RH non-condensing at +40°C

2000 m

-20°C, +55°C

85% at +55°C

Power characteristics

The Lane/3000 terminal can be powered by several ways:

•

An external power s upply unit (modular & non modular)limited to PS2 type

•

By USB (5VDC or 12VDC) (modular & non modular) limited to PS2 type

•

By POE (Power over Ethernet) (modular)

The characteristics for each type of power supply are detailed hereafter.

900033034 R11 000 06/0619

Page 10

Lane/3000

Ingenico

Power supply unit

PSC16E/A/S-080L6

Class 0

Output voltage

Product

Power Supplies

Input voltage

Output voltage

POE (IEEE 802.3af)

USB power

No Modular Modul ar

PSC 16E/A/K-080

AC 100-240V 50-60H z AC 100-240V 50-60H z

DC 8V 2A (+/- 5%) DC 8V 2A (+/- 5%)

PSC16E/A/S-080L6

No applicable

DC 5V 0.5A

DC 12V 2A

WARNING

The power supply unit provided with your equipment is specially designed for this Ingenico terminal. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal.

DC 5V 0.5A

DC 12V 2A

DC 48V 1.3W

AVERTISSEMENT

Dans le cas où vous choisiriez d’utiliser un bloc alimentation, assurez-vous de été conçu spécialement pour votre terminal. N’utilisez pa d’autre bloc d’alimentation. L’emploi d’un bloc d’alimentation présentant des caractéristiques apparemment similaires de tension/intensité peut endommager votre terminal.

900033034 R11 000 06/0619

n’utiliser que le bloc d’alimentation qui

a s

Page 11

Lane/3000

Ingenico

WARNHINWEIS

Nur das Netzteil, das speziell für Ihr Gerät ausgelegt wurde, benutzen. Benutzen Sie kein anderes Netzteil. Die Benutzung eines Netzgeräts mit scheinbar ähnlicher Spannung/ Stromstärke kann zur Beschädigung Ihres Terminals führen.

Please note that when powered in 5V some features are deactivated to save as much power as possible: Wifi / Bluetooth, Audio Speaker & Jack, Camera or Biometric reader.

3_4

Functional description

Contactless Reader

2.8" TFT Display

Touchscreen (optional)

15 keys keypad (19 keys when no Touchscreen)

Smartcard Reader

Magnetic

stripe

Reader

900033034 R11 000 06/0619

Page 12

Lane/3000

Ingenico

3_5

Installation & Connections

3_5_1

Positioning the terminal

Place the terminal with an easy access to an electrical outlet. Place the terminal away from any heat source and protected from dust, vibrations and electromagnetic radiations (away from video terminals, PC, anti-shoplifting barriers...). The terminal indoor use. The Lane/3000 & Desk/1500 device may be mounted on a flat surface, wall, or customer stand.

The Lane/3000 or Desk/1500 device must be at least 30 centimeters (12 inches) away from an electronically active type of security tag deactivation pad.

CAUTION

Do not place the Lane/3000 or Desk/1500 device on a PC monitor, adjacent to an electronically active security tag deactivation system, or near other sources of magnetic fields.

An electronically active system sends out a powerful and potentially disruptive signal to deactivate the security tag. If the

Lane/3000 or Desk/1500 device pad, or placed above the pad, the product may not work properly.

A passive system send out a signal. Desk/1500 device.

a permanent magnet type that does not

This

type should not affect the Lane/3000 or

placed too close to the system’s

exclusively made for

3_5_2 Inserting SAM (Secure access module)

Perform the following operations: For Modular version, Lane/3000 and Desk/1500

and Micro SD

CAUTION

Before starting, switch off the terminal by disconnecting the power supply.

Unscrew the module and remove it

Access to SAM and Micro SD

now possible.

900033034 R11 000 06/0619

Page 13

Lane/3000

Ingenico

The SAM need to be inserted on the reverse side of the module

900033034 R11 000 06/0619

Page 14

Lane/3000

Ingenico

Insert the SAM Card into the slot marked (1), (2) or (3) by sliding it. Take care to ensure that the SAM Card is inserted in the correct manner. The cut corner must be positioned as indicated on the figure below.

The Micro SD is located on the side of the module as shown this drawing:

Slide back the module inside the terminal and screw it tight

900033034 R11 000 06/0619

Page 15

Lane/3000

Ingenico

For Non Modular version, Lane/3000 N and Desk/1500 N, there is no Micro SD and only one SAM (option).

To insert the SAM, remove the SAM door

Then slide the SAM in the reader :

900033034 R11 000 06/0619

Page 16

Lane/3000

Ingenico

CAUTION

Do not use any tools when installing or removing the SAM Card or Micro SD.

WARNING

During this operation, it is necessary to be in an ESD protected environment. As this is not very easy, it is recommended to make this operation using ESD shoes for example.

3_5_3

CAUTION

Connecting plugged

Connecting the terminal to the host

must be made when power supply unit is not

the cable.

Flip the terminal. There is one port on the back for power and communications.

Connect the cable on the terminal. Connect the other end to the power supply unit and a Host (PC / cash register…). Plug the power supply into the mains.

900033034 R11 000 06/0619

Page 17

Lane/3000

Ingenico

WARNING

The main port at the back must not be used to connect an video cable. Only connect cables provided by Ingenico.

Note

: 2 screws can be added (M2.5 x 8) to hold more

to the terminal.

3_5_4

Setting the Lane/3000 or Desk/1500

on the standpole adaptor

firmly

the cable

Install the terminal on a flat surface or Desk/1500 as is. It The specific pattern by Ingenico Desk/1500.

To fit the Lane/3000 or Desk/1500 to the stand pole adaptor, it only requires to slide down the terminal until a click sound:

900033034 R11 000 06/0619

designed to be fitted on a standpole adaptor.

not possible on the Lane/3000

also available on the Lane/3000 or

Page 18

Lane/3000

Ingenico

The Lane/3000 or Desk/1500 is now ready to use:

Click!

900033034 R11 000 06/0619

Page 19

Lane/3000

Ingenico

3_6

Standard compliance

Radio transfer rate

From 1 Mbit/s to 135 Mbit/s

Range & Output power

Home security

Enterprise security

Wireless Connectivity

3_6_1

Wi-Fi

Wifi and Bluetooth connectivity are optional and available only on modular version terminal. This feature is useful for wireless network avoiding the cabling task.

Feature

Chipset

Dualband : 2.4 GHz and 5 GHz Wi-Fi

Marvell 88W8782

802.11 a/b/g/n, SISO, 2.4GHz and 5GHz, HT20&HT40

connect

your terminal to the IP

Feature

Chipset

Standard compliance

Profile

Radio transfer rate

Number of supported links on

SPP

Range

Antenna gain

Tune up information

900033034 R11 000 06/0619

Indoor : 70m typical, mini 100m in free sight / 200mW

WPA, WPA2

EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAPv0, EAP-SIM

3_6_2

Bluetooth

Bluetooth V2.0

BC08, CSR8811 http://www.csr.com/sites/default/files/csr8811.pdf

Bluetooth 4.0 (Frequency : 2.4Ghz) Bluetooth 4.2 pl anned on roadmap

(Frequency : 2.4 Gz)

SPP - A2DP - Other profi le to be analyzed on request

1 Mbit/s - 3Mbit/ s (EDR)

1 open link t o PCL

4 reserved for perpherals (barcode, printer, ... )

Bluetooth Class 2 - max 10m in free sight

0 dBi

+2dBm +2dBm/-4dBm

Page 20

Lane/3000

Ingenico

Daily use

4_1 Card reading

4_1_1 Swiping a card

Insert the card manually in the reader, magnetic stripe facing the main body of the terminal, and slide the card from the rear to the front in a continuous motion for best results.

Swipe the card with constant speed, neither too slowly nor too fast, to maximize the reading efficiency and avoid annoying repetitions.

4_1_2 Inserting a smart card

Chip cards should terminal as illustrated with the chip facing up and into the card reader.

inserted into

4_1_3 Reading a contactless card

Bring the card to the active zone above the contactless logo (at about 1cm).

Keep the card close to the contactless logo during the transaction.

Your contactless terminal have four contactless status lights displayed ont he screen.

your

When a contactless transaction light

will

lit

steadily;

but a card When a contactless card

during a transaction the second, lit lit

900033034 R11 000 06/0619

not being read.

in turn. The card read

and a confirmation tone can be heard.

this

started the

indicates that the contactless

presented to the contactless active zone

third

successful when all

first

(left hand) status

and fourth status lights

four

status lights are

is in

will

use

Page 21

Lane/3000

Ingenico

CAUTION

Do not stick any label onto the contactless active zone. It can decrease seriously contactless efficiency.

CAUTION

Avoid metallic parts around the contactless area.

4_2 Signature capture (Option)

This is an option

Signature is available on the touchscreen.

4_3 Audio (Option)

A speaker is available there is also an Audio jack. When a headset is plugged in, there is no more sound from the speaker.

The audio jack is This

option is not designed to play music, but to facilitate

the use by blind people. The jack is 3.5mm, 32 ohms impedance.

located next to the card reader.

900033034 R11 000 06/0619

Page 22

Lane/3000

Ingenico

5_Maintenance

5_1 Cleaning

5_1_1 Cleaning of the terminal

CAUTION

Before making any operations of maintenance in the terminal, make sure that the power supply is disconnected.

First of all, unplug all the wires from the terminal. Good rules for proper cleaning of the terminal are:

5_1_2

ATTENTION

Assurez-vous que tous les câbles sont bien débranchés du terminal avant toute intervention de maintenance sur le terminal.

Avant tout, débranchez tous les câbles du terminal. Pour bien nettoyer le terminal :

Use Ingenico Cl cleaningcards.com/

Do not clean the electrical connections. Do not use in any case, solvents, detergents or abrasive products:

Those materials might damage the plastic or electrical contacts.

Avoid exposing the terminal to the direct rays of the sun.

Do not put anything into the slot of the smart card reader

Entretien du terminal

eaning

kit : http://

Utilisez les kits de nettoyage Ingenico : http://www. ingenico.cleaningcards.com/

Ne nettoyez pas les connexions électriques.

N’utilisez jamais de solvants, de détergents, d’alcool ou de produits abrasifs :

Evitez d’exposer le terminal aux rayons directs du soleil.

N’insérez rien dans la fente du lecteur de carte.

Ces produits peuvent endommager le plastique ou les contacts électriques.

www.ingenico

900033034 R11 000 06/0619

Page 23

Lane/3000

Ingenico

5_1_3 Wartung von Endgeräten

ACHTUNG

Stellen Sie vor jeglicher Wartungsarbeit an dem Terminal sicher, dass die Stromversorgung unterbrochen ist

Als erstes alle Kabel vom Terminal trennen. Regeln für eine ordnungsgemässe Reinigung des Terminals :

Für die Außenseite des Terminals, Ingenico Cleaning kits benutzen: http://www.ingenico.cleaningcards.com/

Keine elektrischen Anschlüsse reinigen. Auf keinen Fall Lösungsmittel, Waschmittel oder Scheuermittel verwenden:

Das Terminal keiner direkten Sonneneinstrahl ung aussetzen.

Nichts in den Schlitz des Chipkartenlesers einführen.

CAUTION

Before making any operations of maintenance in the terminal, make sure that the power supply is disconnected.

5_2

Transport and storage

Use the original packaging for storage or returning the unit. Disconnect all cables from the terminal during the transport.

5_3

Troubleshooting

Device is not w orking

Make sure that the Lane/3000 or Desk/1500 connector inserted into the back of the device.

Restart the device.

If you have another working Lane/3000 or Desk/1500 device, swap the devices to determi ne if the problem is with the device, cable, POS, or power supply.

the Lane/3000 or Desk/1500 device

host, reset the host by

diese Mittel können den Kunststoff oder elektrische Kontakte beschädigen.

turning it

is directly

off and back on again.

connected to a

is fully

900033034 R11 000 06/0619

Page 24

Lane/3000

Ingenico

Magnetic Card Reader Does Not W ork Properly

When sliding the card through the reader, make sure that the magnetic stripe on the card Desk/1500 display screen (see Swiping a Magnetic Stripe Card).

Swipe the card at a faster or middle steady speed.

Inspect the magnetic stripe on the card to make sure scratched or badly worn.

Security tag deactivation system could disturb the magnetic card reader

To determine if the problem is with the card :

a. If

the card there.

device, try swiping the card there.

Smart Card Reader Does Not Work Properly

Make sure you have inserted correctly the smart card into the smart card reader and removed the card only after the transaction

MicroSD Card Reader Does Not W ork Properly

Make sure you have inserted correctly the microSD card into the card reader.

Check that the card capacity

Touchscreen / Signature Capture Does Not Work Properly

Make sure you use the correct power supply.

Replace the stylus

your host device has a magnetic stripe reader,

b. If you have another working Lane/3000 or Desk/1500

WARNING

Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

not higher than 32GB.

facing the Lane/3000 or

it is

not

try

swiping

900033034 R11 000 06/0619

Page 25

Lane/3000

Ingenico

6_Cables

12 V

Connector for terminal

The terminal can be connected to the host by several ways, with optional cables :

Most of the cables used with iSC and iPP ranges are compatible with the Lane/3000 or Desk/1500. We advise to check with your reseller their compatibility replace an iSC480 / ISC Desk/1500.

Following are some ex amples of accessories that can be used to connect the Lane/3000 or Desk/1500. This list is not exhaustive. Please contact your reseller for more information.

Connector for termi nal Power supply unit

High speed USB device Ethernet

RS232

RS232 cable (optional)

250 / ISC Touch

USB cable (optional)

References : 296111170AC (length 2m)

250 by a Lane/3000 o

Power supply unit

RS232 connector

you plan to

Connector for terminal

900033034 R11 000 06/0619

USB powered 12V cable (optional)

Special USB shielded cable

USB connector

Page 26

Lane/3000

Ingenico

Ethernet cable (optional)

Connector for terminal

Power supply unit

Ethernet connector

7_Norms & Marking

7_1 Federal Communications

Commission (FCC) Statement

15.21 You are cautioned that changes or modifications not

expressly approved by the part responsible for compliance could void the user’s

15.105(b) Thi s

the

limits FCC rules. These protection against harmful interference installation. frequency energy and, with the instructions, may cause harmful interference to radio communications. However, there will

not occur harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user encouraged to following measures :

15.19 (a) (3) This device complies with Part 15 of the FCC

Rules. Operation is subject

This device may not cause harmful interference and

This device must accept any interference received, including

interference that may cause undesired operation of the device.

The device complies with

general population (uncontrolled exposure). This device must not be collocated or operating in conjunction with any other antenna or transmitter.

authority to operate the equipment.

equipment has been tested and found to comply with

for a Class B digital device, pursuant to part 15 of the

limits

are designed to provide reasonable

This

equipment generates, uses and can radiate radio

not installed and used

a particular installation.

try

to correct the interference by one or more of the

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a that to which the

Consult the dealer or an experienced radio/TV technician for help.

receiver is

to the following two conditions:

FCC radiation exposure limits set forth for

no guarantee that interference

If this

connected.

a residential

accordance

equipment does cause

circuit different

from

900033034 R11 000 06/0619

Page 27

Lane/3000

Ingenico

7_2 Industry Canada (IC) Statement.

This

device complies with Industry Canada licence-exempt RSS

standard(s). Operation

1) this device may not cause interference, and

this device must accept any interference, including interference that

may cause undesired operation of the device.

Le présent appareil est conforme applicables aux appareils radio exempts de licence. L’exploitation es autorisée aux deux conditions suivantes:

1)l’appareil ne doit pas produire de brouillage, et

2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. “This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This device complies with ISED radiation exposure limits set forth for general population. This device must not be collocated or operating in conjunction with any other antenna or transmitter. Ce présent équipement est conforme aux limites d'exigences d'exposition RF. Cet équipement ne doit pas être installé à proximité ou être utilisé en conjonction avec un autre transmetteur ou antenne.

subject to the following two conditions:

aux CNR d’Industrie Canada

900033034 R11 000 06/0619

Page 28

Lane/3000

Ingenico

7_3

WARNING TO USERS IN JAPAN.

Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This

device

is and the Japanese Telecommunications Business Law ( ) This number

granted pursuant to the Japanese Radio Law (

device should not be modified (otherwise the granted designation

will

become invalid)

7_4 Environment (WEEE, Batteries and Packaging)

This product is labeled in accordance with European Directives 2012/19/EU concerning Waste Electrical and Electronic Equipment (WEEE) and 2006/66/EC concerning Batteries and Accumulators. Those provisions are requiring producers and manufacturers to become liable for take-back, treatment and recycling upon end of life of equipment and batteries.

Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE and batteries according to the local regulation of your country. Please contact your resellers for more detailed information about the compliance solution in place for disposing of your old product and used batteries.

Packaging waste must also be collected separately to assure a proper disposal and recycling.

Please note that proper recycling of the electrical and electronic equipment and waste batteries environment.

The associated symbol means that WEEE and waste batteries must not be thrown away but collected separately and recycled.

will

ensure safety of human health and

)

900033034 R11 000 06/0619

Page 29

Lane/3000

Ingenico

7_5

Marking

Below, you will find the different symbols used on the product and its power supply.

The CE marking is the manufacturer’s declaration that the product meets the requirements of the applicable EC directives. The CE mark is a mandatory conformity marking for certain products sold within the European Economic Area (EEA).

This TÜV symbol shows consumers at a glance that a product has been examined by neutral experts and that there are no safety concerns

The UL mark appears on end products and complete components suitable for factory and field installation. All of the products carrying these marks are covered by our Follow-Up Services program to determine that products continue to be manufactured in compliance with UL’s safety requirements.

The RCM mark compliance wit Media Authority’s (ACMA) regulatory arrangements fo telecommunications, radio, EMC and electromagnetic energy (EME).

will

be the only mark to indicate

h the Australian Co

mmunications an

The C-Tick is a the Australian Communications Media Authority (ACMA The C-Tick mark signifies that the labelled electroni device is compliant with applicable electromagnetic compatibility (EMC) requirements

Waste of Electrical and Electronic Equipment (WEEE) symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling. By separating this product from other household-type waste, the volume of waste sent to incinerators or landfills will be reduced and natural resources will thus be conserved.

900033034 R11 000 06/0619

n identification trademark registered t

o ).

Page 30

Lane/3000

Ingenico

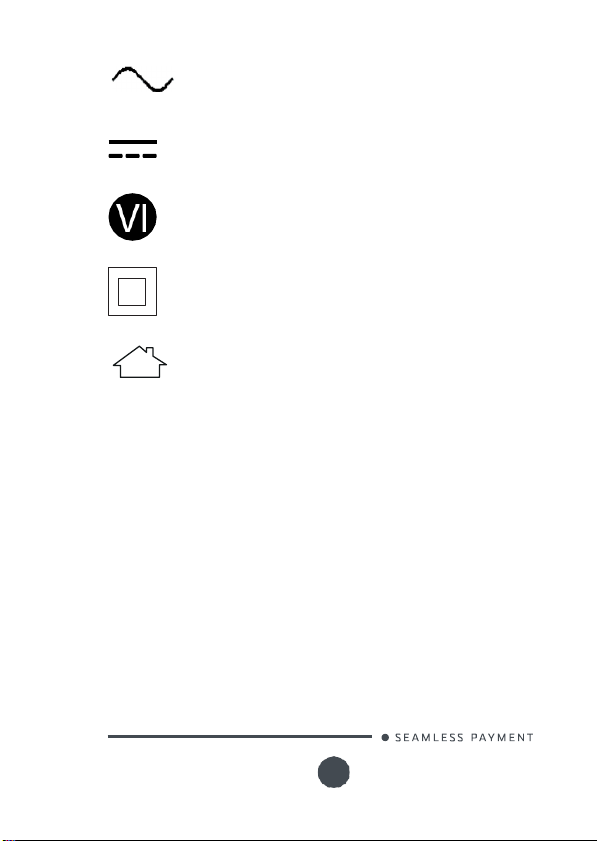

This logo indicates that the product operates with an alternative voltage. This symbol is followed by the

ratings (voltage and current for instance)

This logo indicates that the product operates with a

continuous voltage. This symbol is followed by the

ratings (voltage

and

current for instance)

Mark indicating a power supply meets the level VI requirements.

Double insulated or class 2 electrical appliances are products that have been designed in a way so as not to require a safety connection to electrical earth (These products must NOT have a safety connection to Earth).

Indoor use symbol.

900033034 R11 000 06/0619

Page 31

Lane/3000

Ingenico

NOTES

900033034 R11 000 06/0619

Page 32

Lane/3000 900033034 R11 000 06/0619

full contained in this document. The recipient can receive this document on the condition that he not use beforehand, without the prior written permission of INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of INGENICO. If the recipient ensures that any other recipient of this document, or information contained therein, confidentiality of that information.

Care has been taken to ensure that the content of this document is as accurate as possible. INGENICO however declines any responsibility for inaccurate, incomplete or outdated information. The contents of this document may change from time to time without prior notice, and do not create, specify, modify or replace any new or prior contractual obligations agreed upon in writing between INGENICO and the user.

INGENICO is not responsible for any use of this device, which would be non-consistent with the present document.

All trademarks used in this document remain the property of their rightful owners.”

will

its

contents in any form or by any means, except as agreed

such permission

keep the document confidential and

granted,

it will

be subject to the condition that

held responsible to INGENICO for the

Your contact

will

www.ingenico.com

28-32, boulevard de Grenelle, 75015 Paris - Fra nce / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingeni co - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre

INGENICO L3000NCL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
