Page 1
TOTAL SPEAKER SOLUTIONS
TSS-SAT800
Owner’s Guide
Page 2
TSS-SAT800 OWNER’S GUIDE
Table of Contents
3 Introduction
3 Included
3 Planning Your System
3 Placement
4 Wall-Mounting the Satellites
6 Connections
aintenance and Serv
6 M
7 Specifications
ice
2
TSS-SAT800
Page 3
®
®
®
INTRODUCTION
Left Rear
Channel
Left
Surround
Channel
Right
Surround
Channel
Right Rear
Channel
Center Rear
Channel
Left Front
Channel
Subwoofer
Right Front
Channel
Center
Channel
Couch
Left Rear
Channel
Left
S
urround
Channel
Right
Surround
Channel
Right Rear
Channel
Center Rear
Channel
L
eft Front
Channel
Subwoofer
R
ight Front
Channel
Center
C
hannel
Infinity Total Solutions
nfinity Total Solutions continues Infinity’s longstanding commitment
I
to accurate sound reproduction.Our high-quality drivers, precision
dividing networks and rigid,well-braced enclosures combine to deliver
uncompromised performance in any multichannel home theater system.
n addition, the TSS-SAT800 is magnetically shielded for safe place-
I
ment adjacent to a television.
™
INCLUDED
(1) Speaker (1) Adjustable (1) Fixed wall (1) Shelf stand with
wall bracket bracket two attachment screws
PLANNING YOUR SYSTEM
PLACEMENT
NOTE: The TSS-SAT800 can be placed directly on a shelf,
r mounted on a wall using the included wall bracket.
o
As Left and Right Front Channels
For left and right front channels,place one satellite to the left
and another to the right of the television,as shown in Figure 1.
Since the speakers are magnetically shielded,you can place
them very close to the TV without worrying about the magnetic
field distorting the picture.
As Surround Channels
For left and right surround channels, place one speaker on the
left and another on the right, to the side of or slightly behind the
listening area.The surround speakers should be mounted at a
height of between 5 ft. (1.5m) and 7 ft. (2m).
In 6- or 7-channel configurations,place the rear channel(s)
behind the listening position, as shown in Figures 1 and 2.
NOTE: An Infinity powered subwoofer will add impact and realism
to both music and film soundtracks.Contact your Infinity dealer
for recommendations on subwoofer models for your application.
Before deciding where to best place your speakers, survey your room and
study Figures 1 and 2.
igure 1.This overhead view shows a typical home theater plan.
F
Left/right rear channels are for a 7-channel system. Center rear
channel is f
or a 6-channel system.
Mounting on Floor Stands
An optional floor stand is available,should you prefer to place
your TSS-SAT800 satellites on the floor; see your dealer or visit
www.infinitysystems.com for more information.
keyhole on the back of the speaker to the screwhead on the
his f
T
e shows an alternate layout, which may be
igur
e 2.
igur
F
more suitable for some rooms. Left/right rear channels are
for a 7-channel system. Center rear channel is for a 6-channel system.
TSS-SAT800
3
Page 4

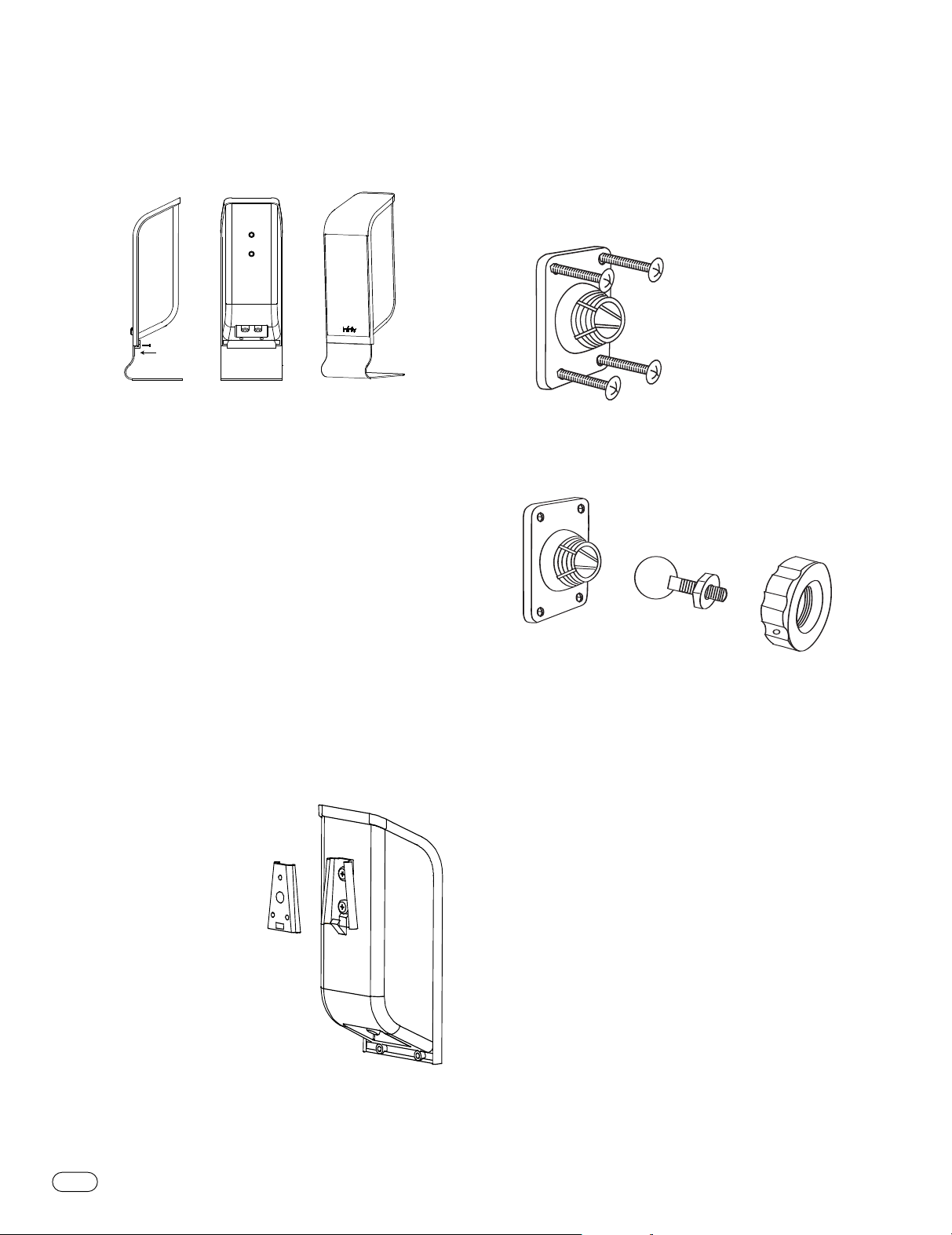

Using the Satellite on the Shelf Stand
®
A
B
C
To attach the satellite to the shelf stand, hold the satellite on top
of the stand and insert the two included screws through the rear
of the stand and into the rear of the speaker.
WALL-MOUNTING THE SATELLITES
Adjustable Wall Bracket
tep 1.
ark the positions on the wall where you would like to
S
M
place the mounting screws.
Step 2. Place the bracket against the wall and fasten four 1-1/2"
10 wood screws through the bracket’s screw holes into the
#
wall. If a wall stud is not available, use an appropriate anchor.
The TSS-SAT800 satellite is designed to be mounted on the
wall.There is a fixed-mount wall bracket and an adjustable wall
bracket provided for each satellite. Each speaker bracket will
require up to four 1-1/2"#10
be fastened to a wall stud. If a wall stud is unavailable, install an
anchor appropriate for a 1-1/2"
NOTE: The customer is responsible for the correct selection
and use of mounting hardware (available through hardware
stores) that will ensure the proper and safe wall-mounting of
the speakers.
Fixed-Mount Wall Bracket
Mark the positions on the wall where you would like to
Step 1.
place the mounting screws.
Step 2. Attach the back plate of the bracket to the wall using
ws (not inc
e
ee scr
thr
Step 3. Attach the front plate (with the spring tab) of the bracket
to the satellite using the two pr
Step 4. Slide the speaker with the
attached bracket front plate
onto the back plate of the
acket until the tab locks into
br
place.
luded).
wood screws; each screw should
#10 screw.
ews.
ided scr
v
o
St
ep 3.
ew round collar (C) from bracket (A).
Unscr
To remove the speaker
from the w
the locking tab and slide
the speaker up.
keyhole on the back of the speaker to the
screwhead on the wall. Once positioned
properly, the speaker should slide down slightly
and become secure.
all, simply push in
4
TSS-SAT800
Page 5

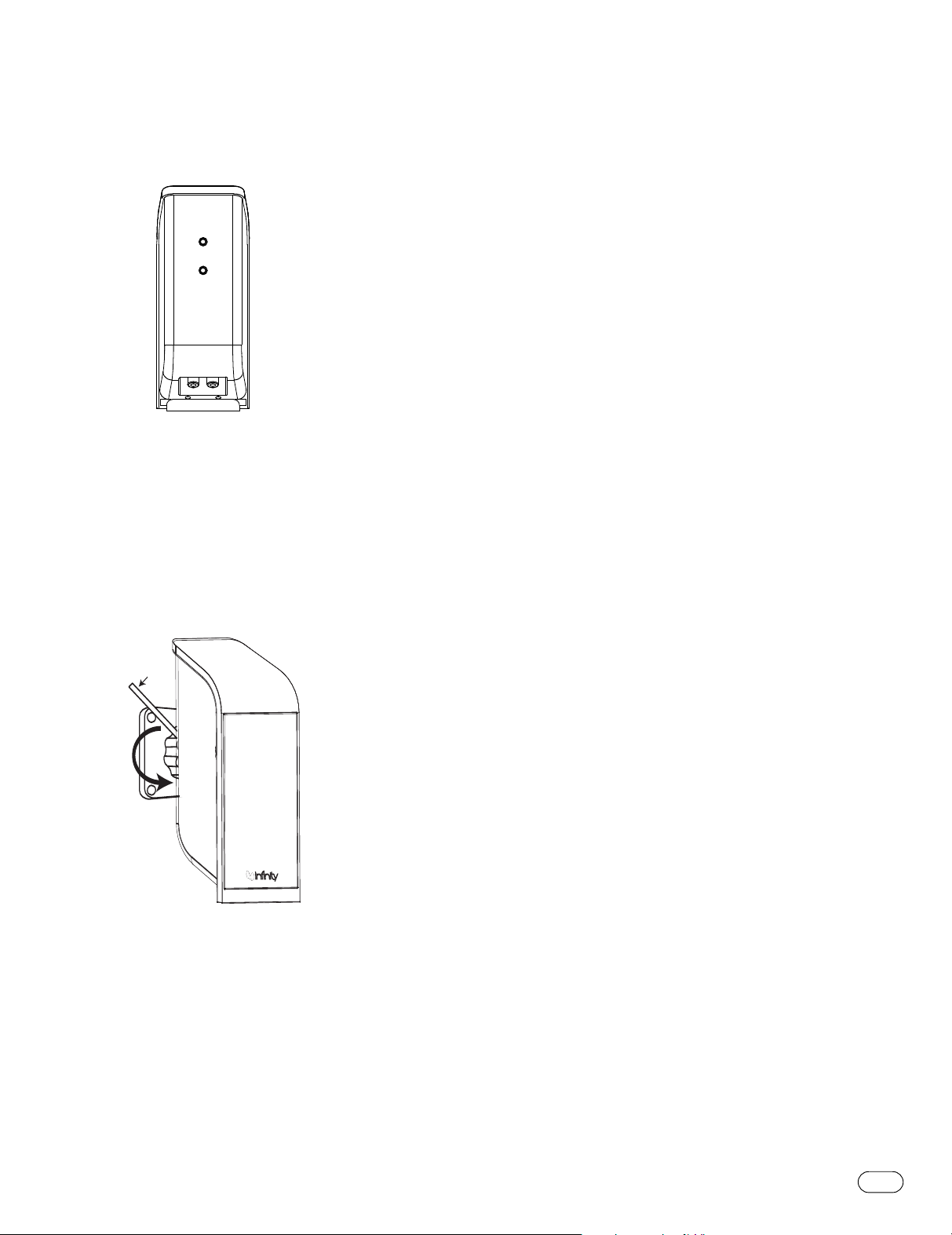

tep 4.Screw the ball and shaft assembly (B) to the lower 1/4"-
Metal bar
®
®
S
20 insert on the rear of the satellite.Back out 1/2 of a turn and
tighten the nut against the speaker.
Step 5. Attach the speaker wire as shown on page 6.
Step 6. Drop round collar (C) over ball and shaft assembly (B)
that is mounted to the speaker with the finished side of the
collar facing the rear of the speaker.
Step 7. Carefully push the ball straight into the socket mounted
on the wall, angle the speaker as desired and tighten the collar
using the enclosed metal bar.
Figure 3.Bracket on wall.
TSS-SAT800
5
Page 6
CONNECTIONS
fter placing the speakers,you are ready to connect your system.
A
First,turn off all audio-system power. Use high-quality speaker
ire to make your connections; #18-gauge speaker wire with
w
polarity coding is recommended.For longer distances, #16-
auge or heavier wire is recommended.The side of the wire with
g
a ridge or other coding is usually considered positive polarity
(i.e., +). Also, consult the owner’s manuals that were included
with your amplifier or receiver to confirm connection procedures.
Observe polarities when making speaker connections,as shown in
Figure 4.Connect each + terminal on the back of the amplifier or
receiver to the respective + (red) terminal on each speaker.
Connect the – (black) terminals in the same way.
Important!
Do not reverse polarities (i.e., + to –, or – to +) when making
connections. Doing so will cause poor imaging and diminished
bass response.Be certain that positive and negative wire strands
are completely isolated to avoid short circuits that may damage
your equipment.
MAINTENANCE AND SERVICE
he TSS-SAT800 enclosure may be cleaned using a soft cloth to
T
emove fingerprints or to wipe off dust.
r
All wiring connections should be inspected and cleaned or
remade periodically.The frequency of maintenance depends on
the metals involved in the connections, atmospheric conditions
and other factors,but once per year is the minimum.
If a problem occurs,make sure that all connections are properly
made and clean. If a problem exists in one loudspeaker,reverse
the connection wires to the left and right system.If the problem
remains in the same speaker, then the fault is with the loudspeaker. If the problem appears in the opposite speaker, the
cause is in another component or cable. In the event that your
TSS-SAT800 ever needs service,contact your local Infinity
dealer or distributor, or visit www.infinitysystems.com for a
service center near you.
6

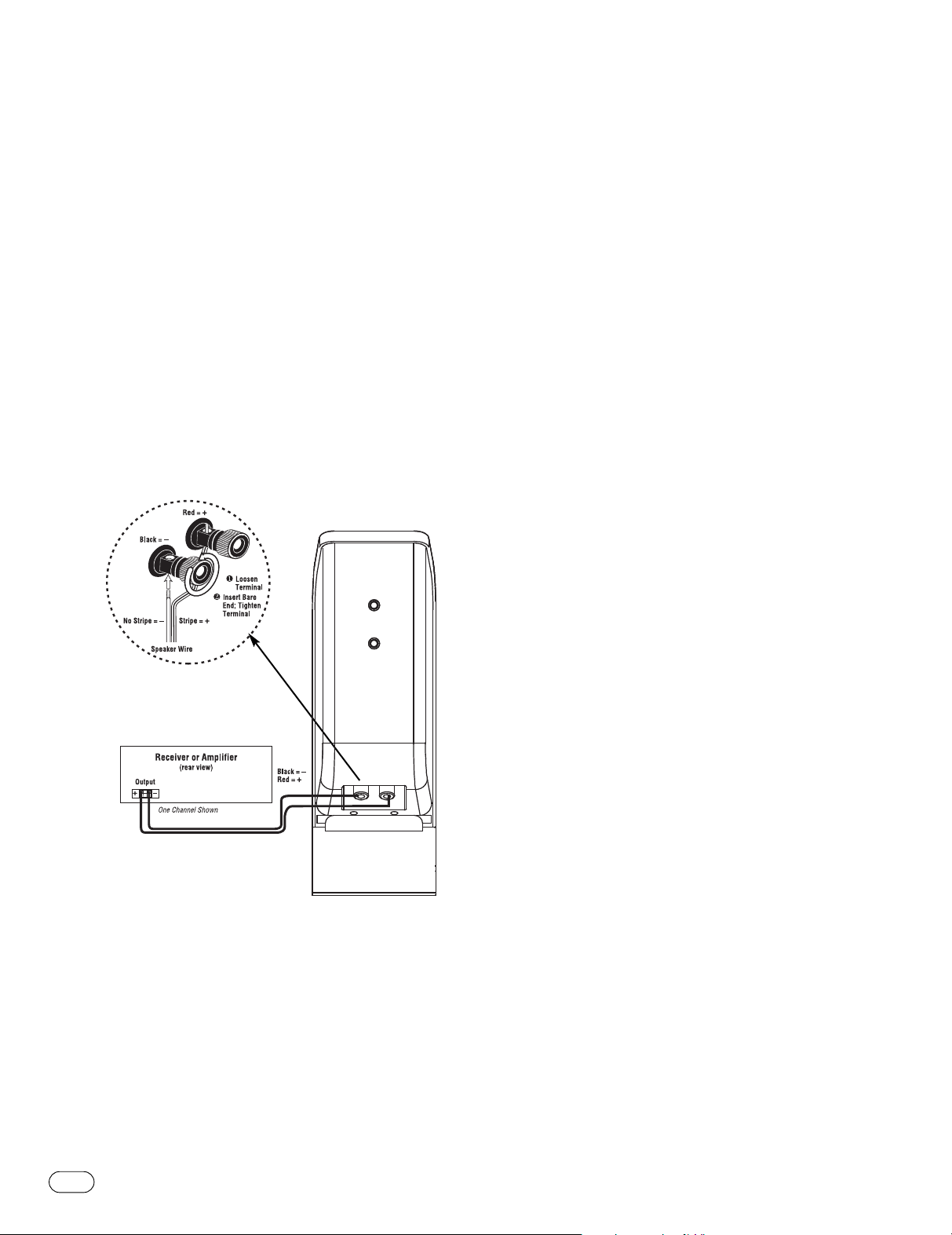

iring diagram shows polarity connections
e 4. W
igur
F
or one channel of a home theater system.
f
TSS-SAT800
Page 7
SPECIFICATIONS
TSS-SAT800
Frequency Range: 120Hz – 30,000Hz (±3dB)
ecommended
R
mplifier Power Range:
A
Sensitivity: 88dB
(2.83V @ 1 meter)
Nominal Impedance: 8Ω
Crossover Frequency: 3.5kHz;12dB/octave
0 – 100 Watts
1
Midrange Driver(s): 3-1/2" (64mm) MMD
®
magnetically shielded
High-Frequency Driver: 3/4" (19mm) MMD magnetically shielded
Dimensions (H x W x D): 9-1/8" x 3-3/4" x 2-3/4"
(232mm x 95mm x 70mm)
Weight: 2.5 lb (1.1kg)
Infinity continually strives to update and improve existing products, as well as
create new ones.The specifications and construction details in this and related
Infinity publications are therefore subject to change without notice.
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
7
2800 Château du Loir
France
declare in own responsibility that the product described
in this owner’s manual is in compliance with technical
s
tandards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Laurent Rault
Harman Consumer Group International
Château du Loir, France 2/06
TSS-SAT800
7
Page 8
© 2006 Harman International Industries, Incorporated.All rights reserved.
Infinity Systems, 250 Crossways Park Drive,Woodbury, NY 11797 USA www.infinitysystems.com
Infinity and Harman International are trademarks of Harman International Industries, Incorporated,registered in the United States and/or other countries.
Total Solutions is a trademark of Harman International Industries, Incorporated.
Dolby and Pro Logic are registered trademarks of Dolby Laboratories.
DTS is a registered trademark of DTS,Inc.
Part No. 406-000-05354-E 2/06
