TOTAL SPEAKER SOLUTIONS
TSS-SAT1200
Owner’s Guide
TSS-SAT1200 OM 7/27/06 4:44 PM Page 2
TSS-SAT1200 OWNER’S GUIDE
Table of Contents
3 Introduction
3 Included
3 Planning Your System
3 Placement
4 Wall-Mounting the Satellites
6 Connections
aintenance and Serv
6 M
7 Specifications
ice
2
TSS-SAT1200
®
®
Left Rear
Channel
Left
Surround
Channel
Right
Surround
Channel
Right Rear
Channel
Center Rear
Channel
Left Front
Channel
Subwoofer
Right Front
Channel
Center
Channel
Couch
Left Rear
Channel
Left
S
urround
Channel
Right
Surround
Channel
Right Rear
Channel
Center Rear
Channel
L
eft Front
Channel
Subwoofer
R
ight Front
Channel
Center
C
hannel
TSS-SAT1200 OM 7/27/06 4:44 PM Page 3
INTRODUCTION
Infinity Total Solutions
nfinity Total Solutions continues Infinity’s longstanding commitment
I
to accurate sound reproduction.Our high-quality drivers, precision
dividing networks and rigid,well-braced enclosures combine to deliver
uncompromised performance in any multichannel home theater system.
n addition, the TSS-SAT1200 is magnetically shielded for safe place-
I
ment adjacent to a television.
™
INCLUDED
(1) Speaker (1) Adjustable (1) Fixed wall
wall bracket bracket
PLANNING YOUR SYSTEM
Before deciding where to best place your speakers, survey your room and
study Figures 1 and 2.
PLACEMENT
NOTE: The TSS-SAT1200 can be placed directly on a shelf,
r mounted on a wall using the included wall brackets.
o
As Left and Right Front Channels
For left and right front channels,place one satellite to the left
and another to the right of the television,as shown in Figure 1.
Since the speakers are magnetically shielded,you can place
them very close to the TV without worrying about the magnetic
field distorting the picture.
As Surround Channels
For left and right surround channels, place one speaker on the
left and another on the right, to the side of or slightly behind the
listening area.The surround speakers should be mounted at a
height of between 5 ft. (1.5m) and 7 ft. (2m).
In 6- or 7-channel configurations,place the rear channel(s)
behind the listening position, as shown in Figures 1 and 2.
NOTE: An Infinity powered subwoofer will add impact and realism
to both music and film soundtracks.Contact your Infinity dealer
for recommendations on subwoofer models for your application.
Mounting on Floor Stands
An optional floor stand is available,should you prefer to place
your TSS-SAT1200 satellites on the floor; see your dealer or visit
www.infinitysystems.com for more information.
keyhole on the back of the speaker to the screwhead on the
igure 1.This overhead view shows a typical home theater plan.
F
Left/right rear channels are for a 7-channel system. Center rear
channel is f
Figure 2.
more suitable for some rooms. Left/right rear channels are
or a 6-channel system.
e shows an alternate layout, which may be
igur
his f
T
for a 7-channel system. Center rear channel is for a 6-channel system.
TSS-SAT1200
3
A
B
C
TSS-SAT1200 OM 7/27/06 4:44 PM Page 4
WALL-MOUNTING THE SATELLITES
SS-SAT1200 satellites are designed to also be mounted on the
T
wall.There is a fixed-mount wall bracket and an adjustable wall
bracket provided for each satellite. Each speaker bracket will
require up to four 1-1/2"#10
be fastened to a wall stud. If a wall stud is unavailable,install an
nchor appropriate for a 1-1/2"
a
IMPORTANT SAFETY NOTE: The customer is solely responsible
for proper selection of mounting hardware not included with the
peakers,and for proper assembly and installation of the wall
s
brackets,including but not limited to the selection of appropriate
eight-bearing supports and proper use of the bracket.Infinity
w
disclaims any liability for the selection of mounting hardware and/or
bracket installation.Be sure to follow these bracket assembly and
installation instructions carefully. If you have any questions or
doubts about your ability to correctly wall-mount the speakers,
consult with your authorized Infinity dealer or custom installer.
Fixed-Mount Wall Bracket
Remove the rear foot by loosening the screw on the
Step 1.
bottom of the satellite.ole
Step 2. Mark the positions on the wall where you would like to
place the mounting screws.
wood screws; each screw should
10 screw.
#
Adjustable Wall Bracket
Step 1.
Remove the rear foot by loosening the screw on the
bottom of the satellite.
Step 2. Mark the positions on the wall where you would like to
lace the mounting screws.
p
tep 3.Place bracket against the wall and fasten four 1-1/2"
S
#10 wood screws through the bracket’s screw holes into the
all. If a wall stud is not available, use an appropriate anchor.
w
St
ep 4.
ew round collar (C) from bracket (A).
Unscr
Step 3. Attach the back plate of the bracket to the wall using
three screws (not included).
Step 4. Attach the front plate
(with the spring tab) of the bracket to
the satellite, using the provided screws.
Step 5. Slide the satellite speaker
with attached bracket front plate
onto the back plate of the
bracket until the tab locks
into place.
e the speaker from
v
emo
o r
T
all, simply push in
the w
the locking tab and slide
the speaker up.
Once
back of the speaker to the scr
positioned proper
become secure.
ly,the speaker should slide down slightly and
whead on the w
e
all.
4
TSS-SAT1200
®
®
TSS-SAT1200 OM 7/27/06 4:44 PM Page 5
Step 5. Screw the ball and shaft assembly (B) to the lower 1/4"-
0 insert on the rear of the satellite,until it is fully seated. Back
2
out 1/2 of a turn and tighten the nut against the speaker. Securely
tightening this nut against the speaker enclosure is very important;
otherwise, performing Step 7 may dislodge the threaded
the speaker enclosure,rendering it unusable.
insert on
Step 6. Attach speaker wire as shown on page 7.
Step 7. Drop round collar (C) over ball and shaft assembly (B)
that is mounted to the speaker with the finished side of the collar
facing the rear of the speaker.
Step 8. Carefully push the ball straight into the socket mounted
on the wall, angle the speaker as desired and tighten the collar
using the enclosed metal bar.
Figure 3.Bracket on wall.
TSS-SAT1200
5
TSS-SAT1200 OM 7/27/06 4:44 PM Page 6
CONNECTIONS
fter placing the speakers,you are ready to connect your system.
A
First,turn off all audio system power. Use high-quality speaker
ire to make your connections; #18-gauge speaker wire with
w
polarity coding is recommended.For longer distances, #16-
auge or heavier wire is recommended.The side of the wire with
g
a ridge or other coding is usually considered positive polarity
(i.e., +). Also, consult the owner’s manuals that were included
with your amplifier or receiver to confirm connection procedures.
Observe polarities when making speaker connections,as shown in
Figure 4.Connect each + terminal on the back of the amplifier or
receiver to the respective + (red) terminal on each speaker.
Connect the – (black) terminals in the same way.
Important!
Do not reverse polarities (i.e., + to –, or – to +) when making
connections. Doing so will cause poor imaging and diminished
bass response.Be certain that positive and negative wire strands
are completely isolated to avoid short circuits that may damage
your equipment.
MAINTENANCE AND SERVICE
he TSS-SAT1200 enclosure may be cleaned using a soft cloth
T
o remove fingerprints or to wipe off dust.
t
All wiring connections should be inspected and cleaned or
remade periodically.The frequency of maintenance depends on
the metals involved in the connections, atmospheric conditions
and other factors,but once per year is the minimum.
If a problem occurs,make sure that all connections are properly
made and clean. If a problem exists in one loudspeaker,reverse
the connection wires to the left and right system.If the problem
remains in the same speaker, then the fault is with the loudspeaker. If the problem appears in the opposite speaker, the
cause is in another component or cable. In the event that your
TSS-SAT1200 ever needs service,contact your local Infinity
dealer or distributor, or visit www.infinitysystems.com for a
service center near you.
6

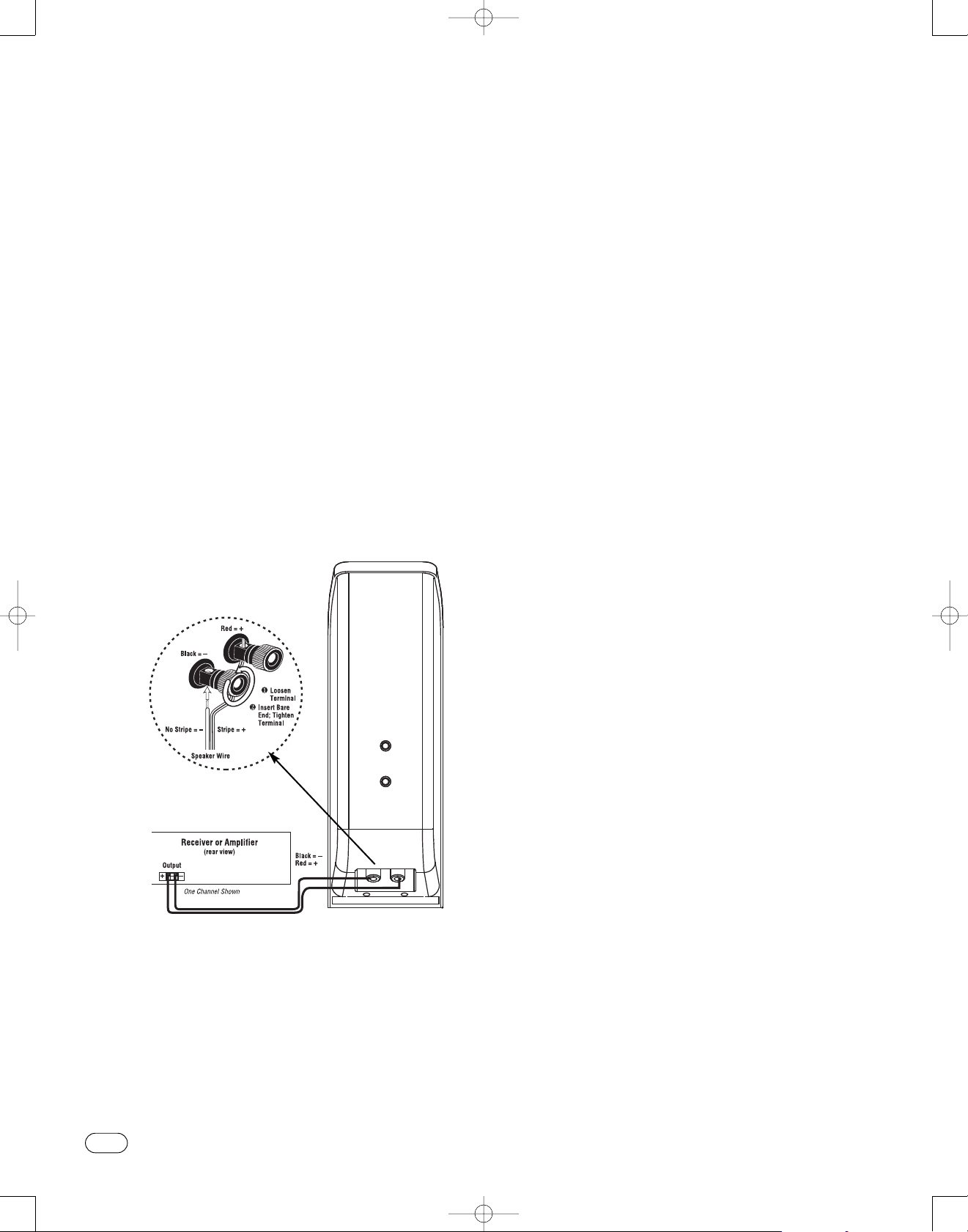

gram shows polarity connections
ing dia
ir
e 4. W
igur
F
or one channel of a home theater system (rear foot
f
not shown, for the sake of clarity).
TSS-SAT1200
TSS-SAT1200 OM 7/27/06 4:44 PM Page 7
SPECIFICATIONS
TSS-SAT1200
Frequency Range: 120Hz – 30,000Hz (±3dB)
ecommended
R
mplifier Power Range:
A
Sensitivity: 89dB
(2.83V @ 1 meter)
Nominal Impedance: 8Ω
Crossover Frequency: 3.5kHz;24dB/octave
0 – 125 Watts
1
Midrange Driver(s): Dual 3-1/2" (64mm) MMD
®
magnetically shielded
High-Frequency Driver: 3/4" (19mm) MMD magnetically shielded
Dimensions (H x W x D): 12-15/16" x 3-15/16" x 3"
(329mm x 100mm x 76mm)
Weight: 3.9 lb (1.8kg)
Infinity continually strives to update and improve existing products, as well as
create new ones.The specifications and construction details in this and related
Infinity publications are therefore subject to change without notice.
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
7
2500 Château du Loir
France
declare in own responsibility that the product described
in this owner’s manual is in compliance with technical
s
tandards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Laurent Rault
Harman Consumer Group International
Château du Loir, France 8/06
TSS-SAT1200
7
TSS-SAT1200 OM 7/27/06 4:44 PM Page b
© 2006 Harman International Industries, Incorporated. All rights reserved.
Infinity Systems, 250 Crossways Park Drive,Woodbury, NY 11797 USA www.infinitysystems.com
Infinity,Harman International and MMD are trademarks of Harman International Industries, Incorporated,registered in the United States and/or other countries.
Total Solutions is a trademark of Harman International Industries, Incorporated.
Part No. 406-000-05483-E 8/06
