Infinity TS-300 User Manual
page
Infinity TS-300 Profile Engine V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 200001
Firmware Version 1.01
MANUAL
ENGLISH
1
Ordercode: 200001
TS-300 Profile Engine
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Optional accessories.................................................................................................................................................... 8
Overview ........................................................................................................................................................................ 9

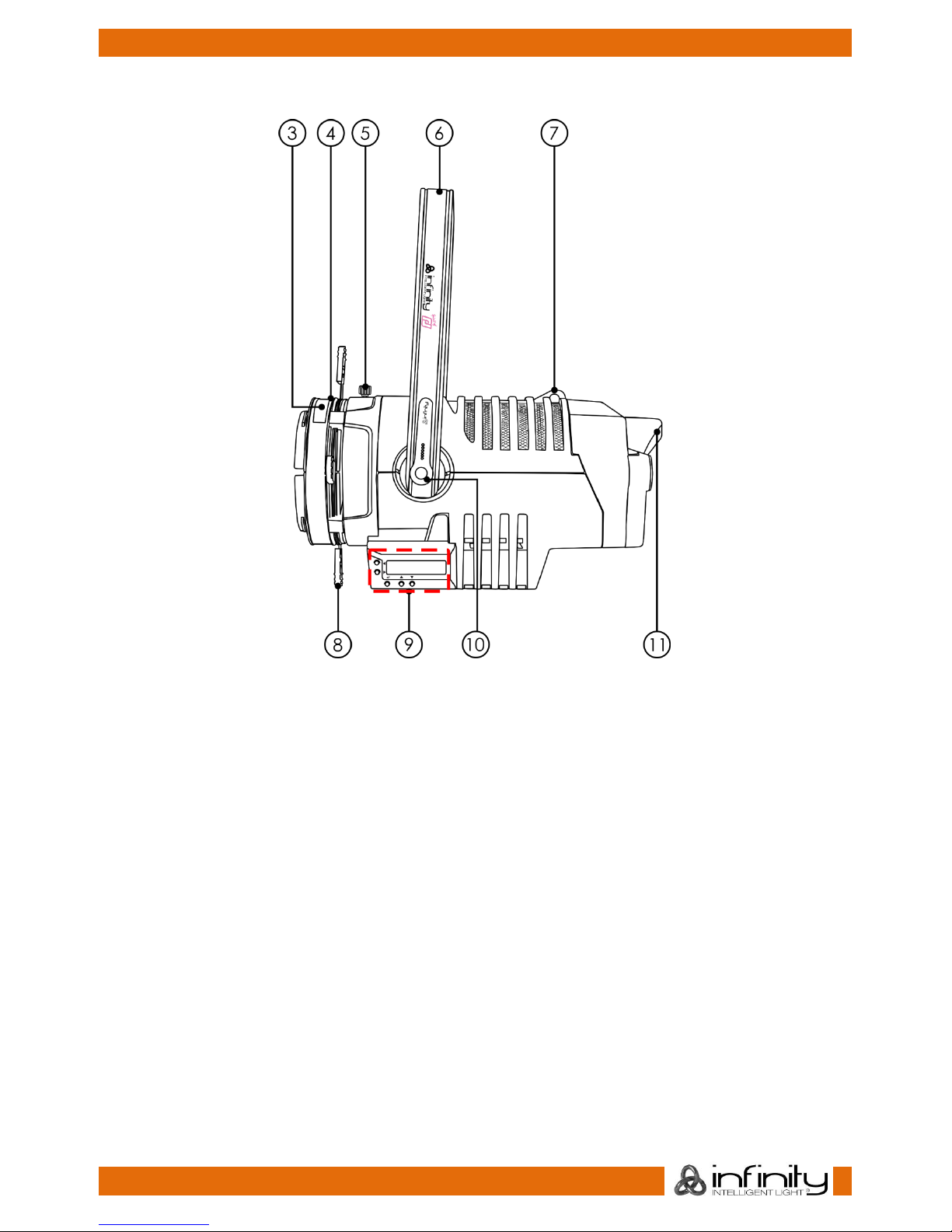

Side ................................................................................................................................................................................10

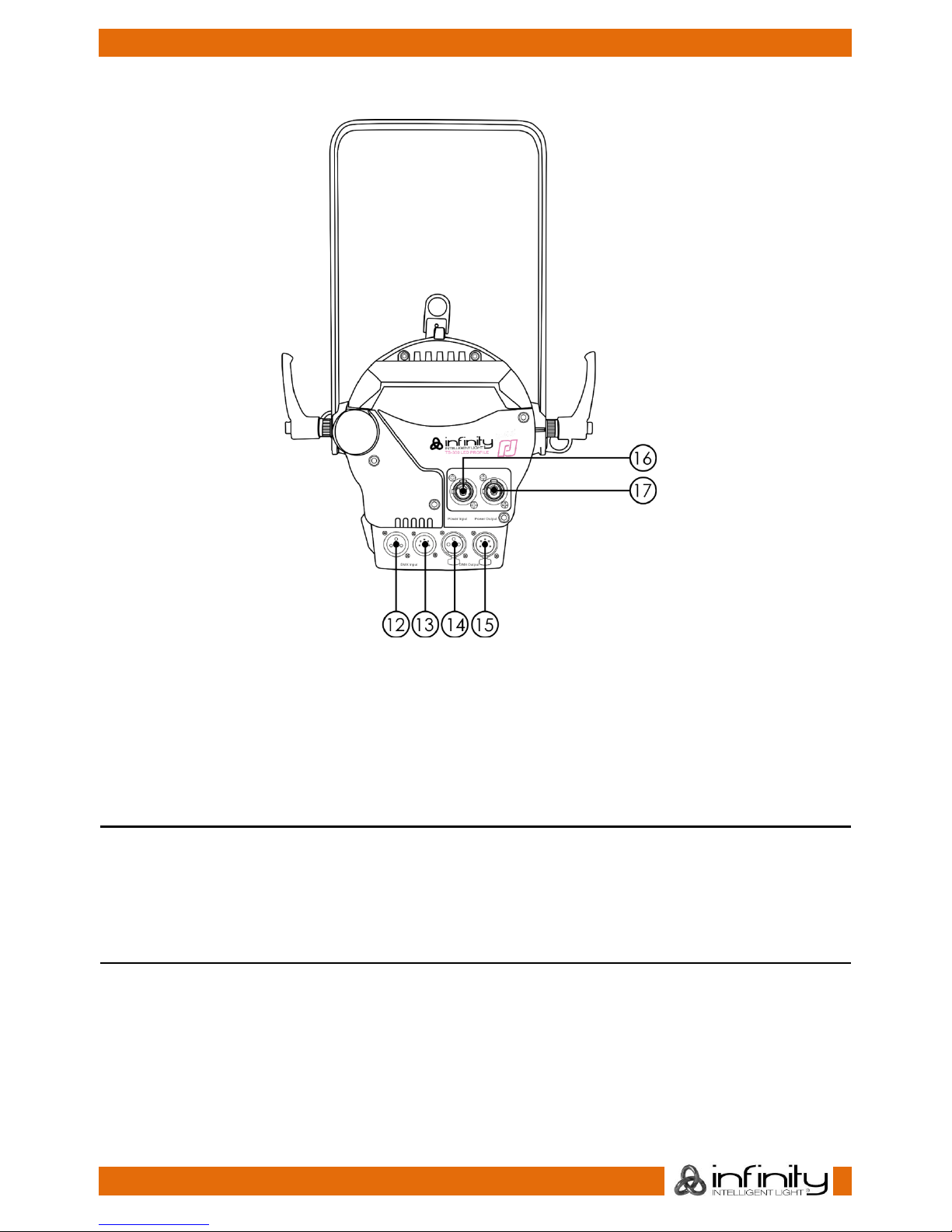

Backside .......................................................................................................................................................................11
Installation .........................................................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11

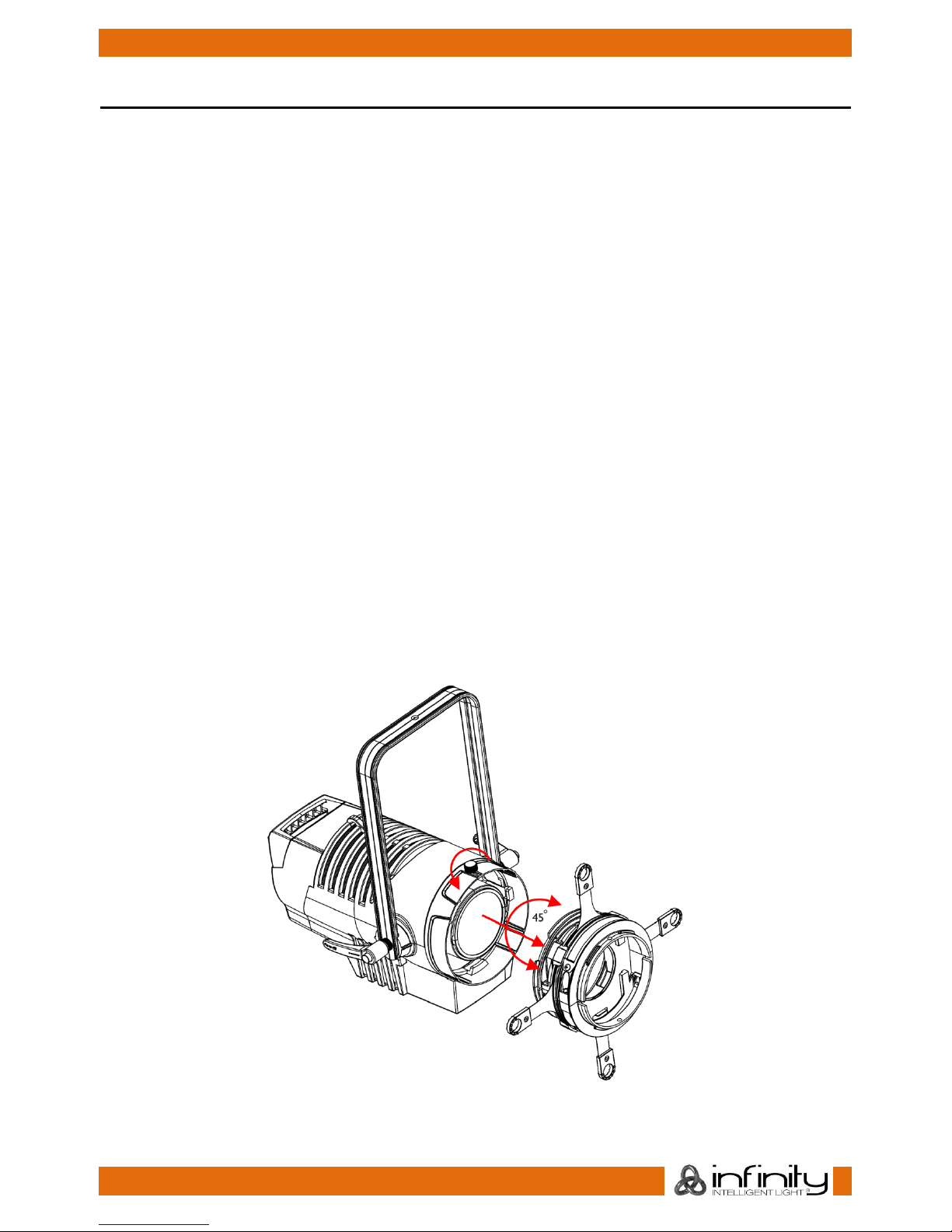

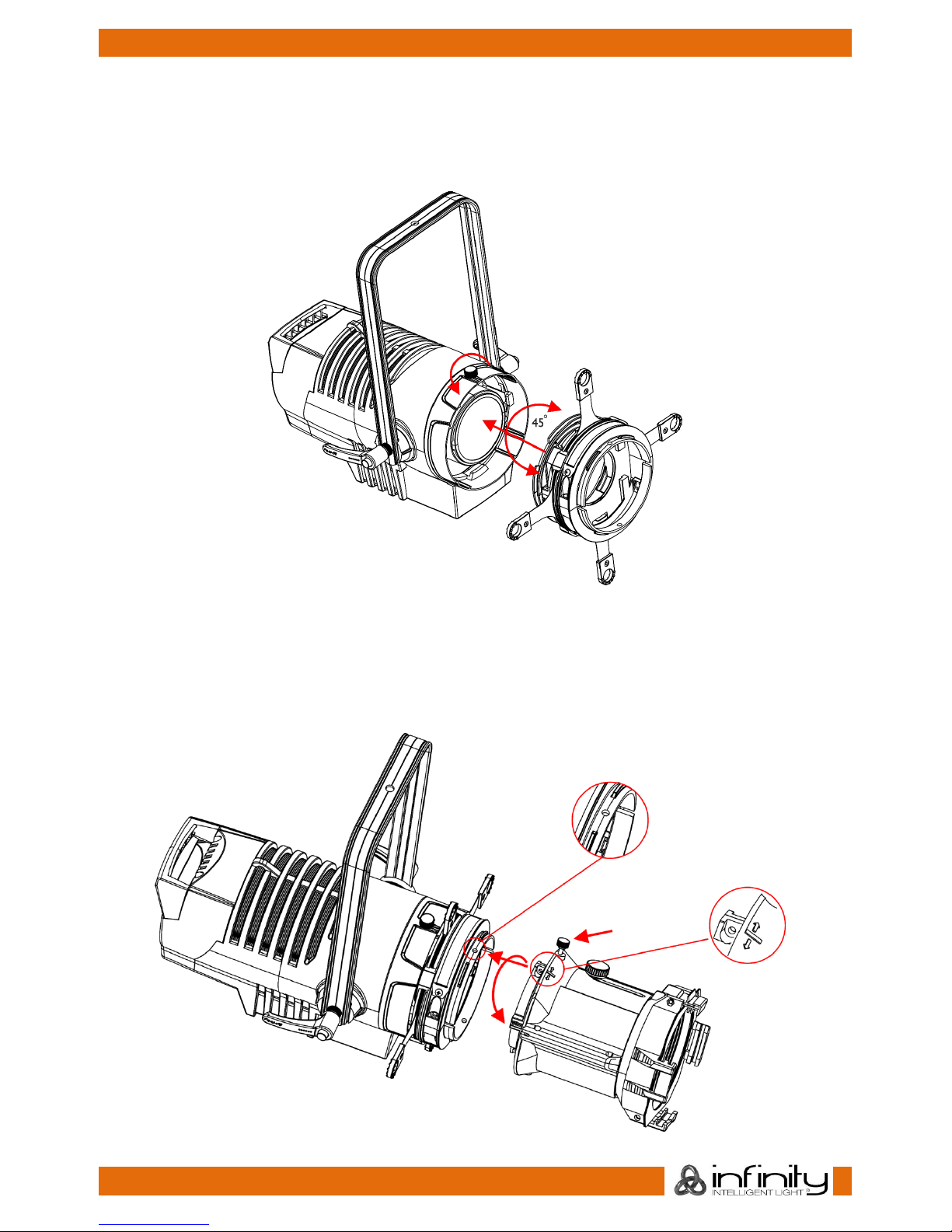

Installing shutter assembly .........................................................................................................................................12
Installing fixed lens tube .............................................................................................................................................12
Using the fixed lens tube ............................................................................................................................................13

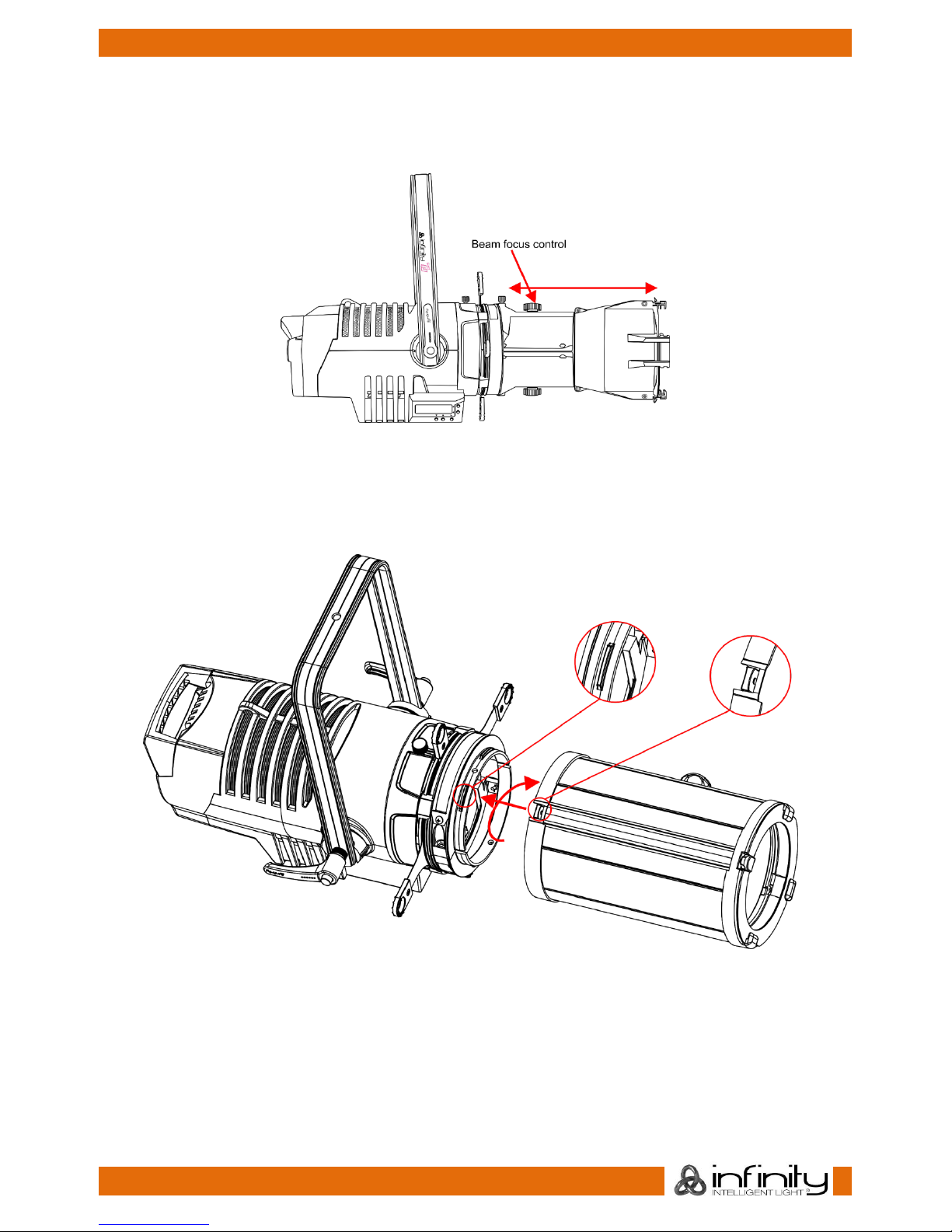

Installing zoom lens tube ...........................................................................................................................................13

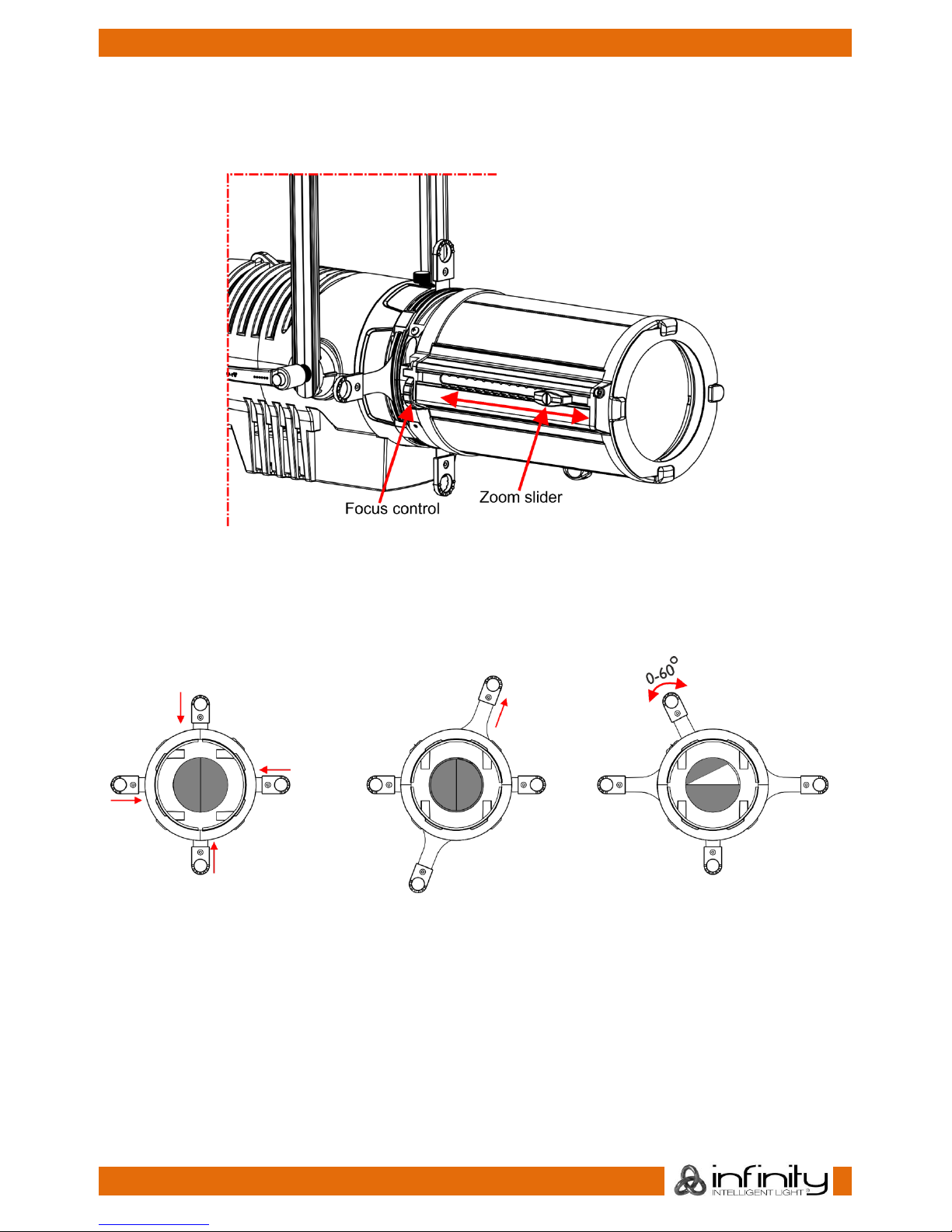

Using the zoom lens tube ..........................................................................................................................................14

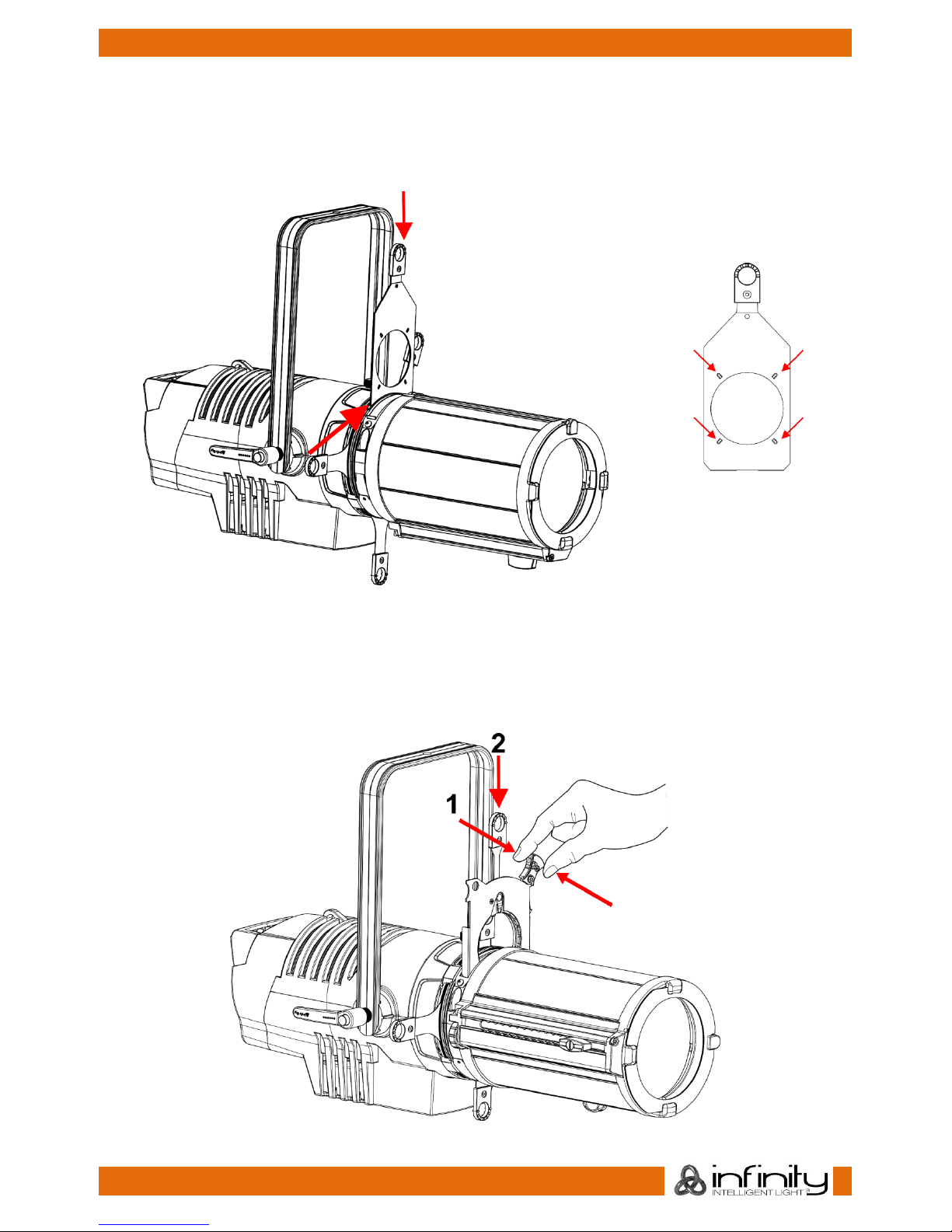

Adjusting shutters ........................................................................................................................................................14
Installing gobo holder ................................................................................................................................................15
Installing iris ...................................................................................................................................................................15
Control Modes .............................................................................................................................................................16
One Profile Engine (Manual control) ...................................................................................................................16
Multiple Profile Engines (DMX Control) ................................................................................................................16
Fixture Linking ...............................................................................................................................................................17

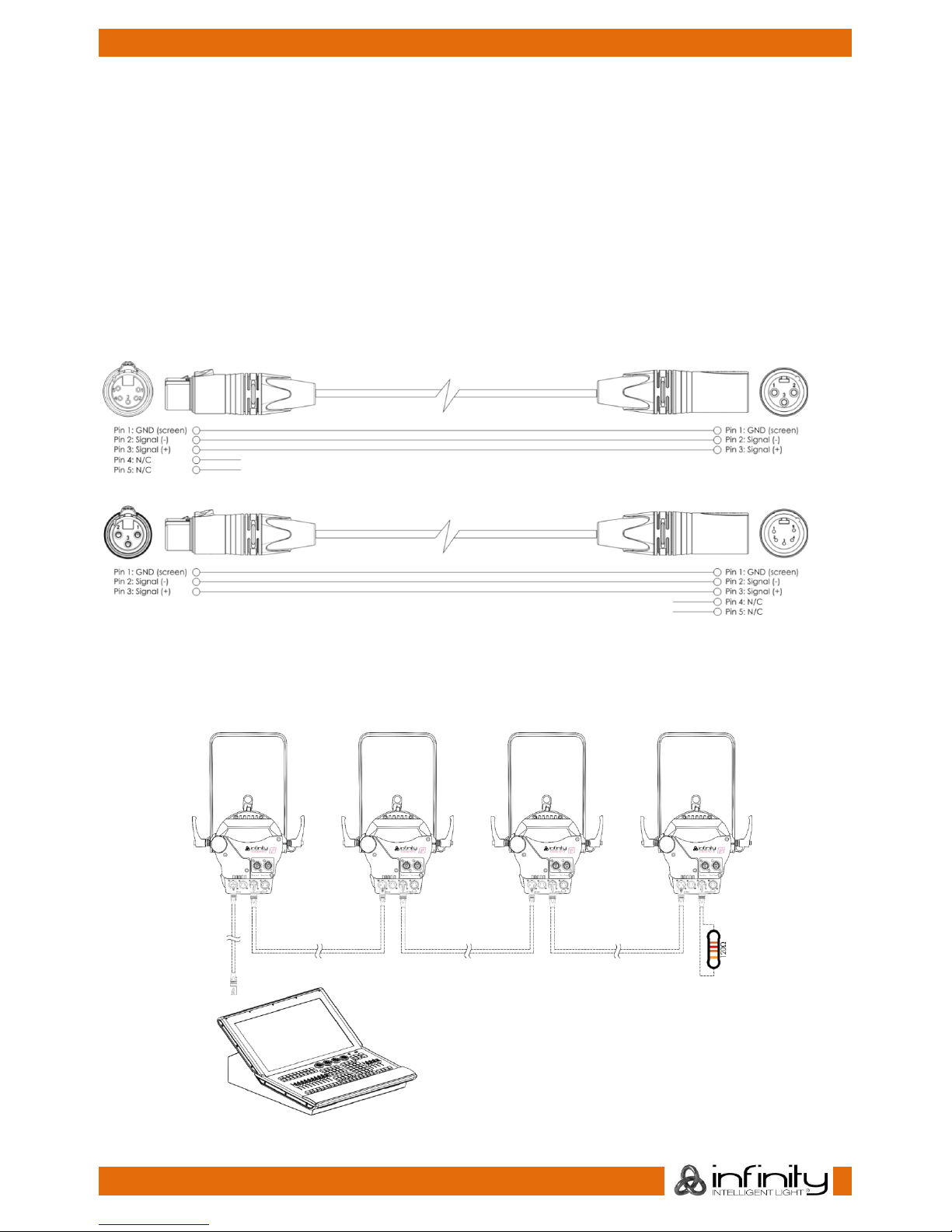

Data Cabling ...............................................................................................................................................................17

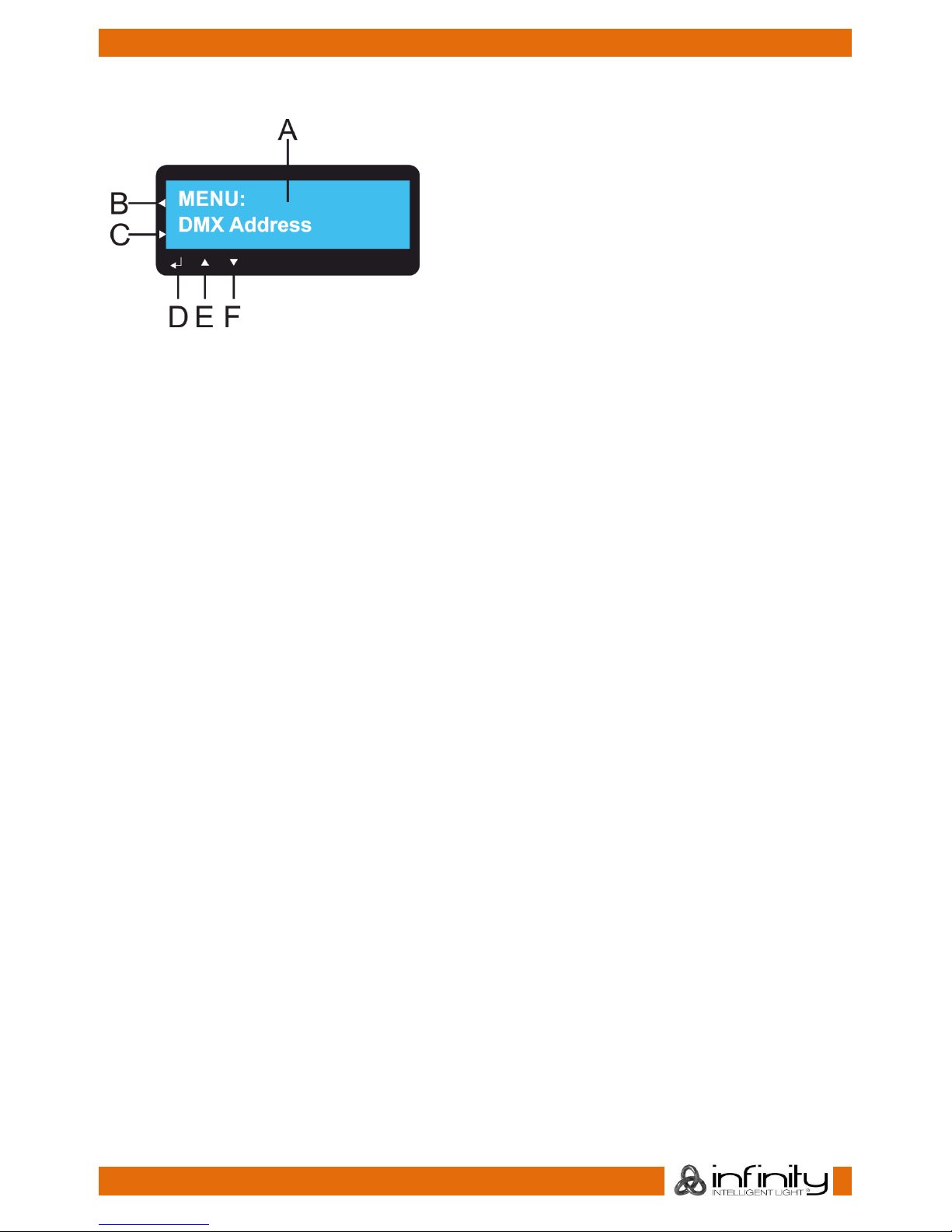

Control Panel ...............................................................................................................................................................18
Control Mode ..............................................................................................................................................................18
DMX Addressing ..........................................................................................................................................................18

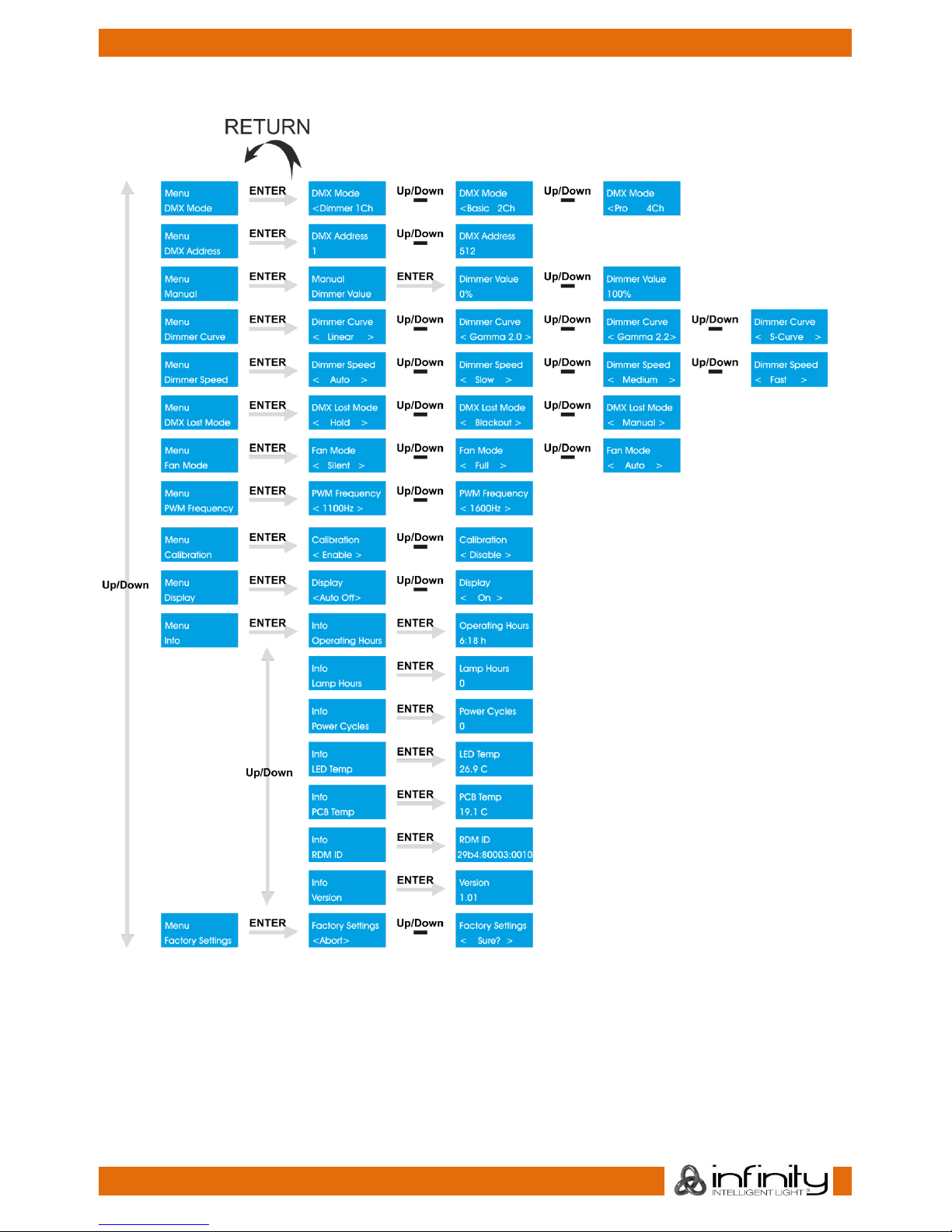

Menu Overview ...........................................................................................................................................................19
Activate Focus Mode ................................................................................................................................................20
Main Menu Options ....................................................................................................................................................20
1. DMX Configuration ..............................................................................................................................................20
2. DMX Address ........................................................................................................................................................21
3. Manual ...................................................................................................................................................................21

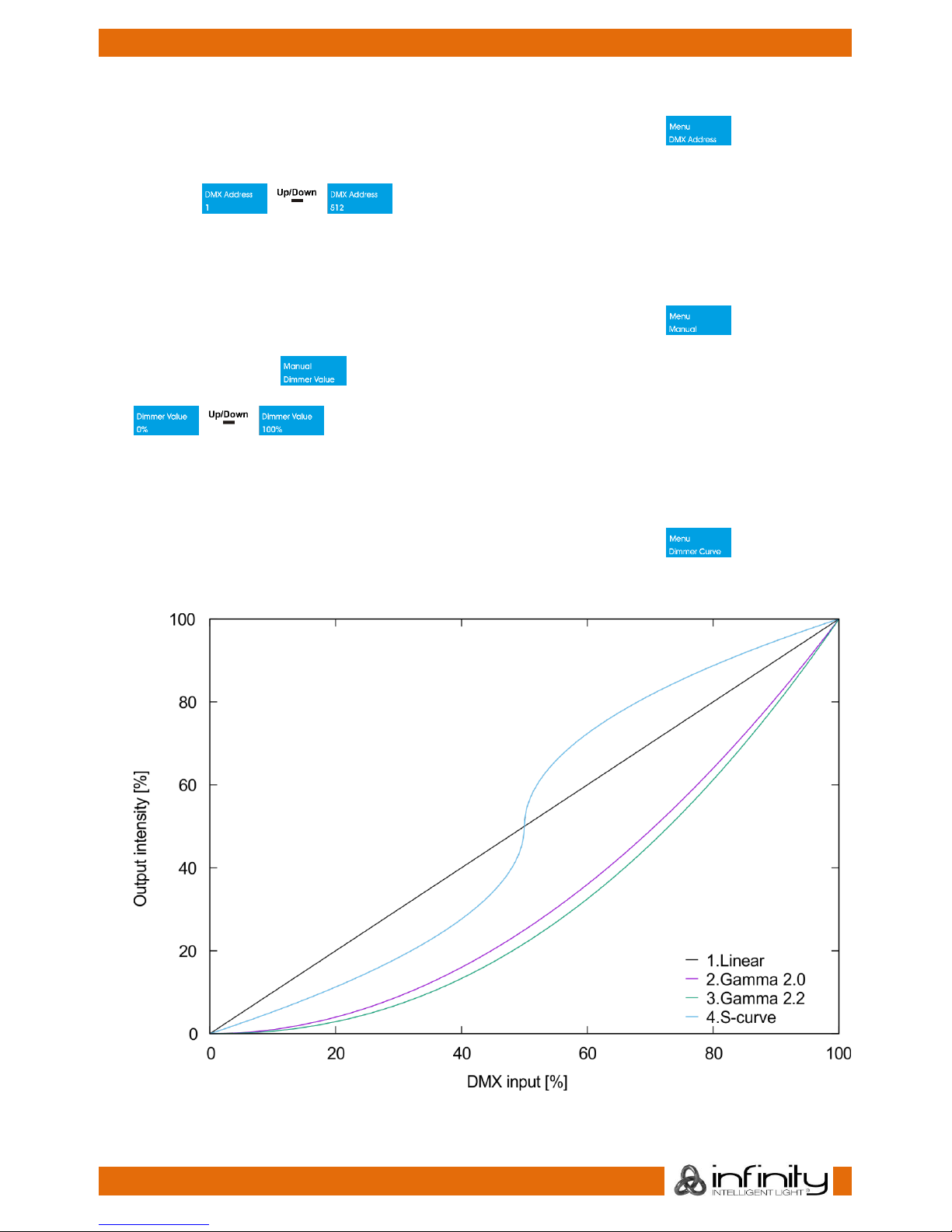

4. Dimmer curves .....................................................................................................................................................21
5. Dimmer Speed .....................................................................................................................................................22
6. DMX Lost Mode ....................................................................................................................................................22
7. Fan Mode ..............................................................................................................................................................22
8. PWM Frequency ...................................................................................................................................................22
9. Calibration ............................................................................................................................................................22
10. Display .................................................................................................................................................................23
11. Info ........................................................................................................................................................................23
12. Reset Factory Settings .......................................................................................................................................23
DMX Channels .............................................................................................................................................................24
1 Channel (Dimmer) ................................................................................................................................................24
2 Channels (Basic) ...................................................................................................................................................24
4 Channels (Pro) .......................................................................................................................................................24
Maintenance ....................................................................................................................................................................25
Cleaning the Field Lens .............................................................................................................................................25
2
Ordercode: 200001
TS-300 Profile Engine
Troubleshooting ...............................................................................................................................................................26
No Light .........................................................................................................................................................................26
No Response to DMX..................................................................................................................................................26
Product Specifications ....................................................................................................................................................28

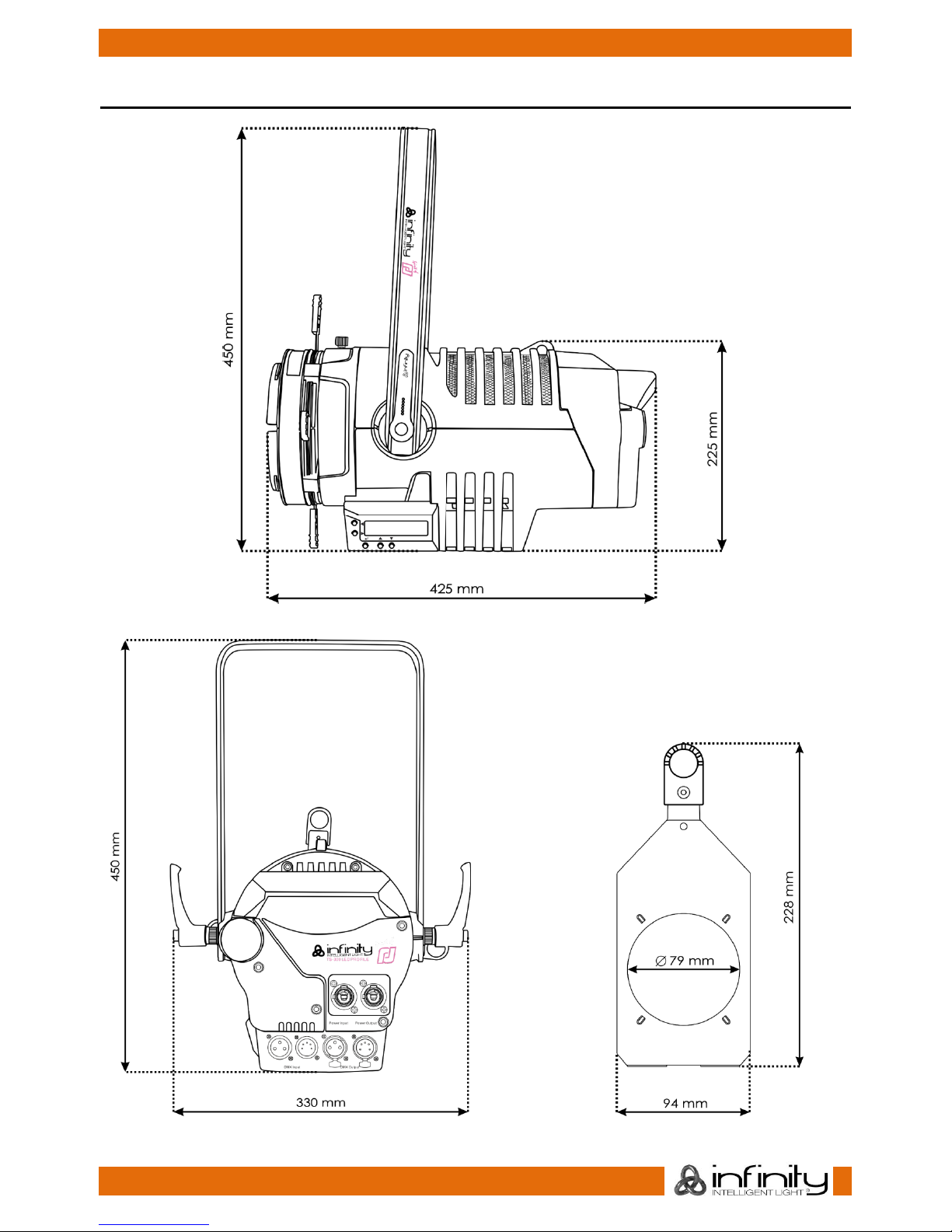

Dimensions ........................................................................................................................................................................29
3
Ordercode: 200001
TS-300 Profile Engine
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● Infinity TS-300 Profile Engine
● Neutrik PowerCON to Schuko power cable (1,4 m)
● Gobo holder
● Safety cable
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
4
Ordercode: 200001
TS-300 Profile Engine
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
● Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
● Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
● Never strain the cable insert or the female part in the device. There must always be sufficient cable
going to the device. Otherwise, the cable will be damaged, which can cause serious damage.
● Never remove warning or informative labels from the unit.
● Never use anything to cover the ground contact.
● Never lift the device holding it by the projector-head, as the mechanics may be damaged. Always
hold the device by the transport handles.
● Never place any material over the lens.
● Never look directly into the light source.
● Never leave any cables lying around.
● Never use the device during thunderstorms, unplug the device immediately.
● Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger.
● Do not insert objects into air vents.
● Do not open the device and do not modify the device.
● Do not connect this device to a dimmer pack.
● Do not switch the device on and off in short intervals, as this will reduce the device’s life.
● Do not touch the device’s housing bare-handed during its operation (housing becomes hot). Allow
the device to cool for at least 5 minutes before handling.
● Do not shake the device. Avoid brute force when installing or operating the device.
● Only use the device indoors, avoid contact with water or other liquids.
● Only operate the device after having checked if the housing is firmly closed and all screws are tightly
fastened.
● Only operate the device after having familiarized with its functions.
● Avoid flames and do not put close to flammable liquids or gases.
● Always keep the case closed while operating.
● Always allow a free air space of at least 50 cm around the unit for ventilation.
● Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
● Make sure that the device is not exposed to extreme heat, moisture or dust.
● Make sure that the available voltage is not higher than stated on the rear panel.
● Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
● Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
● If the lens is obviously damaged, it has to be replaced to prevent its functions from being impaired,
due to cracks or deep scratches.
● If the external cable is damaged, it has to be replaced by a qualified technician.
● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
5
Ordercode: 200001
TS-300 Profile Engine
● If your device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
● For adult use only. The device must be installed beyond the reach of children. Never leave the unit
running unattended.
● Never attempt to bypass the thermostatic switch or fuses.
● For replacement use fuses of same type and rating only.
● The user is responsible for correct positioning and operating of the device. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
● This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
● Repairs, servicing and electric connection must be carried out by a qualified technician.
● WARRANTY: Till one year after date of purchase.
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
● In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
● The maximum ambient temperature t
a
= 40°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
● If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the device is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the device, with the mounting-bracket, to the trussing system.
● The device must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
● When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
6
Ordercode: 200001
TS-300 Profile Engine
The Profile Engine TS-300 can be placed on a flat stage floor or mounted to any kind of truss with a
clamp.
Improper installation can cause serious injuries and/or damage of property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious injuries and/or damage of property !
7
Ordercode: 200001
TS-300 Profile Engine
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause of the
return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
8
Ordercode: 200001
TS-300 Profile Engine
Description of the device
Features
The Infinity TS-300 Profile Engine is a high resolution theatrical luminaire with high output.
● Performance of a 1000W Tungsten Halogen unit with a consumption of 300W
● Easy tool free changing between lens options
● Gobo slot for B size gobo’s and separate slot for diffuser or Iris
● Constant colour temperature regardless of output intensity
● RDM allowing for remote setting and recall of information (temperature and indentify)
● Flicker-Free with selectable PWM via DMX
● Input voltage: 100-240V AC, 50/60Hz
● Power consumption: 300W
● Power factor: 0,97
● Light source: 300W Lumiled white LED
● Light output: 8300lm
● CRI: Consistently >96 (High CRI Mode)
● Color temperature: 3200K
● Beam angles: 15°-35° (Zoom unit), 25°-50° (Zoom unit), 5°, 10°, 14°, 19°, 26°, 36°, 50°
● Dimmer: 0-100%
● Strobe: 0-20Hz
● Dimmer curves: Linear, Gamma 2.0, Gamma 2.2, S-curve
● DMX channels: 1, 2 or 4 channels
● Ambient temperature: 0°-40° (operating)
● Startup temperature: -10°-45°
● IP rating: IP20
● LC-display for easy setup
● DMX-control: via standard DMX/RDM controller
● Control: DMX-512, Manual control
● Housing: Black aluminum, sheet metal, molded engineering grade plastics
● Connections: Neutrik PowerCON (IN/OUT), Neutrik 3-pin XLR data (IN/OUT), Neutrik 5-pin XLR data
(IN/OUT)
● Dimensions: 425 x 330 x 450 mm (LxWxH) (incl. bracket)
● Weight: 8,5 kg
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
200100 - TLT-5 5° Lens Tube
200101 - TLT-10 10° Lens Tube
200102 - TLT-14 14° Lens Tube
200103 - TLT-19 19° Lens Tube
200104 - TLT-26 26° Lens Tube
200105 - TLT-36 36° Lens Tube
200106 - TLT-50 50° Lens Tube
200110 - TLT-19HD 19° HD Lens Tube
200111 - TLT-26HD 26° HD Lens Tube
200120 - Filterframe for Infinity 5° Lens Tube
200121 - Filterframe for Infinity 10° Lens Tube
200122 - Filterframe for Infinity 14°, 19°, 26°, 36° or
50° Lens Tube
200123 - Filterframe for Infinity zoomlens
200130 - Iris for Infinity Profile
200131 - Gobo holder for Infinity profile
200140 - TLT-1230 15-35° Zoom Lens
200141 - TLT-2350 25-50° Zoom Lens
9
Ordercode: 200001
TS-300 Profile Engine
Overview
Fig. 01
01) 300W Lumiled white LED
02) Shutter assembly
Loading...
