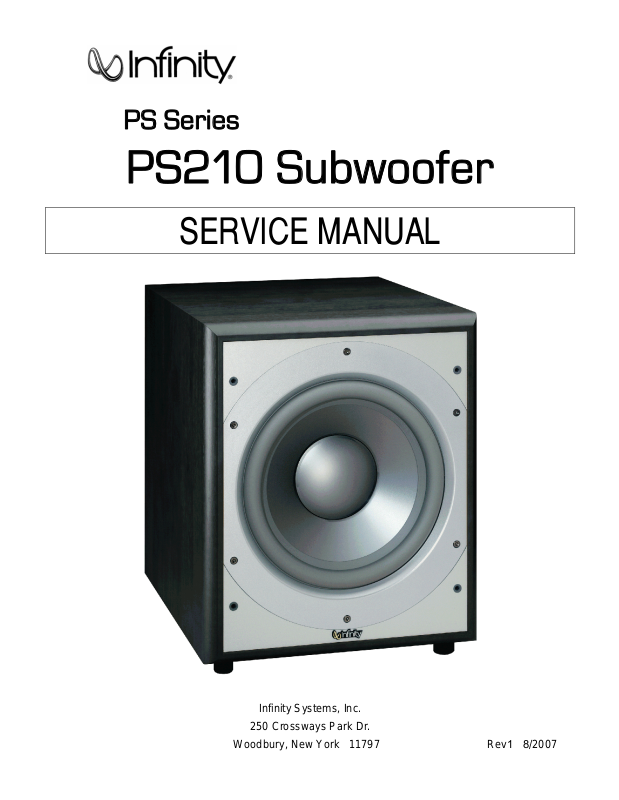

PS Series

PS210 Subwoofer

SERVICE MANUAL

Infinity Systems, Inc.

250 Crossways Park Dr.

Woodbury, New York 11797 Rev

1 8/2007

PS series PS210 subwoofer

- CONTENTS -

BASIC SPECIFICATIONS …………………..……………..1 DETAILED SPECIFICATIONS…………………..……….…..2

PACKAGING……………….……………………….…....….…4

CONTROLS AND CONNECTIONS…………..…….………..5 OPERATION….……………………………………………..….7

EXPLODED VIEW/PARTS LIST …………….….…....……8

TEST SET UP AND PROCEDURE………………..…....……9

BLOCK DIAGRAM…………………………..………….…..…10 ELECTRICAL PARTS LIST (120v) ………………………….11 PCB DRAWINGS……………….……………………………..14 SEMICONDUCTOR PINOUTS……….……………….……..16 SCHEMATICS (120v)………………………………………...17

Basic S pecificat i ons PS210 Powered Subwoofer

Frequency Response: 27Hz – 150Hz (±3dB) Maximum Amplifier Output: 300 Watts RMS; 500 Wa tts Peak

(20Hz – 150Hz with no more than 0.1% THD)

Crossover Frequencies: 50Hz – 150Hz, 24dB/octave, continuously variabl e Driver: 10" (254mm) MMD® Dimensions (H x W x D): 15-3/4" x 12-1/2" x 16-1/2"

(with grille) (400mm x 318mm x 419mm) Weight: 38.6 lb (17.6kg)

Infinity continually strives to update and improve exi sting products, as well as create new ones. The specifications and construction details in this and related Infi nity publications are t her efore subject to change without notice.

PS series PS210 subwoofer

Primus PS210 150W Powered Sub Amp

LINE VOLTAGE Yes/No Hi/Lo Line Nom. Unit Notes

Parameter Specification Unit Amp Section

Type (Class AB, D, other) D n/a n/a Load Impedance (speaker) 4 Ohms n/a Nominal Rated Output Power (120VAC) 150 Watts 145 Domestic version only 120 VAC-60 Hz Rated Output Power (230VAC) 150 Watts EU Version only 230 VAC-50-60 Hz

AVG RMS Dynamic Power 210 Watts 200

THD @ Rated Power 0.5 % 1 22K filter THD @ 1 Watt 0.2 % 0.3 22K filter DC Offset 10 mV-DC 30 Sub amp output

Damping factor >50 DF 35 Measured at amplifier board

Input Sensitivity-120V

Input Frequency 50 Hz 50 Nominal Freq. L&R 9.5 mVrms ±1dB To 1 Watt Single input driven LFE input 9.5 mVrms ±1dB To 1 Watt Single input driven, LFE switch ON System Gain 46.72 dB Reference Single input driven Normal mode

Input Sensitivity-230V

Input Frequency 50 Hz 50 Nominal Freq. L&R TBD mVrms ±1dB To 1 Watt Single input driven LFE input TBD mVrms ±1dB To 1 Watt Single input driven, LFE switch ON System Gain TBD dB Reference Single input driven Normal mode

US 120vac/60Hz Yes 108-132 120 Vrms Normal Operation

EU 230vac/50-60Hz Yes 207-253 230 Vrms Normal operation, MOMS required

QA Test

Limits

Conditions Notes

Average RMS power, 3/20 Cycles 50 Hz, Driven 6dB above its input sensitivity sensitivity, average of the first 4 consecutive peaks

Measured at the speaker cable. 150 Watts @ THD < 0.1 % @ 50 Hz

Signal to Noise

SNR-A-Weighted 90 dBA 85 relative to rated power A-Weighting filter SNR-unweighted 80 dBr 75 relative to rated power 22K filter SNR rel. 1W-unweighted -57 dBr -55 relative to 1W Output 22K filter

Residual Noise Floor 1.5 mVrms(max) 2.5

Input Impedance

Line Input (L, R,LFE) 10K ohms n/a Nominal

Filters

LP filter Variable 50-150 Hz ± 10 2nd order variable + 2nd order fix-24 db/Octave Subsonic filter (HPF) 2rd Order Fixed 12dB/Octave F=31Hz, Q=2

Friend circuit Fixed 60Hz, Q=2, Av=-3.9dB LFE Low pass 200>LP<500 Hz LFE input driven only

Limiter

THD at Max. Output Power N/A N/A functional Maximum Output Power Maximum THD as a result of limiting.

Features

Volume pot Taper (lin/log) LOG -- functional A Taper Phase switch 0-180 deg functional LP Filter defeat switch YES functional Disables LP filter, intended for LFE

Input Configuration

Line In (L,R) & LFE

Signal Sensing (ATO)

Auto-Turn-On (yes/no) YES functional ATO Input test frequency 50 Hz functional ATO Level LFE Input 2.5 mV functional Maximum acceptable level.

ATO Turn-on time 5 ms functional

Auto Mute/ Turn-OFF Time 5-15 minutes 5-15

YES -- functional Dual RCA jack

Volume @max, w/ A/P Swept Bandpass Measurement (Line freq.+ harmonics) (BW=20 KHz)

Amp connected and AC on, then input signal applied T before muting, after signal is removed

Line level inputs must be terminated using 1KOHM

Auto turn of time (T) must be 5 > T < 15 Minutes

Power on Delay time

Transients/Pops

ATO Transient 0.5 V-peak 0.5V @ Sub amp output Turn-on Transient 0.5 V-peak 0.8V @ Sub amp output AC Line cycled from OFF to ON

3 sec. 4 AC Power Applied

Amplifier activated by signal presence at the Line input

PS series PS210 subwoofer

Parameter Specification Unit

Turn-off Transient 0.5 V-peak 0.8V @ Sub amp output AC Line cycled from ON to OFF

Efficiency

Efficiency 60 % 58 Test conducted at rated power 150 Efficiency at 1/8 of rated power 38 % 37 Test conducted at 18.75 WRMS Nominal Line voltage-Rated impedance 4 Ohms Off state input power 16 Watts 18 Nominal Line voltage RED LED

Stand-by Input Power 24 Watts 26 @ nom. line voltage

Power Cons. @ rated power 250 Watts 260 @ nom. line voltage 150 Watts @ 4 Ohms nominal line voltage

Protections

Short Circuit Protection YES functional Direct short at output

Thermal Protection YES functional

DC Offset Protection YES - DC present at Speaker Out leads

Line Fuse Rating

USA-Domestic 2 Amps 2 Type-T or Slo Blo-250 V Internal fuse with UL/SEMKO rated holder

EU 1.25 Amps 1.25

QA Test

Limits

Conditions Notes

@1/8 max unclipped Power at 1.06 times the input voltage

Type-T or Slo Blo-250 V, Low Breaking capacity

Nominal Line voltage

Maximum allowable input power under nominal Input voltage and frequency, HOT or COLD operation.LED GREEN no signal applied

Amplifier should resume operation after short circuit condition removal Temperature rise in accessible metal parts should not exceed 35K rise for domestic version or 30K rise for European versions (refer to requirements sheet). Design must insure no Offset at the speaker output under any operating condition including abnormal operation

Internal fuse with UL/SEMKO rated holder

PS series PS210 subwoofer

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CROSSOVER FREQUENCY

LEVEL

LINE LEVEL IN

PHASE

Min

L R

For LFE use L or R

Green: On

Red: Standby

50Hz

0º

0Hz

150Hz

POWER

∞

™

FE NORMAL

180º

120V 60Hz

OFF

WARNING:

O REDUCE THE RISK OF FIRE OR ELECTRICAL

HOCK DO NOTEXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVERTISSEMENT:

OUR PRÉVENIR LES RISQUES D'INCENDIE OU DE CHOC

LECTRIQUE, ÉVITER D'EXPOSER CET APPAREILA LA PLUIE OU A L'HUMIDITÉ.

NRTL/C CSA22.2 U

L1492

PS series PS210 subwoofer

CONTROLS AND CONNECTIONS

Rear Panel

Subwoofer-Level Control

™

LFE/Normal Selector

Phase Switch

Crossover Adjustment

∞

Line-Level/LFE Input

Power Switch

Status LED

PS210 (120V)

L R

CROSSOVER FREQUENCY

LEVEL

LINE LEVEL IN

PHASE

Min

Max

L R

For LFE use L or R

Green: On

Red: Standby

50Hz

0º

80Hz

150Hz

LFE NORMAL

180º

SUBWOOFER OR LFE OUTPUT

CROSSOVER FREQUENCY

LEVEL

LINE LEVEL IN

PHASE

Min

L R

For LFE use L or R

Green: On

Red: Standby

50Hz

0º

0Hz

150Hz

FE NORMAL

180º

PS series PS210 subwoofer

SYSTEM CONNECTIONS

If you have a Dolby®Digital or

receiver/processor with a

DTS low-frequency effects (LFE) or subwoofer output:

Set LFE/Normal switch to “LFE.”

If your receiver/processor does not contain a Dolby Digital or

DTS processor but has subwoofer outputs:

Set line-level/LFE switch to “Normal.”

If your receiver/processor

NOTE:

has only one sub out, you may use either the L or R input.

PS series PS210 subwoofer

OPERATION

Power On

Plug your subwoofer’s AC cord into a wall outlet. Do not use the outlets on the back of the receiver.

Initially set the Subwoofer-Level Control

Turn on your sub by pressing the Power Switch on your entire audio system and start a CD or movie soundtrack at a moderate level.

Auto On/Standby

With the Power Switch §in the ON position, the Status LED ¶on the back panel will remain lit in red or green to indicate the On/Standby mode of the subwoofer.

RED = STANDBY (No signal detected,Amp Off)

GREEN = ON (Signal detected, Amp On)

The subwoofer will automatically enter the Standby mode after approximately 10 minutes when no signal is detected from your system.The subwoofer will then power ON instantly when a signal is detected. During periods of normal use, the Power Switch off the Power Switch you are away on vacation.

for extended periods of nonoperation, e.g., when

Adjust Gain

Turn your Subwoofer-Level Control ¡up to the halfway position. If no sound emanates from the subwoofer, check the AC-line cord and input cables.Are the connectors on the cables making proper contact? Is the AC plug connected to a “live”receptacle? Has the Power Switch been pressed to the “On”position? Once you have confirmed that the subwoofer is active,proceed by playing a CD, record or cassette. Use a selection that has ample bass information.

Set the overall volume control of the preamplifier or stereo to a comfortable level.Adjust the Subwoofer-Level Control pleasing blend of bass. Bass response should not overpower the room but rather be adjusted so there is a harmonious blend across the entire musical range. Many users have a tendency to set the subwoofer volume too loud, adhering to the belief that a subwoofer is there to produce lots of bass.This is not entirely true. A subwoofer is there to enhance bass, extending the response of the entire system so the bass can be felt as well as heard. However, overall balance must be maintained or the music will not sound natural.An experienced listener will set the volume of the subwoofer so its impact on bass response is always there but is never obtrusive.

to the “min” position.

on the rear panel.Turn

can be left on.You may turn

until you obtain a

Crossover Adjustment

The Crossover Adjustment Control ¢ determines the highest frequency at which the subwoofer reproduces sounds. If your main speakers can comfortably reproduce some low-frequency sounds, set this control to a lower frequency setting, between 50Hz and 100Hz.This will concentrate the subwoofer’s efforts on the ultradeep bass sounds required by today’s films and music. If you are using smaller bookshelf speakers that do not extend to the lower bass frequencies, set the Crossover Adjustment control to a higher setting, between 120Hz and 150Hz.

NOTE: This control will have no effect if the LFE/Normal Selector ™ is set to LFE. If you have a Dolby Digital or DTS processor/receiver, the Low-Pass Frequency is set by the processor/receiver.Consult your owner’s manual to learn how to view or change this setting.

MAINTENANCE AND SERVICE

The enclosure may be cleaned using a soft cloth to remove fingerprints or to wipe off dust.

The grille may be gently vacuumed. Stains may be removed with an aerosol cleaner, following its instructions. Do not use any solvents on the grille.

All wiring connections should be inspected and cleaned or remade periodically.The frequency of maintenance depends on the metals involved in the connections, atmospheric conditions, and other factors, but once per year is the minimum.

In the event that your subwoofer ever needs service, contact your local Infinity dealer or distributor, or visit www.infinitysystems.com for a service center near you.

Phase Control

The Phase Switch £determines whether the subwoofer speaker’s piston-like action moves in and out with the main speakers, 0˚, or opposite the main speakers, 180˚. Proper phase adjustment depends on several variables such as room size, subwoofer placement and listener position. Adjust the phase switch to maximize bass output at the listening position.

PS series PS210 subwoofer

PS210 sub Te st S et Up an d Pr oc e d u r e

SYSTEM AURAL SWEEP TEST Equipment needed:

• Function /si g nal ge nerator/sweep ge ner a tor

• Integrated Amplifier

• Multimeter

• Speaker cables

General Unit Function (UUT = Unit Under Test)

Switches/knobs on the amplifier faceplate:

Crossover Frequency Adjust full CW (Max) Phase switc h – ei th er posi tio n Normal/LFE switch - No rmal

1. From the signal generator, Connect both right and left line level inputs (RCA jacks) – to signal generator and UUT. Use Y-cable if necessary from mono source.

2. On the amplifier, turn the LEVEL control full Counterclockwise (Min).

3. Turn on generator, adjust to 75m V, 50 H z.

4. Plug in UUT; turn the power switch ON. Turn LEVEL control full Clockwise (Max).

5. LED (on amp panel) should now be Green; immediate bass response should be heard and felt from rear port tube openin g.

Sweep Function

1. Follow steps 1-5 above, using a sweep generator as a signal source.

2. Sweep ge nerator from 20Hz to 1kHz. Li sten to the cabinet and driv ers for any rattles, cli ck s, buzzes or any other noi s es . If any unus ual noises are heard, remov e wo o fer an d tes t .

Driver Function (Woofer)

1. Remove woofer fro m cabinet; deta ch + and - wire clip s.

2. Check DC res i stance of woofer ; it should be 3.4 ohms±10%.

3. Connect a pair of speaker cables to driver terminals. Cables should be connected to an integrated amplifier fed by a signal generator. Turn on generator and adjust so th at speaker level output is 5.0V.

4. Sweep ge nerator from 20Hz to 1kHz. Li s t en to dr i ver for an y rubbi n g, buzzing, or other unusual noises.

PS series PS210 subwoofer

)

PS series PS210 subwoofer

PS210 Electrical Parts List

Part number Qty Description

PREMAP/MAIN/POWER PCB

Capacitor

034-330525-300ZR1 GR Electrolytic cap. 33uF/25V M (R)0511 P: 033-680464-270Z 032-100484-200Z 033-470464-270Z 031-100343-100Z 034-220525-301Z 031-560243-100Z 031-220243-103A 031-100344-100Z 031-100244-100ZS4 GS SMD Ceramic cap. 0u01/50V K 0805 X7R C45,51,66,67, 034-470515-307Z 031-100344-100Z 034-100625-300Z 031-470244-102Z 031-560343-102Z 034-330615-300Z 031-100344-100A 035-100393-301Z 035-220393-300Z 034-470415-301Z 034-100525-300Z 031-100244-100Z 031-100343-100Z 031-100344-100Z 031-100384-100R 031-220243-103A 031-220344-100Z 031-330244-100ZR1 GR SMD Cap. 0u033/50V K 0805 X7R C33, 031-680444-102Z 032-270343-301Z 032-820244-200Z 034-220515-302Z 034-220525-301Z 034-330615-300Z 034-330780-300Z 034-470515-200Z 039-100384-100Z 034-100615-301Z 031-100344-100Z 031-100444-104Z

1 GS NPE Cap. 印ELYTONE 6u8/100V K10 (R)1020 GN 1 GS END Mylar cap. 1uF/250V K P:1 1 GS NPE Cap.(印ELYTONE)1K 4u7/100V K10 (R)1015 GN 1 GS SMD Cap. 100pF/50V J 0805 NPO C58 2 GS Electrolytic cap. 22uF/25V M (R)5x11 P:5 C50,53 2 GS SMD Cap. 56pF/50V J 0805 NPO C57,61 1 GS SMD Cap. 0u022/50V J 0805 X7R C84,

17 GS SMD Cap. 0u1/50V K 0805 X7R C42-44,46-49,52,55,60,63,71,74,77,100,101,80

1 GR Electrolytic cap.LOW ESR 85℃ 47uF/16V M (R)0511 P:5 C65 1 GS SMD Cap. 0u1/50V K 0805 X7R C54 1 GS Electrolytic cap. 100uF/25V M (R)6.3x11 P: 2 GS SMD Cap. 0u047/50V K 0805 X7R C62,59 1 GS SMD Cap. 560pF/50V J 0805 NPO C56 1 GS Electrolytic cap. 330uF/16V M (R)0812 P:5 C78 2 GS SMD Cap. 0u1/50V K 0805 X7R C81,82 2 GR Mylar cap.(ESK TYPE) 0u1/63V J P:5 PN:ESK063S10JTC28,2A, 1 GR PE Cap. 0u22/63V J P:5 C27, 1 GS Elect. Cap. 4u7/50V M (R)0511 P:5 C2 3 GS Electrolytic cap. 10uF/25V M (R)0511 P:5 C35,237,238, 2 GS SMD Ceramic cap. 0u01/50V K 0805 X7R C5,10 2 GS SMD Cap. 100pF/50V J 0805 NPO C16,36 1 GS SMD Cap. 0u1/50V K 0805 X7R C11 2 GS SMD Cap. 0u1/250V K 1206 X7R C3,7 1 GS SMD Cap. 0u022/50V J 0805 X7R C40 5 GS SMD Cap. 220pF/50V J 0805 NPO C14,15,20,21,1

2 GR SMD Cap. 6800pF/50V K X7R 0805 C32,34, 3 GS Mylar cap. (MP) 0u27/63V J P:5 C29,26,25 1 GR Mylar cap. 0u082/100V K (R 2 GR elect. Cap. 22uF/16V M (R)0511 P:5 C39,75 4 GS 22uF/25V M (R)5x11 P:5 C4,9,41,76 1 GS 330uF/16V M (R)0812 P:5 C12 2 GR 85℃ SNAPIN 3300uF/80V M (R)22x4 1 GR 47uF/16V M (R)0511 P:2. 1 GR Safety cap. (0u1/250V) .1K275VACx2 18x6x12m 1 GS electrolytic cap. 100uF/16V M (R)0611 P:5 C83 2 GS SMD Capacitor 0u1/50V K 0805 X7R C102,103, 1 GR SMD Capacitor 1000pF/50V K 0805 X7R C104

Reference Designato

C1 C72 C70, C73

C64

C30

C6,8 C37 CXAC1

Resistors

024-100398-120Z 020-220497-120Z 024-100298-120Z 021-100401-120Z 024-470498-120Z 022-500003-020Z 024-220798-120Z 024-430498-120Z 024-300498-120L 024-470598-120Z 024-220598-120Z 024-680498-120Z 024-110598-100Z 024-200598-120Z 024-100698-120Z

024-100598-120ZR 18 GR SMD 10K 1/8W J 0805

1 GR SMD Resistor 100R 1/8W J 0805 R62 1 GR Carbon Resistor 2K2 1/4W J R11 2 GR SMD Resistor 10R 1/8W J 0805 R81,82 1 GR MOF Resistor 1K 1W J INK MO-100 R103 2 GR SMD Resistor 4K7 1/8W J 0805 R85,86 1 GR Resistor KNP 0R05 3WS J FK TYPE R104 1 GR SMD Resistor 2M2 1/8W J 0805 R80 1 GR SMD 4K3 1/8W J 0805 R78 1 GR SMD 3K 1/8W J 0805 R105, 1 GR SMD 47K 1/8W J 0805 R107 1 GR SMD 22K 1/8W J 0805 R118, 6 GR SMD 6K8 1/8W J 0805 R91 1 GR SMD 11K 1/8W F 0805 R98 1 GR SMD 20K 1/8W J 0805 R94 2 GR SMD 100K 1/8W J 0805 R3,112

R2,74,75,84,88,89,97,106,113-117,119,120, 141,138,139,

)

PS series PS210 subwoofer

Part number Qty Description

PREMAP/MAIN/POWER PCB

024-100498-120ZR7 GR SMD 1K 1/8W J 0805 R79,83,92,95,96,110,145, 024-590498-100Z 024-270498-120Z 024-442498-100Z 024-200498-120Z 024-300598-120Z 024-150598-100Z 024-470698-120Z 024-390598-120Z 024-470298-120Z 024-390498-120Z 024-220398-120Z 024-470398-120Z 024-330498-100Z 024-220498-121Z 024-162598-100Z 024-000098-120Z 024-100498-120Z 024-100598-100Z 024-100598-120Z 024-100898-120ZR1 GR SMD 10M 1/8W J 0805 R121 024-130498-100Z 024-150498-120ZR1 GR SMD 1K5 1/8W J 0805 R67 024-150598-100Z 024-160698-120Z 024-220498-121Z 024-237598-120Z 024-243498-100Z 024-270498-120Z 024-300598-120Z 024-330498-120Z 024-330598-120Z 024-332498-100Z 024-470498-121Z 024-470598-120Z 024-470698-120Z 024-470798-120Z 024-475498-100Z 024-511398-100Z 024-560598-120ZR1 GR SMD 56K 1/8W J 0805 R122 024-619498-100Z 024-619598-100Z 024-620398-100ZR2 GR SMD 620R 1/8W F 0805 R16,18 024-680498-120Z 024-680598-120Z 024-681598-100Z 024-750398-101Z 024-750498-100ZR1 GR SMD 7K5 1/8W F 0805 R35 024-750598-100ZR1 GR SMD 75K 1/8W F 0805 R45 024-820598-120Z 026-200595-269Z 026-500495-005Z 024-100598-120Z 024-270598-120Z

1 GR SMD 5K9 1/8W F 0805 R140, 1 GR SMD 2K7 1/8W J 0805 R73 1 GR SMD 4K42 1/8W F 0805 R128 1 GR SMD 2K 1/8W J 0805 R108 1 GR SMD 30K 1/8W J 0805 R131, 2 GR SMD 15K 1/8W F 0805 R132,133, 2 GR SMD 470K 1/8W J 0805 R129,130, 1 GR SMD 39K 1/8W J 0805 R77 2 GR SMD 47R 1/8W J 0805 R101,102 1 GR SMD 3K9 1/8W J 0805 R93 1 GR SMD 220R 1/8W J 0805 R90 3 GR SMD 470R 1/8W J 0805 R76,99,100 2 GR SMD 3K3 1/8W F 0805 R127,137, 2 GR SMD 2K2 1/8W J 0805 R1,87, 4 GR SMD 16K2 1/8W F 0805 R125,126,135,136, 1 GR SMD Resistor 0R 1/8W J 0805 R68 3 GR SMD Resistor 1K 1/8W J 0805 R65,44,151, 5 GR SMD 10K 1/8W F 0805 R146,147,30,31,33,

11 GR SMD 10K 1/8W J 0805 R17,19,,54,58,63,71,72,111,123,124,134

1 GR SMD 1K3 1/8W F 0805 R5

3 GR SMD 15K 1/8W F 0805 R29, 1 GR SMD 160K 1/8W J 0805 R152, 2 GR SMD 2K2 1/8W J 0805 R61,57, 1 GR SMD 23K7 1/8W F 0805 R48 1 GR SMD 2K43 1/8W F 0805 R36 1 GR SMD 2K7 1/8W J 0805 R64 1 GR SMD 30K 1/8W J 0805 R56, 8 GR SMD 3K3 1/8W J 0805 R7,8,12-15,59,55, 2 GR SMD 33K 1/8W J 0805 R4,5 2 GR SMD 3K32 1/8W F 0805 R26,27 3 GR SMD 4K7 1/4W J 1206 R148-150, 2 GR SMD 47K 1/8W J 0805 R47,49 1 GR SMD 470K 1/8W J 0805 R70, 1 GR SMD 4M7 1/8W J 0805 R60 1 GR SMD 4K75 1/8W F 0805 R38 1 GR SMD 511R 1/8W F 0805 R6

2 GR SMD 6K19 1/8W F 0805 R51,53 1 GR SMD 61K9 1/8W F 0805 R4

5 GR SMD 6K8 1/8W J 0805 R46,40-43 1 GR SMD 68K 1/8W J 0805 R66, 2 GR SMD 68K1 1/8W F 0805 R50,52, 1 GR SMD 750R 1/8W F 0805 TPAING R2

2 GR SMD 82K 1/8W J 0805 R69,39, 1 GS VR PN:RD163121R03D-20KBx2(EJ) FREQUENC 1 GS VR 5K PN:RD163111R22B-5K15A-EJ LEVE 2 GR SMD Resistor 10K 1/8W J 0805 R142,144 1 GR SMD Resistor 27K 1/8W J 0805 R143

Reference Designato

VR2 VR1

Semiconductor

054-033904-100ZR1 GR SMD (TRANSISTOR) PN:MMBT3904LT1G SOT23 ( 054-055500-100Z 054-033906-100Z 051-640001-000Z 054-033904-100Z 051-222200-100ZR1 GR Transistor NPN (ON SEM) PN:MPS2222ARLRAR TO-92 Q21 051-000600-100Z

1 GR SMD IC: PN:NE555DR S08 (TI) TME 3 GR SMD Transistor (ON) PN:MMBT3906LT1G SOT23 Q10,12,15 2 GR MOSFET N-Channel PN:IRF640NPBF TO-220 (IR 4 GR SMD (TRANSISTOR) PN:MMBT3904LT1G SOT23 (

1 GR Transistor NPN PN:MPSW06RLRA TO-92 (ON) Q16

Q28 U10

Q18,22 Q11,14,13,2

)

PS series PS210 subwoofer

Part number Qty Description

PREMAP/MAIN/POWER PCB

054-540100-100ZR3 GR SMD Transistor PNP (ON SEN) MMBT5401 LT1 SOT-23 Q20 051-555100-000Z 051-290700-100Z 051-540101-000Z 054-414803-100Z 054-008409-000ZR1 GR SMD ZENER DIODE: PN:BZX84C3V0-7-F SOT-23 D25 054-008406-000Z 054-008408-000Z 054-000100-100Z 054-007200-100Z 053-211100-000Z 051-011100-100Z 054-000100-100Z 054-007200-100Z 054-007400-100Z 054-008407-000Z 054-011400-100Z 054-033904-100Z 054-033906-100Z 054-045580-100Z 054-414803-100Z 054-524201-100ZR1 GS SMD ZENER DIODE: PN:MMBZ5242B 12V SOT-23 D206, 054-540100-100Z 051-024100-000Z 051-025100-000Z 052-400080-000Z 051-003100-000Z 050-505200-001Z

1 GR Transistor NPN PN:2N5551 TO-92 Q17 2 GR Transistor PNP (ON) PN:MPS2907A RLRAR TO-92 Q19,23 1 GR Transistor PNP(FAIRCHILD PN:2N5401 TO-92 Q1

13 GS SMD DIODE: PN:LL4148 MINI-MELF D1,2,27,31,34,44,40-43,46,47,45

1 GR SMD ZENER DIODE:PN:BZX84C10-7-F SOT-23 D35 2 GR SMD ZENER DIODE: PN:BZX84C5V6-7-F SOT-23 D36,37 4 GR GS SMD DIODE: PN:ES1D 200V 1A (PANJIT 3 GR SMD IC PN:TL072CDR SO-8 (TI) DUAL OP-AM 1 GR IC:DIP,PN:IR2111 8PIN (IR) HALF-BRIDGE DRIVE 1 GR JFET N-Channel PN:J111 TO-92 (FAIRCHIL 1 GR GS SMD DIODE: PN:ES1D 200V 1A (PANJIT 4 GR SMD IC PN:TL072CDR SO-8 (TI 2 GR SMD IC:(OP) PN:TL074CDR (TI) U2,3 3 GR SMD ZENER DIODE: PN:BZX84C15-7-F SOT-23 D6,7,9 1 GR SMD Transistor PN:DTC114TKA SMT3 (ROHM Q7 4 GR SMD (TRANSISTOR) PN:MMBT3904LT1G SOT23 ( 1 GR SMD Transistor (ON) PN:MMBT3906LT1G SOT23 Q6, 1 GS SMD IC:(OP) PN:NJM4558M-TE3- DUAL OP-AM

15 GS SMD DIODE: PN:LL4148 MINI-MELF D3,4,8,30,39,11,14,16,17,20,22,18,19,28,32

2 GR SMD Transistor PNP (ON SEN) MMBT5401 LT1 SOT-23 Q24,26 1 GR Transistor DIP PN:MJE241 TO-126 (CENTRAL) NPN Q2 1 GR Transistor DIP PN:MJE251 TO-126 (CENTRAL) PN 1 GR Bridge Rectifier PN:RS804 400V,8 1 GS Transistor NPN PN:TIP 31C TO-220 (MOSPEC 1 GS LED PN:LT-2402-21

Reference Designato

D5,26,29,33 U6,8,1, U7 Q200 D38 U5

Q5,8,25,9

Q3 BR1 Q4

Miscellaneous/Mechanical

025-010300-000ZR1 GR Thermister PN:NTSE103KZ072 K L:50m 074-300018-000Z 043-560200-000Z 043-300101-000Z 043-700101-000Z 041-115001-000Z 044-100100-000Z 074-020018-000Z 093-105202-300Z 093-205001-320Z 042-010053-003Z 042-018600-000ZR 1 GR Transformer YT-10913 for 230V (230V) 061-020000-000Z 061-314002-000ZS2 GS Strain Relief PN:SB4F-2 061-400014-000B 061-700044-000ZR3 GR Mica 13x18mm TO-220 063-010012-000Z 063-321101-000Z 063-531808-000ZR1 GR bucket (PB-10/12) ABS 322x105.7x146.5mm BLK (94VO 073-011006-400ZR1 GR BRACKET 16x34mm t:0.8mm PCB 073-032315-601Z 082-022607-000B 086-021818-005Z 086-021820-001Z 043-000051-000Z 043-324300-000Z 072-010305-000Z 072-040169-000Z 073-050001-000Z 074-030002-000ZR2 GR TOGGLE SW PN:L101-T2B4QE LFE, PHAS 072-040720-000Z

1 GR RELAY PN:943-1C-48 1 GR INDUCTOR 56uH YT-1077 1 GR INDUCTOR PN:YT-10033 30u 1 GR TOROIDAL INDUCTOR 70uH YT-1068 1 GR BEAD COIL PN:YT-10911 L5 2 GR SMD FERRITE BEAD PN:321611 600R/100MHz 120 1 GR ROCKER SW (POWER) PN:RF1003-BB4-0 1 GR FUSE:UL GSL(2AG) FUSE:2A,250V,5*20mm 120 1 GR FUSE: VBS UTE1.25A,250V,5*20mm 230V F1 (230V) 1 GR Transformer YT-10616-4 for 120

2 GS Knob ABS HTS-10/20 φ20x15m/m UL94V-0 BL

4 GR RUBBER FOOT ID:6.2 OD:11.5 t:2mm 55 BL

4 GR Bracket for Transistor P/N:TRK-1 1 GR Panel 322x105.7x15mm BLK ABS-94V

1 GS Heatsink black anodized 70x58x20mm  1 GR Wire set #26 UL1007 L:74mm 2P HOUSING CON3B1, 1 GR Power Cord NISPT-2 18AWGx2 L:1830mm 105C+T18 1 GRPower cord L:2.0M H05VV-F2x0.75WS019+002E for 230V(230V) 1 GR COIL PN:YT-5301 1 GR INDUCTOR 324uH YT-1077 1 GS RCA JACK PN:B217BK 2P INPU 1 GR CONNECTOR PN:JS-1001-2 2P P:2.5m 2 GS FUSE CLIP P/N:CT-FH120

1 GR HEADER Right Angle PN:JS-1109R-04(S1

TH1, K1 L1 L2 L3

FB1,FB2

F1 (120V)

(120V)

LEVEL, FREQUENC

for Transforme

(120V)

L6 L4 CONN1 CON3A1

SW5,SW6
