Infinity QPS1 User Manual
Owner’s Manual
Part # 333-844-001
®
Quadrapole Surround Speakers
Model QPS-1
QPS
1
Infinity QPS-1 – Owner’s Manual ◆1
INTRODUCTION
Infinity QPS-1 speakers are a pair of mirror-imaged, surround-sound speakers with an
advanced quadrapole design that creates a non-specific sound source over a wider-thanusual listening area. This unique surround speaker design provides greater flexibility in
speaker placement without sacrificing performance.
The QPS-1’s elegant, thin-profile enclosure (in a black or white finish) is made to
complement your home furnishings and its integrated display stand provides easy
placement on a convenient shelf or table. Or, if you prefer, you can mount the QPS-1
speakers on side or back walls by using the built-in, direct-mount keyhole.
Please read the remaining pages before connecting and operating the Infinity QPS-1
speakers. Maximum performance is dependent on following these instructions, as well
as those listed in the owner’s manuals of associated components in your home theater
system. Save these instructions for future reference. These speakers are covered by a
limited five-year warranty, so save the bill of sale to protect your purchase and aid in any
service-related questions.
UNPACKING THE SPEAKERS
Finish unpacking the speakers and check the contents. If you suspect damage from transit,
report it immediately to your dealer and/or delivery service. Keep the shipping cartons and
packing materials for future use.
Please verify that the package contains the following items:
◆ (1) Quadrapole Left-Surround Speaker
◆ (1) Quadrapole Right-Surround Speaker
◆ Owner’s Manual and Warranty Card
Depending on your choice of installation, you may also need the following tools and
supplies:
◆ High-quality speaker wire
◆ Wire strippers
◆ (4) Banana plugs or spade terminals (optional)
◆ (2) #8 x 1
1
⁄2" Phillips-head wood screws (for wall-mounting of speakers – optional)
◆ Drill with
1
⁄8" bit (optional)
◆ Phillips screwdriver (optional)
Q
UADRAPOLEDESIGN
...
F
LEXIBLEPLACEMENT
...
A
BOUTTHISMANUAL
...
P
ARTSLIST
...
T
OOLSANDSUPPLIES
...
2◆Infinity QPS-1 – Owner’s Manual
PLANNING YOUR SYSTEM
To help plan your home theater system, we’ve included two system applications, as
shown in Figures 1 and 2. The first one represents a typical living room where the home

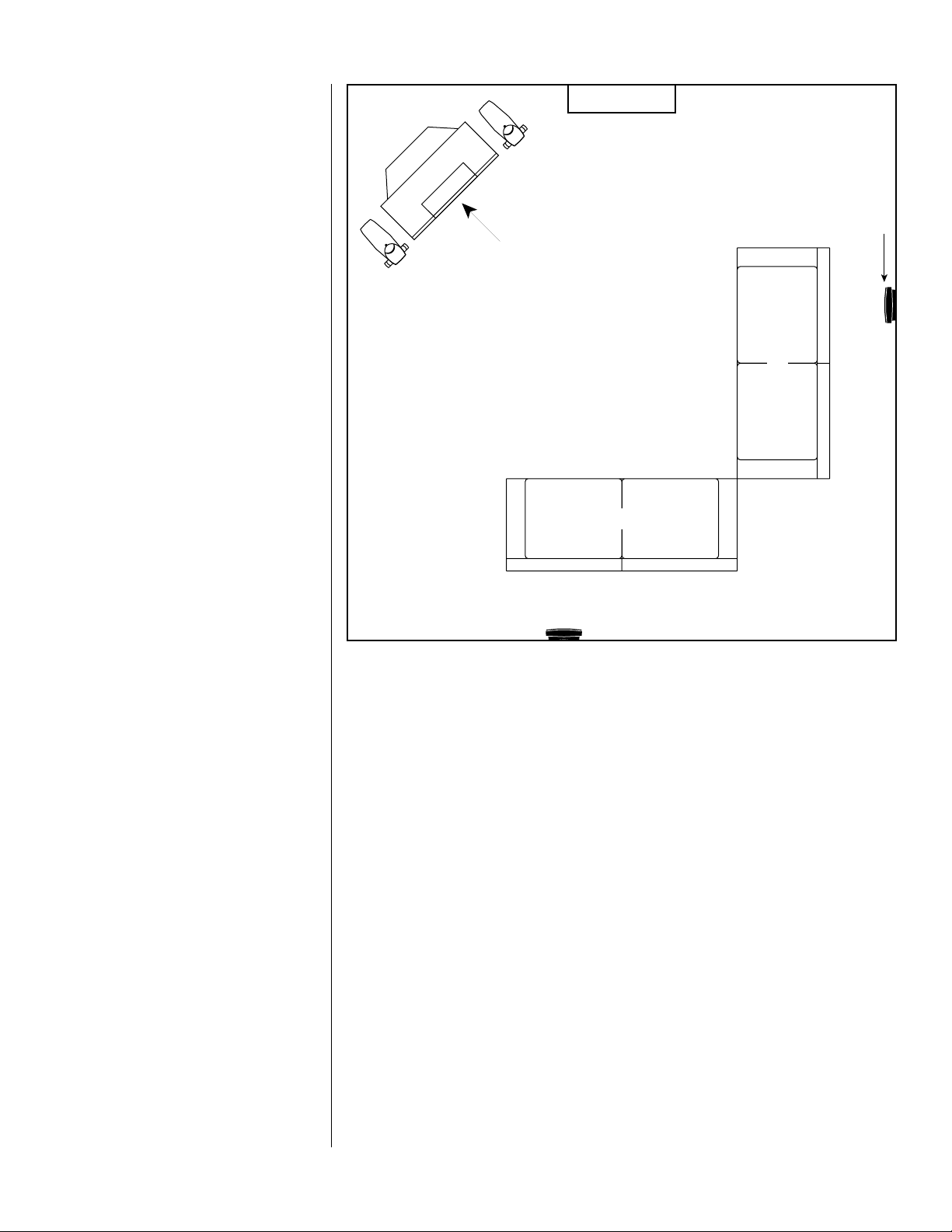

theater system is the main focus. In the second application, the furniture is arranged for
fireplace viewing and the entertainment center is in a corner.
Since QPS-1 surround speakers are a quadropole design, exact placement is not critical.
For best results, position the speakers so they are level with or behind the listeners
(typically seated on a couch). Place them at or above ear level (28" or 0.7m, depending
on the available shelf or wall space). Make sure the speaker marked left (on its rear
label) is on the left side (as you face forward), and the speaker marked right is on the
right side (see Figure 1).
Set each speaker on any convenient shelf or table via a built-in display stand (see Figure
3 on page 4). Or use the built-in keyhole (see Figure 3 on page 4) for a more permanent
mounting method.
S
URROUNDPLACEMENT
C
ONCERNS
...
S
TAND-UPOR
W
ALL
-M
OUNT
...
Figure 1. This overhead view shows
a typical home theater plan. The
QPS-1 speakers can be placed on
stands in the noted areas or wall-
mounted on side or back walls.
Big Screen TV
Couch
QPS-1
Left Surround
(on side wall)
QPS-1
Right Surround
(on side wall)
(or use rear wall)
Left Surround
Placement Area
Right Surround
Placement Area
Center Channel
on top of TV
Left
Channel
Right
Channel
