Indesit K3C36-G User Manual

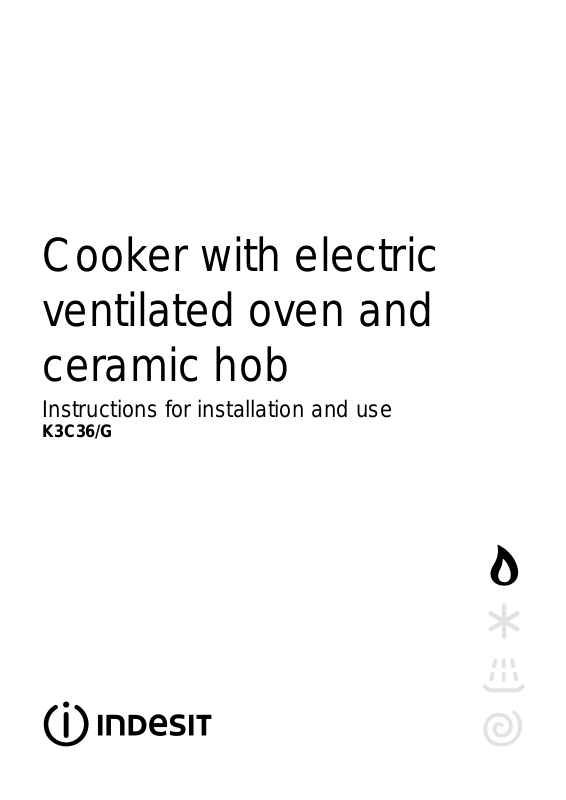

Cooker with electr ic ventilated oven and ceramic hob
Instructions for installation and use
K3C36/G
Cooker with electric ventilated oven and ceramic hob
Instructions for installation and use
Important safety warnings
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
call only the Service Centers authorized by the manufacturer
always use original Spare Parts
1 This appliance is intended for nonprofessional use
within the home.
2 These instructions are only for those countries whose
symbols appear in the booklet and on the serial no. plate of the appliance.
3 This owner’ s manual is f or a class 1 appliance (in-
sulated) or class 2, subc lass 1 appliances (installed between two cabinets.
4 Before using your appliance, read the instructions in
this owner’s manual carefully since it provides all the information you need to ensure safe installation, use and maintenance. Always keep this owner’s manual close to hand since you may need to refer to it in the future.
5 When you have removed the packing, check that the
appliance is not damaged. If y ou have any doubts, do not use the appliance and contact your nearest Ariston Service Centre. Never leave the packing components (plastic bags, polystyrene foam, nails, etc.) within the reach of children since they are a source of potential danger.
6 The appliance must be installed only by a qualified tech-
nician in compliance with the instructions provided. The manufacturer declines all liability for improper installa­tion, which may result in personal injury and damage to property.
7 The electrical safety of this appliance can only be guar-
anteed if it is correctly and efficiently earthed, in com­pliance with regulations on electrical safety. Always ensure that the earthing is efficient. If you have any doubts, contact a qualified technician to check the sys­tem. The manuf acturer declines all liability for damage resulting from a system which has not been earthed.
8 Before plugging the appliance into the mains, check
that the specifications indicated on the date plate (on the appliance and/or packaging) correspond with those of the electrical and gas systems in your home.
9 Check that the electrical capacity of the system and
sockets will support the maximum power of the appli­ance, as indicated on the data plate. If you have any doubts, contact a qualified technician.
10 An omnipolar switch with a contact opening of at least
3 mm or more is required for installation.
11 If the socket and appliance plug are not compatible,
have the socket replaced with a suitable model by a qualified technician, who should also check that the cross-section of the socket cable is sufficient for the power absorbed by the appliance. The use of adap­tors, multiple sockets and/or e xtensions, is not recom­mended. If their use cannot be avoided, remember to use only single or multiple adapters and extensions which comply with current safety regulations. In these cases, never exceed the maximum current capacity indicated on the individual adaptor or extension and the maximum power indicated on the multiple adapter .
12 Do not leave the appliance plugged in if it is not in use .
Switch off the main switch and gas supply when you are not using the appliance.
13 The openings and slots used for ventilation and heat
dispersion must nev er be cov ered.
14 The user must not replace the supply cable of this ap-
pliance. Always contact an after-sales service centre which has been authorised by the manufacturer if the cable has been damaged or needs replacement.
15 This appliance must be used for the purpose for which
it was expressly designed. An y other use (e.g. heating rooms) is considered to be improper and consequently dangerous. The manufacturer declines all liability for damage resulting from improper and irresponsible use.
16 A number of fundamental rules must be follow ed when
using electrical appliances. The following are of par­ticular importance:
Do not touch the appliance when your hands or feet are wet.
Do not use the appliance barefooted.
Do not use extensions, but if they are necessary, caution must be exercised.
Nev er pull the power supply cable or the appliance to unplug the appliance plug from the mains.
Nev er leave the appliance exposed to atmospheric agents (rain, sun etc.)
Do not allow children or persons who are not famil­iar with the appliance to use it, without supervision.
17 Always unplug the appliance from the mains or s witch
off the main switch before cleaning or carrying out main­tenance.
18 If you are no longer using an appliance of this type,
remember to make it unserviceable by unplugging the appliance from the mains and cutting the supply cable. Also make all potentially dangerous parts of the appli­ance safe, above all for children who could play with the appliance.
19 To av oid accidental spillage do not use cookware with
uneven or def ormed bottoms on the electric plates. T urn the handles of pots and pans inwards to av oid knoc k­ing them over accidentally.
20 Never use flammab le liquids such as alcohol or gaso-
line, etc. near the appliance when it is in use.
21 When using small electric appliances near the hob,
keep the supply cord away from the hot parts.
22 Make sure the knobs are in the “•”/”¡” position when
the appliance is not in use.
23 When the appliance is in use, the heating elements
and some parts of the oven door become extremely hot. Make sure you don’t touch them and keep chil­dren well awa y.
24 If the cooker is placed on a pedestal, take the
necessary precautions to prevent the same from sliding off the pedestal itself.
Installation
The following instructions should be read by a qualified technician to ensure that the appliance is installed, regulated and technically serviced correctly in compliance with current regulations. Important: disconnect the cooker from the electricity when making any adjustement, maintenance operation, etc.
Positioning
The appliance can be installed next to furniture units which are no taller than the top of the cooker hob. For proper installation of the cooker , the following precautions m ust be taken: a) Kitchen cabinets installed next to the cooker that are taller
than the top of the hob must be situated at least 200 mm from the edge of the hob.
b) Hoods must be installed according to the requirements in
the installation manual for the hoods themselves and in an y case at a minimum distance of 650 mm.
c) Place the wall cabinets adjacent to the hood at a minimum
height of 420 mm from the hob (see figure).
d) Should the cooker be installed beneath a wall cabinet, the
latter should be situated at least 700 mm (millimetres) away from the hob, as shown in the figure .
e) the cut-out for the cooker cabinet should hav e the dimensions
indicated in the figure.
HOOD
Min. mm.
600
mm.
420
Min.
mm. with hood
420
650
Min. mm.
min.
mm. without hood
700
min.
N.B.: the following installation procedure must be carried out by a qualified electrician. The electrical installation must comply with the IEE Regulations, Building & local By-Lays. For the installation of the feeding cable carry out the following operations:
lUnscrew screw “V” (see fig. C) l Pull and open the junction blok lid
Important: the wires in the mains lead are coloured in accordance with the following code:
Green & Yellow Earth Blue Neutral
Brown Live As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
Green & Yellow wire to terminal marked “E” or 6 or coloured Green or Green & Yellow.
Brown wire to terminal marked “L” or coloured Red. Blue wire to terminal marked “N” or coloured Black (see fig. D).
l fix the feeding cable in the special cab le stop and close the
cover.
N.B.: the power supply cable must have these minimum
requirements:
Type: H05RR-F
Section: 3x4 mm
V
2
Levelling your appliance (only on a f ew models) Your cooker is supplied with feet for levelling the appliance. If necessary , these feet can be scre w ed into the housings in the corners of the cooker base (Fig. A).
Mounting the legs (only on a few models) Press-fit legs are supplied which fit under the base of your cooker (Fig. B).
Fig. A Fig. B
Electrical connection
Electric cookers come without a power supply cab le. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after removing the back panel of the cooker itself with a screwdriver .
Fig. CFig. D
Connecting the supply cable to the mains WARNINGS: THIS APPLIANCE MUST BE EARTHED. Important: The cooker must be connected to the mains by a
switched (double pole) cooker outlet correctly fused with a capacity appropriate to that shown on the cooker Rating Plate. All electrical wiring from the consumer unit to the cooker, via the switched double pole cook er outlet, must be of an acceptable type and current rating as above. Note: the supply cable must be positioned so that it nev er reaches at any point a temperature 50°C higher than the room tempera­ture. The cab le must be routed aw ay from the rear v ents.
HOT PARTS
4
104
60
50
85/90
Technical Specifications
Oven
Dimensions (WxDxH) 39x41x34 cm V olume 54 lt
Oven absorption Max
2000 W
Ceramic Hob
Front Left 1200 W Back Left 1700 W Back Right 1200 W Front Right 1700 W Hob Ceramic absorption Max 5800 W
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens Norm EN 50304 Declared energy consumption for Forced con vection Class
heating mode: F an assisted
Inner Dimensions of the Food Warmer:
Width: 42 cm
Depth: 44 cm
Height: 23 cm
V olta ge and frequency
see data plate
7
This appliance conforms with the following European Economic Community directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
- 2002/96/EC
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when y ou dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
Mains frequency and voltage of the electrical
section
Model Electric section
Voltage Power (W)
K 3C36/G 240V~ 50 Hz 7800
