ENGLISH
Contents
4
Safety information 4
Safety instructions 5
Installation 7
Product description 8
Operation 8
First use 9
Subject to change without notice.
Daily use 9
Hints and tips 12
Care and cleaning 14
Troubleshooting 15
Technical information 18
IKEA GUARANTEE 19
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
• Do not let children play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Keep all packaging away from children.
General Safety
• This appliance is intended to be used in household and
similar applications such as:
– Farm houses; staff kitchen areas in shops, offices and other
working environments
ENGLISH 5
– By clients in hotels, motels, bed and breakfast and other
residential type environments
• Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
ENGLISH 6
Electrical connection
Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• All electrical connections should be made
by a qualified electrician.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Service or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
Use
Warning! Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
Internal light
• The type of lamp used for this appliance
is not suitable for household room
illumination
Care and cleaning
Warning! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
Warning! Risk of injury or
suffocation.
ENGLISH
7
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozonefriendly.
Installation
Warning! Refer to Safety
chapters.
Location
Refer to the assembly instructions
for the installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight etc.
Make sure that air can circulate freely
around the back of the cabinet.
Positioning
This appliance should be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Ambient temperature
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation can
only be guaranteed within the
specified temperature range. If
you have any doubts regarding
where to install the appliance,
please turn to the vendor, to our
customer service or to the
nearest After Sales Service.
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power
supply socket is not earthed, connect the
appliance to a separate earth in
compliance with current regulations,
consulting a qualified electrician.
The manufacturer declines all responsibility
if the above safety precautions are not
observed.
This appliance complies with the E.E.C.
Directives.
1 2 3 4 5 6
810
7
9
ENGLISH 8
Product description
Product overview
Drawer glass cover
1
Bottle rack
2
Glass shelf
3
Freezer compartment
4
Control unit and light
5
Dairy compartment with lid
6
Door balconies
7
Bottle balcony with holder
8
Vegetable drawers
9
Rating plate
10
Least cold zone
Intermediate temperature zone
Coldest zone
Operation
Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
The pilot light will light up.
If the temperature inside the
appliance is too high, the Alarm
light will blink. Activate the Fast
Freezing function.
Switching off
To turn off the appliance, turn the
Temperature regulator to the "O" position.
The pilot light will switch off.
Temperature regulation
The temperature is regulated automatically.
A medium setting is generally the
most suitable. However, the
exact setting should be chosen
keeping in mind that the
temperature inside the appliance
depends on:
• room temperature,
• how often the door is opened,
• the quantity of food stored,
• the location of the appliance.
1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
2. Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
x1
x1
x1
ENGLISH 9
Caution! If the ambient
temperature is high or the
appliance is fully loaded, and the
appliance is set to the lowest
temperatures, it may run
continuously causing frost to form
on the rear wall. In this case the
dial must be set to a higher
temperature to allow automatic
defrosting and therefore reduced
energy consumption.
First use
Cleaning the interior
Before using the appliance for the first time,
the interior and all internal accessories
should be washed with lukewarm water
and some neutral soap to remove the
typical smell of a brand-new product, then
dried thoroughly.
Daily use
Warning! Refer to Safety
chapters.

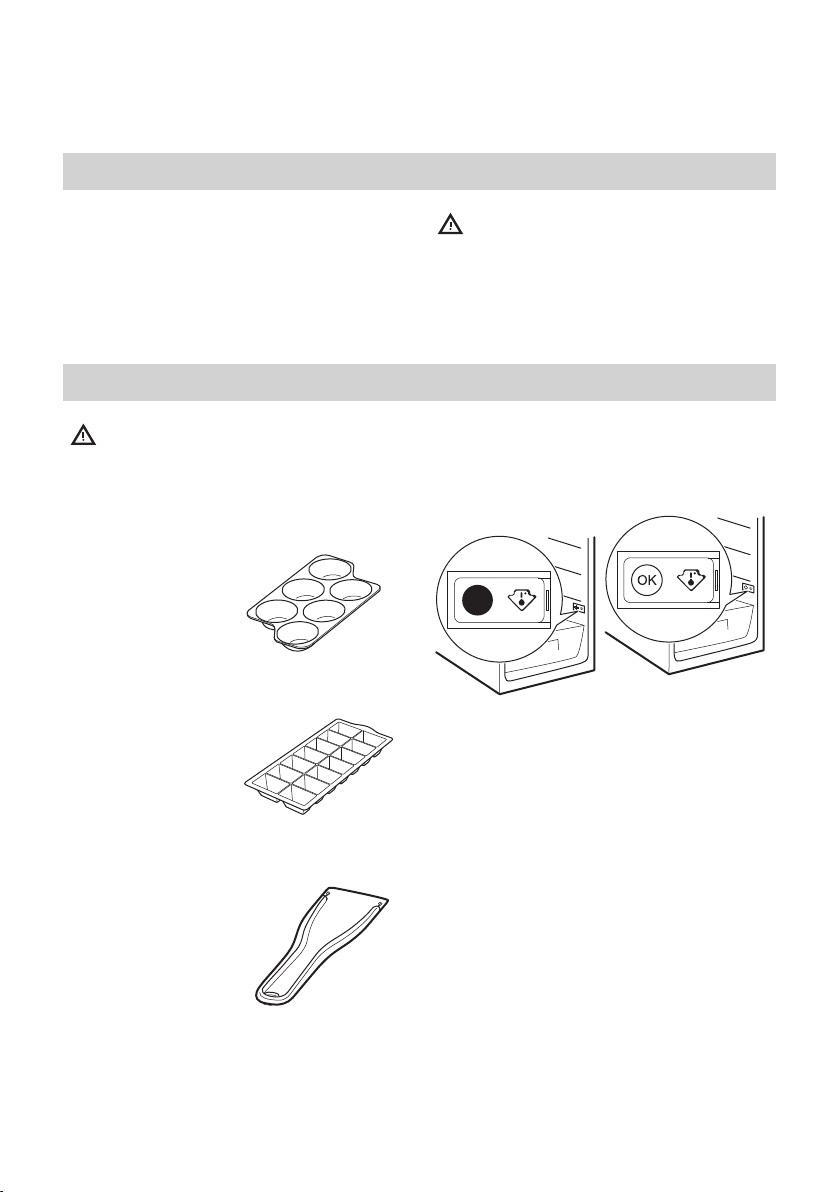

Accessories
Egg tray
Caution! Do not use detergents
or abrasive powders, as these
will damage the finish.
Ice tray
Ice scraper
ENGLISH
10

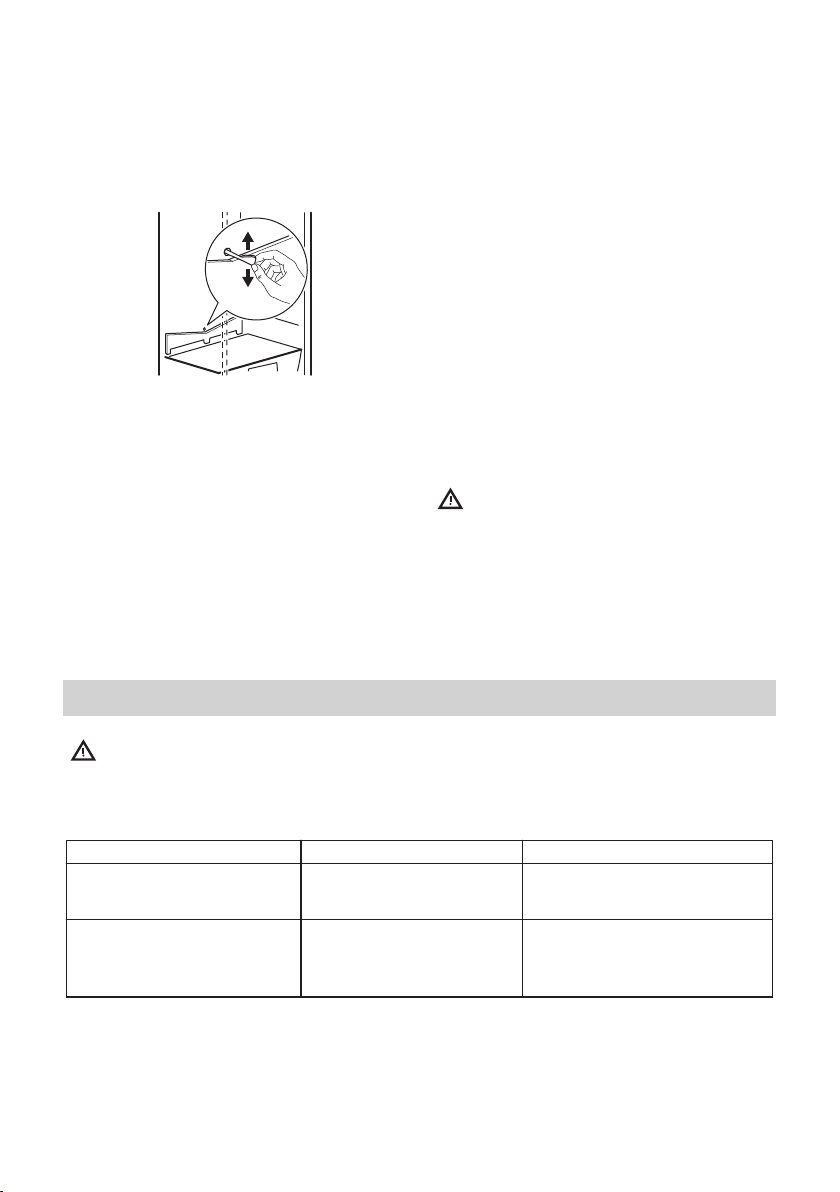

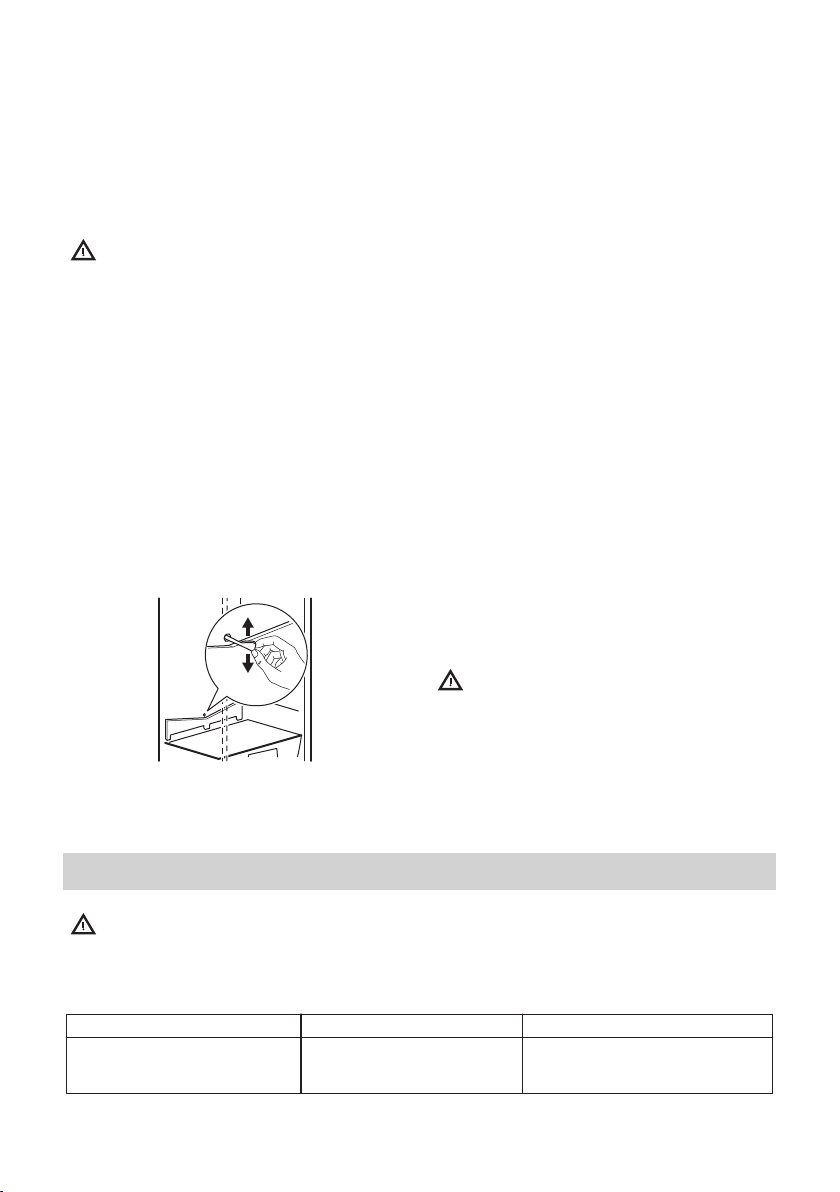

Temperature indicator
Thermostat requires
adjustment
To assist you in controlling your appliance
correctly we have fitted a temperature
indicator to your refrigerator, placed in the
coldest area.
The coldest area of the refrigerator
compartment is at the level of the lower
glass shelf.
The symbol (see graphic) shows the location
of the coldest area of your refrigerator.
The space directly above the glass shelf of
the fruit and vegetable drawer is the
coldest region of the refrigerator
compartment as shown by the shelf or the
sticker on the wall of your appliance.
For proper storage of the food in your
refrigerator and particularly in the coldest
area, ensure that the temperature indicator
is displaying “OK”.
If “OK” is not displayed, the average
temperature in the area is too high. Adjust
the temperature controller to a colder
setting. Since the “OK” display is in black, it
is difficult to see if the temperature indicator
is poorly illuminated. Correct illumination
makes it easy to read.
Each time the temperature controller is
adjusted, wait for the temperature inside
Correct temperature
the appliance to stabilise before checking
whether another adjustment is required.
Only adjust the controller gradually and
wait at least 12 hours before checking and
perhaps adjusting it again.
Caution! After putting fresh food
into the appliance or after
opening the door repeatedly or
for a long period, it is normal for
the indicator not to show “OK”;
wait at least 12 hours before
readjusting the temperature
controller.
If the evaporator of the refrigeration
compartment (wall at the bottom of the
appliance) has an abnormal covering of ice
(appliance too full, high ambient
temperature, thermostat too high, frequent
door opening), gradually move the
thermostat control to a lower setting until
there are once more periods when the
compressor stops. The automatic defrosting
of the refrigerator compartment will not
work correctly unless the compressor stops
from time to time.

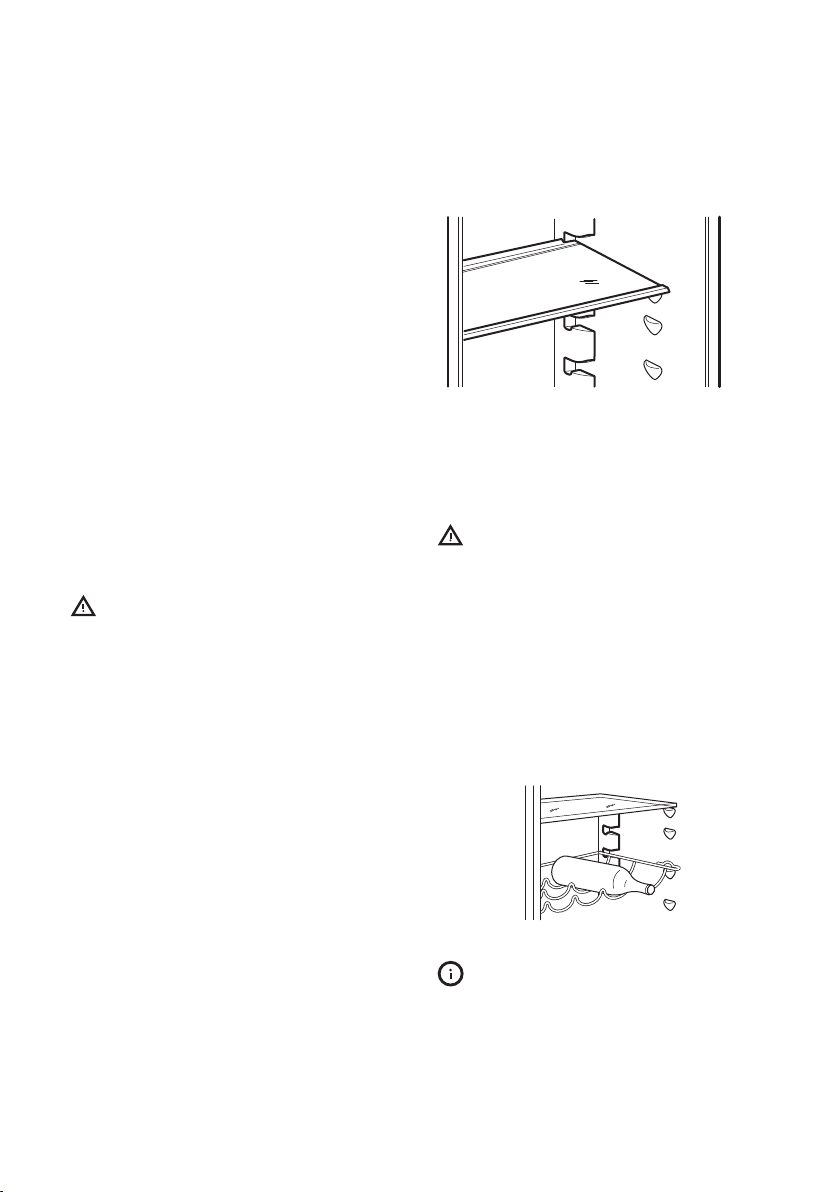

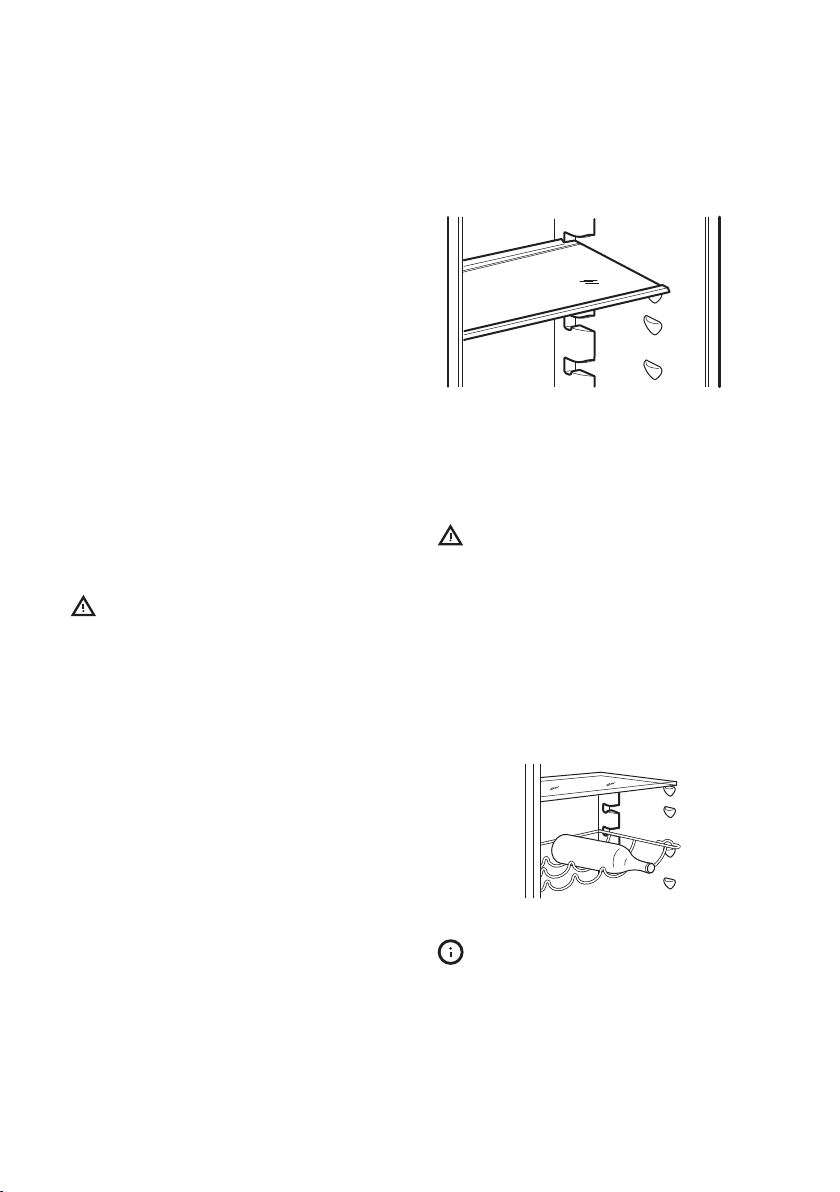

Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the safety
glass shelves can be positioned as desired.
ENGLISH
11
Caution! Do not move the glass
shelf above the vegetable
drawer to ensure correct air
circulation.
Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
If the shelf is positioned
horizontally, place only closed
bottles.
Positioning the door balconies
To permit storage of food packages of
various sizes, the door balconies can be
placed at different heights.
To make these adjustments proceed as
follows: gradually pull upwards the balcony
until it comes free, then reposition as
desired.

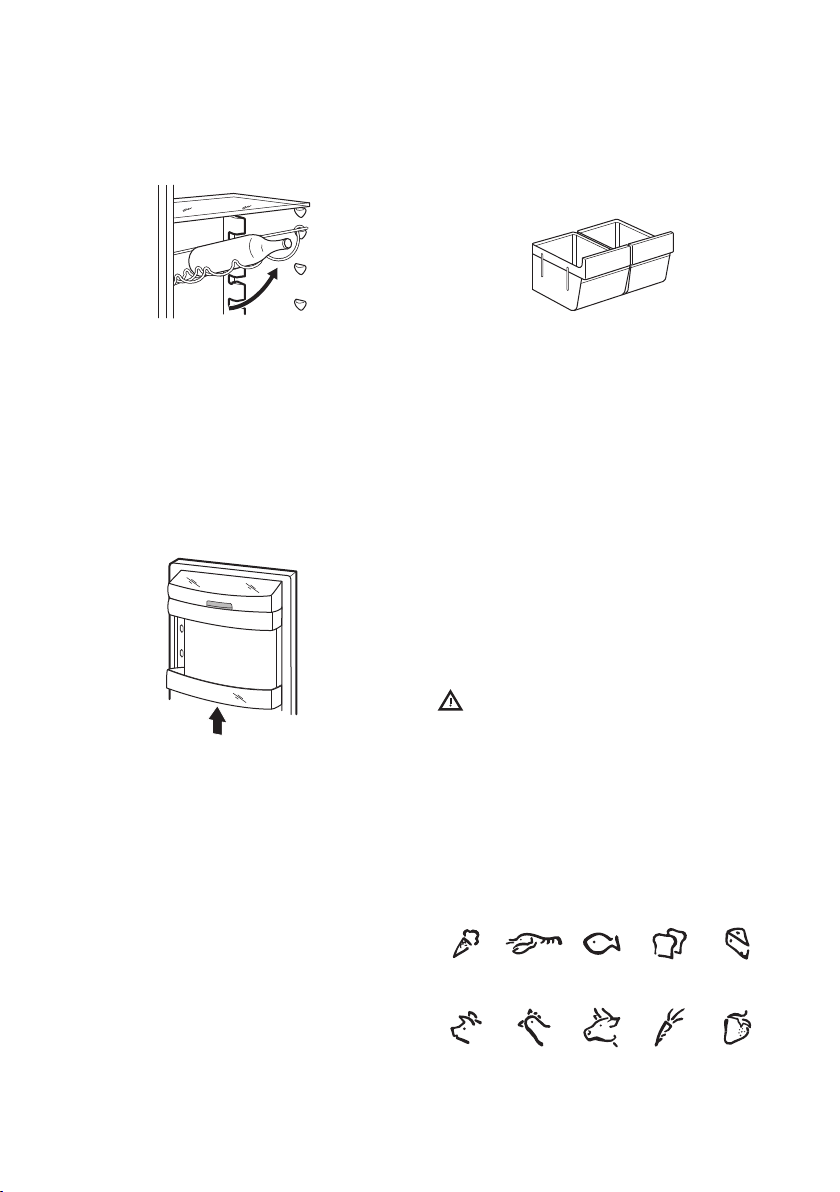

Vegetable Drawers
This bottle holder shelf can be tilted in order
to store previously opened bottles. To
obtain this result, pull the shelf up so it can
rotate upwards and be placed on the next
higher level.
Fruit and vegetables should be placed in
these drawers (see the picture).
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward
higher settings to obtain the maximum
coldness.
3-6
1-2
10-12
3-4
10-12
3-6
10-12
3-6
10-12
3-6
ENGLISH 12
Caution! In this condition, the
refrigerator compartment
temperature might drop below
0°C. If this occurs reset the
temperature regulator to a
warmer setting.
Freezing Calendar
The symbols show different types of frozen
goods.
The numbers indicate storage times in
months for the appropriate types of frozen
goods. Whether the upper or lower value of
the indicated storage time is valid depends
on the quality of the foods and treating
before freezing.
Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
Caution! In the event of
accidental defrosting, for
example due to a power failure,
if the power has been off for
longer than the value shown in
the technical characteristics chart
under "rising time", the defrosted
food must be consumed quickly
or cooked immediately and then
re-frozen (after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this case,
cooking will take longer.
Ice-cube production
This appliance is equipped with one tray for
the production of ice-cubes.
1. Fill the tray with water.
2. Put the tray in the freezer compartment
Caution! Do not use metallic
instruments to remove the tray
from the freezer.
Hints and tips
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
ENGLISH
13
• A faint click noise from the temperature
regulator when the compressor switches
on or off.
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity
consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf above
the vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
• Bottles: these need a cap and should be
stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic, if
not packed, must not be kept in the
refrigerator.
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the
rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the
latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the skin
to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
ENGLISH
14
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
Care and cleaning
Warning! Refer to Safety
chapters.
General warnings
Caution! Unplug the appliance
before carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of the
appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
Caution! Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
Caution! Take care of not to
damage the cooling system.
Caution! When moving the
cabinet, lift it by the front edge to
avoid scratching the floor.
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting the freezer
A certain amount of frost will
always form on the freezer
shelves and around the top
compartment.
Defrost the freezer when the frost
layer reaches a thickness of
about 3-5 mm.
To remove the frost, do these steps:
1. Switch off the appliance.
2. Remove any stored food, wrap it in
several layers of newspaper and put it
in a cool place.
3. Leave the door open.
4. When defrosting is completed, dry the
interior thoroughly and refit the plug.
5. Switch on the appliance.
6. Set the temperature regulator to obtain
the maximum coldness and run the
ENGLISH 15
appliance for two or three hours using
this setting.
7. Reload the previously removed food
into the compartment.
Warning! Never use sharp metal
tools to scrape off frost from the
evaporator as you could
damage it. Do not use a
mechanical device or any
artificial means to speed up the
thawing process other than those
recommended by the
manufacturer. A temperature rise
of the frozen food packs, during
defrosting, may shorten their safe
storage life.
Defrosting of the refrigerator
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of the
refrigerator compartment channel to
prevent the water overflowing and dripping
onto the food inside. Use the special
cleaner provided, which you will find
already inserted into the drain hole.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
3. Leave the door/doors open to prevent
unpleasant smells.
Warning! If the cabinet will be
kept on, ask somebody to check
it once in a while to prevent the
food inside from spoiling in case
of a power failure.
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not operate.
The appliance is switched
off.
Switch on the appliance.
ENGLISH 16
Problem Possible cause Solution
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to the
mains socket correctly.
There is no voltage in the
mains socket.
The appliance is noisy. The appliance is not sup-
ported properly.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates
continually.
Many food products were
The room temperature is
Food products placed in
There is too much frost and
ice.
Temperature is set incorrectly.
put in at the same time.
too high.
the appliance were too
warm.
The door is not closed correctly or the gasket is deformed/dirty.
Food products are not
wrapped properly.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
Check if the appliance stands
stable.
Refer to "Operation" chapter.
Wait some hours and then
check the temperature again.
Refer to climate class chart on
the rating plate.
Allow food products to cool to
room temperature before storing.
Refer to "Closing the door".
Wrap the food products better.
Water flows inside the refrigerator.
The temperature in the appliance is too low/too high.
Temperature is set incorrectly.
The water outlet is clogged.
Food products prevent
that water flows into the
water collector.
The temperature regulator
is not set correctly.
Refer to "Operation" chapter.
Clean the water outlet.
Make sure that food products
do not touch the rear plate.
Set a higher/lower temperature.
ENGLISH 17
Problem Possible cause Solution
The door is not closed correctly.
Refer to "Closing the door".
The food products' temperature is too high.
Many food products are
stored at the same time.
The thickness of the frost is
greater than 4-5 mm.
The door has been
opened often.
If your appliance still is not
working properly after making
the above checks, contact the
After Sales Service. You can find
the list at the end of this manual.
Replacing the lamp
Caution! The appliance is
equipped with a longlife LED
interior light.
1. Disconnect the plug from the mains
socket.
2. Remove the screw from the lamp cover.
3. Press and push the lamp cover to
remove it.
Let the food products temperature decrease to room temperature before storage.
Store less food products at the
same time.
Defrost the appliance.
Open the door only if necessary.
No incandescent bulbs are
allowed. It is suggested to
use E14 LED light with
maximum 1,5 Watts.
5. Install the lamp cover.
6. Tighten the screw to the lamp cover.
7. Connect the plug to the mains socket.
8. Open the door.
Make sure that the light comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
the assembly instructions.
3. If necessary, replace the defective door
gaskets. Contact the After Sales Service.
4. Replace the lamp with a light of similar
characteristics and power.
ENGLISH 18
Technical information
Technical data
Product dimensions
Height 1218 mm
Width 540 mm
Depth 549 mm
Net volume
Fridge 193 Litre
Freezer 17 Litre
Defrost system
Fridge auto
Freezer manual
Star rating
Rising time 12 hours
Freezing capacity 2 kg/24h
Energy consumption 0,504 kWh/24h
Noise level 36 dB (A)
Energy class A++
Voltage 230 - 240 V
Frequency 50 Hz

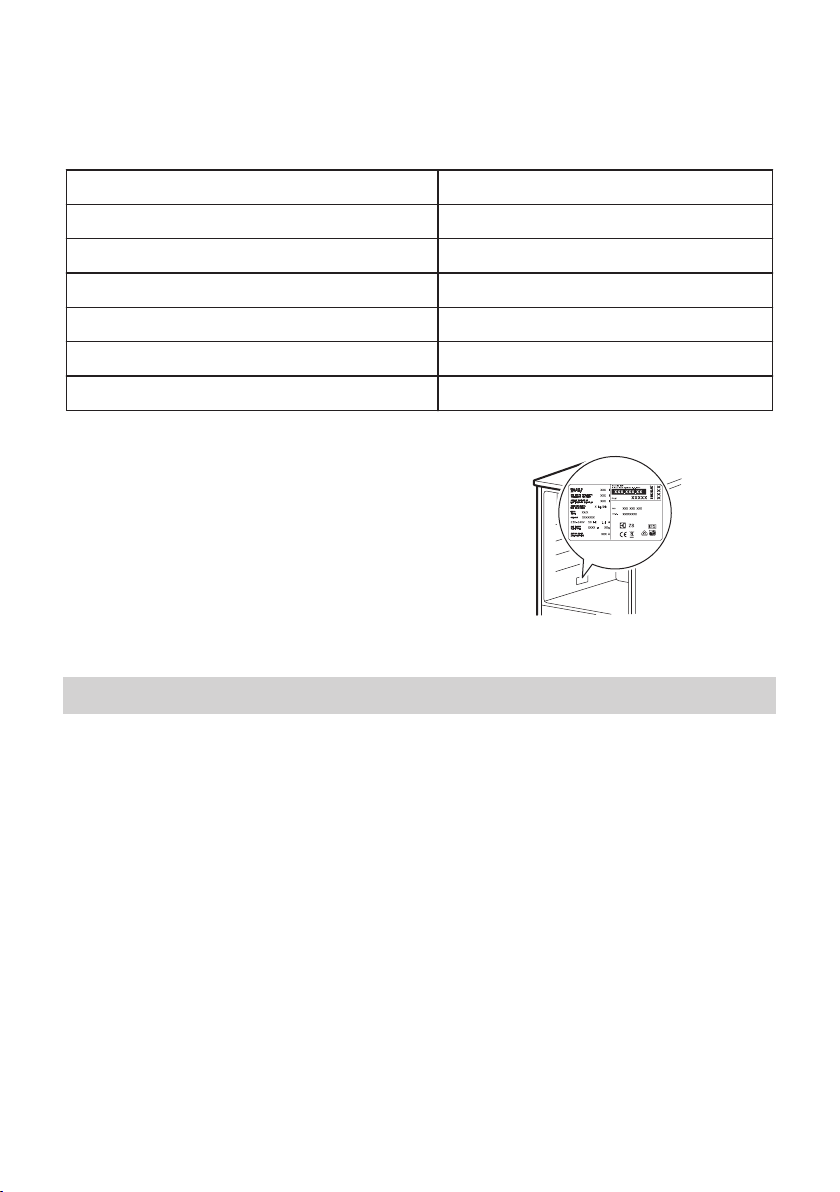

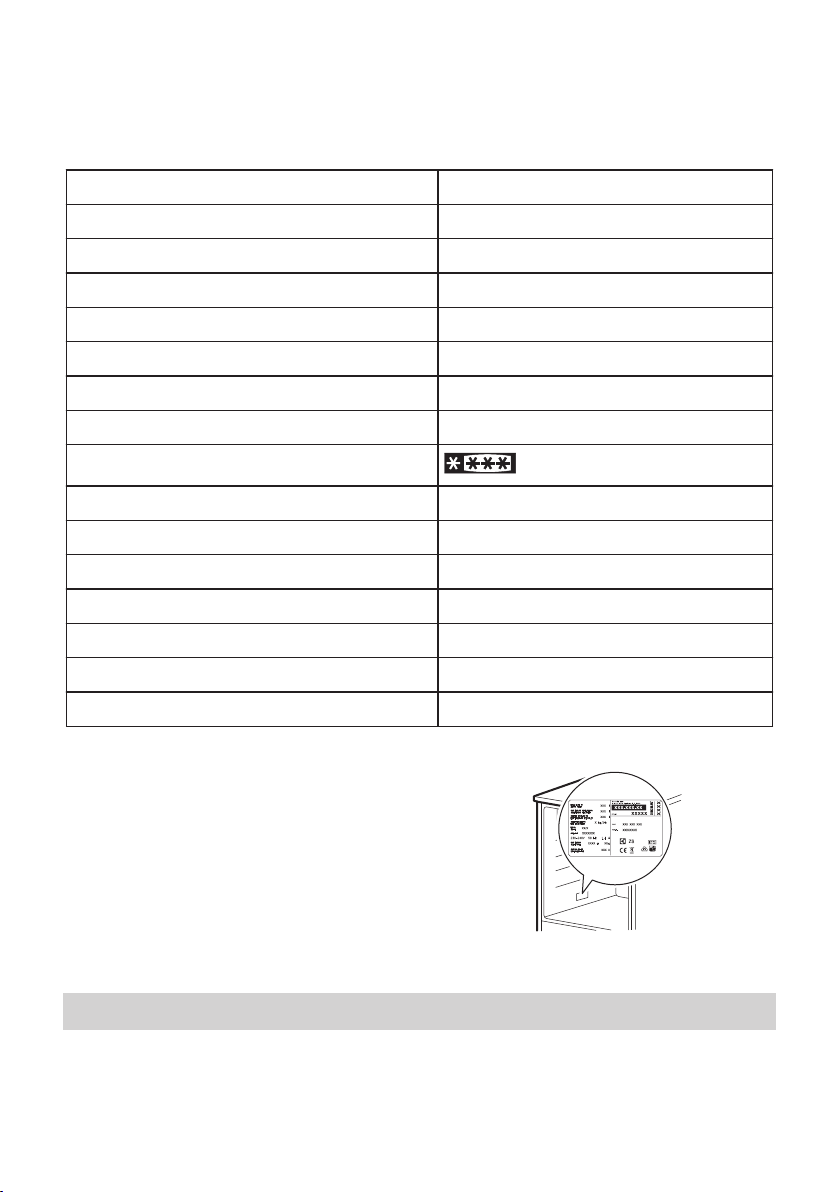

The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
ENGLISH
19
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply. The original sales
receipt is required as proof of purchase. If
service work is carried out under guarantee,
this will not extend the guarantee period for
the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN
and all appliances purchased in IKEA
before 1st of August 2007
Who will execute the service?
IKEA service provider will provide the
service through its own service operations
or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the
appliance, which have been caused by
faulty construction or material faults from
the date of purchase from IKEA. This
guarantee applies to domestic use only. The
exceptions are specified under the headline
“What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure. On
these conditions the EU guidelines (Nr.
99/44/EG) and the respective local
regulations are applicable. Replaced parts
become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will
examine the product and decide, at its sole
discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service operations,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage,
damage caused by failure to observe
operating instructions, incorrect
installation or by connection to the
wrong voltage, damage caused by
chemical or electro-chemical reaction,
rust, corrosion or water damage
including but not limited to damage
caused by excessive lime in the water
supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible color differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found
during a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
ENGLISH
20
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a nondomestic environment i.e. professional
use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety
specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local
demands. However these conditions do not
limit in any way consumer rights described
in the local legislation
Area of validity
For appliances which are purchased in one
EU country and taken to another EU
country, the services will be provided in the
framework of the guarantee conditions
normal in the new country. An obligation to
carry out services in the framework of the
guarantee exists only if the appliance
complies and is installed in accordance
with:
• the technical specifications of the country
in which the guarantee claim is made;
• the Assembly Instructions and User
Manual Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this
guarantee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t
provide clarifications related to:
• the overall IKEA kitchen installation;
• connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized
service engineer.
3. ask for clarification on user manual
contents and specifications of the IKEA
appliance.
To ensure that we provide you with the best
assistance, please read carefully the
Assembly Instructions and/or the User
Manual section of this booklet before
contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
ENGLISH 21
In order to provide You with a
quicker service, we recommend
that You use the specific phone
numbers listed at the end of this
manual. Always refer to the
numbers listed in the booklet of
the specific appliance You need
an assistance for. Before calling
us, assure that You have to hand
the IKEA article number (8 digit
code) for the appliance of which
you need our assistance.
SAVE THE SALES RECEIPT! It is
Your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please
contact our nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting
us.
DEUTSCH
22
Inhaltsverzeichnis
Sicherheitsinformationen 22
Sicherheitsanweisungen 23
Montage 25
Gerätebeschreibung 26
Betrieb 27
Erste Inbetriebnahme 28
Änderungen vorbehalten.
Täglicher Gebrauch 28
Tipps und Hinweise 32
Reinigung und Pflege 33
Fehlersuche 35
Technische Daten 38
IKEA Garantie 39
Sicherheitsinformationen
Lesen Sie vor der Montage und dem Gebrauch des Geräts
zuerst die Gebrauchsanleitung. Der Hersteller übernimmt keine
Verantwortung für Verletzungen und Beschädigungen durch
unsachgemäße Montage. Bewahren Sie die
Gebrauchsanleitung griffbereit auf.
Sicherheit von Kindern und schutzbedürftigen Personen
• Das Gerät kann von Kindern ab 8 Jahren und Personen mit
eingeschränkten physischen, sensorischen oder geistigen
Fähigkeiten oder mit mangelnder Erfahrung und/oder
mangelndem Wissen nur dann verwendet werden, wenn sie
durch eine für ihre Sicherheit zuständige Person beaufsichtigt
werden oder in die sichere Verwendung des Geräts
eingewiesen wurden und die mit dem Gerät verbundenen
Gefahren verstanden haben.
• Kinder dürfen nicht mit dem Gerät spielen.
• Wartung oder Reinigung des Geräts dürfen nicht von Kindern
ohne Aufsicht erfolgen.
• Alle Verpackungsmaterialien von Kindern fernhalten.
Allgemeine Sicherheit
• Dieses Gerät ist für die Verwendung im Haushalt und
ähnliche Zwecke vorgesehen, wie z. B.:
DEUTSCH 23
– Bauernhöfe, Personalküchenbereiche in Geschäften, Büros
und anderen Arbeitsumfeldern
– Für Gäste in Hotels, Motels, Pensionen und anderen
wohnungsähnlichen Räumlichkeiten
• Achten Sie darauf, dass die Belüftungsöffnungen im Gehäuse
um das Gerät und in der Einbaunische nicht blockiert sind.
• Versuchen Sie nicht, den Abtauvorgang durch andere als
vom Hersteller empfohlene mechanische oder sonstige
Hilfsmittel zu beschleunigen.
• Beschädigen Sie nicht den Kältekreislauf.
• Betreiben Sie in den Lebensmittelfächern des Geräts keine
anderen als die vom Hersteller empfohlenen Elektrogeräte.
• Reinigen Sie das Gerät nicht mit einem Wasser- oder
Dampfstrahl.
• Reinigen Sie das Gerät mit einem weichen, feuchten Tuch.
Verwenden Sie ausschließlich Neutralreiniger. Benutzen Sie
keine Scheuermittel, scheuernde Reinigungsschwämmchen,
Lösungsmittel oder Metallgegenstände.
• Bewahren Sie in dem Gerät keine explosiven Substanzen, wie
Spraydosen mit entzündlichen Treibgasen auf.
• Wenn das Netzkabel beschädigt ist, muss es vom Hersteller,
einem autorisierten Kundendienst oder einer gleichermaßen
qualifizierten Person ersetzt werden, um Gefahren zu
vermeiden.
Sicherheitsanweisungen
Montage
WARNUNG! Nur eine
qualifizierte Fachkraft darf den
elektrischen Anschluss des Geräts
vornehmen.
• Entfernen Sie das Verpackungsmaterial.
• Stellen Sie ein beschädigtes Gerät nicht
auf und benutzen Sie es nicht.
• Halten Sie sich an die mitgelieferte
Montageanleitung.
• Seien Sie beim Umsetzen des Geräts
vorsichtig, denn es ist schwer. Tragen Sie
stets Sicherheitshandschuhe.
• Stellen Sie sicher, dass die Luft um das
Gerät zirkulieren kann.
• Warten Sie mindestens 4 Stunden, bevor
Sie das Gerät an das Stromnetz
anschließen. Dies ist erforderlich, damit
DEUTSCH
24
das Öl in den Kompressor zurückfließen
kann.
• Stellen Sie das Gerät nicht in der Nähe
von Heizkörpern, Herden, Backöfen oder
Kochfeldern auf.
• Die Geräterückseite muss gegen die
Wand gestellt werden.
• Stellen Sie das Gerät nicht dort auf, wo
es direktem Sonnenlicht ausgesetzt sein
könnte.
• Stellen Sie das Gerät nicht an zu
feuchten oder kalten Orten auf, wie z. B.
in Nebengebäuden, Garagen oder
Weinkellern.
• Wenn Sie das Gerät verschieben
möchten, heben Sie es bitte an der
Vorderkante an, um den Fußboden nicht
zu verkratzen.
Elektrischer Anschluss
WARNUNG! Brand- und
Stromschlaggefahr.
• Das Gerät muss geerdet sein.
• Alle elektrischen Anschlüsse sind von
einem geprüften Elektriker vorzunehmen.
• Stellen Sie sicher, dass die elektrischen
Daten auf dem Typenschild den Daten
Ihrer Stromversorgung entsprechen.
Wenden Sie sich andernfalls an eine
Elektrofachkraft.
• Schließen Sie das Gerät nur an eine
ordnungsgemäß installierte
Schutzkontaktsteckdose an.
• Verwenden Sie keine
Mehrfachsteckdosen oder
Verlängerungskabel.
• Achten Sie darauf, elektrische Bauteile
(wie Netzstecker, Netzkabel und
Kompressor) nicht zu beschädigen.
Wenden Sie sich an den technischen
Kundendienst oder eine Elektrofachkraft,
um die elektrischen Bauteile
auszutauschen.
• Das Netzkabel muss unterhalb des
Netzsteckers verlegt werden.
• Stecken Sie den Netzstecker erst nach
Abschluss der Montage in die Steckdose.
Stellen Sie sicher, dass der Netzstecker
nach der Montage noch zugänglich ist.
• Ziehen Sie nicht am Netzkabel, wenn Sie
das Gerät von der Stromversorgung
trennen möchten. Ziehen Sie stets am
Netzstecker.
Verwendung
WARNUNG! Es besteht
Verletzungs-, Verbrennungs-,
Stromschlag- und Brandgefahr.
• Nehmen Sie keine technischen
Änderungen am Gerät vor.
• Stellen Sie keine elektrischen Geräte (z.
B. Eisbereiter) in das Gerät, wenn solche
Geräte nicht ausdrücklich vom Hersteller
für diesen Zweck zugelassen sind.
• Achten Sie darauf, den Kältekreislauf
nicht zu beschädigen. Er enthält Isobutan
(R600a), ein Erdgas mit einem hohen
Grad an Umweltverträglichkeit. Dieses
Gas ist brennbar.
• Wird der Kältekreislauf beschädigt,
stellen Sie bitte sicher, dass es keine
Flammen und Zündquellen im Raum gibt.
Belüften Sie den Raum.
• Stellen Sie keine heißen Gegenstände
auf die Kunststoffteile des Geräts.
• Legen Sie Erfrischungsgetränke nicht in
das Gefrierfach. Dadurch entsteht Druck
auf den Getränkebehälter.
• Bewahren Sie keine entzündbaren Gase
und Flüssigkeiten im Gerät auf.
• Platzieren Sie keine entflammbaren
Produkte oder Gegenstände, die mit
entflammbaren Produkten benetzt sind,
im Gerät, auf dem Gerät oder in der
Nähe des Geräts.
• Berühren Sie nicht den Kompressor oder
den Kondensator. Sie sind heiß.
• Nehmen Sie keine Gegenstände aus
dem Gefrierfach bzw. berühren Sie diese
nicht, falls Ihre Hände nass oder feucht
sind.
• Frieren Sie aufgetaute Lebensmittel nicht
wieder ein.
DEUTSCH 25
• Befolgen Sie die Hinweise auf der
Verpackung zur Aufbewahrung
tiefgekühlter Lebensmittel.
Innenbeleuchtung
• Der in diesem Gerät verwendete
Lampentyp eignet sich nicht zur
Raumbeleuchtung.
Reinigung und Pflege
WARNUNG! Verletzungsgefahr
sowie Risiko von Schäden am
Gerät.
• Schalten Sie das Gerät immer aus und
ziehen Sie den Netzstecker aus der
Steckdose, bevor Reinigungsarbeiten
durchgeführt werden.
• Der Kältekreis des Gerätes enthält
Kohlenwasserstoffe. Das Gerät muss von
einer qualifizierten Fachkraft gewartet
und nachgefüllt werden.
• Prüfen Sie regelmäßig den
Wasserabfluss des Geräts und reinigen
Sie ihn gegebenenfalls. Bei verstopftem
Montage
Wasserabfluss sammelt sich das
Abtauwasser am Boden des Geräts an.
Entsorgung
WARNUNG! Verletzungs- und
Erstickungsgefahr.
• Trennen Sie das Gerät von der
Stromversorgung.
• Schneiden Sie das Netzkabel ab, und
entsorgen Sie es.
• Entfernen Sie die Tür, um zu verhindern,
dass sich Kinder oder Haustiere in dem
Gerät einschließen.
• Der Kältekreislauf und die
Isolierungsmaterialien dieses Gerätes
sind ozonfreundlich.
• Die Isolierung enthält entzündliches Gas.
Für Informationen zur korrekten
Entsorgung des Gerätes wenden Sie sich
an Ihre kommunale Behörde.
• Achten Sie darauf, dass die Kühleinheit
in der Nähe des Wärmetauschers nicht
beschädigt wird.
WARNUNG! Siehe Kapitel
Sicherheitshinweise.
Standort
Beachten Sie bei der Installation
die Montageanleitung.
Damit das Gerät die optimale Leistung
bringen kann, sollte es weit entfernt von
Wärmequellen wie Heizungskörpern,
Boilern, direktem Sonnenlicht usw.
aufgestellt werden. Die Luft muss frei an der
Rückseite des Gerätes zirkulieren können.
Standort
Installieren Sie dieses Gerät in einem
trockenen, gut belüfteten Raum, an dem die
Umgebungstemperatur mit der Klimaklasse
übereinstimmt, die auf dem Typenschild des
Geräts angegeben ist:
Klima-
klasse
SN +10 °C bis +32 °C
N +16 °C bis +32 °C
ST +16 °C bis +38 °C
T +16 °C bis +43 °C
Umgebungstemperatur
1 2 3 4 5 6
810
7
9
DEUTSCH 26
Bei einigen Modellen können
Funktionsstörungen auftreten,
wenn sie außerhalb dieses
Temperaturbereichs betrieben
werden. Der ordnungsgemäße
Betrieb wird nur innerhalb des
angegebenen
Temperaturbereichs
gewährleistet. Bei Fragen zum
Aufstellungsort des Geräts
wenden Sie sich an den
Verkäufer, unseren Kundendienst
oder den nächstgelegenen
Kundenservice.
Elektrischer Anschluss
Kontrollieren Sie vor der ersten Benutzung
des Geräts, ob die Netzspannung und -
Gerätebeschreibung
Geräteübersicht
frequenz Ihres Hausanschlusses mit den auf
dem Typenschild angegebenen
Anschlusswerten übereinstimmen.
Das Gerät muss geerdet sein. Zu diesem
Zweck ist der Netzstecker mit einem
Schutzkontakt ausgestattet. Falls die
Steckdose Ihres Hausanschlusses nicht
geerdet sein sollte, lassen Sie das Gerät
gemäß den geltenden Vorschriften von
einem qualifizierten Elektriker erden.
Der Hersteller übernimmt keinerlei Haftung
bei Missachtung der vorstehenden
Sicherheitshinweise.
Das Gerät entspricht den EWG-Richtlinien.
Glasabdeckung der Schublade
1
Flaschenhalter
2
Glasablage
3
Gefrierfach
4
Steuerung und Lampe
5
Fach für Milchprodukte mit Deckel
6
Türablagen
7
Flaschenablage mit Halter
8
Obst- und Gemüseschubladen
9
Typenschild
10
Wärmster Bereich
Bereich mittlerer Temperatur
Kältester Bereich
DEUTSCH 27
Betrieb
Einschalten des Geräts
1. Stecken Sie den Stecker in die
Netzsteckdose.
2. Drehen Sie den Temperaturregler im
Uhrzeigersinn auf eine mittlere
Einstellung.
Die Kontrolllampe leuchtet.
Wenn die Temperatur im Innern
des Gerätes zu hoch ist, blinkt
die Alarmleuchte. Schalten Sie
die Funktion Fast Freezing ein.
Ausschalten des Geräts
Drehen Sie den Temperaturregler zum
Ausschalten des Geräts in die Position „O“.
Die Kontrolllampe erlischt.
Temperaturregelung
Die Temperatur wird automatisch geregelt.
Eine mittlere Einstellung ist im
Allgemeinen am besten
geeignet. Allerdings muss für
eine exakte Einstellung
berücksichtigt werden, dass die
Temperatur im Innern des Geräts
von verschiedenen Faktoren
abhängt:
• Raumtemperatur,
• Häufigkeit der Türöffnung,
• Menge der eingelagerten
Lebensmittel,
• Standort des Geräts.
1. Drehen Sie den Temperaturregler auf
eine niedrigere Einstellung, um die
minimal mögliche Kühlung zu erreichen.
2. Drehen Sie den Temperaturregler auf
eine höhere Einstellung, um die maximal
mögliche Kühlung zu erreichen.
ACHTUNG! Ist die
Umgebungstemperatur hoch
oder das Gerät voll beladen,
dieses aber auf die niedrigste
Temperatur eingestellt, so kann
es bei andauerndem Betrieb des
Geräts an der Rückwand zu
Frostbildung kommen. In diesem
Fall muss eine höhere
Temperatur gewählt werden, die
ein automatisches Abtauen
ermöglicht und damit auch einen
niedrigeren Energieverbrauch.
x1
x1
x1
DEUTSCH
28
Erste Inbetriebnahme
Reinigen des Innenraums
Bevor Sie das Gerät in Betrieb nehmen,
beseitigen Sie den typischen "Neugeruch"
am besten durch Auswaschen der Innenteile
mit lauwarmem Wasser und einer neutralen
Seife. Sorgfältig nachtrocknen.
Täglicher Gebrauch
WARNUNG! Siehe Kapitel
Sicherheitshinweise.
Zubehör
Eierablage
Eiswürfelschale
Kunststoffschaber
ACHTUNG! Verwenden Sie
keine Reinigungsmittel oder
Scheuerpulver, da diese die
Oberfläche beschädigen.
Temperaturanzeige
Der Thermostat muss
eingestellt werden
Um Ihnen bei der Kontrolle Ihres Geräts zu
helfen, haben wir in der kältesten Zone des
Kühlschranks eine Temperaturanzeige
angebracht.
Die kälteste Zone des Kühlraums befindet
sich in Höhe der unteren Glasablage.
Das Symbol (siehe Grafik) zeigt die kälteste
Zone Ihres Kühlschranks an.
Der Bereich direkt über der Glasablage der
Obst- und Gemüseschublade ist die kälteste
Zone des Kühlraums. Sie wird durch die
Ablage oder den Aufkleber an der
Gerätewand angezeigt.
Für die richtige Lagerung der Lebensmittel
in Ihrem Kühlschrank und besonders in der
Richtige Temperatur
Loading...
