Icom IC-M402 service manual

Download
SERVICE MANUAL
VHF MARINE TRANSCEIVER
DANGER
This service manual describes the latest service information for the IC-M402 VHF MARINE TRANSCEIVER at the time of publication. 2 versions of the IC-M402 have been designed. This service manual covers each version.
MODEL
IC-M402
VERSION
USA
USA-1
SYNBOL
BLACK WHITE
ORDERING PARTS
Be sure to include the following four points when ordering replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required <SAMPLE ORDER>
1110003200 S.IC TA31136FN IC-M402 MAIN UNIT 5 pieces 8810006050 Screw Icom screw E7 IC-M402 Chassis 10 pieces
Addresses are provided on the inside back cover for your convenience.
NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. This will ruin the transceiver.
DO NOT expose the transceiver to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when
connecting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100mW)
to the antenna connector. This could damage the trans­ceiver's front end.
REPAIR NOTES
1. Make sure a problem is internal before disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver is dis- connected from its power source.
3. DO NOT force any of the variable components. Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulat- ed turning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the trans­ceiver is defective.
6. DO NOT transmit power into a signal generator or a sweep generator.
7. ALWAYS connect a 40 dB to 50 dB attenuator between the transceiver and a deviation meter or spectrum ana­lyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.
To upgrade quality, anyelectrical or mechanical parts and internal circuits are subject to change without notice or obligation.
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
2-1 IC-M402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2-2 HM-127 (OPTIONAL UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
4-3 PLL CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4-4 DSC CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4-5 LOGIC CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4-6 POWER SUPPLY CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4-7 PORTALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5-2 PLLADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5-3 TRANSMITTER ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
5-4 RECEIVER ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
SECTION 6 PARTS LIST
6-1 IC-M402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6-2 HM-127 (OPTIONAL UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
6-3 HM-129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

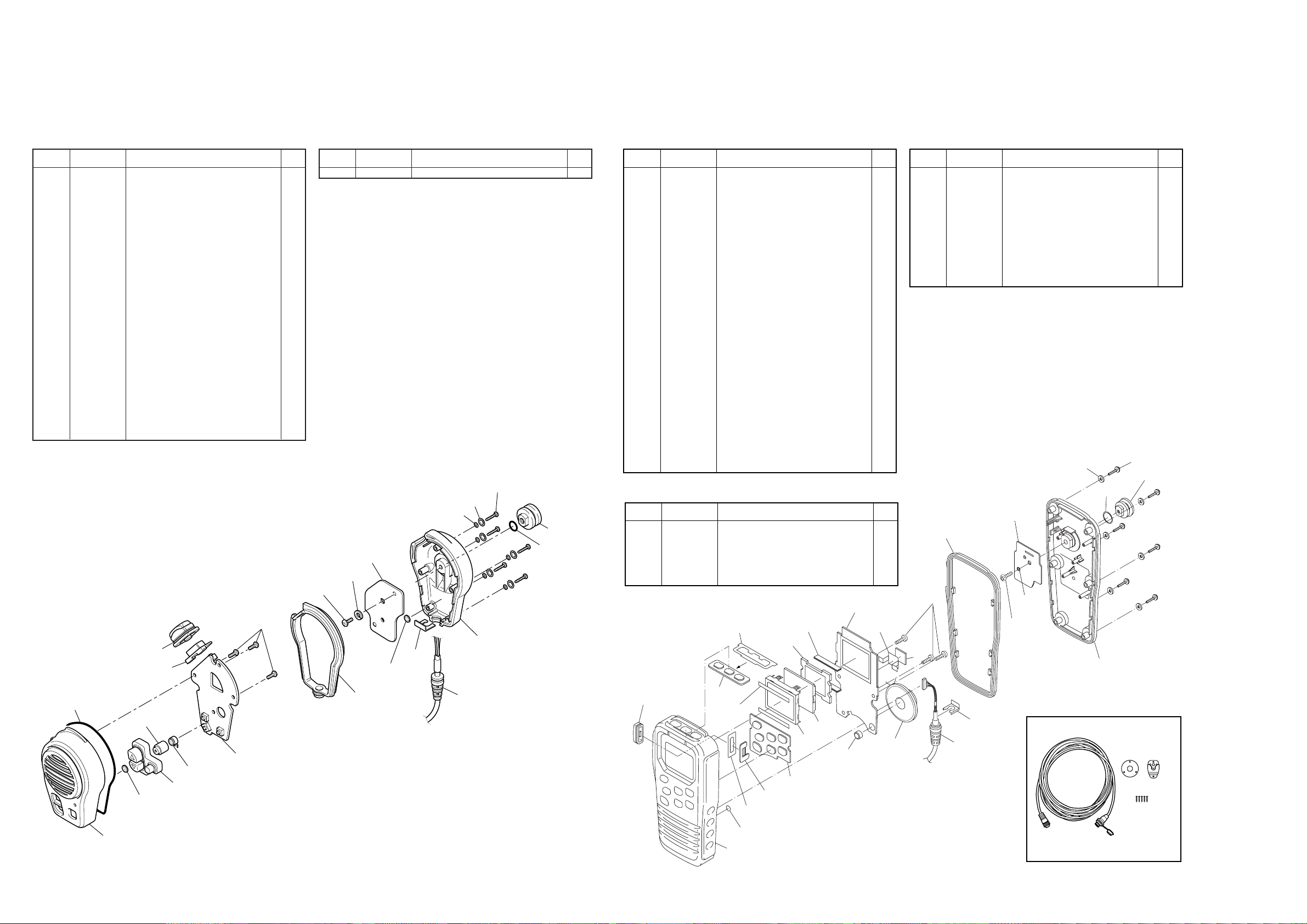

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 IC-M402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
7-2 HM-129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
7-2 HM-127 (OPTIONAL UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
SECTION 8 SEMI-CONDUCTOR INFORMATION

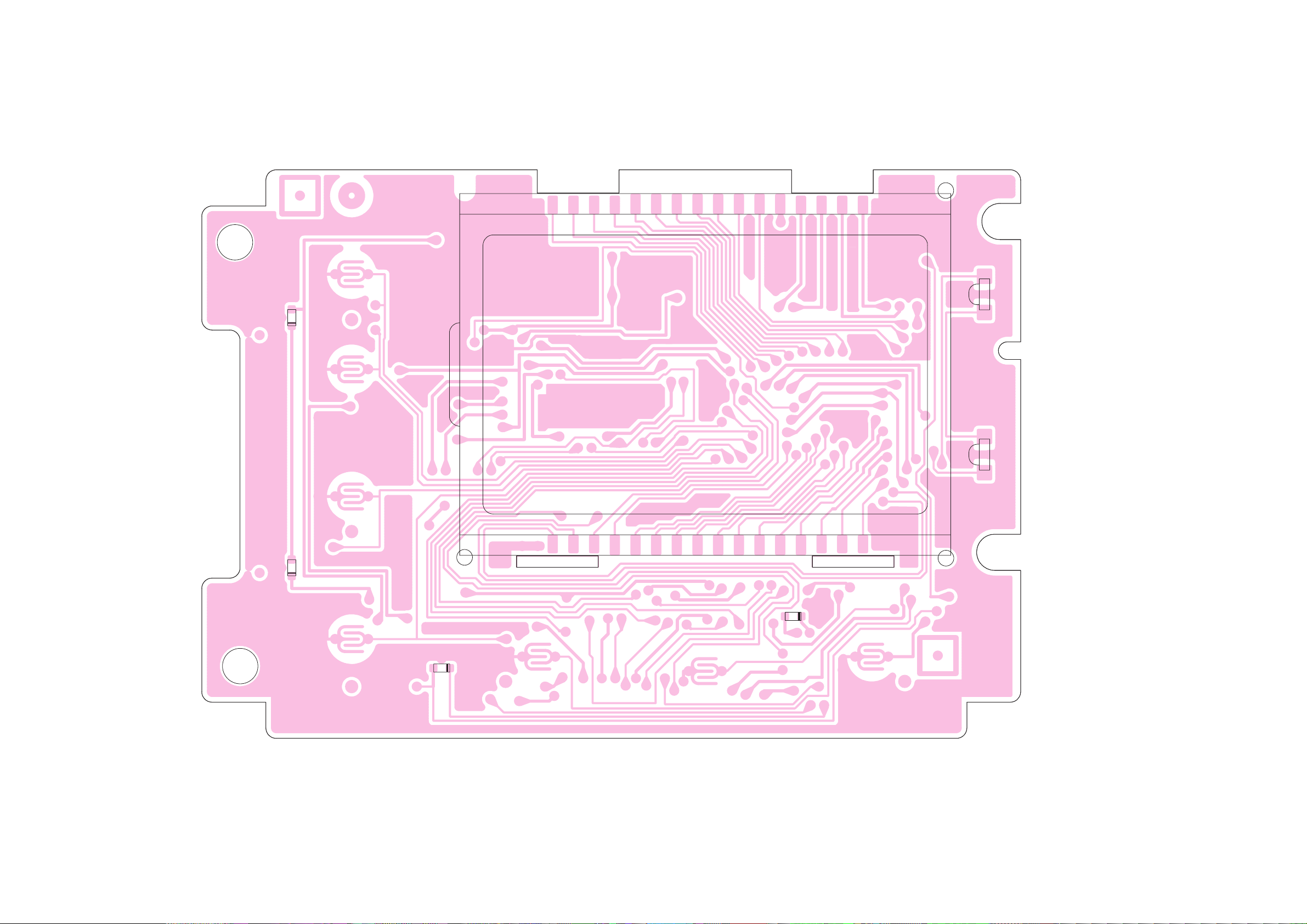

SECTION 9 BOARD LAYOUTS
9-1 VR-A BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9-2 VR-B BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9-3 HM-129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9-4 LOGIC BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2
9-5 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4
9-6 HM-127 (OPTIONAL UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAM
11-1 LOGIC BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
11-2 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-2
11-3 HM-127 (OPTIONAL UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-3
11-4 HM-129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-4

TABLE OF CONTENTS

1 - 1

SECTION 1 SPECIFICATIONS

‘‘
GENERAL
• Frequency coverage : 156.025–157.425 MHz (Tx)
156.050–163.275 MHz (Rx)
• Mode : 16K0G3E (FM) 16K0G2B (DSC)
• Usable channels : All USA, international and Canadian channels plus 10 weather channels
• Power supply requirement : 13.8 V DC ±10 %
(negative ground)
• Usable temperature range : –20˚C to +60˚C; –4˚F to +140˚F
• Frequency stability : ±10 ppm
(–20˚C to +60˚C; –4˚F to +140˚F)
• Current drain (at 13.8 V DC) : Transmit at 25 W 6.0 A(approx.) Receive max. audio 1.2 A(approx.)
• Antenna impedance : 50 Ω
(nominal)
• Input impedance (MIC) : 600 Ω
• Output impedance (Audio) : 4 Ω
• Dimensions (projections not included) : 153(W)×67(H)×141.6(D) mm; 6(W)×2
5
⁄8(H)×53⁄5(D) in
• Weight : 900 g; 2 lb
‘‘
TRANSMITTER
• Output power (at 13.8 V DC) : High 25 W Low 1 W
• Modulation : Variable reactance frequency modulation
• Maximum frequency deviation : ±5.0 kHz
• Frequency error : ±10 ppm
• Spurious emissions : 70 dBc
• Adjacent channel power : 70 dB
• Residual modulation : 40 dB
• Audio harmonic distortion : Less than 10% at 60% deviation
• Audio frequency response : +1 dB to –3 dB of 6 dB octave from 300 Hz to 2500 Hz
‘‘
RECEIVER
• Receive system : Double conversion superheterodyne system
• Intermediate frequencies : 1st 21.7 MHz 2nd 450 kHz
• Sensitivity : 0.32 µV at 12 dB SINAD
• Squelch sensitivity : 0.32 µV
• Adjacent channel selectivity : 70 dB
• Spurious response : 70 dB
• Intermodulation rejection ratio : 70 dB
• Hum and noise : 40 dB
• Audio output power (at 13.8 V DC) : 4.5 W typical
at 10% distortion with an 4 Ω load
• Audio frequency responce : +1 dB to –3 dB of –6 dB octave from 300 Hz to 3000 Hz
Specifications are measured in accordance with TIA/EIA-603
All stated specifications are subject to change without notice or obligation.
1 - 2
*
1
Low power only, *2Momentary high power, *3Receive only
NOTE: Channels 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT be used by the general public in USA waters.
CAN
21A
22A
23
24 25 26 27 28 60
61A
62A
64
64A
65A
66A*
1
67 68 69
70*
3
71 72
CAN
73 74
77*
1
78A
79A
80A
81A
82A
83
83A
84
85
86
87
88
CAN
01
02 03
04A
05A
06
07A
08 09 10 11 12
13*
1
14
15*
1
16
17*
1
18A
19A 20*
1
21
‘‘

VHF MARINE CHANNEL LIST

USA
01A
03A
05A
06
07A
08 09 10 11 12
13*
2
14
15*
2
16
17*
1
18A
19A
20
20A
INT
01
02 03
04
05
06 07
08 09 10 11 12 13 14
15*
1
16 17 18
19
20
21
Transmit
156.050
156.050
156.100
156.150
156.150
156.200
156.200
156.250
156.250
156.300
156.350
156.350
156.400
156.450
156.500
156.550
156.600
156.650
156.700
156.750
156.800
156.850
156.900
156.900
156.950
156.950
157.000
157.000
157.050
Receive
160.650
156.050
160.700
160.750
156.150
160.800
156.200
160.850
156.250
156.300
160.950
156.350
156.400
156.450
156.500
156.550
156.600
156.650
156.700
156.750
156.800
156.850
161.500
156.900
161.550
156.950
161.600
157.000
161.650
USA
21A
22A
23A
24 25 26 27 28
61A
63A
64A
65A
66A 67*
2
68 69
70*
3
71 72
INT
22
23
24 25 26 27 28 60 61
62
63
64
65
65A
66
66A
67 68 69
70*
3
71 72
Transmit
157.050
157.100
157.100
157.150
157.150
157.200
157.250
157.300
157.350
157.400
156.025
156.075
156.075
156.125
156.125
156.175
156.175
156.225
156.225
156.275
156.275
156.325
156.325
156.375
156.425
156.475
156.525
156.575
156.625
Receive
157.050
161.700
157.100
161.750
157.150
161.800
161.850
161.900
161.950
162.000
160.625
160.675
156.075
160.725
156.125
160.775
156.175
160.825
156.225
160.875
156.275
160.925
156.325
156.375
156.425
156.475
156.525
156.575
156.625
USA
73 74
77*
1
78A
79A
80A
81A
82A
83A
84
84A
85
85A
86
86A
87
87A
88
88A
INT
73 74 77 78
79
80
81
82
83
84
85
86
87
88
Transmit
156.675
156.725
156.875
156.925
156.925
156.975
156.975
157.025
157.025
157.075
157.075
157.125
157.125
157.175
157.175
157.225
157.225
157.275
157.275
157.325
157.325
157.375
157.375
157.425
157.425
Receive
156.675
156.725
156.875
161.525
156.925
161.575
156.975
161.625
157.025
161.675
157.075
161.725
157.125
161.775
157.175
161.825
157.225
161.875
157.275
161.925
157.325
161.975
157.375
162.025
157.425
Channel No. Frequency (MHz) Channel No.
Frequency (MHz) Channel No. Frequency (MHz)
WX01 WX02 WX03 WX04 WX05
Transmit
Receive only Receive only Receive only Receive only Receive only
Receive
162.550
162.400
162.475
162.425
162.450
WX06 WX07 WX08 WX09 WX10
Transmit
Receive only Receive only Receive only Receive only Receive only
Receive
162.500
162.525
161.650
161.775
163.275
Frequency (MHz) Frequency (MHz)
Weather channel
Weather
channel
‘‘
WX CHANNEL LIST

SECTION 2 INSIDE VIEWS

2 - 1
•
MAIN UNIT
•
FRONT UNIT
2-1 IC-M402
Reference oscillator (X2: CR-659)
VCO circuit
FM IF IC (IC1: TA31136FN)
2nd IF filter (FI3: ALFY450E)
1st mixer (Q1:3SK272)
Antenna switching circuit
1st IF filter (FI1,FI2,: FL-310)
YGR amplifier (Q11: 2SC3268)
DSC decoder (IC6: NJM2211M)
AF power amplifier (IC9: LA4425A)
Pre-driver (Q10: 2SC3775 3)
PLL IC (IC2: MPD3140GS)
EEPROM (IC2: HN58X2432TI)
VR-A board
VR-B board
MAIN MPU (IC1: HD6473847RH)
System clock (X1: CR-691)
Speaker
Reset IC (IC6: NJM2211M)
LOGIC board
2 - 2
•
TOP VIEW
•
BOTTOM VIEW

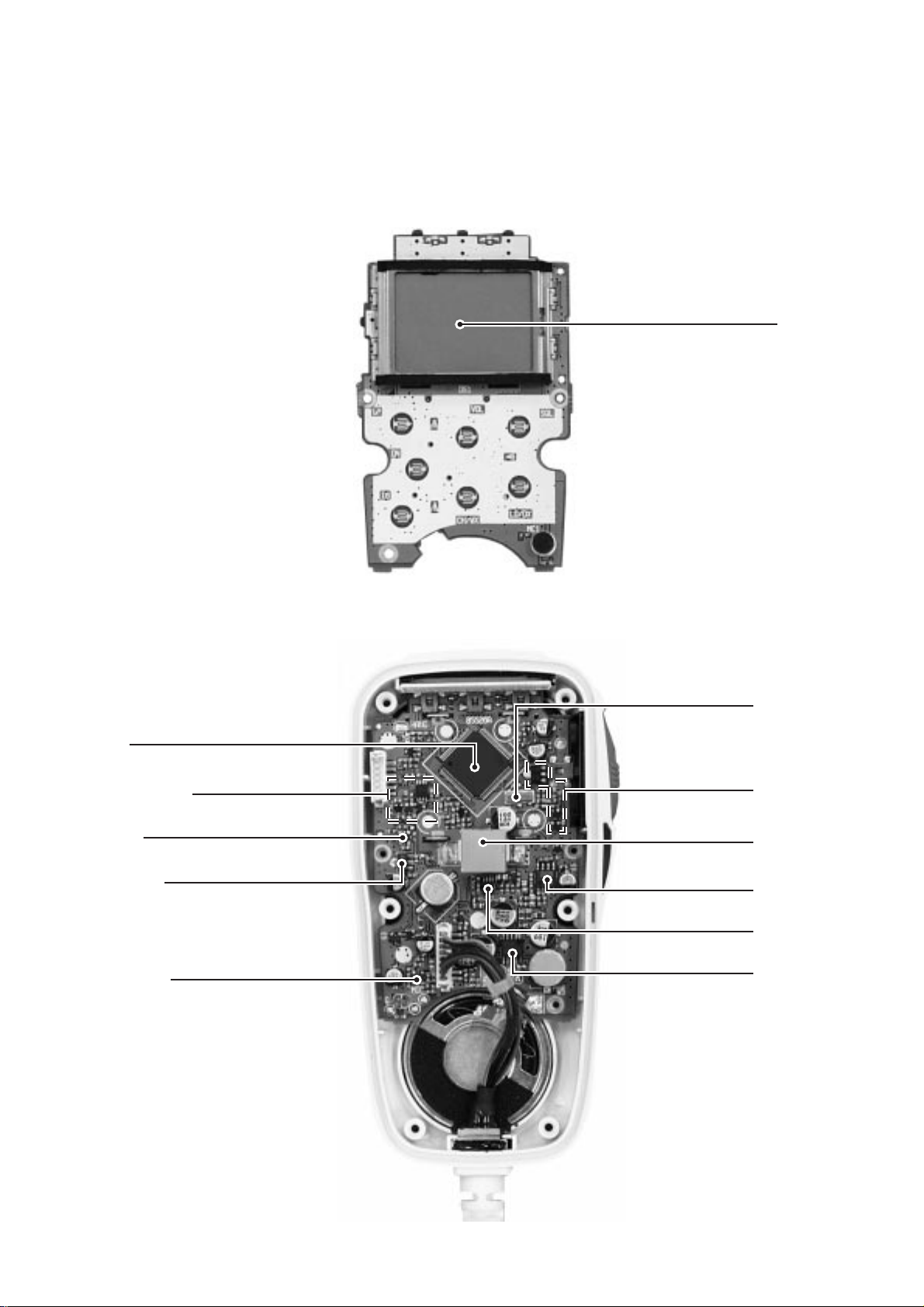

2-2 HM-127 (OPTIONAL UNIT)
LCD (DS1: A0119)
CPU (IC1: µPD789405AGK-A30-9EU)
Data buffer circuit
System clock (X1: CSTCC4.91MG)
8V regulator (IC6: TA7808F)
Dimmer circuit
Reset IC (IC7: S-80928ANMP)
MIC amplifier (IC4: NJM2125F)
5V regulator (IC5: TA78L05F)
Volume IC (IC3: M62429FP)
AF/MIC switch (IC9: TC4W53FU)
AF amplifier (IC2: TA7368F)
SECTION 3 DISASSEMBLY INSTRUCTIONS
3 - 1
•
REMOVING THE CASE
1 Unscrew 6 screws, A.
Note: When replacing the screw, 10–12 kg of torque MUST
be applied to ensure water resistance.
•
REMOVING THE MAIN UNIT
1 Unsolder DC cable (4 points) and antenna connector,
B (2 points), as shown below.
2 Unscrew 2 screws, C, and 6 screws, D, to remove the
MAIN unit.
A
C
B
D
2 Slide the case free of the chassis in the direction of the
arrow.
4 - 1
4-1 RECEIVER CIRCUITS
4-1-1 ANTENNA SWITCHING CIRCUIT
(MAIN UNIT)
The antenna switching circuit functions as a low-pass filter while receiving and as resonator circuit while transmitting. The circuit does not allow transmit signals to enter receiver circuits.
Received signals enter the MAIN unit from the antenna con­nector and pass through the low-pass filter (L13, L14, C106–C109, C111). The signals are then applied to the RF circuit via the antenna switching circuit (D15, L15, C197, C198).
4-1-2 RF CIRCUIT (MAIN UNIT)
The RF circuit amplifies signals within the range of frequen­cy coverage and filters out-of-band signals.
The signals from the antenna switching circuit pass through a tunable bandpass filter (D19, L16, L17, L19, L20, C199–C204, C206–C210) where the object signals are led to the RF amplifier circuit (Q27).
The amplified signals at Q7 are applied to the 3-stage tun­able bandpass filter (D20, L21, L22, L24, L25, C213–C218, C220–C224) to suppress unwanted signals and improve the selectivity. The signals are then applied to the 1st mixer cir­cuit.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
(MAIN UNIT)
The 1st mixer circuit converts the received signal to a fixed frequency of the 1st IF signal with a 1st LO (VCO output) fre­quency. By changing the 1st LO frequency, only the desired frequency will be passed through two crystal filters at the next stage of the mixer.
The signals from the RF circuit are mixed with the VCO sig­nals at the 1st mixer circuit (Q1) to produce a 21.7 MHz 1st IF signal.
The 1st IF signal is applied to two crystal filters (FI1, FI2) to suppress out-of-band signals and is then amplified at the IF amplifier (Q2). The amplified signal is applied to the 2nd mixer circuit (IC1).
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF signal. A double superheterodyne system (which converts receive signals twice) improves the image rejection ratio and obtains stable receiver gain.
The FM IF IC (IC1) contains the 2nd local oscillator, 2nd mixer, limiter amplifier, quadrature detector, and noise detector circuits, etc.
The 1st IF signal from Q2 is applied to the 2nd mixer section of IC1 (pin 16), and is mixed with a 21.25 MHz 2nd LO sig­nal generated at the PLL circuit using the reference fre­quency (21.25 MHz) to produce a 450 kHz 2nd IF signal.
The 2nd IF signal from IC1 (pin 3) is passed through the ceramic filter (FI3), where unwanted signals are sup­pressed, and is then applied to the 2nd IF (limiter) amplifier in IC1 (pin 5). The signal is applied to the FM detector sec­tion in IC1 for demodulation into AF signals.
The FM detector circuit employs a quadrature detection method (linear phase detection), which uses a ceramic dis­criminator (X1) for phase delay to obtain a non-adjusting cir­cuit. The detected signal from IC1 (pin 9) is applied to the AF circuit.

SECTION 4 CIRCUIT DESCRIPTION

Mixer
16
Limiter amp.
2nd IF filter 450 kHz
PLL IC
IC3
X2
21.25 MHz
X1
(21.25 MHz)
RSSI
IC2 TA31136F
13
1st IF (21.7 MHz) from the IF amplifier (Q2)
"SQL" signal to the CPU (LOGIC board; IC1,pin 90)
11109
87 5 3
AF signal "DET"
R5
Squelch level
adjustment pot
(R16)
2
17
16
Active filter
FI2
Noise
detector
FM
detector
C25
C26
C24
C28
R20
R18
R17
C27
R15
R21
C20
R19
R14
• 2ND IF AND DEMODULATOR CIRCUITS
4 - 2
4-1-5 AF AMPLIFIER CIRCUIT
(MAIN AND FRONT UNITS)
The AF amplifier circuit amplifies the detected signals to drive a speaker. The AF circuit includes an AF mute circuit for the squelch.
AF signals from IC1 (pin 9) are applied to the de-emphasis circuit (R101, C140). The de-emphasis circuit is an integrat­ed circuit with frequency characteristic of –6 dB/octave.
The integrated signals pass through the high-pass filter (Q21, R96–R100, C138, C139) to suppress unwanted lower noise signals.
The filtered signals are applied to the AF mute circuit (IC5A), and then passes through the [VOLUME] control (VR-A board; R1) via the “VOL1” signal. The signals are applied to the AF power amplifier (IC9, pin 1). The output signal from IC9 (pin4) drives the internal (external) speaker.
4-1-6 SQUELCH CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
Asquelch circuit cuts out AF signals when no RF signals are received. By detecting noise components in the AF signals, the squelch circuit switches the AF mute switch.
A portion of the AF signals from the FM IF IC (IC1, pin 9) pass through the squelch adjustment pot (R16), and are then applied to the active filter section (IC1, pin 8). The active filter section amplifies and filters noise components. The filtered signals are applied to the noise detector section and output from pin 14 as the “SQL” signal. The “SQL” sig­nal is applied to the CPU (LOGIC board; IC1, pin 90). The CPU analyzes the noise condition and outputs the “RMUM”, “RMUTS” signals to toggle the AF mute switches (IC5A, IC5B).
4-1-7 WEATHER ALERT DECODER CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
When the weather alert function is activated and a 1050 Hz alert tone from an NOAA weather radio broadcast is received, the IC-M402 emits beep tones and indicates flash­ing “ALT” on the display to inform of an emergency weather report on the air.
AF signals from the FM IF IC (IC1, pin 9) pass through the low-pass filter (Q28) via the “DET” signal, and are then applied to A/D port of the CPU (LOGIC board; IC1, pin 88) as “WXDEC” signal. The CPU has the tone decoder func­tion. When a 1050 Hz signal is detected by software decode, the CPU (LOGIC unit; IC1) controls beep tones and the “ALT” indicator.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
(MAIN UNIT)
The microphone amplifier circuit amplifies audio signals with +6 dB/octave pre-emphasis from the microphone to a level needed at the modulation circuit.
The AF signals from the microphone are amplified at the microphone amplifier (IC7B) via the analog switch (IC4A, pin
1). Acapacitor (C159) and resistor (R121) are connected to the amplifier to obtain the pre-emphasis characteristics.
The amplified signals are applied to the IDC amplifier (IC7C, pin 9) and are passed through the splatter filter (IC7D) to suppress unwanted 3 kHz or higher signals. The filtered sig­nals are then applied to the modulation circuit.
4-2-2 MODULATION CIRCUIT (MAIN UNIT)
The modulation circuit modulates the VCO oscillating signal (RF signal) using the microphone audio signals.
Audio signals from the splatter filter (IC7D) pass through the frequency deviation adjustment pot (R138) and are then applied to the modulation circuit (D2, D3, D4) to change the reactance of D2, D3, D4 and modulate the oscillated signal at the VCO (Q5, Q6).
4-2-3 DRIVE AMPLIFIER CIRCUIT (MAIN UNIT)
The drive amplifier circuit amplifies the VCO oscillating sig­nal to a level needed at the power amplifier.
The VCO output is buffer-amplified by Q7 and Q9, and is then applied to the Tx/Rx switch (D6). The transmit signal from the Tx/Rx switch is amplified to the pre-drive (Q10) and YGR (Q11) amplifiers to obtain an approximate 300 mW sig­nal level. The amplified signal is then applied to the RF power amplifier (IC3).
4-2-4 POWER AMPLIFIER CIRCUIT (MAIN UNIT)
The power amplifier circuit amplifies the driver signal to an output power level.
IC3 is a power module which has amplification output capa­bilities of about 35 W with 300 mW input. The output from IC3 (pin 4) is passed through the antenna switching circuit (D10) and is then applied to the antenna connector via the low-pass filter.
AF
MUTE
HPF
IC9
External SP
Internal SP (LOGIC board)
HVS
PWR AMP
"DET" signal from the FM IF IC (IC1, pin 9)
de-emphasis circuit
R101
C140
(VR-A board)
• AF AMPLIFIER CIRCUIT
4 - 3
4-2-5 APC CIRCUIT (MAIN UNIT)
The APC circuit stabilizes transmit output power. The RF output signal from the power amplifier (IC3) is
detected at the power detector circuit (D8, D9, L12) and is then applied to one of the differential amplifier inputs (Q15, pin 5) via the High/Low control circuit (R71, Q16). The applied voltage controls the differential amplifier output (Q15, pin 2) and the bias voltage control (Q12). Thus the APC circuit maintains a constant output power.
4-3 PLL CIRCUITS
4-3-1 GENERAL
The PLL circuit provides stable oscillation of the transmit fre­quency and receive 1st LO frequency. The PLL circuit com­pares the phase of the divided VCO frequency to the refer­ence frequency. The PLL output frequency is controlled by a crystal oscillator and the divided ratio of the programmable divider.
IC2 on the MAIN unit is a dual PLL IC which controls both VCO circuits for Tx and Rx, and contains a prescaler, pro­grammable counter, programmable divider, phase detector, charge pump, etc.
The PLL circuit , using a one chip PLL IC (MAIN unit; IC2), directly generates the transmit frequency and receive 1st IF frequency with VCOs. The PLL sets the divided ratio based on serial data from the CPU on the LOGIC unit and com­pares the phases of VCO signals with the reference oscilla­tor frequency. The PLL IC detects the out-of-step phase and output from pins 8 for Tx and Rx. The reference frequency (21.25 MHz) is oscillated at X2 (MAIN unit).
4-3-2 TX AND RX LOOP (MAIN UNIT)
The generated signal at the VCO (Q4, Q5, Q6, D1–D4) enters the PLL IC (IC2, pin 2) and is divided at the pro­grammable divider section and is then applied to the phase detector section.
The phase detector compares the input signal with a refer­ence frequency, and then outputs the out-of-phase signal (pulse-type signal) from pin 8.
The pulse-type signal is converted into DC voltage (lock voltage) at the loop filter (R29–R31, R41, C41, C42, C50, C51), and is then applied to varactor diodes (D3, D4) of the VCO to stabilize the oscillated frequency. The lock voltage from the loop filter is amplified at the buffer amplifier (Q7) and then applied to the RF circuit.
T5
D8
D9
L12
"TMUT" signal from the CPU (LOGIC board; IC1, pin 83)
HV
1
23
4
HI/LO
"TXDET" signal to the CPU (LOGIC board; IC1, pin 92)
Q12
Q15
Q14
Q16
C93
R69
R70
Q11 YGR amp.
RF signal from PLL
to antenna
RF detector circuit
APC control circuit
Power module
IC3
R74
R73
R71
Shift register
Prescaler
Phase detector
Loop
filter
Programmable counter
Programmable divider
X2
21.25 MHz
21.25 MHz signal to the FM IF IC (IC1, pin 2)
VCO
Buffer
Buffer
Buffer
Q9
Q8
Q7
3 4 5
PSTB
IC2 (PLL IC)
PCK PDATA
to transmitter circuit to 1st mixer circuit
D6
D5
17
16
8
2
Q4 Q6, D1 D4
• APC CIRCUIT
• PLL CIRCUIT
4 - 4
4-3-4 VCO CIRCUIT (MAIN UNIT)
The VCO outputs from Q4–Q6 are buffer-amplified at the buffer amplifiers (Q7 and Q9), and are then sent to the Tx/Rx switch (D5 and D6). The receive LO signal is applied to the 1st mixer circuit (Q1) through a low-pass filter, and the trans­mit signal is applied to the pre-drive amplifier (Q10). A por­tion of the VCO output is reapplied to the PLL IC (IC2, pin 2) via the buffer amplifier (Q8).
4-4 DSC CIRCUITS
4-4-1 DSC ENCODE CIRCUIT
(LOGIC BOARD AND MAIN UNIT)
The DSC signal created at CPU (IC1), is passed through the buffer amplifier (Q8), and applied to the D/A convertor (R55–R73) to convert into the analog signal. The analog sig­nal passes through the low-pass filter (MAIN unit; IC7D), and is then applied to the VCO circuit to modulate the DSC signal.
4-4-2 DSC DECODE CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
The AF signal from the FM IF IC (IC1, pin 9) are filtered at the low-pass filter (Q28) to suppress unwanted higher noise signals. The filtered signals are converted analog signals into digital signals at the DSC decoder IC (IC6), and are then applied to the CPU (LOGIC board; IC1, pin 18).
4-5 LOGIC CIRCUITS (LOGIC BOARD)
• CPU
IC1 is an 8 bit signal chip micro-computer and contains LCD driver, serial I/O, timer, A/D converter, programmable I/O, ROM and RAM.
• SYSTEM CLOCK CIRCUIT
X1 is a ceramic oscillator and ocillate 9.8304 MHz system clock for the CPU (IC1).
• RESET CIRCUIT
IC6 is a reset IC. When turn power ON, IC6 outputs a reset signal (“LOW” pulse) to the CPU (IC1, pin 15) via the “RES” line.
• LOW BATTERY DETECTOR
HVS voltage is divided by R74, R75 and is applied to the low battery detector section in the CPU (IC1, pin 91) via the “LBAT” line.
• DIMMER CIRCUIT
CPU (IC1), Q2, Q3 and Q4 are dimmer circuit and control the 4 steps the LCD backlight (DS3–DS8).
4-6 POWER SUPPLY CIRCUITS
LINE
HV
HVS
VCC
5V
T5
R5
DESCRIPTION
The voltage from the connected DC power sup­ply.
Same voltage as the HV line which is passed through the [PWR] switch (VR-A board; R1).
Same voltage as the HVS line. The voltage is applied to the optional microphone (HM-127).
Common 5 V converted from the HVS line at the 5V regulator circuit (MAIN unit; IC8).
Transmit 5 V controlled by the 5V control circuit (MAIN unit; Q24, Q25) using the SEND signal from CPU (LOGIC board; IC1). The controlled voltage is applied to the transmitter circuit.
Receive 5 V controlled by the R5 control circuit (MAIN unit; Q22, Q23) using the RCV circuit from CPU (LOGIC board; IC1). The controlled voltage is applied to the receiver circuit.
4 - 5
Pin Port
Description
number name
Pin Port
Description
number name
1 2
3 5
6
7
8
16
17
18
20
21
22
23 27
28
29
31
83
84 88
89
90
91
CONT1 CONT2
BEEP CH16
CHWX
H/L
DSDEC
PCK
PSTB
PDATA
ICFC
BPLVL
ECK
EDA
HI/LO
RRXD
RRXD
BPFV
TMUT
NMEAI
WXDEC
SQLV
SQL
LBAT
Outputs control signal for the LCD contrast.
Outputs beep audio signal. Input port for the CH16 switch.
Low: While CH16 switch is pushed.
Input port for the CHWX switch.
Low: While CHWX switch is pushed.
Input port for the H/L switch.
Low: While H/L switch is pushed.
Input port for ATIS/DSC decode sig­nal.
Outputs clock signal to the PLL IC (MAIN unit; IC2, pin 4).
Outputs strobe signals to the PLL IC (MAIN unit; IC2, pin 3).
Outputs data signals to the PLL IC (MAIN unit; IC2, pin 5).
Outputs control signal to swtich NMEA or ICF3 (Optional unit; HM-127).
Outputs beep volume control signal.
Low: Beep audio is maximum.
Outputs clock signal for the EEPROM (IC2, pin 6).
I/O port for the EEPROM data signals. Output port for RF output power (High
or Low) select signal. Input port for the communication data
from HM-127. Outputs communication data to HM-
127. Outputs bandpass filter select signals.
Low: Receiving more than 160 MHz. High:Receiving less than 160 MHz.
Outputs transmit mute signal.
High:While transmitting. Input port for GGA and NMEA data. Input port for WX alert signal. Input port for the squelch volume
level. Input port from the FM IF IC (MAIN
unit; IC1) for the squelch operation. Input port for the connected power
supply voltage detection (low battery indicator).
92
93
94
95
96
97
98
99
Input port for TX LED control signal. Input port for the smart mic functions.
2.02 V: [UP] is pushed.
3.00 V: [DN]] is pushed.
3.84 V: [16/9] is pushed.
Input port for the PTT switch from HM-
129. Low: While PTT is pushed.
Input port for the DTRS switch.
Low: While DISTRESS switch is
pushed.
Input port for the DSC switch.
Low: While DSC switch is pushed.
Input port for the UP switch.
Low: While UP switch is pushed.
Input port for the DOWN switch.
Low: While DOWN switch is pushed.
Input port for the PLL unlock signal.
Low: While PLL is locked.
TXDET
KEYM
PTT
DTRS
DSC
UP
DOWN
UNLK
4-7 PORT ALLOCATIONS
4-7-1 CPU (LOGIC BOARD; IC1)
CONT1
0 1
CONT2
0 1
CONTRAST
LIGHT
DEEP
Pin Port
Description
number name
4
5
6
7
11
12
13
14
RMUTM
RMUTS
PTTM
PTTS
MMUTE
SMUTE
SEND
RCV
Outputs the AF mute swtich (MAIN unit; IC5) control signal for main body.
Low: While squelched
Outputs the AF mute swtich (MAIN unit; IC5) control signal for the option­al remote microphone (HM-127).
Low: While squelched
Outputs main microphone (HM-129) select signal to the analog swtich (IC4) while intercom operation.
Outputs optional microphone (HM-
127) select signal to the analog swtich
(IC4) while intercom operation. Outputs select signal for the speaker
of the main microphone (HM-129) to the analog swtich (IC5) while intercom operation.
Outputs select signal for the speaker of the optional microphone (HM-127) to the analog swtich (IC5) while inter­com operation.
Outputs the T5 regulator (MAIN unit; Q24, Q25) control signal.
High:While transmitting
Outputs the R5 regulator (MAIN unit; Q22, Q23) control signal.
High:While receiving.
4-7-2 I/O EXPANDER IC (LOGIC BOARD; IC3)
5 - 1

SECTION 5 ADJUSTMENT PROCEDURES

5-1 PREPARATION
■ REQUIRED TEST EQUIPMENT
EQUIPMENT
DC power supply
RF power meter (terminated type)
Frequency counter
FM deviation meter
DC voltmeter Digital multi-meter Distortion meter
GRADE AND RANGE
Output voltage : 13.8 V DC Current capacity : 10 A or more
Measuring range : 1–50 W Frequency range : 100–300 MHz Impedance : 50 Ω SWR : Less than 1.2 : 1
Frequency range : 0.1–300 MHz Frequency accuracy: ±1 ppm or better Sensitivity : 100 mV or better
Frequency range : 30–300 MHz Measuring range : 0 to ±10 kHz
Input impedance : 50 kΩ/V DC or better Input impedance : 10 MΩ/V DC or better Frequency range : 1 kHz ±10 %
Measuring range : 1–100 %
EQUIPMENT
Audio generator
Standard signal generator (SSG)
Oscilloscope
AC millivoltmeter
External speaker
Attenuator
Dummy load
GRADE AND RANGE
Frequency range : 300–3000 Hz Measuring range : 1–500 mV
Frequency range : 0.1–300 MHz Output level : 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency range : DC–20 MHz Measuring range : 0.01–20 V
Measuring range : 10 mV–10 V Input impedance : 4 Ω
Capacity : 5 W or more Power attenuation : 40 or 50 dB
Capacity : 50 W or more Resistance : 50 Ω
Capacity : 100 W or more
‘‘
CONNECTIONS
to the antenna connector
to DC cable
Standard signal
generator
17 to 125 dBm
(32 mV to 0.13 V)
CAUTION: DO NOT transmit while SSG is
connected to the antenna connector.
DC power supply
13.8 V /15 A
Frequency
counter
FM deviation
meter
Attenuator
40 dB or 50 dB
+
to EXT Speaker
Red cap (EXT SP jack)
Red line Black line
RF power meter
50 / 1 50 W
Distortion meter
Speaker
5 - 2
5-2 PLL ADJUSTMENTS
LOCK VOLTAGE
REFERENCE FREQUENCY
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
POINT
UNIT LOCATION UNIT ADJUST
1
2
1
• Operating channel : ch16
• Receiving
• Operating channel : ch16
• Output power : Low
• Transmitting
• Operating channel : ch16
• Output power : Low
• Connect an RF power meter or a 50 Ω dummy load to the antenna connector.
• Transmitting
MAIN
Rear
Panel
Connect a digital multi-meter or oscil­loscope to the check point CP1.
Loosely couple the frequency counter to the antenna con­nector.
1.8 V
1.6 V
156.8000 MHz MAIN
Verify
C36
C36
Reference frequency adjustment
CP1
PLL lock voltage check point
5 - 3
5-4 RECEIVER ADJUSTMENTS
SENSITIVITY
SQUELCH
• Operating channel : ch16
• [SQUELCH] control :
Max. counterclockwise
• Connect an SSG to the antenna connector and set as:
Frequency : 156.800 MHz Level : 100 µV*
(–67 dBm) Modulation : 1 kHz Deviation : ±3.5 kHz
• Receiving
• Operating channel : ch16
• [SQUELCH] control : Max. counterclockwise
• Connect an SSG to the antenna
connector and set as:
Frequency : 156.800 MHz Level : 0.22 µV*
(–120 dBm) Modulation : 1 kHz Deviation : ±3.5 kHz
• Receiving
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
POINT
UNIT LOCATION UNIT ADJUST
1
1
MAIN
MAIN
Connect the distor­tion meter to the [EXT SP] jack with a 4 Ω load.
Connect a DC volt­meter to the check point CP2.
Less than 0.32 µV
1.0 V MAIN
Verify
R16,
*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.
5-3 TRANSMITTER ADJUSTMENTS
OUTPUT POWER
FREQUENCY DEVIATION
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
POINT
UNIT LOCATION UNIT ADJUST
11• Operating channel : ch16
• Output power : High
• Transmitting
• Operating channel : ch16
• Output power : Low
• Connect an audio generator to J4 (pin 3) on the MAIN unit with an AC millivoltmeter and set as:
Frequency : 1 kHz Level : 45 mV
• Set an FM deviation meter as:
HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P–P)/2
• Transmitting
Rear
Panel
Rear
Panel
Connect an RF power meter to the antenna connector.
Connect an FM deviation meter to the antenna con­nector through an attenuator.
26 W
±4.3 kHz
MAIN
MAIN
R71
R138
5 - 4
+
+
J2
R71
Output power adjustment
[PTT]
4
1
r
q
R138
Frequency deviation adjustment
AC millivoltmeter
2 200 mV
Audio generator 300 Hz to 3 kHz
R16
Squelch level adjustment
CP2
Squelch level check point
[LOGIC BOARD]
IC1 1140009410 S.IC HD6433847RA29H (FX-2438A) IC2 1130009680 S.IC HN58X2432TI IC3 1130007570 S.IC BU4094BCFV-E2 IC4 1130005290 S.IC TC74HC14AF IC5 1130006080 S.IC TC74HC02AF (TP1) IC6 1130009110 S.IC S-80942ANMP-DD6-T2 IC7 1170000350 S.IC PC357N6T
Q1 1590000720 S.TRANSISTOR DTA144EUAT106 Q2 1530002850 S.TRANSISTOR 2SC4116-BL(TE85R) Q3 1520000460 S.TRANSISTOR 2SB1132 T100 R Q4 1530002850 S.TRANSISTOR 2SC4116-BL(TE85R) Q5 1530002060 S.TRANSISTOR 2SC4081 T107 R Q6 1590000680 S.TRANSISTOR DTC114EUAT106 Q7 1510000510 S.TRANSISTOR 2SA1576A T106R Q8 1560000810 S.FET 2SK1069-4-TL Q9 1590001330 S.TRANSISTOR DTA114EUAT106 Q10 1560000810 S.FET 2SK1069-4-TL Q11 1560000810 S.FET 2SK1069-4-TL
D1 1750000550 S.DIODE 1SS355 TE-17 D2 1750000550 S.DIODE 1SS355 TE-17
X1 6050011090 S.XTAL CR-691 (9.8304 MHz)
R1 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R2 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R3 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R4 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R5 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R6 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R7 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R8 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R9 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R10 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) R11 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) R12 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R13 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R14 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R15 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R16 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R17 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R18 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R19 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R20 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R21 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R22 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R26 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R34 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R35 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R36 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R39 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R41 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R42 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R43 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R44 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R45 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R46 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R47 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R50 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R51 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R52 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R53 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R54 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R55 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R56 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R57 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R58 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R59 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R60 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
S.=Surface mount
R61 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R62 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R63 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R64 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R65 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R66 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R67 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R68 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R69 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R70 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kΩ) R71 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R72 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R73 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R74 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R75 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R76 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R77 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R78 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R79 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R80 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R81 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R82 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R83 7030003250 S.RESISTOR ERJ3GEYJ 270 V (27 Ω) R84 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R85 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R86 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R87 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
C1 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C2 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C3 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C4 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C5 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C6 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C7 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C8 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C9 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C10 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C11 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C12 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C13 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C14 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C18 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C20 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C21 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C22 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C23 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C24 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C25 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C26 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C27 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C28 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C29 4510005860
S.ELECTROLYTIC
ECEV1HA2R2SR C30 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C31 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
J1 6510015540 S.CONNECTOR B4B-ZR-SM3-TF J2 6510018960 S.CONNECTOR B2B-PH-SM3-TB J3 6510018960 S.CONNECTOR B2B-PH-SM3-TB J4 6510022470 S.CONNECTOR 40FLT-SM1-TB
DS1 5030001950 LCD TTR5341 DS3 5040002310 S.LED SML-311YTT86 DS4 5040002310 S.LED SML-311YTT86 DS5 5040002310 S.LED SML-311YTT86 DS6 5040002310 S.LED SML-311YTT86 DS7 5040002660 S.LED FY1101F-TR (LED) DS8 5040002660 S.LED FY1101F-TR (LED)
6 - 1

SECTION 6 PARTS LIST

REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
6-1 IC-M402
[LOGIC BOARD]
[MAIN UNIT][LOGIC BOARD]
S.=Surface mount
EP1 0910053453 PCB B 5584C EP2 8930054970 LCD CONTACT SRCN-2438-SP-N-W
R1 7210002350 VARIABLE TP96N97N15F-10KA-1301
W1 8900010510 CABLE OPC-1044
EP1 0910053462 PCB B 5585B
R1 7210002360 VARIABLE TP96N97-15F-10KB-1301
EP1 0910053472 PCB B 5586B
IC1 1110003200 S.IC TA31136FN (EL) IC2 1130007610 S.IC µPD3140GS-E1 (DS8) IC3 1150001540 IC M57710-A/SC-1302 IC4 1130008090 S.IC BU4066BCFV-E1 IC5 1130008090 S.IC BU4066BCFV-E1 IC6 1110003650 S.IC NJM2211M-TE1 IC7 1110002680 S.IC NJM2902M-T1 IC8 1180001070 S.IC TA7805F (TE16L) IC9 1110003090 IC LA4425A
Q1 1580000660 S.FET 3SK272-(TX) Q2 1530002360 S.TRANSISTOR 2SC2714-Y (TE85R) Q3 1530002850 S.TRANSISTOR 2SC4116-BL(TE85R) Q4 1590000430 S.TRANSISTOR DTC144EUA T106 Q5 1530002920 S.TRANSISTOR 2SC4226-T2 R25 Q6 1530002920 S.TRANSISTOR 2SC4226-T2 R25 Q7 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q8 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q9 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q10 1530002240 S.TRANSISTOR 2SC3775-3-TB Q11 1530003710 S.TRANSISTOR 2SC3268 (TE12L) Q12 1520000380 TRANSISTOR 2SB1143 S Q14 1590000430 S.TRANSISTOR DTC144EUA T106 Q15 1590000670 S.TRANSISTOR FMW1 T148 Q16 1590000430 S.TRANSISTOR DTC144EUA T106 Q17 1540000550 S.TRANSISTOR 2SD1664 T100Q Q18 1590000430 S.TRANSISTOR DTC144EUA T106 Q19 1590000720 S.TRANSISTOR DTA144EUAT106 Q20 1560000810 S.FET 2SK1069-4-TL Q21 1530002850 S.TRANSISTOR 2SC4116-BL(TE85R) Q22 1510000670 S.TRANSISTOR 2SA1588-GR (TE85R) Q23 1590000430 S.TRANSISTOR DTC144EUA T106 Q24 1510000670 S.TRANSISTOR 2SA1588-GR (TE85R) Q25 1590000430 S.TRANSISTOR DTC144EUA T106 Q26 1590000430 S.TRANSISTOR DTC144EUA T106 Q27 1530002920 S.TRANSISTOR 2SC4226-T2 R25 Q28 1530002850 S.TRANSISTOR 2SC4116-BL(TE85R)
D1 1790000620 S.DIODE MA77 (TX) D2 1790000620 S.DIODE MA77 (TX) D3 1720000370 S.VARICAP HVU350TRF D4 1720000370 S.VARICAP HVU350TRF D5 1790000620 S.DIODE MA77 (TX) D6 1790000620 S.DIODE MA77 (TX) D7 1750000550 S.DIODE 1SS355 TE-17 D8 1790000690 S.DIODE HSM88ASR-TR D9 1790000690 S.DIODE HSM88ASR-TR D10 1710001080 DIODE XB15A308 D11 1790000700 DIODE DSA3A1 D12 1750000550 S.DIODE 1SS355 TE-17 D14 1750000130 S.DIODE DA204U T107 D15 1710001080 DIODE XB15A308 D16 1790001210 S.DIODE 1SS375-TL D19 1790000620 S.DIODE MA77 (TX) D20 1790000620 S.DIODE MA77 (TX) D21 1790000660 S.DIODE MA728 (TX)
FI1 2010002420 MONOLITH 21R15AB (FL-310) FI2 2010002420 MONOLITH 21R15AB (FL-310) FI3 2020001680 CERAMIC ALFY450E
X1 6070000210
S.DISCRIMINATOR
CDBCA450CX24
X2 6050010800 S.XTAL CR-659 (21.25 MHz)
L1 6200003050 S.COIL NL 322522T-R82J-3 L2 6200002410 S.COIL NL 252018T-056J L3 6200002430 S.COIL NL 252018T-082J L4 6200003090 S.COIL NL 322522T-2R7J-3 L5 6200008190 S.COIL 0.25-1.9-8TL 80N L6 6200009180 S.COIL ELJRE R10J-F3 L7 6200009180 S.COIL ELJRE R10J-F3 L8 6200009180 S.COIL ELJRE R10J-F3 L9 6200002430 S.COIL NL 252018T-082J L10 6200002430 S.COIL NL 252018T-082J L11 6170000230 COIL LW-25 L12 6110001600 COIL LA-243 L13 6110001600 COIL LA-243 L14 6110001670 COIL LA-253 L15 6110001600 COIL LA-243 L16 6200007760 S.COIL LQN21A 82NJ04 L17 6200007760 S.COIL LQN21A 82NJ04 L19 6200007760 S.COIL LQN21A 82NJ04 L20 6200007760 S.COIL LQN21A 82NJ04 L21 6200007760 S.COIL LQN21A 82NJ04 L22 6200007760 S.COIL LQN21A 82NJ04 L24 6200007760 S.COIL LQN21A 82NJ04 L25 6200007760 S.COIL LQN21A 82NJ04 L26 6200004720 S.COIL MLF1608D R10K-T L27 6200003550 S.COIL MLF1608A 4R7K-T L28 6200009150 S.COIL ELJRE 82NJ-F3 L29 6200009170 S.COIL ELJRE 47NJ-F2 L30 6200002600 S.COIL NL 252018T-047J L31 6200002600 S.COIL NL 252018T-047J
R3 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R6 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R7 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R8 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R9 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R10 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R11 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R12 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R13 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R14 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R15 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R16 7310002760 S.TRIMMER RV-152 (RH03A3AJ4X0HA) 223 R17 7510001050 S.THERMISTOR NTCCM1608 4LH 333KC-T R18 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R19 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R20 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ) R21 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R22 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R25 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R26 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R27 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
6 - 2
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
[VR-B BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[VR-A BOARD]
REF ORDER
DESCRIPTION
NO. NO.
S.=Surface mount
[MAIN UNIT][MAIN UNIT]
R28 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R29 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R30 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R31 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R32 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R33 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R34 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R35 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R36 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R37 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R38 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R39 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R40 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R41 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R42 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R43 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R44 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R45 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R46 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R47 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R48 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R49 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R50 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R51 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R52 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R53 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R54 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R56 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R57 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R58 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R59 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R60 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R61 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R62 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R63 7030000960 S.RESISTOR MCR18EZHJ 33 Ω R64 7030000960 S.RESISTOR MCR18EZHJ 33 Ω R65 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R66 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R67 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R68 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R69 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R70 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R71 7310002670 S.TRIMMER RV-143 (RH03A3AS2) 471 R73 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R74 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R75 7030000240 S.RESISTOR MCR10EZHJ 68 Ω (680) R76 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R77 7030000240 S.RESISTOR MCR10EZHJ 68 Ω (680) R78 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R79 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R80 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R81 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R82 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R83 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R84 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R85 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R86 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R87 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R88 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R89 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R90 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R91 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R92 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R93 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R94 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R95 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R96 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R97 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω) R98 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R99 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R100 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R101 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R102 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R103 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R104 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R105 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R106 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R107 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R108 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R109 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R110 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R111 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R112 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R113 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R121 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R122 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R123 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R124 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R125 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R126 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R127 7030003770 S.RESISTOR ERJ3GEYJ 564 V (560 kΩ) R128 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R129 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R130 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R131 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R132 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R133 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R134 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R135 7510001150 S.THERMISTOR NTCCM1608 4BH 103KC R136 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R137 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R138 7310002600 S.TRIMMER RV-110 (RH03A3AS4X0AA) 473 R139 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R140 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R141 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R142 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R143 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R144 7030001070 S.RESISTOR MCR50JZHJ 33 Ω (330) R145 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R146 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R147 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R148 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R149 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R150 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R151 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R152 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R154 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω (4R7) R155 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R157 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R158 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R159 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R160 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R161 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R162 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R163 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R165 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R167 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R168 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R169 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R170 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R183 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R185 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R186 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R187 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R188 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R190 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R191 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R192 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R193 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R194 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R195 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R196 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R198 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R199 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R201 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
C3 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C4 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C5 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C6 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C9 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C10 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C11 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C12 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C14 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C16 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C17 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C18 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C19 4030011810 S.CERAMIC C1608 JB 1A224K-T-N C20 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C21 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
6 - 3
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT][MAIN UNIT]
S.=Surface mount
C22 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C23 4030011810 S.CERAMIC C1608 JB 1A224K-T-N C24 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C25 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C27 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C28 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C29 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C30 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C31 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C33 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C34 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C35 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C36 4610001590 S.TRIMMER TZC03R100A110 10P C37 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C38 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C39 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C40 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C41 4550006810 S.TANTALUM ECST1VY473R C42 4550006560 S.TANTALUM ECST1CY225R C43 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C44 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C45 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C46 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C47 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C48 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C49 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C50 4550006360 S.TANTALUM ECST1VY104R C51 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C52 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C53 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C54 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C55 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C56 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C57 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C58 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C59 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C60 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C61 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C62 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C63 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C64 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C65 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C66 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C67 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C68 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C70 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C71 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C72 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C73 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C74 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C75 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C76 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C77 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C78 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C79 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C80 4510007630 ELECTROLYTIC 35 MV 47 CA C81 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C82 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C83 4510004600 ELECTROLYTIC 16 MV 1000 HC C84 4510004440
S.ELECTROLYTIC
ECEV1HA010SR C85 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C86 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C87 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C88 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C89 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C90 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C91 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C92 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C93 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C94 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C95 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C96 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C97 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C98 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C99 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C100 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C101 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C102 4010008530 CERAMIC HM74SJ CH 360J 500V C103 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C104 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C105 4010007630 CERAMIC HM60SJ CH 270J 500V C106 4010005790 CERAMIC HM60SJ YB 102K 500V C107 4010005500 CERAMIC HM60SJ CH 150J 500V C108 4010005430 CERAMIC HM60SJ CH 050C 500V C109 4010008540 CERAMIC HM60SJ CH 240J 500V C111 4010005420 CERAMIC HM60SJ CH 040C 500V C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C113 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C114 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C115 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C116 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C118 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C120 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C121 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C122 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C123 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C124 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C125 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C126 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C127 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C128 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C129 4510005860
S.ELECTROLYTIC
ECEV1HA2R2SR
C130 4510005860
S.ELECTROLYTIC
ECEV1HA2R2SR C131 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C132 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C133 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C134 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C135 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C136 4510005860
S.ELECTROLYTIC
ECEV1HA2R2SR C137 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C138 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C139 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C140 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C141 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C142 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C143 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C144 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A C145 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C146 4030011810 S.CERAMIC C1608 JB 1A224K-T-N C147 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C148 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C149 4340000020 S.MYLAR ECWU 1C 333JB5 C150 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C151 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C152 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C155 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C156 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C159 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C160 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A C161 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C162 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C164 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C165 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A C166 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C168 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C169 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C170 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C171 4510006220
S.ELECTROLYTIC
ECEV1CA101UP C172 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C173 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C174 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C175 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C176 4510004630
S.ELECTROLYTIC
ECEV1CA100SR C177 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C178 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C179 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C180 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C181 4510005860
S.ELECTROLYTIC
ECEV1HA2R2SR C182 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C183 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C184 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C185 4510004590 ELECTROLYTIC 16 MV 470 HC C186 4510004590 ELECTROLYTIC 16 MV 470 HC C187 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C188 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C189 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C190 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C191 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C192 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C193 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C194 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C195 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
6 - 4
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
S.=Surface mount
[FRONT UNIT][MAIN UNIT]
C196 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C197 4010007630 CERAMIC HM60SJ CH 270J 500V C198 4010008530 CERAMIC HM74SJ CH 360J 500V C199 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C200 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C201 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C202 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C203 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C204 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C206 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C207 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C208 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C209 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C210 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C211 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C212 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C213 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C214 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C215 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C216 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C217 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C218 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C220 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C221 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C222 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C223 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C224 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C225 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C226 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C227 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C228 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C229 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C230 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C231 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A C245 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C246 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C249 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C251 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C252 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C253 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C254 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C255 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C256 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C257 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C258 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C259 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C260 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C261 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C262 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C264 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C265 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C266 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C267 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C268 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C270 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C271 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C272 4550006700 S.TANTALUM ECST1AY106R C273 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C274 4030008870 S.CERAMIC C1608 JB 1C 183K-T-A C275 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C276 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C277 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
J2 6510015540 S.CONNECTOR B4B-ZR-SM3-TF J4 6510018970 S.CONNECTOR B4B-PH-SM3-TB J5 6510019420 S.CONNECTOR B8B-ZR-SM3-TF J6 6510022470 S.CONNECTOR 40FLT-SM1-TB
W1 7120000470 JUMPER ERDS2T0 W6 7030003860 S.JUMPER ERJ3GE JPW V
EP1 0910053443 PCB B 5583C
MC1 0800005970 MICROPHONE HM-129B ACC <KN> MC1 0800005980 MICROPHONE HM-129W ACC <KN>
SP1 2510001110 SPEAKER 045P1601 <KS>
W1 7120000470 JUMPER ERDS2T0 W2 7120000470 JUMPER ERDS2T0 W3 8900010500 CABLE OPC-1046
6 - 5
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
S.=Surface mount
IC1 1140009280 S.IC µPD78F9418AGK-9EU (FX-2345D) IC2 1110001810 S.IC TA7368F (TP1) IC3 1110004490 S.IC M62429FP 700C IC4 1120002830 S.IC NJM2125F-TE1 IC5 1180000420 S.IC TA78L05F (TE12R) IC6 1180001250 S.IC TA7808F (TE16L) IC7 1110004710 S.IC S-80928ANMP-DDR-T2 IC8 1130007420 S.IC TC7W14FU (TE12L) IC9 1130006220 S.IC TC4W53FU (TE12L)
Q1 1560000810 S.FET 2SK1069-4-TL Q2 1520000460 S.TRANSISTOR 2SB1132 T100 R Q3 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R) Q4 1590001390 S.FET 2SJ144-Y (TE85R) Q5 1590000430 S.TRANSISTOR DTC144EUA T106 Q6 1590000980 S.TRANSISTOR DTB123EK T147 Q9 1560000810 S.FET 2SK1069-4-TL Q10 1530002060 S.TRANSISTOR 2SC4081 T107 R Q11 1510000510 S.TRANSISTOR 2SA1576A T106R Q12 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
D1 1750000130 S.DIODE DA204U T107 D2 1160000060 S.DIODE DAN202U T107 D3 1750000550 S.DIODE 1SS355 TE-17
X1 6060000750 S.CERAMIC CSTCC4.91MG
R1 7030000270 S.RESISTOR MCR10EZHJ 120 Ω (121) R2 7030000270 S.RESISTOR MCR10EZHJ 120 Ω (121) R3 7030000280 S.RESISTOR MCR10EZHJ 150 Ω (151) R6 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R7 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R8 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R10 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R11 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R12 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R13 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R14 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R15 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R16 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R17 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R18 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R19 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R20 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R21 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R22 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R23 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R24 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R25 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R26 7510001150 S.THERMISTOR NTCCM1608 4BH 103KC R27 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R28 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R29 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R30 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R31 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R32 7030004120 S.RESISTOR ERJ3GEYJ 203 V (20 kΩ) R33 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R34 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R35 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R36 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R37 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R38 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R39 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R40 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R41 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R42 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R43 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R44 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R45 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R46 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R47 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R50 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R51 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R52 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R53 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R54 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R55 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R56 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R57 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R58 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R59 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R60 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R61 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R62 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R63 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R64 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R65 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R66 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R67 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R68 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R69 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R70 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R75 7030000180 S.RESISTOR MCR10EZHJ 22 Ω (220) R76 7030000180 S.RESISTOR MCR10EZHJ 22 Ω (220) R77 7030000180 S.RESISTOR MCR10EZHJ 22 Ω (220)
C1 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C3 4510005430
S.ELECTROLYTIC
ECEV0JA220SR
C4 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C5 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C6 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C7 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C9 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C10 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C11 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C12 4030012600 S.CERAMIC C2012 JB 1A105M-T-A C13 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C14 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C15 4510006220
S.ELECTROLYTIC
ECEV1CA101UP
C16 4510006220
S.ELECTROLYTIC
ECEV1CA101UP
C17 4510006220
S.ELECTROLYTIC
ECEV1CA101UP
C18 4510006250
S.ELECTROLYTIC
ECEV1CA331UP
C22 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C23 4510005430
S.ELECTROLYTIC
ECEV0JA220SR
C24 4030012600 S.CERAMIC C2012 JB 1A105M-T-A C25 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C26 4030012600 S.CERAMIC C2012 JB 1A105M-T-A C27 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C28 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C29 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C30 4510004630
S.ELECTROLYTIC
ECEV1CA100SR
C31 4030011810 S.CERAMIC C1608 JB 1A224K-T-N C32 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C33 4030012600 S.CERAMIC C2012 JB 1A105M-T-A C34 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C35 4510005430
S.ELECTROLYTIC
ECEV0JA220SR
C36 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C37 4510005430
S.ELECTROLYTIC
ECEV0JA220SR
C38 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C39 4510006220
S.ELECTROLYTIC
ECEV1CA101UP
C40 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C41 4510006250
S.ELECTROLYTIC
ECEV1CA331UP
C42 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C44 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C45 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C46 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C47 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C50 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C51 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C52 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C53 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C54 4030012600 S.CERAMIC C2012 JB 1A105M-T-A
J1 6510019420 S.CONNECTOR B8B-ZR-SM3-TF J2 6510021440 S.CONNECTOR B6B-ZR-SM3-TF
DS1 5030001900 LCD A0119 LCD36*28.5 DS2 5040002660 S.LED FY1101F-TR (LED) DS3 5040002660 S.LED FY1101F-TR (LED) DS4 5040002310 S.LED SML-311YTT86 DS5 5040002660 S.LED FY1101F-TR (LED) DS6 5040002660 S.LED FY1101F-TR (LED)
6 - 6
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
6-2 MH-127
[MAIN UNIT]
6 - 7
[MAIN UNIT]
S.=Surface mount
DS7 5040002310 S.LED SML-311YTT86 DS8 5040002310 S.LED SML-311YTT86 DS9 5040002310 S.LED SML-311YTT86 DS10 5040002310 S.LED SML-311YTT86
MC1 7700002480 MICROPHONE SKB-2746 LPC
S1 2260002140 S.SWITCH SKQLLC S2 2260002140 S.SWITCH SKQLLC S3 2260002140 S.SWITCH SKQLLC S4 2260002140 S.SWITCH SKQLLC
EP1 0910053142 PCB B 5526B EP2 8930051120 LCD CONTACT SRCN-2320-SP-N-W
R1 7010006890 RESISTOR R20J 12 K Ω R2 7010006880 RESISTOR R20J 6.8K Ω R3 7010006900 RESISTOR R20J 15 K Ω R4 7010006910 RESISTOR R20J 33 K Ω
C1 4010008030 CERAMIC DD104 B 471K 50V
MC1 7700002500 MICROPHONE KUC3523-040245 <KN>
S1 2260002330 SWITCH SKHHLP014A S2 2260002340 SWITCH SKHHAM024A S3 2260002340 SWITCH SKHHAM024A S4 2260002340 SWITCH SKHHAM024A
W1 9018490010 WIRE 71/98/010/X98/X98 <KN> W2 9018490010 WIRE 71/98/010/X98/X98 <KN>
EP1 0910053701 PCB B-5587A
REF ORDER
DESCRIPTION
NO. NO.
REF ORDER
DESCRIPTION
NO. NO.
6-3 MH-129
[MAIN UNIT]
7 - 1

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

REF. NO. ORDER NO.
DESCRIPTION
QTY.
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[LOGIC BOARD]
R1 7210002350 TP96N97N15F-10KA-1301 (incl. nut) 1
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[VR-A BOARD]
R1 7210002360 TP96N97N15F-10KB-1301 (incl. nut) 1
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[VR-B BOARD]
[MAIN UNIT]
IC3 1150001540 SC-1302 1
MP1 8510013860 2435 Shield case 1 MP2 8510013710 2438 Module plate 1 MP3 8510002280 VCO shield plate (A) 1 MP4 8930052270 Shield sponge (D) 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
Screw abbreviations A0, B0, BT: Self-tapping
PH: Pan head BiH: Bind head NI: Nickel SUS: Stainless NI-ZU: Nickel-Zinc
[ACCESSORIES]
W1 8900009040 Cable OPC-891 1
MP1 8950005110 2289 MIC hanger 1 MP2 8010017250 2040 Mobile bracket [BLACK] 1
8010017270 2040 Mobile bracket (A) [WHITE] 1
MP3 8610010560 2040 Knob bolt [BLACK] 2
8610010590 2040 Knob bolt (A) [WHITE] 2 MP4 8810004700 Screw PH A0 M3x16 SUS 2 MP5 8810001490 Screw PH A0 M5x20 SUS 2 MP6 8850000180 Flat washer M5 SUS 2 MP7 8850000500 Spring washer M5 SUS 2
REF. NO. ORDER NO.
DESCRIPTION
QTY.
DS1 5030001950 LCD TTR5341 1
EP2 8930054970 LCD contact SRCN-2438-SP-N-W 2
MP1 8210017700 2438 Reflector 1 MP2 8930054650 2438 LCD holder 1 MP3 8930055060 2438 White sheet 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[FRONT UNIT]
MP2
W1 MP3
MP1
MP4
MP5
MP6 MP7
7-1 IC-M402
MC1 0800005970 Microphone HM-129B [BLACK] 1
0800005980 Microphone HM-129W [WHITE] 1
SP1 2510001110 Speaker 045P1601 1
W3 8900010500 Cable OPC-1046 1
MP1 8210017690 2438 Front panel [BLACK] 1
8210017770 2438 Front panel (A) [WHITE] 1 MP2 8930054640 2438 Key board 1 MP3 8310050810 2438 Window plate 1 MP4 8610011030 Knob N-286 [BLACK] 2
8610011040 Knob N-286 (A) [WHITE] 2 MP5 8930014280 SP net 1 MP6 8810008660 Screw PH B0 M3x8 NI-ZU (BT) 4 MP7 8830001350 Sonicrock SL-M3-5.8 4 MP8 8930052010 2345 Shaft 1 MP9 8930052030 2345 Spring 1 MP10 8110007460 2438 D-cover 1 MP11 8930052020 2345 Shaft angle 1 MP12 8930052280 O ring (AC) 2 MP13 8310051220 2438 C-Bush plate 1 MP14 8610009240 Knob spring 1
J1 6510004880 Connector MR-DSE-01 1
W1 8900010470 Cable OPC-1029 (incl. nut, packing) 1 W2 8900010480 Cable OPC-1040 1
MP2 8010018470 2438 Chassis 1 MP3 8930052440 2345 B-IC clip 1 MP4 8510013700 2438 Case [BLACK] 1
8510013850 2438 Case (A) [WHITE] 1 MP5 8930054660 2438 R-PACKING 1 MP6 8930045280 2040 F-PACKING 1 MP7 8930034300 1542 ANT SEAL 1 MP8 8930054620 2438 B-Bush plate 1 MP9 8830001530 2438 MB nut 2 MP10 8510011870 2040 MODULE cover 1 MP11 8930055070 2438 SHEET 1 MP12 8930053740 O ring 2 MP13 8930052290 O ring 6 MP14 8810008680 Screw PH M3x8 NI 4 MP15 8810008660 Screw PH B0 M3x8 NI-ZU (BT) 6 MP16 8810008660 Screw PH B0 M3x8 NI-ZU (BT) 2 MP17 8810002950 Screw BiH M3x6 SUS 2 MP18 8810006050 Screw E7 6 MP19 8850000690 Flat washer M3 SUS 6 MP20 8930055040 2438 cap 1 MP21 8930049040 Insulating plate 1
MP18 (C)
MP19 (C)
MP11 (C)
MP21 (C)
MP19 (C)
MP13 (C)
MP13 (C)
MP18 (C)
MP18 (C)
MP18 (C)
MP18 (C)
MP18 (C)
MP4 (C)
MC1 (F)
R1 (VA)
R1 (VB)
MP12 (F)
MP12 (F)
MP2 (F)
MP6 (C)
SP1 (F)
VR-B BOARD
EP2 (L)
EP2 (L)
MP6 (F)
MP6 (F)
LOGIC BORAD
MP2 (L)
VR-A BOARD
DS1 (L)
MP1 (L)
MP3 (L)
MP14 (C)
W3 (F)
MP14 (C)
MP14 (C)
W1 (C)
MP14 (C)
MP15 (C)
MP2 (M)
MP10 (C)
MP16 (C)
IC3 (M)
W1 (C)
MP20 (C)
MP3 (C)
MP5 (C)
J1 (C)
W2 (C)
MAIN UNIT
MP17 (C)
MP7 (C)
MP2 (C)
MP8 (C)
UNIT abbreviations (C): CHASSIS PARTS, (L): LOGIC BOARD, (M): MAIN UNIT
(VA): VR-A BOARD, (VB): VR-B BOARD, (F): FRONT UNIT
MP15 (C)
W1 (C)
MP4 (F)
R1 (VB)
MP10 (F)
MP3 (F)
MP11 (F)
MP9 (F)
MP8 (F)
R1 (VA)
MP1 (F)
MP13 (F)
MP3 (M)
MP4 (M)
MP5 (F)
7 - 2
7 - 3
7-2 HM-129
W1 8900010450 Cable OPC-1034 [BLACK] 1
8900010460 Cable OPC-1035 [WHITE] 1
MP1 8210017670 2352 front panel (B)-1 [BLACK] 1
8210017680 2352 front panel (C)-1 [WHITE] 1
MP2 8210016850 2352 rear panel [BLACK] 1
8210017110 2352 rear panel (A) [WHITE] 1 MP3 8930052160 2352 key 1 MP4 8930052150 2352 PTT rubber 1 MP5 8930052140 2352 PTT holder 1 MP6 8930052690 2352 MIC rubber 1 MP7 8930052120 2352 rubber 1 MP8 8930052110 2352 main seal 1 MP9 8610010870 2352 hanger knob 1 MP10 8310048760 2352 R-plate 1 MP11 8310048780 2352 MIC plate 1 MP12 8820001150 2352 screw 5 MP13 8850001850 ICOM washer (Y) 5 MP14 8930052340 O-ring (AE) 5 MP15 8930052350 O-ring (AF) 1 MP16 8930053870 2352 sheet (A) 1 MP17 8930054910 2449 SP Rubber 1 MP18 8850001610 Spring washer M4 SUS 1 MP19 8810009260 Screw PH B0 2 × 6 NI 3 MP21 8810009240 Screw BiH M4 × 10 ZK 1
REF. NO.
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY. REF. NO.
MC1 7700002500 Microphone KUC3523-040245 1
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY.
Screw and washer abbreviations
B0: Self-Tapping PH: Pan head NI: Nickel SUS: Stainless ZK: Black BiH: Bind head
MAIN UNIT
MP16 (C)
MP3 (C)
MP17 (C)
MP1 (C)
MC1 (M)
MP19 (C)
MP21 (C)
MP9 (C)
MP11 (C)
MP2 (C)
MP14 (C)
MP13 (C)
MP12 (C)
MP9 (C)
MP15 (C)
MP7 (C)
MP18 (C)
MP10 (C)
MP4 (C)
MP5 (C)
MP8 (C)
W1 (C)
UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT

HM-129

7-3 HM-127 (OPTIONAL UNIT)
W3 8900010220 Cable OPC-997 [BLACK] 1
8900010230 Cable OPC-998 [WHITE] 1
SP1 2510001090 Speaker 036D0801 1
MP1 8210017261 2417 front panel-1 [BLACK] 1
8210017291 2417 front panel (A)-1 [WHITE] 1 MP2 8310049820 2417 Window plate 1 MP3 8930053510 2417 key board 1 MP4 8930053540 2417 PTT rubber 1 MP5 8930053990 2417 PTT sheet 1 MP6 8930053550 2417 PTT holder 1 MP7 8930053520 2417 top key 1 MP8 8930053760 2417 key plate 1 MP9 8930011900 SP net (A) 1 MP10 8930039000 1757 sheet 1 MP11 8810009180 Screw FT B0 M2 × 5 NI-ZU 3 MP12 8930053750 2417 plate 1 MP13 8210017250 2417 rear panel [BLACK] 1
8210017300 2417 rear panel (A) [WHITE] 1 MP14 8310049970 2417 R-plate 1 MP15 8610010980 2417 hanger knob 1 MP16 8930053740 O-ring (AJ) 1 MP17 8810008450 Screw BiH M4 × 8 ZK 1 MP18 8850000490 Spring washer M4 SUS 1 MP19 8930053530 2417 rubber 1 MP20 8820001180 2417 screw 2.6 × 16 6 MP21 8930053730 O-ring (AI) 6
REF. NO.
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY.
DS1 5030001900 LCD A0119 (LCD 36 × 28.5) 1
EP2 8930051120 LCD contact SRCN-2320-SP-N-W 2
MC1 7700002480 Microphone SKB-2746 LPC 1
MP1 8930053780 2417 LCD holder 1 MP2 8210017240 2417 reflector 1 MP3 8310050200 2417 H-plate 1 MP4 8930039610 Thermally sheet (C) 1 MP5 8930054890 Insulate sheet (GM) 2
REF. NO.
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY.
W1 8900010280 Cable OPC-1000 1
MP1 8950005110 2289 mic hanger 1 MP2 8810004700 Screw PH M3 × 16 SUS 2 MP3 8310050320 2417 C-plate 1 MP4 8810004700 Screw PH M3 × 16 SUS 3
REF. NO.
[ACCESSORIES]
ORDER NO. DESCRIPTION QTY.
Screw and washer abbreviations
PH: Pan head FT: Flat head B0: Self-tapping NI-ZU: Nickel-zinc SUS: Stainless ZK: Black BiH: Bind head
MP4 (C)
MP2 (M)
EP2 (M) MP3 (M)
MP4 (M)
MP11 (C)
MP19 (C)
MP14 (C)
MP18 (C)
MP17 (C)
MP13 (C)
MP7 (C)
MP8 (C)
MP5 (M)
MP1 (M)
DS1 (M)
MP10 (C)
MP5 (C)
MP6 (C)
MP3 (C)
MC1 (M)
SP1 (C)
MP1 (C)
MAIN UNIT
W3 (C)
MP12 (C)
MP16 (C)
MP21 (C)
MP15 (C)
MP20 (C)
HM-127 UNIT abbreviations
(C): CHASSIS PARTS (M): MAIN UNIT
MP3 MP1
MP2, MP4
W1
HM-127 ACCESSORIES

SECTION 8 SEMI-CONDUCTOR INFORMATION

8 - 1
•
TRANSISTOR AND FET’S
B
C
E
B
C
E
B
C
E
C
B
E
C
2SD1664 Q
(Symbol: DAQ)
FMW1
(Symbol: W1)
2SC2714 Y
(Symbol: QY)
2SB1132 R
(Symbol: BAR)
2SC3268
(Symbol: ME)
2SB1143 S
(Symbol: B1143)
2SC3775 3
(Symbol: OY3)
2SC4215 O
(Symbol: QO)
2SJ144 Y
(Symbol: VY)
S
D
G
B
E
C
B
E
C
2SA1576 R
(Symbol: FR)
2SA1588
(Symbol: ZG)
B
E
C
B
E
C
2SC4081 R
(Symbol: BR)
2SC4116 BL
(Symbol: LL)
B
E
C
2SC4226 R25
(Symbol: R25)
D
G
S
2SK1069
(Symbol: FJ)
G1
G2
S
D
3SK272
(Symbol: DU)
B
E
C
DTA144 EU
(Symbol: 16)
B
E
C
DTA114 EUA
(Symbol: 14)
B
E
C
DTC114 EU
(Symbol: 24)
DTB123 EK
(Symbol: F12)
B
E
C
DTC144 EU
(Symbol: 26)
B
E
C
•
DIODES
DA204 U
(Symbol: K)
MA77
(Symbol: 4B)
AK
HVU350
(Symbol: 4)
HSM88ASR
(Symbol: C3)
A
C
1SS355
(Symbol: A)
1SS375
(Symbol: FH)
DAN202 U
(Symbol: N)
A
C
MA728
(Symbol: 2A)
XB15A308
(Symbol: T8)
9 - 1

SECTION 9 BOARD LAYOUTS

9-1 VR-A BOARD
9-2 VR-B BOARD
9-3 HM-129
•
TOP VIEW
•
BOTTOM VIEW
to Main unit J5
W1
HV
1
GND
VOL2
HVS
VOL1
5
1
W1
R1
B-5585B
S2
S3
R2
R3
R1
C1
MC1
R4
S4
to Main unit J5
W1
5V
GND
SQLV
3
1
1
B-5586B
W1
R1
S1
9-4 LOGIC BOARD
•
TOP VIEW
9 - 2
R79
R82
C14 R78
R47
R46
R26
R86
R87
C32
X1
R7
C24
IC6
R20
R17
IC2
Q11
C28
R39
R42 R41
R6
R34
Q5
Q6
D2
R4
J1
J2
D1
C9
IC7
C6C3C5
C4
Q9
R76
Q10
Q4
R2
R1
J4
R5
Q8
C22
C23
R71
C31
R69
R68
R67
R66
R65
R64
R62
R63
R72
R53
R54
R52
R85
C18 C30
C8
R50
R51
R55
R56
R57
R58
R59
R60
R61
R73
R70
IC1
Q1
R9
R8
R81
R80
R84
C10
R44
R45
C21
R11
R83
R14
R16
R13
R19
R22
R18
R21
R12
R15
R12
IC5
R75
R74
C20
R10
C11
IC4
C27
C13
R35
C2
R36
R26
R43
C25
Q7
R77
R3
C7
J3
Q2
Q3
SP—
SP+
to Front unit SP1
to Front unit SP1
C1
IC3
J4
J3 J1
J2
B5584B
ICOM
BE
1
1
1
SP+
—
SP
BPLVL
HVS
—
5V
GND
GND
TMUT
TXDET
HI/LO
SQLV
PTT
BPFV
RMUTS
SMUTE
SQL
UNLK
PSTB
SP+
SP
BEEPM
—
HVS
5V
RCV
SEND
GND
GND
DSENC
DSDEC
WXDEC
PTTS
PTTM
RMUTM
MMUTE
GND
PDATA
PCK
40 2
39
J4
1
From/to Main unit J6
GND
KEYM
2J31
From Smart Mic HM-129
GND
ICF3
CLDA
LCDA
4
J1
1
From/to Remoto Mic HM-127
NMEA
NMEA+
2J21
From External GPS
9 - 3
•
BOTTOM VIEW
DS1
DS3
DS4
DS5
DS6
DS7
DS8
9 - 4
9-5 MAIN UNIT
•
TOP VIEW
C259
C109
C111
L14
C107
D10
C106
C197
C198
C102
C108
L13
C105
L11
L15
D15
MP1
L12
R71 [TX-PWR]
FI1
FI2
CP2
[
SQL
]
R16
[
REF
]
C36
CP1
[
MOD
]
R138
T5
R5
FI3
C80
C83
EXT-MIC
D11
VR-A/B
C185
C186
IC9
Q12
CP3
B-5583C
L19
C207
C202
D21
C211
C212
C253
R157
C214
C226
C213
C215
C208
L20
D19
C209
R187 C252
C227 C228
R155
R190
R158
L26
Q27
C210
R185
R186
C251
C206
C204C203
C225
C256
L1
W6
C67 R51
R49 R50
C64
L8
C65
C54 C56
C63
Q8
Q9
R45 R44
R48
R41
C59
L5
C53
C52
D3 D4
C55
C58 C57
C62
C66
C43
R43
R25
C37
IC2
R26C35
X2
R28
Q24
R147 C179
C180 R148
C246
R138
C178
C177
C146
C145
C40
J4
C112C113
C191
C114
C193 C192
C194
J2
R57
R60
R192
R139
R76
C98
C92
C91
Q15
R75
R71
Q14
C75
R61
C79
C78
C76
C196 C195
C190
R63
L9
C173 C172
C127 C126
C123 C122
C125 C124
C175 C174
IC8
R144
J5
J6
R112 R111 R110
C152 R109 C151
R93 R95
R166 R167
R94
R98 R96
C137
R99
C138
R97
C139
R100
R101 C140
C231 R161
R106 C143 C245
R160
R107
R108 C146 R159 C230 R162 C229 R104 C142
C147 C145 C144 R105
IC6
C168
R169
R140
R142
R143
R141
C156
C148
C136
C150
C170
C141
R103
R102
Q21
Q28 C149
C181 C84
C182
R151
R152
C183
C184
C176
C171
C270
C74
Q11
L30
L31
R62
D7
L10
Q10
C77
R64
C189
C128 R170 R82R90
R91
IC5
IC4
Q20
C133
C135
R92
C134
R89
Q19
C131
R85
R86R83
R87
R81
R84R88
Q18
D12
C132
C130C129
Q23
C34
C39
R165
C227
R80
C120 C121
Q25
Q22
C33 C38
C36
R136
R137
R135
R39
C45
R37
R38
C47
R27
C32C260
R22
R14
C29C30
IC1
X1
Q6
R46
C60
Q5
Q7
L6
R52
R33
C258
C61
R42
C21
C20
C19
R47
L7
L4
C50
C51
Q3
L28
C22
R16
R67
R68
R69
R74
R66
C90
C95
C94
R70
Q17
C99
C100
C101
R77
R56
C268
L29
C267
R58
C73
R54
C70
C72
R59
C68
C71
C11C10C9
L16
L17
C5R6R5
L27
C4C3C6
R7
C254
R188
C224
C223
L2 L3
R163
R3
Q1
ICOM
PTT
MICG
MIC
GND
1
J4
4
from Smart Mic HM-129
VCC
AF/MIC
MICG
PTTC
1
J2
4
from/to Optional unit HM-127
SP+
—
SP
BPLVL
HVS
—
5V
GND
GND
TMUT
TXDET
HI/LO
SQLV
PTT
BPFV
RMUTS
SMUTE
SQL
UNLK
PSTB
SP+
SP
BEEPM
—
HVS
5V
RCV
SEND
GND
GND
DSENC
DSDEC
WXDEC
PTTS
PTTM
RMUTM
MMUTE
GND
PDATA
PCK
139
2
J6
40
to Logic unit J4
HVS
VOL1
VOL2
GND
HV
5V
SQLV
GND
8
J5
1
from/to VR-A, VR-B boards
9 - 5
SP
+
SP
-
R65
R154
C187
C118
C188
GND
to LOGIC board J2
C115 C116
C271
C81
HV
C85
C86
C87
C161R126C166R133
R127R128C164C165
R125R129R131R132
C274
C273
R124R130R183C162R199
C160
R123
R198
C276
R121
C159
R201
R113R122
C155
IC7
R150R149
Q26
D14
R134
C255 C262
C261
MP3
R168
R195 R196 R194 R193
C265
C264
R169
R32
R29
R30
R31
C41
C42
C28
C27
C23
C257
C18C25
Q2
R13 R12
R19
R17
R18
C275
R10
C272
R36
R34 R35
R20
C31
C24 R15
C26
R21 C16
C17 R11
Q4
C46
C44
C14
C266
R9C7
L25
L24
L21
C217
C222
C218
C220
D20C221
L22
C216
C12
R8
R53
C249
C200
C199
C201
R191
D16
D5
D6
C49 C48
R40
D2
D1
D9
R79
C104
C93
D8
C103
R78
R73
C88
C82
C89
C97 C96
Q16
•
BOTTOM VIEW
9-6 HM-127 (OPTIONAL UNIT)
•
TOP VIEW
9 - 6
•
BOTTOM VIEW
1
40
41
60
61
85
41
51
106
41
85
80
1
2021
4
58
RRXDA
PWRC
RTXDA
PTTC
GND
MICG
AF/MIC
VCC
1
8
to IC-M402 MAIN unit J2 and LOGIC board J1
J1
9 - 7
10 - 1

SECTION 10 BLOCK DIAGRAM

OPTION EXTERNAL SPEAKER
HM-129 SMART MIC
INTERNAL SPEAKER
MIC MIC
EXT.SP
SP
MAIN UNITFRONT UNIT
WXDEC
DSDEC
Q28: 2SC4116 BL
IC6: NJM2211M
RCV SEND SMUTE
IC3: BU4094BCFV
LOGIC BOARD
VR-B BOARD
5V
SQLV
X1: CR-691
9.8304MHz
DS1: TTR5341
LCD
BUFF
DIM
CTRL
LCD
CONT
GATE
CTRL
CI-V
I/F
BUFF
COUPLE
KEY
BOARD
Q2: 2SC4116 BL Q3: 2SB1132 R Q4: 2SC4116 BL
Q11: 2SK1069 4
MMUTE PTTS PTTM
RMUTM
RMUTS
IC6: S-80942A NMP-DD6
IC2: HN58X2432TI
Q8: 2SK1069 4
PTT
DSENC
IC7: PC357N6T
IC5: TC47HC02AF
IC4F: TC47HC14AF
NMEA+ NMEA
EXTERNAL
WXDEC DSDEC SQL BPFV
TMUT
TXDET
HI/LO
IC4A, IC4C: TC74HC14AF Q5: 2SC4081 R Q7: 2SA1576 R Q10: 2SK1069 4
Q6: DTC114EU Q9: DTC114EU D2: 1SS355 IC4B: TC74HC14AF
OPTION REMOTE MIC HM-127
AF/MIC
VCC (HVS)
PTTC
MIC
BEEPM BPLVL
5V
Q8: 2SC4215 O
Q9: 2SC4215 O
IC2:
PD3140GS
X2: CR659
Q3: 2SC4116 BL
HVS
VR-A BOARD
IC9: LA4425A
(FRONT UNIT)
BEEPM BPLVLM
Q26: DTC144EU D14: DA204U
Q21: 2SC4116 BL
R5 IC7D: NJM2902M
IC7B: NJM2902M
DSENC
Q7: 2SC4215 O
IC7C: NJM2902M
/PTTC
IC4D: BU4066BCFV
AF
MUTE
AF
MUTE
AF
MUTE
AF
MUTE
GATE
CTRL
IC4C: BU4066BCFV
IC4A: BU4066BCFV
IC4B: BU4066BCFV
RMUTM MMUTE
IC5A: BU4066BCFV
IC5B: BU4066BCFV
IC5D: BU4066BCFV
IC5C: BU4066BCFV
RMUTS SMUTE
Q20: 2SK1069 4
PTTS
PTTM
PTT
Q18: DTC144EU D12: 1SS355
PTTC
Q19: DTA144EU
FI1,2: FL310
Q2: 2SC2714 Y
SQL
FI3: ALFY450E
IC1: TA31136FN
D5: MA77 D6: MA77
IC3: SC-1302
D8, D9: HSM88ASR
HV
Q11: 2SC3268
Q10: 2SC3775 3
TXDET
HI/LO
T5
TMUT
Q16: DTC144EU
Q14: DTC144EU
Q12: 2SB1143 S Q15: FMW1
R5
T5
RCV
SEND
VR-A BOARD
D11: DSA3A1
IC8: TA7805F
Q24: 2SA1588 GR Q25: DTC144EU
Q22: 2SA1588 GR Q23: DTC144EU
13.8VHV5V
HVS
HVS
ANT
BPFV
Q1: 3SK272
Q17: 2SD1664 Q D10: XB15A308 D15: XB15A308
Q27: 2SC4226 R25
HVS T5
MPU
IC1: HD6473847RH
PTT
DECODER
&MULTI
RESET
EEPROM
D/A
BUFF
GPS
GATE CTRL
BUFF
AF
MUTE
AF
MUTE
AF
MUTE
AF
MUTE
HPF
MIC AMP
RS
CTRL
T5
CTRL
+5
REG
REVERSE
CONECT
PROTECT
PWR AMP
LEVEL
CONV
DSC
DECODER
LPF
FM
DET
2nd IF
AMP
CERAMIC
BPF
2nd MIX
2nd Lo
BUFF
NOISE
DET
NOISE AMP
IF
AMP
XTAL
BPF
BPF BPF
ANT
SW
RF OUT
DET
APC
CTRL
PWR CTRL
TX MUTE CTRL
LPF
TX/RX
SW
YGR AMP
PRE DRIVE
PWR AMP
RF
AMP
PLL
IC
RIPPLE
FIL
LOOP
FIL
BUFF
IDCLPF
VCO
BUFF
BUFF
D1, D2: MA77 D3, D4: HVD350 Q4: DTC144EU Q5, Q6: 2SC4226 R25
VCO
COMMON LINE
TX LINE
LINE
DATA BUS LINE
RX LINE
(FRONT UNIT)
11 - 1

SECTION 11 VOLTAGE DIAGRAM

11-1 LOGIC BOARD
R12 12 k
Q4 2SC4116 BL
Q2
2SC4116 BL
Q3 2SB1132 R
R15 39 k
R17 10 k
R18 10 k
R21 18 k
R20 18 k
DIM3
DIM2
DS7 FY1101 F-TR
DIM1
DS8 FY1101 F-TR
R26 330
R13
3.3 k
R14 1 k
R16 47 k
R19 18 k
R22 18 k
S5 S6 S7S1
R1 100 k
S2
R2 100 k
S3
R3 100 k
S4
BAND EXTENTION
R83 27
R11 27
R10 27
C20
0.01
R86 100 k
C32
0.001
C21
0.001
DSC UP DNDTRS
R6 820
DS4 SML-311 YT
DS3 SML-311 YT
H/LCHWX16CH
DS6 SML-311 YT
DS5 SML-311 YT
R5 820
DSC UP DN CH16
H/L
DTRS
CHWX R4 100 k
R8 10 k
5V
C7
0.01
Q8
2SK1069 4
1 2
3
4
J3 from Smart Microphone (HM-129)
from/to main unit J6
R73 220 k
KEYM
DSENC
C31
0.01
R71
2.7 k
R70 820 k
R69 20 k
R66 20 k
R59 10 k
R67 20 k
R60 10 k
R68 20 k
R61 10 k
C22 10
C23
0.01
R65 20 k
R58 10 k
R53 10 k
R72 20 k
R55 10 k
R62 20 k
R63 20 k
R56 10 k
R64 20 k
R57 10 k
Q10 2SK1069 4
R41 1 k
R42 47 k
R43 1 k
Q6 DTC114EU
D2 ISS355
Q9 DTA114EU
R39 47 k
C25
0.01
1 2 3 4 5 6 7 8
9
10
11
12
13
14
IC5 TC74HC02AF
C11
0.01
R46
8.2 k
R85
3.3 k
C30
0.01
R79 100 k
R54 10 k
R50 15 k
R47 10 k
Q11
2SK1069 4
R51
1.5 k
R52 10 k
Q7 2SA1576 R
Q5 2SC4081 R
R36
4.7 k
R77 47
C26
0.01
1
5
6
2 3 4
J1
LCDA CLDA ICF3 GND
7
8
9
1011121314
IC4 TC74HC14AF
R44 39 k
C12
0.01
A0
1
A1
2
A2
3
VSS
4
SDA
5
SCL
6
WP
7
VCC
8
IC2 HN58X2432TI
C18
0.01
C8 10
Q1 DAT144EU
TMUT
R9 33 k
R87 100 k
P10/TMOW
1
P90/SEG33
75
P11/TMOFL
2
P12/TMOFH
3
P13/TMIG
4
P14/IRQ4/ADTRG
5
P15/IRQ1/TMIC
6
P16/IRQ2
7
P17/IRQ3/TMIF
8
X1
9
X2
10
VSS
11
OSC2
12
OSC1
13
TEST
14
RES
15
P20/SCK1
16
P21/SI1
17
P22/SO1
18
P23
19
P24
20
P25
21
P26
22
P27
23
P30/PWM
24
P31/UD
25
P60/SEG9
51
P61/SEG10
52
P62/SEG11
53
P63/SEG12
54
P64/SEG13
55
P65/SEG14
56
P66/SEG15
57
P67/SEG16
58
P70/SEG17
59
P71/SEG18
60
P72/SEG19
61
P73/SEG20
62
P74/SEG21
63
P75/SEG22
64
P76/SEG23
65
P79/SEG24
66
P80/SEG25
67
P81/SEG26
68
P82/SEG27
69
P83/SEG28
70
P84/SEG29
71
P85/SEG30
72
P86/SEG31
73
P87/SEG32
74
IC1 HD6473847 RH
R76 100 k
R74 47 k
R75 150 k
R78 100 k
EXOE RCV
SEND SMUTE MMUTE
OUT
1
VDD
2
VSS
3
NC
4
CD
5
IC6 S-80942 ANMP-DD6
R45 39 k
R84 100 k
PTTS PTTM RMUTS RMUTM
PCK
RES
DSDEC
H/L
CHWX
CH16
EXOE
CONT2
CONT1 BEEPM
X1
CR-691
C24 27 P
C28 24 P
R7 1 M
SEG24 SEG23 SEG22 SEG21 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG8 SEG7 SEG10 SEG9 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0
DIM2
DIM1
EDA
ECK
BPLVL
ICFC
EXSTB
PDATA
PSTB
R80 10 k
R81 10 k
R82 100 k
C10
0.027
C14
0.01
STRB
1
DATA
2
CLK
3
Q1
4
Q2
5
Q3
6
Q4
7
VSS
8
QS
9
Q’S
10
Q8
11
Q7
12
Q6
13
Q5
14
VDD
16
5V
5V
NMEAI
NMEAI
HVS
HVS
DTRS
DSC
5V
5V
DSENC
DSENC1
DSENC2
DSENC3
DSENC4
DSENC5
DSENC6
DSENC7
DSENC
5V
5V
UP
DN
HVS
PTT
KEYM
KEYM
5V
5V
CH16
CHWX
5V
NMEAI5VHVS
DSDEC
BEEPM
ICFC
DIM3
RRXD RTXD
DIM3
CONT1
CONT2
ICFC
OENA
15
IC3 BU4094BCFV
PDATA PCK RMUTM RMUTS
PTTM PTTS
EXSTB
1 2
4
3
J2
from external GPS
from/to Remoto MIC (HM-127)
NMEA+ NMEA
IC7 PC357N6T
C13
0.01
R34 470
D1 ISS355
C9
0.0047 R35
6.8 k
C27
0.01
S27
DS1 TTR5341
S28 S13 S14
S17
S16
S15
S20
S19
S18
S21 S23
S22 S24 S26
S25 C0 C2
C1 C3 S2
S1 S3 S5
S4
S7
S6 S10
S8
S11
S12
S9
1 2 3 4
7
6
5
10
9
8
11 13
12 14 16
15 17 19
18 20 22
21 23 25
24
27
26 28 30
29
32
31
SEG26 SEG27 SEG12 SEG13
SEG16
SEG15
SEG14
SEG19
SEG18
SEG17
SEG20 SEG22
SEG21 SEG23 SEG25
SEG24 COM0 COM2
COM1 COM3 SEG1
SEG0 SEG2 SEG4
SEG3
SEG6
SEG5 SEG9 SEG7
SEG10
SEG11
SEG8
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
33
36
35
1
2
3
4
5
6
7
8
9
10
11
12
14
13
16
15
38
37
40
39
SP+
SP
C2
0.001
HVS
BEEPM BPLVL
BEEPM BPLVL
RCV SEND
TMUT TXDET
DSENC DSDEC WXDEC
HI/LO SQLV PTT
PTTS BPFV PTTM
UNLK PSTB
PCK
SQL
RMUTS RMUTM SMUTE MMUTE
PDATA
RCV
5V
5V
SP
SP
SP+
SP+
J4
HVS
HVS
SEND
TMUT TXDET
DSENC DSDEC WXDEC
HI/LO SQLV PTT
PTTS BPFV PTTM
UNLK PSTB
PCK
SQL
RMUTS RMUTM SMUTE MMUTE
PDATA
C4 470 P
C3
0.001
C6 470 P
C5
0.001
to Internal Speaker
C1
0.001
P32/RESO
P33/SCK31
26DIM3
HI/LO
RRXD
RTXD
BPFV
CSEG3
CSEG2
CSEG1
COM3
COM2
COM1
COM0
DSENC0
DSENC1
DSENC2
DSENC3
DSENC4
DSENC5
DSENC6
DSENC7
27
P34/RXD31
28
P57/WKP7/SEG8
50
P56/WKP6/SEG7
49
P55/WKP5/SEG6
48
P54/WKP4/SEG5
47
P53/WKP3/SEG4
46
P52/WKP2/SEG3
45
P51/WKP1/SEG2
44
P50/WKP0/SEG1
43
PA0/COM1
42
PA1/COM2
41
PA2/COM3
40
PA3/COM4
39
VCC38V037V136V235V334VSS33CVCC
32
P36/AEVH30P37/AEVL
31
P35/TXD31
29
UNLKDNUP
DSC
DTRS
PTT
KEYM
TXDET
LBAT
SQL
SQLV
WXDECBENMEAI
/TMUT
SEG27
SEG26
SEG25
AVSS
PC3/AN11
PC2/AN10
P91/SEG34
P92/SEG35
P93/SEG36
P94/SEG37/M
P95/SEG38/DO
P96/SEG39/CL2
P97/SEG40/CL1
P40/SCK32
P41/RXD32
P42/TXD32
P43/IRQ0
AVCC
PB0/AN0
PB1/AN1
PB2/AN2
PB3/AN3
PB4/AN4
PB5/AN5
PB6/AN6
PC0/AN8
PB7/AN7
PC1/AN9
100
99
98
767778798081828384858687888990919293949695
97
12345
6
4.98
13.81 V
ICF3_ON 0 V HM-127_ON 4.98 V
9.83 MHz
3.8 Vp-p
11 - 2
11-2 MAIN UNIT
D16 1SS375
C228 470 P
R158 22
C227
0.001
C226 470 P
C252
0.001
R155 33 k
L26
0.10 H
R5
C5
0.001
R6 10
R12
1.5 k
C20 100 P
R14 1.2 k
FI3 ALFY450E
CP2
C34
0.01
R25 100
L28 82 nH
C258
9 P
C259
9 P
C260
0.001
C33
0.1
VCC1
1
IN1
2
ENB
3
CLK
4
DATA
5
T1
6
LOK
7
CP1
8
FI1
9
FO110FO2
11
FI2
12
CP2
13
GND2
14
XO
15
XI
16
XB
17
VCC2
18
IN2
19
GND1
20
IC2 UPD3140GS
C39
0.001
R165 100 k
5V
R28 330
C40
0.01
R30 10
R31
2.2 k
C41
0.047
C42
2.2
R32 10 k
R29 1 k
PSTB
UNLK
PCK PDATA
R5
C26
0.001 R18
33 k
C36 10 P
C37 12 P
R26 330
C38
0.001 R16
RV-152
R17 333
C266
0.001
R27
1.5 k
C35 18 P
X2 CR-659
SQL
DET
DET
CP1
R11 100 k
C18 0.01
Q2 2SC2714 Y
8765432
1
9101112131415
16
IC1 TA31136FN
C21
0.01
C22 10
C23
0.22
C24
0.001
R15 470
C25
0.001 C27 220 P
C28 220 P
R20 330 k
C29
0.001
R21 390
C30
0.1
C31
0.1
1 2
345
R22 1.5 k
C32
0.001
C19
0.22
R13 470
C275
0.001
R19 820
R5
5V
X1 CDBCA450CX24
R5 10 k
Q1 3SK272
C3
0.022
C6 68 P
L1
0.82 H
L2 56 nH
C9 10 P
L3 82 nH
C10 15 P
C11
0.001
R8
2.2 k
1stLO
C12
0.01
FI1 FL-310
FI2 FL-310
C16
0.022
C14 6 P
C17
0.001
C7
0.001
C4
0.001 R9
1.5 k
R7
3.3 k
R3 10 k
C224 5 P
C225 12 P
C223 12 P
C254
0.001
R188 100
L27
4.7 H
R10
1.5 k
L25 82 nH
C221 12 P
C222 33 P
L24 82 nH
C215 12 P
C214 5 P
C212 470 P
R157 47
R163 1 k
C256
0.001
C249
0.001
R191 10 k
C220 2 P
D20 MA77
D21 MA728
L21 82 nH
C253
0.01
R190 10 k
L22 82 nH
C216 33 P
R187 1 k
C218 1 P
C217 15 P
C213 47 P
C210 5 P
C209 12 P
L20 82 nH
C208 33 P
C207 12 P
C203 12 P
C202 33 P
C198 36 P
C199 47 P
C200 5 P
C201 12 P
L16 82 nH
D19 MA77
C206 2 P
C251
0.001
L17 82 nH
C204 1 P
R185 10 k
L19 82 nH
C211 47 P
L15 LA-243
C197 27 P
D15 XB15A308
BPFV
1
2
J1
CHASSIS unit
L11 LW-25
C105 27 P
D10 XB15A308
C106
0.001
L13 LA-243
L14 LA-253
C107 15 P
C108 5 P
C109 24 P
C111 4 P
W1
C80 47
C81
0.001
C82
0.001
C83 1000
123
4
IC3 SC-1302
Q12
2SB1143 S
R65 47 k
C84 1
C85 470 P
C86
0.001
C87
0.01
C89
0.01
C91 22 P
C92
0.001
C98
0.001
R75 68
R76 470
R77 68
C102 36 P
R78
2.2 k C103
0.001
D8 HSM88ASR
L12 LA-243
R79
2.2 k
C104
0.001
D9 HSM88ASR
C99
0.001
C101
0.001
C100 470 P
Q17 2SD1664 Q
C88 22 P
T5
HV
HVS
R56
4.7 k
Q10 2SC3775 3
R58 100
C73
0.001
R60 1 k
D7
1SS355
R61 100
C75
0.001
R62 1 k
L10 82 nH
R63 33
R64 33
C78 22 P
C77
0.001
L29 47 nH
C268 18 P
C71
0.001
R57
4.7 k
L9 82nH
R59 10
C72
0.001 C74
18 P
C79 18 P
L30 47 nH
L31 47 nH
C270 39 P
C271 18 P
C76
0.5 P
L6
0.1 H
R49 470
C61 470 P
L7
0.1 H
Q8 2SC4215 0
C63 22 P
R51 100
C64 470 P
C65
0.001
L8
0.1 H
C66 12 P
Q9 2SC4215 0
C67 18 P
D5 MA77
C70 10 P
R50 68 k
R52 27 k
D6 MA77
C62 5 P
C68
0.01
R54
2.2 k
R192 100
C267 18 P
R53 1 k
1 2 3 4 5 6
MP1
W6
T5
HV
HVS
5V
T5
HVS HV
VCO5
5V
D1 MA77
C48
0.001
R40 1.8 k
D2 MA77
C49 470 P
C50
0.1
C51
0.001
L4
2.7 H
C52 47 P
C53 39 P
L5 80 nH
D3 HVU350
D4 HVU350
R42
8.2 k
C56
0.001
R43
8.2 k
R44 100
R45 390
C57 470 P
Q5 2SC4226
R46 180
Q6 2SC4226 R25
C58 470 P
C59 470 P
Q7 2SC4215 0
R48 68 k
R47 680
C54
1.5 P
C55
1.5 P
C60
0.5 P
Q3 2SC4116 BL
C44
0.001
R34 1 k
R36 100
R37 33 k
R38 100 k
R39 22 k
R41 560
R33 1 k
C43 10
R35 47 k
C257
0.01
C272 10
C45
0.01
C46 470 P
Q14 DTA144EU
R67
2.2 k
R68 10 k
R70 10 k
3
4
5
1
2
Q15 FMW1
R71 RV-143
Q16 DTC144EU
C93
0.001
R74 100 k
C94
0.01
C95 22 P
R104 18 k
C143
0.1
R160 10 k
R161 10 k
C47
0.1
C190
0.001
C189
0.001
DET
5V
DET
5V
C142
0.01
R107 47 k
R108 470 k
1 2
LOCK
3
GND
4
Q
5
Q
6
DATA7FSK
8
NC
9
REF
10
LOOP
11
R
12
CAP
13
CAP
14
IC6 NJM2211M
C147
0.1
C148 10
C149
0.033
C145
0.01
Q28 2SC4116 BL
R162 10 k
R110 39 k
R111 15 k
R112
2.2 k
R103 47
C245 0.1
C152
0.01
R109 100 k
C146
0.22
C150
0.0022
C151
0.1
R105 10 k
C144
0.0068
C230
0.022
C229
0.0022
R159 1 k
CP3
R106 33 k
C231
0.0068
V+ IN
I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE
7
I/O
8
O/I
9
O/I
10
I/O
11
CONT.D
12
CONT.A
13
VDD
14
IC5 BU4066BCFV
R93 1M
R94 1M
R95 1M
C137
0.1
R96
2.7 k
Q21 2SC4116 BL
R98 470 k
C138
0.022
C139
0.022
C141 10
R102 1 k
R101 15 k
5V VOL1
VBIAS
I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE7I/O
8
O/I
9
O/I
10
I/O
11
CONT.D
12
CONT.A
13
VDD
14
IC4 BU4066BCFV
R89 1M
R90 1M
C133
0.001
Q20
2SK1069 4
C136
2.2
R91 1M
C134
0.1
R66 33 k
C90
0.01
R69 220
C130
2.2
R85 1M
R86 1M
R87 100 k
C131
0.1
Q19 DTA144EU
R88 100 k
D12 1SS355
C132
0.01
SAFO
R92 1 k
C135
0.01
R168 100 k
R169 100 k
R170 100 k
R99 150 k
R100 15 k
C140
0.1
R97 390
R166 100 k
R167 100 k
SMIC
MMIC
VBIAS
TMUTE
HI/LO
TXDET
5V VOL1
SMIC
MMIC
VBIAS 5V VOL1
R73
6.8 k
R82
2.7 k
C128 0.1
C129
2.2
VCC AF/MIC
C96
0.01
C97 22 P
R81 10 k
1 2 3 4
5
6
J2
From/to EXT SP/MIC
MICG PTTC
C112
0.001 C113 47 P
C114
0.01
PTT
R84
8.2 k
R83
1.2 k
Q18 DTA144EU
PTTC
MIC
PTTC
VOL15VVBIAS
VCC
to EXT SP
From DC POWER
HV
GND
SP+
SP
D11 DSA3A1
C115
0.001
C116 47 P
C118 470 P
SP—
SP+
VBIAS
5V
PTT
MIC
C155
0.01
C156 10
INCOM
R113 100 k
R126 100 k
R122 18 k
R183 100 k
5V VBIAS
AF5
5V VBIAS AF5
R141
8.2 k
C168
0.001
C169
0.1
C170 10
R142
6.8 k
R143
6.8 k
R140 10
5V
C273
0.1
14
13 12
IC7D NJM2902M
C165
0.0047
DSENC
7
6 5
IC7B NJM2902M
8
9 10
IC7C NJM2902M
HV HVS T5 R5 5V
HV HVS T5 R5 5V
HV HVS VOL2
1
2
11
3
4
IC7A NJM2902M
3
1 2
4
5
R198 100 k
SQLV HV
GND
PTT MIC
GND
GND 5V
VOL2
SP+
MICG
R80 100
C120 47 P
C121
0.001
C277
0.001
PTT
SQLV
From smart mic (HM-129)
1 2 3 4
6
J4
1 2 3 4 5 6 7 8
9
10
J5
VOL1 HVS
C122
0.001
C123 47 P
C124 47 P
C125
0.001
R186 1 k
SP—
HV GND
OI
G
Q11 2SC3268
Q4 DTC144EU
Q27 2SC4226 R25
W1
VR-B BOARD
VR-A BOARD
R1 100 k
SQLV
HV GND VOL2 VOL1 HVS
GND 5V
R1 100 k
1 2 3
1 2 3 4 5
GND
HV GND
VOL1
SQLV 5V
VOL2 HVS
1 2 3 4 5 6 7 8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
J6
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
HVS HVS
BPLVL
BEEPM
BPLVL
BEEPM
SP
SP
SP+
SP+
SP
SP+
PCK
5VR5HVSHVT5
5VR5HVSHVT5
5V
DETR5HVSHVT5
PSTB
PDATA
UNLK
SQL
MMUTE
SMUTE
RMUTM
RMUTS
PTTM
BPFV
PTTS
PTT
WXDEC
SQLV
DSDEC
HI/LO
DSENC
TXDET
SQL
MMUTE
SMUTE
RMUTM
RMUTS
PTTM
BPFV
PTTS
PTT
WXDEC
SQLV
DSDEC
HI/LO
DSENC
TXDET
TMUT
SEND
RCV
TMUT
SEND
RCV
5V
5V
C192 22 P
C191 22 P
C193
0.01
C255
0.001
C261
0.001
C265 47 P
C264 47 P
C262 47 P
C194
0.01
C195
0.001
C196
0.01
R193 1 k
R195 1 k
R194 1 k
R196 1 k
WXDEC
DSDEC
RMUTS
SMUTE
MMUTE
RMUTM
MICAF
PTTS
PTTM
D14 DA204U
R149 15 k
R151 22 k
R152 1M
IC9 LA4425A
C181 2.2
C182
0.01
C183
0.1
C185 470
C186 470
R154
4.7
C126
0.01
C187
0.1
C127 47 P
R150
1.2 k
Q26 DTC144EU
C184
0.001
C188 47 P
BPLVL
BEEPM
Q22 2SA1588 GR
Q24 2SA1588 GR
R145 10 k
R146
2.2 k
Q23 DTC144EU
R147 10 k
R148
2.2 k
Q25 DTC144EU
C177
0.1
C178
0.01
C179
0.1
C180
0.01
SEND
RCV
R144 33
C172
0.01
C173
0.1
IC8 TA7805
C174
0.1
C175
0.01
C171 100
C176 10
DSENC
DSENC
R129 27 k
R128
4.7 k
R130 18 k
C162
0.1
R121
2.2 k
R123 56 k
R124 1 k
R125
6.8 k
R127 560 k
C159
0.01
C160 270 P
C161 12 P
R201 10 k
C276
0.1
R199 68 k
R132 82 k
R133 82 k
C164 820 P
C166 56 P
R131 82 k
R134 33 k
R135 103
R136 18 k
R137
15 k R138 RV-110
R139
8.2 k
C246
0.0022
C274
0.018
AFOUT
QUAD
IFOUT
RSSI
N-DET
N-REC
GND
MIXIN
FILIN
FILOUT
DEC
IFIN
VCC
MIXOUT
OSCOUT
OSCIN
DET
5V
R5R52ndLO
2ndLO
5
MIC
from/to LOGIC BOARD J4
2.45V
3.28V 3.97V
0.89V
2.35V
4.72V
4.28V
3.7V
13.81V
13.83V
RX: 4.94 V TX: 0.00 V
TX: 4.94 V
RX: 0.00 V
4.98V
4.95V
1.79V
1.00V at
3.55V
0.5Vp-p at 1kHz 3kHz DEV
CH16_RX 4.72V WX10_RX 0.0V
TX_H 3.02V TX_L 3.26V
TX_H 9.87V TX_L 5.12V
3dB RX
11-3 HM-127 (OPTIONAL UNIT)
11 - 3
J2
6
5
4
3
2
1
GND
RXD
TXD
RESET
VPP 5V
STXD
SRXD
RESET
VPP 5V 5V
SRXD STXD
47k
R55
1k
R54
TC7W14FU
IC8
8 7 6 5 4
3
2
1
2SA1576
Q11
47
R58
4.7k
R57
RRXDA
PTT
0.1
C46
2SC4081
Q10
RTXDA
27k
R51
1k
R56
5V
0.01
C45
0.027
C42
2SK1069
Q9
S-80928ANMP
IC7
5
CD
4
NC
3
VSS
2
VDD
1
OUT
100k
R50
PTT
VCC
AF/MIC
AF5V
from/to MAIN unit J2 or LOGIC board J1
RMUTE BEEP
RESET
VCCSW
0.1
C44
100k
R53
PTT
PWR
100k
R18
DOWN
UP
CONT3
CONT2
100k
R15
100k
R14
100k
R17
100k
R16
RMUTE BEEP
100k
R10
5V 5V
5V
5V
100k
R13
100k
R12
100k
R11
0.01
C4
22
C3
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
CONT1
RESET
VPP
CONT1
CONT2
CONT3
DIM1
DIM2
VCCSW
DIM3
DIM4
1M
R19
SQL
IC
VOL
HL
39k
R61
10k
R60
10k
R29
10k
R31
10k
R33
20k
R32
18k
R30
20k
R28
15k
R59
2SC4116
Q3
PWR
2SC4116
Q12
3.9k
R64
10k
R63
47k
R62
0.1
C38
1k
R34
100
C39
330
C41
39k
R52
DAN202U
D2
0.1
C40
8V
CP18
CP16
CP14
100
R69
47p
C52
47p
C51
CP17
PWRC
RRXDA
RTXDA
MICG
AF/MIC
J1
PTTC
GND
VCC
100
R68
CP12
CP15
1
C54
1SS355
D3
TC4W53FU
IC9
8 7 6 5 4
3
2
1
1M
R67
0.001
C50
470P
C47
22
R77
22
R76
22
R75
CP11
VCC
0.1
C36
0.1
C34
TA78L05F
IC5
TA7808F
IC6
VCC5V
0.01
C9
2SB1132
Q2
10k
R27
NTCCM16084BH
R26
10k
R23
20k
R22
39k
R21
2SK1069
Q1
0.1
C7
1.2k
R24
PTT VRDAT VRCK
5V
8V
BEEP
RMUTE5VPTT
PWRSW
10k
R25
VCCSW
VRDAT VRCK
0.01
C5
CSTCC4.91MG
X1
0.01
C6
DIM3
DIM2
DIM1
µPD789405AGK-A30-9EU
IC1
79
P41/KR1
78
P42/KR2
77
P43/KR3
76
P44/KR4
75
P45/KR5
74
IC
73
XT1
72
XT2
71
VDD0
70
VSS0
69
X1
68
X2
67
RESET
66
P46
65
P47
64
P00
63
P01
62
P02
39
AVDD
38
P80/S27
37
P81/S26
36
P82/S25
35
P83/S24
34
P84/S23
33
P85/S22
32
P86/S21
31
P87/S20
30
P90/S19
29
P91/S18
28
P92/S17
27
P93/S16
26
S15
25
S14
24
S13
23
S12
22
S11
61
P03
P66/ANI6
P65/ANI5
P64/ANI4
P63/ANI3
P62/ANI2
P61/ANI1/CMPREF
P60/ANI0/CMPIN0
AVSS
WDSW
SCAN
CHWX
CH16
PWR
PTT
MODE
DOWNUPBEEP
STXD
SRXD
BPLVL
P27/INTP3/CPT5
P26/INTP2/TO5
P25/INTP1/TI1
P24/INTP0/TI0
P23/CMPTOUT0/TO
P22/SI/RXD
P21/SO/TXD
P20/SCK/ASCK
P53
P52
P51
P50
40
AVREF
21
S10
80
P40/KR0
SEG10
SEG19
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
10k
R7
10k
R6
10
C1
SKQLLC
S4
CP7
10k
R8
PTT
10k
R9
CH16
6.8k
R20
10KEY
S7
PTT
22
C37
0.1
C28
10
C30
AF5V
22
C35
5V
0.001
C29
DTC144EU
Q5
DTB123EK
Q6
100k
R45
0.01
C53
1M
R65
1M
R66
47p
C32
100k
R44
NJM2125F
IC4
5
4
2
1
3
MIC
CP6
MICG
SKB-2746 LPC
MC1
CP5
CP4
470k
R47
1
C33
1
C26
470p
C27
12k
R42
33k
R46
100k
R41
33
R70
22
C23
1
C24
2SJ144
Q4
0.01
C25
0.22
C31
0.01
C22
470k
R40
100k
R39
2.7K ERJ3GE
R43
M62429FP
IC3
8
VIN2
7
VOUT2
6
VCC
5
CLK
4
DATA
3
GND
2
VOUT1
1
VIN1
VOL
VRCK
PWRSW
VRDAT
15k
R38
DA204U
D1
DOWN
CHWX
IC
150
R3
SML-311YT
DS10
SML-311YT
DS9
10KEY
S11
10KEY
S8
10KEY
S9
10KEY
S6
SKQLLC
S3
SKQLLC
S2
120
R2
SKQLLC
S1
SEG21
SEG17
SEG13
COM3
COM2
COM1
COM0
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG15
SEG19
MAIN UNIT
120
R1
FY1101F-TR
DS6
FY1101F-TR
DS5
A0119
DS1
SEG25
SEG23
SEG24
SEG20
SEG16
SEG12
SEG13
SEG14
SEG15
SEG17
SEG18
SEG19
SEG21
SEG22
SEG23
SEG25
SEG26
SEG27
SEG24
SEG20
SEG16
SEG12
SEG13
SEG14
SEG15
SEG17
SEG18
SEG19
SEG21
SEG22
SEG23
SEG25
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM3
COM2
COM1
COM0
S9S8S7S6S5S4S3S2S1
S0
COM3
COM2
COM1
COM0
VSS1
VLC2
VLC1
VLC0
BIAS
VDD1
SEG26
SEG27
SEG21
SEG17
SEG13
COM3
COM2
COM1
COM0
SEG0
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG15
SEG19
4567891011121314151617181920
3938373635343332313029282726252423
22
201918171615141312111098765432
1
41424344454647484950515253545556575859
60
21
321
FY1101F-TR
DS3
FY1101F-TR
DS2
SML-311YT
DS4
PWRSW
SCAN
HL
SML-311YT
DS7
SML-311YT
DS8
10KEY
S10
10KEY
S5
0.1
C11
1
C12
SQL
0.1
C10
10k
R36
22k
R37
1k
R35
UP
100
C16
TA7368F
IC2
10
POUT
9
PWGND
8
PREGND
7
PHASE
6
NF
5
RIPPLE
4
VIN
3
NC
2
VCC
1
NC
100
C15
0.1
C14
0.047
C13
100
C17
SP
-
SP+
+
-
SP1 036D0801
CHASSIS
CP2
CP3
330
C18
8
7
6
5
4
3
2
1
11 - 4
11-4 HM-129
CHASSIS UNIT W1
to MAIN unit J4
to LOGIC board J3
PTT
MIC
UP
DN
16/9
MC1
C1 470 PR112 k
W2
W1
S1
S2 R2
6.8 k
S3 R3
15 k
R4 33 k
S4
PTT MICG MIC GND
1 2 3 4
PTT MICG MIC PTTG
KEYM GND
1 2
UP_ON 2.0V DN_ON 3.0V 16/9_ON 3.8V
SERVICE MANUAL
1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003, Japan
S-13716IZ-CD
© 2001 Icom Inc.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
