i7610
Technical Report
Volume 1
~ Prole ~
Outstanding HF Experience Right Here…
Icom’s mid class HF transceivers evolved especially with the IC-756, IC756PRO and IC-7600, and were technology leaders in amateur radio. Even
the IC-7610 inherits the genealogy of Icom’s mid class transceivers, but
its development concept, circuitry, adopted devices, and performance are
innovative. The IC-7610 has superior performance and features far beyond
the perception of current mid class HF transceivers. The performance and
features are realized by fusing the proficient digital and analog technologies
of the successive flag ship transceivers, and refined RF direct sampling
technologies developed in the IC-7300.
The Reciprocal Mixing Dynamic Range (RMDR) characteristics show nearby
signal rejection receiver performance, and the IC-7610’s RMDR is 110 dB at 2
kHz separation (Receive frequency: 14.2 MHz, Mode: CW, BW: 500 Hz). This
is an incredible performance for a mid-class transceiver, and it is close to that
of our flagship IC-7851. The IC-7610 also has several flagship grade features,
such as dual, identical, independent receivers and dual independent DIGI-SEL
units for the Main and Sub bands. In addition, dual high-resolution and high
sweep speed real-time spectrum scopes are built in.
The IC-7610 has a high resolution 7-inch wide (diagonal) touch screen LCD,
and a server PC function for remote shack operation. In addition, a variety of
external connectors, such as an external display connector, LAN port, USB
ports for remote operation, are built into the IC-7610. Totally, the IC-7610
gives you not only flagship grade performance and features, but also flagship
grade operability and scalability.
You can feel the flagship grade performance visually, audibly, and tactically.
And you will have an advantage in contests and DX hunting.
Table of contents
Section 01 Panel Description ………………………………………………………01~02
Section 02 Major Features ……………………………………………………… 03~07
Designs and technologies inherited from the IC-7851 ……………………… 03
Two completely independent receivers with identical performance ……………………………… 03
DUALWATCH operation on different bands and in different modes …………………………… 03
Independent DIGI-SEL (Preselector) circuits for the Main and Sub bands …………………… 03
Benefits of the latest digital technologies ……………………………………… 04
RF direct sampling system …………………………………………………………………………… 04
Top class RMDR 110 dB ……………………………………………………………………………… 04
Excellent transmit phase noise characteristics …………………………………………………… 04
Further evolution of the spectrum scope ……………………………………… 05
Dual spectrum scopes with amazing dynamic range ……………………………………………… 05
High resolution waterfall ……………………………………………………………………………… 05
Audio scope for flexible utilization …………………………………………………………………… 05
Various functions and connectors built in ……………………………………… 06
Large 7-inch touch panel LCD ……………………………………………………………………… 06
Easy operation with the Multi-dial …………………………………………………………………… 06
Two USB connectors on the front panel …………………………………………………………… 06
Built-in SD card slot …………………………………………………………………………………… 06
TX voice digital voice memory ……………………………………………………………………… 06
Simple remote operation with the server PC function and LAN port …………………………… 07
Two USB ports for external control ………………………………………………………………… 07
Advanced operations are possible with a variety of I/O terminals ………… 07
External display terminal built in ……………………………………………………………………… 07
BNC connectors for the RX antenna lines ………………………………………………………… 07
Reference signal input terminal built in ……………………………………………………………… 07
Two independent external speaker jacks …………………………………………………………… 07
Section 03 Inside Views ………………………………………………………… 08~09
Section 04 Upgrade Options ………………………………………………………10 ~13
Section 05 Specifications …………………………………………………………14~15
TRADEMARKS
● Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries.
● Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
● All other products or brands are registered trademarks or trademarks of their respective holders.
©2017 Icom Inc.
Section 01
High resolution 7-inch (800×480) wide-type touch screen LCD panel Multi-dial for simple operation
Enhanced voice recorder function.
SD card slot
Two USB ports for simultaneous connection of a PC keyboard and a mouse.
The optional RC-28 can also be connected here and used as a Sub band dial.
Front panel ●
Panel Description
01
Section 01
[RX-ANT IN/OUT] BNC connectors for simple external preamplifier or filter connection.
External reference signal input BNC connector.
LAN port for remote peration.
*RS-BA1's server PC function is included.
Two USB ports for remote control through a PC.
DVI-D external display connector.
IndependentexternalspeakerjacksfortheMainandSubbands.
Rear panel ●
Panel Description
02
Section 02
ANT1
A
NT2
SPLITTER
DIGISEL
MAIN
DIGISEL
SUB
1.8MHz
INT
SP
BPF
BPF
BPF
3.5MHz
50MHz
A/D
AMP
D/A
AF
AMP
D/A
AF
AMP
1.8MHz
BPF
BPF
BPF
3.5MHz
50MHz
A/D
AMP
FPGA
Main band
Sub band
Major Features
Designs and technologies inherited from the IC-7851
Two completely independent receivers
with identical performance
The IC-7610 has dual, completely independent, equally
high performance receiver circuits for the Main and Sub
bands. The circuits are in the stages from the antenna
through the Field Programmable Gate Array, (FPGA), as
illustrated in Figure 02-01 below.
The concept of the IC-7610 is the same as our flagship
model IC-7851, even though there is a difference in the RF
direct sampling system and the double superheterodyne
system. Of course the receiver circuits are designed with
enough isolation to not have any effect on each other.
The received signal is demodulated in the FPGA.
However, the demodulation is done in independent
demodulators inside the FPGA. The AF amplifier stages
are also independent for the Main and Sub bands.
The IC-7610 has two antenna connectors. The
DUALWATCH operation is possible by selecting different
frequency coverage antennas to receive signals, receiving a
signal with the diversity method, and connecting horizontal
and vertical antennas.
This high performance flagship grade DUALWATCH
function enables searching for a signal on the Sub band,
while communicating on the Main band.
Independent DIGI-SEL (Preselector)
circuits for the Main and Sub bands
The IC-7610 is the first in the mid class HF amateur
radio market to employ automatic preselector circuits as
standard.
A preselector is a type of RF filter with sharp skirt
characteristics. Icom decided that the preselector is a
necessary and useful tool in a mid class transceiver,
even though up until now, the preselector had only been
incorporated into our flagship grade transceivers.
The IC-7610’s independent preselector circuits are built
into both the Main and Sub bands.
DUALWATCH operation on different
bands and in different modes
In the IC-7600, the same receiver circuits are used in
both the Main and Sub bands, except the mixer circuit.
Therefore, DUALWATCH operation has some limitations
in the same band and mode. However, the IC-7610 enables
DUALWATCH operation in different bands and modes,
because completely independent and identical performance
receiver circuits are employed.
Figure 02-02 Automatic Preselector
Figure 02-01 Receiver Overview
03
Section 02
70
80
90
100
110
120
130
30101
RMDR (dB)
Frequency offset (kHz)
IC-7610
IC-7300
IC-7600
100 Hz
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
1 kHz1 MHz10 kHz
Frequency Offset
Phase noise characteristics (dBc/Hz)
100 kHz
IC-7600
IC-7300
IC-7610
Major Features
Benefits of the latest digital technologies
RF direct sampling system
The RF direct sampling system is employed in the IC-7300,
ahead of its competitors. The RF direct sampling system
has been improved and is used in the IC-7610.
The RF direct sampling system directly converts the
received RF signals into digital signals, and batch complex
signal processing is done in the Field Programmable Gate
Array (FPGA). There is no nonlinear distortion, which
occurs in a mixer circuit of the superheterodyne system
receiver, because there is no analog mixer.
In the RF direct sampling system, received signal
detection and demodulation, and transmit signals are
directly generated in the FPGA. So the purity of the signal
is very high, and it’s a large contributor to the excellent
characteristics in transmit and receive.
Top class RMDR 110 dB*
The Reciprocal Mixing Dynamic Range (RMDR) is used
as one of the standards representing receiver performance.
The RMDR of the IC-7610 is 110 dB*, approaching the 116
dB* of our IC-7851 flagship model.
The RMDR is a standard that shows how much the
receive sensitivity deteriorates due to blocking from strong
adjacent signals. A larger RMDR value means that the
blocking effect is less. In general, a lower LO phase noise
provides better RMDR characteristics.
It is an outstanding improvement of approximately 30
dB in the IC-7610, as the IC-7600 RMDR is approximately
80 dB. You can clearly see this difference, not only in a
contest, but also in any operating situation.
*Sample configuration ( 2 kHz offset, Rx frequency: 14.200 MHz, Mode:
CW, BW: 500 Hz)
Excellent transmit phase noise characteristics
A transmit signal is directly generated by the FPGA,
as previously described. So, a signal is not generated by
mixing several LO signals, like in the superheterodyne
system.
The purity of a transmit signal, that is generated at the
Digital Analog Converter (DAC) using the Digital Up
Conversion (DUC) method is extremely high, and this
provides improved transmit phase noise characteristics.
Figure 02-04 TX phase noise characteristics comparison
(TX Freq.: 14.200 MHz)
Figure 02-03 RMDR characteristics comparison
04
Section 02
Major Features
Further evolution of the spectrum scope
Dual spectrum scopes with amazing
dynamic range
The high-spec spectrum scope that is in our flagship IC7851, and its know-how, are also built into the IC-7300.
The spectrum scope is further improved and incorporated
in the IC-7610.
The excellent 100 dB dynamic range of the scope display
is achieved by cooperative processing with the FPGA and
CPU software. Off course, the sweep speed and resolution
are also improved to the level of our flagship model. This
spectrum scope can also be used during DUALWATCH
operation to show both Main and Sub bands conditions,
and its performance is the same in single band operation.
IC-7610 IC-7600
Span 5 kHz~1000 kHz 5 kHz~500 kHz
Resolution*
Sweep speed 29.3 sweep/sec.*
Dynamic range 100 dB 70 dB
Noise floor –30 dBμ –19 dBμ
*1Number of dots when receiving a single carrier with 60 dB bandwidth
*2Approximately: SPAN=20 kHz, SPEED=SLOW, RBW=MID
*3Approximately: SPAN=500 kHz, SPEED=SLOW
*4Approximately: SPAN=20 kHz, SPEED=FAST
1
Table 02-01 Spectrum scope comparison
Minimum 1 dot*2Minimum 20 dot*
4
4 sweep/sec*
3
4
High resolution waterfall
The waterfall can display received signal history in
moving time, and shows weak signals that are difficult to
discriminate with only the spectrum scope. The waterfall
is simultaneously displayed with the spectrum scope, so
you can easily see the details of the band condition and
clear frequencies. When you select the expanded screen, a
longer history can be displayed on the waterfall.
The waterfall is one of the features that increases the
possibility to communicate using the optimized IC-7610
receiver performance, without missing weak signals from
DX stations.
Audio scope for flexible utilization
The audio scope displays an FFT scope and an oscilloscope,
for both transmit and receive audio. The received signal’s
modulation characteristics, filter width and notch
characteristics, and the microphone compression effect of
your transmit audio can be displayed.
While receiving, audio of either the Main or Sub band can
be displayed.
05
Section 02
IC-7600
400×240 pixels
5.8 inch
IC-7610
800×480 pixels
7 inch
Major Features
Various functions and connectors built in
Large 7-inch touch panel LCD
The IC-7610 has a large and wide 7-inch LCD. It is 120%
larger compared with the one for the previous model, the IC-
7600. The display resolution also is much better, increased
from 400 × 240 pixels to 800 × 480 pixels.
With the tremendous increase in display size and
resolution, the LCD can display a variety of information
on the transceiver's condition. The spectrum scope on the
real time display gives you a higher accuracy of the band
conditions. To get an idea of the spectrum scope quality,
for example, when you look at a signal spectrum on the
previous LCD, you may see it like an unfocused mountain.
However, when you look at it, you can clearly find that it is
a large number of signals of stations calling in a pile up.
Fig 02-05 Comparison of LCDs
The LCD built into the IC-7610 is also a touch screen.
This gives you intuitively action under various operations
so that it makes settings easier.
Two USB connectors on the front panel
Two USB connectors are basically to connect
a keyboard for PSK or RTTY operation.
In addition, the connectors on the IC-7610
can be used for mouse operations on the
spectrum scope. The mouse operation enables
you to quickly select a signal on the spectrum scope.
For this reason, two USB connectors enable you to use
to simultaneously use a keyboard and a mouse. You can
also connect an optional RC-28 Remote encoder to this
connector and use it as your sub-dial. When you insert a
USB memory stick to a connector, you can save the memory
contents, various transceiver settings, or screen capture
data of the IC-7610.
Built-in SD card slot
You can save not only memory
channel contents and a wide
variety of transceiver settings, but
also a QSO log for RTTY or PSK
operations, and screen capture data, on the SD card memory.
For example, when your group participates to a contest as
a multi-operator class, an individual operator can quickly
start QSOing with their favorite transceiver settings
saved on the SD card memory, if each operator saves their
favorite transceiver settings in advance. You do not have to
waste time manually resetting the transceiver each time
the operator changes.
It is convenient to reuse the QSO record data, QSO log, or
the screen capture, if you store the data on your PC.
Easy operation with the Multi-dial
The IC-7610 has the unique Multi-dial, the
same as the one on the popular IC-7300. This
dial makes not only a simple panel layout,
without installing individual function knobs,
but also makes the operation easier with the
addition of the touch operation.
● TX output power ● Microphone gain
● Monitor gain ● DIGI-SEL ● NOTCH
● NOTCH width ● NB level ● NB depth
● NB width ● NR level ● APF frequency
● APF width ● APF AF level ● DRIVE gain
You can also change the settings of the following functions
assigned to the multi-function keys with the Multi-dial.
● VOX gain ● ANTI VOX gain ● VOX delay time
● VOX voice delay time ● COMP level
● TX bandwidth ● Attenuation level
● Break-in delay time
TX voice digital voice memory
The recording time limited to a maximum 30 seconds
for only the receive signal has been improved to record
unlimited transmit voice as well as receive voice*.
In addition, the number of voice memory channel is increased
from 4 channels to 8 channels. Recording time is also increased
from 99 seconds to 200 seconds in total for the 8 channels.
* If the voice data file reaches 2 GB, the transceiver automatically makes
a new file on the SD card to continue recording.
06
Section 02
Transceiver Server PC Remote
Router
USB cable
Router
Remote
Transceiver with the server PC function
Contacted to
the [LAN] port
InternetInternet
InternetInternet
Major Features
Simple remote operation with the server
PC function and LAN port

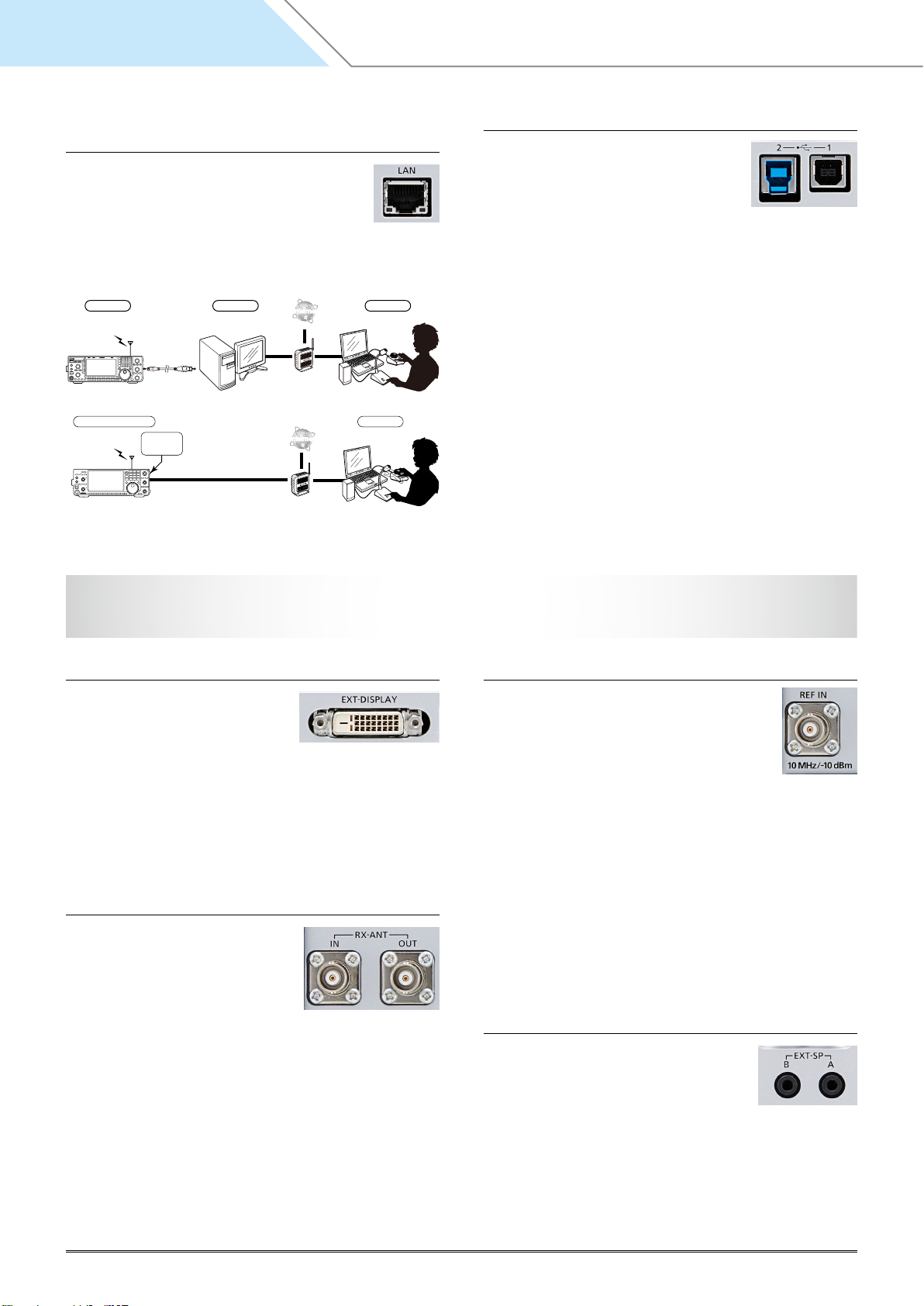

The IC-7610 has a server PC function and a
LAN port built in. The server PC function is
convenient for building your remote control
operation through a network using the RS-BA1
optional remote software. You do not need to connect a server
PC to the base station. This function and the LAN port make
it easier to set up the connections and networking.
Fig. 02-06 Connection through a LAN
Two USB ports for external control
The IC-7610 has two USB ports (USB-B
type) to control the transceiver from
external devices. One is used to control
the transceiver with a PC through a CI-V
(Communication Interface-V) commands and application
software, such as RTTY/PSK/JT-65 software. QSO logging
software installed on your PC can also be used through
the port.
The other one is for a wideband digital IQ signal output,
and connects to your PC.
* The IQ signal output will be supported by a future firmware update. (as
of September 2017)
Advanced operations are possible with a variety of I/O terminals
External display terminal built in
An external display terminal is
built in. The terminal uses the
DVI-D (Digital Visual Interface)
format, and you do not need
settings for the resolution or synchronized frequency on the
transceiver. You can monitor the transceiver condition and
the receiver condition changes moment to moment with a
large external display, the same as the displayed on the
front panel display.
BNC connectors for the RX antenna lines
We listened to the voices of
contesters, too. We know that their
operating environment in a contest
is always severe and abnormal
because of heavy QRM among high
power stations that participate the contest. You can install
a filter between the RX-ANT connectors to meet your
operating needs. This is very useful when using a filter to
eliminate unwanted signals. You do not need to be concerned
with RF loss on the transmission line by installing the filter
on the reception line. As the connectors are installed on the
receive line, you can use them for other purposes.
The connectors are reliable BNC type and have better
electrical specifications than previously used RCA jacks.
Reference signal input terminal built in
The IC-7610 has a 10 MHz reference signal
input terminal installed on the rear panel.
The terminal is reliable 50 Ω BNC connector,
and is used to process internal signals on the
circuits. You can switch a reference signal
between the internal and the external signals.
The reference signal is one of the important signals to generate
transmit and receive signals. It is not actually necessary to
apply the reference signal to the terminal externally. However,
you can have a more precise frequency if you apply the accurate
reference signals externally from a device that has a more
accurate signal. If you have several Icom transceivers that have
a reference signal input terminal, and if you apply the reference
signal from one source signal generator, all your transceivers
will have the same frequency accuracy.
Two independent external speaker jacks
The IC-7610 has the DUALWATCH
function that was introduced in only
the top class transceivers up until now.
You can receive two independent signals
simultaneously, in different modes as well as on different bands
with the DUALWATCH function. Those two different signals
are independently output from the external speaker jacks.
When you place two external speakers on the right and
left sides of the transceiver, you can listen to only the Main
or the Sub band audio through the jacks.
07
Section 03
Tuner unit
PA unitSpeaker housing
Top view
Inside Views
08
Section 03
DIGISEL-A unit
(for the Main band)
DIGISEL-B unit
(for the Sub band)
Main unitRF unit
(Under the shield plate)
Bottom view
Inside Views
*The above picture was taken without the case of the DIGISEL-A and DIGISEL-B units.
09
Section 04
Upgrade Options
Some options may not be available in some countries. Ask your dealer for details.
IC-PW1/IC-PW1EURO
HF+50MHz 1 kW LINEAR AMPLIFIER
General specifications
Frequency coverage Amateur radio bands*
Power supply
requirement
Grounding system Negative ground
Input power 100 W (maximum)
Output power 1 kW (200 V AC)
Dimensions*
2
Linear amplifier
Remote controller
Weight*
3
90~132 V AC, 180~264 V AC
(Single-phase 50/60 Hz)
500 W (100 V AC)
350(W)×265(H)×375(D) mm
13.8(W)×10.4(H)×14.8(D) inches
205(W)×71(H)×68.3(D) mm
8.1(W)×2.8(H)×2.7(D) inches
28 kg (62 lbs)
(including remote controller)
SM-50
DESKTOP DYNAMIC MICROPHONE
(With UP/DOWN switches)
Specifications
1
Microphone type
Cable length*
Weight*
3
3
Unidirectional dynamic microphone
(preamp built in)
1 m (3 ft)
730 g (1.6 lbs)
HM-219
HAND MICROPHONE
(With UP/DOWN switches)
Antenna tuner specifications
Impedance
matching
range
HF bands
50 MHz
band
16.7~150 Ω unbalanced (VSWR
less than 3:1 when first tuned)
20~125 Ω unbalanced (VSWR
less than 2.5:1 when first tuned )
Tuning time Within 3 seconds
Tuning accuracy VSWR 1.5:1 or less
Insertion loss Less than 1 dB (after tuning)
SM-30
DESKTOP MICROPHONE
Specifications
Microphone type
Cable length*
Weight*
3
3
Unidirectional electret condenser
microphone (preamp built in)
1 m (3 ft)
350 g (12.3 oz)
Specifications
Dimensions
(except curl cord)
Curl cord length*
Weight*
*1 The U.S.A. version can only be tuned between 1.80 to 1.95 MHz
*2Projections not included
*3Approximate
3
of the 1.8 MHz band.
53.6(W)×110.5(H)×29.6(D) mm
2.1(W)×4.4(H)×1.2(D) inches
3
30 cm (1 ft)
170 g (6 oz)
10
Section 04
Upgrade Options

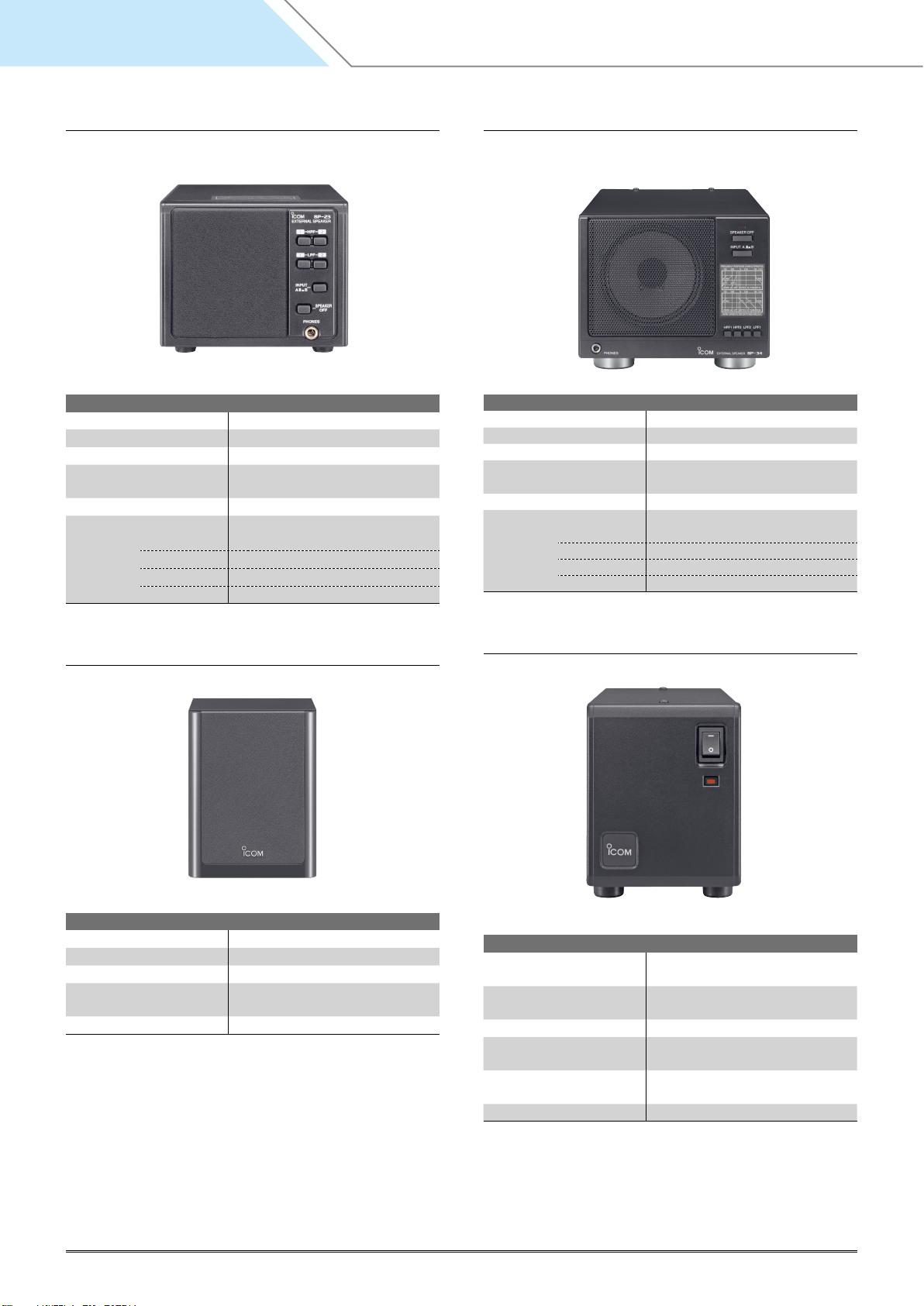

SP-23
EXTERNAL SPEAKER
(With four audio filters)
Specifications
Rated input power 2 W
Maximum input power 4 W
Input impedance 8 Ω
2
Dimensions*
Weight*
3
Filter cut-off frequency*
HPF 1 500 Hz
HPF 2 250 Hz
LPF 1 3 kHz
LPF 2 1 kHz
145(W)×111(H)×282.5(D) mm
5.7(W)×4.4(H)×11.1(D) inches
1.7 kg (3.7 lbs)
3
SP-34
EXTERNAL SPEAKER
(With four audio filters)
Specifications
Rated input power 3 W
Maximum input power 5 W
Input impedance 8 Ω
Dimensions*
Weight*
2
3
Filter cut-off frequency*
HPF 1 300 Hz
HPF 2 600 Hz
LPF 1 2.4 kHz
LPF 2 800 Hz
200(W)×150(H)×343(D) mm
7.9(W)×5.9(H)×13.5(D) inches
3 kg (6.6 lbs)
3
SP-33
EXTERNAL SPEAKER
Specifications
Rated input power 3 W
Maximum input power 5 W
Input impedance 8 Ω
Dimensions*
Weight*
3
2
125.5(W)×163(H)×140(D) mm
4.9(W)×6.4(H)×5.5(D) inches
1.1 kg (2.4 lbs)
PS-126
DC POWER SUPPLY
Specifications
Power supply
requirement
Power consumption
Output voltage 13.8 V DC ±5%
Maximum output current
capacity
Dimensions*
Weight*
2
3
100 V AC ±10% (50/60 Hz)
750 VA (Apparent power)
450 W (Active power)
25 A
94(W)×111(H)×287(D) mm
3.7(W)×4.4(H)×11.3(D) inches
3 kg (6.6 lbs)
*2Projections not included
*3Approximately.
11
Section 04
Upgrade Options
AH-4
HF+50 MHz AUTOMATIC ANTENNA TUNER
Specifications
3.5 MHz~54 MHz
Frequency coverage
Power supply
requirement
Current drain Less than 1 A
Maximum input power 120 W (100 W rated)
Tuning power 10 W (5~10 W)
Matching time
Tuning accuracy
Dimensions*
Weight*
2
3
( with 7 m:23 ft or longer wire
antenna)
7 MHz~54 MHz (with AH-2b)
13.8V DC ±15%
(supplied from the transceiver)
2~3 seconds
(15 seconds maximum)
VSWR 2.0:1 or better
( Except antennas a one half wave
or multiple of a one half wave in
length)
172(W)×69.5(H)×230(D) mm
6.8(W)×2.7(H)×9.1(D) inches
1.2 kg (2.6 lbs)
OPC-420
SHIELDED CONTROL CABLE
(For AH-4)
Specifications
Cable length*
3
10 m (33 ft)
AH-740
TUNING ANTENNA
Specifications
Frequency
coverage
Power supply
requirement
Current drain 0.6 A maximum
Maximum input
power
Matching time 2~3 seconds
Tuning accuracy
Dimensions*
Weight*
3
2.2~30 MHz (with AH-5NV)
2.5~30 MHz (with supplied
antenna element)
13.8 V DC ±15% (supplied
from the transceiver)
125 W (PEP)
VSWR 1.5：1 or better
( Except antennas a one half
wave or multiple of a one half
wave in length)
145(W)×238(H)×160(D) mm
2
5.7(W)×9.4(H)×6.3(D) inches
3.5 kg (7.7 lbs)
AH-2b
ANTENNA ELEMENT/BASE
(For AH-4)
Use with the AH-4.
Specifications
Frequency coverage 7~54 MHz
Element length*
3
2.5 m (8.2 ft)
AH-5NV
NVIS ANTENNA KIT
(For AH-740)
Specifications
Frequency coverage 2.2~30 MHz
Element length*
*2Projections not included
*3Approximately
3
4.5 m (14.8 ft)
12
Section 04
⣙㻞㻠㻚㻡㼙
Upgrade Options
OPC-2321
CONTROL CABLE
(For AH-740)
Specifications
Cable length*
3
6 m (20 ft)
AH-710
FOLDED DIPOLE ANTENNA
Specifications
Frequency coverage 1.9~30 MHz
Maximum input power 150 W
Impedance 50 Ω
VSWR 2.0:1 or better
VSWR
Element length*
3
Supplied coaxial cable
3
length*
(1.9~18 MHz)
VSWR 2.5:1 or better
(18~30 MHz)
24.5 m (80 ft)
30 m (98 ft)
(with a PL-259 connector)
RS- BA1
IP REMOTE CONTROL SOFTWARE
When you remotely control your transceiver from a remote
location, be sure to follow any local regulations.
* If the RS-BA1 program is already installed, download the
update program from our web site.
Minimum system requirements
Microsoft
Operating System
(32/64 bit)
Microsoft
(Except for Microsoft
Microsoft
®
Windows® 10
®
Windows® 8.1
®
Windows® 7
®
Windows® RT)
HDD At least 70 MB of free disk space
Network data speed
For the Base
station
For the Remote
station
Upload 500 kbps, or faster
Download 350 kbps, or faster
Upload 350 kbps, or faster
Download 500 kbps or faster
* With the default audio quality (RX: 16 kHz, 16-bit, 1 ch
LPCM, TX: 8 kHz, 16-bit, 1 ch LPCM)
Display resolution At least 1024×600 pixels
RC-28
REMOTE ENCODER
Functions as a Sub band dial during DUALWATCH operation
when connected to the IC-7610. Connect the RC-28 to a PC
to remotely operate the Main dial, PTT, and desired functions
using the RS-BA1 IP remote control software.
Specifications
Power supply
requirement
Dimensions*
Weight*
3
2
5 V DC ±5%
( supplied from the PC's, or
transceiver's USB port)
64(W)×64(H)×116(D) mm
2.5(W)×2.5(H)×4.6(D) inches
440 g (15.5 oz)
Supplied USB cable
(USB (A)-USB (mini-B))
3
length*
*2Projections not included
*3Approximately
13
1.5 m (5 ft)
Section 05
Specifications
General
● Frequency range
Receive Operable range 30 kHz ~ 60.000000 MHz
Guaranteed range 500 kHz ~ 29.999999 MHz
50.000000 MHz ~ 54.000000 MHz
Transmit 1.800000 MHz ~ 1.999999 MHz
( The transmit frequency range will
differ, depending on the transceiver
version.)
● Operating mode SSB (LSB/USB), CW, RTTY, PSK, AM, FM
● Number of memory channels 101 (99 regular + 2 scan edges)
● Antenna impedance 50 Ω (nominal)
● Power supply voltage 13.8 V DC ±15%
● Polarity Negative ground
● Power consumption
Stand-by 3.0 A
Maximum audio 3.5 A
Transmit (at 100 W) 23.0 A
● Usable temperature range 0°C~+50°C (+32°F~+122°F)
● Frequency stability ±0.5 ppm (0°C~+50°C)
● Frequency resolution Minimum 1 Hz
● Display 7-inch wide TFT LCD (800×480 dot) + Pressure-sensitive touch panel
● Dimensions (projections not included) 340(W) × 118(H) × 277(D) mm (13.4(W) × 4.6(H) × 10.9(D) inches)
● Weight Approximately 8.5 kg (18.7 lbs)
3.500000 MHz ~ 3.999999 MHz
5.332000 MHz, 5.348000 MHz, 5.358500 MHz, 5.373000 MHz,
5.405000 MHz
7.000000 MHz ~ 7.300000 MHz
10.100000 MHz ~ 10.150000 MHz
14.000000 MHz ~ 14.350000 MHz
18.068000 MHz ~ 18.168000 MHz
21.000000 MHz ~ 21.450000 MHz
24.890000 MHz ~ 24.990000 MHz
28.000000 MHz ~ 29.700000 MHz
50.000000 MHz ~ 54.000000 MHz
Transmitter
● Output power
SSB/CW/RTTY/PSK/FM
AM 1 W~25 W
● Modulation method
SSB Digital PSN modulation
AM Digital low power modulation
FM Digital reactance modulation
● Spurious emissions
Harmonics 1.8 MHz~28 MHz Less than –50 dB
50 MHz band Less than –63 dB
Out-of-band
emission
● Carrier suppression 50 dB
● Unwanted sideband suppression 50 dB
● Microphone impedance 600 Ω
●
∂TX variable range
1.8 MHz~28 MHz Less than –40 dB
50 MHz band Less than –60 dB
1 W~100 W
±9.999 kHz
14
Section 05
Specifications
Receiver
● Receive system Direct sampling superheterodyne system
● Intermediate frequency 12 kHz
● Receive sensitivity
SSB/CW (BW=2.4 kHz) (10 dB S/N)
1.8 MHz~29.995 MHz –16 dBμ (0.15 μV) typ. (Preamp1 ON)
50 MHz band –18 dBμ (0.12 μV) typ. (Preamp2 ON)
AM (BW=6 kHz) (10 dB S/N)
0.5 MHz~1.8 MHz –16 dBμ (6.3 μV) typ. (Preamp1 ON)
1.8 MHz~29.999 MHz –6 dBμ (2.0 μV) typ. (Preamp1 ON)
50 MHz band 0 dBμ (1.0 μV) typ. (Preamp2 ON)
FM (BW=15 kHz) (12 dB SINAD)
28.0 MHz~29.7 MHz –6 dBμ (0.5 μV) typ. (Preamp1 ON)
50 MHz band –10 dBμ (0.3 μV) typ. (Preamp2 ON)
● Squelch sensitivity
SSB Less than +10 dBμ (3.2 μV)
FM Less than –10 dBμ (0.3 μV)
● Selectivity (Filter shape=SHARP)
SSB (BW=2.4 kHz) More than 2.4 kHz/–6 dB, Less than 3.6 kHz/–60 dB
CW (BW=500 Hz) More than 500 Hz/–6 dB, Less than 700 Hz/–60 dB
RTTY (BW=500 Hz) More than 500 Hz/–6 dB, Less than 700 Hz/–60 dB
AM (BW=6 kHz) More than 6.0 kHz/–6 dB, Less than 15 kHz/–60 dB
FM (BW=15 kHz) More than 12.0 kHz/– 6 dB, Less than 20 kHz/–60 dB
● Spurious and image rejection ratio
HF bands 70 dB
50 MHz band 70 dB (Except for ADC aliasing)
● Audio output power More than 2 W (at 10% distortion into an 8 Ω load)
● Audio output impedance 8 Ω
● RIT variable range ±9.999 kHz
Antenna tuner
● Matching impedance range 16.7 Ω~150 Ω (unbalanced) (VSWR 3:1 or less)
● Tuning time 2~3 seconds (average/15 seconds maximum)
● Tuning accuracy VSWR 1.5:1 or less
15
1-1-32 Kamiminami, Hiranoku, Osaka 547-0003, Japan
Loading...
