INSTR UCTION MANUAL

HF/50 MHz ALL MODE TRANSCEIVER

i756PRO

IMPORTANT

READ THIS INSTRUCTION MANUAL CAREFULLY before attempting to operate the

transceiver.

SAVE THIS INSTRUCTION MANUAL. This

manual contains important safety and operating instructions for the IC-756PRO.

EXPLICIT DEFINITIONS

RWARNING HIGH V OLTAGE! NEVERattach

an antenna or internal antenna connector during transmission.This may result in an electrical shock or burn.

R NEVER apply AC to the [DC13.8V] jack on the

transceiver rear panel.This could cause a ﬁre or ruin the transceiver.

RNEVER apply more than 16 V DC , such as a 24 V

battery, to the [DC13.8V] jack on the transceiver rear panel.This could cause a ﬁre or ruin the transceiver.

RNEVER let metal, wire or other objects touch any

internal par t or connectors on the rear panel of the transceiver. This may result in an electric shock.

NEVER expose the transceiver to rain, snow or any

liquids. AVOID using or placing the transceiver in areas with

temperatures below –10°C (+14°F) or above +60°C (+140°F). Be aware that temperatures on a vehicle’s dashboard can exceed 80°C (+176°F), resulting in permanent damage to the transceiver if left there for extended periods.

AVOID placing the transceiver in excessively dusty environments or in direct sunlight.

AVOID placing the transceiver against walls or putting anything on top of the transceiver. This will obstruct heat dissipation.

Place unit in a secure place to avoid inadvertent use by children.

During mobile operation, DO NOT operate the transceiver without running the vehicle’s engine. When transceiver power is ON and your vehicle’s engine is OFF, the vehicle’s battery will soon become e xhausted.

Make sure the transceiver power is OFF before starting the vehicle.This will avoid possible damage to the transceiver by ignition voltage spikes.

During maritime mobile operation, keep the transceiver and microphone as far away as possible from the magnetic navigation compass to prev ent erroneous indications.

BE CAREFUL! The heatsink will become hot when operating the transceiver continuously for long periods.

BE CAREFUL! If a linear amplifier is connected, set the transceiver’s RF output power to less than the linear ampliﬁer’s maximum input level, otherwise, the linear ampliﬁer will be damaged.

Use Icom microphones only (supplied or optional). Other manufacturer’s microphones have different pin assignments, and connection to the IC-756PRO may damage the transceiver.

PRECAUTIONS

Versions of the IC-756PRO which display the “CE” symbol on the serial number seal, comply with the European harmonised standard ETS300 684 (EMC product standard for Commercially A vailable Amateur Radio Equipment).

WORD

WARNING

CAUTION

NOTE

DEFINITION

Personal injury, fire hazard or electric shock may occur.

If disregarded, inconvenience only. No risk of personal injury, fire or electric shock.

Equipment damage may occur.

Spurious may be received near the following frequencies. These are made in the internal circuit and does not indicate a transceiver malfunction:

6.144 MHz, 8.000 MHz,

12.288 MHz, 12.890 MHz (when spectrum scope is ON),

18.433 MHz, 24.573 MHz

SUPPLIED ACCESSORIES

The transceiver comes with the f ollo wing accessories.

Qty.

q DC power cable (OPC-025D) ............................ 1

w Hand microphone (HM-36) ................................ 1

e Spare fuses (FGB 30 A) .................................... 2

r Spare fuse (FGB 5 A) ........................................ 1

t CW keyer plug (AP-330) .................................... 1

TABLE OF CONTENTS

qwe

IMPORTANT ........................................ i

EXPLICIT DEFINITIONS ..................... i

PRECAUTIONS ................................... i

1 TABLE OF CONTENTS ................ 1

2 PANEL DESCRIPTION ........... 2–13

■ Front panel ..................................... 2

■ Microphone (HM-36) ...................... 9

■ LCD display .................................. 10

■ Screen menu arrangement ........... 11

■ Rear panel .................................... 12

3 INSTALLATION AND

CONNECTIONS ................... 14–21

■ Unpacking .................................... 14

■ Selecting a location ...................... 14

■ Grounding ..................................... 14

■ Antenna connection ..................... 14

■ Required connections ................... 15

■ Advanced connections ................. 16

■ Power supply connections ............ 17

■ Linear ampliﬁer connections ......... 18

■ Transverter jack information ......... 19

■ External antenna selector or

antenna tuner connections ........... 20

■ FSK and AFSK (SSTV)

connections .................................. 21

4 FREQUENCY SETTING ....... 22–25

■ When ﬁrst applying power

(CPU resetting) ............................. 22

■ Initial settings ................................ 22

■ VFO description ............................ 23

■ Frequency setting with the

tuning dial ..................................... 24

■ Direct frequency entry with

the keypad .................................... 24

■ Advanced tuning functions ........... 25

5 RECEIVE AND TRANSMIT .. 26–49

■ Mode selection ............................. 26

■ Twin PBT operation ...................... 26

■ Notch function .............................. 27

■ Noise reduction ............................ 27

■ Noise blanker ............................... 27

■ RTTY ﬁlter/Twin peak ﬁlter ........... 28

■ CW reverse mode ......................... 28

■ RTTY reverse mode ..................... 28

■ CW pitch control ........................... 29

■ IF ﬁlter selection ........................... 29

■ AGC function ................................ 30

■ Dualwatch operation ..................... 31

■ Split frequency operation .............. 32

■ Quick split function ....................... 33

■ RIT and ∂TX ................................ 34

■ Monitor function ............................ 35

■ VOX function ................................. 35

■ Meter function ............................... 36

■ SWR reading ................................ 36

■ Speech compressor ..................... 37

■ Digital voice recorder .................... 38

■ RTTY decoder .............................. 41

■ RTTY tuning meter ....................... 41

■ Electronic CW keyer ..................... 42

■ Memory keyer ............................... 43

■ Spectrum scope screen ............... 44

■ Automatic antenna selection ........ 45

■ Dial lock function .......................... 45

■ Repeater operation ....................... 46

■ Tone squelch operation ................ 47

■ Antenna tuner operation ............... 48

■ Optional external tuner

operation ...................................... 49

6 MEMORY OPERATION ........ 50–55

■ Memory channels ......................... 50

■ Memory channel selection ........... 50

■ Memory channel screen ............... 51

■ Memory channel programming ..... 52

■ Frequency transferring ................. 53

■ Memory names ............................ 54

■ Memory clearing ........................... 54

■ Memo pads ................................... 55

7 SCANS ................................. 56–61

■ Scan types .................................... 56

■ Preparation ................................... 56

■ Programmed scan operation ........ 57

■ ∂F scan operation ........................ 57

■ Fine programmed scan/

ﬁne ∂F scan ................................. 58

■ Memory scan operation ................ 58

■ Select memory scan operation ..... 59

■ Setting select memory channels .. 59

■ Scan set mode ............................. 60

■ Tone scan ..................................... 61

8 CLOCK AND TIMERS .......... 62–63

■ Setting the current time ................ 62

■ Setting power-on time .................. 62

■ Setting power-off period ............... 63

■ Timer operation ............................ 63

9 SET MODE ........................... 64–72

■ Set mode description ................... 64

■ Level set mode ............................. 65

■ Display set mode .......................... 66

■ Timer set mode ............................ 67

■ Miscellaneous (others) set mode .. 68

10 OPTION INSTALLATION ............ 73

■ Opening the transceiver’s case .... 73

■ UT-102 VOICE SYNTHESIZER

UNIT

.............................................. 73

11 MAINTENANCE ................... 74 –76

■ Troubleshooting ............................ 74

■ Fuse replacement ......................... 75

■ Clock backup battery

replacement .................................. 75

■ Tuning dial brake adjustment ........ 76

■ Frequency calibration

(approximate)................................ 76

12 INTERNAL VIEWS ...................... 77

13 CONTROL COMMAND ........ 78–79

■ Remote jack (CI-V) information .... 78

14 SPECIFICATIONS ....................... 80

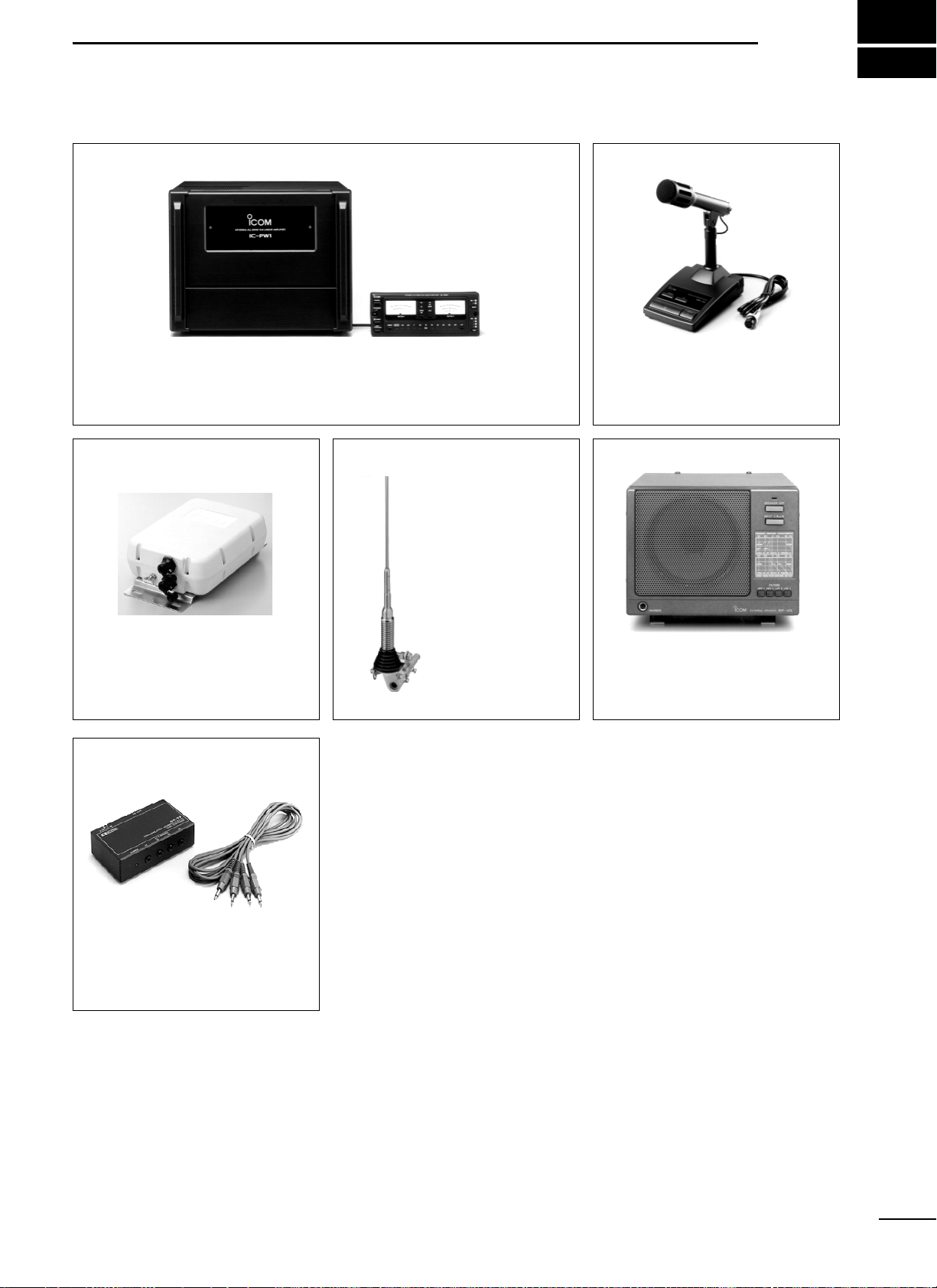

15 OPTIONS ..................................... 81

■ Front panel

q POWER SWITCH [POWER/TIMER]

➥Push momentarily to turn power ON.

•Turn the optional DC power supply ON in advance.

•A/D convertor calibration of the DSP unit starts and it

takes 10 sec.

➥Push momentarily to toggle the timer function ON

and OFF.(p.63)

•The power switch lights while the timer function is ON.

➥Push for 2 sec.to turn power OFF.

w TRANSMIT SWITCH [TRANSMIT]

Selects transmitting or receiving.

•The [TX] indicator lights red while transmitting and the [RX] indicator lights green when the squelch is open.

e HEADPHONE JACK [PHONES]

Accepts headphones.

•Output power: 5 mW with an 8 Ω load.

•When headphones are connected, the internal speaker

or connected external speaker does not function.

r ELECTRONIC KEYER JACK [ELEC-KEY] (p.42)

Accepts a paddle to activate the internal electronic keyer for CW operation.

•Selection between the internal electronic keyer, bug-key and straight key operation can be made in keyer set mode.(p. 42)

•A straight key jack is separately available on the rear panel. See [KEY] on p.12.

•Keyer polar ity (dot and dash) can be reversed in keyer set mode.(p. 42)

•4-channel memory keyer is available for your convenience.(p. 43)

t MICROPHONE CONNECTOR [MIC]

Accepts the supplied or optional microphone.

•See p.81 for appropriate microphones.

•See p.9 for microphone connector information.

y AF CONTROL [AF] (inner control)

Varies the audio output level from the speaker.

u MIC GAIN CONTROL [MIC GAIN]

Adjusts microphone input gain.

•The transmit audio tone in SSB mode can be adjusted in set mode.(p. 65)

✔

How to set the microphone gain.

Set the [MIC] control so that the ALC meter sometimes swings during normal voice transmission in SSB mode.

MIC GAIN

Recommended level for an Icom microphone

IncreasesDecreases

AF RF/SQL

No audio output

Max. audio output

Decreases Increases

(dot) (com) (dash)

PANEL DESCRIPTION

TIMER

POWER

TRANSMIT

PHONES

ELEC-KEY

MIC

TUNER MONITOR NB NR

AF BAL NRRF/SQL

MIC GAIN RF POWER COMP KEY SPEED BK-IN DELAY

F-1 F-2 F-3 F-4 F-5

HF/50MHz TRANSCEIVER

i756PRO

SSB

CW/RTTY

AM/FM FILTER EXIT

!2!3!4!5!6

yi !1o

!0u

i RF GAIN CONTROL/SQUELCH CONTROL

[RF/SQL] (outer control) Adjusts the RF gain and squelch threshold level. The squelch removes noise output from the speaker (closed condition) when no signal is received.

•The squelch is particularly effective for FM. It is also available for other modes.

•12 to 1 o’clock position is recommended for any setting of the [RF/SQL] control.

•The control can be set as ‘Auto’ (RF gain control in SSB, CW and RTTY; squelch control in AM and FM) or squelch control (RF gain is fixed at maximum) in set mode as follows.(p.68)

•When setting as RF gain/squelch control

While rotating the RF gain control, noise may be heard.This comes from the DSP unit and does not indicate an equipment malfunction.

o RF POWER CONTROL [RF POWER]

Continuously varies the RF output power from minimum (5 W*) to maximum (100 W*).

*AM mode: 5 W to 40 W

!0 BALANCE CONTROL [BAL] (inner control; p.31)

Adjusts the audio output balance between main and sub readout frequencies while in dualwatch.

!1 NOISE REDUCTION LEVEL CONTROL [NR]

(outer control; p.27) Adjusts the noise reduction level when the noise reduction is in use.Set for maximum readability.

!2 NOISE REDUCTION SWITCH [NR] (p. 27)

Toggles the noise reduction ON and OFF.

!3 NOISE BLANKER SWITCH [NB] (p. 27)

Toggles the noise blanker ON and OFF.The noise blanker reduces pulse-type noise such as that generated by automobile ignition systems.This function cannot be used for FM, or non-pulse-type noise.

!4 S/RF METER (p. 36)

Shows the signal strength while receiving. Shows the relative output power, SWR, ALC or compression levels while transmitting.

!5 MONITOR SWITCH [MONITOR] (p. 35)

Monitors your transmitted IF signal.

•The CW sidetone functions when [MONITOR] is OFF in CW mode.

!6 ANTENNA TUNER SWITCH [TUNER] (p. 48)

➥Turns the antenna tuner ON and OFF (bypass)

when pushed momentarily.

➥Starts to tune the antenna manually when

pushed for 2 sec.

•When the tuner cannot tune the antenna, the tuning circuit is bypassed automatically after 20 sec.

Noise blanker OFF Noise blanker ON

NB NB

Noise reduction OFF Noise reduction ON

NR NR

BAL NR

Decreases

OFF

Increases

BAL NR

Increases main readout gain

Increases sub readout gain

RF POWER

IncreasesDecreases

MODE

SSB, CW

RTTY

AM, FM

AUTO

RF GAIN

SQL

SET MODE SETTING

SQL SQL

RF GAIN + SQL

RF GAIN + SQL RF GAIN + SQL

Recommended level

Minimum RF gain

Adjustable range

RF gain adjustable range

Maximum RF gain

Squelch is open.

S-meter squelch

S-meter squelch threshold

Noise squelch threshold (FM mode)

Shallow Deep

S-meter squelch

Noise squelch (FM mode)

Squelch is open.

PANEL DESCRIPTION

•When functioning as RF gain control

(Squelch is ﬁxed open;SSB, CW, RTTY only)

•When functioning as squelch control

(RF gain is ﬁxed at maximum.)

PANEL DESCRIPTION

NB NR

BAL NR

COMP KEY SPEED BK-IN DELAY

LOCKTX

TWIN PBT

CW PITCH

F-1 F-2 F-3 F-4 F-5

SPEECH LOCK

RIT/ TX

TXRIT CLEAR

SPLIT

MP-W MP-R

DUAL

WATCH

VFO/

MEMO

MAIN/

SUB

CHANGE

1.813.527

10414518

21724828

GENE

•

F-INP

ENT

M-CL

XFC

EIVER

i756PRO

PBT CLR NOTCH

NOTCH

SSB

CW/RTTY

AM/FM FILTER EXIT

@6@7

@0!9!8!7 @1 @4@3@2 @5

@8@9

■ Front panel (continued)

!7 COMPRESSION LEVEL CONTROL [COMP]

(p.37) Adjusts the speech compression level in SSB.

!8 ELECTRONIC CW KEYER SPEED CONTROL

[KEY SPEED] (p.42)

Adjusts the internal electronic CW keyer’s speed.

•6 wpm (min.) to 60 wpm (max.) can be set.

!9 SEMI BREAK-IN DELAY CONTROL

[BK-IN DELAY]

Adjusts the transmit-to-receive switching dela y time for CW semi break-in operation.

@0 MODE SWITCHES

Selects the desired mode.(p.26)

•Announces the selected mode when an optional UT-102 is installed. (pgs.71, 73)

➥Selects USB and LSB mode alternately. ➥Toggles SSB and SSB data mode (USB-

D, LSB-D) when pushed for 2 sec.

➥Selects CW and RTTY mode alternately. ➥Toggles CW and CW-R (CW reverse)

mode when pushed for 2 sec. in CW mode.

➥Toggles RTTY and RTTY-R (RTTY re-

verse) mode when pushed for 2 sec. in RTTY mode.

➥Selects AM and FM mode alternately. ➥Toggles AM/FM and AM/FM data mode

(AM-D, FM-D) when pushed for 2 sec.

@1 LCD FUNCTION SWITCHES [F-1]–[F-5]

Push to select the function indicated in the LCD display above these switches.

•Functions vary depending on the operating condition.

@2 FILTER SWITCH [FILTER]

➥Selects one of 3 IF ﬁlter settings. ➥Enters the ﬁlter set mode when pushed for 2 sec.

@3 EXIT SWITCH [EXIT]

Exits from a set mode, etc.when pushed.

@4 SPEECH SWITCH [SPEECH] (pgs. 71, 73)

Announces the selected readout frequency when an optional UT-102 is installed.

@5 TUNING DIAL (p. 24)

Changes the displayed frequency, selects set mode items, etc.

@6 MAIN/SUB SWITCH [MAIN/SUB]

Selects the main or sub readout for access.

•The sub readout frequency is displayed in outline or mesh font.The sub readout functions only during split operation or dualwatch.

@7 VFO/MEMORY SWITCH [VFO/MEMO]

➥Toggles the selected readout operating mode be-

tween the VFO mode and memory mode when pushed. (pgs. 23, 50)

➥Transfers the memory contents to VFO when

pushed for 2 sec.(p.53)

AM/FM

CW/RTTY

SSB

BK-IN DELAY

Short delay for high speed keying (2 dot)

Long delay for slow speed keying (13 dot)

Slow Fast

KEY SPEED

COMP

Compression level decreases

Compression level increases

PANEL DESCRIPTION

✔

What is the AGC?

The AGC controls receiver gain to produce a constant audio output level, e ven when the received signal strength is varied by fading, etc. Select “FAST” for tuning and select “MID” or “SLOW”depending on the receiving condition.

➥Turns the VOX function ON and OFF

when pushed in non-CW modes.(p.35)

➥Enters the VOX set mode when pushed

for 2 sec.in non-CW modes.(p. 35)

✔

What is the VOX function?

The VOX function (voice operated transmission) starts transmission without pushing the transmit switch or PTT switch when you speak into the microphone;then, automatically returns to receive when you stop speaking.

➥Selects semi break-in, full break-in oper-

ation, or turns the break-in operation OFF when pushed in CW mode.

✔

What is the break-in function?

The break-in function toggles transmit and receive with CW keying. Full break-in (QSK) can monitor the receive signal during keying.

➥Turns the RTTY filter ON and OFF in

RTTY mode.(p. 28)

•When the RTTY filter is turned ON, [TWIN PBT] functions as the IF shift control.

➥Enters the RTTY filter set mode when

pushed for 2 sec.in RTTY mode.(p. 28)

✔

What is the IF shift?

The IF shift function electronically changes the center of the IF (Intermediate Frequency) passband frequency to reject interference.Only the inner control of [TWIN PBT] can be used for the IF shift control.

➥Turns the speech compressor ON and

OFF in SSB mode.(p.37)

➥Toggles the narrow, middle or wide tr ans-

mit ﬁlter when pushed for 2 sec.

✔

What is the speech compressor?

The speech compressor compresses the transmitter audio input to increase the average audio output level. Therefore, talk power is increased.This function is effective for long distance communication or when propagation conditions are poor.

➥Turns the 1⁄4 function ON and OFF in CW

and RTTY modes.(p. 25)

•1⁄4 function sets dial rotation to 1⁄4 of normal for ﬁne tuning.

➥Toggles the tone encoder, tone squelch

function and no tone operation when pushed in FM mode.(pgs.46, 47)

➥Enters the tone set mode when pushed

for 2 sec.in FM mode.(pgs. 46, 47)

TONETONE

1/41/4 OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

RTTYRTTY

FILFIL OFFOFF

BK-INBK-IN

OFFOFF

VOXVOX OFFOFF

@8 MAIN/SUB CHANGE SWITCH [CHANGE]

➥Toggles the frequency and selected memory

channel between main and sub readouts when pushed.

•Toggles between transmit frequency and receive frequency when the split frequency function is ON. (p.

32)

➥Equalizes the sub readout frequency to the main

readout frequency when pushed for 2 sec.

@9 MULTI-FUNCTION SWITCHES

Push to select the functions indicated in the LCD display to the right of these switches.

•Functions vary depending on the operating condition.

➥Toggles the antenna connector selection

between ANT1/R and ANT2/R when pushed. (p.45)

➥Toggles the [RX ANT] (receive antenna)

ON and OFF when pushed for 2 sec.

When a transverter is in use, this [ANT] does not function and ‘TRV’ appears.

➥Selects RF power (Po), ALC, SWR or

COMP metering during transmit. (p. 36)

➥Toggles the multi-function digital meter

ON and OFF when pushed for 2 sec.

➥Selects one of 2 receive RF preamps or

bypasses them.

•“P. AMP1” activates 10 dB preamp for HF all bands.

•“P. AMP2” activates 16 dB high-gain preamp for 21 MHz band and above.

✔

What is the preamp?

The preamp ampliﬁes received signals in the front end circuit to improve the S/N ratio and sensitivity. Select “P. AMP1” or “P. AMP2” when receiving weak signals.

➥Selects 6 dB, 12 dB or 18 dB attenuator,

or bypasses them.

✔

What is the attenuator?

The attenuator prevents a desired signal from distorting when very strong signals are near the desired frequency, or when very strong electric ﬁelds, such as from a broadcasting station, are near your location.

➥Activates or selects fast, middle or slow

AGC time constant when pushed.

•“FAST”is only available for FM mode.

➥Enters the AGC set mode when pushed

for 2 sec.

AGC time constant can be set between 0.1 to 8.0 sec. (depends on mode), or turned OFF. While “OFF” is selected, the S-meter does not function.

AGCAGC MIDMID

ATTATT OFFOFF

P.AMPP.AMP

OFFOFF

METERMETER

PoPo

ANTANT

PANEL DESCRIPTION

@8 LOCK SWITCH [LOCK] (p. 45)

Turns the dial lock function ON and OFF.

@9 RIT/∂∂TX CONTROL [RIT/∂∂TX] (p.34)

Shifts the receive and/or transmit frequency without changing the transmit and/or receive frequency while the RIT and/or ∂TX functions are ON.

•Rotate the control clockwise to increase the frequency, or rotate the control counterclockwise to decrease the frequency.

•The shift frequency range is ±9.999 kHz in 1 Hz steps (or ±9.99 kHz in 10 Hz steps).

#0 RIT SWITCH [RIT] (p. 34)

➥Turns the RIT function ON and OFF when

pushed.

•Use the [RIT/∂TX] control to vary the RIT frequency.

➥Adds the RIT shift frequency to the operating fre-

quency when pushed for 2 sec.

✔

What is the RIT function?

The RIT (Receiver Incremental Tuning) shifts the receive frequency without shifting the transmit frequency.

This is useful for ﬁne tuning stations calling you on an off-frequency or when you prefer to listen to slightly differentsounding voice characteristics, etc.

∂∂

TX SWITCH [∂∂TX] (p.34)

➥Turns the ∂TX function ON and OFF when

pushed.

•Use the [RIT/∂TX] control to vary the ∂TX frequency.

➥Adds the ∂TX shift frequency to the operating fre-

quency when pushed for 2 sec.

✔

What is the ∂∂TX function?

The ∂TX shifts the transmit frequency without shifting the receive frequency. This is useful for simple split frequency operation in CW, etc.

#2 CLEAR SWITCH [CLEAR] (p. 34)

Clears the RIT/∂TX shift frequency when pushed for 2 sec.

#3 CW PITCH CONTROL [CW PITCH]

(outer control; p.29) Shifts the received CW audio pitch and monitored CW audio pitch without changing the operating frequency.

#4 MANUAL NOTCH FILTER CONTROL [NOTCH]

(inner control; p.27) Var ies the peak frequency of the manual notch ﬁl- ter to pick out a receive signal from interference while the manual notch function is ON.

•Notch ﬁlter center frequency: SSB : 0 Hz to 5100 Hz CW :–900 Hz + CW pitch freq. to 4200 Hz + CW

pitch freq.

AM : –5100 Hz to 5100 Hz

NOTCH

CW PITCH

Lower frequency Higher frequency

Approx. 300 Hz

Approx. 900 Hz

Lower frequency Higher frequency

NOTCH

CW PITCH

RIT/∂TX

Low shift High shift

NB NR

BAL NR

COMP KEY SPEED BK-IN DELAY

LOCKTX

TWIN PBT

CW PITCH

F-1 F-2 F-3 F-4 F-5

SPEECH LOCK

RIT/ TX

TXRIT CLEAR

SPLIT

MP-W MP-R

DUAL

WATCH

VFO/

MEMO

MAIN/

SUB

CHANGE

1.813.527

10414518

21724828

GENE

•

F-INP

ENT

M-CL

XFC

CEIVER

i756PRO

PBT CLR NOTCH

NOTCH

SSB

CW/RTTY

AM/FM FILTER EXIT

$5 $4 $3

#4 #3

#6 #5

$0$1$2

■ Front panel (continued)

PANEL DESCRIPTION

#5 PBT CLEAR SWITCH [PBT CLR] (p. 26)

Clears the PBT settings when pushed for 2 sec.

•The [PBT CLR] indicator appears when PBT is in use.

#6 NOTCH SWITCH [NOTCH] (p. 27)

➥Toggles the notch function between auto, manual

and OFF in SSB and AM modes.

➥Turns the manual notch function ON and OFF

when pushed in CW mode.

➥Turns the auto notch function ON and OFF when

pushed in FM mode.

•“AN” appears when auto notch is in use.

•“MN” appears when manual notch is in use.

✔

What is the notch function?

The notch function eliminates unwanted CW or AM carrier tones while preserving the desired signal’s audio response. The ﬁltering frequency is adjusted to effectively eliminate unwanted tones via the DSP circuit.

#7 PASSBAND TUNING CONTROLS [TWIN PBT]

Adjust the receiver’s “passband width” of the DSP ﬁlter.(p. 26)

•Passband width and shift frequency are displa yed in the

LCD.

•Push [PBT CLR] for 2 sec.to clear the settings when not in use.

•Var iable range is set to the half of the IF ﬁlter passband width. 25 Hz steps and 50 Hz steps are available.

•These controls function as an IF shift control while in AM mode and when the RTTY ﬁlter is turned ON. Only the inner control may function in this case.

✔

What is the PBT control?

General PBT function electronically narrows the IF passband width to reject interference.This transceiver uses the DSP circuit for the PBT function.

#8 LOCK INDICATOR [LOCK] (p.45)

Lights when the dial lock function is activated.

#9 MEMO PAD-READ SWITCH [MP-R] (p. 55)

Each push calls up a frequency and operating mode in a memo pad. The 5 (or 10) most recently programmed frequencies and operating modes can be recalled, starting from the most recent.

•The memo pad capacity can be expanded from 5 to 10 in set mode for your convenience. (p.71)

$0 KEYPAD

➥Pushing a key selects the operating band.

•[GENE] selects the general coverage band.

➥Pushing the same key 2 or 3 times calls up other

stacked frequencies in the band.(p. 24)

•Icom’s triple band stacking register memor izes 3 frequencies in each band.

➥After pushing [F-INP], enters a keyed frequency

or memory channel. Pushing [(F-INP)ENT] or [Y]/[Z] is necessary at the end. (pgs. 24, 50)

•e.g. to enter 14.195 MHz, push [F-INP] [1] [4] [•] [1] [9] [5] [(F-INP)ENT].

$1 MEMO PAD-WRITE SWITCH [MP-W] (p. 55)

Programs the selected readout frequency and operating mode into a memo pad.

•The 5 most recent entries remain in memo pads.

•The transmit frequency is programmed when pushed to-

gether with [XFC].

•The memo pad capacity can be expanded from 5 to 10 in set mode for your convenience. (p.71)

$2 DUALWATCH SWITCH [DUALWATCH] (p. 31)

➥Turns the dualwatch function ON and OFF when

pushed.

➥Turns the dualwatch function ON and equalizes

the sub readout frequency to the main readout when pushed for 2 sec. (Quick dualwatch function)

•The quick dualwatch function can be turned OFF using set mode.(p. 68)

$3 SPLIT SWITCH [SPLIT] (p. 32)

➥Turns the split function ON and OFF when

pushed.

➥Turns the split function ON, equalizes the sub

readout frequency to the main readout and sets the sub readout for frequency input when pushed for 2 sec.in non-FM modes. (Quick split function)

•The offset frequency is shifted from the main readout frequency in FM mode.(pgs. 46, 69)

•The quick split function can be turned OFF using set mode.(p. 68)

➥Turns the split function ON and shifts the sub

readout frequency after inputting an offset (±4 MHz in 1 kHz steps).

$4 RECEIVE INDICATOR [RX]

Lights green while receiving a signal and when the squelch is open.

$5 TRANSMIT INDICATOR [TX]

Lights red while transmitting.

PBT1

PBT2

TWIN PBT

Low cut High cutCenter

TWIN PBT TWIN PBT TWIN PBT

– +

NOTCHNOTCH

Notch OFF Notch ON

PANEL DESCRIPTION

$6 LCD FUNCTION DISPLAY (See p.10 for details.)

Shows the operating frequency, function switch menus, spectrum screen, memory channel screen, set mode settings, etc.

$7 MEMORY UP/DOWN SWITCHES [YY]/[ZZ] (p.50)

➥Select the memory channel number for the se-

lected readout.

•Memory channels can be selected both in VFO and memory modes.

➥Select the desired memory channel directly after

pushing [F-INP] and a memory channel number.

$8 MEMORY WRITE SWITCH [MW] (p.52)

Stores the selected readout frequency and operating mode into the displayed memory channel when pushed for 2 sec.

•This function is available both in VFO and memory modes.

$9 MEMORY CLEAR SWITCH [M-CL] (p.54)

Clears the selected readout memory channel contents when pushed for 2 sec.in memory mode.

•The channel becomes a blank channel.

•This switch does not function in VFO mode.

%0 QUICK TUNING SWITCH [TS] (p.25)

➥Turns the quick tuning step ON and OFF.

•While the quick tuning indicator is displayed, the frequency can be changed in programmed kHz steps.

•0.1, 1, 5, 9, 10, 12.5, 20 and 25 kHz quick tuning steps are available.

➥While the quick tuning step is OFF, turns the 1 Hz

step ON and OFF when pushed for 2 sec.

•1 Hz indications appear in both readouts and the frequency can be changed in 1 Hz steps.

➥While the quick tuning step is ON, enters the

quick tuning step set mode when pushed for 2 sec.

%1 TRANSMIT FREQUENCY CHECK SWITCH

[XFC]

Monitors the transmit frequency when pushed and held when the split frequency function is ON.

•While pushing this switch, the transmit frequency can be changed with the tuning dial, keypad, memo pad or the [Y]/[Z] switches.

•When the split lock function is turned ON, pushing [XFC] cancels the dial lock function.(p. 69)

ANT

METER

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

qw:pp

TXTX

CWCW

qr≥qpp≥pp

21.076.5021.076.50

VFOVFO

USBUSB

Quick tuning indicator

NB NR

BAL NR

COMP KEY SPEED BK-IN DELAY

LOCKTX

TWIN PBT

CW PITCH

F-1 F-2 F-3 F-4 F-5

SPEECH LOCK

RIT/ TX

TXRIT CLEAR

SPLIT

MP-W MP-R

DUAL

WATCH

VFO/

MEMO

MAIN/

SUB

CHANGE

1.813.527

10414518

21724828

GENE

•

F-INP

ENT

M-CL

XFC

EIVER

i756PRO

PBT CLR NOTCH

NOTCH

SSB

CW/RTTY

AM/FM FILTER EXIT

$7 $8 $9 %0 %1

■ Front panel (continued)

PANEL DESCRIPTION

■ Microphone (HM-36)

q UP/DOWN SWITCHES [UP]/[DN]

Change the selected readout frequency or memory channel.

•Continuous pushing changes the frequency or memory channel number continuously.

•While pushing [XFC], the transmit readout frequency can be controlled while in spilt frequency operation.

•The [UP]/[DN] switch can simulate a key paddle. Preset in the keyer set mode. (p.42)

w PTT SWITCH

Push and hold to transmit; release to receive.

•MICROPHONE CONNECTOR

(Front panel view)

•HM-36 SCHEMATIC DIAGRAM

CAUTION:

DO NOT short pin 2 to ground as this

can damage the internal 8 V regulator.

ert

4700p

10µ

0.33µ

MICROPHONE

MIC ELEMENT

470

DOWN UP

PTT

RECEIVE TRANSMIT

MICROPHONE CABLE MICROPHONE PLUG

y GND (PTT ground)

t PTT

r Main readout squelch switch

q Microphone input

w +8 V DC output

e Frequency up/down

u GND

(Microphone ground)

i Main readout AF output

(varies with [AF]/[BAL])

Max. 10 mA Ground Ground through 470 Ω

“LOW” level “HIGH” level

+8 V DC output Frequency up Frequency down Squelch open Squelch closed

[MIC]

PIN NO.

FUNCTION DESCRIPTION

q TX INDICATOR

Indicates the frequency readout for transmit.

w VFO/MEMORY CHANNEL INDICATOR

(pgs.23, 50) Indicates the VFO mode or selected memory channel number.

e SELECT MEMORY CHANNEL INDICATOR

(p.59) Indicates the displayed memory channel is set as a select memory channel.

r MULTI-FUNCTION SWITCH GUIDE

Indicates the function of the multi-function switches.

t LCD FUNCTION SWITCH GUIDE

Indicates the function of the LCD function switches ([F-1]–[F-5]).

y MULTI-FUNCTION SCREEN (p. 11)

Shows the screens for the multi-function digital meter, spectrum scope, voice recorder, memory channel, scan, memory keyer, RTTY decoder, IF ﬁl- ter selection or set modes, etc.

u MEMORY CHANNEL READOUTS (p.50)

➥Show the selected memory channel contents in

VFO mode.

➥Show the VFO contents in memory mode.

i FREQUENCY READOUTS (p. 24)

Show the operating frequency.

•Outline characters are used for non-accessing readout.

o CLOCK READOUT (p. 62)

Shows the current time.

!0 RTTY TUNING INDICAT OR (p.41)

Shows the tuning level in RTTY mode.

!1 QUICK TUNING INDICAT OR (p.25)

Appears when the quick tuning step function is in use.

!2 PASSBAND WIDTH INDICA TOR (p. 26)

Graphically displays the passband width for twin PBT operation and center frequency for IF shift operation.

!3 IF FILTER INDICATOR (p. 29)

Shows the selected IF ﬁlter number.

!4 SHIFT FREQUENCY INDICATOR (p. 26)

Shows the shift frequency of the IF ﬁlter.

!5 MODE INDICATOR (p.26)

Shows the selected mode.

!6 BAND WIDTH INDICA TOR (p.29)

Shows the passband width of the IF ﬁlter.

PANEL DESCRIPTION

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

SUBSUB

MARKERMARKER

+12.5k+12.5k

-12.5k-12.5k

SPECTRUM SCOPESPECTRUM SCOPE

SPANSPAN

ATTATT

MARKERMARKER

HOLDHOLD

SETSET

BWBW

2.4k2.4k

SFTSFT

USBUSB

qw:pp

VFOVFO 21.085.0021.085.00TXCWCW

FIL2

qr≥qqy≥pp

qr≥qpp≥pp

56ß

USB

1ß 21.085.0021.085.00 CWCW

VFO

FIL2FIL2

GridGrid

10k10k

10dB10dB

!6 !4!5 !2!3 !1 !0 o

q w

e w

■ LCD display

PANEL DESCRIPTION

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SCOPESCOPE

VOICEVOICE

MEMORYMEMORY

SCANSCAN

SETSET

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

CWCW

FIL2FIL2

qr≥qpp≥pp

--. ---. ----. ---. --

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SPANSPAN

MARKERMARKER

HOLDHOLD

SETSET

AGCAGC MIDMID

GridGrid

2.5k2.5k 10dB10dB

+12. 5k+12. 5k

-12. 5k-12. 5k

SPECTRUM SCOPESPECTRUM SCOPE

PLAYPLAY

MIC RECMIC REC

TX LEV.TX LEV.

SETSET

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

SENDSEND

EDITEDIT

001001

CW KEYCW KEY

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

MEMORY KEYERMEMORY KEYER

ROLLROLL

SETSET

SELECTSELECT

NAMENAME

WIDEWIDE

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

RTTYRTTY

FILFIL

ONON

AGCAGC MIDMID

MEMORYMEMORY

LEVELLEVEL

DISPDISP

TIMETIME

OTHERSOTHERS

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

SET MODESET MODE

F-1

F-2

F-3

F-4

F-5

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

MEMOMEMO

∂

SELECTSELECT

∂

F SPANF SPAN

SETSET

AGCAGC MIDMID

SCANSCAN

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

PROGPROG

∂

FINEFINE

∂

F SPANF SPAN

SETSET

AGCAGC MIDMID

SCANSCAN

ATTATT

HOLDHOLD

CLRCLR

WIDEWIDE

ADJADJ

1/41/4 OFFOFF

AGCAGC MIDMID

•Spectrum scope screen (p. 44)

•Voice recorder screen (p. 38)

•Memory channel screen (p. 51)

•Memory channel scan screen (p. 58) •RTTY decoder screen (p. 41)

•Programmed scan screen (p. 57)

•Set mode screen (p. 64)

•Memory keyer screen (p. 42)

•Start up screen

9999 --.---.----.---.-- ------------ ------ P1P1 0 0.500.000.500.00 LSBLSB FL2 SCAN EDGEFL2 SCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2 SCAN EDGEFL2 SCAN EDGE

 1 --.---.----.---.-- ------------ ------

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

SETSET MODEMODE MENUMENU

LEVELLEVELTXTX Tone,Monitor,SideTone,Monitor,Side ToneToneetcetc

DISPDISPBright,Contrast,Style,FontBright,Contrast,Style,Fontetcetc

TIMETIMEClock/TimerClock/Timer

OTHERSOTHERSOtherOtherSetSetModeMode

MEMORY KEYER MENUMEMORY KEYER MENU

SENDSENDMax.54Max.54CharactersCharacters x 4ch4ch

EDITEDITMemoryMemoryEditorEditor

001001001001 StyleStyle ContestContestNumberNumber

CWCW KEYKEY Memo-key,Elec-key,CWMemo-key,Elec-key,CWWaveWaveFormFormSetSet

******** RTTYRTTY DecodeDecodeMonitorMonitor******** 45bps45bpsBAUDOTBAUDOTMark=2125,Mark=2125,Shift=170Shift=170 UnShiftUnShiftOnOnSpaceSpace supportsupport (SET-OTHERS)(SET-OTHERS) NewNewLineLineCodeCodeselectableselectable (SET-OTHERS)(SET-OTHERS) IfIfRTTY-FILRTTY-FILisisOFF,OFF,PleasePleaseturnturnON.ON.

----------------------------------------------------------------------------------------

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscanedgesedges P2:P2:29.999.99MHz29.999.99MHz

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscanedgesedges P2:P2:29.999.99MHz29.999.99MHz

VOICEVOICERECORDERRECORDER MENUMENU

PLAYPLAYTXTX 15sec.15sec. x 4ch4ch

RXRX 15sec.15sec. x 4ch4ch

MICMICRECRECMic Record/RecordMic Record/Recordcheckcheck

TXTX LEV.LEV.RecorderRecorderOutputOutputAdjustAdjust

SETSETAutoAuto MonitorMonitorSETSET

THRESHOLDTHRESHOLD 9

RTTY DECODERTTY DECODE

■ Screen menu arrangement

The following screens can be selected from the start up screen. Choose the desired screen using the following chart.

Pushing [EXIT] one or more times returns to the star t up screen. See p.64 for set mode arrangement.

■ Rear panel

q RECEIVE ANTENNA CONNECTOR [RX ANT]

(p.16) Connects a 50 Ω general coverage antenna with an RCA connector.

w TRANSVERTER JACK [XVERT] (p. 19)

External transverter input/output jack. Activated by voltage applied to [ACC(2)] pin 6.

e TUNER CONTROL SOCKET [TUNER] (p. 16)

Accepts the control cable from an optional AH-4

HF/50 MHz AUTOMATIC ANTENNA TUNER or AH-3 HF AUTOMATIC ANTENNA TUNER.

r ACCESSORY SOCKET 1 [ACC(1)] t ACCESSORY SOCKET 2 [ACC(2)]

Enable connection of external equipment such as a linear amplifier, an automatic antenna selector/ tuner, TNC for data communications, etc.

•See p.13 for socket information.

y STRAIGHT KEY JACK [KEY] (p.15)

Accepts a straight key or external electronic keyer with 1⁄4 inch standard plug.

•[ELEC-KEY] on the front panel can be used for a str aight key or external electronic keyer. Deactivate the internal electronic keyer in keyer set mode. (p.42)

If you use an external electronic ke y er, make sure the voltage retained by the keyer is less than 0.4 V when the key is ON.

u CI-V REMOTE CONTROL JACK [REMOTE]

(p.16) ➥Designed for use with a personal computer f or re-

mote control of transceiver functions.

➥Used for transceive operation with another Icom

CI-V transceiver or receiver.

i EXTERNAL SPEAKER JACK [EXT SP]

(pgs.16, 81) Accepts an 4–8 Ω speaker.

o ALC INPUT JACK [ALC] (p.19)

Connects to the ALC output jack of a non-Icom linear ampliﬁer.

!0 SEND CONTROL JACK [SEND] (p. 19)

Goes to ground while transmitting to control external equipment such as a linear ampliﬁer.

•Max.control level: 16 V DC/2 A

!1 DC POWER SOCKET [DC 13.8V] (p.15)

Accepts 13.8 V DC through the supplied DC power cable (OPC-025D).

Rear panel view

(+)

(_)

q w!0

ertyuio

!4 !3 !2

PANEL DESCRIPTION

!2 ANTENNA CONNECTOR 1 [ANT1] !3 ANTENNA CONNECTOR 2 [ANT2] (pgs. 14, 15)

Accept a 50 Ω antenna with a PL-259 connector.

When using an optional AH-4 HF/50 MHz AUTO-

MATIC ANTENNA TUNER

or AH-3 HF AUTOMATIC AN-

TENNA TUNER

, connect it to the [ANT1] connector. The internal antenna tuner activates for [ANT2] and deactivates for [ANT1] when connecting the AH-4 or AH-3.

DACC SOCKETS

!4 GROUND TERMINAL [GND] (pgs.14, 15)

Connect this terminal to a ground to prevent electrical shocks, TVI, BCI and other problems.

PANEL DESCRIPTION

ACC(1) PIN NO.

PIN NAME

DESCRIPTION SPECIFICATIONS

RTTY Controls RTTY keying.

“HIGH” level : More than 2.4 V “LOW” level : Less than 0.6 V

Output current : Less than 2 mA

2 GND Connects to ground. Connected in parallel with ACC(2) pin 2.

3 SEND

Input/output pin. Goes to ground when transmitting. When grounded, transmits.

Ground level : –0.5 V to 0.8 V Output current : Less than 20 mA Input current (Tx) : Less than 200 mA Connected in parallel with ACC(2) pin 3.

4 MOD

Modulator input. Connects to a modulator.

Input impedance : 10 kΩ Input level : Approx. 100 mV rms

5 AF

AF detector output. Fixed, regardless of [AF] position in default settings. (see notes below)

Output impedance : 4.7 kΩ Output level : 100 to 300 mV rms

6 SQLS

Squelch output. Goes to ground when squelch opens.

Squelch open : Less than 0.3 V/5 mA Squelch closed : More than 6.0 V/100 µA

7 13.8 V 13.8 V output when power is ON.

Output current : Max. 1 A Connected in parallel with ACC(2) pin 7.

8 ALC ALC voltage input.

Control voltage : –4 to 0 V Input impedance : More than 10 kΩ Connected in parallel with ACC(2) pin 5.

If the CW side tone level limit or beep le vel limit is in use, the CW side tone or beep tone decreases from the ﬁxed le v el when the [AF] control is rotated above a speciﬁed level, respectively.(p. 65)

Rear panel

view

ACC(2) PIN NO.

Rear panel

view

2 GND Same as ACC(1) pin 2. 3 SEND Same as ACC(1) pin 3.

4 BAND

5 ALC Same as ACC(1) pin 8.

6 TRV

7 13.8 V Same as ACC(1) pin 7.

PIN NAME

8 V Regulated 8 V output.

Band voltage output. (Varies with amateur band)

Activates [XVERT] input/output when “HIGH” voltage is applied.

DESCRIPTION SPECIFICATIONS

Output voltage : 8 V ±0.3 V Output current : Less than 10 mA

Output voltage : 0 to 8.0 V

Input impedance : More than 10 kΩ Input voltage : 2 to 13.8 V

INSTALLATION AND CONNECTIONS

■ Unpacking

After unpacking, immediately report any damage to the delivering carrier or dealer.Keep the shipping cartons.

For a description and a diagram of accessory equipment included with the IC-756PRO, see ‘Supplied ac- cessories’ on p.1 of this manual.

■ Selecting a location

Select a location for the transceiver that allows adequate air circulation, free from extreme heat, cold, or vibrations, and away from TV sets, TV antenna elements, radios and other electro-magnetic sources.

The base of the transceiver has an adjustable stand for desktop use. Set the stand to one of two angles depending on your operating conditions.

■ Grounding

To prevent electrical shock, television interference (TVI), broadcast interference (BCI) and other problems, ground the transceiver through the GROUND terminal on the rear panel.

For best results, connect a heavy gauge wire or strap to a long earth-sunk copper rod. Make the distance between the [GND] terminal and ground as short as possible.

RWARNING: NEVER connect the [GND]

terminal to a gas or electric pipe, since the connection could cause an explosion or electric shock.

■ Antenna connection

For radio communications , the antenna is of critical importance, along with output power and sensitivity. Select antenna(s), such as a well-matched 50 Ω antenna, and feedline.1.5:1 or better of Voltage Standing Wave Ratio (VSWR) is recommended for your desired band. Of course, the transmission line should be a coaxial cable.

When using 1 antenna, use the [ANT1] connector.

CAUTION:Protect your transceiver from lightning

by using a lightning arrestor.

Antenna SWR

Each antenna is tuned for a specified frequency range and SWR may be increased out-of-range. When the SWR is higher than approx. 2.0:1, the transceiver’s power drops to protect the ﬁnal transis- tor.In this case, an antenna tuner is useful to match the transceiver and antenna. Low SWR allows full power for transmitting even when using the antenna tuner.The IC-756PRO has an SWR meter to monitor the antenna SWR continuously.

PL-259 CONNECTOR INSTALLATION EXAMPLE

30 mm ≈9⁄8 in 10 mm ≈3⁄8 in 1–2 mm ≈1⁄16 in

Coupling ring

30 mm

10 mm (soft solder)

10 mm

Soft solder

1–2 mm

solder solder

Slide the coupling ring down. Strip the cable jacket and soft solder.

Strip the cable as shown at left. Soft solder the center conductor.

Slide the connector body on and solder it.

Screw the coupling ring onto the connector body.

INSTALLATION AND CONNECTIONS

TIMER

POWER

TRANSMIT

PHONES

ELEC-KEY

MIC

TUNER MONITOR NB NR

AF BAL NRRF/SQL

MIC GAIN RF POWER COMP KEY SPEED BK-IN DELAY

LOCKTX

TWIN PBT

CW PITCH

F-1 F-2 F-3 F-4 F-5

SPEECH LOCK

RIT/ TX

TXRIT CLEAR

SPLIT

MP-W MP-R

DUAL

WATCH

VFO/ MEMO

MAIN/ SUB

CHANGE

1.813.527

10414518

21724828

GENE

•

F-INP

ENT

M-CL

XFC

HF/50MHz TRANSCEIVER

i756PRO

PBT CLR NOTCH

NOTCH

SSB

CW/RTTY

AM/FM FILTER EXIT

CW KEY

A straight key can be used when the internal electronic keyer is turned OFF in keyer set mode. (p. 42)

MICROPHONES (p. 81)

SM-20HM-36

GROUND (p. 14)

Use the heaviest gauge wire or strap available and make the connection as short as possible.

Grounding prevents electrical shocks, TVI and other problems.

ANTENNA 1, 2 (p. 14) [Example]: ANT1 for 1.8–18 MHz bands

ANT2 for 21–50 MHz bands

DC POWER SUPPLY

STRAIGHT KEY

13.8 V DC 25 A

■ Required connections

•Front panel

•Rear panel

INSTALLATION AND CONNECTIONS

TIMER

POWER

TRANSMIT

PHONES

ELEC-KEY

MIC

TUNER MONITOR NB NR

AF BAL NRRF/SQL

MIC GAIN RF POWER COMP KEY SPEED BK-IN DELAY

LOCKTX

TWIN PBT

CW PITCH

F-1 F-2 F-3 F-4 F-5

SPEECH LOCK

RIT/ TX

TXRIT CLEAR

SPLIT

MP-W MP-R

DUAL

WATCH

VFO/ MEMO

MAIN/

SUB

CHANGE

1.813.527

10414518

21724828

GENE

•

F-INP

ENT

M-CL

XFC

HF/50MHz TRANSCEIVER

i756PRO

PBT CLR NOTCH

NOTCH

SSB

CW/RTTY

AM/FM FILTER EXIT

HEADPHONES

MIC

The AFSK modulation signal can be input from [MIC]. (p. 21)

ANTENNA 1, 2 (pgs. 18–20) Connects a linear amplifier, antenna selector, etc.

EXTERNAL SPEAKER (p. 81)

ACC SOCKETS (p. 13)

RX ANTENNA

TRANSVERTER

(p. 19) Connects a transverter for V/UHF band use.

SP-20

AH-4, AH-3

(p. 20)

AH-2b

[REMOTE] (pgs. 12, 72) Used for computer control and transceive operation.

[SEND], [ALC] (p. 19) Used for connecting a non-Icom linear amplifier.

When using the AH-4 or AH3, it must be connected to the [ANT1] connector.

■ Advanced connections

•Front panel

•Rear panel

INSTALLATION AND CONNECTIONS

■ Power supply connections

Use an optional DC power supply with a 25 A capacity and above when operating the transceiver with AC power. Refer to the diagrams below.

CAUTION: Before connecting the DC power

cable, check the following impor tant items. Make sure:

•The [POWER] switch is OFF.

•Output voltage of the power source is 12–15 V

when you use a non-Icom power supply.

•DC power cable polarity is correct.

Red :positive + terminal Black : negative _ terminal

CONNECTING A DC POWER SUPPLY

CONNECTING A VEHICLE BATTERY

NEVER connect to

a 24 V battery.

NOTE: Use terminals for the cable connections.

AC outlet

AC cable

A DC power supply

13.8 V 25 A Black_Red

30 A fuses

to DC power socket

Supplied DC power cable

Transceiver

Grommet

_ black

12 V battery

+ red

Supplied DC power cable

Crimp

Solder

INSTALLATION AND CONNECTIONS

■ Linear ampliﬁer connections

Use the [ANT1] connector when connecting a linear ampliﬁer.

CONNECTING THE IC-PW1

Turn OFF the transceiver’s antenna tuner while tuning the IC-PW1’s tuner.

CONNECTING THE IC-4KL

Turn OFF the transceiver’s antenna tuner while tuning the IC-4KL’s tuner.

Remote control cable

ACC cable (supplied with the IC-PW1)

INPUT1

INPUT2

GND

ANT

To an antenna

ACC-1

REMOTE

EXCITER 1 1&2

IC-PW1

AC outlet

(Non-European versions : 100–120/220–240 V European version : 230 V)

(supplied with the IC-PW1)

Be sure to connect the cable to the 7-pin ACC(2) jack.

Coaxial cable

(supplied with the IC-PW1)

Connect

Coaxial cable

(optional)

ANT2 ANT1 ACC(2) REMOTE

GND

Ground

[INPUT2] if necessary.

IC-756PRO

(supplied with the IC-4KL)

ACC cable (supplied with the IC-4KL)

IC-4KL

Remote

controller

Remote control cable

ANT1

Transceiver

Coaxial cable

ACC(2)

Ground

To an antenna

ACC

IC-4KL

(supplied with the IC-4KL)

AC outlet (220–240 V)

INSTALLATION AND CONNECTIONS

CONNECTING THE IC-2KL

CAUTION:

Set the transceiver output power for 80 W max. with the [RF POWER] control, otherwise, a protection circuit will activate.

CONNECTING A NON-ICOM LINEAR AMPLIFIER

R WARNING:

Set the transceiver output power and linear amplifier ALC output level ref erring to the linear ampliﬁer instruction manual.

The ALC input level must be in the

range 0 V to –4 V, and the transceiver does not accept positive voltage.Non-matched ALC and RF power settings could cause a fire or ruin the linear ampliﬁer.

The speciﬁcations for the SEND relay are 16 V DC 2 A. If this level is exceeded, a large external relay must be used.

When 2 to 13.8 V is applied to pin 6 of [ACC(2)], the [XVERT] jack is activated for transverter operation and the antenna connectors do not receive or transmit any signals.(p.13)

While receiving, the [XVERT] jack can be activ ated as an input terminal from an external transverter.

While transmitting, the [XVERT] jack outputs signals of the displayed frequency at –20 dBm (22 mV) as signals for the external transverter.

Transverter jack

■ Transverter jack information

To an antenna

ANT

GND

ACC cable (supplied with the IC-2KL)

Coaxial cable (supplied with the IC-2KL)

IC-2KL

ANT1

Transceiver

To the IC-2KLPS

To an antenna

RF OUTPUT RF INPUT

Non-Icom linear amplifier

ACC(2)ACC(1)

Ground

ALC

SEND

OPC-118 (sold separately)

50 Ω coaxial cable

ANT1

Transceiver

ALC SEND

INSTALLATION AND CONNECTIONS

■ External antenna selector or antenna tuner connections

CONNECTING THE EX-627

CONNECTING THE AH-4 or AH-3

CONNECTING THE IC-A T500 THROUGH THE IC-2KL

•The AH-4 and AH-3 must be connected to [ANT1].

•The AH-3 can be used for the HF bands only, although the [ANT1] con-

nector is used for both HF and 50 MHz operation.Use a coaxial antenna switch when you operate the 50 MHz band with the AH-3 connected.

Coaxial cable (supplied with the EX-627)

ANT1

EX-627

ACC(2)

ACC cable

(supplied with the EX-627)

Ground

Coaxial cable (from the AH-4 or AH-3)

ANT1

Transceiver

Control cable

Ground

AH-4 or AH-3

Long wire or optional AH-2b

To an

Coaxial cable

(supplied with the IC-AT500)

antenna

ANT

GND

To the IC-2KLPSIC-AT500

Ground

ACC cable

(supplied with the IC-2KL)

ACC cable

(supplied with the IC-AT500)

IC-2KL

Coaxial cable

(supplied with the IC-2KL)

ANT1

ACC(1) ACC(2)

OPC-118

Transceiver

(sold separately)

AF input Ground (GND)

PTT SQUELCH input* RTTY keying

* Connect the SQUELCH line when required.

Terminal unit (TU) or Terminal Node Controller (TNC)

[ACC(1)] socket

(Rear panel view)

AFSK output

AF input Ground (GND)

Ground (GND)

PTT SQUELCH input*

* Connect the SQUELCH line when required.

Terminal Node Controller (TNC) or Scan converter

[ACC(1)] socket

(Rear panel view)

AF input

Ground (GND)

AFSK output

PTT SQUELCH input*

* Connect the SQUELCH line when required.

Terminal Node Controller (TNC) or Scan converter

[MIC] connector

(Front panel view)

345

678

INSTALLATION AND CONNECTIONS

■ FSK and AFSK (SSTV) connections

To connect a terminal unit, TNC or scan conver ter, refer to the diagram below.

For RTTY operation:

Narrow filter settings may not pass RTTY signals. Be sure to select the appropriate IF filter settings corresponding to the signal width. (p.29)

FSK (RTTY) connection

Use RTTY mode for operation

AFSK and SSTV connections

Use SSB or FM mode for operation

AFSK and SSTV connections via microphone connector

Use SSB or FM mode for operation

When connected to the [MIC] connector, [MIC GAIN] and [AF] control adjustment is required.

FREQUENCY SETTING

■ When ﬁrst applying power (CPU resetting)

Before ﬁrst applying pow er, make sure all connections required for your system are complete by referring to Chapter 3. Then, reset the transceiver using the following procedure.

Resetting CLEARS all programmed contents in memory channels and returns programmed values in set mode to default values.

q Make sure the transceiver power is OFF. w While pushing [M-CL] and [F-INP], push [POWER]

for 2 sec.to turn power ON.

•The internal CPU is reset.

•A/D convertor calibration of the DSP unit starts and it

takes 10 sec.

•The transceiver displa ys its initial VFO frequencies when resetting is complete.

e Correct the set mode settings after resetting, if de-

sired.

■ Initial settings

After resetting the transceiver, set controls and switches as shown in the ﬁgure below.

[POWER] [M-CL]

[F-INP]

[METER]: Po

[ANT]: 1

[ATT]: OFF

[P.AMP]: 1

[PBT CLR]: OFF

[NOTCH]: OFF

[LOCK]: OFF

[AGC]: MID*

[POWER]: OFF [TUNER], [MONITOR],

[NB], [NR]: OFF

[COMP]*2: OFF WIDE; [1/4],*

[TONE]*2: OFF

[VOX],*2 [BK-IN],*2 [RTTY FIL]*

: OFF

[AF]: Max. CCW

[RF/SQL]: 12 o’clock

[RF POWER]: Max. CW

[MIC GAIN]: 10–12 o’clock

[BAL]: Center

FAST in FM mode.

Appears in some modes.

Turn power ON, then check the display. If any of the following indicators appear, turn them OFF as f ollows:

•Quick tuning step indicator “▼” : Push [TS].

•1 Hz frequency readout :Push [TS] for 2

sec. (while quick tuning step is OFF)

•RIT indicator “” :Push [RIT].

•∂TX indicator “” : Push [∂TX].

•Split indicator “” :Push [SPLIT].

•Dualwatch indicator “”: Push [DUAL

WATCH].

•Twin peak ﬁlter indicator “”:Push [RTTY FIL].

•Auto notch indicator “”: Push [NOTCH].

•Manual notch indicator “”: Push [NOTCH].

MNMN

ANAN

TPFTPF

DUAL-WDUAL-W

SPLITSPLIT

∂TXTX

RITRIT

Under cooler temperatures, the LCD may appear dark and unstable after turning power ON. This is normal and does not indicate any equipment malfunction.

CW : Max. clockwise CCW : Max. counterclockwise

FREQUENCY SETTING

■ VFO description

VFO is an abbreviation of Variable Frequency Oscillator, and traditionally refers to an oscillator.

The transceiver’s VFO is somewhat different.The VFO of the IC-756PRO acts like a computer’s window and can show one frequency and one operating mode.

You can call up a desired frequency to the VFO with the keypad, memo pad-read switch (see p. 55) or the memory transfer function (see p. 53). You can also change the frequency with the tuning dial and select the operating mode with the mode switches.

During dualwatch or split frequency operation, the sub VFO is functional (non-outline, non-spotted, larger frequency characters). While pushing [XFC] during split frequency operation, you can change the transmit readout frequency with the keypad, memo pad-read switch or the memory transfer function.

ANTANT

METERMETER

PoPo

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

qr≥qpp≥pp

21.076.5021.076.50

Transfer

Change

21.295 MHz 28.025 MHz 7.001 MHz

KEYPAD

(BAND KEY)

MEMORY

CHANNEL

MEMO PAD

TUNING DIAL

Select

MODE

SWITCHES

•Differences between VFO mode and memory mode

VFO MODE

VFO shows a frequency and operating mode. If the frequency or operating mode is changed, the VFO automatically memorizes the new frequency or new operating mode.

When a VFO is selected from another band or memory mode, the frequency and operating mode last used for that VFO appear.

[EXAMPLE]

MEMORY MODE (pgs. 50–54)

Each memory channel shows a frequency and operating mode like a VFO. Even if the frequency or mode is changed, the memory channel does not memorize the new frequency or operating mode.

When the memory channel is selected from another memory channel or VFO mode, the memorized frequency and operating mode appear.

[EXAMPLE]

ANT

METER

2.4k

SFT

VFO

FIL2

USB

21.076.50

ANT

METER

500

SFT

BPF

FIL2

VFO

USB

14.123.00

ANT

METER

2.4k

SFT

VFO

FIL2

USB

21.076.50

ANT

METER

2.4k

SFT

VFO

FIL2

USB

21.076.50

ANT

METER

2.4k

SFT

FIL2

USB

VFO

USB

14.100.00

ANT

METER

2.4k

SFT

FIL2

USB

VFO

USB

14.100.00

ANT

METER

2.4k

SFT

FIL2

USB

VFO

USB

14.100.00

ANT

METER

2.4k

SFT

FIL2

USB

VFO

USB

14.100.00

VFO is selected.

ANT

METER

The frequency is changed.

Memory mode is selected.

VFO is selected again.

ANT

METER

ANT

METER

ANT

METER

Changed frequency (14.123 MHz) appears.

2.4k

VFO

2.4k

VFO

SFT

USB

FIL2

qr≥qpp≥pp

21.076.50

SFT

USB

FIL2

qr≥qwe≥pp

21.076.50

500

2.4k

VFO

SFT

14.123.00

USB

21.076.50

FIL2

wq≥puy≥tp

VFO

SFT

qr≥qwe≥pp

BPF

USB

qw:pp

Memory channel 1 is selected.

ANT

METER

The frequency is changed.

Another memory channel is selected.

Memory channel 1 is selected again.

ANT

METER

ANT

METER

ANT

METER

Changed frequency (14.123 MHz) does not appear and memorized frequency (14.100 MHz) appears instead.

2.4k

SFT

USB

14.100.00

USB

14.100.00

USB

14.100.00

USB

14.100.00

FIL2

USB

FIL2

USB

FIL2

USB

FIL2

USB

qr≥qpp≥pp

VFO

SFT

qr≥qwe≥pp

VFO

SFT

wq≥wrt≥pp

VFO

SFT

qr≥qpp≥pp

VFO

qw:pp

■ Direct frequency entry with the keypad

■ Frequency setting with the tuning dial

•For ham band use

q Push the desired band key on the keypad 1–3

times.

•3 different frequencies can be selected on each band

with the band key. (See “Triple band stacking register” below.)

w Rotate the tuning dial to set the desired frequency.

e Select the desired operating mode with the mode

switch.(p.26)

•For general coverage receiver use

q Push [GENE] on the keypad 1–3 times.

•The [GENE] key calls up a frequency for general cov-

erage receiver use.

w Rotate the tuning dial to set the desired frequency.

•For quick tuning, use the quick tuning step function. (p.

25)

e Select the desired operating mode with the mode

switch.(p.26)

ANT

METER

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

o≥uip≥pp

21.076.5021.076.50

ANT

METER

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

qt≥qpp≥pp

21.076.5021.076.50

ANT

METER

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

wq≥wot≥pp

21.076.5021.076.50

ANT

METER

BWBW

2.4k2.4k

SFTSFT

VFOVFO

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

wq≥wpp≥pp

21.076.5021.076.50

FREQUENCY SETTING

The transceiver has a keypad for direct frequency entry as described below.

q Push [F-INP].

•“ ” appears.

w Input the desired frequency.

•Input “•” (decimal point) between the MHz units and

kHz units.

e Push [(F-INP)ENT] to enter the input frequency.

•To cancel the input, push [MAIN/SUB] instead of

[(F-INP)ENT].

[EXAMPLE]

F-inp

If the dial lock function is activated, the lock indicator lights, and the tuning dial does not function. In this case, push [LOCK] to deactivate the lock function.

TRIPLE BAND STACKING REGISTER

The triple band stacking register provides 3 memories in one band.3 sets of a frequency and mode on each band are automatically stored when used.

If a band key is pushed once, the frequency and mode last used are called up.When the key is pushed again, another stored frequency and mode are called up.

This function is convenient when you operate 3 modes on one band. For example, one register is used for a CW frequency, another for an SSB frequency and the other one for an RTTY frequency.

[EXAMPLE]

21 m

14 b

14.025.00

14.090.00

RTTY

14.195.00

USB

14 MHz band

Push

14 b

21.025.00

21.090.00

RTTY

21.295.00

USB

21 MHz band

Push

F-INP

ENT

21.280 21.245

14.025 MHz

1 04 2• 5

08 7• 2 5

ENT7 0• 6

F-INP ENT

2 4• 5

F-INP ENT

18.0725 MHz

1F-INP

706 kHz

F-INP ENT

• 15

5.100 MHz

F-INP ENT

7.000 MHz

■ Advanced tuning functions

FREQUENCY SETTING

SELECTING THE 1 Hz STEP

The minimum tuning step of 1 Hz can be used for ﬁne tuning.

q Turn OFF the quick tuning step.

•“▼” does not appear.

w Push [TS] for 2 sec. to toggle the 1 Hz tuning step

ON and OFF.

•RIT and/or ∂TX also functions in 1 Hz tuning step when used.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SCOPESCOPE

VOICEVOICE

MEMORYMEMORY

SCANSCAN

SETSET

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥ppp

qr≥wpt≥ppp

14.100.0014.100.00

VFOVFO

1 Hz step indicator

1/4 TUNING STEP FUNCTION (CW/RTTY only)

While operating in CW/RTTY, the 1/4 function is available for critical tuning. Dial rotation is reduced to 1/4 of normal when the 1/4 function is in use.

➥Push [1/4] to toggle the 1/4 function ON and OFF.

1/41/4

ONON

1/41/4 OFFOFF

1/4 tuning step OFF 1/4 tuning step ON

AUTO TUNING STEP FUNCTION (AM/FM only)

When selecting AM or FM, the quick tuning step is automatically selected by the auto tuning step function.

QUICK TUNING STEP

The operating frequency can be changed in kHz steps (0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz selectable) for quick tuning.

q Push [TS] momentar ily to display the quick tuning

indicator.

w Rotate the tuning dial to change the frequency in

programmed kHz steps.

e Push [TS] again to turn OFF the indicator. r Rotate the tuning dial for normal tuning if desired.

SELECTING THE kHz STEP

q Push [TS] momentar ily to turn the quick tuning

step ON.

w Push [TS] for 2 sec. to enter the quick tuning step

setting display.

•Selected tuning steps for all modes appear.

e Select the desired operating mode. r Rotate the tuning dial to select the desired tuning

step from 0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz.

t Repeat steps e and r to select quick tuning

steps for other modes, if desired.

y Push [EXIT] to exit the setting display.

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

DEFDEF

AGCAGC MIDMID

TSTS

FMFMAMAM

1010

(kHz)(kHz)

1111

SSBSSB CWCW RTTYRTTY

ANT

METER

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

qw:pp

TXTX

CWCW

qr≥qpp≥pp

21.076.5021.076.50

VFOVFO

USBUSB

Quick tuning indicator

■ Mode selection

■ Twin PBT operation

General PBT (Passband Tuning) function electronically narrows the IF passband width by shifting the IF frequency to slightly outside of the IF ﬁlter passband to reject interference.This transceiver uses the DSP circuit for the PBT function. Moving both [TWIN PBT] controls to the same position shifts the IF. ➥ The LCD shows the passband width and shift fre-

quency graphically.

➥ Push [FILTER] f or 2 sec.to enter the ﬁlter set mode.

Current passband width and shift frequency is displayed in the ﬁlter set mode screen.

➥ To set the [TWIN PBT] controls to the center posi-

tions, push [PBT CLR] for 2 sec.

The variable range depends on the passband width and mode.The edge of the variable range is half of the passband width, and PBT is adjustable in 25 or 50 Hz steps. These controls function as an IF shift control while in AM mode and when the RTTY ﬁlter is turned ON.Only the inner control may function in this case .IF shift is adjustable in 20/40 Hz steps in RTTY (R TTY ﬁl- ter is turned ON) or 150/300/500 Hz steps in AM.

•[TWIN PBT] should normally be set to the center positions (PBT setting is cleared) when there is no interference.

•When PBT is used, the audio tone may be changed.

•Not available for FM mode.

•While rotating [TWIN PBT], noise may occur.This comes

from the DSP unit and does not indicate an equipment malfunction.

RECEIVE AND TRANSMIT

The following modes are available in the IC-756PRO: SSB (LSB/USB), CW, CW-R (CW reverse), RTTY,

RTTY-R (RTTY reverse), AM and FM. Data modes of SSB, AM and FM are also available.

Microphone signals are muted when data mode is selected.

To select a mode of operation, push the desired mode switch momentarily. Push the switch again to toggle between USB and LSB, CW/CW-R and RTTY/RTTYR, AM and FM, if necessary. Push the switch for 2 sec. to toggle between normal and data mode, CW and CW-R, RTTY and RTTY-R, if necessary.

See the diagram below for the order of selection.

PBT OPERATION EXAMPLE

SSB

USB USB-D

CW/RTTY

CW CW-R

AM/FM

AM AM-D

Push mode switch for 2 sec.

LSB LSB-D

RTTY RTTY-R

FM FM-D

Push mode switch momentarily.

Both controls at center position

TWIN PBT TWIN PBT

IF center frequency Interference Desired signal

Cutting a lower passband

TWIN PBT

Passband

Cutting both higher and lower passbands

Passband

Interference Interference

Desired signal

RECEIVE AND TRANSMIT

■ Notch function

This transceiver has auto and manual notch functions. The auto notch function automatically attenuates more than 3 beat tones, tuning signals, etc., even if the y are moving.The manual notch can be set to attenuate a frequency via the [NOTCH] control.

➥Push [NOTCH] to toggle the notch function be-

tween auto, manual and OFF in SSB and AM modes.

➥Push [NOTCH] to turn the manual notch function

ON and OFF in CW mode.

➥Push [NOTCH] to turn the auto notch function ON

and OFF in FM mode.

•Set to attenuate a frequency for manual notch via the [NOTCH] control.

•“AN” appears when auto notch is in use.

•“MN” appears when manual notch is in use.

While operating the manual notch, noise may be heard.This comes from the DSP unit and does not indicate an equipment malfunction.

■ Noise blanker

The noise blanker eliminates pulse-type noise such as from car ignitions. The noise blanker is not available for FM mode.

➥Push the [NB] switch to turn the noise blanker ON

or OFF.

When using the noise blanker, received signals may be distorted if they are excessively strong.

Noise blanker OFF Noise blanker ON

NB NB

■ Noise reduction

The noise reduction function reduces noise components and picks out desired signals which are buried in noise.The received signals are converted to digital signals and then the desired signals are separated from the noise.

q Push the [NR] switch to tur n the noise reduction

ON.

•[NR] indicator lights.

w Rotate the [NR] control to adjust the noise reduc-

tion level.

e Push the [NR] switch to tur n the noise reduction

OFF.

•[NR] indicator does not light.

Deep rotation of the [NR] control results in audio signal masking or distortion. Set the [NR] control for maximum readability.

Auto notch OFF Auto notch ON

Desired signal (AF)

Unwanted tone frequency

Noise reduction OFF Noise reduction activated

BAL

Noise components

Particular frequency is attenuated

BAL

Desired signal (AF)

Desired signal (CW)

[NB] switch

The transceiver has 5 RTTY ﬁlters in addition to normal IF filters. The passband width can be selected from 1 kHz, 500 Hz, 350 Hz, 300 Hz and 250 Hz. When the RTTY ﬁlter is turned ON, the RTTY tuning meter can be used. (p.41)

Moreover, the twin peak ﬁlter changes the receive frequency response by boosting 2 particular frequencies (2125 and 2295 Hz) for better copying of desired RTTY signals.

q Push [CW/RTTY] once or twice to select RTTY

mode.

w Push [RTTY FIL] to turn the RTTY ﬁlter ON.

•“TPF” appears when the twin peak ﬁlter is turned ON.

•RTTY ﬁlter selection

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select RTTY mode. e Push [RTTY FIL] for 2 sec. to enter RTTY ﬁlter set

mode.

r Push [(F-1)Y] to select band width item. t Rotate the tuning dial to select the RTTY filter

width from 1 kHz, 500 Hz, 350 Hz, 300 Hz and 250 Hz.

•Push [(F-3)DEF] for 2 sec.to select a default value.

y Push [(F-2)Z] to select twin peak ﬁlter item.

•The received audio volume may become greater when the twin peak ﬁlter is turned ON.

u Rotate the tuning dial to tur n the twin peak filter

function ON or OFF.

i Push [EXIT] to exit the RTTY ﬁlter set mode.

ANT

METER

BWBW

350350

SFTSFT

VFOVFO

FIL2FIL2

RTTYRTTY

qw:pp

TXTX

CWCW

qr≥qpp≥pp

21.076.5021.076.50

TPFTPF

[RTTY FIL]

[CW/RTTY]

TPF indicator

RECEIVE AND TRANSMIT

■ RTTY reverse mode

Received characters are occasionally garbled when the receive signal is reversed between MARK and SPACE.This reversal can be caused by incorrect TNC connections, settings, commands, etc.

To receive a reversed RTTY signal correctly, select RTTY-R (RTTY Reverse) mode.

q Push [CW/RTTY] once or twice to select RTTY

mode.

w Push [CW/RTTY] for 2 sec. to select RTTY or

RTTY-R mode.

•Check the receive signal.

■ RTTY ﬁlter/Twin peak ﬁlter

■ CW reverse mode

CW-R (CW Re verse) mode receives CW signals with a reverse side CW carrier point like that of LSB and USB modes.

Use when interfering signals are near a desired signal and you want to change the interference tone.

q Push [CW/RTTY] once or twice to select CW

mode.

w Push [CW/RTTY] for 2 sec. to select CW or CW-R

mode.

•Check the interfering tone.

•Receive audio tone response

BFO

1/3 octave

Push for 2 sec.

Desired signal (600 Hz)

CW mode (USB side)

Interference (800 Hz)

BFO

1/2 octave

Desired signal (600 Hz)

CW-R mode (LSB side)

Interference (400 Hz)

CW/RTTY

RECEIVE AND TRANSMIT

■ CW pitch control

The received CW audio pitch and monitored CW audio can be adjusted to suit your preferences (300 to 900 Hz) without changing the operating frequency.

The received CW audio pitch can be adjusted in 25 Hz steps.

The ﬁlter set mode screen graphically displays the CW pitch operations.(See below.)

■ IF ﬁlter selection

The transceiver has 3 passband width IF filters for each mode.

For SSB and CW modes, the passband width can be set within 50 to 3600 Hz in 50 or 100 Hz steps.A total of 41 passband widths are available.

For RTTY mode, the passband width can be set within 50 to 2700 Hz in 50 or 100 Hz steps.A total of 32 passband widths are available.

For AM and FM modes, the passband width is ﬁxed and 3 passband widths are available.

The filter selection is automatically memorized in each mode.

The PBT shift frequencies are automatically memorized in each ﬁlter.

•IF ﬁlter selection

q Select the desired mode. w For RTTY mode, turn OFF the RTTY ﬁlter by push-

ing [RTTY FIL].

e Push [FILTER] one or more times to select the IF

ﬁlter 1, 2 or 3.

•The selected passband width and ﬁlter number is dis-

played in the LCD.

•Filter passband width setting

(SSB, CW and RTTY mode only)

q Select SSB, CW or RTTY mode.

•Passband widths for AM and FM modes are ﬁxed and cannot be set.

w For RTTY mode, turn OFF the RTTY ﬁlter by push-

ing [RTTY FIL].

e Push [FILTER] for 2 sec. to enter ﬁlter set mode.

r Push [FILTER] one or more times to select the de-

sired IF ﬁlter.

t While pushing [(F-1)BW], rotate the tuning dial to

set the desired passband width.

•In SSB and CW modes, the passband width can be set within the following range.

50 to 500 Hz 50 Hz steps 600 to 2700 Hz 100 Hz steps

•In RTTY mode, the passband width can be set within the following range.

50 to 500 Hz 50 Hz steps 600 to 2700 Hz 100 Hz steps

•Push [(F-3)DEF] to select the default value.

y Repeat steps r to t if desired. u Push [EXIT] to exit the ﬁlter set mode screen.

The PBT shift frequencies are cleared when the passband width is changed.

This ﬁlter set mode screen graphically displays the PBT shift frequencies and CW pitch operations.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

BWBW

DEFDEF

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

FILTERFILTER

SSBSSB

FIFIL 1

FIFIL 2

FIFIL 3

3.0k3.0k

2.4K2.4K

1.8K1.8K

PBT2PBT2

PBT1PBT1

300300 15001500 27002700

Passband

width

Selected

IF filter

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

Passband

width

Selected

IF filter

RECEIVE AND TRANSMIT

■ AGC function

The AGC (auto gain control) controls receiver gain to produce a constant audio output level even when the received signal strength is varied by fading, etc.

The transceiver has 3 AGC characteristics (time constant; fast, mid, slow) for non-FM mode.

The FM mode AGC time constant is ﬁx ed as ‘FAST’

(0.1 sec.) and AGC time constant cannot be selected.

•AGC time constant selection

q Select non-FM mode. w Push [AGC] one or more times to select AGC fast,

AGC medium (MID) or AGC slow.

•Selectable AGC time constant (unit: sec.)

•Setting the AGC time constant

q Select the desired mode except FM mode. w Push [AGC] for 2 sec. to enter AGC set mode.

e Push [AGC] one or more times to select FAST time

constant.

r Rotate the tuning dial to set the desired time con-

stant for ‘AGC FAST.’

•AGC time constant can be set between 0.1 to 8.0 sec. (depends on mode) or turned OFF.

•Push [(F-3)DEF] to select a default value.

t Push [AGC] to select medium time constant. y Rotate the tuning dial to set the desired time con-

stant for ‘AGC MID.’

•AGC time constant can be set between 0.1 to 8.0 sec.

(depends on mode) or turned OFF.

•Push [(F-3)DEF] to select a default value.

u Push [AGC] to select slow time constant. i Rotate the tuning dial to set the desired time con-

stant for ‘AGC SLOW.’

•AGC time constant can be set between 0.1 to 8.0 sec.

(depends on mode) or turned OFF.

•Push [(F-3)DEF] to select a default value.

o Select another mode except FM. Repeat steps e

to o if desired.

!0 Push [EXIT] to exit the AGC set mode screen.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

DEFDEF

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

AGCAGC

(sec)(sec)

FMFM

AMAM

0.10.1

3.03.0

5.05.0

7.07.0

1.21.2

0.50.5

0.10.1

0.30.3

2.02.0

6.06.0

0.50.5

1.21.2

------

SSBSSB

FASTFAST

SLOWSLOW

MIDMID

CWCW RTTYRTTY

Mode Default

Selectable AGC time constant

SSB

0.3 (FAST)

OFF, 0.1, 0.2, 0.3, 0.5, 0.8,

1.2, 1.6, 2.0, 2.5, 3.0, 4.0,

5.0, 6.0

2.0 (MID)

6.0 (SLOW)

0.1 (FAST)

OFF, 0.1, 0.2, 0.3, 0.5, 0.8,

1.2, 1.6, 2.0, 2.5, 3.0, 4.0,

5.0, 6.0

0.5 (MID)

1.2 (SLOW)

RTTY

0.1 (FAST)

OFF, 0.1, 0.2, 0.3, 0.5, 0.8,

1.2, 1.6, 2.0, 2.5, 3.0, 4.0,

5.0, 6.0

0.5 (MID)

1.2 (SLOW)

3.0 (FAST)

OFF, 0.3, 0.5, 0.8, 1.2, 1.6,

2.0, 2.5, 3.0, 4.0, 5.0, 6.0,

7.0, 8.0

5.0 (MID)

7.0 (SLOW)

FM 0.1 (FAST) Fixed

AGCAGC MIDMID

AGCAGC

SLOWSLOW

AGCAGC

FASTFAST

Medium AGC time constant

Slow AGC time constant

Fast AGC time constant

RECEIVE AND TRANSMIT

■ Dualwatch operation

Dualwatch monitors 2 frequencies with the same mode simultaneously.

During dualwatch, both frequencies should be on the same band, because the bandpass ﬁlter in the RF circuit is selected for the main readout frequency.

q Set a desired frequency. w Push [DUALWATCH] for 2 sec.

•Equalized receive frequency and “”appear in the LCD.This quick dualwatch function can be turned OFF in set mode.(p. 68)

•Pushing [DUALWATCH] momentarily activates the dualwatch with the previously operated frequency.

e Set another desired frequency using the tuning

dial.

r Adjust [BAL] to set a suitable signal strength bal -

ance between the main and sub readout frequencies.

•S-meter shows the combined signal strength.

t To transmit on the sub readout frequency, push

[CHANGE] or [SPLIT].

RIT function can be used for the main readout only. ∂TX function can be used for the transmit readout (main readout when the split function is OFF; sub readout when the split function is ON).

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

TXTX

5656

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

DUAL-WDUAL-W

•Scanning during dualwatch

Scanning operates only for the main readout.To operate the scan during dualwatch, scan on the main readout and use the sub readout for your QSO using both dualwatch and split frequency operation.

q Program the desired programmed scan edges in

the same amateur band. See p. 52 for programming.

•If you plan to operate a ∂F scan, programming the scan edges may not be necessary.

w Push [SPLIT] to tur n the split frequency function

ON.

•“ ” appears.

e Select VFO mode for the main readout. r Set the desired operating frequency for the main

readout.

t Push [DUALWATCH] for 2 sec.

•The main and sub readout frequencies are equalized and the dualwatch function is turned ON.

y Push [(F-4)SCAN] to select the scan screen.

•Push [EXIT] one or more times to close a multi-function screen, if necessary.

u Push [(F-1)PROG] or [(F-2)∂F] to star t the pro-

grammed scan or ∂F scan, respectively.

•Scan activates on the main readout between the programmed scan edges or within the ∂F span.

•Transmitting on the sub readout stops the scan.

i To cancel the scan, push [EXIT].

wq≥wop≥pp

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

USBUSB

FIL2FIL2

wq≥wtp≥pp

14.100.0014.100.00

VFOVFO

SPLITSPLIT

DUAL-WDUAL-W

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

PROGPROG

∂

FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

TXTX

PROGRAM SCANPROGRAM SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1: 21.000.00MHz21.000.00MHz scanscan edgesedges P2:P2: 21.450.00MHz21.450.00MHz

wq≥wop≥pp

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

SPLITSPLIT

DUAL-WDUAL-W

TXTX

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

qr≥wpt≥pp

SPLITSPLIT

TXTX

SPLITSPLIT

RECEIVE AND TRANSMIT

■ Split frequency operation

Split frequency operation allows you to transmit and receive in the same mode on two different frequencies. The split frequency operation is basically performed using 2 frequencies on the main and sub readouts.

Following is an e xample of setting 21.290 MHz for receiving and 21.310 MHz for transmitting.

q Set 21.290 MHz (USB) in VFO mode.

w Push [SPLIT] momentar ily, then push [CHANGE]

for 2 sec.

•The quick split function is much more convenient for selecting the transmit frequency. See the next section for details.

•The equalized transmit frequency and “”appear on the LCD.

•“TX” appears to show the transmit frequency’s readout.

e Rotate the tuning dial while pushing [XFC] to set

the transmit frequency to 21.310 MHz.

•The transmit frequency can be monitored while pushing [XFC] or using dualwatch.

r Now you can receive on 21.290 MHz and transmit on

21.310 MHz.

To change the transmit and receive frequencies, push [CHANGE] to exchange the main and sub readouts.

DIRECT SHIFT FREQUENCY INPUT

The shift frequency can be entered directly.

q Push [F-INP]. w Enter the desired shift frequency with the digit

keys.

•1 kHz to 1 MHz can be set.

•When you require a minus shift direction, push [ •] in

advance.

e Push [SPLIT].

•The shift frequency is input in the sub readout and the split function is turned ON.

[EXAMPLE]

DUALWATCH FUNCTION

The dualwatch function is convenient for tuning the transmit frequency while monitoring both frequencies used for transmitting and receiving.

SPLIT LOCK FUNCTION

Accidentally releasing the [XFC] switch while rotating the tuning dial changes the receive frequency.T o prevent this, use both the split lock and dial lock functions to change the transmit frequency only. The split lock function cancels the dial lock function while pushing [XFC] during split frequency operation.

The dial lock’s effectiveness during split frequency op- eration can be selected in the set mode for both receive and transmit frequencies; or only the receive frequency. (p. 69)

CONVENIENT

•

1F-INP SPLIT

F-INP 3 SPLIT

To operate on 1 kHz higher frequency:

To operate on 3 kHz lower frequency:

CONVENIENT

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

wq≥eqp≥pp

SPLITSPLIT

TXTX

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

wq≥wop≥pp

SPLITSPLIT

TXTX

SPLITSPLIT

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

qr≥wpt≥pp

RECEIVE AND TRANSMIT

■ Quick split function

When you ﬁnd a DX station, an important consideration is how to set the split frequency.

When you push the [SPLIT] switch for 2 sec., split frequency operation is turned ON, the sub readout is equalized to the main readout frequency and enters standby for transmit frequency input.

This shortens the time needed to start split frequency operation.

The quick split function is ON by def ault.For your convenience, it can be turned OFF in set mode.(p. 68) In this case, the [SPLIT] switch does not equalize the main and sub readout frequencies.

q Suppose you are operating at 21.290 MHz (USB)

in VFO mode.

w Push [SPLIT] for 2 sec.

•Split frequency operation is turned ON.

•The sub readout is equalized to the main readout fre-

quency.

•The sub readout enters standby for transmit frequency input.

e Rotate the tuning dial to set the transmit frequency;

or, input the transmit frequency using the keypad and [ENT]; or, input a shift frequency using the keypad and [SPLIT].

•The transmit frequency can be monitored while pushing [XFC] or using dualwatch.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

wq≥eqp≥pp

SPLITSPLIT

TXTX

qw:pp

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

wq≥wop≥pp

SPLITSPLIT

TXTX

F-in

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

14.100.0014.100.00

VFOVFO

qr≥wpt≥pp

When you are searching for DX stations and you suspect that a DX station may say “up ‘X’ kHz” for their receive frequency:

OPERATION 1

q Push [SPLIT] for 2 sec. to standby for split opera-

tion.

w If the DX station says “up 10 kHz”:

•Push [1], [0] then [SPLIT].

•Or, rotate the tuning dial.

OPERATION 2

If the DX station says “do wn 5 kHz”before you enter standby for split operation:

➥Push [F-INP], [•], [5] then [SPLIT].

•The split function is turned ON and “5 kHz down” fre-

quency is entered in the sub readout.

PRACTICAL EXAMPLE

When you receive a pile-up and you want to star t split frequency operation to simplify picking out stations:

q Push [SPLIT] momentar ily and push [CHANGE]

for 2 sec.

•The sub readout frequency is equalized to the main

readout frequency and “”appears.

w Rotate the tuning dial to set your receive fre-

quency in the main readout.

e Announce your receive frequency. r After you catch one of the calling stations’ call

signs, push and hold the PTT switch to respond.

•While pushing [XFC], you can monitor your transmit

frequency.

SPLITSPLIT

PRACTICAL EXAMPLE

RECEIVE AND TRANSMIT

■ RIT and ∂∂TX

•RIT function

The RIT function shifts the receive frequency up to ±9.999 kHz in 1 Hz steps (10 Hz steps when cancelling the 1 Hz step readout) without moving the transmit frequency.

•See #0 on p. 6 for function description.

q Push the [RIT] switch.

w Rotate the [RIT/∂TX] control.

e To reset the RIT frequency, push [CLEAR] for 2

sec.

r To cancel the RIT function, push [RIT] again.

•“ ” disappears.

•∂∂TX function

The ∂TX function shifts the transmit frequency up to ±9.999 kHz in 1 Hz steps (10 Hz steps when cancelling the 1 Hz step readout) without moving the receive frequency.

•See #1 on p. 6 for function description.

q Push the [∂TX] switch.

w Rotate the [RIT/∂TX] control.

e To reset the ∂TX frequency, push [CLEAR] for 2

sec.

r To cancel the ∂TX function, push [∂TX] again.

•“ ” disappears.

∂TXTX

ANTANT

METERMETER

PoPo

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

qr≥qot≥pp

14.100.0014.100.00

-p≥pp

TXTX

P.AMPP.AMP

VFOVFO

Reset to “0.00”

RIT/∂TX

Low shift High shift

ANTANT

METERMETER

PoPo

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

qr≥qot≥pp

14.100.0014.100.00

-q≥wt

TXTX

P.AMPP.AMP

VFOVFO

“∂TX” appears.

RITRIT

ANTANT

METERMETER

PoPo

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

qr≥qot≥pp

14.100.0014.100.00

-p≥pp

RITRIT

P.AMPP.AMP

VFOVFO

Reset to “0.00”

RIT/∂TX

Low shift High shift

ANTANT

METERMETER

PoPo

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

qr≥qot≥pp

14.100.0014.100.00

-q≥wt

RITRIT

P.AMPP.AMP

VFOVFO

“RIT” appears.

When RIT and ∂TX are ON at the same time, the [RIT/∂TX] control shifts both the transmit and receive frequencies from the displayed frequency at the same time.

•Calculate function

The shift frequency of the RIT or ∂TX function can be added/subtracted to the displayed frequency.

While displaying the RIT and/or ∂TX shift frequency, push [RIT] or [∂TX] for 2 sec.

•Practical example

When you ﬁnd a DX station on 21.025 MHz/CW and the station is picking up stations transmitting slightly up from 21.025 MHz.

q Push [RIT] and [∂TX] to turn both the RIT and

∂TX functions ON.

w Rotate [RIT/ ∂TX] to ﬁnd the DX station’s receive

frequency.

e When you ﬁnd the DX station’s receive frequency,

push [RIT] to turn the RIT function OFF.

•Now you can transmit the DX station’s receive frequency and receive the DX station’s transmit frequency (21.025 MHz).

r Start transmitting while the station is standing by.

ANT

METER

2.4k

SFT

FIL2

USB

14.100.00

RIT

P.AMP

ANT

METER

2.4k

SFT

FIL2

USB

14.100.00

RIT

P.AMP

VFO

ANT

METER

P.AMP

ANT

METER

P.AMP

2.4k

qr≥qot≥pp

VFO

SFT

USB

14.100.00

FIL2

RIT

USB

RIT

Push and hold

2.4k

qr≥qot≥wt

SFT

VFO

USB

14.100.00

FIL2

USB

RIT

qw:pp

-p≥wt

qw:pp

-p≥pp

RECEIVE AND TRANSMIT

■ Monitor function

The monitor function allows you to monitor your tr ansmit IF signals in any mode through the speaker. Use this to check voice characteristics while adjusting SSB transmit tones. (p. 65) The CW sidetone functions regardless of the [MONITOR] switch setting.

q Push [MONITOR].

•The indicator lights when the monitor function is ON.

w Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

e Push [(F-5)SET] then [(F-1)LEVEL] to enter level

set mode.

r Push [(F-1)Y] or [(F-2)Z] to select the monitor

level item.

t Adjust monitor gain using the tuning dial.

•Pushing [(F-3)DEF] sets the selected item to the default value of the item.

y Push [EXIT] twice to exit level set mode.

•Use headphones to prevent feedback.

•Set the transmit tone settings to the 0 dB posi-

tions to check the unaltered characteristics of transmitter or microphone.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

DEF

LEVEL SET

SSBTX Tone(Bass) 0dB SSBTX Tone(Treble) 0dB

MonitorLevel 50%

SideTone Level 50% SideTone LevelLimit ON BeepLevel 50% BeepLevel Limit ON

[MONITOR] switch

[PHONES] jack

■ VOX function

The VOX (Voice-Operated Transmission) function toggles between transmit and receive with your voice. This function provides an opportunity to input log entries into your computer, etc., while operating.

•Using the VOX function

q Select a phone mode (SSB, AM, FM). w Push [VOX] to turn the VOX function ON or OFF.

•Adjusting the VOX function

q Select a phone mode (SSB, AM, FM). w Push [VOX] to turn VOX function ON. e Push [VOX] for 2 sec.to enter VOX set mode. r Select the VOX gain item using [F-1] or [F-2]. t While speaking into the microphone, rotate the

tuning dial to the point where the transceiver is continuously transmitting.

y Adjust the VOX delay for a convenient interval be-

fore returning to receive.

-Select the VOX delay item using [F-1] or [F-2].

-Rotate the tuning dial.

u If the receive audio from the speaker toggles to

transmit, adjust the anti VOX to the point where it has no effect.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX

ONON

COMPCOMP

OFFOFF

WIDEWIDE

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

DEF

VOX

VOXGain 50%

Anti-VOX 50% VOXDelay 0.2s

[VOX] switch in phone modes

RECEIVE AND TRANSMIT

■ Meter function

The transceiver has 4 transmit meter functions for your convenience. Select the desired meter with the [METER] switch.

•Analog transmit meter

➥Push [METER] to select RF power (Po), SWR, ALC

or compression level (COMP) f or tr ansmit metering.

In addition, the transceiver can displa y the m ulti-function digital meter in the LCD display, which displays all transmit meters simultaneously.

•Multi-function digital meter

q Push [METER] for 2 sec. to turn the multi-function

digital meter ON or OFF.

w Push [(F-1)P-HOLD] to toggle the peak level hold

function ON or OFF.

•“P-HOLD” appears on the window title when the peak level hold function is turned ON.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

P-HOLDP-HOLD

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

.1...3...5...7...9..1...3...5...7...9.....+20+20......+40+40......+60dB+60dB

0∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑2525∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑50 ∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑∑ 100%100%

1 1.51.5 2 2.52.5 3

S

PoPo

ALCALC

COMPCOMP

SWRSWR

P-HOLDP-HOLD MULTI-FUNCTION METERMULTI-FUNCTION METER

DISPLAY

INDICATION

MEASUREMENT

SWR

Indicates the SWR over the transmission line.

Indicates the relative RF output power in %.

ALC

Indicates the ALC level. When the meter movement shows the input signal level exceeds the allowable level, the ALC limits the RF power. In such cases, reduce the [MIC GAIN] control.

COMP

Indicates the compression level when the speech compressor is in use.

[METER] switch

■ SWR reading

The SWR meter indicates the SWR over the transmission line in all modes.

q Push [TUNER] to turn the antenna tuner OFF. w Push [METER] one or more times to select the Po

meter.

e Push [CW/RTTY] once or twice to select RTTY

mode.

r Push [TRANSMIT]. t Rotate [RF POWER] clockwise past the 12 o’clock

position for more than 30 W output power (30%).

y Push [METER] once to select the SWR meter as

the transmit meter.

u Read the SWR on the SWR meter.

The built-in antenna tuner matches the transmitter

to the antenna when the SWR is lower than 3:1.

SWR

COMP

ALC

25 50

100

1.5

+20

+40

+6 0dB

SWR meter

Less than 1.5:1

RECEIVE AND TRANSMIT

■ Speech compressor

The RF speech compressor increases average RF output power , impro ving signal strength and readability in SSB.

•Speech compressor

q Select USB or LSB mode. w Push [COMP] momentarily to turn the speech

compressor ON and OFF.

e Push [COMP] for 2 sec. to toggle between narrow,

middle or wide transmit ﬁlter.

•Transmit ﬁlter width: NAR 2.0 kHz MID 2.6 kHz WIDE 2.9 kHz

•Compression level setting

q Select USB or LSB mode. w Preset the transceiver as follows:

[COMP] function :OFF [METER] function : ALC [MIC GAIN] control :Center position [COMP] control : Center position [RF POWER] control : Max. counterclockwise

e Transmit at your normal voice level. r Adjust the [MIC GAIN] control so that the ALC

meter reads within the ALC zone, whether or not you speak softly or loudly.

t Push [COMP] momentarily to turn the speech

compressor ON.

y Push [METER] once to select the COMP meter. u Adjust the [COMP] control so that the COMP

meter reads within 10 dB and 20 dB.

When the ALC meter peaks above the ALC zone, your transmitted voice may be distorted.

[METER] switch

[COMP] switch[MIC GAIN] control

[COMP] control[RF POWER] control

SWR

COMP

ALC

25 50

100

1.5

+20

+40

+6 0dB

COMP meter

RECEIVE AND TRANSMIT

■ Digital voice recorder

The transceiver has a total of 8 memory channels, 4 each for transmit and receive, of digital voice memories.A maximum message of 15 sec.can be recorded in each transmit and receive channels.

Providing a transmission memory is very convenient for repeated CQ and number transmissions at contest times, as well as when making consecutive calls in DX’pedition.

•Recording a received audio

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select a phone mode by pushing [SSB] or

[AM/FM].

e Push [(F-2)VOICE] to call up the voice recorder

screen.

r Push [(F-1)PLAY] to select the voice memory

screen.

•If the transmit voice memory channel (T1–T4) appears, push [(F-5)T/R] to select receive voice memory channel.

t Push the desired memor y channel, [(F-1)R1] –

[(F-4)R4], for 2 sec.to start recording.

•The operating frequency, mode and current time are programmed automatically.

•Previously recorded contents are cleared.

y Push the selected memor y channel, [(F-1)R1]–

[(F-4)R4], again to stop recording.

•Recording is automatically terminated after 15 sec.

u Push [EXIT] twice to exit voice memory screen.

•Playing the recorded audio

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select a phone mode by pushing [SSB] or

[AM/FM].

e Push [(F-2)VOICE] to call up the voice recorder

screen.

r Push [(F-1)PLAY] to select the voice memory

screen.

•If the transmit voice memory channel (T1–T4) appears, push [(F-5)T/R] to select receive voice memory channel.

t Push the desired memor y channel, [(F-1)R1] –

[(F-4)R4], momentarily to playback.

y Push the selected memor y channel, [(F-1)R1]–

[(F-4)R4], again to stop playback if desired.

u Push [EXIT] twice to exit voice memory screen.

R1R1

R2R2

R3R3 R4R4

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

PLAYPLAY

R1R1 14.195.0014.195.00 USBUSB 10:1010:10 5s5s

R2R2

------

R3R3

------

R4R4

------

RXRX MEMORYMEMORY

R1R1

R2R2

R3R3 R4R4

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

R1R1 14.100.0014.100.00 USBUSB 15:3015:30 8s8s

R2R2

------

R3R3

------

R4R4

------

RXRX MEMORYMEMORY

R1R1

R2R2

R3R3 R4R4

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

RECREC

R1R1 14.195.0014.195.00 USBUSB 10:1010:10 10s10s

R2R2

------

R3R3

------

R4R4

------

RXRX MEMORYMEMORY

R1R1

R2R2

R3R3 R4R4

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

R1R1 14.100.0014.100.00 USBUSB 15:3015:30 8s8s

R2R2

------

R3R3

------

R4R4

------

RXRX MEMORYMEMORY

PLAYPLAY

MIC RECMIC REC

TX LEV.TX LEV.

SETSET

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

VOICEVOICE RECORDERRECORDERMENUMENU

PLAYPLAYTXTX15sec.15sec. x4ch4ch

RXRX 15sec.15sec.x 4ch4ch

MICMICRECRECMic Record/RecordMic Record/Recordcheckcheck

TXTX LEV.LEV.RecorderRecorder OutputOutput AdjustAdjust

SETSETAutoAutoMonitorMonitor SETSET

RECEIVE AND TRANSMIT

■ Digital voice recorder (continued)

•Recording a message for transmit

To transmit a message using a voice recorder, record the desired message in advance as described below.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select a phone mode by pushing [SSB] or

[AM/FM].

e Push [(F-2)VOICE] to call up the voice recorder

screen.

r Push [(F-2)MIC REC] to select the voice memor y

recording screen.

t Push the desired memor y channel, [(F-1)T1] –

[(F-4)T4], for 2 sec.to start recording.

•Speak into the microphone without pushing the [PTT] switch.

•Previously recorded contents are cleared.

y Adjust the [MIC GAIN] control so that the [MIC-

REC LEVEL] indicator reads within 100%.

u Push the selected memor y channel, [(F-1)T1]–

[(F-4)T4], again to stop recording.

•Recording is automatically terminated after 15 sec.

i Push [EXIT] twice to exit voice memory screen.

•Conﬁrming a message for transmit

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select a phone mode by pushing [SSB] or

[AM/FM].

e Push [(F-2)VOICE] to call up the voice recorder

screen.

r Push [(F-2)MIC REC] to select the voice memor y

recording screen.

t Push the desired memor y channel, [(F-1)T1] –

[(F-4)T4], momentarily to start playback and conﬁrmation.

y Push the selected memor y channel, [(F-1)T1]–

[(F-4)T4], again to stop playback if desired.

u Push [EXIT] twice to exit voice memory screen.

•Programming a memory name for transmit

Memory channels can be tagged with alphanumeric names of up to 20 characters each.

Capital letters, small letters, numerals, some symbols (! # $ % & ¥ ? " ' ` ^ + – ✱ / .,: ; = < > ( ) [ ] { } | _ _) and spaces can be used.

q Record a message as described above. w Call up the voice memory recording screen as de-

scribed in step q to r above.

e Push [(F-5)NAME] to enter memor y name edit

condition.

•A cursor appears and blinks.

r Push [(F-5)T1..T4] one or more times to select the

desired voice memory.

t Input the desired character by rotating the tuning

dial or by pushing the band key for number input.

•Push [ABC] or [abc] to toggle capital and small letters.

•Push [123] or [etc] to toggle numerals and symbols.

•Push [(F-1)Ω] or [(F-2)≈] for cursor movement.

•Push [(F-3)DEL] to delete the selected character.

•Push [(F-4)SPACE] to input a space.

y Push [EXIT] to input and set the name.

•The cursor disappears.

u Repeat steps r to y to program another voice

memory’s name, if desired.

i Push [EXIT] twice to exit voice memory screen.

123123

ABCABC

DELDEL

SPACESPACE T1..T4T1..T4

VOICE (MIC RECORD)VOICE (MIC RECORD)

T1T1 CQ JA3YUA_CQ JA3YUA_ 10s10s

T2T2

------

T3T3

------

T4T4 ------

Character group keys

Selected character

ABCABC

5050

100100

T1T1

T2T2

T3T3 T4T4

NAMENAME

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE (MIC RECORD)VOICE (MIC RECORD)

MIC RECMIC REC LEVELLEVEL

PLAYPLAY

T1T1 10s10s

T2T2

------

T3T3

------

T4T4

------

T1T1

T2T2

T3T3 T4T4

NAMENAME

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE (MIC RECORD)VOICE (MIC RECORD)

MIC RECMIC REC LEVELLEVEL

5050

100100

RECREC

T1T1 10s10s

T2T2

------

T3T3

------

T4T4

------

T1T1

T2T2

T3T3 T4T4

NAMENAME

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE (MIC RECORD)VOICE (MIC RECORD)

MIC RECMIC REC LEVELLEVEL

5050

100100

T1T1 ------

T2T2

------

T3T3

------

T4T4

------

PLAYPLAY

MIC RECMIC REC

TX LEV.TX LEV.

SETSET

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

VOICEVOICE RECORDERRECORDERMENUMENU

PLAYPLAYTXTX15sec.15sec. x4ch4ch

RXRX 15sec.15sec.x 4ch4ch

MICMICRECRECMic Record/RecordMic Record/Recordcheckcheck

TXTX LEV.LEV.RecorderRecorder OutputOutput AdjustAdjust

SETSETAutoAutoMonitorMonitor SETSET

RECEIVE AND TRANSMIT

■ Digital voice recorder (continued)

•Sending a message for transmit

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select a phone mode by pushing [SSB] or

[AM/FM].

e Push [(F-2)VOICE] to call up the voice recorder

screen.

r Push [(F-1)PLAY] to select the voice memory

screen.

•If the receive voice memory channel (R1–R4) appears, push [(F-5)T/R] to select transmit voice memory channel.

t Push the desired memor y channel, [(F-1)T1] –

[(F-4)T4], momentarily to transmit the contents.

y Push the selected memor y channel, [(F-1)T1]–

[(F-4)T4], again to stop, if desired.

u Push [EXIT] twice to exit voice memory screen.

•Transmit monitor function

The monitor function can be automatically turned ON while transmitting a voice memory message.

q Call up the voice recorder screen as described

above.

w Push [(F-5)SET] to select the voice memory set

mode screen.

e Rotate the tuning dial to tur n the monitor function

ON and OFF.

•Push [(F-3)DEF] to select the default condition.

r Push [EXIT] to return to the voice recorder screen.

•Transmit level setting

q Call up the voice recorder screen as described at

left.

w Push [(F-3)TX LEV.] to select the voice memor y

transmit level set mode screen.

e Push the desired memor y channel, [(F-1)T1] –

[(F-4)T4], momentarily to transmit the contents.

r Rotate the tuning dial to adjust the transmit voice

level.

•Push [(F-5)DEF] to select the default condition.

t Push [EXIT] to return to the voice recorder screen.

T1T1

T2T2

T3T3 T4T4

DEFDEF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

TXTX_LEVELLEVEL 50%50%

SENDSEND

T1T1 CQCQ JA3YUAJA3YUA 10s10s

T2T2

------

T3T3

------

T4T4

------

T1T1

T2T2

T3T3 T4T4

DEFDEF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

TXTX_LEVELLEVEL 50%50%

T1T1 CQCQ JA3YUAJA3YUA 10s10s

T2T2

------

T3T3

------

T4T4

------

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

DEF

VOICE SET

AutoAuto MonitorMonitor ONON

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

T1T1

T2T2

T3T3 T4T4

SENDSEND

TXTX MEMORYMEMORY

T1T1 CQ JA3YUACQ JA3YUA 10s10s

T2T2

------

T3T3

------

T4T4

------

T1T1

T2T2

T3T3 T4T4

T/RT/R

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOICE RECORDERVOICE RECORDER

T1T1 CQ JA3YUACQ JA3YUA 10s10s

T2T2

------

T3T3

------

T4T4

------

TXTX MEMORYMEMORY

RECEIVE AND TRANSMIT

■ RTTY decoder

The transceiver has an RTTY decoder for Baudot (mark freq.: 2125 Hz, shift freq.: 170 Hz, 45 bps).

An external terminal unit (TU) or terminal node controller (TNC) is not necessary for receiving a Baudot signal.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [CW/RTTY] once or twice to select RTTY

mode.

e Push [(F-2)DECODE] to tur n the RTTY decoder

ON.

•RTTY decoder screen appears.

r If the RTTY ﬁlter is turned OFF, push [RTTY FIL]

to turn the function ON.

•The RTTY decoder does not function when the RTTY ﬁlter is turned OFF.

t Push [(F-1)HOLD] to freeze the current screen.

•“HOLD” appears while the function is in use.

y Push [(F-5)WIDE] to toggle the nor mal or wide

screen space.

u Push [(F-2)CLR] for 2 sec. to clear the displayed

characters.

i Push [EXIT] to exit the RTTY decoder screen.

•Setting the decoder threshold level

Adjust the RTTY decoder threshold level if some characters are displayed when no signal is received.

q Call up the RTTY decoder screen as described at

left.

w Push [(F-4)ADJ] to select the threshold level set-

ting condition.

e Rotate the tuning dial to adjust the RTTY decoder

threshold level.

•Push [(F-3)DEF] to select the default condition.

r Push [EXIT] to return to the RTTY decoder screen.

The UnShift On Space (USOS) function and new line code can be set in the miscellaneous (others) set mode.(pgs.70, 71)

DEFDEF

WIDEWIDE

ADJADJ

1/41/4 OFFOFF

AGCAGC MIDMID

RTTYRTTY

FILFIL

ONON

THRESHOLDTHRESHOLD 9 9

ADJADJ

********RTTYRTTYDecodeDecode MonitorMonitor******** 45bps45bps BAUDOTBAUDOTMark=2125,Mark=2125,Shift=170Shift=170 UnShiftUnShiftOnOnSpaceSpace supportsupport(SET-OTHERS)(SET-OTHERS) NewNewLineLine CodeCodeselectableselectable(SET-OTHERS)(SET-OTHERS) IfIfRTTY-FILRTTY-FIL isisOFF,OFF,PleasePleaseturnturn ON.ON.

----------------------------------------------------------------------------------------

RTTY DECODERTTY DECODE

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

HOLDHOLD CLRCLR ADJADJ WIDEWIDE

AGCAGC MIDMID

SFTSFT

qw:pp

BWBW

350 350

RTTY DECODERTTY DECODE

VFOVFO

qr≥qot≥pp

14.100.00

RTTY RTTY FILFIL2

TXTX

********RTTYRTTYDecodeDecode MonitorMonitor******** 45bps45bps BAUDOTBAUDOTMark=2125,Mark=2125,Shift=170Shift=170 UnShiftUnShiftOnOnSpaceSpace supportsupport(SET-OTHERS)(SET-OTHERS) NewNewLineLine CodeCodeselectableselectable(SET-OTHERS)(SET-OTHERS) IfIfRTTY-FILRTTY-FIL isisOFF,OFF,PleasePleaseturnturn ON.ON.

---------------------------------------------------------------------------------------- CQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPANCQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPAN CQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPANCQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPAN CQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPANCQ CQ CQ THIS IS JA3YUA JA3YUA OSAKA JAPAN

THRESHOLDTHRESHOLD 9

HOLDHOLD

CLRCLR

WIDEWIDE

ADJADJ

1/41/4 OFFOFF

AGCAGC MIDMID

RTTYRTTY

FILFIL

ONON

********RTTYRTTYDecodeDecode MonitorMonitor******** 45bps45bps BAUDOTBAUDOTMark=2125,Mark=2125,Shift=170Shift=170 UnShiftUnShiftOnOnSpaceSpace supportsupport(SET-OTHERS)(SET-OTHERS) NewNewLineLine CodeCodeselectableselectable(SET-OTHERS)(SET-OTHERS) IfIfRTTY-FILRTTY-FIL isisOFF,OFF,PleasePleaseturnturn ON.ON.

----------------------------------------------------------------------------------------

THRESHOLDTHRESHOLD 9

RTTY DECODERTTY DECODE

■ RTTY tuning meter

The transceiver has an RTTY tuning indicator to be tuned correctly and easily.

The RTTY tuning meter is automatically displayed when the RTTY ﬁlter is turned ON.

q Push [CW/RTTY] once or twice to select RTTY

mode.

w Push [RTTY FIL] to activate the RTTY filter and

RTTY tuning meter.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

SFTSFT

FIL2FIL2

RTTYRTTY

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

350 350

RTTY tuning meter

RECEIVE AND TRANSMIT

■ Electronic CW keyer

The transceiver has an electronic ke yer.Keying speed can be adjusted with [KEY SPEED]. Keying weight, the ratio of dot:space:dash, can be set from 1:1:2.8 to 1:1:4.5 in keyer set mode.

•Setting the electronic keyer

q Push [CW/RTTY] once or twice to select CW

mode.

w Push [KEYER] to select keyer set mode.

e Push [(F-4)CW KEY] to select memor y keyer set

mode.

r Select the “Keyer Repeat Time” item using [F-1].

t Rotate the tuning dial to select the memor y keyer

repeat interval. See the next page for details.

•1, 2, 3, 10 or 30 sec.can be set.

•Push [(F-3)DEF] to select a default interval of 2 sec.

y Push [F-2] to select the “Dot/Dash Ratio” item.

u Rotate the tuning dial to select the keying weight.

•1:1:2.8 to 1:1:4.5 can be set.

•Check the ratio with side tone in CW mode.

•Push [(F-3)DEF] to select a default ratio of 1:1:3.0.

i Push [F-2] to select the “Rise Time” item.

o Rotate the tuning dial to select the time which the

output power becomes the set transmit power.

!0 Push [F-2] to select the “Paddle Polarity”item.

!1 Rotate the tuning dial to select the paddle polar ity

between normal and reverse polarity.

!2 Push [F-2] to select the “Keyer Type”item. !3 Rotate the tuning dial to set the electronic keyer

function to electronic keyer, bug-key or straight key (electronic keyer OFF).

•Bug-key setting can be substituted for a bug-key while operating with a paddle.Set to “Straight” for a real bugkey, or connect the bug-key to [KEY] on the rear panel.

!4 Push [F-2] to select the “Mic Up/Down Keyer”item. !5 Rotate the tuning dial to turn the substitute paddle

function ON or OFF.

•The up/down keys of the microphone can be substituted for a paddle.When ON is selected, they do not function as up/down keys in all modes.

!6 Push [EXIT] to exit keyer set mode.

KEYING WEIGHT EXAMPLE: Morse code “K”

DASH

Weight setting: 1:1:3 (default)

Weight setting: Adjusted

DASH

DOT

(Fixed*)

Adjustable range SPACE (Fixed*)

*SPACE and DOT length can be adjusted with [KEY

SPEED] only.

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER CW-KEYKEYER CW-KEY

KeyerKeyerRepeatRepeat TimeTime 2s2s Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0 RiseRise TimeTime 4ms4ms PaddlePaddlePolarityPolarity NormalNormal

KeyerKeyerTypeType ELEC-KEYELEC-KEY

MICMIC Up/DownUp/DownKeyerKeyer OFFOFF

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER CW-KEYKEYER CW-KEY

KeyerKeyerRepeatRepeat TimeTime 2s2s Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0 RiseRise TimeTime 4ms4ms

PaddlePaddlePolarityPolarity NormalNormal

KeyerKeyerTypeType ELEC-KEYELEC-KEY MICMIC Up/DownUp/DownKeyerKeyer OFFOFF

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER CW-KEYKEYER CW-KEY

KeyerKeyerRepeatRepeat TimeTime 2s2s Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0

RiseRise TimeTime 4ms4ms

PaddlePaddlePolarityPolarity NormalNormal KeyerKeyerTypeType ELEC-KEYELEC-KEY MICMIC Up/DownUp/DownKeyerKeyer OFFOFF

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER CW-KEYKEYER CW-KEY

KeyerKeyerRepeatRepeat TimeTime 2s2s

Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0

RiseRise TimeTime 4ms4ms PaddlePaddlePolarityPolarity NormalNormal KeyerKeyerTypeType ELEC-KEYELEC-KEY MICMIC Up/DownUp/DownKeyerKeyer OFFOFF

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER CW-KEYKEYER CW-KEY

KeyerKeyerRepeatRepeat TimeTime 2s2s

Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0 RiseRise TimeTime 4ms4ms PaddlePaddlePolarityPolarity NormalNormal KeyerKeyerTypeType ELEC-KEYELEC-KEY MICMIC Up/DownUp/DownKeyerKeyer OFFOFF

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

500500

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

VFOVFO

CWCW

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

SENDSEND

EDITEDIT

001001

CW KEYCW KEY

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

MEMORY KEYERMEMORY KEYER

BPFBPF

MEMORY KEYER MENUMEMORY KEYER MENU

SENDSENDMax.54Max.54 CharactersCharactersx 4ch4ch

EDITEDITMemoryMemory EditorEditor

001001001001StyleStyleContestContest NumberNumber

CWCW KEYKEYMemo-key,Elec-key,CWMemo-key,Elec-key,CW WaveWaveFormFormSetSet

[KEYER] switch [CW/RTTY] switch

RECEIVE AND TRANSMIT

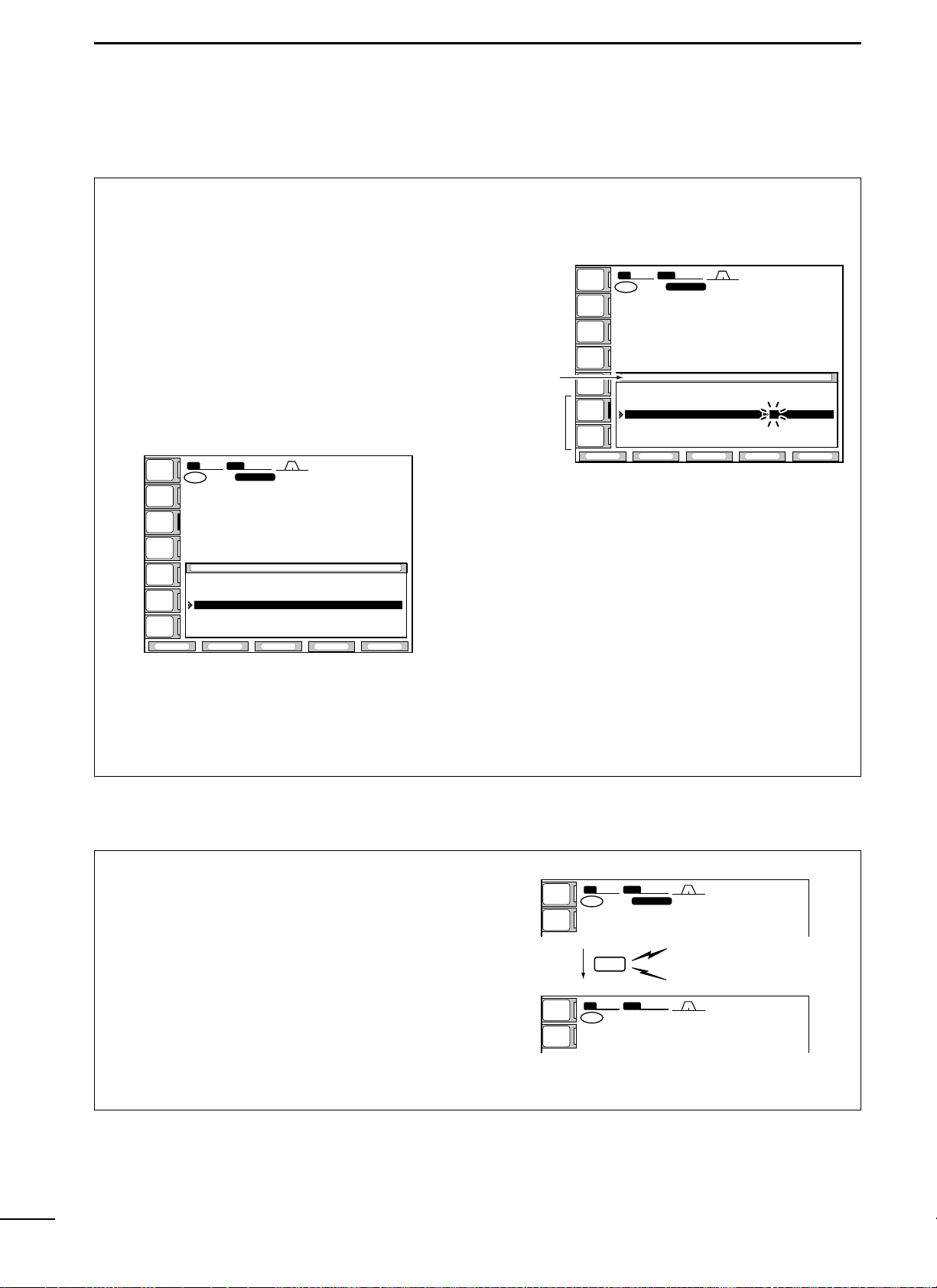

■ Memory keyer

The memory keyer memorizes and can re-transmit 4 CW key codes for often-used CW sentences , antenna types, etc. Total capacity of the memory keyer is 54 characters in each memory channel.

•Programming the memory keyer

q Push [CW/RTTY] to select CW mode. w Push [(F-2)KEYER] to select keyer set mode. e Push [(F-2)EDIT] to enter the memor y keyer edit

screen.

r Push [M1..M4] one or more times to select the de-

sired keyer memory channel.

t Select the desired character group by pushing the

character group keys ([ABC], [123], [etc]) one or more times.

y Select the desired character by rotating the tuning

dial or by pushing the band key for number input.

•Push [(F-1)Ω] or [(F-2)≈] for cursor movement.

•Push [(F-3)DEL] to delete the selected character.

•Push [(F-4)SPACE] to input a space.

•“*” is for contact numbers and can be input for the count up trigger channel (“”appears).

u Repeat step y until the desired contents are input. i Push [M1..M4] to select the next memor y channel

and repeat step y for character input, if desired.

o Push [EXIT] to exit the memory keyer edit screen.

•Transmitting memory keyer contents

q Push [CW/RTTY] to select CW mode. w Push [KEYER] to select keyer set mode. e Push [(F-1)SEND] to enter the memory keyer

screen.

r Push [(F-1)M1] – [(F-4)M4] momentarily to trans-

mit the contents one time; push these keys for 2 sec. to transmit the contents repeatedly.

•“M1”–“M4” are highlighted while transmitting.

•“ ” appears while transmitting repeatedly.

•Set the repeat interval of the memory keyer to 1, 2, 3,

10 or 30 sec. See the previous page for keyer set mode.

•To count down the contact number, push [

(F-5)–1].

t Push [EXIT] to exit memory keyer screen.

•Setting the contact (serial) number

Contact number can be automatically transmitted from one of the memory keyer channels.The Morse cut numbers can be used as the contact numbers. The maximum number for contact numbers is 9999.

q Push [CW/RTTY] to select CW mode. w Push [KEYER] to select keyer set mode. e Push [(F-3)001] to enter contact number screen.

r Rotate the tuning dial to select the cut number

type, if desired.

•“Normal” does not use Morse cut numbers.

•“190 → ANO” sets 1 as A, 9 as N and Ø as O.

•“190 → ANT” sets 1 as A, 9 as N and Ø as T.

•“90 → NO” sets 9 as N and Ø as O.

•“90 → NT” sets 9 as N and Ø as T.

t Push [F-2] to select the “Count Up Trigger” item.

y Rotate the tuning dial to select the desired mem -

ory channel for contest numbers.

u Push [F-2] to select the “Present Number” item.

i Push [(F-3)001CLR] for 2 sec. to clear the contact

number.

o Push [EXIT] to exit keyer set mode.

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER 001KEYER 001

001CLR001CLR

NumberNumberStyleStyle NormalNormal CounCount UPUP TriggerTrigger M1M1

PresentPresentNumberNumber 001001

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER 001KEYER 001

DEFDEF

NumberNumberStyleStyle NormalNormal

CounCount UPUP TriggerTrigger M1M1

PresentPresentNumberNumber 001001

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

KEYER 001KEYER 001

DEFDEF

NumberNumberStyleStyle NormalNormal

CounCount UPUP TriggerTrigger M1M1 PresentPresentNumberNumber 001001

M1M1

M2M2

M3M3

M4M4 -1-1

MEMORY KEYERMEMORY KEYER

M1M1

M2M2

M3M3

M4M4

CQCQ TESTTEST CQCQ TESTTEST DEDE ICOMICOM ICOMICOM TESTTEST

QRZ?QRZ?

CFMCFM TUTU

URUR 5NN5NN001001BKBK

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

ABCABC

123123

BWBW

500500

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

VFOVFO

CWCW

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

DELDEL

SPACESPACE M1..M4M1..M4

BPFBPF

KEYER EDITKEYER EDIT

M1M1

M2M2

M3M3

M4M4

CQCQ TESTTEST CQCQ TESTTEST DEDE ICOMICOM ICOMICOM TESTTEST

QRZ?QRZ?

CFMCFM TUTU

URUR 5NN5NN001001BKBK

ABCABC

Character group keys

Selected character

Memory ch select

RECEIVE AND TRANSMIT

■ Spectrum scope screen

This function allows you to display the relative strengths of signals around the center frequency.The span can be set to ±12.5 kHz, ±25 kHz, ±50 kHz and ±100 kHz. Ideal for monitoring band conditions in an instant.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-1)SCOPE] to select the scope screen.

e Push [(F-1)SPAN] one or more times to select the

scope span.

r Push [(F-2)ATT] one or more times to activate an

attenuator or turn the attenuator OFF.

•10, 20 and 30 dB attenuators are available.

t Push [(F-3)MARKER] one or more times to select

the marker (sub readout or transmit frequency) or turn the marker OFF.

•“TX MARKER” displays the marker at the transmit fre- quency.

•“SUB MARKER” displays the marker at the sub read- out frequency.

y Push [(F-4)HOLD] to freeze the current spectr um

waveform.

•“HOLD” appears while the function is in use.

u Push [EXIT] to exit the scope screen.

•Spectrum scope during transmitting

The spectrum scope shows the transmit signal wav eform while transmitting.This can be deactivated if desired.

When “OFF” is selected, the spectrum scope holds the received waveform while transmitting and does not show the transmit waveform.

q Call up the scope screen as described at left. w Push [(F-5)SET] to select the spectr um scope set

mode.

e Push [F-1] to select the “Scope during Tx” item. r Rotate the tuning dial to display the spectrum

scope while transmitting or not.

t Push [EXIT] to exit keyer set mode.

•Maximum level hold function

The spectrum scope shows the peak level holding function. Peak levels are displayed in the background of the current spectrum in a different color until the receive frequency changes.This can be deactivated if desired.

q Call up the scope screen as described at left. w Push [(F-5)SET] to select the spectr um scope set

mode.

e Push [F-2] to select the “Max Hold” item. r Rotate the tuning dial to turn the peak lev el holding

function ON or OFF.

t Push [EXIT] to exit keyer set mode.

If a strong signal is received, ghost waveform may appear.Push [(F-2)ATT] one or more times to activate the spectrum scope attenuator in this case.

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

ScopeScopeduringduring TxTx ONON

MaxMax HoldHold ONON

SCOPESCOPESETSET

DEFDEF

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

ScopeScopeduringduring TxTx ONON

MaxMax HoldHold ONON

SCOPESCOPESETSET

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpq≥pp

14.100.0014.100.00

VFOVFO

SUBSUB

MARKERMARKER

ATTATT

10dB10dB

HOLDHOLD

GridGrid

2.5k2.5k 10dB10dB

+12.5k+12.5k

-12.5k-12.5k

SPECTRUM SCOPESPECTRUM SCOPE

SPANSPAN

ATTATT

MARKERMARKER

HOLDHOLD

SETSET

Appears when the marker is out of range.

Sub readout or TX marker

Appears when the marker is out of range.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpq≥pp

14.100.0014.100.00

VFOVFO

GridGrid

2.5k2.5k 10dB10dB

+12.5k+12.5k

-12.5k-12.5k

SPECTRUM SCOPESPECTRUM SCOPE

SPANSPAN

ATTATT

MARKERMARKER

HOLDHOLD

SETSET

RECEIVE AND TRANSMIT

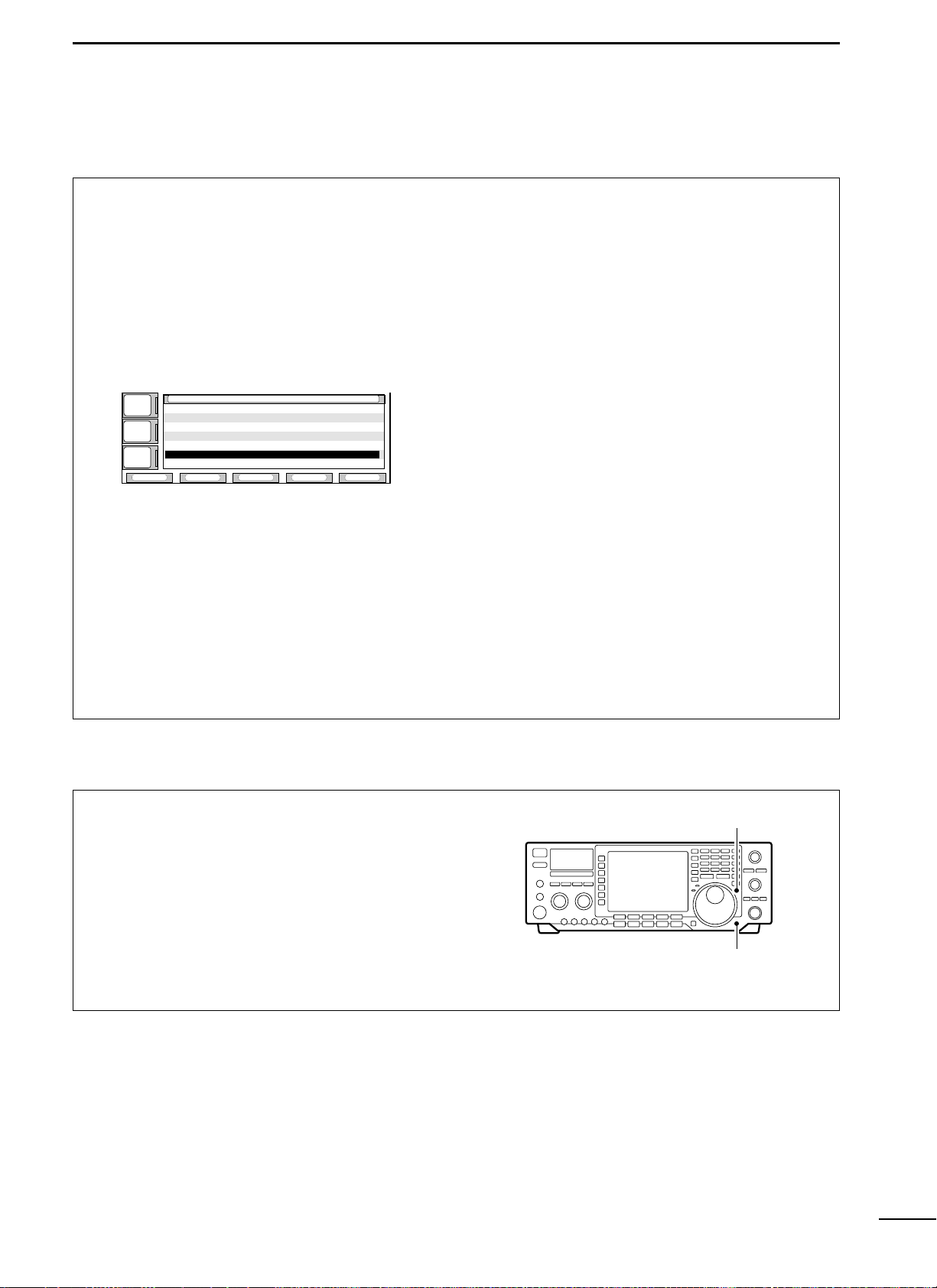

■ Automatic antenna selection

The transceiver covers 0.1–60 MHz over 10 bands. Each band key has a band memory which can memorize a selected antenna (ANT1, ANT2, ANT1/RX antenna and ANT2/RX antenna).When you change the operating frequency beyond a band, the previously used antenna is automatically selected for the new band.This function is convenient when you use 2 or 3 antennas.

To use the band memory, enter set mode and conﬁrm that “Auto” is selected as the [ANT] switch item. (p.70)

•When OFF is selected, the [ANT] switch does not function and [ANT1] is always selected.

•When “Manual” is selected, the [ANT] switch functions, howev er, band memory does not function. In this case, you must select an antenna manually.

•When “Auto” is selected (default setting), the antenna tuner ON/OFF condition is also memorized in the band memory.

•When “Auto” or “Manual” is selected, the antenna tuner ON/OFF condition is consistent with the [ANT] switch.

•Antenna switch selection example

Under the following condition, “Auto” should be se- lected as the [ANT] switch set mode item.

- When you use 2 antennas. Under the following conditions, “Manual” should be

selected as the [ANT] switch set mode item.

- When using 1 antenna.

- When using the EX-627 HF AUTOMATIC ANTENNA

SELECTOR

for more than 3 antennas (except for re-

ceive antenna).

- When using an external antenna tuner.

DEFDEF WIDEWIDE

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

FMFM SPLITSPLITOffset(HF)Offset(HF) -0.100MHz-0.100MHz FMFM SPLITSPLITOffset(50M)Offset(50M) -0.500MHz-0.500MHz SPLITSPLITLOCKLOCK OFFOFF TunerTuner(Auto(AutoStart)Start) OFFOFF TunerTuner(PTT(PTTStart)Start) OFFOFF

[ANT][ANT]SwitchSwitch AutoAuto

RTTYRTTY Mark FrequencyMark Frequency 21252125

OTHERSOTHERSSETSET

■ Dial lock function

The dial lock function prev ents changes by accidental movement of the tuning dial.The lock function electronically locks the dial.

➥Push [LOCK] to toggle the dial lock function ON

and OFF.

•The [LOCK] indicator lights when the dial lock function is in use.

[LOCK] switch

[LOCK] indicator

RECEIVE AND TRANSMIT

■ Repeater operation

A repeater ampliﬁes received signals and retransmits them at a different frequency.When using a repeater, the transmit frequency is shifted from the receive frequency by an offset frequency. A repeater can be accessed using split frequency operation with the shift frequency set to the repeater’s offset frequency.

For accessing a repeater which requires a repeater tone, set the repeater tone frequency in set mode as described below.

q Set the offset frequencies (HF, 50 MHz) and turn

ON the quick split function in set mode (others) in advance.(pgs. 68, 69)

w Push [VFO/MEMO] to select VFO mode.

e Push the desired band key. r Push [AM/FM] one or more times to select FM

mode.

t Set the receive frequency (repeater output fre-

quency).

y Push [SPLIT] for 2 sec. to start repeater operation.

•Repeater tone is turned ON automatically.

•Shifted transmit frequency and “TX” appear in the sub

readout.

•The transmit frequency can be monitored while pushing [XFC] or using dualwatch.

u Push and hold [PTT] to transmit; release [PTT] to

receive.

i To return to simplex, push [SPLIT] momentarily to

clear the sub display.

•Setting the repeater tone

Some repeaters require subaudible tones to be accessed. Subaudible tones are superimposed over your normal signal and must be set in advance.The transceiver has 50 tones from 67.0 Hz to 254.1 Hz.

Each memory channel can store an independent setting.

q Select FM mode. w Push [TONE] for 2 sec. to enter tone set mode. e Push [F-1] to select the repeater tone item. r Rotate the tuning dial to select the desired re-

peater tone frequency.

t Push [EXIT] to exit tone set mode. Available repeater tones (Unit: Hz)

Store repeater tone frequencies and ON/OFF settings in memory channels for easy recall.

CONVENIENT

VOXVOX OFFOFF

TONETONE

T-SCANT-SCAN

AGCAGC

FASTFAST

DEFDEF

TONE FREQUENCYTONE FREQUENCY

88.5Hz88.5Hz

88.5Hz88.5HzT-SQL TONET-SQL TONE

REPEATER TONEREPEATER TONE

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

15k15k

SFTSFT

FIL2FIL2

FMFM

qw:pp

VFOVFO

FMFM

USBUSB

FIL2FIL2

wo≥yip≥pp

wo≥tip≥pp

14.100.0014.100.00

VFOVFO

SPLITSPLIT

TXTX

TONETONE

Tone encoder is automatically turned ON.

Shifted frequency appears.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

15k15k

SFTSFT

FIL2FIL2

FMFM

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

wo≥yip≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

67.0

69.3

71.9

74.4

77.0

79.7

82.5

085.4

088.5

091.5

094.8

097.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

RECEIVE AND TRANSMIT

■ Tone squelch operation

The tone squelch opens only when receiving a signal containing a matching subaudible tone. You can silently wait for calls from group members using the same tone.

q Push [VFO/MEMO] to select VFO mode.

w Push the desired band key. e Push [AM/FM] one or more times to select FM

mode.

r Push [TONE] one or more times until “TSQL” ap-

pears in the function display.

t When the received signal includes a matching

tone, squelch opens and the signal can be heard.

•When the received signal’s tone does not match, tone squelch does not open, however, the S-indicator shows signal strength.

•To open the squelch manually, push [XFC].

y Operate the transceiver in the normal way. u To cancel the tone squelch, push [TONE] to clear

“TSQL.”

•Setting the tone squelch tone

The transceiver has 50 tones from 67.0 Hz to 254.1 Hz.

q Select FM mode. w Push [TONE] for 2 sec. to enter tone set mode. e Push [F-2] to select the tone squelch tone item. r Rotate the tuning dial to select the desired tone

squelch frequency.

t Push [EXIT] to exit tone set mode. Available tone squelch tones (Unit:Hz)

Store tone squelch frequencies and ON/OFF settings in memory channels for easy recall.

CONVENIENT

VOXVOX OFFOFF

TONETONE

T-SCANT-SCAN

AGCAGC

FASTFAST

DEFDEF

TONE FREQUENCYTONE FREQUENCY

88.5Hz88.5Hz

88.5Hz88.5HzT-SQL TONET-SQL TONE

REPEATER TONEREPEATER TONE

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

15k15k

SFTSFT

FIL2FIL2

FMFM

qw:pp

VFOVFO

FMFM

USBUSB

FIL2FIL2

wo≥yip≥pp

wo≥tip≥pp

14.100.0014.100.00

VFOVFO

TSQLTSQL

TXTX

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

BWBW

2.4k2.4k

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

wq≥wop≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

67.0

69.3

71.9

74.4

77.0

79.7

82.5

085.4

088.5

091.5

094.8

097.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

■ Antenna tuner operation

The internal automatic antenna tuner matches the transceiver to the connected antenna automatically. Once the tuner matches an antenna, the variable capacitor angles are memorized as a preset point for each frequency range (100 kHz steps). Therefore, when you change the frequency range, the v ariable capacitors are automatically preset to the memorized point.

CAUTION:

NEVER transmit with the tuner ON

when no antenna is connected.This will damage the transceiver. Be careful of the antenna selection.

RECEIVE AND TRANSMIT

TUNER OPERATION

➥Push the [TUNER] switch to turn the internal an-

tenna tuner ON.The antenna is tuned automatically when the antenna SWR is higher than 1.5:1.

•When the tuner is ON, the [TUNER] switch lights.

[TUNER] switch

MANUAL TUNING

During SSB operation at low voice levels, the internal tuner may not be tuned correctly.In such cases, manual tuning is helpful.

➥Push [TUNER] for 2 sec., to start manual tuning.

•A side tone is emitted and [TUNER] blinks while tuning.

•If the tuner cannot reduce the SWR to less than 1.5:1

after 20 sec. of tuning, the [TUNER] switch indicator goes out.

Push [TUNER] for 2 sec.

AUTOMATIC TUNER START (HF bands only)

If you want to deactivate the tuner under conditions of VSWR 1.5:1 or less, use the auto tuner start function and turn the tuner OFF. This function activates the tuner automatically when the SWR exceeds 1.5:1.

This function is turned ON in set mode. (p.69).

PTT TUNER ST ART

The tuner is always tuned when the PTT is pushed after the frequency is changed (more than 1% from last-tuned frequency). This function removes the “push and hold [TUNER]” operation and activates for the ﬁrst transmission on a new frequency.

This function is turned ON in set mode. (p.69).

NOTES:

•If the tuner cannot tune the antenna

Check the following and try again:

•the [ANT] connector selection.

•the antenna connection and feedline.

•the unaltered antenna SWR. (Less than 3:1 for HF bands;

Less than 2.5:1 for 50 MHz band)

•the transmit power. (8 W for HF bands; 15 W for 50 MHz band)

•the power source voltage/capacity.

If the tuner cannot reduce the SWR to less than 1.5:1 after checking the above, perform the following:

•repeat manual tuning several times.

•tune with a 50 Ω dummy load and re-tune the antenna.

•turn power OFF and ON.

•adjust the antenna cable length.

(This is effective for higher frequencies in some cases.)

•Tuning a narrow bandwidth antenna

Some antennas, especially for low bands, have a narrow bandwidth. These antennas may not be tuned at the edge of their bandwidth, therefore, tune such an antenna as follows:

Suppose you have an antenna which has an SWR of

1.5:1 at 3.55 MHz and an SWR of 3:1 at 3.8 MHz.

q Push [TUNER] to turn the antenna tuner ON. w Select CW mode. e Turn OFF the break-in function.(p.5) r Push [TRANSMIT] to set to the transmit condition. t Set 3.55 MHz and key down. y Set 3.80 MHz and key down. u Push [TRANSMIT] to return to the receive condition.

RECEIVE AND TRANSMIT

■ Optional external tuner operation

•AH-4/AH-3 HF AUTOMATIC ANTENNA TUNER

The AH-4/AH-3 matches the IC-756PRO to a long wire antenna more than 3 m/10 ft long (3.5 MHz and above) or more than 12 m/40 ft long (1.8 MHz and above).

•See p.20 for the transceiver and AH-4/AH-3 connection.

•See the AH-4/AH-3 instruction manual for AH-4/AH-3 in-

stallation and antenna connection details.

AH-4/AH-3 setting example:

RWARNING: HIGH VOL TAGE!

NEVER touch the antenna element while tuning

or transmitting.

NEVER operate the AH-4/AH-3 without an antenna wire.The tuner and transceiver will be damaged.

NEVER operate the AH-4/AH-3 when it is not grounded.

Transmitting before tuning may damage the transceiver. Note that the AH-4/AH-3 cannot tune when using a 1⁄2 λ long wire or multiple of the operating fre- quency.

•When connecting the AH-4/AH-3, the antenna connector assignments are [ANT2] for the internal tuner and [ANT1] for the AH-4/AH-3.The antenna indicator in the LCD displays “ANT1(EXT)” when the AH-4/AH-3 is connected and selected.

•The AH-3 can be used for HF bands only. It cannot be used for the 50 MHz band.

•AH-4/AH-3 operation

Tuning is required for each frequency. Be sure to re-tune the antenna before transmitting when you change the frequency—even slightly.

q Set the desired frequency in an HF or 50 MHz

band for using with the AH-4. Set the desired frequency in an HF band for using with the AH-3.

•The AH-4/AH-3 will not operate on frequencies outside of ham bands.

w Push [TUNER] for 2 sec.

•The [TUNER] light blinks while tuning.

e The [TUNER] light lights constantly when tuning is

complete.

•When the connected wire cannot be tuned, the [TUNER] light goes out, the AH-4/AH-3 is bypassed and the antenna wire is connected to the antenna connector on the transceiver directly.

r To bypass the AH-4/AH-3 manually, push

[TUNER].

[TUNER] switch

For mobile operation

For outdoor operation

Long wire

Optional AH-2b antenna element

When using an external antenna tuner such as the IC-PW1’s tuner, IC-4KL’s tuner or IC-AT500 with a lin- ear amplifier, tune with the exter nal antenna tuner, while the internal tuner is turned OFF. After tuning is completed, turn the internal tuner ON. Otherwise, both tuners tune simultaneously and correct tuning may not be obtained.

See the instruction manual included with each antenna tuner for their respective operations.

•ANTENNA TUNER OF THE IC-PW1, IC-4KL or IC-2KL/IC-A T500

MEMORY OPERATION

■ Memory channels

The transceiver has 101 memory channels.The memory mode is very useful for quickly changing to oftenused frequencies.

All 101 memory channels are tuneable which means the programmed frequency can be tuned temporarily with the tuning dial, etc. in memory mode.

■ Memory channel selection

MEMORY

CHANNEL

MEMORY

CHANNEL

NUMBER

CAPABILITY

TRANSFER

TO VFO

OVER-

WRITING

CLEAR

Regular memory

channels

1–99

One frequency and one mode in each memory channel.

Yes Yes Yes

Scan edge

memory

channels

P1, P2

One frequency and one mode in each memory channel as scan edges for programmed scan.

Yes Yes

•Using the [YY] or [ZZ] keys

q Push [VFO/MEMO] to select memory mode. w Push [ Y]/[Z] several times to select the desired

memory channel.

•Push and hold [Y]/[Z] for continuous selection.

•[UP] and [DN] on the microphone can also be used.

e To return to VFO mode, push [VFO/MEMO] again.

•Using the keypad

q Push [VFO/MEMO] to select memory mode. w Push [F-INP]. e Push the desired memor y channel number using

the keypad.

•Enter 100 or 101 to select scan edge channel P1 or P2, respectively.

r Push [Y] or [Z] to select the desired memory

channel.

ANT

METER

SFT

FIL2

USB

14.100.00

BPF

VFO

500

ANT

METER

SFT

FIL2

USB

14.195.00

VFO

2.4k

ANT

METER

SFT

FIL2

USB

2.4k

14.195.00

VFO

ANT

METER

SFT

FIL2

USB

14.195.00

VFO

2.4k

ANT

METER

SFT

FIL2

USB

14.195.00

VFO

2.4k

ANT

METER

SFT

FIL2

USB

2.4k

14.195.00

VFO

METER

ANT

MEMO

VFO

500

2.4k

SFT

VFO

qr≥qot≥pp

14.100.00

VFO/

SFT

USB

qr≥qpp≥pp

14.195.00

FIL2

BPF

USB

qw:pp

SFT

USB

wr≥oyp≥pp

FIL2

14.195.00

qw:pp

ANT

METER

ANT

METER

ANT

METER

2.4k

VFO

F-INP

2.4k

VFO

SFT

USB

qr≥qpp≥pp

ENT

SFT

FIL2

14.195.00

then

USB

≥qpp≥qw

14.195.00

2.4k

VFO

SFT

USB

wr≥oyp≥pp

FIL2

14.195.00

qw:pp

F-in

qw:pp

MEMORY OPERATION

■ Memory channel screen

The memory channel screen simultaneously shows 7 memory channels and their programmed contents. 13 memory channels can be displayed in the wide memory channel screen.

You can select a desired memory channel from the memory channel screen.

•Selecting a memory channel using the memory channel screen

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-3)MEMORY] to select the memory chan-

nel screen.

•[(F-5)WIDE] toggles the standard and wide screens.

e Rotate the tuning dial while pushing [(F-2)SET] to

select the desired memory channel.

•[Y] and [Z] can also be used.

r Push [EXIT] to exit the memory channel screen.

•Conﬁrming programmed memory channels

q Select the memor y channel screen as described

above.

w Rotate the tuning dial while pushing [(F-1)ROLL]

to scroll the screen.

e Push [(F-2)SET] to select the highlighted memory

channel, if desired.

r Push [EXIT] to exit the memory channel screen.

•Setting a memory channel as a select memory

Select memory channels are used for select memory scan. Select memory scan repeatedly scans the select memory channels only. This is useful to speedup the memory scan interval. Of course, select memory channels are also scanned during normal memor y scan.

q Select the memor y channel screen as described

at left.

w Rotate the tuning dial while pushing [(F-2)SET] to

select the desired memory channel.

•[Y] and [Z] can also be used.

e Push [(F-3)SELECT] to set the memor y channel

as a select memory or not.

r Repeat steps w to e to program another memory

channel as a select memory channel, if desired.

t Push [EXIT] to exit the memory channel screen.

Setting select memory channels is also possible in the scan screen.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

ROLLROLL

SETSET

SELECTSELECT

NAMENAME

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

9999 --.---.----.---.-- ------------ ------ P1P1 0.500.000.500.00 LSBLSB FL2FL2 SCAN EDGESCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2FL2 SCAN EDGESCAN EDGE

 1ß 14.100.0014.100.00 USBUSB FL2FL2

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

MEMORYMEMORY

“ß” appears for select memory channel.

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

ROLLROLL

SETSET

SELECTSELECT

NAMENAME

WIDEWIDE

AGCAGC MIDMID

9999 --.---.----.---.-- ------------ ------ P1P1 0.500.000.500.00 LSBLSB FL2FL2 SCAN EDGESCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2FL2 SCAN EDGESCAN EDGE

 1ß 14.100.0014.100.00 USBUSB FL2FL2

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

MEMORYMEMORY

“ ” appears when the memory channel is selected.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

ROLLROLL

SETSET

SELECTSELECT

NAMENAME

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

9999 --.---.----.---.-- ------------ ------ P1P1 0.500.000.500.00 LSBLSB FL2FL2 SCAN EDGESCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2FL2 SCAN EDGESCAN EDGE

 1 14.100.0014.100.00 USBUSB FL2FL2

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

MEMORYMEMORY

MEMORY OPERATION

■ Memory channel programming

Memory channel programming can be preformed either in VFO mode or in memory mode.

•Programming in VFO mode

q Set the desired frequency and operating mode in

VFO mode.

w Push [ Y]/[Z] several times to select the desired

memory channel.

•Memory channel screen is convenient for selecting the desired channel.

•Memory channel contents appear in the memory channel readout (below the frequency readout).

•“--.---.--” appears if the selected memory channel is a blank channel (and does not have contents).

e Push [MW] for 2 sec. to program the displayed fre-

quency and operating mode into the memory channel.

[EXAMPLE]: Programming 7.088 MHz/LSB into

memory channel 12.

7 c

SSB

Push for 2 sec.

Beep

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

qr≥qpp≥pp

14.195.0014.195.00

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

LSBLSB

qw:pp

TXTX

USBUSB

u≥pii≥pp

14.195.0014.195.00

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

LSBLSB

qw:pp

TXTX

u≥pii≥pp

--.---.----.---.--

1212

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

LSBLSB

qw:pp

TXTX

LSBLSB

u≥pii≥pp

7.088.007.088.00

1212

VFOVFO

BWBW

2.4k2.4k

•Programming in memory mode

q Select the desired memory channel with [Y]/[Z] in

memory mode.

•Memory channel contents appear in the memory channel readout (below the frequency readout).

•“--.---.--” appears if the selected memory channel is a blank channel (and does not have contents).

w Set the desired frequency and operating mode in

memory mode.

•To program a blank channel, use direct frequency entry with the keypad or memo pads, etc.

e Push [MW] for 2 sec. to program the displayed fre-

quency and operating mode into the memory channel.

[EXAMPLE]: Programming 21.280 MHz/USB into

memory channel 18.

21 m

Push for 2 sec.

Beep

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

LSBLSB

qw:pp

TXTX

USBUSB

u≥pii≥pp

14.195.0014.195.00

VFOVFO

1212

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

USBUSB

e≥tpw≥pp

14.195.0014.195.00

VFOVFO

1818

BWBW

500500

BPFBPF

SSB

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

wq≥wip≥pp

14.195.0014.195.00

VFOVFO

1818

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

wq≥wip≥pp

14.195.0014.195.00

1818

BWBW

2.4k2.4k

MEMORY OPERATION

■ Frequency transferring

The frequency and operating mode in a memory channel can be transferred to the VFO.

Frequency transf erring can be perf ormed in either VFO mode or memory mode.

•Transferring in VFO mode

This is useful for transferring programmed contents to VFO.

q Select VFO mode with [VFO/MEMO]. w Select the memor y channel to be transferred with

[Y]/[Z].

•Memory channel screen is convenient for selecting the desired channel.

•Memory channel contents appear in the memory channel readout (below the frequency readout).

•“--.---.--” appears if the selected memory channel is a blank channel.In this case transferring is impossible.

e Push [VFO/MEMO] for 2 sec. to transfer the fre-

quency and operating mode.

•Transferred frequency and operating mode appear on the frequency readout.

TRANSFERRING EXAMPLE IN VFO MODE

Operating frequency :21.320 MHz/USB (VFO) Contents of M-ch 16 : 14.018 MHz/CW

Push for 2 sec.

Beep

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

wq≥ewp≥pp

14.950.0014.950.00

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

CWCW

wq≥ewp≥pp

14.018.0014.018.00

1616

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

CWCW

qr≥pqi≥pp

14.018.0014.018.00

1616

VFOVFO

BWBW

500500

BPFBPF

VFO/

MEMO

•Transferring in memory mode

This is useful for transferring frequency and operating mode while operating in memory mode.

When you have changed the frequency or operating mode in the selected memory channel:

•Displayed frequency and mode are transferred.

•Programmed frequency and mode in the mem-

ory channel are not transferred, and they remain in the memory channel.

q Select the memor y channel to be transferred with

[Y]/[Z] in memory mode.

•And, set the frequency or operating mode if required.

w Push [VFO/MEMO] for 2 sec. to transfer the fre-

quency and operating mode.

•Displayed frequency and operating mode are transferred to the VFO.

e To return to VFO mode, push [VFO/MEMO] mo-

mentarily.

TRANSFERRING EXAMPLE IN MEMORY MODE

Operating frequency :14.020 MHz/CW (M-ch 16) Contents of M-ch 16 : 14.018 MHz/CW

Push for 2 sec.

Programmed contents appear.

Beep

VFO/

MEMO

VFO/

MEMO

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

USBUSB

qr≥pwp≥pp

21.320.0021.320.00

VFOVFO

1616

BWBW

500500

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

CWCW

qr≥pwp≥pp

14.018.0014.018.00

1616

VFOVFO

BWBW

500500

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

CWCW

qw:pp

TXTX

CWCW

qr≥pwp≥pp

14.020.0014.020.00

VFOVFO

1616

BWBW

500500

BPFBPF

MEMORY OPERATION

■ Memory names

All memory channels (including scan edges) can be tagged with alphanumeric names of up to 10 characters each.

Capital letters, small letters, numerals, some symbols (! # $ % & ¥ ? " ' ` ^ + – ✱ / .,: ; = < > ( ) [ ] { } | _ _) and spaces can be used.

•Editing (programming) memory names

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-3)MEMORY] to select the memory chan-

nel screen.

e Select the desired memory channel.

r Push [(F-4)NAME] to edit memory channel name.

•A cursor appears and blinks.

•Memory channel names of blank channels cannot be

edited.

t Input the desired character by rotating the tuning

dial or by pushing the band key for number input.

•Push [ABC] or [abc] to toggle capital and small letters.

•Push [123] or [etc] to toggle numerals and symbols.

•Push [(F-1)Ω] or [(F-2)≈] for cursor movement.

•Push [(F-3)DEL] to delete the selected character.

•Push [(F-4)SPACE] to input a space.

y Push [EXIT] to input and set the name.

•The cursor disappears.

u Repeat steps e to y to program another memory

channel’s name, if desired.

i Push [EXIT] to exit the memory channel screen.

123123

ABCABC

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

9999 --.---.----.---.-- ------------ ------ P1P1 0.500.000.500.00 LSBLSB FL2FL2 SCAN EDGESCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2FL2 SCAN EDGESCAN EDGE

 1 14.100.0014.100.00 USBUSB FL2FL2 _

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

MEMORYMEMORY

DELDEL

SPACESPACE WIDEWIDE

ABCABC

Character group keys

Selected character

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

ROLLROLL

SETSET

SELECTSELECT

NAMENAME

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

9999 --.---.----.---.-- ------------ ------ P1P1 0.500.000.500.00 LSBLSB FL2FL2 SCAN EDGESCAN EDGE P2P2 29.999.9929.999.99 USBUSB FL2FL2 SCAN EDGESCAN EDGE

 1 14.100.0014.100.00 USBUSB FL2FL2

 2 --.---.----.---.-- ------------ ------  3 --.---.----.---.-- ------------ ------  4 --.---.----.---.-- ------------ ------

MEMORYMEMORY

■ Memory clearing

Any unnecessary memory channels can be cleared. The cleared memory channels become blank channels.

q Select memory mode with [VFO/MEMO]. w Select the desired memory channel with [Y]/[Z]. e Push [M-CL] for 2 sec. to clear the contents.

•The programmed frequency and operating mode disappear.

r To clear other memory channels, repeat steps w

and e.

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

wr≥oyp≥pp

1212

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

SFTSFT

qw:pp

TXTX

CWCW

≥qot≥pp

14.195.0014.195.00

VFOVFO

1212

BWBW

2.4k2.4k

CWCW

14.195.0014.195.00

VFOVFO

Push for 2 sec.

M-CL

Beep

MEMORY OPERATION

■ Memo pads

The transceiver has a memo pad function to store frequency and operating mode for easy write and recall. The memo pads are separate from memory channels.

The default number of memo pads is 5, however, this can be increased to 10 in set mode if desired. (p.71)

Memo pads are convenient when you want to memorize a frequency and operating mode temporarily , such as when you ﬁnd a DX station in a pile-up, or when a desired station is busy for a long time and you want to temporarily search for other stations.

Use the transceiver’s memo pads instead of relying on hastily scribbled notes that are easily misplaced.

•Writing frequencies and operating modes into memo pads

You can simply write the accessed readout frequency and operating mode by pushing [MP-W].

When you write a 6th frequency and operating mode, the oldest written frequency and operating mode are automatically erased to make room for the new settings.

Each memo pad must have its own unique combination of frequency and operating mode; memo pads having identical settings cannot be written.

Displayed frequency and mode

Push

Newest

The oldest written frequency and mode are erased.

Oldest

MP-W

wq≥wii≥ww

USB

wq≥wuy≥pp

USB

wq≥pwr≥tw

USB

wq≥pqi≥py

USB

qr≥qiw≥rp

USB

qr≥qot≥pp

USB

MEMO PADS

•Calling up a frequency from a memo pad

You can simply call up the desired frequency and operating mode of a memo pad by pushing [MP-R] one or more times.

•Both VFO and memory modes can be used.

•The frequency and operating mode are called up, starting

from the most recently written.

When you call up a frequency and an operating mode from memo pads with [MP-R], the previously displayed frequency and operating mode are automatically stored in a temporary pad. The frequency and operating mode in the temporary pad can be recalled by pushing [MP-R] one or more times.

•You may think there are 6 memo pads because 6 different

frequencies (5 are in memo pads and 1 is in the temporary pad) are called up by [MP-R].

If you change the frequency or operating mode called up from a memo pad with the tuning dial, etc., the frequency and operating mode in the temporary pad are erased.

VFO or MEMORY mode display

MEMO PADS

TEMPORARY PAD

Push

Pushing [MP-R] calls up the frequency and operating mode in a memo pad and the temporary pad sequentially.

Frequency and mode before pushing [

MP-R].

MP-R

wq≥rit≥pp

USB

qr≥qot≥pp

USB

wq≥wuy≥pp

USB

wq≥pwr≥tw

USB

wq≥pqi≥py

USB

qr≥qiw≥rp

USB

qr≥qot≥pp

USB

SCANS

■ Scan types

■ Preparation

•Channels

For programmed scan:

Program scan edge frequencies into scan edge memory channels P1 and P2.

For ∂F scan:

Set the ∂F span (∂F scan range) in the scan screen.

For memory scan:

Program 2 or more memory channels except scan edge memory channels.

For select memory scan:

Designate 2 or more memory channels as select memory channels. To designate the channel as a select memory channel, choose a memory channel, then push [(F-3)SELECT] in the scan screen (memory mode) or in the memory channel screen.

•Scan resume ON/OFF

You can select the scan to resume or cancel when detecting a signal, in set mode. Scan resume ON/OFF must be set before operating a scan. See p. 60 for ON/OFF setting and scan resume condition details.

•Scan speed

Scan speed can be selected from 2 levels, high or lo w, in set mode.See p.60 for details.

•Squelch condition

•The scan function can be used on the main readout only.

•You can operate a scan while operating on a frequency using

the dualwatch or split functions.See p.31 for details.

PROGRAMMED SCAN

Repeatedly scans between two scan edge frequencies (scan edge memory channels P1 and P2).

This scan operates in VFO mode.

SELECT MEMORY SCAN

Repeatedly scans all select memory channels.

∂F SCAN

Repeatedly scans within ∂F span area.

This scan operates in memory mode.This scan operates in memory mode.

This scan operates in both VFO and memory modes.

Scan

Scan edge P1 or P2

Scan edge P2 or P1

Jump

Mch 1 Mch 5

Mch 2 Mch 3 Mch 4

Mch 6Mch 7Mch 99

MEMORY SCAN

Repeatedly scans all programmed memory channels.

Mch 1 Mch 5

Mch 2 Mch 3 Mch 4

Mch 6Mch 7Mch 99

ß (select)

ß (select)ß (select)

ß (select)

Blank channel Blank channel

ß (select)

ß (select)ß (select)

ß (select)

ScanScan

–

∂F frequency +∂F frequency

Start frequency

Jump

SCAN

STARTS

WITH

SQUELCH

OPEN

SQUELCH

CLOSED

PROGRAMMED

SCAN

The scan continues until it is stopped manually, and does not pause even if it detects signals.

Scan stops when detecting a signal.

If you set scan resume ON in set mode, the scan pauses for 10 sec. when detecting a signal, then resumes. When a signal disappears while scan is paused, scan resumes 2 sec. later.

MEMORY SCAN

Scan pauses on each channel when the scan resume is ON; not applicable when OFF.

SCANS

■ Programmed scan operation

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select VFO mode. e Select the desired operating mode.

•The operating mode can also be changed while scanning.

r Push [(F-4)SCAN] to select the scan screen.

t Set [RF/SQL] open or closed.

•See previous page for scan condition.

•If the [RF/SQL] control function is set as “AUTO,” the

squelch is always open in SSB, CW and RTTY modes. See pgs.3, 68 for details.

y Push [(F-1)PROG] to start the programmed scan.

•Decimal points blink while scanning.

u When the scan detects a signal, the scan stops,

pauses or ignores it depending on the resume setting and the squelch condition.

i To cancel the scan, push [(F-1)PROG].

If the same frequencies are programmed into the scan edge memory channel P1 and P2, programmed scan does not start.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

PROGRAM SCANPROGRAM SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

■∂∂F scan operation

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select VFO mode or a memory channel. e Select the desired operating mode.

•The operating mode can also be changed while scanning.

r Push [(F-4)SCAN] to select the scan screen.

t Set [RF/SQL] open or closed.

•See previous page for scan condition.

•If the [RF/SQL] control function is set as “AUTO,” the

squelch is always open in SSB, CW and RTTY modes. See pgs.3, 68 for details.

y Set the ∂F span by pushing [(F-4)∂F SPAN].

•±5 kHz, ±10 kHz, ±20 kHz, ±50 kHz, ±100 kHz, ±500 kHz and ±1000 kHz are selectable.

u Set center frequency of the ∂F span. i Push [(F-2)∂F] to start the ∂F scan.

•Decimal points blink while scanning.

o When the scan detects a signal, the scan stops,

pauses or ignores it depending on the resume setting and the squelch condition.

!0 To cancel the scan, push [(F-2)∂F].

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SCANSCAN

∂ F CenterCenter: 14.195.00MHz14.195.00MHz ∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

SCANS

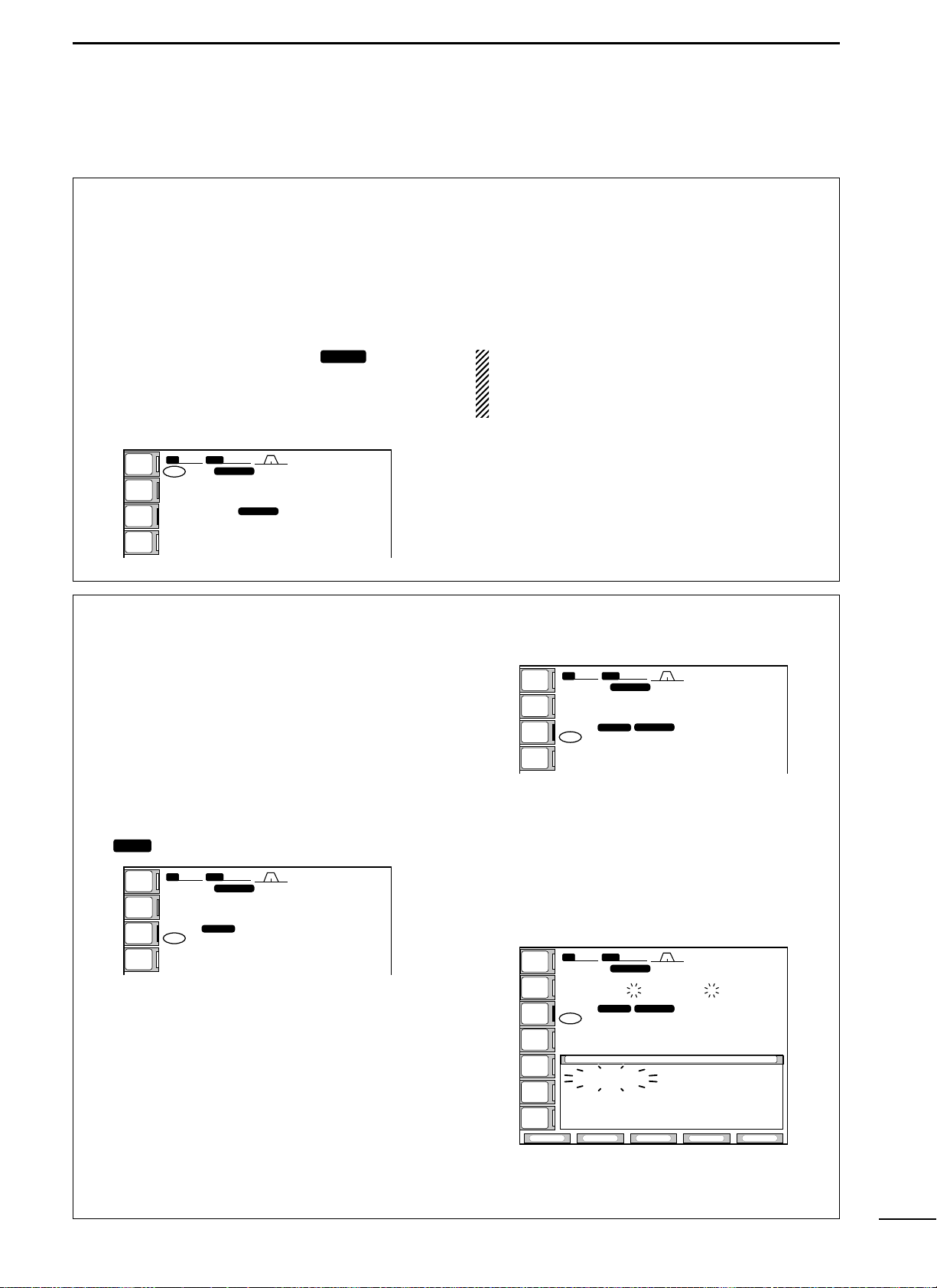

■ Fine programmed scan/ﬁne ∂F scan

Fine scan functions as programmed or ∂F scan, but scan speed decreases when the squelch opens but does not stop.The scanning tuning step shifts from 50 Hz to 10 Hz while the squelch opens.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-4)SCAN] to select the scan screen. e Set for programmed scan or ∂F scan as described

on previous page.

r Push [(F-1)PROG] or [(F-2)∂F] to start a scan.

•Decimal points blink while scanning.

t Push [(F-3)FINE] to start a ﬁne scan.

•“FINE PROGRAM SCAN” or “FINE ∂F SCAN”appears.

y When the scan detects a signal, the scan speed

decreases but does not stop.

u Push [(F-1)PROG] or [(F-2)∂F] to stop the scan;

push [(F-3)FINE] to cancel the ﬁne scan.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

FINE PROGRAM SCANFINE PROGRAM SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

PROGRAM SCANPROGRAM SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

■ Memory scan operation

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select memory mode. e Select the desired operating mode.

•The operating mode can also be changed while scanning.

r Push [(F-4)SCAN] to select the scan screen.

t Set [RF/SQL] open or closed.

•See p.56 for scan condition.

•If the [RF/SQL] control function is set as “AUTO,” the

squelch is always open in SSB, CW and RTTY modes. See pgs.3, 68 for details.

y Push [(F-1)MEMO] to start the memory scan.

•Decimal points blink while scanning.

u When the scan detects a signal, the scan stops,

pauses or ignores it depending on the resume setting and the squelch condition.

i To cancel the scan, push [(F-1)MEMO].

2 or more memory channels must be programmed for memory scan to start.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

12 12

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

MEMORY SCANMEMORY SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

12 12

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

SCANS

■ Select memory scan operation

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select memory mode. e Select the desired operating mode.

•The operating mode can also be changed while scanning.

r Push [(F-4)SCAN] to select the scan screen.

t Set [RF/SQL] open or closed.

•See p.56 for scan condition.

•If the [RF/SQL] control function is set as “AUTO,” the

squelch is always open in SSB, CW and RTTY modes. See pgs.3, 68 for details.

y Push [(F-1)MEMO] to start the memory scan.

•Decimal points blink while scanning.

u Push [(F-3)SELECT] to start select memory scan;

push [(F-3)SELECT] again to return to memory scan, if desired.

i When the scan detects a signal, the scan stops,

pauses or ignores it depending on the resume setting and the squelch condition.

o To cancel the scan, push [(F-1)MEMO].

2 or more memory channels must be designated as select memory channels for select memory scan to start.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

1212ß

SELECT MEMORY SCANSELECT MEMORY SCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

12 12

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

■ Setting select memory channels

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Select memory mode. e Push [(F-4)SCAN] to select the scan screen.

r Select the desired memor y channel to set as se-

lect memory channel.

t Push [(F-3)SELECT] to set the memor y channel

as a select memory or not.

y Repeat steps r to t to program another memory

channel as a select memory channel, if desired.

u Push [EXIT] to exit the scan screen.

Select memory channels can also be set in the memory channel screen. (p. 51)

1212ß

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

“ß” appears for select memory channels.

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

12 12

BWBW

2.4k2.4k

MEMOMEMO

∂

F SELECTSELECT

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

SCANS

■ Scan set mode

Scan set mode is used for programming scanning speed and scan resume condition.

•Scan speed

The transceiver has 2 speeds for scanning, high and low.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-4)SCAN] to select the scan screen.

e Push [(F-5)SET] to select the scan set mode

screen.

r Push [(F-1)Y] to select the scan speed item.

t Rotate the tuning dial to select the scan speed.

•Push [(F-3)DEF] to select the default condition.

y Push [EXIT] twice to exit the set mode.

•Scan resume condition

This item sets the scan resume function ON or OFF. ON: scan resumes 10 sec. after stopping on a signal (or 2 sec. after a signal disappears); OFF: scan does not resume after stopping on a signal.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-4)SCAN] to select the scan screen. e Push [(F-5)SET] to select the scan set mode

screen.

r Push [(F-2)Z] to select the scan resume condition

item.

t Rotate the tuning dial to tur n the scan resume

function ON or OFF.

•Push [(F-3)DEF] to select the default condition.

y Push [EXIT] twice to exit the set mode.

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

DEF

SCAN SET

SCAN SpeedSCAN Speed HIGHHIGH

SCAN ResumeSCAN Resume ONON

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

DEF

SCAN SET

SCAN SpeedSCAN Speed HIGHHIGH

SCAN ResumeSCAN Resume ONON

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

PROGPROG

∂

F FINEFINE

∂

F SPANF SPAN

SETSET

SCANSCAN

∂ F SpanSpan: ±±10kHz10kHz

ProgrammedProgrammed P1:P1:0.500.00MHz0.500.00MHz scanscan edgesedges P2:P2: 29.999.99MHz29.999.99MHz

SCANS

■ Tone scan

The transceiver can detect the subaudible tone frequency in a received signal. By monitoring a signal that is being transmitted on a repeater input frequency, you can determine the tone frequency required to access the repeater.

q Set the desired frequency or memor y channel to

be checked for a tone frequency.

w Push [AM/FM] one or more times to select FM

mode.

e Push [(F-5)TONE] for 2 sec. to enter the tone fre-

quency screen.

r Push [(F-1)Y] or [(F-2)Z] to check the repeater

tone frequency or tone squelch frequency, respectively. (pgs. 46, 47)

t Push [(F-5)T-SCAN] to start the tone scan.

•“SCAN”ﬂashes while scanning.

y When the tone frequency is detected, the tone

scan pauses.

•The tone frequency is set temporarily on a memory channel.Program into the memory channel to store the tone frequency permanently .

•The decoded tone frequency is used for the repeater tone frequency or tone squelch frequency.

u To stop the scan, push [EXIT]. i Push [EXIT] to exit the tone frequency screen.

VOXVOX OFFOFF

TONETONE

T-SCANT-SCAN

AGCAGC

FASTFAST

TONE FREQUENCYTONE FREQUENCY

188.8Hz188.8Hz SCANSCAN

88.5Hz88.5HzT-SQL TONET-SQL TONE

REPEATER TONEREPEATER TONE

VOXVOX OFFOFF

TONETONE

T-SCANT-SCAN

AGCAGC

FASTFAST

DEFDEF

TONE FREQUENCYTONE FREQUENCY

88.5Hz88.5Hz

88.5Hz88.5HzT-SQL TONET-SQL TONE

REPEATER TONEREPEATER TONE

CLOCK AND TIMERS

■ Setting the current time

The transceiver has a built-in 24-hour clock with power-off and power-on timer functions.This is useful when logging QSO’s and so on.The clock indication is always displayed except after pushing [F-INP].

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-5)SET] then [(F-3)TIME] to enter timer

set mode.

e Push [(F-1)Y] or [(F-2)Z] to select the time adjust-

ment item.

r Set the current time using the tuning dial.

•“TIME–set push [SET]” blinks.

t Push [(F-4)SET] to enter the set time.

•Push [EXIT] to cancel the setting.

y Push [EXIT] twice to exit timer set mode.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qt:wr

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

TIME SETTIME SET

TimeTime (Now)(Now) 15:2415:24

Power-ONPower-ONTimerTimer SetSet 0:000:00 Power-OFFPower-OFFPeriodPeriod 60min60min

Set time appears.

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

TIME SETTIME SET

TimeTime (Now)(Now) 15:2415:24

Power-ONPower-ONTimerTimer SetSet 0:000:00 Power-OFFPower-OFFPeriodPeriod 60min60min

TIME-setTIME-setPushPush [SET][SET]

SETSET

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

TIME SETTIME SET

TimeTime (Now)(Now) 12:0012:00

Power-ONPower-ONTimerTimer SetSet 0:000:00 Power-OFFPower-OFFPeriodPeriod 60min60min

■ Setting power-on time

The transceiver can be set to turn ON automatically at a speciﬁed time.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-5)SET] then [(F-3)TIME] to enter timer

set mode.

e Push [(F-1) Y] or [(F-2)Z] to select the power-on

time item.

r Set the desired power-on time using the tuning

dial.

•“TIMER–set push [SET]” blinks.

t Push [(F-4)SET] to enter the set time.

•Push [EXIT] to cancel the setting.

y Push [EXIT] twice to exit timer set mode.

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

TIME SETTIME SET

TimeTime (Now)(Now) 15:2415:24

Power-ONPower-ONTimer SetTimer Set 19:3019:30

Power-OFFPower-OFFPeriodPeriod 60min60min

TIMER-setTIMER-set PushPush[SET][SET]

SETSET

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

TIME SETTIME SET

TimeTime (Now)(Now) 15:2415:24

Power-ONPower-ONTimer SetTimer Set  0:000:00

Power-OFFPower-OFFPeriodPeriod 60min60min

CLOCK AND TIMERS

■ Setting power-off period

The transceiver can be set to turn OFF automatically after being activated via the power-on timer. The power-off period can be set to 5–120 min. in 5 min. steps.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-5)SET] then [(F-3)TIME] to enter timer

set mode.

e Push [(F-1) Y] or [(F-2)Z] to select the power-off

time item.

r Set the desired power-off time using the tuning

dial.

•“TIMER – set push [SET]” blinks.

t Push [(F-4)SET] to enter the set time.

•Push [EXIT] to cancel the setting.

y Push [EXIT] twice to exit timer set mode.

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

TIME SETTIME SET

SETSET

TimeTime (Now)(Now) 15:2415:24 Power-ONPower-ONTimer SetTimer Set 19:3019:30

Power-OFFPower-OFFPeriodPeriod 45min45min

TIMER-setTIMER-set PushPush[SET][SET]

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

TIME SETTIME SET

TimeTime (Now)(Now) 15:2415:24 Power-ONPower-ONTimer SetTimer Set 19:3019:30

Power-OFFPower-OFFPeriodPeriod 60min60min

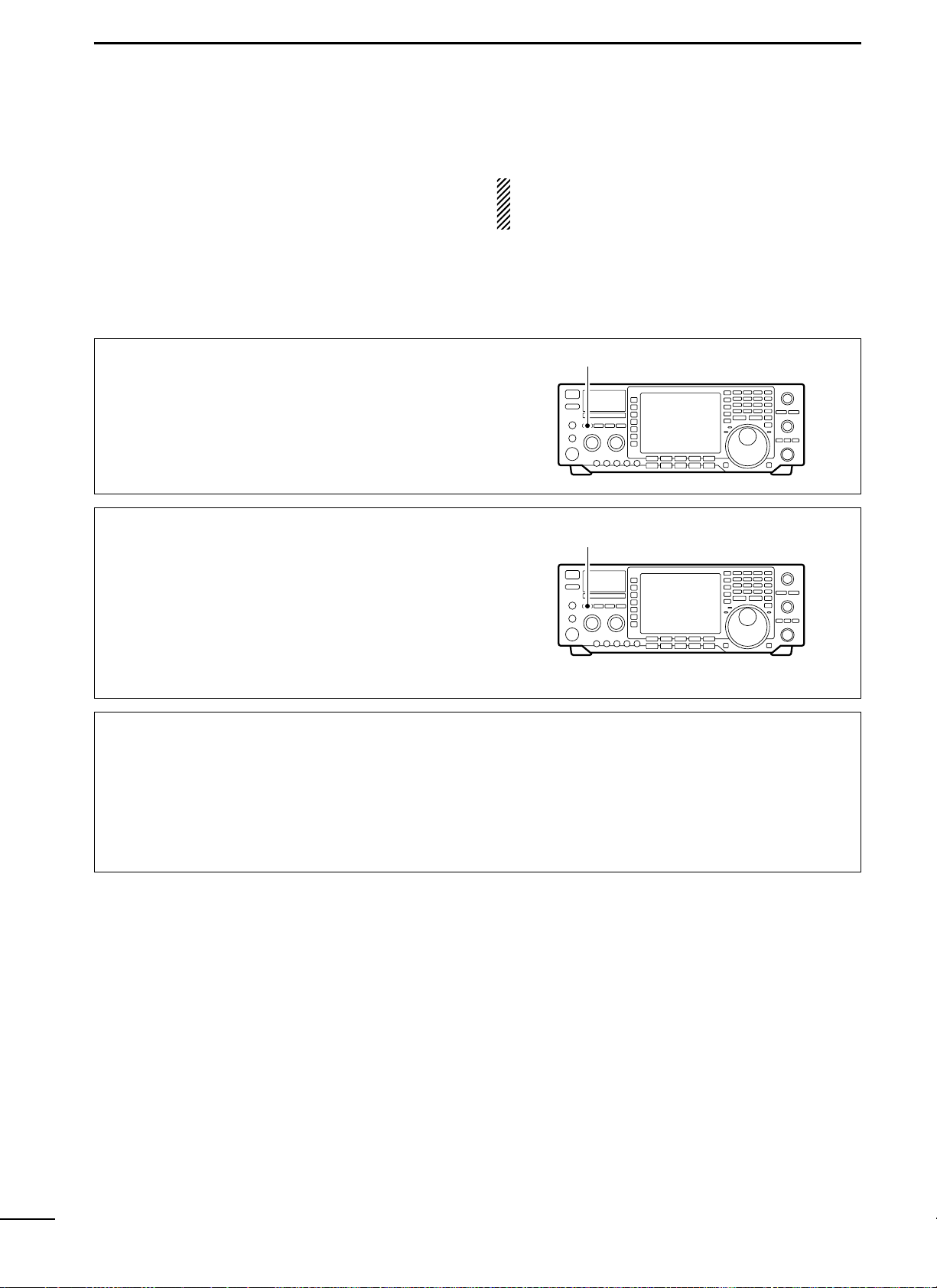

■ Timer operation

q Preset the power-on time and power-off period as

described previously.

w Push [POWER] momentarily to turn the timer func-

tion ON.

•The [POWER] light lights when the timer function is ON.

e Push [POWER] for 2 sec. to turn the power OFF.

•The [POWER] light lights continuously.

r When the set time arr ives, the power is automati-

cally turned ON.

t The transceiver emits 10 beeps and turns OFF

after the power-off period elapses.

•The [POWER] light blinks while beeping.

•Push [POWER] momentarily to cancel the power-off

timer, if desired.

[POWER]

SET MODE

■ Set mode description

Set mode is used for programming infrequently changed values or conditions of functions.This transceiver has a level set mode, display set mode, timer set mode and miscellaneous (others) set mode.

•Set mode operation

q Push [EXIT] one or more times to close a multi-

function screen, if necessary.

w Push [(F-5)SET] to select the set mode screen. e Push [(F-1)LEVEL], [(F-2)DISP], [(F-3)TIME] or

[(F-4)OTHERS] to enter the desired set mode.

r For display or miscellaneous (others) set mode,

push [(F-5)WIDE] to toggle wide and normal screen.

t Push [(F-1)Y] or [(F-2)Z] to select the desired item.

y Set the desired condition using the tuning dial.

•Push [(F-3)DEF] to select a default condition or value.

u For timer set mode, push [(F-4)SET] to enter the set

time.

i Push [EXIT] twice to exit the set mode.

F-1

F-2

F-3

F-5

F-4

•Level set mode (p. 65)

•Start up screen

•Set mode screen

•Display set mode (p. 66)

•Timer set mode (pgs. 62, 67)

•Miscellaneous (others) set mode (p. 68)

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SCOPESCOPE

VOICEVOICE

MEMORYMEMORY

SCANSCAN

SETSET

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

ANTANT

METERMETER

PoPo

P.AMPP.AMP

ATTATT OFFOFF

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

SFTSFT

FIL2FIL2

USBUSB

qw:pp

AGCAGC MIDMID

TXTX

VFOVFO

USBUSB

FIL2FIL2

qr≥qot≥pp

qr≥wpt≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

LEVELLEVEL

DISPDISP

TIMETIME

OTHERSOTHERS

SET MODESET MODE

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

DEF

LEVEL SET

DEFDEF WIDEWIDE

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

DEF

WIDEWIDE

TIME SETTIME SET

DISPLAY SET

SETSET MODEMODEMENUMENU

LEVELLEVELTXTXTone,Monitor,SideTone,Monitor,SideToneToneetcetc

DISPDISPBright,Contrast,Style,FontBright,Contrast,Style,Fontetcetc

TIMETIMEClock/TimerClock/Timer

OTHERSOTHERSOtherOther SetSetModeMode

CalibrationCalibrationMarkerMarker OFFOFF

Beep(Confirmation)Beep(Confirmation) ONON Beep(BandBeep(BandEdge)Edge) ONON RF/SQLRF/SQLControlControl RF+SQLRF+SQL QuickQuickDualwatchDualwatch ONON QuickQuickSPRITSPRIT ONON FMFM SPLITSPLITOffset(HF)Offset(HF) -0.100MHz-0.100MHz

OTHERSOTHERSSETSET

TimeTime (Now)(Now)

12:0012:00

Power-ONPower-ONTimerTimer SetSet 0:000:00 Power-OFFPower-OFFPeriodPeriod 60min60min

SSBTX Tone(Bass) 0dB

SSBTX Tone(Treble)  0dB MonitorLevel 50% SideTone Level 50% SideTone LevelLimit ON BeepLevel 50% BeepLevel Limit ON

Contrast(LCD)

60%

Bright(LCD) 50% Horizon 4 Backlight(Switches) 8 DisplayType A DisplayFont Basic1 MemoryName ON

SET MODE

■ Level set mode

SSB Tx Tone (Bass)

This item adjusts the bass level of the transmit audio tone in SSB mode from –5 dB to +5 dB in 1 dB steps.

0dB

0 dB (default)

SSB Tx Tone (Treble)

This item adjusts the treble level of the transmit audio tone in SSB mode from –5 dB to +5 dB in 1 dB steps.

0dB

0 dB (default)

Monitor Level

This item adjusts the transmit IF signal monitor level from 0 % to 100 % in 1 % steps.

See p.35 for details.

 50%

50 % (default)

Side Tone Level

This item adjusts the CW side tone level from 0 % to 100 % in 1 % steps.

See p.35 for details.

 50%

50 % (default)

Beep Level

This item adjusts the volume level for confirmation beep tones from 0 % to 100 % in 1 % steps. When beep tones are turned OFF, this setting has no effect.

 50%

50 % (default)

Beep Level Limit

This item allows you to set a maximum volume level for conﬁrmation beep tones.Conﬁrmation beep tones are linked to the [AF] control until a speciﬁed volume level is reached —further rotation of the [AF] control will not increase the volume of the beep tones.

OONN

Beep level is limited with [AF] (default)

OOFFFF

Beep level is linked to [AF]

Side Tone Level Limit

This item allows you to set a maximum volume level for CW side tones. CW side tones are linked to the [AF] control until a speciﬁed volume level is reached —further rotation of the [AF] control will not increase the volume of the CW side tones.

OONN

CW side tone level is limited with [AF] (default)

OOFFFF

CW side tone level is linked to [AF]

SET MODE

■ Display set mode

To adjust the LCD contrast or backlight, wait until the

LCD becomes stable (10 min. or more after turning power ON). This is an inherent characteristic of LCDs and LCD backlights and does not indicate a transceiver malfunction.

Contrast (LCD)

This item adjusts the contrast of the LCD from 0 % to 100 % in 1 % steps.

 60%

60 % (default)

Backlight (LCD)

This item adjusts the brightness of the LCD from 0 % to 100 % in 1 % steps.

 50%

50 % (default)

Horizon

This item adjusts the horizontal position of the LCD from 1 to 8.

 4

Horizontal position is 4. (default)

Backlight (switches)

This item adjusts the brightness of the switches from 1 to 8.

 8

Backlight level is 8. (Maximum; default)

Display Type

This item sets the LCD screen type.There are 4 selectable types:A, B, C and D.

A-type LCD screen (default)

Display Font

This item sets the font of the frequency readouts. There are 7 selectable fonts: Basic 1, Basic 2, Pop, 7seg (7 segment numeral), Italic 1, Italic 2 and Classic.

BBaassiicc11

Basic 1 font (default)

Memory Name

This item sets the memory name indication ON and OFF.

See p.54 for details.

OONN

Memory name is displayed. (default)

OOFFFF

Memory name is not displayed.

SET MODE

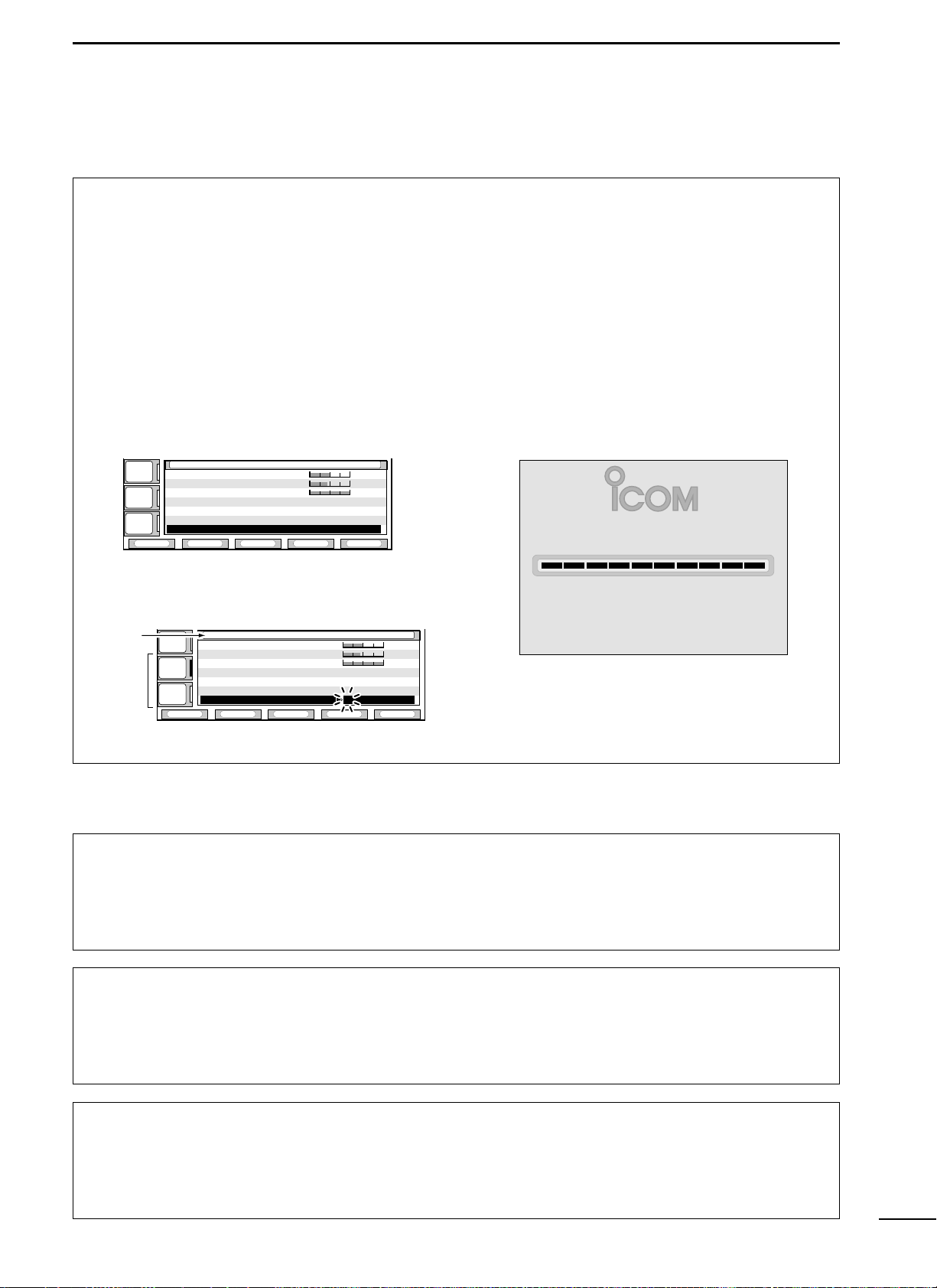

My Call

Your call sign, etc. can be displayed in the opening screen when turning power ON. Up to 10 characters can be programmed.

Capital letters, numerals, some symbols (– / .) and spaces can be used.

q Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

w Push [(F-5)SET] then [(F-2)DISP] to select the dis-

play set mode screen.

e Push [(F-2)Z] one or more times to select the ‘My

Call’item.

r Push [(F-4)EDIT] to edit.

•A cursor appears and blinks.

t Input the desired character by rotating the tuning

dial or by pushing the band key for number input.

•Push [ABC] to select capital letters.

•Push [123] or [etc] to toggle numerals and symbols.

•Push [(F-1)Ω] or [(F-2)≈] for cursor movement.

•Push [(F-3)DEL] to delete the selected character.

•Push [(F-4)SPACE] to input a space.

y Push [EXIT] to input the set name.

•The cursor disappears.

u Push [EXIT] to exit the set mode screen.

•Opening screen example

iC-756proiC-756pro

NOW CALIBRATING

DIGITAL SIGNAL PROCESSOR

PLEASE WAIT FOR 10sec

JA3YUA

iC-756pro

123123

ABCABC

DELDEL

SPACESPACE WIDEWIDE

DISPLAY SET

Character group keys

Selected character

Bright(LCD) 50% Horizon 4 Backlight(Switches) 8 DisplayType A DisplayFont Basic1 MemoryName ON

MyCall _A3YUA

ABCABC

VOXVOX OFFOFF

COMPCOMP

OFFOFF

WIDEWIDE

AGCAGC MIDMID

EDIT

WIDEWIDE

DISPLAY SET

Bright(LCD) 50% Horizon 4 Backlight(Switches) 8 DisplayType A DisplayFont Basic1 MemoryName ON

MyCall JA3YUA

■ Timer set mode

Time (now)

This item sets the current time for the built-in 24-hour clock.

See p.62 for details.

1155::0000

Push [(F-4)SET] to enter the time.

Power-ON timer set

This item sets the power-on time. See p.62 for details.

1155::0000

Push [(F-4)SET] to enter the time.

Power-OFF period

This item sets the power-off period for automatic shutdown after the power-on timer has turned power ON.

See p.63 for details.

6600mmiinn

Push [(F-4)SET] to enter the time.

■ Display set mode (continued)

SET MODE

■ Miscellaneous (others) set mode

Calibration Marker

This item is used for a simple frequency check of the transceiver.

See p.76 for calibration procedure.

Turn the calibration marker OFF after checking the

frequency of the transceiver.

OONN

Calibration marker ON

OOFFFF

Calibration marker OFF (default)

Beep (Confirmation)

A beep sounds each time a switch is pushed to conﬁrm it. This function can be turned OFF for silent operation.

The volume level can be set in level set mode.(p.65)

OONN

Conﬁrmation beep ON (default)

OOFFFF

Conﬁrmation beep OFF

Beep (Band Edge)

A beep sounds when an operating frequency enters or exits an amateur band.This functions independent of the conﬁrmation beep setting (above).

The volume level can be set in level set mode.(p.65)

OONN

Band edge beep ON (default)

OOFFFF

Band edge beep OFF

Quick Dualwatch

When this item is set to ON, pushing [DUALWATCH] for 2 sec.sets the sub readout frequency to the main readout frequency and activates dualwatch operation.

See p.31 for details.

OONN

Quick dualwatch ON (default)

OOFFFF

Quick dualwatch OFF

Quick SPLIT

When this item is set to ON, pushing [SPLIT] for 2 sec.sets the sub readout frequency to the main readout frequency and activates split operation.

See p.33 for details.

OONN

Quick split ON (default)

OOFFFF

Quick split OFF

RF/SQL Control

The [RF/SQL] control can be set as the RF/squelch control (default), the squelch control only (RF gain is ﬁxed at maximum) or ‘Auto’ (RF gain control in SSB, CW and RTTY; squelch control in AM and FM).

See p.3 for details.

RRFF++SSQQLL

[RF/SQL] control as RF/squelch control (default)

SSQQLL

[RF/SQL] control as squelch control

AAUUTTOO

[RF/SQL] control as RF gain control in SSB, CW and RTTY; squelch control in AM and FM

SET MODE

■ Miscellaneous (others) set mode (continued)

FM SPLIT Offset (HF)

This item sets the offset (difference between transmit and receive frequencies) for the quick split function. However, this setting is used for HF bands in FM mode only and is used to input the repeater offset for an HF band.

The offset frequency can be set from –4 MHz to +4 MHz in 1 kHz steps.

--00..110000MMHHzz

Minus 0.1 MHz offset (default)

--44..000000MMHHzz

Minus 4.0 MHz offset

FM SPLIT Offset (50M)

This item sets the offset (difference between transmit and receive frequencies) for the quick split function. However, this setting is used for 50 MHz band FM mode only, and is used to input the repeater offset for the 50 MHz band.

The offset frequency can be set from –4 MHz to +4 MHz in 1 kHz steps.

--11..000000MMHHzz

Minus 1.0 MHz offset (default)

++44..000000MMHHzz

Plus 4.0 MHz offset

SPLIT Lock

When this item is ON, the tuning dial can be used to adjust the transmit frequency while pushing [XFC] even while the lock function is activated.

See p.32 for split frequency operation details.

OONN

Split lock function ON

OOFFFF

Split lock function OFF (default)

Tuner (Auto Start)

The internal antenna tuner has an automatic start capability which starts tuning if the SWR is higher than

1.5–3. When “OFF”is selected, the tuner remains OFF even

when the SWR is poor (1.5–3). When “ON” is selected, automatic tune starts even when the tuner is turned OFF.

OONN

Automatic tuner start ON

OOFFFF

Automatic tuner start OFF (default)

Tuner (PTT Start)

Tuning of the internal antenna tuner can be star ted automatically at the moment the PTT is pushed after the operating frequency is changed (more than 1% from last-tuned frequency).

OONN

Automatic PTT start ON

OOFFFF

Automatic PTT start OFF (default)

SET MODE

■ Miscellaneous (others) set mode (continued)

RTTY Mark Frequency

This item selects the RTTY mark frequency. RTTY mark frequency is toggled between 1275, 1615 and 2125 Hz.

22112255

2125 Hz RTTY mark frequency (default)

11227755

1275 Hz RTTY mark frequency

RTTY Shift Width

This item adjusts the RTTY shift width. There are 3 selectable values:170, 200 and 425 Hz.

117700

170 Hz RTTY shift frequency (default)

442255

425 Hz RTTY shift frequency

RTTY Keying Polarity

This item selects the RTTY ke ying polarity.Normal or reverse keying polarity can be selected.

When reverse polarity is selected, Mark and Space are reversed.

- Normal : Key open/close = Mark/Space

- Reverse :Key open/close = Space/Mark

NNOORRMMAALL

Normal polarity (default)

RREEVVEERRSSEE

Reverse polarity

RTTY Decode USOS

This item selects the USOS (UnShift On Space) function of the internal RTTY decoder.

See p.41 for details.

OONN

Decode as letter code (default)

OOFFFF

Decode as character code

[ANT] Switch

You can set the antenna connector selection to automatic, manual or non-selection (when using 1 antenna only).

When “Auto” is selected, the antenna switch is activated and the band memory memorizes the selected antenna. See p.45 for details.

When “Manual” is selected, the antenna switch is activated and selects an antenna manually.

When “OFF”is selected, the antenna switch is not activated and does not function.The [ANT1] connector is always selected in this case.

AAuuttoo

Antenna switch is activated and the selection is automatically memorized. (default)

MMaannuuaall

Antenna switch is activated.

OOFFFF

Antenna switch is deactivated and [ANT1] is always selected.

SET MODE

■ Miscellaneous (others) set mode (continued)

RTTY Decode New Line Code

This item selects the new line code of the internal RTTY decoder. See p. 41 for details.

CR : Carriage Return LF : Line Feed

CCRR,,LLFF,,CCRR++LLFF

CR, LF and CR+LF (default)

CCRR++LLFF

CR+LF only

Speech Language

When the optional UT-102

VOICE SYNTHESIZER UNIT

is installed, you can select between English and Japanese as the language.

See p.73 for unit installation.

EEnngglliisshh

English announcement (default)

JJaappaanneessee

Japanese announcement

Speech Speed

When the optional UT-102

VOICE SYNTHESIZER UNIT

is installed, you can select between faster or slo w er synthesizer output.

See p.73 for unit installation.

HHIIGGHH

Faster announcement (default)

LLOOWW

Slower announcement

Speech S-Level

When the optional UT-102

VOICE SYNTHESIZER UNIT

is installed, you can have frequency, mode and signal level announcement.Signal level announcement can be deactivated if desired.

When “OFF” is selected, the signal level is not announced.

See p.73 for unit installation.

OONN

Signal level announcement (default)

OOFFFF

No signal level announcement

Memo Pad Numbers

This item sets the number of memo pad channels available. 5 or 10 memo pads can be set.

5 memo pads (default)

1100

10 memo pads

MAIN DIAL Auto TS

This item sets the auto tuning step function.When rotating the tuning dial rapidly, the tuning step automatically changes several times as selected.

There are 2 type of auto tuning steps:HIGH (Fastest) and LOW (Faster).

HHIIGGHH

Auto tuning step is turned ON. Fastest tuning step during rapid rotation (default)

LLOOWW

Auto tuning step is turned ON. Faster tuning step during rapid rotation

OOFFFF

Auto tuning step is turned OFF.

SET MODE

■ Miscellaneous (others) set mode (continued)

CI-V baud rate

This item sets the data transfer r ate .300, 1200, 4800, 9600, 19200 bps and “AUTO”are available.

When “AUTO” is selected, the baud rate is automatically set according to the connected controller or remote controller.

AAUUTTOO

Auto baud rate (default)

1199220000

19200 bps

CI-V address

To distinguish equipment, each CI-V transceiver has its own Icom standard address in hexadecimal code. The IC-756PRO’s address is 5Ch.

When 2 or more IC-756PRO’s are connected to an optional CT-17

CI-V LEVEL CONVERTER

, rotate the tuning dial to select a different address for each IC-756PRO in the range 01h to 7Fh.

55CChh

Address of 5Ch (default)

77FFhh

Address of 7Fh

CI-V transceive

Transceive operation is possible with the IC-756PRO connected to other Icom HF transceivers or receivers .

When “ON” is selected, changing the frequency, operating mode, etc. on the IC-756PRO automatically changes those of connected transceivers (or receivers) and vice versa.

OONN

Transceive ON (default)

OOFFFF

Transceive OFF

CI-V with IC-731

When connecting the IC-756PRO to the IC-735 for transceive operation, you must change the operating frequency data length to 4 bytes.

•This item must be set to “ON” only when operating trans-

ceiver with the IC-735.

OONN

4 bytes of frequency data

OOFFFF

5 bytes of frequency data (default)

Mic Up/Down Speed

This item sets the rate at which frequencies are scanned when the microphone [UP]/[DN] switches are pushed and held. High or low can be selected.

HHIIGGHH

High speed (default, 50 tuning steps/sec.)

LLOOWW

Low speed (25 tuning steps/sec.)

OPTION INSTALLATION

Follow the case and cover opening procedures shown here when you want to install an optional unit or adjust the internal units, etc.

CAUTION: DISCONNECT the DC power cable

from the transceiver before performing any work on the transceiver. Otherwise, there is danger of electric shock and/or equipment damage.

■ Opening the transceiver’s case

The UT-102 announces the accessed readout’s frequency, mode, etc. (S-meter level can also be announced—p. 71) in a clear, electronically-generated voice, in English (or Japanese). ➥Push [SPEECH] to announce the frequency, etc.

q Remove the top and bottom covers as shown

above.

w Remove the protective paper attached to the bot-

tom of the UT-102 to expose the adhesive strip.

e Plug UT-102 into J3502 on the MAIN unit as

shown in the diagram at right.

r Retur n the top and bottom covers to their original

positions.

UT-102

J3502

■ UT-102

VOICE SYNTHESIZER UNIT

q Remove 2 screws from the left side of the trans-

ceiver to remove the carrying handle as shown below.

w Remove 7 screws from the top of the transceiver

and 4 screws from the sides, then lift up the top cover.

e Turn the transceiver upside down. r Remove 6 screws from the bottom of the trans-

ceiver, then lift up the bottom cover.

MAINTENANCE

■ Troubleshooting

The following chart is designed to help you correct problems which are not equipment malfunctions.

If you are unable to locate the cause of a problem or solve it through the use of this chart, contact your nearest Icom Dealer or Service Center.

PROBLEM POSSIBLE CAUSE SOLUTION REF.

Power does not come on when the [POWER] switch is pushed.

POWER

No sound comes from the speaker.

Sensitivity is low. •The antenna is not connected properly.

RECEIVE

Receive audio is distorted. •The operating mode is not selected correctly.

The [ANT] switch does not function.

•DC power cable is improperly connected.

•Fuse is blown.

•Volume level is too low.

•The squelch is closed.

•The transceiver is in the transmitting condition.

•The antenna for another band is selected.

•The antenna is not properly tuned.

•The attenuator is activated.

•PBT function is activated.

•Noise blanker function is activated.

•Preamp is activated.

•The noise reduction is activated and the [NR]

control is set too far clockwise.

•The antenna switch has not been activated. •Set the antenna switch in set mode to “Auto” or

•Reconnect the DC power cable correctly.

•Check for the cause, then replace the fuse with

a spare one. (Fuses are installed in the DC power cable and the internal PA unit.)

•Rotate [AF] clockwise to obtain a suitable listening level.

•Rotate [RF/SQL] to 10 o’clock position to open the squelch.

•Push [TRANSMIT] to receive or check the SEND line of an external unit, if desired.

•Reconnect to the antenna connector.

•Select an antenna suitable for the operating

frequency.

•Push [TUNER] for 2 sec. to manually tune the antenna.

•Push [ATT] one or more times to select “ATT OFF.”

•Select a suitable operating mode.

•Push [PBT CLR] for 2 sec. to reset the function.

•Push [NB] to turn the function OFF.

•Push [P.AMP] once or twice to turn the function

OFF.

•Set the [NR] control for maximum readability.

“Manual.”

p. 17 p. 75

p. 2

p. 3

p. 2

—

pgs. 5, 45 p. 48

p. 5

p. 26 p. 26 p. 27 p. 5

p. 27

p. 45

Transmitting is impossible.

Output power is too low. •[RF POWER] is set too far counterclockwise.

No contact possible with another station.

TRANSMIT

Transmitted signals are distorted.

Repeater cannot be accessed.

Programmed scan does not stop.

Programmed scan does not start.

SCAN

Memory scan does not start.

•The operating frequency is not set to a ham band.

•[MIC GAIN] is set too far counterclockwise.

•The antenna for another band is selected.

•The antenna is not properly tuned.

•RIT or ∂TX function is activated.

•Split frequency function and/or dualwatch are

activated.

•[MIC GAIN] is set too far clockwise. •Set [MIC GAIN] to a suitable position. p. 2

•Split frequency function is not activated.

•Programmed subaudible tone frequency is

wrong.

•Squelch is open.

•[RF/SQL] is assigned to RF gain control and

squelch is open.

•The same frequencies have been programmed in scan edge memory channels P1 and P2.

•2 or more memory channels have not been programmed.

•Set the frequency to a ham band. p. 24

•Rotate [RF POWER] clockwise.

•Set [MIC GAIN] to a suitable position.

•Select an antenna suitable for the operating

frequency.

•Push [TUNER] for 2 sec. to manually tune the antenna.

•Push [RIT] or [∂TX] to turn the function OFF.

•Push [SPLIT] and/or [DUALWATCH] to turn the

function OFF.

•Push [SPLIT] to turn the function ON.

•Reset the frequency using set mode.

•Set [RF/SQL] to the threshold point.

•Reset [RF/SQL] control assignment and set it to

the threshold point.

•Program different frequencies in scan edge memory channels P1 and P2.

•Program 2 or more memory channels. p. 52

p. 3 p. 2 p. 5

p. 48

p. 6 pgs. 7 31, 32

p. 7 p. 46

p. 3 pgs. 3, 68

p. 52

Select memory scan does not start.

•2 or more memory channels have not been designated as select channels.

•Designate 2 or more memory channels as select channels for the scan.

pgs. 51, 59

MAINTENANCE

■ Fuse replacement

If a fuse blows or the transceiver stops functioning, try to ﬁnd the source of the problem, and replace the damaged fuse with a new, rated fuse.

CAUTION:DISCONNECT the DC power cable

from the transceiver when changing a fuse.

The IC-756PRO has 2 types of fuses installed for transceiver protection.

•DC power cable fuses................................FGB 30 A

•Circuitry fuse ................................................FGB 5 A

DC POWER CABLE FUSE REPLACEMENT

■ Clock backup battery replacement

The transceiver has a lithium backup battery (CR2032) inside for clock and timer functions.The usual life of the backup battery is approximately 2 years.

When the backup battery is exhausted, the transceiver transmits and receives normally but cannot retain the current time.

See p.77 for battery location.

CR2032

CIRCUITRY FUSE REPLACEMENT

The 13.8 V DC from the DC pow er cable is applied to all units in the IC-756PRO, except for the power ampliﬁer, through the circuitry fuse.This fuse is installed in the PA unit.

q Remove the top cover as shown on p.73. w Remove 11 screws from the PA shielding plate,

then remove the plate.

e Replace the circuitry fuse as shown in the diagram

below.

r Replace the PA shielding plate and top cover.

Circuitry fuse (FGB 5 A)

PROBLEM POSSIBLE CAUSE SOLUTION REF.

The displayed frequency does not change properly.

DISPLAY

•The dial lock function is activated.

•A set mode screen is selected.

•The internal CPU has malfunctioned.

•Push [LOCK] to deactivate the function.

•Push [EXIT] one or more times to exit the set

mode screen.

•Reset the CPU.

p. 6 pgs. 11, 64 p. 22

30 A fuse

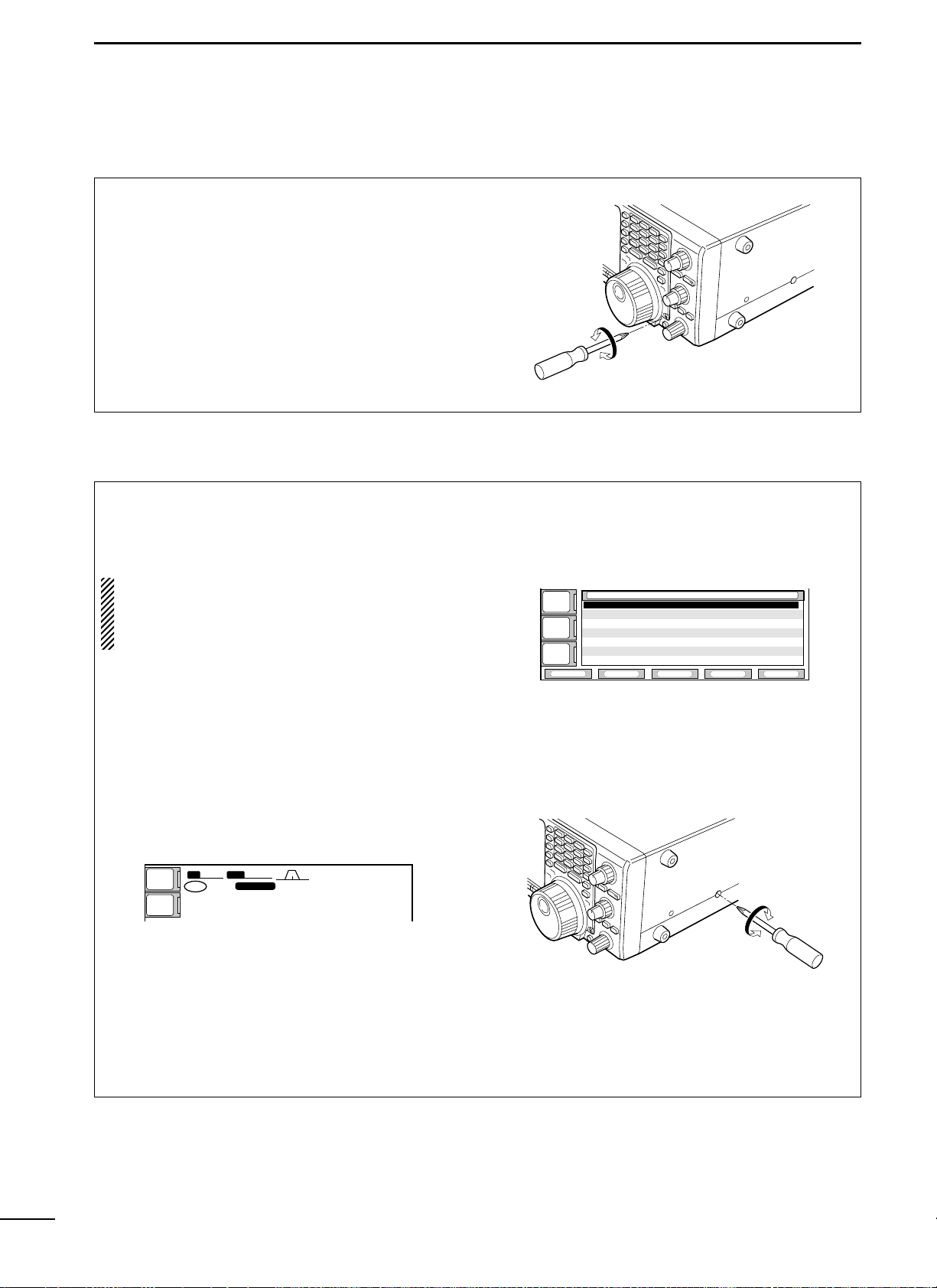

MAINTENANCE

■ Tuning dial brake adjustment

The tension of the tuning dial may be adjusted to suit your preference.

The brake adjustment screw is located on the right side of the tuning dial. See the ﬁgure at right.

Turn the brake adjustment screw clockwise or counterclockwise to obtain a comfortable tension level while turning the dial continuously and evenly in one direction.

Light

Heavy

■ Frequency calibration (approximate)

A very accurate frequency counter is required to calibrate the frequency of the transceiver. However, a rough check may be performed b y receiving r adio station WWV, or other standard frequency signals.

CAUTION:Your transceiver has been thoroughly

adjusted and checked at the factory before being shipped.You should not calibrate frequencies, except for special reasons.

q Push [SSB] to select USB mode. w Push [PBT CLR] for 2 sec. to clear the PBT set-

tings and make sure that the RIT/∂TX function is not activated.

e Set the frequency to the standard frequency sta -

tion minus 1 kHz.

•When receiving WWV (10.000.00 MHz) as a standard frequency, set the operating frequency for 9.999.00 MHz.

•Other standard frequencies can also be used.

r Push [EXIT] one or more times to close a m ulti-

function screen, if necessary.

t Push [(F-5)SET] to select the set mode screen. y Push [(F-4)OTHERS] to enter miscellaneous (oth-

ers) set mode.

u Push [(F-1)Y] several times to select the “Calibra-

tion marker” item.

i Rotate the tuning dial clockwise to turn the calibra-

tion marker ON.

•Side tone may be heard.

o Adjust the calibration pot on the right side panel of

the transceiver for a zero beat with the received standard signal as shown below.

•Zero beat means that two signals are exactly the same frequency, resulting in a single tone being emitted.

!0 Rotate the tuning dial counterclockwise to turn the

calibration marker OFF.

!1 Push [EXIT] twice to exit set mode.

DEFDEF WIDEWIDE

BK-INBK-IN

OFFOFF

1/41/4 OFFOFF

AGCAGC MIDMID

CalibrationCalibrationMarkerMarker ONON

OTHERSOTHERSSETSET

ANTANT

METERMETER

PoPo

SFTSFT

FIL2FIL2

USBUSB

qw:pp

TXTX

USBUSB

o≥ooo≥pp

14.100.0014.100.00

VFOVFO

BWBW

2.4k2.4k

INTERNAL VIEWS

PA fuse (FGB 5 A)

PA unit

FILTER unit

Internal antenna tuner

•Top view

RF unit

PLL unit

Space for optional voice synthesizer (UT-102)

MAIN unit

Clock backup battery

•Bottom view

CONTROL COMMAND

•CI-V connection example

The transceiver can be connected through an optional CT-17 CI-V LEVEL CONVERTER to a personal computer equipped with an RS-232C port. The Icom Communications Interface-V (CI-V) controls the following functions of the transceiver.

Up to 4 Icom CI-V transceivers or transceivers can be connected to a personal computer equipped with an RS-232C port. See p. 72 for setting the CI-V condition using set mode.

•Data format

The CI-V system can be operated using the following data formats. Data formats differ according to command numbers.A data area or sub command is added for some commands.

CONTROLLER TO IC-756PRO

FEFEFE 5C E0 Cn Sc Data area FD

Preamble code (fixed)

Transceiver’s default address

Controller’s default address

Command number

(see table at right)

Sub command number

(see table at right)

BCD code data for frequency or

memory number entry

End of message code (fixed)

OK MESSAGE TO CONTROLLER

FE FE E0 5C FB FD

Preamble code (fixed)

Controller’s default address

Transceiver’s default address

OK code (fixed)

End of message code (fixed)

NG MESSAGE TO CONTROLLER

FE FE E0 5C FA FD

Preamble code (fixed)

Controller’s default address

Transceiver’s default address

NG code (fixed)

End of message code (fixed)

IC-756PRO TO CONTROLLER

FE E0 5C Cn Sc Data area FD

Preamble code (fixed)

Controller’s default address

Transceiver’s default address

Command number

(see table at right)

Sub command number

(see table at right)

BCD code data for frequency or

memory number entry

End of message code (fixed)

qwert y u

■ Remote jack (CI-V) information

9–15 V DC

personal computer

ct- 17

BC-25 (optional)

IC-756PRO

mini-plug cable

CONTROL COMMAND

•Command table

Sub commandCommand Description

—00 Send frequency data

Same as

command 06

Send mode data

—02 Read band edge frequencies — —

03 Read operating frequency 04 Read operating mode

—05 Set frequency data 00

01 02 03 04 05 07 08

Set LSB Set USB Set AM Set CW Set RTTY Set FM Set CW-R Set RTTY-R

—

B0 B1 C0 C1 D0 D1

—

Select VFO mode Exchange main and sub readouts Equalize main and sub readouts Turn the dualwatch OFF Turn the dualwatch ON Select main readout Select sub readout

0001 – 0101*

Select memory mode Select memory channel

P1=0100, P2=0101

—09 Memory write —0A Memory to VFO —0B Memory clear

00 01 02 03 12 13 22 23

A1 – A7

B0 B1 D0 D3

Scan stop Programmed/memory scan start Programmed scan start ∂F scan start Fine programmed scan start Fine ∂F scan start Memory scan start Select memory scan start Set ∂F scan span (5 kHz, A2=±10 kHz, A3=±20 kHz, A4=±50 kHz, A5=±100 kHz, A6=±500 kHz, A7=±1 MHz) Set as non-select channel Set as select channel Set scan resume OFF Set scan resume ON

00 01 02 03 04 05 06 07 08

10 Hz (1 Hz) tuning step 100 Hz tuning step 1 kHz tuning step 5 kHz tuning step 9 kHz tuning step 10 kHz tuning step

12.5 kHz tuning step 20 kHz tuning step 25 kHz tuning step

Sub commandCommand Description

01 + level data

[CW PITCH] setting (0=low pitch to 255=high pitch)

Read squelch condition Read S-meter level

01 02

22 40

Set preamp (0=OFF; 1=preamp 1; 2=preamp 2)

Set AGC time constant (1=FAST; 2=MID; 3=SLOW)

Set noise blanker (0=OFF; 1=ON) Set noise reduction

(0=OFF; 1=ON) Set auto notch (0=OFF; 1=ON)

Send/read memory contents Send/read band stacking register contents Send/read CW keyer contents

00 01

[AF] level setting (0=max. CCW to 255=max. CW)

[RF] level setting (0=max. CCW to 255=11 o’clock)

[SQL] level setting (0=11 o’clock to 255=max. CW)

[NR] level setting (0=min. to 255=max.)

Inside [TWIN PBT] setting or IF shift setting (0=max. CCW, 128=center, 255=max. CW)

Outside [TWIN PBT] setting (0=max. CCW, 128=center, 255=max. CW)

09 + level data

08 + level data

07 + level data

06 + level data

03 + level data

02 + level data

00 01

Turn the split function OFF Turn the split function ON

48 Set manual notch (0=OFF; 1=ON) 49 Set RTTY filter notch

(0=OFF; 1=ON)

42 Set repeater tone (0=OFF; 1=ON) 43 Set tone squelch (0=OFF; 1=ON) 44 Set speech compressor

(0=OFF; 1=ON)

45 Set monitor (0=OFF; 1=ON) 46 Set VOX function (0=OFF; 1=ON) 47 Set break-in (0=OFF; 1=ON)

19 Read the transceiver ID00

Set repeater tone frequency Set tone squelch tone frequency

00 01

Set the transceiver to receive or transmit condition (0=Rx; 1=Tx)

[RF POWER] setting (0=min. to 255=max.)

0A + level data

[MIC GAIN] setting (0=min. to 255=max.)

0B + level data

[KEY SPEED] setting (0=slow to 255=fast)

0C + level data

[NOTCH] setting (0=low freq. to 255=high freq.)

0D + level data

[COMP] setting (0=min. to 255=max.)

0E + level data

[BK-IN DELAY] setting (0=short delay to 255=long delay)

0F + level data

[BAL] setting (0=max. CCW, 128=center, 255=max. CW)

10 + level data

00 06 12 18

Attenuator OFF Attenuator ON (6 dB) Attenuator ON (12 dB) Attenuator ON (18 dB)

Select [ANT1] Select [ANT2] (Add 0 or 1 to turn [RX ANT] OFF or ON, respectively.)

00 01

Announce with voice synthesizer (00=all data; 01=frequency and S-meter level; 02=receive mode)

00 01 02

•General

•Frequency coverage : Receive 00.030–60.000 MHz*

1, *2

Transmit 01.800–01.999*

03.500–03.999*

07.000–07.300*

10.100–10.150*

14.000–14.350*

18.068–18.168*

21.000–21.450*

24.890–24.990*

28.000–29.700*

50.000–54.000*

*1Some frequency bands are not guaranteed. *

Depending on version

•Mode : USB, LSB, CW, RTTY, AM,

•Number of memory : 101

(99 regular, 2 scan edges)

channels

•Antenna connector : SO-239×2 and phono

(RCA; 50 Ω)

•Temperature range : –10˚C to +50˚C;

+14˚F to +122˚F

•Frequency stability : Less than ±0.5 ppm 1 min.

after power on.

(–10 to 50˚C;

+14 to +122˚F)

•Frequency resolution : 1 Hz

•Power supply : 13.8 V DC ±15%

•Power consumption :

Transmit Max. power 23 A Receive Standby 3.0 A (typ.)

Max. audio 3.5 A (typ.)

•Dimensions : 340(W)×111(H)×285(D) mm

(projections not included) 13

⁄8(W)×43⁄8(H)×117⁄32(D) in

•Weight (approx.) : 9.6 kg; 21 lb 3 oz

•ACC 1 connector : 8-pin DIN connector

•ACC 2 connector : 7-pin DIN connector

•CI-V connector : 2-conductor 3.5 (d) mm (1⁄8˝)

•Display : 5-inch (diagonal) TFT color

LCD

•Transmitter

•Output power (continuously adjustable): SSB/CW/RTTY/FM 5–100 W AM 5–40 W

•Modulation system : SSB PSN modulation AM Low power modulation FM Phase modulation

•Spurious emission : 50 dB (HF bands)

60 dB (50 MHz band)

•Carrier suppression : 40 dB

•Unwanted sideband : 55 dB

suppression

•∂TX variable range : ±9.999 kHz

•Microphone connector : 8-pin connector (600 Ω)

•ELEC-KEY connector :

3-conductor 6.35(d) mm

(1⁄4")

•KEY connector :

3-conductor 6.35(d) mm

(1⁄4")

•SEND connector : Phono (RCA)

•ALC connector : Phono (RCA)

•Receiver

•Receive system : Triple conversion superheterodyne system

•Intermediate frequencies:

1st 64.455 MHz 2nd 455 kHz 3rd 36 kHz

•Sensitivity (typical) :

SSB, CW, RTTY 0.16 µV

(1.80–29.99 MHz)*

(10 dB S/N) 0.13 µV

(50.0–54.0 MHz)

AM (10 dB S/N)

13 µV (0.5–1.799 MHz) 2 µV

(1.80–29.99 MHz)*

1 µV

(50.0–54.0 MHz)

FM (12 dB SINAD) 0.5 µV

(28.0–29.99 MHz)*

0.32 µV

(50.0–54.0 MHz)*

*1Pre-amp 1 is ON, *2Pre-amp 2 is ON

•Squelch sensitivity (Pre-amp: OFF):

SSB, CW, RTTY Less than 5.6 µV FM Less than 1 µV

•Selectivity :

SSB, RTTY More than 2.4 kHz/–6 dB

(BW: 2.4 kHz) Less than 2.8 kHz/–60 dB

CW (BW: 500 Hz) More than 500 Hz/–6 dB

Less than 700 Hz/–60 dB

AM (BW: 6 kHz) More than 6.0 Hz/–6 dB

Less than 15.0 Hz/–60 dB

FM (BW: 15 kHz) More than 12.0 Hz/–6 dB

Less than 20.0 Hz/–60 dB

•Spurious and image : More than 70 dB

rejection ratio (except IF through on 50 MHz

band)

•AF output power : More than 2.0 W at 10%

(at 13.8 V DC) distortion with an 8 Ω load

•RIT variable range : ±9.999 kHz

•PHONES connector : 3-conductor 6.35 (d) mm

(1⁄4˝)

•External SP connector : 2-conductor 3.5 (d) mm (1⁄8˝)/8Ω

•Antenna tuner

•Matching impedance range:

HF bands 16.7 to 150 Ω unbalanced

(Less than VSWR 3:1)

50 MHz band 20 to 125 Ω unbalanced

(Less than VSWR 2.5:1)

•Minimum operating : 8 W

input power

•Tuning accuracy : VSWR 1.5:1 or less

•Insertion loss : Less than 1.0 dB

(after tuning)

SPECIFICATIONS

All stated speciﬁcations are typical and subject to change without notice or obligation.

OPTIONS

IC-PW1 HF/50 MHz ALL BAND 1 kW LINEAR AMPLIFIER

Full-duty 1 kW linear ampliﬁer including an automatic antenna tuner.Has automatic tuning and band selection capability. Full break-in (QSK) operation is possible.The ampliﬁer/power supply unit and the remote control unit are separated.

AH-4 HF/50 MHz AUTOMATIC

ANTENNA TUNER

Specially designed to tune a long wire antenna for portable or mobile HF operation. The PTT tuner start function provides simple operation.

•Input power rating:120 W

AH-2b ANTENNA ELEMENT

A 2.5 m long antenna element for mobile operation with the AH-4.

•Frequency coverage:

3.5–28 MHz bands with the AH-4

SM-20 DESKTOP MICROPHONE

Unidirectional, electret microphone for base station operation.Includes [UP]/[DOWN] switches and a low cut function.

SP-20 EXTERNAL SPEAKER

4 audio filters; headphone jack; can connect to 2 transceivers.

•Input impedance: 8 Ω

•Max.input power:5 W

CT-17 CI-V LEVEL CONVERTER

For remote transceiver control using a personal computer. You can change frequencies, operating mode, memory channels, etc.

HM-36 HAND MICROPHONE Hand microphone equipped with the [UP]/[DOWN] switches.

UT-102 VOICE SYNTHESIZER UNIT Announces the receive frequency, mode, S-meter level and current time in a clear, electronically-generated voice, in English (or Japanese).

SP-21 EXTERNAL SPEAKER Designed for base station operation.

•Input impedance: 8 Ω

•Max.input power:5 W

Count on us!

6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002 Japan

Icom IC-756PRO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
