Grass Catcher
MZ54 / 966721201
Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.
CONGRATULATIONS on the purchase of a new
collection system. It has been designed, engineered
and manufactured to give you the best possible
dependability and performance.
Should you experience any problem you cannot
easily remedy, please contact your nearest authorized
service center/ department. They have competent,
well-trained technicians and the proper tools for
service and repairs.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your
collection system properly. Always observe the
SAFETY RULES.
KNOW YOUR BLOWER SYSTEM
READ THIS OPERATION MANUAL AND SAFETY
RULES BEFORE ASSEMBLING OR OPERATING THE
BLOWER SYSTEM. Compare the illustrations with the
carton contents and become familiar with the parts
before starting the assembly. Study the operating
instructions and safety precautions thoroughly to
insure proper functioning of the Grass Catcher and to
prevent injuries. Save this manual for future reference.
CAUTION
BEFORE ASSEMBLING GRASS CATCHER
TO MOWER:
• Set parking brake.
• Place motion control levers in
NEUTRAL position.
• Turn ignition key OFF and remove key.
• Make sure the blades and all moving
parts have completely stopped.
WARNING
• DO NOT operate mower with grass
catcher partially installed.
• Disengage blades and stop engine
before leaving mower seat to empty
containers, unclogging chutes, etc.
• Close cover before starting.
• Disengage mower blades when
crossing driveways or gravel surfaces
and other areas where thrown objects
could be a hazard.
• DO NOT attempt to vacuum cans
or other potentially hazardous
projectiles.
CAUTION
The operation of any mower can result
in foreign objects thrown into the eyes,
which can result in severe eye damage.
ALWAYS wear safety glasses or eye
shields before starting your mower and
while mowing. Standard safety glasses
are recommended or a wide vision safety
mask for over spectacles.
CAUTION
Do not leave grass in bagger containers.
Empty containers after each use and
before storing. Failure to do so may
result in spontaneous combustion which
could develop into a fire.
CAUTION
Grass catcher components are subject
to wear, damage and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer’s recommended parts,
when necessary.
©2012 All rights reserved.
Swainsboro, GA. Printed in U.S.A.
CONTENTS
SAFETY ......................................................................4
ASSEMBLY ................................................................5
OPERATION ...............................................................9
TIPS FOR IMPROVED BAGGING .....................9
GENERAL RECOMMENDATIONS ....................9
BLADE CARE .....................................................9
STORAGE .......................................................... 9
REPAIR PARTS ........................................................10
UNPACKING INSTRUCTIONS
• Remove all parts and packing materials from
carton.
TOOLS REQUIRED
• Wrench or ratchet and socket (9/16")
• Wrench or ratchet and socket (½")
• Drill and bit (5/16")
Cover Assembly

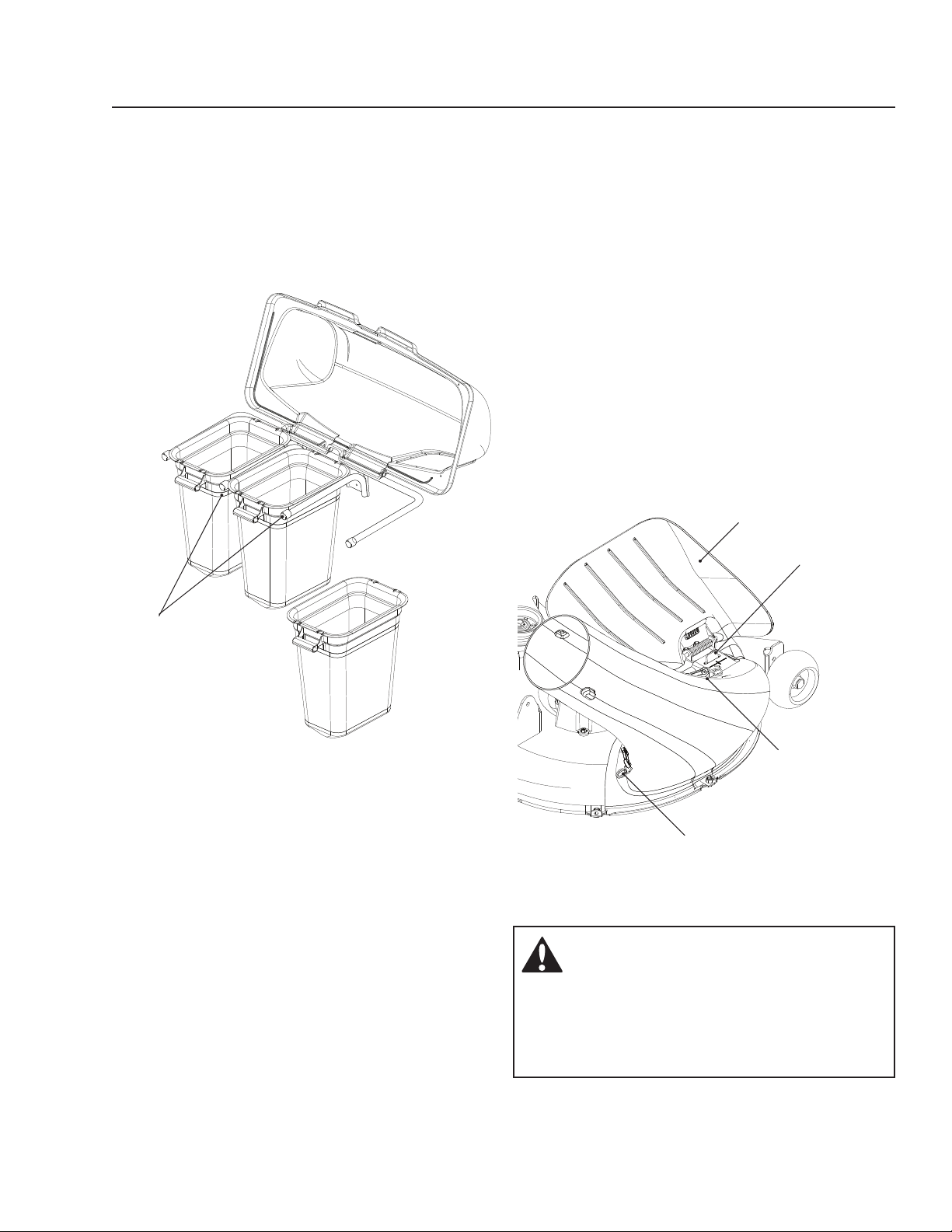

CONTAINER CONTENTS
3 - Soft bag containers 4 - Bolts 3/8-16 x 3¾
1 - Upper chute 8 - Nuts 3/8-16, Nyloc
1 - Lower chute 8 - Bolts 5/16-18 x 1
1 - Catcher mount 4 - Bolts 3/8-16 x 3½
1 - Cover Assembly
Upper Chute
Bag Dump Indicator
Bagger Containers
NOTE: When right hand (RH) and left hand
(LH) are mentioned in this manual, it means
when seated on the mower in the operator’s
position.
Lower Chute
SAFETY
SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS
GENERAL OPERATION
• Read, understand and follow all instructions in the
manual and on the machine before starting.
• Only allow responsible adults, who are familiar with
the instructions, to operate the machine.
• Clear the area of objects such as rocks, stones,
toys, wire etc., which could be picked up and
thrown by the blades.
• Be sure the area is clear of all people and pets
before mowing. Stop the machine if anyone enters
the area.
• Never carry passengers or children even with
blades off.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.
• Do not operate the mower without either the entire
grass catcher or the guard in place.
• Slow down before turning.
• Stop engine before removing grass catcher or
unclogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the
influence of alcohol or drugs.
• If the collection system has front weights included,
DO NOT operate mower with the grass catcher
unless the front weights are installed.
• Keep machine free of grass, leaves or other debris
buildup which can touch hot exhaust/engine parts
and burn. Do not allow the mower deck to plow
leaves or other debris which can cause buildup to
occur.
• Allow machine to cool before storage.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tip-over accidents, which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not
mow it.
DO
• Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
• Mow up and down slopes (10° Max.), not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.
• Use slow speed. Choose a low speed so that you
will not have to stop while on the slope.
• Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
• Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
DO NOT
• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
• Do not mow near drop-off, ditches, or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not try to stabilize the machine by putting your
foot on the ground.
SERVICE
• The operation of any mower can result in foreign
objects thrown into the eyes, which can result in
severe eye damage. Always wear safety glasses
or eye shields while operating the mower or
performing any adjustments or repairs. Wide vision
safety mask over spectacles or standard safety
glasses are recommended.
• Keep nuts and bolts, especially blade attachment
bolts, tight and keep equipment in good condition.
• Never tamper with safety devices. Check there
proper operation regularly.
• Grass catcher components are subject to wear,
damage, and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace
with manufacturer’s recommended parts, when
necessary.
4
ASSEMBLY
INSTALLING BAGGER MOUNT
1
1. Select the mount tube, lower mount hitch, spacer
plate and support bracket from the kit. Using
5
/16 -18 x 1¾ round head shoulder bolts and
nuts, attach the mount hitch to the mount tube as
illustrated. Ensure that the elbowed arm of the tube
is on the right side, with the mount hitch installed
to the front.
2. Attach the support bracket to the tube assembly
with two 5/16 -18 x 1¾ round head shoulder bolts
and nuts.
Spacer Plate
FRONT
Support Bracket
3. With a ½-13 x 1 hex bolt and nut, secure the lower
mount hitch to the frame.
4. Install the mount straps (bends are to the inside)
on the outside of the mount tube using 5/16-18 x 2
hex bolts and nuts. The front side of the mount
straps are secured to the fuel tank brackets with
3
/8-16 x 1 round head shoulder bolts and nuts.
5. To prevent contact of the left hand strap and
the EFM (Electronic Fuel Management) box on
the engine, place the foam strip on the inside of
the strap, next to the box. (Illustration location is
approximate.)
6. It may necessary to drill holes into the rear
guard to accept the hardware for the support
bracket and spacer plate. Using the bracket as a
template, drill 5/16" holes.
7. Slip the spacer plate between the support bracket
and the rear guard and attach both to the rear
guard with 5/16-18 x ¾ hex bolts and nuts.
8. Tighten all hardware.
Mount Tube
Lower Mount Hitch
8063-109
Foam Strip
Mount Strap
Support Bracket and
Spacer Plate
8063-110
Mount Strap
5
ASSEMBLY
INSTALLING CHUTE SUPPORT
2
1. Position upper chute support against bagger inlet,
flush at outer edges. See Illustration.
2. Using support as a template, drill two 3/8 holes into
bagger hood.
Bagger Inlet
8063-047
Upper Chute
Support
CONTAINER MOUNTING
3
Remove plastic end caps from the center two bag
support arms. Fully insert spacer plugs into the ends
of the support tubes. It may be necessary to tap the
spacers into place with a hammer or mallet. Replace
the plastic end cap back over the spacer. The
additional extension will hold the hood more securely
when latched.
8063-049
Spacer
3. Secure upper chute support to hood with hex
bolts, washers and nyloc nuts.
Flex Trim
8063-048
Center End Caps
MOUNTING COVER ASSEMBLY
4
NOTE: Assistance from another person may ease
mounting the cover assembly to mower.
1. Lift and rotate cover to align the cover brackets
with support assembly tubes.
2. Slide the cover down over the support tubes until
secure.
8063-050
6
ASSEMBLY
CONTAINER MOUNTING
5
1. Install containers on supports, overlapping at
center supports.
2. Close cover and lock latch handles over center
support tubes.
8063-108
LOWER CHUTE INSTALLATION
6
1. Raise and hold deflector shield in upright position.
2. Fit lower chute as shown and hook rear latch to
mower deck.
3. Align the bracket slot on lower chute with the
deflector bracket tab on the mower deck. Slide
chute down over tab.
4. With the lower chute in proper position, hold the
chute securely while hooking the front latch to the
mower deck.
NOTE: While hooking the latches, the deflector
shield may try to push the chute away from the
mower deck opening. It is important to hold the
chute in position while hooking the latches to
the mower deck.
Deflector Shield
Deflector
Bracket Tab
Center Support
Tubes
Front Latch
8063-111
Rear Latch
WARNING!
Before raising the deflector shield, turn
the mower engine off. DO NOT remove the
deflector shield from the mower. Raise
and hold the shield when attaching the
lower chute. Allow the shield to rest on
the chute while in operation.
7
ASSEMBLY
UPPER CHUTE INSTALLATION
7
1. Attach bungee latch assembly from kit.
CHUTE / HOOD INSTALLATION
8
1. Push the upper chute through the gasketed
opening in the cover assembly.
2. Rotate the chute so the chute opening is
downwards toward the container bags.
2. Slide upper chute onto lower chute, lining up
notches and channels.
3. Stretch bungee latch up onto acorn nut on upper
chute to secure.
LEVELING THE MOWER DECK
9
For the best mower performance, the deck should
be properly leveled. Refer to the Operator Manual for
instructions.
8
OPERATION
TIPS FOR IMPROVED BAGGING
Follow the mower operation instructions in the mower
operator’s manual.
When operating your grass catcher on a lawn where
grass and leaf bagging equipment has not been
used, you are picking up thatch and debris that has
accumulated for long periods of time. The amount
collected and the total time of operation may be
greater than you will experience with regular use of
your grass catcher.
• Always run throttle at full speed when bagging.
• Select a speed low enough to give good mower
cutting performance, good quality cut and good
bagging performance.
NOTE: It may be necessary to overlap width of
cut to suit conditions.
• If grass is extremely tall, it should be mowed
twice. The first time relatively high, the second
time to desired height.
• Use left hand side of mower for trimming.
• Plastic trash bags (3.0 mil, 30 gallon) can be
inserted inside grass catcher containers for ease
of debris disposal. To remove the plastic trash
bags when full:
a. Disengage blades, shift into neutral, engage
the parking brake and stop the engine.
b. Unlatch and raise cover.
c. Remove one container at a time by grasping
container handles and pulling toward the rear,
off of the tube rails.
d. With the container resting on the ground,
close and secure the top of the plastic lawn
bag.
e. Tip the container on its side and slide the
filled bag from the container.
f. Install a new plastic lawn bag with the edges
of the bag draped over upper lip of the
container.
g. Repeat for other container.
h. Reinstall containers making sure right
container overlaps left container at center
supports.
i. Close cover and secure latches over center
support tubes.
• Avoid cutting wet grass or in the morning while
the dew is still heavy. Grass clippings collected
under these conditions tend to be sticky and
adhere to the walls of the flow path causing
clogging.
• If the grass catcher fails to pick up cut grass
or leaves, it is an indication that clogging has
occurred in the system or that the grass catcher
containers are full.
a. Disengage blades, place motion control
levers in neutral position.
- Unlatch and raise cover.
- Slide out containers and dispose of
clippings.
- Replace containers, close cover, and
latch.
b. Unlatch chutes and check for clogging.
- Remove all debris in chute.
- Reassemble and latch chutes.
GENERAL RECOMMENDATIONS
Always observe safety rules when performing any
maintenance.
• Before each use check for loose fasteners.
• Clean unit thoroughly after each use.
BLADE CARE
• For best results mower blades must be kept
sharp. Replace bent or damaged blades.
• See BLADE CARE instructions in your mower
operator’s manual.
STORAGE
When grass catcher is to be stored for a period of
time, clean it thoroughly, remove all dirt, grass, leaves,
etc. Store in a clean, dry place.
CAUTION
Grass catcher components are subject to wear,
damage and deterioration, which could expose
moving parts or allow objects to be thrown.
Frequently check components and replace
with manufacturer’s recommended parts, when
necessary.
CAUTION
Do not leave grass in bagger containers. Empty
containers after each use and before storing.
Failure to do so may result in spontaneous
combustion which could develop into a fire.
9
REPAIR PARTS
16
14
3
16
1
9
8
4
13
10
7
6
14
5
12
17
11
18
15
10
2
REPAIR PARTS
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1.. 532 195373 ....1 ....COVER
2.. 532 400226 ....3 ....CONTAINER, SOFT BAG
3.. 532 130895 ....2 ....HANDLE, BAGGER COVER
4.. 539 108098 ....1 ....FRAME, BAGGER
5.. 532 192709 ....1 ....SCREEN, COVER
6.. 539 108097 ....4 ....PLUG, TUBING END
7.. 522 801301 ....2 ....PLUG, SPACER
8.. 532 192786 ....2 ....PIN, HINGE
9.. 532 192550 ....1 ....SEAL, COVER
10.. 532 192603 ....1 .... GASKET, COVER
11.. 539 110281 ....1 .... SUPPORT, CHUTE
12.. 539 112294 ....1 .... FLEX TRIM
13.. 539 108096 ....2 .... HAIR PIN
14.. 539 976952 ....6 .... SCREW #10-24 x 5/8
15.. 539 990627 ....2 .... HCS 5/16-18 x 1¼
16.. 539 976977 . . 14 ....NUT #10-24 CROWNLOCK
17.. 539 112899 ....2 .... NUT 5/16-18 HEX FLG NYLOC
18.. 539 990188 ....2 .... WASHER 5/16 SAE
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
11
REPAIR PARTS
20
2
17
5
14
18
14
4
8
21
11
25
7
12
19
16
3
10
27
1
21
21
21
15
26
23
12
28
24
22
28
13
6
26
28
9
27
22
REPAIR PARTS
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1.. 539 131091 ...1 ...TUBE, MOUNT
2.. 575 953302 ....1 ....STRAP, LT BLK
3.. 539 132198 ....1 ....STRAP, RT BLK
4.. 576 221402 ....1 ....BRACKET, SUPPORT, BLK
5.. 539 132192 ....1 ....HITCH MOUNT, LOWER, BLK
6.. 539 113204 ....1 ....CHUTE, LOWER
7.. 539 108141 ....1 ....CHUTE, UPPER
8.. 539 108082 ....1 ....DUMP BAG INDICATOR
9.. 539 108194 ....2 ....LATCH
10.. 539 108088 ....1 .... LATCH, HOOD
11.. 576 221502 ....1 .... PLATE, SPACER BLK
12.. 539 108085 ....1 .... SPACER, SPLIT
13.. 539 108163 ....1 .... DECAL, CATCHER
14.. 539 990861 ....4 .... RHSNB 5/16-18 x 1¾
15.. 539 990645 ....2 .... RHSNB 3/8-16 x 1
16.. 539 976937 ...2 ... HCS 5/16-18 x 2
17.. 539 990646 ....1 .... HCS ½-13 x 1
18.. 525 464701 ....3 .... HHFS 5/16 -18 x ¾
19.. 539 108086 ....1 .... NUT #10-24 ACORN
20.. 539 101331 ....1 .... NUT ½ NYLOC
21.. 539 112899 ....9 .... NUT 5/16 NYLOC
22.. 539 108089 ....3 .... WELD NUT
23.. 539 976979 ....2 .... NUT 3/8-16 NYLOC
24.. 539 108083 ....1 .... SCREW #10-24 x 11/8
25.. 539 108081 ....1 .... SCREW #10-14 x ½
26.. 539 976952 ....3 .... SCREW #10-24 x 5/8
27.. 539 109552 ....3 .... LOCKWASHER 3/16
28.. 539 108084 ....4 .... WASHER 3/16 x ¾ 16 GA
NOT SHOWN
539 110290 ...1 .... STRIP, FOAM
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
13
www.husqvarna.com
115 403227 Rev B
2013-03-25
Loading...
