Husqvarna MZ28T CE Owner's Manual

Operator Manual

MZ28T/ 966613201

Please read the operator’s manual carefully and make sure
you understand the instructions before using the machine.

English

To implement improvements, specifications and designs can be altered without prior notification.

Note that no legal demands can be placed based on the information contained in these instructions.

Use only original parts for repairs. The use of other parts voids the warranty.

Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modifications to the unit may cause unsafe operations or damage the unit.

When this product is worn out and no longer used, it should
be returned to the reseller or other party for recycling.

©2011 All rights reserved.

Orangeburg,SC.

CONTENTS

INTRODUCTION ......................................................5

Driving and Transport on Public Roads .............5

Towing ................................................................5

Operating ...........................................................5

Good Service .....................................................6

SYMBOLS AND DECALS .........................................7

SAFETY ....................................................................9

Safety Instructions ..............................................9

Personal Safety Equipment ..............................11

Slope Operation ...............................................11

Safe Handling of Gasoline ...............................13

General Maintenance .......................................14

Transport ..........................................................16

Towing ..............................................................16

Spark Arrestor ..................................................16

CONTROLS ............................................................17

Control Locations .............................................17

Motion Control Levers ......................................18

Hour Meter .......................................................19

Blade Switch ....................................................19

Ignition Switch ..................................................19

Parking Brake ...................................................20

Tracking Knob ..................................................21

Fuses ................................................................21

Hydro Release Levers ......................................21

Cutting Height Adjuster ....................................22

Seat Adjustment Lever .....................................22

Fuel Shut Off Valve ...........................................22

Refueling ..........................................................23

OPERATION ...........................................................24

Training .............................................................24

Steering ............................................................24

Before Starting .................................................25

Starting the Engine ...........................................26

Jumper Cables Use ....................................29

Running ............................................................30

Operating on Hills ............................................31

Stopping the Engine .........................................32

Mowing Tips .....................................................33

Moving Machine By Hand ................................34

Bypass Linkages .........................................34

MAINTENANCE ......................................................35

Maintenance Schedule ....................................35

Battery ..............................................................37

Safety System ...................................................38

Tire Pressures ...................................................38

Parking Brake ...................................................38

Deck Belt ..........................................................39

Pump Belt .........................................................40

V-belts ..............................................................40

Cutting Blades ..................................................41

Leveling deck ..............................................42

Anti-scalp rollers...............................................43

Caster Wheels ..................................................44

Hardware ..........................................................44

Cleaning ...........................................................44

LUBRICATION ........................................................45

Lubrication Schedule .......................................45

Wheel and Deck Zerks .....................................46

Front Wheel Mount ......................................46

Front Wheel Bearings ..................................46

Deck Spindles .............................................46

Transaxle (Transmission) Fluid Change ...........47

Purging Procedures ....................................48

TROUBLESHOOTING GUIDE ................................49

STORAGE ..............................................................51

Winter Storage ..................................................51

Service .............................................................51

WIRING DIAGRAMS ..............................................52

TECHNICAL DATA .................................................53

Torque Specifications .......................................55

CONFORMITY CERTIFICATES ...............................56

SERVICE JOURNAL ...............................................57

WARNING!

Failure to follow cautious operating practices can result in serious injury to the
operator or other persons. The owner must understand these instructions, and must
allow only trained persons who understand these instructions to operate the mower.

Each person operating the mower must be of sound mind and body and must not be
under the influence of any mind altering substance.

WARNING!

Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.

WARNING!

Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

INTRODUCTION

Congratulations

Thank you for purchasing a Husqvarna ride-on mower.
This machine is built for superior efficiency to rapidly
mow primarily large areas. A control panel that is
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine’s performance.

This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use, service,
maintenance) by all who operate this machine is
important for the safety of the operator and others.
It can also considerably increase the life span of the
machine and increase its resale value.

If you sell your machine, be sure to give the operator’s
manual to the new owner.

The final chapter of this operator’s manual provides a
Service Journal. Ensure that service and repair work
are documented. A well-kept service journal reduces
service costs for the maintenance and affects the
machine’s resale value. Please contact your dealer for
more information. Take the operator’s manual along
when the machine is taken to your dealer for service.

General

In this operator’s manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.

Continuous dedication to improve our products
require that specifications and design are subject to
change without notice.

Driving and Transport on Public Roads

Check applicable road traffic regulations before
transporting on public roads. If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored. DO NOT operate this machine on public
roadways.

Towing

If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on the towed equipment. Make wide turns to avoid
jack-knifing. Travel slowly and allow extra distance to
stop.

Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.

Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.

Operating

This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc. The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer. Operating
instructions for the accessories are provided with
delivery. All other types of uses are incorrect. The
manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.

Lawn mowers and all power equipment can be
potentially dangerous if used improperly. Safety
requires good judgment, careful use in accordance
with these instructions and common sense.

The machine must only be operated, maintained,
and repaired by persons familiar with the
machine’s special characteristics and who are also
knowledgeable about the safety instructions. Use only
approved repair parts to maintain this machine.

Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic
regulations must be followed without fail.

Unauthorized modifications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage.

5

INTRODUCTION

Good Service

Husqvarna’s products are sold all over the world
and only in specialized retail stores with complete
service. This ensures that you as a customer receive
only the best support and service. Before the product
is delivered, the machine has, for example, been
inspected and adjusted by your retailer. See the
certificate in the Service Journal in this operator’s
manual.

When you need spare parts or support in service
questions, warranty issues, etc., please consult
the following professional:

This manual belongs to the machine with the
manufacturing number:

Manufacturing Number

The machine’s manufacturing number can be found on
the printed plate affixed to the engine compartment.

Stated on the plate, from the top are:

1. The machine’s type designation (I.D.).

2. The manufacturer’s type number (Model).

3. The machine’s serial number (Serial no.)

Please have the type designation and serial number
available when ordering spare parts.

The engine’s manufacturing number is stamped on
one of the valve covers.

The plate states:

4. The engine’s model.

5. The engine’s type.

6. Code

Please have these available when ordering spare
parts.

The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.

Engine Transmission

6

SYMBOLS AND DECALS

These symbols are found on the machine and in the
operator’s manual.

Study them carefully so that you know what they
mean.

WARNING!

Xxxx xxxxxx xxxxx xxxx xxxxxxxxx
xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx
xxxxxx.

Used in this publication to notify the reader of a risk
of personal injury or death, particularly if the reader
should neglect to follow instructions given in the
manual.

R

Reverse Neutral Fast Slow Fuel

N

IMPORTANT INFORMATION

Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx
xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.

Used in this publication to notify the reader of a risk
of material damage, particularly if the reader should
neglect to follow instructions given in the manual.
Used also when there is a potential for misuse or
misassembly.

Warning! Parking Brake Warning! Rotating blades, Do not touch parts
keep away from the
discharge deck

Battery acid is corrosive, explosive and flammable Do not stand here Drawbar loading

Use protective glasses Use protective gloves

7

SYMBOLS AND DECALS

Read Shut off engine and Keep a safe Use on slopes No passengers
Operator’s remove key before distance from no greater
Manual performing any the machine than 10°
maintenance or repair work

Whole body Severing of fingers Do not open or Careful backing up, Careful going
exposure to and toes remove safety watch for other forward, watch for
thrown objects shields while people other people
engine is running

Noise emissions to the
surroundings in accordance
with the European Union’s
directive. The machine’s
emission is stated in the
chapter TECHNICAL DATA
and on the decals.

Only machines for European
market.

8

SAFETY

Safety Instructions

These instructions are for your safety. Read them
carefully.

IMPORTANT: THIS CUTTING MACHINE IS
CAPABLE OF AMPUTATING HANDS AND FEET
AND THROWING OBJECTS. FAILURE TO OBSERVE
THE FOLLOWING SAFETY INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR DEATH.

General Operation

• Read, understand, and follow all instructions on
the machine and in the manual before starting.

• It is recommended that someone be aware that
you are mowing and can provide help in case of
injury or accident.

• Do not put hands or feet near rotating parts or
under the machine. Keep clear of the discharge
opening at all times.

• Only allow responsible adults, who are familiar
with the instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blades.

• Be sure the area is clear of bystanders before
operating. Stop machine if anyone enters the
area.

• Never carry passengers. The machine is only
intended for use by one person.

• Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while backing.

• Never direct discharged material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward
the operator. Stop the blades when crossing
gravel surfaces.

• Do not operate machine without the entire grass
catcher, discharge guard, or other safety devices
in place and working

• Slow down before turning.

• Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.

• Disengage blades when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging the
discharge guard.

• Operate machine only in daylight or good artificial
light.

• Do not operate the machine while under the
influence of alcohol or drugs.

WARNING!

This symbol means that important
safety instructions need to be
emphasized. It concerns your safety.

8011-512

Read the operator’s manual before starting the machine

8011-513

Clear the area of objects before mowing

9

SAFETY

• Watch for traffic when operating near or crossing
roadways.

• Use extra care when loading or unloading the
machine into a trailer or truck.

• Always wear eye protection when operating
machine.

• Wear proper Personal Protective Equipment
(PPE) while operating this machine, including (at
a minimum) sturdy footwear, eye protection, and
hearing protection. Do not mow in shorts and/or
footwear with open toes.

• Data indicates that operators age 60 years and
above are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.

• Follow the manufacturer’s recommendation for
wheel weights or counterweights.

• Anyone who operates this machine must first read
and understand this Operator Manual. Local laws
may regulate the age of the user.

• Keep machine free of grass, leaves or other
debris buildup which can touch the hot exhaust
or engine parts and burn. Do not allow the mower
deck to plow leaves or other debris, causing
buildup to occur.

• Clean any oil or fuel spillage before operating or
storing the machine.

• Allow machine to cool before storage.

8011-520

Never take passengers

WARNING!

Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects, or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is an odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.

10

SAFETY

Personal Safety Equipment

WARNING!

When using the machine, approved
personal protective equipment
(shown in illustrations) shall be
used. Personal protective equipment
cannot eliminate the risk of injury but
it will reduce the degree of injury if
an accident does happen. Ask your
retailer for help in choosing the right
equipment.

• Make sure that you have first aid equipment close
at hand when using the machine.

• Never use the machine when barefoot.

• Always wear protective shoes or boots, preferably
with steel toe caps.

• Always wear approved protective glasses or a full
visor when assembling or driving.

• Always wear gloves when handling the blades.

• Never wear loose clothing that can get caught in
moving parts.

• Use ear protectors to avoid damage to hearing.

8011-670

Personal protective equipment

Slope Operation

Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution.
If you cannot back up the slope or if you feel uneasy
on it, do not mow it.

• Mow up and down slopes (10 degrees maximum),
not across.

• Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.

• Choose a low ground speed so that you will not
have to stop while on the slope.

• Do not mow on wet grass. Tires may lose traction.

• Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.

• Keep movement on the slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause machine to roll over.

• Use extra care while operating machine with
grass catchers or other attachments; they can
affect the stability of the machine.

6003-004

Mow up and down, not side to side

WARNING!

Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across any slopes.

11

SAFETY

• Do not use on steep slopes.

• Do not try to stabilize the machine by putting a
foot on the ground.

• Do not mow near drop-offs, ditches, or
embankments. The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.

Children

Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain out of the path
of danger.

WARNING!

CHILDREN CAN BE INJURED BY
THIS EQUIPMENT. The American
Academy of Pediatrics recommends
that children be a minimum of 16
years of age before operating a
riding lawn mower.

• Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator.

• Be alert and turn machine off if a child enters the
area.

• Before and while backing, look behind and down
for small children.

• Never carry children, even with the blades shut
off. They may fall off and be seriously injured or
interfere with safe machine operation. Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block the
view of a child.

8011-518

Keep children away from work area

8011-517

Never allow children to operate the machine

12

SAFETY

Safe Handling of Gasoline

WARNING!

The engine and the exhaust system
become very hot during operation.

There is risk for burns if touched.

Allow engine and exhaust system to
cool before refueling.

To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as on a water heater or other appliance.

• Before beginning to refuel, minimize the risk of
static electricity by touching a metal surface.

• Never fill containers inside a vehicle or on a truck
or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when filling.

• Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.

• Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling
is complete. Do not use a nozzle lock-open
device.

• If fuel is spilled on clothing, change clothing
immediately.

• Never overfill fuel tank. Replace gas cap and
tighten securely.

• Do not start the engine near spilled fuel.

• Never use gasoline as a cleaning agent.

• If leaks arise in fuel system, engine must not be
started until problem has been resolved.

• Check the fuel level before each use and leave
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overflow.

8011-516

Never fill the fuel tank indoors

WARNING!

The engine must not be started
when the driver’s floor plate or any
protective plate for the mower deck’s
drive belt is removed.

13

SAFETY

General Maintenance

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.

• Never tamper with safety devices. Check their
proper operation regularly.

• Keep machine free of grass, leaves, or other
debris buildup. Clean oil or fuel spillage and
remove any fuel-soaked debris. Allow machine to
cool before storing.

• If the machine strikes a foreign object, stop and
inspect the machine. Repair, if necessary, before
restarting.

• Never make any adjustments or repairs with the
engine running.

• Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.

• Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing
them.

• Check brake operation frequently. Adjust and
service as required.

• Maintain or replace safety and instruction labels,
as necessary.

• Do not modify safety equipment. Check regularly
to be sure it works properly. The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices.

• Do not change the settings of governors and
avoid running the engine with overly high engine
speeds. If the engine runs too fast, there is risk for
damaging the machine components.

• Be very careful when handling battery acid. Acid
on skin can cause serious corrosive burns. If
battery acid is spilled on skin, rinse immediately
with water.

• Acid in the eyes can cause blindness, contact a
doctor immediately.

• Be careful when servicing the battery. Explosive
gases form in the battery. Never perform
maintenance on the battery when smoking or near
open flames or sparks.

• The battery can explode and cause serious injury
or damage.

• Make sure that the equipment is in good condition
and that all nuts and bolts, especially those
fastening the blade attachments, are properly
tightened and torqued.

14

8011-515

Never drive the machine in an enclosed space

WARNING!

Use protective glasses for
maintenance work.

WARNING!

The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive
system damage. Wash your hands
after handling the battery.

SAFETY

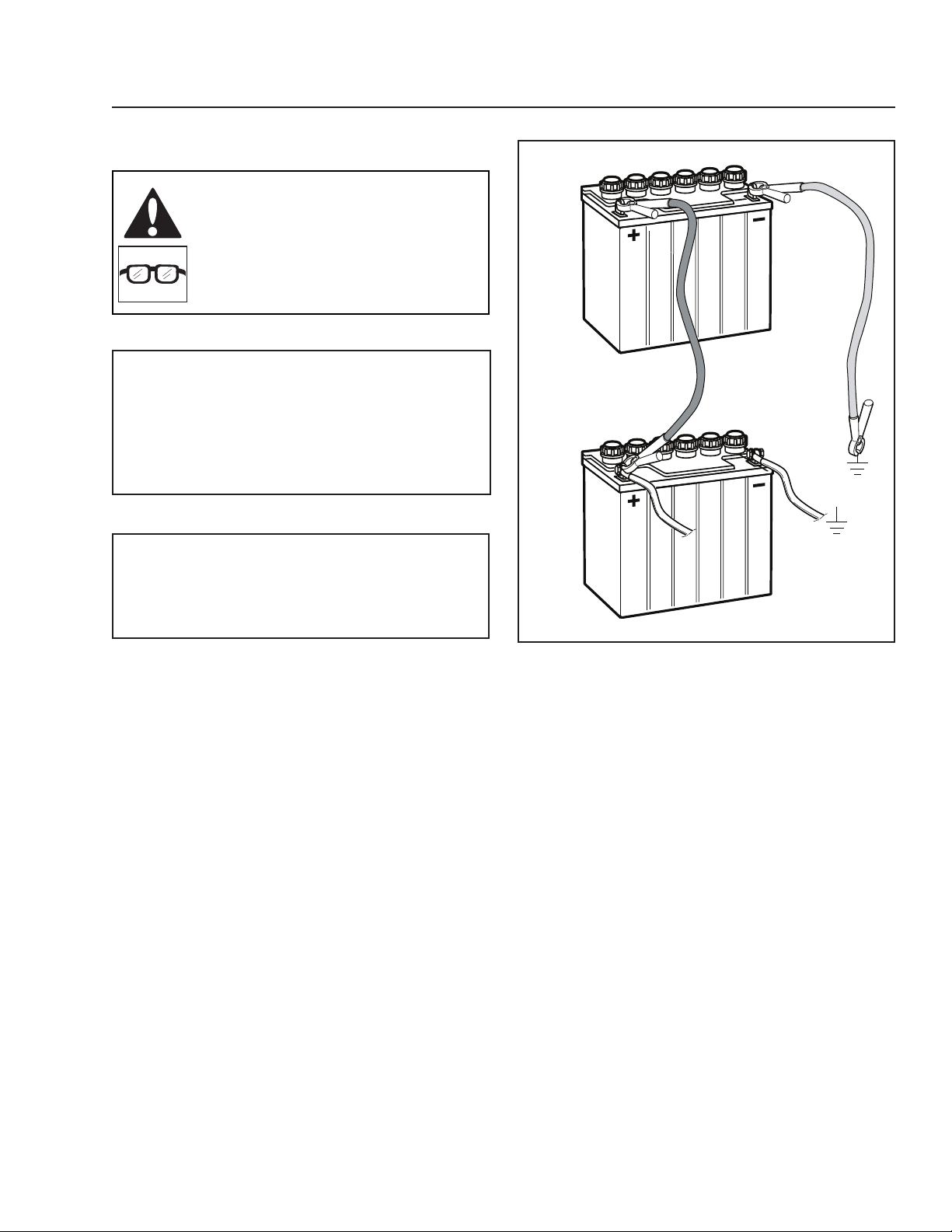

Sparking can occur when working with the battery
and the heavy cables of the starter circuit. This can
cause battery explosion, fire or eye injury. Sparking
in this circuit can not occur after the chassis cable
(normally negative, black) is removed from the battery.

WARNING!

Avoid electrical sparking and its
consequences by the following
routines:

• Use protective goggles.

• Ensure that the fuel filler cap is mounted tightly
and no flammable substances are stored in an
open vessel.

• Never work with the starter circuit if there is spilled
fuel.

• Disconnect the negative cable from the battery
first and reconnect it last.

• Do not make a bridge short circuit across the
starter relay to run the starter.

6003-009

Do not smoke when performing maintenance on the battery.
The battery can explode and cause serious injury/damage.

• Never use the machine indoors or in spaces
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless,
poisonous, and lethal gas.

• Stop to inspect the equipment if the machine runs
over or into anything. If necessary, make repairs
before starting.

• Never make adjustments with the engine running.

• The machine is tested and approved only with the
equipment originally provided or recommended
by the manufacturer. Only use approved repair
parts for the machine.

• The blades are sharp and can cause cuts and
gashes. Wrap the blades or use protective gloves
when handling them.

• Check the parking brake’s functionality regularly.
Adjust and service as necessary.

• The mulch blades should only be used in familiar
areas when higher quality mowing is desired.

• Reduce the risk of fire by removing grass, leaves,
and other debris that may have accumulated on
the machine.

• Allow the machine to cool before putting it in
storage.

• Regularly clean deck and underside of deck,
avoid spraying engine and electrical components
with water.

8009-728

Risk of sparking

8011-514

Regularly clean deck

15

SAFETY

Transport

• The machine is heavy and can cause serious
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.

• Use an approved trailer to transport the machine.
Activate the parking brake, turn off the fuel supply,
and fasten the machine with approved fastening
devices, such as bands, chains, or straps, when
transporting.

• Do not operate this machine on public roadways.

• Check and abide by local traffic regulations
before transporting the machine on any road.

• Do not tow this machine: it may cause damage to
the drive system.

• Load the unit onto truck or trailer by driving up
ramps of suitable strength using a slow speed. Do
not lift! The machine is not intended to be lifted by
hand.

• When loading or unloading this machine, do not
exceed the maximum recommended operation
angle of 10O.

Towing

If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on towed equipment.

Make wide turns to avoid jack-knifing. Travel slowly
and allow extra distance to stop. Do not tow on sloped
ground. The weight of the towed equipment may
cause loss of traction and loss of control.

Follow the manufacturer’s recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.

Spark Arrestor

A spark arrestor for the muffler is available through
your authorized Husqvarna dealer.

WARNING!

Use extreme caution when loading the
machine into a truck or trailer using
ramps. There is the possibility of
serious injury or death if the machine
falls off the ramps.

IMPORTANT INFORMATION

The parking brake is not sufficient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.

WARNING!

This mower is equipped with an
internal combustion engine and
should not be used on or near any
unimproved forested, bush covered
or grassy lands unless the engine's
system is equipped with a spark
arrestor meeting applicable local or
state laws (if any).

WARNING!

Escaping hydraulic oil under pressure
can have sufficient force to penetrate
the skin, causing serious injury.
If injured by escaping fluid, see a
doctor at once. Serious infection
or reaction can develop if proper
medical treatment is not administered
immediately.

16

CONTROLS

This operator’s manual describes the Husqvarna Zero
Turn Rider. The rider is fitted with either a Briggs &
Stratton four-stroke overhead valve engine.

Transmission from the engine is made via belt-driven

Control Locations

4

5

hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.

3

2

1

13

5

12

6

7

1. Motion control levers

2. Parking brake

3. Tracking knob

4. Fuel tank

8

9

6. Ignition switch

7. Hour meter

8. Throttle control

9. Blade switch

10

10. Seat adjustment lever

11. Right tracking bolt

12. Height adjustment

13. Deck lift

11

8058-039

5. Hydro release lever

17

CONTROLS

Motion Control Levers

The machine’s speed and direction are continuously
variable using the two steering controls. The steering
controls can be moved forward or backward about
a neutral position. Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward.

When both controls are in the neutral position (N), the
machine stands still.

By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.

For example, to turn right while moving forward, move
the right control towards the neutral position. The
rotation of the right wheel is reduced and the machine
turns to the right.

Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left. Use extra care when using this maneuver.

8058-042

Steering controls

WARNING!

The machine can turn very rapidly if
one steering control is moved much
further forward than the other.

18

8065-053

1. Forward

2. Neutral

3. Neutral slot, Neutral lock

4. Reverse

Motion control lever pattern (right side)

CONTROLS

Hour Meter

The hour meter displays the total operating time.
It will flash CHG OIL (Change Oil) at 50 hour intervals.

The flash duration is one hour before and one hour
after the interval. The CHG OIL icon will come on
and shut off automatically. The hour meter cannot be
manually reset.

Blade Switch

To engage the mower deck, pull the blade switch
knob out. The mower blades are disengaged when
the knob is pressed down fully.

8058-043

Hour meter

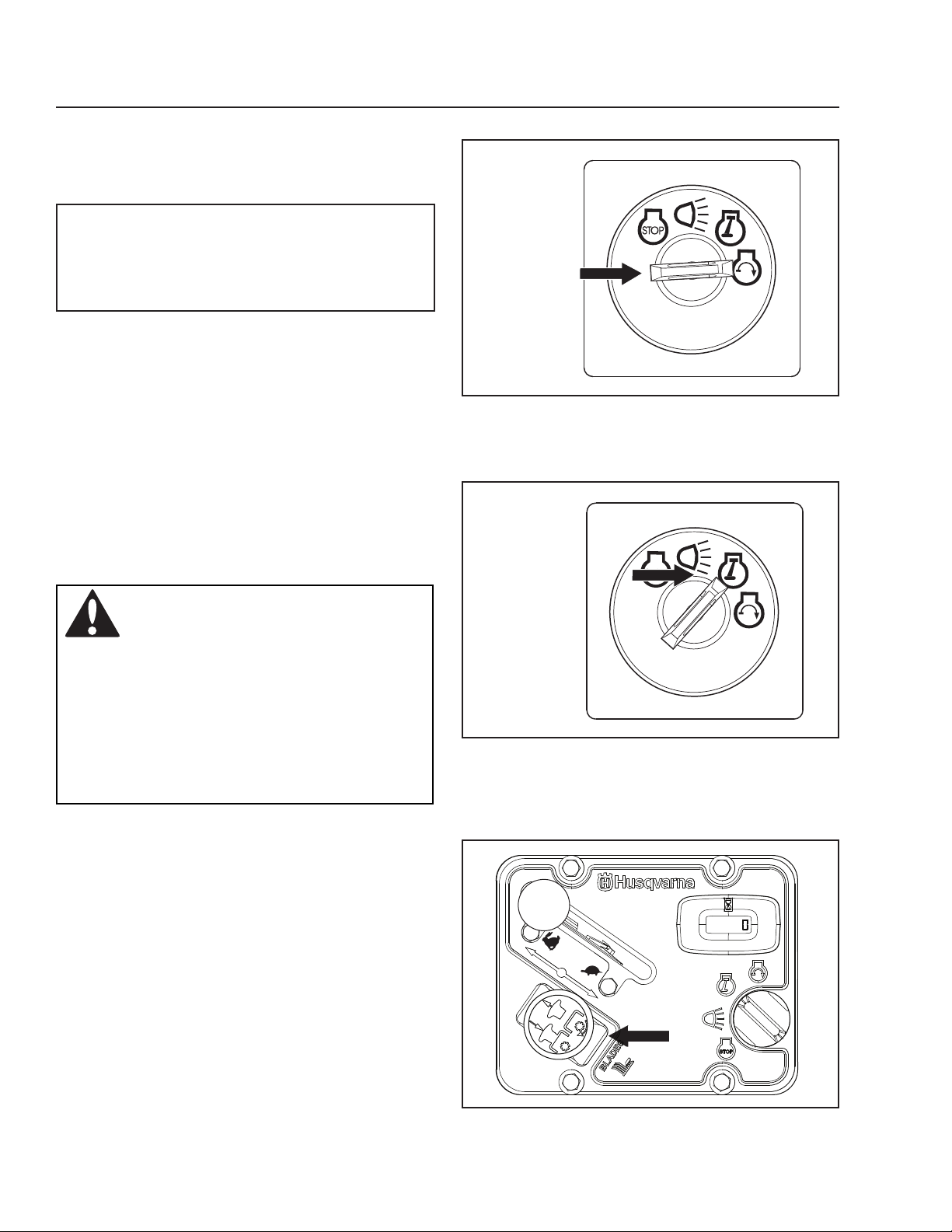

Ignition Switch

The ignition switch is placed on the control panel and
is used to start and stop the engine.

Turn the key clockwise to start the engine.

8058-043

Blade switch

8058-045

Ignition switch

19

CONTROLS

Release the key to the RUN position when the engine
has started.

For using “accessory”, turn the key counter clockwise.

8058-046

Ignition switch - RUN position

Parking Brake

The parking brake is found on the left of the machine.
Pull the lever backward to activate the brake and
push forward to release it.

IMPORTANT INFORMATION

The machine must stand absolutely still when
applying the parking brake. Always set the
parking brake before dismounting. Release the
parking brake before moving the mower.

20

8058-047

Ignition switch - accessory

8058-044

Parking brake

CONTROLS

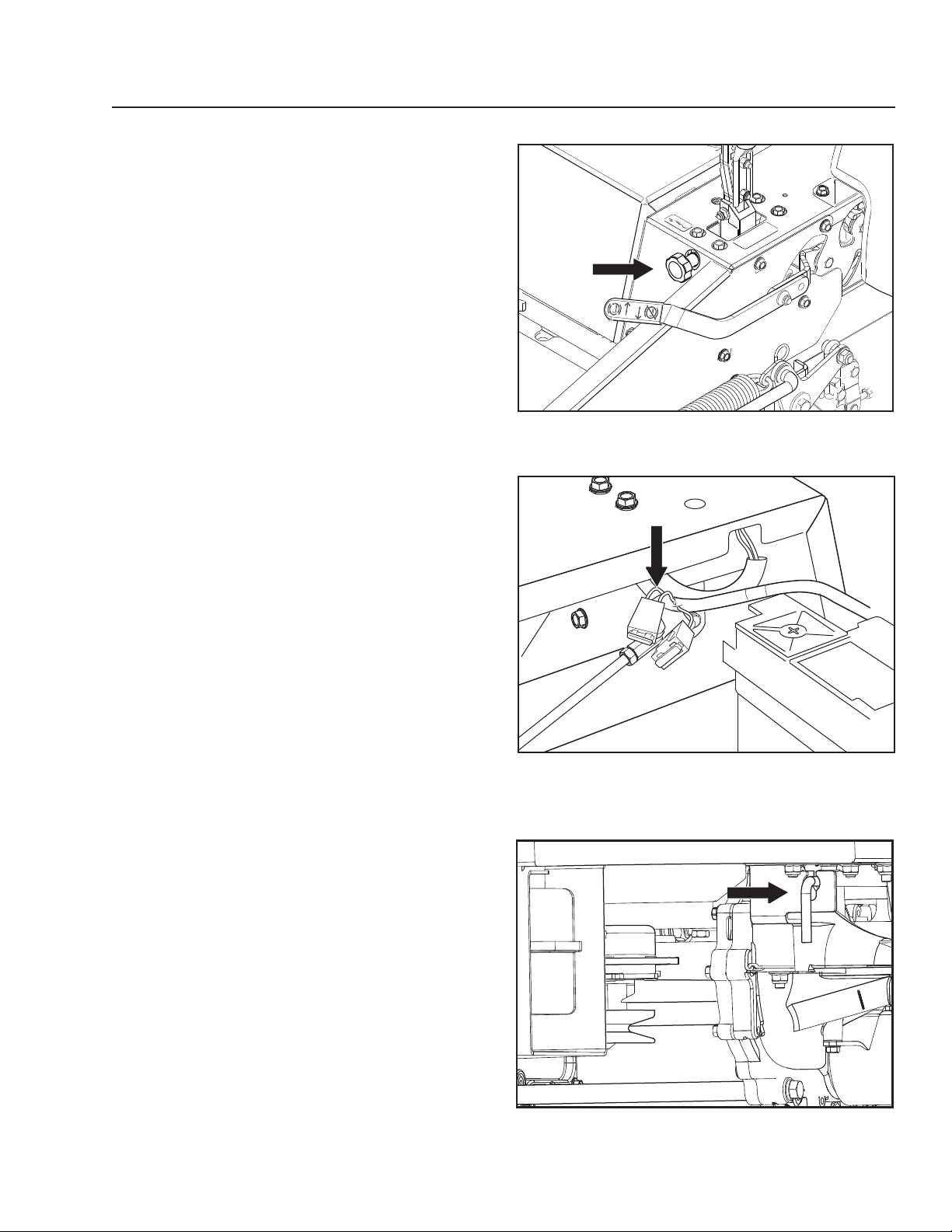

Tracking Knob

If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure is 10 psi. (.7 bar) for the front tires and 15 psi
(1 bar) for the rear tires. Tracking must be checked on
a flat and level concrete or blacktop surface.

Rotating the tracking knob allows fine tuning
adjustments so the machine tracks straight with the
steering control levers in the full forward position.

Rotate the knob clockwise (as viewed from the
operation position) to increase the speed on the left
lever. Rotate counterclockwise to decrease speed.

Fuses

Fuses are located on the left hand side of the
machine. They are accessed by tilting the seat
forward. Fuses are flat pin fuses type as used in
automobiles.

There are two fuses with ratings and functions:

1. 20 A, Primary fuse

2. 7.5 A, Mower deck coupling

8058-044

Tracking knob

Hydro Release Levers

Transaxle bypass linkages must be engaged when
pushing or pulling the mower. The release levers are
located on each side of the rear of the unit below the
rear engine plate. See Moving Machine By Hand in
the Operation section.

8050-082

Fuses

8058-146

Right side, hydro release lever

21

CONTROLS

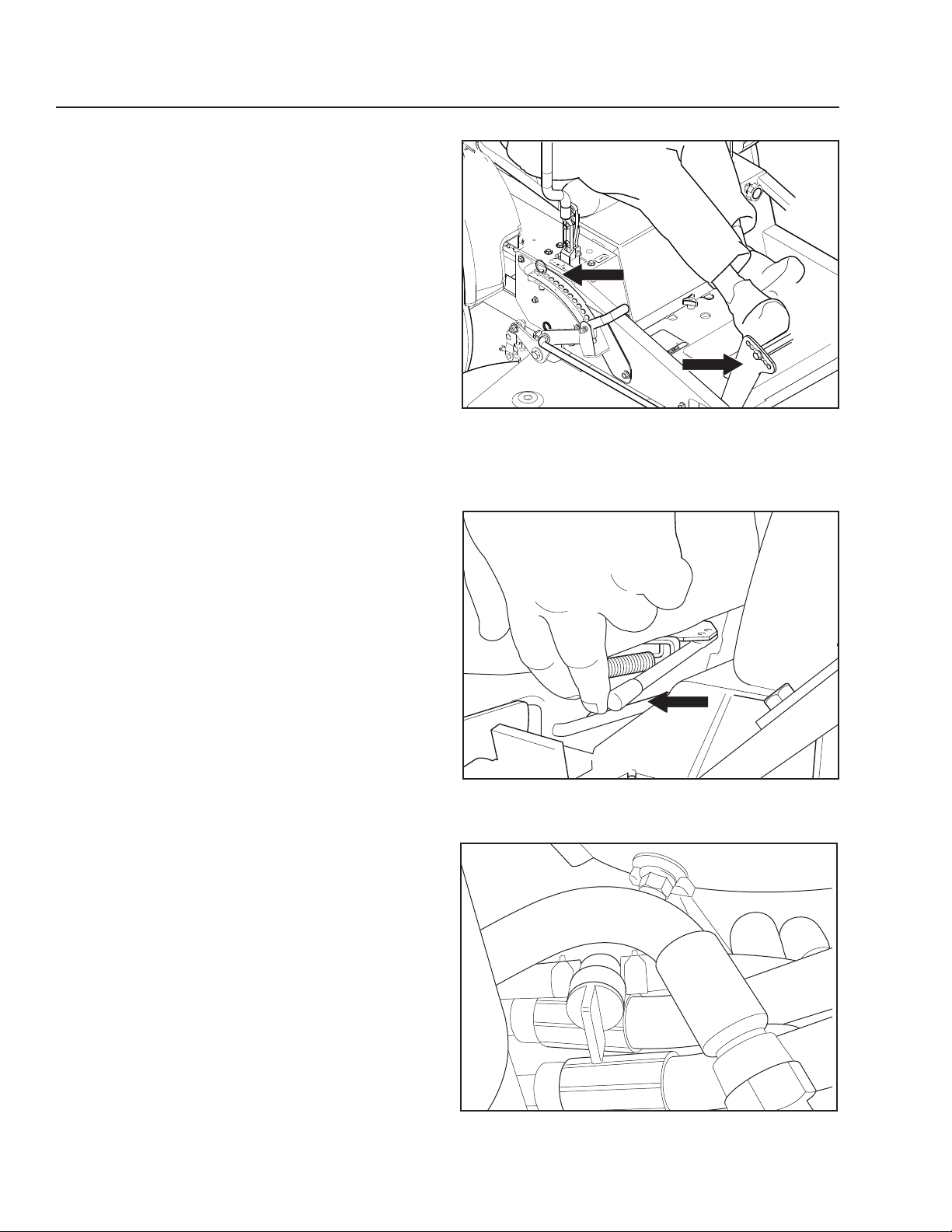

Cutting Height Adjuster

The desired cutting height is set with the height pin.
The cutting height pedal releases the deck lift and
places the deck at the selected height.

For transport, push the lift pedal fully forward until the
deck lift latches in the transport (highest) position.

Seat Adjustment Lever

The seat can be adjusted lengthways. When making
adjustments, the lever under the front edge of the
seat is moved to the left (as seen by the driver in the
seat), after which the seat can be moved backward or
forward.

2

1

8058-048

1. Release pedal

2. Height pin

Cut height selection pedals

Fuel Shut Off Valve

The fuel shut off valve is centered behind the rear
of the seat. The valve is off when the handle tab is
turned perpendicular to the fuel line.

22

8011-441

Lengthways adjustment

8065-010

Fuel shut off valve in the CLOSED position.

CONTROLS

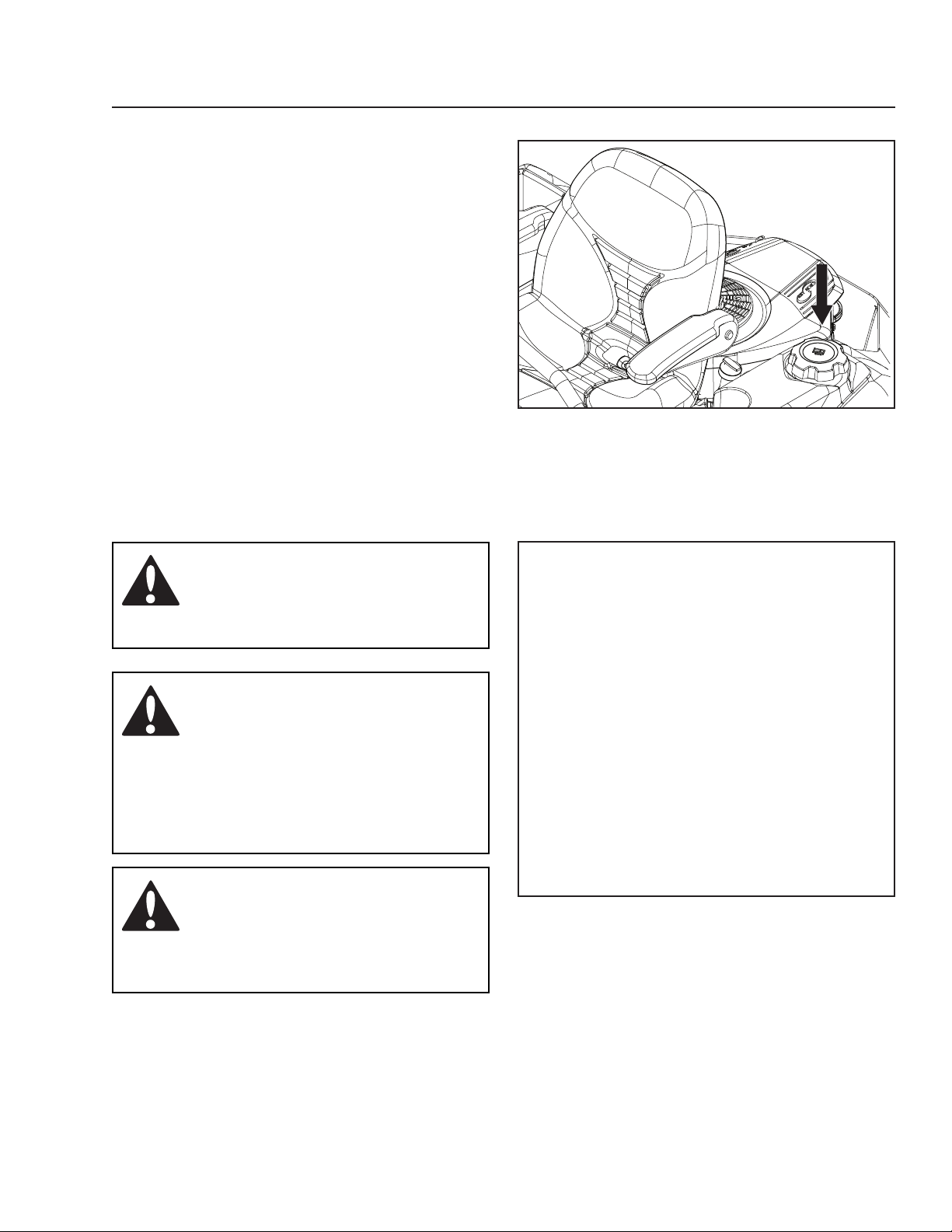

Refueling

Read the safety instructions before refueling. The
capacity for the tank is 5 gallons (19 liters).

Regularly check the gas cap gasket for damage and
keep the cap properly tightened.

The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix). Environmentally
adapted alkylate gasoline can be used. See Technical
Data concerning ethanol fuel. Methanol fuel is not
allowed. Do not use E85 alcohol based fuel. Damage
to the engine and components may occur.

When operating in temperatures below 32° F. (0° C.),
use fresh, clean winter grade gasoline to help insure
good cold weather starting.

8058-049

Fuel tank

WARNING!

Gasoline is highly flammable.
Observe caution and fill the tank
outdoors (see the safety instruction).

WARNING!

The engine and the exhaust system
become very hot during operation.

Risk for burns if touched.

Allow engine and exhaust system to
cool before refueling

WARNING!

Fill to bottom of filler neck. Do not
overfill. Wipe off any spilled oil
or fuel. Do not store, spill or use
gasoline near an open flame.

IMPORTANT INFORMATION

Experience indicates that alcohol blended
fuels (called gasohol, ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
gas can damage the fuel system of an engine
while in storage. To avoid engine problems,
the fuel system should be emptied before
storage of 30 days or longer. Drain the gas
tank, start the engine and let it run until the
fuel lines and carburetor are empty. Use fresh
fuel the next season. See Storage Instructions
for additional information. Never use engine
or carburetor cleaners in the fuel tank or
permanent damage may occur.

23

OPERATION

Read the Safety section and the following pages if
you are unfamiliar with the machine.

Training

Due to unique steering capabilities, zero turn mowers
are far more maneuverable than typical riding
mowers.

This section should be reviewed in its entirety prior to
attempting to move the mower under its own power.
When first operating the mower or until becoming
comfortable with controls, use a reduced throttle
speed and reduced ground speed. DO NOT move
control levers to the furthest forward or reverse
positions during initial operation.

First time users should become familiar with the
mower’s movement on a hard surface, such as
concrete or blacktop PRIOR to attempting to operate
on turf. Until the operator becomes comfortable with
the mower controls and zero turning capability, overly
aggressive maneuvers may damage turf.

Steering

To move forward and backward

The direction and speed of the mower’s movements
are effected by the movement of the control lever(s)
on each side of mower. The left control lever controls
the left wheel. The right control lever controls the right
wheel.

Pull back slightly on control levers, allowing the mower
to move backwards. Push the control levers forward to
the neutral position and mower should stop moving.

To turn to the right

While moving in a forward direction, pull the right lever
back towards the neutral position while maintaining
the position of the left lever, this will slow the rotation
of the right wheel and cause the machine to turn in
that direction.

To turn to the left

While moving in a forward direction pull the left lever
back towards the neutral position while maintaining
the position of the right lever, this will slow the rotation
of the left wheel and cause the machine to turn in that
direction.

To zero turn

While moving in a forward direction, first pull both
control levers back until the mower stops or slows
dramatically.

Then by alternating one lever slightly to the forward
position and the other in the reverse position,
complete the turn.

IMPORTANT INFORMATION

When control levers are in the reverse position
they return to neutral when released. This may
cause the mower to suddenly stop.

First time users should push the mower (see Moving
Machine By Hand in the Operation section) to an

open, flat area without other people, vehicles or
obstacles nearby. To move the unit under its own
power, the operator must sit in the seat and start
the engine (see Before Starting in the Operation
section). Adjust the engine speed to idle, disengage
the parking brake but do not engage the blades at
this time. Rotate control levers inward. As long as
the control levers have not been moved forward or
backwards, the mower will not move.

Slowly move both control levers forward slightly. This
will allow mower to start moving forward in a straight
line. Pull the control levers back to the neutral position
and the mower should stop moving.

24

OPERATION

Before Starting

1. Read the sections on Safety and Controls before
starting the machine.

2. Perform the daily maintenance before starting
(see Maintenance Schedule in the Maintenance
section).

3. Check that there is sufficient fuel in the fuel tank.

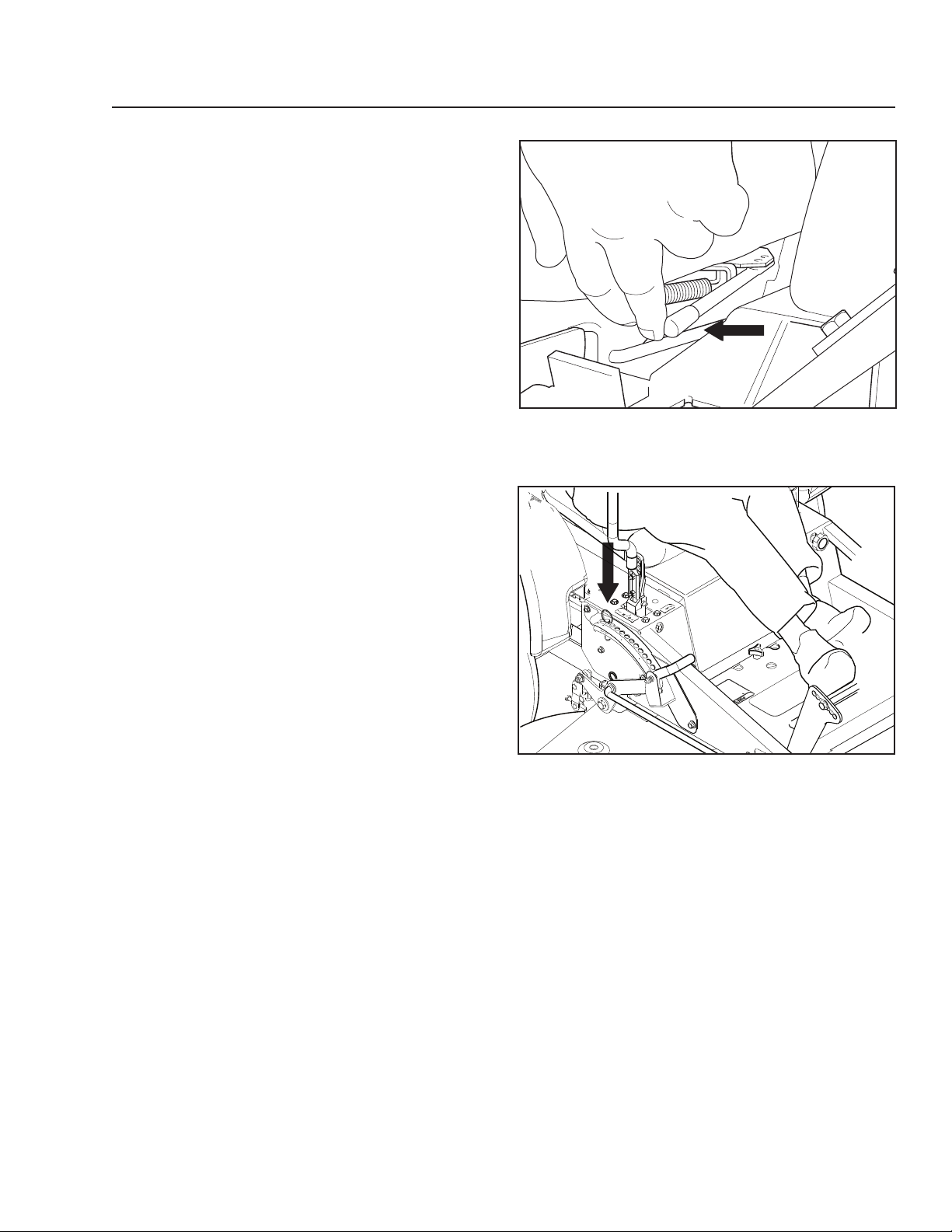

4. Adjust the seat to the desired position.

5. Set the deck cutting height by inserting the lift pin
into the desired cut height.

8011-441

Lengthways adjustment

The following conditions must be fulfilled before the
engine can be started:

• The blade switch must be pressed downward into
the disengaged position.

• The parking brake must be up into the activated
position.

• Both steering controls must be in the locked
(outer) neutral position.

8058-048

Cutting height selection

25

OPERATION

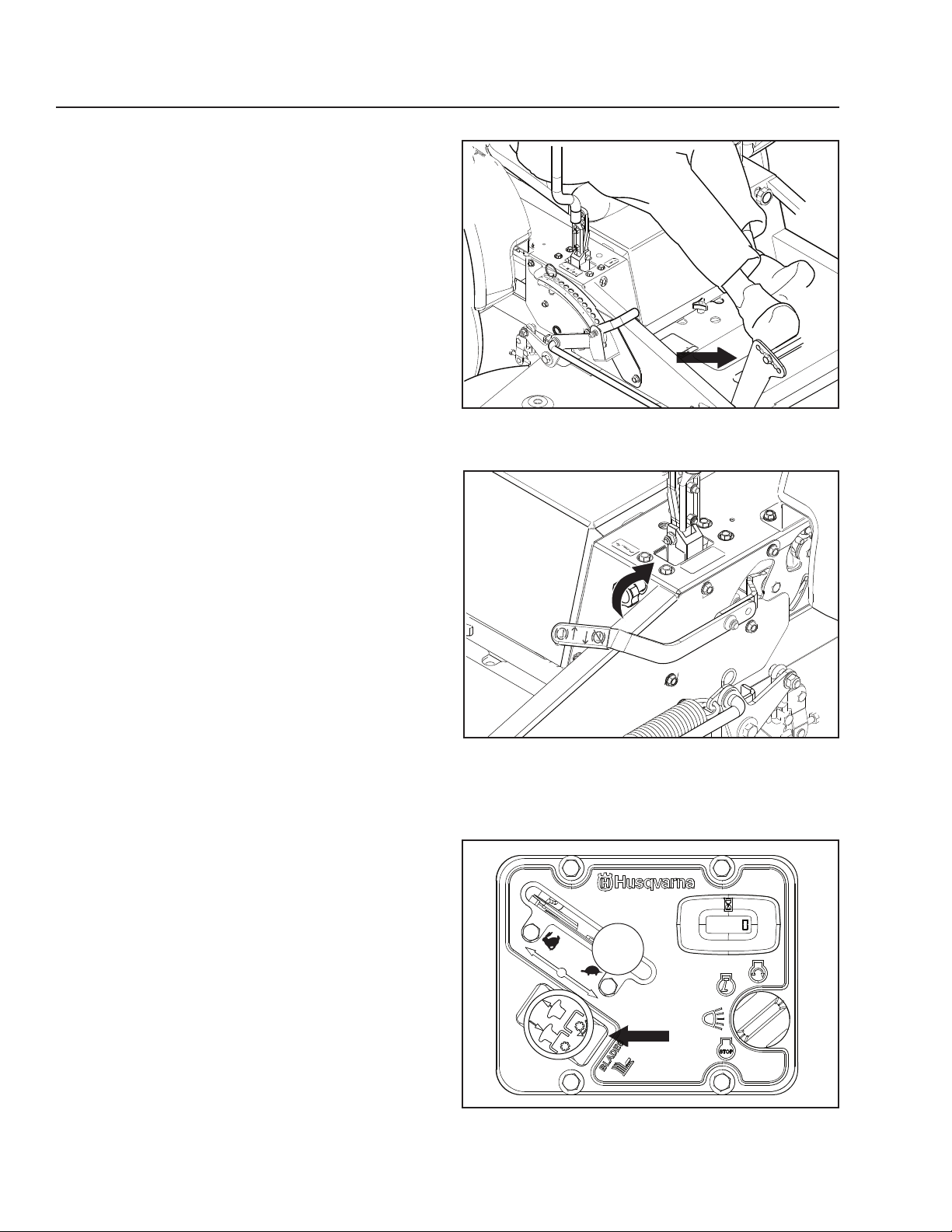

Starting the Engine

1. Sit on the seat.

2. Raise the mower deck to the transport position by
locking the lift pedal fully forward.

3. Activate the parking brake.

8058-048

Set mower deck to the transport position

4. Disengage the mower blades by pressing the
blade switch downwards.

26

8058-044

Activate parking brake before starting

8058-043

Press the control for disengaging the mower deck

OPERATION

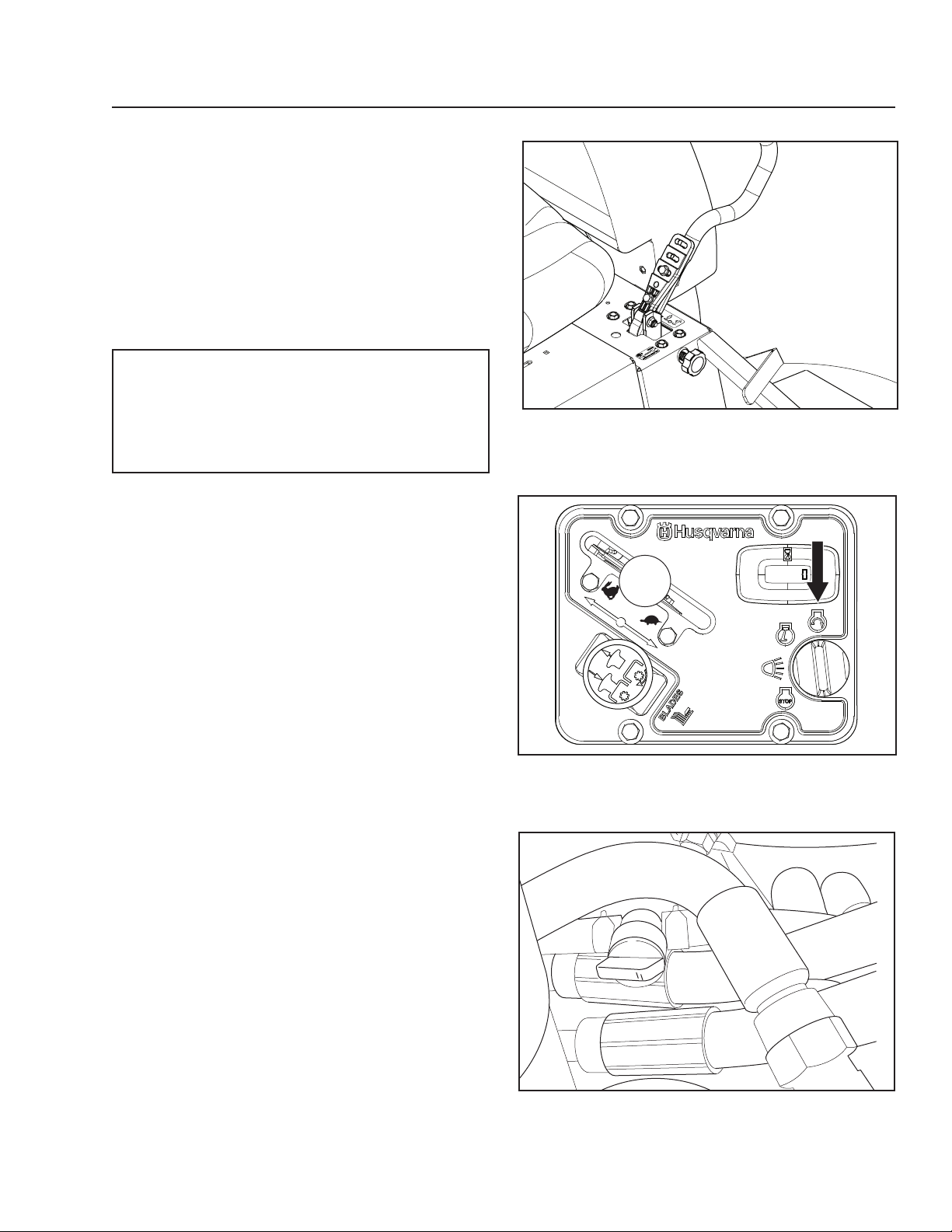

5. Move the steering controls outward to the locked
(outer) neutral position.

IMPORTANT INFORMATION

The Briggs & Stratton engine on this unit is
equipped with Electronic Fuel Management
(EFM). The engine choke is automatically
regulated during starting and warm up.

6. Move the throttle to the middle position.

8061-040

Place controls in neutral position

7. Open the fuel tank valve.

8058-051

Turn to the START position

8065-013

Fuel valve in the OPEN position

27

OPERATION

8. Press in and turn the ignition key to the start
position.

IMPORTANT INFORMATION

Do not run the starter for more than 5 seconds
each time. If the engine does not start, wait
about 10 seconds before retrying.

9. When the engine starts, immediately release the
ignition key back to the run position.

8050-780

Turn to the start position

WARNING!

Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is an odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.

10. Set the engine speed with the throttle. Allow the
engine to run at a moderate speed, approximately
mid throttle, for 3-5 minutes before loading it too
heavily. USE FULL THROTTLE WHEN MOWING.

8050-781

Return to run position

28

8058-053

Set the throttle

OPERATION

Weak Battery

WARNING!

Lead-acid batteries generate
explosive gases. Keep sparks, flame
and smoking materials away from
batteries. Always wear eye protection
when around batteries.

IMPORTANT INFORMATION

The mower is equipped with a 12-volt negative
grounded system. The other vehicle must also
be a 12-volt negative grounded system. Do not
use the mower to start other vehicles.

IMPORTANT INFORMATION

Refer to the EFM Information Sheet from the
unit literature packet for specific jump starting
instructions.

If the battery is too weak to start the engine, it should
be recharged. (See Battery in the Maintenance
section.)

Jumper Cables Use

1. Connect each end of the RED cable to the
POSITIVE (+) terminal on each battery, taking
care not to short against chassis.

2. Connect one end of the BLACK cable to the
NEGATIVE (-) terminal of the fully charged battery.

3. Connect the other end of the BLACK cable to a
good CHASSIS GROUND on the mower with the
discharged battery, away from the fuel tank and
battery.

To remove cables, reverse order

1. Remove BLACK cable first from chassis and then
from the fully charged battery.

2. Remove RED cable last from both batteries.

8011-642

Jumper cable connection

29

OPERATION

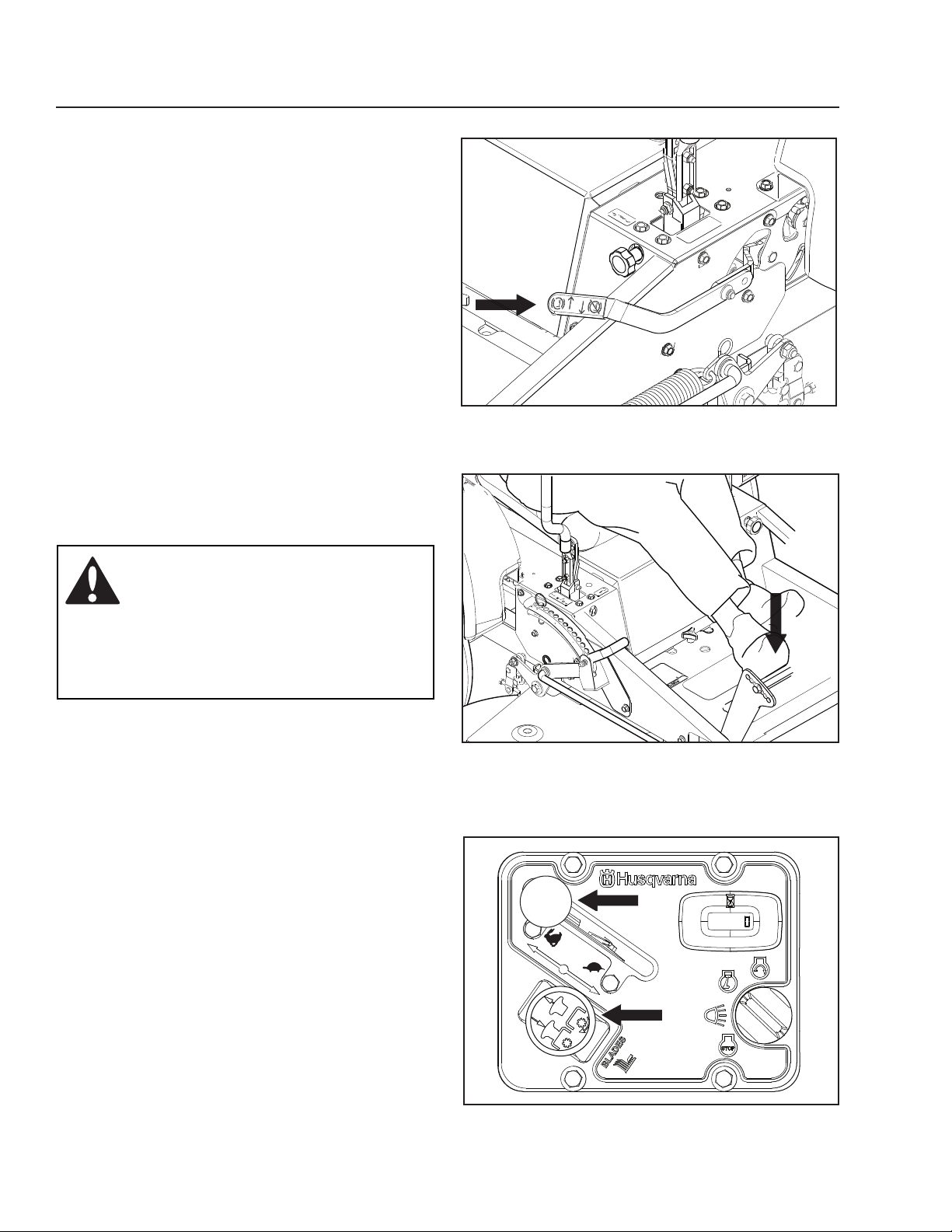

Running

1. Release the parking brake by moving the lever
downward.
NOTE: The mower is equipped with an operator
presence system. When the engine is running,
any attempt by the operator to leave the seat
without first setting the parking brake will shut off
the engine.

2. Move the steering controls to the neutral position
(N).

3. Release foot pedal latch and lower deck to set
cutting height.

8058-044

Parking brake

WARNING!

Make sure that no one is near mower
when engaging blade switch.

Make sure the work area is free from
objects that could be thrown by the
rotating blades.

4. Move throttle control to full throttle (rabbit symbol).

5. Engage the mower deck by pulling out the blade
switch.

8058-048

Cutting height selection

30

8058-053

Move the throttle to FULL and engage the mower deck

OPERATION

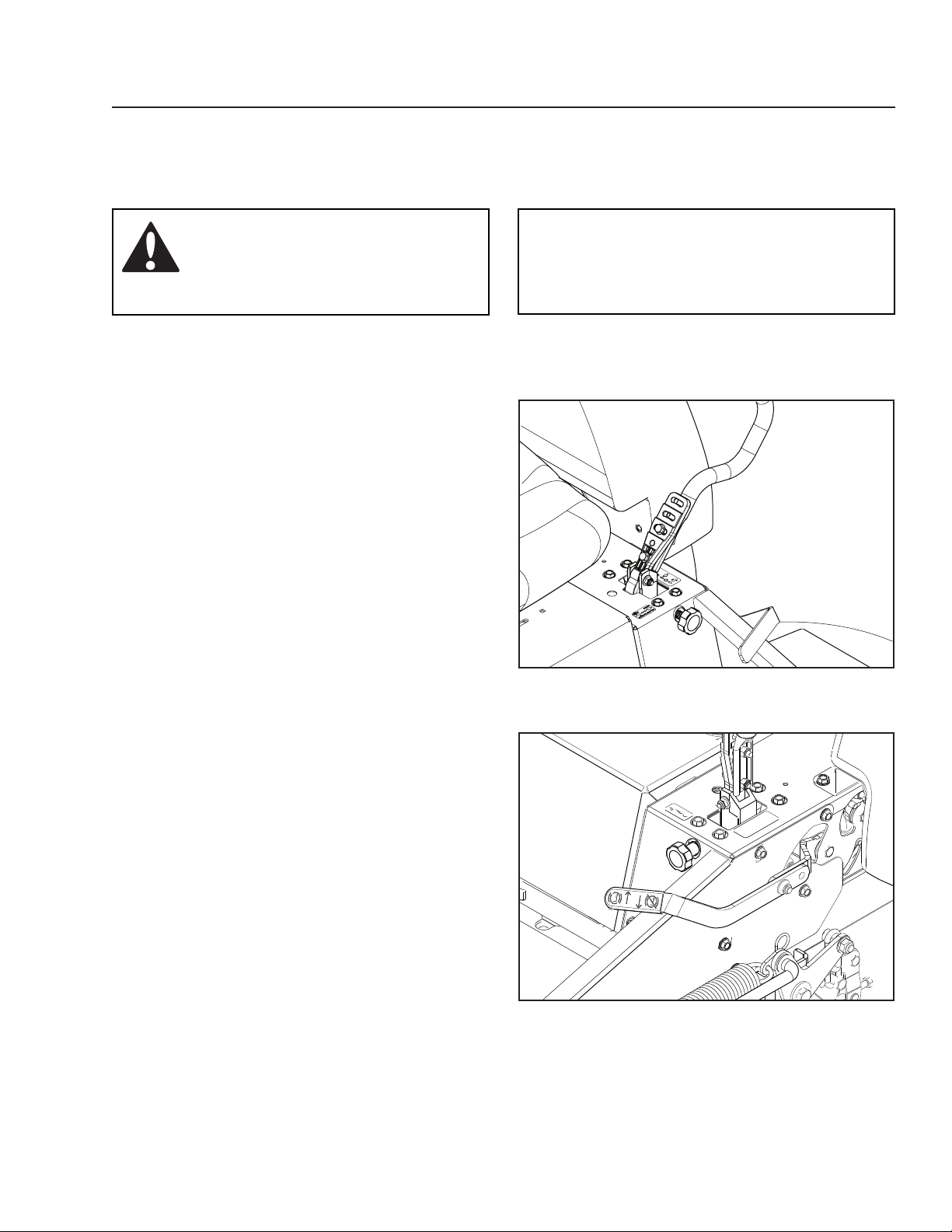

Operating on Hills

Read the Safety Instructions Driving on Slopes in the
Safety Instructions.

WARNING!

Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across slopes.

• The slowest speed possible should be used
before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If stopping is absolutely necessary, pull drive
levers into the neutral position and push to the
outside of the unit. Engage the parking brake.

IMPORTANT INFORMATION

When control levers are in the reverse position
they return to neutral when released. This may
cause the mower to suddenly stop.

8061-040

Place controls in neutral position

• To restart movement, release the parking brake.

• Pull the control levers back to the center of the
mower and press forward to regain forward
motion.

• Make all turns slowly.

8058-044

Release the parking brake to restart movement

31

OPERATION

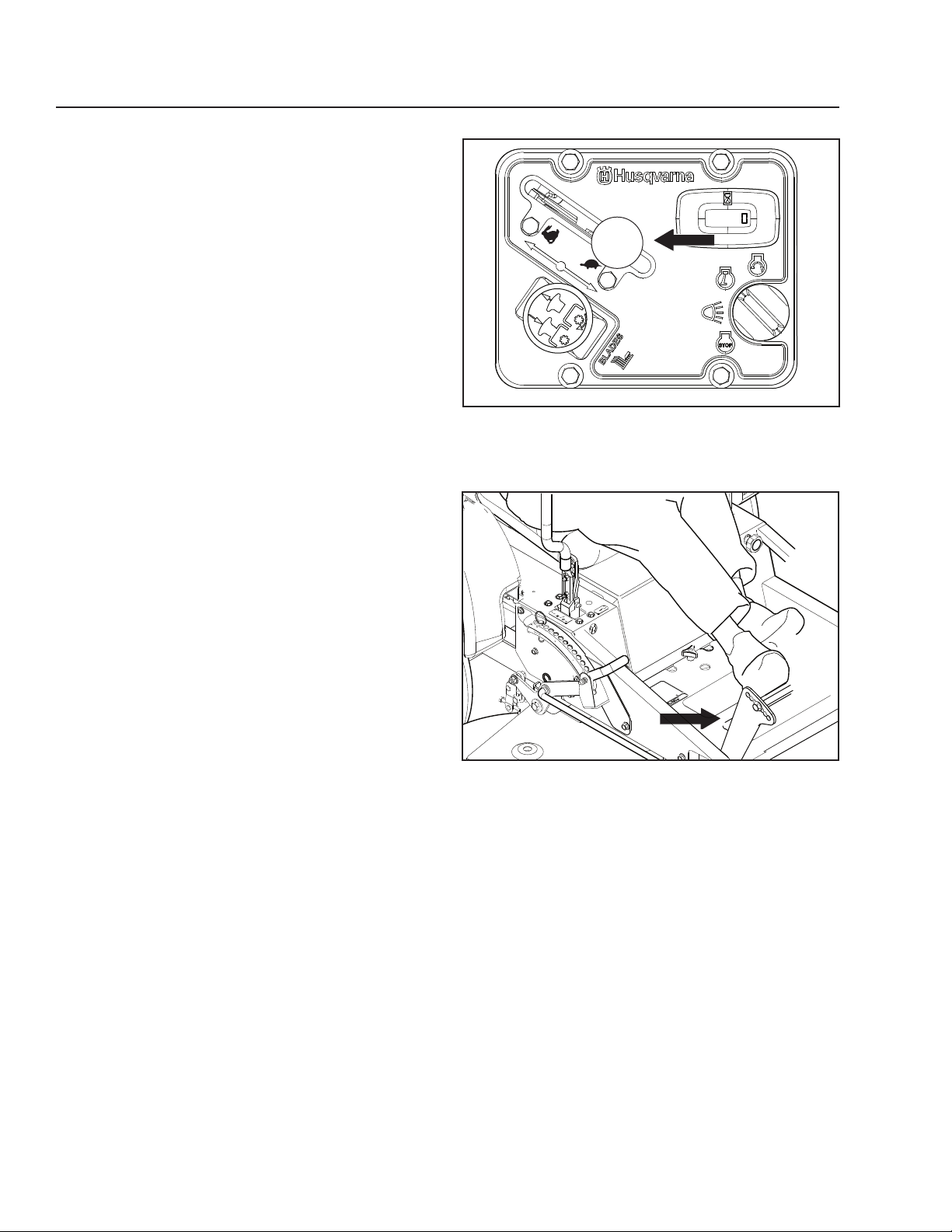

Stopping the Engine

1. Move the throttle to the minimum position (tortoise
symbol).

2. Move the steering controls outward.

3. Disengage the mower deck by depressing the
blade switch.

4. Raise the mower deck by pressing the foot pedal
forward to the transport position.

5. When the machine is standing still, activate the
parking brake by pulling the lever upward.
If the engine has been worked hard, allow it to idle
at least 60 seconds to attain a normal operating
temperature before stopping. To prevent fouling
the spark plugs, avoid idling the engine for longer
periods.

8058-046

Disengage the mower deck and move throttle to minimum

6. Turn the ignition key to the stop position.

7. Remove key. Always remove key when leaving the
mower to prevent unauthorized use.

32

8058-048

Raise deck to transport position

OPERATION

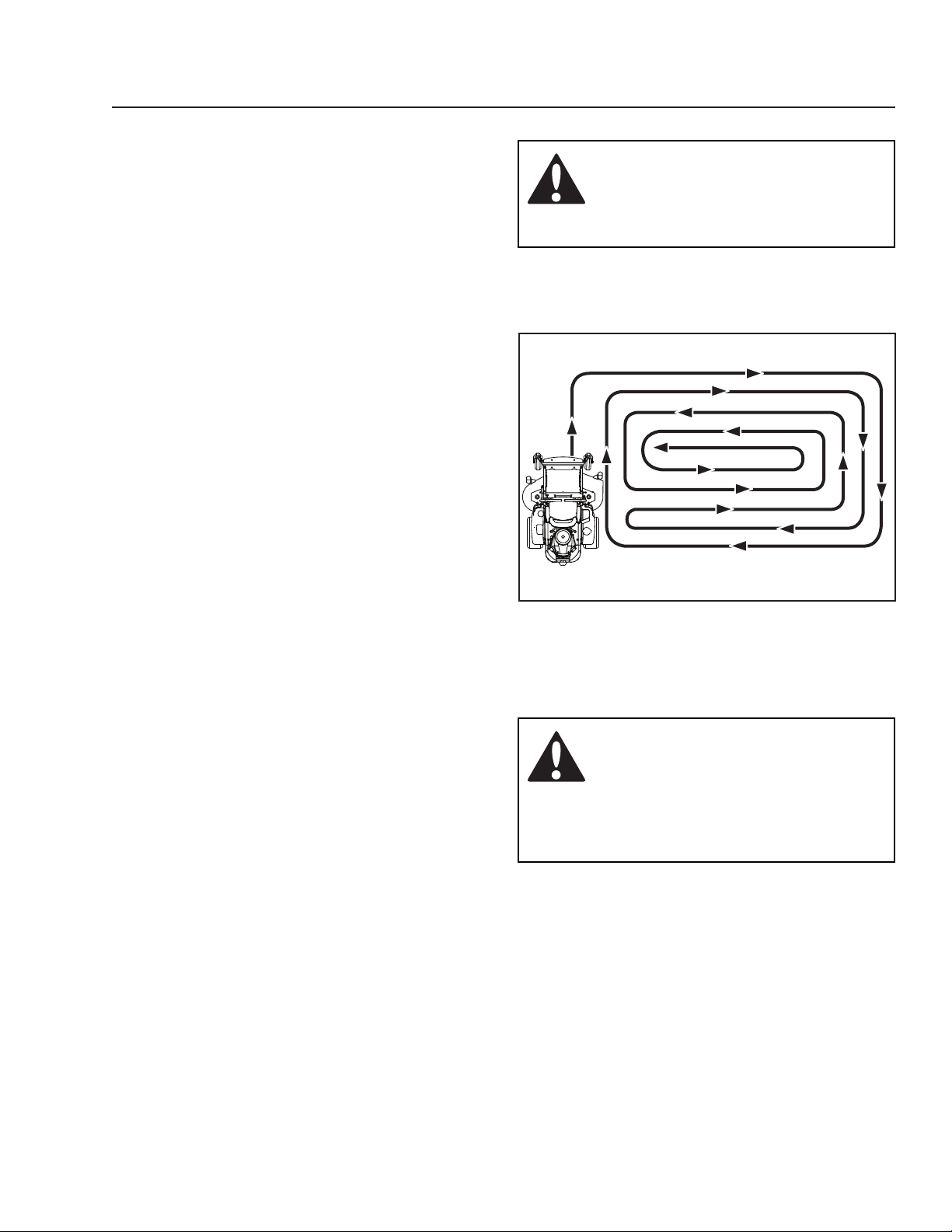

Mowing Tips

• Observe and flag rocks and other fixed objects to
avoid collisions.

• Begin with a high cutting height and reduce it
until the desired mowing result is attained. The
average lawn should be cut to 2½" (64 mm)
during the cool season and over 3" (76 mm)
during the hot months. For healthier and better
looking lawns, mow often after moderate growth.

• For best cutting performance, grass over 6" (15
cm) in height should be mowed twice. Make the
first cut relatively high; the second to the desired
height.

• The mowing result will be best with a high engine
speed (the blades rotate rapidly) and low speed
(the rider moves slowly). If the grass is not
too long and dense, the driving speed can be
increased without negatively affecting the mowing
result.

• The finest lawns are obtained by mowing often.
The lawn becomes more even and the grass
clippings more evenly distributed over the mown
area. The total time taken is not increased as a
higher operating speed can be used without poor
mowing results.

• Avoid mowing wet lawns. The mowing result is
poorer because the wheels sink into the soft lawn,
clumps build, and the grass clippings fasten
under the cowling.

• Hose the mower deck underside with water after
each use. When cleaning, the mower deck shall
be raised into the transport position. Make sure
the mower is cooled and the engine is off.

• Use compressed air to clean top surface of the
deck. Avoid flooding water on top surface, engine
and electrical components.

• When the mulching kit is used, it is important that
the mowing interval is frequent and that the deck
is cleaned more often.

WARNING!

Clear the lawn of stones and other
objects that can be thrown out by the
blades.

8011-603b

Mowing pattern

WARNING!

Never drive the rider on terrain that
slopes more than 10 degrees. Mow
slopes up and down, never side
to side. Avoid sudden directional
changes.

33

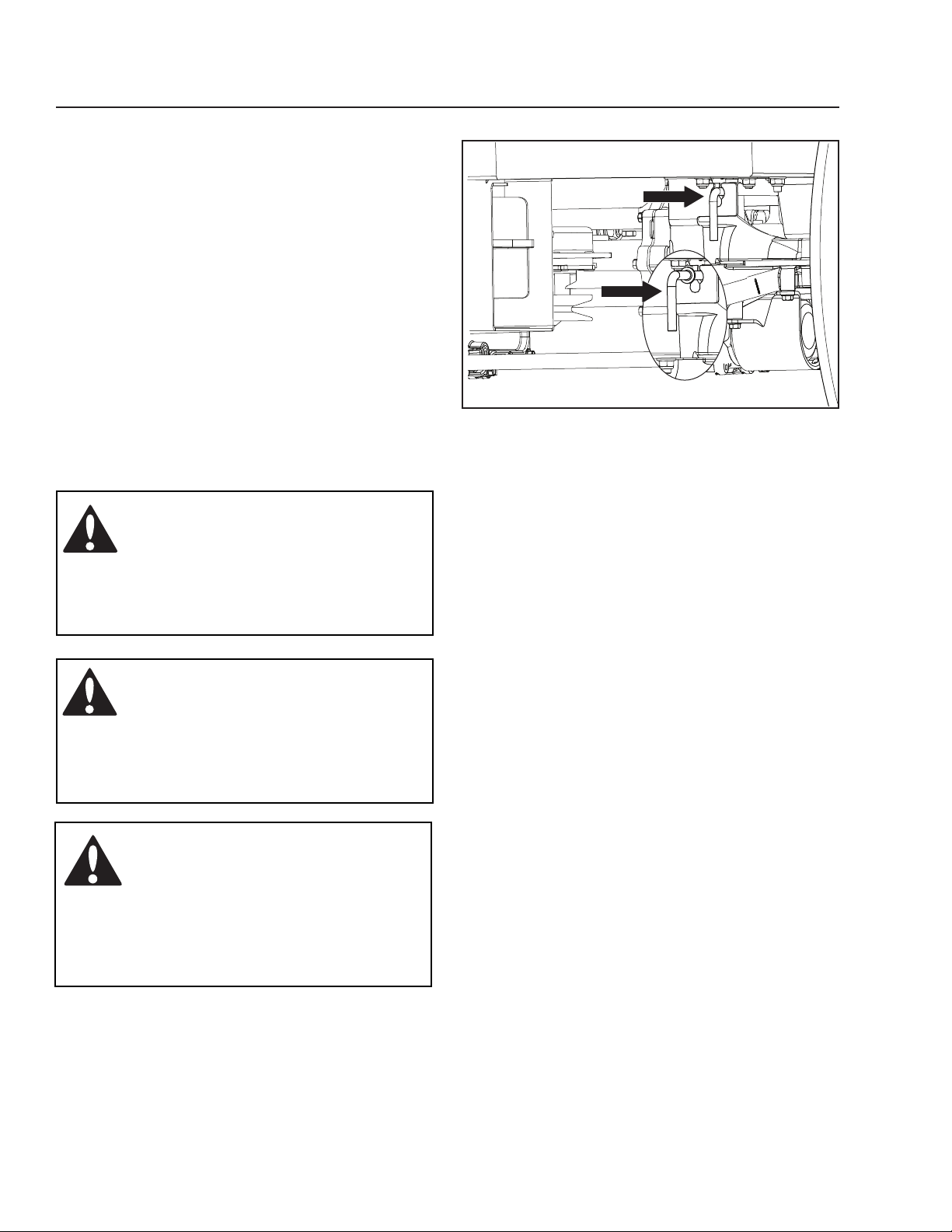

Moving Machine By Hand

OPERATION

Bypass Linkages

When pushing or pulling the mower, engage the IZT
(Integrated Zeroturn Transaxle) bypass linkages with
the hydro release levers. The levers are located on
each side of the rear of the unit below the rear engine
plate.

1. Raise the deck to the highest (transport) position.

2. Pull the release levers up and out of the keyhole
slots. Release the levers with the head outside the
bracket and held into the bypass setting.

3. To reengage the IZTs to drive, reverse the above
procedure.

Load the machine into truck or trailer by driving up
ramps in low gear. DO NOT LIFT! The machine is not
intended to be lifted by hand.

WARNING!

Use extreme caution when loading the
machine into a truck or trailer using
ramps. There is the possibility of
serious injury or death if the machine
falls off the ramps.

2

1

8058-059

1. IZT locked into the bypass position

2. Linkage lever, engaged

Right side, IZT linkage

WARNING!

Bypass linkages are located close
to the muffler. To prevent burns, the
engine should be shut off and allowed
to cool before the bypass linkage
levers are handled.

WARNING!

No adjustments or maintenance
should be carried out unless:

• the engine stopped

• the ignition key removed

• the parking brake activated

34

MAINTENANCE

Maintenance Schedule

The following is a list of maintenance procedures that
must be performed on the machine. For those points
not described in this manual, visit an authorized
service workshop. An annual service carried out by

an authorized service workshop is recommended to
maintain your machine in the best possible condition
and to ensure safe operation.

Read Maintenance in the Safety section.

MAINTENANCE

Check the parking brake

Check the engine’s oil level (every refueling)

Check the safety system

Check for fuel and oil leakages

Check/clean the engine’s cooling air intake

Check the mower deck

Check for loose hardware (screws, nuts)

Clean under the mower deck

Start the engine and blades, listen for unusual sounds

Check for damage

Thoroughly clean around the engine

Clean around belts, belt pulleys

Check the tire pressures

Check battery connections

Sharpen3)/ Replace mower blades

Clean the engine’s cooling air intake

Clean the air cleaner’s pre-filter 2) (foam)

Clean the air cleaner’s filter cartridge 2) (paper filter)

Check/adjust the parking brake

Inspect muffler/spark arrestor

2)

Daily At least

once
each

Before After 50 250 500

year

Maintenance interval

in hours

●

■

●
♦

■

●

●

● ● ● ●
♦
♦ ♦ ♦ ♦
♦ ♦ ♦ ♦
♦ ♦ ♦ ♦

● ● ● ●

● ● ● ●

● ● ● ●

■ ■ ■ ■

■ ■

■ ■

● ● ● ●
♦ ♦ ♦ ♦

1)

First change after 8-10 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.

conditions, cleaning and replacement are required more often.

3)

Performed by authorized service workshop.

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer's manual

2)

In dusty

35

MAINTENANCE

MAINTENANCE

Check/adjust throttle cable

Check the condition of belts, belt pulleys

Change the engine oil

Replace the engine oil filter

Clean/replace the spark plugs

Replace the fuel filter

Replace air filter 2) (paper filter)

Check the caster wheels (every 200 hours)

Replace the air cleaner’s pre-filter 2) (foam)

Check the hydraulic oil in the oil tank

Change the hydraulic oil (every 500 hours)

Replace the hydraulic oil filter (every 500 hours)

Dismantle and inspect starter 3) (every 500 hours)

Check/adjust the mower deck

Check the engine valve clearance

Perform the 500-hour service

1)

3)

3)

Daily At least

once
each

Before After 50 250 500

year

Maintenance interval

in hours

■

● ●

■ ■

■ ■

■ ■

● ●

■ ■

● ●

■

●

● ●

● ●
♦

● ●

♦ ♦
♦ ♦

1)

First change after 5-8 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.

conditions, cleaning and replacement are required more often.

3)

Performed by authorized service workshop.

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer's manual

WARNING!

Before performing any service or adjustment checklist:

• Engage the parking brake.

• Place the Blade-switch in the disengaged position.

• Turn the ignition switch to OFF position and remove the key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect the spark plug wire from all spark plugs and place the wire where it
cannot come in contact with the plug.

2)

In dusty

36

MAINTENANCE

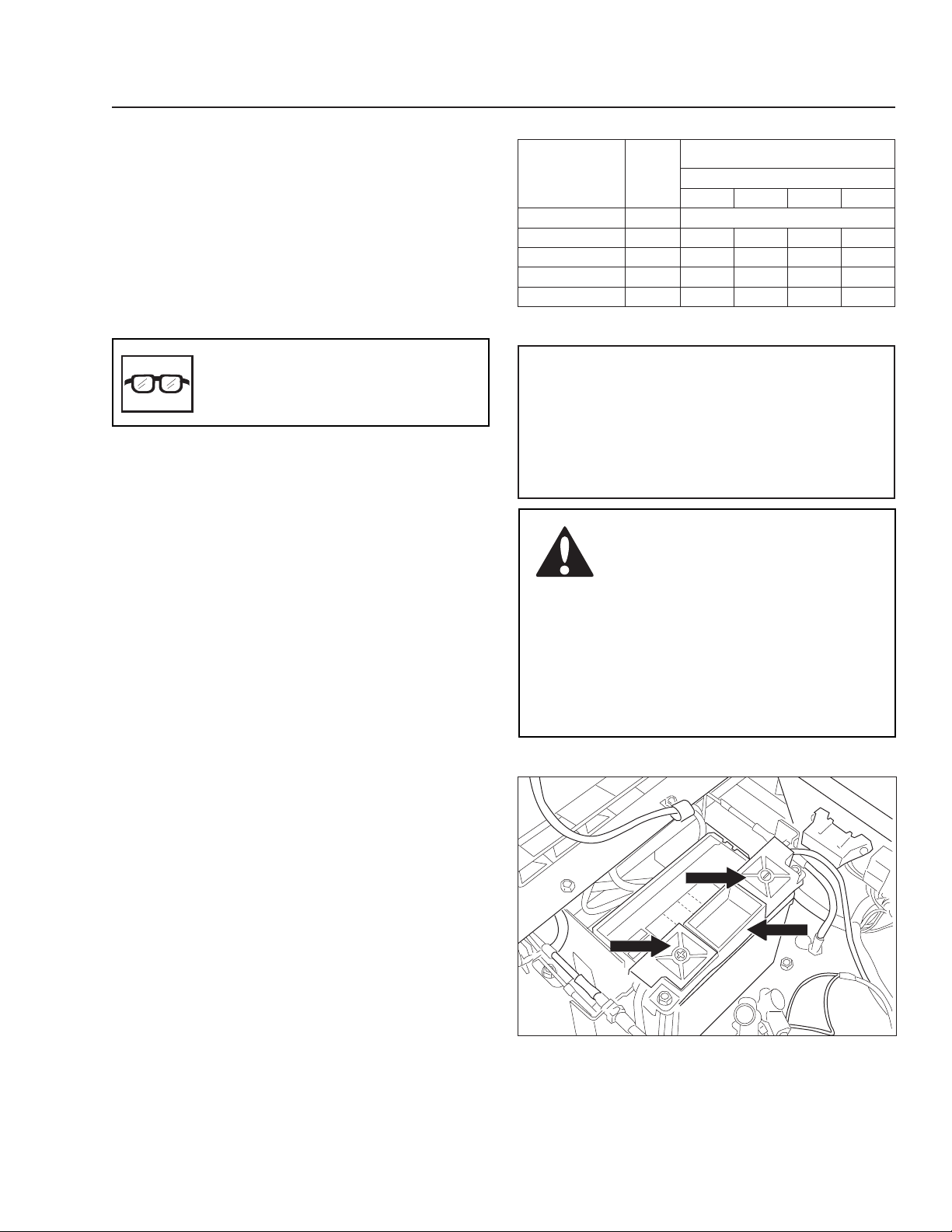

Battery

Your mower is equipped with a maintenance free
battery and does not need servicing. However,
periodic charging of the battery with an automotive
type battery charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• See chart for charging times.

WARNING!

Always wear eye protection when
around batteries.

Cleaning battery and terminals

Corrosion and dirt on the battery and terminals can
cause the battery to “leak” power.

1. Open the terminal access doors.

2. Disconnect BLACK battery cable first, then the
RED battery cable and remove the battery from
the machine.

3. Rinse the battery with plain water and dry.

4. Clean terminals and battery cable ends with wire
brush until shiny.

5. Coat terminals with grease or petroleum jelly

6. Reinstall battery.

Replacing battery

1. Lift seat and rotate forward.

2. Open terminal access doors

3. Using two ½" wrenches disconnect BLACK
battery cable then RED battery cable.

4. Using a 7/16" wrench, remove the bolts on either
side of the terminal guard and lift off guard.

5. Carefully remove the battery from the mower.

6. Install new battery with terminals in the same
position as the old battery.

7. Reinstall battery terminal guard.

8. First connect RED battery cable to positive (+)
battery terminal with hex bolt and hex nut.

9. Connect BLACK grounding cable to negative (-)
battery terminal with remaining hex bolt and hex
nut.

10. Close access doors.

11. Lower seat.

STANDARD

BATTERY

12.6V 100%

12.4V 75% 20 min. 35 min. 48 min. 90 min.

12.2V 50% 45 min. 75 min. 95 min. 180 min.

12.0V 25% 65 min. 115 min. 145 min. 280 min.

11.8V 0% 85 min. 150 min. 195 min. 370 min.

STAT E

OF

CHARGE

*Charging time depends on battery capacity,

condition, age, temperature and efficiency of charger

APPROXIMATE BATTERY CHARGING TIME*

TO FULL CHARGE AT 80OF / 27OC

Maximum Rate at:

50 Amps 30 Amps 20 Amps 10 Amps

- FULL CHARGE -

IMPORTANT INFORMATION

Do not attempt to open or remove caps or
covers. Adding or checking level of electrolyte
is not necessary.

Always use two wrenches for the terminal
screws.

WARNING!

Do not short battery terminals by
allowing a wrench or any other
object to contact both terminals at
the same time. Before connecting
battery, remove metal bracelets,
wristwatch bands, rings, etc.

Positive terminal must be connected
first to prevent sparks from
accidental grounding.

2

2

1. Terminal guard

2. Access doors

Battery cleaning and installation

1

8066-049

37

MAINTENANCE

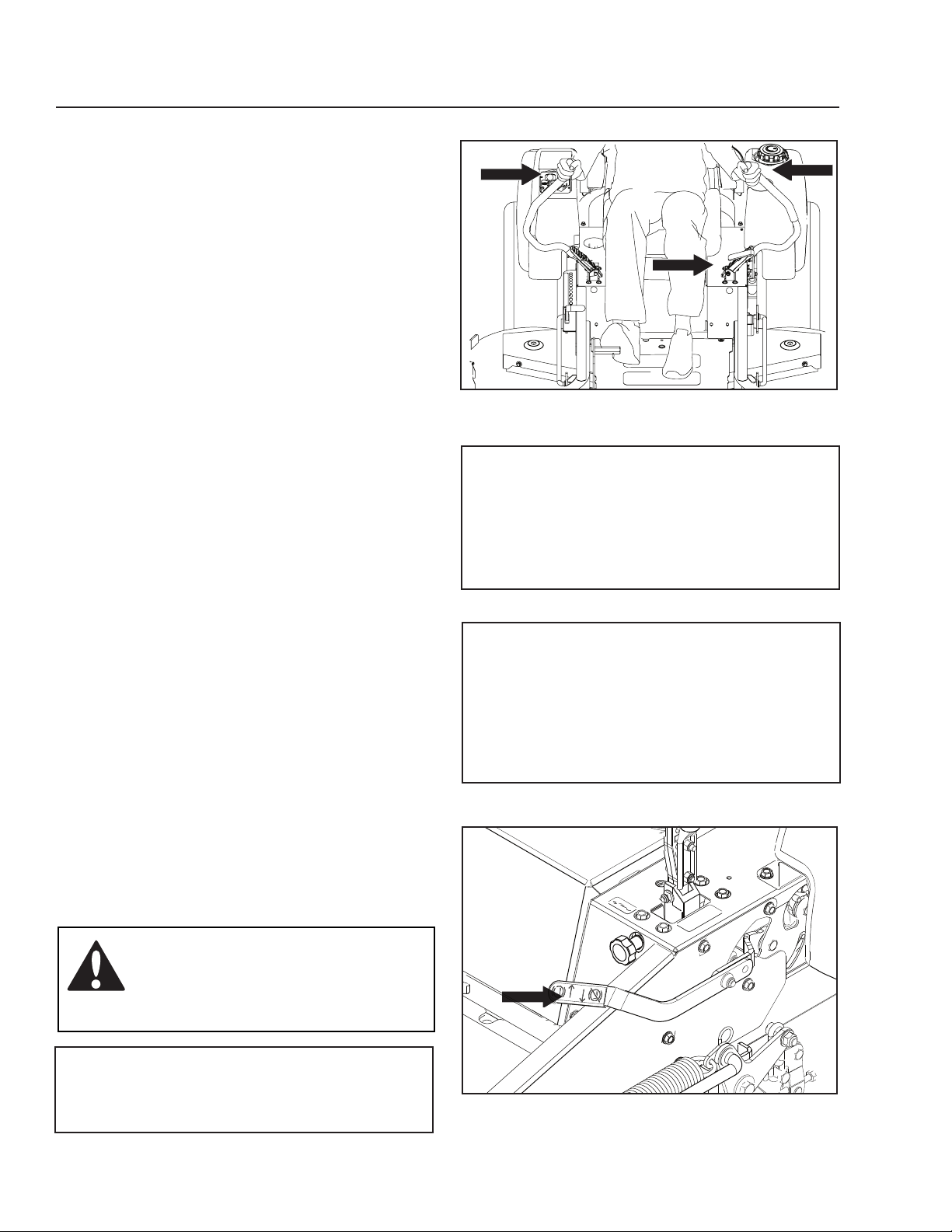

Safety System

This machine is equipped with a safety system
that prevents starting or driving under the following
conditions.

The engine can only be started when:

1. The mower deck is disengaged.

2. The steering controls are in the outer, locked
neutral position.

3. The parking brake is on.

Make daily inspections to ensure that the safety
system works by attempting to start the engine
when one of the conditions is not met. Change the
conditions and try again.

If the machine starts when one of these conditions
is not met, turn the machine off and repair the safety
system before using the machine again.

Make sure the engine stops when the park brake
is not engaged and the operator leaves the seated
position.

Check that the engine stops if the mower blades are
engaged and the driver temporarily moves off the
driver's seat.

8061-032

Conditions for starting

IMPORTANT INFORMATION

To be able to drive, the driver must sit in the
seat and release the parking brake before
the steering controls can be moved into the
neutral position, otherwise the engine will
stop.

Tire Pressures

Fill tire pressures to 15 psi / 103 kPa / 1 bar.

Parking Brake

Visually check that no damage is found on the lever,
links, or switch belonging to the parking brake.
Perform a standstill test and check that there is
sufficient braking action.

WARNING!

Faulty adjustment results in reduced
braking ability and can cause an
accident.

IMPORTANT INFORMATION

The machine must be standing still when
applying the parking brake.

IMPORTANT INFORMATION

DO NOT add any type of tire liner or foam
fill material to the drive tires. Excessive
loads created by foam filled tires will cause
premature failures.

Only use O.E.M. specified tires.

8058-044

Parking brake

38

MAINTENANCE

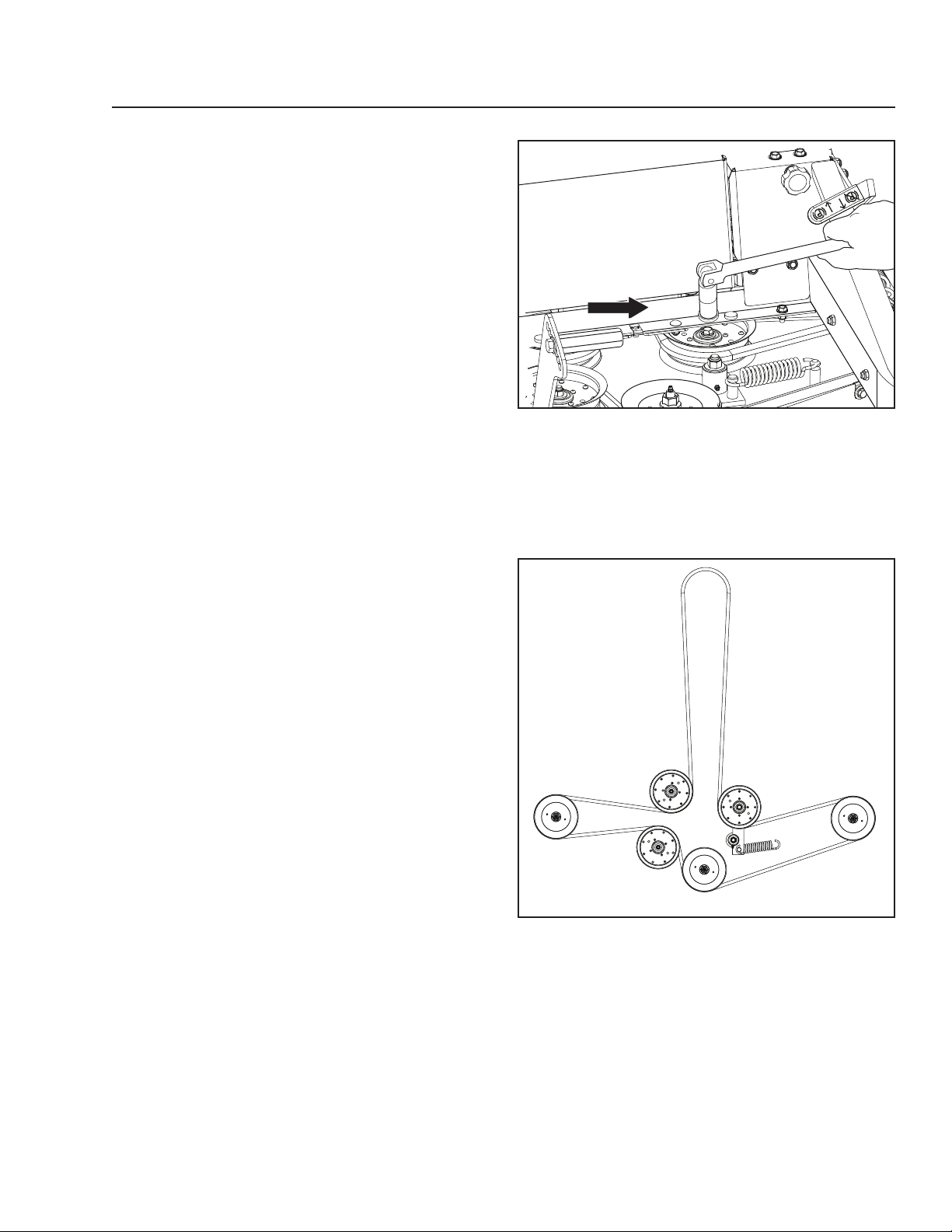

Deck Belt

Deck Belt Removal

Park on a level surface. Apply park brake. Lower the
deck into the lowest cutting position.

1. Remove foot plate and belt shields.

2. Using a ratchet or breaker bar with a 9/16" socket
on the spring idler bolt, relieve the tension on the
belt.

3. Remove any dirt or grass that may have
accumulated around the cutter housings and
entire deck surface.

4. Carefully roll the belt over the top of the cutter
housing pulleys.

5. Remove the belt from around the electric clutch on
the engine shaft and off the mower deck.

8058-063

Slackening the belt tensioner

Deck Belt Installation

NOTE: For ease in installing the deck belt, refer to the
routing decal on the deck.

1. Wrap the deck belt around the electric clutch
pulley that is located on the engine shaft.

2. Route the belt forward between the spring loaded
and stationary pulleys.

3. Place belt around spring loaded idler pulley.

4. Wrap the belt around the stationary idler pulley
and around the mandrel housings.

5. Push inward on the idler arm and carefully route
belt over stationary idler pulley. Once belt is
properly routed, slowly release idler arm to tension
belt.

6. Check that there are not twists in the belt and that
the routing matches the routing decal.

7. Replace belt shields on both mandrel housings
and secure with fasteners.

Belt routing, deck belt

1

2

5

3

4

8058-061

39

MAINTENANCE

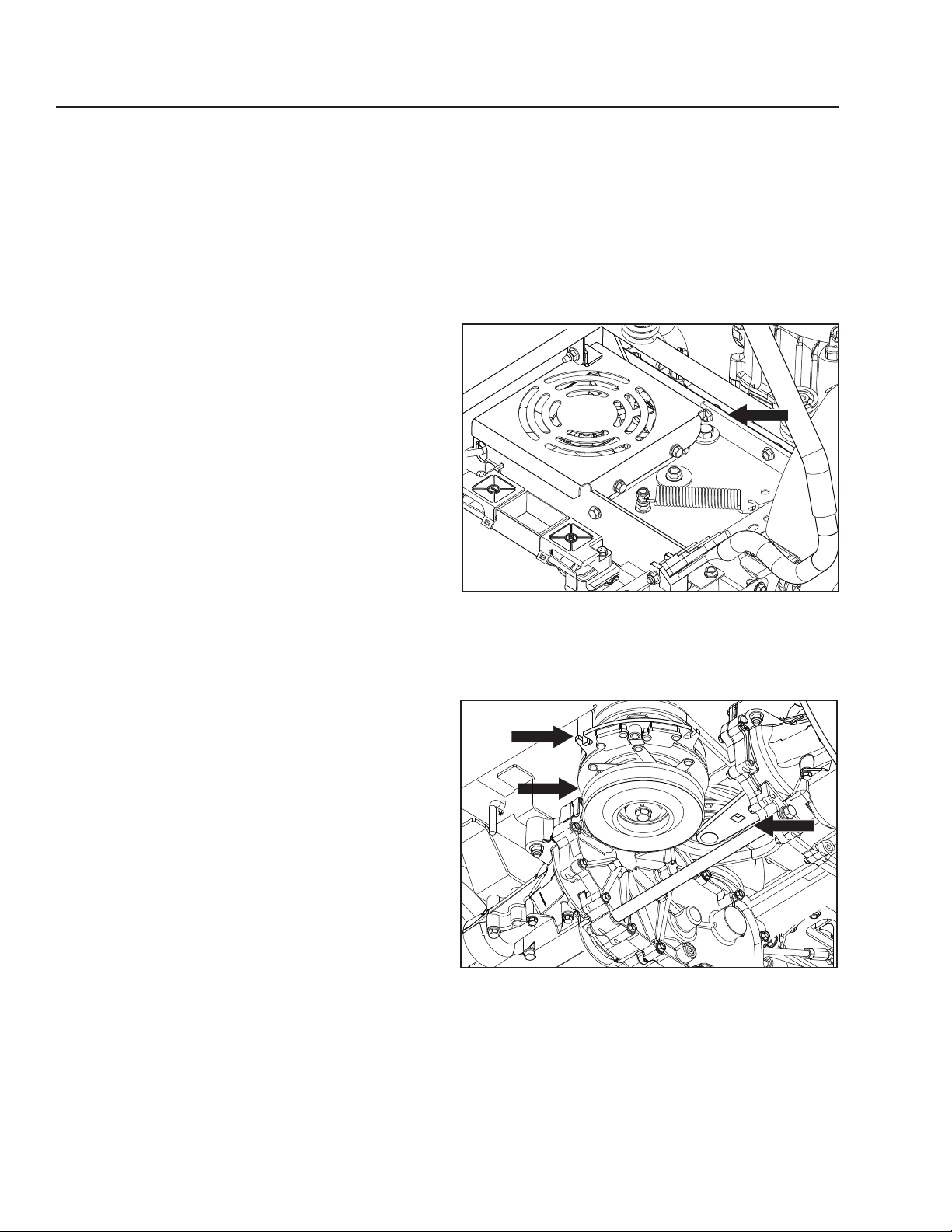

Pump Belt

The belts are not adjustable. Replace belts if they
begin to slip from wear.

Replacing Pump Belt

Park the mower on a level surface. Engage the
parking brake.

Belt Removal

From the top side of the deck:

1. Remove the deck belt (see Deck Belt Removal in
this section of the manual).

2. Tilt seat forward to access fan covers. Remove
both fan covers.

From the underside of the mower:

3. Remove clutch stop to access the belt.

4. With a ½" breaker bar and using the square
opening in the pump idler arm, shift the arm to
create slack in the belt.

5. With the idler arm in the slack position, slip a
screwdriver, clevis pin or similar into the 3/8" hole
in the plate that sits between the two fan covers.
This will keep the idler in the extended position
and allow removal of the breaker bar.

6. Remove belt from the engine and pump pulleys
over the top of the fans.

8058-064

Remove fan covers

Belt Installation

1. If the pump is not locked in the extended position,
repeat Steps 4 and 5 from the above instructions.

2. Slip the belt over the fans and route it between the
idler pulleys.

3. Place the belt over the right and left idler pulleys.

4. Place the belt on the engine pulley.

5. Use the breaker bar to hold the tension off the belt
while removing the implement used as a brace in
the plate.

6. Replace and secure clutch stop.

7. Reinstall the fan shields.

8. Reinstall the deck belt. (See Deck Belt Installation
in this section of the manual).

V-belts

Check every 100 hours of operation. Check for severe
cracking and large nicks.

NOTE: The belt will show some small cracks in normal
operation.

3

1

2

8058-060

1. Electric clutch

2. Idler arm release placement

3. Clutch stop

Pump belt removal

40

MAINTENANCE

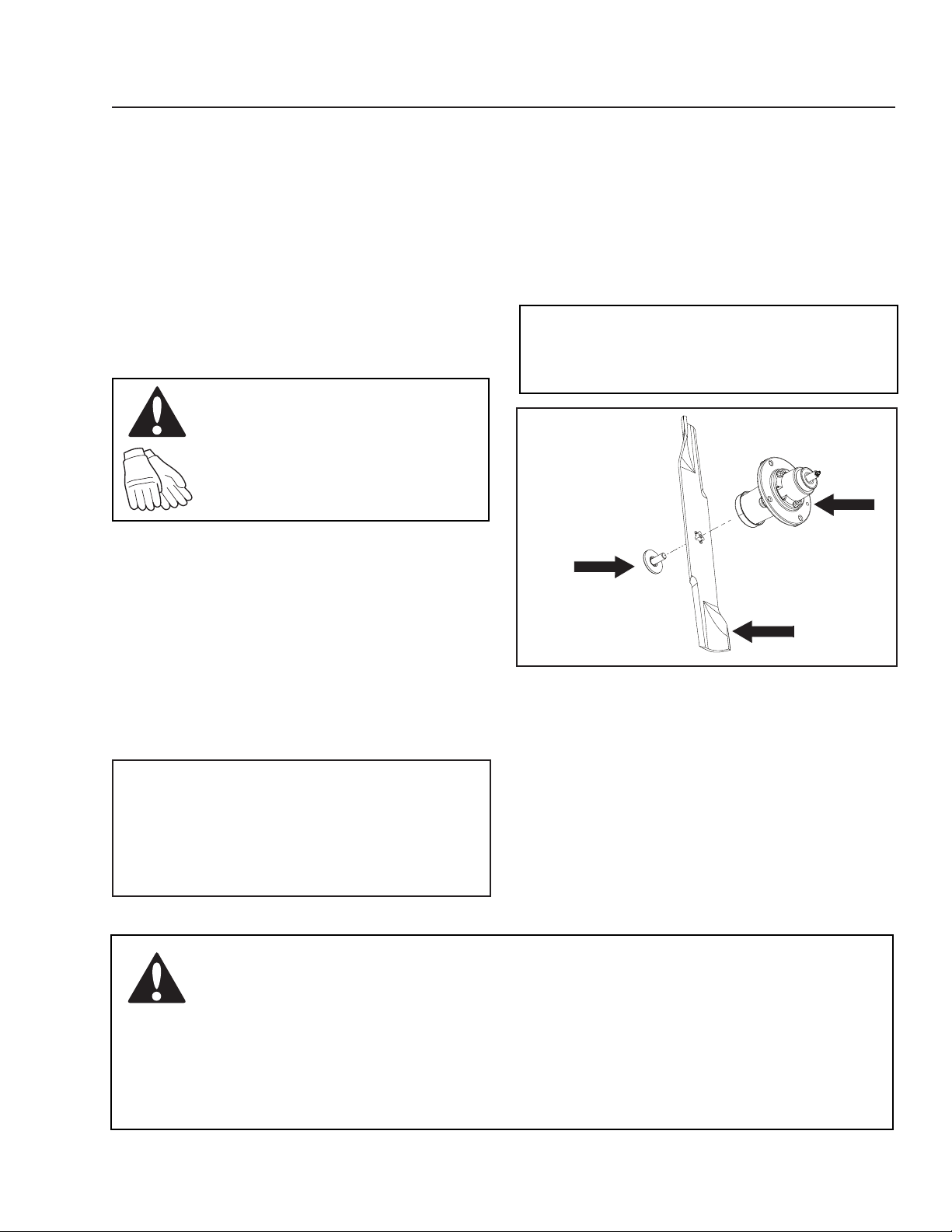

Cutting Blades

To attain the best mowing effect, it is important that
blades are well sharpened and not damaged.

Replace blades that have been bent or cracked when
hitting obstacles.

Let the service workshop decide whether a blade
with large nicks can be repaired/ground or must be
replaced. Balance the blades after sharpening.

Check the blade mounts.

Blade Replacement

WARNING!

Blades are sharp. Protect your hands
with gloves and/or wrap blades with
a heavy cloth when handling.

IMPORTANT INFORMATION

The sharpening of blades should be carried
out by an authorized service workshop.

3

1. Remove blade bolt by turning counterclockwise.

2. Install new or resharpened blade with stamped

GRASS SIDE facing towards ground/grass
(down) or THIS SIDE UP facing deck and spindle
housing.

3. Seat the blade’s opening firmly onto the spindle
housing.

4. Tighten blade bolt securely.

5. Torque blade bolt to 45-55 ft-lbs (60-75 Nm).

IMPORTANT INFORMATION

Special blade bolt is heat treated.

Replace with a Husqvarna bolt if required.

Do not use lower grade hardware than
specified.

WARNING!

Before performing any service or adjustment checklist:

1. Engage the parking brake.

2. Place the Blade switch in the disengaged position.

3. Turn ignition switch to OFF position and remove the key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect the spark plug wire from all spark plugs and place the wire where it cannot
come in contact with the plug.

2

1

8058-167

1. Blade

2. Blade bolt (special)

3. Cutter housing

Blade attachment

41

MAINTENANCE

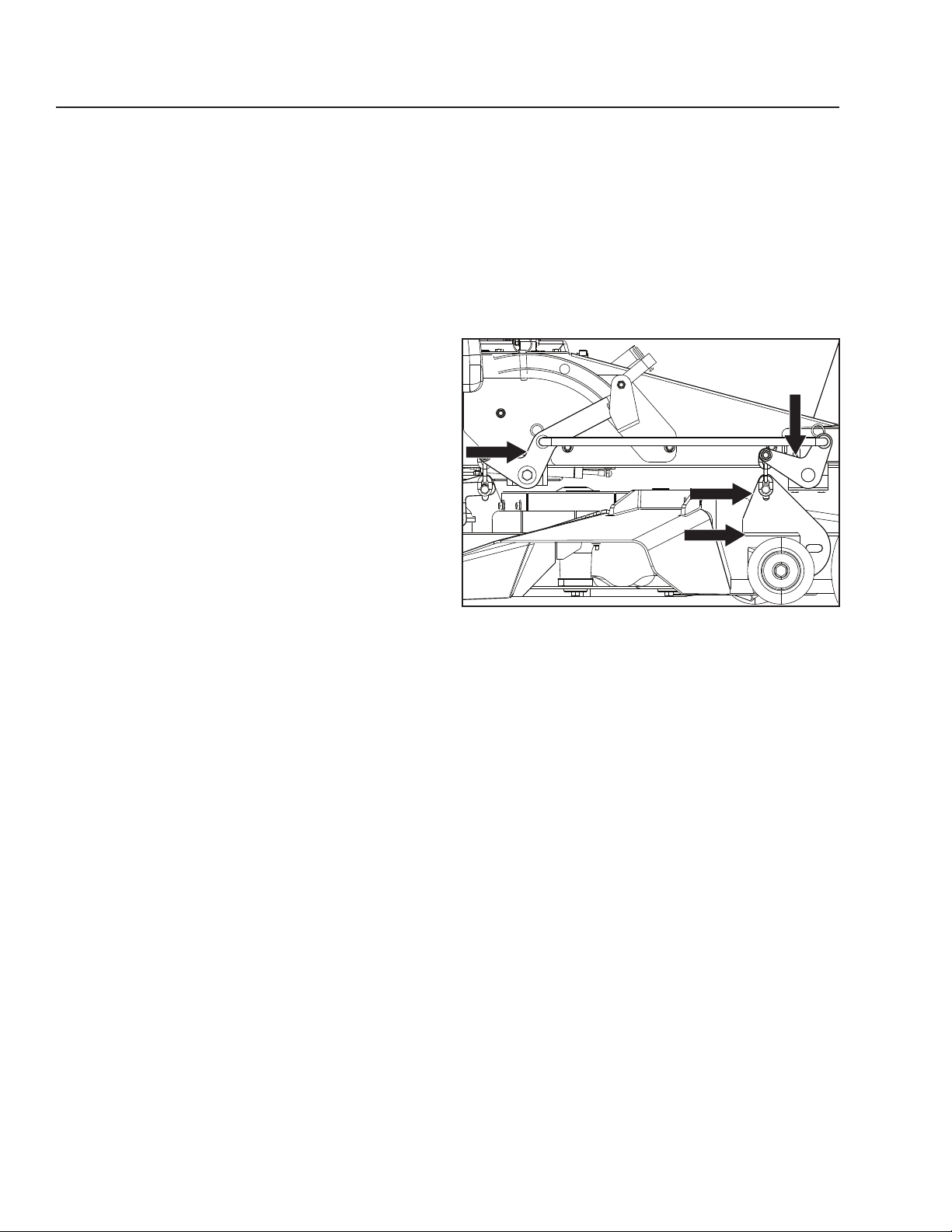

Adjusting the Mower Deck

Check the tire pressure before adjustment of the
mower deck. See Tire Pressures in Maintenance
section. Faulty mower deck adjustments will cause an
uneven mowing result.

Leveling deck

Adjust the deck while the mower is on a level
surface. Make sure the tires are inflated to the correct
pressure. See Technical Data / Transmission. If tires
are under or over inflated, you cannot properly adjust
your deck.

Four slots control the height and pitch of the mower
deck. The deck should be adjusted slightly higher in
the rear.

NOTE: To insure accuracy of leveling procedure,
mower deck drive belt must be installed prior to
leveling deck.

1. Wear heavy gloves. Turn each outer blade tip to
align with the deck or in a side-to-side manner.

2. Measure from the floor surface up to the bottom
of the blade tip on the discharge side of the
mower deck. Retain this measurement. Move to
the opposite side, check that measurement is the
same. If adjustment is required, loosen the locknut
and move mounting bolt up or down in slot until
both side-to-side measurements are equal. Retain
measurement.

3. Turn both outer blades to align with the deck in
front-to-rear manner. Reposition rear mounting
bolts up or down until rear of mower deck is
positioned level to 1/8" higher in the rear than the
side-to-side measurement.

4. Confirm measurements once again. Blade tips
should be level in a side-to-side manner. In the
rear, blade tips should be level to 1/8" higher than
side-to-side measurement. In the front, blade
tips should be level to 1/8" lower than side-to-side
measurement.

NOTE: This will place the mower deck in a
standard measurement position. Depending on
the type of grass being mowed or environmental
conditions, additional adjustments may be
required to achieve the desired cut.

3

1. Front lift arm

2. Chain

3. Rear lift arm

4. Slotted deck hanger plates

Leveling the mower deck

1

2

4

8061-224

42

MAINTENANCE

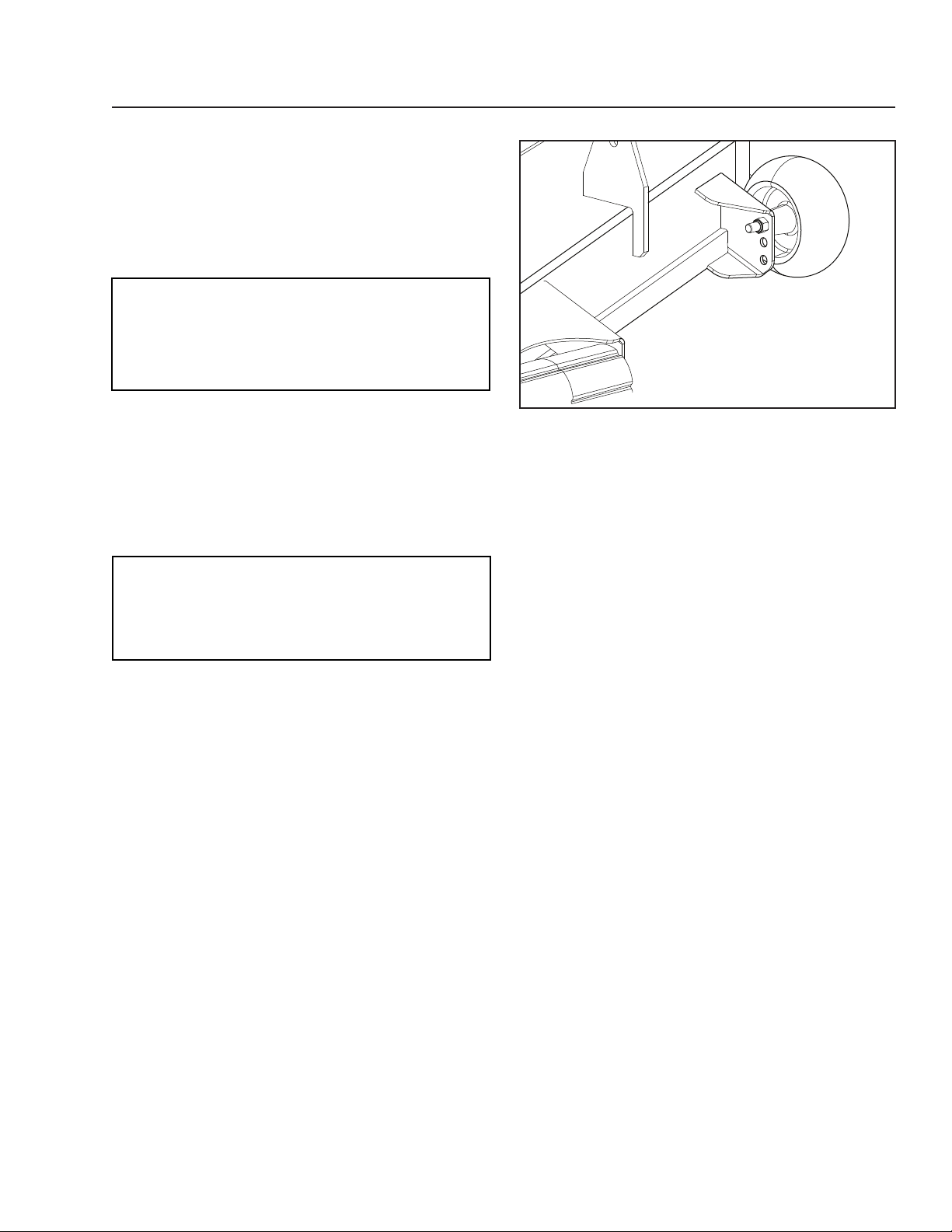

Anti-scalp rollers

Anti-scalp rollers are properly adjusted when they are
just slightly off of the ground when the deck is at the
desired cutting height in the operating position. Anti­scalp rollers then keep the deck in the proper position
to help prevent scalping in most terrain conditions.

IMPORTANT INFORMATION

Adjust anti-scalp rollers with the mower on a
flat level surface.

Anti-scalp rollers can be set in three positions:

• Upper position 1½ to 3" (38 to 76 mm) grass.

• Middle position 3" to 4½" (76 to 114 mm) grass.

• Lower position 4½" to 6" (114 to 152 mm) grass.
The rollers should be approximately ¼" (6.5 mm) from

ground. Do not adjust the rollers to support the deck.

IMPORTANT INFORMATION

To avoid deck damage, the anti-scalp rollers
must not be adjusted to support the deck.

8058-054

Anti-scalp rollers

43

MAINTENANCE

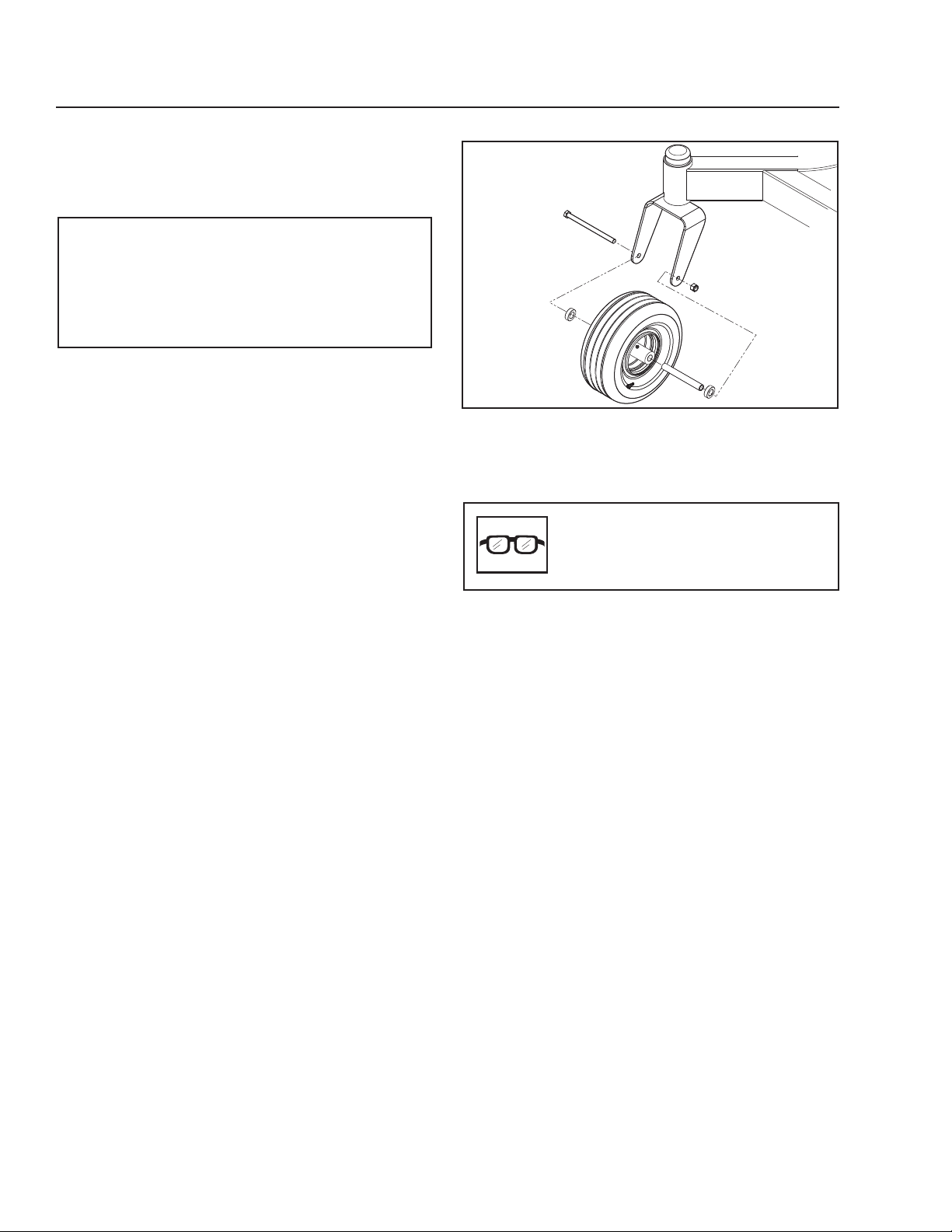

Caster Wheels

Check every 200 hours. Make sure that wheels rotate
freely.

IMPORTANT INFORMATION

DO NOT add any type of tire liner or foam fill
material to the tires. Excessive loads created
by foam tires will cause premature failures.

Use only O.E.M. specified tires.

Removal and Installation

Remove nut and caster bolt. Pull the wheel out of the
fork.

To reInstall, reverse the order. Tighten caster bolt.
If wheels do not rotate freely, take the unit to the

dealer for service.

Hardware

Check daily. Inspect the entire machine for loose or
missing hardware.

Cleaning

Regular cleaning and washing, especially under the
mower deck, will increase the machine’s life-span.
Make it a habit to clean the machine directly after use
(after it is cooled), before the dirt sticks.

Do not spray water on the top of the mower deck. Use
compressed air to clean the top side of mower deck.
Regularly clean deck and underside of the deck with
normal water pressure. Do not use a high pressure
washer or steam cleaner. Avoid spraying engine and
electrical components with water.

Do not rinse hot surfaces with cold water. Let unit cool
before washing.

8058-055

Caster wheel

Use protective glasses when
cleaning and washing.

44

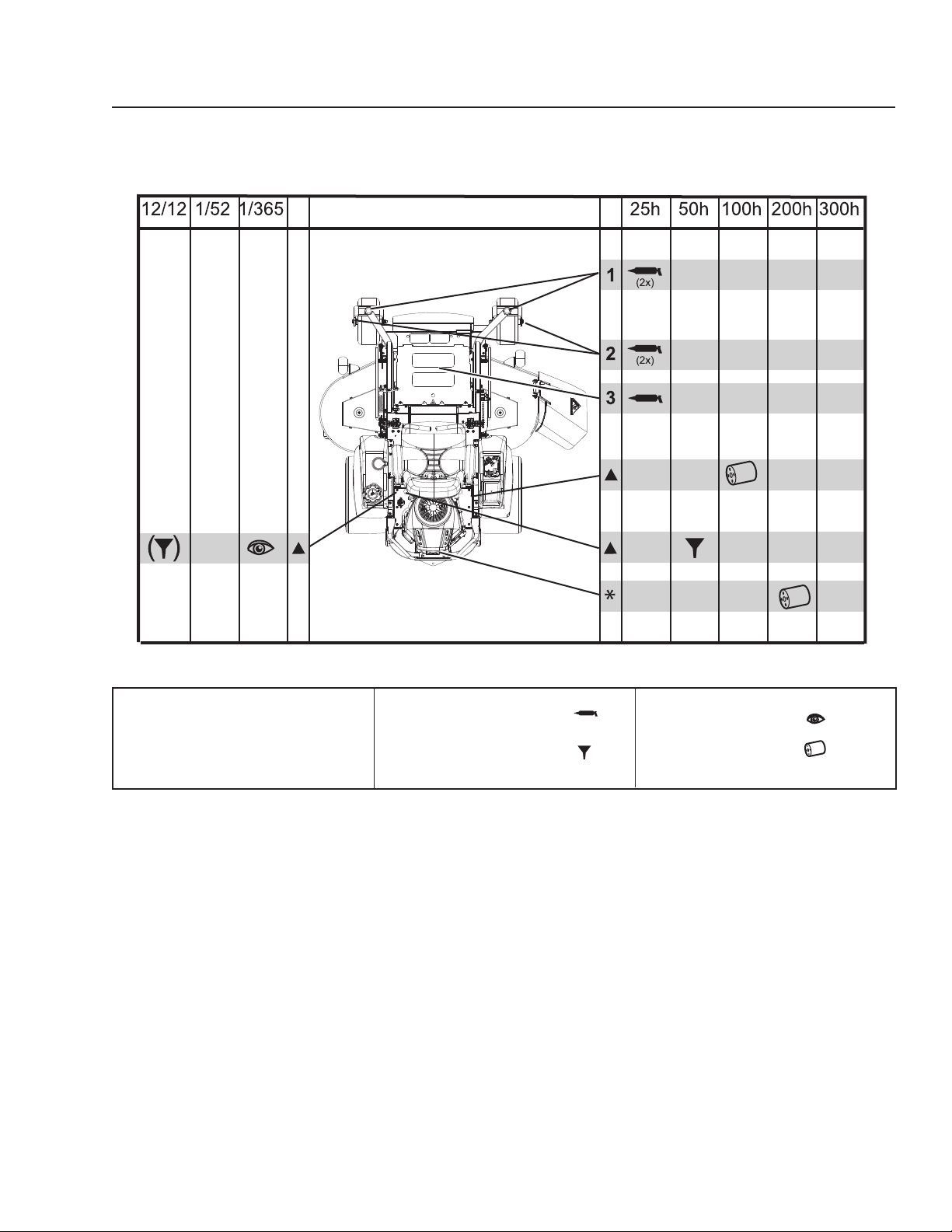

Lubrication Schedule

LUBRICATION

12/12 Every year
1/52 Every Week
1/365 Every day

Change hydraulic drive filters.

*

p See Engine Manufacturer's manual

General

Remove the ignition key to prevent unintentional
movements during lubrication.

When lubricating with an oil can, it must be filled with
engine oil.

When lubricating with grease, unless otherwise stated,
use high grade molybdenum disulphide grease.

For daily use, the machine should be lubricated twice
weekly.

Lubricate with grease gun

Oil change

8058-056

Level check

Filter change

Wipe away excess grease after lubrication.
It is important to avoid getting lubricant on the belts

or the drive surfaces on the belt pulleys. Should this
happen, attempt to clean them with spirits. If the belt
continues to slip after cleaning, it must be replaced.
Gasoline or other petroleum products must not be
used to clean belts.

45

LUBRICATION

Wheel and Deck Zerks

Use only good quality bearing grease.
Grease from well-known brand names (petrochemical

companies, etc.) usually maintains a good quality.

Front Wheel Mount

Lubricate with a grease gun until the grease is forced
out.

Front Wheel Bearings

Lubricate 3-4 strokes with a grease gun on each set of
wheel bearings.

Deck Spindles

Lower the cutting deck completely.
If a grease gun without rubber hose is used, the foot

plate must be removed.
Lubricate with a grease gun, 2-3 strokes per spindle.

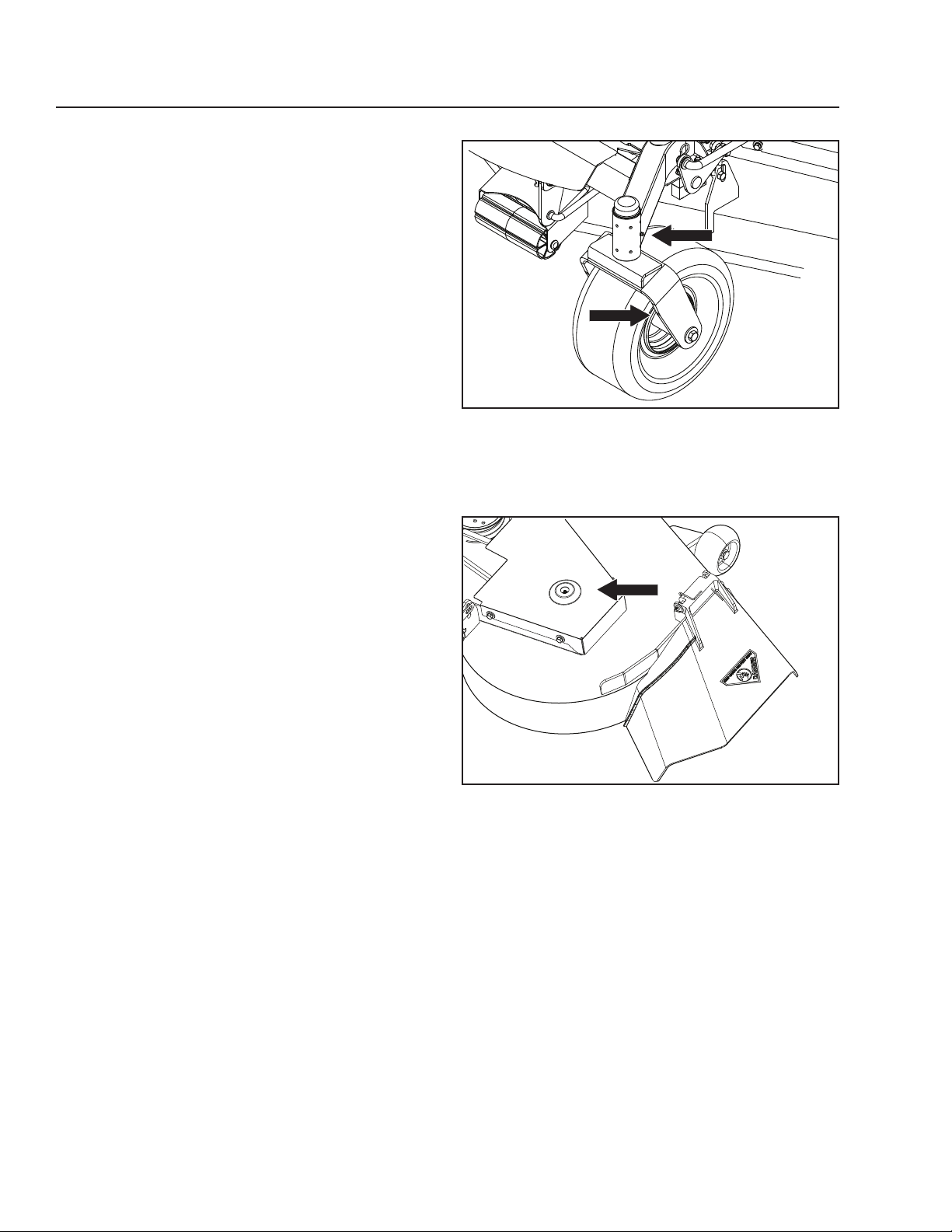

8058-057

Lubricating front wheels

46

8058-058

Deck spindle

LUBRICATION

Transaxle (Transmission) Fluid Change

This transaxle is designed with an external filter for
ease of maintenance. To ensure constant fluid quality
levels and longer life, an oil filter change interval of
every 200 hours is recommended.

The following procedure is performed with the
transaxles installed in the mower and the mower on
level ground. Apply the pump release valve for each
transaxle and set the parking brake.

1. Remove the three ¼" filter guard screws and filter
guard. Clean any loose debris from around the
perimeter of the filter.

2. Place an oil drain pan (12" or more diameter and
8 qt. capacity is optimal) beneath the oil filter.
Remove the oil filter from the transaxle.

Drain old oil filters of all free-flowing oil prior
to disposal. Place used oil in appropriate
containers and dispose of it in accordance
with laws in your area.

10. Fill with 20W50 motor oil until oil just appears
at the bottom of each transaxles’ top port
(approximately 2 quarts per transaxle, 4 quarts
total). Install the top port lug into each transaxle
as the oil level reaches the port.

11. Install and torque the top port plugs to 180 in./lbs.

12. Continue to fill the transaxles through the
expansion tank until the FULL COLD line is
reached (this will take approximately 23 additional
ounces).

13. Reinstall the expansion tank cap by hand. Be
careful to not overtighten.

14. Proceed to the purge procedure.

2

3. After the oil has drained, wipe the filter base
surface and apply a film of new oil to the gasket of
the replacement filter.

4. Install the new filter by hand, turning it three­quarters to one full turn after the filter gasket
contacts the filter base surface.

5. Reinstall the filter guard. Torque screws to
65 in/lbs. each.

6. Repeat steps on the opposite side.

7. Drain old oil filters of all free flowing oil prior to
disposal. Place used oil in appropriate containers
and dispose of it in accordance with laws in your
area.

8. Remove the top port plug (see illustration) from
the left side and right side of the transaxles prior
to filling with oil. This will allow the transaxles to
vent during oil fill.

9. Remove the cap from the transaxles’ expansion
tank located on the vehicle frame.

3

1

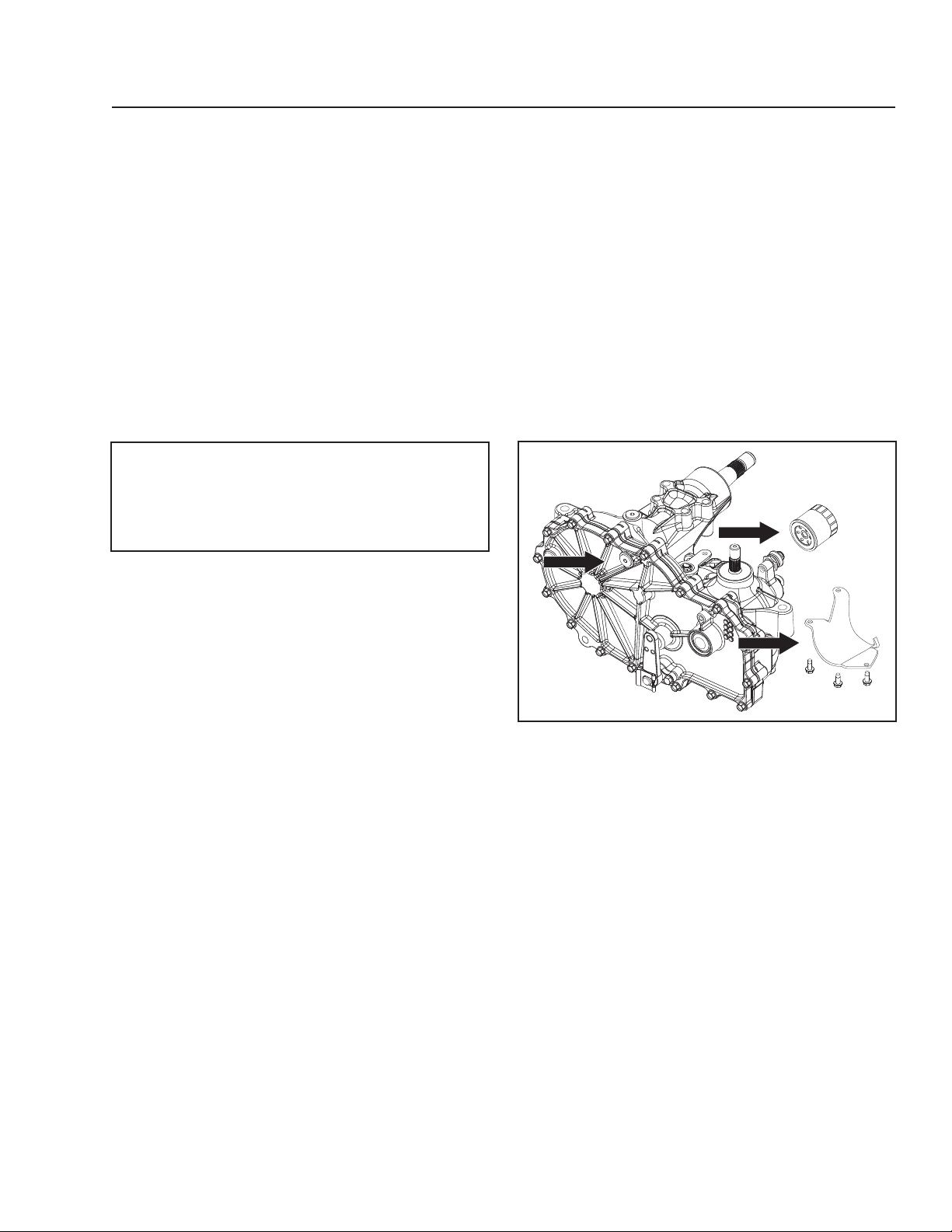

8019-010

1. Filter guard

2. Transaxle filter

3. Top port plug

ZT-3400 filter change

47

LUBRICATION

Purging Procedures

Due to the effects air has on efficiency in hydrostatic
drive applications, it is critical to purge the system.

These purge procedures should be implemented
any time a hydrostatic system has been opened to
facilitate maintenance or any additional oil has been
added to the system.

Resulting symptoms in hydrostatic systems may be:

• Noisy operation.

• Lack of power or drive after short term operation.

• High operation temperature and excessive
expansion of oil.

• Shortened component life.

Before starting, make sure the oil tank is at the proper
oil level. If not, fill to the specifications outlined above.

The following procedures are best performed with the
vehicle drive wheels off the ground, then repeated
under normal operating conditions.

See Moving Machine By Hand in the Operation
section for bypass linkage adjustments.

1. Disengage the brake if activated.

2. With the bypass linkage open and the engine
running at fast idle, slowly move the directional
control in both forward and reverse directions (5
or 6 times). As air is purged from the unit, the oil
level will drop.

3. With the bypass linkage closed and the engine
running, slowly move the directional control in
both forward and reverse directions (5 to 6 times).
Check the oil level and add oil as required after
stopping the engine.

4. It may be necessary to repeat Steps 2 and 3 until
all the air is completely purged from the system.
When the hydraulic drive operates at normal noise
levels and moves smoothly forward and reverse at
normal speeds, the hydraulic drive is considered
purged.

5. After the vehicle has been used two times, the oil
level should be checked while the oil is cold and
adjusted accordingly.

48

TROUBLESHOOTING GUIDE

Problem Cause

Engine will not start • Blade switch is engaged

• Steering controls are not locked in the neutral position

• Parking brake is not activated

• Battery is dead

• Contamination in the carburetor or fuel line

• Fuel supply is closed

• Clogged fuel filter or fuel line

• Faulty ignition system

Starter does not turn the engine over • Dead battery

• Poor contacts on the battery terminal cable connections

• Fuse blown

• Ignition system faulty

• Fault in the starter safety circuit. See Safety System in the

Maintenance section

Engine runs rough • Faulty carburetor

• Clogged fuel filter or jet

• Clogged ventilation valve on the fuel cap

• Fuel tank nearly empty

• Fouled spark plug

• Spark plug is loose

• Rich fuel mixture or fuel-air mixture

• Wrong fuel type

• Water in the fuel

• Clogged air filter

Engine seems weak • Clogged air filter

• Fouled spark plugs

• Carburetor incorrectly adjusted

49

TROUBLESHOOTING GUIDE

Problem Cause

Machine vibrates • Blades are loose

• Blades are incorrectly balanced

• Engine is loose

Engine overheats • Clogged air intake or cooling fins

• Engine overloaded

• Poor ventilation around engine

• Defective engine speed regulator

• Too little or no oil in the engine

• Fouled spark plug

Battery not charging • Poor contact with battery terminal cable connectors

• Charging lead is disconnected

• Fault in engine charging system

Machine moves slowly, unevenly, or not at all • Parking brake on

• Bypass linkages on pump open

• Drive belt for the transmission gears slack or has come off

• Air in hydraulic system

Mower deck not engaging • Drive belt for the mower deck has come loose

• Contact for the electromagnetic coupling has loosened

• The blade switch is faulty or has come loose, from the
cable contact

• The fuse has blown

Uneven mowing results • Unequal tire pressure on the left and right sides

• Bent blades

• Suspension for the mower deck is uneven

• Blades are dull

50

• Driving speed too high

• The grass is too long

• Grass collected under the mower deck

STORAGE

Winter Storage

The machine should be readied for storage at the
end of the mowing season or if it will not be in use for
longer than 30 days.

Fuel allowed to stand for long periods of time (30 days
or more) can leave sticky residues that can plug the
carburetor and disrupt engine function.

Fuel stabilizers are an acceptable option as regards
to the sticky residues that can occur during storage.

Add stabilizer to the fuel in the tank or in the storage
container. Always use the mixing ratios specified by
the manufacturer of the stabilizer. Run the engine for
at least 10 minutes after adding the stabilizer so that
it reaches the carburetor. Do not empty the fuel tank
and the carburetor if a stabilizer has been added.

WARNING!

Never store an engine with fuel
in the tank indoors or in poorly
ventilated spaces where fuel vapor
can come in contact with open
flames, sparks, or a pilot light such
as in a boiler, hot water tank, clothes
drier, etc. Handle the fuel with care.
It is very flammable and can cause
serious personal injury and property
damage. Drain the fuel outdoors, into
an approved container. Store the fuel
away from open flame or any source
of ignition. Never use gasoline for
cleaning. Use a degreaser and warm
water.

To ready the machine for storage, follow these steps:

1. Thoroughly clean the machine, especially under
the mower deck. Touch up damage to the paint
and spray a thin layer of oil on the underside of
the mower deck to avoid corrosion.

2. Inspect the machine for worn or damaged parts
and tighten any nuts or screws that may have
become loose.

3. Change the engine oil; dispose of properly.

4. Empty the fuel tanks or add a fuel stabilizer. Start
the engine and allow it to run until the carburetor
is drained of fuel or the stabilizer has reached the
carburetor.

5. Remove the spark plug and pour about a
tablespoon of engine oil into the cylinder. Turn
over the engine so that the oil is evenly distributed
and then refit the spark plug.

6. Lubricate all grease zerks, joints, and axles.

7. Remove the battery. Clean, charge, and store the
battery in a cool place, but protect it from direct
cold.

8. Store the machine in a clean, dry place and cover
it for extra protection.

Service

When ordering spare parts, please specify the
purchase year, model, type, and serial number.

Always use genuine Husqvarna spare parts.
An annual check-up at an authorized service

workshop is a good way to ensure that the machine
performs its best the following season.

51

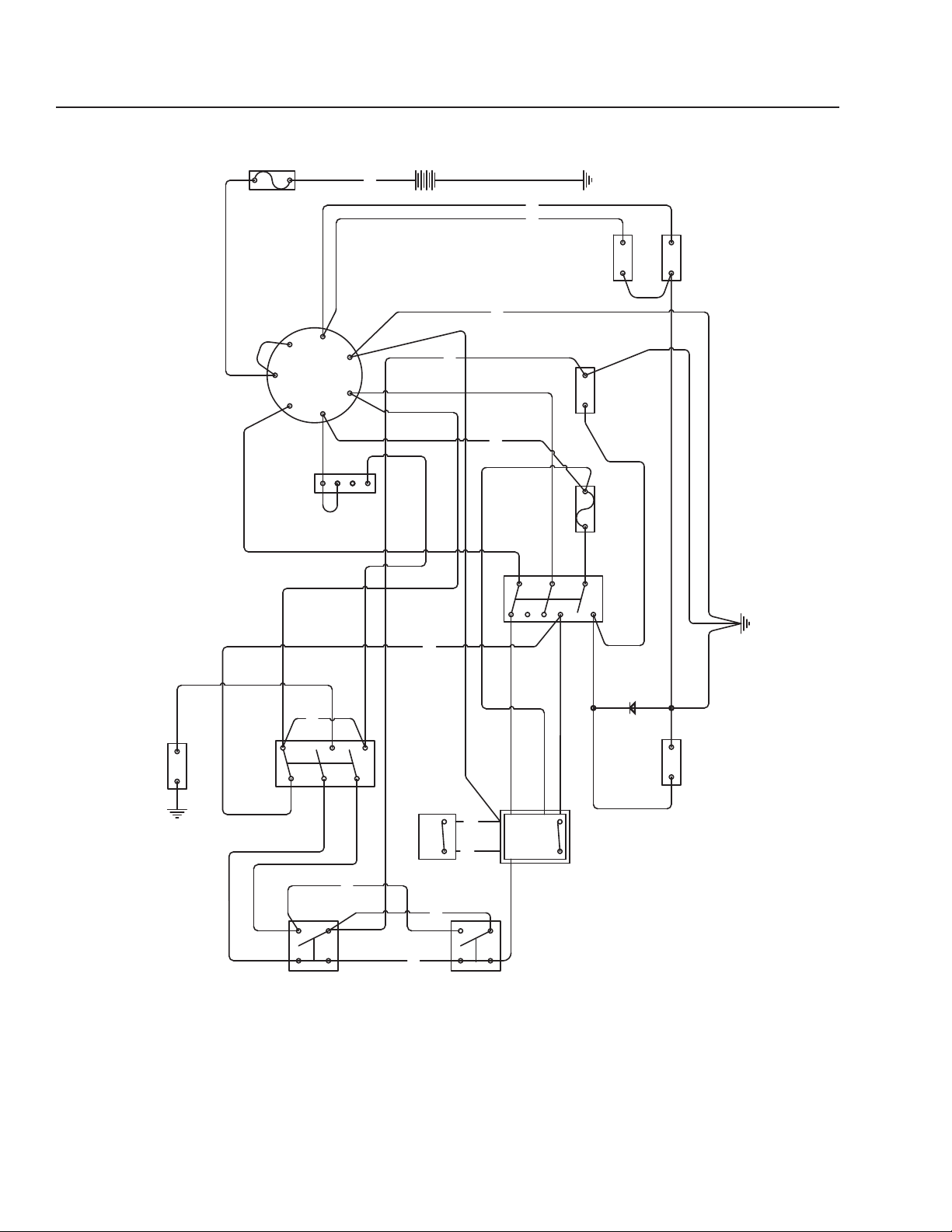

WIRING DIAGRAM

RED

NOTES:

1. SEAT UNOCCUPIED

2. BRAKE SWITCH IN OFF POSITION

3. MOTION CONTROL LEVERS OUT

4. PTO IN OFF POSITION

RED/BLK

RED/BLK

YEL

20 AMP

A

B

S

TO

ENGINE

PIGTAIL

GRN

Y

L

PUR

GRY

YEL/RED

OUTLET

ACCESSORY

BLK

G

BLK

M

HOURMETER

BRN

PUR

7.5 AMP

PUR

PTO

SWITCH

BLK

BLK

WHT

GRN

PUR

PUR

WHT

ENGINE

GROUND

BLK

GRN

BLU

BLK

52

YEL

SOLENOID

GRN

YEL

BRAKE

SWITCH

BRN

WHT

BRN

RIGHT MOTION

CONTROL LEVER

BLK

BRN

YEL

T-3

T-4

T-5

BLK

SW.

SEAT

BLU

T-2

T-1

BRN/WHT

TIMER

T-6

YEL

CLUTCH

ELECTRIC

YEL

LEFT MOTION

CONTROL LEVER

TECHNICAL DATA

MZ28ZT / 966613201

Engine

Manufacturer Briggs & Stratton

Type Endurance

Power 15.65 kW @ 2950 RPM

Lubrication Pressure w/ Oil Filter

Fuel Min 87 octane unleaded (Max ethyl

alcohol 10%, Max MTBE 15%)

Fuel tanks capacity 5 gallons / 9 liters

Cooling Air cooled

Alternator 12v 15 amp @ 3600 rpm

Starter Electric

Transmission

Transmission ZT-3400 Hydro Gear

Speed and direction controls Dual levers, foam gripped

Speed forward 0-10 mph - 0-16.1 Km/h

Speed reverse 0-5 mph - 0-9.7 Km/h

Brakes Mechanical parking brake

Front caster tires, smooth tread 13 x 6.5

Rear tires, turf pneumatic 23 x 10.50 4 ply

Tire pressures 103 kPa/1 bar / 15 PSI

1)

2)

1)

See the engine manufacturer’s owner manual for engine

specifications.

2)

The power rating of the engines indicated is the average

net power output (at specified rpm) of a typical production
engine for the engine model measured to SAE standard
J1349/ISO1585. Mass production engines may differ from
this value. Actual power output for the engine installed
in the final machine will depend on the operating speed,
environmental conditions and other variables.

53

TECHNICAL DATA

MZ28ZT / 966613201

Frame

Cutting Width 132 cm / 52"

Cutting Height 3.8 - 11.4 cm / 1½ - 4½"

Uncut Circle 0

Number of Blades 3

Blade Length 46 cm / 18"

Nose Roller No

Sprung Seat Suspension

Hinged Arm Rests Yes

Hour Meter Ye s

Blade Engagement 200 ft-lb Warner Clutch

Deck Construction 11 gauge fabricated

Productivity 12141 m2/h / 3.0 acres/h

Dimension

Weight 349 kg / 770 lbs

Base Machine Length 192 cm / 75½"

Base Machine Height 107 cm / 42"

Base Machine Width 125 cm / 49"

Vibrations

Steering Lever 3.09 m/s

Seat

Operator Ear

Sound Level at Operator's Ear 94 dB(A)

Guaranteed Noise Level 105 dB(A)

Measured Noise Level 104 dB(A)

1)

2

0.14 m/s

2)

2

1)

Vibration level according to EN 836. Reported data for

vibration level has a typical statistical dispersion (standard
deviation) of 0.2 m/s2 (steering levers) and 0.8 m/s2 (seat).

2)

Sound pressure level according to EN 836. Reported data

for noise pressure level has a typical statistical dispersion
(standard deviation) of .08 dB(A). If the machine can be
equipped with different cutting decks, the noise pressure
levels are stated in order starting from the cutting deck
with the smallest cutting width.

54

TECHNICAL DATA

Torque Specifications

Hex Head Cap Screws

The torque values shown should be used as a general guideline when specific torque values are not given.

U.S. Standard Hardware

Grade SAE Grade 5 SAE Grade 8 Flangelock Screw

w/Flangelock Nut

Size ft./lbs Nm ft./lbs Nm ft./lbs Nm

¼ 9 12 13 18

5

/16 18 24 28 38 24 33

3

/8 31 42 46 62 40 54

7

/16 50 68 75 108

½ 75 102 115 156

9

/16 110 150 165 224

5

/8 150 203 225 305

¾ 250 339 370 502

7

/8 378 513 591 801

Shank Size (Diameter in inches, fine or coarse thread)

11/8 782 1060 1410 1912

** Grade 5 - Minimum commercial quality (lower quality not recommended)

Metric Standard Hardware

Grade Grade 8.8 Grade 10.9 Grade 12.9

Size ft./lbs Nm ft./lbs Nm ft./lbs Nm

M4 1.5 2 2.2 3 2.7 3.6

M5 3 4 4.5 6 5.2 7

M6 5.2 7 7.5 10 8.2 11

M7 8.2 11 12 16 15 20

M8 13.5 18 18.8 25 21.8 29

M10 24 32 35.2 47 43.5 58

M12 43.5 58 62.2 83 75 100

M14 70.5 94 100 133 119 159

M16 108 144 147 196 176 235

M18 142 190 202 269 242 323

M20 195 260 275 366 330 440

Shank Size (Diameter in millimeters, fine or coarse thread)

M22 276 368 390 520 471 628

M24 353 470 498 664 596 794

M27 530 707 474 996 904 1205

55

CONFORMITY CERTIFICATES

Conformity Certificates For Model Listed Below:

966613201 / MZ28T Zero Turn Rider

USA requirements

Labels are placed on the engine and/or in the engine compartment stating that the machine will fulfill the
requirements. This is also applicable to special requirements for any of the states, (California emission
rules etc.). Do not remove any of these labels. Certificates can also be supplied with the machine at
delivery or written in the Engine manual. Take care of them as they are valuable documents.

EU Declaration of Conformity Information

Only applicable to European versions

See the Declaration of Conformity Certificate for additional information.
Husqvarna AB, Orangeburg, SC, USA declares under sole responsibility that the machine types stated

on page 1 of this manual, from 2010's serial numbers and onwards (the year is clearly stated in plain text
on the rating plate with subsequent serial number), complies with the requirements of the COUNCIL'S
DIRECTIVES:

- of May 17, 2006 "relating to machinery" 2006/42/EC, annex IIA.

- of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC,
and applicable supplements.

- of May 8, 2000 "relating to the emission of noise to surroundings" 2000/14/EC.

The following harmonised standards have been applied: EN ISO 12100-2, EN836.

Business Name and Address:

Husqvarna
172 Old Elloree Rd
Orangeburg, SC 29115 USA

Notified Body:

SNCH, 11 Route de Luxembourg, L-5230 Sandweiler, has issued reports regarding the assessment
of conformity according annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise
emissions in the environment" 2000/14EC.

56

SERVICE JOURNAL

Action

Delivery Service

Charge the battery

Adjust the tire pressure of all wheels to 15 PSI (1 bar)

Mount the steering controls in the normal position

Connect the contact box to the cable for the seat’s safety switch

Check that the right amount of oil is in the engine

Adjust the position of the steering controls

Fill with fuel and open the fuel shut off valve

Start the engine

Check that there is drive to both wheels

Check the mower deck adjustment

Check:

Safety switch for the parking brake

Safety switch for the mower deck

Safety switch in the seat

Date, mtr reading,

stamp, sign

Safety switch in the steering controls

Parking brake functionality

Driving forward

Driving backward

Engaging the blades

Check engine high idle speed

Inform the customer about:

Need and advantages of following the service schedule

Need and advantages of leaving the machine for service

Effects of service and maintaining a service journal
on the machine’s resale value

Application areas for mulching

Fill in the sales papers, etc. Delivery service has

been carried out.
No remaining notes.
Certified:

57

SERVICE JOURNAL

Action

After 10 hours

Change the engine oil

Check hydraulic oil level

Inspect hydraulic hoses

Inspect hydraulic belt

Inspect hydraulic filter

Check neutral position

Check safety system

Check seat belt

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

Date, mtr reading,

stamp, sign

58

SERVICE JOURNAL

Action

Daily Service

Clean debris from mower

Check engine oil level

Check the tire pressures

Check underside of deck

Inspect deck pulleys

Check/clean the engine’s cooling air intake

Check safety system

Check seat belt

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

Date, mtr reading,

stamp, sign

59

SERVICE JOURNAL

Action

25-Hour Service

Check the fuel pump’s air filter

Sharpen/Replace mower blades if required

Check the tire pressures

Check battery with cables

Lubricate according to lubrication chart

Check/clean the engine’s cooling air intake

Clean the air cleaner’s pre-filter (foam)

Date, mtr reading,

stamp, sign

60

SERVICE JOURNAL

Action

100-Hour Service

Grease fittings (caster pivots and caster wheels)

Inspect dampeners

Inspect frame

Inspect throttle cable

Inspect hardware

Check the tire pressures

Change the engine oil and filter

Change air filter

Inspect spark plug

Inspect fuel filter

Check engine RPM

Clean underside of deck

Check blade pitch

Grease blade spindles

Date, mtr reading,

stamp, sign

Inspect spindle bearings

Inspect deck belt and blades

Inspect idler arm bearings

Inspect deck idler pulleys

Check hydraulic oil level

Inspect hydraulic filter

Inspect hydraulic drive belt

Inspect hydraulic hoses

Check neutral position

Inspect battery connections

Check safety system

Check seat belt

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

61

SERVICE JOURNAL

Action

300-Hour Service

Grease fittings (caster pivots and caster wheels)

Inspect dampeners

Inspect frame

Inspect throttle cable

Inspect hardware

Check the tire pressures

Change the engine oil and filter

Change air filter

Inspect spark plug

Inspect fuel filter

Check engine RPM

Clean underside of deck

Check blade pitch

Grease blade spindles

Date, mtr reading,

stamp, sign

Inspect spindle bearings

Inspect deck belt and blades

Inspect idler arm bearings

Inspect deck idler pulleys

Change hydraulic oil

Change hydraulic filter

Replace hydraulic drive belt

Inspect hydraulic hoses

Check neutral position

Inspect battery connections

Load test battery

Clean electrical connections

Inspect the clutch

Check safety system

Check seat belt

Check fuel system for leaks

Inspect safety guards and shields

Check brake adjustment

62

SERVICE JOURNAL

Action

At least once each year

Clean the engine’s cooling air intake.

Replace the air cleaner’s pre-filter (foam).

Replace the air filter’s paper cartridge.

Change the engine oil.

Replace the engine oil filter

Check/adjust the cutting height

Check/adjust the parking brake

Clean/Change the spark plugs

Inspect spark plug

Check the engine valve clearance

Date, mtr reading,

stamp, sign

63

www.husqvarna.com

Original instructions

115 39 51-27 Rev D

2011-09-15
