Page 1
LT 19530
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
IPL, LT19530, 96041016902, 2011-01
Page 2
ILLUSTRATED PARTS LIST
47
MFG. ID NO. 96041016902
CUSTOMER CATALOG NO. LTH19530
PRODUCT NO. 960 41 01-69
47
532 44 19-56 Rev. 4
Page 3
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
27
DECALS
27
10
5
2
4
2
9
7
1
11
12
KEY PART
NO. NO. DESCRIPTION
1 532 19 68-41 Decal, Warning Engine Symbols
2 581 62 73-01 Decal, Badge
3 532 17 83-02 Decal, Oper Cruise Symbol
4 532 43 39-86 Decal, Side Panel
5 532 43 70-93 Decal, Rpl.
6 532 15 97-37 Decal, Brake Clutch
7 532 15 97-36 Decal, Chassis Hot Muffler
8 532 16 88-69 Decal, Tick Mark
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 40 03-89 Decal, Warning Symbols
14
3
8
13
6
7
KEY PART
NO. NO. DESCRIPTION
11 532 42 51-12 Decal, Warning Deflector
12 532 42 15-43 Decal, Mower V-Belt Schematic
13 532 14 08-37 Decal, Saddle Brake Parking
14 532 12 44-33 Decal, 80 DBA Australia
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 532 43 39-92 Manual, Operators (English)
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 42 52-61 Rim Asm 6" x 3.25 Front
4 532 42 16-52 Tube Front (Service Item Only)
5 532 12 34-10 Tire Front 13 x 5.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 10 62-30 Tire Rear 16 x 6 - 5
10 532 00 71-54 Tube Rear (Service Item Only)
11 532 42 52-62 Rim Asm 8" x 5.375 Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
Page 4
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
38
38
SCHEMATIC
SCH11
RED
B
G
A
AMMETER
(OPTIONAL)
S
M
A1
A2
L
WHITE
FUSE
BATTERY
BLACK
BLACK
BLACK
SOLENOID
DER
CLUTCH/BRAKE
(PEDAL UP)
WHITE
2
3
1
6
JUNCTION
CONNECTOR
BLACK
BLACK
BLACK
BLACKBLACK
GRAY
BLACK
STARTER
M
M
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
GRAY
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
IGNITION SWITCH
POSITION
RUN/OVERRIDE
OFF
CIRCUIT
M+G+A1
B+A1
B+A1RUN
B+S+A1START
“MAKE”
L+A2
BLACK
CHASSIS HARNESS
BLUE
63
52
41
CONNECTOR
(MATING SIDE)
BLACK /WHITE
BLUE
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
RED
LIGHT SWITCH
DASH HARNESS
CONNECTOR
(MATING SIDE)
CHASSIS
HARNESS
IGNITION
UNIT
(OPTIONAL)
HOUR
METER
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
LIGHTING SYSTEM OUTPUT
5AMPAC@3600RPM
ORANGE
BROWN
6
3
5
2
4
1
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SHORTING
CONNECTOR
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
BLACK
12V
POWER OUTLET
(OPTIONAL)
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
HEADLIGHTS
ALTERNATOR
BLACK
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
3
Page 5
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
32
32
103
79
22
33
30
21
87
ELECTRICAL
T04S
With 12V Outlet Option
59
With Service Minder Option
4646
90
26
16
34
71
40
27
43
42
41
25
28
2
29
141
55
4
Page 6
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
32
32
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-24 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 41 28-94 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Hourmeter
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 532 40 04-49 Harness Chassis
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 43 53-95 Cover, Terminal Battery
141 532 41 69-77 Kit T2 ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
5
Page 7
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
39
39
CHASSIS AND ENCLOSURES
286
283
176
199
284
203
5
36
176
285
206
194
36
137
194
234
214
182
176
68
204
236
137
177
176
234
235
175
68
15
205
130
34
130
235
14
130
239
150
130
297
202
3
238
191
18
25
151
213
218
282
287
282
162
189
chassis-tex_TEX LT HUSQ_29
282
58
37
189
159
183
6
228
68
183
194
236
159
228
68
194
152
189
68
68
180
217
52
189
Page 8
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
39
39
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
3 532 40 50-12 Logo
5 532 43 89-64 Dash
14 532 44 12-67 Hood
15 532 44 14-28 Lens LH
18 532 44 13-68 Grille
25 532 44 14-27 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-66 Fender
52 873 68 05-00 Nut Crown Lock 5/16
58 532 41 22-80 Drawbar, Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x .750 BOS Thread
137 532 40 75-90 Bumper Dash
150 532 40 66-62 Air Duct
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 94-72 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 41 46-85 Chassis
182 532 40 71-76 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-01 Insert Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
199 532 41 34-85 Plate Deck Lift
KEY PART
NO. NO. DESCRIPTION
202 532 44 13-42 Vent Side Hood RH
203 532 44 13-43 Vent Side Hood LH
204 532 41 11-16 Vent Top Hood
205 532 44 13-44 Skirt Side RH
206 532 44 13-45 Skirt Side LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
238 532 44 13-74 Trim
239 532 40 48-83 Clip Tinnerman
282 532 41 41-10 Clip Retainer Console
283 532 44 20-39 Console Deck Lift
284 532 43 98-23 Console Shift
285 532 41 63-15 Console Insert RH
286 532 41 63-17 Console Insert LH
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
297 532 40 66-65 Insert Reflective LH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
7
Page 9
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
40
40

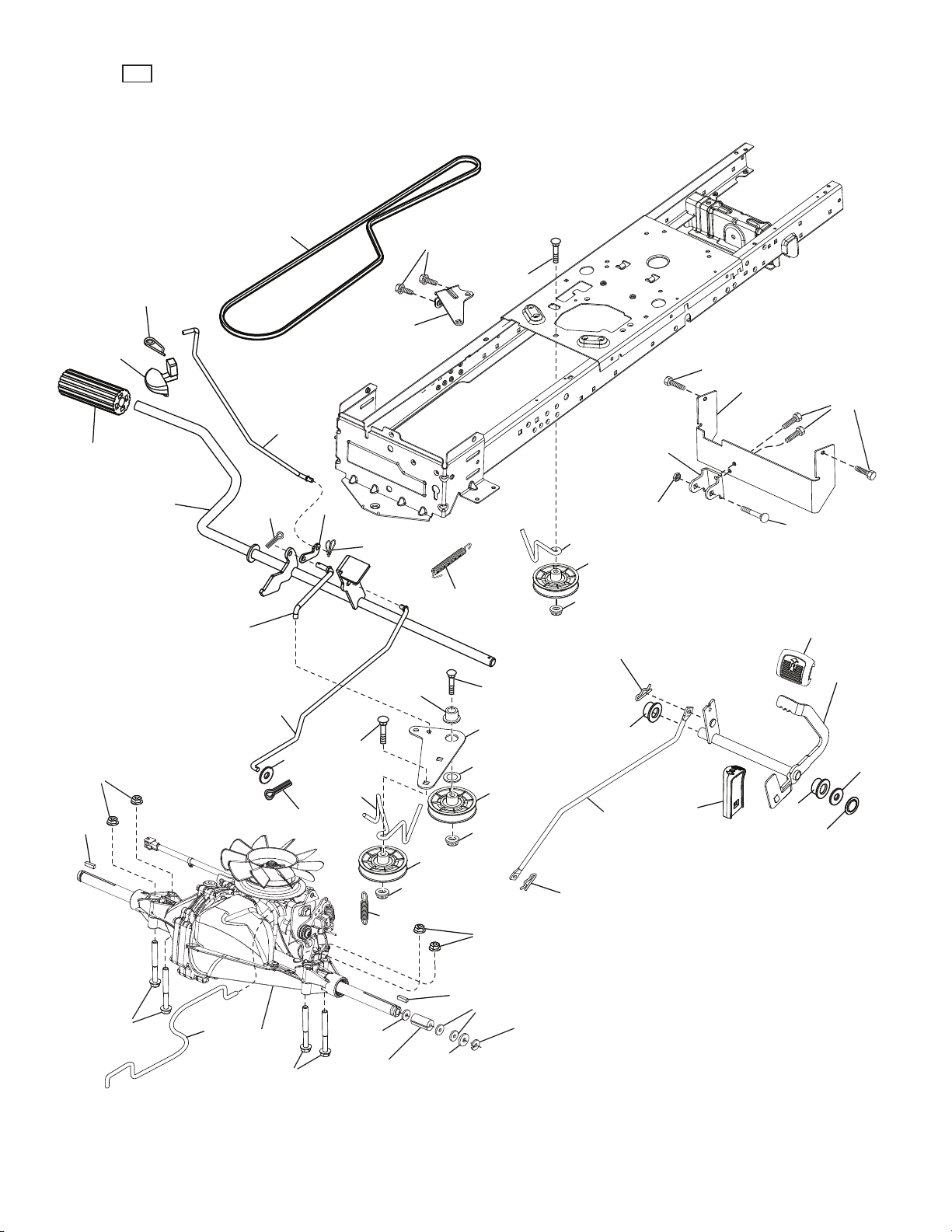

DRIVE
42
116
2
184
221
64
188
159
29
56
35
15
159
167
49
190
160
216
186
52
143
161
185
189
187
51
50
185
170
51
231
153
211
163
121
114
215
125
80
125
122
214
210
222
211
166
73
99
51
17
116
2
205
1
73
205
183
37
153
33
drive-tex_T2_pedal_17
8
Page 10
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
40
40
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle, Hydro T2-BABC-1X2B-1GX1
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-96 Spring, Brake
29 532 42 32-39 Rod, Brake
33 812 00 00-01 Ring E
35 532 40 10-31 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 12 59-07 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt 5/16-18 Gr. 5
80 581 55 07-01 Strap Torque
99 532 40 84-18 Rod Asm Bypass Spring
114 873 80 05-00 Nut Lock 5/16-18 unc
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
121 532 17 56-11 Bracket Strap Torque
122 872 01 05-20 Bolt 5/16-18 x 2.50
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 41 33-22 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
183 532 15 69-72 Spacer Axle
184 532 44 14-07 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
210 532 40 09-80 Rockr Asm. Pdeal Control
211 532 12 01-83 Bearing Nylon
214 532 42 12-63 Pad Pedal Forward
215 532 40 17-23 Pad Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
231 532 40 72-87 Idler V-Groove 1.688
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
9
Page 11
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
24
24
ENGINE
1
21
15
18
20
29
37
96
97
28
37
84
90
79
85
42
12
45
69
9
2
OPTIONAL EQUIPMENT
Spark Arrester
engine-tex_BS_28
10
Page 12
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
24
24
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Engine Briggs Model No. 31Q677-3493-G1
2 532 13 73-52 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 14 01-86 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 43 02-20 Cap Asm
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x 3/4
84 817 06 06-20 Screw 3/8-16 x 1/4
85 532 17 39-37 Bolt Hex 7/16-20 x Gr. 5-1.5
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are
placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop
the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is
due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,
fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-toengine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher
rated power for this Series engine.
11
Page 13
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
41
41
STEERING ASSEMBLY
26
72
33
45
20
21
1
71
63
57
64
16
19
28
59
61
35
13
58
28
60
22
68
63
9
74
74
15
8
70
7
67
2
67
66
62
14
15
9
7
8
74
74
6
5
13
8
13
63
6
4
14
69
steering-tex_STDHRS_10
53
12
Page 14
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
41
41
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering
2 532 41 81-68 Axle Asm., Front
4 532 41 68-45 Spindle Asm., LH
5 532 41 68-46 Spindle Asm., RH
6 532 12 49-31 Washer Thrust
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-73 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 44 14-25 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Strg. Supt. Lower
26 532 43 97-43 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 41 70-65 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Extension Steering
72 874 42 89-82 Bolt 5/16-18 x 4 w/Patch
74 532 12 49-37 Bearing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
13
Page 15
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
44
44
MOWER DECK
70
7
152
37
11
10
9
12
32
5
38
7
16
6
76
13
14
8
67
15
77
11
20
19
17
18
21
43
11
26
20
11
42
23
40
27
42
41
22
24
4
2
3
33
2
34
38
25
1
30
39
6
31
29
28
tex-deck_SRD_3
35
36
14
Page 16
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
44
44
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 44 20-48 Deck Weldment 30"Srd
2 532 19 51-61 Stud Fastner W/'D'anti-Rotatio
3 873 90 05-00 Nut Lock Hex Flange 5/16 - 18
4 532 41 76-45 Bracket Clutch Cable
5 817 00 05-10 Bolt 5/16-18
6 532 41 88-63 Arm Susp Mower Rear Srd
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 42 02-52 Arm Idler 30"Srd
9 532 19 90-92 Spacer Retainer
10 817 00 06-16 Screw 3/8 - 16 X 1 Smgml Tap/R Blk
11 532 13 77-29 Screw Thd Roll 1/4 - 20 X 5/8
12 532 19 94-70 Arm Brake Mower 38" RH Tex
13 872 11 06-12 Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
14 532 15 60-85 Keeper Belt Idler
15 532 14 67-63 Pulley Ikler V-Groove Dim 4.25
16 873 90 06-00 Nut Lock FlG 3/8 - 16 unc
17 532 40 02-34 Nut Flange Lock Top
18 532 18 76-90 Washer Spacer Mandrel
19 532 11 04-85 Bearing Ball Mandrel
20 532 17 39-84 Screw Thd Roll Dod Pt Hex
21 532 41 69-10 Keeper Belt Mandrel 30"
22 532 17 58-20 Pulley Idler Flat
23 817 49 06-28 Screw Thdrol 3/8 - 16 X 1-3/4
24 819 13 20-12 Washer 13/32 X 1 - 1/4 X 12 Ga
25 532 42 02-53 Keeper Belt 30"Srd
26 532 42 02-55 Cover Mandrel Mwr 30"Black
27 532 41 92-71 V-Belt Gnd Dr
28 532 41 73-44 Shield Asm Deflect Mwr 30s Blk
29 532 42 08-95 Pin Hinge 30
KEY PART
NO. NO. DESCRIPTION
30 532 19 70-26 Spring Torsion Dfl 38/42/46 Gr
31 532 11 04-52 Nut Push Phos & Oil
32 532 40 18-72 Spring Return Deck 38/46"
33 532 18 72-81 Housing Mandrel 4pt Service
34 532 19 28-72 Shaft Asm Mndrl N/Greaseable38
35 532 41 92-73 Blade Mower Hp/Mulch Srd
36 532 19 30-03 Bolt/Washer Asm 7/16 - 20 unf
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 19 65-39 Bolt Shoulder
39 532 10 53-04 Cap Sleeve
40 532 41 92-70 Keeper Belt Engine LH
41 532 41 92-65 Keeper Belt Engine RH
42 817 00 06-12 Screw Hexwsh THDR 3/8-16 x 3/4 BL
43 532 41 68-77 Pulley Mandrel 6 5 Pd 30"
67 532 40 30-12 Handle clutch cable
70 532 40 12-46 Clutch Asm. Manual
76 532 41 55-98 Washout Port
77 532 13 77-29 Screw
152 532 43 51-11 Manual Clutch Cable
- - 532 19 28-70 Mandrel Assembly (Includes Housing, Shaft Assembly, And Bearing
Only - Pulley/Nut/Washer And Blade
Bolt/Washers Not Included)
- - 532 43 44-89 Replacement Mower Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
15
Page 17
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
42
42
SEAT ASSEMBLY
1
8
8
7
43
44
40
10
21
8
7
41
8
6
37
37
2
21
3
seat-tex_6-tex LT
KEY PART
NO. NO. DESCRIPTION
1 532 42 40-67 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
KEY PART
NO. NO. DESCRIPTION
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
Page 18
TRACTOR - - MODEL NO. LTH19530 (96041016902), PRODUCT NO. 960 41 01-69
45
45
MOWER LIFT
87
90
87
98
7
10
113
3
97
100
2
88
97
91
lift-tex_11_r1
KEY PART
NO. NO. DESCRIPTION
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
101*
89
87
*Key 91 may be substituted for Key 101
KEY PART
NO. NO. DESCRIPTION
91 532 19 51-81 Link Asm Lift LH Rear
97 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4
98 532 19 52-64 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm Lift FXD
113 819 17 19-12 Washer 17/32 X 1-3/16 x 126F
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
17
Page 19
02.01.13 BD
Loading...
