Page 1

03002

LGT2554

Owner's Manual

Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.

532 43 19-18 Rev. 3

Page 2

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING: In order to prevent ac ci den tal starting when setting up, trans port ing, ad just ing or making repairs, al ways dis con nect spark plug wire and place wire where it can not contact spark plug.

WARNING: Do not coast down a hill in neutral, you may lose control of the tractor.

WARNING: Tow only the attachments that are rec om mend ed by and comply with spec i fi ca tions of the man u fac tur er of your tractor. Use common sense when towing. Operate only at the low est possible speed when on a slope. Too heavy of a load, while on a slope, is dan ger ous. Tires can lose trac tion with the ground and cause you to lose control of your tractor.

WARNING

Engine exhaust, some of its con stit u ents, and cer tain vehicle com po nents contain or emit chem i cals known to the State of Cal i for nia to cause can cer and birth de fects or oth er re pro duc tive harm.

WARNING

Battery posts, terminals and related ac ces so ries contain lead and lead compounds, chem i cals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro duc tive harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.

• Only allow responsible adults, who are familiar with the in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

• Ensure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while back ing.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

• Do not operate machine without the entire grass catcher, discharge chute, or other safety devices in place and working.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge chute.

• Operate machine only in daylight or good artificial light.

• Do not operate the machine while under the influence of alcohol or drugs.

• Watch for traffic when operating near or crossing road ways.

• Use extra care when loading or unloading the machine into a trailer or truck.

• Always wear eye protection when operating machine.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel weights or counterweights.

• Keep machine free of grass, leaves or other debris build-up which can touch hot exhaust / engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and tipover accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down slopes.

Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the machine to roll over.

• Use extra care while operating machine with grass catchers or other at tach ments; they can affect the stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot on the ground.

• Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or if the edge caves in.

Page 3

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

III. CHILDREN

WARNING. CHILDREN CAN BE INJURED BY THIS EQUIPMENT. The American Academy of Pediatrics recommends that children be a minimum of 12 year of age before operating a pedestrian controlled lawn mower and a minimum of 16 years of age before operating a riding lawn mower.

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

• If fuel is spilled on clothing, change clothing immediately.

• Never overfill fuel tank. Replace gas cap and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to ensure the equipment is in safe working condition.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep machine free of grass, leaves, or other debris buildup. Clean oil or fuel spillage and remove any fuel-soaked debris. Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine run ning.

• Check grass catcher components and the discharge chute frequently and replace with manufacturer's recommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as required.

• Maintain or replace safety and instruction labels, as necessary.

IV. TOWING

• Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.

• Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equipment.

• On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there is an open flame, spark, or pilot light such as on a water heater or other appliances.

• Never fill containers inside a vehicle or on a truck or trailer bed with plastic liner. Always place containers on the ground away from your vehicle when filling.

• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

• Ensure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Al ways look down and behind before and while backing.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

• If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

• When loading or unloading this machine, do not exceed the maximum recommended operation angle of 15°.

Page 4

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 10W-30 (above 32°F) SAE 5W-30 (below 32°F)

Oil Capacity: W/ Filter: 64 oz

Spark Plug: Champion RC12YC (Gap: .030")

Ground Speed (MPH): Forward: 0 - 5.2 Reverse: 0 - 2.9

Charging System: 15 AMPS @ 3600 RPM

Battery: AMP/HR: 28 MIN. CCA: 230 Case Size: U1R

Blade Bolt Torque: 45-55 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/department. We have competent, well-trained tech ni cians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor prop erly. Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tractor.

• Follow the instructions in the Maintenance and Storage sections of this manual.

• Wear proper Personal Protective Equipment (PPE) while operating this machine, including (at a minimum) sturdy footwear, eye protection, and hearing protection. Do not mow in shorts and/or open toed footwear.

• Always let someone know you are outside mowing.

WARNING: This tractor is equipped with an internal com bus tion engine and should not be used on or near any un im proved forest-covered, brush-covered or grasscov ered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

A spark arrester for the muffler is available through your nearest authorized service center/department.

In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

TABLE OF CONTENTS

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 5-8

OPERATION .............................................................9-15

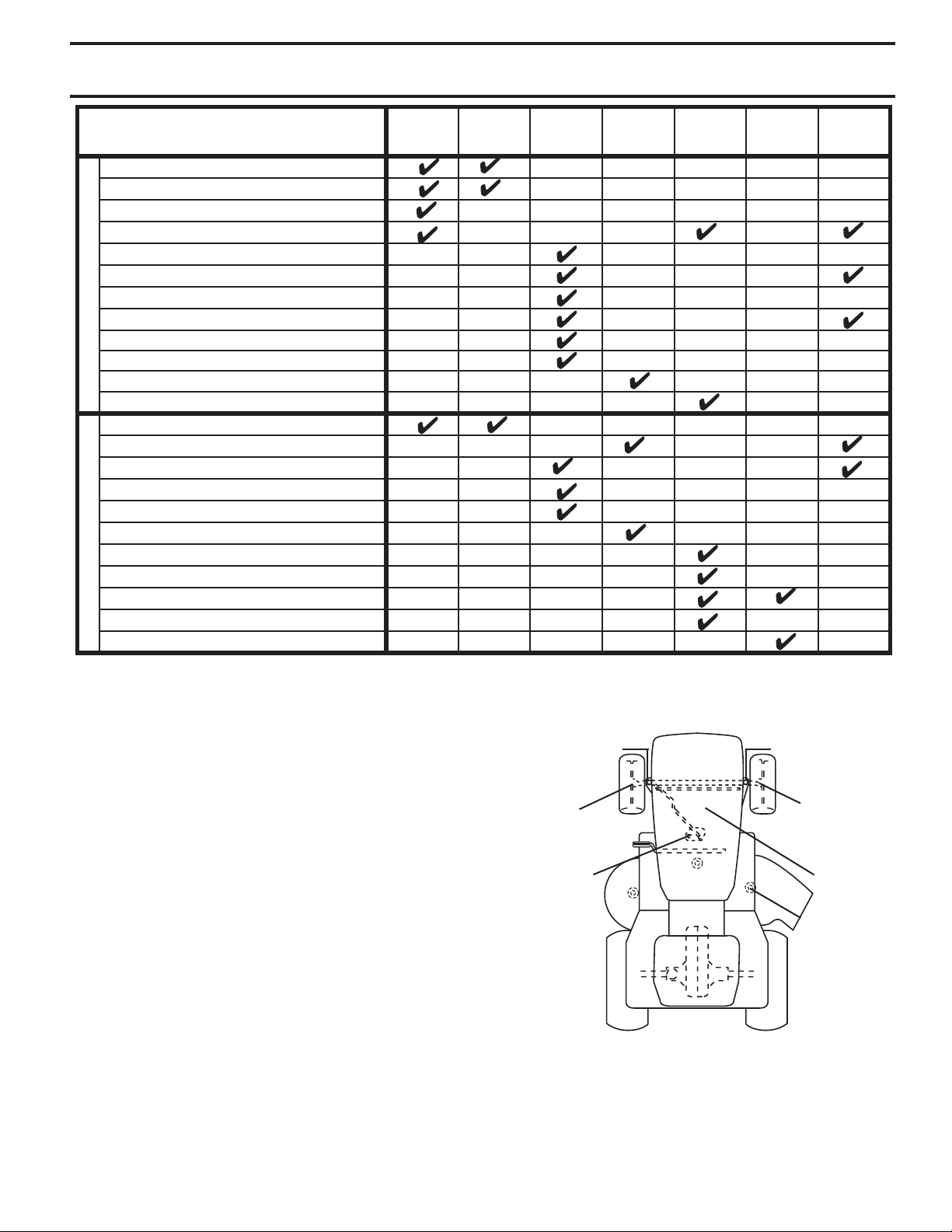

MAINTENANCE SCHEDULE ...................................... 16

MAINTENANCE ..................................................... 16-19

SERVICE AND AD JUST MENTS ............................ 20-24

STORAGE .................................................................... 25

TROU BLE SHOOT ING ............................................ 26-27

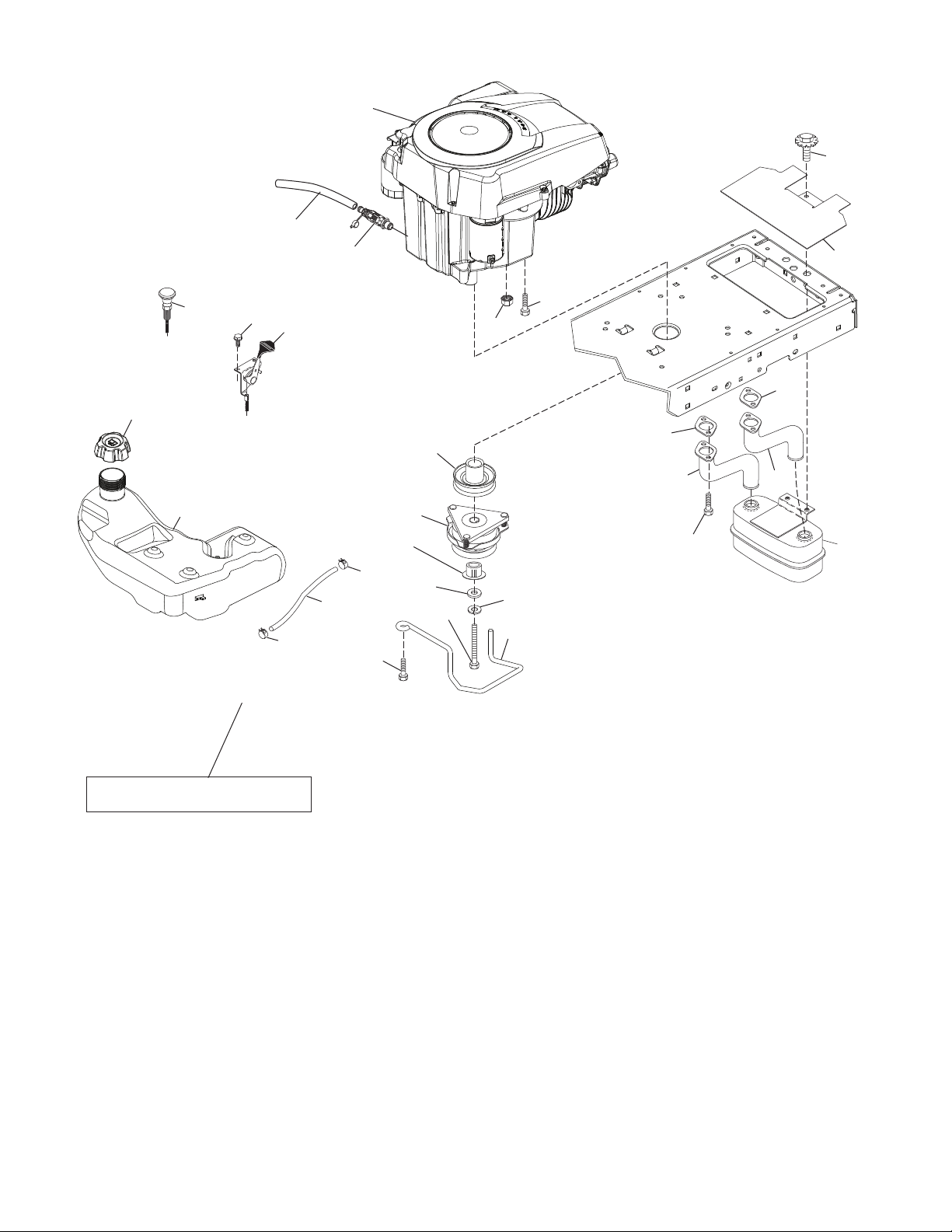

REPAIR PARTS ...................................................... 28-42

WARRANTY .............................................BACK COVER

Page 5

UNASSEMBLED PARTS

Mower

61/3-1 )5(

srehsaW .D.O

(1) Small Retainer Springs

(5) Large Retainer Springs

If Equipped

(1) Anti-Sway Bar

(2) Rear

Lift Link Assemblies

(1) Front Lift Link Assembly

(1) 3/4 O.D.

Washers

Mower Front Wheel

(1) Shoulder Bolt

(1) Wheel

(1) Oil Drain Tube

Keys

(1) 1-1/4 O.D.

Washer

(1) 3/8-16

Locknut

Slope Sheet

(1) Small Retainer

(2) Keys

Springs

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard wrench sizes are listed.

(2) 7/16" wrenches Utility knife

(1) 1/2" wrench Tire pressure gauge

(1) 3/4" wrench Pliers

(1) 3/4" socket w/drive ratchet

(1) 9/16" wrench Flashlight When right or left hand is mentioned in this man ual, it means

when you are in the operating po si tion (seated be hind the steer ing wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons from carton .

•

Cut along dotted lines on all four panels of carton. Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM SKID

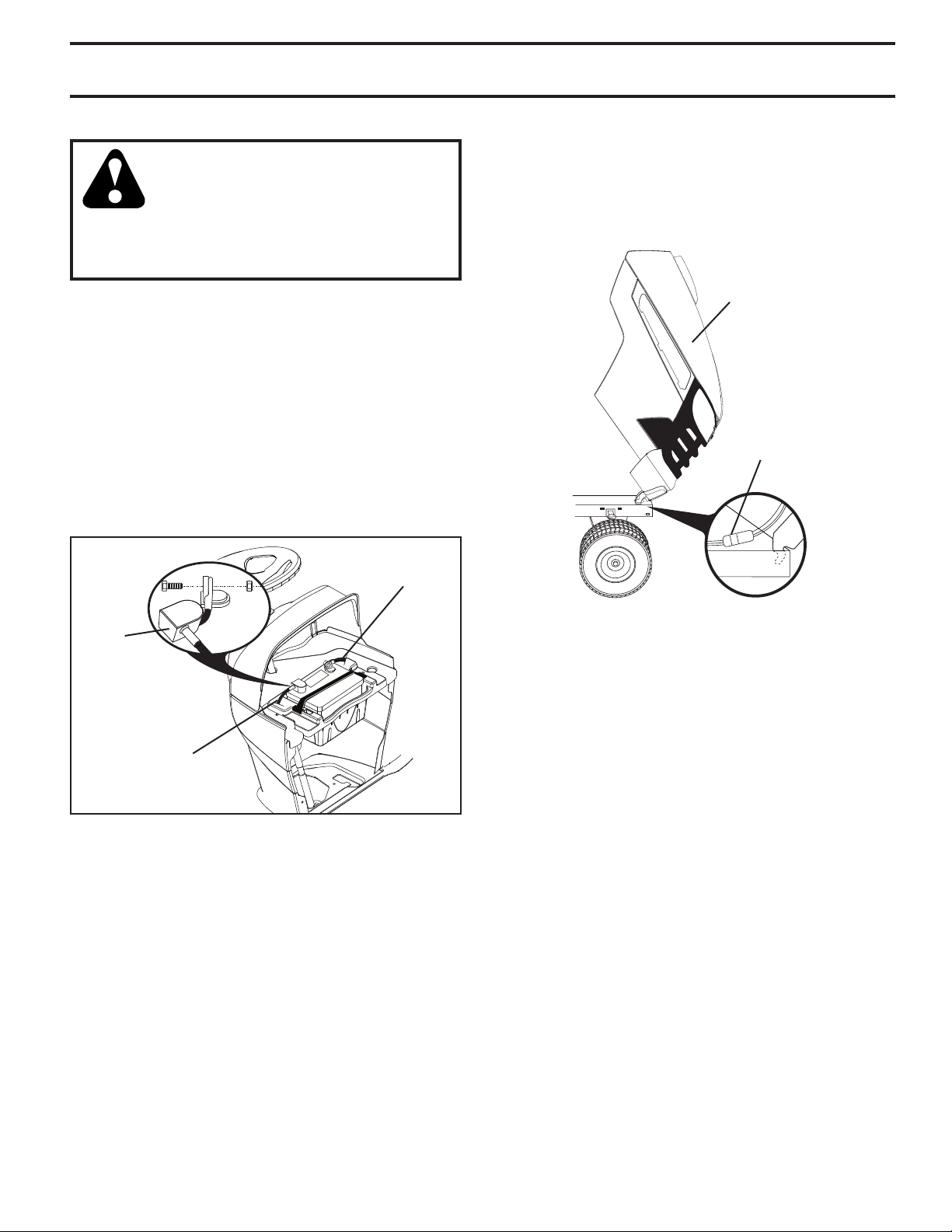

TO CHECK BATTERY (See Fig. 1)

• Lift hood to raised position. NOTE: If this battery is put into service after month and

year indicated on label (label is located between terminals) charge battery for minimum of one hour at 6-10 amps. (See "BATTERY" in Maintenance section of this manual for charging instructions).

• For battery and battery cable installation see "REPLACING BATTERY" in the "Service and Adjustments" section in this manual.

LABEL

Fig. 1

Page 6

ASSEMBLY

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

• Release lever to lock seat in position.

Fig. 2

NOTE: You may now roll your tractor off the skid. Follow the

instructions below to remove the tractor from the skid.

WARNING: Before start ing, read, un der stand and fol low all in struc tions in the Op er a tion section of this man u al. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other peo ple and objects.

TO INSTALL MOWER AND DRIVE BELT (See Figs. 3 - 14)

1. SET PARKING BRAKE LEVER AND LOWER ATTACHMENT LIFT (See Fig. 3)

• Depress clutch/brake pedal all the way down and hold.

• Pull parking brake lever up and hold, re lease pres sure from clutch/brake pedal, then release parking brake lever. Pedal should re main in brake position. Ensure parking brake will hold tractor secure.

PARKING BRAKE LEVER

Fig. 3

• The attachment lift switch is used to raise and lower the mower deck or other attachments mounted to your tractor. Ignition must be on to operate this switch.

• Lower attachment lift to its lowest position.

TO ROLL TRACTOR OFF SKID (See Op er a tion section for location and function of con trols)

• Raise attachment lift lever to its highest po si tion.

• Release parking brake by de press ing clutch/brake ped al.

• Place freewheel control in "trans mis sion dis en gaged" position (See “TO TRANS PORT” in the Op er a tion section of this manual).

• Roll tractor forward off skid.

Continue with the instructions that follow.

Page 7

ASSEMBLY

CAUTION: Continuing to press the electric lift switch after the mower deck has reached the minimum or maximum position may result in damage to the electric lift mechanism.The electric lift mechanism is equipped with a thermal protection system. If the system overheats or fails to operate, allow the system to cool before attempting to operate again.

2. ASSEMBLE FRONT GAUGE WHEEL (W) TO FRONT OF MOWER (See Fig. 4)

H. FRONT MOWER

BRACKET

W. FRONT GAUGE

WHEEL

X. SHOULDER

BOLT

Y. 1-1/4 O.D.

WASHER

Z. 3/8-16 LOCKNUT

Fig. 4

3. TURN STEERING WHEEL LEFT AND POSITION

MOWER (See Fig. 5)

• Turn steering wheel to the left as far as it will go and

position mower on right side of tractor with deflector shield (Q) to the right.

FRONT

ENGINE

4. SLIDE MOWER UNDER TRACTOR (See Fig. 7)

• Bring belt forward and check belt for proper routing in all mower pulley grooves.

NOTE: Be sure mower side suspension arms (A) are pointing forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under tractor.

A. MOWER SIDE

02965

SUSPENSION ARMS

Q. DEFLECTOR

SHIELD

Fig. 7

5. INSTALL ANTI-SWAY BAR (S) (IF EQUIPPED) (See Fig. 8 - 10)

ANTI-SWAY BAR (S)

TOWARDS TOWARDS TRANSAXLE MOWER DECK

TRANSAXLE

90° END INTEGRATED WASHER END

Fig. 8

02965

BACK

Q. DEFLECTOR

SHIELD

Fig. 5

• From right side of mower, first insert 90° end of anti-sway bar (S) into hole in transaxle bracket (T), located near left rear tire in front of transaxle.

NOTE: Flashlight may be helpful.

A. MOWER SIDE SUSPENSION

ARMS B. RETAINER SPRING C. REAR LIFT LINK(S) D. RIGHT SIDE REAR MOWER

BRACKET E. FRONT LIFT LINK ASSEMBLY F. FRONT SUSPENSION BRACKET H. FRONT MOWER BRACKET I. LEFT SIDE REAR MOWER

BRACKET K. BELT TENSION ROD L. LOCKING BRACKET M. ENGINE CLUTCH PULLEY Q. DEFLECTOR SHIELD S. ANTI-SWAY BAR W. FRONT GAUGE WHEEL

Fig. 6

Page 8

ANTI-SWAY BAR

PLACE 90° END INTO HOLE

(S) LOCATION

ASSEMBLY

TRANSAXLE

BRACKET (T)

LOCATED

BETWEEN REAR

TIRES

7. ATTACH REAR LIFT LINKS (C) (See Fig. 12)

• Insert rod end of rear lift link (C) into hole (U) in tractor lift shaft suspension arm and pivot link down to mower.

• Lift rear corner of mower and position slot in link assembly over pin on rear mower bracket (D) and secure with large washer and large retainer spring.

• Repeat on opposite side of tractor.

PLACE 90° END INTO HOLE

S. ANTI-SWAY BAR T. TRANSAXLE BRACKET

Fig. 9

NOTE: Depending on model, bracket (T) may be differ-

ent than shown but hole for anti-sway bar will be in same position/location.

• Pivot the integrated washer end of anti-sway bar (S) towards mower deck bracket on right side of mower. Insert integrated washer end of bar into hole in rear mower bracket (D). Move mower as needed to insert integrated washer end of bar into rear mower bracket (D).

• Secure with small washer and small retainer spring as shown.

C. REAR LIFT LINK(S) D. RIGHT SIDE REAR

MOWER BRACKET

U. HOLE

Fig. 12

8 ATTACH FRONT LINK (E) (See Fig. 13)

• Turn steering wheel to position wheels straight forward.

• From front of tractor, insert rod end of front link (E) through front hole in tractor front suspension bracket (F).

• Move to left side of mower and and insert large retainer spring (G) through hole in front link (E) behind front suspension bracket (F).

• Insert other end of link (E) into hole in front mower bracket (H) and secure with washer and small retainer spring (J).

NOTE: Requires deck lifting.

FRONT LINK

LOCATION

D. RIGHT SIDE

REAR MOWER

BRACKET S. ANTI-SWAY BAR T. TRANSAXLE

BRACKET

Fig. 10

6. ATTACH MOWER SIDE SUSPENSION ARMS (A) TO CHASSIS (See Fig. 11)

• Position front hole in side suspension arm (A) over pin on outside of tractor chassis and secure with large washer and large retainer spring (B).

• Repeat on opposite side of tractor.

A. MOWER SIDE

SUSPENSION ARMS

B. RETAINER

SPRING

D. RIGHT

SIDE REAR

MOWER BRACKET

Fig. 11

E. FRONT LIFT LINK ASSEMBLY F. FRONT SUSPENSION BRACKET G. LARGE RETAINER SPRING H. FRONT MOWER BRACKET J. SMALL RETAINER SPRING M. ENGINE CLUTCH PULLEY

Fig. 13

Page 9

ASSEMBLY

9 INSTALL BELT ON ENGINE CLUTCH PULLEY (M)

(See Fig. 6 & 14)

• Disengage belt tension rod (K) from locking bracket (L).

• Install belt onto engine clutch pulley (M).

✓CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE AND SATISFACTION FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been com plet ed. ✓ No remaining loose parts in carton. ✓ Battery is properly prepared and charged.

M. ENGINE

CLUTCH PULLEY

Fig. 14

IMPORTANT: Check belt for proper routing in all mower

pulley grooves and under mandrel covers.

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring loaded. Have a tight grip on rod and engage slowly.

• Raise attachment lift to highest position.

• If necessary, adjust gauge wheels before op er at ing mower as shown in the Operation section of this manual.

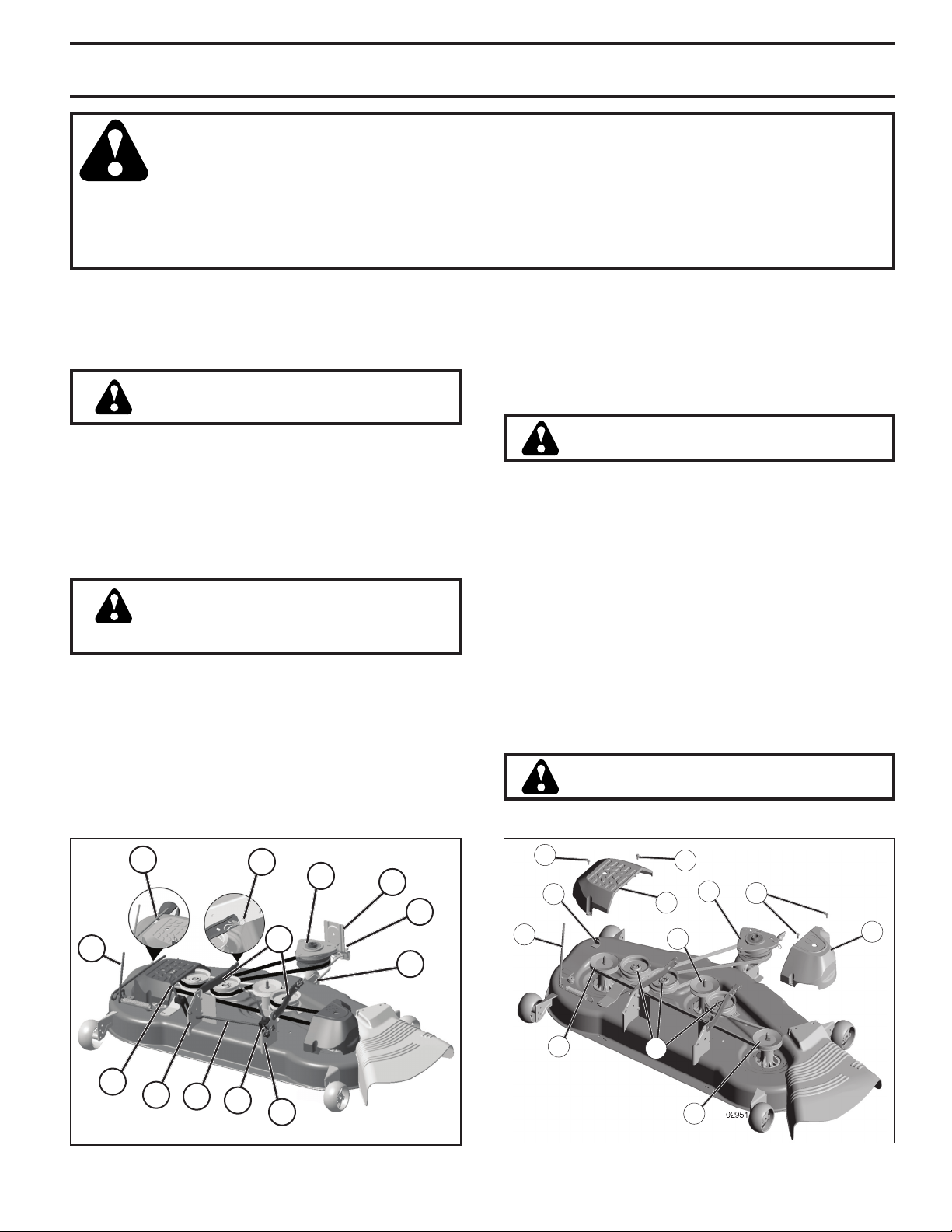

MOWER DRIVE BELT INSTALLATION

Follow procedure described in “TO REPLACE MOWER BLADE DRIVE BELT ” in the "Service and Adjustments" section of this manual.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

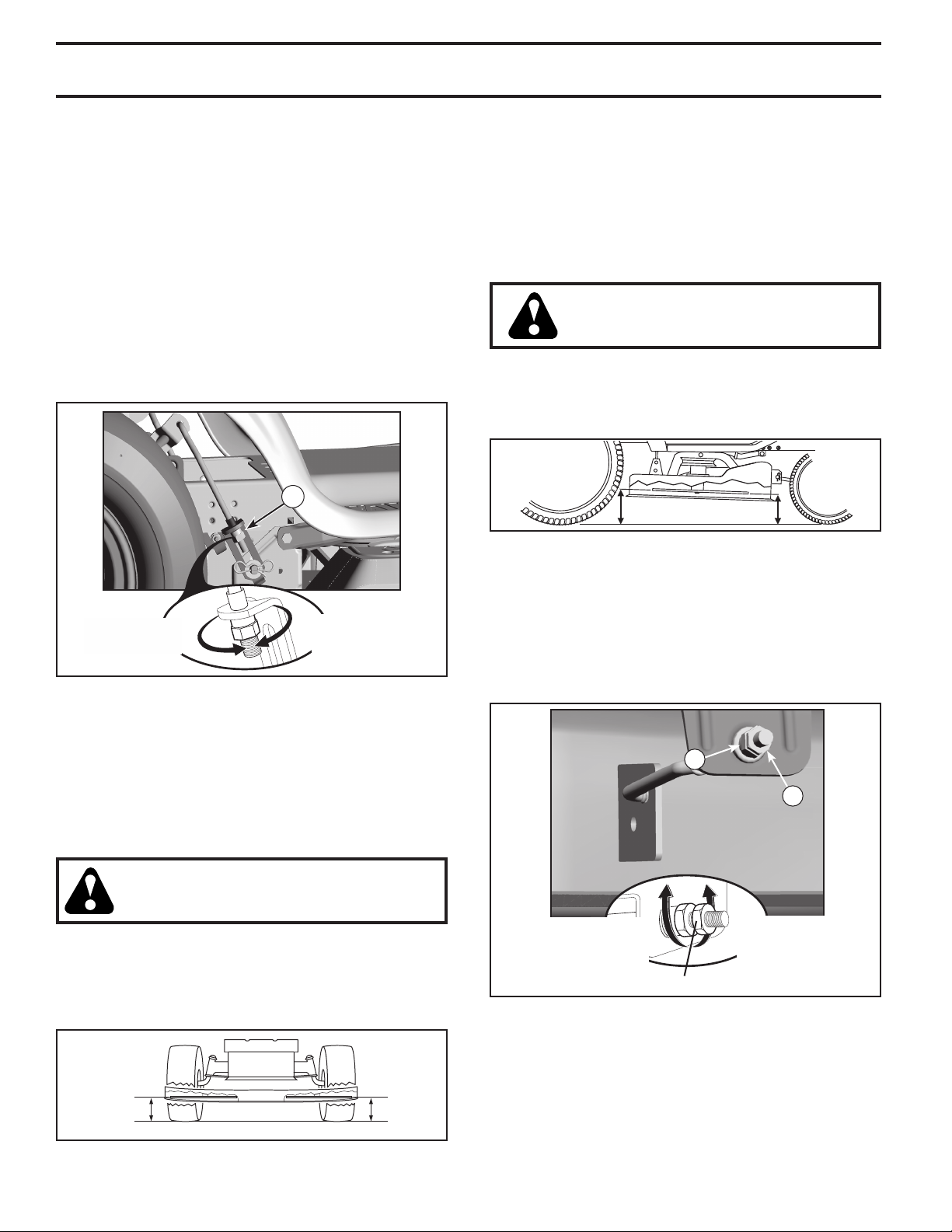

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL BELTS

See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments sec tion of this manual. Verify that the belts are routed cor rect ly.

✓ Seat is adjusted comfortably and tightened securely. ✓ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be properly inflated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure free wheel control is in

“transmission engaged” position (see “TO TRANS PORT” in the Operation section of this man u al).

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY EXTRA ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:

✓ Engine oil is at proper level. ✓ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls, their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition. ✓ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the Operation and Maintenance sections in this manual).

✓ It is important to purge the transmission before op-

er at ing your tractor for the first time. Follow proper starting and transmission purging instructions (See “TO START EN GINE” and “PURGE TRANSMISSION” in the Op er a tion section of this manual).

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is operating properly. See “TO CHECK BRAKE” in the Service and Adjustments section of this manual.

Page 10

DANGER, KEEP HANDS

AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KEEP AREA CLEAR

SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

BATTERY

REVERSE

FORWARD

FAST

SLOW

ENGINE ON

ENGINE OFF

FUEL

CHOKE

MOWER HEIGHT

REVERSE

NEUTRAL

HIGH

LOW

ATTACHMENT

CLUTCH ENGAGED

PARKING BRAKE

IGNITION SWITCH

ATTACHMENT

CLUTCH DISENGAGED

ENGINE START

MOWER LIFT

Failure to follow instructions could result in serious injury or death. The safety alert symbol is used to identify safety information about hazards which can result in death, serious injury and/or property damage.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

CAUTION when used without the alert symbol, indicates a situation that could result in damage to the tractor and/or engine.

FIRE indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

HOT SURFACES indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage.

REVERSE

OPERATION

SYSTEM (ROS)

LIGHTS ON

CLUTCH/BRAKE

PEDAL

CRUISE CONTROL

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

Page 11

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference.

Our tractors conform to the applicable safety standards of the American National Standards Institute.

(A) ATTACHMENT LIFT LEVER - Used to raise and lower the mower or other attachments mounted to your trac tor.

(B) BRAKE PEDAL - Used for brak ing the tractor and start ing the engine.

(D) THROTTLE CONTROL - Used to control engine speed.

(E) ATTACHMENT CLUTCH SWITCH - Used to engage

the mow er blades, or other at tach ments mounted to your tractor.

(F) IGNITION SWITCH - Used for starting and stopping the engine.

Fig. 15

(G) REVERSE OPERATION SYSTEM (ROS) "ON" POSITION - Allows operation of mower or other powered

attachment while in reverse.

(H) LIGHT SWITCH - Turns the headlights on and off.

(J) MOTION CONTROL LEVER - Selects the speed and

di rec tion of the tractor.

(M) FREEWHEEL CONTROL - Disengages transmission for pushing or slowly tow ing the trac tor with the engine off.

(N) CHOKE CONTROL - Used when starting a cold engine.

(P) SERVICE REMINDER/HOUR METER - Indicates

when service is required for the engine and mower.

(Q) 12-VOLT POWER PORT - Used for 12-volt accessories.

Page 12

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR TRAC TOR

TO SET PARKING BRAKE(See Fig. 16)

Your tractor is equipped with an operator presence sens ing switch. When engine is running, any attempt by the op er a tor to leave the seat without first setting the parking brake will shut off the engine.

• Depress brake pedal (B) all the way down and hold.

• Pull parking brake lever (C) up and hold, re lease pres sure from brake pedal (B), then release parking brake lever. Pedal should re main in brake position. Make sure parking brake will hold tractor secure.

Fig. 16

STOPPING (See Fig. 17)

MOWER BLADES -

• To stop mower blades, place attachment clutch control in the “DIS EN GAGED” position ( ).

NOTE: Failure to move throttle control between half and full speed (fast) position, before stopping, may cause engine to “backfire”.

• Turn ignition key (F) to “STOP” position and remove key. Always remove key when leaving tractor to prevent un au tho rized use.

• Never use the choke to stop the engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY POSITION OTHER THAN "STOP" WILL CAUSE THE BATTERY TO DISCHARGE AND GO DEAD.

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com plete ly, as described above, and set parking brake before leav ing the op er a tor's position.

TO USE THROTTLE CONTROL (D) (See Fig. 18)

Always operate engine at full speed (fast).

• Operating engine at less than full speed (fast) reduces the engine's operating efficiency.

• Full speed (fast) of fers the best mower per for mance.

( ) ATTACHMENT

CLUTCH SWITCH “DIS EN GAGED”

GROUND DRIVE -

• To stop ground drive, depress brake pedal all the way down.

• Move motion control lever (J) to neutral position.

ENGINE -

• Move throttle control (D) between half and full speed (fast) position.

( ) ATTACHMENT

CLUTCH SWITCH “ENGAGED”

Fig. 17

Fig. 18

TO USE CHOKE CONTROL (N) (See Fig. 18)

Use choke control whenever you are starting a cold engine. Do not use to start a warm engine.

• To engage choke control (N), pull knob out. Slowly push knob in to disengage.

Page 13

OPERATION

TO MOVE FORWARD AND BACKWARD (See Fig. 19)

The direction and speed of movement is controlled by the motion control lever. (J)

Fig. 19

• Start tractor with motion control le ver in neutral position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST GAUGE WHEELS (See Fig. 21)

Gauge wheels are prop er ly ad just ed when they are slight ly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor on a flat level surface.

• Adjust mower to desired cutting height (See “TO AD JUST MOWER CUT TING HEIGHT” in this sec tion of manual).

• With mower in desired height of cut po si tion, gauge wheels should be assembled so they are slightly off the ground. In stall gauge wheel in ap pro pri ate hole. Tighten se cure ly.

• Repeat for all, installing gauge wheel in same adjustment hole.

TO ADJUST MOWER CUTTING HEIGHT (See Fig. 20)

The position of the attachment lift lever (A) determines the cutting height.

Fig. 20

• Put attachment lift lever in desired cutting height slot.

The cutting height range is ap prox i mate ly 1" to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2" during the cool season and to over 3" during hot months. For healthier and better looking lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6" in height should be mowed twice. Make the first cut relatively high; the second to de sired height.

Fig. 21

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitating or cutting off when operating your equipment on rough, rolling terrain or hills.

• Select desired height of cut with attachment lift lever.

• Start mower blades by engaging at tach ment clutch control.

TO STOP MOWER BLADES

• Disengage at tach ment clutch con trol.

CAUTION: Do not operate the mower without either the en tire grass catcher, on mowers so equipped, or the deflector shield (S) in place (See Fig. 22).

Fig. 22

Page 14

OPERATION

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON" position.

WARNING: Backing up with the attachment clutch engaged while mowing is strongly discouraged. Turning the ROS "ON", to allow reverse operation with the attachment clutch engaged, should only be done when the operator decides it is necessary to reposition the machine with the attachment engaged. Do not mow in reverse unless absolutely necessary.

USING THE REVERSE OPERATION SYSTEM (See Fig. 23) Only use if you are certain no children or other bystanders

will enter the mowing area.

• Move motion control lever to neutral (N) position.

• With engine running, turn ignition key counterclockwise

to ROS "ON" position.

• Look down and behind before and while backing.

• Slowly move motion control lever to reverse (R) po si -

tion to start movement.

• When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

TO TRANSPORT (See Fig. 15 and 24)

When pushing or towing your tractor, be sure to disengage transmission by placing freewheel control in free wheel ing po si tion. Free wheel control is located at the rear drawbar of tractor.

• Raise attachment lift to highest position with at tach ment lift control.

• Pull freewheel control out and down into the slot and release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TRANSMISSION ENGAGED

ROS "ON" POSITION

ENGINE "ON" POSITION (NORMAL OPERATING)

Fig. 23

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.

• Choose the slowest speed before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to slower position.

• If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

• Move motion control lever to neutral position.

IMPORTANT: THE MOTION CONTROL LEVER DOES NOT RETURN TO NEUTRAL POSITION WHEN THE BRAKE PED AL IS DEPRESSED.

• To restart movement, slowly release parking brake and clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TRANSMISSION DISENGAGED

Fig. 24

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the engine has run and flashes to indicate that the engine or mower needs servicing. When service is required, the service reminder will flash for two hours. To service engine and mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in any position but "STOP". For accurate reading, be sure key remains in the "STOP" position when engine is not running.

Page 15

OPERATION

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the factory, already filled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Pull up and remove oil fill cap/dipstick; wipe oil off. Reinsert the dipstick into the tube and push down firmly into place. Remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW

32°F (0°C), USE FRESH, CLEAN WINTER GRADE GAS O LINE TO HELP ENSURE GOOD COLD WEATHER START ING.

CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage In struc tions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 15)

When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged position.

• Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

• Place motion control lever in neutral position.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt. For a warm engine start attempt the choke control may not be needed.

NOTE: Before starting, read the warm and cold starting procedures below.

• Insert key into ignition and turn key clockwise to “START” position and release key as soon as engine starts. Do not run starter continuously for more than fifteen sec onds per minute. If the engine does not start after several attempts, push choke control in, wait a few minutes and try again. If engine still does not start, pull the choke control out and retry.

WARM WEATHER STARTING (50°F (10°C and above)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING (50°F (10°C and below)

• When engine starts, slowly push choke control in until the engine begins to run smoothly. Continue to push the choke control in small steps allowing the engine to accept small changes in speed and load, until the choke control is fully in. If the engine starts to run roughly, pull the choke control out slightly for a few seconds and then continue to push the control in slowly. This may require an engine warm-up period from several sec onds to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather, the trans mis sion should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neu tral. Re lease the parking brake and let the clutch/brake slowly return to operating po si tion.

• Allow one minute for transmission to warm up. This can be done during the engine warm up period.

• The attachments can be used during the engine warmup period after the transmission has been warmed up and may require the choke con trol be pulled out slight ly.

NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32° F /0°C) the carburetor fuel mixture

may need to be adjusted for best engine performance. See “TO ADJUST CARBURETOR” in the Service and Ad just ments section of this manual.

Page 16

OPERATION

PURGE TRANSMISSION

CAUTION: Never engage or disengage freewheel lever while the engine is run ning.

To ensure proper operation and performance, it is rec om mend ed that the transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have de vel oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION RE QUIRE REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD BE PURGED AFTER REINSTALLATION BEFORE OPERATING THE TRACTOR.

1. Place tractor safely on a level surface - that is clear and open - with engine off and parking brake set.

2. Disengage transmission by placing freewheel control in freewheeling position (See “TO TRANSPORT” in this section of manual).

3. Sitting in the tractor seat, start engine. After the engine is running, move throttle control to slow position. With motion control lever in neutral po si tion, slowly disengage clutch/brake pedal.

CAUTION: At any time, during step 4, there may be movement of the drive wheels.

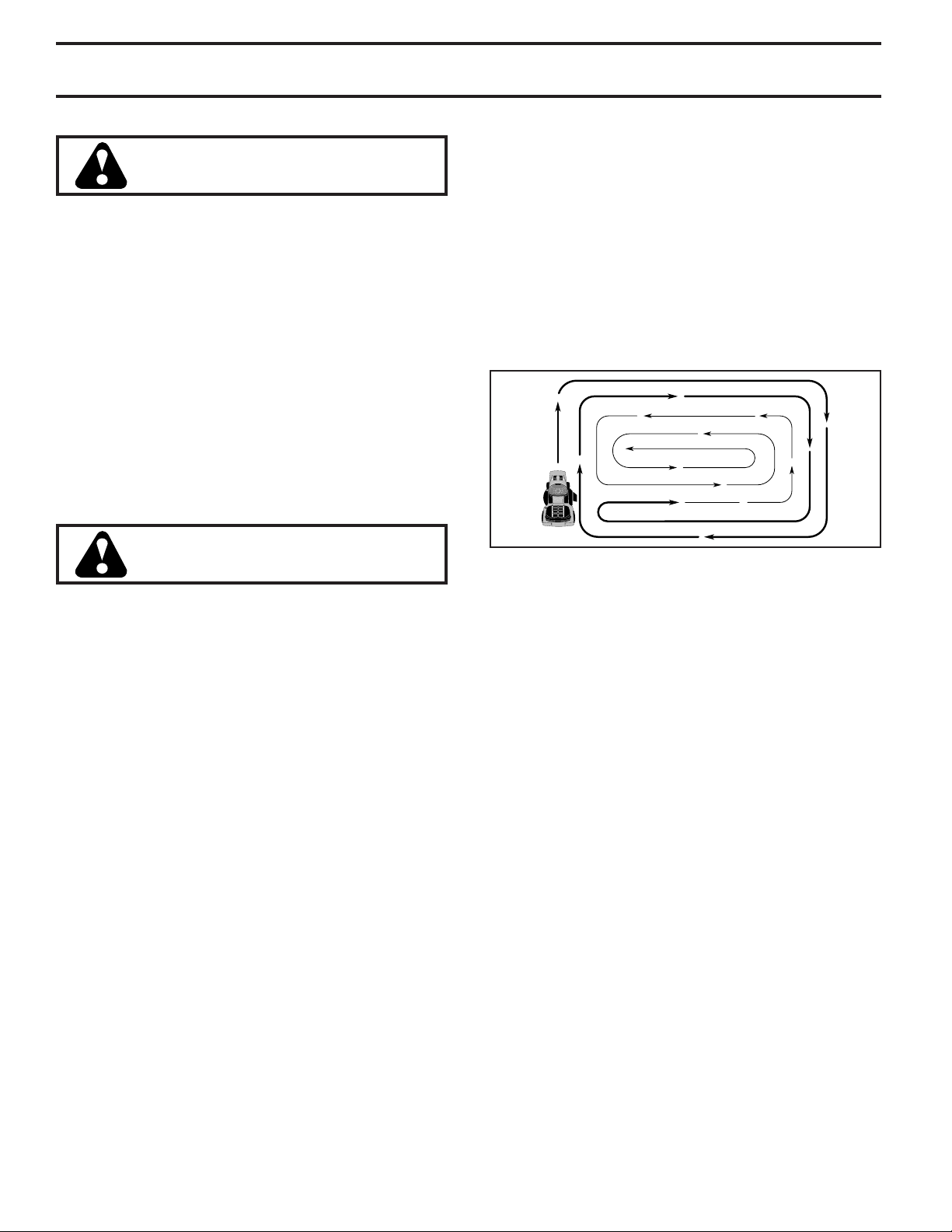

MOWING TIPS

• Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim ming.

• Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the machine. This will result in a more even dis tri bu tion of clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished (See Fig. 23).

Fig. 25

4. Move motion control lever to full forward position and hold for five (5) seconds. Move lever to full reverse position and hold for five (5) seconds. Repeat this procedure three (3) times.

5. Move motion control lever to neutral position. Shut- off engine and set parking brake.

6. Engage transmission by placing freewheel control in engaged position (See “TO TRANSPORT” in this sec tion of manual).

7. Sitting in the tractor seat, start engine. After the engine is running, move throttle control to half (1/2) speed. With motion control lever in neutral position, slowly disengage clutch/brake pedal.

8. Slowly move motion control lever forward, after the tractor moves approximately five (5) feet, slowly move motion control lever to reverse position. After the tractor moves approximately five (5) feet return the motion control lever to the neutral position. Repeat this procedure with the motion control lever three (3) times.

Your transmission is now purged and now ready for normal op er a tion.

• If grass is extremely tall, it should be mowed twice to reduce load and possible fire hazard from dried clip pings. Make first cut relatively high; the second to the desired height.

• Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

• Always operate engine at full throttle when mow- ing to assure better mowing performance and proper dis charge of material. Regulate ground speed by se lect ing a low enough gear to give the mower cut ting per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed that will suit the terrain and give best performance of the at tach ment being used.

Page 17

MAINTENANCE

T R A C

0 R

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

E N G

I N E

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - See Cleaning in Maintenance Section.

1,2

BEFORE

EACH

USE

EVERY

HOURS

EVERY

HOURS

EVERY

HOURS

EVERY

100

HOURS

EVERY

SEASON

BEFORE

STORAGE

Inspect Muffler/Spark Arrester

Clean Air Filter

Change Engine Oil (with oil filter)

Replace Air Filter Paper Cartridge

Replace Spark Plug

Check Engine Oil Level

Clean Engine Cooling Fins

Clean Air Screen

Replace Oil Filter (If equipped)

Replace Fuel Filter

Change Engine Oil (without oil filter)

Lubrication Chart

Check Brake Operation

Check Battery Level

Check Tire Pressure

Clean Battery and Terminals

MAINTENANCE

SCHEDULE

Check for Loose Fasteners

Check/Replace Mower Blades

Che

Clean Debris Off Steering Plate

ck Transaxle Cooling

Che

Check Operator Presence & ROS Systems

ck V-Belts

Check Mower Levelness

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear. A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and ROS systems for proper operation.

• Check for loose fasteners.

SPINDLE ZERK

➀

FRONT

➀

WHEEL BEARING ZERK

STEERING

➀

SECTOR GEAR TEETH

General Purpose Grease

➀

Refer to Maintenance “ENGINE” Section

➁

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS. IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONLY A DRY, POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

LUBRICATION CHART

02501

SPINDLE ZERK

➀

FRONT

➀

WHEEL BEARING ZERK

ENGINE

➁

MANDREL

➀

ZERKS

Page 18

MAINTENANCE

TRACTOR

Always observe safety rules when per form ing any main te nance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. (See “TO CHECK BRAKE” in the Ser vice and Ad just ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See the sides of tires for proper PSI).

• Keep tires free of gasoline, oil, or insect control chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also pre vents tire dry rot and corrosion.

OPERATOR PRESENCE SYS TEM AND REVERSE OPERATION SYSTEM (ROS) (See Fig. 26)

Be sure operator presence and reverse operation sys tems are work ing properly. If your tractor does not function as described, repair the problem immediately.

• The engine should not start unless the brake pedal is fully de pressed, and the attachment clutch con trol is in the dis en gaged position.

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the op er a tor to leave the seat without first setting the parking brake should shut off the engine.

• When the engine is running and the at tach ment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

• The attachment clutch should never operate unless the operator is in the seat.

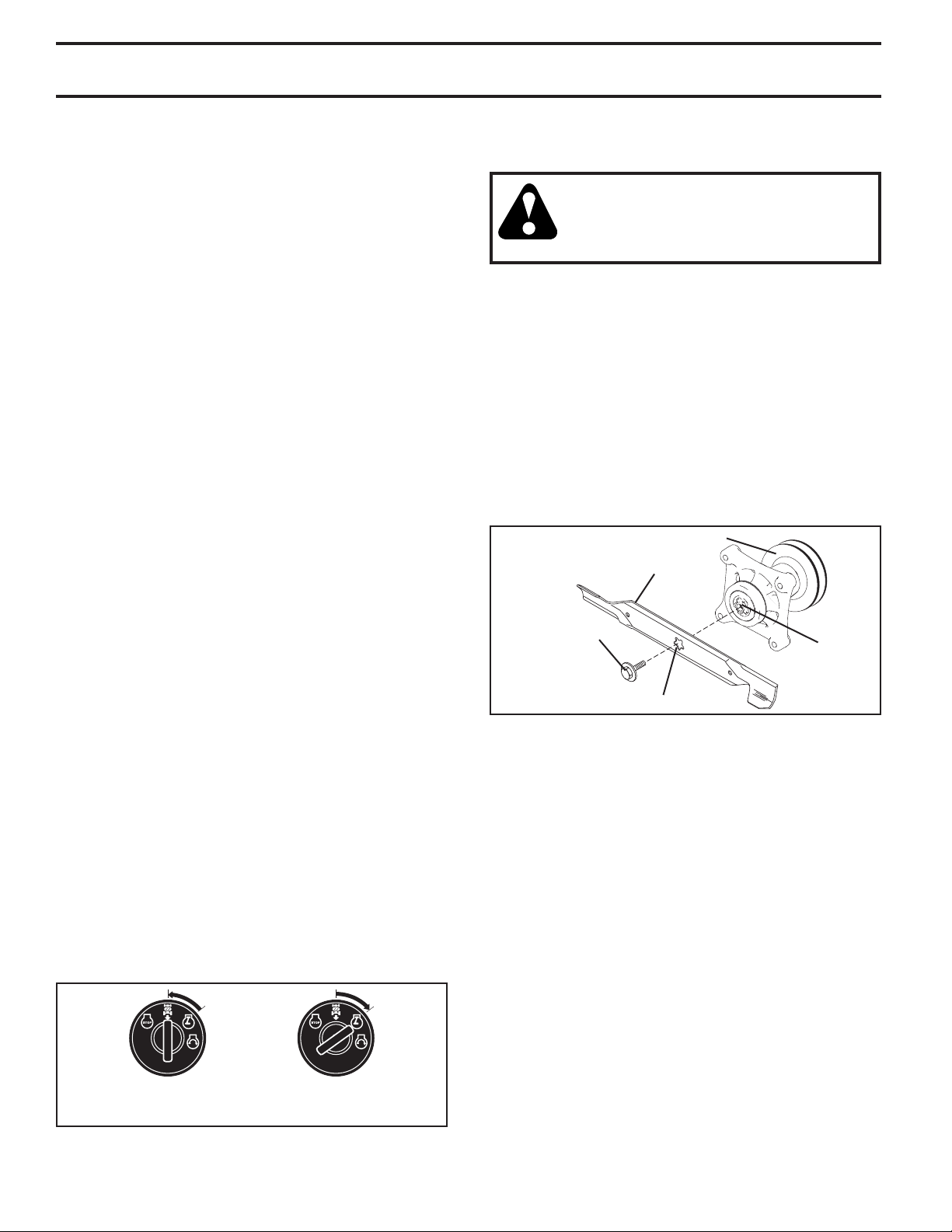

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in the engine "ON" position and the at tach ment clutch engaged, any attempt by the operator to shift into reverse should shut off the engine.

• When the engine is running with the ignition switch in the ROS "ON" position and the at tach ment clutch engaged, any attempt by the operator to shift into reverse should NOT shut off the engine.

ROS "ON" POSITION

ENGINE "ON" POSITION (NORMAL OPERATING)

Fig. 26

BLADE CARE

For best results mower blades must be kept sharp. Re place bent or damaged blades.

CAUTION: Use only a replacement blade approved by the manufacturer of your tractor. Using a blade not approved by the manufacturer of your tractor is hazardous, could damage your tractor and void your warranty.

BLADE REMOVAL (See Fig. 27)

• Raise mower to highest position to allow access to blades.

NOTE: Protect your hands with gloves and/or wrap blade with heavy cloth.

• Remove blade bolt by turning counterclockwise.

• Install new or resharpened blade with stamped "THIS SIDE UP" facing deck and mandrel assembly.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL ASSEMBLY.

• Install and tighten blade bolt securely (45-55 Ft. Lbs. torque).

IMPORTANT: SPECIAL BLADE BOLT HEAT TREATED.

MANDREL ASSEMBLY

BLADE

BLADE BOLT (SPECIAL)

CENTER HOLE

Fig. 27

BATTERY

Your tractor has a battery charging system which is suf fi cient for normal use. However, periodic charging of the battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Raise hood.

• Disconnect BLACK battery cable first then RED bat tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this man u al).

STAR

Page 19

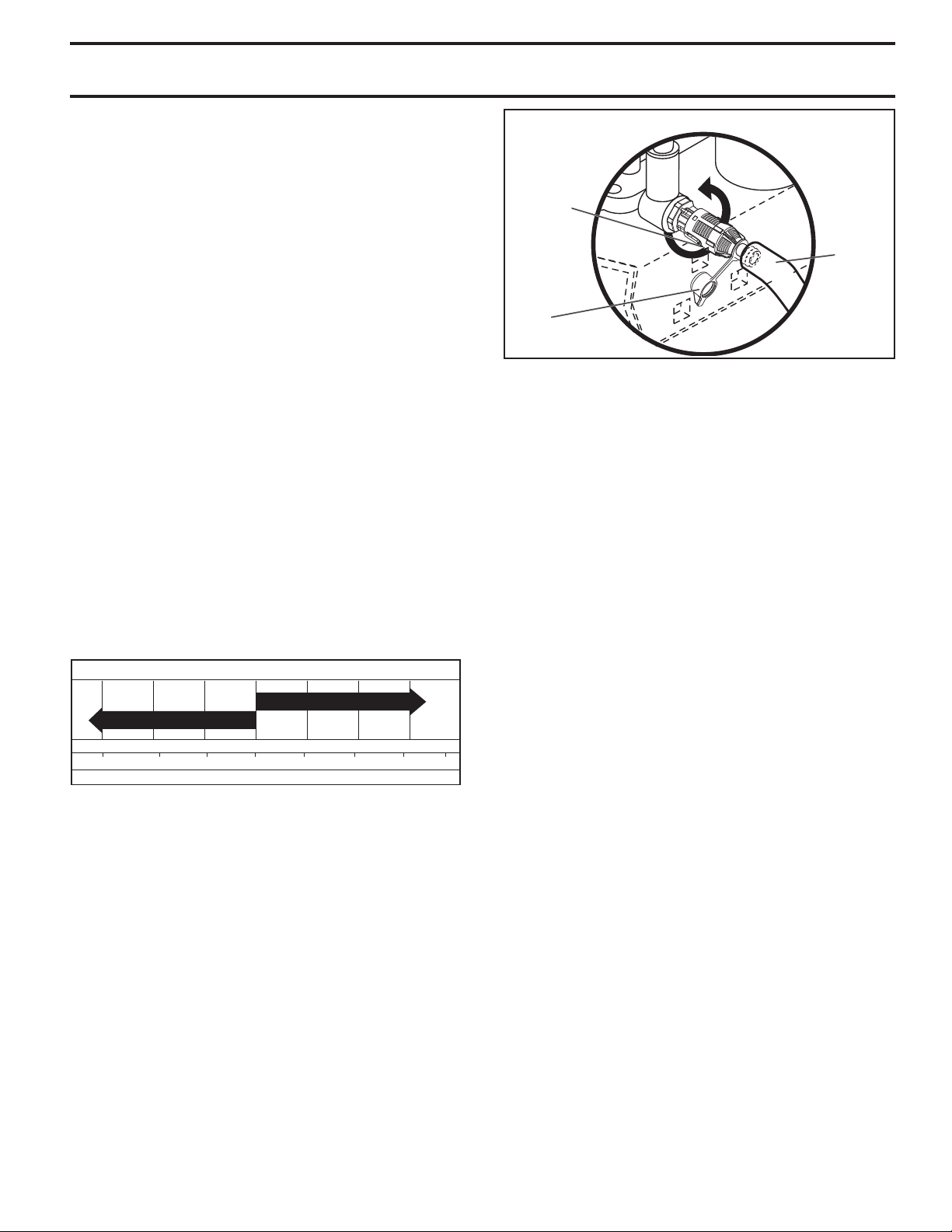

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40

100

-30

-20 0

20 30 40

F C

-10

5W-30

10W30

MAINTENANCE

TRANSAXLE MAINTENANCE

The transmission fan and cooling fins should be kept clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent pos si ble damage to seals, do not use high pressure water or steam to clean transmission.

• Inspect cooling fan to be sure fan blades are intact and clean.

• Inspect cooling fins for dirt, grass clippings and other materials. To prevent damage to seals, do not use compressed air or high pressure sprayer to clean cool ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te nance is not required for the life of the transaxle. Should the transaxle ever leak or require servicing, contact your near est au tho rized ser vice center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not ad just able. Re place belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service classification SG-SL. Select the oil’s SAE viscosity grade according to your expected operating temperature.

OIL DRAIN VALVE

CLOSED AND LOCKED POSITION

YELLOW CAP

02463

DRAIN

TUBE

Fig. 28

• Remove the drain tube and replace the cap onto to the bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not overfill. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man u al.

• Use gauge on oil fill cap/dipstick for checking level. Insert dipstick into the tube and rest the oil fill cap on the tube. Do not thread the cap onto the tube when taking reading. Keep oil at “FULL” line on dipstick. Tighten cap onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a dirty air filter. Service air cleaner more often under dusty conditions. See engine manual.

Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and after each eight (8) hours of operation.

TO CHANGE ENGINE OIL (See Fig. 28)

Determine temperature range expected before oil change. All oil must meet API service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install the drain tube onto the fitting.

• Unlock drain valve by pushing inward and turning coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or compressed air to re move dirt and stubborn dried gum fibers.

ENGINE COOLING SYSTEM

To ensure proper cooling, make sure the grass screen, cooling fins, and other external surfaces of the engine are kept clean at all times.

Every 100 hours of operation (more often under extremely dusty, dirty conditions), remove the blower housing and other cooling shrouds. Clean the cooling fins and external surfaces as necessary. Make sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked grass screen, dirty or plugged cooling fins, and/or cooling shrouds re moved will cause engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in “PROD UCT SPECIFICATIONS” section of this manual.

Page 20

MAINTENANCE

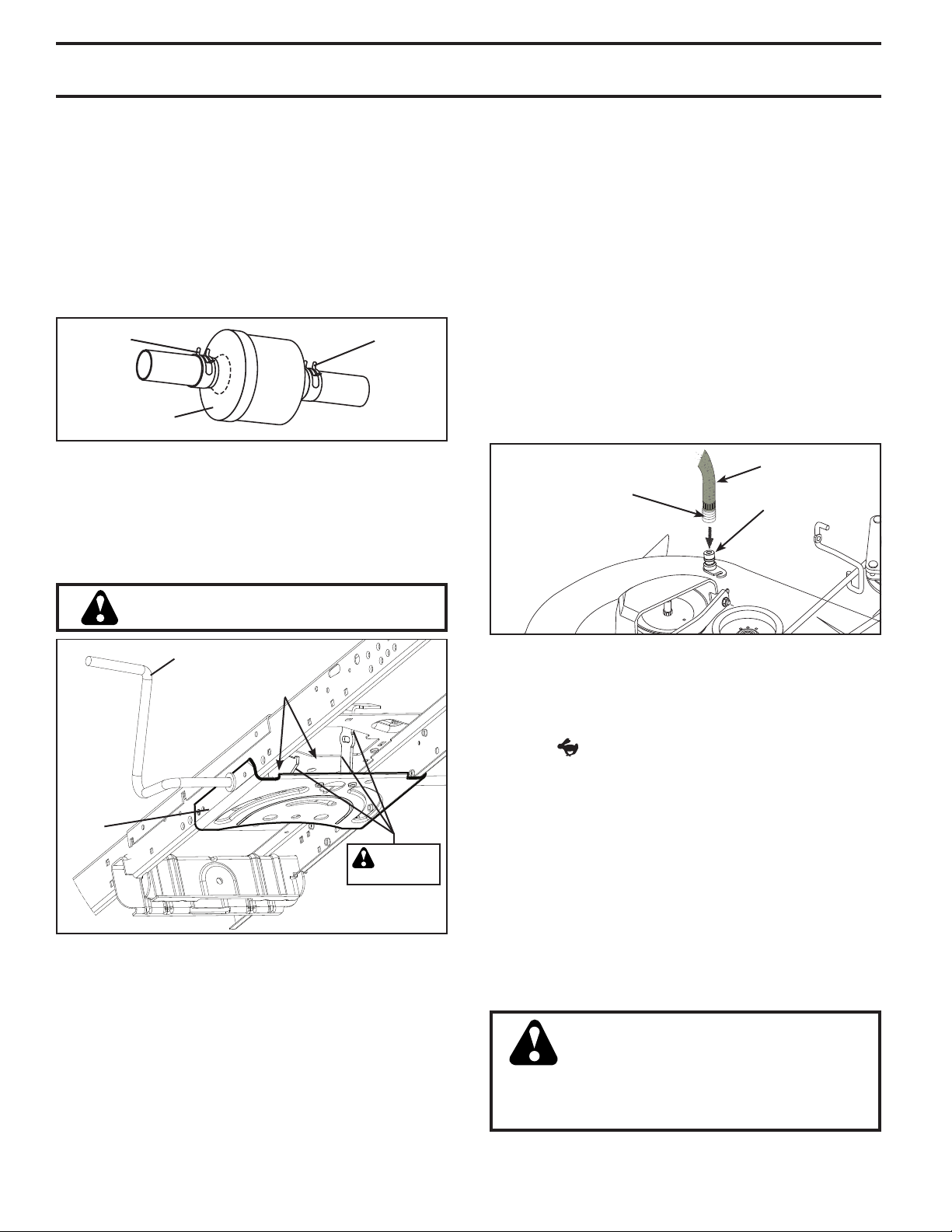

IN-LINE FUEL FILTER (See Fig. 29)

The fuel filter should be replaced once each season. If fuel filter becomes clogged, ob struct ing fuel flow to car bu re tor, re place ment is re quired.

• With engine cool, remove filter and plug fuel line sec tions.

• Place new fuel filter in position in fuel line with arrow pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FUEL FILTER

CLAMP

00667

Fig. 29

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign matter.

• Clean debris from steering plate. Debris can restrict clutch/brake pedal shaft movement, causing belt slip and loss of drive.

DECK WASHOUT PORT (See Fig. 31)

Your tractor’s deck is equipped with a washout port on its surface as part of its deck wash system. It should be utilized after each use.

1. Drive the tractor to a level, clear spot on your lawn, near enough to a water spigot for your garden hose to reach.

IMPORTANT: Make certain the tractor’s discharge chute is directed AWAY from your house, garage, parked cars, etc. Remove bagger chute or mulch cover if attached.

2. Make sure the attachment clutch control is in the “DIS EN GAGED” position, set the parking brake, and stop the engine.

3. Thread the nozzle adapter (packaged with your tractor’s Operator’s Manual) onto the end of your garden hose.

4. Pull back the lock collar of the nozzle adapter and push the adapter onto the deck washout port at the left end of the mower deck. Release the lock collar to lock the adapter on the nozzle.

HOSE

NOZZLE ADAPTER

WASHOUT PORT

CAUTION: Avoid all pinch points and

movable parts (See Fig. 30)

CLUTCH/BRAKE PEDAL

CLEAN TOP SIDE

STEERING PLATE

CAUTION: PINCH POINTS

STEERING SYSTEM, DASH, FENDER AND MOWER NOT SHOWN

Fig. 30

• Keep finished surfaces and wheels free of all gasoline, oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure washer to clean your tractor unless the engine and transmission are covered to keep water out. Water in engine or transmission will shorten the useful life of your tractor. Use compressed air or a leaf blower to remove grass, leaves and trash from tractor and mower.

Fig. 31

IMPORTANT: Tug hose ensuring connection is secure.

5. Turn the water on.

6. While sitting in the operator’s position on the tractor, re-start the engine and place the throttle lever in the Fast " " position.

IMPORTANT: Recheck the area making certain the area is clear.

7. Move the tractor’s attachment clutch control to the “ENGAGED” position. Remain in the operator’s position with the cutting deck engaged until the deck is cleaned.

8. Move the tractor’s attachment clutch control to the “DIS EN GAGED” position. Turn the ignition key to the STOP position to turn the tractor’s engine off. Turn the water off.

9. Pull back the lock collar of the nozzle adapter to disconnect the adapter from the nozzle washout port.

10. Move the tractor to a dry area, preferably a concrete or paved area. Place the attachment clutch control in the “ENGAGED” position to remove excess water and to help dry before putting the tractor away.

WARNING: A broken or missing washout

fitting could expose you or others to thrown objects from contact with the blade.

• Replace broken or missing washout fitting immediately, prior to using mower again.

• Plug any holes in mower with bolts and locknuts.

Page 21

SERVICE AND ADJUSTMENTS

WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

• Depress brake pedal fully and set parking brake.

• Place motion control lever in neutral position.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

TO REMOVE MOWER (See Fig. 32)

• Place attachment clutch in “DIS EN GAGED” position.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring loaded. Have a tight grip on rod and release slowly.

• Remove mower belt from electric clutch pulley (M).

• Disconnect front link (E) from mower - remove retainer spring and washer.

• Go to either side of mower and disconnect mower suspension arm (A) from chassis and rear lift link (C) from rear mower bracket (D) - remove retainer springs and washers.

• Go to other side of mower and disconnect the suspension arm and rear lift link.

CAUTION: After rear lift links are disconnected, the attachment lift lever will be spring loaded. Have a tight grip on lift lever when changing position of the lever.

• From right side of mower, disconnect anti-sway bar (S) from right rear mower bracket (D) - remove retainer spring and washer and pull mower toward you until the bar falls from the hole in bracket.

• Turn tractor steering wheel to the left as far as it will go.

• Slide mower out from under right side of tractor.

TO IN STALL MOWER

Follow procedure described in “INSTALL MOWER AND DRIVE BELT” in the As sem bly section of this manual.

TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 33)

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. En gage parking brake.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring loaded. Have a firm grip on rod and release slowly.

• Remove screws (P) from mandrel covers (Q) and remove covers.

• Remove any dirt or grass clippings which may have accumulated around mandrels and entire upper deck surface.

• Remove belt from electric clutch pulley (M), both mandrel pulleys (R) and all idler pulleys (V).

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around idler pulleys (V) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower pulley grooves.

• Reassemble mandrel covers (Q). Securely tighten all screws.

Engage belt tension rod (K) on locking bracket (L).

•

CAUTION: Belt tension rod is spring loaded. Have a firm grip on rod and release slowly.

• Raise attachment lift lever to highest position.

Fig. 32 Fig. 33

Page 22

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig. 34)

• With all tires properly inflated and if your lawn appears unevenly cut, determine which side of mower is cutting lower.

NOTE: As desired, you can raise the low side of mower or lower the high side.

• Go to side of mower you wish to adjust.

• With a 3/4" or adjustable wrench, turn lift link adjustment nut (A) to the left to lower the mower, or, to the right to raise the mower.

Turn nut right to raise mower

Fig. 34

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

• Test your adjustment by mowing some uncut grass and visually checking the appearance. Readjust, if necessary, until you are satisfied with the results.

PRECISION SIDE-TO-SIDE ADJUSTMENT (See Fig. 35)

• With all tires properly inflated, park tractor on level ground or driveway.

Turn nut left to lower mower

• If adjustment is necessary, see steps in Visual Adjustment instructions above.

• Recheck measurements, adjust if necessary until both sides are equal.

FRONT-TO-BACK ADJUSTMENT (See Figs. 36 & 37) IMPORTANT: Deck must be level side-to-side.

To obtain the best cutting re sults, the mower blades should be adjusted so the front tip is 1/8" to 1/2" lower than the rear tip when the mower is in its highest position.

CAUTION: Blades are sharp. Protect your hands with gloves and/or wrap blade with heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing straight forward. Measure distance (B) to the ground at front and rear tip of the blade.

Fig. 36

• If front tip of blade is not 1/8" to 1/2" lower than the rear tip, go to the front of tractor.

• With an 11/16" or adjustable wrench, loosen jam nut A several turns to clear adjustment nut B.

• With a 3/4" or adjustable wrench, turn front link adjustment nut (B) clockwise (tighten) to raise the front of mower, or, counterclockwise (loosen) to lower the front mower.

CAUTION: Blades are sharp. Protect your hands with gloves and/or wrap blade with heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and measure the distance (A) from bottom edge of blade to the ground. The distance should be the same on both sides.

02966

A A

Fig. 35

TIGHTEN ADJUST NUT B TO RAISE MOWER

LOOSEN JAM NUT A FIRST

02950

LOOSEN ADJUST NUT B TO LOWER

MOWER

Fig. 37

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8".

• Recheck measurements, adjust if necessary until front tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten jam nut securely against adjustment nut.

Page 23

SERVICE AND ADJUSTMENTS

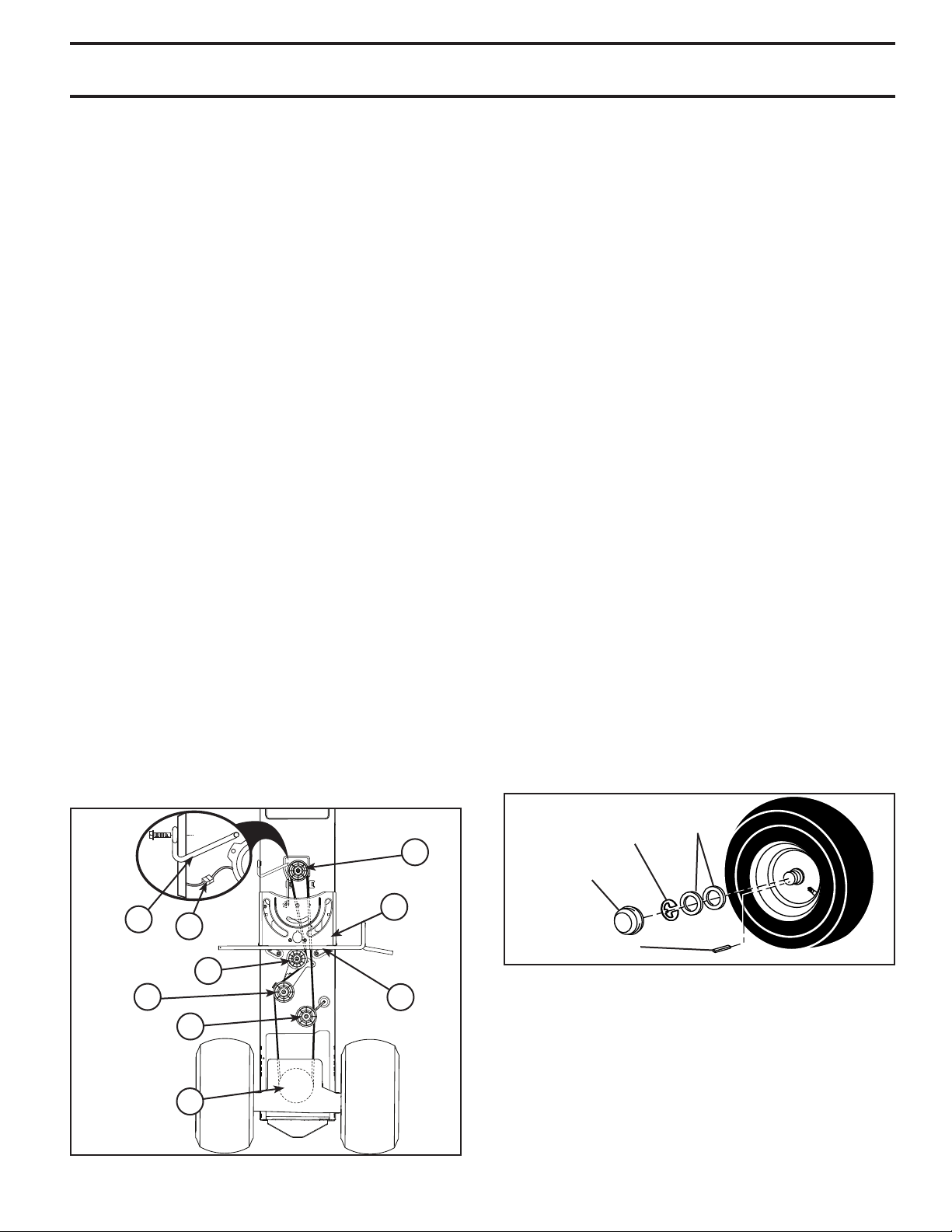

TO REPLACE MOTION DRIVE BELT (See Fig. 38)

Park the tractor on level surface. En gage parking brake. For as sis tance, there is a belt installation guide decal on bottom side of left footrest.

BELT REMOVAL -

1. Remove mower (See “TO REMOVE MOWER” section in this manual).

NOTE: Observe entire motion drive belt and position of all belt guides and keepers.

2. Disconnect clutch wire harness (A).

3. Remove anti-rotation link (B) on right side of tractor.

4. Remove belt from stationary idler (C) and clutching idler (D).

5. Remove belt from centerspan idler (E).

6. Pull belt slack toward rear of trac tor. Carefully remove belt up wards from trans mis sion input pulley and over cooling fan blades (F).

7. Remove belt downward from engine pulley and around electric clutch (G).

8. Slide belt toward rear of tractor, off the steering plate (H) and remove from tractor.

BELT INSTALLATION -

1. Install new belt from tractor rear to front, over the steering plate (H) and above clutch brake pedal shaft (J).

2. Pull belt toward front of tractor and roll belt around electric clutch and onto engine pulley (G).

3. Pull belt toward rear of tractor. Carefully work belt down around transmission cooling fan and onto the input pulley (F). Be sure belt is inside the belt keeper.

4. Install belt on centerspan idler (E).

5. Install belt through stationary idler (C) and clutch ing idler (D).

6. Reinstall anti-rotation link (B) on right side of tractor. Tighten securely.

7. Reconnect clutch harness (A).

8. Make sure belt is in all pulley grooves and in side all belt guides and keep ers.

9. Install mower (See “TO INSTALL MOWER” section in this manual).

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface, depress brake pedal all the way down and engage parking brake.

• Disengage transmission by placing freewheel control in “transmission disengaged” position. Pull freewheel control out and into the slot and release so it is held in the disengaged position.

The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, then the brake needs to be serviced. Contact a qualified service center.

FRONT WHEEL TOE-IN/CAMBER

Your new tractor front wheel toe-in and camber is set at the factory and is normal. The front wheel toe-in and camber are not adjustable. If damage has occurred to affect the factory set front wheel toe-in or camber, contact a qualified service center.

TO REMOVE WHEEL (See Fig. 39)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub and axle. Insert square key.

• Replace washers and snap retaining ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

RE TAIN ING RING

AXLE COVER

SQUARE KEY (REAR WHEEL ONLY)

WASH ERS

Fig. 39

02953 electric

Fig. 38

Page 24

SERVICE AND ADJUSTMENTS

TRANSAXLE MOTION CONTROL LEVER NEUTRAL ADJUSTMENT (See Fig. 40)

The motion control lever has been pre set at the factory and adjustment should not be necessary.

• Loosen adjustment bolt in front of the right rear wheel, and lightly tighten.

• Start engine and move motion control lever until tractor does not move forward or backward.

• Hold motion control lever in that position and turn engine off.

• While holding motion control lever in place, loosen the adjustment bolt.

• Move motion control lever to the neutral (lock gate) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed to get to ad just ment bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps:

• Loosen the adjustment bolt.

• Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep.

• Tighten adjustment bolt securely.

• Start engine and test.

• If tractor still creeps, repeat above steps until satisfied.

MOTION CONTROL LEVER

NEUTRAL

LOCK GATE

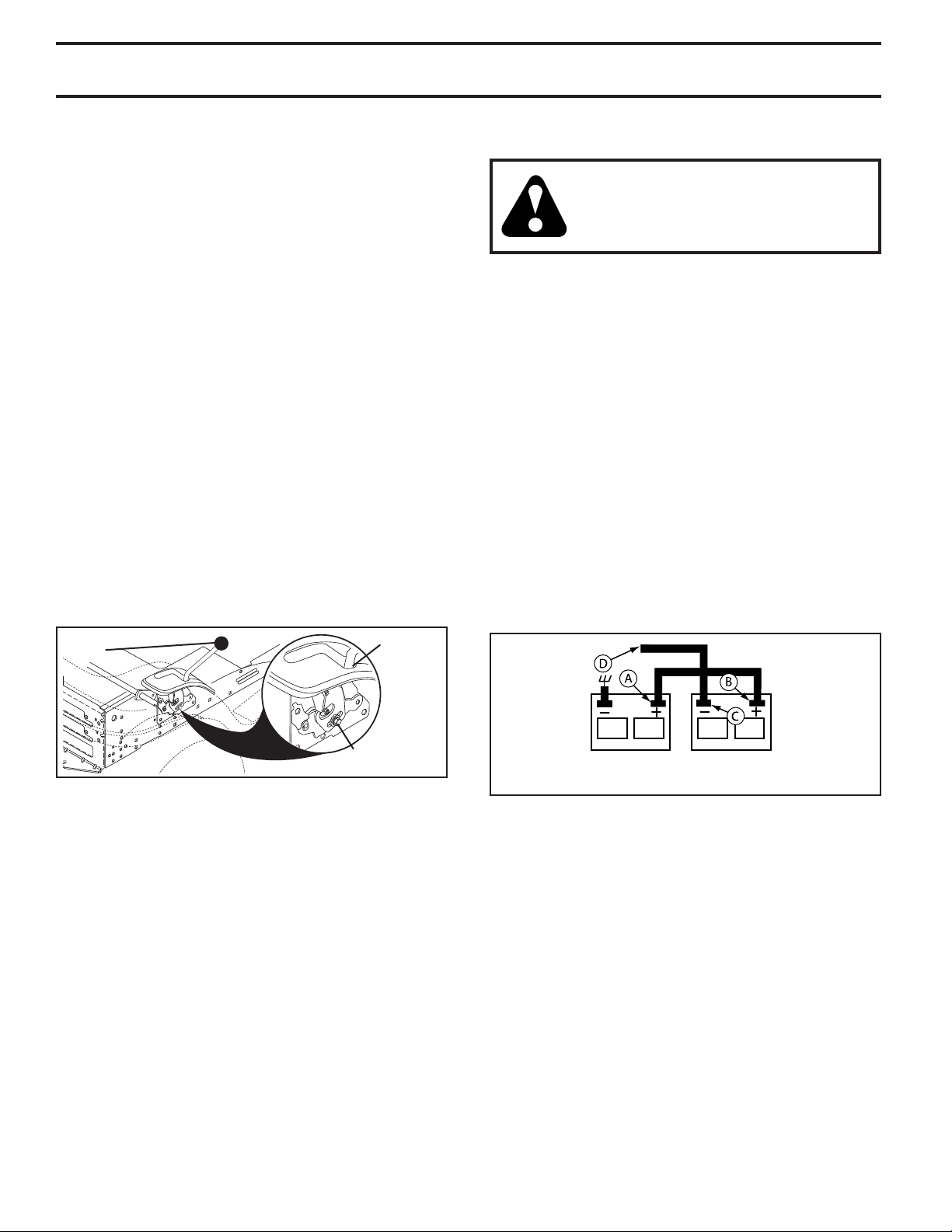

TO START ENGINE WITH A WEAK BATTERY (See Fig. 41)

WARNING: Lead-acid batteries gen er ate ex plo sive gases. Keep sparks, flame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the MAINTENANCE sec tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully charged battery.

• RED cable last from both batteries.

FIG. 40

ADJUSTMENT

BOLT

WEAK OR DEAD BATTERY

FULLY CHARGED BATTERY

Fig. 41

Page 25

SERVICE AND ADJUSTMENTS

REPLACING BATTERY (See Fig. 42)

WARNING: Do not short battery ter mi nals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc. Positive terminal must be connected first to prevent sparking from ac ci den tal grounding.

• Lift hood to raised position.

• Remove terminal cover.

• Disconnect BLACK battery cable then RED battery cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as old battery.

• Reinstall terminal cover.

• First connect RED battery cable to positive (+) battery terminal with bolt and nut as shown. Tighten securely.

• Connect BL ACK grounding cable to negative (-) bat tery terminal with remaining bolt and nut. Tighten securely

• Close hood.

NEGATIVE

(BLACK)

CABLE

TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 43)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor.

• To replace, reverse above procedure.

HOOD

HEADLIGHT WIRE CONNECTOR

03076

TERMINAL COVER

POSITIVE (RED) CABLE

Fig. 42

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the grill.

• Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

Fig. 43

TRANSMISSION

REMOVAL/RE PLACE MENT

Should your transmission require removal for service or re place ment, it should be purged after reinstallation and before operating the tractor. See “PURGE TRANS MIS SION” in the Operation section of this manual.

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and ad just ment should not be necessary. If adjustment is nec es sary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad just ment should not be necessary. If adjustment is necessary, see engine manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not operate properly due to suspected carburetor problems, take your tractor to an authorized service center for repair and/or adjustment.

Page 26

STORAGE

Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more.

WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark. Allow the engine to cool before storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thor oughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See “CLEANING” in the Maintenance section of this manual).

• Inspect and replace belts, if necessary (See belt re place ment instructions in the Service and Adjustments section of this manual).

• Lubricate as shown in the Maintenance sec tion of this man ual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require re charg ing.

• To help prevent corrosion and power leakage during long periods of storage, battery cables should be dis con nect ed and battery cleaned thoroughly (see “TO CLEAN BATTERY AND TERMINALS” in the Maintenance section of this manual).

• After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals.

• If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces.

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into cylinder(s).

• Turn ignition key to “START” position for a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE AND EXHAUST AREAS ARE STILL WARM.

Page 27

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start

1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Dirty air filter. 5. Clean/replace air filter.

6. Dirty fuel filter. 6. Replace fuel filter.

7. Water in fuel. 7. Empty fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.

8. Loose or damaged wiring. 8. Check all wiring.

9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service Adjustments section.

10. Engine valves out of adjustment. 10. Contact an authorized service center/department.

Hard to start

Engine will not turn over

Engine clicks but will not start

Loss of power

1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5. Empty fuel tank and refill tank with fresh, clean gas.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjustments section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/department.

1. Brake pedal not depressed. 1. Depress brake pedal.

2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/department.

1. Weak or dead battery. 1. Recharge or replace battery.

2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves, trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Empty fuel tank and refill tank with fresh, clean gas.

9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjustments

15. Engine valves out of adjustment. 15. Contact an authorized service center/department.

Excessive vibration

1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

Page 28

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run when operator leaves seat with attachment clutch engaged

1. Faulty operator-safety presence control system.

1. Check wiring, switches and connections. If not corrected, contact an authorized service center/ department.

Poor cut - uneven

Mower blades will not rotate

Poor grass discharge

Headlight(s) not working (if so equipped)

1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism. 1. Remove obstruction.

2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace blade. Tighten blade bolt.

7. Buildup of grass, leaves, trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in parts manual.

11. Clogged mower deck vent holes from buildup of grass, leaves, trash around mandrels.

1. Switch is “OFF”. 1. Turn switch “ON”.

2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

5. Clean around mandrels to open vent holes.

11. Clean around mandrels to open vent holes.

Battery will not charge

Loss of drive

Engine "backfires” when turning engine “OFF”

Engine dies when tractor is shifted into reverse

1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Debris on steering plate (if equipped). 2. See "CLEANING" in the maintenance section.

3. Motion drive belt worn, damaged, or broken. 3. Replace motion drive belt.

4. Air trapped in transmission during shipment or servicing.

5. Axle key missing. 5. Install axle key at rear wheel. See "TO REMOVE

1. Engine throttle control not set between half and full speed (fast) position before stopping engine.

1. Reverse operation system (ROS) is not "ON" while mower or other attachment is engaged.

4. Purge transmission.

WHEEL" in the Service and Adjustments section.

1. Move throttle control between half and full speed (fast) position before stopping engine.

1. Turn ignition key to ROS "ON" position. See Operation section.

Page 29

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

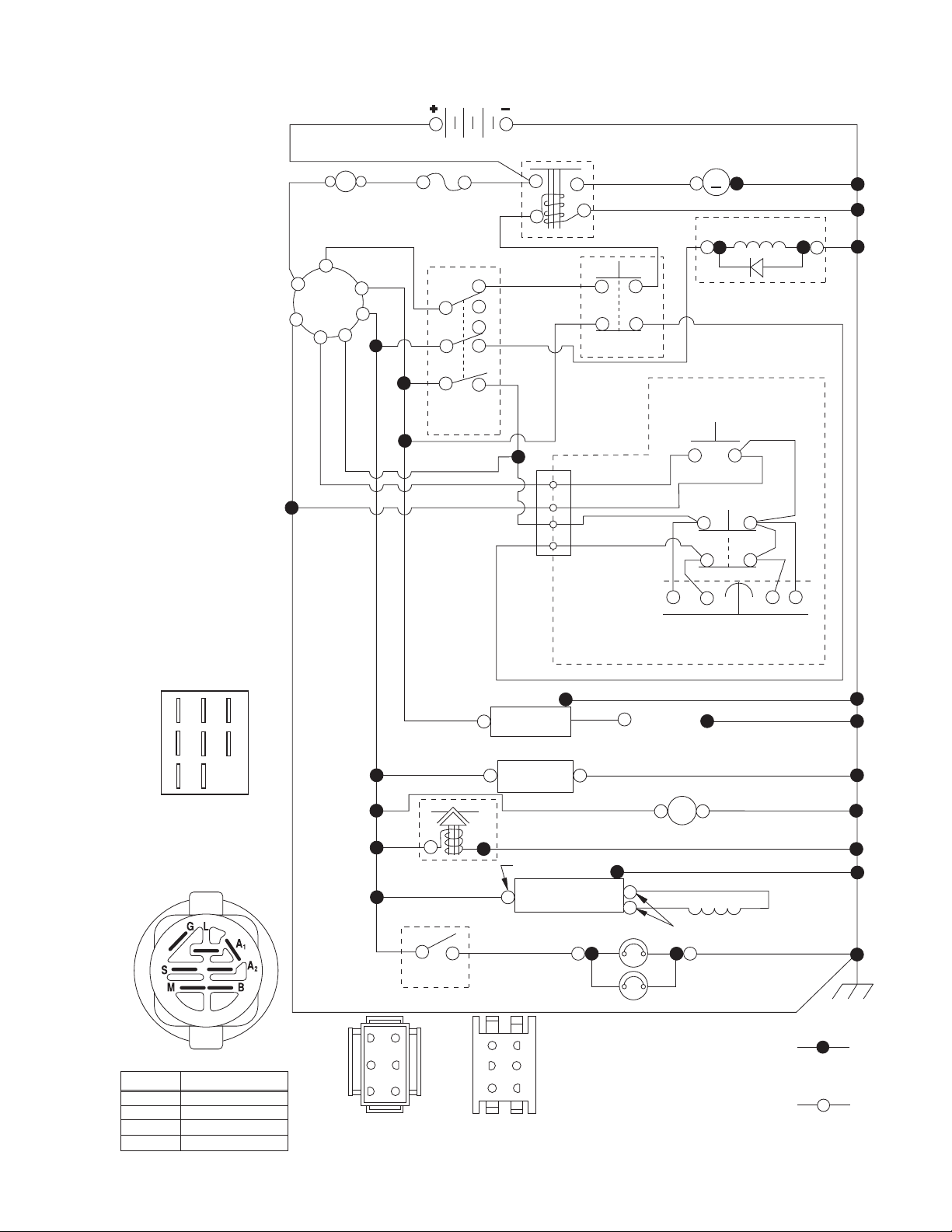

SCHEMATIC

SCH12

(OPTIONAL)

AMMETER

WHITE

BLACK

RED

FUSE

(DISENGAGED)

BATTERY

PTO SWITCH

BLACK

RED

SOLENOID

WHITE

RED

BLACK

CLUTCH/BRAKE

(PEDAL UP)

JUNCTION

CONNECTOR

WHITE

BLACK

BLACKBLACK

GRAY

BLACK

STARTER

ELECTRIC CLUTCH

REVERSE SWITCH (NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

BLACK

GRAY

NOTES

IGNITION SWITCH

POSITION

OFF

RUN/OVERRIDE

RUN

START

PTO SWITCH

(MATING SIDE)

CIRCUIT

M+G+A1

B+A1

B+S+A1

“MAKE”

L+A2

BLACK

BLUE

ORANGE

SWITCH

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

BLACK /WHITE

BLUE

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF EQUIPPED)

RED

LIGHT

DASH HARNESS

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

(OPTIONAL)

HOUR

METER

BLUE

CHARGING SYSTEM OUTPUT 9-16AMPDC@3600 RPM

REGULATOR

BROWN

SHORTING

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

BLACK

12V

POWER OUTLET

(OPTIONAL)

STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

HEADLIGHTS

BLACK

WIRING INSULATED CLIPS

IF WIRING INSULATED

NOTE: CLIPS WERE REMOVED FOR SERVICING OF UNIT, THEY SHOULD BE RE-INSTALLED TO PROPERLY SECURE YOUR WIRING.

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

Page 30

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

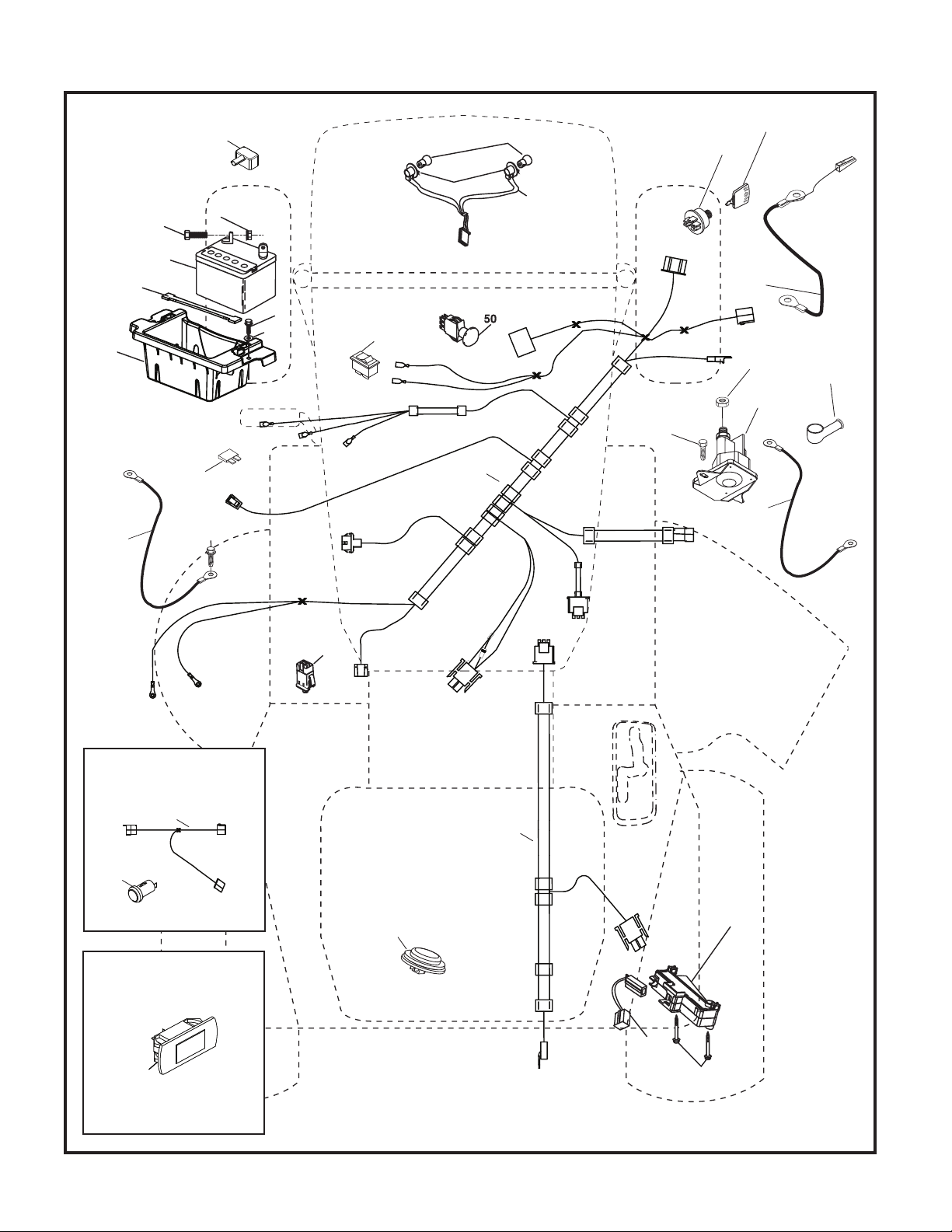

ELECTRICAL

T07S

100

With 12V Outlet Option

103

With Service Minder Option

4646

Page 31

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

ELECTRICAL

KEY PART NO. NO. DESCRIPTION

1 532 16 34-65 Battery 2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 8 532 18 64-91 Battery Box 16 532 17 61-38 Switch Interlock 21 532 18 37-59 Harness Socket Light 22 532 00 41-52 Bulb, Light #1156 24 532 40 02-53 Cable Battery 25 532 41 28-95 Cable Starter 26 532 17 51-58 Fuse 27 873 51 04-00 Nut Keps Hex 1/4-20 unc 28 532 14 54-91 Cable Ground 21" Blk 6 Ga. 29 532 40 15-45 Switch Seat 30 532 19 33-50 Switch Ign 33 532 41 19-33 Key/Chain 34 532 11 07-12 Switch Light/Reset 40 532 40 11-04 Harness Ign. Dash 41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2 42 532 13 15-63 Cover Terminal Red 43 532 19 25-07 Solenoid 46 532 40 17-63 Gauge Hourmeter 50 532 19 61-12 Switch PTO 55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 59 532 40 03-03 Outlet 12-Volt 71 532 19 42-76 Harness Ign Chassis 79 532 17 52-42 Socket Asm Bulb 90 532 40 07-24 Cover Terminal Battery 91 532 19 02-70 Strap Battery 92 532 19 66-15 Harness Pigtail Reverse Switch 93 532 19 25-40 Screw Plastite 10-14 X 2.00 94 532 19 18-34 Module Reverse ROS 99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4 100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga. 103 532 40 79-62 Harness Pigtail 12 V Outlet

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 32

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

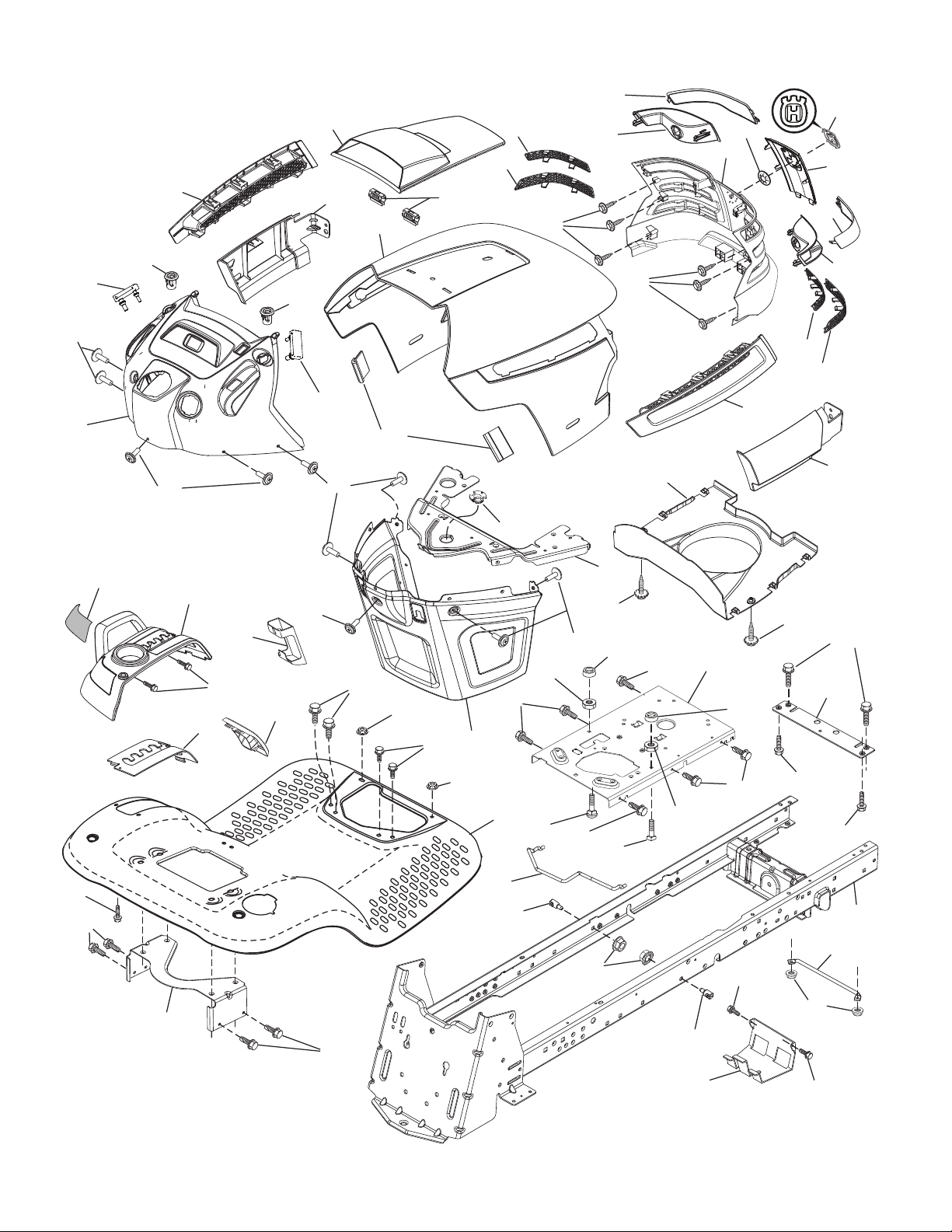

CHASSIS

203

204

206

214

212

210

130

208

298

238

176

137

221

181

176

196

199

162

289

161

181

176

137

176

234

194

182

177

236

176

175

130

235

130

150

207

209

211

202

205

130

213

218

235

162

189

chassis-tex_TEX GT HUSQ_65_r1

189

194

165

228

183

194

183

236

228

152

180

217

189

Page 33

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

CHASSIS

KEY PART NO. NO. DESCRIPTION

3 532 40 50-12 Logo 5 532 44 84-43 Dash 14 532 41 10-46 Hood Asm. 15 532 19 89-07 Lens LH 18 532 40 86-07 Grille Asm. 25 532 19 89-06 Lens RH 34 532 19 61-25 Plate Engine 36 817 06 05-12 Screw 5/16-18 x 3/4 37 532 40 18-25 Fender 52 873 68 05-00 Nut Crown Lock 5/16-18 58 532 19 43-14 Bracket Fender 68 817 49 05-08 Screw 5/16-18 x 1/2 130 532 41 63-58 Screw #10 x .750 BOS Thread 137 532 40 75-90 Bumper Dash 150 532 19 85-12 Duct Heat Hood 152 532 19 95-35 Shield Browning/Debris 161 532 40 18-26 Console Fuel Window 162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 165 532 19 68-26 Bracket Support Tank 175 532 19 63-04 Crossmember 176 532 40 07-76 Screw 10-24 x 5/8 177 532 19 52-27 Bushing Steering 180 532 19 54-77 Chassis 181 532 40 30-25 Bushing Mtg. Fender Crgo. 182 532 40 68-59 Dash Lower 183 874 52 05-20 Bolt 5/16-18 x 1-1/4 189 817 00 05-12 Screw 5/16-18 x 3/4 194 873 90 05-00 Nut Lock Hex Flange 5/16-18 196 532 40 02-99 Console Asm. Deck Lift 199 532 19 82-59 Plate Deck Lift

KEY PART NO. NO. DESCRIPTION

202 532 40 30-48 Vent Side Hood RH 203 532 40 30-76 Vent Side Hood LH 204 532 41 66-13 Vent Asm Hood Top 205 532 40 17-09 Skirt Hood Side RH 206 532 40 17-11 Skirt Hood Side LH 207 532 19 71-98 Bezel RH 208 532 19 71-99 Bezel LH 209 532 19 91-30 Insert Hex Top RH 210 532 19 91-31 Insert Hex Top LH 211 532 19 91-32 Insert Hex Bottom RH 212 532 19 91-33 Insert Hex Bottom LH 213 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4 214 532 19 91-45 Clip Retainer 217 532 40 91-67 Rod Pivot 218 532 19 63-95 Hood Stop 221 532 19 89-09 Reflector LH 228 532 19 51-61 Stud Fastener 234 532 40 47-42 Bumper Hood 235 532 40 61-29 Spacer Fender 236 873 93 05-00 Nut Center Lock 5/16-18 unc 238 532 40 86-06 Trim 289 532 40 35-71 Plug Cruise/Phone 298 532 11 04-52 Nut Push

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 34

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

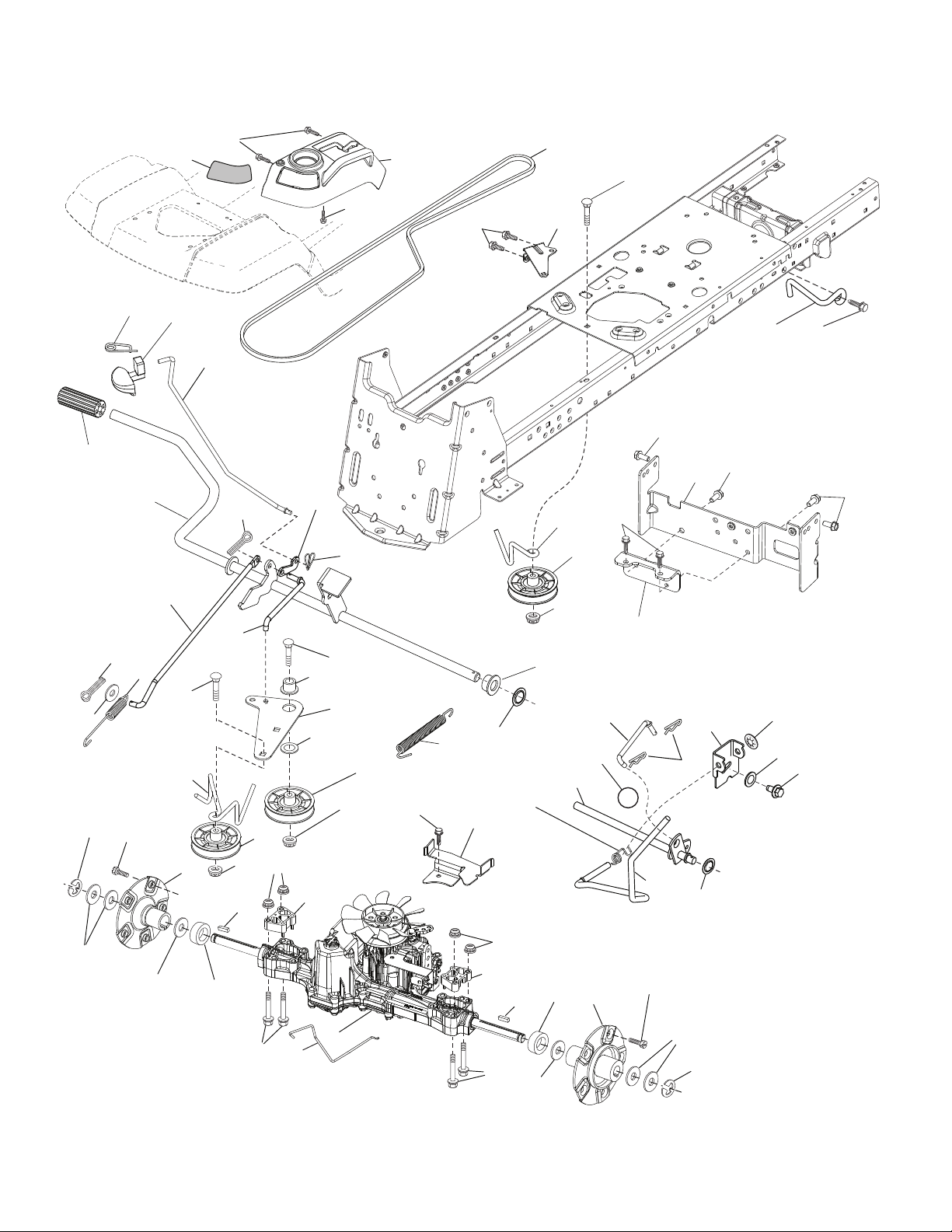

DRIVE

221

220

184

159

167

160

143

216

170

231

125

185

125

197

196

125

159

190

205

230

drive-tex_K46_fender_6_r2

183

188

185

186

189

187

116

162

125

161

166

225

162

116

178

211

175

183

230

279

226

176

153

166

205

174

233

276

Page 35

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

DRIVE

KEY PART NO. NO. DESCRIPTION

1 - - - - - - - - - Transaxle, TUFFTORQ K46 AW (Internal parts not available) 2 532 18 62-11 Key 7 532 19 98-44 Hub Asm. Wheel Rear 22" TX GT .06 9 532 14 00-80 Bolt Hub Wheel Rear 15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga. 17 532 41 36-78 Spring Brake 22 532 19 73-29 Rod Shift 23 532 14 08-45 Knob 29 532 40 38-06 Rod, Brake 33 812 00 00-01 Ring E 35 532 19 95-91 Rod Brake Park 42 532 12 48-72 Cover Foot Pedal 49 872 11 06-14 Bolt 50 532 19 43-27 Pulley Idler Flat 51 873 90 06-00 Lock Nut 3/8-16 52 532 19 43-26 Idler V-Groove 910" Offset 56 532 13 09-69 V-Belt Drive 64 532 19 62-00 Shaft Asm. Pedal Brake Control 70 532 40 02-98 Console Asm. 73 874 49 05-60 Bolt Hex Flghd 5/16-18 3.75 74 532 14 24-32 Screw 1/4 x 1/2 80 532 41 00-24 Strap Torque 99 532 41 57-43 Rod Bypass 116 873 90 05-00 Nut Lock Hex Flange 5/16-18 125 817 00 05-12 Screw 5/16-18 x 3/4 143 817 49 05-08 Screw 5/16-18 x 1/2 153 532 12 47-88 Retainer Spring 159 876 02 04-12 Pin Cotter 1/8 x 3/4 160 532 16 94-84 Retainer Clip 161 532 10 57-09 Spring Return Clutch 162 532 19 57-85 Spacer Transaxle 18 and 22 166 532 42 83-05 Nut Push

KEY PART NO. NO. DESCRIPTION

167 532 40 52-57 Latch Brake Parking 170 532 41 34-30 Keeper Belt Centerspan 174 532 19 72-89 Nut Push 175 532 40 62-08 Shaft Asm Shift 176 532 19 62-14 Arm Clevis Rod Shift 178 532 19 74-56 Spring Shift 183 532 40 04-24 Spacer Split 184 532 40 31-18 Handle Parking Brake 185 872 11 06-22 Bolt Rdhd Sqnk 3/8-16 x 2-3/4 Gr. 5 186 532 19 43-21 Spacer Retainer 187 819 13 32-10 Washer 188 532 19 43-23 Link Clutch Ground Drive 189 532 19 43-17 Bellcrank Ground Drive 190 532 19 43-18 Keeper Bellcrank Ground Drive 196 817 00 06-16 Screw 3/8-16 x 1 197 532 19 97-69 Link Clutch Anti-Rotation 205 532 12 17-48 Washer 211 532 19 62-12 Bushing Brake Shaft 216 532 19 61-31 Bracket Pulley Idler 220 532 19 89-08 Reflector RH 221 532 40 31-87 Retainer Spring Clip Handle 225 532 40 33-19 Keeper Belt Trans. 226 532 40 08-31 Bracket Mount Torque 230 532 18 89-67 Washer Hardened 231 532 40 72-87 Idler V-Groove 1.688" Offset 233 532 40 52-96 Washer Serrated 276 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5 279 532 40 62-07 Link Shift

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 36

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

ENGINE

30!2+ª!22%34%2ª+)4

engine-tex_Kohl_19

KEY PART NO. NO. DESCRIPTION

1 - - - - - - - - - Engine Kohl Model No. SV730-0040 2 532 14 97-23 Muffler 9 532 19 43-20 Keeper Belt Engine 11 532 17 93-35 Clutch Electric 12 532 19 43-43 Pulley Engine 15 532 19 34-99 Tank Fuel 4.0 18 532 43 02-17 Cap Fuel 20 532 18 29-37 Control Throttle 21 532 41 63-58 Screw #10 x .750 BOS Thread 22 532 19 15-96 Control Choke 28 532 40 11-35 Fuel Line 29 532 13 71-80 Spark Arrester Kit 37 532 12 34-87 Clamp Hose 41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250 42 810 04 07-00 Washer Lock 7/16 45 873 51 04-00 Nut Keps Hex 1/4-20 unc

KEY PART NO. NO. DESCRIPTION

62 532 14 66-29 Shield Heat Muffler 69 532 18 60-54 Gasket 70 532 14 66-99 Tube Exhaust LH 71 532 14 67-00 Tube Exhaust RH 79 532 19 23-34 Screw Socket Head 5/16-18 x .75 81 532 14 84-56 Tube Drain Oil Easy 82 532 42 82-87 Valve Drain Oil 84 817 12 06-16 Screw 3/8-16 x 1 85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5 87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems 90 817 00 06-16 Screw 3/8-16 x 1 91 532 18 74-95 Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Page 37

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

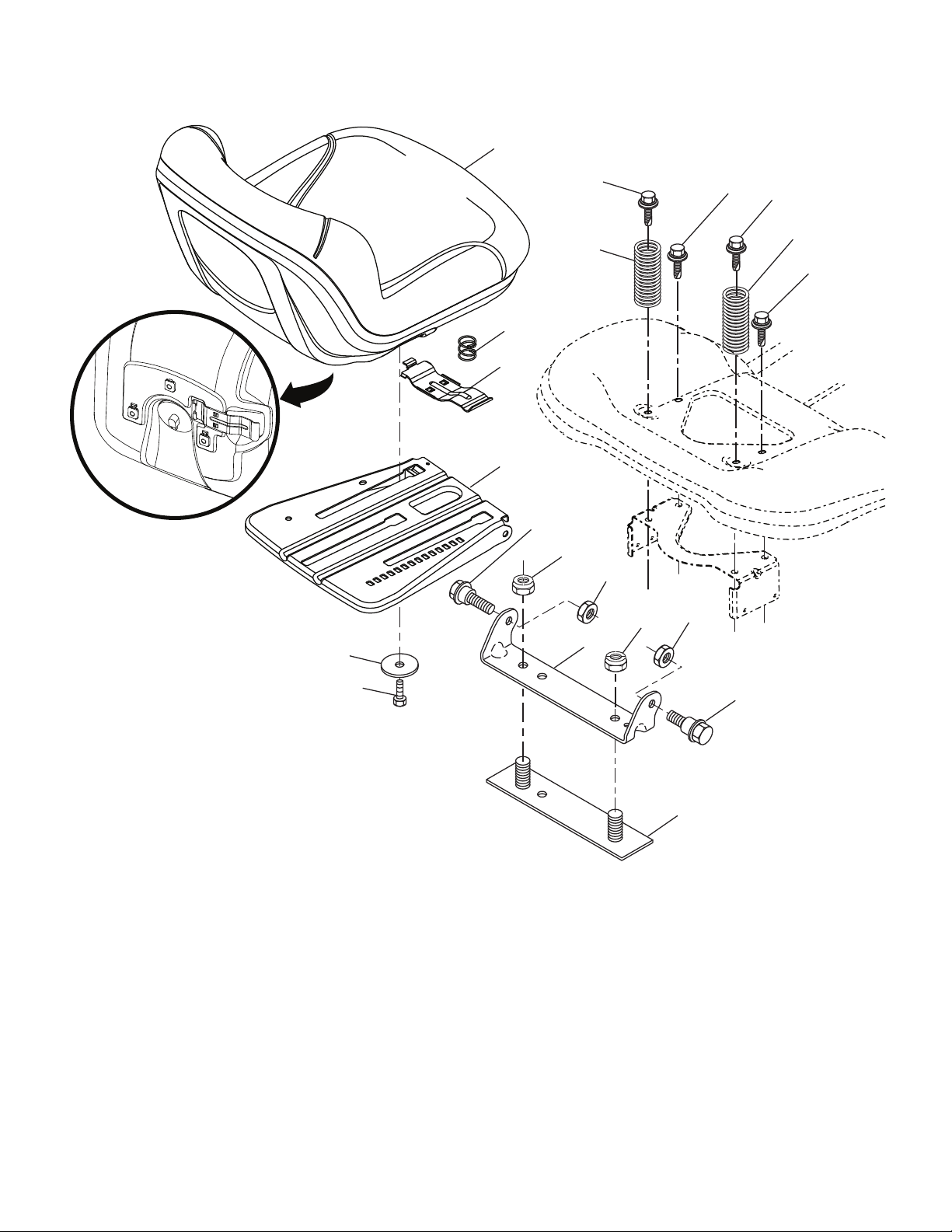

SEAT ASSEMBLY

seat-tex_6.5SL_3

KEY PART NO. NO. DESCRIPTION

1 532 42 40-68 Seat 2 532 18 01-66 Bracket Pivot Fender 3 532 14 06-75 Strap, Asm Fender 6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc 7 532 12 41-81 Spring, Seat Cprsn 8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems 10 532 19 69-77 Pan, Seat 21 532 17 18-52 Bolt, Shoulder 5/16-18

KEY PART NO. NO. DESCRIPTION

37 873 80 05-00 Nut, Lock 5/16-18 unc 40 532 19 76-61 Handle Slide Seat 41 532 19 82-00 Spring Latch Seat 43 874 76 06-12 Bolt 3/8-16 x 3/4 44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 38

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

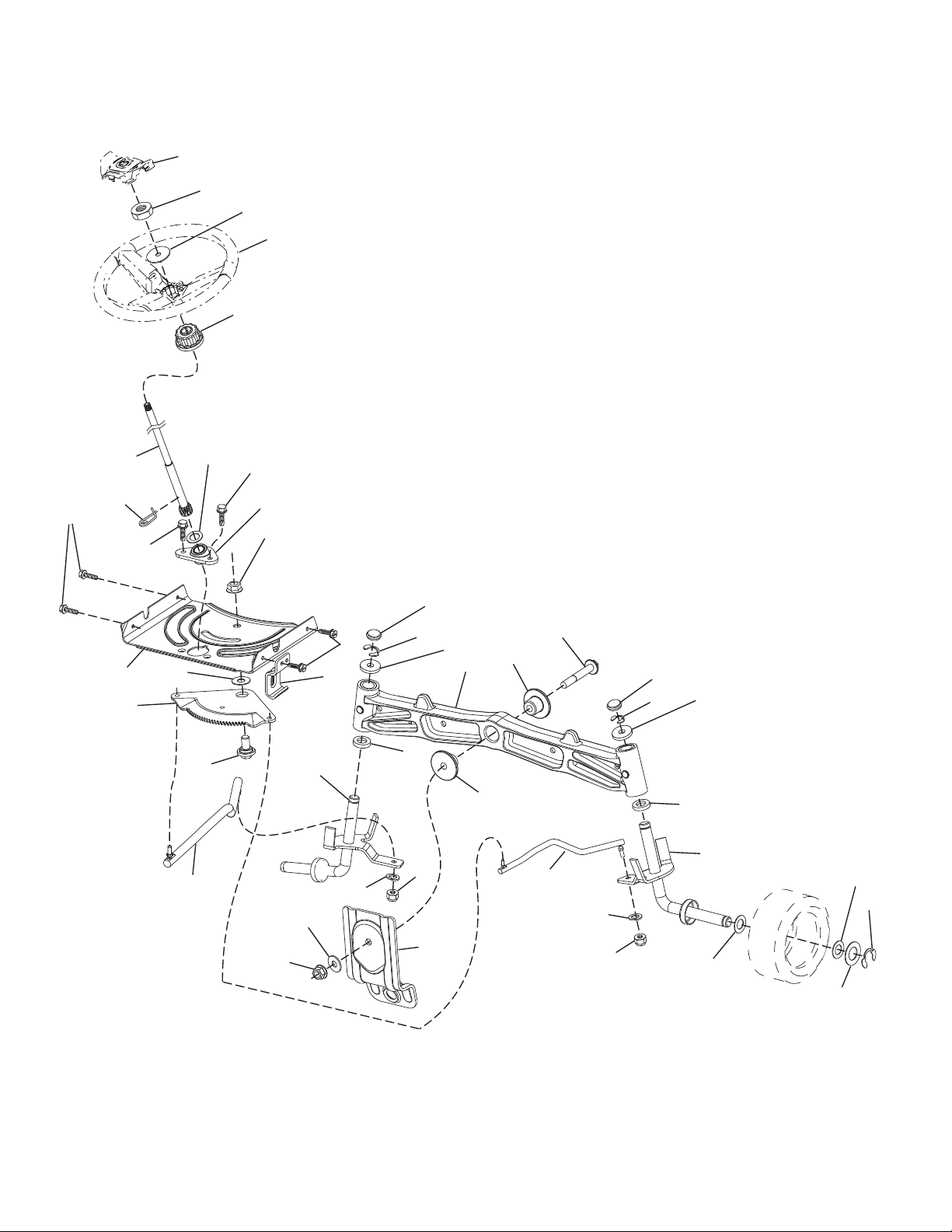

STEERING ASSEMBLY

steering-tex_HUSQSR_7_1

Page 39

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

STEERING ASSEMBLY

KEY PART NO. NO. DESCRIPTION

1 532 41 64-80 Wheel, Steering 2 532 19 59-68 Axle Asm., Front 4 532 40 30-89 Spindle Asm., LH 5 532 40 30-90 Spindle Asm., RH 6 532 12 49-31 Bearing, Race Thrust Harden 7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga. 8 812 00 00-29 Ring, Clip #T5304-75 9 532 12 12-32 Cap, Spindle 13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga. 14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8 15 873 54 06-00 Nut, Crown Lock 3/8-24 unf 16 532 40 82-19 Shaft Steering 19 532 19 47-29 Plate Steering 21 532 18 67-37 Adapter, Wheel Steering 22 532 42 05-37 Supt. Lower, Strg. 26 532 41 59-87 Insert, Wheel Steering 28 817 00 06-12 Screw 3/8-16 x 3/4 35 532 19 47-32 Gear, Sector Plate 45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga. 51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf 53 532 18 89-67 Washer Hardened .793 x 1.637 x .060 57 532 19 72-46 Bracket Upstop 58 532 19 47-47 Bolt Shoulder Sector Pivot CFM 59 532 19 47-48 Washer Thrust Sector Steering 60 873 97 10-00 Nut Flange Lock 5/8-11 61 532 19 47-40 Draglink, LH 62 532 19 47-41 Draglink, RH 63 817 00 05-12 Screw 5/16-18 x 3/4 64 532 19 98-49 Retainer Clip Spring Steering 66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr 67 532 19 47-37 Bushing PM Front Axle 68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5 69 532 19 91-62 Washer 1.5 x .505 x .118 70 532 19 61-97 Bracket Deck Susp. Front

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Page 40

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

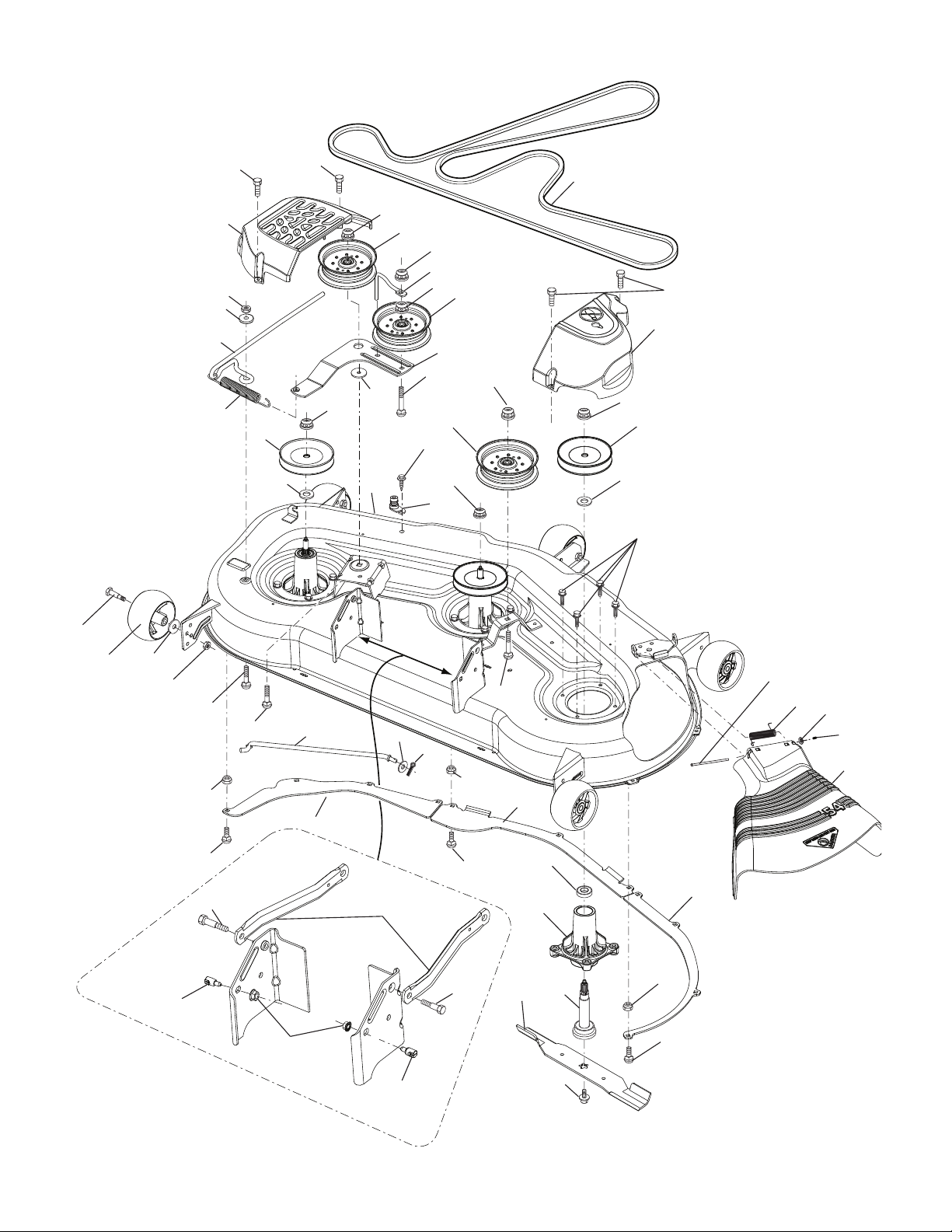

MOWER DECK

122

114

185

192

196

241

242

116

117

120

187

113

190

194

188

189

187

190

mower_deck 54-tex_16

Page 41

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

MOWER DECK

KEY PART NO. NO. DESCRIPTION

1 532 40 31-25 Deck Weldment Mower 6 532 19 60-66 Cover Mandrel LH 7 532 19 71-81 Cover Mandrel RH 8 532 19 30-03 Bolt 7/16 Asm. Blade 11 532 18 72-56 Blade Bagging

- - 532 18 72-55 Blade Mulching 12 532 40 48-51 Rod Anti Sway 13 532 18 72-91 Shaft Asm. w/Lower Bearing 14 532 18 72-81 Housing, Mandrel 16 819 13 13-12 Washer 3/8 15 532 11 04-85 Bearing, Ball, Mandrel 18 872 14 05-05 Bolt Carriage 5/16-18 x 5/8 19 532 19 42-08 Pin Cotter 5/16 Bowtie 21 873 68 05-00 Nut, Crownlock 5/16-18 unc 24 532 10 53-04 Cap Sleeve 25 532 17 81-02 Spring, Torsion 26 532 11 04-52 Nut, Push 27 532 18 89-38 Deflector Shield 29 532 13 14-91 Rod, Hinge 30 532 17 39-84 Screw, Thdroll Washer Head 31 532 18 76-90 Washer, Spacer Mower Vented 32 532 15 35-35 Pulley, Mandrel 33 532 40 02-34 Nut, Flg. Top Lock 34 873 68 06-00 Nut Crownlock 3/8-16 unc 39 532 19 73-80 Pulley, Idler, Stationary LH 43 532 19 60-65 Arm, Idler 46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8 47 532 19 61-03 Belt Deck Drive 49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc 50 872 11 06-16 Bolt Rdhd Sqnk 3/8-16 unc x 2 52 532 19 73-79 Pulley Idler

KEY PART NO. NO. DESCRIPTION

58 532 18 73-42 Baffle Right 59 532 18 73-44 Baffle Left 60 532 18 76-07 Baffle Center 97 532 17 85-15 Washer Hardened 98 532 19 61-05 Spring Drive 113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4 114 532 18 75-56 Rod Tension Relief 116 532 19 34-06 Bolt, Shoulder 117 532 17 48-73 Gauge Wheel 120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga. 122 532 18 75-57 Bushing Tension Relief 185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5 187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation 188 873 90 05-00 Nut Lock Hex Flange 189 532 19 51-85 Arm Susp. Mower Rear 190 532 19 65-39 Bolt Shoulder 192 532 19 84-68 Keeper Belt Idler 194 872 14 07-16 Bolt Carr Sqnk 7/16-24 x 2 196 872 14 06-20 Bolt Rdhd 3/8-16 x 2-1/2 Gr. 5 241 532 15 29-27 Screw 242 532 41 55-98 Washout Port

- - 532 41 64-05 Coupling, Quick Connect

- - 532 18 72-92 Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

- - 532 19 93-00 Replacement Mower, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

Page 42

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

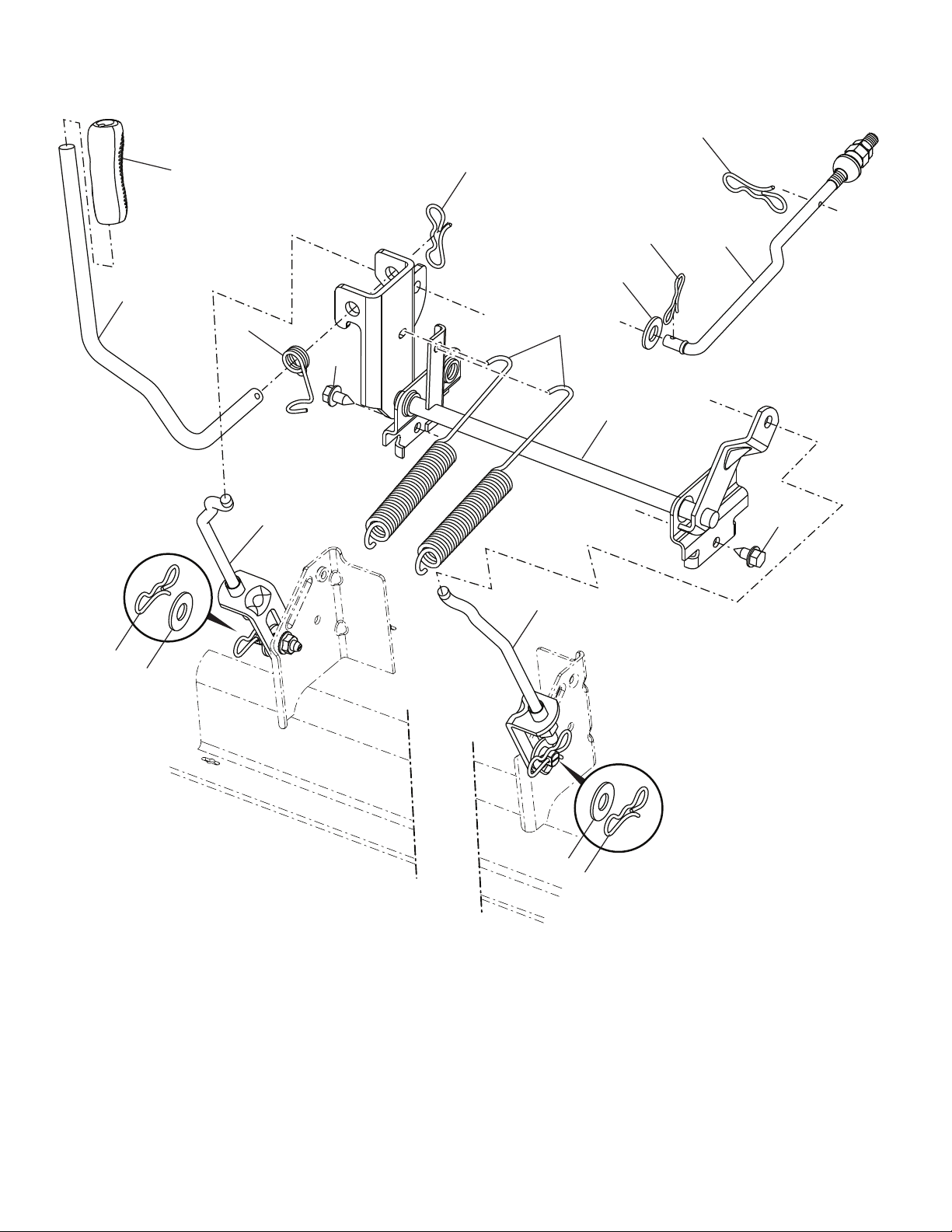

MOWER LIFT

lift-tex_23

KEY PART NO. NO. DESCRIPTION

2 532 42 20-27 Shaft Asm., Lift 3 532 19 52-30 Lever Asm., Lift RH 7 532 41 15-55 Grip, Lever 10 532 19 63-14 Spring Torsion 87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock 88 532 19 53-04 Spring Lift Assist 89 819 19 19-12 Washer Clear Zinc

KEY PART NO. NO. DESCRIPTION

90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock 91 532 40 34-07 Link Lift Susp Mower Rear 97 817 00 06-12 Screw 3/8-16 x 3/4 98 532 19 52-64 Link Lift Susp. Front Mower

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 43

TRACTOR - MODEL NO. LGT2554 (96045001504), PRODUCT NO. 960 45 00-15

wheel_art_1-tex

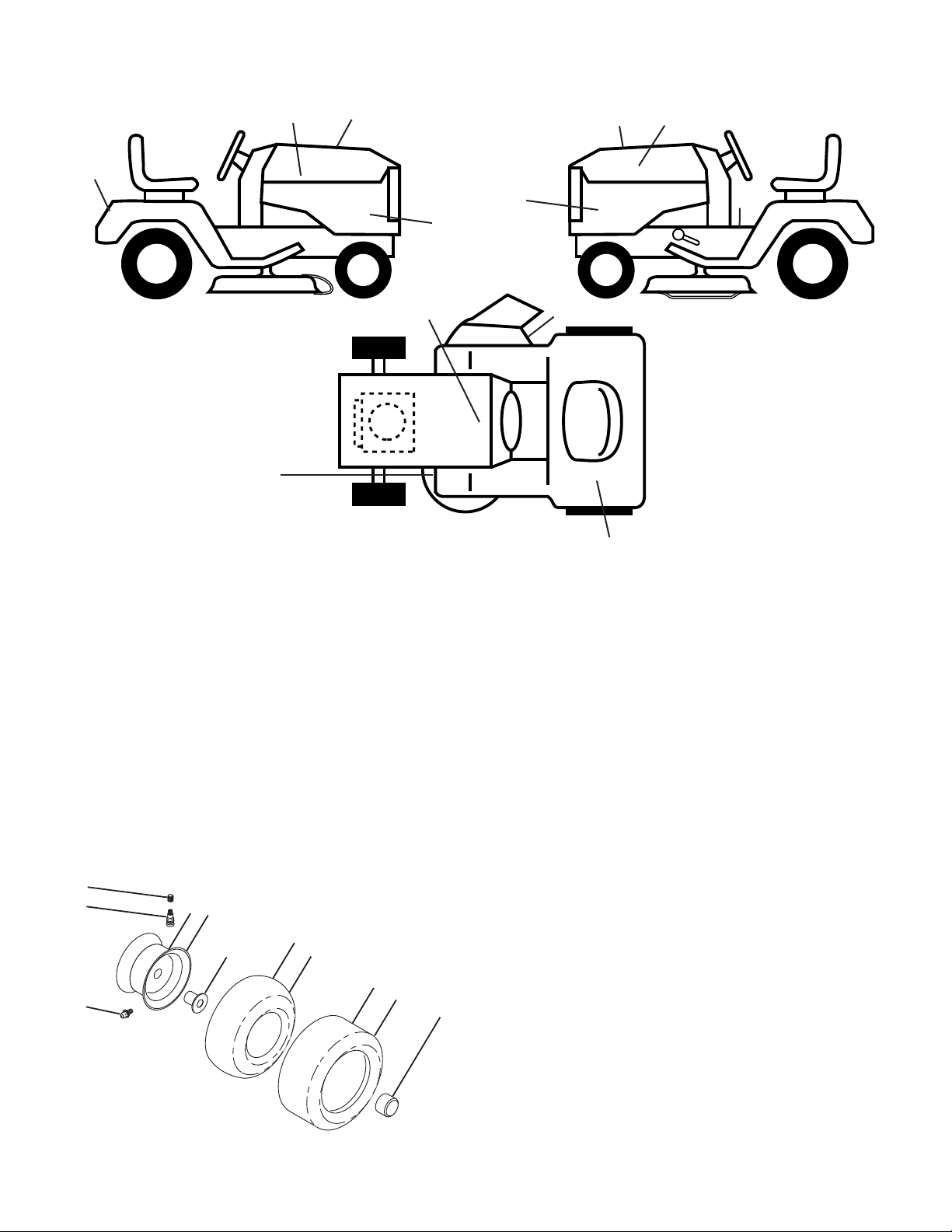

DECALS

KEY PART NO. NO. DESCRIPTION

1 532 41 91-38 Decal, Warning 2 532 42 38-30 Decal, Ethanol E85 4 532 19 15-54 Decal, Fender 5 532 17 84-55 Decal, Caution 8 532 19 87-85 Decal, Mower Sch. 9 532 14 50-05 Decal, Battery Dnge/Poi 14 532 42 36-38 Decal, Panel Side

KEY PART NO. NO. DESCRIPTION

15 532 42 38-29 Decal, Warning Customer Resp. 16 532 42 91-96 Decal, Hood Logo 17 532 42 89-34 Decal, Replacement

- - 532 16 69-60 Decal, Bypass

- - 532 40 17-71 Pad, Footrest, LH

- - 532 40 17-70 Pad, Footrest, RH

- - 532 43 19-18 Manual, Owner's English

- - 432 43 19-19 Manual, Owner's Spanish

WHEELS AND TIRES

KEY PART NO. NO. DESCRIPTION

1 532 05 91-92 Cap, Valve, Tire 2 532 06 51-39 Stem, Valve 3 532 14 45-09 Rim Assembly, Front 4 532 00 81-34 Tube, Front (Ser vice Item Only) 5 532 10 62-30 Tire, Front 6 532 12 49-57 Fitting, Grease (Front Wheel Only) 7 532 12 49-59 Bearing, Flange (Front Wheel Only) 8 532 17 50-39 Cap, Axle (Front Wheel Only) 9 532 18 47-08 Tire, Rear 10 532 00 71-54 Tube, Rear (Service Item Only) 11 532 40 17-82 Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm

Page 44

15 DEGREES MAX.

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Page 45

Consumer Wheeled Products - Limited Warranty

Husqvarna warrants to the original retail purchaser that this product is free from defects in material or workmanship under normal use and maintenance from the date of retail purchase for the applicable Warranty Period shown on Exhibit A. This Limited Warranty may not be transferred to any subsequent purchaser of this product. Certain components (e.g., engines and transmissions) are excluded from coverage, and other limitations apply, as described in this document. Husqvarna will repair or replace at its discretion, any defective product or part covered by the Limited Warranty, free of charge at any authorized Husqvarna Servicing Dealer/Center using original OEM Husqvarna replacement parts, subject to the limitations and exclusions described below. Husqvarna does not offer an over-the-counter exchange program.

DISCLAIMERS, LIMITATIONS AND EXCLUSIONS

1. WARRANTY DISCLAIMER. THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY PROVIDED BY HUSQVARNA AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF, EXCEPT AS MAY BE PROVIDED BY LAW. THIS WARRANTY IS GIVEN ONLY BY HUSQVARNA, AND MAY BE MODIFIED ONLY BY HUSQVARNA. THIS LIMITED WARRANTY IS THE FINAL EXPRESSION OF OUR AGREEMENT, AND IS A COMPLETE AND EXCLUSIVE STATEMENT OF THE TERMS OF THAT AGREEMENT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BASED ON LOCALITY

2. LIMITED DURATION. ANY WARRANTY THAT MAY BE IMPLIED BY LAW (INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR USE AND IMPLIED WARRANTY OF MERCHANTABILITY) IS LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD UNDER THIS LIMITED WARRANTY. SOME LOCALITIES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

3. EXCLUSIVE REMEDIES. SOME LOCALITIES, INCLUDING THE PROVINCE OF QUEBEC, DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR INJURY TO PERSON OR FOR DAMAGES RESULTING FROM THE FAULT OF THE MANUFACTURER AND/OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. AS SUCH, SOME OF THE FOLLOWING LIMITATIONS MAY NOT APPLY TO YOU. THE ABOVE REMEDIES ARE THE EXCLUSIVE REMEDIES FOR ANY BREACH OF THIS LIMITED WARRANTY. NO OTHER REMEDY, INCLUDING, BUT NOT LIMITED TO ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, FOR LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS SHALL BE AVAILABLE, AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED.

4. Engines, Transmissions and certain other components are NOT covered. This Limited Warranty does not cover any of the following:

(a) Engines and Attachments.Except where otherwise indicated on Exhibit A, all Engines and Attachments are not covered by this Limited Warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered separately by their respective manufacturer's warranties if one is provided and included with the product at the time of purchase. All such claims must be submitted and sent to the appropriate manufacturer or as otherwise directed in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on engines manufactured by Briggs & Stratton, Honda, Kawasaki, or Kohler (with the exception of models equipped with LCT engines). Husqvarna does not assume any warranty obligation of the other manufacturers' engines under this Limited Warranty.

(b) Transmissions. Except where otherwise indicated on ExhibitA, Transmission / Transaxle (including Drive Systems) are not covered by this Limited Warranty. In most cases, these items are NOT manufactured by Husqvarna in which case they may be covered separately by their respective manufacturer's warranties if one is provided and included with the product at the time of purchase. The following transmission / transaxle manufacturers, Dana, Hydro-Gear, Tuff-Torq provide a warranty for the transmission / transaxle to the ultimate purchaser or to Husqvarna. Husqvarna will assign the transmission / transaxle manufacturer's warranty or any rights thereof to the original purchaser of the unit. To obtain transmission / transaxle warranty service, first contact the retailer who you purchased the unit from. Should you require assistance or have any questions concerning transmission / transaxle warranty coverage, contact Husqvarna directly at our website www.husqvarna.com or call 800-487-5951 (US) or 800-805-5523 (Canada) for an authorized Husqvarna service provider. All such claims must be submitted and sent to the appropriate manufacturer or as otherwise directed in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on transmissions or transaxles. Husqvarna does not assume any obligations under this Limited Warranty for the above listed manufacturers (for exceptions - see Exhibit A).

(c) Expendable Parts. This Limited Warranty does not cover general maintenance parts and items ("Expendable Parts"), including without limitation spark plugs, bulbs, filters, lubricants, starter cords, belts, blades, and blade adapters.

(d) Emissions Control Components. This Limited Warranty does not cover Emissions control equipment and components to the extent regulated by the U.S. Environmental Protection Agency or similar state, provincial or federal agencies. Such equipment and components are covered by a separate emission control warranty statement supplied with your new product. Please consult this separate warranty statement for details.

5. Any COMMERCIAL, INSTITUTIONAL, AGRICULTURAL, INDUSTRIAL, INCOME PRODUCING, or RENTAL use will result in either No Warranty or a Shortened Warranty Period. Depending on the product, there is either NO WARRANTY (whether statutory, contractual or

otherwise) or a reduced warranty if the product is used for commercial, institutional, agricultural, industrial, income producing, or rental purposes and, in such circumstances, this Limited Warranty is offered instead of and replaces any warranty regime provided for by law. Please refer to Exhibit A.

6. Reconditioned or Refurbished Products have a 30 Day Limited Warranty. Under this Limited Warranty, Certified Factory Reconditioned or Refurbished products have a 30 Day Limited Warranty for parts and labor for Non-Commercial Use. Products are only reconditioned at the Husqvarna Factory.

7. Owner's (Your) Responsibilities. To preserve your rights under this Limited Warranty, you must exercise reasonable care and use of the product, including, following the preventative maintenance, storage, fuel and oil usages as prescribed in the enclosed operator's manual. For example, the following items are the Owner's responsibility and are not covered by this Limited Warranty:

a. Set-up and pre-delivery service, and engine tune-ups;

b. Adjustments after the first (30) thirty days of purchase and beyond, such as throttle cable, belt guides adjustments; and

c. Preventative maintenance as outlined in the operator's manual.

In addition, you must cease using the product immediately upon any failure or damage. The product should be taken to an authorized Husqvarna servicing dealer prior to any further use.

8. Damages resulting from normal aging, wear and tear or neglect are NOT covered. The Limited Warranty does not cover damage other than that resulting from defects in material or workmanship. The following are NOT considered defects in material or workmanship, and therefore are NOT covered.

Page 46

(a)Ab

rasionto mower decks;

(b) Tires damaged by external punctures;

(d) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

In addition, this Limited Warranty does not cover damages, malfunctions or failures resulting from abuse or neglect of the product related to or including any of the following:

(e) Failure to provide or perform required maintenance services as prescribed in the operator's manual;

(f) Abuse, misuse, neglect, modifications, alterations, normal wear, improper servicing, use of unauthorized attachments, Lack of lubrication or

engine failure, due to the use of oils that do not meet Engine manufacturer's specifications;

(g) Use of gasohol, containing methanol (wood alcohol). Gasohol which contains a maximum 10% ethanol (grain alcohol) or 15% MTBE

(methyl/tertiary/butyl/ether) is approved;

(h) Use of ether or any starting fluids;

(i) Pressure cleaning or steam cleaning the product;

(j) Use of spark plugs other than those meeting emission performance requirements listed in the operator's manual;

(k) Tampering with engine speed governor or emission components, or running engines above specified and recommended engine speeds as

listed in your operator's manual;

(l) Operation of the unit with improperly installed/removed or modified cutting shields, guards, or safety devices;

(m) Any removed/damaged air filter, excessive dirt, abrasives, salt water, moisture, corrosion, rust, varnish, stale fuel, or any adverse reaction due

to incorrect storage procedures;

(n) Failures due to improper set up, pre-delivery service or repair service by anyone other than an authorized Husqvarna servicing dealer during

the warranty period;

(o) Dirt contaminated grease or oil, use of incorrect type of greases or oils, failure to comply with recommended greasing intervals, water or

moisture damage, and/or improper storage;

(p) Sprayers pumping or spraying caustic or flammable materials, lack of or broken strainers; or

(q) Continued use of product, after initial operational problem or failure occurs.

9. Reinforced Stamped (Armor Protected) 10 Year Limited & Fabricated Limited Lifetime, Deck Warranties. These Limited Warranties are for the deck shell only wheels workmanship. The following are NOT considered defects in material or workmanship, and therefore are NOT covered:

(a) Abrasion to mower decks, including sand wear;

(b) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

(d) Natural discoloration of paint or other materials due to ultraviolet light.

10. Authorized Husqvarna Servicing Dealer/Center. In order to obtain warranty coverage it is your responsibility (at your expense) to deliver or ship your Husqvarna unit to an authorized Husqvarna Servicing Dealer/Center and arrange for pick-up or return of your unit after the repairs have been made. If you do not know the location of your nearest authorized Husqvarna Servicing Dealer, call Husqvarna, at 1-800-487-5951 during the hours of 8:00 AM to 8:00 PM Eastern Standard Time, or visit www.husqvarna.com. Should you require assistance or have questions concerning this Limited Warranty, you may contact us at 800-487-5951 (US) or 800-805-5523 (Canada) during the hours of 8:00 AM to 8:00 PM Eastern Standard Time or contact us through the web at www.husqvarna.com.

11. Documentation Required. You must maintain and present Proof of purchase (including date, product model and, if applicable, engine serial number) to an authorized Husqvarna Servicing Dealer for warranty service under this Limited Warranty. Proof of purchase rests solely with you. Husqvarna encourages you to register your product online at www.usa.husqvarna.com (US & Canada) to help ensure, among other things, that you can be notified of important product information. However, registering your product is not a condition of warranty service.

mechanical components/parts such as belts, pulleys, spindle housings, bearings, blades, rods, height adjusters, caster/anti scalp

are NOT covered. The Limited Lifetime Warranty does not cover damage other than that resulting from defects in material or

HOW TO OBTAIN SERVICE

Husqvarna Professional Products, NA, Inc.

9335 Harris Corners Parkway, Suite 500, Charlotte, NC28269

575 49 43-01 W 2012 IR

Page 47

Consumer Wheeled Limited Warranty Chart 2012 Exhibit A

)

Consumer (personal,

household use only)

Product/Com

Riding Lawn Tractors:

Frame, Chassis, Front Axle 5 Years No Warranty No Warranty Engine* Transmission (if made by Husqvarna/Peerless) Transmission (if third party)** ** ** ** XLS Models only - stamped deck shell. Armor Protected Limited Warranty Fabricated Deck shell. Limited Lifetime Warranty Battery Other Non-Expendable Components 3 Years No Warranty No Warranty

Residential Zero Turn Mowers ( RZ Only )

Engine* Transmission ** ** No Warranty No Warranty

RZ4623 (967009801 & 967009802) RZ5426 (967003601 & 967003602) - stamped deck shell. Armor Protected Limited Warranty Fabricated Deck shell. Limited Lifetime Warranty Battery

Other Non-Expendable Components 3 Years No Warranty No Warranty

Residential Zero Turn Mowers ( MZ & EZ )

Engine* Transmission ** ** ** **

MZ5424S & MZ5425S (967003901 & 25021) stamped deck shell. Armor Protected Limited Warranty

onent

* * *

3 Years No Warrant

10 Years No Warranty No Warranty

*** No Warrant

1 Year Pro-rated No Warrant

* * *

10 Years No Warranty No Warranty

*** No Warrant

1 Year Pro-rated No Warrant

* * *

10 Years No Warranty No Warranty

Commercial (any commercial,

professional, institutional, agricultural, or

income producing use, other than

Rental Use

Rental (any rental usage)

No Warrant

No Warrant No Warrant

Fabricated Deck shell. Limited Lifetime Warranty Battery Other Non-Expendable Components 3 Years 1 Year No Warranty

LE475 Edger, Tillers, Snow Throwers

Engine* Other Non-Expendable Components 2 Years 90 days 90 days Tiller Tines

Walk Behind Mowers, High Wheel Trimmer

Engine* Battery

Other Non-Expendable Components 3 Years No Warranty No Warranty

Hovering Trimmers

Engine* Other Non-Expendable Components 2 Years 1 Year 90 days

Front Mounted Deck Riders

Engine* Transmission 2 Years No Warranty No Warranty Other Non-Expendable Components 2 Years No Warranty No Warranty

Cultivators

Battery 1 Year Pro-rated No Warranty No Warranty Other Non-Expendable Components 2 Years No Warranty No Warranty

Pressure Washers

Model 5525PW: Engine* Pump 2 Years No Warranty No Warranty Other Non-Expendable Components 2 Years No Warranty No Warranty

All other Pressure Washers (6027PW, 9032PW, 1340PW)

Engine* Pump 2 Years 2 Years No Warranty Other Non-Expendable Components 2 Years 2 Years No Warranty

*** No Warrant

1 Year Pro-rated No Warrant

* * *

***

* * *

1 Year Pro-rated No Warrant

* * *

No Warrant

No Warrant No Warrant

No Warrant

Generators

Engine*

Other Non-Expendable Components*

Spreaders

*2 Years (2nd Year Parts

* * *

Only) *2 Years-1365GN (2nd Year Parts Only)

No Warrant

Page 48

Consumer Wheeled Limited Warranty Chart 2012 Exhibit A

)

Consumer (personal,

household use only)

Spreader 1 Year 1 Year 1 Year

Product/Com

Robotic Mowers

Robotic Mower 2 Years 90 days 90 days Battery 1 Year 1 Year 1 Year

Parts & Accessories (if purchased)

Accessories (e.g., grass catcher, bumper guard accessories, etc.

Parts (e.g., belts, blades, etc.) 30 days No Warranty No Warranty

Parts & Accessories (if replaced in Warranty Service)

Replacement parts and/or accessories provided under this Limited Warranty are warranted only for the BALANCE of the warranty period applicable to the part or accessory that was replaced.

* See Separate Engine Manufacturer's or Manufacturer's warranty. LCT Engines on specific Snow Throwers & Tillers, warranty through Husqvarna.

** See reference 1 (b) of the warranty statement. RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network. MZ - Two (2) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network.

*** "Limited Lifetime Warranty" on Tiller tines and Fabricated Deck shell is for the life of the product or 7 (seven) years after the last date of the complete unit's final production, whichever comes first. Deck Shell replacement will be limited to a maximum of two (2) decks within the Limited Lifetime Warranty.

onent

1 Year No Warranty No Warranty

See to left See to left See to left

Consumer Commercial Rental

Commercial (any commercial,

professional, institutional, agricultural, or

income producing use, other than

Rental Use

Rental (any

rental usage)

Armor Protected Stamped Deck Shell Example Below Fabricated Deck Shell Example Below

Armor Protected

Stamped Deck Shell

Reinforced area

Stamped Deck Shell below, NOT reinforced

No reinforced area

02.15.12 JA/TH Printed in the U.S.A.
