LT125

Owner's Manual

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

Read,understand,andfollowallinstructionsinthemanual and on the machine before starting.

Only allow responsible adults, who are familiar with the instructions, to operate the machine.

Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

Beawareofthemowerdischargedirectionanddonotpoint it at anyone. Do not operate the mower without either the entire grass catcher or the guard in place.

Slow down before turning.

Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

Turn off blades when not mowing.

Stopenginebeforeremovinggrasscatcherorunclogging chute.

Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of alcohol or drugs.

Watch for traffic when operating near or crossing roadways.

Useextracarewhenloadingorunloadingthemachineinto a trailer or truck.

Dataindicatesthatoperators,age60yearsandabove,are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

Keep machine free of grass , leaves or other debris buildup which can touch hot exhaust / engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

Use extra care with grass catchers or other attachments. These can change the stability of the machine.

Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

DO NOT:

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass. Reduced traction could cause sliding.

Do not try to stabilize the machine by putting your foot on theground.

Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

Keep children out of the mowing area and under the watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

Beforeandwhenbacking,look behindanddown for small children.

Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

IV. SERVICE

Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel container inside where there is an open flame, such as a water heater.

Never run a machine inside a closed area.

Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

Never tamper with safety devices. Check their proper operationregularly.

Keep machine free of grass, leaves, or other debris buildup. Cleanoilorfuelspillage. Allowmachinetocoolbefore storing.

Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

Never make adjustments or repairs with the engine running.

Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or allowobjectstobethrown. Frequentlycheckcomponents and replace with manufacturer's recommended parts, when necessary.

Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing them.

Check brake operation frequently. Adjust and service as required.

2

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area.

Never carry passengers or children even with the blades off.

Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

Never carry children. They may fall off and be seriously injured or interfere with safe machine operation.

Keep children out of the mowing area and under the watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for small children.

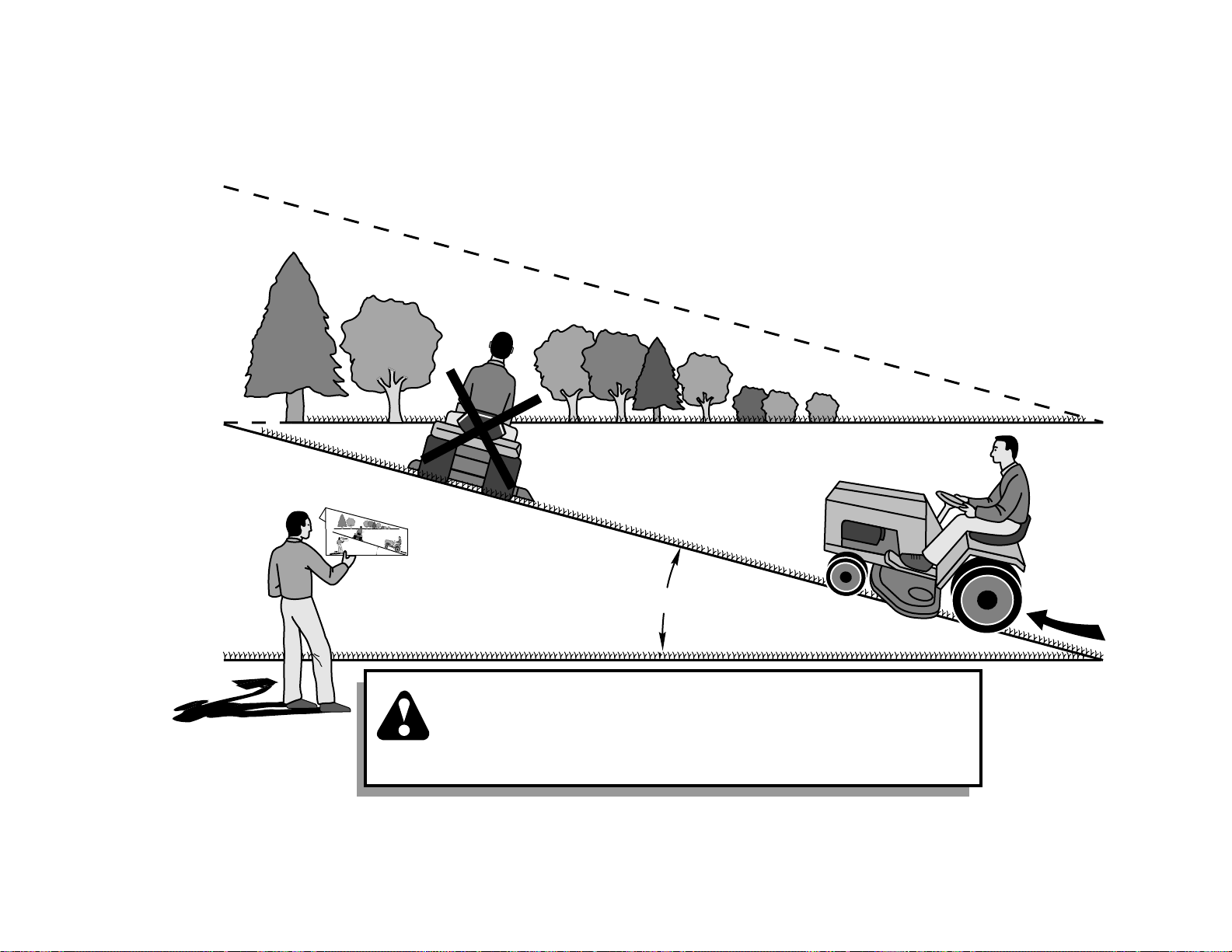

Mow up and down slopes (15° Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.

Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope.

If machine stops while going uphill, disengage blades, shift into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.

CAUTION: In order to prevent accidental starting when setting up, transporting, adjusting or making repairs, always disconnect spark plug wire and placewirewhereitcannotcontactspark plug.

CAUTION: Do not coast down a hill in neutral, you may lose control of the tractor.

CAUTION: Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY

1.25 GALLONS

AND TYPE:

UNLEADED REGULAR





OIL TYPE (API-SF-SJ):

SAE 30 (above 32°F)



SAE 5W-30 (below 32°F)







OIL CAPACITY:

3 PINTS







SPARK PLUG:

CHAMPION RJ19LM

(GAP: .030")











GROUND SPEED (MPH):

FORWARD:





1st

1.1



2nd

2.2



3rd

3.3



4th

4.4



5th

4.9



REVERSE:

1.4







TIRE PRESSURE:

FRONT:

14 PSI



REAR:

12 PSI





CHARGING SYSTEM:

3 AMPS BATTERY



5 AMPS HEADLIGHTS







BATTERY:

AMP/HR:

28



MIN. CCA:

230



CASE SIZE:

U1R





BLADE BOLT TORQUE:

27-35 FT. LBS.







CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/department. We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor properly. Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and using your tractor.

Follow the instructions under “Customer Responsibilities” and “Storage” sections of this owner’s manual.

WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-cov- ered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

A spark arrester for the muffler is available through your nearest authorized service center/department (See REPAIR PARTS section of this manual).

TABLE OF CONTENTS

SAFETY RULES ........................................................

2-3

PRODUCT SPECIFICATIONS .......................................

4

CUSTOMER RESPONSIBILITIES ......................

4, 14-18

ASSEMBLY ................................................................

6-8

OPERATION .............................................................

9-13

MAINTENANCE SCHEDULE .......................................

14

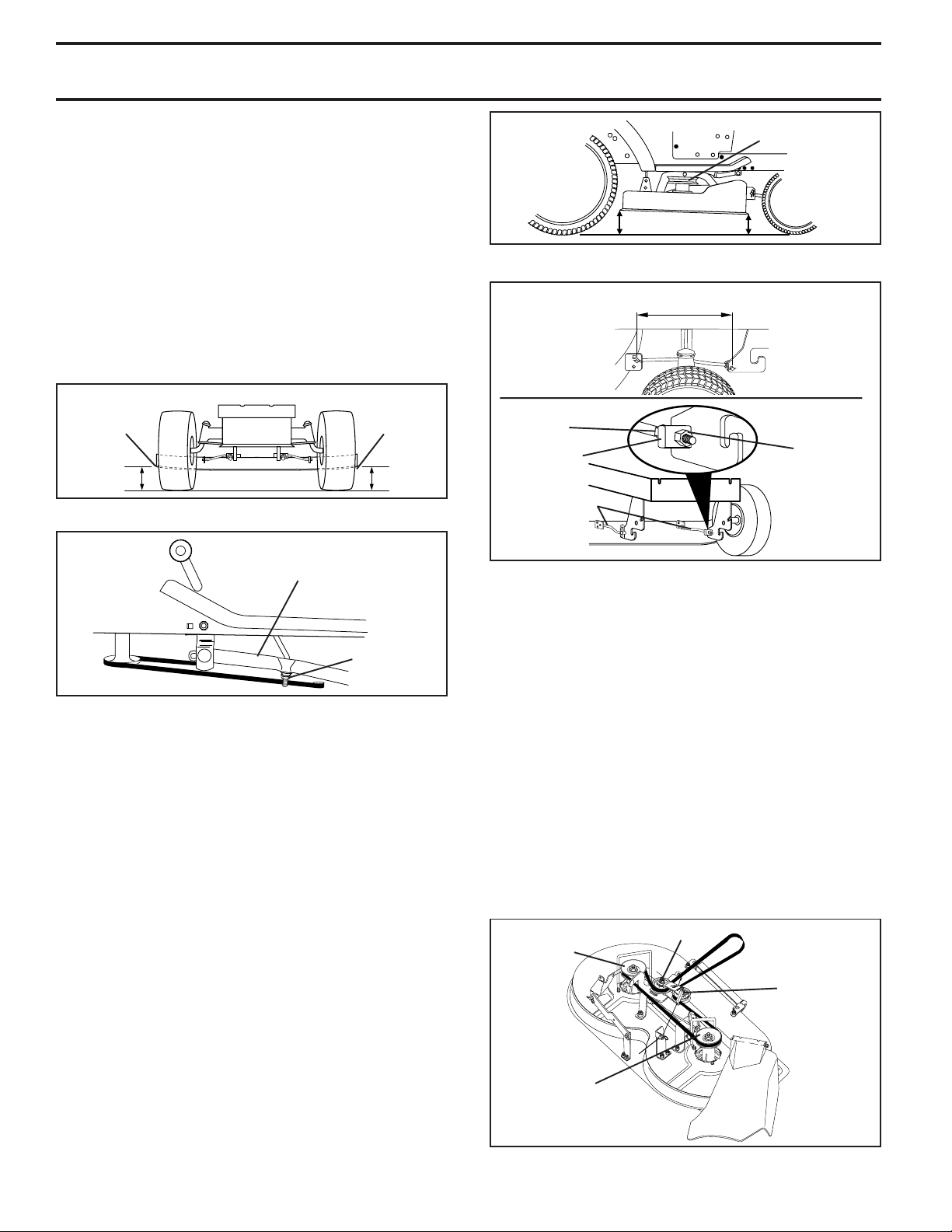

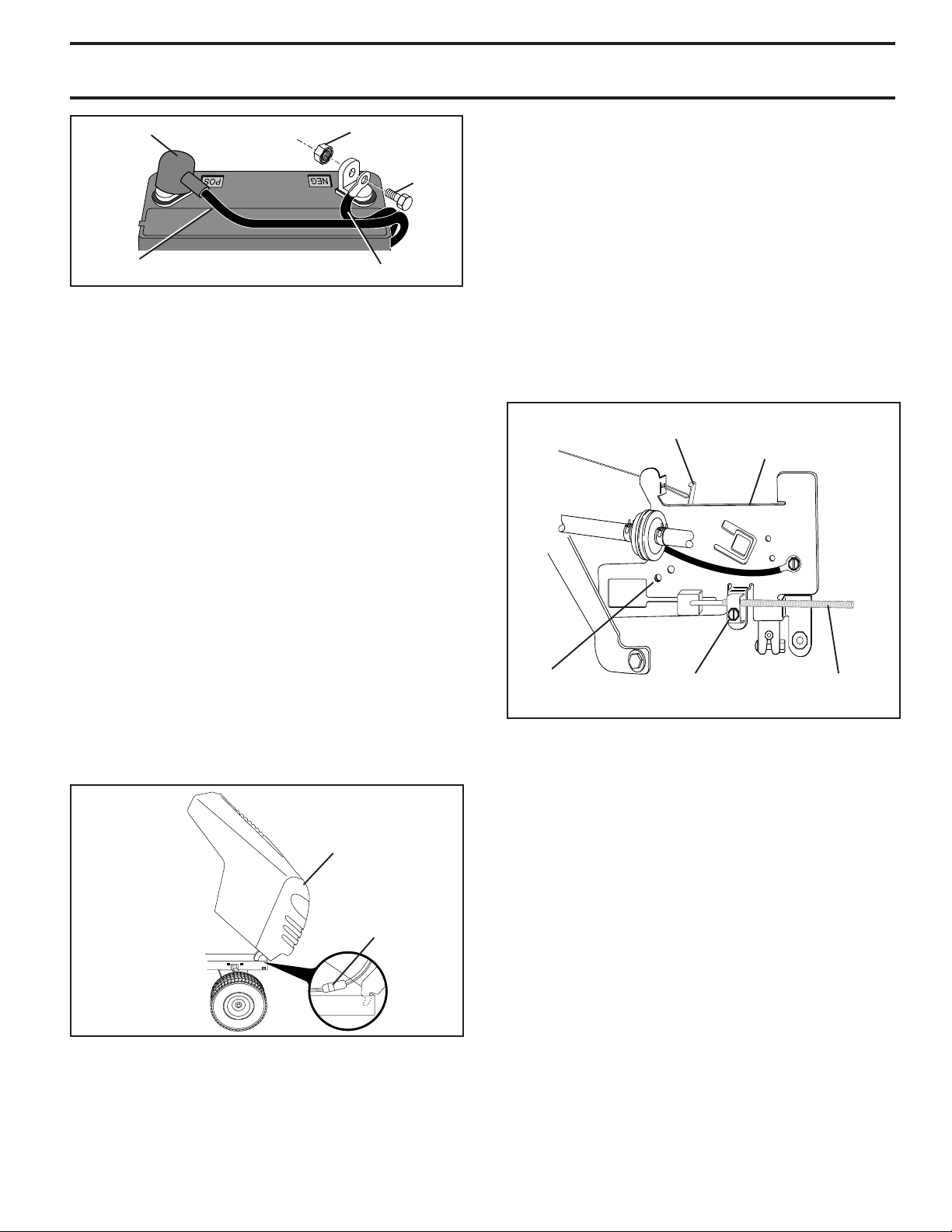

SERVICE AND ADJUSTMENTS .............................

19-23

STORAGE ...................................................................

24

TROUBLESHOOTING .............................................

25-26

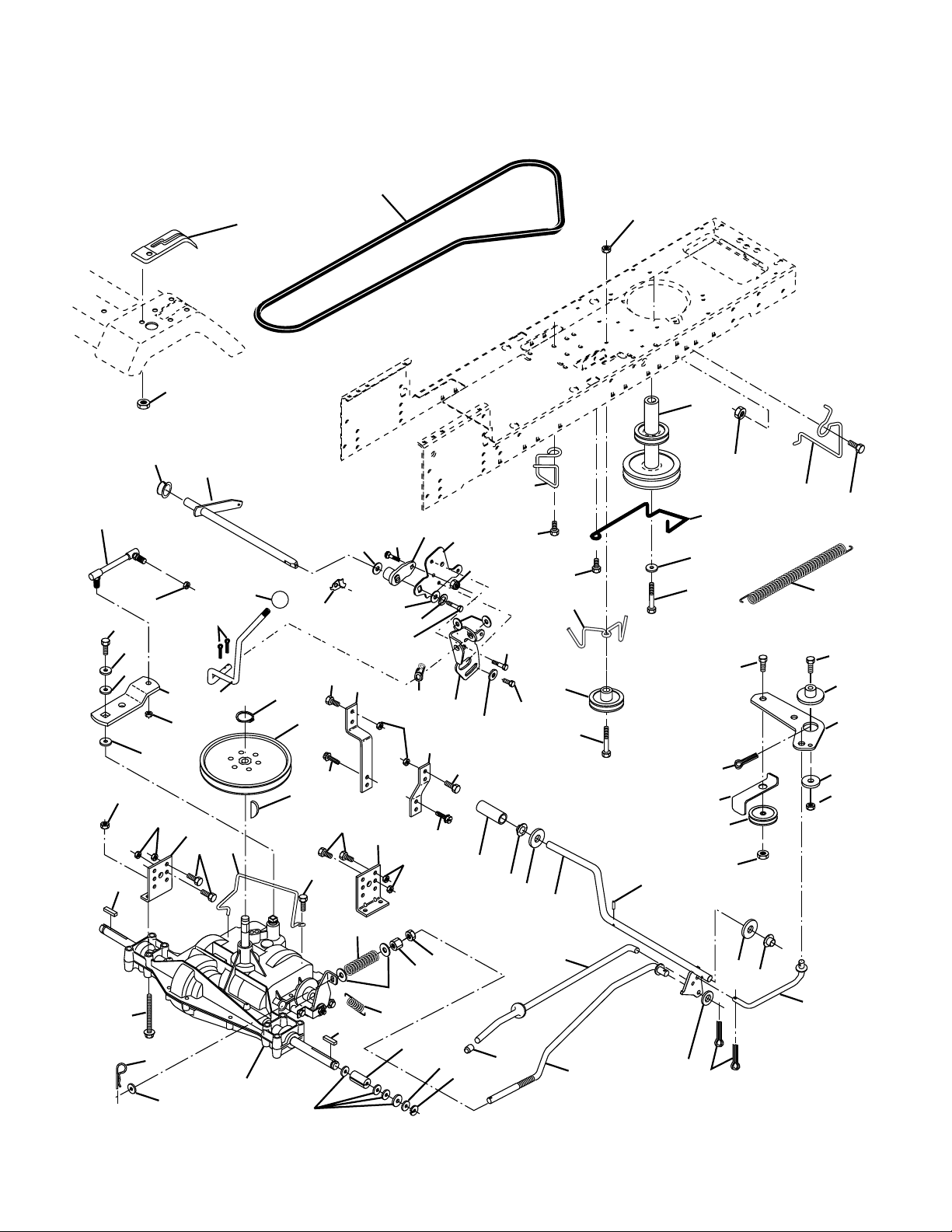

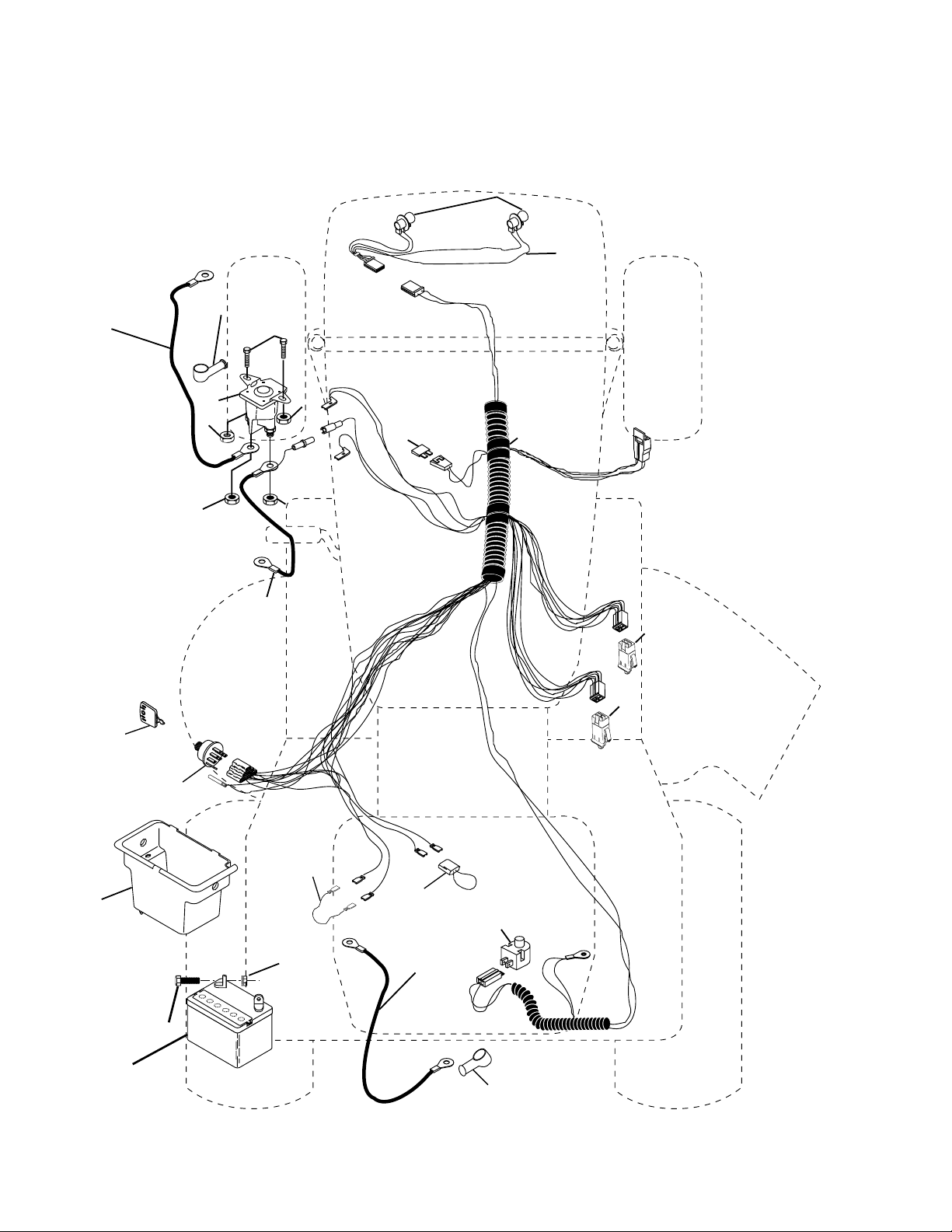

REPAIR PARTS ......................................................

28-43

WARRANTY ................................................................

45

4

UNASSEMBLED PARTS





Steering Wheel

Seat









(1) Washer









17/32 x 1-3/16 x 12 Gauge









(1) Lock

Steering Wheel



Washer 1/2





Insert





Steering













Boot







Steering



(1) Bolt





Extension





Steering Wheel

Shaft











Adapter

















(1) Oil Drain Tube









For Future Use









Keys









(2) Keys









Slope Sheet

(1) Large Flat Washer

(1) Locknut

1/2-20

(1) Hex Bolt

1/4-28 x 1-1/4

(1) Locknut

1/4-28









5

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

(2)

7/16" wrenches

Pliers

(1)

3/4" wrench

Tire pressure gauge

Utility knife

When right or left hand is mentioned in this manual, it means when you are in the operating position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

Remove all accessible loose parts and parts cartons from carton.

Cut, from top to bottom, along lines on all four corners of carton, and lay panels flat.

Check for any additional loose parts or cartons and remove.

BEFORE REMOVING TRACTOR FROM SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

Slide extension shaft onto lower steering shaft. Align mounting holes in extension and lower shafts and install 1/4 hex bolt and locknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO 10-12 FT. LBS TORQUE.

Place tabs of steering boot over tab slots in dash and push down to secure.

INSTALL STEERING WHEEL

Position front wheels of the tractor so they are pointing straight forward.

Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension.

Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter.

Assemble large flat washer, 1/2 hex nut and tighten securely.

Snap steering wheel insert into center of steering wheel.

Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO ROLL OFF SKID.



INSERT



1/2 HEX NUT



LARGE FLAT



WASHER

STEERING

STEERING

BOOT

WHEEL





TABS

ADAPTER





EXTENSION SHAFT



1/4 HEX BOLT

1/4 LOCKNUT



LOWER

TAB

SLOTS

STEERING



SHAFT



FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

Lift seat pan to raised position.

If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. (See “BATTERY” in the Customer Responsibilities section of this manual for charging instructions).

SEAT PAN

LABEL

FIG. 2

6

ASSEMBLY

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment bolt.

Remove adjustment bolt, lock washer and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor.

Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard.

Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan.

Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor.

Pivot seat and pan forward and assemble adjustment bolt, lockwasher and flat washer loosely. Do not tighten

Lower seat into operating position and sit on seat.

Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down.

Get off seat without moving its adjusted position.

Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

SHOULDER

BOLT

FLAT WASHER

LOCK WASHER

ADJUSTMENT

BOLT

FIG. 3

NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Operation section, page 10, for location and function of controls)

Press lift lever plunger and raise attachment lift lever to its highest position.

Release parking brake by depressing clutch/brake pedal.

Place gearshift lever in neutral (N) position.

Roll tractor forward off skid.

Remove banding holding deflector shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See Operation section, page 10, for location and function of controls)

WARNING: Before starting, read, understand and follow all instructions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other people and objects.

Be sure all the above assembly steps have been completed.

Check engine oil level and fill fuel tank with gasoline.

Sit on seat in operating position, depress clutch/brake pedal and set the parking brake.

Place gear shift lever in neutral (N) position.

Press lift lever plunger and raise attachment lift lever to its highest position.

Start the engine. After engine has started, move throttle control to idle position.

Depress clutch/brake pedal into full "BRAKE" position and hold. Move gearshift lever to 1st gear.

Slowly release clutch/brake pedal and slowly drive tractor off skid.

Apply brake to stop tractor, set parking brake and place gearshift lever in neutral position.

Turn ignition key to "OFF" position.

Continue with the instructions that follow.

7

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance.

Reduce tire pressure to PSI shown in “PRODUCT SPECIFICATIONS” section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL BELTS

See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments section of this manual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual.

CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE AND SATISFACTION FROM THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

All assembly instructions have been completed.

No remaining loose parts in carton.

Battery is properly prepared and charged. (Minimum 1 hour at 6 amps).

Seat is adjusted comfortably and tightened securely.

All tires are properly inflated. (For shipping purposes, the tires were overinflated at the factory).

Be sure mower deck is properly leveled side-to-side/ front-to-rear for best cutting results. (Tires must be properly inflated for leveling).

Check mower and drive belts. Be sure they are routed properly around pulleys and inside all belt keepers.

Check wiring. See that all connections are still secure and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY EXTRA ATTENTION TO THE FOLLOWING IMPORTANT ITEMS:

Engine oil is at proper level.

Fuel tank is filled with fresh, clean, regular unleaded gasoline.

Become familiar with all controls - their location and function. Operate them before you start the engine.

Be sure brake system is in safe operating condition.

8

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.



























































































BATTERY

CAUTION OR

REVERSE

FORWARD

FAST

SLOW













WARNING









ENGINE ON

ENGINE OFF

OIL PRESSURE

LIGHTS ON

OVER TEMP



















LIGHT





























































FUEL

CHOKE

MOWER HEIGHT PARKING BRAKE UNLOCKED

MOWER LIFT





LOCKED



P

ATTACHMENT

REVERSE

NEUTRAL

HIGH

LOW

PARKING BRAKE

CLUTCH ENGAGED





























15

15

15



ATTACHMENT

KEEP AREA CLEAR

SLOPE HAZARDS





(SEE SAFETY RULES SECTION)



IGNITION

CLUTCH DISENGAGED



























































































































































































































































































































































































































































































DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

9

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

ATTACHMENT

IGNITION

LIGHT SWITCH

POSITION

SWITCH

CLUTCH







LEVER



LIFT LEVER









PLUNGER

THROTTLE/



ATTACHMENT

CHOKE





LIFT LEVER

CONTROL







MOWER DECK HEIGHT ADJUSTMENT

POSITIONS

CLUTCH/

BRAKE

PEDAL

GEARSHIFT

PARKING LEVER

BRAKE

FIG. 4

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the mower blades, or other attachments mounted to your tractor. LIGHT SWITCH POSITION: Turns the headlights on and off.

THROTTLE/CHOKE CONTROL: Used for starting and controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and braking the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the brake position.

GEARSHIFT LEVER: Selects the speed and direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the engine.

10

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 5)

Your tractor is equipped with an operator presence sensing switch. When engine is running, any attempt by the operator to leave the seat without first setting the parking brake will shut off the engine.

Depress clutch/brake pedal into full “BRAKE” position and hold.

Place parking brake lever in “ENGAGED” position and release pressure from clutch/brake pedal. Pedal should remain in “BRAKE” position. Make sure parking brake will hold tractor secure.



ATTACHMENT CLUTCH LEVER



"ENGAGED" POSITION

THROTTLE/CHOKE



CONTROL LEVER





IGNITION KEY



"DISENGAGED"



POSITION



PARKING BRAKE



"ENGAGED"

"BRAKE"

POSITION

GEARSHIFT

POSITION

LEVER



CLUTCH/BRAKE PEDAL

PARKING BRAKE

"DRIVE" POSITION

"DISENGAGED" POSITION

FIG. 5

STOPPING (See Fig. 5)

MOWER BLADES -

To stop mower blades,move attachment clutch lever to “DISENGAGED” position.

GROUNDDRIVE-

To stop ground drive, depress clutch/brake pedal into full “BRAKE” position.

Move gearshift lever to neutral (N) position.

ENGINE -

Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and allowing engine to idle before stopping may cause engine to “backfire”.

Turn ignition key to “OFF” position and remove key. Always remove key when leaving tractor to prevent unauthorized use.

Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY POSITION OTHER THAN "OFF" WILL CAUSE THE BATTERY TO BE DISCHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor completely, as described above, before leaving the operator's position; to empty grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 5)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the battery charging rate.

Full throttle offers the best bagging and mower performance.

TO MOVE FORWARD AND BACKWARD

(See Fig. 5)

The direction and speed of movement is controlled by the gearshift lever.

Start tractor with clutch/brake pedal depressed and gearshift lever in neutral (N) position.

Move gearshift lever to desired position.

Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP BEFORE SHIFTING OR CHANGING GEARS. FAILURE TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR TRANSAXLE.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 5)

The position of the attachment lift lever determines the cutting height.

Grasp lift lever.

Press plunger with thumb and move lever to desired position.

The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed.

The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth.

For best cutting performance, grass over 6 inches in height should be mowed twice. Make the first cut relatively high; the second to desired height.

11

OPERATION

TO OPERATE MOWER (See Fig. 6)

Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine.

Select desired height of cut.

Start mower blades by engaging attachment clutch control.

TO STOP MOWER BLADES - disengage attachment clutch control.

"ENGAGED" POSITION

ATTACHMENT LIFT

LEVER HIGH POSITION

LOW

POSITION

ATTACHMENT CLUTCH LEVER "DISENGAGED" POSITION

DEFLECTOR

SHIELD

FIG. 6

CAUTION: Do not operate the mower without either the entire grass catcher, on mowers so equipped, or the deflector shield in place.

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.

Choose the slowest speed before starting up or down hills.

Avoid stopping or changing speed on hills.

If slowing is necessary, move throttle control lever to slower position.

If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.

Move gearshift lever to 1st gear. Be sure you have allowed room for tractor to roll slightly as you restart movement.

To restart movement, slowly release parking brake and clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

Raise attachment lift to highest position with attachment lift control.

When pushing or towing your tractor, be sure gearshift lever is in neutral (N) position.

Do not push or tow tractor at more than five (5) MPH.

NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overfill.

For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the Customer Responsibilities section of this manual).

To change engine oil, see the Customer Responsibilities section in this manual.

12

OPERATION

ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP INSURE GOOD COLD WEATHER STARTING.

CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) canattractmoisturewhichleadstoseparation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 5)

When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.

Sit on seat in operating position, depress clutch/brake pedal and set parking brake.

Place gear shift lever in neutral (N) position.

Move attachment clutch to “DISENGAGED” position.

Move throttle control to choke position.

NOTE: Before starting, read the warm and cold starting procedures below.

Insert key into ignition and turn key clockwise to “START” position and release key as soon as engine starts. Do not run starter continuously for more than fifteen seconds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again. If engine still does not start, move the throttle control back to the choke position and retry.

WARM WEATHER STARTING (50° F and above)

When engine starts, move the throttle control to the fast position.

The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above.

COLD WEATHER STARTING ( 50° F and below)

When engine starts, allow engine to run with the throttle control in the choke position until the engine runs roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the temperature.

The attachments can also be used during the engine warm-up period.

NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. See “TO ADJUST CARBURETOR” in the Service and Adjustments section of this manual.

MOWING TIPS

Tire chains cannot be used when the mower housing is attached to tractor.

Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual.

The left hand side of mower should be used for trimming.

Drive so that clippings are discharged onto the area that has been cut. Have the cut area to the right of the machine. This will result in a more even distribution of clippings and more uniform cutting.

When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished (See Fig. 7).

FIG. 7

If grass is extremely tall, it should be mowed twice to reduce load and possible fire hazard from dried clippings. Make first cut relatively high; the second to the desired height.

Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing.

Always operate engine at full throttle when mowing to assure better mowing performance and proper discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired.

When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used.

13

Husqvarna LT125 User Manual

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE



Check Brake Operation



Check Tire Pressure

T

Check Operator Presence and

Interlock Systems

R

Check for Loose Fasteners

A

Sharpen/Replace Mower Blades

C

Lubrication Chart

T

0

Check Battery Level

R

Clean Battery and Terminals



Check Transaxle Cooling



Check V-Belts



Check Engine Oil Level



Change Engine Oil (with oil filter)

E

Change Engine Oil (without oil filter)

N

Clean Air Filter

G

Clean Air Screen

I

Inspect Muffler/Spark Arrester

N

E

Replace Oil Filter (If equipped)



Clean Engine Cooling Fins



Replace Spark Plug



Replace Air Filter Paper Cartridge



Replace Fuel Filter











USE

























S





E









S





R





R









N

A





















U











R





S







S







R





G





EACH





U



U





O



O

R







U



O



O





H



AS



O







H



5



0







0







S







O



H



H





0



SE





T

RE



8



2





5





1







E



Y

Y



Y



Y





Y



R



BEFO



R



R



R



R



ER



O





E

E



E

E



E







B





SERVICE DATES









EV













E

E





E













F











V

V



V



V















E







5

3

4

1,2

1,2

2

2

1, 2

2

2

1

- Change more often when operating under a heavy load or

3

- Replace blades more often when mowing in sandy soil.



in high ambient temperatures.

4

- Not required if equipped with maintenance-free battery.

2

- Service more often when operating in dirty or dusty conditions.

5

- Tighten front axle pivot bolt to 35 ft.-lbs. maximum.







Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain tractor as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tractor.

All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.

Once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear. A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

Check engine oil level.

Check brake operation.

Check tire pressure.

Check operator presence and interlock systems for proper operation.

Check for loose fasteners.



LUBRICATION CHART

SPINDLE ZERK

SPINDLE ZERK

FRONT

FRONT

WHEEL

WHEEL

BEARING

BEARING

ZERK

ZERK





ENGINE

GEARSHIFT

PIVOTS

SAE 30 or 10w30 motor oil

General Purpose Grease

Refer to Customer Responsibilities “ENGINE” Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POWDERED GRAPHITE TYPE

14 LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual).

TIRES

Maintain proper air pressure in all tires (See “PRODUCT SPECIFICATIONS” section of this manual).

Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are working properly. If your tractor does not function as described, repair the problem immediately.

The engine should not start unless the clutch/brake pedal is fully depressed and attachement clutch control is in the disengaged position.

When the engine is running, any attempt by the operator to leave the seat without first setting the parking brake should shut off the engine.

When the engine is running and the attachment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine.

The attachment clutch should never operate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace bent or damaged blades.

BLADE REMOVAL (See Fig. 8)

Raise mower to highest position to allow access to blades.

Remove blade bolt, lock washer and flat washer securing blade.

Install new or resharpened blade with trailing edge up towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL ASSEMBLY.

Reassemble blade bolt, lock washer and flat washer in exact order as shown.

Tighten blade bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

MANDREL TRAILING ASSEMBLY EDGE UP

CENTER

HOLE

LOCK WASHER

STAR

BLADE

FLAT WASHER

BLADE BOLT (GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 8

TO SHARPEN BLADE (See Fig. 9)

NOTE: We do not recommend sharpening blade - but if you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An unbalanced blade will cause excessive vibration and eventual damage to mower and engine.

The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen while on the mower.

To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone balancer, follow the instructions supplied with balancer.)

NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not.

Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.

CENTER HOLE

5/8" BOLT

BLADE

OR PIN



FIG. 9

15

Loading...
+ 33 hidden pages
