Ride Mower
LT1538 D
954569776
Illustrated
Parts List
2003-01
I0302004
Repair Parts Manual
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
SCHEMATIC
AMMETER
(OPTIONAL)
RED
BLACK
A
S
B
G
A2L
IGNITION
SWITCH
RED
WHITE
BLACK
BATTERY
FUSE
CLUTCH / BRAKE
(PEDAL UP)
WHITE
BLACK
RED
SOLENOID
M
STARTER
WHITE
BLACK
M
A1
FUEL
BLUE
ATT'MENT CLUTCH
LINE
(CLUTCH OFF)
GREEN
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GREEN
85 86
BLUE
87
OPERATOR
30
87A
BLUE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
BLACK
PRESENCE RELAY #1
85 86
BLUE
87
87A
OPERATOR
PRESENCE RELAY #2
30
BLACK
IGNITION
UNIT
TO STATOR
BRAKE RELAY
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
STATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
CHARGING SYSTEM OUTPUT
RED
ORANGE
3AMP DC @ 3600 RPM
LIGHTING SYSTEM OUTPUT
5 AMP AC 3600 RPM
DIODE
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
87
87A
30
RELAY
8586
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
NON-REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
27
BLACK
HEADLIGHTS
REMOVABLE
CONNECTIONS
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
ELECTRICAL
42
24
22
21
41
33
30
27
43
27
25
27
27
81
81
26
40
16
16
48
52
8
28
27
2
1
29
90
28
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery 12 Volt 28 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20unc X 3/4
8 532 17 66-89 Battery Box
16 532 17 61-37 Switch Interlock Push-In
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga 11" red
25 532 14 61-47 Cable Battery 6 Ga 44" red w/16 wire
26 532 17 51-58 Fuse 20 AMP
27 873 51 04-00 Nut Keps Hex 1/4-20 Unc
28 532 12 47-73 Cable Ground 6 Ga 12" black
29 532 16 07-84 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign
40 532 17 97-23 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
48 532 14 08-44 Adapter Ammeter
52 532 14 19-40 Protection Wire Loop
81 532 10 97-48 Relay Asm.
90 532 18 04-49 Cover Terminal
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
CHASSIS AND ENCLOSURES
31
209
209
10
30
18
17
259
212
28
10
5
5
261
58
260
258
39
166
208
206
60
9
209
208
207
64
74
26
26
143
38
144
144
60
26
26
142
3
3
14
37
3
145
37
1
13
208
11
3
3
3
2
142
3
38
14
30
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar, 12 Ga.
3 817 06 06-12 Screw 3/8-16 x 3/4
5 532 15 52-72 Bumper Hood/Dash
9 532 18 58-66 Dash Slkscr
10 872 14 06-08 Bolt Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash Lh
13 532 18 17-19 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 52-11 Hood LT/PL
18 532 18 49-21 Bumper Hood
26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 Unc
28 532 18 52-92 Grille/Lens Asm
30 532 18 05-07 Fender Footrest
31 532 13 99-76 Bracket Fender
37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot
58 532 15 01-27 Air Duct Engine P/L
60 872 14 06-06 Bolt RdHd Sqnk 3/8-16 x 3/4
64 532 15 47-98 Dash Lower STLT
74 873 68 06-00 Nut Crownlock 3/8-16
142 532 17 57-02 Plate Reinforcement STLT
143 532 15 49-66 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Footrest
145 532 15 65-24 Rod Pivot Chassis/Hood
166 532 17 18-75 Screw HWHD Hi-Lo #13-16 x 3/4
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2
208 817 67 06-08 Screw Thdrol 3/8-16x1/2 Ty-tt
209 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
212 532 18 35-48 Insert Lens Refl ective
258 532 18 52-14 Lens Husq. Laser LT Clear RH
259 532 18 52-13 Lens Husq. Lens LT Clear LH
260 532 18 54-29 Cover Lens Husq. Laser
261 532 18 54-33 Insert Grille
- - 532 00 54-79 Plug Button
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
DRIVE
57
13
84
90
16
14
112
77
85
197
11
52
80
85
30
32
89
81
10
8
170
21
51
63
212
59
159
14
51
82
5
6
158
165
18
162
83
156
62
61
168
166
35
56
41
38
39
37
36
34
161
198
169
18
4
3
6
79
6
164
163
113
32
30
52
66
65
64
50
27
49
47
120
70
116
55
202
150
48
151
51
145
96
26
25
24
19
26
26
2
77
1
75
74
78
76
29
28
22
26
27
36
35
53
32
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle Peerless 206-545C
Order parts from transaxle manu-
facturer
2 532 14 66-82 Spring Return Brake T/a Zinc
3 532 12 36-66 Pulley Transaxle 18” tires
4 812 00 00-28 Ring Retainer # 5100-62
5 532 12 15-20 Strap Torque 30 Degrees
6 817 06 05-12 Screw Thdrol 5/16-18
8 532 16 58-66 Rod Shift Fender Adjust Lt
10 876 02 04-16 Pin Cotter 1/8 X 1 Cad
11 532 10 57-01 Washer Plate Shf 388 Sq Hole
13 874 55 04-12 Bolt 1/4-28 Unf Gr 8 W/Patch
14 810 04 04-00 Washer Lock Hvy Helical
16 873 80 05-00 Nut Lock Hex w/Ins 5/16-18
18 874 78 06-16 Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5
19 873 80 06-00 Nut Lock 3/8-16 Unc
21 532 10 69-33 Knob
22 532 13 08-04 Rod Brake Blk Zinc 26 840
24 873 35 06-00 Nut Hex Jam 3/8-16 Unc
25 532 10 68-88 Spring Rod Brake 2 00 Zinc
26 819 13 13-16 Washer 13/32 X 13/16 X 16 Ga
27 876 02 04-12 Pin Cotter 1/8 X 3/4 Cad
28 532 17 57-65 Rod Brake Parking LT/YT
29 532 07 16-73 Cap Brake Parking Black
30 532 17 49-73 Bracket Mtg Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18unc X 3/4
34 532 17 55-78 Shaft Asm Pedal Foot
35 532 12 01-83 Bearing Nylon Blk 629 Id
36 819 21 16-16 Washer 21/32 X 1 X 16 Ga
37 532 12 49-63 Pin Roll 3/16 X 1”
38 532 17 91-14 Pulley Idler Composite
39 874 76 06-48 Bolt Fin Hex 3/8-16 Unc x 3
41 532 17 55-56 Keeper Belt Idler Flat
47 532 12 77-83 Pulley Idler V Groove Plastic
48 532 15 44-07 Bellcrank Clutch Grnd Driv
49 532 12 32-05 Retainer Belt Style Spring
50 872 11 06-12 Bolt Carr. 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut Crownlock 3/8-16 Unc
52 873 68 05-00 Nut Crownlock 5/16-18 Unc
53 532 10 57-10 Link Clutch
55 532 10 57-09 Spring Return Clutch 6 75
56 817 06 06-20 Screw 3/8-16 x 1 1/4
57 532 13 08-01 V-Belt Ground Drive 95 25
59 532 16 96-91 Keeper Belt Span Ctr
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover Pedal Round
KEY PART
NO. NO. DESCRIPTION
63 532 17 54-10 Engine Pulley LT/YT
64 871 17 07-64 Bolt Hex
65 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16
66 532 15 47-78 Keeper Belt Engine Foolproof
70 532 13 46-83 Guide Belt Mower Drive RH
74 532 13 70-57 Spacer Axle
75 532 12 17-49 Washer 25/32 X 1 1/4 X 16 Ga
76 812 00 00-01 E-ring #5133-75
77 532 12 35-83 Key Square 2 0 X 1845/ 1865
78 532 12 17-48 Washer 25/32 X 1-5/8 X 16 Ga
79 532 12 50-96 Key Woodruff #9 3/16 x 3/4
80 532 13 14-86 Arm Shift
81 532 16 55-94 Shaft Asm Cross
82 532 16 57-11 Spring Torsion T/a
83 819 17 12-16 Washer 17/32 X 3/4 X 16 Ga
84 532 16 62-28 Link Transaxle
85 532 15 03-60 Nut Lock Center 1/4 - 28 FNTHD
89 532 16 65-56 Console Shift STLT
90 532 12 43-46 Nut Self-thd Wsh-hd 1/4 Zinc
96 532 12 47-88 Retainer Spring 1”
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
113 532 12 72-85 Strap Torque LT
116 872 14 06-08 Bolt Rdhd Sq Neck 3/8-16 x 1.0
120 873 90 06-00 Nut Lock Flg. 3/8-16 Unc
145 874 49 05-40 Bolt Hex 5/16-18 Gr. 5
150 532 17 54-56 Spacer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrted 5/16ID x 1.125
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Tapered Flange Shift Lt
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873 68 04-00 Nut Crownlock 1/4-20 Unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819 09 10-10 Washer 5/8 x .281 x 10 Ga
165 532 16 56-23 Bracket Pivot Lever
166 532 16 68-80 Screw 5/16-18 x 5/8
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
169 532 16 55-80 Plate Fastening Lt
170 532 17 83-94 Keeper, Belt T/A D/P
197 532 16 96-13 Nyliner Snap-In
198 532 16 95-93 Washer Nyl 7/8 ID x 105”
202 872 11 06-14 Bolt RDHD 3/8-16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut, Hex Flange Lock
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76

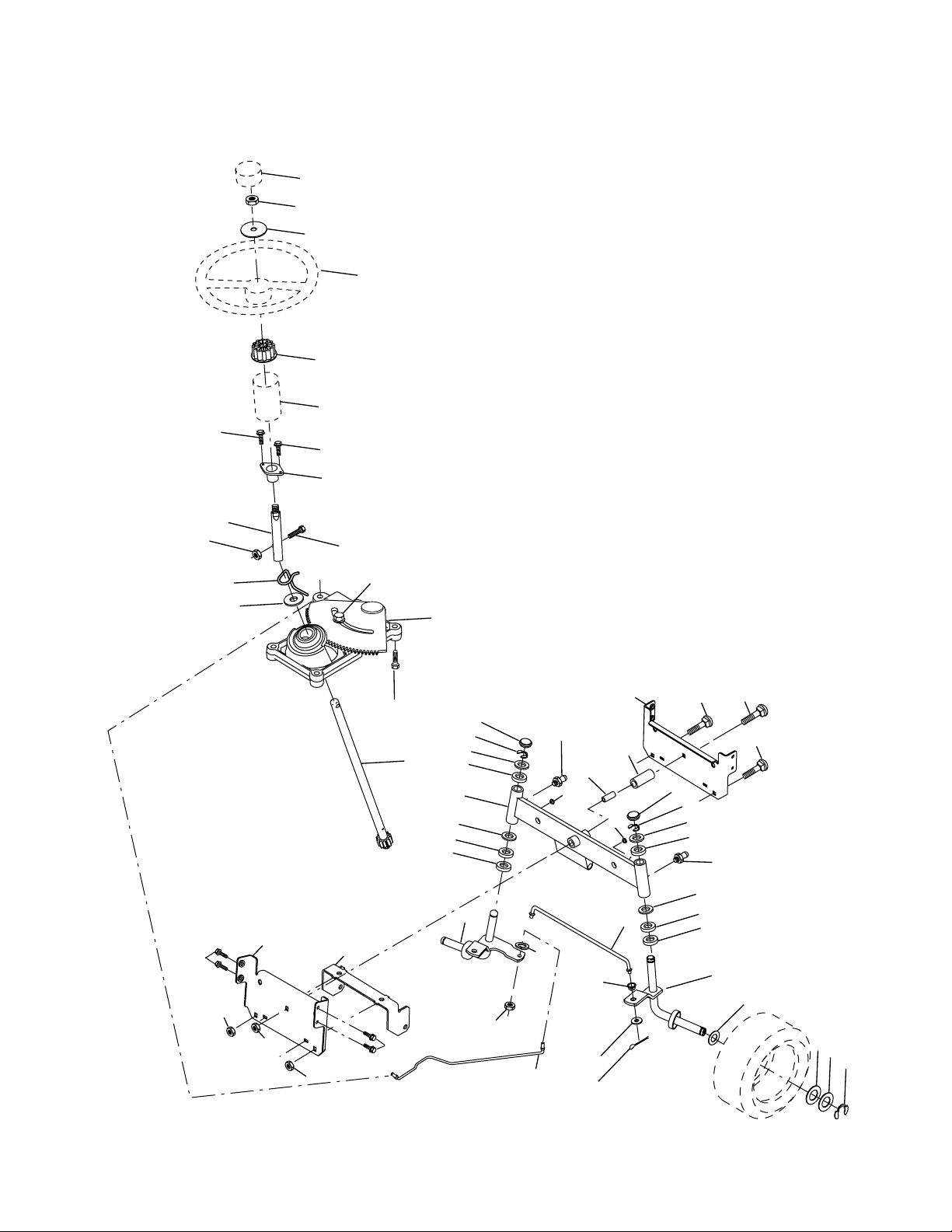

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
91
43
68
29
15
15
54
88
71
29
17
82
29
15
46
8
6
9
2
7
9
5
3
40
47
65
85
11
10
68
13
46
8
85
32
26
28
30
6
9
67
67
67
47
7
9
5
4
43
43
6
8
34
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 17 59-04 Wheel Steering
2 532 17 51-31 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 X 1-5/8 X 16 Ga
7 819 27 20-16 Washer 27/32 X 1-1/4 X 16 Ga
8 812 00 00-29 Ring Klip #t5304-75
9 532 12 49-37 Bearing Col Strg Blk
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 Unf
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 18 06-41 Shaft Asm Strg
26 532 12 68-47 Bushing Link Drag Blk LR
28 819 13 14-16 Washer 13/32 X 7/8 X 16 Ga
29 817 06 06-12 Screw 3/8-16x3/4
30 876 02 04-12 Pin Cotter 1/8 X 3/4 Cad
32 532 13 04-65 Rod Tie Wire Form 19 75 Mech
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw
38 532 17 59-05 Cap Wheel Steering
39 819 18 38-12 Washer 9/16 ID x 2-3/8 OD. 12
40 532 12 47-01 Lock nut
41 532 10 07-11 Adaptor Wheel Strg
42 532 16 96-33 Boot Steering Shaft
43 532 12 17-49 Washer 25/32 X 1 1/4 X 16 Ga
44 532 18 06-40 Extension Steering Shaft
46 532 12 12-32 Cap Spindle Fr Top Blk
47 532 18 32-26 Fitting Grease
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28 Unf x 1-1/4
65 532 16 03-67 Spacer Brace Axle
67 872 14 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
85 532 13 38-35 Fastner Christmas Tree
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
SEAT ASSEMBLY
1
8
8
9
7
5
14
9
7
10
6
22
24
26
16
25
15
23
13
17
KEY PART
NO. NO. DESCRIPTION
1 532 12 74-26 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16unc X 1
4 819 13 16-10 Washer 13/32 X 1 X 10 Ga
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 Unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 X 1
9 819 13 16-14 Washer 13/32 X 1 X 14 Ga.
10 532 18 24-93 Pan Seat
12 532 12 12-46 Bracket Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20x1-1/2
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
15 532 13 43-00 Spacer Split 28x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 Unc-2A
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
23 871 11 08-14 Bolt, Hex Black
24 819 17 19-12 Washer 17/32 X 1-3/16 X 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 X 62
26 810 04 08-00 Washer Lock
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
36
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
DECALS
7
9
5
6
14
KEY PART
NO. NO. DESCRIPTION
1 532 15 63-69 Decal Oper. Step Thru Eng/Fr
3 532 18 51-92 Decal Hood RH
4 532 18 51-93 Decal Hood LH
5 532 18 09-41 Decal Hood Cust.
6 532 18 58-35 Decal Engine
7 532 18 51 44 Decal Replacement
8 532 17 05-63 Decal Warning
9 532 17 68-22 Decal Fender
10 532 15 71-40 Decal Fender Danger Eng/Fr
3
4
8
KEY PART
NO. NO. DESCRIPTION
14 532 13 68-32 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 17 12-85 Pad Footrest RH
- - 532 17 12-84 Pad Footrest LH
- - 532 18 67-86 Manual Owner's (English)
10
20
1
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
4,10
7
3,9
11
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fit ting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 12 46-35 Tire R Ts 18 x 8 5-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
ENGINE
2
32
1
38
101
16
105
44
46
14
105
3
13
77
101
80
4
31
40
33
37
29
33
OPTIONAL EQUIPMENT
Spark Arrester
www.mymowerparts.com
45
23
38
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-05 Control Th/ch Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine, Kohl CV460
(Order parts from engine manufacturer)
4 532 17 46-67 Muffl er
13 532 16 38-31 Gasket Eng
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
23 532 16 98-37 Shield Brn/Dbr Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 49-00 Tank Fuel Front
32 532 14 05-27 Cap Asm Fuel W/sym Vented
33 532 12 34-87 Clamp Hose Black
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
40 532 12 40-28 Bush ing Snap Nyl Blk Fuel Line
44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga
77 819 10 12-16 Washer 5/16 x 3/4 x 16 Ga.
80 874 76 05-08 Bolt Hex Hd 5/16-18unc x 1/2
101 532 16 33-05 Nut Flange M8-1.25
105 817 12 06-16 Screw 3/8-16 x 1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
MOWER DECK
152
151
1
21
158
153
157
154
153
156
109
67
89
40
146
68
155
107
4
2
3
8
148
108
36
89
56
36
69
55
54
123
113
40
150
33
32
31
2
45
110
122
53
30
21
88
87
89
26
28
25
24
21
2
2
86
130
16
131
2
15
29
14
21
23
129
21
92
27
11
13
10
149
4
9
8
92
5
6
3
19
40
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 17 02-80 Mower Deck Assembly
2 872 14 05-06 Bolt
3 532 13 80-17 Bracket Assembly,Sway Bar
4 532 16 99-70 Bracket Sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 85 08-57 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 810 03 06-00 Washer, Lock Hvy Hlcl 3/8
10 532 14 02-96 Washer, Hardened
(The following blades are available)
11 532 13 41-48 Blade, 38" Mulching Std (For
mulching mowers only)
532 13 97-74 Blade, 38" Mulching Premium (For
better war when muclching)
532 13 84-97 Blade, 38" Hi'Lift (For bagging and
discharging)
13 532 13 76-45 Shaft Assembly, Mandrel, Vented
14 532 12 87-74 Housing, Mandrel, Vented
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper, Mower Deck
19 532 13 28-27 Bolt, Shoulder
21 873 68 05-00 Nut Crownlock 5/16-18
23 532 13 76-07 Bracket, Mower Defl ector
24 532 10 53-04 Cap, Sleeve
25 532 12 37-13 Spring, Torsion, Defl ector
26 532 11 04-52 Nut, Push
27 532 17 59-43 Shield, Defl ector
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 10 67-35 Rod, Hinge
30 532 17 39-84 Screw Thdrol Hex
31 532 12 99-63 Washer, Spacer
32 532 15 35-32 Pulley, Mandrel
33 532 17 83-42 Nut, Toplock, Flanged
36 532 13 14-94 Pulley, Idler, Flat
40 873 68 06-00 Nut Crownlock 3/8-16
45 532 12 47-88 Retainer, Spring
53 532 13 08-40 Brake Assembly
54 532 17 85-15 Washer, Hardened
55 532 13 38-40 Idler Arm Assembly
56 532 16 57-23 Spacer, Retainer
67 532 10 69-32 Knob RD 3/8-16 Plstc Thd
KEY PART
NO. NO. DESCRIPTION
68 532 14 42-00 Belt
69 876 02 03-12 Pin, Cotter 3/32 x 3/4
86 532 12 50-74 Runner LH
87 532 12 87-72 Runner RH
88 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
89 819 13 16-12 Washer 13/32 x 1 x 12 Ga
92 873 80 06-00 Nut Lock Hex 3/8-16
107 532 13 35-02 Spacer, Retainer
108 532 13 35-03 Stiffener, Idler Arm
109 874 76 06-40 Bolt Hex Fin 3/8-16 Unc x 2-1/2
110 532 14 25-87 Upstop Deck Front
113 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
122 532 13 12-89 Rod, Brake, LH
123 532 16 99-71 Rod, Brake, RH
129 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
130 874 78 06-16 Bolt Fin Hex 3/8-16 x 1.0
131 872 14 06-08 Bolt RDHD 3/8-16 x 1
146 532 16 58-91 Bolt Carriage Idler
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow Zinc
150 819 09 12-16 Washer 9/32 x 3/4 x 16 Ga.
151 532 16 96-70 Bracket Clutch
152 532 17 27-58 Cable Clutch
153 532 16 96-74 Washer Flat 3/8” Type B
154 532 16 96-75 Spring Retainer
155 532 16 96-71 Spring Retention Lever
156 532 16 96-72 Spacer
157 532 16 96-69 Rod Clutch
158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
- - 532 13 07-94 Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware
Only-Pulley Not Included)
- - 532 17 03-17 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
MOWER LIFT
5
7
8
13
13
11
19
31
32
31
13
4
12
19
20
5
20
1
4
20
18
17
16
15
3
2
6
6
13
20
15
32
42
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LT1538 (LT1538D), PRODUCT NO. 954 56 97-76
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger LT
2 532 15 94-71 Shaft Asm Lift
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer PLTD 21/32 X 1 X 21ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 10 94-13 Grip Handle Bi cy cle
8 532 12 45-26 Button Plunger
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 Unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock W/Wsh 1/2-13 Unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Spring, Retainer
31 532 16 98-65 Bearing Pvt. Lift
32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
