Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ride Mower
YTH1542XP
(YTKH1542XPA), 954568465
Illustrated
Parts List
2004-03
I0302029
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
BROWN
RED
BATTERY
A
RED
FUSE
WHITE
S
B
BLACK
M
A1
CG
B
RED
WHITE
F
H
A2L
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLACK
CLUTCH / BRAKE
BLACK
(PEDAL UP)
RED
BLACK
RED
WHITE
SOLENOID
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
RED
M
STARTER
BLACK
GROUNDING
BLUE
HOUR
METER
(OPTIONAL)
CONNECTOR
BLACK
IGNITION SWITCH
OFF
CIRCUITPOSITION
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
RED
REMOVABLE
CONNECTIONS
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
RED
PTO SWITCH
CIRCUITPOSITION
OFF
ON
C+G,B+H
C+F,B+E,A+D
NON-REMOVABLE
CONNECTIONS
IGNITION
UNIT
REGULATOR
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
BROWN
HEADLIGHTS
G
FC
H
D
PTO SWITCH
CONNECTOR
BLACK
E
B
A
27
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
ELECTRICAL
22
21
42
24
41
80
33
30
27
43
27
25
27
27
40
26
16
12
50
11
10
27
D
.
C
.
A
M
P
E
R
E
S
45
55
89
29
46
28
2
1
8
12
28
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery 12 Volt 35 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 12 48-86 Box Battery
10 532 14 52-11 Bolt Btr Frt 1/4-20 x 7.5
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut Push Nylon 1/4 Battery Frt.
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 14 61-48 Cable Battery 6 Ga. 22" red w/16 wire
25 532 12 47-80 Cable Battery 6 Ga. 11" red
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 6 Ga. 21" black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
40 532 18 80-24 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 28-22 Ammeter Rectangular 15 Amp
46 532 16 96-35 Meter Hour
50 532 17 46-51 Switch PTO
55 817 49 05-08 Screw Thdrol 5/16-18 x 1-1/2 Tyt
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
CHASSIS AND ENCLOSURES
259
212
28
17
213
258
212
90
208
31
209
11
217
10
159
166
280
30
55
277
9
276
209
53
166
10
209
209
280
214
58
64
219
39
158
20
278
23
219
206
209
60
142
2
26
26
143
74
209
144
38
142
14
209
60
37
144
26
26
38
14
1
13
145
37
208
chassis_elite husqy_1
30
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar
9 532 19 02-51 Dash P/L Husq
10 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1
11 532 17 49-96 Panel Dash Lh
13 532 17 21-06 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 99-77 Hood
20 532 18 06-79 Plate Battery
23 532 12 40-28 Bushing Snap
26 873 80 06-00 Nut Lock w/Insert 3/8-16 unc
28 532 18 99-80 Grille Lens Asm (Includes Key Nos. 212, 258-259)
30 532 18 54-32 Fender
31 532 13 99-76 Bracket
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot Laser
53 532 18 83-72 Bracket Dash RH
55 532 18 83-73 Bracket Dash LH
58 532 18 44-60 Duct Air
60 872 14 06-06 Bolt RDHD SQNK 3/8-16 x 3/4
64 532 17 49-97 Dash Lower Stlt
74 873 68 06-00 Nut Crownlock 3/8-16
90 532 12 43-46 Nut Self-Thd. Wsh-Hd 1/4 Zinc
142 532 17 57-02 Plate Reinforcement Stlt
143 532 18 66-89 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Ft Rest
145 532 15 65-24 Rod Pivot Chassis Hood
158 532 16 20-37 Bracket Parking Brake
159 532 18 54-34 Cupholder YTGT Grey
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-TT
209 817 00 06-12 Screw Hex Wsh Thdr. 3/8-16 x 3/4 BL
212 532 18 82-67 Insert, Grille
213 532 18 99-79 Skirt Side LH
214 532 18 99-78 Skirt Side RH
217 532 18 54-36 Console Fuel Window STLT
219 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
258 532 18 99-81 Lens Husq. Laser LT Clear RH
259 532 18 99-82 Lens Husq. Laser LT Clear LH
276 532 18 92-74 Bumper Hood RH
277 532 18 92-75 Bumper Hood LH
278 532 18 95-85 Screw Quadx Wshd #10-14 x 1
280 817 06 06-16 Screw 3/8-16 x 1
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

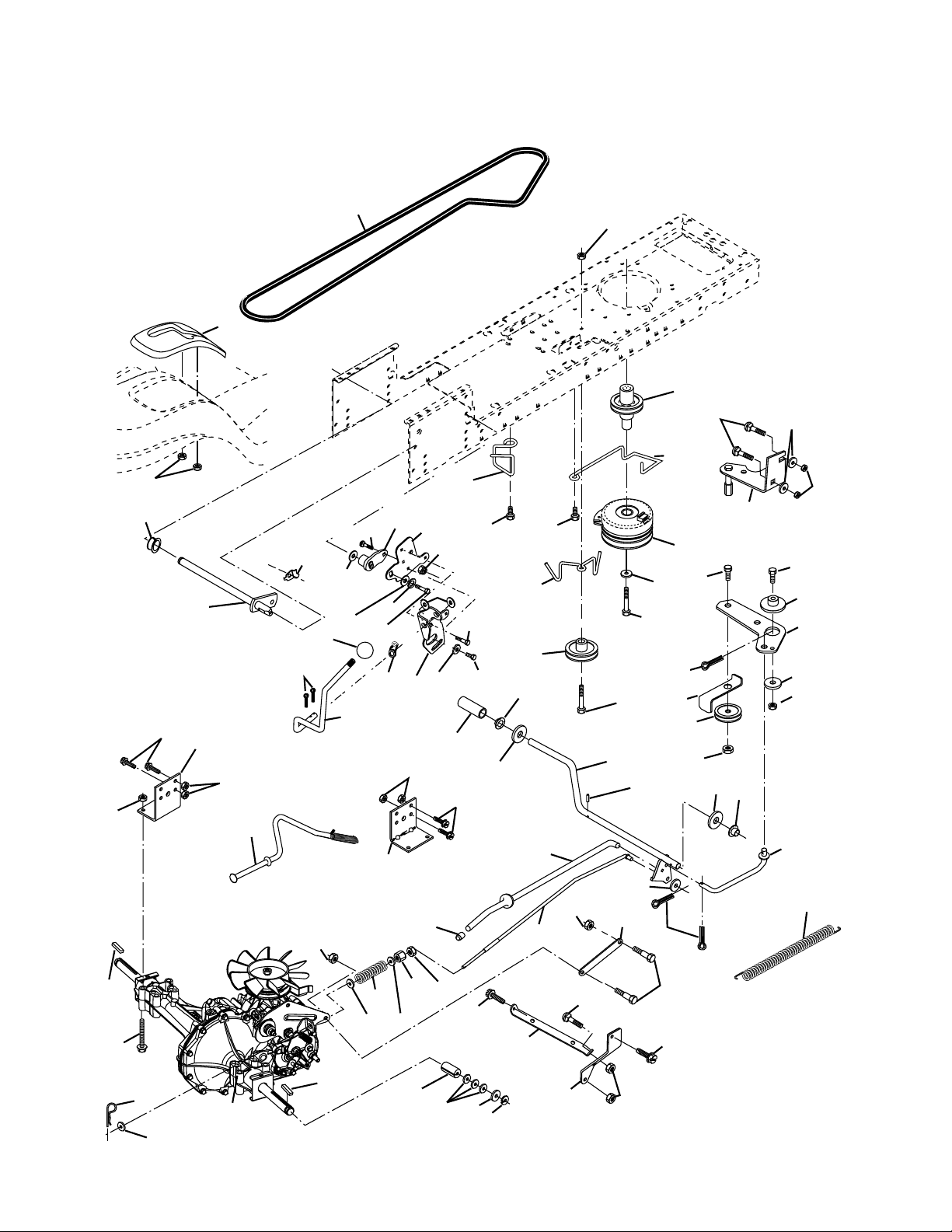

DRIVE
57
120
89
63
16
90
197
32
81
30
52
95
169
10
21
198
112
8
161
14
163
82
30
159
165
52
158
162
83
156
62
59
168
32
166
61
36
35
41
38
28
56
34
39
37
20
65
33
66
9
50
27
49
47
120
36
144
52
23
202
150
48
151
51
35
53
77
15
96
26
26
16
26
19
74
29
75
24
263
78
76
16
25
26
77
1
22
200
71
73
84
27
199
263
16
drive-hydro.stlt_51
55
32
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle, Hydro 314-0510
(Order Parts From Transaxle
Manufacturer)
8 532 16 58-66 Rod Shift Fender Adjust STLT
9 532 16 08-89 Clutch Elecric
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical
15 874 49 05-44 Bolt Hex 5/16-18 unc Flghd
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc
19 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc
20 532 15 02-80 Bolt, Hex 7/16-20 x 4-1/4
21 532 14 08-45 Knob Deluxe 1/2-13 unc BLK
22 532 16 94-98 Rod, Brake Hydro
23 532 17 12-58 Bracket Asm Anti-Rot EVX
24 873 35 06-00 Nut Hex Jam 3/8-16 unc
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap,Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
33 872 14 05-06 Bolt Carriage 5/16-18 unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite, Flat
39 872 11 06-22 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove Plastic
48 532 15 44-07 Bellcrank Clutch Grnd Drv STL
49 532 12 32-05 Retainer, Belt Style Spring
50 872 11 06-12 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crown Lock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1.0
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
KEY PART
NO. NO. DESCRIPTION
62 532 12 48-72 Cover, Pedal
63 532 17 54-14 Pulley, Egine
65 810 04 07-00 Washer Lock Hvy HLCL Spr 7/16
66 532 15 47-78 Keeper Belt Engine
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
81 532 16 55-96 Shaft Asm Cross Tapered
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 16 65-10 Console, Shift
90 532 12 43-46 Nut Self Thd 1/4
95 532 17 02-01 Control Asm. Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
120 873 90 06-00 Nut Lock Flg 3/8-16
144 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrted 5/16 ID x 1.125
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
169 532 16 55-80 Plate Fastening STLT/CRD
197 532 16 96-13 Nyliner Snap 5/8" ID
198 532 16 95-93 Washer Nyl 7/8 ID x .105 Hyd
199 532 16 96-12 Bolt Shoulder 5/16-18 unc
200 872 14 05-08 Bolt Rdhd Sqnk 5/16-18 unc x 1
202 872 11 06-14 Bolt 3/8-16 unc x 1-3/4 Gr. 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

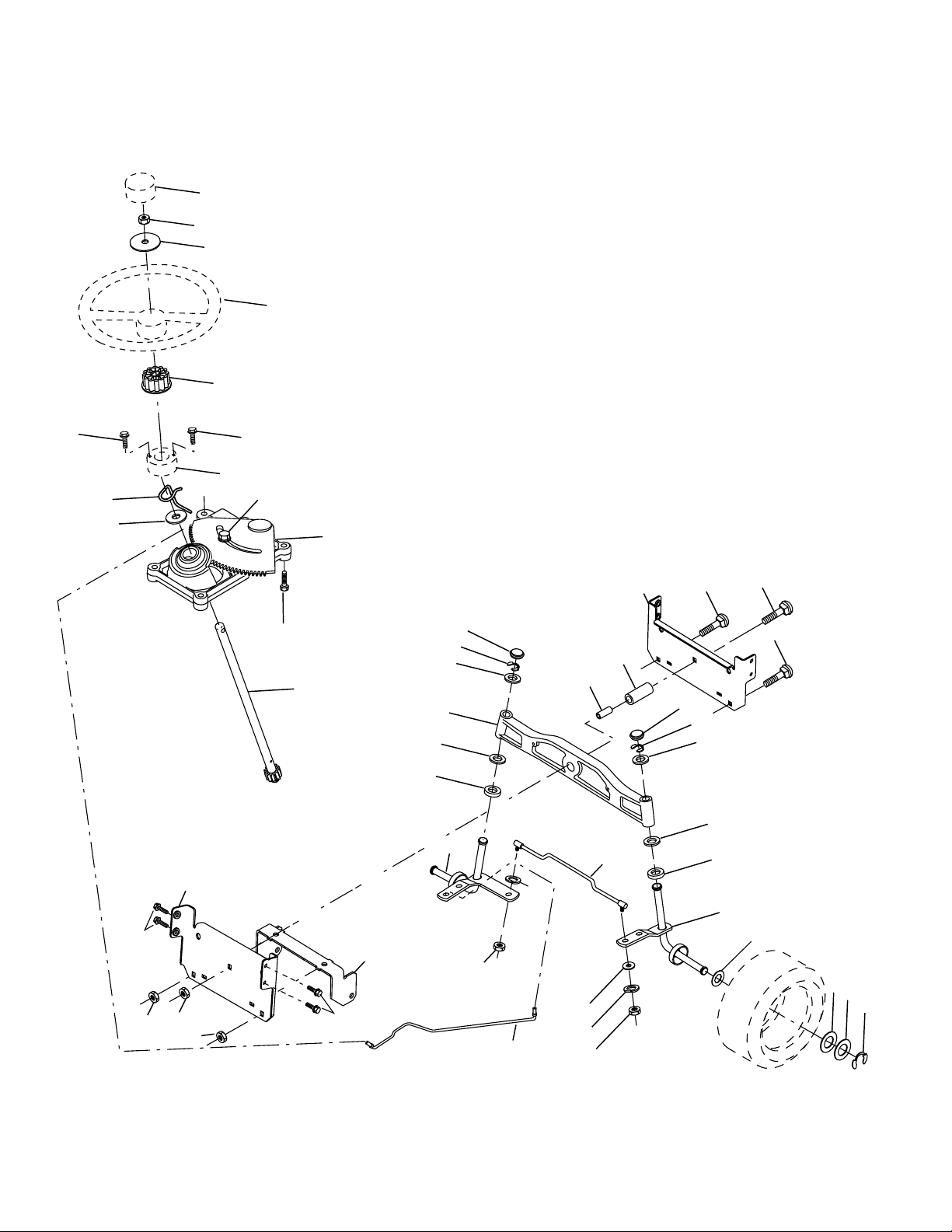

STEERING ASSEMBLY
38
12
39
1
41
37
37
36
91
43
68
29
15
15
15
88
71
68
29
17
82
29
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
87
67
67
5
4
43
43
95
8
34
www.mymowerparts.com
steering_pl.lt_53
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel Steering
2 532 18 47-06 Axle Cast Lt Machined
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring Klip #t5304-75
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 17 78-83 Shaft Asm Strg
29 817 00 06-12 Screw 3/8-16 x 3/4
32 532 17 18-88 Rod Tie
33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
34 810 04 05-00 Washer Lock Hvy Helical 5/16
35 873 54 05-00 Nut Crown Lock 5/16-24 unf
36 532 15 51-05 Bushing Strg
37 532 15 29-27 Screw
38 532 16 66-26 Insert Cap Strg Wh
39 819 18 38-12 Washer 9/16 ID x 2-3/8 OD. 12 Ga.
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 15 99-45 Adaptor Wheel Strg
43 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.
46 532 12 12-32 Cap Spindle Fr Top Blk
65 532 16 03-67 Spacer Brace Axle
67 872 14 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
95 532 18 89-67 Washer Harden .793 x 1.637 x 060
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

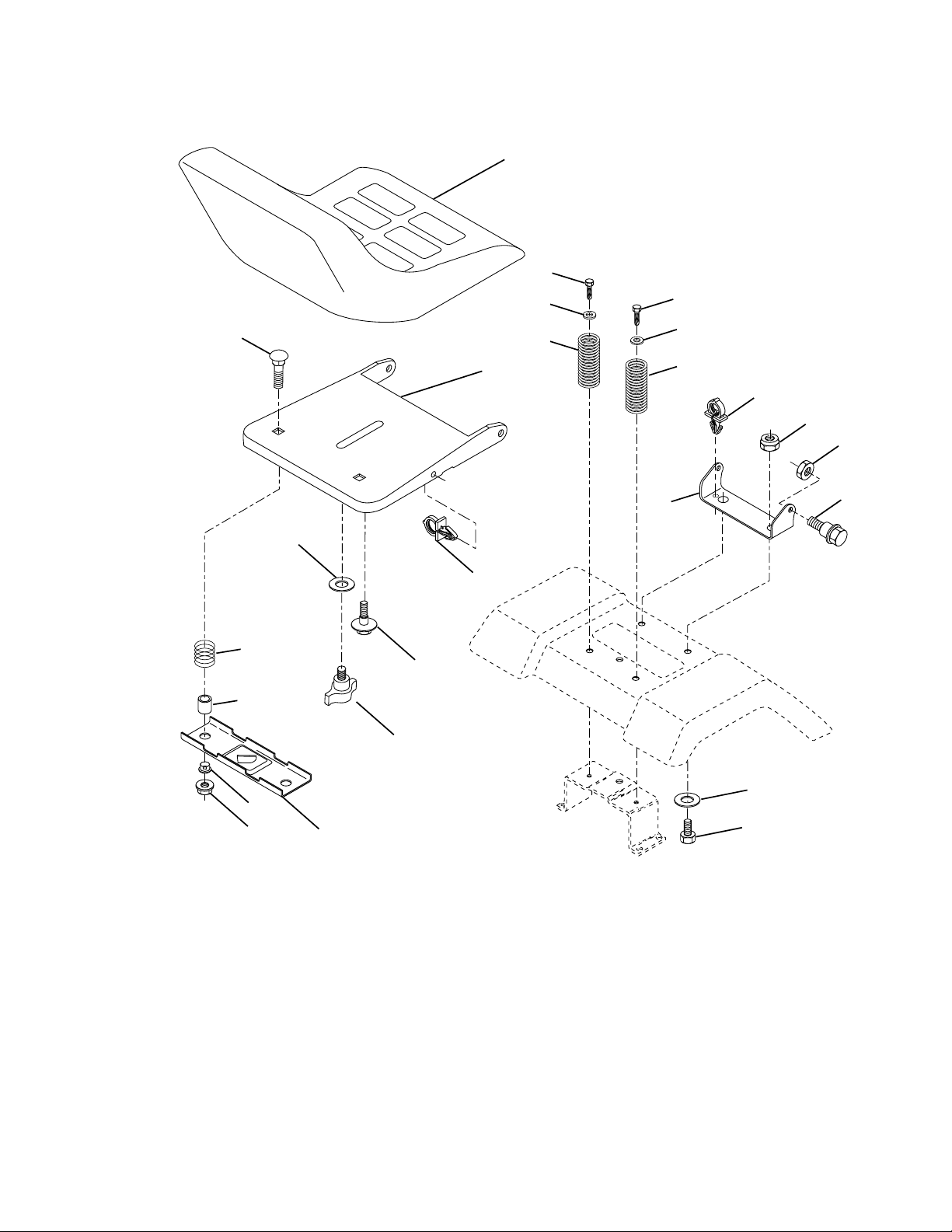

SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
24
16
25
15
11
13
17
seat_lt.knob_1
KEY PART
NO. NO. DESCRIPTION
1 532 18 87-15 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16 x 1
4 819 13 16-10 Washer Flat 13/32 x 1.0 x 10 Ga.
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1
9 819 13 16-14 Washer 13/32 x 1.0 x 14 Ga.
10 532 18 24-93 Pan Seat
11 532 16 63-69 Knob Seat
12 532 12 12-46 Bracket Mounting Switch
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 532 12 12-49 Spacer Split 28 x .88 Zinc
16 532 12 37-40 Spring Cprsn Plate
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 7/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x .62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
36
www.mymowerparts.com
Page 13
1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

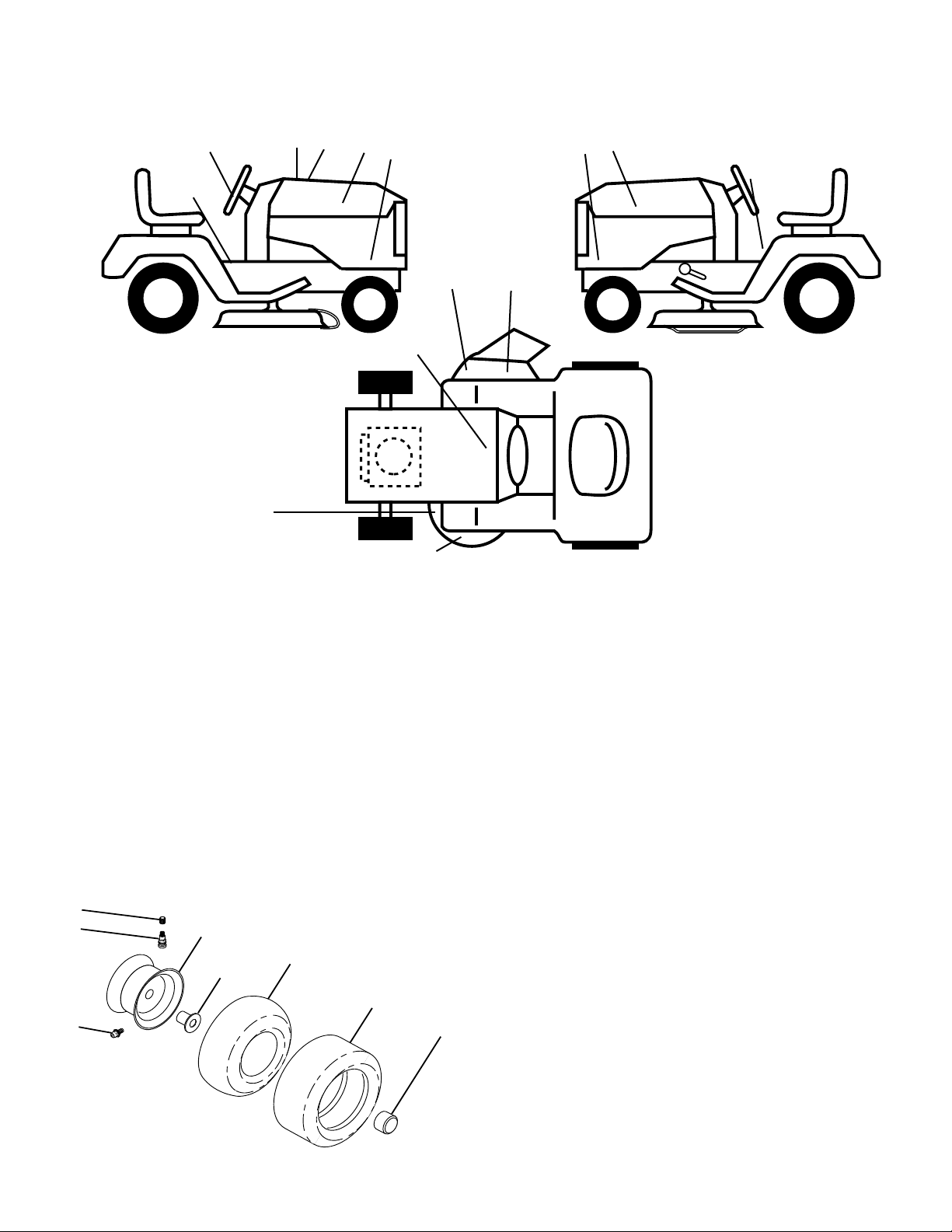

DECALS
1
7
6
14
KEY PART
NO. NO. DESCRIPTION
1 532 18 09-41 Decal Hood Cust. Resp.
2 532 14 50-05 Decal Battery
3 532 18 89-18 Decal Hood RH
4 532 18 89-19 Decal Hood LH
6 532 15 70-32 Decal Fender Oper
7 532 18 89-25 Decal Wheel Steering
8 532 17 05-63 Decal Warning Keep Hand Away
10 532 15 71-40 Decal Fender Danger E/F
12 532 18 91-34 Decal Hood
13 532 18 88-88 Decal Hoodsides
12
3
13
8
2
16
4
13
10
15
KEY PART
NO. NO. DESCRIPTION
14 532 16 03-96 Decal V-Belt Schematic
15 532 17 91-28 Decal Deck "B" 42"
16 532 17 23-31 Decal Mower
- - 532 17 35-87 Decal Refl ector RH
- - 532 17 35-89 Decal Refl ector LH
- - 532 18 82-52 Pad Footrest LH
- - 532 18 82-53 Pad Footrest RH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 69-60 Decal By Pass Lt Hydro
- - 532 18 80-49 Manual Owner's (English)
WHEELS & TIRES
5,8
4,10
7
3,9
11
wheel_1
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6" front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel
Only)
8 532 13 83-37 Rim Asm 8" rear Silver Service
9 532 12 20-82 Tire R Ts 20 x 10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

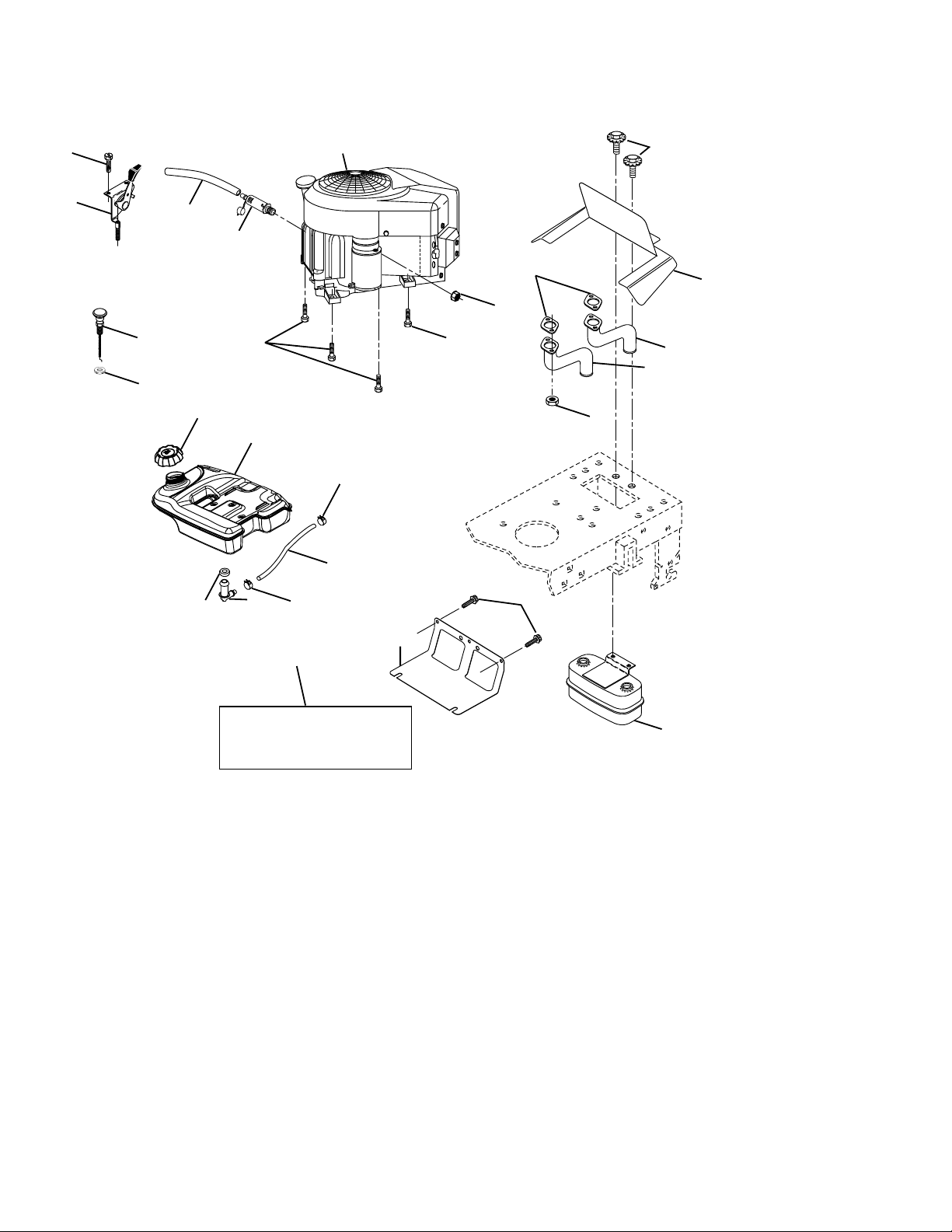

ENGINE
2
1
25
26
14
38
105
32
31
3
13
81
105
101
33
37
8
10
6
5
41
112
OPTIONAL EQUIPMENT
33
23
29
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-03 Control Throt Flg
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 5/8 T
3 - - - - - - - - Engine KAWA FH430V
(Order Parts from Engine Manu-
facturer)
4 532 14 97-23 Muffl er Asm Twin Lo-Tone
5 532 18 14-44 Exhaust Tube Lh
6 532 18 14-42 Exhaust Tube Rh
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 W/Sems
10 532 14 66-29 Shield Browning
13 - - - - - - - - - Gasket Muffl er (Order Parts from
Engine Manufacturer)
14 - - - - - - - - - Tube Drain Oil Easy (Order Parts
from Engine Manufacturer)
23 532 16 98-37 Shield Browning
25 532 19 16-94 Choke Control
26 873 92 06-00 Nut, Keps 3/8-24 unf
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 17 90-22 Tank Fuel 4.0 Rear
32 532 18 18-03 Cap Asm Fuel Gauge
45
4
engine-kawasaki_7
KEY PART
NO. NO. DESCRIPTION
33 532 12 34-87 Clamp Hose Blk
37 532 14 21-58 Line Fuel
38 - - - - - - - - Plug Drain Oil (Order Parts from
Engine Manufacturer)
41 532 13 92-77 Stem Tank Fuel
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
81 873 51 04-00 Nut Keps Hex 1/4-20
101 532 18 43-62 Nut Flange M8-1.25
105 817 12 06-16 Screw 3/8-16 x 1
112 532 12 49-52 Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
38
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

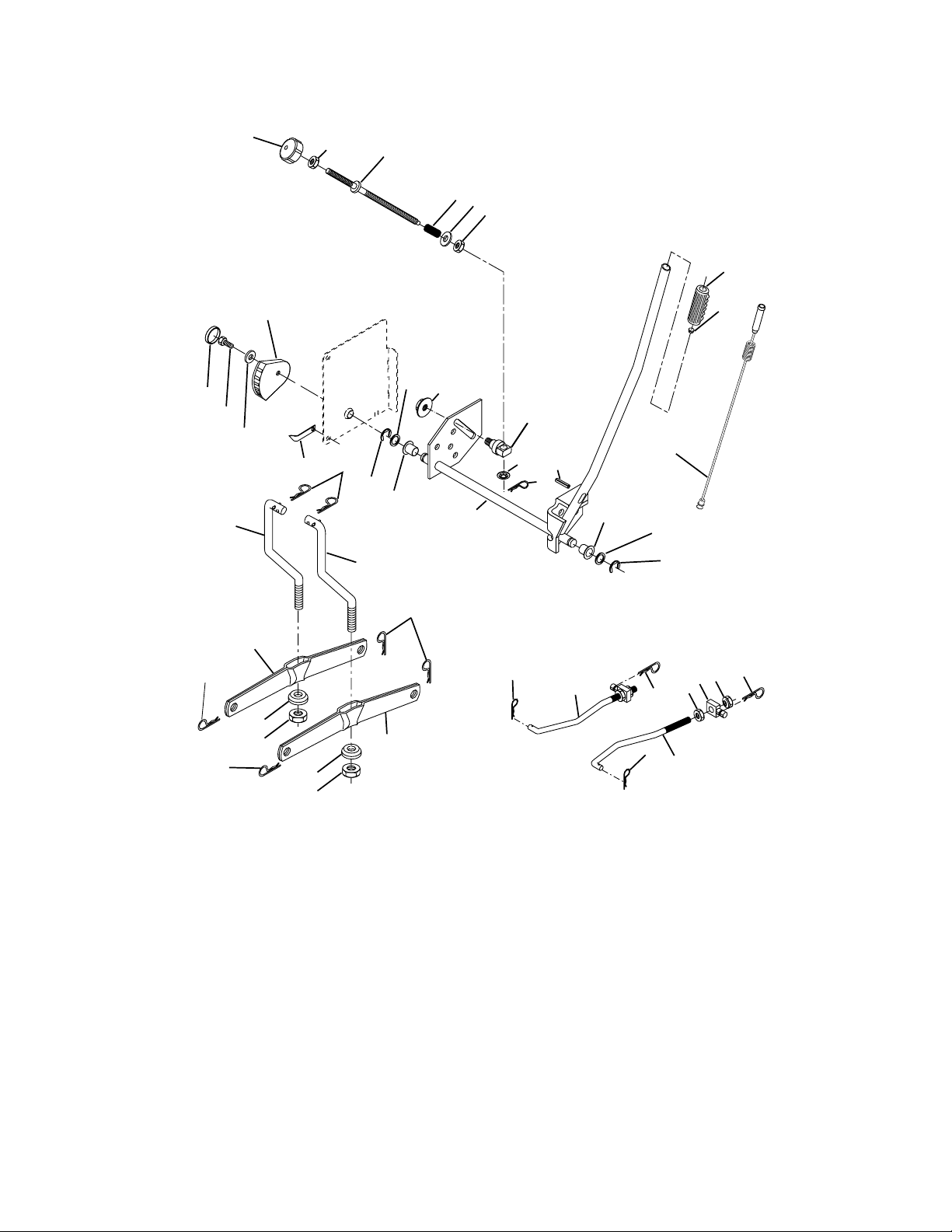

MOWER LIFT
37
38
11
29
40
41
36
28
13
12
27
25
24
23
7
8
5
49
30
3
50
4
6
2
26
6
1
5
4
13
19
13
31
13
32
31
32
19
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner/Spring W/Plunger LT
2 532 15 94-71 Shaft Asm Lift RH w/Inf
3 532 10 57-67 Pin Groove 1 500 Zinc
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga.
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Fluted Blk
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock w/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Retainer Spring
23 532 11 08-07 Nut Special
20
15
20
20
15
16
lift-rh.1pc.stlt_10
17
18
20
KEY PART
NO. NO. DESCRIPTION
24 819 13 10-16 Washer 13/32 x 5/8 x 16 Ga.
25 532 12 48-74 Spring 2-1/8"
26 532 16 94-84 Retainer Clip
27 532 12 69-71 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873 35 06-00 Nut Hex Jam 3/8-16 unc
29 532 13 80-57 Knob Inf 3/8-16 Unc Blk W/sym
30 532 15 02-33 Trunnion Infi n Height
31 532 16 98-65 Bearing PVT Lift
32 873 54 06-00 Nut Crownlock 3/8-24
36 532 15 50-97 Indicator Height STLT
37 532 12 39-35 Plug Hole Blk 1.485/1.515 Dia.
38 817 06 05-16 Screw 5/16-18 x 1
40 819 11 24-10 Washer 11/32 x 1-1/2 10 Ga.
41 532 15 50-98 Scale Ind. Height Blk.
49 532 14 52-12 Nut Hex Flange Lock
50 532 11 04-52 Nut, Push Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 16
132
95
94
182
91
183
132
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65

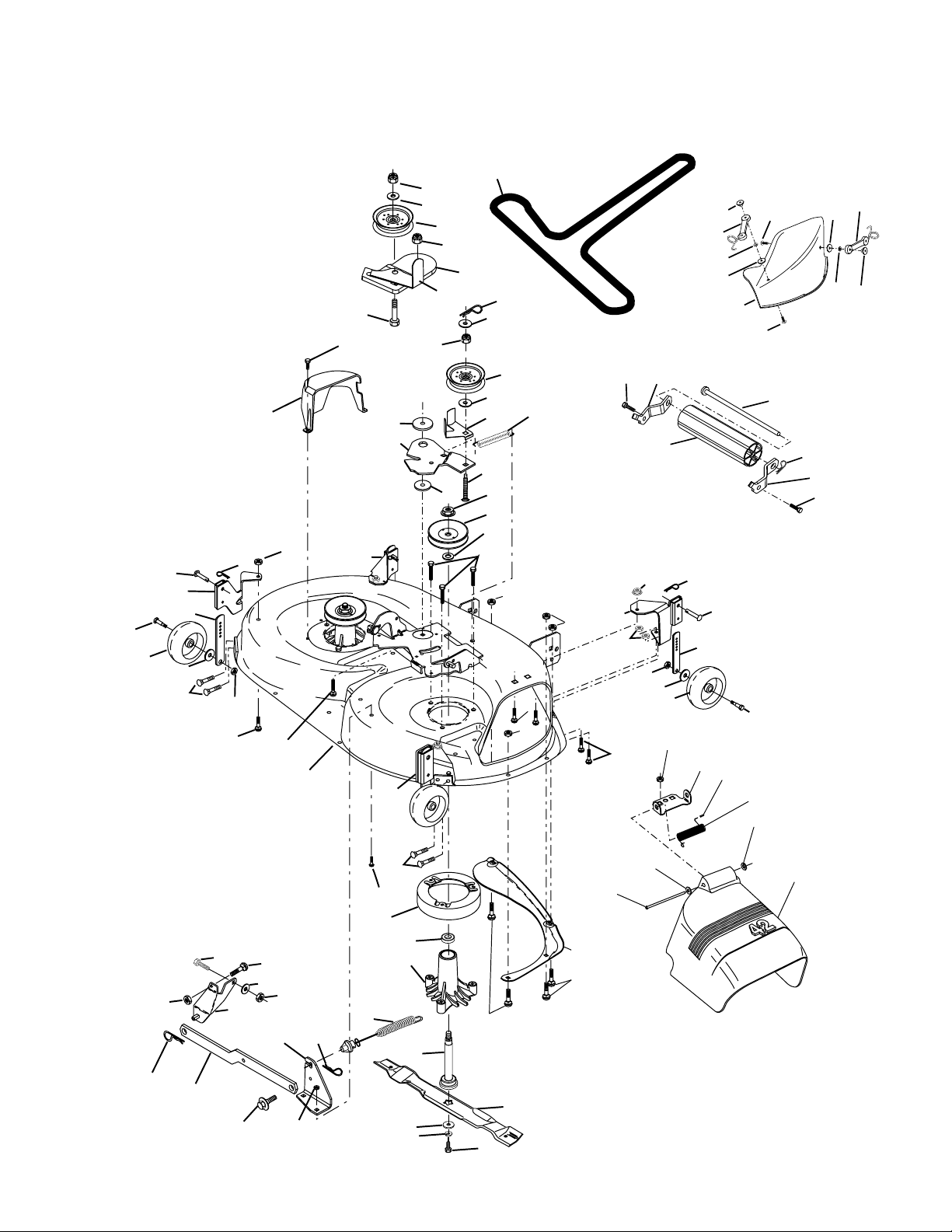

MOWER DECK
68
40
116
117
134
135
136
119
113
118
2
184
36
40
143
150
184
59
146
32
31
30
33
45
145
21
148
2
21
21
139
21
2
118
21
119
117
159
46
44
21
5
34
140
1
144
40
56
55
54
138
21
5
136
23
106
105
104
103
102
101
102
134
116
24
25
26
103
104
105
106
113
2
16
15
130
92
5
6
3
19
131
129
92
149
4
21
www.mymowerparts.com
61
14
10
13
9
18
11
8
40
20
18
29
28
27
42_D.elec.t-path.adjwl.stlt_3
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542XP (YTKH1542XPA), PRODUCT NO. 954 56 84-65
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 18 54-38 Mower Deck Assembly, 42”
2 872 14 05-06 Bolt
3 532 13 80-17 Bracket Assembly,Sway Bar, Front
4 532 16 54-60 Bracket Sway Bar 42” Deck
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 85 08-57 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 810 03 06-00 Washer, Lock
10 532 14 02-96 Washer, Hardened
11 532 13 89-71 Blade Mower 42" High Perf.
13 532 13 76-45 Shaft Assembly, Mandrel, Vented
14 532 12 87-74 Housing, Mandrel, Vented
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper
18 872 14 05-05 Bolt, Carriage 5/16-18 x 5/8
19 532 13 28-27 Bolt, Shoulder
20 532 15 97-70 Baffl e, Vortex
21 873 68 05-00 Nut Crownlock 5/16-18 unc
23 532 17 75-63 Bracket, Defl ector
24 532 10 53-04 Cap, Sleeve
25 532 12 37-13 Spring, Torsion, Defl ector
26 532 11 04-52 Nut, Push
27 532 17 18-59 Shield, Defl ector
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Hex
31 532 18 76-90 Washer, Spacer
32 532 17 34-36 Pulley, Mandrel
33 532 17 83-42 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5
36 532 17 34-38 Pulley, Idler, Flat
40 873 90 06-00 Nut Lock Flg 3/8-16 unc
44 532 14 00-88 Guard, Mandrel, L.H.
45 532 12 47-88 Retainer
46 532 13 77-29 Screw, Thd. Roll 1/4-20 x 5/8
54 532 17 85-15 Washer, Hardened
55 532 15 50-46 Arm, Idler
56 532 12 20-52 Spacer, Retainer
59 532 17 34-42 Guard, TUV Idler
61 532 17 48-82 Spring Ext Elect Clutch 42” Dck
68 532 17 48-83 V-Belt
91 532 18 05-32 Bracket Asm Noseroller Lh
92 873 80 06-00 Nut Lock Hex w/Ins. 3/8
94 532 13 22-64 Roller Nose 38"-50"
95 532 18 05-33 Bracket Asm Noseroller Rh
KEY PART
NO. NO. DESCRIPTION
101 532 13 64-20 Mulcher Cover
102 871 08 10-10 Screw
103 819 06 12-16 Washer #10
104 810 07 10-00 Washer, Lock
105 532 16 07-93 Latch Assembly, Bagger
106 532 12 50-04 Nut, Weld
113 817 06 05-12 Screw 5/16-18 x 3/4 Tap R
116 532 12 48-42 Bolt, Shoulder
117 532 16 57-46 Wheel, Gauge
118 873 93 06-00 Nut, Centerlock 3/8-16
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
129 819 13 13-12 Washer 13/32 x 13/16 x Ga.
130 874 78 06-16 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
131 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1
132 817 00 06-12 Screw 3/8-16 x .75
134 532 15 69-41 Pin Head Rivet
135 532 17 80-74 Bracket Asm Whl GA R LH
136 532 15 59-86 Bar Adjusting GA WHL
138 532 17 80-75 Bracket Asm Whl GA R RH
139 532 17 80-77 Bracket Asm Whl GA F RH
140 532 17 80-76 Bracket Asm Whl GA F LH
143 532 15 71-09 Bracket Arm Idler 42”
144 532 17 34-41 Keeper Belt 42” Clutch Cable
145 532 17 34-37 Pulley Idler Flat
146 532 17 34-43 Bolt Carriage Idler
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow Zinc
150 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 unc x 1- 3/4
182 532 17 91-26 Rod Roller Nose
183 532 16 35-52 Retainer Spring
184 819 13 14-10 Washer 13/32 x 7/8 x 10 Ga.
- - 532 13 07-94 Mandrel Assembly (Includes
Housing, Shaft and Shaft Hardware Only - Pulley Not Included)
- - 532 17 60-50 Replacement Mower, Complete
(Std. Deck - Order separately
nose roller, mulcher cover and
gauge wheel components key
nos. 91, 94-95, 132, 182, 183,
101-106, 116-119)
NOTE: All component dimensions given in U.S. inche
1 inch = 25.4 mm
41
www.mymowerparts.com
Loading...
