Parts Manual
MANUAL NO. 539107600 REV. 04 (05/12/03)
www.mymowerparts.com
Models:
968999219 / CZ4815KAA
968999220 / CZ4817KOA
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
INDEX
MAIN FRAME ASSEMBLY .................... 4-7
CONSOLE ASSEMBLY ......................... 8
CASTER ASSEMBLY............................ 9
MOTION CONTROL ASSEMBLY ......... 10-11
MOTION CONTROL LEVERS .............. 12-13
DECK LIFT ASSEMBLY........................ 14-15
IZT ASSEMBLY ..................................... 16-17
KAWASAKI ENGINE ASSEMBLY ........ 18
KOHLER ENGINE ASSEMBLY............. 19

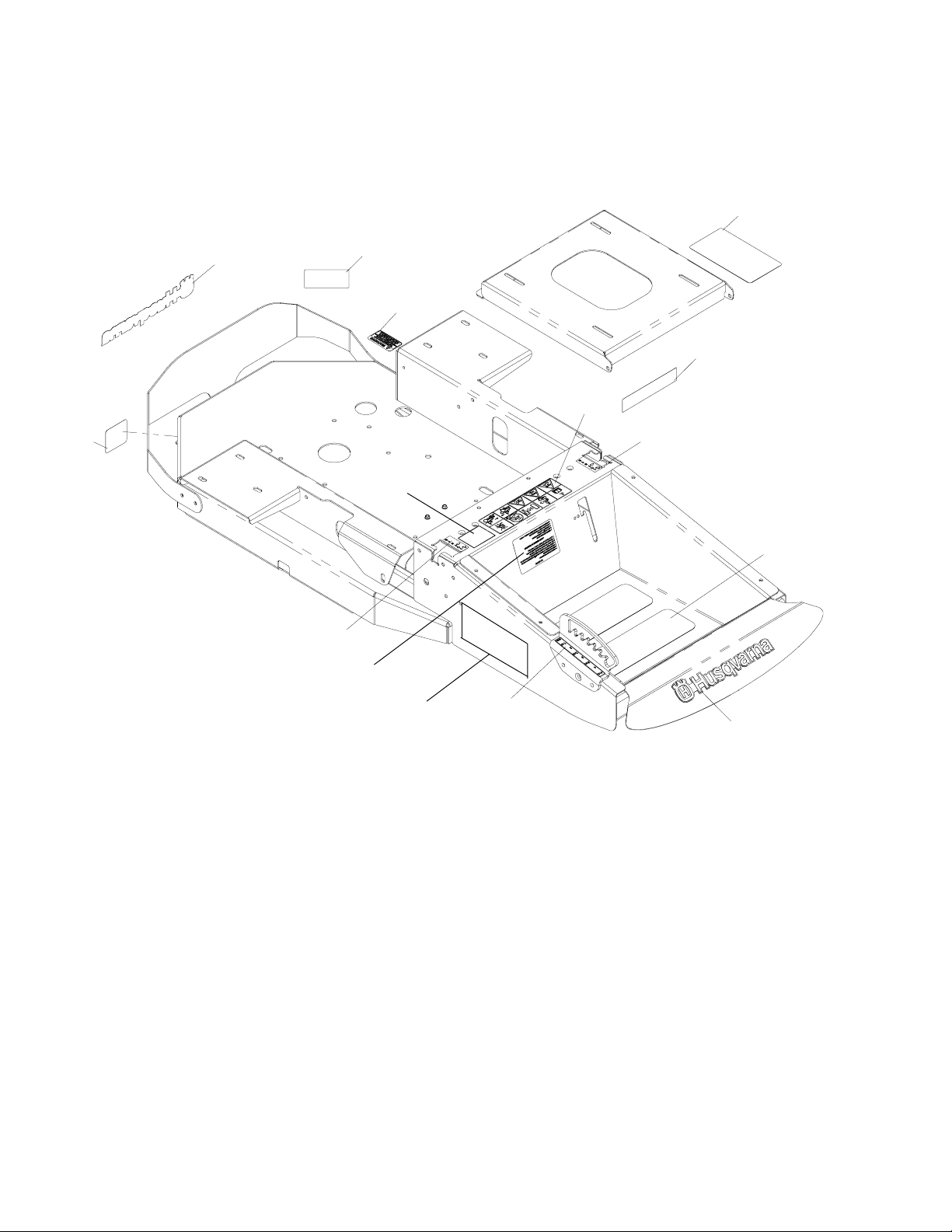

DECAL PLACEMENT ........................... 20
ELECTRICAL COMPONENTS ............. 21
48" DECK ASSEMBLY .......................... 22-23

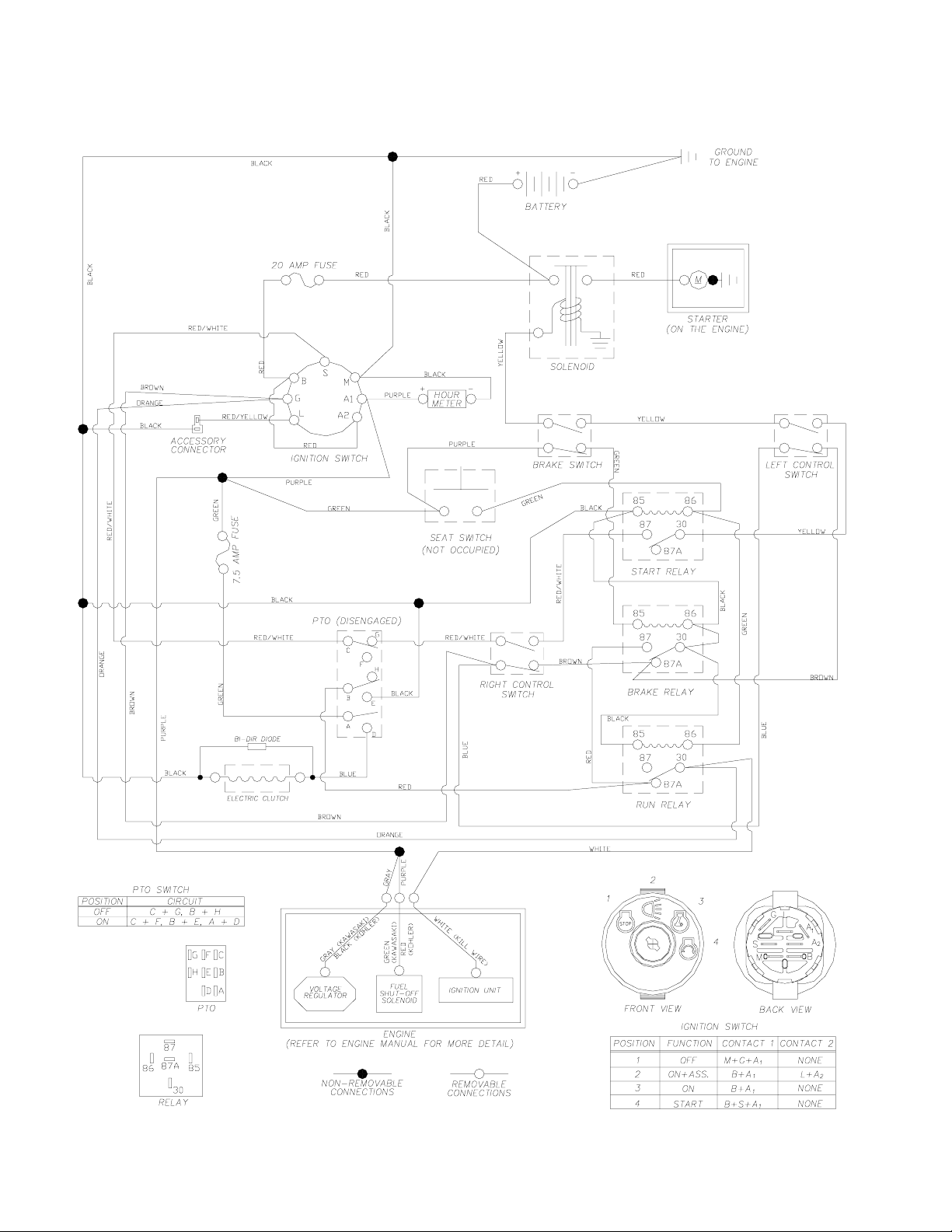

WIRING SCHEMATIC ........................... 24
©2002 Husqvarna. All Rights Reserved.
Beatrice, NE. Printed in U.S.A.
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

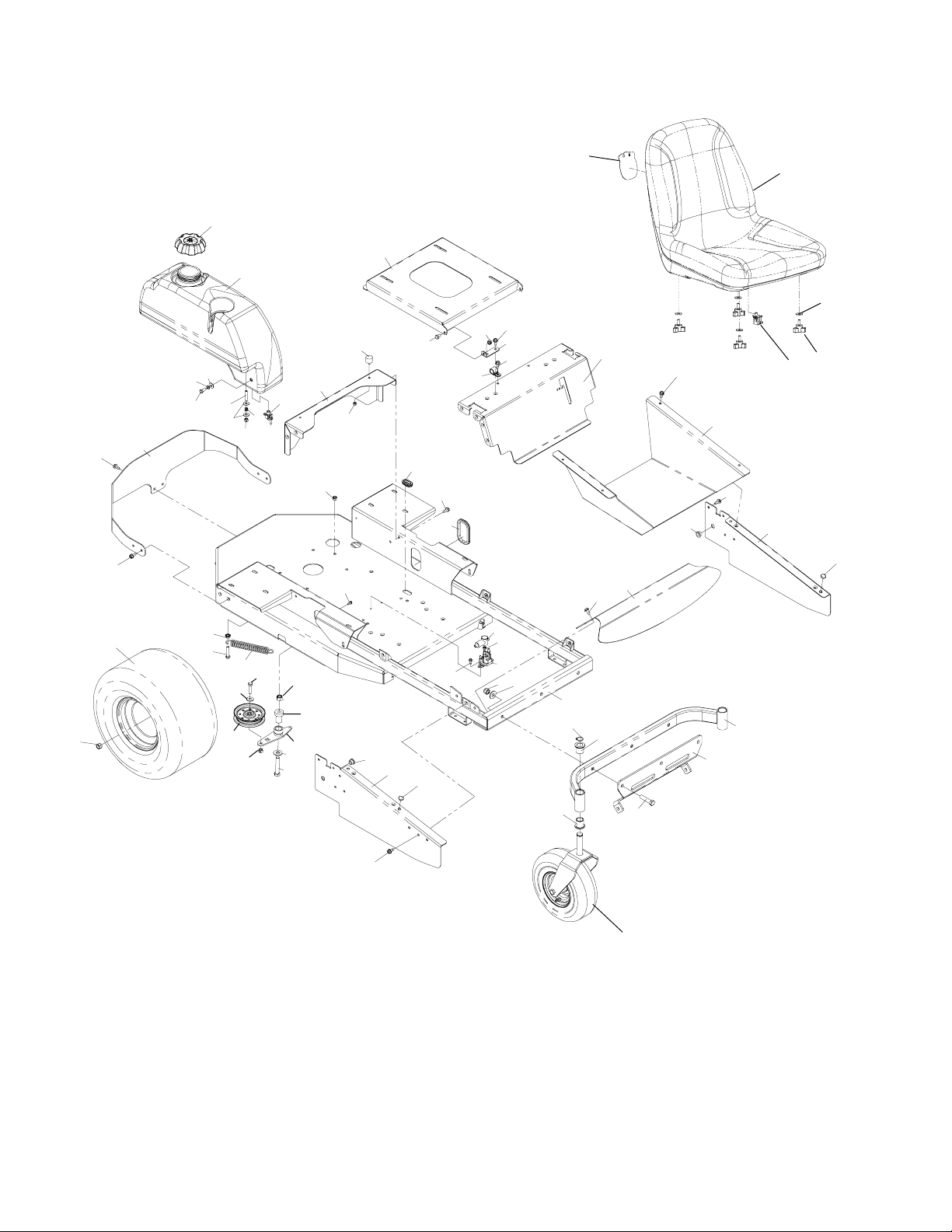

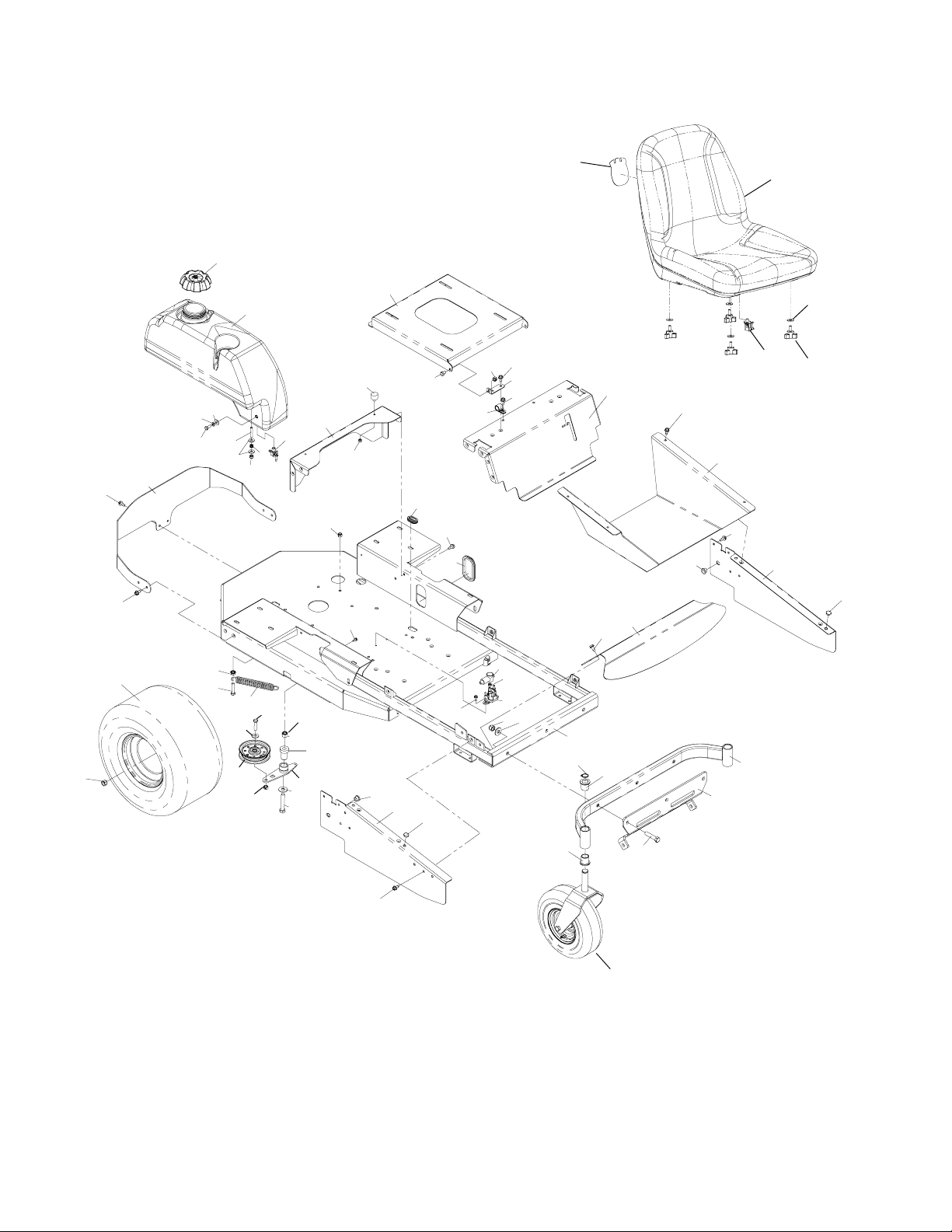

MAIN FRAME ASSEMBLY
57
56
37
20
54
54
19
21
51
41
43
52
49
36
52
52
28
46
35
39
33
18
29
24
32
30
34
26
27
48
10
45
31
11
12
25
13
42
6
23
54
5
40
16
47
38
15
50
45
54
9
54
53
58
59
7
8
54
1
4
3
54
22
54
12
2
17
55
14
23
3
54
44
REF. CASTER ASSEMBLY
(TWO PER UNIT)
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MAIN FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107967 .......... 1 ......... MAINFRAME W/DECALS
2 ......... 539108045 .......... 1 ......... CASTER AXLE W/BUSHINGS
3 ......... 539101232 .......... 4 ......... BUSHING, FLANGED - PM
4 ......... 539101151 ........... 2 ......... RETAINING RING
5 ......... 539107116 ........... 2 ......... GROMMET
6 ......... 539105974 .......... 1 ......... GROMMET, RUBBER
7 ......... 539107966 .......... 1 ......... SEAT SUPPORT W/DECALS
8 ......... 539107585 .......... 1 ......... FOOT PLATE, FRONT
9 ......... 539107561 .......... 2 ......... SEAT BRACKET
10 ....... 539107565 .......... 1 ......... SUPPORT, REAR
11........ 539105039 .......... 2 ......... STUD PLATE MOUNT
12 ....... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
13 ....... 539107579 .......... 1 ......... FRAME SIDE, RIGHT
14 ....... 539107581 .......... 1 ......... FRAME SIDE, LEFT
15 ....... 539101714 .......... 1 ......... SOLENOID
16 ....... 539102685 .......... 1 ......... CLIP
17 ....... 539107480 .......... 1 ......... STRUT MOUNT
18 ....... 539102845 .......... 8 ......... SPRING, TANK MOUNT
19 ....... 539107547 .......... 2 ......... TIRE ASSEMBLY
........... 539108009 .......... 1 ......... TIRE
........... 539108008 .......... 1 ......... RIM
........... 539912234 .......... 1 ......... VALVE STEM
20 ....... 539101173 ........... 8 ......... NUT, LUG 1/2"
21 ....... 539107575 .......... 1 ......... BUMPER, REAR
22 ....... 539107587 .......... 1 ......... PAN, FLOOR
23 ....... 539102587 .......... 4 ......... STOP, RUBBER
24 ....... 539107804 .......... 1 ......... VALVE, FUEL
25 ....... 539107968 .......... 1 ......... SEAT MOUNT W/DECALS
26 ....... 539107553 .......... 1 ......... PUMP IDLER ARM
27 ....... 539101231 .......... 1 ......... IDLER SPINDLE
28 ....... 539107620 .......... 1 ......... PULLEY, IDLER
29 ....... 539990655 .......... 1 ......... HCS 3/8C X 1 1/2
30 ....... 539101332 .......... 1 ......... HCS 1/2C X 2 3/4
CONTINUED ON PAGES 6 AND 7
5
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MAIN FRAME ASSEMBLY
57
37
25
39
54
47
16
9
54
7
54
22
54
54
21
51
41
52
36
52
46
18
24
48
10
45
11
42
6
54
56
59
58
55
20
54
19
43
49
52
28
35
33
29
32
30
34
26
27
31
12
54
13
23
5
40
38
15
50
45
53
12
8
54
1
4
3
17
3
44
REF. CASTER ASSEMBLY
(TWO PER UNIT)
14
23
2
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MAIN FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
31 ....... 539991034 .......... 4 ......... SCREW, #10-24 X 1/2
32 ....... 539990550 .......... 1 ......... WASHER, 1/2, FLAT
33 ....... 539990546 .......... 1 ......... NUT, 3/8C, CENTER LOCK
34 ....... 539101331 .......... 1 ......... NUT, 1/2C, NYLOC
35 ....... 539101977 .......... 1 ......... SPRING, TRACTION
36 ....... 539102502 .......... 8 ......... STUD, 5/16C
37 ....... 539107598 .......... 1 ......... FUEL CAP
38 ....... 539102759 .......... 3 ......... INSULATOR
39 ....... 539104409 .......... 1 ......... FUEL TANK, LEFT
40 ....... 539990362 .......... 2 ......... SCREW 1/4C X 5/8, SELF TAPPING
41 ....... 539976934 .......... 4 ......... HCS 5/16C X 3/4
42 ....... 539106776 .......... 2 ......... HCS 3/8C X 1/2
43 ....... 539990629 .......... 1 ......... HCS 3/8C X 2 1/4
44 ....... 539107706 .......... 3 ......... HCS 1/2C X 2 1/4
45 ....... 539976978 .......... 4 ......... NUT, 1/4C, NYLOC
46 ....... 539990717 .......... 13 ........ NUT, 5/16C, NYLOC
47 ....... 539990546 .......... 2 ......... NUT, 3/8C, CENTER LOCK
48 ....... 539976979 .......... 9 ......... NUT, 3/8C, NYLOC
49 ....... 539990613 .......... 1 ......... NUT, 3/8C, SERR WASHER
50 ....... 539101331 .......... 3 ......... NUT, 1/2C, NYLOC
51 ....... 539990187 .......... 2 ......... LOCK WASHER, 5/16
52 ....... 539990692 .......... 23 ........ WASHER, 5/16, FLAT
53 ....... 539990550 .......... 3 ......... WASHER, 1/2, FLAT
54 ....... 539107475 .......... 44 ........ BOLT, 5/16-18 X 3/4, THREAD FORMING
55 ....... 539104411 ........... 4 ......... KNOB W/STUD
56 ....... 539107582 .......... 1 ......... SEAT
57 ....... 539104789 .......... 1 ......... DECAL, SMALL CROWN
58 ....... 539990692 .......... 4 ......... WASHER, 5/16, FLAT
59 ....... 539107523 .......... 1 ......... SWITCH, SEAT
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

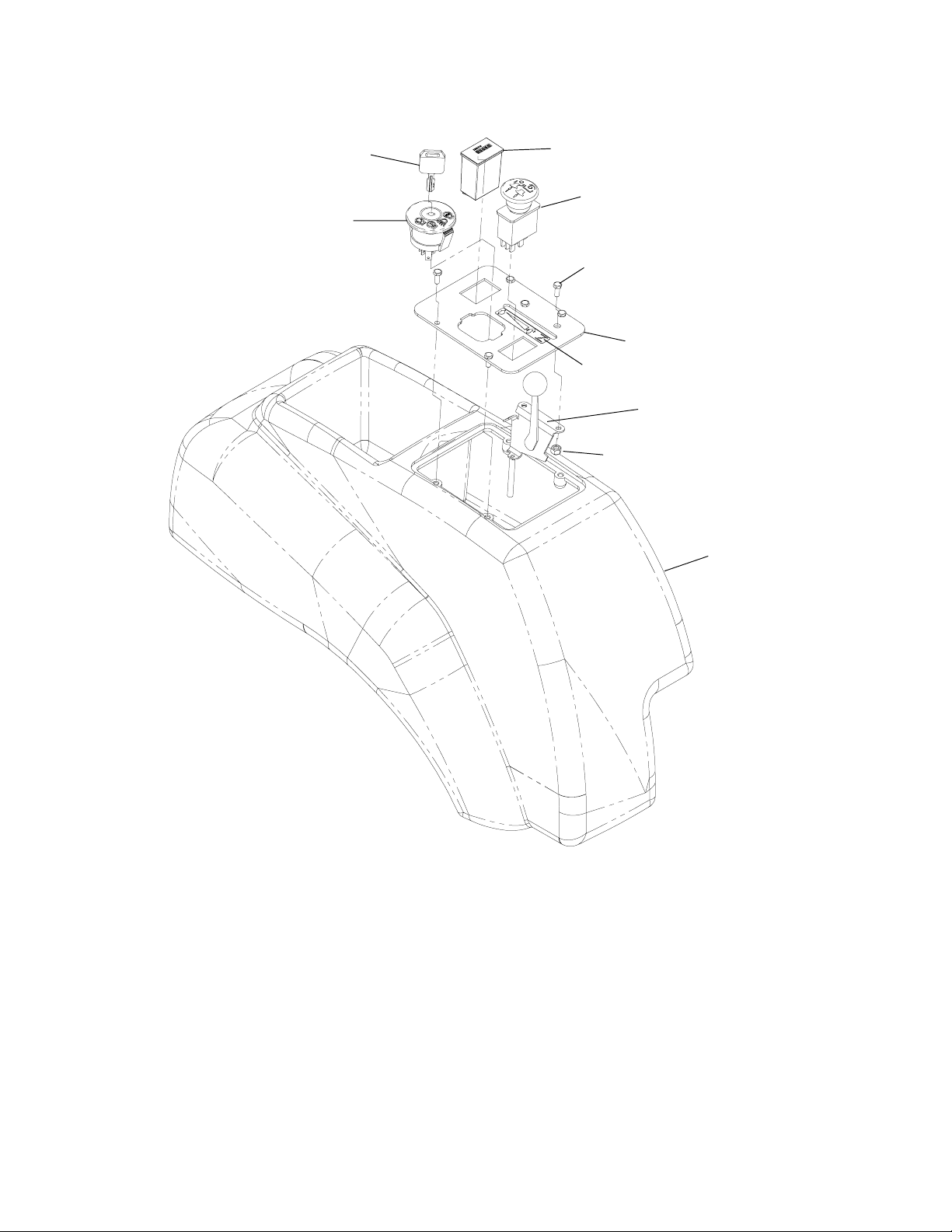

CONSOLE ASSEMBLY
8
7
9
2
5
4
10
3
6
1
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107593 .......... 1 ......... CONSOLE
2 ......... 539101768 .......... 1 ......... CLUTCH SWITCH
3 ......... 539107583 .......... 1 ......... THROTTLE CABLE
4 ......... 539107589 .......... 1 ......... CONTROL CONSOLE
5 ......... 539990411 ........... 6 ......... SCREW #10-24 X 1/2
6 ......... 539976977 .......... 2 ......... NUT #10-24, NYLOC
7 ......... 539107541 .......... 1 ......... IGNITION SWITCH
8 ......... 539107544 .......... 1 ......... KEY
9 ......... 539102540 .......... 1 ......... HOUR METER
10 ....... 539107957 .......... 1 ......... DECAL, THROTTLE
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

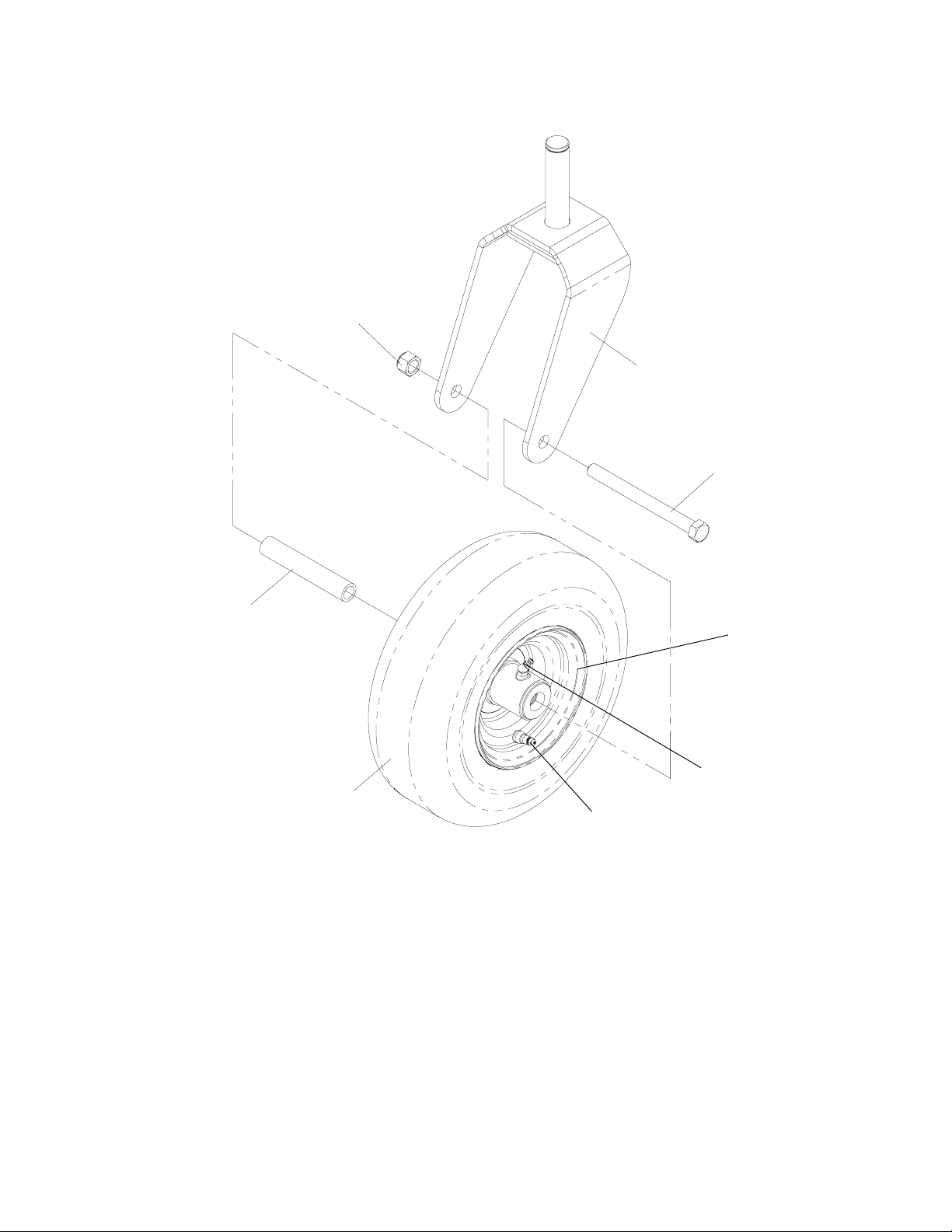

CASTER ASSEMBLY
6
5
7
8
1
3
2
4
ITEM PART NO. QTY. DESCRIPTION
........... 539106993 .......... 1 ......... TIRE (COMPLETE)
1 ......... 539106994 .......... 1 ......... RIM
2 ......... 539106995 .......... 1 ......... TIRE 410/350-5, 4 PLY
3 ......... 539103300 .......... 1 ......... ZERK
4 ......... 539912234 .......... 1 ......... VALVE STEM
5 ......... 539107494 .......... 1 ......... CASTER WELDMENT
6 ......... 539101331 .......... 1 ......... NUT 1/2C, NYLOC
7 ......... 539101907 .......... 1 ......... HCS 1/2C X 5 1/2
8 ......... 539105543 .......... 1 ......... SPACER
9
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

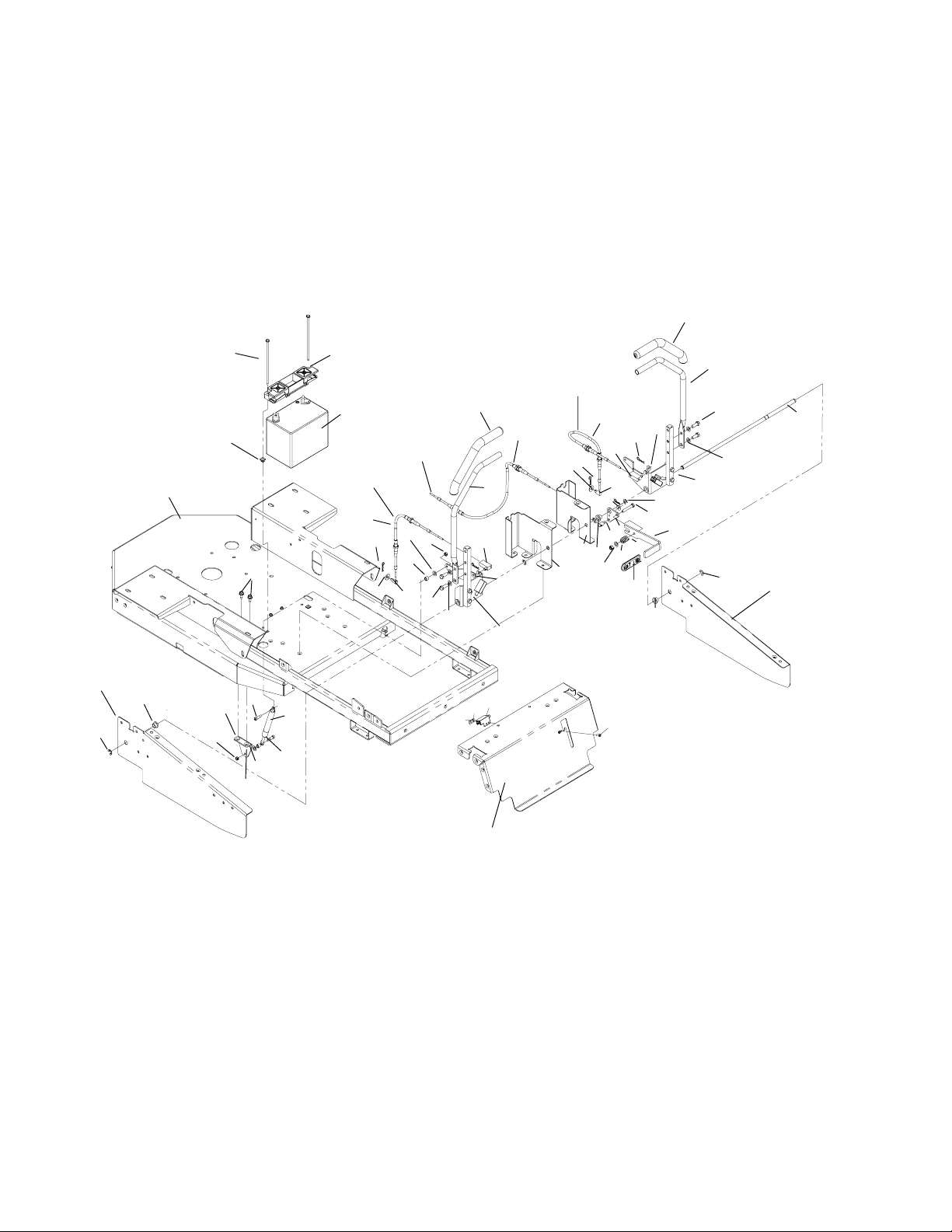

MOTION CONTROL ASSEMBLY
15
REF.
6
17
16
REF.
29
5
34
33
31
31
30
35
TO RIGHT IZT
32
18
19
TO PARK BRAKE
22
24
4
20
35
30
34
27
25
15
13
14
36
10
21
4
REF. SEE
PAGE 12
TO LEFT IZT
24
4
1
6
28
2
23
20
20
4
12
36
14
27
4
24
25
REF. SEE
PAGE 12
6
26
11
8
9
6
5
7
4
3
REF.
REF.
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MOTION CONTROL ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107528 .......... 1 ......... BATTERY SUPPORT, LEFT
2 ......... 539107530 .......... 1 ......... BATTERY SUPPORT, RIGHT
3 ......... 539107568 .......... 1 ......... CONTROL PIVOT SHAFT
4 ......... 539990692 .......... 24 ........ WASHER, 5/16 FLAT
5 ......... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
6 ......... 539101949 .......... 6 ......... E-RING, 1/2"
7 ......... 539107603 .......... 1 ......... BRAKE LEVER
8 ......... 539107576 .......... 1 ......... UPPER BRAKE LEVER
9 ......... 539976438 .......... 1 ......... SPRING
10 ....... 539101080 .......... 1 ......... SWITCH N.C.
11 ........ 539105036 .......... 1 ......... GRIP, PARK BRAKE
12 ....... 539976952 .......... 2 ......... SCREW, #10-24 X 5/8 MACH.
13 ....... 539102678 .......... 1 ......... TAPPED PLATE
14 ....... 539107526 .......... 2 ......... CONTROL LEVER
15 ....... 539102592 .......... 2 ......... DRIVE LEVER CUSHION
16 ....... 539107629 .......... 2 ......... PUSH NUT, NYLON
17 ....... 539107632 .......... 2 ......... BOLT, 1/4-20 X 7 1/2
18 ....... 539107628 .......... 1 ......... BATTERY HOLD DOWN
19 ....... 539102436 .......... 1 ......... BATTERY, DRY
20 ....... 539107569 .......... 3 ......... CONTROL SWIVEL
21 ....... 539107592 .......... 1 ......... CABLE, BRAKE
22 ....... 539107623 .......... 1 ......... CABLE, RIGHT
23 ....... 539107624 .......... 1 ......... CABLE, LEFT
24 ....... 539976988 .......... 7 ......... COTTER, HAIRPIN
25 ....... 539102593 .......... 4 ......... WASHER, 3/8 SPRING
26 ....... 539976937 .......... 1 ......... HCS 5/16C X 2
27 ....... 539990563 .......... 4 ......... HCS 3/8C X 1
28 ....... 539990717 .......... 13 ........ NUT, 5/16C NYLOC
29 ....... 539107475 .......... 48 ........ BOLT 5/16-18 X 3/4, THREAD FORMING
30 ....... 539102827 .......... 4 ......... SPACER
31 ....... 539102828 .......... 4 ......... BOLT 5/16C X 5/8, SHLD
32 ....... 539108793 .......... 2 ......... DAMPENER
33 ....... 539108072 .......... 2 ......... BRACKET, DAMPENER
34 ....... 539108120 .......... 5 ......... NUT 1/4C, THIN NYLOC
35 ....... 539103547 .......... 4 ......... WASHER
36 ....... 539108663 .......... 2 ......... UPPER CABLE END
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

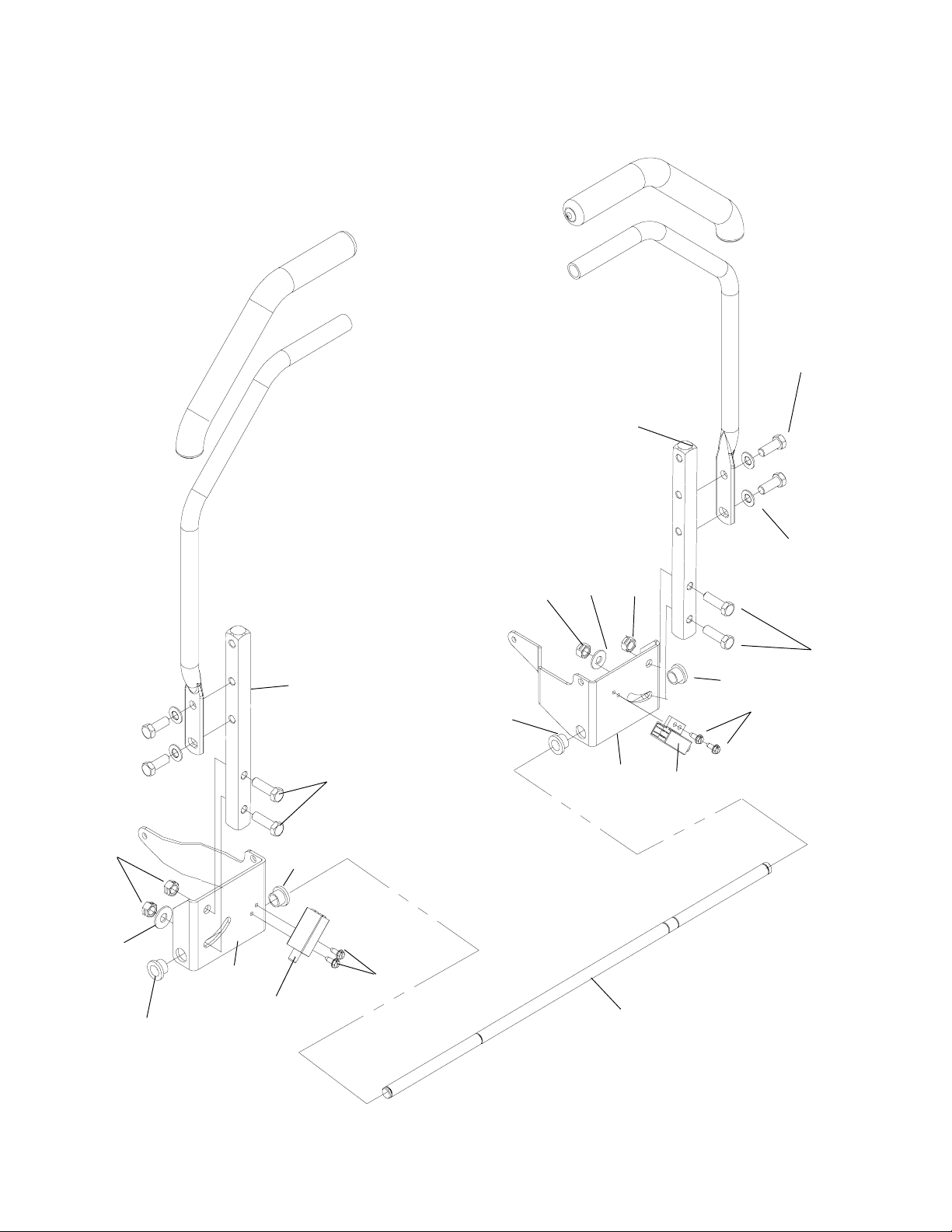

MOTION CONTROL LEVERS
10
3
11
4
7
3
1
6
7
4
9
1
1
5
2
8
REF.
7
6
1
5
2
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MOTION CONTROL LEVERS
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539100032 .......... 4 ......... BUSHING, NYLON FLANGED
2 ......... 539101080 .......... 2 ......... SWITCH N.C.
3 ......... 539107596 .......... 2 ......... CONTROL ARM
4 ......... 539990517 .......... 2 ......... WASHER, 5/16 FLAT
5 ......... 539991034 .......... 4 ......... SCREW 10-24 X 1/2, SELF TAPPING
6 ......... 539108046 .......... 4 ......... TAPBOLT 3/8C X 1 1/2
7 ......... 539990546 .......... 4 ......... NUT 3/8C, CENTER LOCK
8 ......... 539107599 .......... 1 ......... CONTROL BRACKET, LEFT
9 ......... 539107597 .......... 1 ......... CONTROL BRACKET, RIGHT
10 ....... 539990563 .......... 4 ......... HCS 3/8C X 1
11 ........ 539102593 .......... 4 ......... WASHER, 3/8, SPRING
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

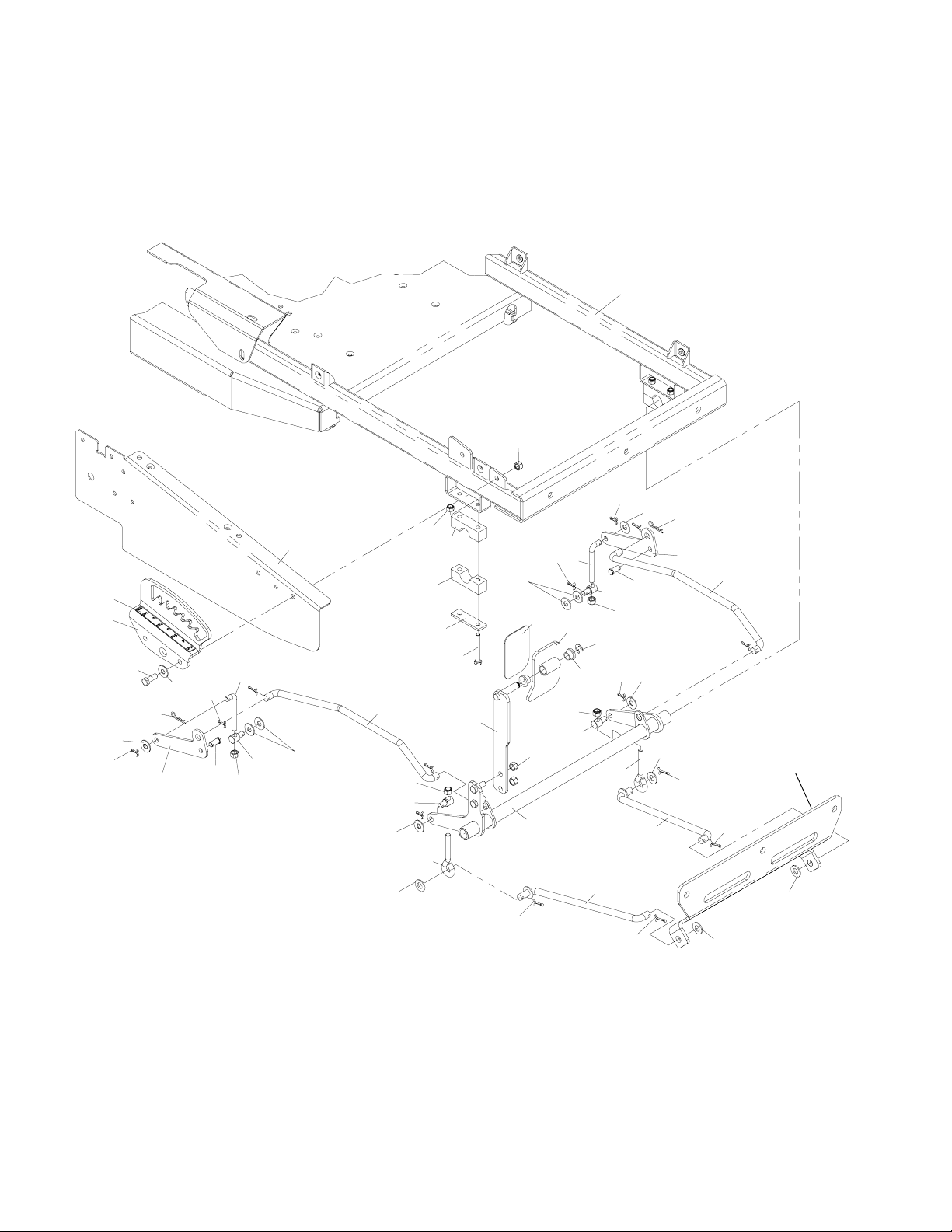

DECK LIFT ASSEMBLY
REF.
24
18
7
17
25
22
9
14
25
17
19
24
15
13
REF.
25
12
25
26
24
13
16
23
17
25
9
2
2
3
21
4
27
25
20
24
1
17 15
6
24
13
13
24
8
5
17
16
10
27
19
25
10
14
11
26
REF.
27
27
26
26
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK LIFT ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107535 .......... 1 ......... CROSSSHAFT WLDMT.
2 ......... 539104808 .......... 4 ......... PILLOW BLOCK
3 ......... 539104807 .......... 2 ......... REINFORCEMENT BAR
4 ......... 539107538 .......... 1 ......... LIFT ARM WLDMT.
5 ......... 539100032 .......... 5 ......... BUSHING, NYLON FLANGED
6 ......... 539107543 .......... 1 ......... FOOT PEDAL WLDMT.
7 ......... 539107542 .......... 1 ......... HEIGHT PLATE
8 ......... 539101949 .......... 6 ......... E-RING, 1/2"
9 ......... 539976988 .......... 5 ......... PIN-HAIR COTTER
10 ....... 539107508 .......... 2 ......... STRUT LINKAGE
11 ........ 539107509 .......... 1 ......... LIFT LINKAGE, LEFT, PRIMARY
12 ....... 539107510 .......... 1 ......... LIFT LINKAGE, RIGHT, PRIMARY
13 ....... 539107703 .......... 4 ......... SWIVEL
14 ....... 539107567 .......... 2 ......... REAR BELLCRANK
15 ....... 539107545 .......... 2 ......... LIFT LINKAGE
16 ....... 539107484 .......... 2 ......... EYE BOLT
17 ....... 539990365 .......... 12 ........ PIN, COTTER, 1/8 X 3/4
18 ....... 539107591 .......... 1 ......... DECAL, CUTTING HEIGHT
19 ....... 539107697 .......... 2 ......... CLEVIS PIN
20 ....... 539107958 .......... 1 ......... FOOT PAD
21 ....... 539991046 .......... 4 ......... HCS 5/16C X 2 1/2
22 ....... 539976941 .......... 2 ......... HCS 3/8C X 1 1/4
23 ....... 539990717 .......... 13 ........ NUT, 5/16C, NYLOC
24 ....... 539976979 .......... 9 ......... NUT, 5/16C, NYLOC
25 ....... 539990517 .......... 8 ......... WASHER, 3/8, FLAT
26 ....... 539990250 .......... 4 ......... WASHER, 1/2 SAE
27 ....... 539990654 .......... 4 ......... COTTER PIN, 5/32 X 1 1/8
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

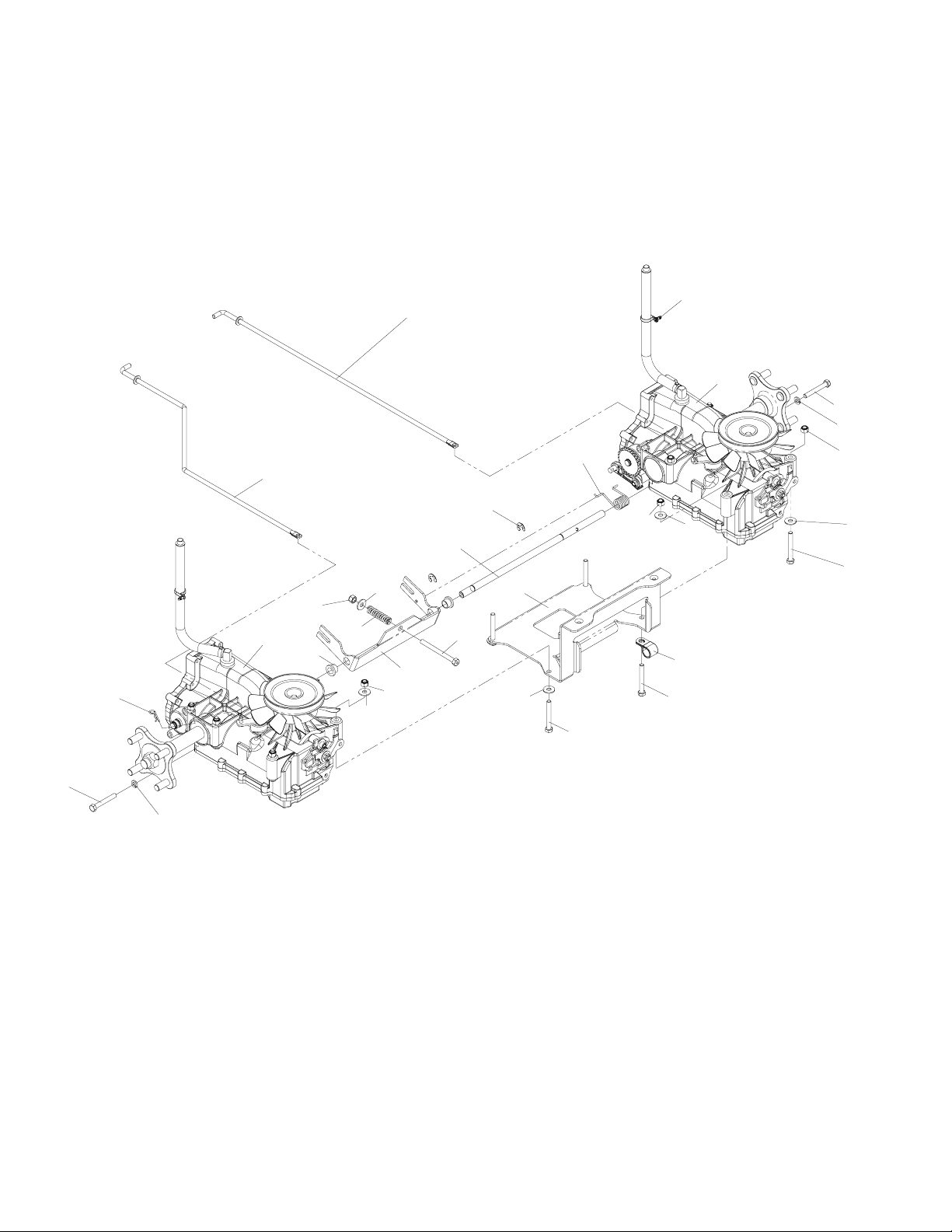

IZT ASSEMBLY
(Integraded Zeroturn Transaxle)
18
14
15
13
1
8
4
2
12
4
10
16
3
4
3
7
11
9
17
6
5
19
3
3
4
20
2
4
2
5
19
16
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
IZT ASSEMBLY
(Integraded Zeroturn Transaxle)
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107554 .......... 1 ......... TIE ROD
2 ......... 539991046 .......... 10 ........ HCS 5/16C X 2 1/2
3 ......... 539990717 .......... 11 ........ NUT, 5/16C, NYLOC
4 ......... 539990692 .......... 14........ WASHER, 5/16, FLAT
5 ......... 539108002 .......... 2 ......... HCS 5/16C X 2 1/4, GR. 8
6 ......... 539107605 .......... 1 ......... IZT LEFT
7 ......... 539107606 .......... 1 ......... IZT RIGHT
8 ......... 539107556 .......... 1 ......... IZT SUPPORT
9 ......... 539976988 .......... 2 ......... HAIRPIN COTTER
10 ....... 539107595 .......... 1 ......... BOLT, BRAKE
11 ........ 539100032 .......... 2 ......... BUSHING, NYLON FLANGED
12 ....... 539102796 .......... 1 ......... SPRING
13 ....... 539101949 .......... 2 ......... E-RING, 1/2"
14 ....... 539107708 .......... 1 ......... SPRING-TORSION
15 ....... 539107498 .......... 1 ......... BYPASS LINKAGE, RIGHT
16 ....... 539107488 .......... 1 ......... BRAKE "U" ARM
17 ....... 539107921 .......... 2 ......... RETAINER
18 ....... 539107931 .......... 1 ......... BYPASS LINKAGE, LEFT
19 ....... 539990187 .......... 2 ......... LOCKWASHER 5/16
20 ....... 539107891 .......... 1 ......... CLIP
........... 539107710 .......... 1 ......... IZT PUMP BELT (NOT SHOWN)
17
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

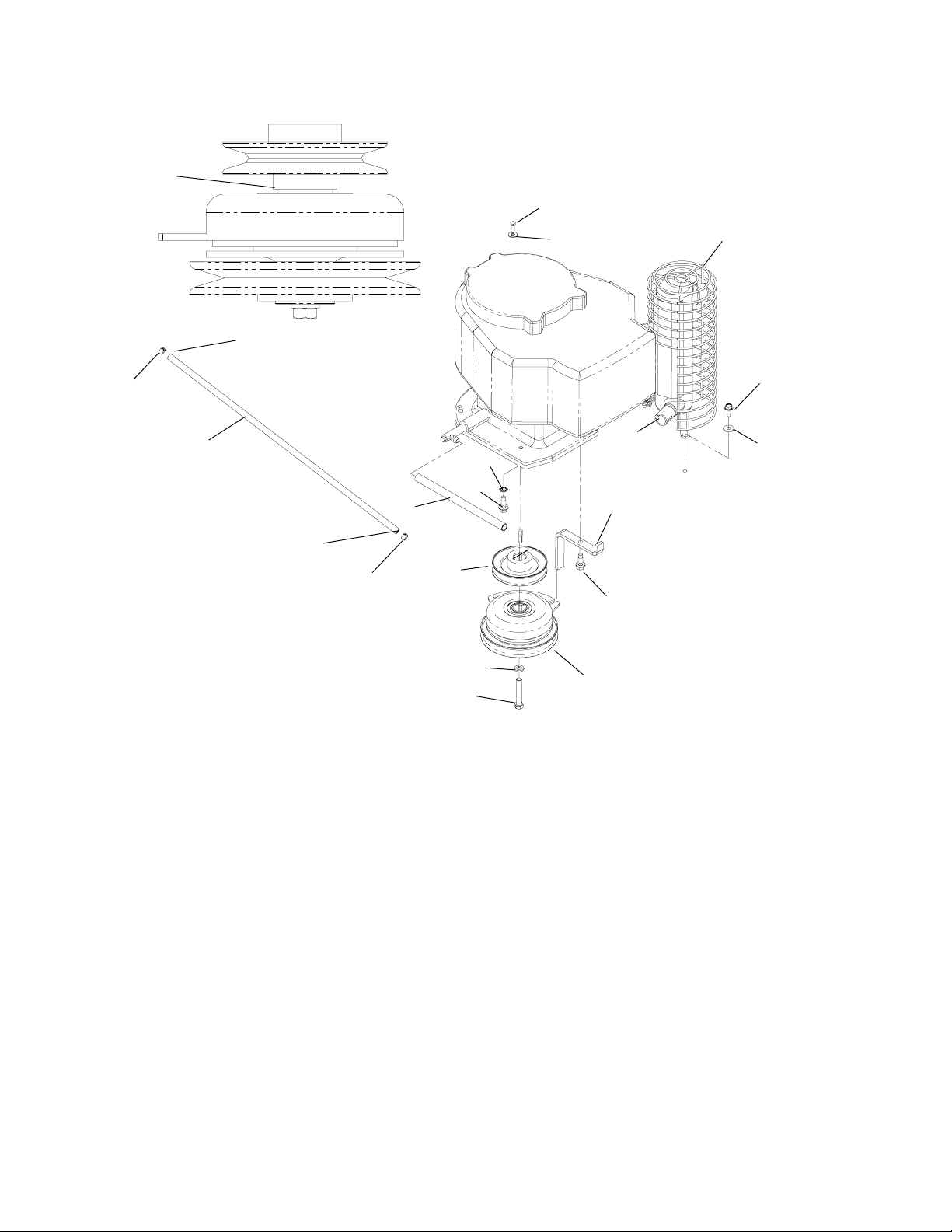

KAWASAKI ENGINE ASSEMBLY
TURNED SHOULDER
ON PULLEY HUB
MUST FACE
THE CLUTCH
10
11
TO FUEL VALVE
8
9
TO FUEL FILTER
17
6
12
5
8
2
4
3
13
7
6
1
14
15
16
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539105804 .......... 1 ......... CLUTCH 125 FT/LB
2 ......... 539107557 .......... 1 ......... PULLEY
3 ......... 539991120 ........... 1 ......... HCS 7/16F X 2 1/2
4 ......... 539990247 .......... 1 ......... LOCKWASHER, 7/16
5 ......... 539101995 .......... 1 ......... KEY, 1/4" SQ. X 1 1/8"
6 ......... 539107476 .......... 4 ......... BOLT 3/8-16 X 1, THREAD FORMING
........... 539104415 .......... 1 ......... KAWASAKI PIGTAIL (NOT SHOWN)
7 ......... 539107573 .......... 1 ......... CLUTCH TIE DOWN
........... 539105637 .......... 1 ......... CLUTCH HARNESS (NOT SHOWN)
8 ......... 539912222 .......... 2 ......... HOSE CLAMP
9 ......... 539105527 .......... 1 ......... FUEL LINE, 24"
10 ....... 539107955 .......... 1 ......... HCS M6-1.0 X 20
11 ........ 539990598 .......... 1 ......... WASHER, 1/4 FLAT
12 ....... 539107937 .......... 1 ......... OIL DRAIN HOSE
13 ....... 539107892 .......... 1 ......... MUFFLER
14 ....... 539108171 .......... 1 ......... WIRE GUARD
15 ....... 539107475 .......... 3 ......... BOLT, 5/16-18 X 3/4, THREAD FORMING
16 ....... 539990692 .......... 3 ......... WASHER, 5/16
17 ....... 539108266 .......... 1 ......... WASHER, 3/8, INTERNAL TOOTH
........... 539108120 .......... 1 ......... NUT, 1/4C, THIN NYLOC (NOT SHOWN, POSITIVE
..................................................... CABLE TO ENGINE)
18
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TURNED SHOULDER
ON PULLEY HUB
MUST FACE
THE CLUTCH
TO FUEL VALVE

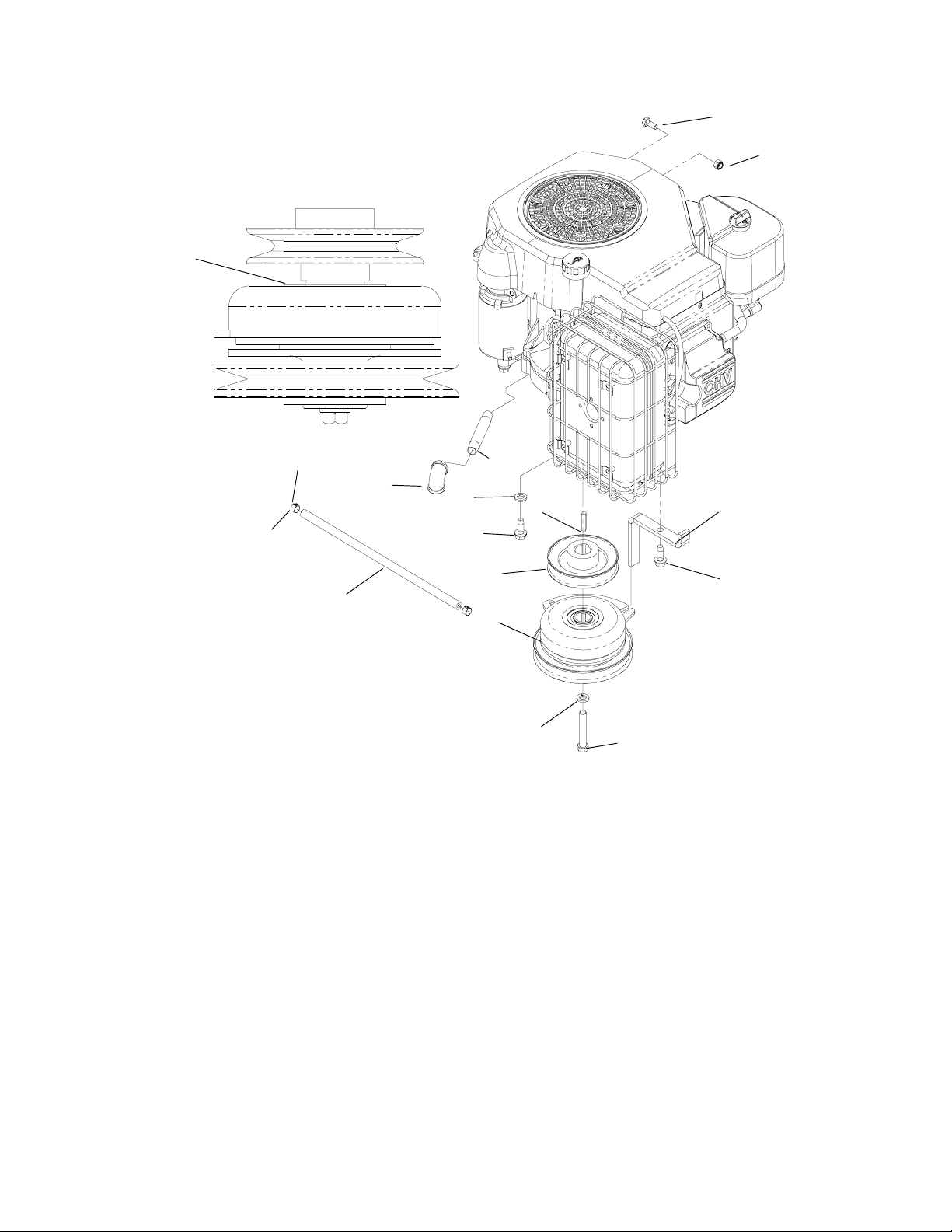

KOHLER ENGINE ASSEMBLY
8
7
10
14
5
6
12
13
9
2
11
1
TO FUEL FILTER
4
3
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539105804 .......... 1 ......... CLUTCH 125 FT/LB
2 ......... 539107557 .......... 1 ......... PULLEY
3 ......... 539991120 ........... 1 ......... HCS 7/16F X 2 1/2
4 ......... 539990247 .......... 1 ......... LOCKWASHER, 7/16
5 ......... 539101995 .......... 1 ......... KEY, 1/4" SQ. X 1 1/8"
6 ......... 539107476 .......... 4 ......... BOLT 3/8-16 X 1, THREAD FORMING
........... 539107516 .......... 1 ......... KOHLER PIGTAIL (NOT SHOWN)
7 ......... 539105072 .......... 1 ......... ELBOW, 90°, 3/8 NPT
8 ......... 539107517 .......... 1 ......... PIPE, 3/8 NPT X 4.0"
9 ......... 539107573 .......... 1 ......... CLUTCH TIE DOWN
........... 539105637 .......... 1 ......... CLUTCH HARNESS (NOT SHOWN)
10 ....... 539912222 .......... 2 ......... HOSE CLAMP
11 ........ 539104993 .......... 1 ......... FUEL LINE, 14"
12 ....... 539976934 .......... 1 ......... HCS 5/16C X 3/4
..................................................... (GROUND WIRE TO ENGINE)
13 ....... 539990717 .......... 1 ......... NUT, 5/16C, NYLOC
..................................................... (GROUND WIRE TO ENGINE)
........... 539108120 .......... 1 ......... NUT, 1/4C, THIN NYLOC (NOT SHOWN, POSITIVE
..................................................... CABLE TO ENGINE)
14 ....... 539108266 .......... 1 ......... WASHER, 3/8, INTERNAL TOOTH
6
19
www.mymowerparts.com
Page 20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECAL PLACEMENT
9
4
3
10
6
5
2
7
12
1
7
13
11
8
4
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539977778 .......... 3 ......... ABRASIVE PAD
2 ......... 539107959 .......... 1 ......... DECAL, WARNING
3 ......... 539108385 .......... 1 ......... DECAL, DO NOT TOW
4 ......... 539200732 .......... 2 ......... DECAL, HUSQVARNA
5 ......... 539105745 .......... 1 ......... EURO DECAL, BATTERY WARNING
6 ......... 539101881 .......... 1 ......... DECAL, PROP 65
7 ......... 539103333 .......... 2 ......... DECAL, MOTION CONTROL
8 ......... 539107591 .......... 1 ......... DECAL, CUTTING HEIGHT
9 ......... 539107925 .......... 1 ......... DECAL, SERVICE
10 ....... 539105744 .......... 1 ......... EURO DANGER DECAL, BELT DRIVES
11 ........ 539107890 .......... 2 ......... DECAL, CZ 4815
........... 539107889 .......... 2 ......... DECAL, CZ 4817
12 ....... 539108386 .......... 1 ......... DECAL, DRIVE LEVER
13 ....... 539108179 .......... 1 ......... DECAL, START
20
www.mymowerparts.com
Page 21
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

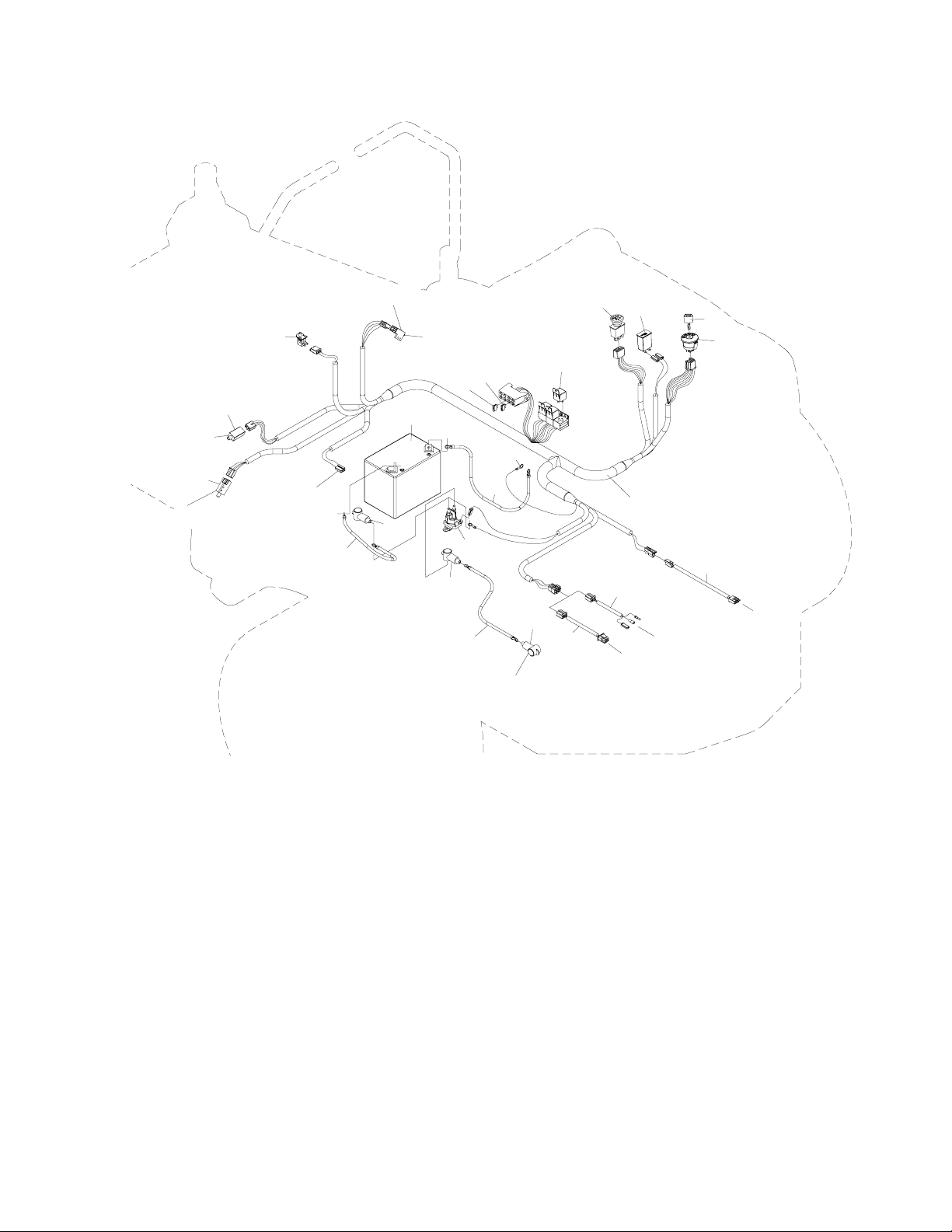

ELECTRICAL COMPONENTS
RIGHT MOTION
PARK BRAKE
2
2
LEFT MOTION
CONTROL LEVER
12
ACCESSORY
CONTROL LEVER
1
5
13
2
11
10
TO
ENGINE
GROUND
14
4
5
3
6
8
7
9
15
18
17
5
13
TO STARTER ON ENGINE
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539102436 .......... 1 ......... BATTERY, DRY
2 ......... 539101080 .......... 3 ......... SWITCH N.C.
3 ......... 539101768 .......... 1 ......... SWITCH, CLUTCH
4 ......... 539101714 .......... 1 ......... SOLENOID
5 ......... 539102759 .......... 3 ......... INSULATOR
6 ......... 539102540 .......... 1 ......... HOUR METER
7 ......... 539107541 .......... 1 ......... SWITCH, IGNITION
8 ......... 539107544 .......... 1 ......... KEY
9 ......... 539102914 .......... 3 ......... RELAY
10 ....... 539102086 .......... 1 ......... FUSE, 20 AMP
11 ........ 539101771 .......... 1 ......... FUSE, 7.5 AMP
12 ....... 539107523 .......... 1 ......... SWITCH, SEAT
13 ....... 539107616 .......... 2 ......... BATTERY CABLE, POSITIVE
14 ....... 539107615 .......... 1 ......... BATTERY CABLE, NEGATIVE
15 ....... 539107566 .......... 1 ......... WIRING HARNESS
16 ....... 539107516 .......... 1 ......... KOHLER PIGTAIL (Cz4817 ONLY)
17 ....... 539104415 .......... 1 ......... KAWASAKI PIGTAIL (Cz4815 ONLY)
18 ....... 539105637 .......... 1 ......... WIRING HARNESS, CLUTCH
16
TO KAWASAKI ENGINE
TO KOHLER WIRING HARNESS
TO ELECTRIC CLUTCH
21
www.mymowerparts.com
Page 22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

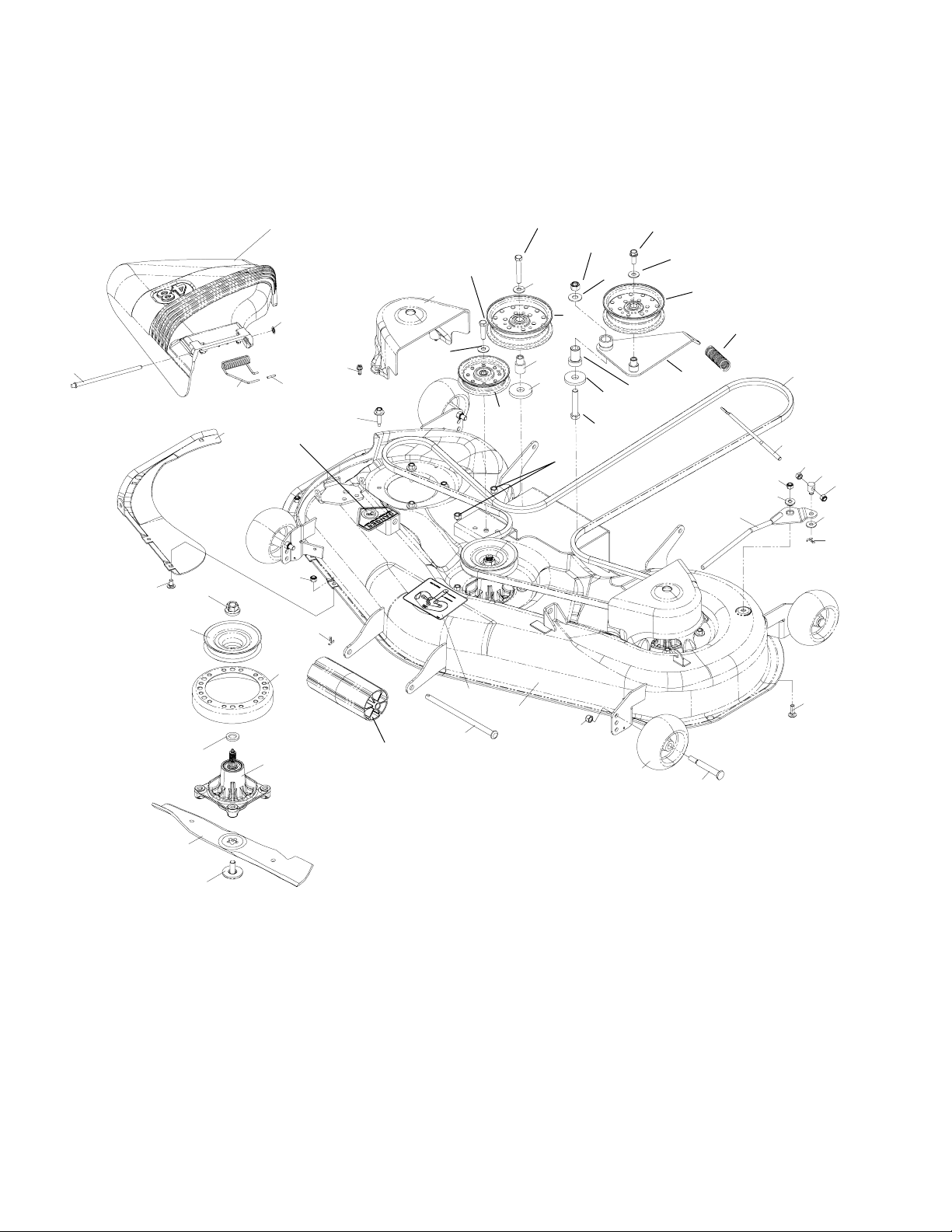

48" DECK ASSEMBLY
17
26
47
49
11
31
27
9
10
24
22
41
43
8
39
42
38
31
36
37
5
40
23
20
34
29
33
30
23
31
21
15
28
2
18
12
16
4
19
13
32
23
21
44
31
45
46
48
50
35
1
6
7
24
3
14
25
22
www.mymowerparts.com
Page 23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
48" DECK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107514 .......... 1 ......... DECK WELDMENT, 48"
2 ......... 539108025 .......... 2 ......... BELT SHIELD
3 ......... 539107610 .......... 4 ......... WHEEL, GAUGE
4 ......... 539107614 .......... 1 ......... BAFFLE, VORTEX, MOWER
5 ......... 539108668 .......... 1 ......... TENSION RELIEF LEVER
6 ......... 539107612 .......... 1 ......... ROLLER, NOSE, 48"
7 ......... 539107613 .......... 1 ......... ROD, ROLLER, NOSE, NARROW
8 ......... 539103257 .......... 1 ......... IDLER PULLEY
9 ......... 539103295 .......... 1 ......... IDLER BUSHING
10 ....... 539102243 .......... 1 ......... SUPPORT WASHER
11 ........ 539107620 .......... 1 ......... PULLEY, IDLER
12 ....... 539107631 .......... 4 ......... SCREW, 1/4-20 X 5/8, THDROLL
13 ....... 539107630 .......... 12........ SCREW, WASHER HEAD
14 ....... 539107608 .......... 4 ......... BOLT, SHOULDER
15 ....... 539107604 .......... 1 ......... DISCHARGE CHUTE
16 ....... 539107609 .......... 1 ......... SPRING, TORSION
17 ....... 539107618 .......... 1 ......... ROD, HINGE
18 ....... 539107626 .......... 1 ......... PUSHNUT
19 ....... 539107627 .......... 1 ......... CAP-SLEEVE
20 ....... 539107617 .......... 1 ......... BUSHING, PIVOT, TENSION RELIEF
21 ....... 539990365 .......... 2 ......... COTTER PIN
22 ....... 539990582 .......... 1 ......... HCS 3/8C X 1, SERRATED HEAD
23 ....... 539990717 .......... 5 ......... NUT, 5/16C, NYLOC
24 ....... 539976979 .......... 6 ......... NUT, 3/8C, NYLOC
25 ....... 539990208 .......... 1 ......... RHSNB 5/16C X 1
26 ....... 539990799 .......... 3 ......... BOLT, 5/16C X 5/8, CARRIAGE
27 ....... 539102612 .......... 1 ......... HCS 3/8C X 2 3/4
28 ....... 539990730 .......... 1 ......... HCS 3/8C, 1 3/4
29 ....... 539107803 .......... 1 ......... TENSION RELIEF LINKAGE
30 ....... 539108883 .......... 1 ......... SWIVEL
31 ....... 539990692 .......... 3 ......... WASHER, 5/16, FLAT
32 ....... 539913010 .......... 1 ......... DECAL, CPSC
33 ....... 539990196 .......... 1 ......... NUT, 5/16C
34 ....... 539107709 .......... 1 ......... DECK BELT
35 ....... 539107960 .......... 1 ......... DECAL, BELT ROUTING
36 ....... 539107540 .......... 1 ......... DECK IDLER ARM WLDMT.
37 ....... 539103257 .......... 1 ......... IDLER PULLEY
38 ....... 539101231 .......... 1 ......... IDLER SPINDLE
39 ....... 539103303 .......... 1 ......... PAD
40 ....... 539101977 .......... 1 ......... TRACTION SPRING
41 ....... 539101331 .......... 1 ......... NUT, 1/2C, NYLOC
42 ....... 539101572 .......... 1 ......... HCS 1/2C X 3
43 ....... 539990550 .......... 1 ......... WASHER, 1/2, FLAT
44 ....... 539107518 .......... 3 ......... STRIPPER, ROUND, UNIVERSAL
45 ....... 539107519 .......... 3 ......... BLADE, HIGH LIFT
46 ....... 539107520 .......... 3 ......... WASHER-SPACER
47 ....... 539107521 .......... 3 ......... PULLEY
48 ....... 539107522 .......... 3 ......... BOLT, 7/16, ASSY BLADE
49 ....... 539107590 .......... 3 ......... NUT, 9/16, TOP CENTER LOCK
50 ....... 539107515 .......... 3 ......... CUTTER HOUSING ASM, INCLUDES:
..................................................... BALL BEARINGS, MANDREL ASM,
..................................................... SHAFT ASM W/LOWER BEARING
23
www.mymowerparts.com
Page 24
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
WIRING SCHEMATIC
24
www.mymowerparts.com
Page 25
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
25
www.mymowerparts.com
Page 26
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
