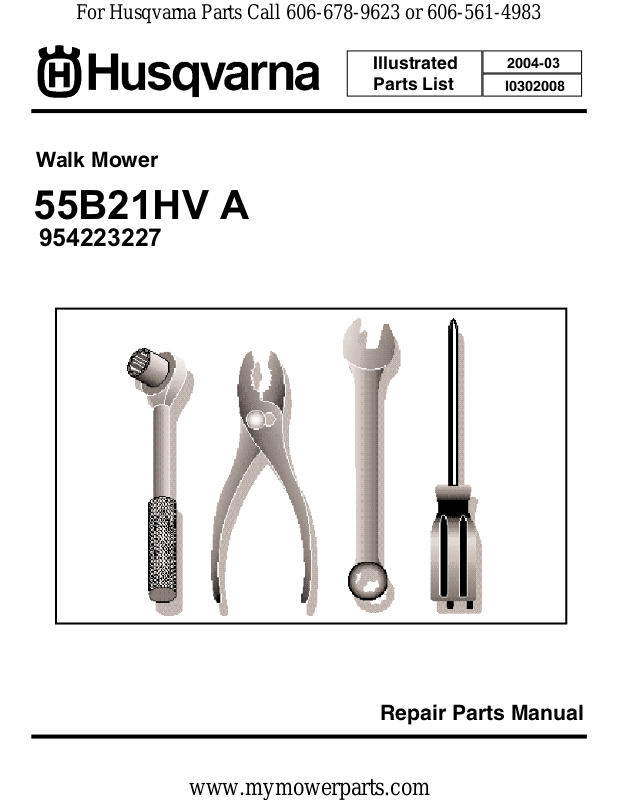

Page 1
Walk Mower
55B21HV A
954223227
Illustrated Parts List
2004-03
I0302008
Repair Parts Manual
www.mymowerparts.com
Page 2
www.mymowerparts.com
Page 3
ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA)
PRODUCT NUMBER 954 22 32-27

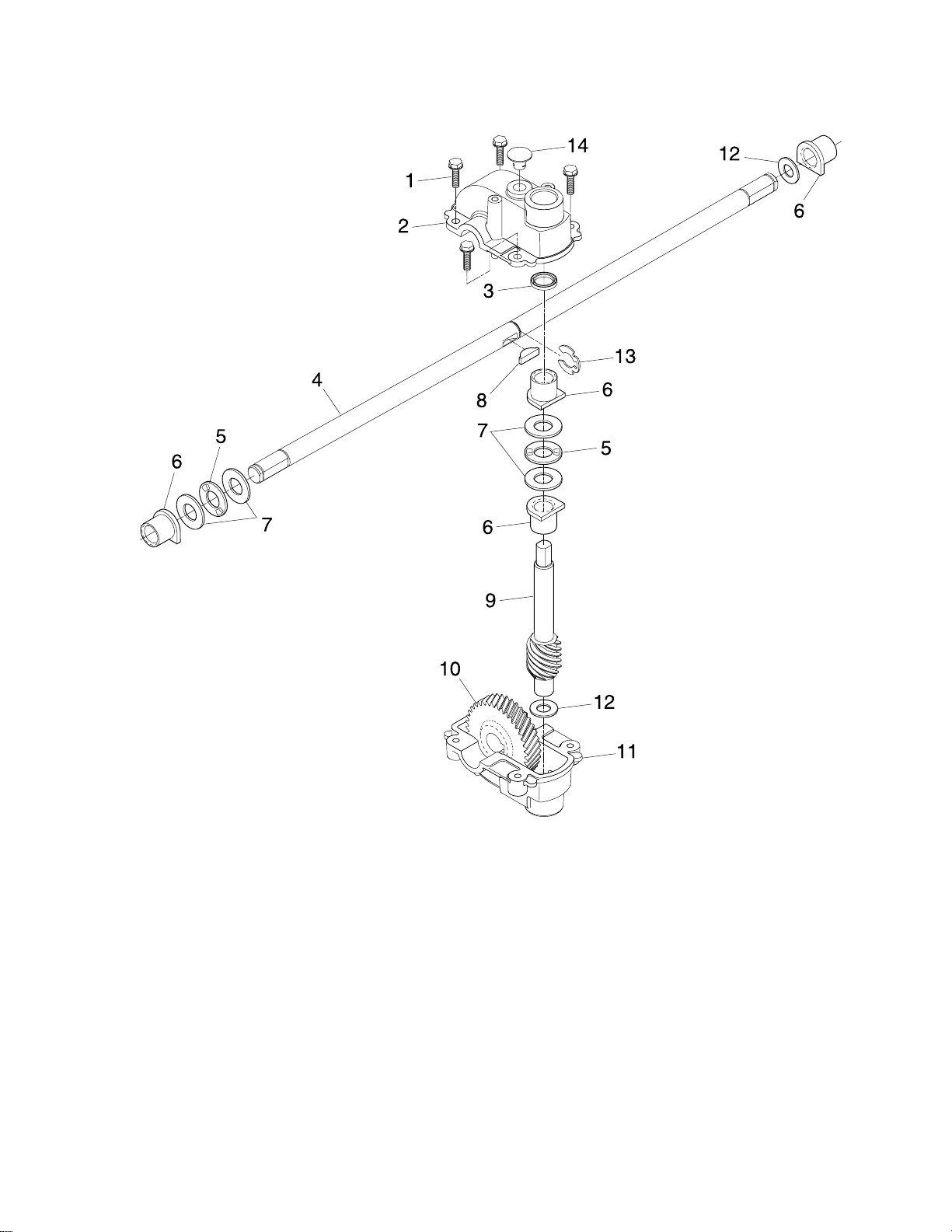

GEAR CASE ASSEMBLY - - PART NUMBER 532 18 36-99
KEY PART NO. NO. DESCRIPTION
1 817 54 10-11 Screw, Tapping #10-24 x .668 2 532 16 06-72 Gear Case, Upper 3 532 05 70-72 Seal 4 532 18 39-08 Drive Shaft 5 532 16 08-18 Bearing, Needle, Thrust 6 532 07 78-81 Bearing 7 532 16 08-17 Washer, Thrust 8 532 85 08-48 Key, Hi-pro 9 532 18 41-34 Shaft, Worm 10 532 16 06-79 Gear, Helical 11 532 16 06-73 Gear Case, Lower 12 532 05 70-79 Washer, Hardened 13 812 00 00-39 E-Ring 14 532 08 64-47 Plug
- - 532 75 03-69 Grease
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
19
www.mymowerparts.com
Page 4
ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA) - PRODUCT NUMBER 954 22 32-27
www.mymowerparts.com
20
Page 5

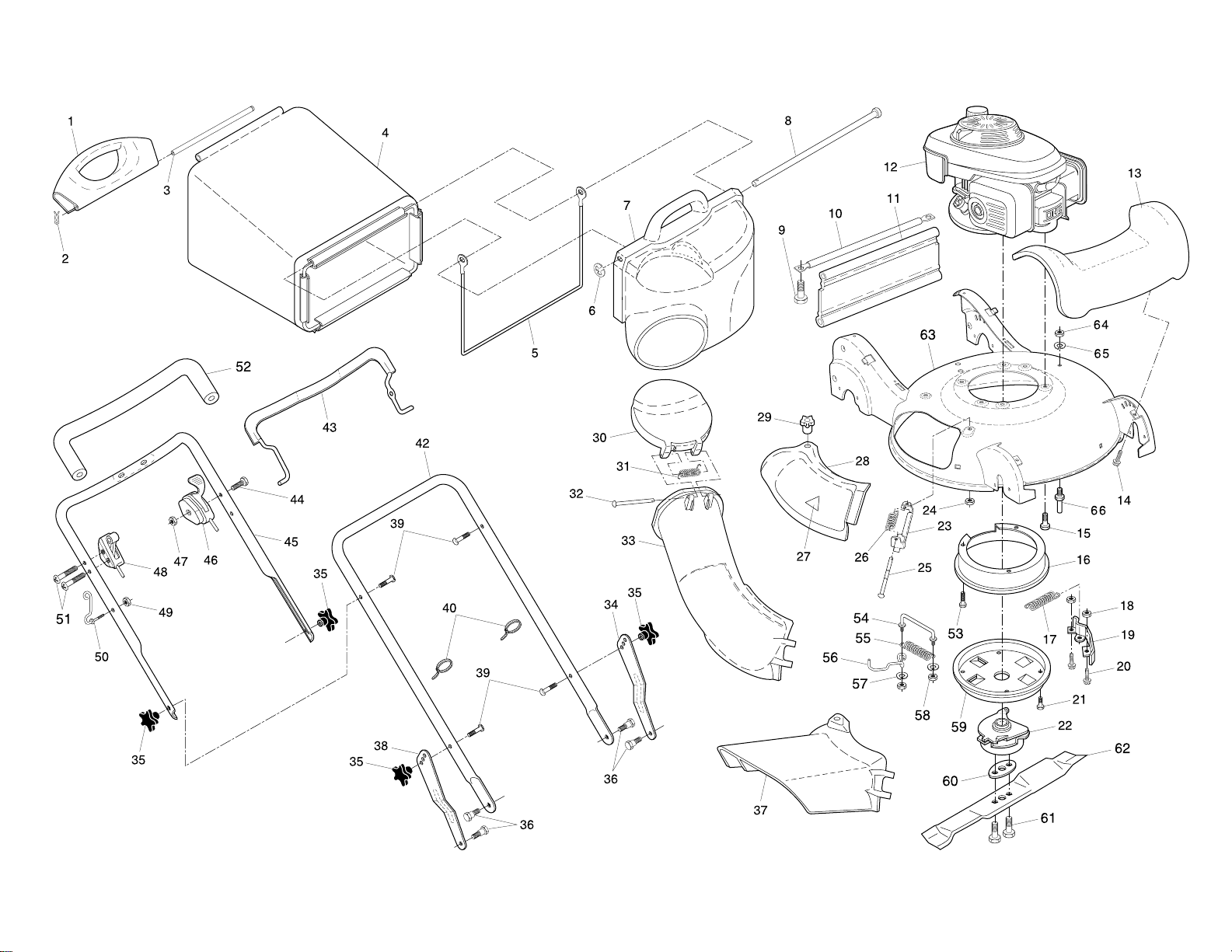

ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA) - PRODUCT NUMBER 954 22 32-27
KEY PART NO. NO. DESCRIPTION
1 532 18 60-03 Handle, Grassbag, Rear 2 532 06 53-22 Hairpin Cotter 3 532 18 34-83 Rod, Rear Handle, Grassbag 4 532 18 52-28 Grassbag
www.mymowerparts.com
21
5 532 18 34-81 Frame, Grassbag 6 812 00 00-14 E-Ring 7 532 18 60-02 Door, Grassbag 8 532 18 34-79 Rod, Pivot
- - 532 18 63-02 Grassbag Assembly, Complete (Consists of Key Numbers 1-8) 9 817 41 13-18 Screw 10 532 18 43-31 Tube, Rear Skirt 11 532 18 34-63 Skirt, Rear 12 - - - Engine, Honda, Model Number GCV160 (Order parts from Engine Manufacturer) 13 532 18 37-70 Cover, Front 14 532 18 45-72 Screw, Hex Washer Head 15 532 15 04-06 Bolt, Engine Mounting 16 532 18 04-59 Belt Cover, Upper 17 532 18 03-93 Spring 18 873 90 04-00 Nut, Hex 19 532 18 74-92 Brake, Clutch 20 874 78 04-10 Bolt, Hex Head 21 532 75 00-97 Screw 22 - - - Blade Brake / Clutch (Order parts from Engine Manufacturer) 23 532 18 36-09 Mounting Bracket, Mulcher Door 24 532 75 11-52 Nut, Hex 25 532 18 34-45 Rod, Hinge 26 532 18 34-46 Spring, Mulcher Door 27 532 10 73-39 Decal, Danger 28 532 18 59-95 Mulcher Door 29 532 18 34-47 Knob 30 532 18 60-01 Door, Discharge Chute 31 532 18 34-78 Spring, Door, Discharge Chute 32 532 18 34-45 Rod, Door, Discharge Chute 33 532 18 60-00 Discharge Chute, Plastic
- - 532 18 63-01 Discharge Chute Assembly, Complete (Consists of Key Numbers 30-33)
KEY PART NO. NO. DESCRIPTION
34 532 18 74-25 Adjustment Bracket, Lower Handle, LH 35 532 18 55-88 Knob, Star 36 532 18 34-65 Bolt, Shoulder 37 532 18 59-96 Defl ector, Discharge 38 532 18 74-26 Adjustment Bracket, Lower Handle, RH 39 532 18 45-68 Bolt, Handle 40 532 06 64-26 Wire Tie 42 532 18 70-96 Handle Assembly, Lower 43 532 18 62-99 Bail, Control 44 532 18 74-99 Screw 45 532 18 62-96 Handle Assembly, Upper (Includes Foam Grip) 46 532 18 37-07 Blade Brake Control 47 532 18 45-69 Nut, Hex 48 532 18 57-79 Throttle Control 49 532 18 45-69 Nut, Hex 50 532 18 34-69 Rope Guide 51 532 18 34-49 Screw 52 532 18 27-48 Grip, Foam 53 532 15 04-08 Bolt, Engine 54 532 18 01-88 Link, Torque 55 532 18 03-94 Spring 56 532 18 61-30 Belt Keeper 57 532 05 39-98 Washer, Lock 58 873 51 06-00 Nut, Hex 59 532 18 36-10 Belt Cover, Lower 60 532 18 50-46 Spacer, Blade 61 532 18 62-91 Bolt, Hex Head 62 532 18 04-59 Blade, 21" 63 532 18 69-57 Kit, Housing 64 873 90 06-00 Nut, Hex 3/8-16 65 532 85 02-63 Washer, Lock 66 532 18 21-31 Stud, Belt Guide
- - 532 16 23-00 Decal, Warning (not shown)
- - 532 18 63-04 Owner's Manual
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
Page 6
ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA) - PRODUCT NUMBER 954 22 32-27
www.mymowerparts.com
22
Page 7

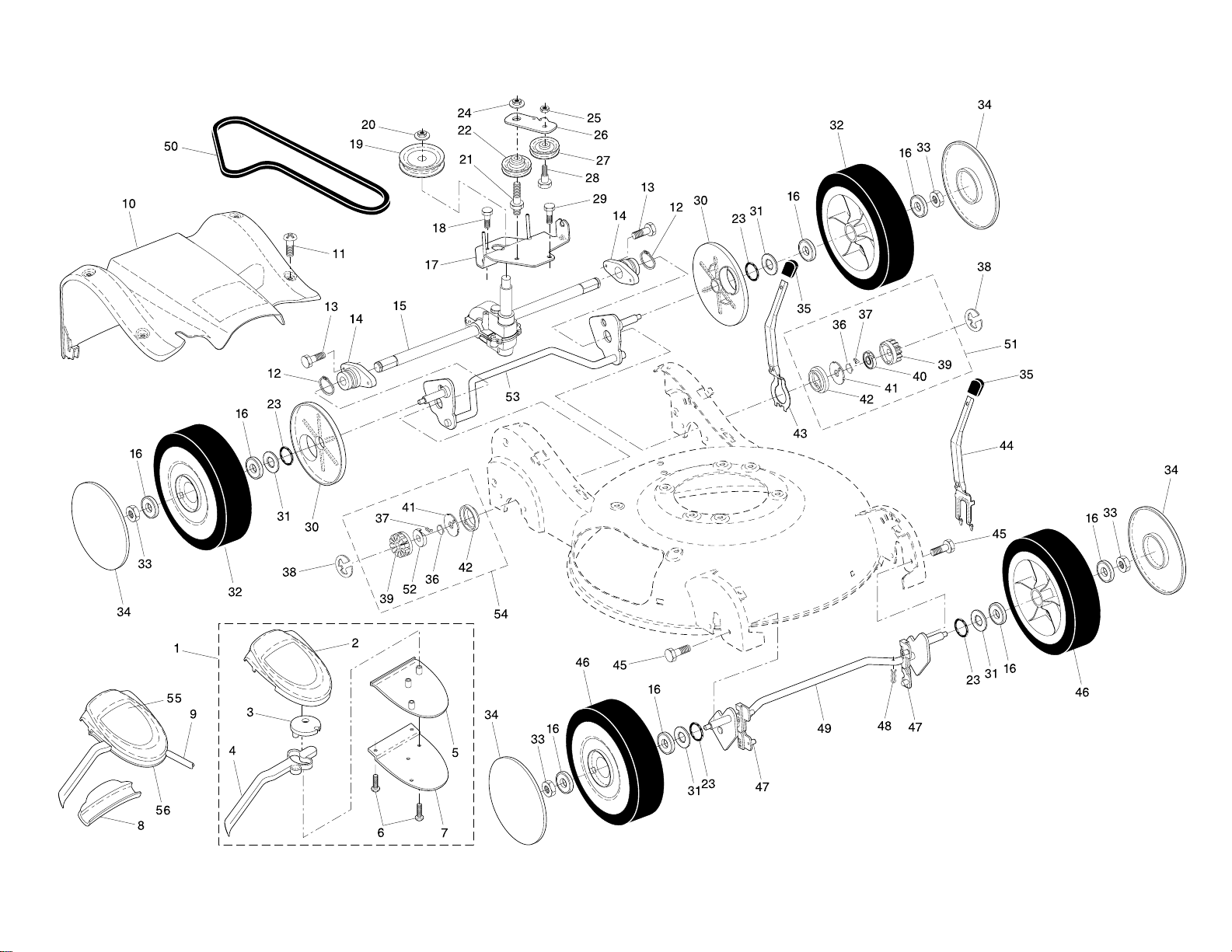

ROTARY LAWN MOWER - - MODEL NUMBER 55B21HV (55B21HVA) - PRODUCT NUMBER 954 22 32-27
KEY PART NO. NO. DESCRIPTION
www.mymowerparts.com
23
1 532 18 53-12 Drive Control Assembly, Complete (Consists of Key Numbers 2 through 7) 2 532 18 82-79 Cover, Drive Control, Top 3 532 18 73-53 Pulley, Drive Control 4 532 19 02-83 Lever, Drive Control (blue) 5 532 18 82-78 Cover, Drive Control, Bottom 6 532 18 16-98 Screw, Torx Head #8-5/8 7 532 18 70-97 Bracket, Mounting, Drive Control 8 532 18 62-97 Cap, Drive Control, Bottom 9 532 18 82-80 Cable, Drive Control 10 532 18 59-97 Cover Assembly, Drive 11 532 18 45-71 Screw 12 812 00 00-12 Ring, Retaining 13 532 18 34-50 Screw 14 532 18 71-20 Bearing / Axle Support 15 532 18 36-99 Gear Case Assembly (See Breakdown) 16 532 75 10-68 Bearing, Ball (Wheel) 17 532 18 70-93 Bracket, Gear Case / Drive Pulley 18 817 54 10-11 Screw 19 532 18 47-49 Pulley, Drive 20 532 13 20-10 Nut, Hex, Flangelock 21 532 18 37-01 Bolt, Idler 22 532 18 45-43 Pulley Assembly, V-Groove 23 532 18 81-52 O-Ring 24 532 14 52-12 Nut, Hex, Flangelock 25 873 93 05-00 Nut, Hex, Lock 26 532 18 70-98 Idler Arm 27 532 16 60-43 Pulley, Idler 28 532 16 08-29 Bolt, Hex Head, Shoulder 29 817 06 04-10 Screw 1/4-20 x 1/16
KEY PART NO. NO. DESCRIPTION
30 532 18 34-57 Cover, Dust, Wheel 31 532 08 83-48 Washer, Flat 3/8 32 532 18 43-68 Wheel Assembly, Rear 9 x 2-1/4 33 532 08 39-23 Nut, Hex 34 532 18 36-95 Hubcap 35 532 18 59-94 Knob 36 532 18 82-91 Spring, Torsion 37 532 17 50-98 Pawl 38 812 00 00-58 E-Ring 39 532 17 51-03 Pinion, Gear 40 532 17 51-05 Retainer, Drive, LH 41 532 17 51-04 Disc, Drive 42 532 18 41-72 Seal, Friction 43 532 18 70-92 Lever, Selector, Wheel Height, Rear 44 532 18 70-90 Lever, Selector, Wheel Height, Front 45 532 16 34-09 Screw 46 532 18 43-69 Wheel Assembly, Front 9 x 2-1/4 47 532 18 34-38 Bushing, Front Axle 48 532 16 96-75 Retainer, Hairpin Cotter 49 532 18 70-89 Torque Shaft Assembly, Front 50 532 18 36-88 Belt, Drive 51 532 18 83-31 Pinion Assembly, LH 52 532 17 51-02 Retainer, Drive, RH 53 532 18 70-91 Rear Axle Assembly 54 532 18 83-30 Pinion Assembly, RH 55 532 18 73-56 Decal, Drive Control 56 532 18 59-13 Decal, Drive Control Adjustment (bottom)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
