Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ride Mower
YTH2242 B
954570383
Illustrated
Parts List
2003-01
I0302006
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

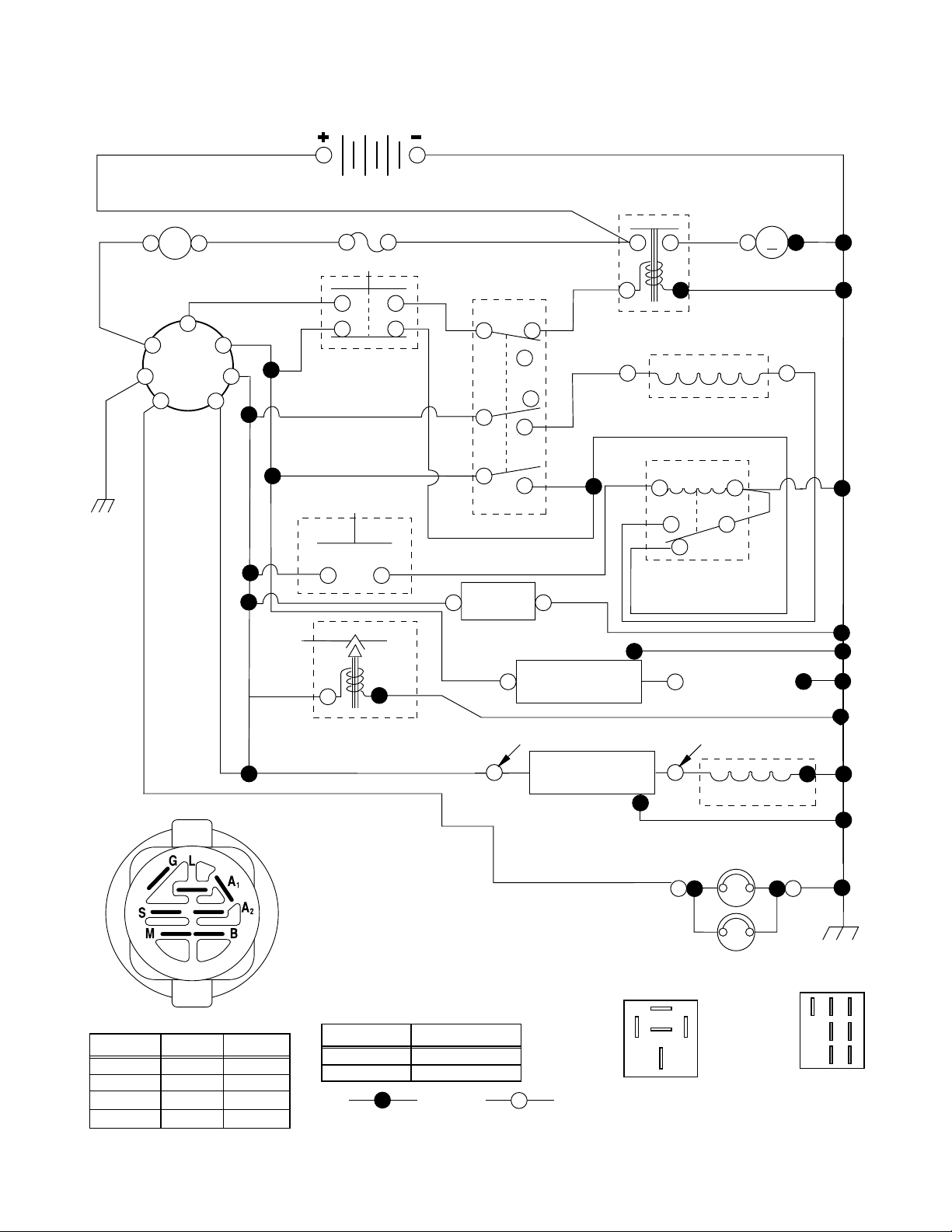

TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
S
B
L
A2
BLACK
M
A1
CLUTCH / BRAKE
(PEDAL UP)
RED
BLACK
F
H
RED
B
ELECTRIC CLUTCH
BLACK
E
ORANGE
SEAT SWITCH
(NOT OCCUPIED)
A
D
PTO (DISENGAGED)
85 86
87
BLACK
30
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
FUEL SHUT-OFF SOLENOID
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
“MAKE”
NONE
A2+L
NONE
NONE
OFF
NON-REMOVABLE
CONNECTIONS
RED
PTO SWITCH
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + DON
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
REMOVABLE
CONNECTIONS
29
BROWN
87
87A
30
RELAY
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

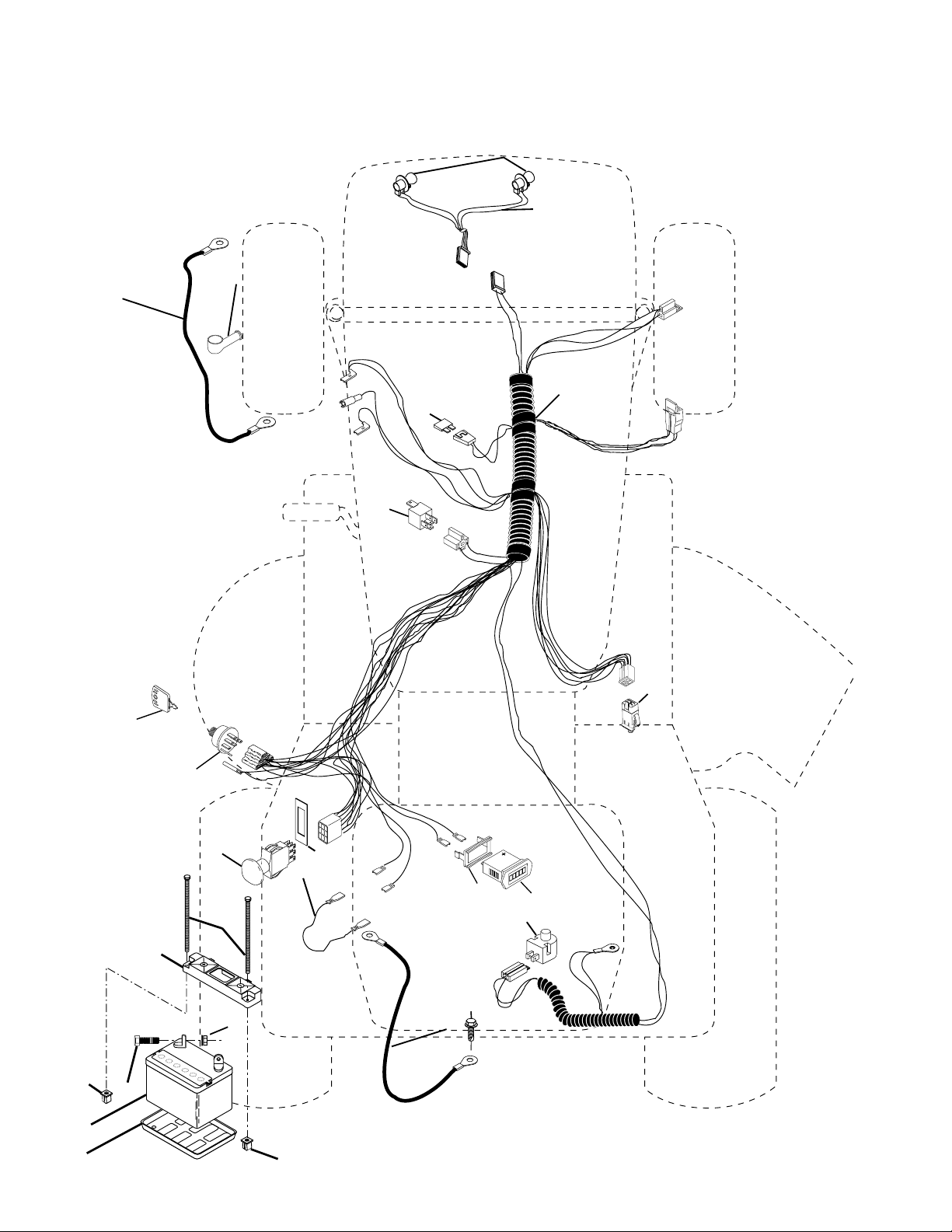

ELECTRICAL
22
21
42
24
40
26
33
11
30
50
10
48
51
81
89
29
16
46
12
27
2
1
8
12
55
28
30
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20unc X 3/4
8 532 12 48-86 Tray Battery
10 532 14 52-11 Bolt Brt Frt 1/4-20 x 75 Ainc
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut Push Nylon 1/4" Battery Frt
16 532 17 61-38 Switch Interlock Push-In
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 17 89-09 Cable Battery 6 Ga 22" red w/16 wire
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Kep Hex 1/4-20 Unc
28 532 14 54-91 Cable Ground 6 Ga 21" black
29 532 16 07-84 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
40 532 18 63-98 Harness Ign.
42 532 15 43-36 Cover, Terminal, Red
46 532 16 96-35 Meter Hour
48 532 14 08-44 Adapter Ammeter
50 532 17 46-51 Switch PTO
51 532 14 04-05 Ring Retainer PTO
55 817 49 05-08 Screw Thdrol 5/16-18 x 1-1/2 Tyt
81 532 10 97-48 Relay Asm.
89 532 16 96-39 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
31
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

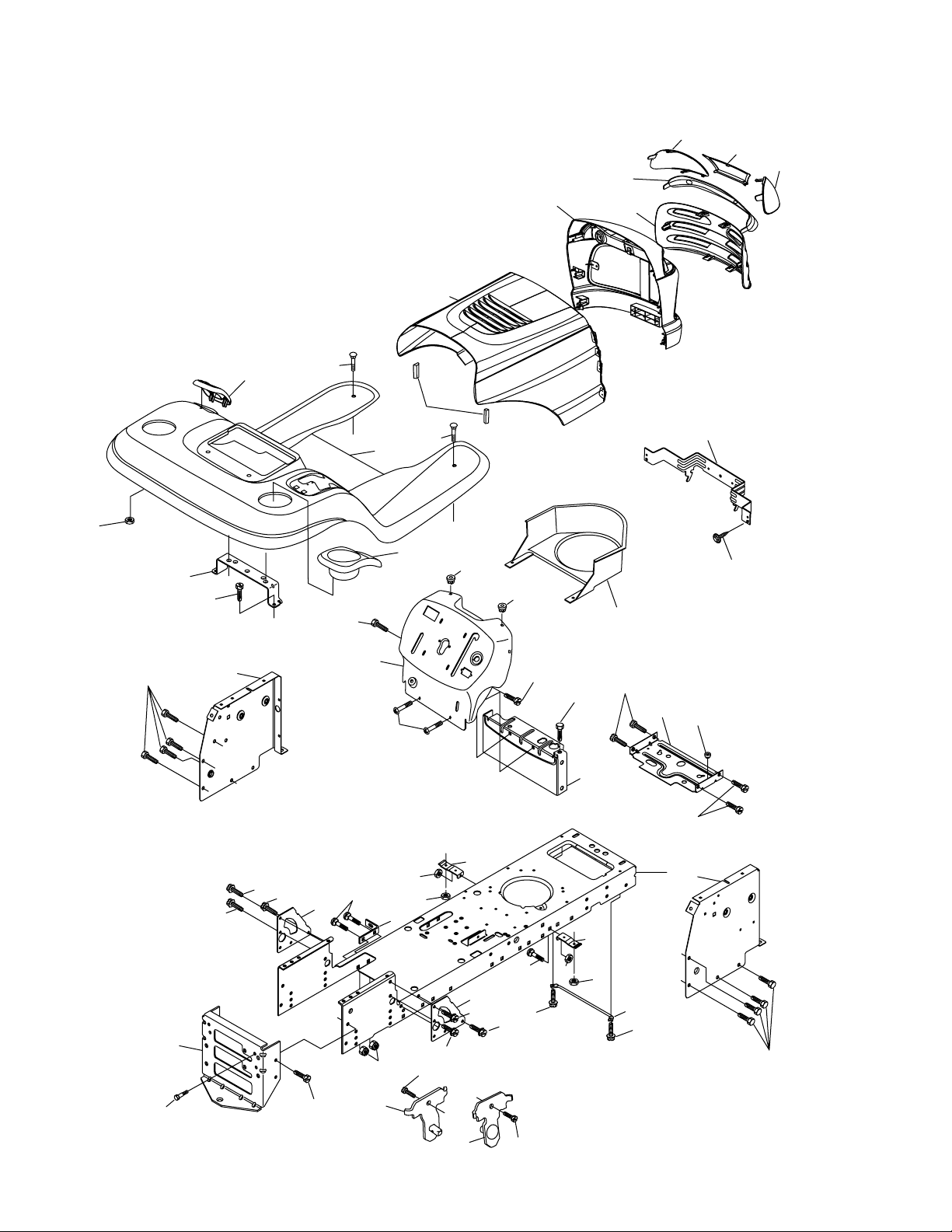

CHASSIS AND ENCLOSURES
17
28
259
212
261
260
258
90
208
31
209
11
217
10
209
18
20
39
166
23
207
159
10
5
5
58
209
208
219
64
30
9
206
219
144
144
60
26
26
142
3
3
38
37
3
14
74
26
26
143
14
38
3
3
3
2
60
142
3
145
37
1
13
208
32
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar
3 817 06 06-12 Screw 3/8-16x3/4
5 532 15 52-72 Bumper
9 532 17 19-24 Dash
10 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 Unc x 1
11 532 17 49-96 Panel Dash Lh
13 532 17 21-06 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 52-11 Hood
18 532 18 49-21 Bumper Hood
20 532 18 06-79 Plate Mtg Battery/Fuel Tank
23 532 12 40-28 Bushing
26 873 80 06-00 Nut Lock w/Insert 3/8-16 UNC
28 532 18 52-92 Grille Lens Asm
30 532 18 54-32 Fender
31 532 13 99-76 Bracket
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot Hood
58 532 15 11-71 Duct Air
60 872 14 06-06 Bolt RDHD SQNK 3/8-16 x 3/4
64 532 15 47-98 Dash Lower Stlt
74 873 68 06-00 Nut Crownlock 3/8-16
90 532 12 43-46 Nut 1/4
142 532 17 57-02 Plate Reinforcement Stlt
143 532 15 49-66 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Ft Rest
145 532 15 65-24 Rod Pivot Chassis Hood
159 532 18 54-34 Cupholder YTGT Grey
166 532 17 18-75 Screw HwHd Hi-Lo #13-16 x 3/4
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2 TYTT
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-TT
209 817 00 06-12 Screw 3/8-16 x 3/4
212 532 18 35-48 Insert Lens Refl ect
217 532 18 54-36 Fuel Window
219 817 00 05-12 Screw 5/16-18 x 3/4
258 532 18 52-13 Lens RH
259 532 18 52-14 Lens LH
260 532 18 54-29 Cover Lens
261 532 18 54-33 Insert, Grille
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

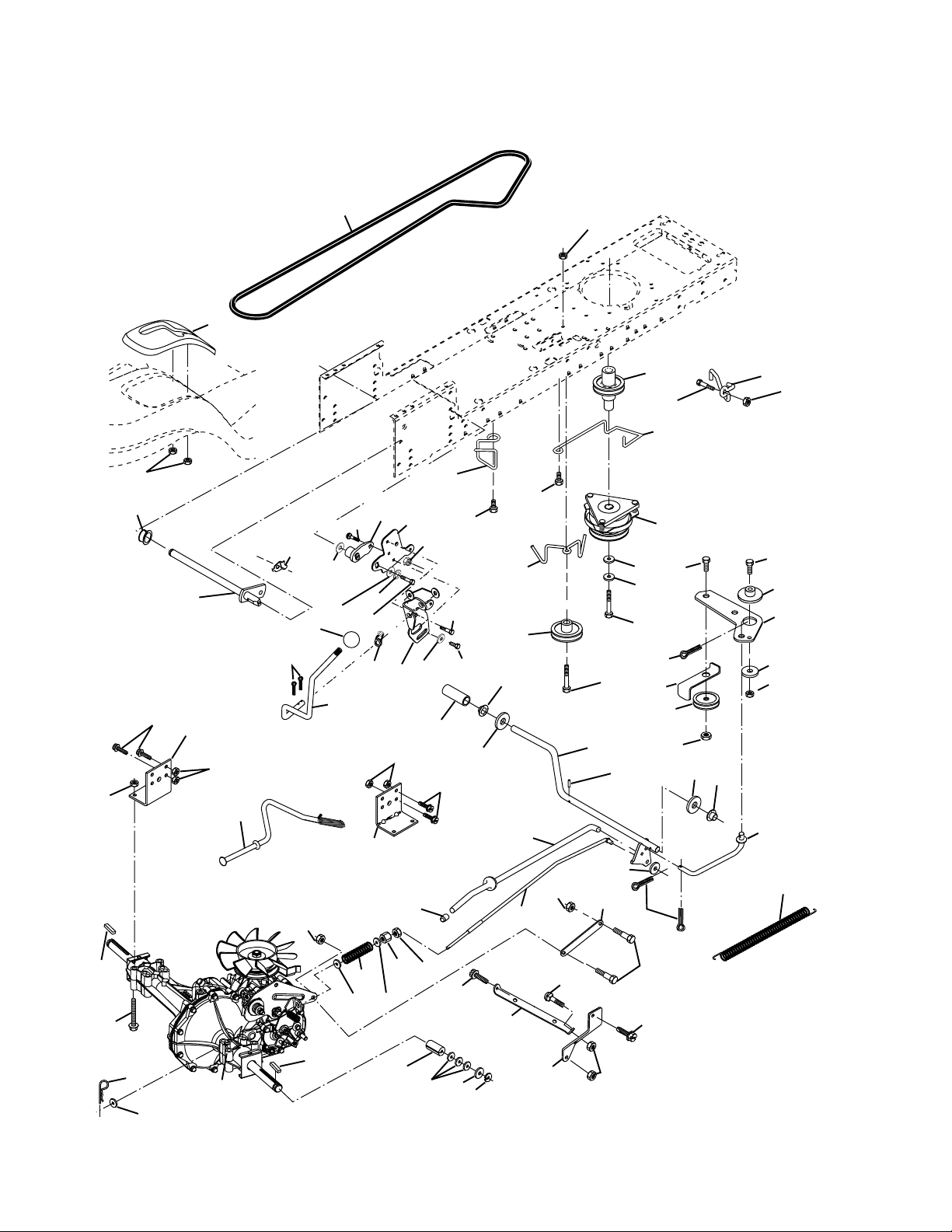

DRIVE
57
51
89
16
90
197
32
81
30
52
95
169
10
16
21
198
164
8
161
14
163
82
30
159
165
52
158
29
162
83
156
62
59
32
168
166
61
36
35
41
38
28
22
56
16
34
84
39
26
37
17
65
20
27
63
27
49
116
66
9
47
120
50
36
23
212
202
150
48
151
51
35
53
55
77
15
96
26
19
26
74
75
24
78
250
200
71
73
76
25
26
77
1
199
250
16
34
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle, Hydro 314-0510
(Order Parts From Transaxle Manu-
facturer)
8 532 16 58-66 Rod Shift Fender Adjust STLT
9 532 18 05-05 Clutch
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical
15 874 49 05-44 Bolt Hex 5/16-18 Unc Flghd
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 Unc P
17 532 12 61-97 Washer 1-1/2 x 15/32 x .250
19 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 Unc
20 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr.5-1.5
21 532 14 08-45 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532 16 94-98 Rod, Brake Hydro
23 532 17 82-89 Bracket Asm Anti-Rot
24 873 35 06-00 Nut Hex Jam 3/8-16 UNC
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap,Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 Unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite, Flat
39 874 76 06-48 Bolt, Fin, Hex 3/8-16 x 3
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove Plastic
48 532 15 44-07 Bellcrank Clutch Grnd Drv STL
49 532 12 32-05 Retainer, Belt Style Spring
50 872 11 06-12 Bolt 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crown Lock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1.0
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
KEY PART
NO. NO. DESCRIPTION
63 532 17 46-07 Pulley, Engine
65 810 04 07-00 Washer Lock Hvy HLCL Spr 7/16
66 532 15 47-78 Keeper Belt Engine
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga
81 532 16 55-96 Shaft Asm Cross Tapered
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 16 65-10 Console, Shift
90 532 12 43-46 Nut Self Thd 1/4
95 532 17 02-01 Control Asm. Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
116 872 14 06-08 Bolt 3/8-16 x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrted 5/16ID x 1.125
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873 68 04-00 Nut Crownlock 1/4-20 Unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819 09 10-10 Washer 5/8 x .281 x 10 Ga
165 532 16 56-23 Bracket Pivot Lever
166 532 16 68-80 Screw 5/16-18 x 5/8
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
169 532 16 55-80 Plate Fastening STLT/CRD
197 532 16 96-13 Nyliner Snap 5/8" ID
198 532 16 95-93 Washer Nyl 7/8 ID x .105 Hyd
199 532 16 96-12 Bolt Shoulder 5/16-18 Unc
200 872 14 05-08 Bolt Rdhd Sqnk 5/16-18 Unc x 1
202 872 11 06-14 Bolt RdHd 3/8-16 Unc x 1-3/4 Gr. 5
212 532 14 52-12 Nut Hexfl ange Lock
250 817 06 06-12 Screw 3/8-16 x .75
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

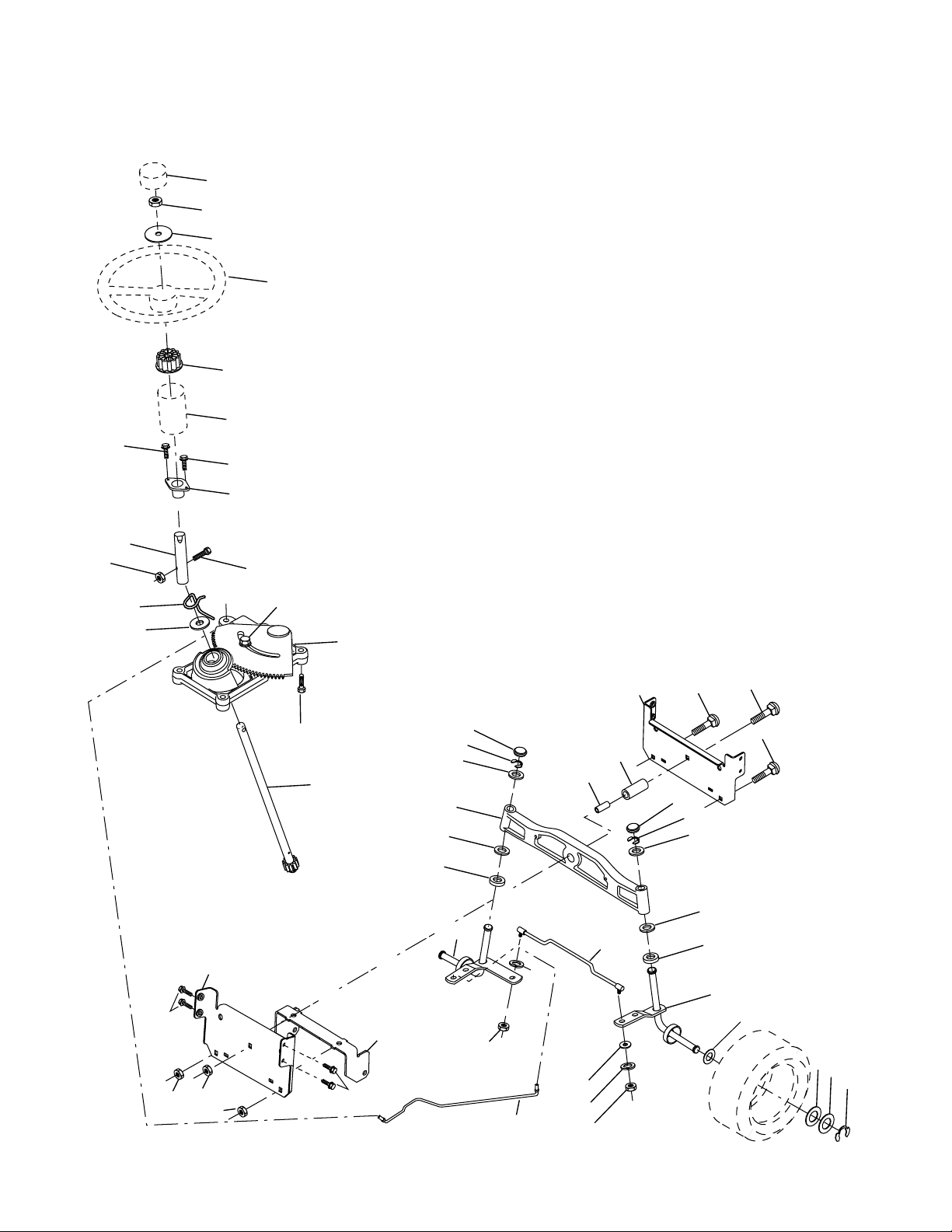

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
91
43
29
15
15
54
88
71
68
29
17
68
82
29
15
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
36
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel Steering
2 532 18 47-06 Axle Cast Lt Machined
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 X 1-5/8 X 16 Ga
8 812 00 00-29 Ring Klip #t5304-75
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 18 06-41 Shaft Asm Strg
29 817 06 06-12 Screw 3/8-16x3/4
32 532 17 18-88 Rod Tie
33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
34 810 04 05-00 Washer Lock Hvy Helical 5/16
35 873 54 05-00 Nut Crown Lock 5/16-24Unf
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw
38 532 16 66-26 Insert Cap Strg Wh
39 819 18 24-11 Washer 9/16 ID x 1-1/2 OD x 11 Ga.
40 532 12 47-01 Lock nut
41 532 15 99-45 Adaptor Wheel Strg
42 532 16 96-34 Boot Steering Shaft
43 532 12 17-49 Washer 25/32 X 1 1/4 X 16 Ga
44 532 18 06-40 Extension Steering Shaft LR/LT
46 532 12 12-32 Cap Spindle Fr Top Blk
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28 UNF x 1-1/4 Gr. 8
65 532 16 03-67 Spacer Brace Axle
67 872 14 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
37
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

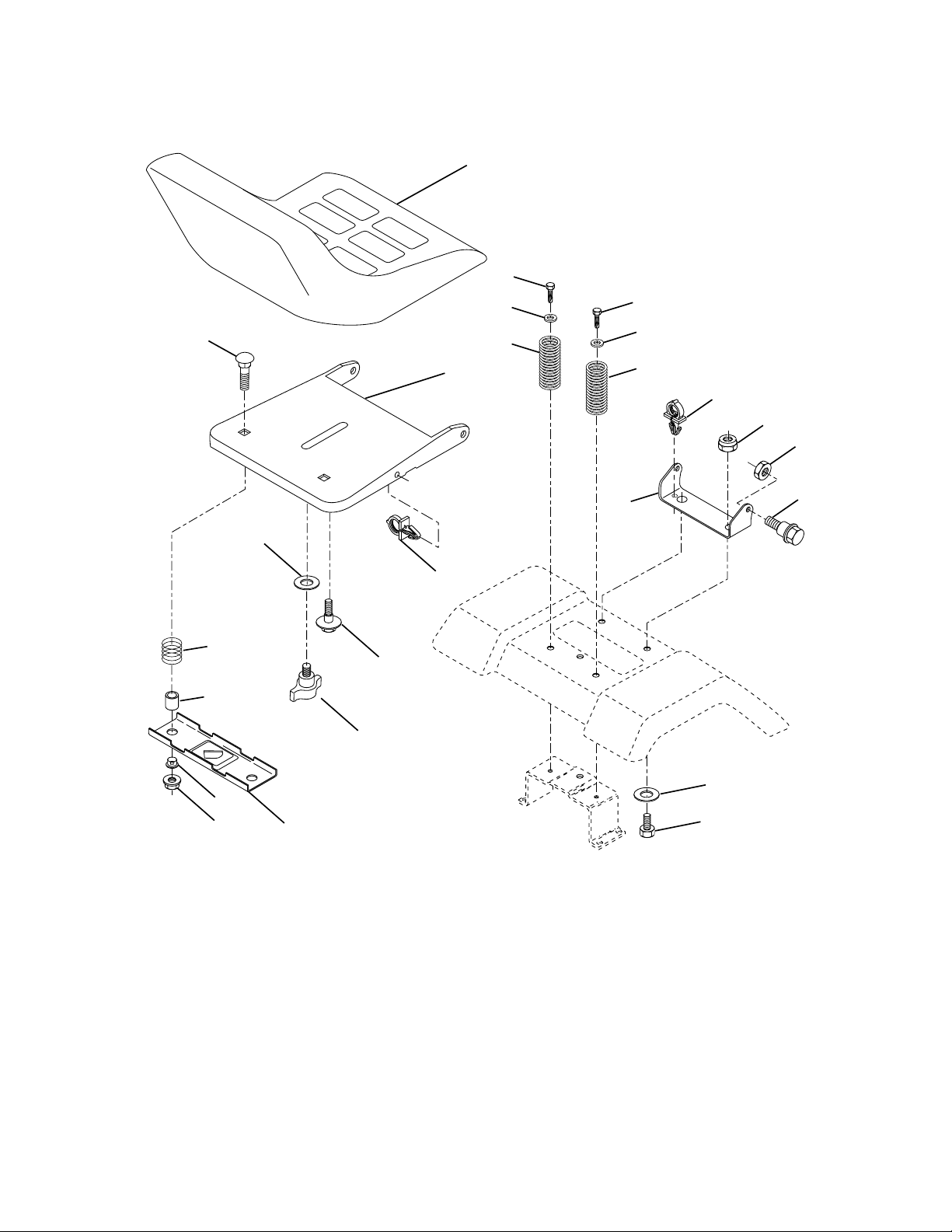

SEAT ASSEMBLY
1
8
8
9
7
5
6
22
14
9
7
10
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 532 18 49-92 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16 x 1
4 819 13 16-10 Washer Flat 13/32 x 1.0 x 10 Ga.
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 Unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1
9 819 13 16-14 Washer 13/32 x 1.0 x 14 Ga.
10 532 18 24-93 Pan Seat
11 532 16 63-69 Knob Seat Adj Wingnut
12 532 12 12-46 Bracket Mounting Switch
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532 13 43-00 Spacer Split
16 532 12 12-50 Spring Cprsn
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 Unc
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 17/32 X 1 -3/16 X 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
38
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

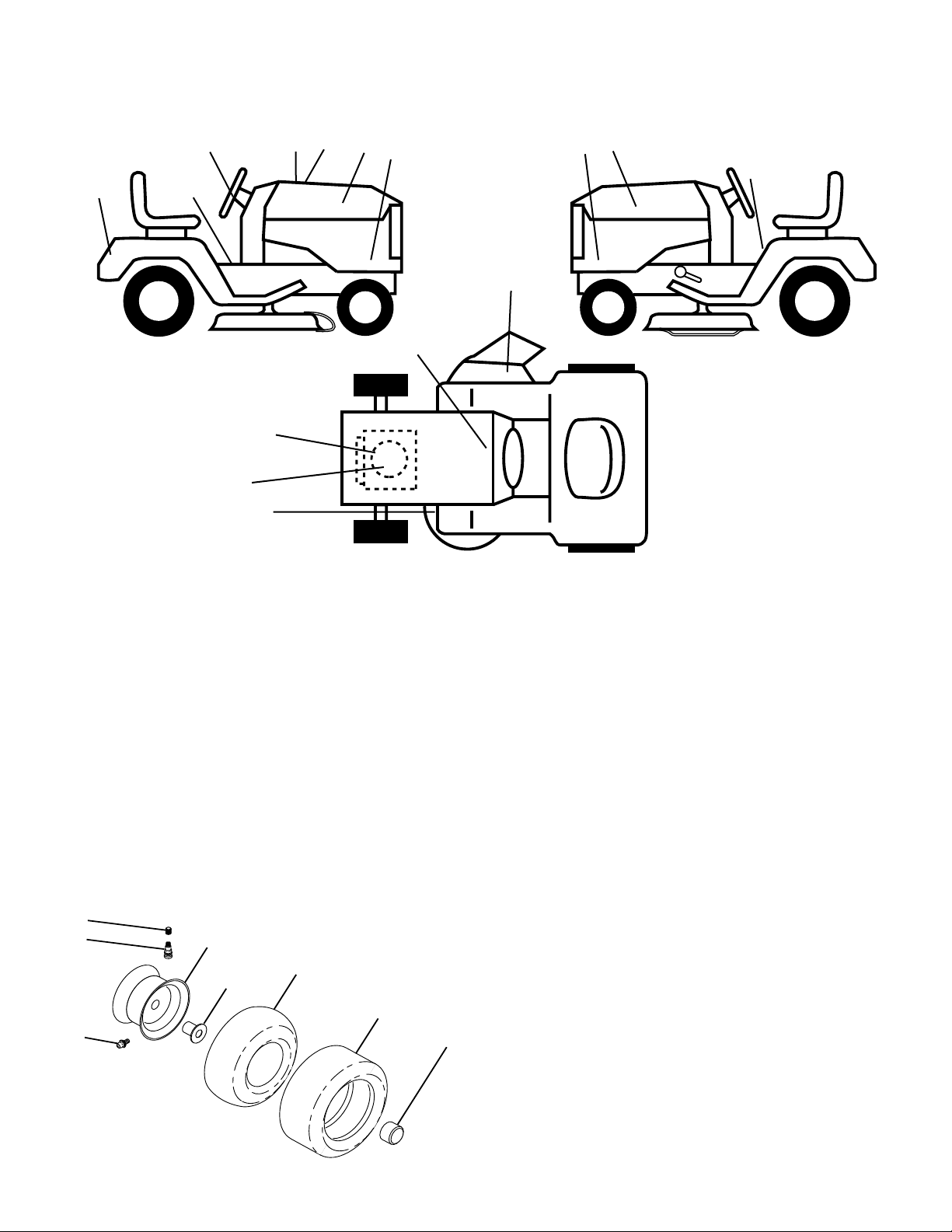

DECALS
12
11
1
3
13
15
2
7
9
6
13
4
10
5
14
KEY PART
NO. NO. DESCRIPTION
1 532 18 09-41 Decal Hood Cust. Resp.
2 532 14 50-05 Decal Battery
3 532 18 58-25 Decal Hood RH
4 532 18 58-26 Decal Hood LH
5 532 18 66-97 Decal Engine Husq. Logo
6 532 15 68-11 Decal Fender Oper
7 532 17 05-64 Decal Wheel Steering
9 532 17 68-22 Decal Fender Husq
10 532 15 70-02 Decal Fender Danger E/F
11 532 18 58-27 Decal Engine
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
11
KEY PART
NO. NO. DESCRIPTION
12 532 18 58-38 Decal Hood Replacement
13 532 18 58-15 Decal Hoodsides
14 532 16 03-96 Decal V-Belt Schematic
15 532 17 91-28 Decal Deck "B" 42"
- - 532 17 12-84 Pad Footrest LH
- - 532 17 12-85 Pad Footrest RH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 92-10 Decal By Pass Lt Hydro
- - 532 18 67-82 Manual Owner's (English)
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 12 20-82 Tire R Ts 20 X 10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

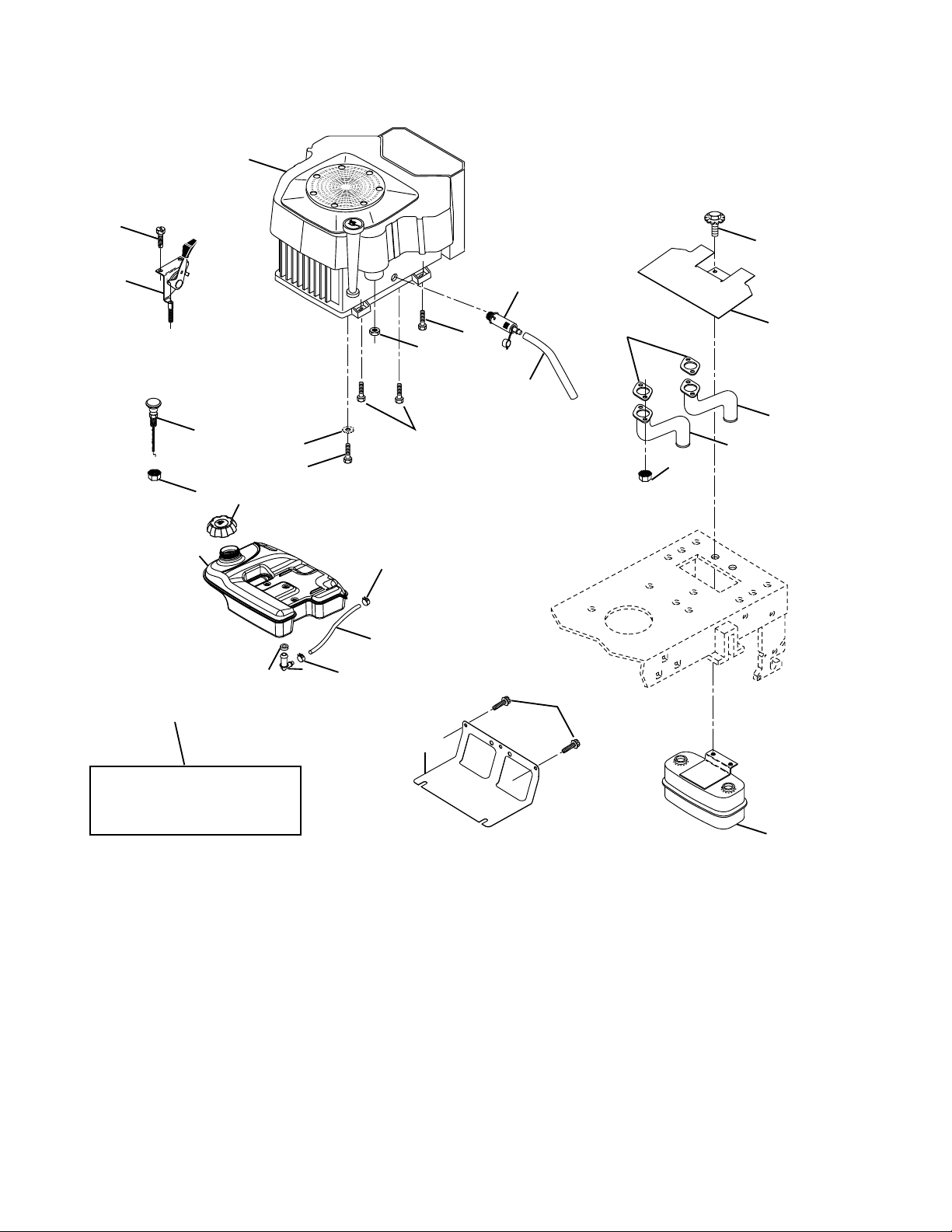

ENGINE
3
2
8
1
101
25
26
32
31
29
112
16
17
41
33
17
33
37
38
17
14
45
13
101
10
6
5
23
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-63 Control Throt Flg
2 817 72 04-08 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine Kohler CV674
(Order Parts from Engine Manu-
facturer)
4 532 14 97-23 Muffl er Asm Twin Lo-Tone
5 532 14 66-99 Exhaust Tube Lh
6 532 14 67-00 Exhaust Tube Rh
8 532 17 18-77 Bolt 5/16-18unc x 3/4 W/Sems
10 532 14 66-29 Shield Browning
13 532 18 60-54 Gasket Muffl er
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
17 817 06 06-24 Screw 3/8-16 x 1-1/2
23 532 16 98-37 Shield Browning
25 532 14 59-96 Choke Control
4
KEY PART
NO. NO. DESCRIPTION
26 873 92 06-00 Nut, Keps 3/8-24 Unf
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 17 90-22 Tank Fuel
32 532 18 18-03 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Blk
37 532 14 21-58 Line Fuel
38 532 18 16-54 Plug Drain Oil
41 532 13 92-77 Stem Tank Fuel
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
101 532 16 33-05 Nut Flange M8-1.25
112 532 12 49-52 Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
40
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83

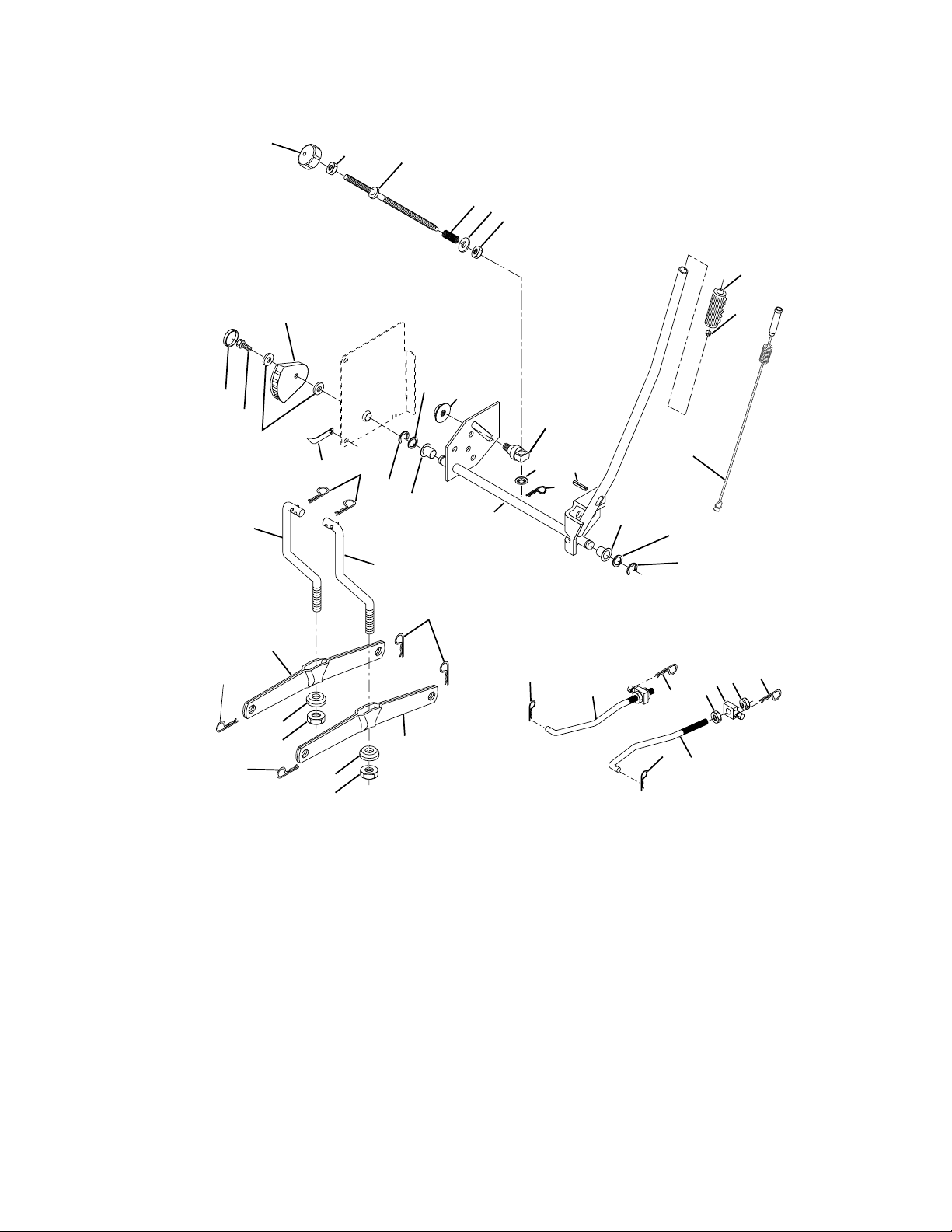

MOWER LIFT
37
38
11
29
40
41
36
28
13
12
27
25
24
23
7
8
5
49
30
3
50
4
6
2
26
6
1
5
4
13
19
13
31
13
32
31
32
19
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner/Spring W/Plunger
LT
2 532 15 94-71 Shaft Asm Lift RH w/Inf
3 532 10 57-67 Pin Groove 1 500 Zinc
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 X 1 X 21 Ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Fluted Blk
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 Unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock w/Wsh 1/2-13unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Retainer Spring
23 532 11 08-07 Nut Special
20
15
20
20
16
15
17
18
20
KEY PART
NO. NO. DESCRIPTION
24 819 13 10-16 Washer 13/32 X 5/8 X 16 Ga
25 532 12 48-74 Spring 2-1/8"
26 532 16 94-84 Retainer Clip
27 532 12 69-71 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873 35 06-00 Nut Hex Jam 3/8-16 Unc
29 532 13 80-57 Knob Inf 3/8-16 Unc Blk W/sym
30 532 15 02-33 Trunnion Infi n Height
31 532 16 98-65 Bearing PVT Lift
32 873 54 06-00 Nut Crownlock 3/8-24
36 532 15 50-97 Indicator Height STLT
37 532 12 39-35 Plug Hole Blk 1.485/1.515 Dia.
38 817 06 05-16 Screw 5/16-18 x 1
40 819 11 24-10 Washer 11/32 x 1-1/2 10 Ga.
41 532 15 50-98 Scale Ind. Height Blk.
49 532 14 52-12 Nut Hex Flange Lock
50 532 11 04-52 Nut, Push Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-8

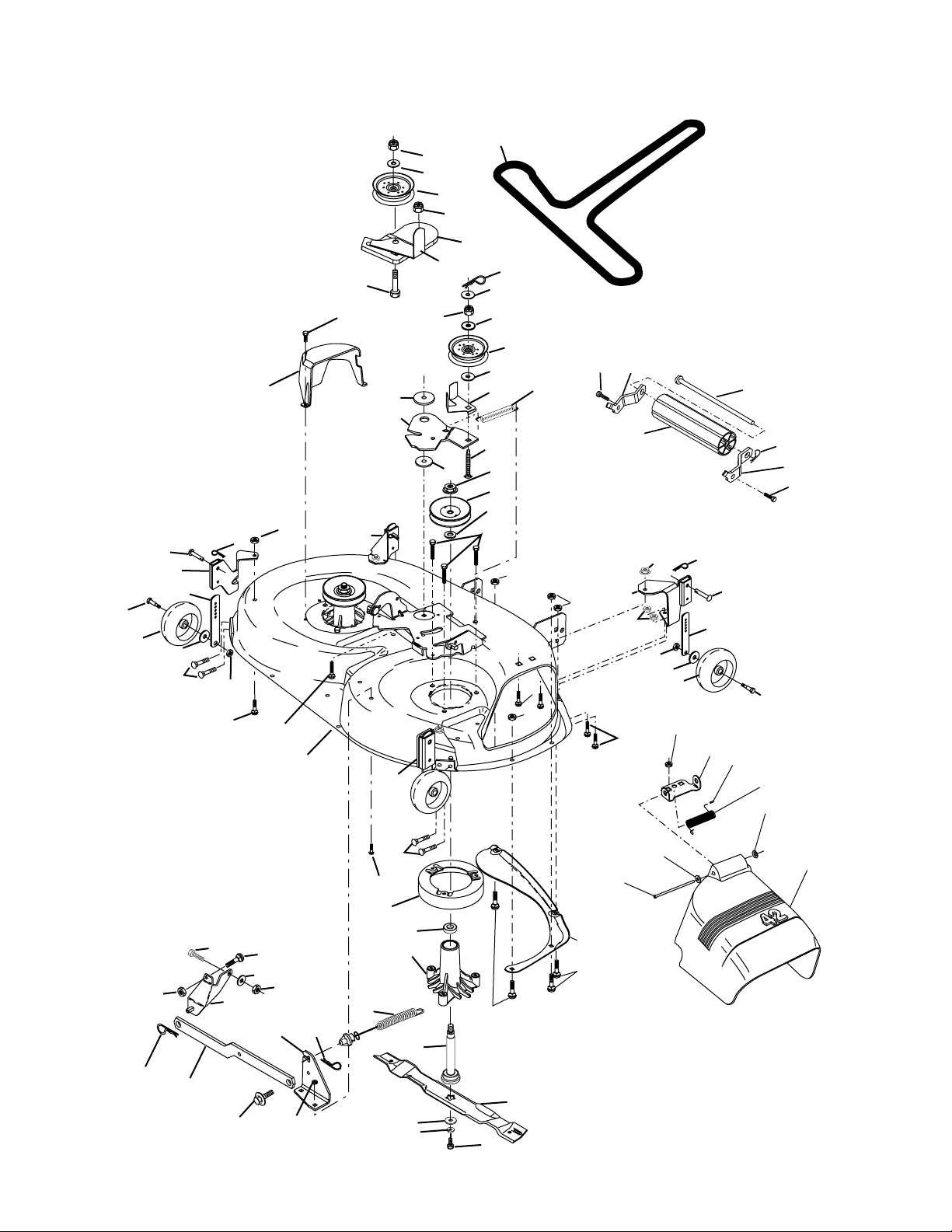

MOWER DECK
68
40
37
36
40
143
3
116
117
134
119
135
136
113
118
137
150
184
59
146
32
31
30
37
33
45
145
21
148
2
21
21
132
139
137
91
21
94
118
21
119
117
21
5
136
23
182
183
95
132
134
116
24
25
26
159
46
44
21
5
34
140
1
144
40
56
55
54
138
29
28
27
113
2
16
15
130
92
5
6
3
19
131
129
92
149
4
21
61
14
10
13
9
18
11
8
20
18
42
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR--MODEL NO. YTH2242, (YTH2242B-279001), PRODUCT NO. 954 57 03-83
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 18 54-38 Mower Deck Assembly, 42”
2 872 14 05-06 Bolt
3 532 13 80-17 Bracket Assembly,Sway Bar, Front
4 532 16 54-60 Bracket Sway Bar 42” Deck
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 85 08-57 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 810 03 06-00 Washer, Lock
10 532 14 02-96 Washer, Hardened
(The following blades are available)
11 532 13 41-49 Blade, Mulching 42" Std (For mulch-
ing mowers only)
- - 532 13 97-75 Blade Mulching 42" Premium (For
better wear when mulching)
- - 532 13 89-71 Blade Mower 42" Hi-Lift (For bag-
ging and discharging)
13 532 13 76-45 Shaft Assembly, Mandrel, Vented
14 532 12 87-74 Housing, Mandrel, Vented
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper
18 872 14 05-05 Bolt, Carriage 5/16-18 x 5/8
19 532 13 28-27 Bolt, Shoulder
20 532 15 97-70 Baffl e, Vortex
21 873 68 05-00 Nut Crownlock 5/16-18 UNC
23 532 17 75-63 Bracket, Defl ector
24 532 10 53-04 Cap, Sleeve
25 532 12 37-13 Spring, Torsion, Defl ector
26 532 11 04-52 Nut, Push
27 532 17 18-59 Shield, Defl ector
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Hex
31 532 12 99-63 Washer, Spacer
32 532 17 34-36 Pulley, Mandrel
33 532 17 83-42 Nut, Toplock, Flanged
34 872 11 06-14 Bolt
36 532 17 34-38 Pulley, Idler, Flat
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Gauge
40 873 68 06-00 Nut Crownlock 3/8-16 UNC
44 532 14 00-88 Guard, Mandrel, L.H.
45 532 12 47-88 Retainer
46 532 13 77-29 Screw, Thd. Roll 1/4-20 x 5/8
54 532 17 85-15 Washer, Hardened
KEY PART
NO. NO. DESCRIPTION
55 532 15 50-46 Arm, Idler
56 532 12 20-52 Spacer, Retainer
59 532 17 34-42 Guard, TUV Idler
61 532 17 48-82 Spring Ext Elect Clutch 42” Dck
68 532 17 48-83 V-Belt
91 532 18 05-32 Bracket Asm Noseroller Lh
92 873 80 06-00 Nut Lock Hex w/Ins 3/8-16 UNC
94 532 13 22-64 Roller Nose 38"-50"
95 532 18 05-33 Bracket Asm Noseroller Rh
113 817 06 05-12 Screw 5/16-18 x 3/4 Tap R
116 532 18 42-19 Bolt, Shoulder
117 532 13 39-57 Wheel, Gauge
118 873 93 06-00 Nut, Centerlock 3/8-16
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Gauge
129 819 13 13-12 Washer 13/32 x 13/16 x Ga.
130 874 78 06-16 Bolt Fin Hex 3/8-16unc x 1 Gr.5
131 872 14 06-08 Bolt Rdhd Sqnk 3/8-16unc x 1
132 817 00 06-12 Screw 3/8-16 x .75
134 532 15 69-41 Pin Head Rivet
135 532 17 80-74 Bracket Wheel Gauge LH
136 532 15 59-86 Bar Adjusting Gauge Wheel
137 872 11 05-05 Bolt Carr. 5/16-18 x 5/8
138 532 17 80-75 Bracket wheel Gauge RH
139 532 17 80-77 Bracket Asm. Wheel Gauge F RH
140 532 17 80-76 Bracket Asm. Wheel Gauge F LH
143 532 15 71-09 Bracket Arm Idler 42”
144 532 17 34-41 Keeper Belt 42” Clutch Cable
145 532 17 34-37 Pulley Idler Flat
146 532 17 34-43 Bolt Carriage Idler
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow Zinc
150 819 09 12-16 Washer 9/32 x 3/4 x 16 Ga.
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4
182 532 17 91-26 Rod Roller Nose
183 532 16 35-52 Retainer Spring
184 819 13 14-10 Washer 13/32 x 7/8 x 10 Ga.
- - 532 13 07-94 Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware Only
- Pulley Not Included)
- - 532 17 60-50 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inche
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
