Page 1
Illustrated Parts List
Tiller
650CRT (650RTT B)
954329172
2003-08
I0302014
Repair Parts Manual
www.mymowerparts.com
Page 2
www.mymowerparts.com
Page 3
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

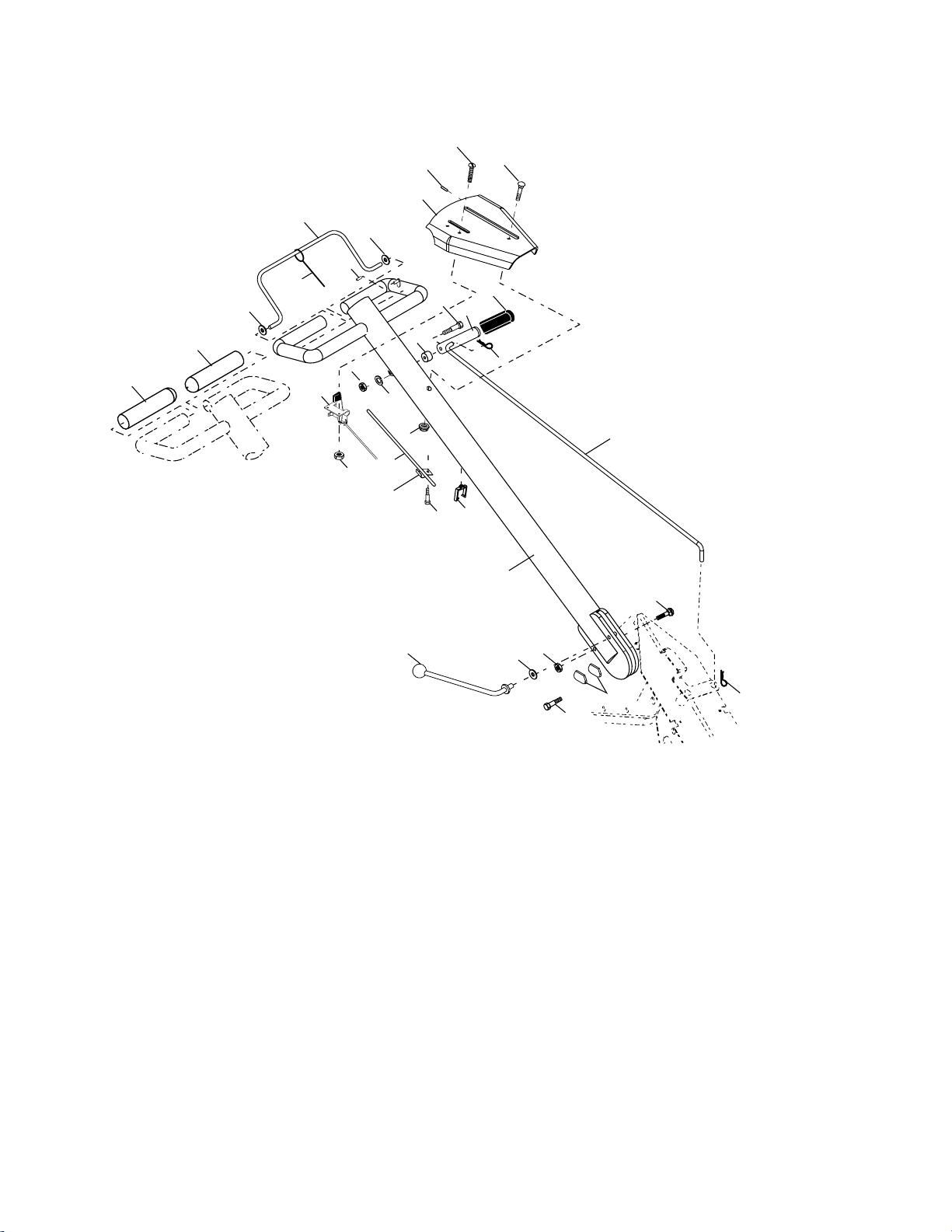

HANDLE ASSEMBLY
8
7
6
4
3
5
26
3
12
9
10
13
2
2
KEY PART NO. NO. DESCRIPTION
1 532 18 06-34 Control, Throttle 2 532 14 14-06 Grip, Handle 3 532 11 06-73 Grommet Handle 4 532 12 72-54 Bar Assembly, Control 5 532 00 67-12 Cap Vinyl 6 532 18 65-61 Panel, Control 7 532 11 06-41 Bushing Split 8 871 19 10-08 Screw, Truss Hd. #10-24 Unc x 1/2 9 872 01 05-20 Bolt 5/16-18 x 2.50 10 532 11 06-46 Grip, Handle 11 532 12 47-88 Clip, Hairpin 12 532 08 13-28 Bolt, Shoulder 13 532 11 07-41 Handle, Shift 14 532 10 93-13 Grommet, Rubber 15 532 11 07-02 Rod, Shift 16 872 11 06-08 Bolt, Carriage 3/8-16 x 1 Gr. 5
27
1
29
14
28
25
26
24
20
23
11
15
22
21
16
18
19
17
31
Handle_assy_3
KEY PART NO. NO. DESCRIPTION
17 532 10 92-29 Lock, Handle 18 873 68 06-00 Nut, Crownlock 3/8-16 Unc 19 819 13 16-11 Washer 13/32 x 1 x 11 Ga. 20 532 10 92-28 Lever, Lock, Handle 21 532 18 65-65 Handle 22 532 16 51-97 Clip Cable 23 532 08 67-77 Screw, Hex Washer Hd. Slotted #10-24 x 1/2 24 532 00 94-84 Clip 25 873 93 05-00 Nut Lock Hex Flange 26 532 11 06-75 Cable, Clutch 27 873 90 04-00 Nut Hex Flange 1/4-20 Unc 29 873 73 10-00 Nut, Keps #10-24 Unc 31 532 15 06-96 Bolt, Pivot
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
11
20
www.mymowerparts.com
Page 4
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

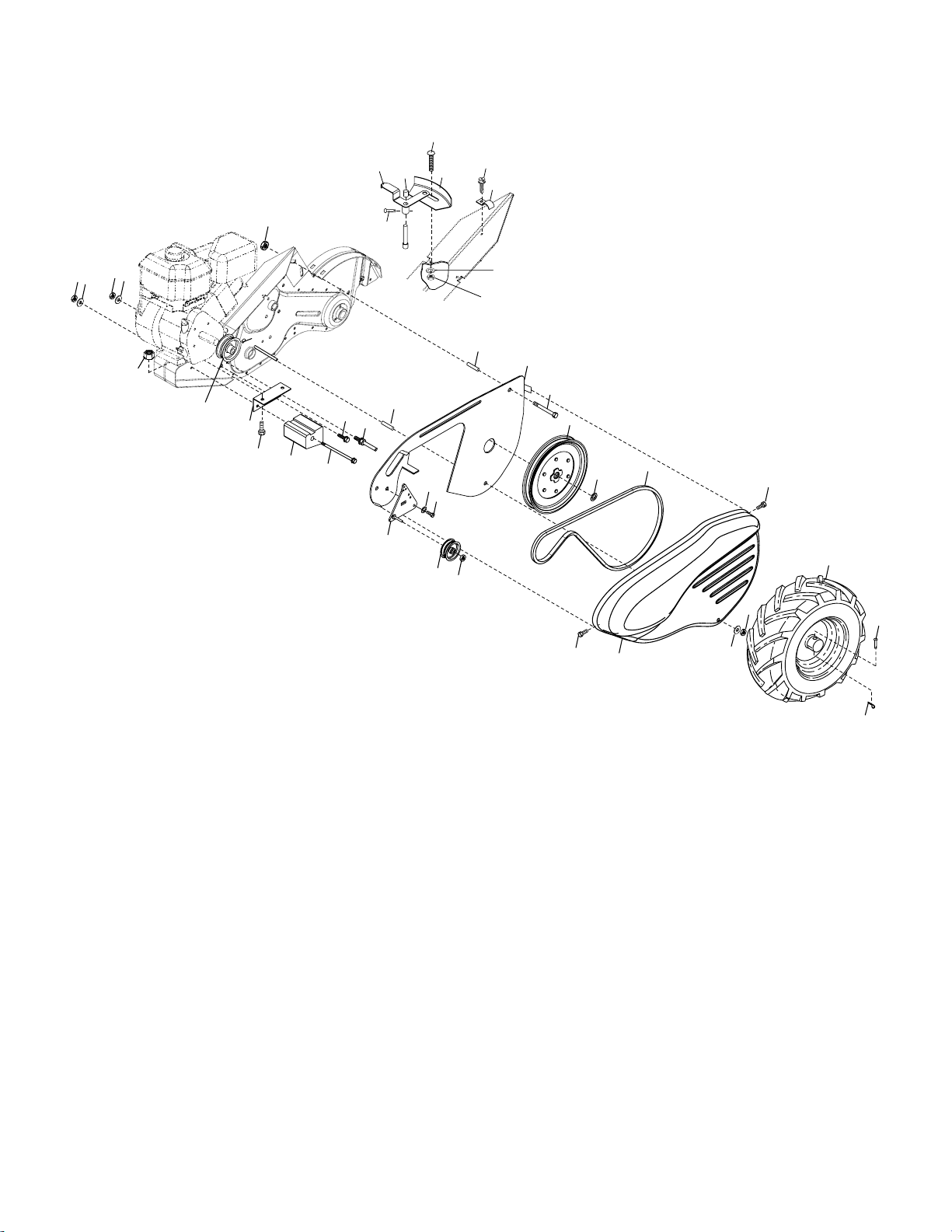

MAINFRAME, LEFT SIDE
7
6
39
9
8
10
1
3
2
3
2
13
65
37
36
35
34
31
5
11
12
21
33
14
32
29
22
30
28
3
4
38
16
19
40
27
40
23
44
26
15
24
KEY PART NO. NO. DESCRIPTION
1 873 51 05-00 Nut, Keps 5/16-18 2 810 04 06-00 Washer, Lock 3/8 3 873 22 06-00 Nut, Hex 3/8-16 4 532 17 01-27 Shield, Inner Belt Guard RT 5 532 16 43-29 Pin Spirol Flared 6 532 11 01-11 Lever, Shift 7 872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 8 532 00 87-00 Plate, Shift Indicator 9 532 08 67-77 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2 10 532 00 94-84 Clip 11 810 04 04-00 Washer, Lock 1/4 12 873 22 04-00 Nut, Hex 1/4-20 13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8 14 532 11 06-52 Spacer, Split 0.327 x 0.42 x 2.09 15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga. 16 532 14 51-02 Sheave, Transmission 19 812 00 00-28 Retainer, Ring 21 532 15 61-17 Spacer, Split 22 874 77 05-08 Bolt, Fin Hex 5/16-24 UNF x 1/2 23 532 00 50-15 Tire 532 12 43-66 Rim 532 12 47-18 Tire Valve
mainframe_left_17
KEY PART NO. NO. DESCRIPTION
24 532 12 68-75 Rivet, Drilled 25 532 12 47-88 Clip, Hairpin 26 532 16 67-92 Guard, Belt 27 532 13 28-01 Belt, V 28 532 10 46-79 Pulley, Idler 29 812 00 00-32 Ring, Klip 30 532 15 92-29 Bracket, Idler 31 532 10 23-84 Bolt, Hex 5/16-16 x 12 32 532 10 21-41 Shaft, Idler Arm 33 874 76 06-16 Bolt, Hex 3/8-16 x 1 34 532 10 23-83 Counterweight, L. H. 35 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2 36 532 10 23-31 Bracket, Reinforcement, L. H. 37 532 13 08-12 Sheave, Engine 38 874 76 05-44 Bolt, Fin Hex 5/16-18 UNC x 2-3/4 39 532 14 00-62 Cap, Plunger Blk 40 532 17 04-88 Screw Hex Wsh Slt #10-24 x 1/2 44 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 Unc PL 65 873 97 05-00 Nut Lock Hex Flange
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
21
25
www.mymowerparts.com
Page 5
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

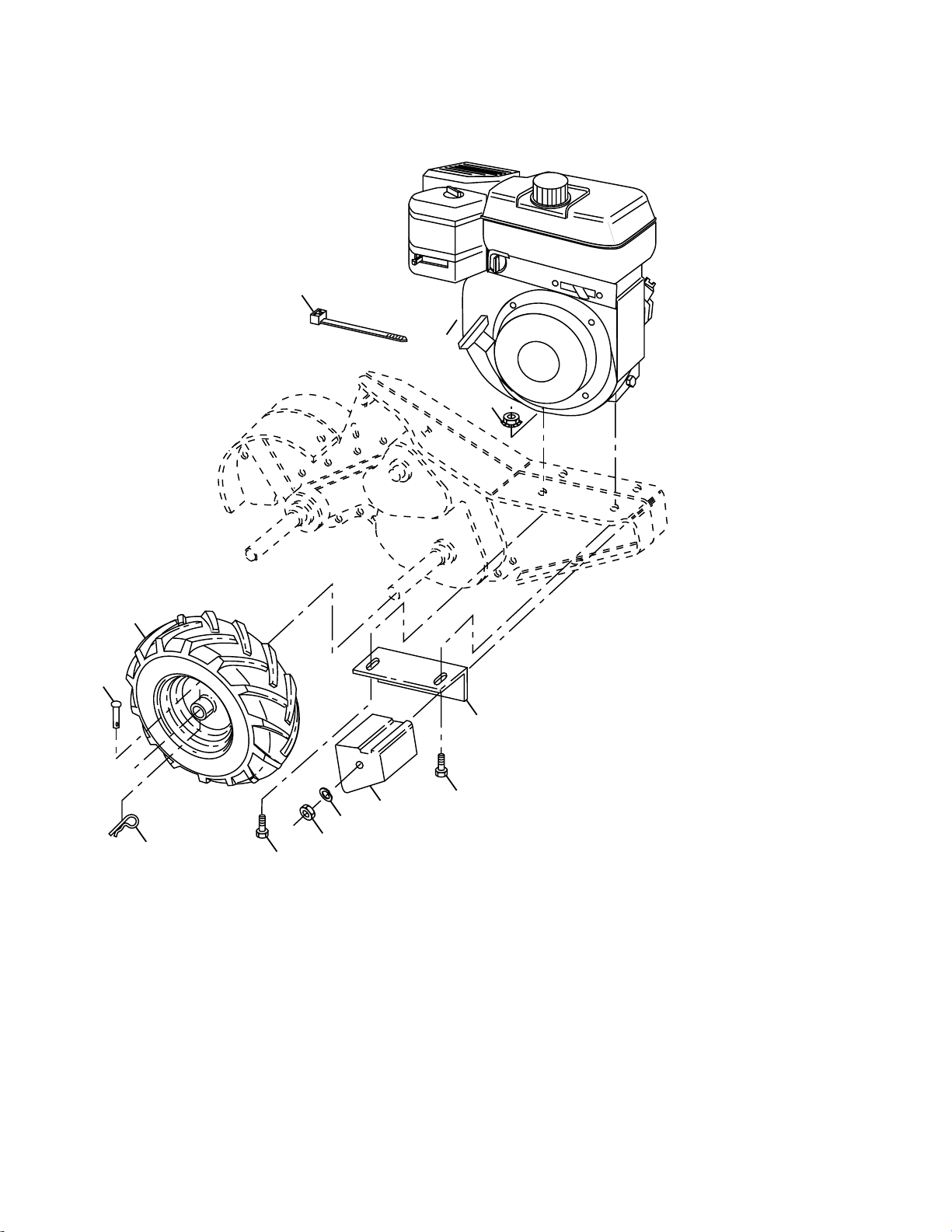

MAINFRAME, RIGHT SIDE
16
15
2
13
12
7
8
11
KEY PART NO. NO. DESCRIPTION
2 873 97 05-00 Locknut, Hex, Flange 5/16-18 5 532 10 23-32 Bracket, Reinforcement 7 532 10 21-73 Counter Weight, R.H. 8 810 04 06-00 Washer, Lock 3/8 9 873 22 06-00 Nut, Hex 3/8-16 10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2 11 532 12 47-88 Clip, Hairpin 12 532 12 68-75 Rivet, Drilled
10
9
5
10
KEY PART NO. NO. DESCRIPTION
13 532 00 50-15 Tire 532 12 43-66 Rim 532 12 47-18 Tire Valve 15 - - - - - - - - Engine, Briggs & Stratton
Model No. 120302 (Order parts from Engine Manufacturer)
16 532 12 47-56 Tie Cable
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
22
www.mymowerparts.com
Page 6
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

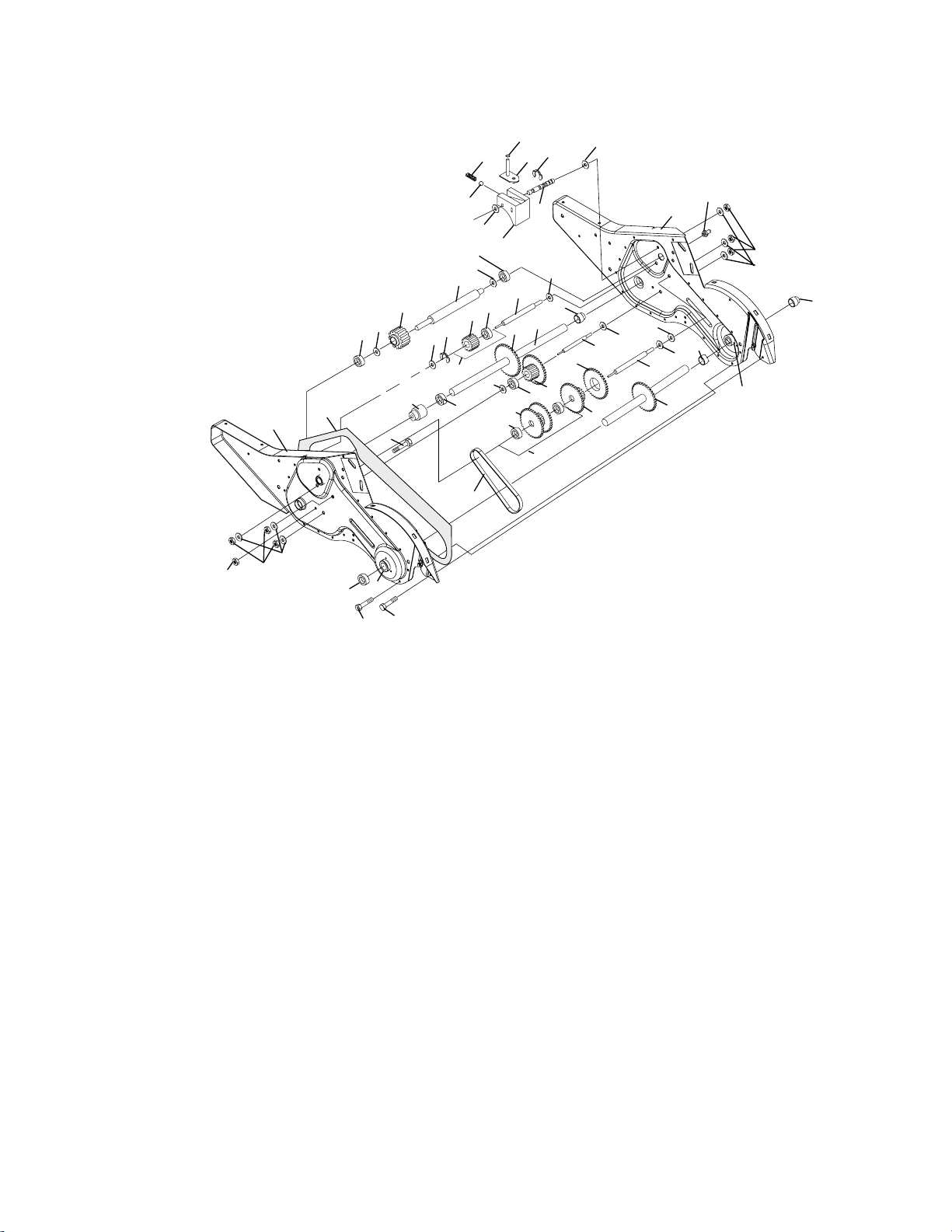

TRANSMISSION

52
25
12
14
37
38
23
29
13
15
16
30
32
36
11
10
9
8
5
7
6
5
4
24
3
35
53
44
2
18
27
19
20
28
21
22
18
50
18
33
31
37
40
9
60
48
25 24
44
18
18
34
39
41
49
42
43
53
58
transmission_19.5b
51
KEY PART NO. NO. DESCRIPTION
1 532 18 06-77 Transmission Assembly (In cludes
Key Nos. 2-53) 2 532 18 06-27 Gearcase, L.H. w/Bearing (In cludes
Key No. 4) 3 532 16 19-63 Gasket, Gearcase 4 532 00 50-20 Bearing, Needle 5 532 00 13-70 Washer, Thrust 5/8 x 1.10 x 1/32 6 532 13 73-35 Pinion, Input 7 532 14 51-01 Shaft, In put 8 532 12 47-92 Bearing, Needle 9 532 15 44-67 Washer, Seal 10 532 12 46-97 Ball, Steel 11 532 10 03-71 Spring, Shift, Fork 12 532 10 61-60 O-Ring 13 532 14 21-45 Arm, Shift 14 532 00 83-53 Fork, Shift 15 812 00 00-39 Ring, Klip 16 532 15 44-66 Shaft, Shift 18 532 00 43-58 Washer 19 812 00 00-40 Ring, Klip 20 532 10 21-14 Gear, As sem bly, Reverse Idler (In-
cludes Key Nos. 21 and 22) 21 532 10 21-15 Gear, Re verse Idler 22 532 00 68-03 Bearing, Needle 23 532 10 21-11 Shaft, Re verse Idler 24 810 04 07-00 Washer, Lock 7/16 25 873 61 07-00 Nut, Hex 7/16-20 27 532 14 30-09 Bearing, Shaft, Ground Drive L.H. 28 532 10 63-90 Spacer 0.765 x 1.125 x 1.23
KEY PART NO. NO. DESCRIPTION
29 532 10 21-34 Chain #35-50 Pitch 30 532 15 07-37 Ground Shaft Assembly 31 532 14 30-08 Bearing, Shaft, Ground Drive R.H. 32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150 33 532 10 21-21 Sprocket and Gear Assembly 34 532 10 21-12 Shaft, Re duc tion (2nd) 35 532 10 21-01 Screw, Whiz, Lock 5/16-18 x 3-1/2 36 532 15 43-55 Sprocket Assembly w/Bearing (In-
cludes Key Nos. 37 and 38) 37 532 12 47-91 Bearing, Needle 38 532 15 43-56 Sprocket, Tine 39 532 10 53-45 Gear, Clus ter, Red 1st & 2nd 40 532 10 53-46 Gear, Re verse 41 532 00 83-58 Shaft, Re duc tion (1st) 42 532 00 42-20 Washer, Thrust 43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760 44 532 15 52-36 Seal Asm, Oil 48 532 18 06-31 Gearcase, R.H. w/Bearing (In-
cludes Key No. 8) 49 532 13 26-88 Shaft, Tine 50 532 10 61-47 Chain, Roller #50-50 Pitch 51 817 72 04-08 Screw 1/4-20 x 1/2 52 873 22 05-00 Nut, Hex 5/16-18 53 532 16 51-40 Kit, Bearing 58 532 17 95-20 Bolt Shoulder 1/4-20 Unc x .875 60 532 12 48-36 Fitting Grease
- - 532 00 60-66 Grease, Plastilube #1
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
23
www.mymowerparts.com
Page 7
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

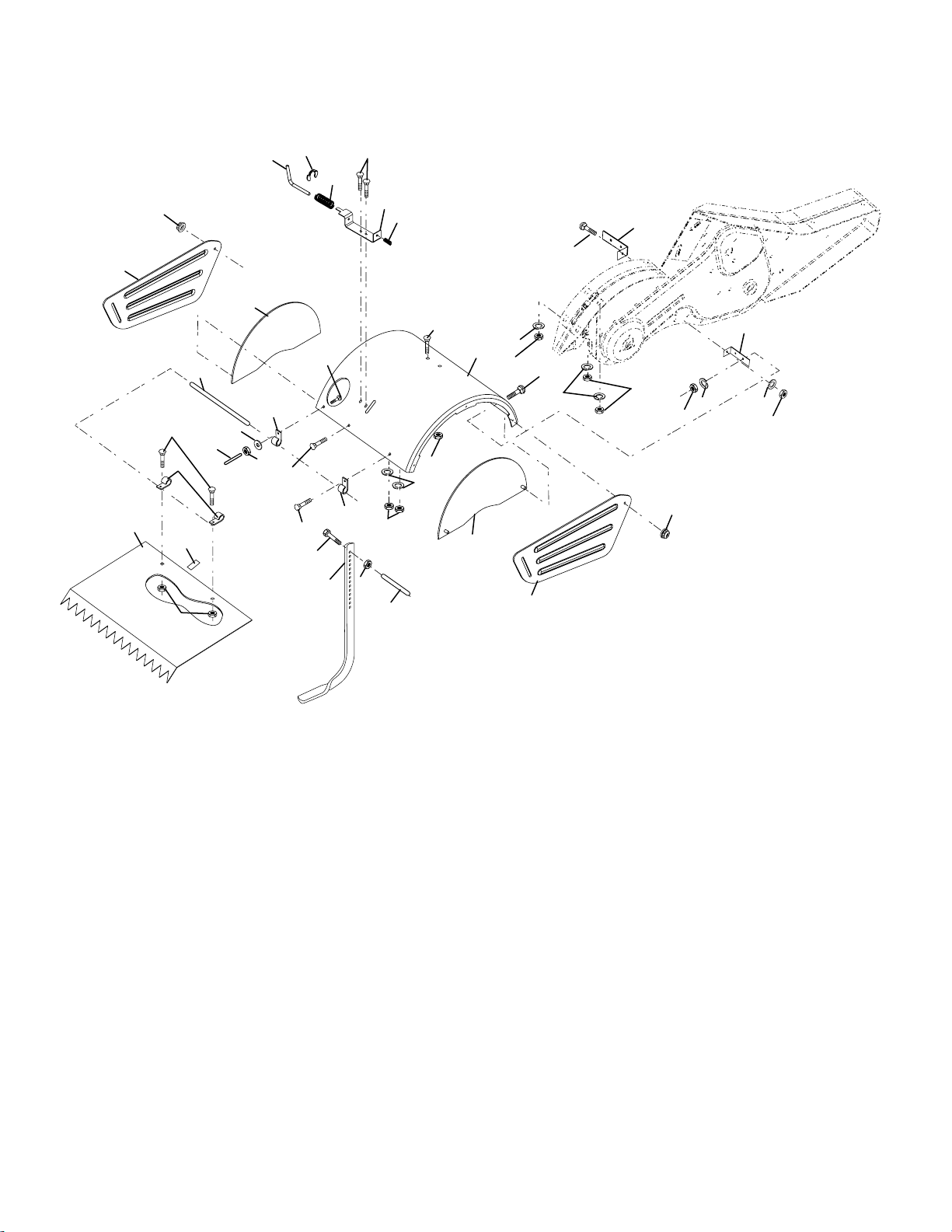

TINE SHIELD

4
3
1
2
29
18
5
24
22
27
24
23
16
28
23
33
25
32
26
21
5
6
7
23
20
11
19
8
13
5
12
9
11
10
12
16
12
29
15
14
11
14
12
11
1
12
11
tine_shield_13_in
KEY PART NO. NO. DESCRIPTION
1 873 90 05-00 Nut, Lock Hex Flange 5/16-18 2 532 16 29-52 Shield, Side, Outer L. H. 3 532 00 83-93 Pin, Stake, Depth 4 812 00 00-35 Ring, Klip 5 532 18 08-47 Bolt, Rdhd Sqnk 5/16-18 x 3/4 6 532 00 83-94 Spring 7 532 00 83-92 Bracket, Latch 8 532 10 92-30 Spring, Depth Stake 9 532 14 22-92 Shield, Tine 10 872 14 05-08 Bolt, Carriage 5/16-18 UNC x 1 11 873 22 05-00 Nut, Hex 5/16-18 12 810 04 05-00 Washer, Lock 5/16 13 872 11 05-10 Bolt, Carriage 5/16-18 x 1-1/4 14 532 12 43-11 Bracket, Shield Tine 15 532 16 29-53 Shield, Side, Outer R.H. 16 873 90 04-00 Nut, Hex Flange 1/4-20 UNC 18 872 04 04-10 Bolt, Carriage 1/4-20 x 1-1/4 Gr.
KEY PART NO. NO. DESCRIPTION
19 532 10 27--01 Grip 20 873 22 06-00 Nut, Hex 3/8-16 21 532 10 21-56 Stake, Depth 22 874 93 06-32 Bolt, Hex 3/8-16 x 2 23 532 00 44-40 Hinge 24 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 25 532 12 47-17 Cap, Vinyl 26 532 10 92-27 Pad, Idler 27 532 12 50-16 Shield, Leveling 28 532 12 05-88 Pin, Hinge 29 532 14 22-93 Shield, Side 30 873 97 05-00 Locknut, Flange 5/16-18 32 873 22 04-00 Nut Fin Hex 1/4-20 UNC 33 810 04 04-00 Washer Lock Hvy Helical 1/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
24
www.mymowerparts.com
Page 8
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

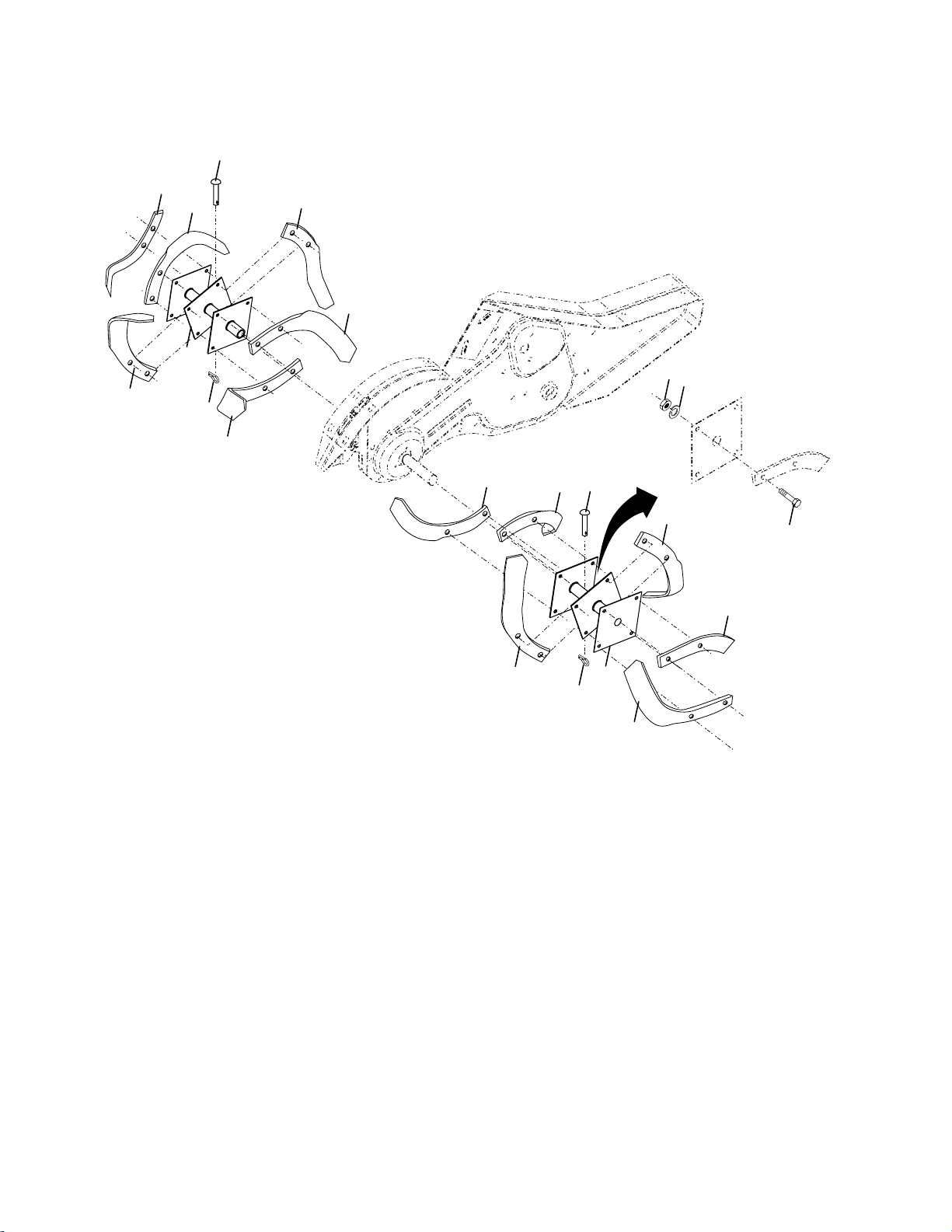

TINE ASSEMBLY
2
1
1
5
1
4
3
1
3
6
7
11
11
2
9
8
9
KEY PART NO. NO. DESCRIPTION
1 532 00 44-59 Tine, Outer, L.H. 2 532 13 26-73 Clevis Pin 3 532 00 65-54 Tine, Inner, L.H. 4 532 12 46-60 Retainer, Spring Zinc 5 532 13 27-27 Assembly, Hub and Plate, L.H. 6 873 61 06-00 Nut, Hex 3/8-24 7 810 04 06-00 Washer, Lock 3/8
9
KEY PART NO. NO. DESCRIPTION
8 874 61 06-16 Bolt, Hex 3/8-24 x 1 9 532 00 44-60 Tine, Outer, R.H. 10 532 13 27-28 Assembly, Hub and Plate, R.H. 11 532 00 65-55 Tine, Inner, R.H.
NOTE: All component dimensions given in U.S. inches.
10
4
9
tine_ipb_1
1 inch = 25.4 mm
25
www.mymowerparts.com
Page 9
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRT (650RTTB), PRODUCT NUMBER 954 32 91-72

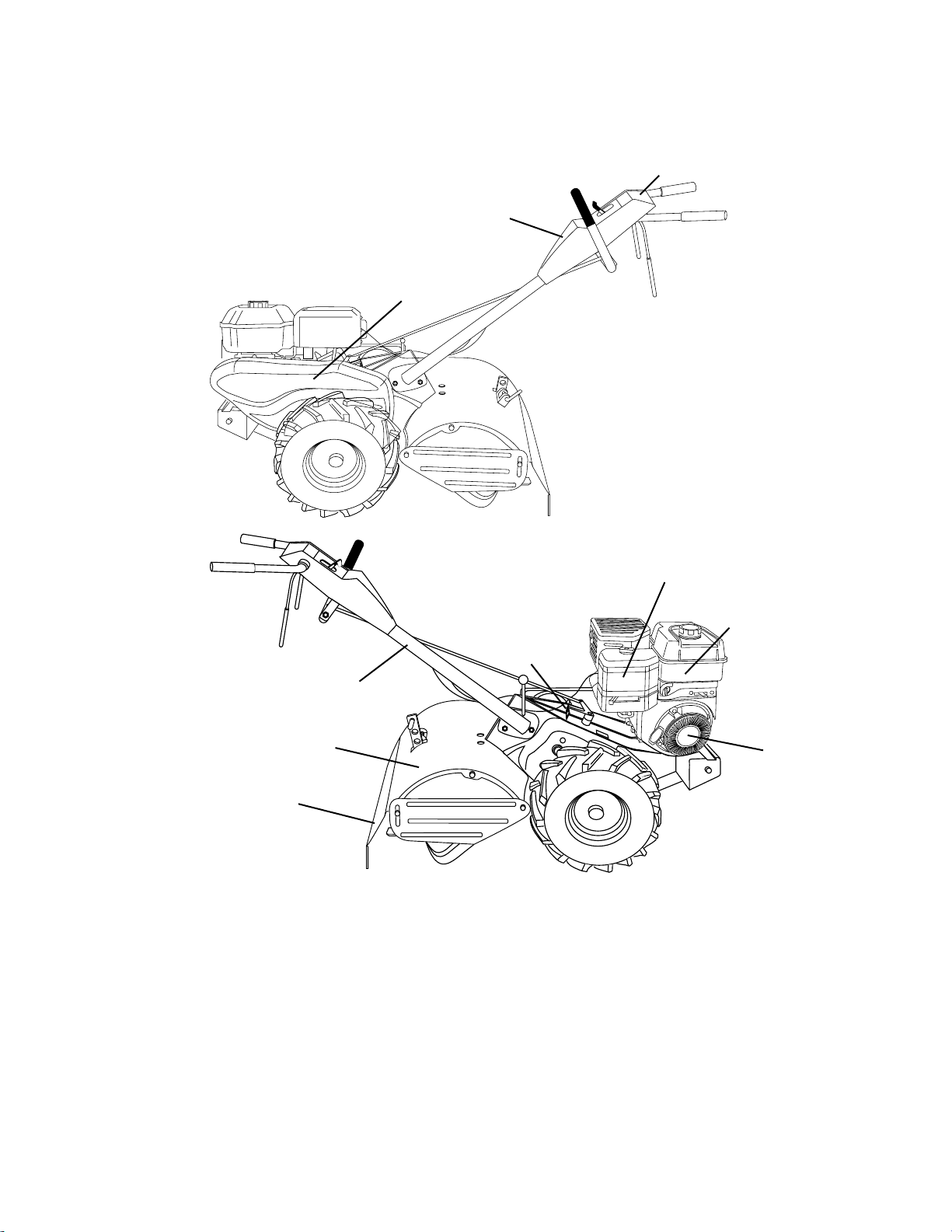

DECALS

3
2
1
6
5
7
9
KEY PART NO. NO. DESCRIPTION
1 532 18 59-11 Decal, Blt Grd 2 532 18 59-10 Decal, CNTRL PNL 3 532 13 72-82 Decal, Control Tine 5 532 11 06-14 Decal, Hand Placement 6 532 10 21-80 Decal, Shift Indicator 7 532 16 23-84 Decal, Warning 8 532 17 10-79 Decal, Engine B&S 6.5 HP 9 532 12 00-76 Decal, Warning, Rotating Tines 10 532 16 68-70 Decal, Engine Intek REF 11 532 17 10-78 Decal, Rewind Intek #274350
- - 532 18 87-93 Manual, Owner’s (English)
- - 532 18 87-94 Manual, Owner’s (French)
8
10
11
26
