Page 1
2009 HUV 4214, HUV 4414,
and HUV 4414-XP
Illustrated Parts List
Gasoline Utility Vehicles
Manual Number 525888503
Edition Code 0309A00000
Page 2
Page 3
USING THE ILLUSTRATED PARTS LIST
ý WARNING
• This manual is to be used only for identification and ordering of service parts. Be sure to read and use
the maintenance and service manual before attempting any vehicle repairs.
This manual covers HUV 4214, HUV 4414 and HUV 4414-XP gasoline vehicles.
The manual is divided into sections. Note that there are two or three flags on the outside edge of each page. The
first flag contains the section number of which that page is a part. The other flag (or flags) contains the letter D, E, or
G, signifying that the page pertains to the diesel, electric, or gasoline vehicles only.
Use the Table of Contents to find the sections and pages that contain the parts and assemblies you seek. The Table
of Contents lists section numbers, and under them, the individual page titles and numbers to be found in that
section. The index can be used to find specific parts and assemblies. The index is divided into numerical and
alphabetical listings with the page numbers in italic text.
There is a two-page spread for each individual page title in the Table of Contents. On the left-hand page is an
illustration showing the parts in their relative positions; the parts are each tagged with an item number in a balloon.
The right-hand page is the parts list page, and gives the page title at the top, then the item numbers (corresponding
to the numbers on the illustration), part descriptions, and quantity of parts used.
Note that a part description may be indented. This indention corresponds to a parts assembly level indicated by the
numbers 1, 2, 3, and 4 at the top left corner of the parts description area of the parts list page. A part that is indented
to level 2 is a component of the level 1 part (assembly) that it is listed under. A level 3 part is a component of the level
2 part that it is listed under, and a level 4 part is a component of the level 3 part preceding it. In each case, the part
quantity given for a level 2, 3, or 4 part is the quantity used per next higher level assembly of which it is a component. A
part that is not indented is a level 1 part. This means that the quantity given is the quantity used per the portion of
the vehicle illustrated on that particular spread.
HOW TO ORDER PARTS
Replacement parts and accessories can be obtained from our network of authorized dealers and distributors. For
the name and address of the Husqvarna representative nearest you, logon to our web site at
www.usa.husqvarna.com. If you would prefer to write to us, direct your letter to: Husqvarna, Attention: Marketing
Services, 7349 Statesville Rd., Charlotte, NC 28269 USA. Your local authorized Husqvarna representative can also
provide technical advice, parts, and service manuals.
Husqvarna Professional Products, Inc.
7349 Statesville Rd.
Charlotte, NC 28269
USA
www.husqvarna.com
Page 4
NOTE: This illustrated parts list represents the most current information at the time of publication. Husqvarna is con-
tinually working to further improve its vehicles and other products. These improvements may affect the parts
used to service the vehicle. Any modification and/or significant change in specifications will be forwarded to
all Husqvarna distributors/dealers and will, when applicable, appear in future editions of this illustrated parts
list.
Husqvarna reserves the right to change specifications and designs at any time without notice and without the
obligation of making changes to units previously sold.
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 5
CONTENTS
SECTION 1 – BODY AND TRIM
Tube Brush Guard .......................................................................................................................................................................... 1-3
Brush Guard ...................................................................................................................................................................................... 1-5
Receiver Hitch – Front .................................................................................................................................................................. 1-7
Receiver Hitch – Rear .................................................................................................................................................................... 1-9
Fascia .................................................................................................................................................................................................. 1-11
Closeout Panels ............................................................................................................................................................................... 1-13
Floor Plate and Panel .................................................................................................................................................................... 1-15
Frame Components ....................................................................................................................................................................... 1-17
Cowl .................................................................................................................................................................................................... 1-19
Fenders and Rear Body Panels .................................................................................................................................................. 1-21
Taillights ............................................................................................................................................................................................ 1-23

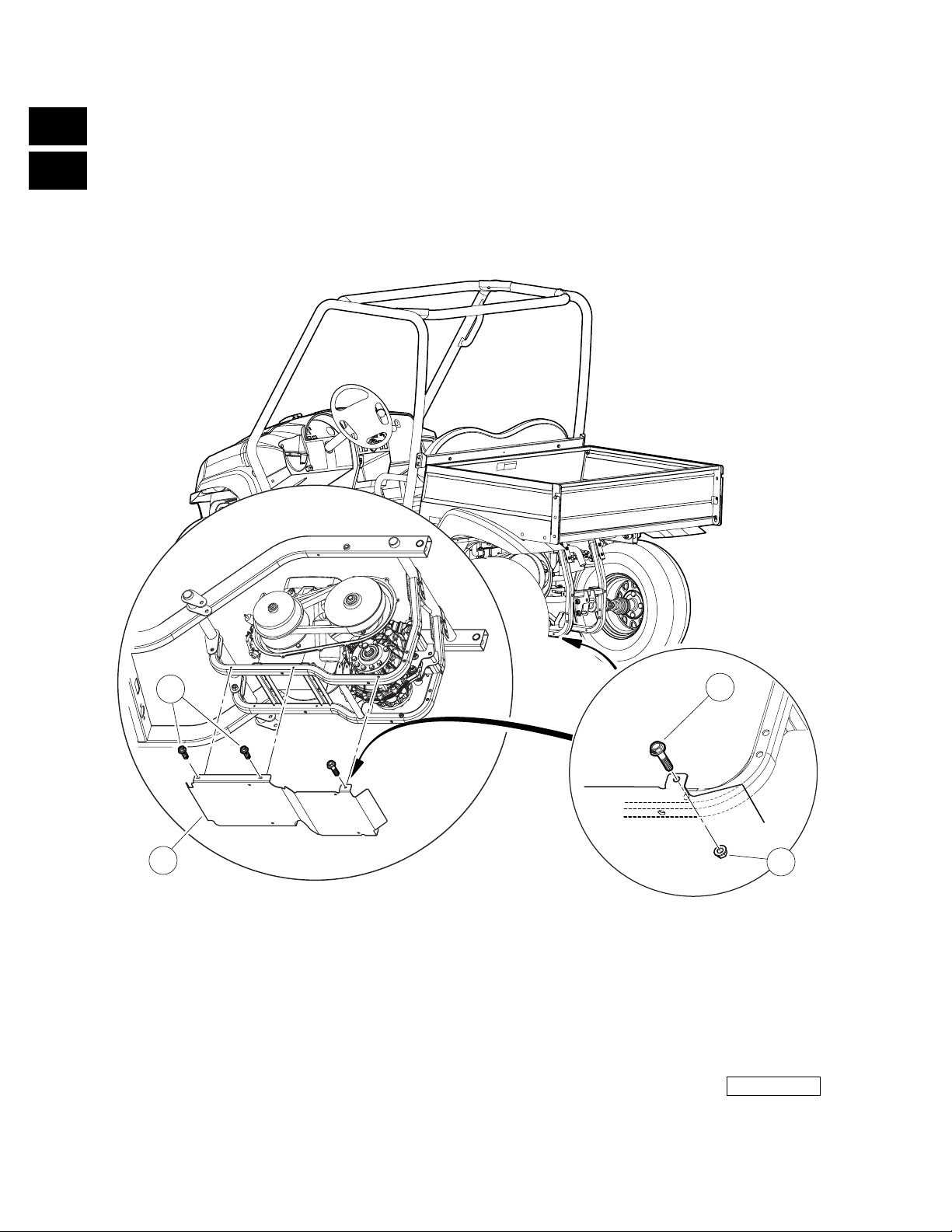

Front Skid Plate ............................................................................................................................................................................... 1-25
Rear Skid Plate ................................................................................................................................................................................. 1-27

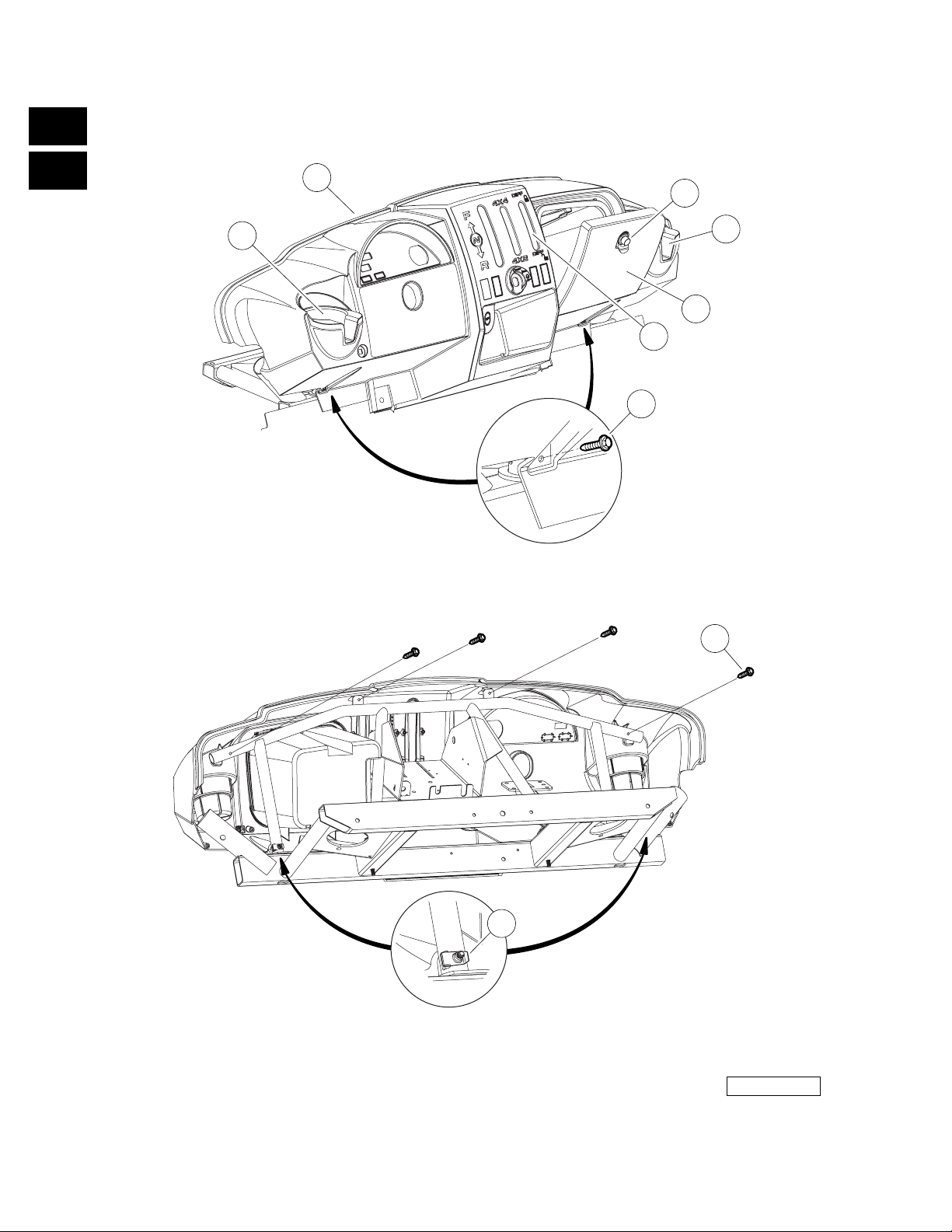

Dash .................................................................................................................................................................................................... 1-29

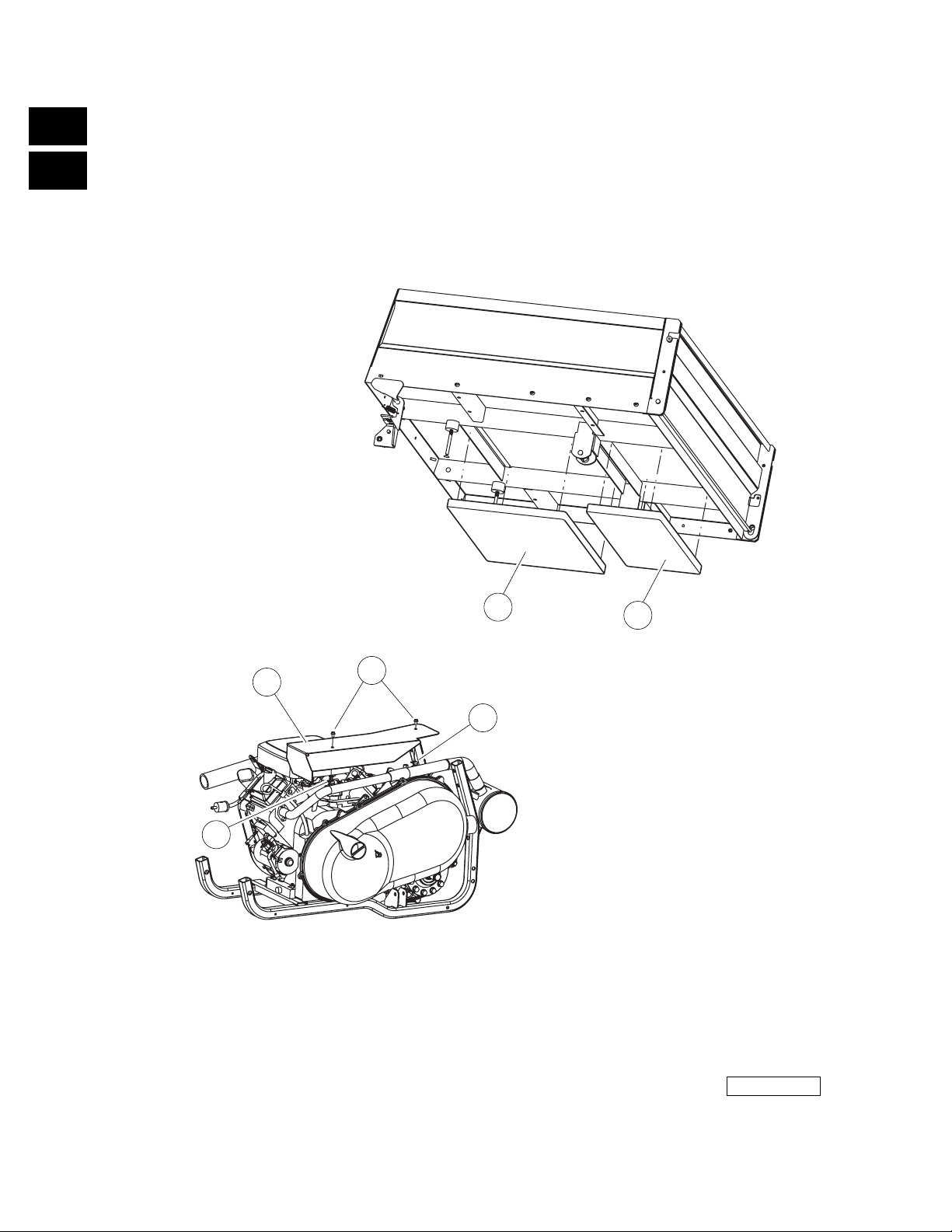

Heat Shield ....................................................................................................................................................................................... 1-31

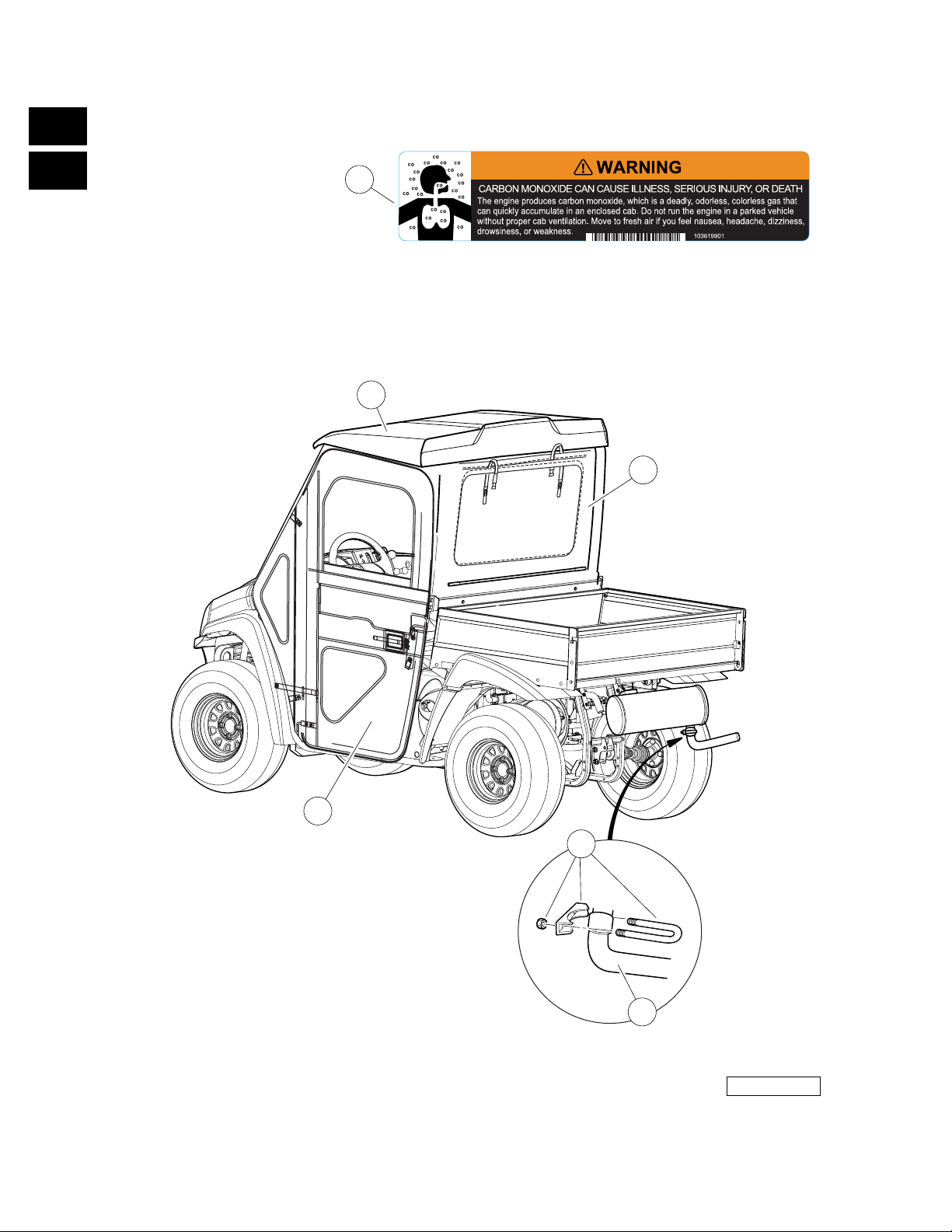

Canopy and Doors ......................................................................................................................................................................... 1-33

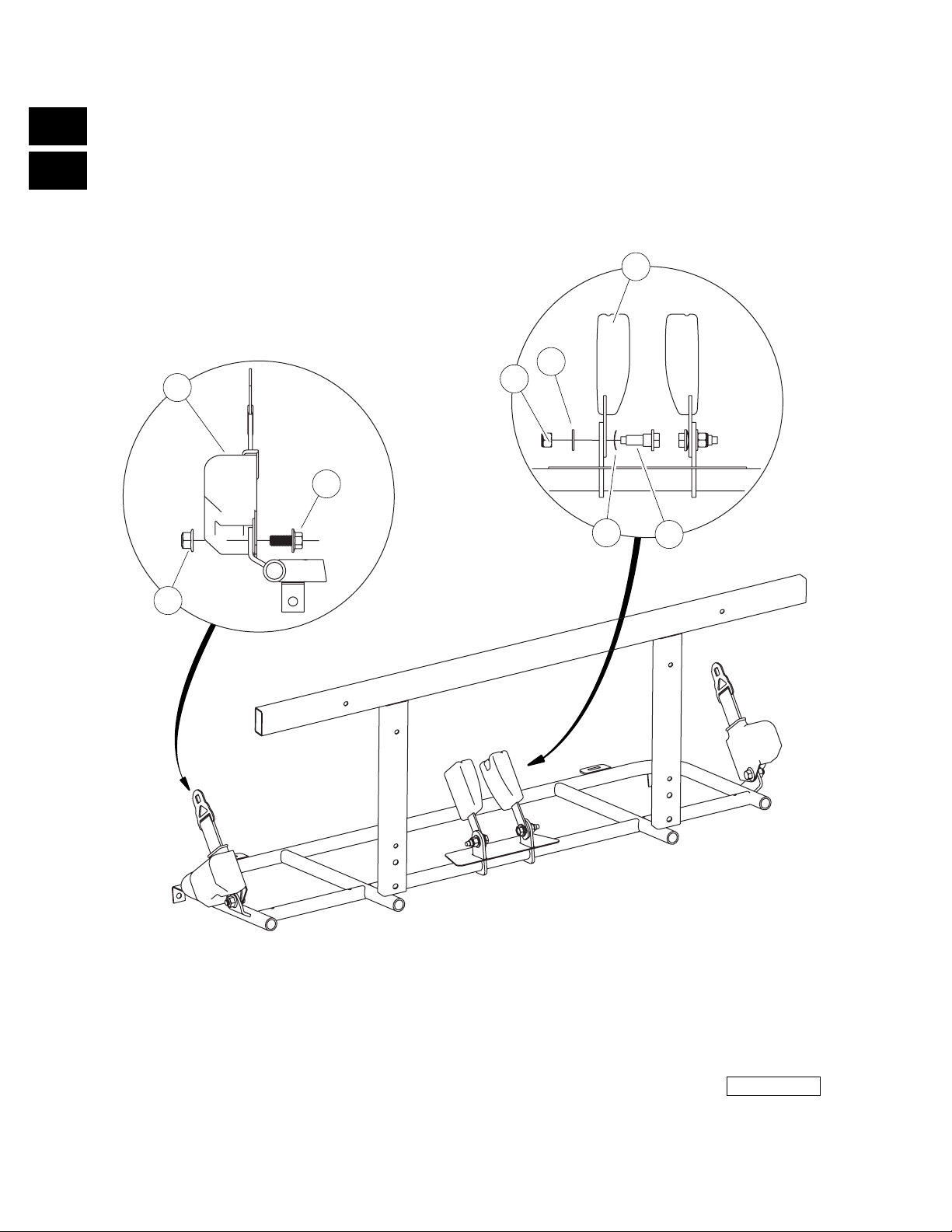

Seat Belts ........................................................................................................................................................................................... 1-35

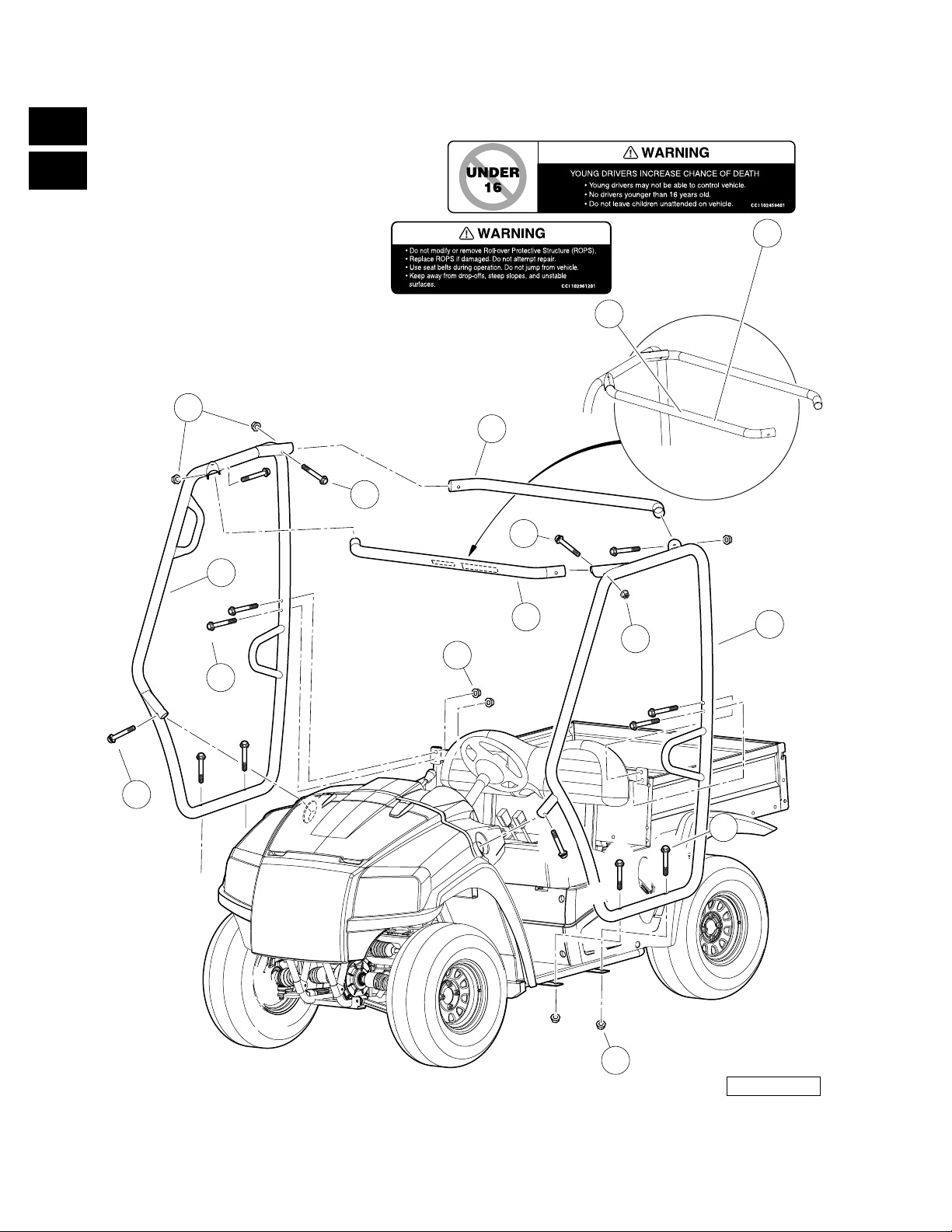

ROPS .................................................................................................................................................................................................... 1-37

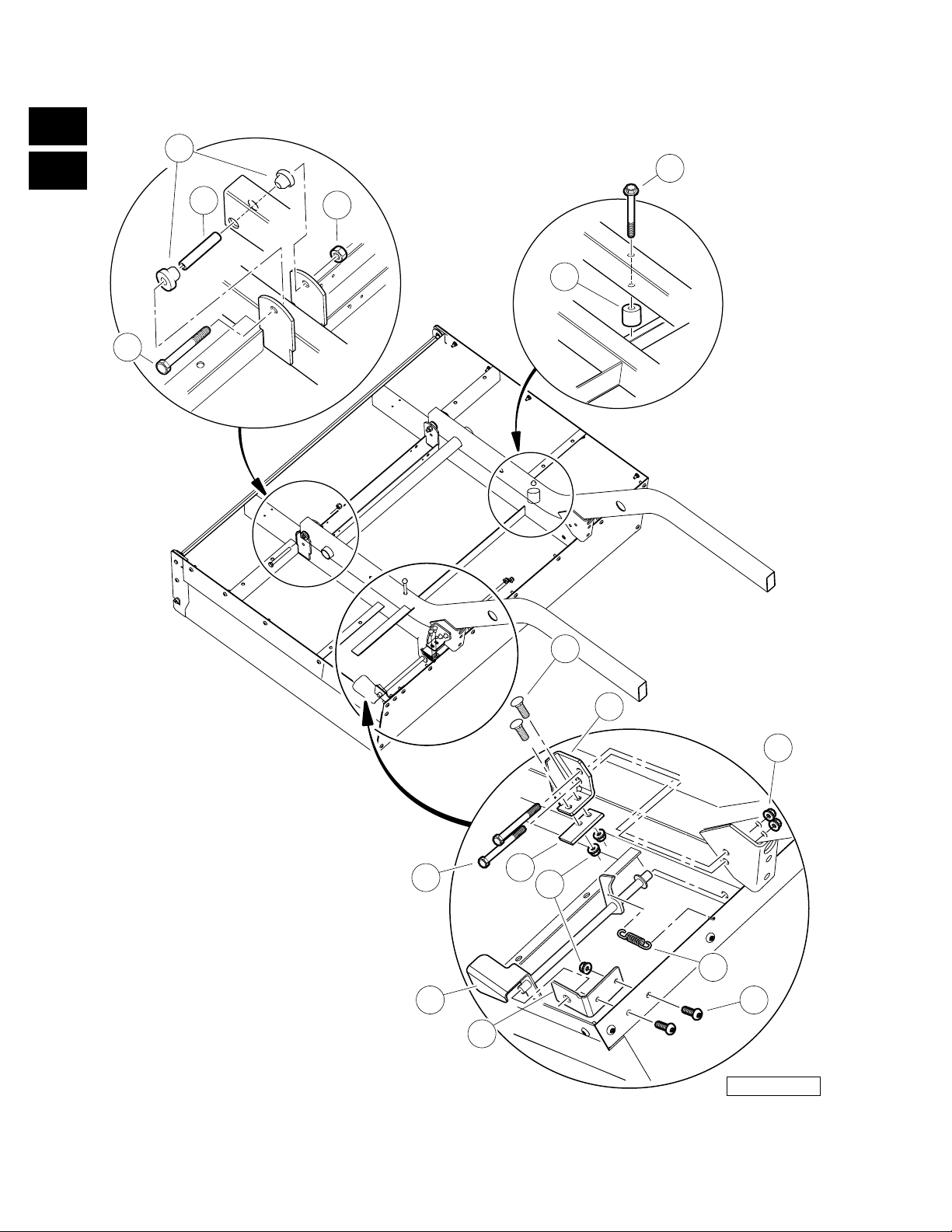

Tilt Bed Hinge and Latch ............................................................................................................................................................. 1-39

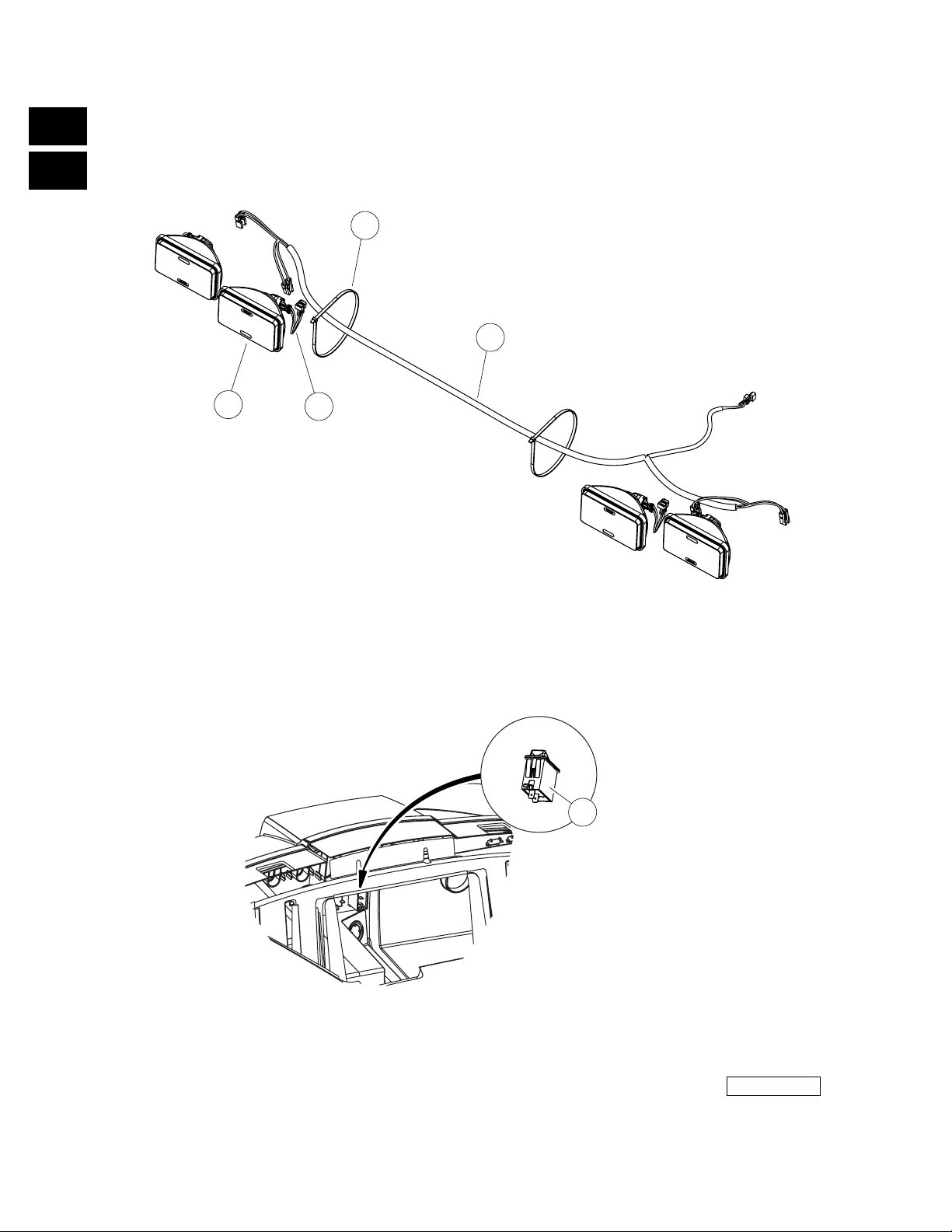

Headlights ......................................................................................................................................................................................... 1-41

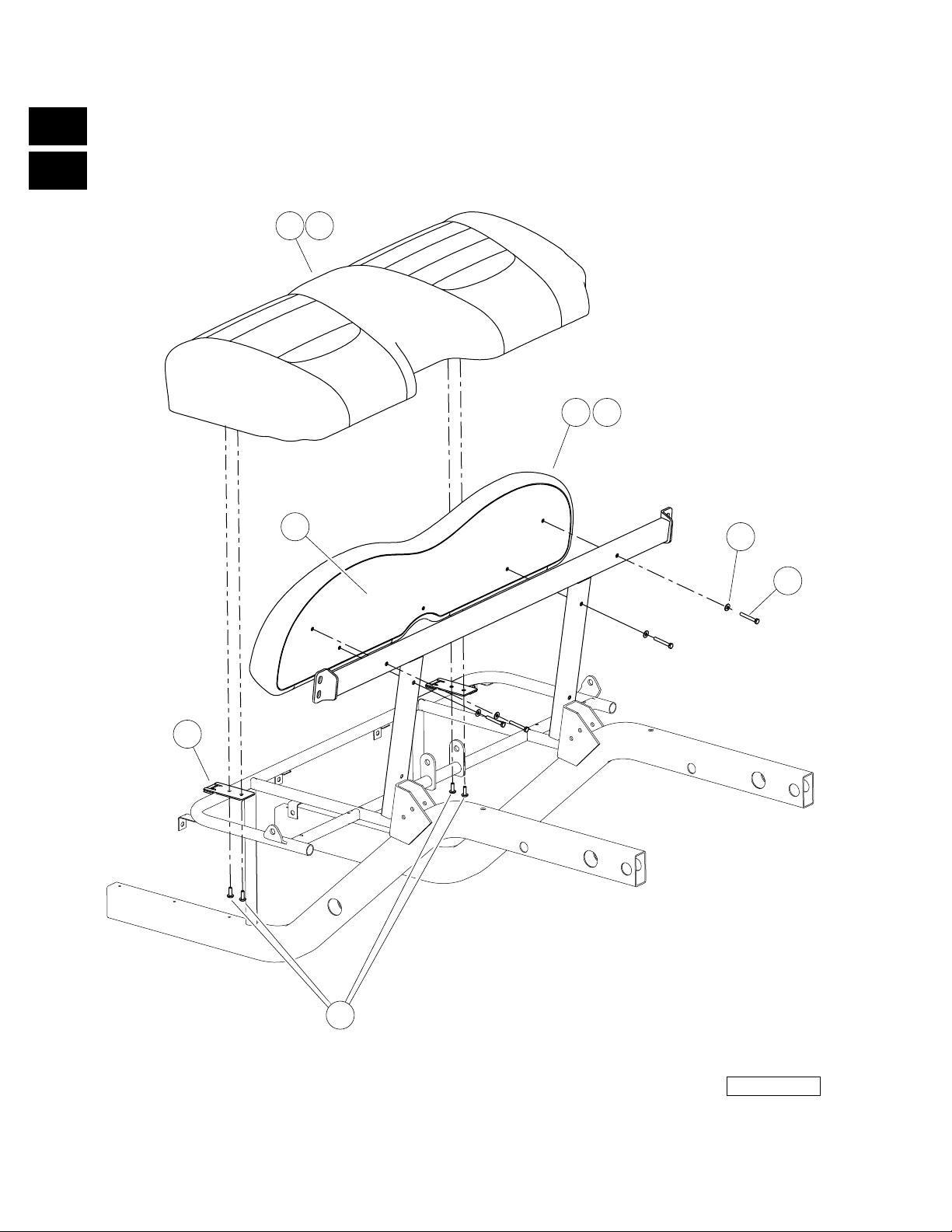

Bench Seats ...................................................................................................................................................................................... 1-43

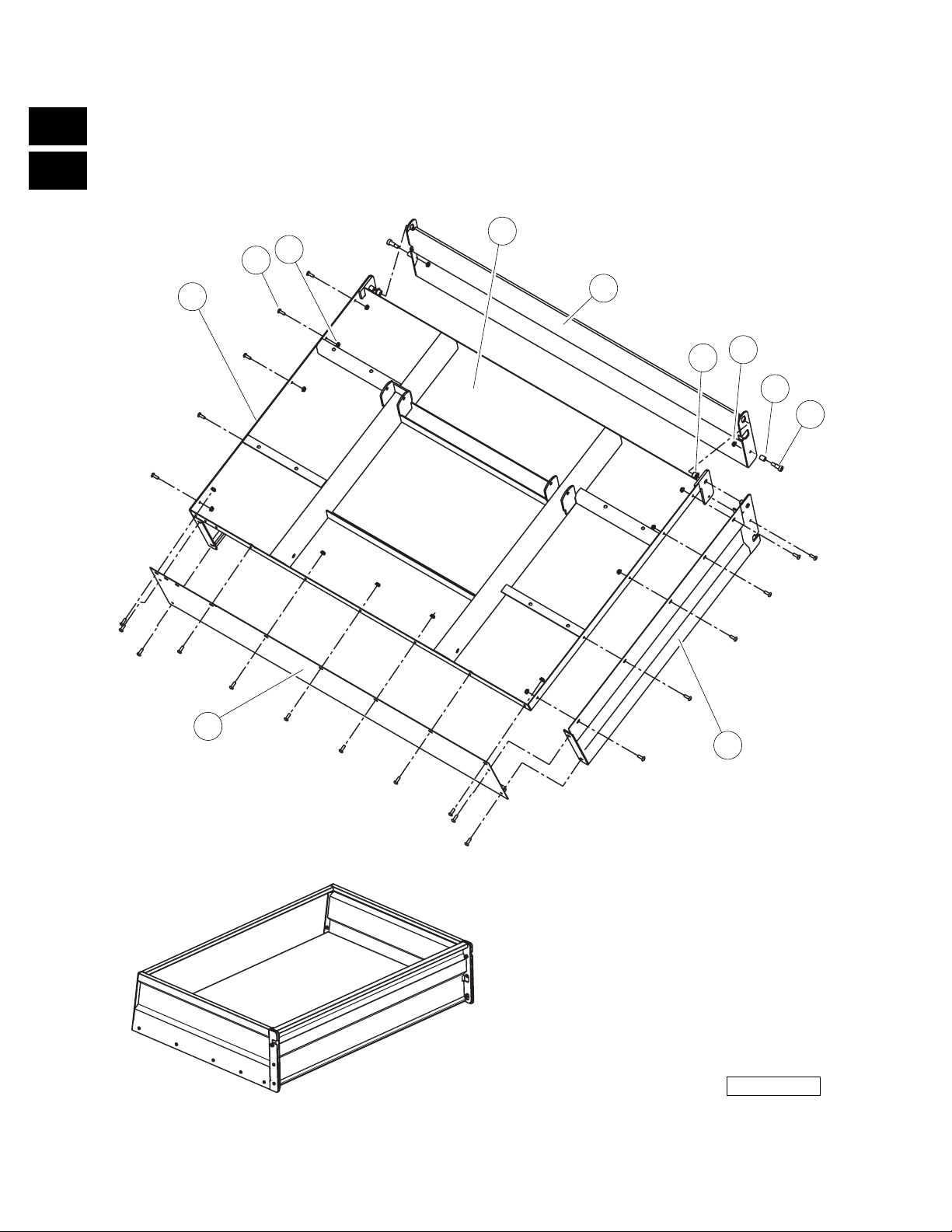

Box Bed .............................................................................................................................................................................................. 1-45
SECTION 2 – WHEELS AND TIRES

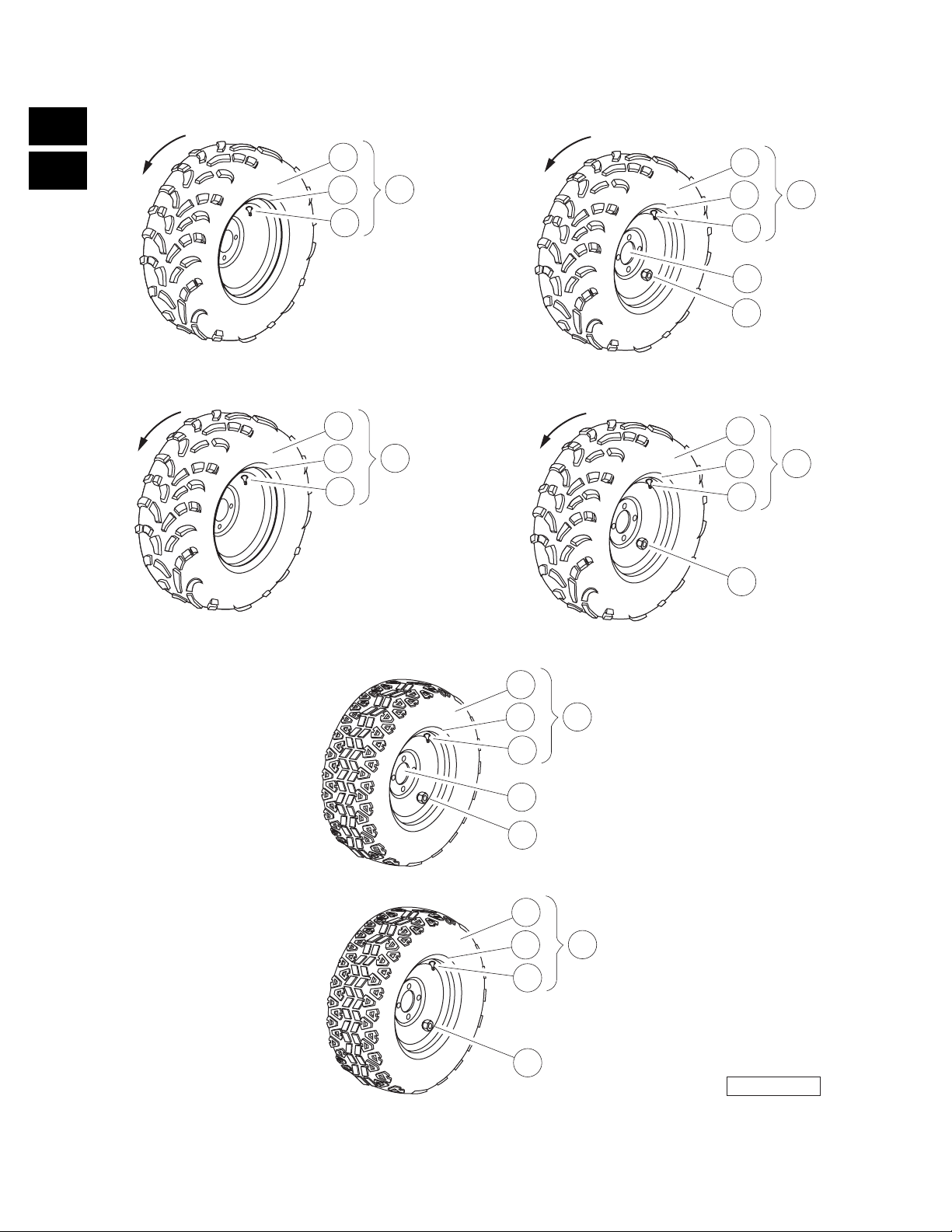

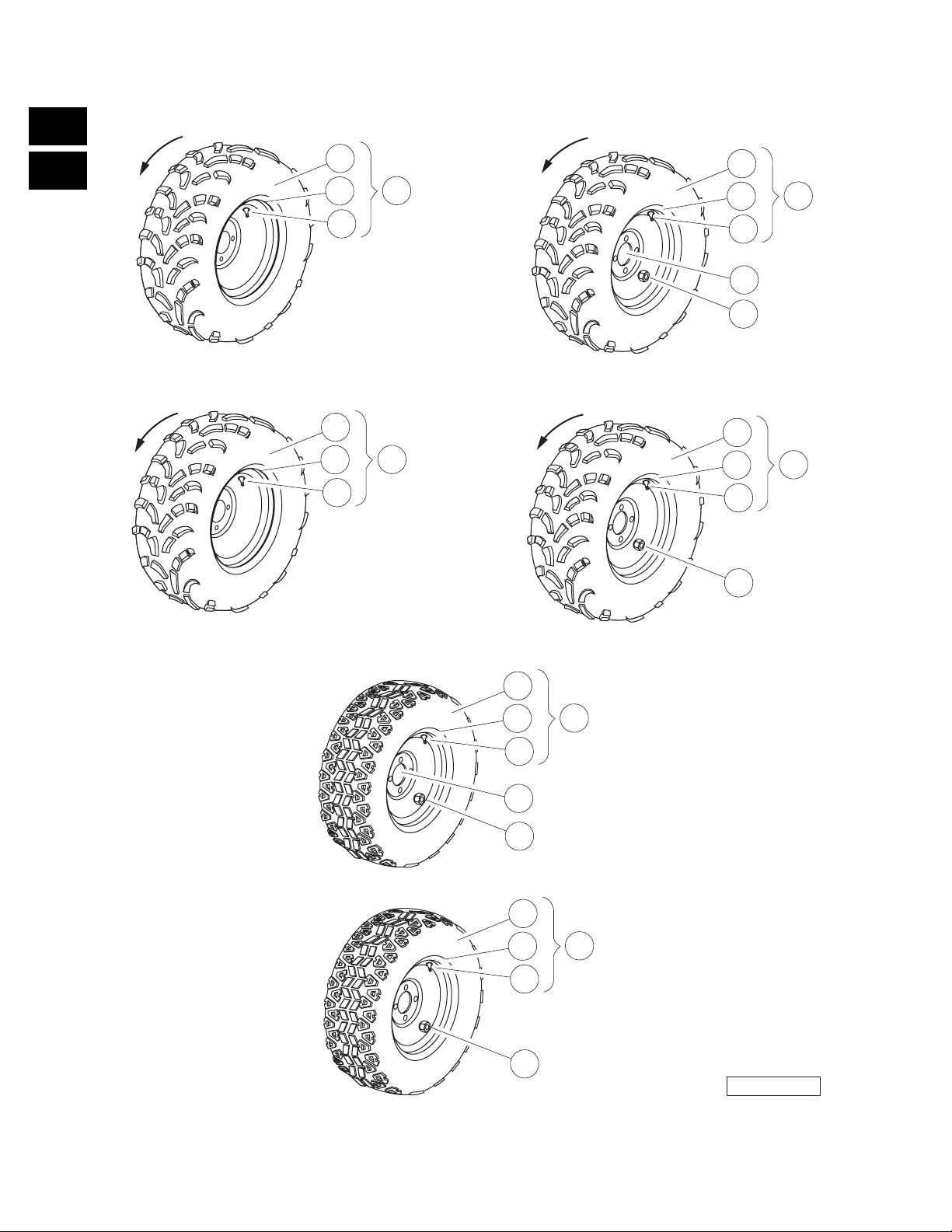

Wheels and Tires – Front ............................................................................................................................................................. 2-3
Wheels and Tires – Rear ............................................................................................................................................................... 2-5
SECTION 3 – DECALS

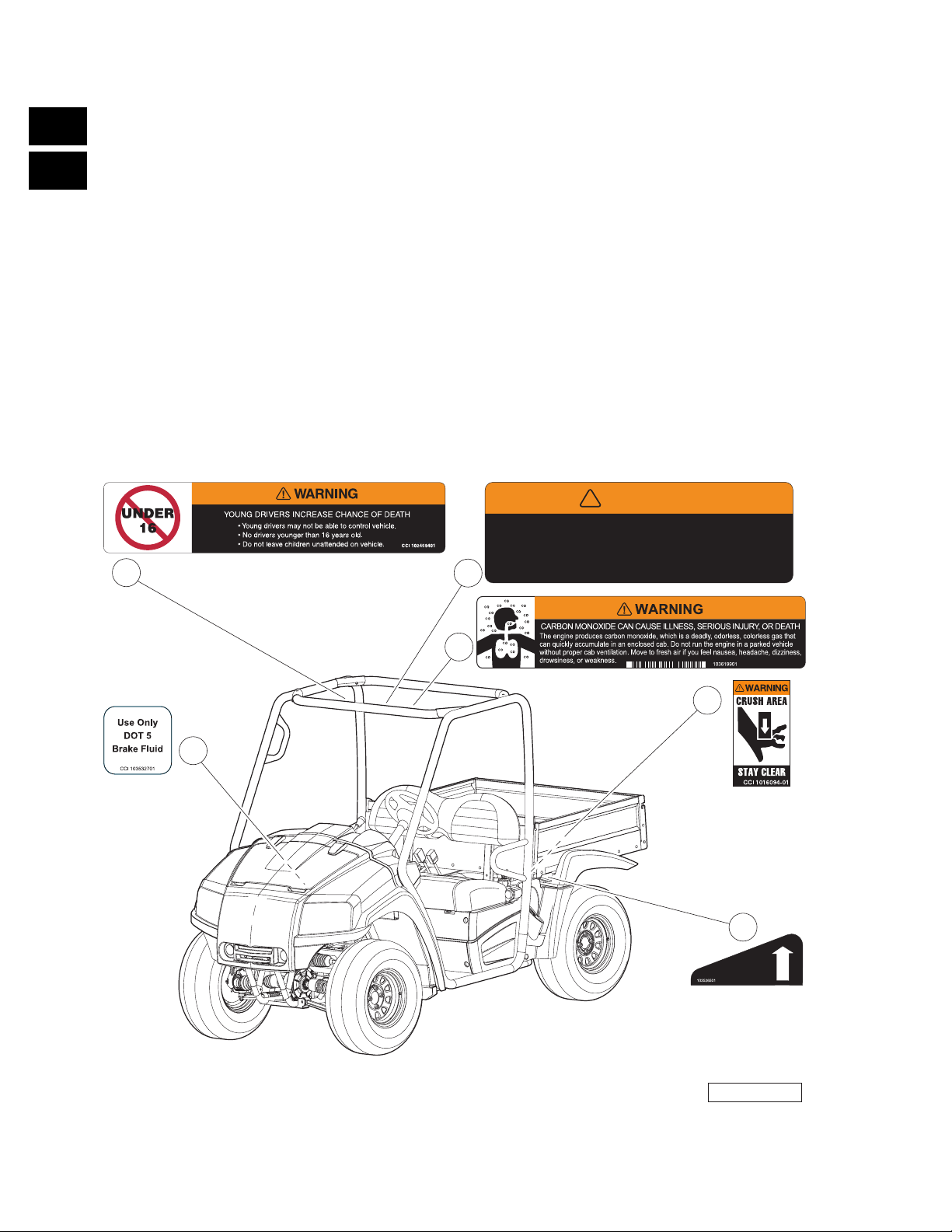

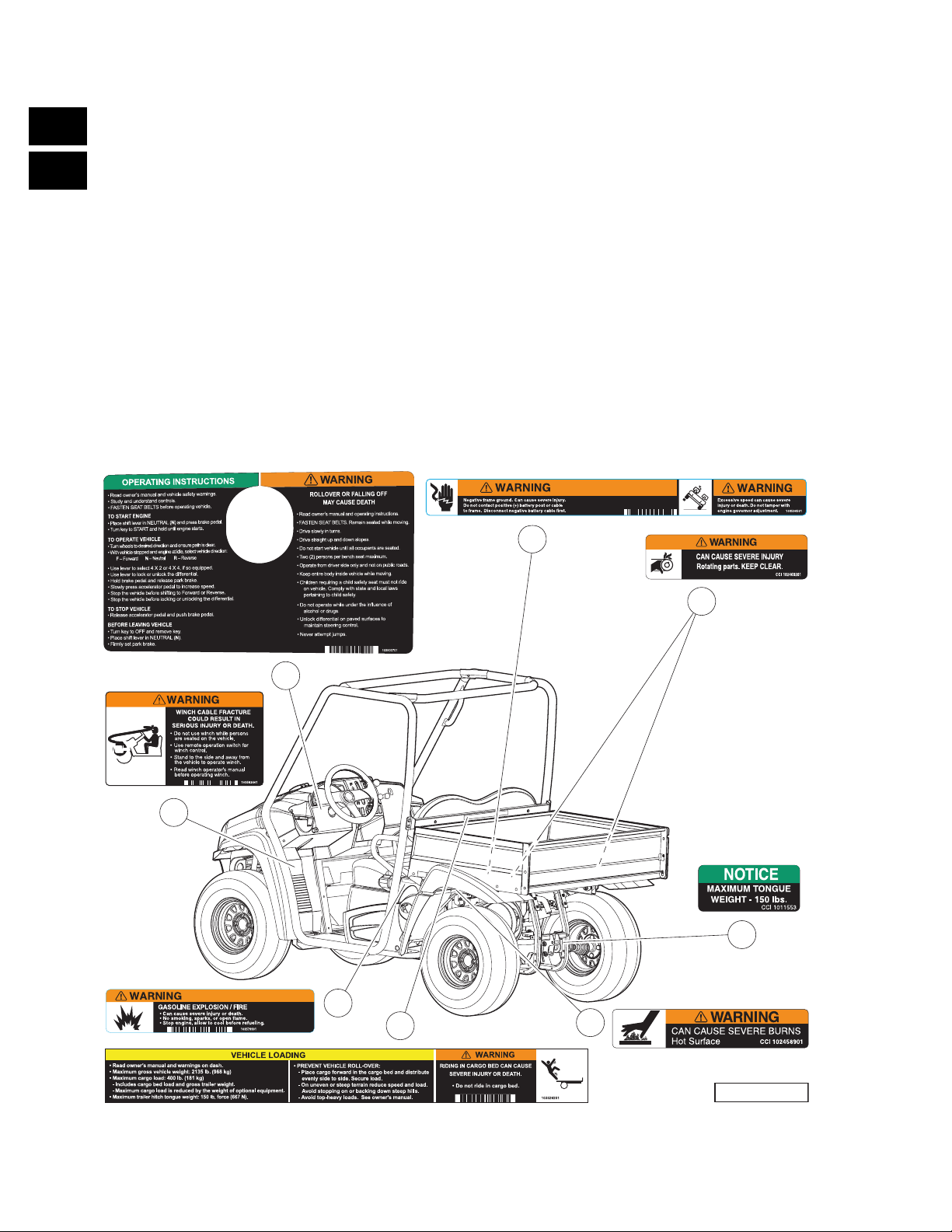

Safety Decals .................................................................................................................................................................................... 3-3
Safety Decals, Continued ............................................................................................................................................................ 3-5

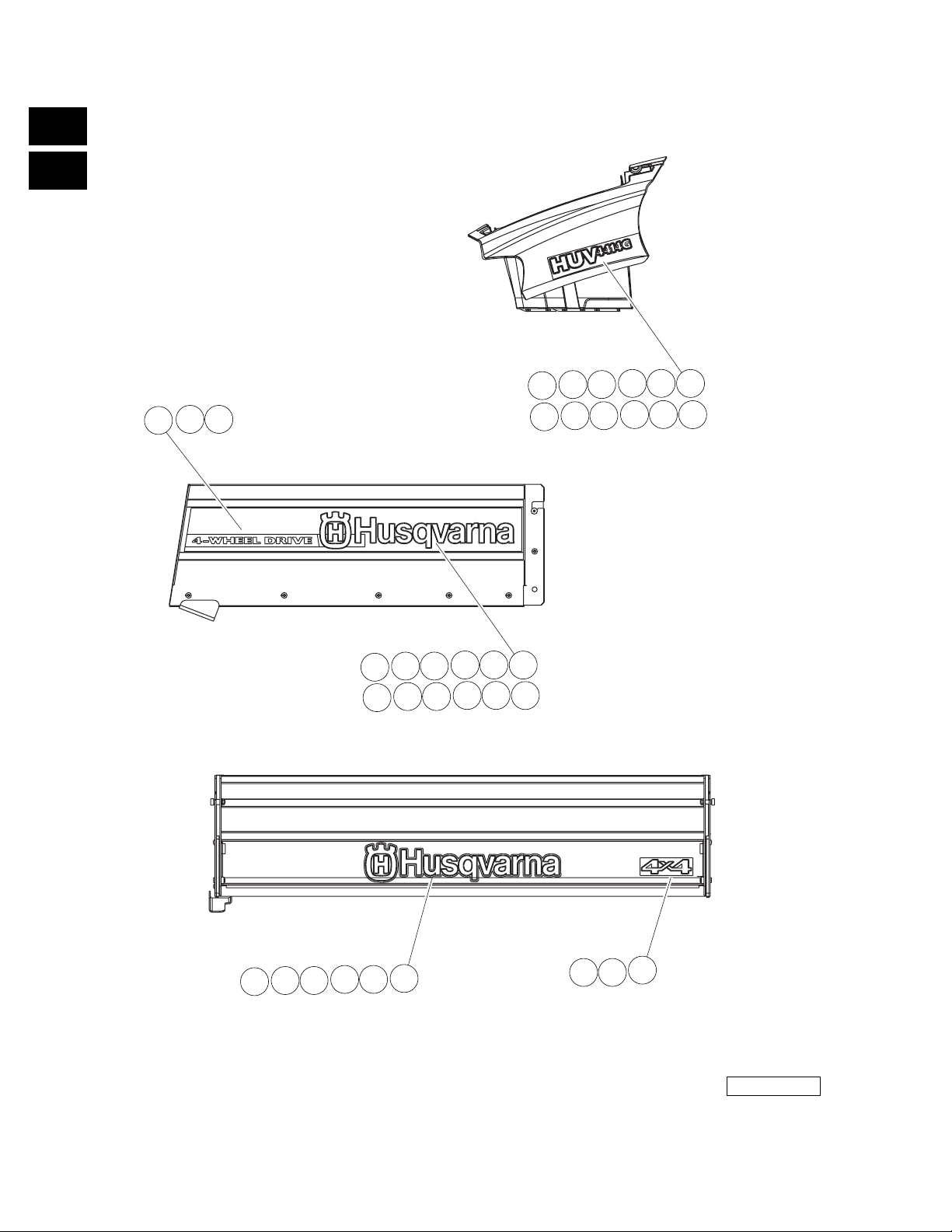

Badging Decals ............................................................................................................................................................................... 3-7
SECTION 4 – BRAKE SYSTEMS

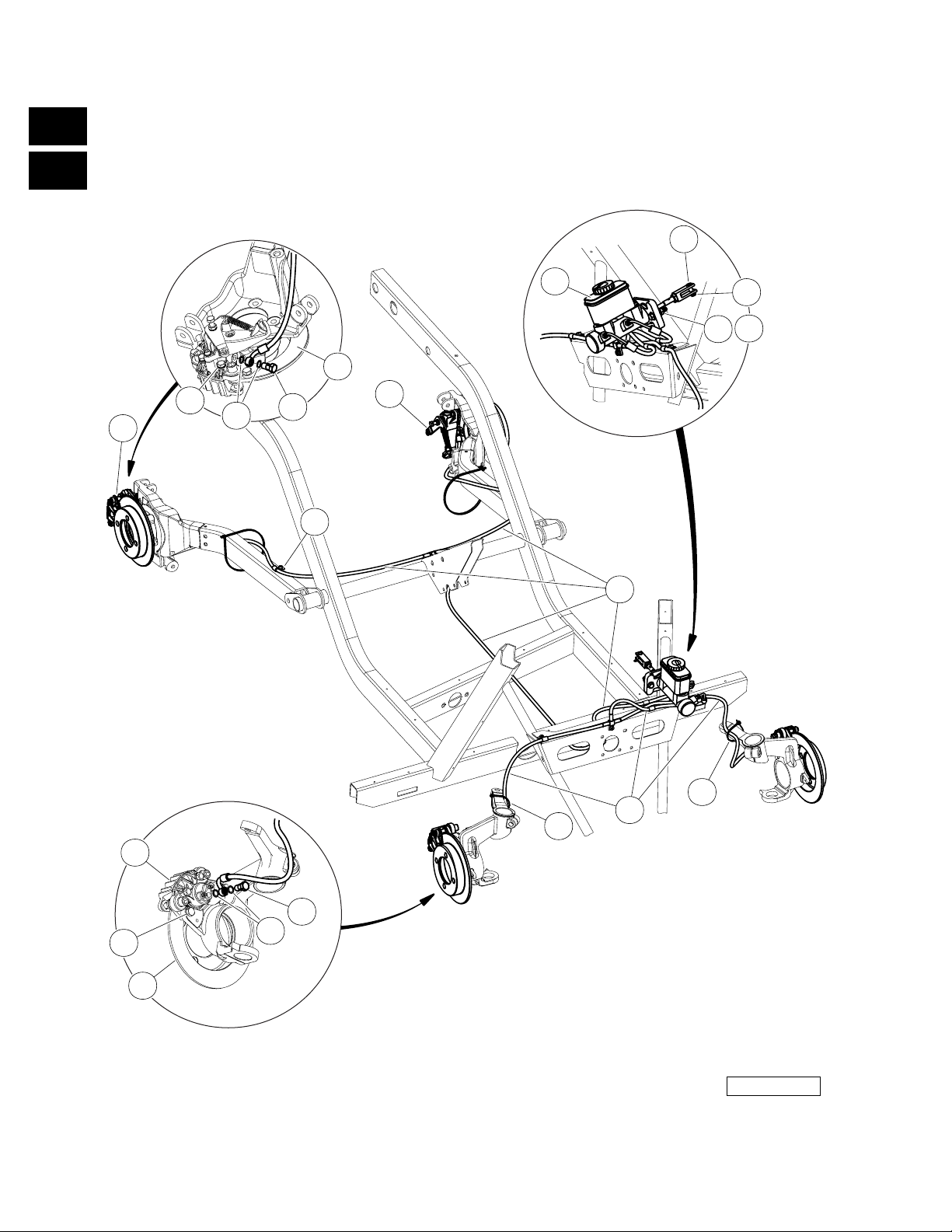

Brake System .................................................................................................................................................................................... 4-3

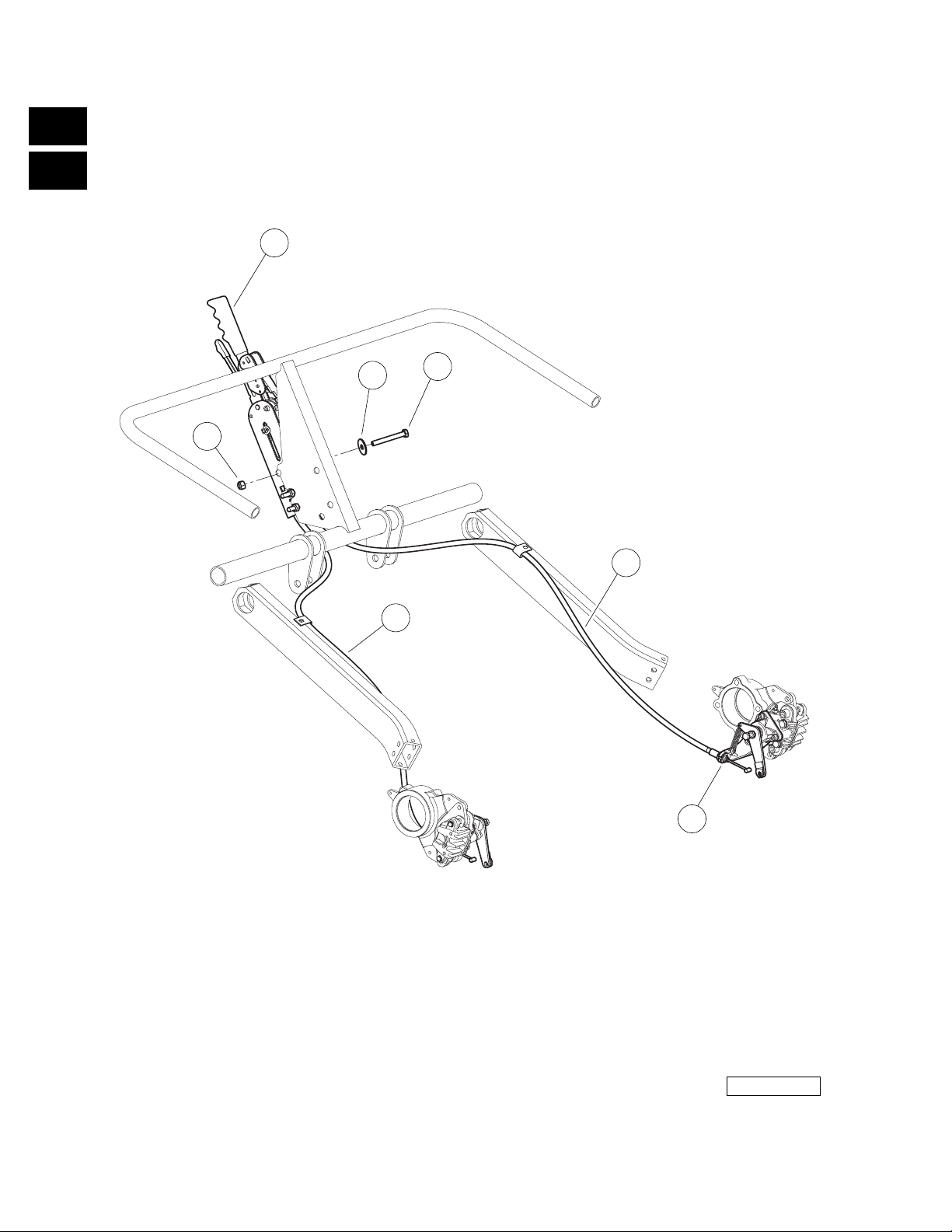

Park Brake System .......................................................................................................................................................................... 4-5

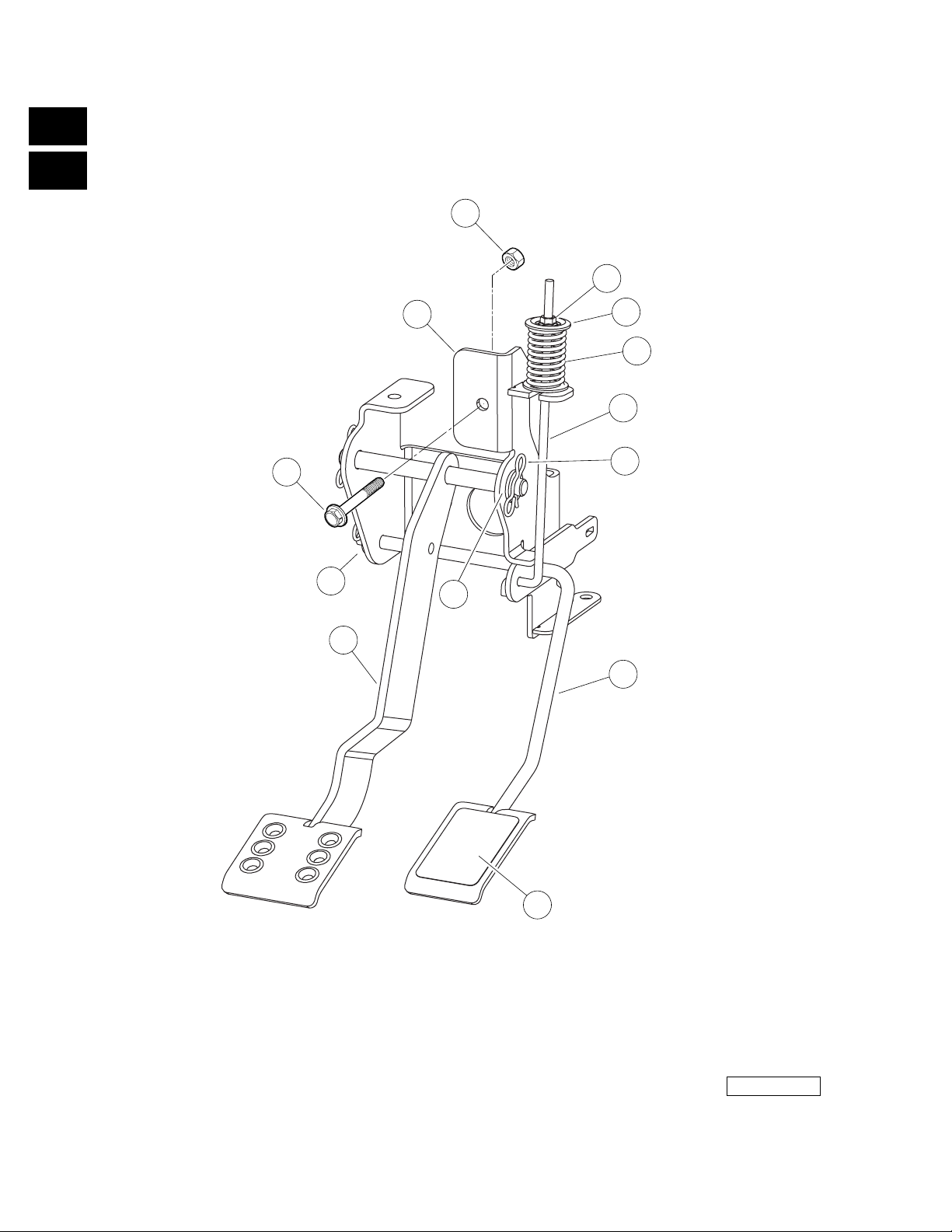

Pedal Group ..................................................................................................................................................................................... 4-7
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1
Page 6
CONTENTS
SECTION 5 – STEERING AND SUSPENSION

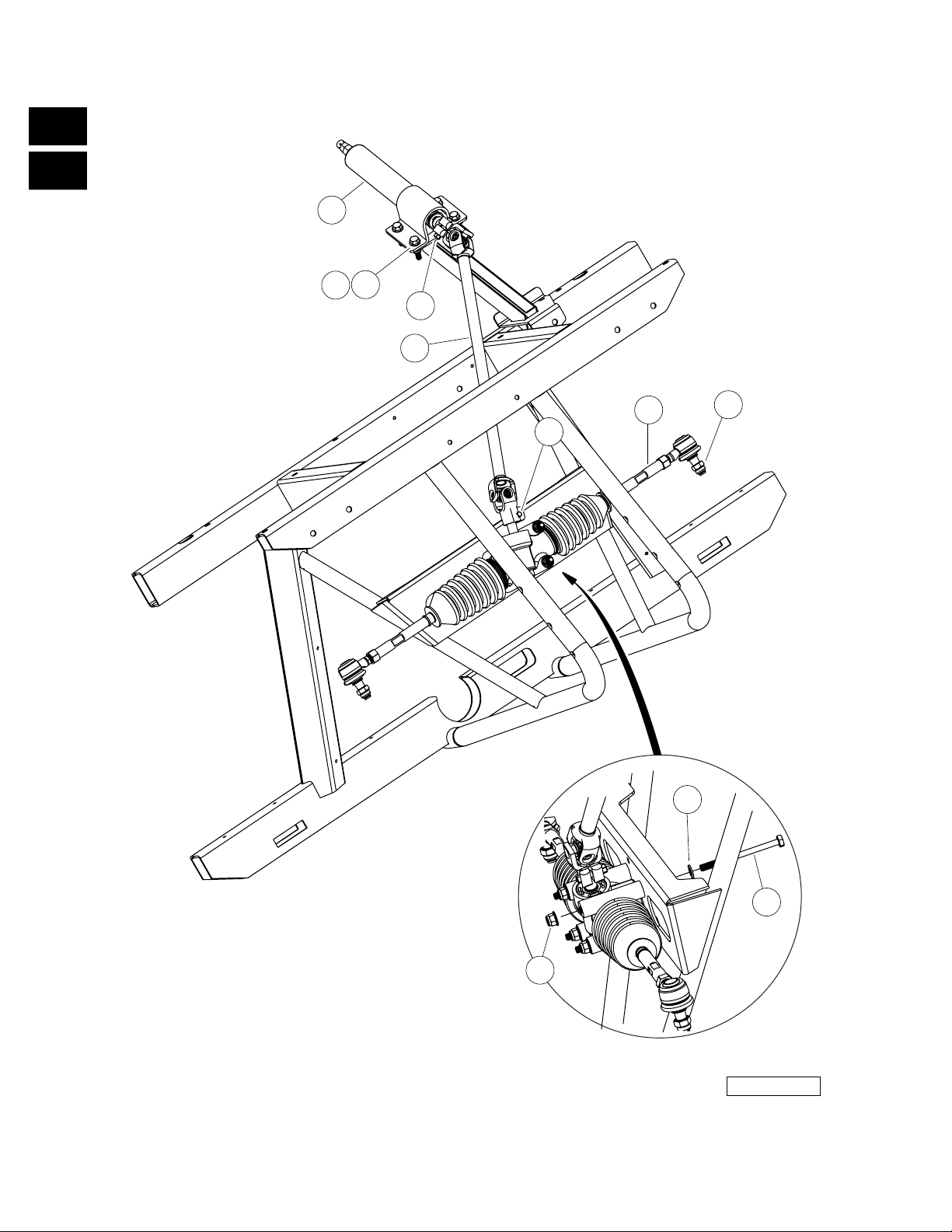

Steering .............................................................................................................................................................................................. 5-3

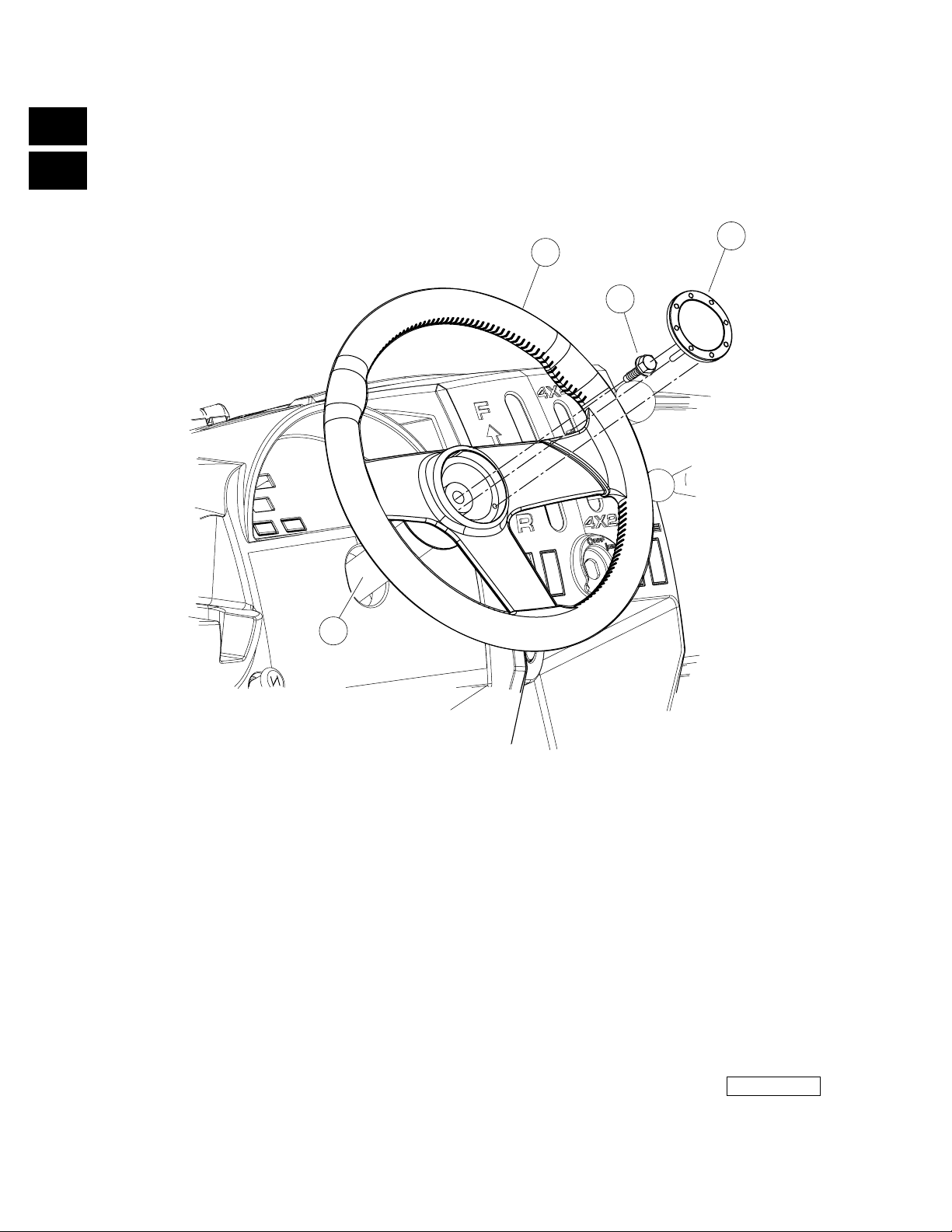

Steering Wheel ................................................................................................................................................................................ 5-5

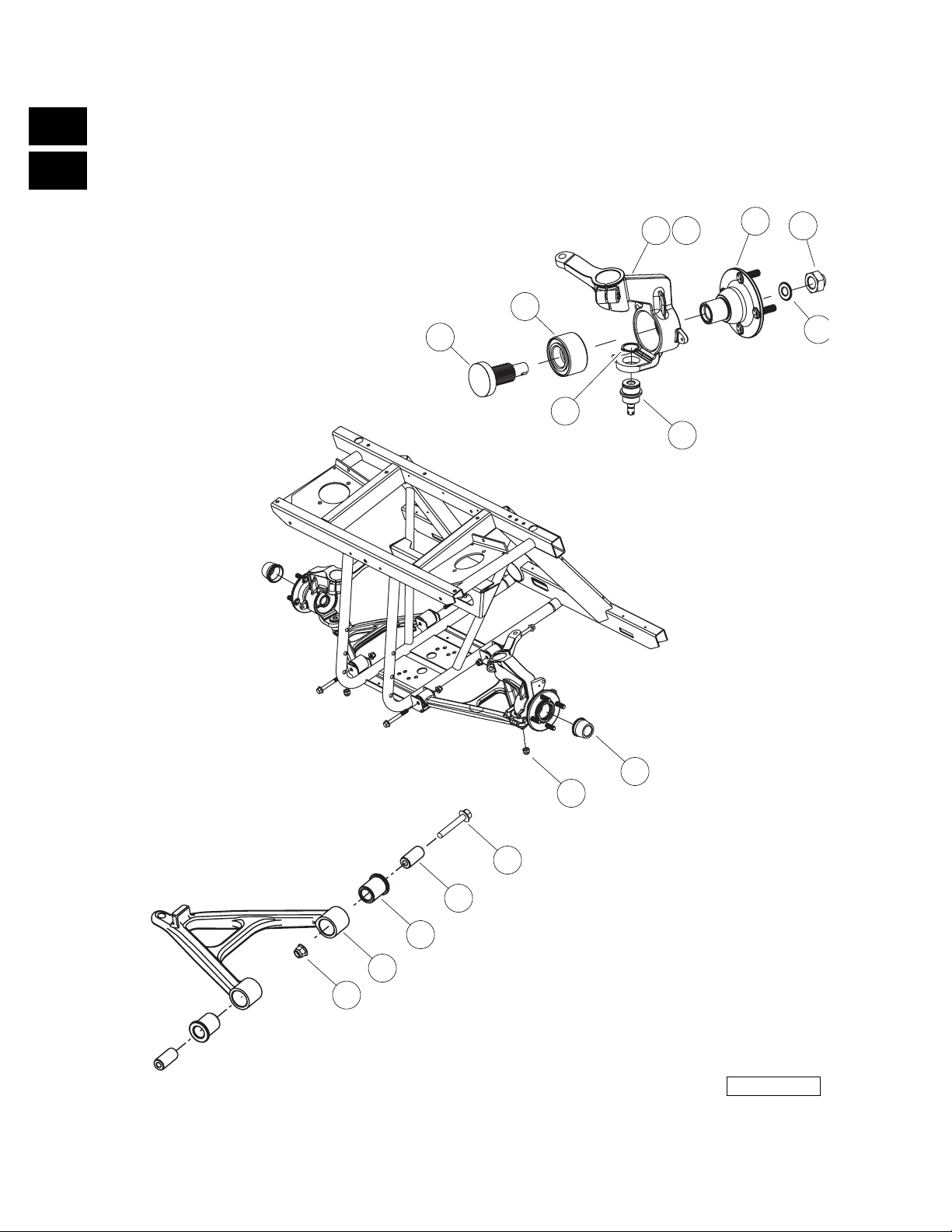

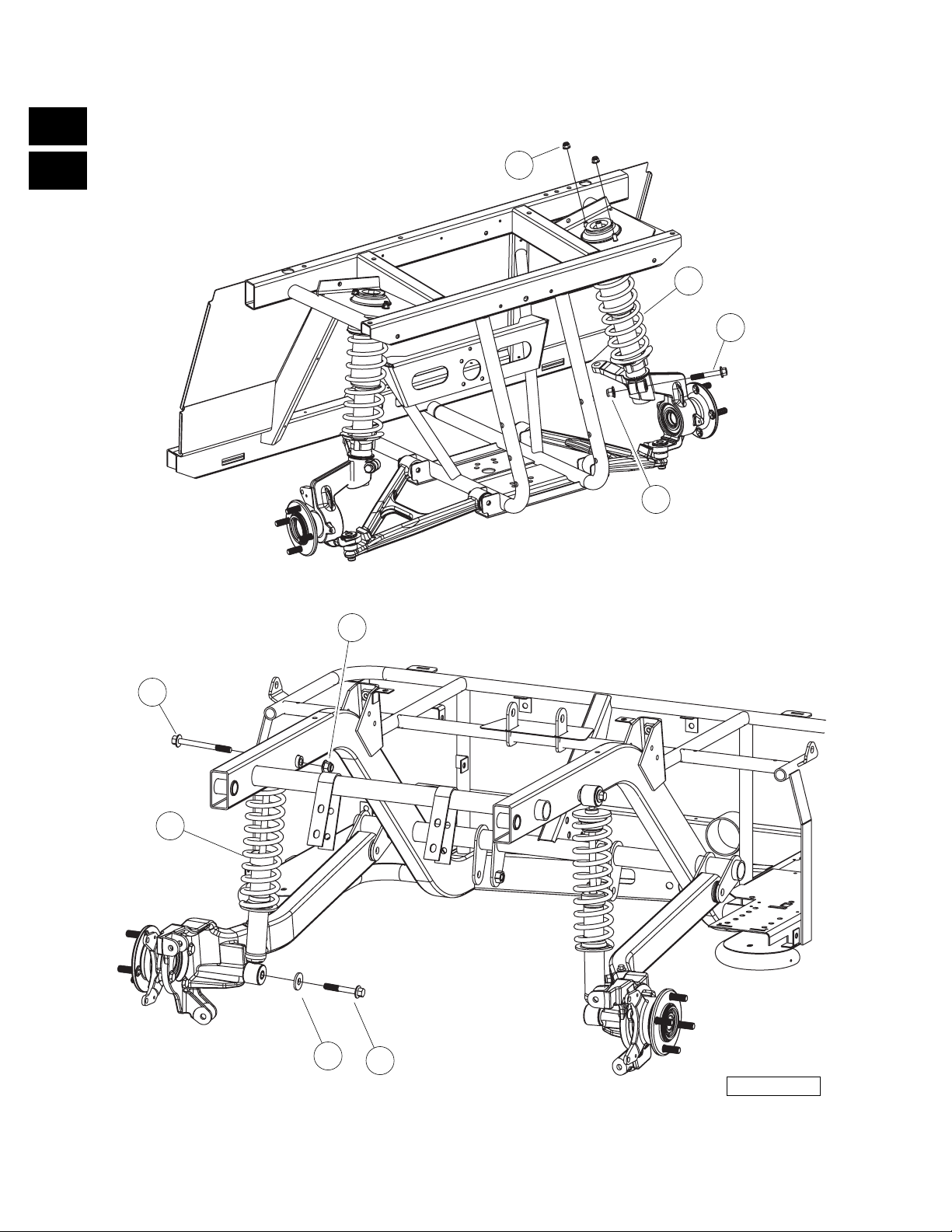

Front Suspension ............................................................................................................................................................................ 5-7

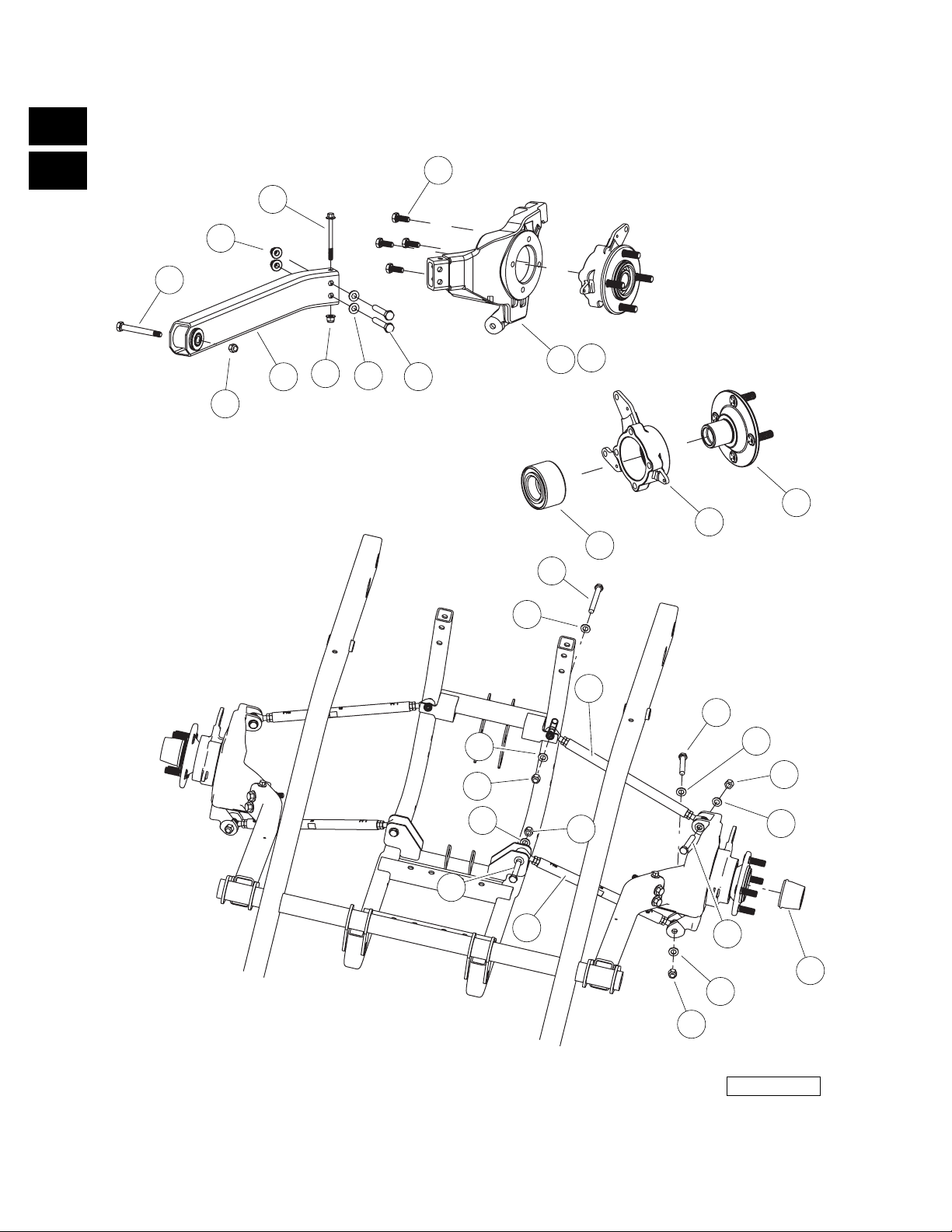

Rear Suspension .............................................................................................................................................................................. 5-9
Springs & Shocks ............................................................................................................................................................................. 5-11
SECTION 6 – ELECTRICAL SYSTEM
Electrical Components .................................................................................................................................................................. 6-3

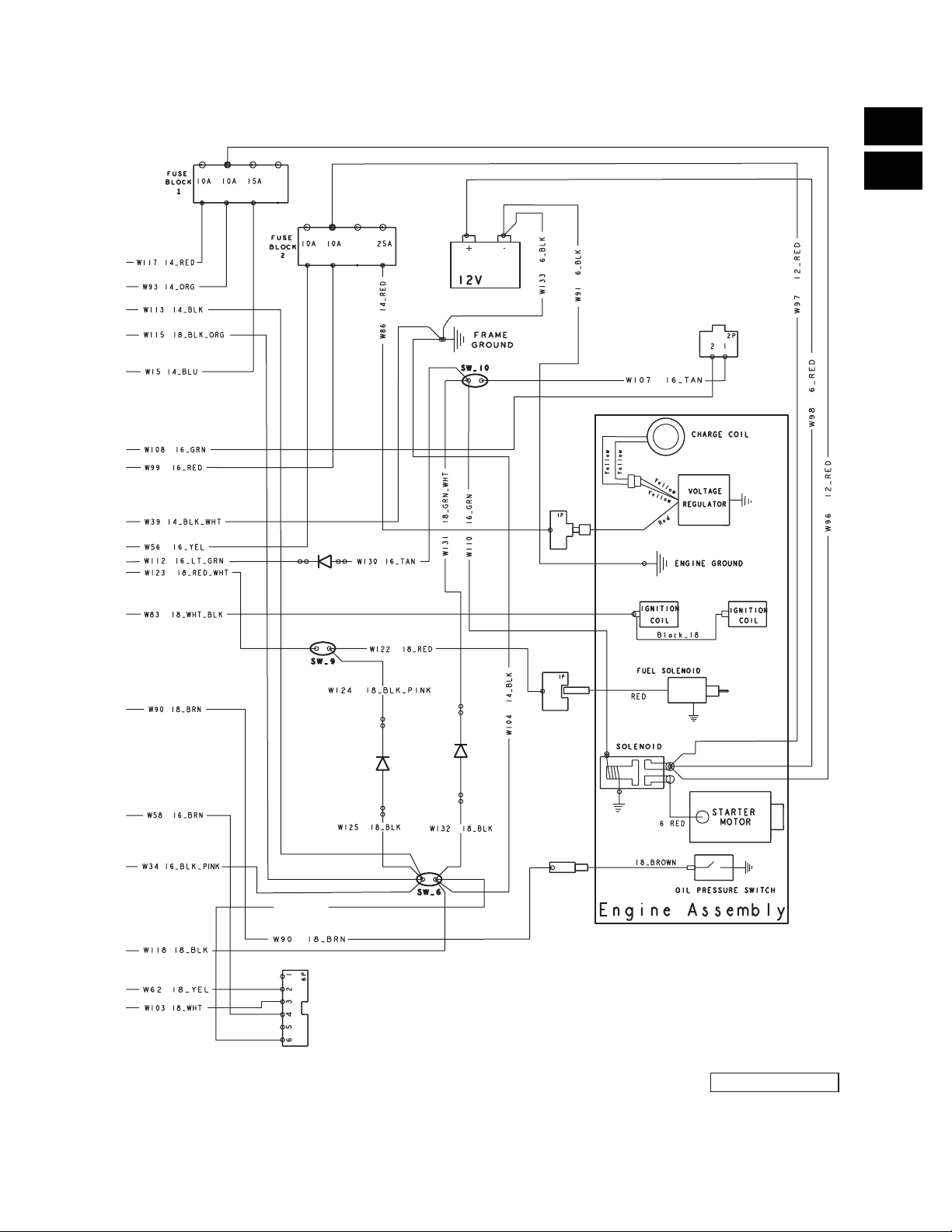

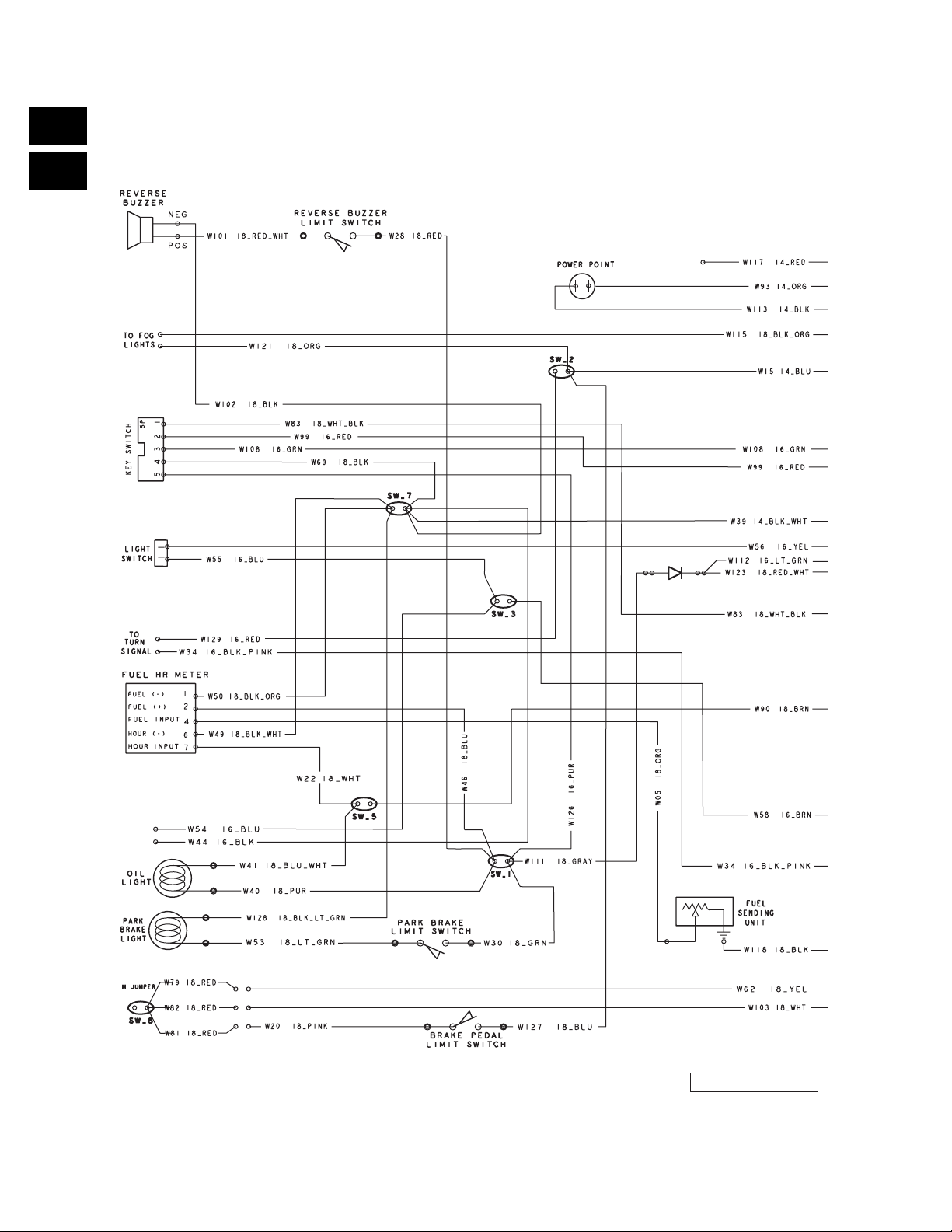

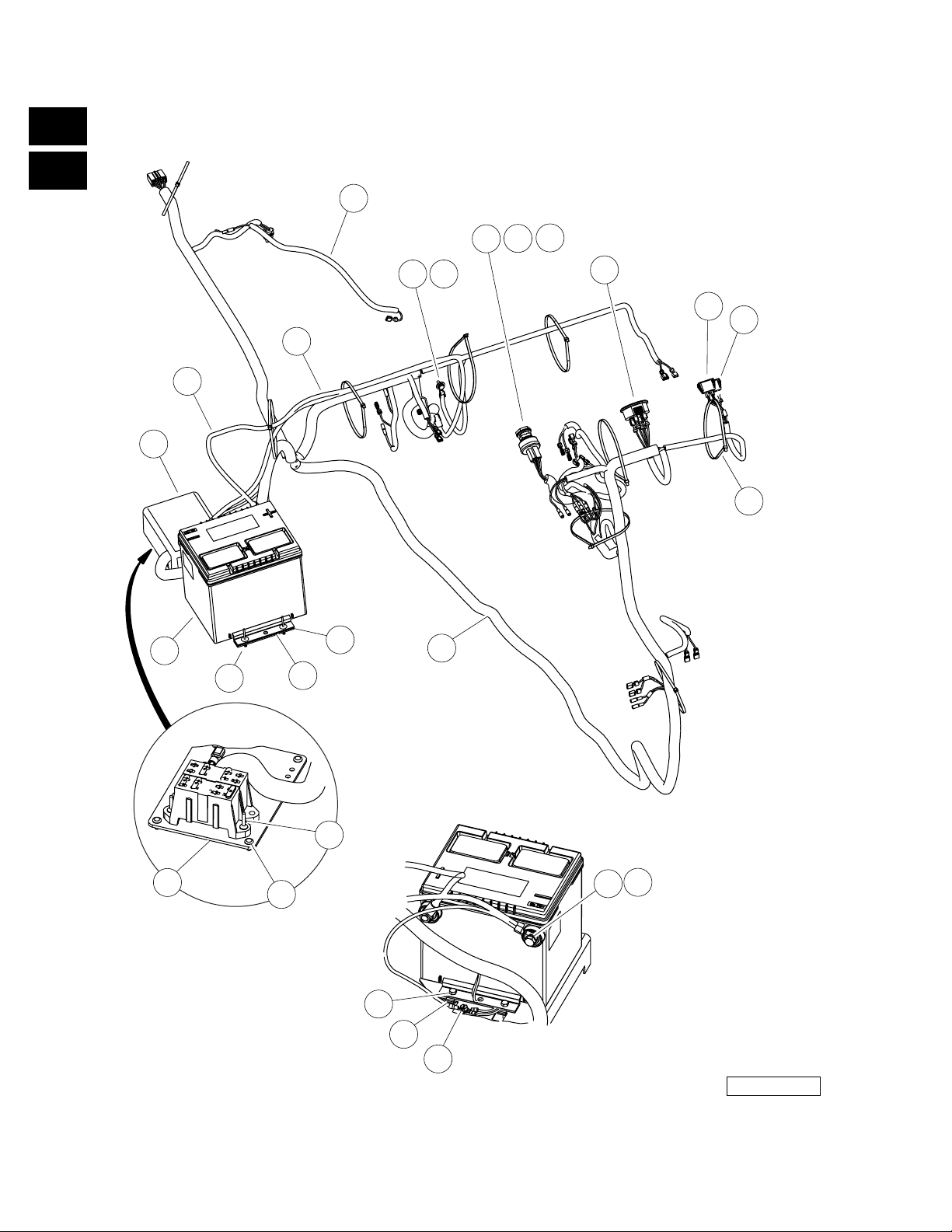

Wiring .................................................................................................................................................................................................. 6-7
SECTION 7 – BRIGGS GASOLINE ENGINE

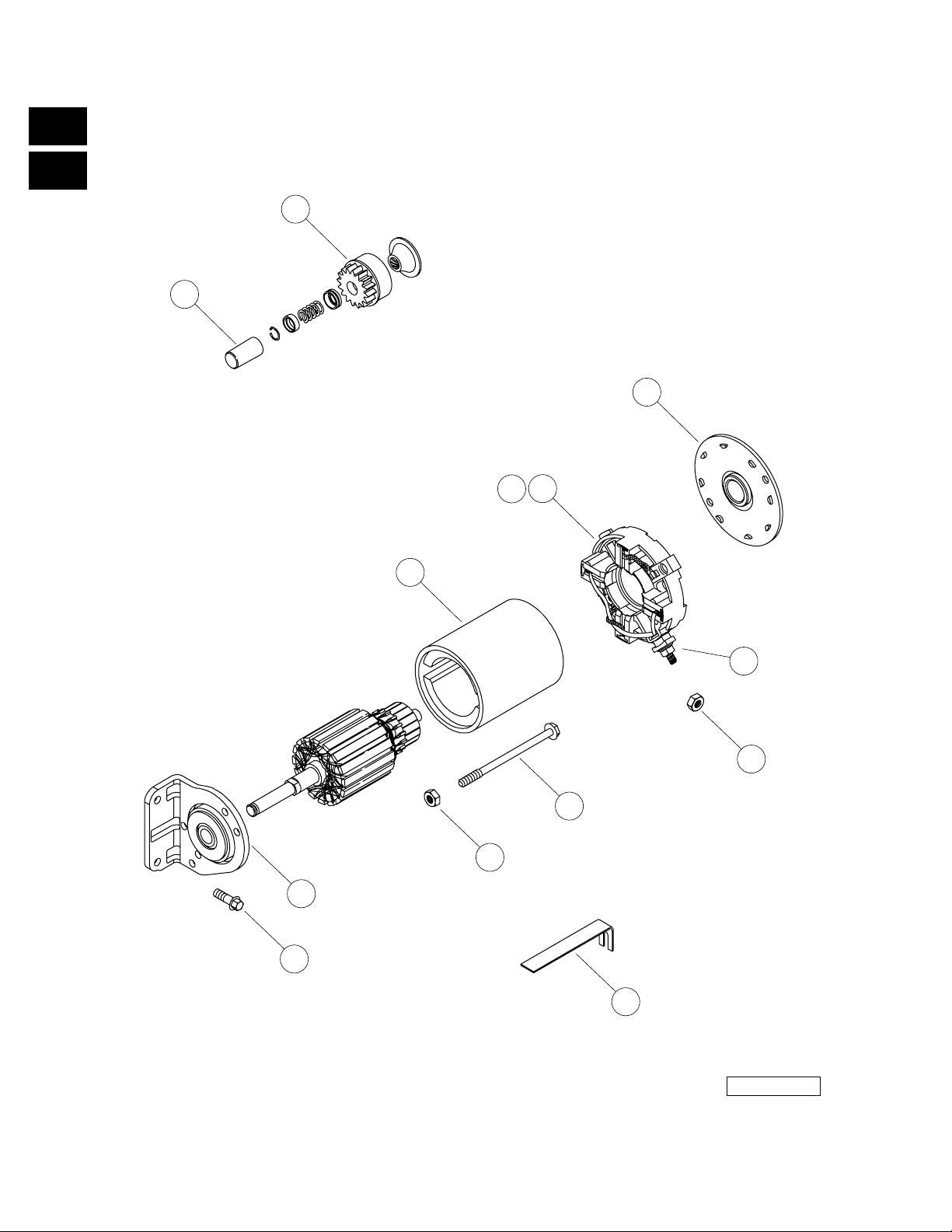

Starter Motor .................................................................................................................................................................................... 7-3
Engine and Engine Mounting .................................................................................................................................................... 7-5
Engine Shroud ................................................................................................................................................................................. 7-7
Electical Components – Engine ................................................................................................................................................. 7-9
Governor Control Brakets and Springs ................................................................................................................................... 7-11
Oil Pump, Oil Filter and Crankcase Cover ............................................................................................................................... 7-13
Cylinder Head & Valves ................................................................................................................................................................. 7-15
Cylinder Assembly .......................................................................................................................................................................... 7-17
Crankshaft and Pistons ................................................................................................................................................................. 7-19
Flywheel ............................................................................................................................................................................................. 7-21
Engine Gaskets and Seals ............................................................................................................................................................. 7-23
Intake Manifold ................................................................................................................................................................................ 7-25
Fuel Pump and Filter ...................................................................................................................................................................... 7-27
Carburetor ......................................................................................................................................................................................... 7-29
Air Cleaner ......................................................................................................................................................................................... 7-31
SECTION 8 – FUEL SYSTEM
Fuel System ....................................................................................................................................................................................... 8-3
Fuel Tank ............................................................................................................................................................................................ 8-5
SECTION 9 – EXHAUST SYSTEM
Exhaust System ................................................................................................................................................................................ 9-3
SECTION 10 – CLUTCHES
Clutch Cover – Sealed ................................................................................................................................................................... 10-3
Page 2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 7
CONTENTS
Drive Clutch ...................................................................................................................................................................................... 10-5
Drive Belt ........................................................................................................................................................................................... 10-7
Driven Clutch ................................................................................................................................................................................... 10-9
SECTION 11 – DRIVETRAIN COMPONENTS
Transaxle – 2WD ............................................................................................................................................................................. 11-3
Transaxle – 2WD (Continued) .................................................................................................................................................... 11-5
Transaxle – 4WD ............................................................................................................................................................................. 11-7
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-9
Transaxle – 4WD (Continued) .................................................................................................................................................... 11-11
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-13
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-15
Transaxle – 4WD (Continued) .................................................................................................................................................... 11-17
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-19
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-21
Transaxle – 2WD and 4WD (Continued) ................................................................................................................................ 11-23
Half Shafts ......................................................................................................................................................................................... 11-25
Forward/Reverse Shifter – 4WD ................................................................................................................................................ 11-27
Forward/Reverse Shifter – 2WD ................................................................................................................................................ 11-29
Control Cables – 2WD ................................................................................................................................................................... 11-31
Control Cables – 4WD ................................................................................................................................................................... 11-33
Front Differential ............................................................................................................................................................................ 11-35
Prop Shafts ........................................................................................................................................................................................ 11-37
SECTION 12 – MAINTENANCE AND SERVICE TOOLS
Maintenance and Service Tools ................................................................................................................................................ 12-3
Maintenance and Service Tools, Continued ......................................................................................................................... 12-5
Maintenance and Service Tools, Continued ......................................................................................................................... 12-7
Maintenance and Service Tools, Continued ......................................................................................................................... 12-9
Maintenance and Service Tools, Continued ......................................................................................................................... 12-11
SECTION i – INDEX
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 3
Page 8
Page 9
BODY AND TRIM
1
G
E
D
Page 10
1
G
E
D
5
3
4
5
2
Page 1-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000871-001
Page 11
TUBE BRUSH GUARD
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 76 80-01 Kit, Brshgrd, Tube (includes items 2 through 6) ................................................................................................. 1
2 523 34 59-25 Bolt, Flg, M10x1.5x55, Patch ................................................................................................................................ 8
3 523 34 59-90 Plug, Tube, Round, 1-3/4" ..................................................................................................................................... 2
4 603 00 33-95 Nut, Flg, M10 X 1.25 Hex Blk ................................................................................................................................ 8
5 525 76 75-01 Weldment, Brshgrd, Tube .................................................................................................................................... 1
6 525 77 00-01 Instr- Brshgrd, Tube (not shown) ....................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-3
Page 12
1
G
E
D
8
7
5
7
4
3
2
Page 1-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000871-003
Page 13
BRUSH GUARD
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 76 76-01 Kit, Brushguard, Frt (includes items 2 through 8) .............................................................................................. 1
2 523 34 59-25 Bolt, Flg, M10x1.5x55, Patch ................................................................................................................................ 8
3 603 00 33-94 Screw, M10 X 1.25 X 30 Hex Blk ......................................................................................................................... 4
4 603 00 33-95 Nut, Flg, M10 X 1.25 Hex Blk ................................................................................................................................ 12
5 603 00 33-91 Weldment, Brushguard, HUV 4421 ................................................................................................................... 1
6 525 76 77-01 Instr, Brushguard, Frt (not shown) .................................................................................................................... 1
7 525 76 78-01 Bracket- Brshgrd Drv .............................................................................................................................................. 1
8 525 76 79-01 Bracket- Brshgrd Pas .............................................................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-5
Page 14
1
G
E
D
3
2
4
Page 1-6 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000873-001
Page 15
RECEIVER HITCH – FRONT
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 77 02-01 Kit, 2" Front Receiver (includes items 2 through 5) ........................................................................................... 1
2 603 00 15-86 Nut Flg M10 X 1.5 Nylon ....................................................................................................................................... 4
3 523 34 59-25 Bolt, Flg, M10x1.5x55, Patch ................................................................................................................................ 4
4 525 76 82-01 Weldment, Hitch, Channel ................................................................................................................................... 1
5 525 77 01-01 Instr, Hitch, Channel (not shown) ...................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-7
Page 16
1
G
E
D
5
3
4
5
2
Page 1-8 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000873-002
Page 17
RECEIVER HITCH – REAR
ITEM PART NO. DESCRIPTION
1 2 3 4
1 522 71 86-31 Kit, Receiver, Rear, XRT 950 (includes items 2 through 6) ............................................................................... 1
2 603 00 13-00 Nut Flg M10 X 1.5 Mech Def ................................................................................................................................ 4
3 603 00 16-72 Bolt, M10 X 55, Zn-Ni (Black) ............................................................................................................................... 4
4 603 00 16-73 Washer, Hard, M10, Zn-Ni/Blk ............................................................................................................................. 4
5 525 32 82-34 Asm, Receiver, Rear ................................................................................................................................................. 1
6 525 76 66-01 Instr, Kit, Rear Receiver (not shown) ................................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-9
Page 18
1
G
E
D
8
7
6
4
3
5
2
2
4
Page 1-10 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000879-001
Page 19
FASCIA
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Fascia, Huv 4214/4414 (includes items 2 through 8) ............................................................................. 1
2 523 34 59-13 Screw, Torx Pan Hd Pt, M6 X 20 .......................................................................................................................... 2
3 603 00 32-54 Screw - M6 X 1.0 X 30 Sems ................................................................................................................................. 4
4 603 00 39-61 U-nut, M6-1.0 Prev Torque ................................................................................................................................... 4
5 531 30 81-75 Screw, D50x16, Torx PN Hd PT ............................................................................................................................ 3
6 603 00 34-01 Emblem, Husqvarna, Outer ................................................................................................................................. 1
7 603 00 34-02 Emblem, Husqvarna, Inner .................................................................................................................................. 1
8 N/A Fascia, Huv ................................................................................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-11
Page 20
1
G
E
D
5
2
4
3
6
Page 1-12 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000890-001
Page 21
CLOSEOUT PANELS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Closeout Panels, Rear (includes items 2 through 6) ............................................................................... 1
2 603 00 32-54 Screw - M6 X 1.0 X 30 Sems ................................................................................................................................. 2
3 603 00 39-61 U-nut, M6-1.0 Prev Torque ................................................................................................................................... 2
4 525 32 82-61 Panel, Closeout, Center ......................................................................................................................................... 1
5 525 32 82-62 Panel, Closeout, Center ......................................................................................................................................... 1
6 525 32 82-63 Panel, Closeout, Pass .............................................................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-13
Page 22
1
G
E
D
3
1
2
Page 1-14 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000885-001
Page 23
FLOOR PLATE AND PANEL
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 44-60 3/16 X 1.19 Alum Rivet, Blk ........................................................................................................................................ 20
2 525 32 82-55 Plate, Floor, Middle ....................................................................................................................................................... 1
3 525 79 71-01 Closeout, Pedal-vac Formed ..................................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-15
Page 24
1
G
E
D
3
5
6
8
9
11
2
4
2
10
1
2
2
7
000911-001
Page 1-16 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 25
FRAME COMPONENTS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 08-75 Bolt, Flange Head, M8 X 30.0 .................................................................................................................................... 1
2 603 00 12-98 Nut,m8,all Metal Lock .................................................................................................................................................. 11
3 603 00 11-74 Washer Hard,m10 .......................................................................................................................................................... 4
4 603 00 28-61 Bolt Flanged Head, M8x1.25 X 50 with Loctite ................................................................................................... 2
5 523 34 59-25 Bolt, Flg, M10x1.5x55, Patch ...................................................................................................................................... 4
6 523 34 59-50 Weldment, Mtg, Seat Back ......................................................................................................................................... 1
7 523 34 59-80 Bolt, Flg, M8 X 1.25 X 80 .............................................................................................................................................. 6
8 523 34 59-88 Weldment, Supp, Dash ................................................................................................................................................ 1
9 523 34 59-89 Weldment, Mtg, Fascia ................................................................................................................................................ 1
10 525 32 82-14 Brkt, Supp, Steering ...................................................................................................................................................... 1
11 525 76 61-01 Bolt, Flg, M8 X X 60 ....................................................................................................................................................... 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-17
Page 26
1
G
15
4
5
3
E
D
16
1
17
7
22
141312
11109
2
8
6
000876-002
Page 1-18 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 27
COWL
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 36-01 Screw, 1/4-15 X .50 Hi-lo Hex .................................................................................................................................... 2
2 603 00 07-73 Seat Holder Base ........................................................................................................................................................... 2
3 603 00 07-77 Seat Holder Cup ............................................................................................................................................................. 2
4 603 00 32-54 Screw - M6 X 1.0 X 30 Sems ....................................................................................................................................... 2
5 603 00 39-61 U-nut, M6-1.0 Prev Torque ......................................................................................................................................... 2
6 603 00 34-43 Screw,m6,torx,interlock,thread ................................................................................................................................ 4
7 525 32 82-11 Cover, Access .................................................................................................................................................................. 1
8 525 32 82-13 Bracket, Hinge ................................................................................................................................................................ 2
9 576 22 19-01 Cowl, Huv, Orange ........................................................................................................................................................ 1
10 576 22 19-02 Cowl, Huv, Olive Green ................................................................................................................................................ 1
11 576 22 19-03 Cowl, Huv, Rthwhd-g ................................................................................................................................................... 1
12 576 22 20-01 Hood, Huv, Orange ...................................................................................................................................................... 1
13 576 22 20-02 Hood, Huv, Olive Green ............................................................................................................................................... 1
14 576 22 20-03 Hood, Huv, Rthwhd-g .................................................................................................................................................. 1
15 525 76 84-01 Screw, Round Hd, M5.5 X 38 ..................................................................................................................................... 4
16 525 76 86-01 Seal, Bulb, 13 X 27 X 1888 Mm ................................................................................................................................. 1
17 525 76 98-01 Cap, Ldpe, 122 Mm ....................................................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-19
Page 28
1
G
E
D
6
2
17
15
5
4
3
12
11
3
16
13
14
4
4
3
2
1
10
9
8
7
3
Page 1-20 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000877-002
Page 29
FENDERS AND REAR BODY PANELS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 35-90 Screw, Tuflok Panel, 1/4 .............................................................................................................................................. 4
2 603 00 32-54 Screw - M6 X 1.0 X 30 Sems ....................................................................................................................................... 10
3 603 00 39-61 U-nut, M6-1.0 Prev Torque ......................................................................................................................................... 18
4 523 34 59-14 Screw M6-1.0x25.4 Thd Fm Sems ............................................................................................................................ 10
5 523 34 59-28 Fender, Front, Ds ............................................................................................................................................................ 1
6 523 34 59-29 Fender, Front, Ps ............................................................................................................................................................ 1
7 523 34 59-30 Fender, Rear, Ds, Black ................................................................................................................................................. 1
8 N/A Fender, Rear, Ds, Camo, Rt-g ..................................................................................................................................... 1
9 523 34 59-31 Fender, Rear, Ps, Black .................................................................................................................................................. 1
10 N/A Fender, Rear, Ps, Camo, Rt-g ...................................................................................................................................... 1
11 523 34 59-32 Panel, Ds ........................................................................................................................................................................... 1
12 N/A Panel, Ds, Camo, Rthwhd-g ....................................................................................................................................... 1
13 523 34 59-33 Panel, Ps, Blk .................................................................................................................................................................... 1
14 N/A Panel, Ps, Camo, Rthwhd-g ........................................................................................................................................ 1
15 523 34 59-34 Panel, Center, Blk ........................................................................................................................................................... 1
16 N/A Panel, Center, Camo, Rthwhd-g ............................................................................................................................... 1
17 603 00 44-60 3/16 X 1.19 Alum Rivet, Blk ........................................................................................................................................ 4
18 525 32 82-32 Flap, Mud, Common (not shown) ............................................................................................................................ 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-21
Page 30
1
G
E
D
8
9
13
2
7
10
12
13
11
Page 1-22 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000916-001
Page 31
TAILLIGHTS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 45-18 Taillight Assembly (includes items 2 through 6) ................................................................................................ 1
2 N/A Light, Tail (includes items 3 through 5) ........................................................................................................... 1
3 523 34 59-03 Taillight Bulb ...................................................................................................................................................... 1
4 523 34 59-04 Taillight Lens ...................................................................................................................................................... 1
5 N/A Base, Taillight ..................................................................................................................................................... 1
6 523 34 59-09 Hardware Kit, Tail Light (includes items 7 and 8) ......................................................................................... 1
7 N/A Gasket .................................................................................................................................................................. 1
8 N/A Screw, Tapered .................................................................................................................................................. 2
9 523 34 59-10 Screw, #6-32 X 0.75 Hex-Head Machine ............................................................................................................... 2
10 523 34 59-11 Locknut, #6-32 Nylon ................................................................................................................................................... 2
11 531 30 83-53 Wire Asm, Ground, Taillight ....................................................................................................................................... 1
12 525 79 43-01 Bracket, Light, Brake ..................................................................................................................................................... 1
13 603 00 45-10 Washer, #6 Flat ............................................................................................................................................................... 4
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-23
Page 32
1
G
E
D
4
3
4
2
3
000874-001
Page 1-24 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 33

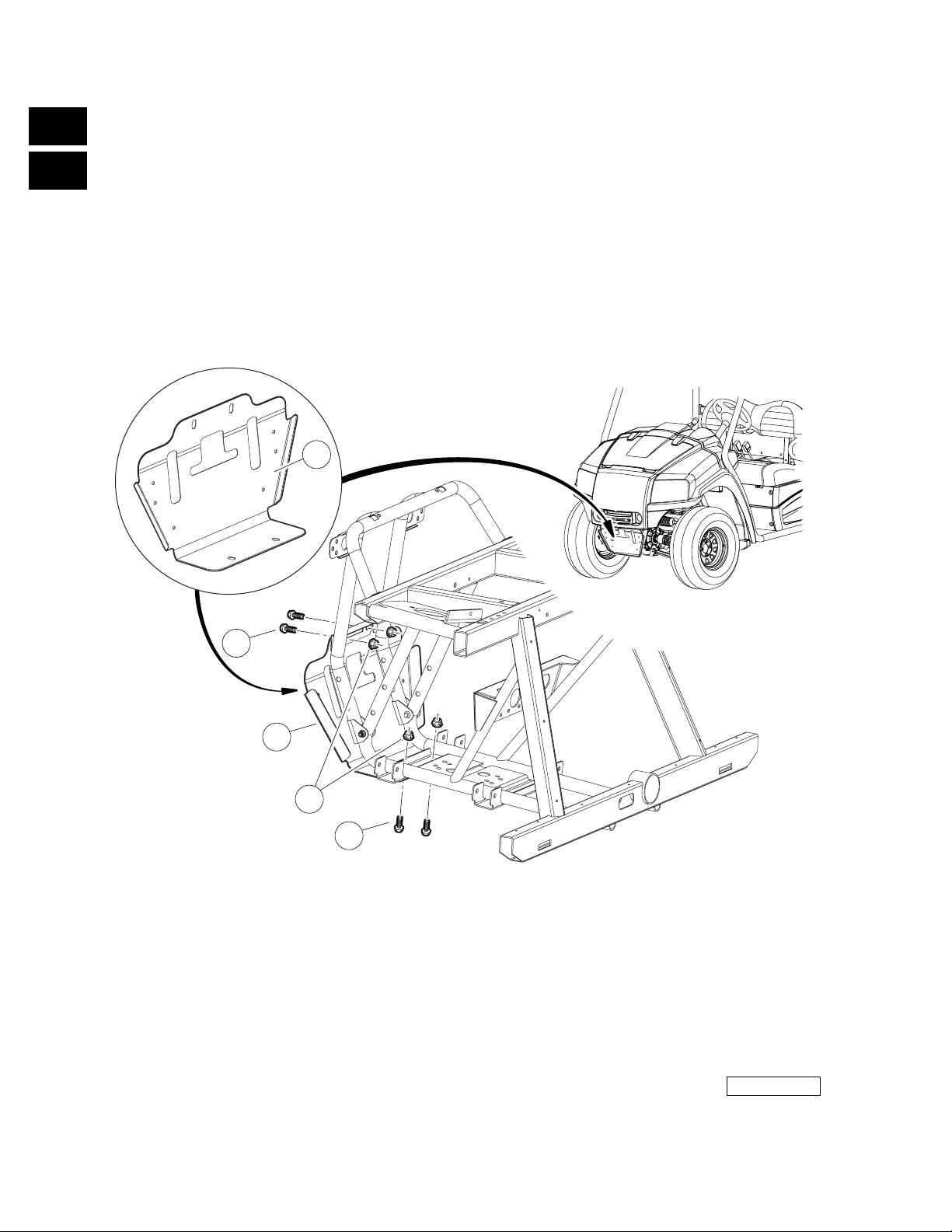

FRONT SKID PLATE
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 77 04-01 Kit, Front Skid Plate, Steel (includes items 2 through 5) ................................................................................. 1
2 603 00 13-00 Nut Flg M10 X 1.5 Mech Def ................................................................................................................................ 4
3 603 00 16-69 Bolt, Flange Head, M10 X 1.5 X 25 ..................................................................................................................... 4
4 525 76 83-01 Plate-access-mount ................................................................................................................................................ 1
5 525 77 03-01 Instr, Access Mounting Plate (not shown) ...................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-25
Page 34
1
G
E
D
5
4
3
2
000874-002
Page 1-26 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 35

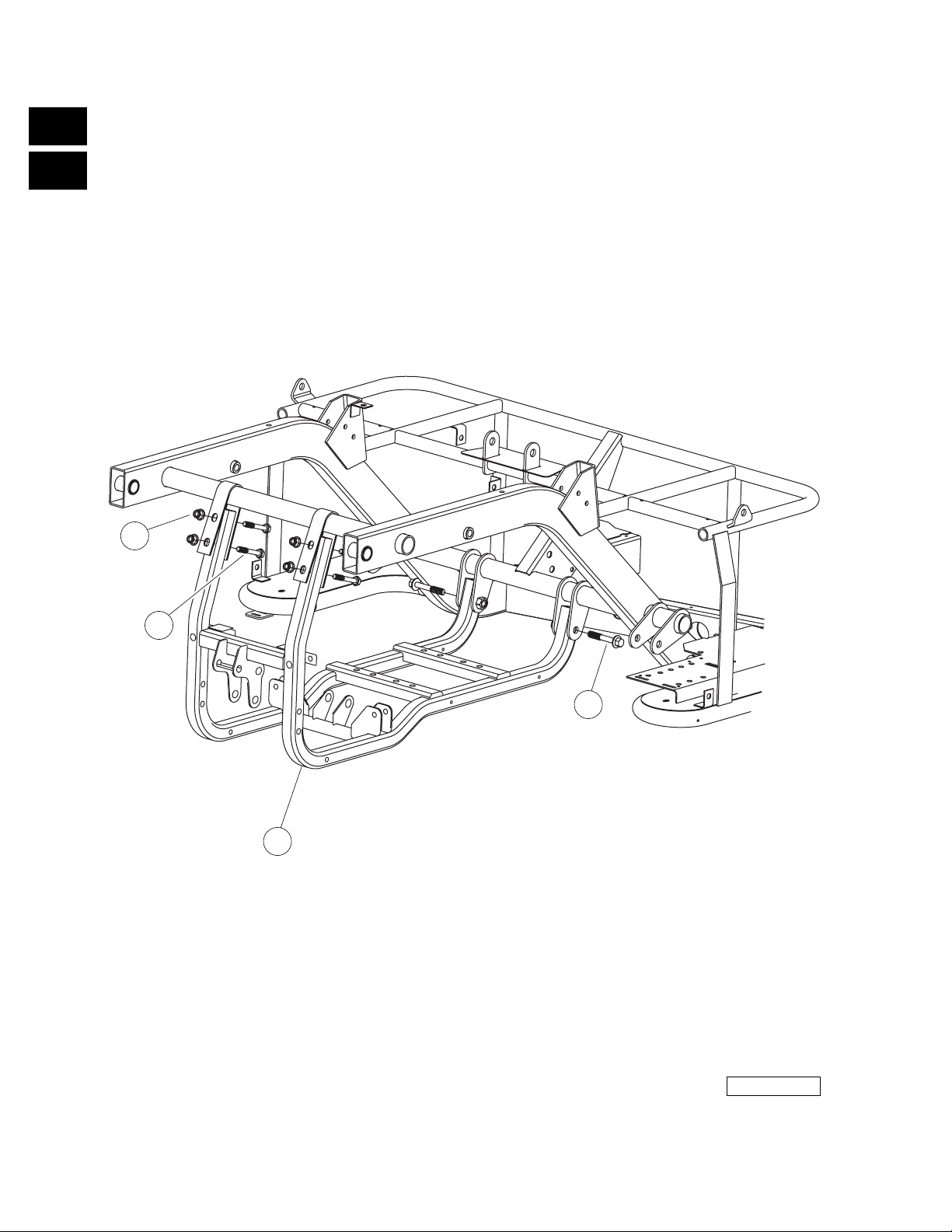

REAR SKID PLATE
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 79 41-01 Kit, Skidplate, Rear, XRT 950 (includes items 2 through 6) ............................................................................. 1
2 603 00 12-98 Nut,m8,all Metal Lock ............................................................................................................................................ 2
3 531 30 81-25 Bolt, M8 X 45, Flanged, Black .............................................................................................................................. 2
4 525 32 82-38 Plate, Skid, Rear, 4x4 ............................................................................................................................................... 1
5 525 32 82-72 Scr, 1/4-20 X 1.25 Hwhcs, Tt ................................................................................................................................ 4
6 525 79 40-01 Instr, Kit, Skidplate, Rear (not shown) .............................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-27
Page 36
1
G
E
D
6
8
5
9
2
5
7
4
3
000878-001
Page 1-28 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 37
DASH
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Dash, Storage (includes items 2 through 8) .............................................................................................. 1
2 603 00 08-73 Bolt, Flanged Head, M6x1.0x40 ......................................................................................................................... 2
3 603 00 39-61 U-nut, M6-1.0 Prev Torque ................................................................................................................................... 2
4 603 00 34-43 Screw,m6,torx,interlock,thread .......................................................................................................................... 4
5 603 00 34-47 Cup Holder, Utility .................................................................................................................................................. 2
6 523 34 59-26 Dash- Control Mount ............................................................................................................................................. 1
7 523 34 59-27 Cover, Dash ................................................................................................................................................................ 1
8 603 00 34-50 Latch, Push Close .................................................................................................................................................... 1
9 525 32 82-12 Cover, Shifter ................................................................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-29
Page 38
1
G
E
D
5
3
2
6
2
4
Page 1-30 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000875-001
Page 39
HEAT SHIELD
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Heat Shield, XRT 950 (includes items 2 through 6) ................................................................................ 1
2 603 00 02-10 Nut, 1/4-20 Speed ................................................................................................................................................... 2
3 525 32 82-95 Shield, Exhaust, Heat ............................................................................................................................................. 1
4 525 76 72-01 Foam, Barrier, Heat, Bed, Rear ............................................................................................................................. 1
5 525 76 73-01 Foam, Barrier, Heat, Bed, Frnt ............................................................................................................................. 1
6 525 76 99-01 Screw, Tapping, 1/4-20 X .375 ............................................................................................................................. 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-31
Page 40
1
G
E
D
6
1
3
2
5
Page 1-32 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
4
000914-001
Page 41
CANOPY AND DOORS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 32 82-71 Kit, Canopy, Bestop ....................................................................................................................................................... 1
2 525 32 82-93 Kit, Door, Bestop ............................................................................................................................................................ 1
3 525 76 97-01 Kit, Backlite, Bestop ...................................................................................................................................................... 1
4 525 79 67-01 Pipe, Extension, Xrt 950 .............................................................................................................................................. 1
5 525 79 68-01 Clamp, Exhaust, 1.25" Diameter ............................................................................................................................... 1
6 525 79 70-01 Decal, Warn, Co, Cab .................................................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-33
Page 42
1
G
E
D
6
2
7
4
3
9
8
5
Page 1-34 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000902-001
Page 43
SEAT BELTS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 523 34 59-58 Instl, Seat Belts (includes items 2 through 9) ...................................................................................................... 1
2 603 00 02-72 Washer, 7/16 Flat ..................................................................................................................................................... 2
3 603 00 34-72 Ln Flg, M12 X 1.75, Md, Black .............................................................................................................................. 2
4 531 30 83-98 Bolt Flg, M12x1.75 X 25 Black ............................................................................................................................. 2
5 525 32 82-99 Bolt, Shoulder, 15 Mm ........................................................................................................................................... 2
6 525 76 57-01 Asm, Buckle, Seat-belt ........................................................................................................................................... 2
7 525 76 58-01 Retractor, Seat-belt ................................................................................................................................................. 2
8 525 76 60-01 Washer, Spring, 15 Mm Id .................................................................................................................................... 2
9 525 76 69-01 Lock Nut, 7/16-20 Nylon ....................................................................................................................................... 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-35
Page 44
1
G
E
D
2
3
8
5
7
7
4
5
8
8
7
9
7
Page 1-36 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
7
8
000872-002
Page 45
ROPS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 32 82-48 Kit, Rops, Pass Side (includes items 2 through 5) .............................................................................................. 1
2 603 00 11-06 Decal, Young Driver Warning .............................................................................................................................. 1
3 603 00 34-83 Decal, Warning, AWD ROPS ................................................................................................................................. 1
4 525 32 82-30 Weldment, Rops, Pass ............................................................................................................................................ 1
5 525 32 82-31 Tube, Cross, Rops, Top ........................................................................................................................................... 2
6 525 32 82-49 Kit, Rops, Drv Side (includes items 7 through 10) ............................................................................................. 1
7 603 00 34-73 Bolt, Flanged, M10 X 1.5 X 65 ............................................................................................................................ 14
8 603 00 34-75 Nut, Flanged, M10 x 1.5, Black ............................................................................................................................ 12
9 525 32 82-29 Weldment, Rops, Driver ........................................................................................................................................ 1
10 525 79 30-01 Instr, Kit, Rops (not shown) .................................................................................................................................. 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-37
Page 46
1
G
E
5
9
1
15
D
14
16
7
13
8
12
Page 1-38 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
3
6
11
10
4
2
000892-002
Page 47
TILT BED HINGE AND LATCH
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 01-36 Bushing, Steel ................................................................................................................................................................. 2
2 603 00 02-26 Screw, 1/4-20 X 0.75 Torx Truss-Head .................................................................................................................... 2
3 603 00 02-46 Latch Plate, Tilt Bed ...................................................................................................................................................... 1
4 603 00 02-54 Extension, Spring Latch .............................................................................................................................................. 1
5 603 00 02-63 Bushing, Urethane ........................................................................................................................................................ 4
6 603 00 05-21 Locknut, 1/4-20 Hex Whiz .......................................................................................................................................... 4
7 603 00 26-03 Carriage Bolt, 1/4-20 X 0.75 ....................................................................................................................................... 2
8 523 34 59-15 Bolt - Flange Hd, M8 X 70.0 ........................................................................................................................................ 2
9 523 34 59-16 Bolt - Flange Hd, M8 X 85.0 ........................................................................................................................................ 2
10 603 00 13-08 Lock Nut, Flg M8 X 1.25 Nylon .................................................................................................................................. 2
11 525 32 82-22 Angle, Mtg, Bed, Latch ................................................................................................................................................ 1
12 525 32 82-23 Weldment, Handle, Bed Latch .................................................................................................................................. 1
13 525 32 82-58 Weldment, Mtg, Latch Plate ...................................................................................................................................... 1
14 525 32 82-60 Bumper, Rubber, 38 Mm Dia ..................................................................................................................................... 2
15 603 00 00-95 Locknut, 3/8-16 Hex ..................................................................................................................................................... 2
16 603 00 00-96 Screw, 3/8-16 X 3.375 Hex Cap ................................................................................................................................. 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-39
Page 48
1
G
E
D
6
5
4
2
3
Page 1-40 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000880-002
Page 49
HEADLIGHTS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Hl, Dual, Rect (includes items 2 through 6) ............................................................................................... 1
2 603 00 06-25 Connector Harness Assembly, Headlight ....................................................................................................... 4
3 531 30 82-50 Switch, Rocker, Light .............................................................................................................................................. 1
4 603 00 34-03 Headlamp, 3x5 Rectangular ................................................................................................................................ 4
5 531 30 83-79 Harness, Bct/huv Restyle Headlight ................................................................................................................. 1
6 603 00 00-93 Tie Wrap, 11" Nylon ................................................................................................................................................ 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-41
Page 50
1
G
E
D
6
13
7
14
8
2
4
5
3
Page 1-42 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000891-001
Page 51
BENCH SEATS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Benchseat-gry (includes items 2 through 8) ............................................................................................ 1
2 523 34 59-05 Washer. 1/4 Flat ........................................................................................................................................................ 4
3 603 00 02-26 Screw, 1/4-20 X 0.75 Torx Truss-Head .............................................................................................................. 4
4 523 34 59-17 Screw, 1/4-20 X 1 3/4 Ss Hx Ca ........................................................................................................................... 4
5 525 32 82-33 Plate, Hinge, Seat .................................................................................................................................................... 2
6 525 32 82-42 Seat Bottom, Bench, Gray .................................................................................................................................... 1
7 525 32 82-44 Seat Back, Bench, Gray .......................................................................................................................................... 1
8 525 79 45-01 Cap, Seatback, One Piece ..................................................................................................................................... 1
9 N/A Instl, Benchseat-blk (includes items 10 through 16) ........................................................................................ 1
10 523 34 59-05 Washer. 1/4 Flat ........................................................................................................................................................ 4
11 603 00 02-26 Screw, 1/4-20 X 0.75 Torx Truss-Head .............................................................................................................. 4
12 523 34 59-17 Screw, 1/4-20 X 1 3/4 Ss Hx Ca ........................................................................................................................... 4
13 525 32 82-33 Plate, Hinge, Seat .................................................................................................................................................... 2
14 525 32 82-43 Seat Bottom, Bench, Black ................................................................................................................................... 1
15 525 32 82-45 Seat Back, Bench, Black ......................................................................................................................................... 1
16 525 79 45-01 Cap, Seatback, One Piece ..................................................................................................................................... 1
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-43
Page 52
1
G
E
D
8
3
2
4
7
12
10
11
9
6
Page 1-44 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
5
000892-001
Page 53
BOX BED
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 32 82-27 Asm, Bed Box, Steel 400lbs (includes items 2 through 12) ............................................................................ 1
2 603 00 02-26 Screw, 1/4-20 X 0.75 Torx Truss-Head .............................................................................................................. 23
3 603 00 05-21 Locknut, 1/4-20 Hex Whiz .................................................................................................................................... 23
4 525 32 82-17 Weldment, Bed Panel, Drv ................................................................................................................................... 1
5 525 32 82-18 Weldment, Bed Panel, Pas .................................................................................................................................... 1
6 525 32 82-19 Panel, Front, Bed ...................................................................................................................................................... 1
7 525 32 82-20 Weldment, Gate, Bed ............................................................................................................................................. 1
8 525 32 82-21 Weldment, Bed Bottom, 400 Lb ......................................................................................................................... 1
9 525 32 82-90 Bolt, Shoulder, M10 X 16mm2.7 ........................................................................................................................ 2
10 525 79 48-01 Bushing, Fl, 12.7 Id X 15.9 Od .............................................................................................................................. 2
11 525 79 49-01 Bushing, 10 Mm Id X 16 Mm Lg ......................................................................................................................... 2
12 525 79 62-01 Nut, Flg, Hex, M8-1.25 ........................................................................................................................................... 2
QTY
1
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 1-45
Page 54
1
G
E
D
Page 55
WHEELS AND TIRES
2
G
E
D
Page 56
2
G
E
D
20
19
21
10
11
6
18
8
5
7
3
2
16
15
17
13
4
14
9
27
26
28
24
23
33
32
34
30
25
31
000913-001
Page 2-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 57
WHEELS AND TIRES – FRONT
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 79 32-01 Alloy Mud Front (includes items 2 through 8) .................................................................................................... 1
2 523 34 59-20 Lug Nut, 1/2" Closed End ..................................................................................................................................... 8
3 525 76 65-01 Cap, Plastic, Alloy Wheel ....................................................................................................................................... 2
4 525 76 89-01 Tire/whl Asm, Alloy, Mud Lh F (includes items 5 through 7) ................................................................... 1
5 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
6 525 79 27-01 Tire, Mud 25x9.00-12 Nhs .............................................................................................................................. 1
7 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
8 525 76 92-01 Tire/whl Asm, Alloy, Mud Rh F (includes items 9 through 11) ................................................................ 1
9 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
10 525 79 27-01 Tire, Mud 25x9.00-12 Nhs .............................................................................................................................. 1
11 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
12 N/A Black Mud Front (includes items 13 through 18) ............................................................................................... 1
13 603 00 00-34 Nut, Lug, 1/2-20 SAE J2283 .................................................................................................................................. 8
14 525 76 88-01 Tire/whl Asm, Steel, Mud Lh F (includes items 15 through 17) .............................................................. 1
15 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
16 525 79 27-01 Tire, Mud 25x9.00-12 Nhs .............................................................................................................................. 1
17 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
18 525 76 91-01 Tire/whl Asm, Steel, Mud Rh F (includes items 19 through 21) .............................................................. 1
19 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
20 525 79 27-01 Tire, Mud 25x9.00-12 Nhs .............................................................................................................................. 1
21 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
22 N/A Alloy Hdat Front (includes items 23 through 25) .............................................................................................. 1
23 523 34 59-20 Lug Nut, 1/2" Closed End ..................................................................................................................................... 8
24 525 76 65-01 Cap, Plastic, Alloy Wheel ....................................................................................................................................... 2
25 525 76 90-01 Tire/whl Asm, Alloy Hdat F (includes items 26 through 28) .................................................................... 2
26 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
27 N/A Tire, Hdat 25x9.00-12 Nhs ............................................................................................................................. 1
28 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
29 N/A Black Hdat Front (includes items 30 and 31) ....................................................................................................... 1
30 603 00 00-34 Nut, Lug, 1/2-20 SAE J2283 .................................................................................................................................. 8
31 525 76 87-01 Tire/whl Asm, Steel, Hdat F (includes items 32 through 34) ................................................................... 2
32 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
33 N/A Tire, Hdat 25x9.00-12 Nhs ............................................................................................................................. 1
34 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
QTY
2
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 2-3
Page 58
2
G
E
D
20
19
21
10
9
11
18
6
8
5
7
3
2
16
15
17
13
4
14
27
26
24
28
23
32
25
33
31
34
30
000913-002
Page 2-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 59
WHEELS AND TIRES – REAR
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 79 36-01 Alloy Mud Rear (includes items 2 through 8) ...................................................................................................... 1
2 523 34 59-20 Lug Nut, 1/2" Closed End ..................................................................................................................................... 8
3 525 76 65-01 Cap, Plastic, Alloy Wheel ....................................................................................................................................... 2
4 525 76 94-01 Tire/whl Asm, Alloy, Mud Rh R (includes items 5 through 7) .................................................................. 1
5 531 30 83-44 Mud Tire, 25" ...................................................................................................................................................... 1
6 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
7 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
8 525 76 96-01 Tire/whl Asm, Alloy, Mud Lh R (includes items 9 through 11) ................................................................ 1
9 531 30 83-44 Mud Tire, 25" ...................................................................................................................................................... 1
10 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
11 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
12 525 79 37-01 Black Mud Rear (includes items 13 through 18) ................................................................................................ 1
13 603 00 00-34 Nut, Lug, 1/2-20 SAE J2283 .................................................................................................................................. 8
14 531 30 83-42 Black Tire Asm Mud 11.0 In Left-Hand (includes items 15 through 17) ..............................................1
15 531 30 83-44 Mud Tire, 25" ...................................................................................................................................................... 1
16 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
17 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
18 531 30 83-43 Black Tire Asm Mud 11.0 In Right-Hand (includes items 19 through 21) ........................................... 1
19 531 30 83-44 Mud Tire, 25" ...................................................................................................................................................... 1
20 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
21 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
22 525 79 38-01 Alloy Hdat Rear (includes items 23 through 25) ................................................................................................ 1
23 523 34 59-20 Lug Nut, 1/2" Closed End ..................................................................................................................................... 8
24 525 76 65-01 Cap, Plastic, Alloy Wheel ....................................................................................................................................... 2
25 525 76 93-01 Tire/whl Asm, Alloy, Hdat R (includes items 26 through 28) ................................................................... 2
26 525 32 82-94 Wheel, Alloy ....................................................................................................................................................... 1
27 525 79 58-01 Tire, Hdat 25x11.00-12 Nhs ........................................................................................................................... 1
28 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
29 525 79 39-01 Black Hdat Rear (includes items 30 and 31) ........................................................................................................ 1
30 603 00 00-34 Nut, Lug, 1/2-20 SAE J2283 .................................................................................................................................. 8
31 525 76 95-01 Tire/whl Asm, Steel, Hdat R (includes items 32 through 34) ................................................................... 1
32 531 30 83-36 Wheel, All trail, 10 Window, Black .............................................................................................................. 1
33 525 79 58-01 Tire, Hdat 25x11.00-12 Nhs ........................................................................................................................... 1
34 603 00 00-33 Valve Stem .......................................................................................................................................................... 1
QTY
2
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 2-5
Page 60
2
G
E
D
Page 61
DECALS
3
G
E
D
Page 62
3
G
E
D
!
WARNING
• Do not modify or remove Roll-over Protective Structure (ROPS).
• Replace ROPS if damaged. Do not attempt repair.
• Use seat belts during operation. Do not jump from vehicle.
• Keep away from drop-offs, steep slopes, and unstable
2
surfaces.
3
CCI 102961201
6
1
5
4
1298
Page 3-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 63
SAFETY DECALS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 04-66 Decal, Crush Area Warning ........................................................................................................................................ 2
2 603 00 11-06 Decal, Young Driver Warning .................................................................................................................................... 1
3 603 00 34-83 Decal, Warning, AWD ROPS ....................................................................................................................................... 1
4 525 32 82-97 Decal, Operation, Bed Latch ...................................................................................................................................... 1
5 525 76 64-01 Decal, Brake Fluid, Dot 5 ............................................................................................................................................. 1
6 525 79 70-01 Decal, Warn, Co, Cab .................................................................................................................................................... 1
QTY
3
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 3-3
Page 64
3
G
E
D
8
3
4
7
1
6
5
2
Page 3-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
949
Page 65
SAFETY DECALS, CONTINUED
ITEM PART NO. DESCRIPTION
1 2 3 4
1 603 00 01-23 Decal, Trailer Hitch ........................................................................................................................................................ 1
2 603 00 11-02 Decal, Hot Surface Warning ...................................................................................................................................... 1
3 603 00 11-09 Decal, Rotating Parts Warning .................................................................................................................................. 1
4 525 32 82-59 Decal, Operator, Warn/instr ....................................................................................................................................... 1
5 525 32 82-96 Decal, Vehicle Loading, 2135lb ................................................................................................................................ 1
6 525 79 44-01 Decal, Warn, Gas Fuel Loading ................................................................................................................................. 1
7 525 79 46-01 Decal-winch, Warning ................................................................................................................................................. 1
8 525 79 53-01 Decal, Frame Ground, Long ....................................................................................................................................... 1
QTY
3
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 3-5
Page 66
3
G
E
D
26
34
42
2
20
3
21
8
28
9
29
14
36
15
37
16
11
10
5
4
31
30
23
22
40
32
24
18
12
6
38
17
39
25
33
41
000881-004
Page 3-6 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 67
BADGING DECALS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Decal, Huv4214, Rthwd-g (includes items 2 through 6) ....................................................................... 1
2 577 40 86-01 Decal, Cowl, 4214g, Ds, Rthw-g ......................................................................................................................... 1
3 577 40 86-04 Decal, Cowl, 4214g, Ps, Rthw-g .......................................................................................................................... 1
4 577 40 86-13 Decal, Bed, 4214/4414, Ds, Rth ........................................................................................................................ 1
5 577 40 86-16 Decal, Bed, 4214/4414, Ps, Rth ......................................................................................................................... 1
6 577 40 86-19 Decal, Tailgate, 4214/4414 ............................................................................................................................... 1
7 N/A Instl, Decal, Huv4214, Orange (includes items 8 through 12) ....................................................................... 1
8 577 40 86-02 Decal, Cowl, 4214g, Ds, Orange ......................................................................................................................... 1
9 577 40 86-05 Decal, Cowl, 4214g, Ps, Orange .......................................................................................................................... 1
10 577 40 86-14 Decal, Bed, 4214/4414, Ds, Org .......................................................................................................................... 1
11 577 40 86-17 Decal, Bed, 4214/4414, Ps, Org ........................................................................................................................... 1
12 577 40 86-19 Decal, Tailgate, 4214/4414 ................................................................................................................................... 1
13 N/A Instl, Decal, Huv4214, Olv Grn (includes items 14 through 18) .................................................................... 1
14 577 40 86-03 Decal, Cowl, 4214g, Ds, Ol Grn ........................................................................................................................... 1
15 577 40 86-06 Decal, Cowl, 4214g, Ps, Ol Grn ........................................................................................................................... 1 1
16 577 40 86-15 Decal, Bed, 4214/4414, Ds, Og ......................................................................................................................... 1
17 577 40 86-18 Decal, Bed, 4214/4414, Ps, Og ............................................................................................................................ 1
18 577 40 86-19 Decal, Tailgate, 4214/4414 ................................................................................................................................... 1
19 N/A Instl, Decal, Huv4414, Rthwd-g (includes items 20 through 26) .................................................................. 1
20 577 40 86-07 Decal, Cowl, 4414g, Ds, Rthw-g ......................................................................................................................... 1
21 577 40 86-10 Decal, Cowl, 4414g, Ps, Rthw-g .......................................................................................................................... 1
22 577 40 86-13 Decal, Bed, 4214/4414, Ds, Rth ........................................................................................................................... 1
23 577 40 86-16 Decal, Bed, 4214/4414, Ps, Rth ........................................................................................................................... 1
24 577 40 86-19 Decal, Tailgate, 4214/4414 ................................................................................................................................... 1
25 577 40 86-20 Decal, Tailgate, 4414, 4x4 ..................................................................................................................................... 1
26 577 40 86-21 Decal, 4414, Four Wheel Drive ........................................................................................................................... 2
27 N/A Instl, Decal, Huv4414, Orange (includes items 28 through 34) .................................................................... 1
28 577 40 86-08 Decal, Cowl, 4414g, Ds, Orange ......................................................................................................................... 1
29 577 40 86-11 Decal, Cowl, 4414g, Ps, Orange .......................................................................................................................... 1
30 577 40 86-14 Decal, Bed, 4214/4414, Ds, Org .......................................................................................................................... 1
31 577 40 86-17 Decal, Bed, 4214/4414, Ps, Org ........................................................................................................................... 1
32 577 40 86-19 Decal, Tailgate, 4214/4414 ................................................................................................................................... 1
33 577 40 86-20 Decal, Tailgate, 4414, 4x4 ..................................................................................................................................... 1
34 577 40 86-21 Decal, 4414, Four Wheel Drive ........................................................................................................................... 2
35 N/A Instl, Decal, Huv4414, Olv Grn (includes items 36 through 42) .................................................................... 1
36 577 40 86-09 Decal, Cowl, 4414g, Ds, Ol Grn ........................................................................................................................... 1
37 577 40 86-12 Decal, Cowl, 4414g, Ps, Ol Grn ............................................................................................................................ 1
38 577 40 86-15 Decal, Bed, 4214/4414, Ds, Og ........................................................................................................................... 1
39 577 40 86-18 Decal, Bed, 4214/4414, Ps, Og ............................................................................................................................ 1
40 577 40 86-19 Decal, Tailgate, 4214/4414 ................................................................................................................................... 1
41 577 40 86-20 Decal, Tailgate, 4414, 4x4 ..................................................................................................................................... 1
42 577 40 86-21 Decal, 4414, Four Wheel Drive ........................................................................................................................... 2
QTY
3
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 3-7
Page 68
3
G
E
D
Page 69
BRAKE SYSTEMS
4
G
E
D
Page 70
4
G
E
D
11
13
2
4
10
6
17
9
8
7
5
16
15
19
14
19
18
7
12
11
Page 4-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
8
000893-001
Page 71
BRAKE SYSTEM
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Brake, Service (includes items 2 through 19) ........................................................................................... A/R
2 603 00 04-54 Clevis Pin, 5/16 X 1 .................................................................................................................................................. 1
3 N/A Dot 5 Brake Fluid ..................................................................................................................................................... A/R
4 603 00 07-98 Pin, Rue ....................................................................................................................................................................... 1
5 603 00 08-74 Screw, M6 X 16 Tt Hx Fl Hd .................................................................................................................................. 7
6 603 00 12-98 Nut,m8,all Metal Lock ............................................................................................................................................ 2
7 603 00 11-62 Bolt, Banjo, M10x1x19 ........................................................................................................................................... 4
8 603 00 11-75 Washer, Copper, M10 Crush ................................................................................................................................ 8
9 603 00 11-83 Bolt Flange Head, 3/8-24x.750 with Loctite .................................................................................................. 4
10 603 00 13-07 Bolt Flanged Head, M8 X 1.25 X 35 ................................................................................................................... 2
11 523 34 59-53 Rotor, Disc, Brake ..................................................................................................................................................... 4
12 523 34 59-83 Bolt, 3/8-24x 1.0 Loctite ........................................................................................................................................ 4
13 603 00 44-91 Cylinder, Master, Integral Res .............................................................................................................................. 1
14 525 32 82-46 Assembly, Brake Line, Front ................................................................................................................................. 1
15 525 32 82-47 Assembly, Brake Line, Rear .................................................................................................................................. 1
16 525 32 82-91 Caliper, H-m, Rear, Lh ............................................................................................................................................. 1
17 525 32 82-92 Caliper, H-m, Rear, Rh ............................................................................................................................................. 1
18 525 79 31-01 Brk Caliper, Front, W/pad 7646 ........................................................................................................................... 2
19 603 00 00-93 Tie Wrap, 11" Nylon ................................................................................................................................................ 2
QTY
4
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 4-3
Page 72
4
G
E
D
5
3
7
2
6
6
Page 4-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
4
000894-001
Page 73
PARK BRAKE SYSTEM
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Brake, Park, Xrt (includes items 2 through 7) ............................................................................................ 1
2 603 00 01-15 Screw, 5/16-18 X 2.50 Hex Cap ........................................................................................................................... 3
3 603 00 30-45 Washer, 5/16 Type B Flat ....................................................................................................................................... 6
4 603 00 01-30 E-Clip, 1/2 ................................................................................................................................................................... 2
5 525 76 62-01 Park Brake Assy, Overcentre ................................................................................................................................ 1
6 525 76 63-01 Cable, Park Brake, Overcentre ............................................................................................................................. 1
7 603 00 00-78 Locknut, 5/16-18 Nylon Insert ............................................................................................................................ 3
QTY
4
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 4-5
Page 74
4
G
E
D
2
5
11
3
15
14
13
9
8
7
6
10
12
000895-001
Page 4-6 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 75
PEDAL GROUP
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Group, Pedal (includes items 2 through 4) ................................................................................................ 1
2 603 00 12-98 Nut,m8,all Metal Lock ............................................................................................................................................ 1
3 525 76 61-01 Bolt, Flg, M8 X X 60 ................................................................................................................................................. 1
4 525 76 74-01 Asm, Group, Pedal (includes items 5 through 15) ....................................................................................... 1
5 603 00 12-99 Nut-m6x1.0 Flng All Mtl Lock ...................................................................................................................... 1
6 603 00 08-82 Pin, Bow Tie Locking ....................................................................................................................................... 3
7 N/A Pullrod, Spring, Compression ...................................................................................................................... 1
8 N/A Spring, Comp, Pedal, Pullrod ....................................................................................................................... 1
9 N/A Washer, Retaining Spring, 7mm ................................................................................................................. 2
10 N/A Pad, Grip Tape, Accelerator ........................................................................................................................... 1
11 N/A Weldment, Brkt, Pedals .................................................................................................................................. 1
12 N/A Weldment, Pedal, Accel, Kf ........................................................................................................................... 1
13 N/A Weldment, Pedal, Brake, Kf ........................................................................................................................... 1
14 603 00 04-37 Washer, M12 Hard ............................................................................................................................................ 2
15 603 00 04-51 Washer, M10 Hard ............................................................................................................................................ 2
QTY
4
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 4-7
Page 76
4
G
E
D
Page 77
STEERING AND SUSPENSION
5
G
E
D
Page 78
5
G
E
D
11
5
4
9
10
7
3
2
5
Page 5-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
6
12
000896-001
Page 79
STEERING
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Steering, XRT 950 (includes items 2 through 12) .................................................................................... 1
2 603 00 06-84 Locknut, M12-1.25 Nylon ..................................................................................................................................... 2
3 603 00 08-75 Bolt, Flange Head, M8 X 30.0 .............................................................................................................................. 1
4 603 00 13-07 Bolt Flanged Head, M8 X 1.25 X 35 ................................................................................................................... 4
5 603 00 13-08 Lock Nut, Flg M8 X 1.25 Nylon ............................................................................................................................ 8
6 603 00 15-22 Washer, Plain, M8 .................................................................................................................................................... 8
7 523 34 59-62 Asm, Rack, Steering ................................................................................................................................................ 1
8 523 34 59-63 Asm, Steering Column (includes items 9 through 11) ............................................................................... 1
9 603 00 08-75 Bolt, Flange Head, M8 X 30.0 ....................................................................................................................... 1
10 523 34 59-56 Shaft, Intermediate, Xrt .................................................................................................................................. 1
11 525 76 59-01 Column, Steering W/o I-shaft ...................................................................................................................... 1
12 523 34 59-78 Bolt, Flg, M8 X 1.25 X 100 ..................................................................................................................................... 4
QTY
5
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 5-3
Page 80
5
G
E
D
4
3
2
5
Page 5-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000900-001
Page 81
STEERING WHEEL
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Steering Wheel (includes items 2 through 5) ........................................................................................... 1
2 603 00 08-71 Bolt, M10 X 20 Hex Washer Hd ........................................................................................................................... 1
3 603 00 08-92 Steering Wheel, Viper, Hex Hub ......................................................................................................................... 1
4 603 00 08-97 Cap, Steering Wheel, Viper .................................................................................................................................. 1
5 603 00 44-13 Shroud, Steering Column ..................................................................................................................................... 1
QTY
5
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 5-5
Page 82
5
G
E
D
22
10
11
12
18
9
13
23
24
2
21
6
7
5
3
Page 5-6 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
20
000904-001
Page 83
FRONT SUSPENSION
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Front Suspension Comn (includes items 2 through 24) ....................................................................... 1
2 603 00 06-84 Locknut, M12-1.25 Nylon ..................................................................................................................................... 2
3 603 00 15-86 Nut Flg M10 X 1.5 Nylon ....................................................................................................................................... 4
4 523 34 59-52 Asm, A- Arm (includes items 5 through 7) ..................................................................................................... 2
5 523 34 59-57 A-arm .................................................................................................................................................................... 1
6 523 34 59-72 Sleeve, A-arm ..................................................................................................................................................... 2
7 603 00 35-43 Bushing, Lower Arm ........................................................................................................................................ 2
8 523 34 59-59 Asm, Upright, Rh (includes items 9 through 13) .......................................................................................... 1
9 603 00 08-91 Joint, Ball ............................................................................................................................................................. 1
10 603 00 11-23 Bearing ................................................................................................................................................................. 1
11 603 00 16-84 Ring, Retaining, Ext, 1-1/4" ........................................................................................................................... 1
12 523 34 59-68 Strut, Rh, Machined ......................................................................................................................................... 1
13 523 34 59-85 Asm, Wheel Hub, Front .................................................................................................................................. 1
14 523 34 59-60 Asm, Upright, Rh (includes items 15 through 19) ....................................................................................... 1
15 603 00 08-91 Joint, Ball ............................................................................................................................................................. 1
16 603 00 11-23 Bearing ................................................................................................................................................................. 1
17 603 00 16-84 Ring, Retaining, Ext, 1-1/4" ........................................................................................................................... 1
18 523 34 59-54 Strut, Lh, Machined ......................................................................................................................................... 1
19 523 34 59-85 Asm, Wheel Hub, Front .................................................................................................................................. 1
20 523 34 59-71 Cap, Wheel, Rubber ................................................................................................................................................ 2
21 523 34 59-82 Bolt, Flg, M10 X 1.5 X 80 ........................................................................................................................................ 4
22 525 32 82-37 Shaft, Retention, Front, 2wd ............................................................................................................................... 2
23 525 79 52-01 Nut, Stake, M18, Halfshaft .................................................................................................................................... 2
24 525 79 60-01 Washer, Flat, M18 .................................................................................................................................................... 2
QTY
5
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 5-7
Page 84
5
G
E
D
32
15
13
7
26
6
14
3
16
5
12
11
10
9
38
2
36
12
34
36
2
2
35
12
37
2
12
2
36
17
2
000905-001
Page 5-8 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 85
REAR SUSPENSION
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Rear Suspension Comn (includes items 2 through 38) ......................................................................... 1
2 603 00 01-32 Washer, 3/8 Flat ........................................................................................................................................................ 16
3 603 00 13-12 Nut Flg, M12x1.75, Nylon Gr 10 ......................................................................................................................... 2
4 523 34 59-70 Asm, Trailing Arm, Rh (includes items 5 through 16) ................................................................................. 1
5 603 00 37-13 Screw, M10-1.50 X 60mm Hex Cap ............................................................................................................ 2
6 603 00 13-08 Lock Nut, Flg M8 X 1.25 Nylon ..................................................................................................................... 1
7 603 00 15-86 Nut Flg M10 X 1.5 Nylon ................................................................................................................................ 2
8 523 34 59-61 Asm, Upright, Rearar (includes items 9 through 11) ........................................................................... 1
9 603 00 11-23 Bearing .......................................................................................................................................................... 1
10 523 34 59-55 Holder, Bearing, Rear ................................................................................................................................ 1
11 523 34 59-75 Asm, Wheel Hub, Rear ............................................................................................................................. 1
12 523 34 59-74 Anchor, Trailing Arm, Rh ................................................................................................................................ 1
13 523 34 59-80 Bolt, Flg, M8 X 1.25 X 80 ................................................................................................................................. 1
14 523 34 59-81 Asm, Swing, Arm .............................................................................................................................................. 1
15 523 34 59-84 Bolt, M10 X 1.5 X 25 ......................................................................................................................................... 4
16 603 00 04-51 Washer, M10 Hard ............................................................................................................................................ 2
17 523 34 59-71 Cap, Wheel, Rubber ................................................................................................................................................ 2
18 523 34 59-73 Asm, Trailing Arm, Lh (includes items 19 through 30) ............................................................................... 1
19 603 00 37-13 Screw, M10-1.50 X 60mm Hex Cap ............................................................................................................ 2
20 603 00 13-08 Lock Nut, Flg M8 X 1.25 Nylon ..................................................................................................................... 1
21 603 00 15-86 Nut Flg M10 X 1.5 Nylon ................................................................................................................................ 2
22 523 34 59-61 Asm, Upright, Rearar (includes items 23 through 25) ......................................................................... 1
23 603 00 11-23 Bearing .......................................................................................................................................................... 1
24 523 34 59-55 Holder, Bearing, Rear ................................................................................................................................ 1
25 523 34 59-75 Asm, Wheel Hub, Rear ............................................................................................................................. 1
26 523 34 59-65 Anchor, Trailing Arm, Lh ................................................................................................................................ 1
27 523 34 59-80 Bolt, Flg, M8 X 1.25 X 80 ................................................................................................................................. 1
28 523 34 59-81 Asm, Swing, Arm .............................................................................................................................................. 1
29 523 34 59-84 Bolt, M10 X 1.5 X 25 ......................................................................................................................................... 4
30 603 00 04-51 Washer, M10 Hard ............................................................................................................................................ 2
31 523 34 59-76 Sleeve, Link, Short ................................................................................................................................................... 2
32 523 34 59-77 Bolt, Flg, M12 X 1.75 X 80 ..................................................................................................................................... 2
33 525 76 68-01 Spacer, Lat-link (not shown) ................................................................................................................................ 14
34 525 76 71-01 Asm, Lat-link Rear ................................................................................................................................................... 2
35 N/A Asm, Lat-link Front, Chrome ................................................................................................................................ 2
36 603 00 33-04 Screw, 3/8-16 X 2.25 Hx Hd Cap ......................................................................................................................... 6
37 603 00 00-95 Locknut, 3/8-16 Hex ............................................................................................................................................... 8
38 603 00 00-96 Screw, 3/8-16 X 3.375 Hex Cap ........................................................................................................................... 2
QTY
5
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 5-9
Page 86
5
G
E
D
11
13
10
12
4
7
6
5
3
000906-001
Page 5-10 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 87
SPRINGS & SHOCKS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Shocks, Rear, Std (includes item 2) ............................................................................................................... 1
2 523 34 59-86 Asm, Shocks (includes items 3 through 7) ..................................................................................................... 1
3 603 00 12-92 Bolt, Flange Head, M12 X 1.75 X 70 ........................................................................................................... 2
4 603 00 13-12 Nut Flg, M12x1.75, Nylon Gr 10 .................................................................................................................. 2
5 603 00 15-99 Washer, M12 Hard Regular ........................................................................................................................... 2
6 523 34 59-66 Shock Absorber, Rear ...................................................................................................................................... 2
7 523 34 59-79 Bolt, Flg, M12 X 1.75 X 110 ............................................................................................................................ 2
8 N/A Instl, Shocks, Front, Std (includes item 9) ............................................................................................................. 1
9 523 34 59-87 Asm, Strut (includes items 10 through 13) .................................................................................................... 1
10 603 00 12-92 Bolt, Flange Head, M12 X 1.75 X 70 ........................................................................................................... 2
11 603 00 13-08 Lock Nut, Flg M8 X 1.25 Nylon ..................................................................................................................... 4
12 603 00 13-12 Nut Flg, M12x1.75, Nylon Gr 10 .................................................................................................................. 2
13 523 34 59-51 Cartridge, Strut, Front ..................................................................................................................................... 2
QTY
5
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 5-11
Page 88
5
G
E
D
Page 89
ELECTRICAL SYSTEM
6
G
E
D
Page 90
6
G
E
D
14
23
22
24
17 27
10
9
8
20
6
19
26
25
13
7
5
18
16
15
3
11
21
2
12
4
000898-001
Page 6-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 91
ELECTRICAL COMPONENTS
ITEM PART NO. DESCRIPTION
1 2 3 4
1 N/A Instl, Elec Sys, Gas, XRT 950 (includes items 2 through 27) ............................................................................ A/R
2 603 00 01-10 Screw, Hex Washer Head 1/4-14 X .75 ............................................................................................................. 1
3 603 00 01-57 Screw, M6-1.00 X 25mm Hex Cap ..................................................................................................................... 2
4 603 00 02-24 Screw, 3/8-16 X 0.50 Stainless Steel Hex-Head ............................................................................................. 2
5 603 00 34-53 Rivet, 3/16 Pop ......................................................................................................................................................... 2
6 603 00 03-66 Light, Oil ..................................................................................................................................................................... 1
7 603 00 05-76 Clamp, Battery .......................................................................................................................................................... 2
8 603 00 07-27 Key Switch 12v Key Start ...................................................................................................................................... 1
9 603 00 07-60 Spacer, Keyswitch ................................................................................................................................................... 1
10 603 00 07-61 Nut, Key Switch ........................................................................................................................................................ 1
11 603 00 39-61 U-nut, M6-1.0 Prev Torque ................................................................................................................................... 2
12 603 00 08-90 Lockwasher, #10 Split Ss ....................................................................................................................................... 2
13 603 00 09-93 Plate, Electrical ......................................................................................................................................................... 1
14 603 00 09-94 Cover, Electrical ........................................................................................................................................................ 1
15 603 00 10-67 Fastener, Push-in ..................................................................................................................................................... 4
16 603 00 10-68 Rivet, Drive ................................................................................................................................................................ 2
17 603 00 11-67 Bolt, M6 X 1 X 16 Loctite ....................................................................................................................................... 1
18 523 34 59-24 Spacer, Battery ......................................................................................................................................................... 1
19 523 34 59-91 Light, Indicator, Brake Sys .................................................................................................................................... 1
20 603 00 41-68 Gauge Fuel-hour Sep Gnd ................................................................................................................................... 1
21 525 32 82-10 Harness, Main, Xrt950 ............................................................................................................................................ 1
22 525 32 82-35 B- Wire, Xrt950 ......................................................................................................................................................... 1
23 525 32 82-36 B+ Wire, Xrt950 ........................................................................................................................................................ 1
24 525 32 82-51 Jumpr, Xrt950, Oil Pres Swth ............................................................................................................................... 1
25 522 71 86-19 Battery, Start, 12v .................................................................................................................................................... 1
26 603 00 00-93 Tie Wrap, 11" Nylon ................................................................................................................................................ 9
27 603 00 04-42 Washer, M6 ................................................................................................................................................................ 1
QTY
6
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 6-3
Page 92
6
G
E
D
HEAD
LIGHTS
Diode 1
Page 6-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
WD1031003
Page 93
Diode 4
6
G
E
D
W35 16 _ BLK
Diode 2
Diode 3
WD1031003
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 6-5
Page 94
6
G
E
D
See previous two pages for illustration.
Page 6-6 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 95
WIRING
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 32 82-10 Harness, Main, XRT 950 ............................................................................................................................................... 1
QTY
6
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 6-7
Page 96
6
G
E
D
Page 97
BRIGGS GASOLINE ENGINE
7
G
E
D
Page 98
7
G
E
D
13
6
11
3
14
12
9
8
2
4
10
7
5
000889-009
Page 7-2 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
Page 99
STARTER MOTOR
ITEM PART NO. DESCRIPTION
1 2 3 4
1 525 77 96-01 Motor, Starter (includes items 2 through 14) (includes items 2 through 14) .......................................... 1
2 525 77 97-01 Screw, Starter Motor .............................................................................................................................................. 2
3 525 77 98-01 Set, Brush ................................................................................................................................................................... 1
4 525 78 12-01 Nut, Starter Motor ................................................................................................................................................... 2
5 525 78 22-01 Strap, Starter ............................................................................................................................................................. 1
6 525 78 26-01 Drive, Starter ............................................................................................................................................................. 1
7 525 78 54-01 Screw, Drive Cap ...................................................................................................................................................... 2
8 525 78 64-01 Nut, Brush Retainer, 1 ............................................................................................................................................ 1
9 525 78 65-01 Nut, Brush Retainer, 2 ............................................................................................................................................ 1
10 525 78 66-01 Cap, Drive ................................................................................................................................................................... 1
11 525 78 67-01 Cap, End, B & S 14 Hp ............................................................................................................................................. 1
12 525 78 68-01 Housing, Starter ....................................................................................................................................................... 1
13 525 79 03-01 Ring, Retaining, B & S 14 Hp ................................................................................................................................ 1
14 525 79 06-01 Retainer, Brush ......................................................................................................................................................... 1
QTY
7
G
E
D
2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List Page 7-3
Page 100
7
G
E
D
4
6
3
5
Page 7-4 2009 HUV 4214, HUV 4414, and HUV 4414-XP Illustrated Parts List
000888-001
Loading...
