Humax LAU-32TPVR User Manual

LAU-32TPVR

GB

LCD D
Digital 2 Tuner PVR Built-in

igital andAnalogue

TV

LCD Digital and
Analogue TV

Caution

To reduce the risk of electric shock, do not remove cover(or back).

No user serviceable parts inside. Refer servicing to qualified service personnel.
Indicates a situation which, if not avoided, could damage the equipment or
other apparatus.

This symbol indicates dangerous voltage inside the LCD-TV that presents a
risk of electric shock or personal injury. Indicates a hazardous situation which,
if not avoided, could result in serious injury.

This symbol indicates important instructions accompanying the LCD-TV.

Read this manual carefully and make sure you understand the instru ctions provided.
For your safety, check what the result of each action will be. Throughout the whole
manual, pay special attention to the following marks that indicate hazardous situations.
Indicates additional information to the user to make the user aware of possible
problems and information of any importance to help the user to understand, to use
and to maintain the installation.

The information in this document is subject to change without notice.

Copyright (Copyrightཱྀ2005 HUMAX Corporation)

Not to be copied, used or translated in part or whole without HUMAX's prior
consent in writing except approval of ownership of copyright and copyright law.

Warranty

HUMAX does not have any responsibility for direct, indirect, accidental and other
damage caused by the use of the information contained in this manual.

Trademarks

VIACCESSTMis a trademark of France Telecom.

CryptoWorks(TM) is a trademark of Philips Electronics N.V.

Irdeto is a trademark of Mindport BV.

Nagravision is a registered trademark of KUDELSKI S.A.

Conax is a trademark of Telenor Conax AS.

'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under the license from Dolby Laboratories.

is a trademark of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Thank you for purchasing a HUMAX LCD-TV. Please read this user manual
carefully in order to safely install, use and maintain the LCD-TV at maximum
performance. Keep this user manual next to your LCD-TV to ensure the best
performance possible.

2. Caution

Safety Instructions

This LCD-TV has been engineered and manufactured to assure your safety. You
can prevent serious electrical shock and other hazards by keeping in mind the
following:

Do not place anything heavy, wet or magnetic on the LCD TV or the power
cord. Never cover the ventilation openings with any material and never touch
them with metalic or inflammable materials.

Avoid operating the LCD-TV in extreme heat, humidity or areas affected by dust.

+ Temperature : 0~50 C + Humidity : 20~90RH

Be sure to turn the LCD-TV off before plugging the power cord into the socket.
Make sure that the power cord and the other cords are securely and correctly
connected.

Overloaded AC outlets and extension cords are dangerous, as are frayed power
cords and broken plugs, which may cause electric shock or fire. Call your service
technician for replacement.

Do not use sharp tools such as a pin or a pencil near the LCD-TV, as they may
scratch the LCD surface.

Do not use a solvent, such a benzene(any liquids), to clean the LCD-TV,
as it will damage the LCD surface.
The apparatus shall not be exposed to dripping or splashing.

Be careful when touching the LCD-TV.
When you touch the LCD-TV, be careful not to get a cut on your fingers with an
acrylic surface of the LCD-TV.

Warning

1 Follow these directions in order not to damage the power cord or plug.

Do not modify the power cord or plug. Do not bend or twist the power cord
too much. Make sure to disconnect the power cord using the plug rather than
the power code. Keep heating appliances as far as possible from the power cord
in order to prevent the cover vinyl from melting.

2 Follow these directions. Failure to follow one of them may cause an electrical
shock. Do not open the main body. Do not insert metals or inflammable objects
inside the LCD-TV. Do not touch the power plug with wet hands. Disconnect the
power cord in case of lightning.

3 Do not use the LCD-TV when it is out of order. If you continue to use the
LCD-TV when defective, serious damage can be caused to it. Make sure to
contact your local LCD-TV distributor if the LCD-TV is out of order.

4 Please do not insert metal or alien substances into the slots for the modules
and smart cards. In doing so it can cause damage to the LCD-TV and reduce its
life span.

5 Hard Disk Drive : Do not move the LCD-TV or turn the power off suddenly
while the hard disk drive is running. The company shall not be liable for any
corruption of data on the hard disk drive caused by the carelessness or misuse
of users. This LCD-TV provides up to 40GB of hard disk drive. Do contact your
LCD-TV provider when you change the hard disk drive.

3. Safety Instructions

Contents

Before Using the TV

Setting Up the TV

Using the Analogue TV

Package Contents
Front Panel
Rear Panel

Remote Control

+ Main Remote Control
+ Simple Remote Control
+ Inserting the Batteries

Mounting Device

+ Assembling the Stand-Base
+ Installing on the Wall

Connecting the External Equipment

+ Connecting the Aerial
+ Connecting the PC
+ Connecting the External Devices
+ Connecting the DVD
+ Connecting the DVI

Setting the Analogue Channels

+ Setting the Analogue Channels Automatically
+ Setting the Analogue Channels Manually
+ Editing the Analogue Channels

Basic Operation

+ Powering the TV On/Off
+ Changing the Input Mode
+ Volume Control
+ Selecting the Channel
+ Choosing your Language
+ Listing Channels
+ Using the OK Button
+ Using the Audio Button
+ Setting the Sleep Time

07
08
09

10

10
13
14

15

15
15

16

16
16
17
17
17

18

18
19
20

21

21
21
21
21
21
22
22
22
22

Setting the Picture

+ Mode
+ Colour Temperature

Setting the PIP/TWIN

+ PIP/TWIN
+ Using the PIP Buttons in the Remote Control
+ Using the Digital Channels in PIP/TWIN Mode

Changing the Sound

+ Effect
+ Auto Volume Level
+ TruSurround XT
+ Sound Source
+ Using the Sound Button in the Remote Control

Setting the Time

+ Setting the Current Time
+ Automatically Turning the TV On and Off

Setting the System

+ Language
+ OSD Transparency
+ AV Output
+ Antenna Power
+ Aspect Ratio
+ Backlight Brightness

Displaying the Teletext Information
Setting the PC Input

23

23
23

24

24
25
25

26

26
26
26
26
26

27

27
27

28

28
28
28
28
28
28

29
30

4. Contents - Analogue TV

Contents

Recording and Playback
(PVR function)

Recording

+ Instant Recording

- Setting the Recording Quality

- Setting the Clipping Noise Reduction

+ Recording Reservation

- Adding Recording Reservations

- Editing Recording Reservations

+ Time Shifted Recording

Playback

+ Programme Playback
+ Editing Recorded Programmes

- Editing Title

- Delete File

- Copy File to External Device

- Connecting the External HDD

+ Playback Control

- Play / Pause

- Rewind to Previous Scene

- Fast forward to Next Scene

- Recording

- Direct Jump

- Instant Reply

- Repeat between A and B

- Bookmark

HDD Control

+ Checking the Hard Disk Drive
+ Connecting the External HDD

31

31
32
32
33
33
34
35

37

37
39
39
39
39
40
41
41
41
41
41
41
42
42
42

43

43
44

5. Contents - PVR

Contents

Using the Digital TV

Digital TV Channel Setup
Basic Operation

+ Switching Channel

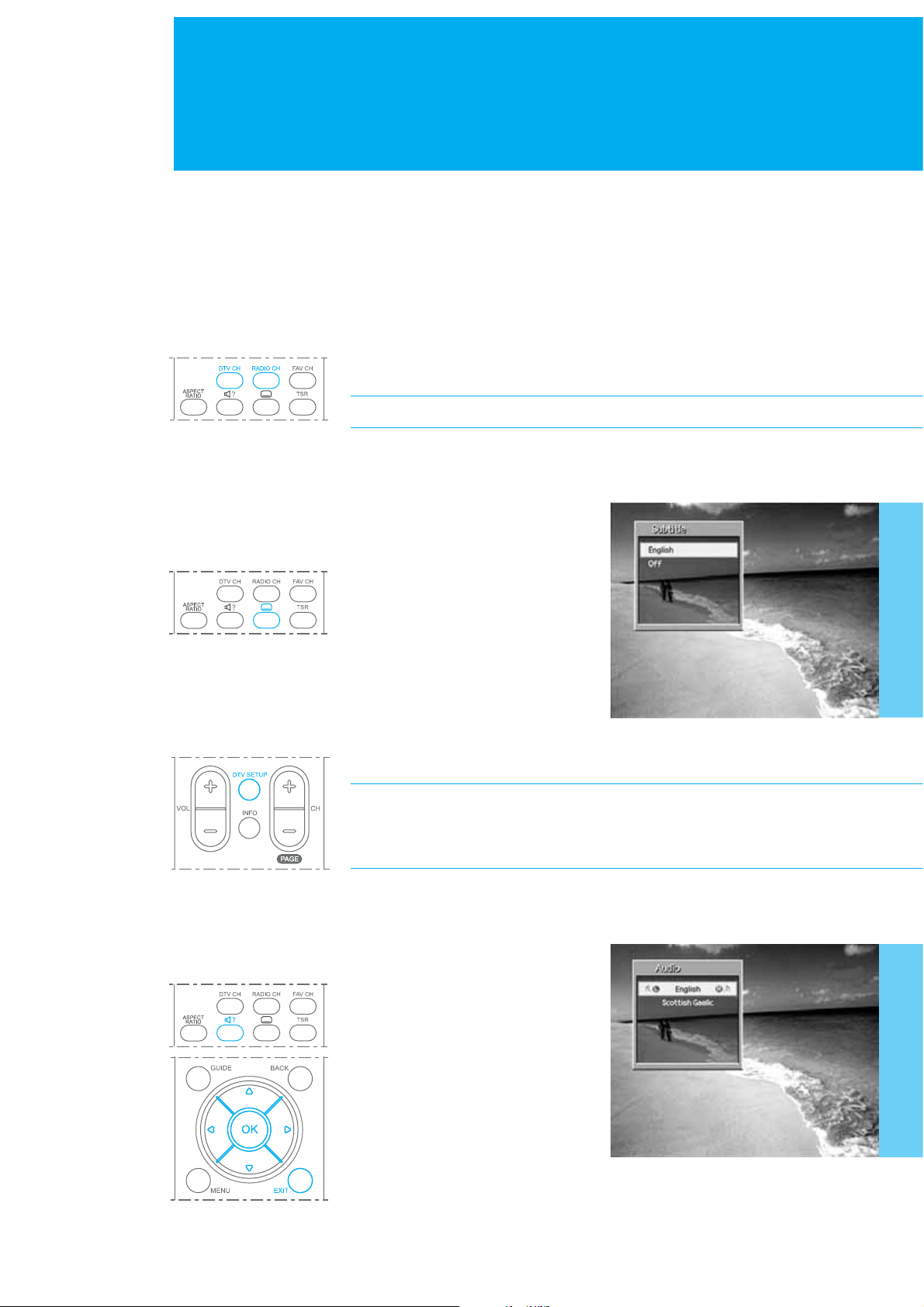

+ Changing the Subtitle Language
+ Changing an Audio Language
+ Programme Information - Information Banner (I-Plate)

Channel List

+ Displaying and Switching Channel List
+ Editing Channels
+ Editing Favourite Channels

Programme Guide

+ Viewing Programme Guide Information
+ Finding a Programme
+ Adding Reservations by Guide

Setting the Preferences

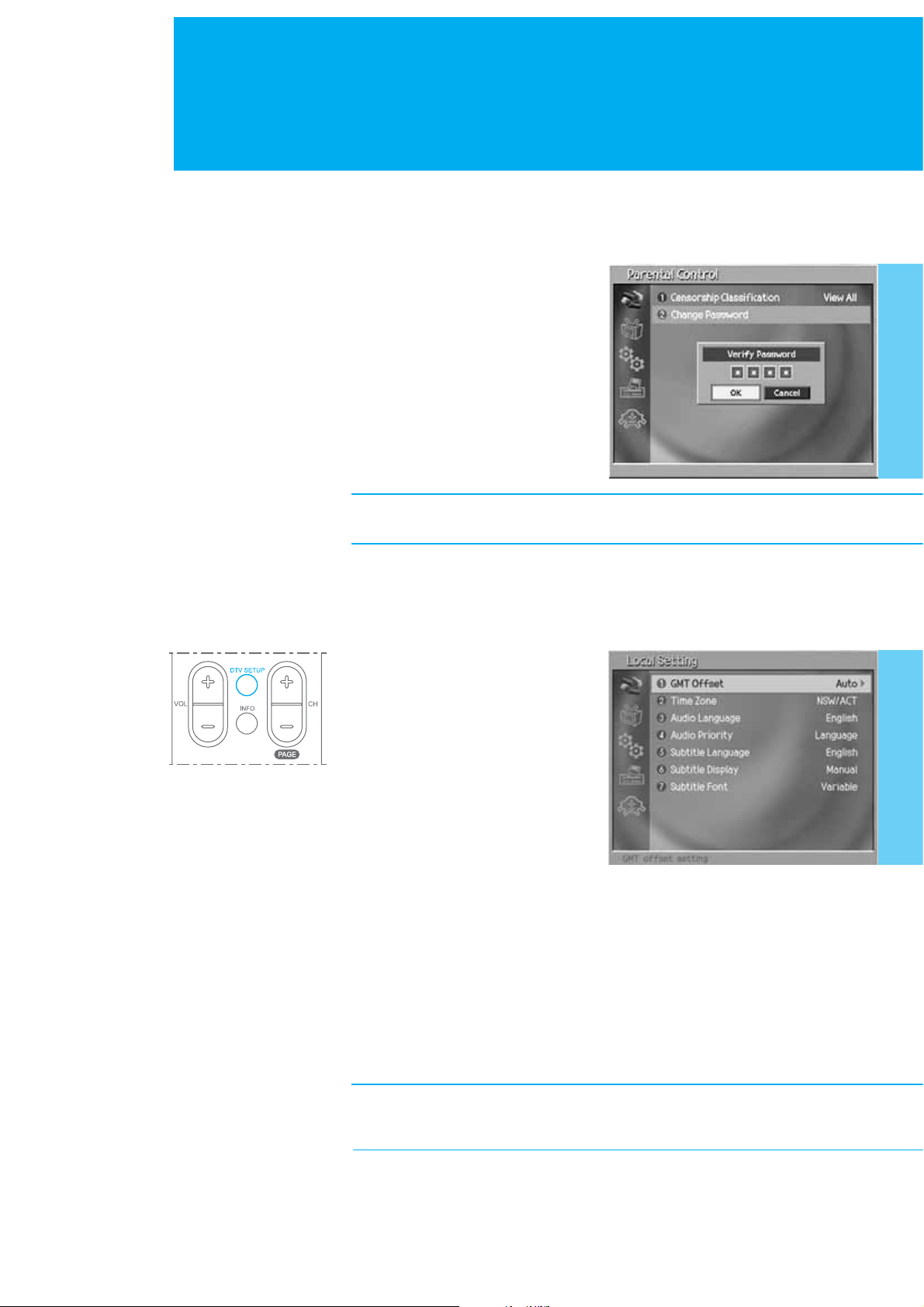

+ Parental Control
+ Local Setting
+ Miscellaneous Settings

Installation

+ Automatic Search
+ Regional Search
+ Manual Search
+ Default Setting

45
46

46
46
46
47

49

49
49
52

53

53
54
55

56

56
57
59

60

60
61
62
63

Appendix

System Information

+ Status
+ Signal Detection
+ Common Interface

Game

Software Upgrade

+ Software Update from PC

Menu Map

+ LCD TV Menu
+ PC Main Menu
+ Digital TV Menu

Troubleshooting

+ Troubleshooting
+ Error Message

Specification
Glossary
Service and Support

64

64
64
65

65

66

66

67

67
67
68

69

69
70

72
73
74

6. Contents - Digital TV

Package Contents

+ Please check all package contents before using your LCD-TV.
+ Package Contents may be different according to the area.

LCD-TV

User's Manual Power Cable

AAA Batteries (x2)

PAGE

NR-103

PC Cable

7. Package Contents

Simple Remote Control

(SR-10)

Main Remote Control

(NR-103)

Front Panel

TV/AV

TV/AV 6

MENU VOL

OK CH

OK 5

MENU 4

ൖ VOL ൘G 3

GGCH G 2

1. : STANDBY

Switches between Operation and Standby modes.
Displays Red colour when the set is in standby mode.
Changes to Green colour when the set is switched on.

2. GGCH 

Selects a programme or a menu item.

3. ൖ VOL ൘

Adjusts the volume. Adjusts the menu setting.

4. MENU

Displays the menu.

5. OK

Selects a menu or confirms the selected operation.

STANDBY 1

6. TV/AV

Selects the input signal (Digital TV, Analog TV, AV1, AV2, AV3, S-Video,
Component, PC, DVI ).

8. Front Panel

17. MAIN POWER

15. COMMON INTERFACE

16. SMARTCARD SLOT

10. S/PDIF

11. H/P (Headphone)
Red3 : AUDIO : R
White : AUDIO : L
Yellow : VIDEO

13. S-VIDEO

Red2 : AUDIO : R
White : AUDIO : L
Red1 : Pr
Blue : P
Green : Y

b

12. AV3 IN

14. COMPONENT

VIDEO L - AUDIO- R L- AUDIO -R L- AUDIO- RVIDEO

AV1 IN

AC INPUT 1

DVI INPUT 2

PC INPUT 3

AUDIO INPUT 4

1. AC INPUT

Connect the supplied AC power cord.

2. DVI INPUT

Connect to the digital video output jack of an external device with DVI output.

3. PC INPUT

Connect to the video output jack on your PC, using the PC cable supplied.

4. AUDIO INPUT

Connect to the audio output jack on your PC or your external device with DVI output.

5. RS-232C

Connect to the RS-232C port on your PC for software upgrade.

6. USB MASTER PORT

Connect to the USB port on an external HDD for moving the various digital data to/from an
external HDD.

7. AV1 IN, AV2 IN

Connect for the video and audio input to external devices with RCA cables.

8. AV-OUT

Connect for the video and audio output to external devices such as a VCR or DVD.

9. ANT IN (Antenna In)

Connect to your aerial for digital and analogue TV signal.

10. S/PDIF

Connect to Dolby digital decoder for the digital audio signal output.

11. H/P (Headphone)

Connect to your headphone.

12. AV3 IN

Connect for the video and audio input to external devices with RCA cable.

13. S-VIDEO

Connect to an external device with S-Video output.

14. COMPONENT

Connect to an external device with Component output, such as DVD.

15. COMMON INTERFACE

Use for one CA Module with a smart card.

16. SMARTCARD SLOT

Slot for Smartcard.

17. MAIN POWER

Main Power Button.

RS-232C 5

USB MASTER PORT 6

AV1 IN 7

VIDEO

AV2 IN

AV2 IN 7 AV OUT 8

AV OUT

75ⵕ

ANT IN 9

9. Rear Panel

Remote Control

All the functions can be controlled with the Remote Control handset. Some function
can also be adjusted with the buttons on the front panel of the set.
Both the Main Remote Control to control the all functions and the
Simple Remote Control to control the some simple functions are provided.
Before you use the Remote Control handset, please install the batteries.

Main Remote Control

EFFECT

NR-103

NR-103

10. Remote Control

+/-

+-

+/-

25. SUBTITLE

26. SOUNDTRACK/AUDIO

27. ASPECT RATIO

F

28. PIP and TSR BUTTONS

29. TELETEXT BUTTONS
/ PLAYBACK BUTTONS

Remote Control

1. STANDBY

Switches between Operation
and Standby modes.

2. SLEEP

Sets the sleep time.

3. MUTE

Mutes the audio.

4. TV/AV

Selects input signal between TV
and another signals.

5. WIDE

Enlarges the picture to the wide
aspect ratio in the Digital TV mode.
Unavailable when PIP or TWIN mode.

6. SND (Sound) EFFECT

Changes the sound mode.

7. PIC (Picture) MODE

Changes the picture mode.

8. NUMERICAL BUTTONS (0~9)

Enters a channel number or menu
option number.

9. LIST

Displays the channel list.

15. OK

Selects a menu, or confirms the
selected operation and displays
the channel list whilst watching
a programme.

16. EXIT

Exits the main menu or Guide
screen.

17. MENU

Displays the main menu.

18. DTV Setup

Displays the DTV Setup menu in
the Digital TV mode.

19. CH +/- and PAGE +/-

Changes the Channel or Page.

20. INFORMATION

Displays the information about
the channel and programme
in the Digital TV mode.

21. VOL +/-

Adjusts the audio volume.

22. FAV CH

A

Displays the Favourite Channel
List in the Digital TV mode.

10. TEXT

Not used for this product.

11. COLOUR BUTTONS (R/G/Y/B)

Selects colour keys for teletext in the
Analog TV and Digital TV modes.

12. BACK

Returns to the previous menu and
screen.

13. GUIDE

Displays the Programme Guide.

14. ARROW BUTTONS ( , , , )

Moves the cursor to the up, down,
left or right menu option.

23. RADIO CH

B

Switches to digital Radio
channel in the Digital TV mode.

24. DTV CH

C

Switches to digital TV channel
in the Digital TV mode.

25. SUBTITLE

D

Changes the subtitle language
in the Digital TV mode.

26. SOUNDTRACK/AUDIO

E

Lists alternative soundtracks
enable stereo, dual or mono
sound in the Digital TV mode.

27. ASPECT RATIO

F

Changes the aspect ratio
of the screen.

11. Remote Control

Remote Control

PIP AND TSR BUTTONS

NR-103

K

L

M

N

O

A

C

G

TELETEXT BUTTONS

A. TELETEXT ( )

Activate/Deactivate the teletext service.

C. MIX ( )

Displays the teletext with the
broadcasting screen.

B

D

H

E

I J

P

P

F

K. TSR
(TIME SHIFTED RECORDING)

Switches the Time Shifted
Recording On and Off.

L. PIP/TWIN

Changes PIP/TWIN mode.

M. PIP INPUT

Change the PIP input mode.

N. PIP POSITION

Control the PIP position.

O. SWAP

Switch between main screen
and PIP screen.

P. PIP CH +/ -

Change the PIP channel.

PLAYBACK BUTTONS (for PVR)

B. PLAY / PAUSE ( )

Plays or pause a programme.

C. FAST REWIND ( )

Rewinds a programme. Each time
you press this button, the scenes
is rewound more faster divided into
4 steps.

D. INDEX ( )

Displays the teletext index page.

E. UPDATE ( )

Displays the TV picture on the
screen whilst waiting for the new
teletext page.

F. REVEAL ( )

Displays the concealed information.

G. MODE ( )

Programme a colour button in LIST
mode.

H. SIZE ( )

Selects a text size.

I. HOLD ( )

Holds function during teletext display.
Stop the automatic page change.

J. SUBPAGE ( )

Search the sub-page using the
sub-code.

D. FAST FORWORD ( )

Fast forwards a programme. Each
time you press this button, the scene
is forwarded faster divided into 4 steps.

E. STOP ( )

Stops a programme.

F. RECORD ( )

Records a programme.

G. INSTANT REPLAY ( )

Replays the programme from 7
seconds previous scene.

H. A-B REPEAT ( )

Plays back a specified block
repeatedly.

I. BOOKMARK LIST ( )

Displays the list of saved viewing
positions.

J. ADD BOOKMARK ( )

Saves the present viewing position
as a bookmark.

12. Remote Control

Remote Control

Simple Remote Control

1. STANDBY

2. MUTE

3. TV/AV

4. OK

5. CH (Channel) /

1. STANDBY

Switches between Operation
and Standby modes.

2. MUTE

Mutes the audio.

3. TV/AV

Selects input signal between
TV and another signals.

4. OK

Selects a menu, or confirms the
selected operation and displays
the channel list whilst watching
a programme.

5. CH (Channel) +/-

Changes the Channel.

6. VOL (Volume) /

7. BACK

8. MENU

9. GUIDE

10. PAUSE / PLAY

11. LIST

6. VOL (Volume) +/-

Adjusts the audio volume.

7. BACK

Returns to the previous menu
and screen.

8. MENU

Displays the main menu.

9. GUIDE

Displays the Programme Guide.

10. PAUSE/PLAY

Plays or pause a programme.

11. LIST

Displays the channel list.

13. Remote Control

Remote Control

Inserting the Batteries

You must insert or replace the batteries in the remote control when you:

+ Purchase the TV.
+ Find that the remote control is no longer operating correctly.

Push

12 3

1. Pull the battery cover upward in the arrow direction to remove.

2. Insert the batteries as illustrated in the battery compartment.

3. Put the battery cover back.

4. For Simple Remote Control, insert the batteries in the same way.

+ Apply two 1.5V batteries of AAA type. Don˅t mix used batteries with new

batteries.

+ Remove batteries when you don˅t use the remote control for long periods.

Liquid leakage from old batteries may cause operation failure.

Pull

Insert

Lock

Notes for using remote control

+ Make sure these are no objects between the remote control and its sensor.
+Don˅t place the remote control near a heater or damp place. Strong

impact on remote controller may cause operation failure.

+ The signal from the remote control may be subjected to interference

from sunlight or other strong light.

14. Remote Control

Mounting Device

This describes how to set up the LCD-TV. Select the most appropriate procedure
depending on your requirements.

If you encounter any problem when setting up the LCD-TV, please contact
your local LCD-TV distributor.

Assembling the Stand-Base

1

1. Attach your LCD-TV with the stand-base.

2. Firmly fix the stand-base and the LCD-TV using the 4 screws.

Note : Firmly fix the stand-base for the LCD-TV before moving it,

as the stand-base may fall and could cause serious injury.

2

Installing on the Wall

You can install the LCD-TV on the wall using a mounting bracket (sold separately).
To reduce the risk of damage from falling, this LCD-TV should be secured at all times.
(The LCD TV in the picture may not look exactly like yours.)

12 3

1. Before you install, separate the LCD-TV and stand-base.

2. Attach your main body bracket on the LCD-TV and fix using screws firmly.

3. Stick the LCD-TV with main body bracket into the wall bracket attached on the wall.

4. Tighten up a safety-screw.

Note :
_ Do not install the set on a weak surface such as plaster or foam board.
_ Be at enough distance to open CI door between the LCD-TV and the wall

when installing on the wall. If the LCD-TV is not at proper distance from the
wall, the CI door may be not opened enough.

15. Mounting Device

Connecting the External Equipment

You can connect additional equipment, such as VCRs, DVD, etc. to your set.
Examples are shown below.

Connecting the Aerial

To view television channels correctly, a signal must be received by the set
from one of following sources :
+ An outdoor aerial
+ An indoor aerial ( not recommended )

ANT IN

1. Connect the aerial to the ANT IN on the bottom of the LCD-TV.

2. Press the TV/AV button on the remote control.

3. Select Analog TV or Digital TV.

Connecting the PC

PC INPUT

AC INPUT

1. Turn off your computer and LCD-TV.

2. Connect a PC D-Sub cable between your PC and PC INPUT of the LCD-TV and

then fasten the screws of both sides on the cable.

AUDIO INPUT

3. Connect a PC Audio Cable between the Sound Output jack of the sound card
on your PC and the AUDIO INPUT of the LCD-TV.

4. Connect the Power cable to the AC INPUT jack on the rear of your LCD-TV.

And connect power code to a power outlet.

5. Power on your PC before turning on the LCD-TV.

16. Connecting the External Equipment

Connecting the External Equipment

Connecting the External Devices

1. Connect video/audio RCA cable as indicated in the diagram.

2. For optimal visual image, use S-VIDEO lead(cable not supplied).

3. If you wish to connect the optical S/PDIF terminal and Dolby Digital decoder

to listen digital audio, connect as follows. (cable not supplied)

S/PDIF

VCR

AV IN

AV OUT

DVD

AV1 IN AV2 IN AV OUT

Connecting the DVD

Connect AUDIO L/R to AUDIO OUT connector of the DVD.
For viewing, use S-Video or Component Video Input (Y, Pb,Pr).
For listening, use Component Audio Input (Audio L/R).

S-Video

R

L

Pr

Pb

Y

Connecting the DVI

Connect the DVI cable and Audio cable as follows.
For viewing, use DVI INPUT. For listening, use AUDIO INPUT.

DVI INPUT

AUDIO INPUT

SET-TOP BOX

DVD

DVI

SET-TOP BOX

L - ADUIO - R

17. Connecting the External Equipment

DVD

Setting the Analogue Channels

Setting the Analogue Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on
your country.) Automatically allocated programme numbers may not correspond to
actual or desired programme numbers. However you can sort numbers manually and
clear any channels you do not wish to watch. It˅s only for analogue TV mode.

1. Press the MENU button.

2. Select Channel using the / button, and press the OK or ൘Gbutton.

3. Select Auto Programme using the / button, and press the OK or ൘ button.

4. Select System using the / button, and press the ൖGor ൘ button to select

a particular system.

BG:I:DK

5. Select Storage From using the / button, and press the ൖ, ൘ or NUMERICAL
(0~9) button to enter the starting number to store the scanned programme.

6. Select Start Search using the / button, and press the OK or ൘ button

to start auto scanning. To stop the search before it has finished, press
the BACK button.

The search will end automatically. Channels are sorted and stored in an order,
and then the programme originally selected is displayed.

In the digital TV mode, you can select Setup Digital Channel menu instead
of Channel menu.

18. Setting the Analogue Channels

Setting the Analogue Channels

Setting the Analogue Channels Manually

The Manual Programme allows you to manually tune and arrange the channels in the
order you desire. You can also assign a channel name with characters to each channel
number. It's only for analogue TV mode.

1. Press the MENU button.

2. Select Channel using the / button, and press the OK or ൘ button.

3. Select Manual Programme using the / button, and press the
OK or ൘ button.

4. Select System using the / button, and press the ൖGor ൘ button to select

a particular system.

BG:I:DK

5. Select Band using the / button, and press the ൖGor ൘ button to select

a particular system.

V/UHF : Cable

6. If you know the channel number to be stored, select Channel using the /

button, and press the ൖ, ൘ or NUMERICAL (0~9) button to select number.
If you do not know the channel number, select Search using the /Gbutton,
and press the ൖGor ൘ button to start search.

7. Select Programme No. using the /Gbutton, and press the ൖ, ൘ or
NUMERICAL (0~9) button to assign a programme number into the

channel.

8. Select Name

to change a name.

To select a letter (A~Z, 0~9, +, -), press the /Gbutton.
To move on the previous or next letter, press the ൖGor ൘ button.
To store the changing name, press the OK button.

9. Select Fine Tune using the /Gbutton, and press the ൖGor ൘ button to
fine-tune the channel manually. If the signal is weak or distorted, you may
have to fine-tune the channel manually.

10. When you are satisfied with your choice, press the BACK button to

store the current setting values.

using the /Gbutton, and press the OK or ൘Gbutton

19. Setting the Analogue Channels

Setting the Analogue Channels

Editing the Analogue Channls

This function enables you to delete, copy, move, or skip the stored channel. It˅s only
for analogue TV mode.

1. Press the MENU button.

2. Select Channel using the / button, and press the OK or ൘ button.

3. Select Edit Programme using the / button, and press the OK or ൘Gbutton.

The programme list is displayed in the main screen.

4. Select the programme name to edit with //ൖ/൘ button and press
the Colour (R/G/Y/B) buttons to delete, copy, move, or skip the programme.

+ Delete button : RED + Copy button : GREEN
+ Move button : YELLOW + Skip button : BLUE

Skipping a Channel

_ Select a channel to skip with the //ൖ/൘ button.
_ Press the BLUE button, the channel selected will change to the blue colour.

Thereafter these channels will be skipped when using the CH +/- button.

_ To return to normal status, select the skipped channel and then press again

the BLUE button for 2~3 seconds.

Moving a Channel

_ Select a channel to move with the //ൖ/൘ button.
_ Press the YELLOW button to select the channel you wish to move.

Use the //ൖ/൘ button to move the channel to the desired position,
and then press the YELLOW button again to store.

Copying a Channel

_ Select a channel to copy with the //ൖ/൘ button.
_ Press the GREEN button.

Deleting a Channel

_ Select a channel to delete with the //ൖ/൘ button.
_ Press the RED button. If you press the RED button again, the selected channel

will be deleted.

While editing the programme, you can switch to the channel you select.

20. Setting the Analogue Channels

Basic Operation

Powering the TV On/Off

1. Connect the plug to the wall outlet.

2. Press the MAIN POWER button on the rear of the LCD-TV to turn the TV power on.

3. Press the STANDBY, TV/AV or CH +/- button on the front of the LCD-TV or

press the STANDBY, TV/AV, CH +/- or NUMERICAL (0~9) buttons on the
remote control to switch the TV on.

Note : To place the TV in standby mode, press the STANDBY button

again on the remote control or on the front of the LCD-TV.
It can be useful when you wish to interrupt viewing temporarily
(during a meal, for example).

4. To turn the TV power off, press the MAIN POWER button on the rear of the

LCD-TV.

Note : Do not leave the TV in standby mode for too long (on holiday,

for example). Turn the TV off by pressing the MAIN POWER button
on the rear of the LCD-TV. It is best to disconnect the power cord.

Changing the Input mode

1. Press the TV/AV button to change the input mode.

2. Select your desired mode using the / button, and press the OK button.
You can also change the input mode by pressing the TV/AV button repeatedly.

Volume Control

1. Press the VOL +/- buttons to adjust the audio volume.

2. Press the MUTE button to mute the sound.

Selecting the Channel

1. Press the CH +/- or NUMERICAL (0~9) buttons to change the

channel number.

Choosing Your Language

When you start using your television for the first time, you must select the language
which will be used for displaying menus and indications.

1. Press the MENU button.

2. Select System using the / button, and press the OK or ൘ button.

3. Select Language using the / button, and press the ൖGor ൘ button to

select a particular language.

4. When you are satisfied with your choice, press the EXIT button to return
to normal viewing.

21. Basic Operation

Basic Operation

Listing Channels

You can watch the programme list while watching analogue TV.

1. Press the LIST button.

2. Select a channel using the / button, and press the OK button to switch

to the selected channel. You can also move to the next or previous list page
using the PAGE +/- button.

Using the OK button

When you press the OK button, the information of the channel appears :

_ Channel number, channel name, and current time in the Analog TV mode
_ External input mode and current time in the AV input mode.
_ The information of Main and PIP screen in the PIP mode.

If you wish to disappear the information, press the OK button again.
In the audio mode also, the information appears.

Using the Audio button

You can hear the sound with various modes. ( Mono, Stereo, Dual mode)

Press the

If it is not switched, it's the channel that various modes are not supplied.

SOUNDTRACK/AUDIO

button repeatedly to switch into other mode.

Setting the Sleep Time

You can select a time for the TV to turn off automatically.
Press the SLEEP button repeatedly until the desired time appears.
The number changes from Off . 10 . 20 . 30 . 60 . 90 . 120 . 180 . 240.
When the selected time is out, the TV will turn off automatically.
To cancel the sleep time, press the SLEEP button repeatedly and select

--- (Sleep Off).

22. Basic Functions
