Thank you for purchasing a HUMAX product. Please read this user’s manual carefully to be able to safely
install, use and maintain the product at maximum performance. Keep this user’s manual next to your
product for future reference. The information in this user’s manual is subject to change without notice.
Not to be copied, used or translated in part or whole without HUMAX’s prior consent in writing except
approval of ownership of copyright and copyright law.
Warranty
The warranty does not cover parts which may become defective due to misuse of the information
contained in this manual.
Meaning of Symbols
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable
parts inside. Refer servicing to qualied service personnel.
This symbol indicates dangerous voltage inside the product that presents a risk of electric
shock or personal injury.
This symbol indicates important instructions accompanying the product.
Warnings, Cautions and Notes
Throughout the whole manual, pay special attention to the following marks that indicate hazardous
situations.
Warning
Indicates a hazardous situation which could result in serious injury.
Caution
Indicates a situation which could damage the equipment or other apparatus.
Note
Indicates additional information to make the user aware of possible problems and information of any
importance to help understand, use and maintain the installation.
1
Notice
‘WEEE’ Instructions
This product should not be disposed with other household wastes at the end of its working
life. Please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources. This will prevent possible harm to the environment or
human health from uncontrolled waste disposal.
Domestic users:
Please contact either the retailer where you purchased this product or their local government oce for
details of where and how they can take this item for environmentally safe recycling.
Business users:
Contact your supplier and check the terms and conditions of the purchase contract. This product should
not be mixed with other commercial wastes for disposal.
Trademarks
• Irdeto is a trademark of Irdeto Access B.V.
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI, the HDMI Logo, and High-Denition Multimedia interface are trademarks and registered
trademarks of HDMI Licensing LLC.
Specication 60
Service and Support 6
Safety Warning 6
4
Trouble Shooting 6
6
Error Message 6
6
Glossary 6
Remote Control Code List 7
OPEN SOURCE SOFTWARE NOTICE 10
8
9
0
5
7
3
5
8
8
9
0
1
3
4
5
6
6
7
7
8
2
3
5
7
8
0
1
3
Quick Start Guide
1. Checking Accessories
Quick Start Guide
User's manual
Remote Control
& Batteries
SCART Cable
CD Manual &
Quick Start Guide
Note: The accessories may vary according to area.
2. Product Overview
Front Panel
STANDBY
Switches between operation and
standby modes.
HDMI Cable
RF CableEthernet Cable
Status Display
TV/RADIO
MENUGUIDE
OK
BACK
Arrows
LED Indicator
(Standby: Red, Operation: Blue)
Note: The image shown may dier from the actual product.
4
USB Port
Smartcard Slot
Connect a USB storage device.
(for MP3 or JPEG)
Quick Start Guide
Inserting the Smartcard
1. Open the ap on the front panel to expose the card slot.
2. Hold Smartcard horizontally with the electronic chip facing
downwards.
3. Insert the Smartcard into the slot.
Rear Panel
English
Smartcard
CABLE IN
Connect an antenna cable.
CABLE OUT
Connect to the TV or VCR using
an antenna cable.
VIDEO
Connect to the TV or VCR using
an RCA cable(CVBS).
AUDIO
Connect to the TV or VCR using
an RCA cable(Stereo).
TV SCART
Connect to the TV using a SCART
cable.
VCR SCART
Connect to the VCR or DVD using a
SCART cable.
SPDIF (Optical)
Connect to the audio system using
an S/PDIF cable. (Dolby Digital)
HDMI
Connect to the TV using an HDMI
cable.
ON/OFF
Powers on/o.
ETHERNET
Network port (for future use)
USB Port
Connect a USB storage
device.
Note: The image shown may dier from the actual product.
5
Quick Start Guide
Remote Control
1
ݢ
MUTEMutes audio.
STANDBYSwitches between operation and standby modes.
MODEChanges the mode of remote.
NUMERIC(0-9)
TV PortalNot available for this product.
MENUDisplays the main menu.
Playback
Control
ݣ
2
3
Buttons
COLOUR
ݤ
Buttons
MEDIADisplays the media list.
GUIDEDisplays the programme guide.
ARROW
Buttons
OKSelects (Enters) a menu or conrms a selection.
EXITExits all On-Screen Display (OSD) screens.
BACKReturns to the previous channel.
Play, II Pause, Stop, Record,
Rewind, Fast Forward,
Instant Replay, Skip
Colour keys for interactive applications.
Moves the cursor up, down, left or right.
Goes back to the previous screen.
Previous,
I
Next,
I
Note:
• To control the product please make sure that the PVR mode is selected on the remote control.
• The image shown may dier from the actual product.
• Some playback control buttons may not function depending on the contents.
6
Quick Start Guide
English
+/-Adjusts the audio volume.
/Changes the channel or page.
P
LISTDisplays the channel list.
i (Information)Displays the channel and programme information.
OPT+Displays the channels attributes.
AUDIODisplays the audio list.
SUBTITLEDisplays the subtitle language list.
TV/RADIO Switches between TV and radio modes.
TEXTEnters the digital text service.
SOURCESwitches between the input sources from SCART.
SLEEPSets the sleep timer.
V-FORMAT Sets the resolution of video.
WIDESets the display format.
Playback
Control
ݥ
Buttons
4
Inserting Batteries
Add Bookmark, Bookmark List, Slow
1. Press the hook upward and lift the
battery cover o.
2. Insert the batteries (supplied)
i
matching the plus(+) and minus(-)
at each end.
3. Close the cover.
7
Quick Start Guide
3. Connections
This section describes how to connect your product to match your particular devices setup and to gain
optimum signal quality. The product provides various interfaces to connect to the TV, VCR or other
devices. Select the most appropriate procedure depending on the device you have.
Note: If you encounter any problems setting up your product, please contact your local retailer or
HUMAX Customer Helpline.
Antenna Cable
SCART Cable
VCR SCART
AUDIO
RCA Cable
3
TV SCART
SCART Cable
DVI for TVHDMI
DVI Connecter
HDMI Cable
HDMI Cable
2
1
4
S/PDIF Cable
S/PDIF
Ethernet Cable
LAN
RouterRouter
8
Quick Start Guide
English
Connecting the Cable TV Line
Connect an antenna cable from your cable TV network to CABLE IN connector.
Connecting the TV and VCR
You can select one of the following connections depending on the equipment you have.
ݎTV with the HDMI connector;
For the best picture quality, connect the product and TV using an HDMI cable.
ݏTV with the DVI connector;
For very good picture quality, connect the product and TV using an HDMI cable and an HDMI-to-DVI
converter for video and an RCA cable (Audio L/R) for audio.
ݐTV with the SCART connector;
For good picture quality, connect the product and TV using a SCART cable. (TV SCART)
ݑVCR with the SCART connector;
To output video and audio, connect the product and VCR using a SCART cable. (VCR SCART)
Note:
• When using the digital audio system, connect the product and the digital audio system using an
S/PDIF cable for audio.
• Programmes restricted by DRM (Digital Rights Management) may not be viewed via the HDMI cable.
Connect using the SCART or composite cable.
• Connecting your TV directly to the audio/video output of the product will assure a more vivid picture
and enhance your viewing enjoyment.
9
Quick Start Guide
Connecting the Network
ݎConnecting to the LAN;
Connect one end of the Ethernet cable to the product and the other end to the LAN router.
ݏConnecting to the Wi-Fi (Wireless LAN); (Reserved for future use.)
You can connect the network via the Wi-Fi access point or DSL/cable modem.
1. Plug in the wireless USB dongle to the USB port. (Separate purchase required)
2. Set the options for the Wi-Fi.
Network Name (SSID): Select the network name of your Wi-Fi access point from the list.
Security Type (WEP): This product supports WEP 40/128bit ASCII and WEP 40/128bit HEX. The security type of
the Wi-Fi and the product shall be set the same.
Password: When using the security type, you must set the password. Enter the same password in the Wi-Fi
setting menu.
3. After completing the Wi-Fi access point setting, make sure the settings in Installation Wizard or
Settings>System>Network>Congure Wi-Fi are the same.
Note:
• Make sure the distance between the Wi-Fi access point and the product is not too far away. This may
lower the quality of service.
• It is recommended to purchase a wireless USB dongle distributed by HUMAX. Other products may not
function or respond. Visit the HUMAX website to nd the information on purchasing a wireless USB
dongle. (http://www.myhumax.nl)
WLAN USB Dongle
Note:
We recommend the network connection over a direct LAN.
10
2
1
Ethernet Cable
RouterWireless Router
LAN
Quick Start Guide
4. Powering On
1. Connect the power cord of the product to a wall outlet.
2. Ensure the
3. Power on by pressing the
of the product.
Note:
ON/OFF switch at the rear of the product is switched to ON.
STANDBY button on the remote control or the STANDBY button at the front
To control the product please make sure that the PVR mode is selected on the remote control.
English
11
Quick Start Guide
5. First Installation Wizard
When powering on your product for the rst time after purchase or performing the factory default in
menu, the installation wizard will operate automatically.
Note: If you exit the installation wizard without fully completing the channel searching procedure, you
may not have all of the channels available. In this case, you can use the Settings > Installation
menu to search for more channels.
1. Language
Select your language.
2. Display
Set the video output for your TV.
3. Search Channels
Select new channel.
12
Quick Start Guide
Save the found channels when the search is
complete.
4. Congure Network
Make sure that the LAN cable is connected to
the Ethernet port or the wireless USB dongle is
enabled.
Congure the network setting.
Note:
The Wi-Fi network is currently not
supported. (Reserved for future use.)
English
5. Result
The result of the Installation Wizard is shown.
Select
Finish to exit the wizard.
13
Quick Start Guide
6. Menu Overview
Channel List
TV Guide
Video
Music
Settings
Preferences
• Parental Control
• Language
• Time
• Video
• Audio
• Recording
• Screen Display
Edit Channels
• Edit Favourite List
• Edit Channel List
• Favourite Ch Numbering
• Hide Recent List
Installation
• Channel Search
• IRDETO Software Update
• Factory Default
System
• System Information
• Signal Detection
• Power Management
• Conditional Access
• Mail Messages
• Data Storage
• Network
How to Navigate
or
14
Displays the main menuMoves among menus or options
Selects (Enters) a menu or
conrms a selection
Goes back to the previous screenEnters the number (0~9)
Exits all On-Screen Display (OSD)
screens
Changes or adjusts the option
Basic Operation
Changing Channels
You can change the channels in several ways.
Press the P/ button.
Enter the channel number directly. (0-9)
Go to the channel list or TV guide and select a channel.
Note:
• Press the
• Press the
Volume / Mute / Audio
TV/RADIO button to switch between TV and radio channels.
BACK button to return to the previous channel.
English
To adjust the audio volume, press the
To mute the audio temporarily, press the MUTE button.
+/- button.
Setting Audio Options
Audio options are available only when the programme supports multiple audio languages.
1. Press the AUDIO button.
2. Select the audio language.
3. Select the audio direction.
4. Press the
Note:
• The mute function remains set while you
change channels.
• You cannot set the audio direction when the
programme is broadcast in Dolby Digital.
OK button.
DisplaySelectConrm
15
15
Basic Operation
Display Format / Resolution
Setting Display Format
Press the WIDE button to set the display format
according to the screen ratio.
Each time you press this button, the value
changes.
Screen ratio 4:3: Auto – Letterbox 16:9
– Letterbox 14:9 – Centre
Screen ratio 16:9: Auto – Full – Zoom
Note: Refer to Setting Display Format for
details.
Setting Resolution
Press the V-FORMAT button to set the resolution
of the screen.
Each time you press this button, the value
changes.
576i - 576p - 720p - 1080i - Original
Display
Note: When connected with an HDMI cable,
you can only change to resolutions the TV
supports.
16
Display
Basic Operation
English
Programme Information (i-plate)
The i-plate is an information banner that is displayed for a certain period of time whenever you change
channels. Press the i button while watching a progamme to display the i-plate. Press the EXIT button to
hide.
Playing time
Channel number and name
Programme name
DisplayNavigation mode
Viewing detailed programme information
Press the i button again while the i-plate is displayed.
Viewing previous/next programme information
Press the / button while the i-plate is displayed. Press the OK button to set reminders or recordings for
future programmes.
Viewing programme information of other channels
Press the / button while the i-plate is displayed. Press the OK button to change to the selected channel.
Icons
Group name Current time and date
Icons
The icons represent the information and services provided.
Locked programmeSubtitle
Scrambled programme (CAS icons)Teletext
Parental level (minimum age for viewing)Multiaudio
HD programmeResolution
Scheduled programme
(Red: Record, Blue: Reminder)
Screen ratio
Dolby Digital audio
Dolby Digital Plus audio
Programme information is not displayed when there is no programme information.
Note:
17
Basic Operation
Sleep Timer
Press the SLEEP button to set the automatic turn
o time.
Each time you press this button, the value
changes.
10 - 20 - 30 - 60 - 90 - 120 minutes
Display
Subtitle
You can select the subtitle language when subtitle information is provided.
1. Press the SUBTITLE button.
2. Select the subtitle language.
3. Select
4. Press the
O to make the subtitle disappear.
OK button.
Note: You can choose to always display the
subtitle when available.
18
DisplaySelectConrm
Basic Operation
English
Option
You can set the options for the watching channel.
1. Press the OPT+ button.
2. Select an option.
Favourite: Select the favourite group to add the
channel.
Lock: Select On or O.
3. Select OK to save and exit.
DisplaySelectConrm
Teletext
Teletext is a free service broadcast which gives the latest information on news, weather and many other
topics. You can use interactive services in teletext mode.
All teletext supporting channels have the teletext icon on the i-plate.
1. Press the TEXT button.
2. To display the teletext menu, press the
button in teletext mode.
3. Select the teletext function you want and
press the OK button.
MENU
DisplayTeletext menuSelect
Conrm
19
Channel List
The channel list will help you nd the channel you want to watch quickly and easily.
You can access the channel list in several ways.
Press the LIST or OK button.
Press the MENU button and select Channel List.
Changing Channels
You can change the channels within the same channel group.
Select the channel you want to watch and press the OK button. The displayed channel will change.
Note:
•
: Locked channel, : Scrambled channel (CAS icons)
• Press the
• Press the
Advanced Options
Changing Group
You can display the list of the selected channel
group.
TV, HDTV, Radio, Favourite 1~5, Recent
1. Press the button.
2. Select a channel group.
3. Press the
i button to view the detailed channel information.
LIST or EXIT button to exit.
OK button.
Note:
• Press the
TV and Radio groups.
• You can choose to hide the recent viewed
channels in MENU > Settings > Edit Channels
> Hide Recent List.
Sorting Channels
Press the RED button to sort the list in numerical or alphabetical order.
20
TV/RADIO button to switch between
Display/Change
SelectConrm
Channel List
English
Editing Channels in Channel List
You can lock each channel in the channel list, as well as in menu. To edit the multiple channels, go to the
MENU > Settings > Edit Channels.
Locking Channels
1. Select a channel you want to edit and press
the GREEN button.
2. Select an option.
Lock: Select On or O.
3. Select OK to save and exit.
Note: The default password is 0000. If you have
forgotten your password, please contact
your local distributor.
Setting Favourite Channels
You can select your favourite channels and include
them in the favourite group.
1. Select a channel and press the
2. Select
3. Select a favourite group you want to include the channel in and press the
To remove a channel from a favourite group, select the group and press the
4. Select
Favourite and press the OK button.
OK to save and exit.
GREEN button.
GREEN
Display
SelectConrm
OK button.
OK button again.
21
Managing Channels
Editing Channels
The Edit Channel List menu will help you lock multiple channels.
MENU Settings Edit Channels Edit Channel List
You will be prompted to enter the password to access this menu.
Note: The default password is 0000. If you have forgotten your password, please contact your local
distributor.
Group name
Marked / Total channels
Function buttons
: Coloured or OPT+ button
SelectMark/ConrmPage up/down
Note:
•
: Locked channel, : Scrambled channel (CAS icons)
• Press the
MENU or EXIT button to exit. Press the BACK button to return to the previous screen.
Locking / Unlocking Channels
1. Select the channels using the / and OK button.
2. Press the
22
RED or GREEN button.
Managing Channels
Advanced Options
Changing Group
To list the channels of other groups, press the YELLOW button and select a group you want.
Note: Press the TV/RADIO button to switch between TV and Radio groups.
Changing Background
You can change the channel displayed in the background while editing.
1. Select the channel you want to watch.
2. Press the
Selecting / Releasing All Channels
1. Press the OPT+ button.
2. Select
3. To release all, select
BLUE button. The displayed channel will change.
Select All.
Release All.
English
23
Managing Channels
Editing Favourite Channels
The Edit Favourite List menu will help you add or remove channels from the favourite groups.
MENU Settings Edit Channels Edit Favourite List
You will be prompted to enter the password to access this menu.
Note: The default password is 0000. If you have forgotten your password, please contact your local
distributor.
Group name
Marked / Total channels
Favourite group name
Function buttons
: Coloured or OPT+ button
SelectMark/ConrmPage up/down
Note: Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.
Adding / Removing Favourite Channels
1. Press the YELLOW button and select the favourite group you want to edit.
2. To add channels to the favourite list, select the channels you want to add using the
button in the left column and then press the RED button. The added channels will appear in the right
column.
3. To remove channels from the favourite list, select the channels you want to remove in the right
column and then press the RED button.
/ and OK
Moving Channels
1. Select the channels using the / and OK button.
2. Press the GREEN button.
3. Move the selected channels to the location you want using the
Note: You can move the channels in the right column only.
24
/ and OK button.
Managing Channels
English
Renaming Favourite Groups
1. Press the YELLOW button and select the favourite group you want to edit.
2. Press the
3. Select
4. Enter the name in the keyboard.
Advanced Options
Changing Group
To list the channels of other groups in the left column, press the GREEN button and select a group you
want.
Note: Press the TV/RADIO button to switch between TV and Radio groups.
Changing Background
You can change the channel displayed in the background while editing.
1. Select the channel you want to watch.
2. Press the
Selecting / Releasing All Channels
1. Press the OPT+ button.
2. Select
3. To release all, select
OPT+ button.
Rename Favourite.
BLUE button. The displayed channel will change.
Select All.
Release All.
25
Managing Channels
Favourite Channel Numbering
You can change the favourite channel numbers to be numbered in the order in which they are added.
MENU Settings Edit Channels Favourite Ch Numbering
You will be prompted to enter the password to access this menu.
Note: The default password is 0000. If you have forgotten your password, please contact your local
distributor.
1. Select On to set the favourite channels be
numbered in the order in which they are
added.
2. Select
O to set the favourite channels be
numbered in original channel number.
Menu On/OSelectConrm
Hide Recent List
You can hide the recent viewed channels in the channel list for your privacy.
MENU Settings Edit Channels Hide Recent List
You will be prompted to enter the password to access this menu.
Note: The default password is 0000. If you have forgotten your password, please contact your local
distributor.
Select On to hide the recent viewed channels.
Menu On/OSelectConrm
26
TV Guide
English
The TV guide is an on-screen guide of grid type which displays the programme information of channels in
time and date order.
You can access the TV guide in several ways.
Press the GUIDE button.
Press the MENU button and select TV Guide.
Press the GUIDE or EXIT button to exit. Press the BACK button to return to the previous screen.
Note:
Preview
Current time and date
Information of the selected
programme: channel number & name,
programme name, simple information,
favourite group, and icons
Time bar
Function buttons
: Coloured button
SelectConrmPage up/down
Note:
• Press the
•
i button to view the detailed programme information.
1. Select a programme and press the OK button. The programme will be displayed in the preview.
2. Press the
OK button again to exit the TV guide and watch the programme.
27
TV Guide
Setting Reminders or Recordings
1. Select a future programme and press the OK button.
2. Select
Select
3. Press the
The reserved programmes will be added automatically in
Note:
• If the programme is conicted with another programme, adjust the reservation appropriately.
• If the channel is locked, you will be prompted to enter your password to complete the reservation.
• You can reschedule reminders or recordings. (Refer to
Advanced Options
Quick Navigation
Press the / button to move to the previous/next programme.
Press the REWIND / FAST FORWARD button to jump back/ahead two hours.
Press the PREVIOUS / NEXT button to move to the previous/next day.
Press the RED button to go back to the current watching programme.
Changing Group
To list the channels of other groups, press the BLUE button and select a group you want.
Reminder or Record and press the OK button.
Repeat to change the repeat mode.
OK button again to cancel the reservation.
Schedule.
The default password is 0000. If you have forgotten your password, please contact your local
distributor.
Scheduling Reminders and Recordings.)
Note:
• Press the
• To search specic programmes, go to
Programmes.)
28
TV/RADIO button to switch between TV and Radio groups.
Find by pressing the GREEN button. (Refer to Finding
TV Guide
Finding Programmes
Find will help you nd the programmes more specically using the keyword or genre.
By Keyword
1. Press the GREEN button.
2. Select
3. Select a keyword and press the
Note: To enter a new keyword, select New
By Genre
1. Press the GREEN button.
2. Select
3. Select a genre and press the
4. Select the specic genre and press the
Keyword and press the
Keyword.
Genre and press the
button. (if provided)
button.
OK button.
button.
OK button.
OK
GREEN
DisplayConrmSelect
English
Note:
• Press the
i button to view the detailed
Page
up/down
programme information.
• Press the
OK button to watch a found programme.
• You can set reminders or recordings for future programmes. (Refer to
Recordings.)
Setting Reminders or
29
TV Guide
Scheduling Reminders and Recordings
Schedule lists reminders or recordings and will help you manage them in more detail.
1. Press the YELLOW button.
2. You can add, edit or delete your reminders or
recordings.
To add, select New Reminder and press the OK
button.
To edit, select a reservation and press the OK
button.
To delete, select a reservation and press the BLUE
button.
3. Reservation will pop up. You can change
the options you want using the
NUMERIC(0~9)
4. Select
OK to save and exit.
and OK buttons.
Note:
• Press the
i button to view the detailed
programme information.
• You can easily set reminders or recordings in
///,
YELLOW
DisplayConrmSelect
Page
up/down
TV Guide, Find or i-plate navigation mode.
30
Recording and Playback
English
You can record programmes in the built-in hard disk drive and playback the recorded programmes
whenever you want.
Recorded radio programmes are saved in the Video List.
Note:
Recording
You can watch another channel while recording a channel or record programmes from two dierent
channels at the same time.
Instant Recording
You can record the currently watching programme
instantly and change the recording duration.
To instantly record the current programme you are
watching, press the RECORD button.
The recording will start from the current broadcast
point and the record banner will be displayed for a
few seconds.
Press the STOP button to stop recording the
programme.
The recording will continue till the end of the current programme. However, if the programme ends in less
than ten minutes, it will continue till the end of the next programme. When no programme information is
provided, the recording will continue for two hours.
Changing Recording Duration
1. Press the RECORD button on the currently
recording channel.
2. Set the duration manually or select till the
end of the current prorgramme or the next
programme.
Note: The End Padding Time set in MENU >
Settings > Preferences > Recording is
automatically applied.
RecordSelectConrmEnter 0~9
31
Recording and Playback
Delayed Recording
You can rewind the currently watching programme to the point you started watching and start recording
from that point.
To rewind the programme you are watching, press the
watching. Press the RECORD button to record from that point. The programme will be recorded from the
point you started watching.
Press the STOP button to stop recording the programme.
Scheduled Recording
You can easily set the recording reservations in TV Guide, Schedule or i-plate navigation mode.
Select a future programme and press the OK
button in TV Guide.
(Refer to
Select New Reminder and press the OK
button in Schedule.
(Refer to
Recordings.)
Press the OK button on a future programme in
i-plate and select Record.
(Refer to
Setting Reminders or Recordings.)
Scheduling Reminders or
Programme Information.)
button to go back to the moment you started
The recording will start at the scheduled time and
the record banner will be displayed for a few seconds.
Press the STOP button to stop recording the programme.
Note:
• Press the
• Press the
• Press the
GUIDE button to go to TV Guide.
GUIDE button and press YELLOW button to go to Schedule.
i button while watching a progamme to display the i-plate.
Editing Recording Schedule
You can edit or delete your reservations in
Schedule.
To edit, select a reservation and press the OK
button. You can change the options such as
channel, date, time, repeat mode, etc.
To delete, select a reservation and press the BLUE
button.
32
RecordSelectConrmEnter 0~9
Recording and Playback
English

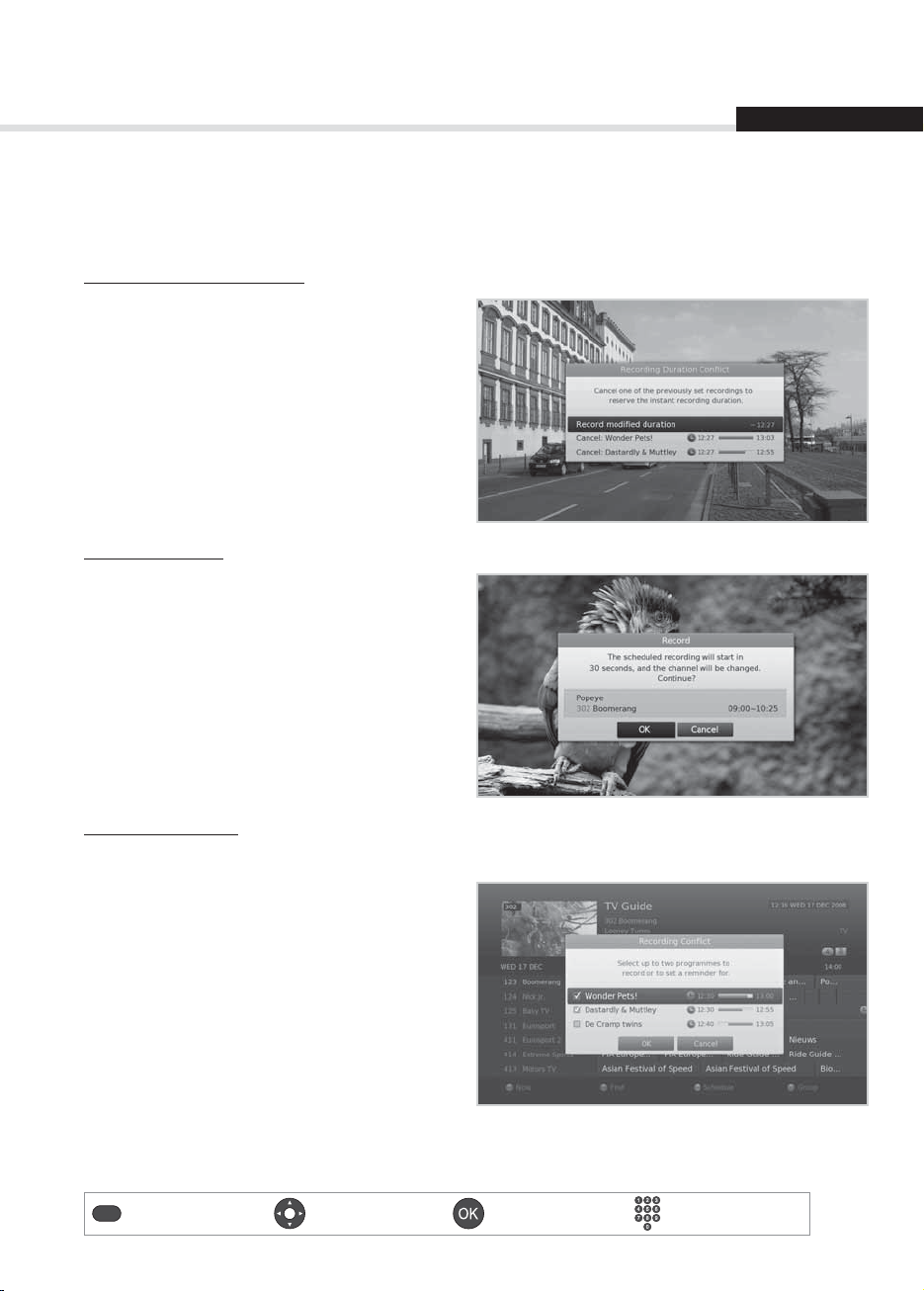

Recording Conict
You can watch another channel while recording a channel or record programmes from two dierent
channels at the same time.
Recording Duration Conict
When an instant recording conicts with one of
the scheduled recordings (or reminders), you can
either;
Record for the automatically modied duration.
Cancel either of the scheduled recordings (or
reminders).
Cancel the previous recording.
Watching Conict
When a scheduled recording starts on a dierent
channel while you are watching a channel and
recording another channel, a record notice
will pop-up 30 seconds before the scheduled
recording starts.
OK: The channel will change at the start time and
the scheduled recording will start automatically.
Cancel: The scheduled recording will be
canceled.
Scheduling Conict
When a new scheduled recording conicts with one of the previously set recordings (or reminders), you
will be prompted to select up to two programmes
you want to keep.
Select the programme using the
/ and OK
button.
RecordSelectConrmEnter 0~9
33
Recording and Playback
Setting Recording Options
MENU Settings Preferences Recording
You can set the recording padding time in case
the recording starts earlier or ends later than
scheduled.
Start Padding Time : Additional recording time
before the recording starts.
End Padding Time : Additional recording time
after the recording ends.
You also can set the instant replay or skip time for
the INSTANT REPLAY or SKIP button.
Note:
• You can record radio programmes also.
• The record banner will be displayed with the i-plate whenever pressing the
• You can change the recording duration by using the
to MENU > TV Guide > Schedule for scheduled recording.
• When a new scheduled recording starts while a recording is already in progress, the record banner
will be displayed for a few seconds to inform you that the recording has been started. If you are not
watching the channel being recorded, a record notice will pop-up 30 seconds before the scheduled
recording starts, and the channel will switch to the scheduled programme automatically at the start
time.
• Pressing the
even in standby mode.
• While watching a recording programme, you can trick-play using the playback control buttons such as
pause, fast rewind, instant replay, slow, etc.
• You can record the digital TV or radio programmes only. The external AV inputs can’t be recorded.
• Ensure that there is enough free space before recording. If the free space on the hard disk drive is
insucient, recording will stop. Recording one hour of programme may require up to 2 or 3GB of hard
disk space. The space for recording a 1 hour programme may dier depending on the programme.
• To view the recorded programme list, press the
Using Video List.)
STANDBY button while recording will not stop the recording. New recordings will start
RECORD button for instant recording or by going
MEDIA or MENU button and select Video. (Refer to
i button.
34
RecordSelectConrmEnter 0~9
Recording and Playback
Playback
You can playback the recorded programmes that are stored in the built-in hard disk drive.
Playing Recordings (Video)
You can access the recorded le list easily and play the recorded programmes.
Press the MEDIA button.
Press the MENU button and select Video.
Select a le and press the OK button. Playback will
start.
You can perform fast rewind, fast forward, slow
motion and pause while playing back a recorded
le. The green playbar is displayed when pressing
the PLAY, FAST FORWARD, REWIND, SLOW or PAUSE button while playing.
English
Play status
Note:
Start time
Enter the time directly using the NUMERIC buttons to jump to the accurate location.
Present time
Play pointer
Total time
RecordSelectConrmEnter 0~9
35
Recording and Playback
Playback Controls
Play
Pause the scene. Press the PAUSE button again to go back to play mode.
Stop the playback of the current le and go to live TV.
Fast Rewind
Fast Forward
Move to the previous chapter and replay the scenes.
Move to the next chapter and skip scenes.
/
Jump to the previous or next scene.
Add or delete a bookmark in your desired scene.
The bookmarked scene is shown as a yellow pointer.
Jump to bookmarked scenes directly.
The play pointer will rst move to the nearest bookmark.
Watch the recording in slow video.
Note:
• Chapters are made by dividing the recorded programme into eight portions.
• Fast forwarding and jump may not function in programmes restricted by DRM.
• Bookmarks are available only when playing back the recorded programmes.
• Up to four bookmarks can be used, and the bookmarks will remain even if you stop playback.
• Refer to
Media List > Using Video List for more details about the recorded les.
36
RecordSelectConrmEnter 0~9
Recording and Playback
English
Pausing and Rewinding Live TV (TSR)
Time Shifted Recording (TSR) allows you to pause a live broadcast and return to it later and continue
where you left o.
The TSR function automatically saves the programmes you watch to the built-in hard disk drive
temporarily.
TSR lasts for 120 minutes
To pause the programme you are watching,
Press the PAUSE button. Press the PLAY button to return. Pause makes a time gap between the live
broadcasting point and watching point. The time gap is equivalent to the period the programme has been
paused.
Press the STOP button to close the time gap and go to live programme.
To rewind and watch missed scenes,
Press the REWIND button. Press the PLAY button at the point where you want to start watching. You can
pause, rewind or fast forward within the programme.
You can fast rewind back to the start point. If you reach the start point while rewinding, the
programme is automatically played at normal speed.
To fast forward and skip scenes,
Press the FAST FORWARD button. You can fast forward only when there is a time gap between the
current watching point and the live broadcasting point caused by pause, slow motion or fast rewind. You
can fast forward up to the current broadcasting point. If you reach the live broadcasting point while fast
forwarding, the programme is automatically played at normal speed.
Note: Fast forwarding and jump may not function in programmes restricted by DRM.
RecordSelectConrmEnter 0~9
37

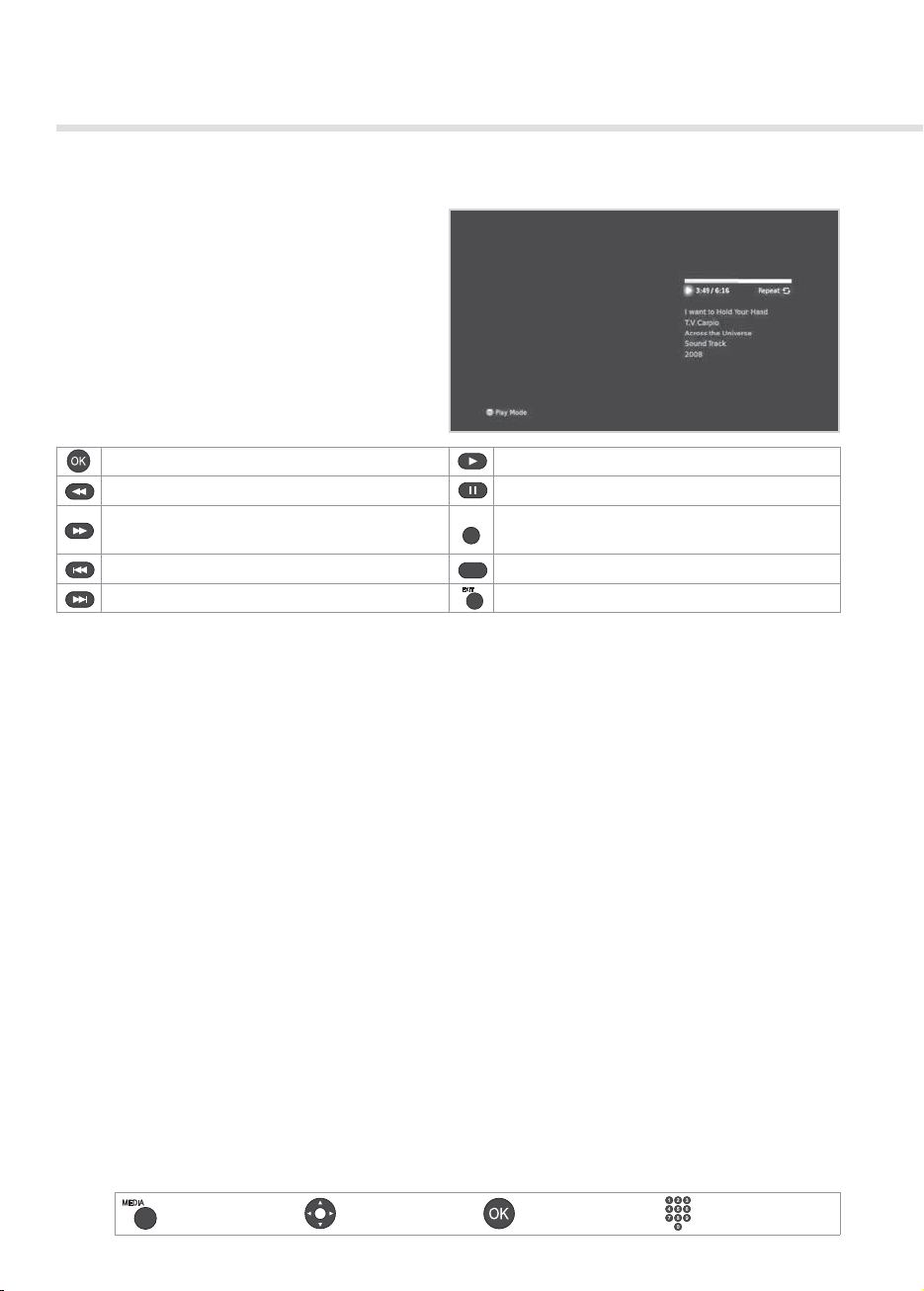

Media List
You can retrieve video, music or photo les from the built-in hard disk drive, the USB storage devices, or
the DLNA compliant devices.
You can access Media List in several ways.
Press the MEDIA button.
Press the MENU button and select Video, Music or Photo.
Connect a USB storage device for media and select your desired media type.
VideoLists TV/Radio recordings or XviD les.
MusicLists MP3 les.
PhotoLists JPEG les.
Note:
• Press the
• When you connect a USB storage device, the media type menu is displayed automatically.
• Select
Files.)
Switching Storage
1. Press the BLUE button to switch the storage.
2. Select the storage and press the
HDD: Displays the internal HDD.
USB: Displays each partition of the connected
Network: Displays the connected DLNA
MEDIA or EXIT button to exit. Press the BACK button to return to the previous screen.
Copy to copy the media les to the dierent devices. (Refer to Using the Video List > Editing
OK button.
USB storage devices. Select a USB.
compliant devices. Select the server.
Switching Media
1. Press the YELLOW button to switch the media
type.
2. Select the media type and press the
button.
Video, Music, Photo
38
Media On/OSelectConrmEnter 0~9
OK
Media List
English
Note:
• Please use only the USB storage device which was formatted with ext3, FAT or NTFS le system.
• USB ports on your product supply 800mA in total. This 800mA is shared among all devices connected
to product.
• Please connect power to a USB storage device which requires an external power supply. If not, the
device may not be recognized.
• Please connect a USB storage device with the cable oered by the device maker. If you use a cable
which is not oered by the device maker or an excessively long cable (max 5m), the device may not be
recognized.
• If the USB storage device is connected in standby mode, it will automatically be recognized when the
product is turned on.
• A USB storage device using an automatic recognition programme may not be recognized.
• A USB storage device which uses its own driver may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not disconnect or turn o the USB storage device while playing back. When the USB
storage device is suddenly separated or unplugged, the stored les or the USB storage device may be
damaged.
• Be sure to back up important les since data stored in a USB storage device may be damaged. We will
not be responsible for any data loss.
• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up
to 4 partitions or USB memory devices.
• If the USB memory stick does not work properly, disconnect and reconnect it.
• Some USB storage devices may not be supported or operated smoothly.
• How fast a USB storage device is detected diers from device to device.
• USB storage devices below USB 2.0 are supported as well. But they may not work properly.
• The system may require a longer time to read large amounts of data stored in a USB device.
• Only one USB icon will appear even when there are more than one USB.
• The network icon is displayed only when the network has been connected.
Media On/OSelectConrmEnter 0~9
39
Media List
Using Video List
You can play TV/Radio recordings or XviD les from the built-in hard disk drive, the USB storage devices, or
the DLNA compliant devices.
MENU Video
Note:
• Press the
• Press the
• Press the
• Recorded radio programmes are saved in the Video List.
YELLOW button to switch the media type.
BLUE button to switch the storage.
i button to view the detailed programme information.
Path
Storage
New recorded le
Recording le
Playing le
XviD le
Function buttons
: Coloured or OPT+ button
Note:
: Recording icon, : Playing icon, : HD icon, : CAS icon, : Lock icon
Playing Files
Select a le and press the PLAY button. Playback will start from the recently viewed point.
To play multiple les successively, select the les using the RED button and press the PLAY button.
You can perform fast rewind, fast forward, slow motion and pause while playing back a recorded le. Refer
to Recording and Playback > Playback for details on playback control and playbar.
Note:
• You will be prompted to enter the password when playing locked les.
• Some playback control buttons may not function depending on the contents.
40
Media On/OSelectConrmEnter 0~9
Media List
Play Options
Select the le and press the OK button. The play options for video will pop up.
Resume Play: Play the le from the point it has
been stopped.
Play from the Start: Play the le from the
beginning.
Delete: Delete the le. Select Ye s and press the
OK button.
Rename: Rename the le. Enter the name of
the le in the keyboard and press the YELLOW
button.
Lock: Lock the le. Enter the password to unlock.
Editing Files
Sorting Files
1. Press the
2. Select
will be sorted in alphabetical order.
3. To sort the les in time order, repeat the above
procedure.
Note:
OPT+ button.
Sort and press the OK button. The les
Sorting les is available for video les only.
English
Deleting Files
1. Select the le(s) you want to delete and press
the OPT+ button.
2. Select
3. Select
Delete and press the OK button.
Ye s and press the OK button.
Locking Files
1. Select the le(s) you want to lock and press the OPT+ button.
2. Select
3. To unlock, press the
Lock and press the OK button.
OPT+ button again and select Unlock.
4. Enter the password.
Media On/OSelectConrmEnter 0~9
41
Media List
Moving / Copying Files
1. Select the le(s) you want to move and press
the OPT+ button.
2. Select
3. Select the folder or storage you want to move
Note:
• When moving a locked le, you will be prompted to enter the password.
• When a le is moved to a dierent storage, it will be copied. However, video recordings cannot be
Renaming Files
1. Select the le you want to rename and press the
2. Select
3. Enter the name of the le in the keyboard and press the
Creating Folder
1. Press the OPT+ button.
2. Select
3. Enter the name of the folder in the keyboard and press the
Move and press the OK button.
the le(s) to and press the OK button.
Moving the le(s) within the same storage:
Select the folder you want to move the le(s) to
and press the OK button.
Copying the le(s) to another storage: Select
the storage and then select the folder to copy
the le(s) to. Press the OPT+ button to create the
folder.
copied to other storages.
OPT+ button.
Rename and press the OK button.
YELLOW button.
New Folder and press the OK button.
YELLOW button.
42
Media On/OSelectConrmEnter 0~9
Media List
Using Music List
You can play MP3 audio les from the built-in hard disk drive, the USB storage devices, or the DLNA
compliant devices.
MENU Music
Note:
• Press the
• Press the
YELLOW button to switch the media type.
BLUE button to switch the storage.
Path
Storage
Title, Artist, Album
Function buttons
: Coloured or OPT+ button
English
Playing Files
Select a le and press the OK or PLAY button. All les in the folder will be played successively.
To play the selected les only, select the les using the RED button and press the OK or PLAY button.
Media On/OSelectConrmEnter 0~9
43
Media List
Music Player
The music player is displayed while playing the
music le(s).
Plays or pausesPlays
Plays the previous lePauses
RED
Plays the next le
Plays the rst leStops the music player and displays the list
Plays the last leExits the music player and goes to live TV
Editing Files
Changes the play mode (once, repeat, repeat
all, shue)
Deleting, moving, renaming the music les or creating new folders are the same as in the video list. Refer
to Using Video List > Editing Files.
44
Media On/OSelectConrmEnter 0~9
Media List
English
Using Photo List
You can play JPEG photo les from the built-in hard disk drive, the USB storage devices, or the DLNA
compliant devices.
MENU Photo
Note:
• Press the
• Press the
YELLOW button to switch the media type.
BLUE button to switch the storage.
Path
Storage
Thumbnail
Function buttons
: Coloured or OPT+ button
Photo Slideshow
Select a le and press the OK or PLAY button. All
les in the folder will be shown successively.
To slideshow the selected les only, select the les
using the RED button and press the OK or PLAY
button.
The info banner is displayed while slideshow is
paused.
Pauses or playsPlays
Shows the previous photoPauses
Shows the next photoStops slideshow and displays photo list
Shows the rst photoExits slideshow and goes to live TV
Shows the last photo
Media On/OSelectConrmEnter 0~9
45
Media List
Editing Files
Deleting, moving, renaming the photo les or creating new folders are the same as in the video list. Refer
to Using Video List > Editing Files.
Slide Mode
You can play music les during slideshow.
1. Press the OPT+ button.
2. Select
3. Select OK to save and exit.
Slide Mode and press the OK button.
Display Time: The duration a photo is displayed
Music Play: Select On to play music les during
slideshow.
Folder: Select the folder the music les in located
in using the RED button.
46
Media On/OSelectConrmEnter 0~9
Preferences
English
In this chapter you can set options for parental control, language, time, video, audio and others.
Note: Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.
Parental Control
MENU Settings Preferences Parental Control
You will be prompted to enter the password to access this menu.
Note: The default password is 0000. If you have forgotten your password, please contact your local
distributor.
Maturity Rating
1. Select Maturity Rating.
2. Select an option.
View All
4~18: Blocks the programmes for viewers who
are not above the age limit.
Lock All
3. Press the OK button.
Note: The password is required to view the
blocked programmes.
Changing Password
1. Select Change STB Password.
2. Enter the new password.
3. Enter the new password again for verication.
Menu On/OSelectConrmEnter 0~9
47
Preferences
Language Setting
MENU Settings Preferences Language
1. Select
2. Select the language.
Note:
• If you select
• You can change the audio or subtitle language
Setting Hard of Hearing
You can display the subtitle for the hard of hearing people.
Select On to display the subtitle for the hard of hearing people.
System Language, Audio Language or
Subtitle Language.
O in subtitle language, the
subtitle will not be displayed.
by pressing the AUDIO or SUBTITLE button
while watching a programme.
Setting Power On/O Timer
MENU Settings Preferences Time
1. To turn on the product automatically, select
Power On Timer and select Set Timer.
2. Enter the time.
3. Set the options for the power on timer.
Channel: Select the channel to be displayed
when powering on.
Volume: Adjust the volume of the audio when
powering on.
Repeat: Select the repeat mode of the power on
timer.
4. To turn o the product automatically, select
Power OTimer and select Set Timer.
5. Enter the time.
Note:
The power on time and power o time should be set dierent from each other.
48
Menu On/OSelectConrmEnter 0~9
Preferences
English
Video Setting
MENU Settings Preferences Video
Setting TV Screen Ratio
You can select the screen ratio of your TV.
1. Select Screen Ratio.
2. Select an option.
16:9 – 4:3
Setting Display Format
You can select the display format according to the
screen ratio of your TV.
1. Select
2. Select an option.
Note: You can set the display format by pressing the WIDE button while watching a programme. Refer to
Display Format.
Screen ratio 4:3: Auto – Letterbox 16:9 – Letterbox 14:9 – Centre
Screen ratio 16:9: Auto – Full – Zoom
Display Format / Resolution.
Screen RatioDisplay Format
4:3
AutoLetterbox 16:9Letterbox 14:9Centre
16:9
AutoFullZoom
Setting Letter and Pillar Box Colour
You can set the colour for the margin space according to the display format.
1. Select
2. Select an option.
Letter & Pillar Box Colour.
Black – Gray
Menu On/OSelectConrmEnter 0~9
49
Preferences
Setting TV SCART / VCR SCART
You can select the video signal output option for the TV SCART or VCR SCART.

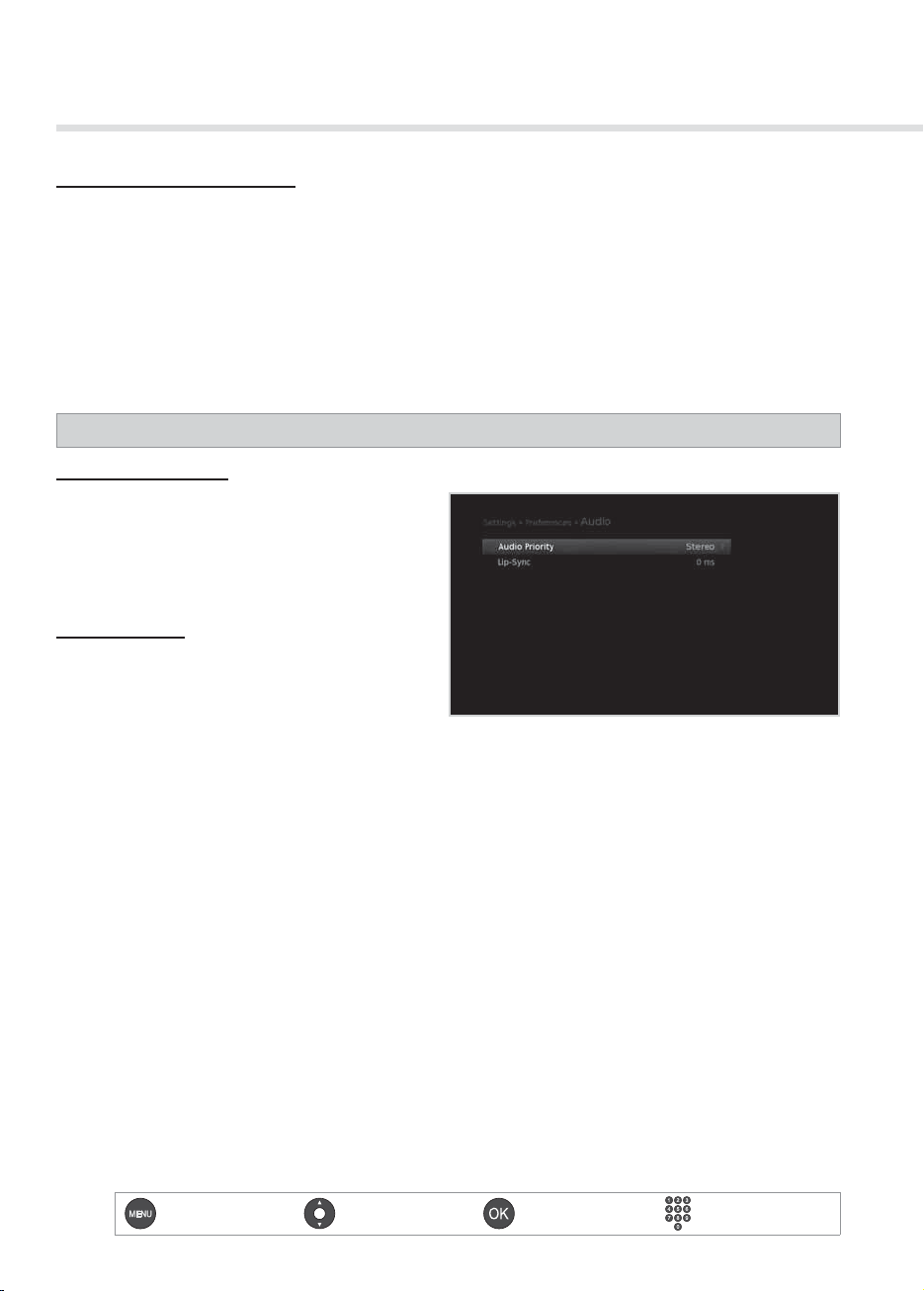

You can select the digital audio signal output of
your product.
1. Select Audio Priority.
2. Select an option.
Stereo – Dolby Digital
Setting Lip-Sync
You can adjust the sound dierence of audio and
video.
1. Select
2. Adjust the lip-sync using the
Lip-Sync.
/ button.
Pressing the right button increases the audio speed and pressing the left button decreases it.
Note: You will be prompted to enter the password to access this menu.
50
Menu On/OSelectConrmEnter 0~9
Preferences
Screen Display
MENU Settings Preferences Screen Display
Setting Info Display Time
You can set the duration the information box is
displayed every time the channel is switched.
1. Select Info Display Time.
2. Select an option.
O – 1~20 sec
Setting Transparency
You can set the transparency of the On-Screen
Display.
1. Select Transparency.
2. Select an option.
O – 25% – 50% – 75%
Setting Subtitle Font
You can adjust the subtitle font.
1. Select
2. Select an option.
Subtitle Font.
Variable – Fixed
English
Setting LCD Brightness
You can set the brightness level of the LCD at the front of the product.
1. Select
2. Select an option.
LCD Brightness.
O – 50% – 100%
Menu On/OSelectConrmEnter 0~9
51
Installation
In this chapter you can congure the installation setting and perform the channel search.
MENU Settings Installation
You will be prompted to enter the password to access this menu.
Note:
• The default password is 0000. If you have forgotten your password, please contact your local
distributor.
• Press the
Channel Search
If your product is connected to the cable and TV, you can search channels manually by searching
parameters, if you know the MUX information.
1. Select
2. Congure the search options.
Frequency: Enter the frequency.
Network ID: Enter the network ID.
Symbol Rate: Enter the symbol rate.
3. Select Search and press the OK button. The
found channels will be listed.
4. When the search has completed, select
and press the OK button to save the found
channels.
MENU or EXIT button to exit. Press the BACK button to return to the previous screen.
Channel Search.
Save
Note:
• Select
• Select
52
User Dene to enter options directly.
Stop and press the OK button to stop the channel search.
Menu On/OSelectConrmEnter 0~9
Installation
English
Software Update (OTA)
In order to maintain proper performance of the product, it is essential to have the most up-to-date
software. Visit the HUMAX website to check the latest news and newly released software versions. (http://www.myhumax.nl) It is recommended that you periodically check for the availability of software update.
OTA, an abbreviation of Over–the-Air, means that the software can be downloaded through your
broadcast system. The manufacturer reserves the right to decide when and where to release software by
this process.
You can also search and download new software manually.
MENU Settings Installation IRDETO Software Update
You can update software via the frequency pre-appointed by the manufacturer.
1. Select IRDETO Software Update and press
the OK button to search for new software.
2. When new software is detected, select
start the update process now.
Please wait until the update is complete. When
completing the software update, the product is
automatically powered o and on again.
Note:
• It may take 5~10 minutes to update software.
• Other functions such as scheduling
programmes will not activate while software
update takes place.
• Be sure to update software when the signal strength and quality is high. If the weather is not favorable
and the signal strength and quality are not recommendable, perform the software update later.
• The product will search new software automatically during standby. If new software is detected, you
can choose either to download immediately or later when you switch into operation mode. If you
select No, the message will be displayed again when you power on.
• You can also update the software by connecting a USB device which has the new software le. The le
can be downloaded from the HUMAX website.
Ye s to
Caution:
• Please be careful to keep the power on and the power cord plugged in during software update. If the
power is o during software update, fatal damage may be caused to the product.
• Please be careful not to pull out the signal line (RF cable) during software update. Update may be
interrupted and the product may not operate.
Menu On/OSelectConrmEnter 0~9
53
Installation
Factory Default
MENU Settings Installation Factory Default
1. Select
2. A popup will appear. Select
3. You will be prompted to enter the password.
Note:
• The default password is 0000. If you have
• To format the HDD, mark
Warning: Please note that once you perform
Factory Default.
Ye s .
Enter the password.
forgotten your password, please contact your
local distributor.
Format HDD.
Default Setting, all data such as installation setting information, channel list, and all user
congured data will be deleted. After completing the default setting, the installation wizard will
appear automatically in a few seconds.
54
Menu On/OSelectConrmEnter 0~9
System
English
In System, you can view the information of the system, signal detection, power management, conditional
access, mail messages, data storage and network options are also available in this section.
Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.
Note:
System Information
MENU Settings System System Information
The system information is displayed.
Signal Detection
MENU Settings System Signal Detection
You can check the signal strength and quality of
the searched channels.
Note: This menu will not be activated while
recording.
Menu On/OSelectConrmEnter 0~9
55
System
Power Management
MENU Settings System Power Management
Setting Power Saving in Standby
You can minimise the standby power consumption
to below 1W.
1. Select Power Saving in Standby.
2. Select
Setting Automatic Power Down
The receiver automatically enters standby mode
for power saving if no user interaction occurs for
3 hours.
1. Select
2. Select
Note: The message will be displayed before entering standby mode. If no selection is made for 30
On to deactivate the certain features
and minimise the power consumption.
Automatic Power Down.
On to enter standby mode automatically if no user interaction occurs for 3 hours.
seconds, the receiver enters standby mode automatically.
Conditional Access
MENU Settings System Conditional Access
You can check the information of the Smart Card
status, SoftCell Service status, Loader status, and
Conditional Access components.
56
Menu On/OSelectConrmEnter 0~9

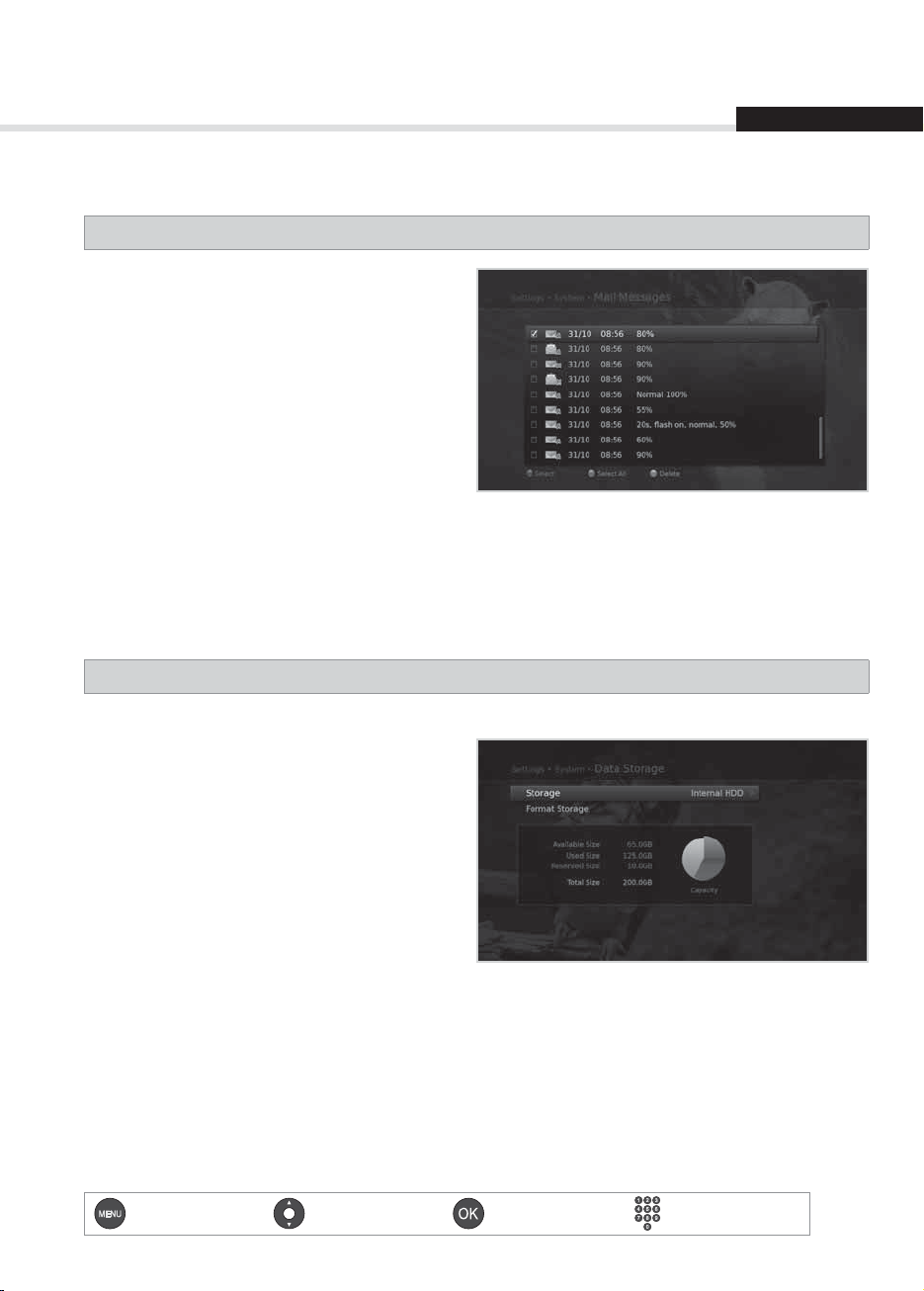

System
Mail Messages
MENU Settings System Mail Message
You can receive mail sent by the broadcasting
company.
When a new mail arrives, the mail icon will appear
on the screen. Press the OK button to see the
details.
The forced announcement mail will display the
details on the screen as soon as it arrives, even
while you are watching a programme.
Data Storage
English
MENU Settings System Data Storage
You can check the size of the internal HDD or external USB storage devices.
1 Select a storage to display the details for each
storage.
2 To format the selected storage, select
Format Storage. If you select Ye s , you will be
prompted to enter the password.
Note:
• The default password is 0000. If you have
forgotten your password, please contact your
local distributor.
The specications are subject to change without notice.
Separate internal fuse.
The input should be protected against lightning.
English
61
Appendix
Service and Support
Information concerning troubleshooting, software upgrade and product support is provided in the
following websites and call centers. Should your product require warranty service, please contact HUMAX
to obtain the appropriate authorization.
This product has been manufactured to comply with international safety standards. Please read the
following safety precautions carefully.
Safety Instructions and Precautions
1. MAINS SUPPLY
• Operate this product only from the type of power supply indicated on the marking label. If you are not sure of
the type of power supplied to your home, consult your local power company.
• Disconnect the product from the mains before you start any maintenance or installation procedures.
2. OVERLOADING
• Do not overload a wall outlet, extension cord or adapter as this may result in electric re or shock.
3. LIQUID
• The product should not be exposed to liquid of any kind. In addition, no objects lled with liquid should be
placed on the apparatus.
4. CLEANING
• Disconnect the product from the wall outlet before cleaning.
• Use a light damp cloth (no solvents) to dust the product.
5. VENTILATION
• The slots on top of the product must be left uncovered to allow proper airow into the unit.
• Do not stand the product on soft furnishings or carpets.
• Do not stack electronic equipments on top of the product.
6. ATTACHMENTS
• Do not use any unsupported attachments as these may be hazardous or cause damage to the product.
7. LIGHTNING, STORM OR NOT IN USE
• Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left
unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and
power-surges.
8. EXTRANEOUS OBJECTS
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or
damage parts.
9. REPLACEMENT OF PARTS
• When replacement of parts is required, be sure the service technician uses replacement parts specied by the
manufacturer or those that have the same characteristics as the original part. Unauthorized substitution may
result in additional damage to the unit.
10. CONNECTION
CONNECTION TO THE CABLE T V SIGNAL
• Connect all components before plugging any power cords into the wall outlet. Always turn o the product, TV
and other components before you connect or disconnect any cables.
11. CONNECTION TO THE TV
• Disconnect the product from the mains before connecting or disconnecting the cable from the TV. Failure to do
so can damage the TV.
English
63
Appendix
12. LOCATION
• Place the product indoors to avoid exposing it to lightning, rain or sun. Do not place it near a radiator or heat
register.
• We recommend that the product has 10 cm clearance from any other appliances susceptible to electromagnetic
inuences, such as a TV or a VCR.
• Do not block the openings with any object, and do not place the product on a bed, sofa, rug, or other similar
surface.
• If you place the product on a rack or a bookcase, ensure that there is adequate ventilation and that you have
followed the manufacturer’s instructions for mounting.
• Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling product
can cause serious injury to a child or adult, and serious damage to the appliance.
Warning
1. To avoid damage of the power cord or plug;
• Do not modify or process the power cord or plug arbitrarily.
• Do not bend or twist the power cord.
• Make sure to disconnect the power cord holding the plug.
• Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from melting.
• The mains plug, as a disconnection device, shall remain readily accessible by the user.
2. To avoid electrical shock;
• Do not open the main body.
• Do not insert metal or inammable objects inside the product.
• Do not touch the power plug with wet hands.
• Disconnect the power cord in case of lightning.
3. To avoid damage of product;
• Do not use the product when it is out of order. If you continue to use the product when defective, serious
damage can be caused. Make sure to contact your local product distributor if the product is out of order.
• Do not insert metal or alien substance into the slots for the modules or Smartcards. (where applicable) It may
cause damage to the product and reduce its life span.
4. To avoid damage of the hard disk drive (PVR only)
• Do not move the product or turn the power o suddenly while the hard disk drive is running.
• The company shall not be liable for any corruption of data on the hard disk drive caused by carelessness or
misuse.
64
Appendix
English
Trouble Shooting
Before contacting your local service centre, please read the tips below carefully. If the problem persists
after completing the following procedure, please contact your local product distributor or service centre
for further instructions.
1. No message displayed on the front display. (The product will not switch on.)
• Check the main power cable and make sure it is plugged into a suitable power outlet.
• Check that the mains supply is switched on.
• Connect the power cable to a dierent power outlet.
• Check that the power switch is on at the rear of the product. (where applicable)
2. No picture
• Make sure that the product is powered on and in operation mode. (Press the STANDBY button)
• Make sure that the AV cable is rmly connected to the TV.
• Make sure that the antenna cable is properly connected to the product.
• Be sure to activate channel search.
• Check the brightness level of the TV.
• Check if the channel is currently on air. Contact the broadcaster to ensure that the channel is running.
• Press the SOURCE button if the product is in external input mode. (where applicable)
3. Poor picture/sound quality
• Make sure there is no mobile phone or microwave oven near the product.
• Keep the power and the RF cables apart from each other.
Note: If the antenna is covered with snow or the RF is weakened by heavy rain, the condition of the
sound and picture may temporarily be poor. However, the poor sound and picture quality due to
weather conditions cannot be accepted as a malfunction of product.
4. No or poor sound
• Check that your AV cable is connected correctly.
• Check the volume levels of your TV set and the product.
• Check if the product or TV is on mute.
• Check audio type or soundtrack option. (where applicable)
5. Remote control does not operate.
• To control the product, the top end of the remote control should point directly towards the receiving part of the
product.
• Remove and reinsert the batteries in the remote control.
• Replace the batteries in the remote control for a new set.
• Set the remote control to STB or PVR mode, if you are using the universal remote control. (where applicable)
6. Cannot make reservations.
• Check that no previous reservations are conicting with the new reservation.
7. No password information is given.
• The default password is always 0000.
8. Channel search does not work.
• Make sure that your cable is connected correctly.
9. Cannot update new software.
• You can get an update. If the product does not show a message requesting update, this means no software is
available.
65
Appendix
10. Cannot watch scrambled channels.
• Check that you have the appropriate Smartcard. Reinsert the Smartcard and make sure it initialises correctly.
• Check in the menu that the product is detecting the Smartcard.
• Check in the menu that you have a valid and working subscription to the channels you wish to view.
• Ensure that the Smartcard is not damaged.
11. Cannot watch pay channels.
• Check in the menu that you have a valid and working subscription to the channels you wish to view.
• Contact your network operator for more information.
12. The product makes a humming noise.
• The noise is from the fan; the hard disk is operating normally. This kind of noise is inevitable but seldom
noticeable.
13. Cannot record progammes. (PVR only)
• The hard disk is full. Delete unnecessary programmes and make space for new recording.
• Check if recording is conicted with another channel. Stop the current recording or wait until the recording is
nished.
• Check that the product is switched on when recording starts.
14. Cannot operate TSR (Time Shifted Recording). (PVR only)
• TSR may not be available during recording. Wait until recording is nished.
• Delete unnecessary programmes and make space for new recording.
15. Cannot playback. (PVR only)
• To playback the recorded le of a scrambled channel, use the Smartcard. In case it has been a long time since
you last recorded, this may not work. Contact the product distributor.
• The signal during recording may be weak or the hard disk too full.
16. Cannot change channels while recording. (PVR only)
• Certain channels may not be changed due to restriction of the tuner or connection type.
66
Appendix
Error Message
Error messagePossible causesWhat to do
English
The cable is not connected.
No or bad signal
The channel is
scrambled or not
available.
The audio is not
available.
No access
No card inserted.Smartcard is not inserted.Insert Smartcard.
Incorrect card
The cable may be damaged or
defective.
The channel is not broadcasting.Exchange the cable.
The channel has a signal, but no audio
or video.
The channel has been deleted by the
broadcasting company.
The channel is for data broadcasting.
The channel has a video signal, but no
audio.
No access
No authorization.
Wrong Smartcard is inserted.Insert the correct Smartcard.
Smartcard is not inserted correctly.Remove the Smartcard and reinsert it.
Smartcard is damaged.
Make sure the cable is connected
correctly.
Exchange the cable.
Conrm if the channel is currently on
air.
Check if the channel is currently on air
Remove the channel from the channel
list and check for new transponder
details.
Press the audio button to conrm that
the channel has audio options.
Make sure you are subscribed to the
channel.
If the product has been turned o for
a long time (standby or power o),
please wait for authorization. It may
take up to 60 minutes.
Contact your Smartcard retailer or
channel broadcaster for a Smartcard
replacement.
67
Appendix
Glossary
CVBS (Composite Video Baseband Signal)
A technology for transmitting video signals via a cable. Mixes luminance (brightness) and the
chrominance (colour) signals together.
DiSEqC (Digital Satellite Equipment Control)
A DiSEqC compatible receiver relies on a switching box which detects the 22kHz tone pulsing rapidly on
and o. In this way, a specially designed receiver can control numerous LNBs through a DiSEqC switching
box.
Dolby Digital
An encoding system that digitally compresses up to 5.1 discrete channels of audio (left front, centre,
right front, left surround, right surround) into a single Bitstream. A low frequency eect (LFE) channel is
included providing the sound needed for special eects.
DVB (Digital Video Broadcasting)
Set of standards that dene digital broadcasts using satellite, cable or terrestrial systems.
EPG (Electronic Programme Guide)
An electronic equivalent to a printed television listings magazine; it is an application used with digital settop boxes and digital television sets to list current and scheduled programs that are or will be available on
each channel, including a short summary or commentary for each program. The information supplied in
the EPG is sent and updated by the channel broadcaster.
FEC (Forward Error Correction)
A technique for error control of data transmission.
Frequency
The property of a signal measured in cycles per second (=Hz).
FTA (Free- To-Air)
An unscrambled broadcaster allowing customers to view channels or services without paying any
subscription.
HDD (Hard Disk Drive)
The primary computer storage medium, which is made of one or more aluminum or glass platters, coated
with a ferromagnetic material.
Hi-Fi (High Fidelity)
The characteristics of audio devices that can play back all the audio frequencies a person can detect,
which is the range of 16Hz-20KHz. Sometimes it is used to indicate good quality of audio devices such as
stereo tape recorders.
LNB (Low Noise Block)
A device that is mounted on an arm facing your satellite dish, focusing on satellite signals. A LNB converts
signals received from satellite to a lower frequency and sends them to a satellite receiver via coaxial cable.
NVOD (Near Video On Demand)
A technology that allows customers to view the start of popular programmes or lms within a short period
from the time they make their selection. This is possible as the broadcaster sends multiple copies with
staggered start times.
OSD (On Screen Display)
OSD displays the basic information necessary for the users to congure monitor or TV settings. OSD
information may include brightness, contrast, tuning, RGB adjustment, and screen size and position.
OTA (Over the Air)
A standard for the transmission of software for equipment, through a broadcast system. Manufacturers
reserve the right for deciding the release of the software for their products.
68
Appendix
English
PID (Packet Identier)
A set of numbers identifying stream packets contained within a single data stream.
PIP (Picture In Picture)
A function that allows you to display two dierent TV channels (or TV inputs) on a single screen.
Polarisation
The direction of the electrical and magnetic elds of a signal. Satellites use both vertical and horizontal
polarisation. Means that a frequency can be used twice.
PVR (Personal Video Recorder)
Video recorder that can record and playback programmes directly using the embedded hard disk drive(s).
QPSK (Quaternary Phase Shift Keying)
Digital modulation technique in which the carrier phase can have one of four possible values.
RF (Radio Frequency)
Television signals are modulated onto RF signals and are then demodulated by your television’s or STB’s
tuner.
RF Modulator
Enables you to output the receiver’s digital signals to a TVs RF (Aerial) input, allowing you to connect the
receiver to a TV set without a SCART connection.
RGB (Red – Green – Blue)
A technology for transmitting video signals via a cable. RGB is a system to represent red, green, and blue
colours on a TV or monitor display. Red, green, and blue can be combined in various proportions to obtain
any colour.
RS-232C
A connection to allow you to connect to a PC to update receiver’s software.
SCART
A 21-pin connector standard to connect two pieces of Audio-Visual equipment such as a TV and a VCR.
Each device will have a 21-pin female connection; a cable with male connection at both ends is used for
connecting the devices.
Smartcard
A credit card sized card that contains updateable chip memory. It is used for accessing Pay TV (encrypted)
channel or services when inserted into an appropriate receiver.
S/PDIF (Sony/Philips Digital Interface format)
A standard format for the transfer of digital audio signals. It allows the transfer of digital audio between
two devices without any conversion to and from analogue, which could degrade the signal quality.
S-Video (Super-Video)
Sometimes referred to as Y/C video; a technology for transmitting video signals via a cable. It is a video
signal transmission in which the luminance (brightness) and the chrominance (colour) signals are
transmitted separately to achieve superior picture clarity.
Transponder
A satellite is divided up in parts called transponders. A transponder is one distribution section of the
satellite. Each transponder can be used for distribution of several channels or services.
