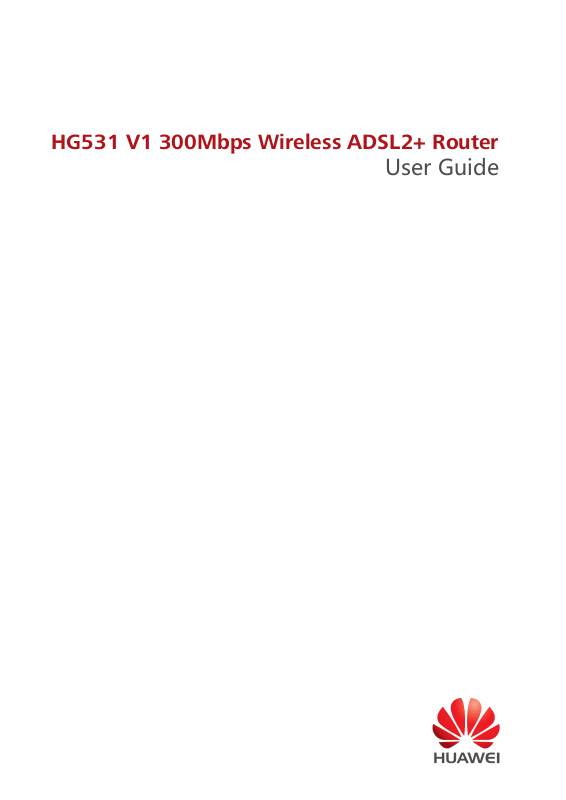

HG531 V1 300Mbps Wireless ADSL2+ Router
User Guide
Contents
1 Product Overview
1 Supported Features
2 Ports and Buttons
3 Indicators
2 Hardware Installation
5 Selecting an Installation Location
5 Connecting Cables
6 Powering On
3 Setting Network Parameters
6 Setting the Computer IP Address
7 Logging In to the Web Management Page
7 Setting Dial-Up Connection Parameters
4 Wireless Connection Setup
10 Enabling and Disabling the WLAN on the HG531 V1
10 Setting Up a Wireless Connection Using the WPS Button
10 Manually Setting Up a Wireless Connection
12 Changing Your WLAN Name and Password
5 Maintenance Guide
12 Changing the Web Management Page User Name and Password
12 Restoring Default Settings
6 FAQs
14 What Can I Do If I Cannot Open the Web Management Page?
14 What Can I Do If the HG531 V1 Cannot Access the Internet through a Wireless Network
Adapter Sometimes or If the WLAN Connection Is Unsteady?
14 What Can I Do If I Cannot Access the Internet?
16 I Often Need to Restart the HG531 V1 to Display Web Pages. What Can I Do?
7 Appendix
17 Technical Specifications
18 Default Settings
i
1
Product Overview
Supported Features
The HG531 V1 300Mbps Wireless ADSL2+ Router (HG531 V1 for short) is a high-speed wireless router
designed for home and small office use. This chapter descri bes the features suppor ted by the HG531 V1.
•
Digital subscriber line (DSL) provides rugged stability, and with the WPS button, zero configuration is
required for connections to multiple devices.
•
Network range allows any device in a home to be connected with a transmission rate of up to
•
A powerful firewall is provided with a flexible network configuration and quality of service (QoS)
strategy, enabling different home devices to enjoy high-speed and high-quality broadband services.
High-Bandwidth DSL Connectivity
The HG531 V1 incorporates a high-performance ADSL2+ processor and provides high-speed Internet
access and abundant services to be delivered through the digital subscriber line (DSL).
Routing
The HG531 V1 supports routing. It can obtain an IP address through PPP dial-up or Dynamic Host
Configuration Protocol (DHCP), which provides simultaneous access for multiple devices.
WLAN
The HG531 V1 supports multiple WLAN protocols, including 802. 11b/ g/ n ( 2. 4 GHz). Adopt i ng 8 02.11 n
multiple-input multiple-output antennas (MIMO) technology, t he HG531 V1 delivers a wireless
transmission rate of up to 300Mbps with its dual antennas. I n addition, the HG531 V1 support s multipl e
wireless encryption modes to provide a secure, reliable, and high-speed WLAN.
Wi-Fi Protected Setup
You can set up wireless connections between the HG531 V1 and Wi-Fi enabled devices by pressing the
Wi-Fi Protected Setup (WPS) button.
300Mbps
.
Firewall
The powerful built-in firewall effectively protects against viruses and malicious attacks.
ARP Attack Protection
You can bundle an IP address and MAC address bi-directionally, which effectively protects your LAN
from Address Resolution Protocol (ARP) attacks.
Easy Configuration and Management
The HG531 V1 provides password-protected web-based management pages to protect your personal data.
1
Ports and Buttons
Caution
1
2
345
No. Item Descripti on
Restores the HG531 V1 to its default settings after you press and
hold this button for 6 seconds or more while the HG531 V1 is
1 Reset
2 On/Off Powers the HG531 V1 on or off.
3 Power Connects to a power adapter.
4 LAN4~LAN1
5 ADSL Connects to a DSL filter or phone socket.
6 WLAN/WPS
powered on.
A reset will result in all custom data and settings being lost. Use
with caution.
Connects to Ethernet devices, such as computers, set-top boxes
(STBs), and switches.
•
Enables or disables the WLAN function.
Press this button (more than 3 seconds) to enable the WLAN function.
•
Starts Wi-Fi protected setup (WPS) negotiation.
Press this button (less than 3 seconds) to start WPS negotiation.
WLAN/
WPS
6
2
Indicators
Indicator Status Description
Power
ADSL
Internet
Steady green The HG531 V1 is powered on.
Off The HG531 V1 is powered off.
Blinking green A DSL connection is being activated.
Steady green
Off
Blinking green
Steady green
Off
A digital subscriber line (DSL) connection has b een set
up and activated.
No DSL connection has been set up, or the DSL
connection is faulty.
The HG531 V1 is powered off.
The HG531 V1 is connected to the Internet in router
mode, and data is being transmitted.
The HG531 V1 is connected to the Internet in router
mode, but no data is being transmitted.
•
The
HG531 V1
Internet.
•
The
HG531 V1
The HG531 V1 is powered off.
is in router mode, but not connected to the
is in bridge mode.
3
WLAN
WPS
LAN1~LAN4
Blinking green
Steady green
Off
Blinking green
Steady green
Off
Blinking green
Steady green
Off
The HG531 V1 has WLAN enabled, and data is being
transmitted.
The HG531 V1 has WLAN enabled, but is not
transmitting data.
WLAN is disabled.
The HG531 V1 is powered off.
The HG531 V1 is connected to a wireless client, such as
a computer with a wireless network adapter, over the
WLAN using the Wi-Fi Protected Setup (WPS)
function.
The WPS indicator blinks for 120 seconds or less.
The HG531 V1 is attempting to connect to a wireless
client over the WLAN using the WPS function.
The WPS indicator is steady on for 300 seconds, and
then turns off.
WPS is disabled.
The HG531 V1 is powered off.
The LAN port is connected to an Ethernet device with a
network cable, and data is being transmitted.
The LAN port is connected to an Ethernet device (such
as a computer) with a network cable, but no data is
being transmitted.
The LAN port is not connected to any Ethernet device.
The HG531 V1 is powered off.
4
2
Hardware Installation
Selecting an Installation Location
Place the HG531 V1 on a well-ventilated even surface without exposure to direct sunlight. For the best
possible performance, take note of the following:
•
Make sure there are no obstacles, such as concrete or wooden walls, between the computer and
•
Ensure that the computer and
electric fields, such as microwave ovens.
HG531 V1
are far from electric appliances that generate strong magnetic or
HG531 V1
Connecting Cables
If you have subscribed to digital subscriber line (DSL) broadband, you can connect the HG531 V1 to a
telephone port for Internet access.
Follow the steps in the following figure to connect devices properly.
9
8
.
1
a
LINE
5
1 Telephone wall jack 2 Splitter 3 Telephone
4 Desktop computer 5 Power adapter 6 Set-top Box
7 Laptop computer 8 Smart Phone 9 Pad
a LINE port b MODEM port c PHONE port
5
2
PHONE
MODEM
b
4
c
6
7
3
When configuring the HG531 V1 for the first time, use an Eth ernet cabl e t o co nnect the HG531 V1
to a computer.
Powering On
To power on the HG531 V1, press its power button.
After the HG531 V1 is powered on, the HG531 V1 indicator turns on. If the indicators do not behave as
expected, ensure that everything is plugged in correctly.
3
Setting Network Parameters
Setting the Computer IP Address
Before logging in to the HG531 V1 web management page, set the IP address of the computer that will
be used for the login.
On Windows 7
1.
Choose
Start
>
Control Panel
2.
Choose
Change adapter settings
3.
Double-click
4.
Select
On Windows Vista
1.
Choose
2.
Choose
Properties
3.
Double-click
4.
Select
Internet Protocol Version 4 (TCP/IPv4)
Obtain an IP address automatically
Start
>
Control Panel
Manage network connections
.
Internet Protocol Version 4 (TCP/IPv4)
Obtain an IP address automatically
>
Network and Internet
. Right-click
and
>
Network and Internet
. Right-click the connection that you want to change, and then click
and
>
Network and Sharing C enter
Local Area Connection
.
Obtain DNS server address automatically
>
Network and Sharing C enter
.
Obtain DNS server address automatically
and choose
Properties
.
. Click OK.
.
. Click OK.
.
On Windows 8
1.
Choose
Settings
>
Control Panel
2.
Choose
Change adapter settings
Properties
.
3.
Select
Internet Protocol Version 4 (TCIP/IPv4)
4.
Select
Obtain an IP address automatically
>
Network and Internet
. Right-click the connection that you want to change, and then click
and
>
Network and Sharing Center
, and click
Obtain DNS server address automatically
6
Properties
.
.
. Click OK.
On MAC OS X
1.
Choose
2.
3.
4.
5.
Click
Click
Select
Click
AirPort
TCP/IP
Automatically
Apply
System Preferences
, and choose
tab.
.
>
Network
Advanced
in
Configure IPv4
>
Advanced
.
in the lower right corner.
, and click OK.
Logging In to the Web Management Page
The HG531 V1 provides an intuitive web management page where you can view or set the HG531 V1
parameters.
Before you log in to the HG531 V1 web management page, ensure that the computer used for the login is
connected to the HG531 V1 and has been configured to automatically obtain an IP address or assigned
with a static IP address.
1.
Open a browser. In the address box, enter
2.
Enter the login user name (
To protect against unauthorized access, change the user name and password after the first l ogin.
user
by default) and password (
192.168.1.1
. Press
Enter
.
@User1234
by default). Click
Login
.
Setting Dial-Up Connection Parameters
The HG531 V1 works in bridge mode by default. You need to install and conf igure a di al-up connection
on your computer, and perform it each startup.
Before setting dial-up connection parameters, verify that the HG531 V1 is corr ectly connected to your
computer and you have the dial-up connection account name and password provided by your Internet
service provider (ISP). This section demonstrates how to set up a Point-to-Poin t Protocol over Ethernet
(PPPoE) connection on Windows.
On Windows 7
1.
Choose
Start
>
Control Panel
2.
Under
Change your networking settings
3.
In the
Set Up a Connection or Network
4.
Click
Broadband (PPPoE)
5.
In
User name
and
ISP. In
Connection name
connection
. Then click
Password
>
Network and Internet
, click
window, select
.
, enter the dial-up connection account name and password provided by your
, name the dial-up connection. Select or deselect
Connect
.
>
Network and Sharing C enter
Set up a new connection or network
Connect to the Internet
and click
Allow other people to use this
.
.
Next
.
7
6.
Return to the
Network and Sharing Center
page. Click
the dial-up connection you just set up and choose
displayed dialog box, click
Yes
.
On Windows Vista
1.
Choose
Start
>
Control Panel
2.
Click
Set up a connection or network
3.
In the displayed window, select
4.
Click
Broadband (PPPoE)
5.
In
User name
and
Password
ISP. In
Connection name
connection
6.
Return to the
. Then click
Network and Sharing Center
>
Network and Internet
.
Connect to the Internet
.
, enter the dial-up connection account name and password provided by your
, name the dial-up connection. Select or deselect
Connect
.
page, Click
for the dial-up connection you just set up and choose
displayed dialog box, click
Yes
.
On Windows 8
1.
Choose
Settings
>
Control Panel
2.
In the displayed window, click
3.
In the displayed window, click
4.
Click
Broadband (PPPoE)
5.
In
User name
and
Password
ISP. In
Connection name
connection
6.
Return to the
7.
Under
. Then click
Settings
Connections
, select the connection you just set up and click
>
Network and Internet
Set up a new connection or network
Connect to the Internet
.
, enter the dial-up connection account name and password provided by your
, name the dial-up connection. Select or deselect
Connect
.
page, Click
Available
to see a list of available connection types.
connection window.
8.
Click
Dial
to connect.
Change adapter settings
Create Shortcut
>
Network and Sharing C enter
and click
from the shortcut menu. In the
Next
.
Manage network connections
Create Shortcut
>
Network and Sharing Center
from the shortcut menu. In the
.
.
Connect
. Right-click the ico n fo r
.
Allow other people to use this
. Right-click the icon
.
Allow other people to use this
to open the dial-up
On MAC OS X
1.
Choose
System Preferences
2.
Click + to add a new network connection.
3.
In the displayed dialog, select
cable connection) or
>
Network
.
PPPoE
from the
Airport
(for wireless connection) from th e
Interface
enter a service name (default is PPPoE) you specified in
drop-down combo box, then select
Ethernet
drop-down combo box, and
Service Name
.
8
Ethernet
(for
4.
Choose the network name you set from the services list, and enter the dial-up connection account name
and password provided by your ISP in
password
. Then click
5.
Select
Show PPPoE status in menu bar
6.
Click
Advanced
7.
In the displayed dialog, select settings as needed.
8.
Click OK.
9.
Return to the
.
Network
Connect
page, click
.
Account Name
.
Apply
and
Password
. Select or deselect
Remember this
.
After you successfully set up a PPPoE connection, a dial-up connection icon is displayed on your
computer desktop.
To connect to the Internet, double-click the dial-up connection icon. In the displayed dialog box, cl ick
Connect
.
9
4
Wireless Connection Setup
Enabling and Disabling the WLAN on the HG531 V1
The following two methods are available to enable and disable the WLAN on the HG531 V1.
Using the WLAN Button
Press the WLAN button in the HG531 V1 to enable or disable the WLAN. To ascertain whether the
WLAN is enabled, view the WLAN indicator.
Using the Web Management Page
1.
Log in to the web management page.
2.
In the navigation tree, choose
3.
Configure wireless.
•
Select
Enable WLAN
•
Clear
Enable WLAN
to disable the WLAN.
Basic
>
WLAN
to enable the WLAN.
.
Setting Up a Wireless Connection Using the WPS Button
Push the WPS button once to quickly set up a wireless connection bet ween the HG531 V1 and any WPScapable device.
Before you set up a wireless connection using the WPS button, verify the following:
•
The wireless network security mode of the
•
The wireless device (laptop, tablet, or mobile phone) to connect to the
1.
Press the WPS button on the wireless device to start WPS negotiation. For details, see the user guide for
the wireless device.
2.
Within 2 minutes, press and hold the WPS button (less than 3 seconds) on the HG531 V1. The WPS
indicator blinks.
When the WPS indicator on the HG531 V1 is steady on, a connection between the HG531 V1 and wireless
device is set up. The WPS indicator is on for 300 seconds, then turns off.
HG531 V1
is WPA2-PSK or WPA-PSK/WPA2–PSK.
HG531 V1
is WPS-capable.
Manually Setting Up a Wireless Connection
The wireless configuration software provided by Windows i s used as an example to describe ho w to set
up a wireless connection.
You can also use the tool built into the network adapter to set up a wireless connection. For details,
see the network adapter's user guide.
10
Before setting up a wireless connection, record the WLAN name and password of the HG531 V1. The
default WLAN name and password are printed on the HG531 V1 cover label.
Before setting up a wireless connection, record the WLAN name and password of the HG531 V1.
On Windows 7
1.
Click in the lower right corner of your desktop.
2.
From the wireless network list, select the WLAN provided by the HG531 V1. Click
3.
In the displayed dialog box, enter the WLAN password and click OK.
4.
In the wireless network list, check the WLAN connection status. If the status is
computer is wirelessly connected to the HG531 V1.
On Windows Vista
1.
Choose
Start
>
Control Panel
networks
.
2.
In the
Connecting to a network
3.
In the displayed dialog box, enter the password and click
4.
In the wireless network list, check the WLAN connection status. If the status is
computer is wirelessly connected to the HG531 V1.
On Windows 8
1.
Choose
Settings
from the right side of the desktop.
2.
Click
Available
to list the available wir ele ss n etw o r ks .
3.
Under
Connections
4.
In the displayed dialog box, enter the your WLAN password and click
5.
You will be asked if you would like to enable sharing between computers and connect to devices within
the network. Selecting
6.
In the wireless network list, check the WLAN connection status. If the status is
computer is wirelessly connected to the HG531 V1.
On MAC OS X
>
Network and Internet
window, double-click the WLAN provided by the HG531 V1.
, select the WLAN provided by the HG531 V1 and click
Yes
will turn on sharing and No will leave it off.
>
Network and Sharing C enter
Connect
.
Next
Connected
Connected
Connect
.
Connected
Connect
.
, the
>
Manage wireless
, the
.
, the
1.
Click at the top right side of your desktop.
2.
Click
Turn Airport On
3.
From the wireless network list, Select the WLAN provided by the HG531 V1.
4.
In the displayed dialog box, enter your WLAN password and click
5.
When a check mark appears next to the HG531 V1's SSID, the computer is wireless connected to the
HG531 V1.
.
Join
.
11
Changing Your WLAN Name and Password
WLAN access requires the WLAN name and password. To improve your WLAN security, regularly
change your WLAN name and password.
1.
Log in to the web management page.
2.
In the navigation tree, choose
3.
On the displayed page, enable your WLAN.
4.
On the
Wireless Settings
shared key
5
, and click
Maintenance Guide
Basic
>
WLAN
.
area, enter your desired WLAN name and password in
Submit
.
SSID
and
WPA pre-
Changing the Web Management Page User Name and Password
The correct user name and password are required to log in to the web management page. Regular changes
to the web management page user name and password can effectively prevent unauthorized users from
logging in and modifying important parameters.
1.
Log in to the web management page.
2.
In the navigation tree, choose
3.
In
New user name
4.
In
Current password
5.
In
New password
again.
6.
Click
Submit
When modify password successfully, this page will jump to the login page, ent er the new user name
and password to log in.
If you forget the password , you can press and hold the
user name and password of the Web management page will back to factor y value. This operati on
will make your own configuration data lost, please perform this operation with caution.
, enter your desired user name.
, enter the currently used password.
, enter the new password you specified. In
.
Maintenance
>
Account
.
Confirm password
Reset
enter the new password
button for 6 seconds or more, then the
Restoring Default Settings
Using the Reset Button
If you forget the login password to the web management page or could not access the web management
page, use the reset button on the HG531 V1 rear panel t o restore the HG531 V1 to its default settings.
12
Perform this operation with caution. After the HG531 V1 is restored to its default settings, all custom
data and settings will be lost, and th e password will be restored to user.
1.
Press the HG531 V1 power button to power the HG531 V1 on.
2.
Press and hold the reset button for 6 seconds or more.
The HG531 V1 will restart, which will cause temporary network interruptions.
Using the Configuration Tool
If the HG531 V1 parameter settings were configured incorrectly, log i n to the web management page to
reload the default configuration file and restore the HG531 V1 t o its default sett ings. Perform t his
operation with caution. After the HG531 V1 is restored to its default settings, all custom data and settings
will be lost, and the password will be restored to user.
1.
Log in to the web management page.
2.
In the navigation tree, choose
3.
In
Reset
, click
Restore Default Settings
4.
In the displayed dialog box, click OK.
Maintenance
.
>
Device
.
13
6
FAQs
What Can I Do If I Cannot Open the Web Management Page?
1.
Open Internet Explorer. Choose
all check boxes are deselected.
2.
Check that the computer IP address is
3.
Check that the cables are securely connected to the
4.
Ensure that the user name and password are correct.
If the problem persists, restore the HG531 V1 to its default settings.
Tools
>
192.168.1.*
Internet Options
>
Connections
. (* is any integer from 2 to 254.)
HG531 V1
and that the LAN port's indicator is on.
>
LAN settings
, and ensure that
What Can I Do If the H G531 V1 Ca nnot Access the Inte rnet through
a Wireless Network Adapter Sometimes or If the WLAN Connection
Is Unsteady?
This is probably because the HG531 V1 has its cables connected loosely, is placed too close to electronic
appliances with intensive interference, or is too far from the computer. Verify that:
1.
The power and telephone cables are correctly connected to the
2.
Your computer and the
electric fields, such as microwave ovens, refrigerators, and cordless telephones.
3.
The
HG531 V1
the
HG531 V1
and computer.
4.
The
HG531 V1
5.
The angle between the
Do not use the HG531 V1 during thunderstorms, as the signal st rength may be unsteady and the
HG531 V1 itself may be damaged due to lightning strikes.
HG531 V1
are far from electric appliances that generate strong magnetic or
is in an open area, and there are no obstacles, such as concrete or wooden walls, between
is close to the computer.
HG531 V1
and computer is appropriate.
HG531 V1
.
What Can I Do If I Cannot Access the Internet?
1.
Check that the
further checks as follows:
a.
Check that the
b.
Check that electricity comes from the socket and that the power i nput from the socket meets the
requirements described on the label of the
Power
indicator on the HG531 V1 is steady on. If the
HG531 V1
is turned on.
HG531 V1
's power adapter. If the voltage is unstable, for example,
14
Power
indicator is off, perform
if the voltage is too high or too low, do not use the
HG531 V1
.
c.
Check that the
If the
Power
2.
After powering on the HG531 V1, wait for about 3 minutes. Then check whether the
HG531 V1
is securely connected to the socket using its power adapter.
indicator is still off, contact an authorized maintenance center.
HG531 V1
. Wait until the volta ge recovers, and then use the
ADSL
indicator
turns steady on.
a.
Check that the telephone line is correctly and securely connected, especially the connection between
the telephone line and the splitter.
b.
Check that the
HG531 V1
and telephone line are located far from any electric appliances that generate
strong magnetic or electric fields. Replace the telephone line when necessary.
If the
ADSL
indicator is still off, contact your network service provider.
3.
Check whether the
a.
Check that the network adapter on your computer is enabled.
b.
Check that the network cable between the
LAN
indicator is on. If the
LAN
indicator is off, perform furt he r check s as fo llo ws:
HG531 V1
and the computer is securely connected. Remove
and then insert the network cable or replace the network cable when necessary.
If the
LAN
indicator is still off, contact an authorized maintenance center.
4.
Check that the driver for the network adapter is correctly installed. The following example uses a
computer running the Windows XP operating system to check whether the driver for the network
adapter is installed:
a.
Right-click
b.
In the
c.
In the right pane of the
My Computer
Computer Management
, and choose
Manage
window, click
Computer Management
Device Manager
from the displayed shortcut menu.
.
window, click
Network adapters
.
If no network adapter is found or if a question mark (?) or an exclamation mark ( !) is displayed next
to the network adapter icon, the driver for the network adapter is not correctly installed. Re-install the
driver.
5.
Check that PPP dial-up software is installed and parameters are set correctly. For details about
parameter settings, see the user guide for the PPP dial-up software.
6.
Check that you have entered the correct user name and password required by the PPP dial-up software.
The user name and password are provided by your network service provider.
7.
Check that you can use the PPP dial-up software to set up dial-up connection. If the dial-up connection
fails, perform further checks as follows:
a.
Close the PPP dial-up software, and power off the
HG531 V1
. After 5 minutes, power on th e
HG531 V1
use the PPP dial-up software to dial again.
b.
Restore the
HG531 V1
to its default settings.
If the problem persists, contact your network service provider.
, and
15
8.
Check that the proxy server of the browser is correctly configured. The following example uses
Internet Explorer on the Windows XP operating system to check whether the proxy server of the
browser is correctly configured:
a.
Launch Internet Explorer.
b.
Choose
Tools
>
Internet Options
c.
In the
Internet Options
d.
In the
Local Area Network (LAN) settings
e.
In the
Proxy server
server for your LAN (These settings will n ot apply to d ial-up or VPN conne ctions).
9.
Try to access more websites to check whether the
persists, contact your network service provider.
area of the
.
dialog box, click the
Local Area Network (LAN) Settings
Connections
area, click
tab.
LAN Settings
HG531 V1
.
dialog box, check that the
can access these websites. If the problem
Use a proxy
check box is cleared.
I Often Need to Restart the HG531 V1 to Display Web Pages. What
Can I Do?
Verify the following:
1.
The
HG531 V1
and other devices such as telephones or fax machines are connected to the plain old
telephone service (POTS) line through a digital subscriber line (DSL) filter. For details about how to
install a DSL filter, see the description in the DSL filter manual.
2.
Cables are securely connected to
3.
Your computer and the
electric fields, such as microwave ovens, refrigerators, and cordless telephones.
If the problem persists, contact your Internet Service Provider .
HG531 V1
ports. Otherwise, network stability may suffer.
HG531 V1
are far from electric appliances that generate strong magnetic or
16
7
Appendix
Technical Specifications
Item Specifications
Power supply 12 V DC, 0.5 A
Power consumption < 5 W
Ambient operating
temperature
Ambient humidity 5% to 95% RH (non-condensing)
Dimensions (H x W x D)
Weight About 360 g
DSL standard
DSL transmission rate
Wireless transmission rate
0°C to 40°C
31.5 mm x 118 mm x 100 mm (1.24 in. x 4.65 in. x 3.94 in.), antenna
excluded
ITU G.992.1 (G.dmt)
ADSL standard
ADSL2 standard
ADSL2+ standard
WLAN standard 802.11b, 802.11g, and 802.11n (2.4 GHz)
G.dmt
T1.413
ADSL
ADSL2+
802.11b Up to 11 Mbit/s
802.11g Up to 54 Mbit/s
802.11n (2T2R
antenna technology)
ITU G.994.1 (G.hs)
ANSI T1.413 Issue 2
ITU G.992.3 (G.dmt.bis) Annex A
ITU G.992.3 (G.dmt.bis) Annex L
ITU G.992.3 (G.dmt.bis) Annex M
ITU G.992.5 (G.dmt.bitplus) Annex A
ITU G.992.5 (G.dmt.bitplus) Annex M
Downlink: 8 Mbit/s
Uplink: 896 kbit/s
Downlink: 12 Mbit/s
Uplink: 1024 kbit/s
Downlink: 24 Mbit/s
Uplink: 1024 kbit/s
Up to 300 Mbit/s
17
Default Settings
Parameter Default Value
LAN port IP address 192.168.1.1
LAN port subnet mask 255.255.255.0
User name to log in to the web
configuration page
Password to log in to the web
configuration page
WLAN name (SSID) Labeled on the product cover
WLAN password (WLAN Key) Labeled on the product cover
Dynamic Host Configuration
Protocol (DHCP) server
WLAN Enabled
8
For More Help
Please visit http://consumer.huawei.com/en/support/hotl ine for recently updated hotline and email
address in your country or region.
user
@User1234
Enabled
9
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without pri or
written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible licensors.
Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt ,
extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by respective copyright holder s.
18
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the property of their respective
owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities
and settings of local network, and therefore may not be activated or may be limited by local network
operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.
Huawei reserves the right to change or modify any information or specifications contained in this manual
without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTI CULAR PU RPOSE, ARE MAD E IN REL ATION TO THE ACCUR ACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR
ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR
NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF
HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsi ble to
obtain all necessary governmental permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
19
ErP Product Information
Hereby, Huawei Technologies Co.,Ltd. declares that the product meets the directive 2009/125/EC and its
implementation regulation (EC) NO 1275/2008 amended by (EC) 278/2009,(EC) 642/2009, (EU) 617/
2013,(EU) 801/2013,and its implementation regulation (EC) NO 278/2009.
The power consumption of product in networked standby if all wired network ports are connected and all
wireless network ports are activated is 4.0 W.
For the product information displayed on the manufactu rers' f reely accessi ble websit es requir ed by (EU)
No 801/2013, please visit http://consumer.huawei.com/certifi cation.
20
202645_03
Loading...
