Huawei HG520B User Manual
EchoLife HG520b Home Gateway
User Guide
HUAWEI TECHNOLOGIES CO., LTD.
EchoLife HG520b Home Gateway User Guide
Issue 01
Date 2009-03-20
Part Nubmer |
202116 |
Huawei Technologies Co., Ltd.
Address: |
Huawei Industrial Base |
|
Bantian, Longgang |
|
Shenzhen 518129 |
|
People's Republic of China |
Website: |
http://www.huawei.com |
Email: |
terminal@huawei.com |
Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, HUAWEI, and
are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be
activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein.
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Exampleuse only shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital Device, pursuant to Part 15 of the FCC rules.
Safety Precaution
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons.
Channel
This equipment marketed in USA is restricted by firmware to only operate on 2412~2462MHz channel 01~11.
Safety Precautions
For safety purposes, carefully read through these safety precautions and observe them during operation.
Basic requirements
zKeep the device dry during storage, transportation, and operation of the device.
zPrevent collision of the device with other objects during storage, transportation, and operation of the device.
zDo not attempt to dismantle the device. In case of any fault, contact the authorized maintenance center for assistance or repair.
zWithout prior written consent, no organization or individual is permitted to make any change to the structure, safety, and performance design of the device.
zWhile using the device, observe all applicable laws, directives and regulations, and respect the legal rights of other people.
Environmental Requirements
zPlace the device in a well-ventilated place. Do not expose the device to direct sunlight.
zKeep the device clean, free of dust and stain.
zDo not place the device near a water source or in a damp area.
zPlace the device on a stable surface.
zDo not place any object on the top of the device. Reserve a minimum space of 10 cm at the four sides and on the top of the device for heat dissipation.
zDo not place the device on or near inflammable materials such as foam.
zKeep the device away from heat source or fire, such as a radiator or a candle.
zKeep the device away from any household appliances with strong magnetic field or electric field, such as microwave oven, refrigerator, or mobile phone.
Operation Requirements
zDo not allow children to play with the device or accessories. Swallowing the accessories may be fatal.
zUse the accessories such as the power adaptor provided or authorized only by the manufacturer.
zMake sure that the device does not get wet. If water gets into the device, disconnect the power supply immediately and unplug all the cables connected to the device, such as the power cable, and then contact the authorized maintenance center.
zThe power supply of the device must meet the requirements of the input voltage of the device.
zBefore plugging or unplugging any cable, shut down the device and disconnect the power supply.
zWhile plugging or unplugging any cable, make sure that your hands are dry.
zDo not step on, pull, or stretch any cable. Otherwise, the cable may get damaged, leading to malfunction of the device.
zDo not use old or damaged cables.
zKeep the power plug clean and dry, to prevent electric shock or other dangers.
zDuring lightning, disconnect the device from the power supply, and unplug all the cables connected to the device, such as the power cable, telephone cable, to avoid lightning strike.
zIf the device is not used for a long time, disconnect the power supply and unplug the power plug.
zIf smoke, sound, or smell is emitted from the device, stop using the device immediately, disconnect the power supply, unplug the power supply and other cables. Contact the authorized maintenance center for repair.
zMake sure that no object (such as metal shavings) enters the device through the heat dissipation vent.
zDo not scratch or abrade the shell of the device. The shed painting may lead to skin allergy or malfunctions of the device. If the shed painting material drops into the host, a short circuit may occur.
Cleaning Requirements
zBefore cleaning the device, stop using it, disconnect the power supply, and unplug all the cables connected to the device, such as the power cable, and telephone cable.
zDo not clean the device cover with any cleaning solution or cleanser spray. Use a piece of soft cloth to clean the device cover.
Wireless Product Usage Requirements
zKeep the device away from magnetic storage devices (e.g., a magnetic card or a floppy disk), to prevent loss of the stored information.
zStop using the device or disconnect the power supply in situations where wireless device is prohibited or using of a wireless device leads to interference or danger.
zThe user who uses an electronic assistant medical-treatment device needs to confirm with the service center regarding the effects of the radio wave on this device.
zDo not take the device to the operation theater, Intensive Care Unit (ICU) or the Coronary Care Unit (CCU).
zWhen using the device maintain distance of 20 cm between your body and the antenna of the device.
zDo not drop, throw or try to bend your wireless device.
zDo not place the wireless device and its accessories in high temperature areas.
Environmental Protection
Do not dispose the abandoned device in a garbage can. You need to dispose it according to the local regulations on disposing of device packing materials, exhausted battery and abandoned device, and support the recycling activity.
|
Table of Contents |
|
Chapter 1 Introduction ........................................................................ |
1 |
|
1.1 |
Functions and Features......................................................... |
1 |
1.2 |
Hardware Configuration ........................................................ |
1 |
|
1.2.1 Front Panel ................................................................. |
2 |
|
1.2.2 Rear Panel.................................................................. |
3 |
|
1.2.3 Splitter......................................................................... |
4 |
Chapter 2 Installation of the HG520b ................................................. |
5 |
|
2.1 |
Preparation............................................................................ |
5 |
2.2 |

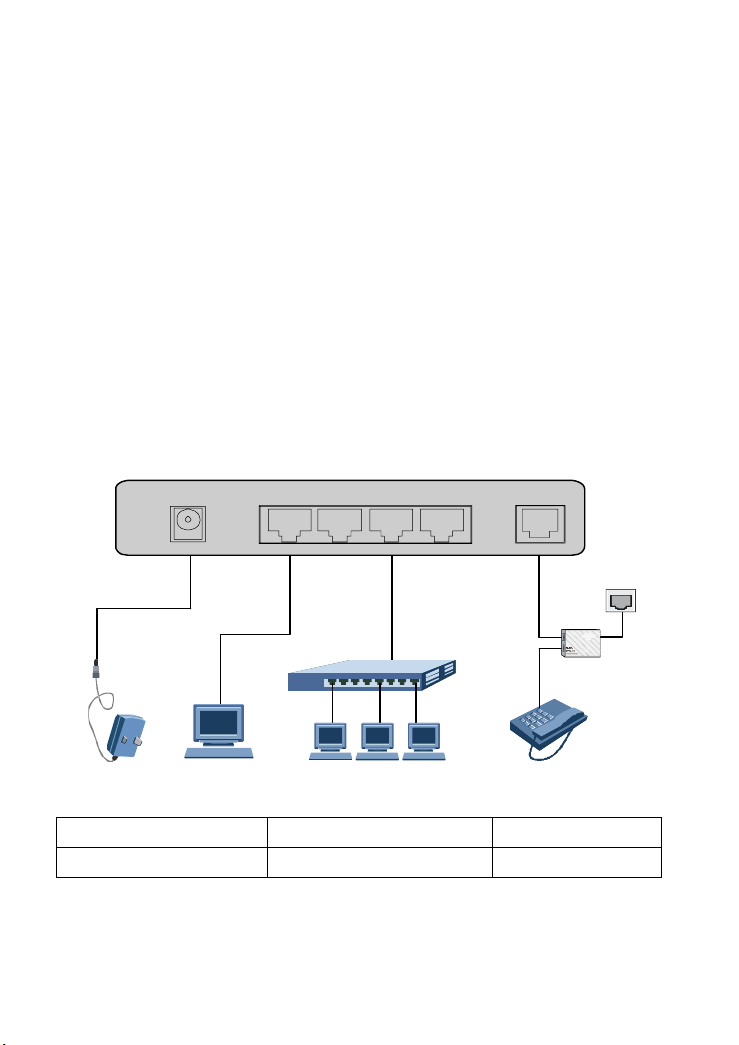

Connecting the HG520b........................................................ |
5 |
2.3 |
Establishing Configuration Environment ............................... |
6 |
|
2.3.1 Parameter Configuration............................................. |
6 |
|
2.3.2 Steps........................................................................... |
6 |
2.4 |
Web Configuration Page ....................................................... |
7 |
Chapter 3 Service Configuration......................................................... |
8 |
|
3.1 |
Service Modes of the HG520b .............................................. |
8 |
3.2 |
Configuring the Bridge Mode .............................................. |
10 |
|
3.2.1 Preparation ............................................................... |
10 |
|
3.2.2 Steps......................................................................... |
10 |
3.3 |
Configuring the PPPoA Mode ............................................. |
12 |
|
3.3.1 Preparation ............................................................... |
12 |
|
3.3.2 Steps......................................................................... |
12 |
3.4 |
Configuring the IPoA Mode ................................................. |
13 |
|
3.4.1 Preparation ............................................................... |
13 |
|
3.4.2 Steps......................................................................... |
14 |
i
3.5 |
Configuring the RFC2684B Mode ....................................... |
14 |
|
3.6 |
Configuring the PPPoE mode ............................................. |
14 |
|
3.7 |
Configuring the Wireless Mode ........................................... |
15 |
|
|
3.7.1 Preparation ............................................................... |
15 |
|
|
3.7.2 Steps......................................................................... |
15 |
|
Chapter 4 |
Other Settings .................................................................. |
17 |
|
4.1 |
Changing the IP Address of the LAN of the HG520b.......... |
17 |
|
4.2 |
Changing the Administrator Password................................ |
17 |
|
4.3 |
Restoring the Default Factory Settings ............................... |
18 |
|
Chapter 5 |
Troubleshooting ............................................................... |
20 |
|
5.1 |
Quick Failure Location......................................................... |
20 |
|
5.2 FAQs ................................................................................... |
21 |
||
Chapter 6 |
Technical Specifications .................................................. |
23 |
|
Chapter 7 |
Appendix .......................................................................... |
24 |
|
7.1 |
Default Factory Settings...................................................... |
24 |
|
7.2 |
Abbreviations....................................................................... |
24 |
|
ii
Chapter 1 Introduction
This chapter introduces functions and structure of the EchoLife HG520b Home Gateway (hereinafter referred to as the HG520b).
1.1 Functions and Features
The HG520b is a type of Asymmetric Digital Subscriber Line (ADSL) terminal. Data, video and audio are transmitted through the common telephone line at a higher rate by the HG520b.
The features of the HG520b are:
zHigh transmission rate: The maximum downstream rate is 24 Mbit/s; the maximum upstream rate is 1.2 Mbit/s.
zStrong network adaptability: The HG520b can be interconnected with multiple Digital Subscriber Line Access Multiplexer (DSLAMs).
zStrong maintainability: The HG520b provides multiple indicator status, which is convenient to locate failures.
zEasy operation: The HG520b has a simple operation for the configuration page.
1.2Hardware Configuration
This section introduces the appearance and the structure of the HG520b.
1
Note:
Figures of the front panel and the rear panel are only for your reference.
1.2.1 Front Panel
Figure 1-1 shows the front panel of the HG520b.
POWER |
WLAN LAN1 LAN2 LAN3 LAN4 ADSL INTERNET |
|
|
Figure 1-1 Front panel of the HG520b
Table 1-1 shows indicators in the front panel.
Table 1-1 Indicators in the front panel
|
Indicator |
|
Status |
|
Description |
|
POWER |
|
On |
The HG520b is powered on. |
|
|
|
Off |
The HG520b is powered off. |
||
|
|
|
|||
|
|
|
On |
WLAN function is enabled. |
|
|
|
|
|
|
|
|
WLAN |
|
Blinking |
|
There are data being transmitted in the |
|
|
|
WLAN interface. |
||
|
|
|
|
|
|
|
|
|
Off |
WLAN function is disabled. |
|
|
|
|
On |
|
The connection is established in the LAN |
|
|
|
|
interface. |
|
|
|
|
|
|
|
|
LAN 1–4 |
|
Blinking |
|
There are data being transmitted in the |
|
|
|
LAN interface. |
||
|
|
|
|
|
|
|
|
|
Off |
|
No connection is established in the LAN |
|
|
|
|
interface. |
|
|
|
|
|
|
|
2
