Huawei HG232f User Manual

HG232f 300Mbps Wireless Router
User Guide
HUAWEI TECHNOLOGIES CO., LTD.
HG232f 300Mbps Wireless Router
V100R001
User Guide
202547_03
Huawei Technologies Co., Ltd. provides cust omers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang Shenzhen 518129
People's Republic of China Website: http://www.huawei.com Email: mobile@huawei.com
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reprod uced or tran sm itted in any form o r by any means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, , and
Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of
their respective owners.
are trademarks or registered trademarks of Huawei
Notice
Some features of the product and its access ories described herein rely on the softw are installed, capacities and settings of local network, and may not be acti va ted or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manu al w itho ut prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS’’. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTI ES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply w i th al l applicable export or import laws and regulatio ns a nd will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein.
Privacy Policy
Please refer to our privacy policy on our websites for the information about how we protect your personal information.
HG232f 300Mbps Wireless Router
User Guide
Contents
Contents
1 Product Introduction ............................................................................................ 1-1
2 Hardware Installation .......................................................................................... 2-1
2.1 Selecting a Position for the Router .............................................................................. 2-1
2.2 Installing the Hardware ............................................................................................... 2-1
2.3 Connecting the Cables ................................................................................................. 2-2
2.3.1 Installing the Router on a Community Broadband Network ........................... 2-2
2.3.2 Installing the Router on an ADSL Broadband Network .................................. 2-3
2.3.3 Installing the Router on a CATV Broadband Network ................................... 2-3
2.4 Powering On the Router .............................................................................................. 2-5
3 Configuration of Internet Access Parameters .................................................. 3-1
3.1 Logging In to the Web-based Configuration Utility .................................................... 3-1
3.2 Using the Setup Wizard ............................................................................................... 3-6
4 Configuration of WLAN Parameters ................................................................. 4-1
4.1 Setting Up a Wireless Connection Manually ............................................................... 4-1
4.1.1 Procedure on Computers Running Windows 7 ............................................... 4-1

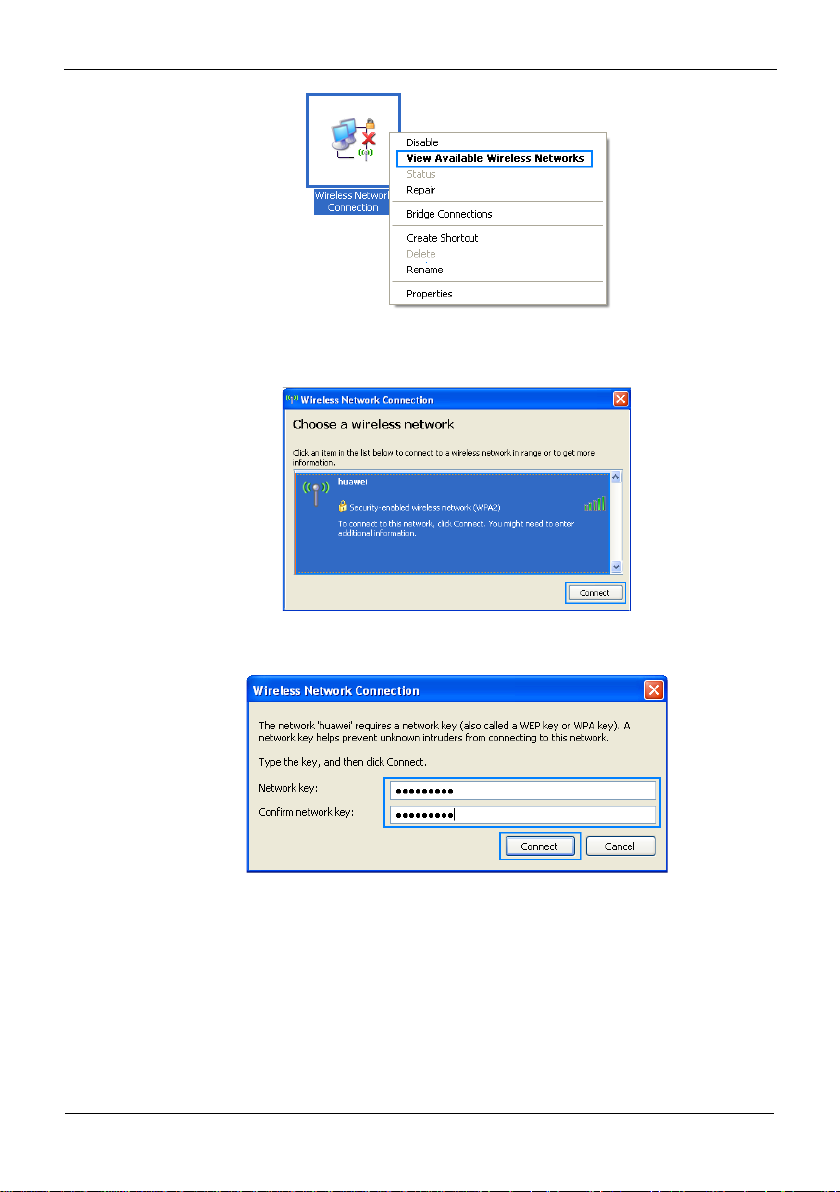

4.1.2 Procedure on Computers Running Windows XP ............................................ 4-2
4.2 Setting Up a Wireless Connection with the WPS Button ............................................ 4-4
5 Configuring Frequently Used Functions .......................................................... 5-1
5.1 Configuring Multiple Computers to Access the Internet Simultaneously ................... 5-1
5.2 Enabling or Disabling the WLAN Function ................................................................ 5-2
5.3 Improving the Security of a WLAN ............................................................................ 5-3
5.3.1 Hiding the Name of a WLAN ......................................................................... 5-3
5.3.2 Changing the Name of a WLAN ..................................................................... 5-5
5.3.3 Using Secure Encryption ................................................................................. 5-5

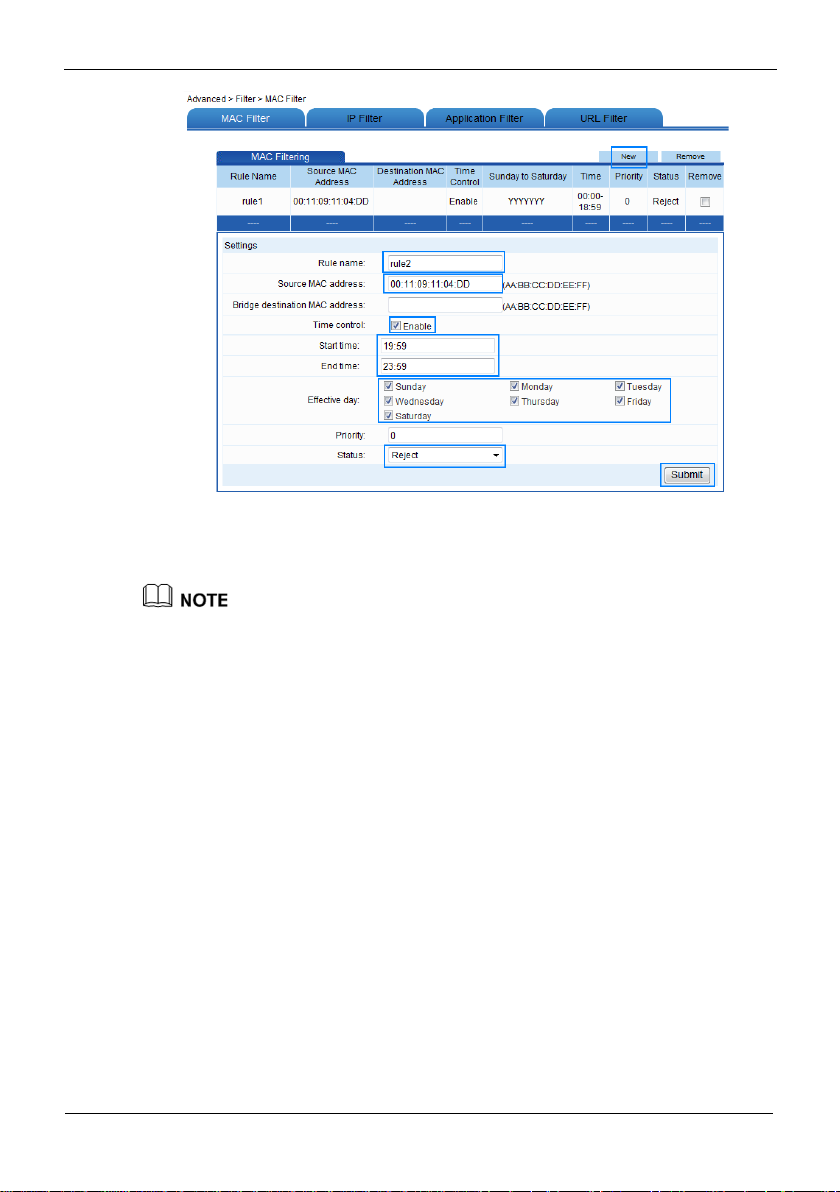

5.3.4 Allowing Only Specified Computers to Be Connected to a WLAN ............... 5-7
5.4 Controlling the Internet Access Rights of Computers ................................................. 5-8
5.5 Prohibiting Computers from Accessing Specified Web Sites.................................... 5-12
5.6 Setting the Available Bandwidth of a Computer ....................................................... 5-13
5.7 Preventing Attacks on the Internet ............................................................................ 5-15
5.8 Removing the Restriction Caused by the Binding of the Internet Access Account to the
MAC Address ................................................................................................................. 5-16
i
Contents
HG232f 300Mbps Wireless Router
User Guide
5.9 Allowing Internet Users to Access an Internal Resource Server ............................... 5-17
5.10 Expanding the Coverage of a WLAN ...................................................................... 5-20
6 Maintenance Guide .............................................................................................. 6-1
6.1 Changing the User Name and Password of the Web-based Configuration Utility ...... 6-1
6.2 Changing the Login IP Address of the Web-based Configuration Utility ................... 6-2
6.3 Backing Up or Importing a Configuration File ........................................................... 6-3
6.4 Restoring Default Settings ........................................................................................... 6-4
6.5 Upgrading Software .................................................................................................... 6-5
7 FAQs ........................................................................................................................ 7-1
8 Appendix ................................................................................................................ 8-1
8.1 Indicators ..................................................................................................................... 8-1
8.2 Interfaces and Buttons ................................................................................................. 8-3
8.3 Default Settings ........................................................................................................... 8-4
8.4 Technical Specifications .............................................................................................. 8-4
ii
HG232f 300Mbps Wireless Router
User Guide

1 Product Introduction

The HG232f 300Mbps Wireless Router (hereinafter referred to as the router) is a network access device designed for home users and small or home office (SOHO) users. On the network side, the router provides an Ethernet interface that is used to access the Internet at a high speed. On the user side, the router provides the wireless local area network (WLAN) function and four Ethernet interfaces through which you can connect various home terminal devices, such as personal computers (computers) and Internet Protocol (IP) set-top boxes (STBs), to the Internet.
It supports the following functions:
WLAN function
Wireless data rate of 300Mbit/s by using 2T2R external antenna
Compatibility with Institute of Electrical and Electronics Engineers (IEEE)
802.11b, 802.11g, and 802.11n
Establishment of a secure wireless connection by pressing the Wi-Fi Protected
Setup (WPS) button
Easy and secure configuration and management of a WLAN
64-bit and 128-bit Wired Equivalent Privacy (WEP) encryption
Security modes of Wi-Fi Protected Access (WPA and WPA2) and hybrid
cryptosystem
Wireless Distribution System (WDS) through which a WLAN can be expanded
Low radiation
Certification by the Wi-Fi Alliance
Integration of the functions of wireless access points (APs), routers, four-port
switches, and firewalls
WLAN standards (IEEE 802.11b, 802.11g, and 802.11n) and Ethernet standard
(IEEE 802.3u)
One 10/100 Mbit/s adaptive uplink Ethernet interface connected to a wide area
network (WAN) and four 10/100 Mbit/s adaptive downlink Ethernet interfaces connected to a local area network (LAN)
Multiple networking applications, such as accessing a broadband network in
Point-to-Point Protocol over Ethernet (PPPoE) dial-up mode, obtaining an IP address through the Dynamic Host Configuration Protocol (DHCP), and configuring a static IP address
IP quality of service (QoS)
IPv6
1 Product Introduction
1-1
1 Product Introduction
HG232f 300Mbps Wireless Router
User Guide
Traffic control through which you can manage the downloading rate of
peer-to-peer (P2P) software
Local and remote configuration through a Web-based configuration utility
1-2
HG232f 300Mbps Wireless Router
User Guide

2 Hardware Installation

2 Hardware Installation

2.1 Selecting a Position for the Router

Place the router in a stable and well-ventilated location and do not expose it to direct sunlight. For best results with the router WLAN function, place the router as follows:
Place the router in an open space and ensure that there are no obstacles, such as
walls and columns, between your computer and the router. Otherwise, the transmission of radio signals on the WLAN may be negatively impacted.
Ensure that the router and your computer are far from the electric appliances (such
as a microwave oven) that generate strong magnetic or electric fields.

2.2 Installing the Hardware

Adjust the antennas by referring to the direction of the arrows in the following figure.
When installing the base, ensure that the arrow on the base points in the same direction as the front panel of the router.
2-1
2 Hardware Installation
HG232f 300Mbps Wireless Router
User Guide
1. Power adapter of the router
2. Router
3. Desktop computer
4. Community broadband network interface on the wall (Ethernet interface)

2.3 Connecting the Cables

2.3.1 Installing the Router on a Community Broadband Network

In some communities, network service providers use Ethernet interfaces as Internet interfaces. In such a network, you can access the Internet through your computer if a network adapter is installed on the computer. Figure 2-1 Shows the cable connections of a community broadband network after the router is installed on the network
2-2
HG232f 300Mbps Wireless Router
User Guide
2 Hardware Installation
1. Power adapter of the router
2. Router
3. Power adapter of the ADSL modem
4. Desktop computer
5. ADSL modem
6. Telephone
7. Splitter
8. Telephone line interface on the wall

2.3.2 Installing the Router on an ADSL Broadband Network

On the ADSL broadband network, the ADSL modem provides an Ethernet interface used to connect a computer to the Internet.
Figure 2-2 Shows the cable connections of an ADSL broadband network after the router is installed on the network

2.3.3 Installing the Router on a CATV Broadband Network

On C AT V broadband network, the cable modem provides an Ethernet interface used to connect a computer to the Internet.
2-3
2 Hardware Installation
HG232f 300Mbps Wireless Router
User Guide
1. Power adapter of the router
2. Router
3. Desktop computer
4. Cable modem
5. Power adapter of the cable modem
6. CATV network interface on the wall
Figure 2-3 Shows the cable connections of a CATV broadband network after the router is installed on the network
2-4
HG232f 300Mbps Wireless Router
User Guide
2 Hardware Installation

2.4 Powering On the Router

Press the On/Off button on the side panel to power the router on. When the Power indicator light remains lit, you can consider that the router to be working properly.
To power the router off, press the On/Off button again, and then unplug the power adapter.
2-5
HG232f 300Mbps Wireless Router
User Guide

3 Configuration of Internet Access Parameters

3 Configuration of Internet Access Parameters

3.1 Logging In to the Web-based Configuration Utility

Most of the router parameters are pre-set before delivery to meet common home application scenarios. To check the router's working status or configure certain advanced network functions, use the web-based configuration utility.
To log in to the web-based configuration utility:
Step 1
Set the network connection of your computer to obtain an IP address automatically.
By default, the Dynamic Host Configuration Protocol (DHCP) function is enabled. The router then assigns an IP address to your computer automatically.
The configuration procedure on the computer running the Windows 7 operating system is as follows:
1. Choose start > Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings.
2. Right-click Local Area Connection and choose Properties.
3. Double-click Internet Protocol Version 4 (TCP/IPv4).
3-1
3 Configuration of Internet Access Parameters
HG232f 300Mbps Wireless Router
User Guide
4. Select Obtain an IP address automatically and Obtain DNS server address automatically, and click OK.
5. Go back to the former page, and click OK.
3-2
HG232f 300Mbps Wireless Router
User Guide
3 Configuration of Internet Access Parameters
The configuration procedure on the computer running the Windows XP operating system is as follows:
1. Choose start > Control Panel > Network and Internet Connections > Network Connections.
2. Right-click Local Area Connection and choose Properties.
3. Double-click Internet Protocol (TCP/IP).
4. Select Obtain an IP address automatically and Obtain DNS server address automatically, and click OK.
3-3
3 Configuration of Internet Access Parameters
User Guide
Step 2
HG232f 300Mbps Wireless Router
5. Go back to the former page, and click OK.
If you disable the DHCP function, please ensure that the IP address of the computer and that of the router LAN interface are in the same network segment to enable the computer to access the web-based configuration utility.
Open a web browser on your computer and ensure that the browser does not use any proxy servers.
Using Internet Explorer 8.0 as an example to ensure no proxy servers are used.
1. Start Internet Explorer. Choose Tools > Internet Options.
3-4
HG232f 300Mbps Wireless Router
User Guide
3 Configuration of Internet Access Parameters
2. On the Connections tab of the Internet Options dialog box, click LAN Settings.
3. In the Proxy server area, ensure that Use a proxy server for your LAN is cleared. If Use a proxy server for your LAN is selected, clear Use a proxy server for your LAN, and then click OK.
Step 3 Step 4
3-5
Enter
http://192.168.3.1
Enter the user name (
Username
and
Password
in the address bar, and then press
by default) and password (
admin
text boxes.
Enter
admin
.
by default) in the
3 Configuration of Internet Access Parameters
User Guide
Step 5
HG232f 300Mbps Wireless Router
Click
Login
.
The first time you log in to the web-based configuration utility, a wizard page used to
change the password is displayed. The wizard page will be displayed when you have not modified the default password. If you don’t to change the password, click Skip to skip the wizard and go immediately to the configuration wizard page.
You can also change the password by choosing Maintenance > Account, for details, see
chapter 7.1 "Changing the User Name and Password of the Web-based Configuration Utility".
To protect your router from unauthorized access, please change the default password. Enter a new password and Re-enter the new password to confirm it, and then click
.
Submit
After the default password is changed, the login page is displayed. Enter admin for user name and enter your new password to log in.

3.2 Using the Setup Wizard

After logging in to the web-based configuration utility, you can use the setup wizard provided by the utility to quickly configure the router.
When you configure the router for the first after logging in to the utility. To configure the router through the setup wizard:
3-6
time, you can view the setup wizard page
HG232f 300Mbps Wireless Router
User Guide
3 Configuration of Internet Access Parameters
If you have configured the router before, the setup wizard page will not be displayed after
logging in to the web-based configuration utility. However, you can still click Setup Wizard in the upper right corner to display the setup wizard page.
To skip the wizard and go immediately to the configuration page, click Here when the
following message displays: Click Here to enter the advanced configuration page.
Step 1 Step 2
Log in to the Web-based configuration utility.
Choose the network connection type and configure the network connection parameters.
Choose the connection type based on the application scenario. The following table describes the connection types.
Table 3-1 Configuring the network connection parameters
Application Scenario Connection Type
The user name and password are provided by your service provider.
The user name and password are provided by your service
PPPoE (recommended)
Bridge
provider. Set up a dial-up connection on one computer only.
Certain parameters, such as the static IP address and DNS
Static IP
server address, are provided by your service provider.
No parameters are provided by your service provider. The IP
DHCP
address is automatically assigned by the service provider.
If you choose PPPoE or Static IP, enter the parameters provided by your service
provider, and click Next.
If you choose DHCP or Bridge, click Next without changing any configurations.
3-7
3 Configuration of Internet Access Parameters
User Guide
Step 3
HG232f 300Mbps Wireless Router
If you choose PPPoE, Static IP, or DHCP, the computer automatically connects to the
Internet as long as the router is working properly.
If you choose Bridge, use the dial-up software on the computer to set up a dial-up
connection each time you access the Internet.
Set WLAN parameters, and then click
Next
.
The default SSID and key are printed on the router's rear label. To protect your wireless network from unauthorized access, change the SSID and key promptly.You can also configure the WLAN SSID and key by choosing Basic > WLAN.
----End
After you complete the preceding procedure, you can start surfing the Internet. You need to perform the preceding procedure on a computer only once. The next time you power your computer on, you can start surfing the Internet without any further configurations.
3-8
Loading...
+ 47 hidden pages
